1. 9/29/99 1 Open Programmable Architecture for Java-enabled Network Devices A Revolution! Tal Lavian Technology Center tlavian@NortelNetworks.com http://openet.lab.baynetworks.com

2. 9/29/99 2 Programmable Network Devices Openly Programmable devices enable new types of intelligence on the network

3. 9/29/99 3 Agenda The market is changing Local Computation Architecture New types of applications ORE - Oplet Run-time Environment API’s Summary

4. 9/29/99 4 Our Market is Changing Customers demand for Openness & programmability IEEE P1520 Lucent’s Programmable Networks Intel as driving force

5. 9/29/99 5 Lucent in Open Programmable Networks Lucent’s Programmable Network Conference 9/15-16 —Cosponsored: Sun, HP, Oracle, Novell, Compaq ……. —Over 500 participants, enthusiastic response SoftSwitch as programmable network —70 developers —Jun 99 - PR, Sept 99 - Prog Conference, October 99 - SDK, Jan 00 - APIs, Feb 00 - Dev Conference, May 00 - 3rd party Test Lab 7 R/E program $1.7B- Excel Switching acquisition (Programmable switch) Other products and directions in Openness and Programmability Marketing and PR on Lucent’s Openness

6. 9/29/99 6 ES - Openet Center Create an open development community to deliver customer-valued solutions based on Nortel Networks’ and partners’ products and technologies Openet Center creates a focus to open Nortel Networks platforms Promotes Open Network Computing This potentially changes landscape and rules of the networking industry

7. 9/29/99 7 Vision: JOOSE - the OS of Choice for Programmable Network Devices JOOSE - Java Oplet Operation System Environment JOOSE is OS of choice for routers and network devices. Be the Microsoft for Routers (or better way the Linux for Programmable Network Devices)

8. 9/29/99 8 Agenda The market is changing Local Computation Architecture Applications ORE - Oplet Run-time Environment API’s Summary

9. 9/29/99 9 Evolution vs. Revolution HW Net Static Net SW Net SW Intelligence Dynamic Time Performance / Enhancement Logarithmic Now 10M 100M 1G 10G Web Bandwidth x200 Last Mile 56kb ==>10Mb

10. 9/29/99 10 Changing the Rules of the Game Move Turing Machine onto device —Add local intelligence to network devices while (true) { doLocalProcessingOnDevic e() }

11. 9/29/99 11 Technology Concept Reversed Applet Server Web Server Web Browser Applet The JVM is in the Browser Download applications for local processing Download applications for local processing

12. 9/29/99 12 The Web Changed Everything Browsers —Introducing JVM to browsers allowed dynamic loading of Java Applets to end stations Routers —Introducing JVM to routers allows dynamic loading of Java Oplets to routers This Capability WILL Change Everything

13. 9/29/99 13 Network Device Dynamic loading Example: Downloading Intelligence Example: Downloading Intelligence HW OS JVM React Monitor Authentication Security Intelligence application

14. 9/29/99 14 Security and Stability secure download of Java Applications safe execution environment —insulate core router applications from dynamically loaded applications

15. 9/29/99 15 Device-based Intelligence Static-vs-Dynamic Agents —Static –SNMP set/get mechanisms –Telnet, User Interfaces (cli, web, etc…) —Dynamic closed-loop interaction on nodes –capable of dealing with new and difficult situations – autonomous and rational properties. –dynamically system monitoring & modification –report status and trends

16. 9/29/99 16 Agenda The market is changing Local Computation Architecture Applications ORE - Oplet Run-time Environment API’s Summary

17. 9/29/99 17 ORE - Oplet Run-time Environment Service A JVM ORE Service B Oplet 1 Service C Oplet 2 Why ORE?

18. 9/29/99 18 Java-enabled Device Architecture Device HW Operating System JVM Oplet C/C++ API Java API Device Code Oplet Runtime Env Device Drivers JNI JFWD API ORE Service Download

19. 9/29/99 19 Architecture Issues Green Threads -vs- Native Threads —Native threads: –provides non-interference between Java applications –difficult thread-to-thread communication and sharing of data between threads –creates a dependency on underlying RTOS –multiple JVM instances consume resources —Green Threads –single JVM must manage CPU & memory resources between concurrently running threads

20. 9/29/99 20 Evolution of Router Architecture Line card (forwardingbuffering) (forwardingbuffering) (forwardingbuffering) (forwardingbuffering) CPUBuffermemory Routing software w/ COTS OS Routing software w/ COTS OS NI as line card NI as line card NI as line card... RoutingCPUBuffermemory Routing software w/ router OS Routing software w/ router OS Centralized, CPU-based Model Distributed, line-card based Model Control + Forwarding Functions combined Control separated From forwarding Added scalability, Flexibility, extensibility

21. 9/29/99 21 Explicit Separation of Control Plane from Data Forwarding Forwarding Element Control Element Forwarding Element Forwarding Routing Shared Memory Packet Flow Packet Flow Forwarding Forwarding/ Flow/filter Table Download CPU Line Card Traditional device Line Card

22. 9/29/99 22 Separation of Control and Forwarding Planes Centralized, CPU-based Router Forwarding-Processors based Router based Router Control + Forwarding Functions combined Control separated From forwarding CPU Routing SW CPU Control Plane Forwarding Processor Forwarding Processor Forwarding Processor SlowWire Speed

23. 9/29/99 23 Open Networking Architecture Network Services Protocol Connect Transport Interface Real-time OS Network Si Network OS Network Services Objects Server Operating System Unified policy-based management Forwarding element Control element Application server Today Networking Box Level Hardware Proprietary NOS Proprietary Apps Custom Switch ASIC’s Vertical Proprietary Open IP Telephony VPN Policy Server Firewall Copyright - Intel

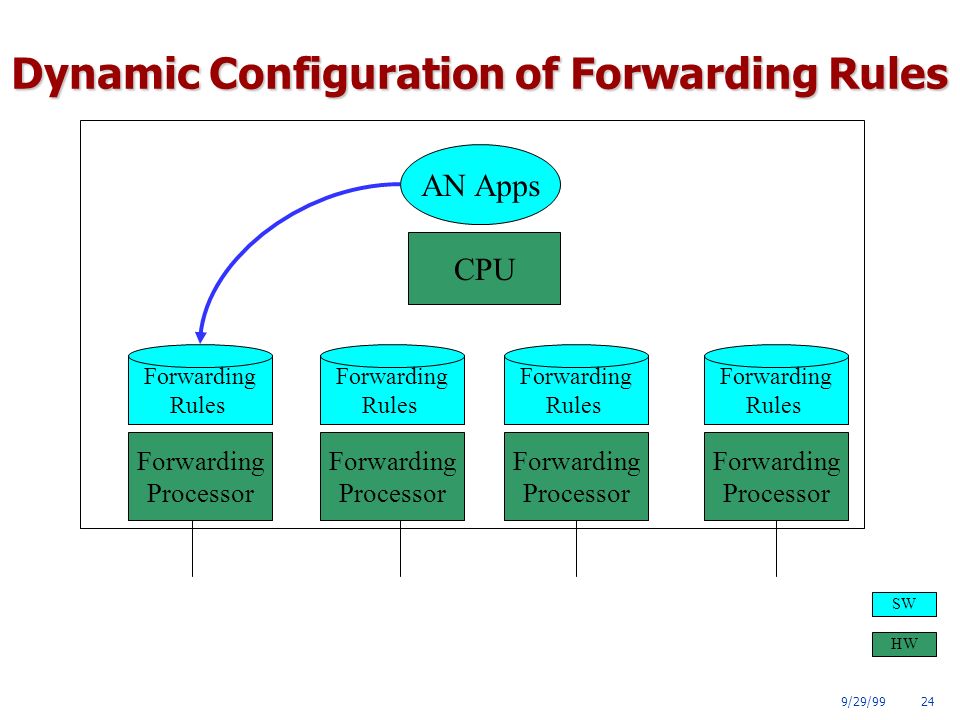

24. 9/29/99 24 Dynamic Configuration of Forwarding Rules CPU Forwarding Processor Forwarding Processor Forwarding Processor Forwarding Processor Forwarding Rules SW HW Forwarding Rules Forwarding Rules Forwarding Rules AN Apps

25. 9/29/99 25 Real-time forwarding Stats and Monitors CPU SW HW AN Apps Forwarding Processor Forwarding Rules Statistics &Monitors Forwarding Processor Forwarding Rules Statistics &Monitors Forwarding Processor Forwarding Rules Statistics &Monitors

26. 9/29/99 26 Dynamic - On the Fly Configuration Forwarding Processor Forwarding Processor Packet PolicyFilters Dynamic Apps Packet Filte r

27. 9/29/99 27 Packet Capture CPU Forwarding Processor Forwarding Processor Forwarding Processor Forwarding Processor Oplet JFWD to Divert or Copy Wire Speed Packet

28. 9/29/99 28 Java Environment Green Threads -- Present RTOS with single unified task that includes: —Java VM (JVM) —Java Resource Manager (JRM) –thread scheduling –manages CPU utilization – JVM time-slice is managed by the JRM preemptive thread scheduler –internal memory manager (intercepts “new”) –garbage collection with priority based on available memory

29. 9/29/99 29 Non-Interference w/ Single JVM Multiple threads compete for resources —memory —CPU —persistent storage Denial-of-service attacks possible —memory or CPU consumption attacks —trusted/untrusted service interactions

30. 9/29/99 30 Agenda The market is changing Local Computation Architecture Applications ORE - Oplet Run-time Environment API’s Summary

31. 9/29/99 31 Applications Active Network Management —Proactive Network Management —Diagnostic Agents Dynamic DiffServ Classifier Active Intrusion Detection Multicast Caching IP Accounting Application-Layer Router-Server Collaboration Pseudo Default Drop Capability

32. 9/29/99 32 Active Network Management Download Oplet Service to the device. Monitor MIB variables Might be complex conditions Trend analysis DiffServ, RMON-II, etc… MIBs Report “events” to NMS —drop rate, packets/second Allow Service to take action Download application Adjust parameters based on direction from NMS Monitor Appropriate Application Download Complex Condition Exceeded NMS No more polling router Extensive access to internal resources

33. 9/29/99 33 An Open Service API Example —SNMP API for Network Management –generated automatically –allows device-based applications to query MIB –device-based application -- query local MIB –report trends or significant events –initiate downloading of problem specific diagnostic code –take corrective action

34. 9/29/99 34 Proactive Network Management Device-based Intelligence is Dynamic —Static Management –SNMP set/get mechanisms –Telnet, User Interfaces (cli, web, etc…) —Dynamic Closed-loop Management at Network Node –capable of dealing with new and difficult situations – autonomous and rational properties. –dynamically system monitoring & modification –report status and trends —Monitor MIB to identify poor performance and notify NMS prior to failures —Downloaded service can instantiated new services

35. 9/29/99 35 Diagnostic Mobile Agents Automatic trace-route from edge router where problem exists. —Each node reached generates a report to NMS —Trace-route code “moves” to next node in path —Mobile agents identify router health —Create logs for NMS

36. 9/29/99 36 Dynamic DiffServ Classifier Set router filters to sample packets from edge device host ports Identify real-time traffic (RTP flows) Set filter on port to adjust DS-byte value based on policy Keep track of filters set Remove filters no longer in use

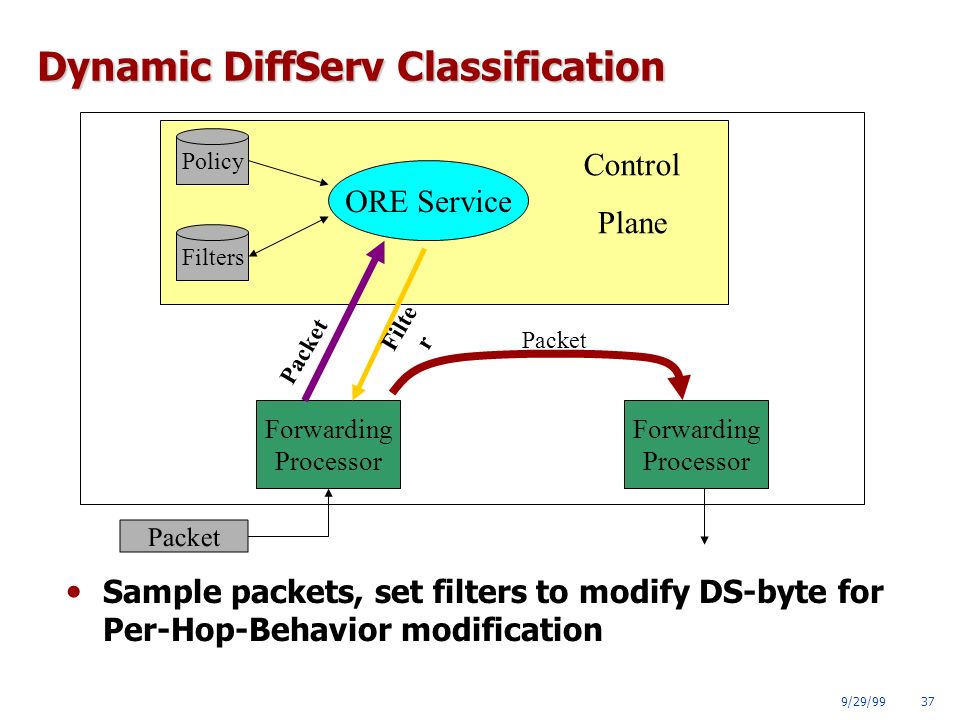

37. 9/29/99 37 Dynamic DiffServ Classification Forwarding Processor Forwarding Processor PolicyFilters ORE Service Packet Filte r Sample packets, set filters to modify DS-byte for Per-Hop-Behavior modification Packet Control Plane

38. 9/29/99 38 Active Intrusion Detection Intruder is identified by Intrusion Detection software Intruder signature is identified Mobile agent is dispatched in direction of intruder (based on physical port of entry) Mobile agent “chases” intruder and terminates him (shuts down link, reboot host, notify NMS)

39. 9/29/99 39 Multicast Caching Reliable Multicasting Distribute error control throughout multicast tree Retransmission a local node keeps control close to lossy links Balances processor load away from multicast source

40. 9/29/99 40 IP Accounting Project ABCD (Active Bean Counter in Device) Perform usage accounting at edge node PreCorrelate/aggregate/reduce accounting record on-site $1 rule for billing Real-time billing can be realized Customize billable resources

41. 9/29/99 41 Server Collaboration Supports distributed computing applications in which network devices participate —router to router —server to router Supports Intelligent Agents Supports Mobile Agents Java-based Application Java-based Application Java-based Application

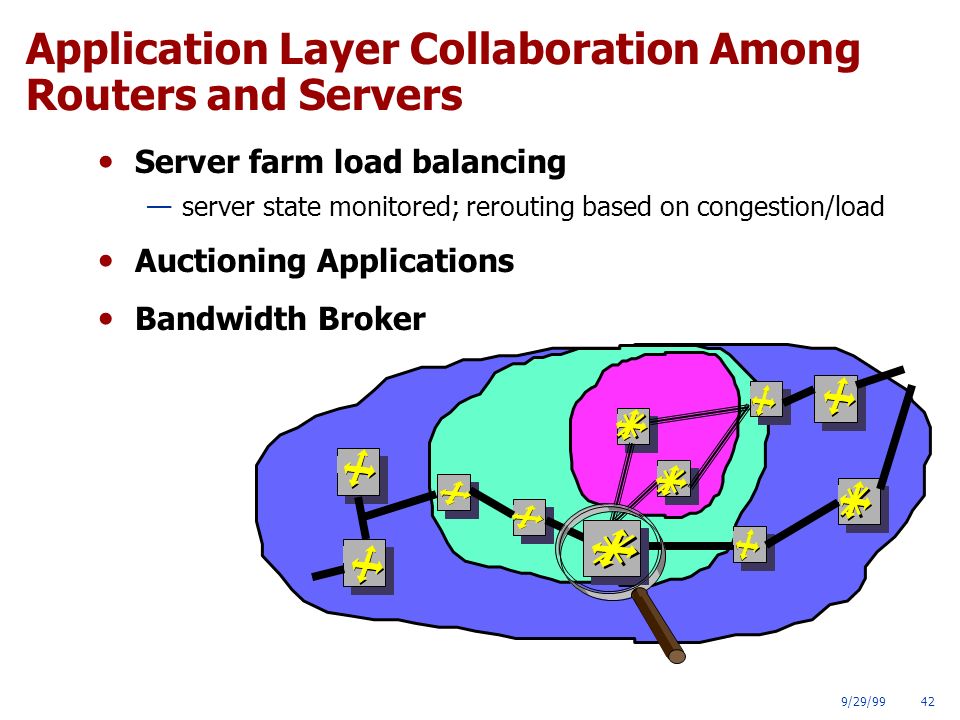

42. 9/29/99 42 Application Layer Collaboration Among Routers and Servers Server farm load balancing —server state monitored; rerouting based on congestion/load Auctioning Applications Bandwidth Broker

43. 9/29/99 43 Collaboration with Business Applications New paradigm of distributed applications Network devices collaborating with business applications Application aware routing JVM Oracle DB E-Commerce Business apps SAP, ERP, Optivity RMI, XML, CORBA Apps Accelar Passport Shasta BayRS BS450 JVM Apps Apps Server Oplet

44. 9/29/99 44 Bandwidth Broker Collaboration Routers Monitor RMON and DIFFSERV MIB Report Per-IPAddress, Per Protocol statistic to resource broker Adjust DS-byte and Per Hop Behavior based on Bandwidth Broker directions

45. 9/29/99 45 Dynamic - On the Fly Configuration From downloadable Java application, we can modify the behavior of the ASICs

46. 9/29/99 46 Agenda Our market is changing Local Computation Architecture Applications ORE - Oplet Run-time Environment API’s Summary

47. 9/29/99 47 Oplet Runtime Environment An Overview A platform to dynamically deploy services on network elements Desirable properties —Portable to many different devices —Secure, reliable —Low impact on device performance —Open —Provide a framework to structure code –Reusable, maintainable, robust Implemented in Java

48. 9/29/99 48 ORE - Basic Concepts Oplet Runtime Environment (ORE) —A kernel that manages the life cycle of oplets and services —Provides a registry of services Service —The value being added. Minimal constraints, could be anything… —Represented as a Java interface Oplet —The unit of deployment: a JAR file —Contains meta-data (eg signatures, dependency declarations) —Contains services and other resources (data files, images, properties, JAR files)

49. 9/29/99 49 Dependencies A service S can use facilities provided by another service T This means that the oplet containing S has a dependency on service T Before an oplet can be started, all of its dependent services must have be started ORE manages dependencies and lifecycle of oplets and services

50. 9/29/99 50 ORE Architecture Java Virtual MachineAPI Extensions Oplet Runtime Environment Oplet Service Oplet Service Oplet Service Oplet Service

51. 9/29/99 51 Oplet Lifecycle Install —Loaded from URL Start —Services that are depended on must already be started Stop —Any oplets that depend on this oplet’s services will be stopped —Code and data can be unloaded from ORE Uninstall

52. 9/29/99 52 Some services Bootstrap —Basic configuration Log —Centralized logging for oplets HTTP server —Simple servlet support Command line shell Administration commands —Manage oplets and services

53. 9/29/99 53 An Example Log Native MIB Variables Loopback SNMP Access MIB Engine RSVP MIB Group HTTP Server Servlet Engine Traffic Monitor JFWD

54. 9/29/99 54 Security Issues Sandbox —Each oplet provides a Java name space and applet-like sandbox Signed oplets —Oplets can be signed for assigning trust Denial of service —Vulnerable to DoS (memory, cycle, bandwidth, peristent storage, monitors) like all Java applications

55. 9/29/99 55 ORE Status Done now —Runs on Accelar and workstations —First release of ORE SDK available internally To be done —More APIs and services (MIB, JFWD, Wrapper) —Security (authentication) —Oplet updates —Persistent storage

56. 9/29/99 56 ORE Future work Capabilities —Revocable services Security —Java 2 style permissions Resource limits, DoS protection —Probably requires support from JVM Jini, Oplet Directory Mobile Agents Open source

57. 9/29/99 57 Agenda Our market is changing Local Computation Architecture Applications ORE - Oplet Run-time Environment API’s Summary

58. 9/29/99 58 Initial APIs Console Logging API Generic MIB Access API Optimized MIB Access APIs Trap Interception API Management Authentication API Web-Based Management Extensions API CLI Extensions API MIB Extensions API Pluggable Authentication API Network Forwarding API

59. 9/29/99 59 Tools MIB API —Monitor device Management Information Base variables –MIB –RMON and RMON-II –DiffServ Network API (JFWD) —Interface to Filters –set packet drop filters –intercept packets –carbon copy packets while forwarding at line-speed

60. 9/29/99 60 MIB API Example API uses a MIB Map to dispatch requests to variable access routines Different parts of the MIB tree can be serviced by different mechanisms Two main schemes: An ad hoc interface to the SNMP instrumentation layer A generic SNMP loopback

61. 9/29/99 61 An Open Service API Example —SNMP API for Network Management –generated automatically –allows device-based applications to query MIB –device-based application -- query local MIB –report trends or significant events –initiate downloading of problem specific diagnostic code –take corrective action

62. 9/29/99 62 ApplicationServers Java MIB API - Proxy Mode Uses SNMP loopback mechanism to target a remote network element API can be used to control devices that don’t have an embedded JVM Router with No JVM JSNMP API Proxy mode JVM on PC Java Oplet

63. 9/29/99 63 Agenda Our market is changing Local Computation Architecture New types of applications ORE - Oplet Run-time Environment API’s Summary

64. 9/29/99 64 Summary JOOSE - OS of Choice for Open Routers Programmable —Turing Machine on network devices —dynamic agents vs. static agents —dynamic loading Our market is changing Openness - successfully proven paradigm —Facilitates innovation —Domain experts - virtual development community —With 3rd parties we can change the networking landscape Application aware routing

65. 9/29/99 65 This is only the first step Compare to this first flight and look where aviation is today 1903 the Wright brothers

66. 9/29/99 66 Appendix

67. 9/29/99 67 Why Java Dynamic Loading Reuse security mechanisms —byte-code verifier —security manager —classloader System stability —constrains applications to the JVM —Prohibits native code applications Extensible, portable, & distributable services

68. 9/29/99 68 Bandwidth x200 - start of new demand Bandwidth Content Applications Intel web hosting - BIG pipes Last mile bandwidth x 200 Multimedia and new applications will drive the demand.

69. 9/29/99 69 The P1520 Reference Model Algorithms for value-added communication services created by network operators, users, and third parties Algorithms for routing and connection management, directory services etc. Value Added Services Level Virtual Network Device (software representation) Physical Elements (hardware, namespace) L interface Network Generic Services Level Virtual Network Devices Level End User Applications V interface U interface CCM interface PE Level

70. 9/29/99 70 CSIX Consortium Common switch interface for switch fabric independence —www.csix.orgwww.csix.org —Detailed interface specification between port/packet processor logic and interconnect fabric logic —Similar to common media interface such as Utopia, but for switch fabric interface —Targeted at scalable switches at higher end —Permits mix-and-match of silicon and software components

71. 9/29/99 71 Multi-Services Switching Forum (MSF) www.msforum.org Open Multi-service Switching —Common transmission and switching infrastructure —Modular, layered architecture —Integration at a module level through open interfaces —Multi-vendor model with 3rd party software options Switch Adaption Switch Adaption IP Services Source: MSS ATM Services Voice Service
