1 Data Structures & Algorithm in Java Robert Lafore Introduction 1

2 Objectives Provide background in data structures (arrangements of data in memory) and algorithms (methods for manipulating this data) Why is this important? The answer is there is far more to programming than finding a solution that will work: Execution time Memory consumption So by the end of the course, you should be more equipped to not just develop an accurate solution to a problem, but the best solution possible. 2

3 Definition of a Data Structure A data structure is an arrangement of data in a computer’s memory (or disk). Questions to ponder: What are some examples of data structures you already know about from your Java course? How can the arrangement of data in memory affect performance? 3

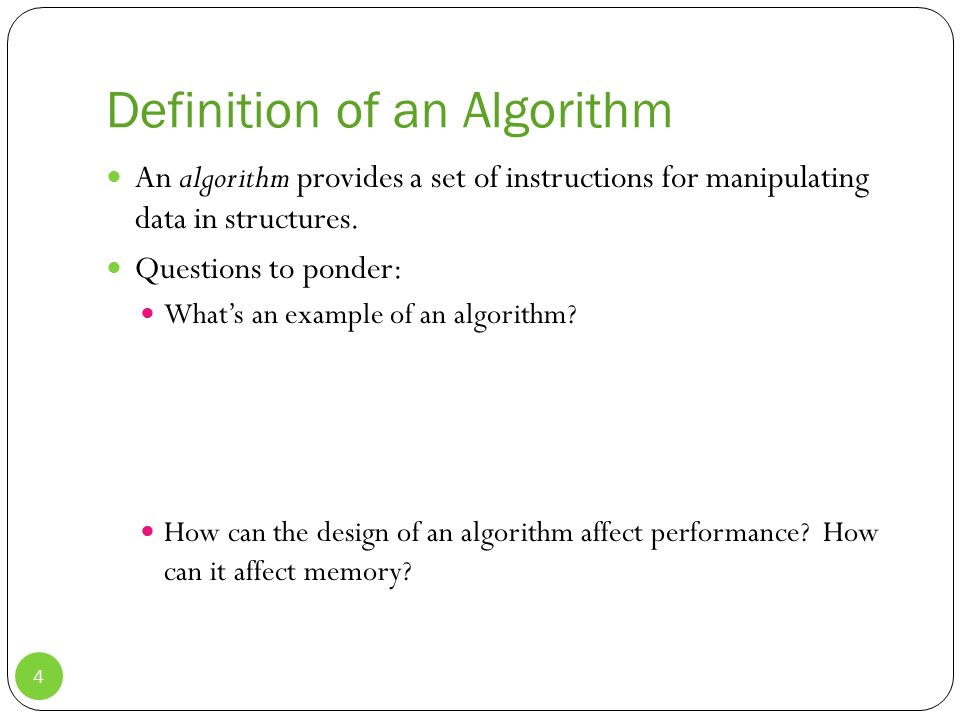

4 Definition of an Algorithm An algorithm provides a set of instructions for manipulating data in structures. Questions to ponder: What’s an example of an algorithm? How can the design of an algorithm affect performance? How can it affect memory? 4

5 Data Structure or Algorithm? Linked List Sort Search Stack Vector 5

6 Real World Data Storage Real-world data: data that describes physical entities external to the computer. Can we think of some examples? What’s an example of non-computer data storage? Addresses and phone #s: Book names, titles, ISBNs: What method do these use? 6

7 Real World Data Storage Say we wanted to convert one of these systems to a computer program, what must we consider? Memory consumption: Scalability: Algorithms (which ones do we care about?): 7

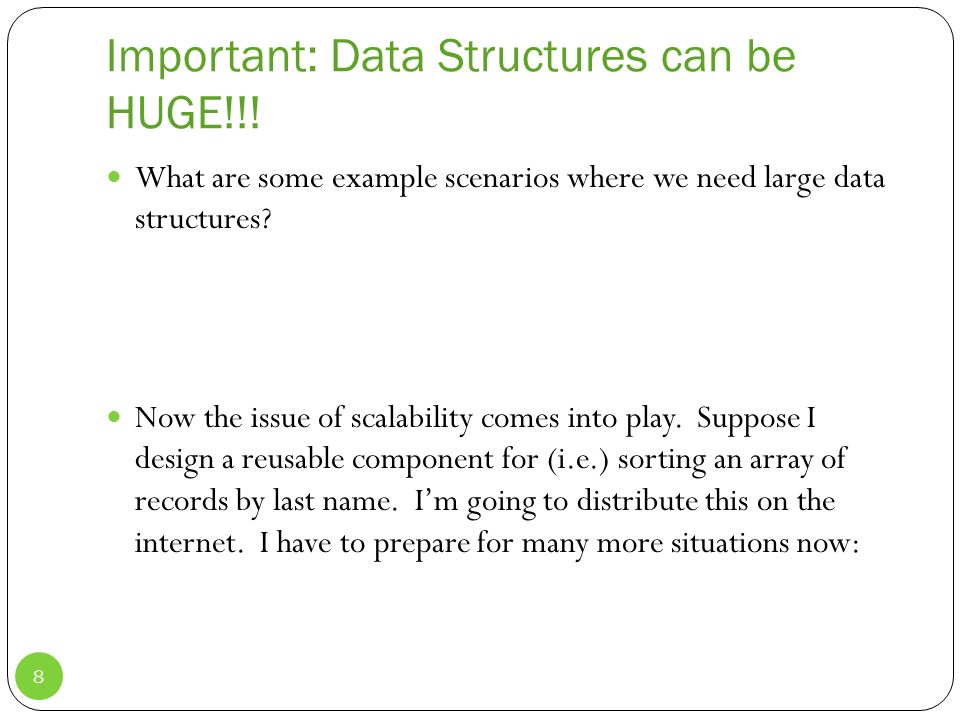

8 Important: Data Structures can be HUGE!!! What are some example scenarios where we need large data structures? Now the issue of scalability comes into play. Suppose I design a reusable component for (i.e.) sorting an array of records by last name. I’m going to distribute this on the internet. I have to prepare for many more situations now: 8

9 Programmer Tools Do not store real-world data, but perform some function internal to the machine. Example - A ‘stack’ of data, where I can only insert or remove elements from the top: What programmer tool would this be useful for? Hint: Think in terms of a variables in a program. 9

10 Real World Modeling Effectively, ‘simulate’ a real-world situation. For example, what could the following represent: 10

11 Real World Modeling How about airline routes? This type of structure is called an ‘undirected graph’ We’ll cover it!! 11

12 Real World Modeling How about a ‘queue’ of data, where the first element in is the first element out (termed ‘FIFO’): Example applications: Grocery store lines Traffic (Queues are actually used when determining timing of traffic lights!! How? Let’s think about it) 12

13 Data Structure Trade-offs A structure we have dealt with before: arrays Requirement that is enforced: Arrays store data sequentially in memory. Let’s name the advantages (i.e., when is an array efficient?) Let’s name the disadvantages 13

14 Overall Costs for Structures We’ll Study StructureAccessSearchInsertDeleteImpl.Memory ArrayLowHighMedHighLow Ord. ArrayLowMedHigh MedLow Linked ListHigh Low Med StackMedHighMed QueueMedHighMed Bin. TreeMedLow High R-B TreeMedLow Very HighHigh 234 TreeMedLow Very HighHigh Hash TableMed LowHighLowHigh HeapMed Low High GraphHigh Med Point that you should be getting: No ‘universal’ data structure!!! 14

15 Algorithms We’ll Study Insertion/Searching/Deletion Iteration. Java contains data types called iterators which accomplish this. Sorting. Believe it or not, there LOTS of ways to do this! So much, you get two chapters on it. :p Recursion. What’s the key attribute of a recursive function in Java? This technique will be used to develop some of the afore mentioned algorithms. 15

16 Databases A database refers to all data that will be dealt with in a particular situation. We can think of a database as a table of rows and columns: What is the ‘database’ in the case of a collection of index cards and names/phone #s? 16

17 Database Records A record is the unit into which a database is divided. How is a record represented in a table: What would be a ‘record’ in a stack of index cards? What about a banking system? How about a cookbook? What basic construct is used to create records in Java? 17

18 Database Fields A field is the unit into which a record is divided. What represents a field in our table: What would some example fields be for a banking system? A clothing catalogue? 18

19 Database Keys Given a database (a collection of records), a common operation is obviously searching. In particular we often want to find a single particular record. But what exactly does this mean? Each record contains multiple fields, i.e.: So how do we designate a record? We need something unique to each record, that’s the key. What is the key above? LastFirstAcct No.CityStateZip AzumaGoro123456789St. PeteFL33712 SmithJohn867530912ClearwaterFL33720 GunnzJT102938475South BendIN46545 ZozzfuzzelZiggy000000000St. PeteFL61589 19

20 Database Keys So if I wanted to search for a particular record, I would want to do it by key (i.e. Acct No). Note that searching by anything else could yield multiple records. LastFirstAcct No.CityStateZip AzumaGoro123456789St. PeteFL33712 SmithJohn867530912ClearwaterFL33720 GunnzJT102938475South BendIN46545 ZozzfuzzelZiggy000000000St. PeteFL61589 20

21 Java.util Package Includes Vector, Stack, Dictionary, and Hashtable. We won’t cover these particular implementations but know they are there and accessible through: import java.util.*; You may not use these on homeworks unless I explicitly say you can. Several other third-party libraries available A central purpose of Java 21

22 Review of Object-Oriented Programming Procedural Programming Languages Examples: C, Pascal, early BASIC What is the main unit of abstraction? Object-Oriented Languages: Examples: C++, Ada, Java What is the main unit of abstraction? Obviously procedural languages weren’t good enough in all cases. Let’s rediscover why. 22

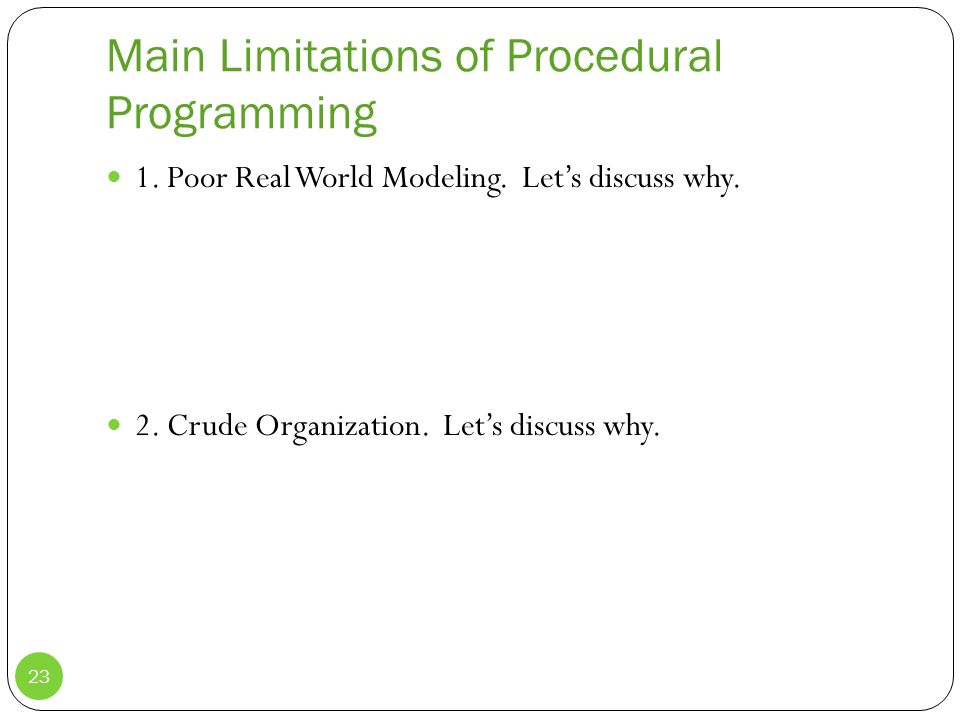

23 Main Limitations of Procedural Programming 1. Poor Real World Modeling. Let’s discuss why. 2. Crude Organization. Let’s discuss why. 23

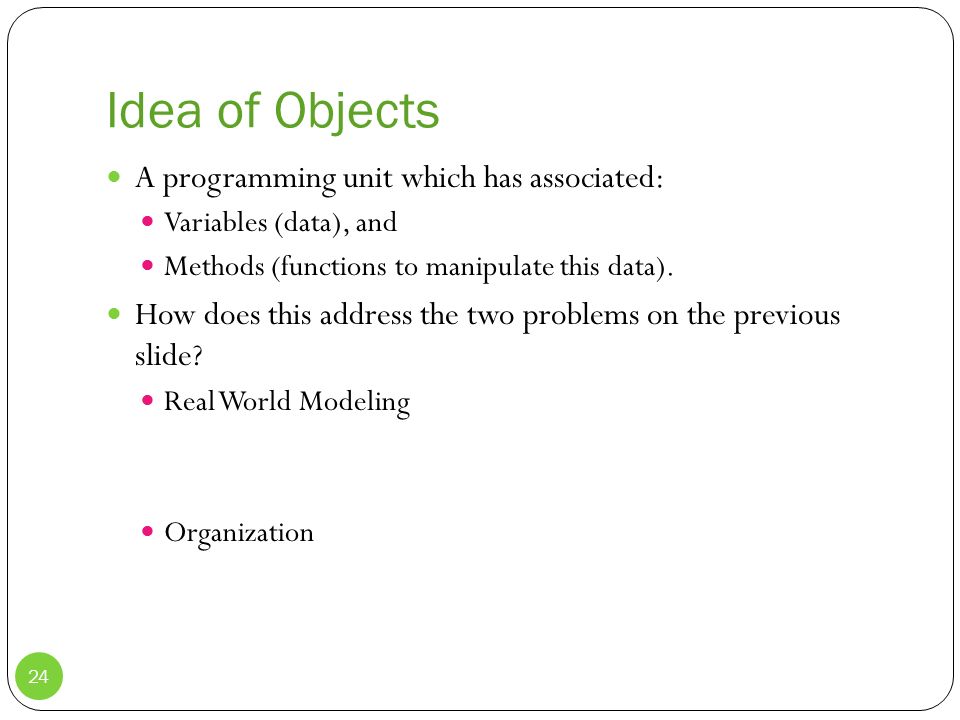

24 Idea of Objects A programming unit which has associated: Variables (data), and Methods (functions to manipulate this data). How does this address the two problems on the previous slide? Real World Modeling Organization 24

25 Idea of Classes (Java, C++) Objects by themselves can create lots of redundancy. Why? With a class, we specify a blueprint for one or more objects. For example, in Java (cf. book page 16): class thermostat { private float currentTemp; private float desiredTemp; public void furnaceOn() { … } 25

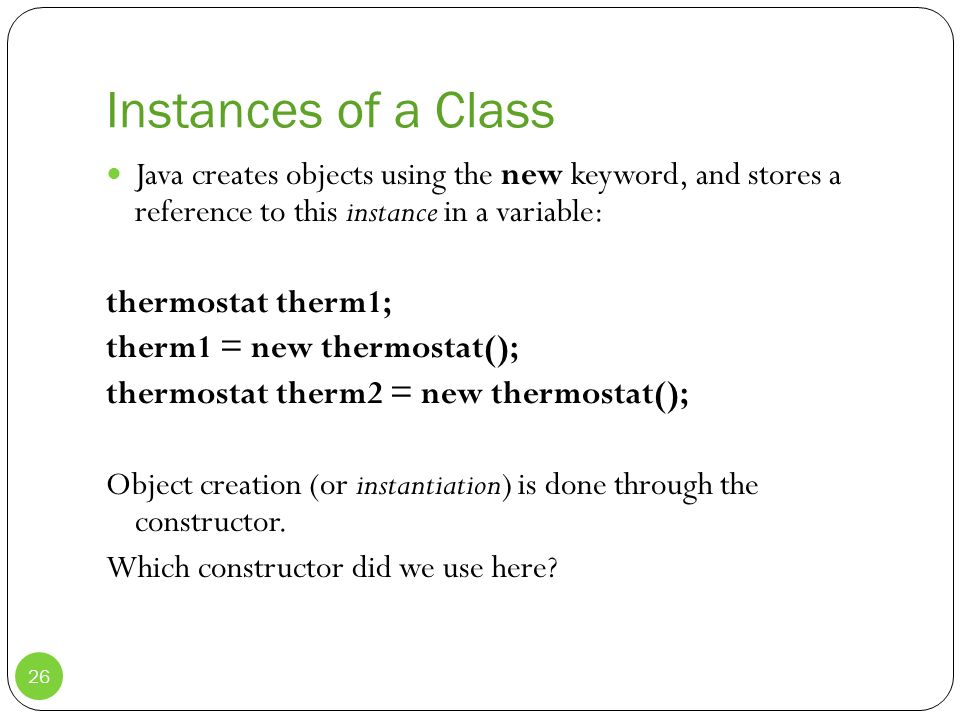

26 Instances of a Class Java creates objects using the new keyword, and stores a reference to this instance in a variable: thermostat therm1; therm1 = new thermostat(); thermostat therm2 = new thermostat(); Object creation (or instantiation) is done through the constructor. Which constructor did we use here? 26

27 Invoking Methods of an Object Parts of the program external to the class can access its methods (unless they are not declared public): Dot operator: therm2.furnace_on(); Can I access data members similarly? therm2.currentTemp = 77; What would I need to change to do so? Is this change good programming practice? How, ideally, should data members be accessed? 27

28 Another Example If you have your book, look at the BankAccount class on page 18. If you don’t have it, don’t worry I’ll write it on the board. Look at the output. Let’s go over why this is generated. 28

29 Inheritance Creation of one class, called the base class Creation of another class, called the derived class Has all features of the base, plus some additional features. Example: A base class Animal may have associated methods eat() and run() and variable name, and a derived class Dog can inherit from Animal, gaining these methods plus a new method bark(). If name is private, does Dog have the attribute? How do we enforce Dog to also have attribute name? 29

30 Polymorphism Idea: Treat objects of different classes in the same way. What’s the requirement? Let’s return to an example with Animal and Dog, and throw in another derived class Cat. 30

31 Software Engineering Bigger picture. How do the topics of this course fit relate to software engineering? The life cycle of a software project consists of the following: Specification – purpose of the software, requirements, etc. Design – components and interaction of the software Verification – individual components and global functionality Coding – actual writing of the software Testing – validating proper functionality Production – distribution to the community Maintenance – updating the software (FYI in a poor design, these costs can be high!!) 31

32 Stage 1: Specification Here we answer the questions of what purpose the software serves, and requirements. Very high level at this stage. How do data structures fit in? The specification _______________ the data structures. Why? 32

33 Stage 2: Design At this stage, we break software into components and describe their interaction. The data structures help _______________ the design. Why? 33

34 Stage 3: Verification Verification involves a review of all components, studying their individual inputs and outputs and ensuring functionality of the design. In order to do this, we have to know the expected ________ and __________ of the data structures. Why? 34

35 Stage 4: Coding Involves the actual writing of the software. How can data structures save time at this stage? Think in terms of reusable components. 35

36 Stage 5: Testing Involves running the software package through a set of benchmarks, which make up a testsuite, and verify proper functionality. You can also test individual components. How does understanding a data structure help in terms of testing? How does understanding a data structure help in terms of debugging? 36

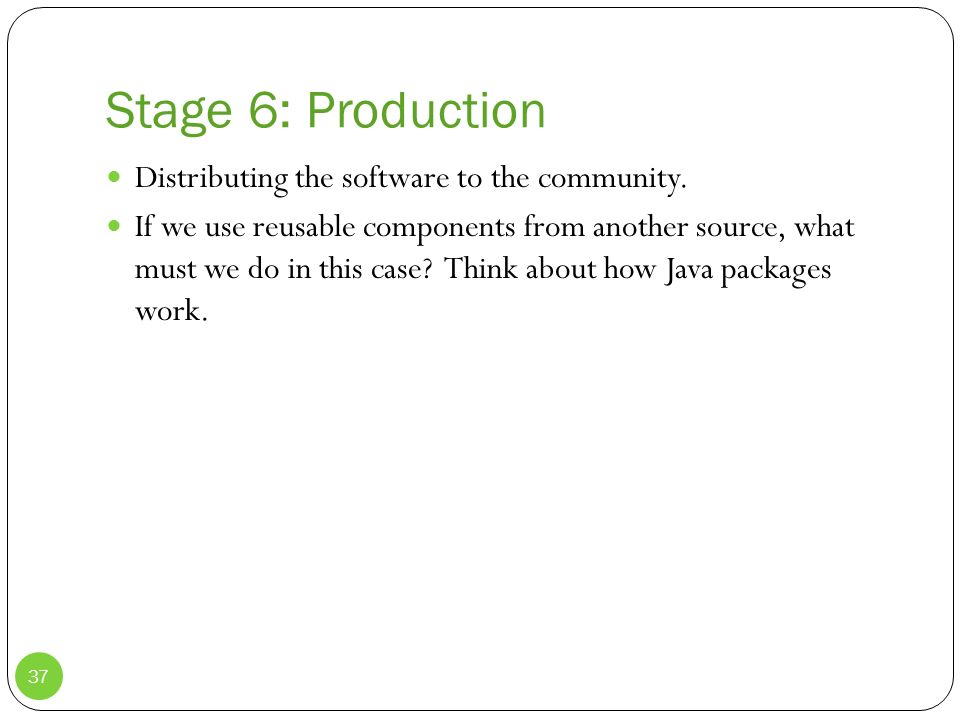

37 Stage 6: Production Distributing the software to the community. If we use reusable components from another source, what must we do in this case? Think about how Java packages work. 37

38 Stage 7: Maintenance Updating the software while keeping the internal design intact. How do generic components come in handy here? How might individual components (and thus their associated data structures) have to scale with issues such as data size? How about data types? In a simple situation, think about maintenance on a software package where every data structure was hardcoded to operate on only integers. What happens when we extend to floats? See why these costs can be high? How can software updates propagate between components? Dependencies can grow exponentially! 38

39 Final Review of some Java Concepts Difference between a value and a reference: int intVar; BankAccount bc1; Which is a value and which is a reference? How did the interpreter know to allocate them differently? What does the address stored in bc1 contain right now? What must I do before I use bc1? 39

40 Java Assignments What must be noted about the following code snippet: int intVar1 = 45; int intVar2 = 90; BankAccount bc1(72.45); BankAccount bc2 = bc1; intVar1 = intVar2; intVar1 = 33; // Does this modify intVar2? bc2.withdraw(30.00); // Does this modify object bc1? 40

41 Java Garbage Collection When is the memory allocated to an object reclaimed in Java? Code like this would leak memory in C++, but does not in Java because of the garbage collector: while (true) { Integer tmp = new Integer(); … } 41

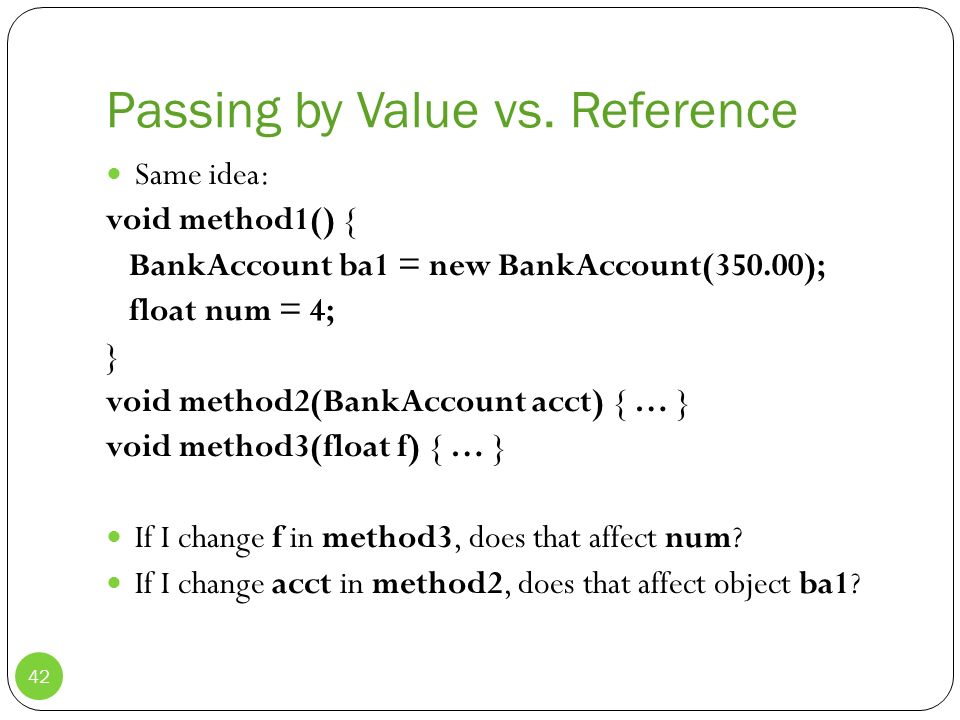

42 Passing by Value vs. Reference Same idea: void method1() { BankAccount ba1 = new BankAccount(350.00); float num = 4; } void method2(BankAccount acct) { … } void method3(float f) { … } If I change f in method3, does that affect num? If I change acct in method2, does that affect object ba1? 42

43 == vs. equals() carPart cp1 = new carPart(“fender”); carPart cp2 = cp1; // What’s the difference between this: if (cp1 == cp2) System.out.println(“Same”); // And this: if (cp1. equals(cp2) System.out.println(“Same”); Does “Same” print twice, once, or not at all? 43

44 Primitive Sizes and Value Ranges Source: roseindia.net 44

45 Screen Output System.out is an output stream which corresponds to standard output, which is the screen: int var = 33; // What’s do these three statements print? System.out.print(var); System.out.println(var); System.out.println(``The answer is `` + var); 45

46 Keyboard Input Package: java.io Read a string: Read a character: Read an integer: Read a float: InputStreamReader isr = new InputStreamReader(System.in); BufferedReader br = new BufferedReader(isr); String s = br.readLine(); char c = s.charAt(0); int i = Integer.parseInt(s); double d = Double.valueOf(s).doubleValue(); 46

47 CS221N, Data Structures Data Structure #2: Arrays 47

48 The Array Most commonly used data structure Common operations Insertion Searching Deletion How do these differ for an ‘ordered array’? How do these differ for an array which does not allow duplicates? 48

49 Array Storage 49 An array is a collection of data of the same type Stored linearly in memory:

50 Remember, value vs. reference… 50 In Java: Data of a primitive type is a ____________. All objects are ________________. Java arrays are also considered references.

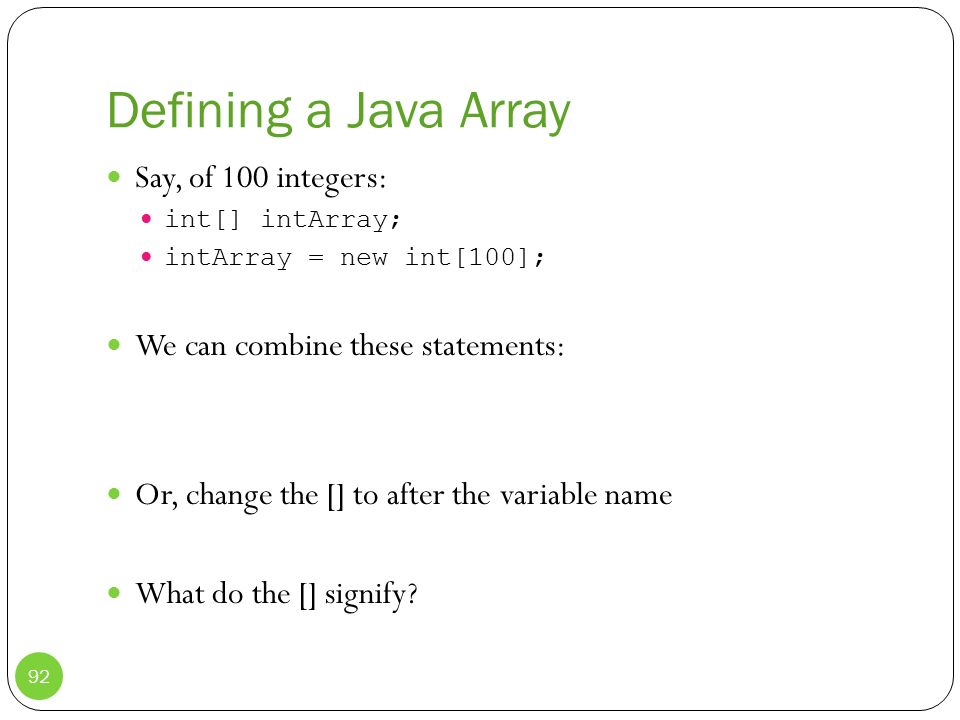

51 Defining a Java Array 51 Say, of 100 integers: int[] intArray; intArray = new int[100]; We can combine these statements: Or, change the [] to after the variable name What do the [] signify?

52 We said an array was a reference… 52 That means if we do this: int[] intArray; intArray = new int[100]; What exactly does intArray contain? Let’s look internally.

53 The Size 53 Size of an array cannot change once it’s been declared: intArray = new int[100]; But, one nice thing is that arrays are objects. So you can access its size easily: int arrayLength = intArray.length; Getting an array size is difficult in many other languages

54 Access 54 Done by using an index number in square brackets: int temp = intArray[3]; // Gets 4 th element intArray[7] = 66; // Sets 8 th element How do we access the last element of the array, if we don’t remember its size? What range of indices will generate the IndexOutOfBounds exception? The index is an offset. Let’s look at why.

55 Initialization 55 What do the elements of this array contain: int[] intArray = new int[100]; How about this one: BankAccount[] myAccounts = new BankAccount[100]; What happens if we attempt to access one of these values? int[] intArray = {0, 3, 6, 9, 12, 15, 18, 21, 24, 27}; Automatically determines the size Can do this with primitives or objects

56 Look at a book example… 56 See the example on p. 41-42, where we do the following: Insert 10 elements into an array of integers Display them Find item with key 66 Delete item with key 55 Display them Ask ourselves: How could we make the initialization shorter? How could we save declaring nElems?

57 This did not use OOP 57 So our next task will be to divide it up (p. 45) What will we want for the array class? Let’s think about the purpose of classes. They have data, and functions to manipulate that data. So in this case, what will our data be? For functions, we’ll provide: A constructor which takes a size and initializes the array A function to retrieve a single element A function to set a single element And then modify main()

58 The LowArray interface 58 Here’s what it looked like: What’s inadequate currently in terms of operations? How can we improve things?

59 Further division… 59 Let’s make a new HighArray class (p. 49) which includes the following functions: Constructor which takes an integer for the size Function to find an element Function to insert an element Function to delete an element One more data member nElems, which holds the number of occupied cells Then, let’s modify main().

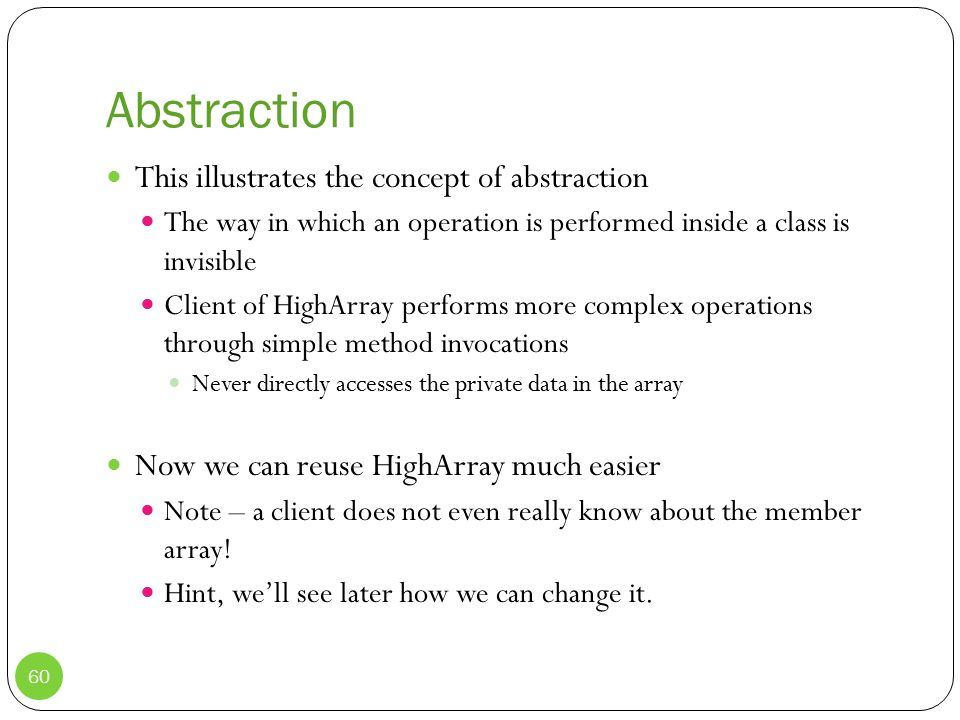

60 Abstraction 60 This illustrates the concept of abstraction The way in which an operation is performed inside a class is invisible Client of HighArray performs more complex operations through simple method invocations Never directly accesses the private data in the array Now we can reuse HighArray much easier Note – a client does not even really know about the member array! Hint, we’ll see later how we can change it.

61 The Ordered Array 61 An array in which the data items are arranged in ascending order Smallest value is at index: Largest value is at index: Think about what functions we’d have to modify Why could this be a nice feature? What operation could be much faster?

62 That’s right, searching! 62 We can still do a linear search, which is what we’ve seen. Step through the elements In the average case, would this be faster than an unordered array? We can also do what’s called binary search, which is much faster Especially for large arrays

63 Binary Search: Idea 63 Ever see the Price is Right? Guess the price on an item If guess is too low, Bob Barker says “higher” If guess is too high, Bob Barker says “lower” This can work if we are using ordered arrays Check the middle element If it’s too low, restrict search to the first half of the array Otherwise restrict search to the second half of the array And repeat.

64 Note what this can save! 64 Let’s take a simple case, where we search for an item in a 100-element array: int[] arr = {1,2,3,4,5,6,…..,100} For an unordered array where we must use linear search, how many comparisons on average must we perform? How about for binary search on an ordered array? Let’s look for the element 33.

65 Binary Search 65 Array has values 1-100 First search: Check element 50 50 > 33, so repeat on first half (1-49) Second search: Check element 25 25 < 33, so repeat on second half (26-49) Third search: Check element 37 37 > 33, so repeat on first half (26-36) Fourth search: Check element 31 31 < 33, so repeat on second half (32-36) Fifth search: Check element 34 34 > 33, so repeat on first half (32-33) Sixth search: Check element 32 32 < 33, so repeat on second half (33) Seventh search: Check element 33! Found. So 7 comparisons. With linear search, it would’ve been 33.

66 Affect on Operations 66 We saw how binary search sped up the searching operation Can it also speed up deletion? What about, insertion of a new element into an ordered array?

67 Implementation 67 Let’s go through the Java implementation, on pages 56-57. At any given time: lowerBound holds the lower index of the range we are searching upperBound holds the upper index of the range we are searching curIn holds the current index we are looking at What if the element is not in the array? What happens?

68 Now, let’s implement the OrdArray 68 Data The array itself The number of occupied slots Methods Constructor Size Find (with binary search) Insert (with binary search) Delete (with binary search) Display

69 Analysis 69 What have we gained by using ordered arrays? Is searching faster or slower? Is insertion faster or slower? Is deletion faster or slower? All in all, ordered arrays would be useful in situations where insertion/deletion are infrequent, but searching is frequent Employee records – hiring/firing is less frequent than accessing or updating an employee record

70 Ordered Array: Operation Counts 70 Maximum number of comparisons for an ordered array of n elements, running binary search: nComparisons 104 1007 100010 1000014 10000017 100000020 How does this compare with linear search, particularly for large arrays? Whew.

71 A Deeper Analysis 71 How many comparisons would be required for an array of 256 elements? (2^8) What about 512 (2^9)? What do you think 1024 would be (2^10)? See the pattern? So for n values, the number of comparisons is log 2 (n)+1. This is an example of an algorithm which scales logarithmically with the input size. Linear search, scales linearly.

72 Computing log 2 n 72 On a calculator, if you use the “log” button, usually the base is 10. If you want to convert: Multiply by 3.322 Algorithms that scale logarithmically are preferable to those that scale linearly, because the log of a function grows much slower than the function itself. So for large input sets, you’ll have a MUCH smaller number of operations.

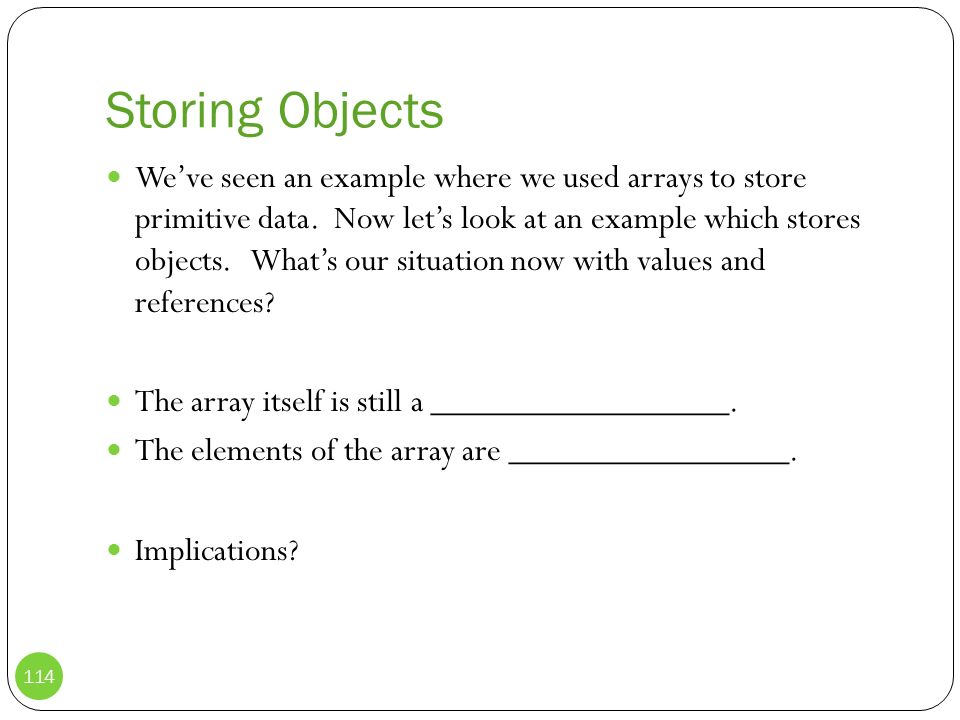

73 Storing Objects 73 We’ve seen an example where we used arrays to store primitive data. Now let’s look at an example which stores objects. What’s our situation now with values and references? The array itself is still a _________________. The elements of the array are ________________. Implications?

74 Person Class 74 Let’s go through the Person class on page 65. Data: First name and last name (String objects), age (integer value) Functions Constructor which takes two strings and an integer Function to display information Function to return the last name (we’ll eventually use this for searching)

75 Adapting our HighArray class 75 Rewrite the implementation on page 49 Change to operate on Persons instead of integers Watch out for the ==! In main() construct Person objects

76 Big-Oh Notation 76 Provides a metric for evaluating the efficiency of an algorithm Analogy: Automobiles Subcompacts Compacts Midsize etc.

77 How it’s done 77 It’s difficult to simply say: A is twice as fast as B We saw with linear search vs. binary search, the comparison can be different when you change the input size. For example, for an array of size n: n=16, linear search comparisons = 10, binary search comparisons = 5 Binary search is 2x as fast n=32, linear search comparisons = 32, binary search comparisons = 6 Binary search is 5.3x as fast

78 Example: Insertion into Unordered Array 78 Suppose we just insert at the next available position: Position is a[nElems] Increment nElems Both of these operations are independent of the size of the array n. So they take some time, K, which is not a function of n We say this is O(1), or constant time Meaning that the runtime is proportional to 1.

79 Example: Linear search 79 You’ll require a loop which runs in the worst case n times Each time, you have to: Increment a loop counter Compare the loop counter to n Compare the current element to the key Each of these operations take time independent of n, so let’s say they consume a total time of K. Then the algorithm would take K*n total time We say this is O(n).

80 Example: Binary Search 80 We’ve already said that for an array of n elements, we need log(n)+1 comparisons. Each comparison takes time independent of n, call it K Total time is then: K(log(n)+1) = K*log(n) + K For large n, this grows proportional to log(n), i.e. the leading term dominates. We say this is O(log n)

81 Why this is useful 81 Useful to evaluate how well an algorithm scales with input size n. For example: O(1) scales better than… O(log n), which scales better than… O(n), which scales better than… O(n log n), which scales better than… O(n^2), etc. Each of these successively grows faster with n.

82 Generally speaking… 82 For an input of size n and a function T(n), to compute the Big-Oh value, you take the leading term and drop the coefficient. Examples – compute Big Oh values of the following runtimes: T(n) = 100*n^2 + n + 70000 T(n) = (n*log n) / n T(n) = n^3 + 754,000*n^2 + 1 T(n) = (n + 2) * (log n)

83 But, these large constants must mean something… 83 T(n) = n^3 + 754,000*n^2 + 1 This huge constant on the n^2 term, has to have some effect, right? The answer is yes and no. Yes, if the input size is _________________. But for very large values of n, n^3 overtakes the term, even with the large constant.

84 Algorithms we’ve discussed… 84 Linear search: O(n) Binary search: O(log n) Insertion, unordered array: O(1) Insertion, ordered array: O(n) Deletion, unordered array: O(n) Deletion, ordered array: O(n)

85 Graph of Big O times. 85 See page 72.

86 Unordered/Ordered Array Tradeoffs 86 Unordered Insertion is fast – O(1) Searching is slow – O(n) Ordered Searching is fast – O(log n) Insertion is slow – O(n) Deletion is even – O(n) Memory can be wasted, or even misused. Let’s discuss.

87 What we will see… 87 There are structures (trees) which can insert, delete and search in O(log n) time Of course as you’d expect, they’re more complex We will also learn about structures with flexible sizes java.util has class Vector – what you should know: Array of flexible size Some efficiency is lost (why do you think?) What happens when we try to go beyond the current size? Why is this penalty very large at the beginning of array population?

88 CS221N, Data Structures Data Structure #2: Arrays 88

89 The Array Most commonly used data structure Common operations Insertion Searching Deletion How do these differ for an ‘ordered array’? How do these differ for an array which does not allow duplicates? 89

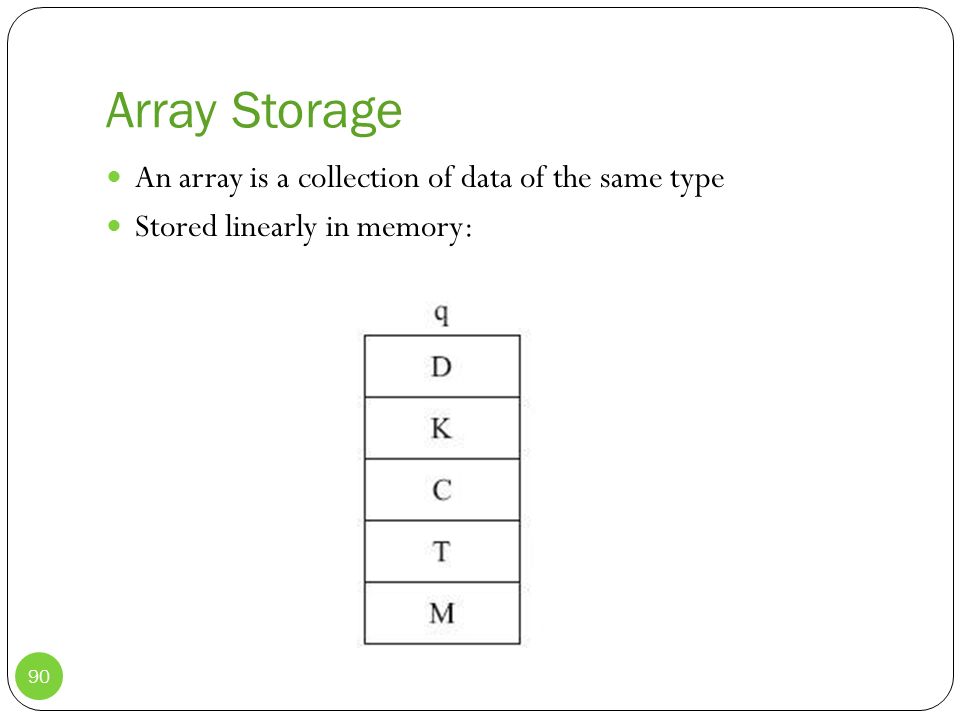

90 Array Storage 90 An array is a collection of data of the same type Stored linearly in memory:

91 Remember, value vs. reference… 91 In Java: Data of a primitive type is a ____________. All objects are ________________. Java arrays are also considered references.

92 Defining a Java Array 92 Say, of 100 integers: int[] intArray; intArray = new int[100]; We can combine these statements: Or, change the [] to after the variable name What do the [] signify?

93 We said an array was a reference… 93 That means if we do this: int[] intArray; intArray = new int[100]; What exactly does intArray contain? Let’s look internally.

94 The Size 94 Size of an array cannot change once it’s been declared: intArray = new int[100]; But, one nice thing is that arrays are objects. So you can access its size easily: int arrayLength = intArray.length; Getting an array size is difficult in many other languages

95 Access 95 Done by using an index number in square brackets: int temp = intArray[3]; // Gets 4 th element intArray[7] = 66; // Sets 8 th element How do we access the last element of the array, if we don’t remember its size? What range of indices will generate the IndexOutOfBounds exception? The index is an offset. Let’s look at why.

96 Initialization 96 What do the elements of this array contain: int[] intArray = new int[100]; How about this one: BankAccount[] myAccounts = new BankAccount[100]; What happens if we attempt to access one of these values? int[] intArray = {0, 3, 6, 9, 12, 15, 18, 21, 24, 27}; Automatically determines the size Can do this with primitives or objects

97 Look at a book example… 97 See the example on p. 41-42, where we do the following: Insert 10 elements into an array of integers Display them Find item with key 66 Delete item with key 55 Display them Ask ourselves: How could we make the initialization shorter? How could we save declaring nElems?

98 This did not use OOP 98 So our next task will be to divide it up (p. 45) What will we want for the array class? Let’s think about the purpose of classes. They have data, and functions to manipulate that data. So in this case, what will our data be? For functions, we’ll provide: A constructor which takes a size and initializes the array A function to retrieve a single element A function to set a single element And then modify main()

99 The LowArray interface 99 Here’s what it looked like: What’s inadequate currently in terms of operations? How can we improve things?

100 Further division… 100 Let’s make a new HighArray class (p. 49) which includes the following functions: Constructor which takes an integer for the size Function to find an element Function to insert an element Function to delete an element One more data member nElems, which holds the number of occupied cells Then, let’s modify main().

101 Abstraction 101 This illustrates the concept of abstraction The way in which an operation is performed inside a class is invisible Client of HighArray performs more complex operations through simple method invocations Never directly accesses the private data in the array Now we can reuse HighArray much easier Note – a client does not even really know about the member array! Hint, we’ll see later how we can change it.

102 The Ordered Array 102 An array in which the data items are arranged in ascending order Smallest value is at index: Largest value is at index: Think about what functions we’d have to modify Why could this be a nice feature? What operation could be much faster?

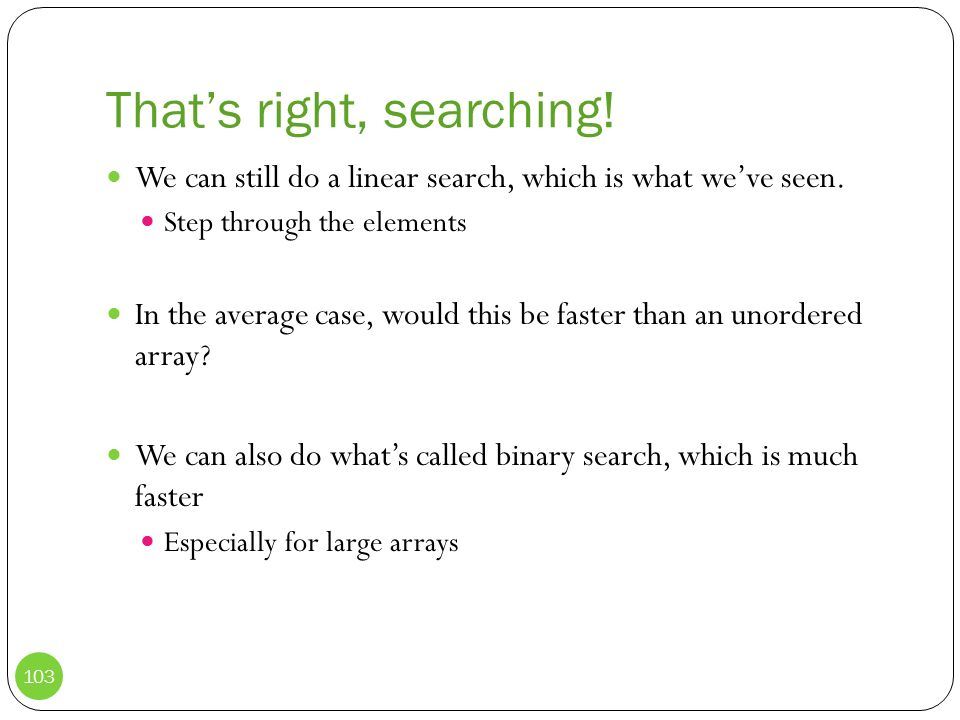

103 That’s right, searching! 103 We can still do a linear search, which is what we’ve seen. Step through the elements In the average case, would this be faster than an unordered array? We can also do what’s called binary search, which is much faster Especially for large arrays

104 Binary Search: Idea 104 Ever see the Price is Right? Guess the price on an item If guess is too low, Bob Barker says “higher” If guess is too high, Bob Barker says “lower” This can work if we are using ordered arrays Check the middle element If it’s too low, restrict search to the first half of the array Otherwise restrict search to the second half of the array And repeat.

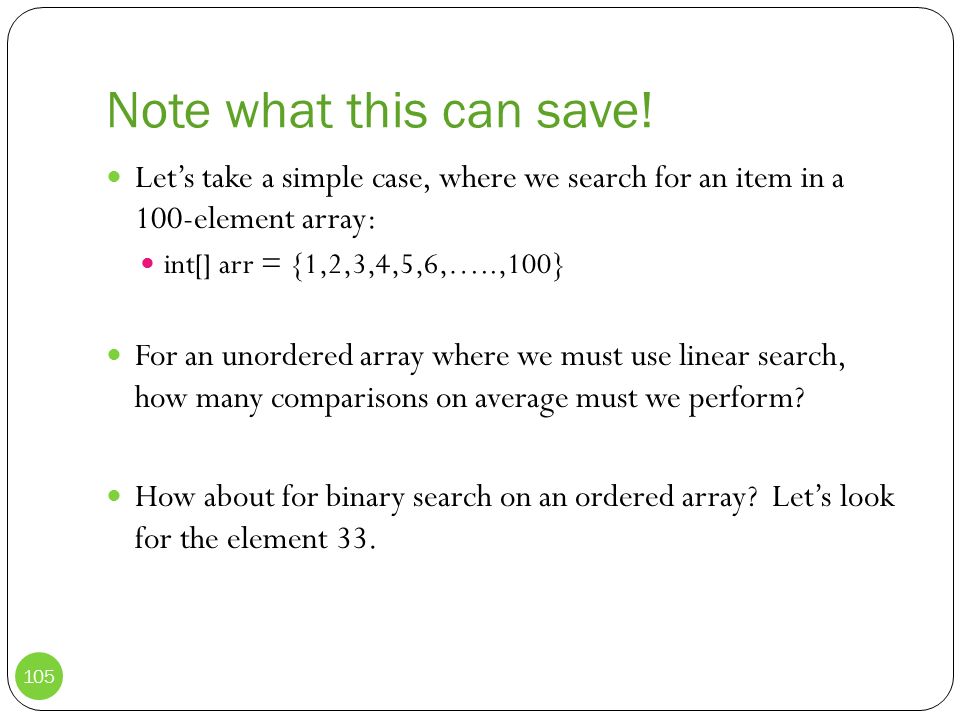

105 Note what this can save! 105 Let’s take a simple case, where we search for an item in a 100-element array: int[] arr = {1,2,3,4,5,6,…..,100} For an unordered array where we must use linear search, how many comparisons on average must we perform? How about for binary search on an ordered array? Let’s look for the element 33.

106 Binary Search 106 Array has values 1-100 First search: Check element 50 50 > 33, so repeat on first half (1-49) Second search: Check element 25 25 < 33, so repeat on second half (26-49) Third search: Check element 37 37 > 33, so repeat on first half (26-36) Fourth search: Check element 31 31 < 33, so repeat on second half (32-36) Fifth search: Check element 34 34 > 33, so repeat on first half (32-33) Sixth search: Check element 32 32 < 33, so repeat on second half (33) Seventh search: Check element 33! Found. So 7 comparisons. With linear search, it would’ve been 33.

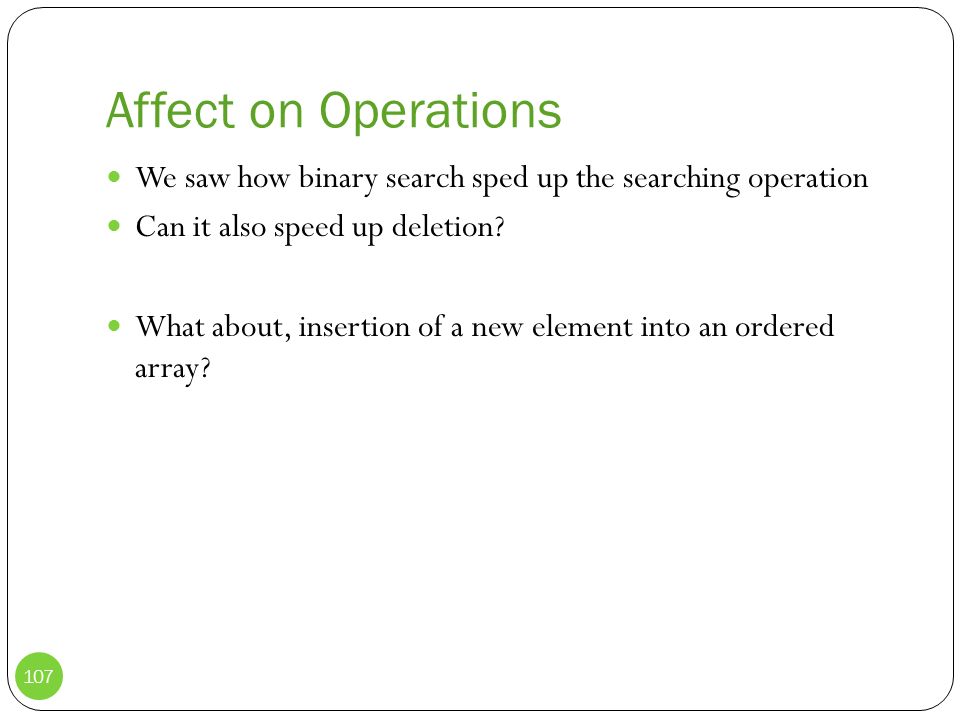

107 Affect on Operations 107 We saw how binary search sped up the searching operation Can it also speed up deletion? What about, insertion of a new element into an ordered array?

108 Implementation 108 Let’s go through the Java implementation, on pages 56-57. At any given time: lowerBound holds the lower index of the range we are searching upperBound holds the upper index of the range we are searching curIn holds the current index we are looking at What if the element is not in the array? What happens?

109 Now, let’s implement the OrdArray 109 Data The array itself The number of occupied slots Methods Constructor Size Find (with binary search) Insert (with binary search) Delete (with binary search) Display

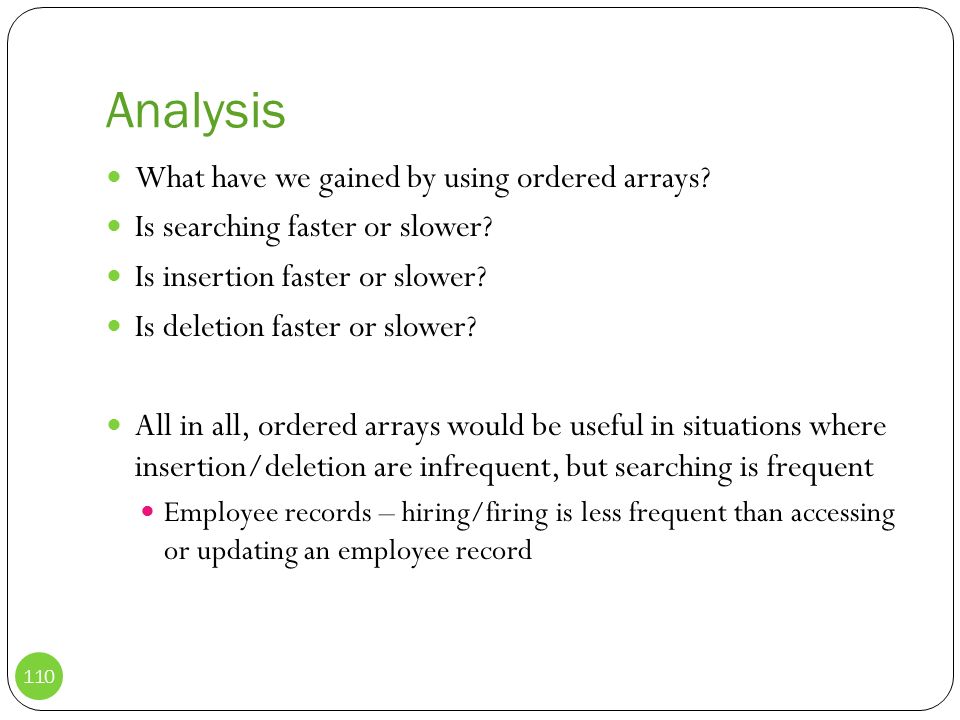

110 Analysis 110 What have we gained by using ordered arrays? Is searching faster or slower? Is insertion faster or slower? Is deletion faster or slower? All in all, ordered arrays would be useful in situations where insertion/deletion are infrequent, but searching is frequent Employee records – hiring/firing is less frequent than accessing or updating an employee record

111 Ordered Array: Operation Counts 111 Maximum number of comparisons for an ordered array of n elements, running binary search: nComparisons 104 1007 100010 1000014 10000017 100000020 How does this compare with linear search, particularly for large arrays? Whew.

112 A Deeper Analysis 112 How many comparisons would be required for an array of 256 elements? (2^8) What about 512 (2^9)? What do you think 1024 would be (2^10)? See the pattern? So for n values, the number of comparisons is log 2 (n)+1. This is an example of an algorithm which scales logarithmically with the input size. Linear search, scales linearly.

113 Computing log 2 n 113 On a calculator, if you use the “log” button, usually the base is 10. If you want to convert: Multiply by 3.322 Algorithms that scale logarithmically are preferable to those that scale linearly, because the log of a function grows much slower than the function itself. So for large input sets, you’ll have a MUCH smaller number of operations.

114 Storing Objects 114 We’ve seen an example where we used arrays to store primitive data. Now let’s look at an example which stores objects. What’s our situation now with values and references? The array itself is still a _________________. The elements of the array are ________________. Implications?

115 Person Class 115 Let’s go through the Person class on page 65. Data: First name and last name (String objects), age (integer value) Functions Constructor which takes two strings and an integer Function to display information Function to return the last name (we’ll eventually use this for searching)

116 Adapting our HighArray class 116 Rewrite the implementation on page 49 Change to operate on Persons instead of integers Watch out for the ==! In main() construct Person objects

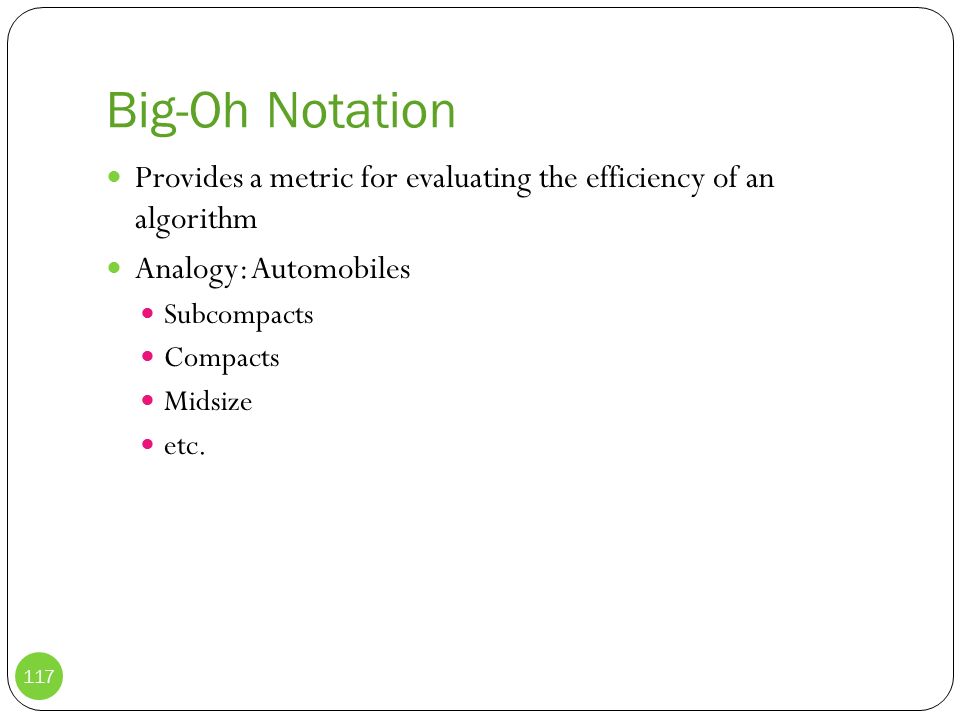

117 Big-Oh Notation 117 Provides a metric for evaluating the efficiency of an algorithm Analogy: Automobiles Subcompacts Compacts Midsize etc.

118 How it’s done 118 It’s difficult to simply say: A is twice as fast as B We saw with linear search vs. binary search, the comparison can be different when you change the input size. For example, for an array of size n: n=16, linear search comparisons = 10, binary search comparisons = 5 Binary search is 2x as fast n=32, linear search comparisons = 32, binary search comparisons = 6 Binary search is 5.3x as fast

119 Example: Insertion into Unordered Array 119 Suppose we just insert at the next available position: Position is a[nElems] Increment nElems Both of these operations are independent of the size of the array n. So they take some time, K, which is not a function of n We say this is O(1), or constant time Meaning that the runtime is proportional to 1.

120 Example: Linear search 120 You’ll require a loop which runs in the worst case n times Each time, you have to: Increment a loop counter Compare the loop counter to n Compare the current element to the key Each of these operations take time independent of n, so let’s say they consume a total time of K. Then the algorithm would take K*n total time We say this is O(n).

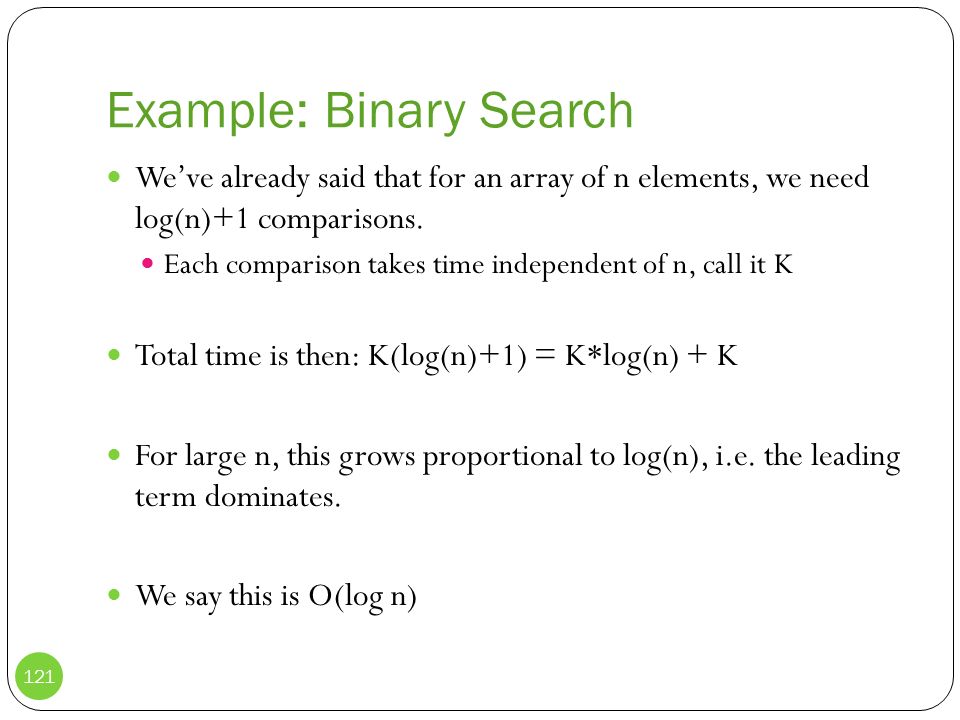

121 Example: Binary Search 121 We’ve already said that for an array of n elements, we need log(n)+1 comparisons. Each comparison takes time independent of n, call it K Total time is then: K(log(n)+1) = K*log(n) + K For large n, this grows proportional to log(n), i.e. the leading term dominates. We say this is O(log n)

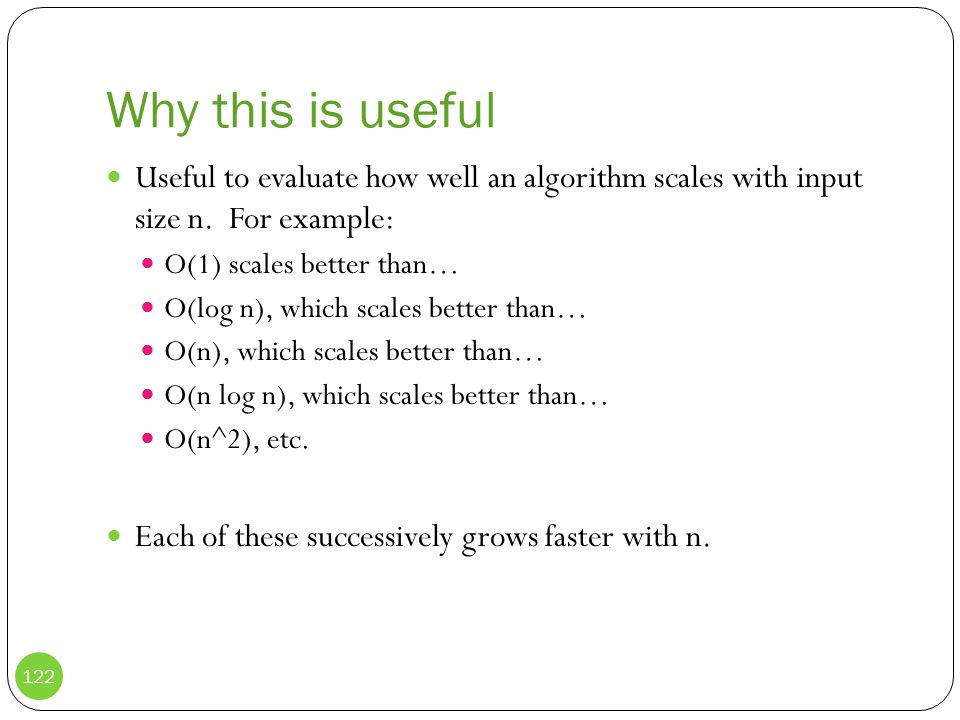

122 Why this is useful 122 Useful to evaluate how well an algorithm scales with input size n. For example: O(1) scales better than… O(log n), which scales better than… O(n), which scales better than… O(n log n), which scales better than… O(n^2), etc. Each of these successively grows faster with n.

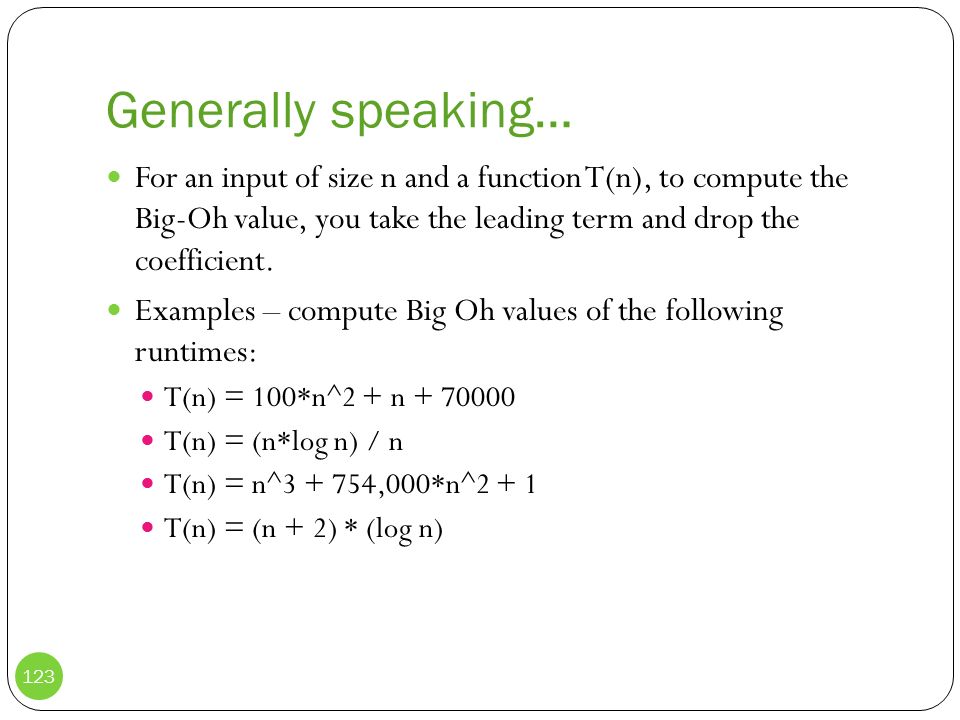

123 Generally speaking… 123 For an input of size n and a function T(n), to compute the Big-Oh value, you take the leading term and drop the coefficient. Examples – compute Big Oh values of the following runtimes: T(n) = 100*n^2 + n + 70000 T(n) = (n*log n) / n T(n) = n^3 + 754,000*n^2 + 1 T(n) = (n + 2) * (log n)

124 But, these large constants must mean something… 124 T(n) = n^3 + 754,000*n^2 + 1 This huge constant on the n^2 term, has to have some effect, right? The answer is yes and no. Yes, if the input size is _________________. But for very large values of n, n^3 overtakes the term, even with the large constant.

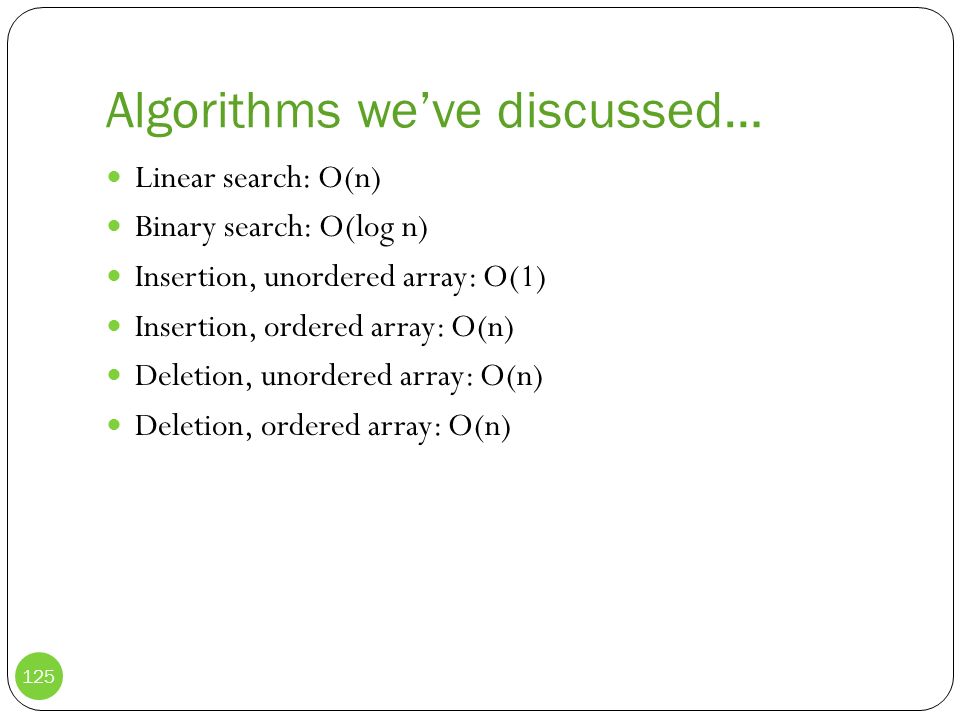

125 Algorithms we’ve discussed… 125 Linear search: O(n) Binary search: O(log n) Insertion, unordered array: O(1) Insertion, ordered array: O(n) Deletion, unordered array: O(n) Deletion, ordered array: O(n)

126 Graph of Big O times. 126 See page 72.

127 Unordered/Ordered Array Tradeoffs 127 Unordered Insertion is fast – O(1) Searching is slow – O(n) Ordered Searching is fast – O(log n) Insertion is slow – O(n) Deletion is even – O(n) Memory can be wasted, or even misused. Let’s discuss.

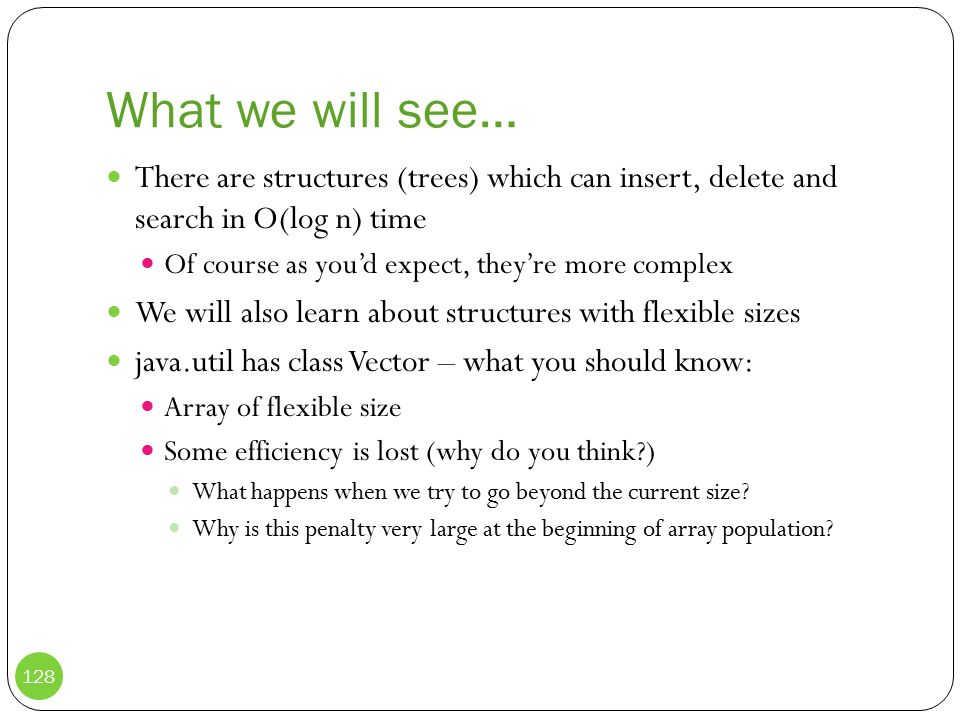

128 What we will see… 128 There are structures (trees) which can insert, delete and search in O(log n) time Of course as you’d expect, they’re more complex We will also learn about structures with flexible sizes java.util has class Vector – what you should know: Array of flexible size Some efficiency is lost (why do you think?) What happens when we try to go beyond the current size? Why is this penalty very large at the beginning of array population?

129 CS221N, Data Structures Sorting Algorithms 129

130 Sorting in Databases Many possibilities Names in alphabetical order Students by grade Customers by zip code Home sales by price Cities by population Countries by GNP Stars by magnitude 130

131 Sorting and Searching 131 We saw with arrays they could work in tandem to improve speed What was the search method that required sorting an array? How much faster was the search? But that means nothing if sorting takes forever! For this and its usefulness, sorting algorithms have been heavily researched

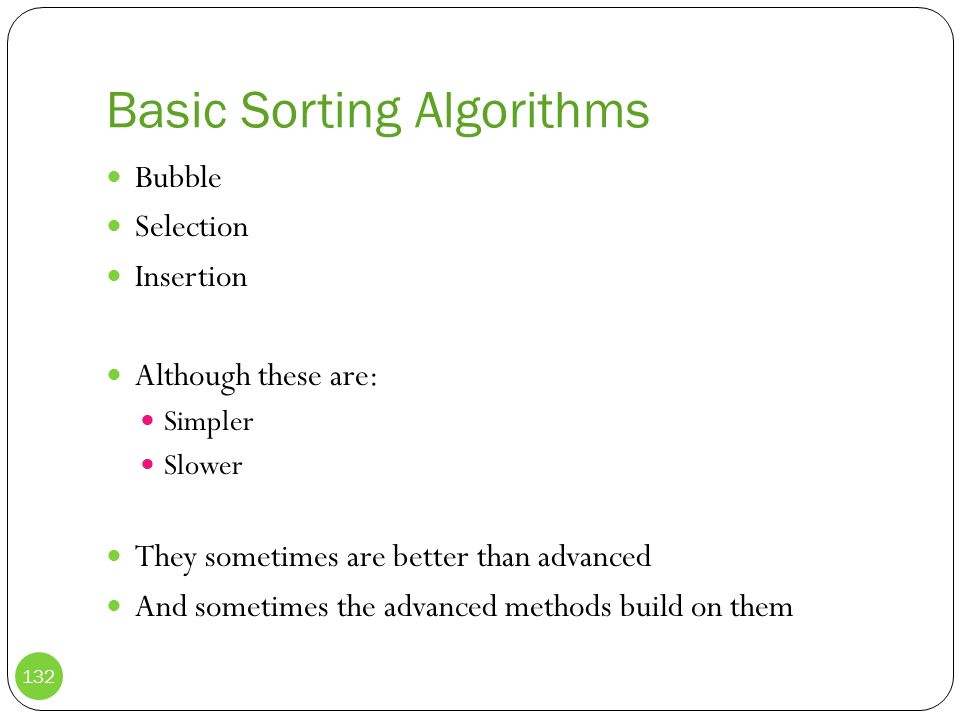

132 Basic Sorting Algorithms 132 Bubble Selection Insertion Although these are: Simpler Slower They sometimes are better than advanced And sometimes the advanced methods build on them

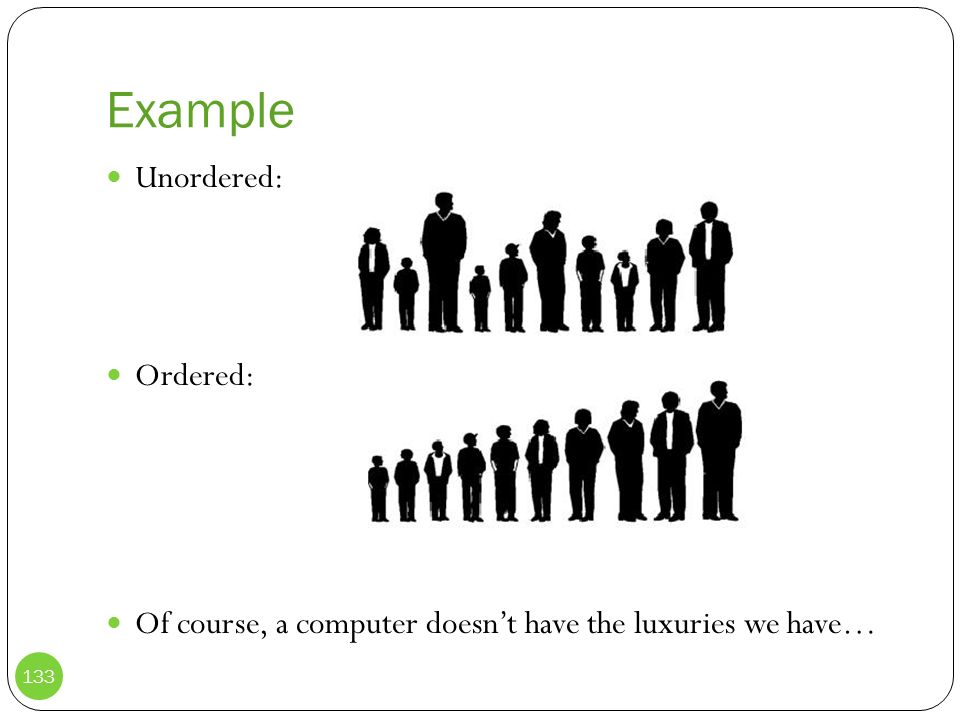

133 Example 133 Unordered: Ordered: Of course, a computer doesn’t have the luxuries we have…

134 Simple Sorts 134 All three algorithms involve two basic steps, which are executed repeatedly until the data is sorted Compare two items Either (1) swap two items, or copy one item They differ in the details and order of operations

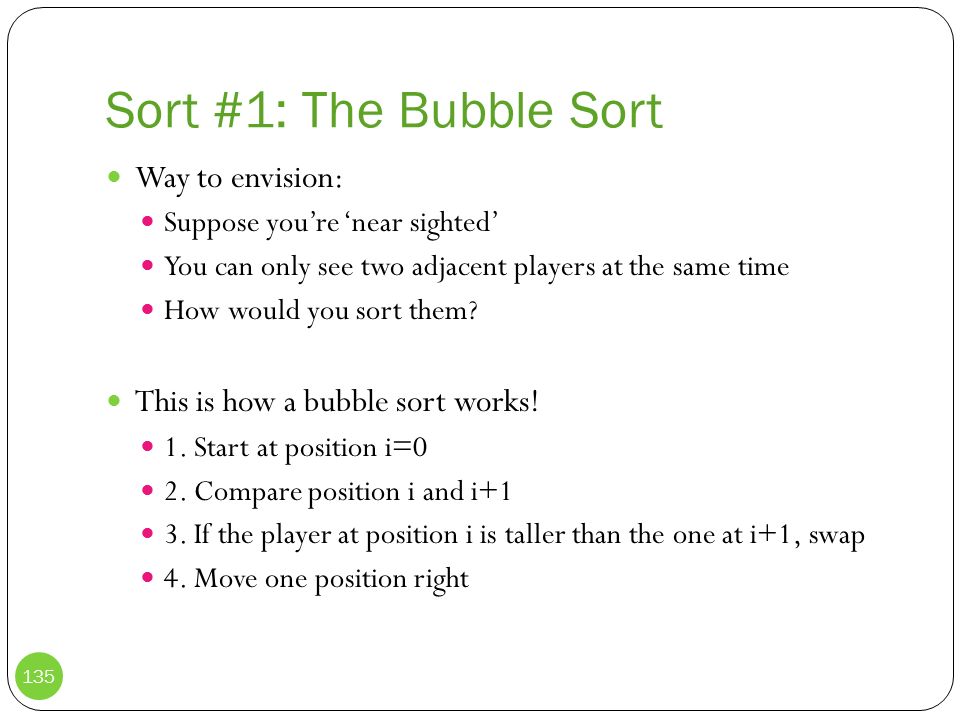

135 Sort #1: The Bubble Sort 135 Way to envision: Suppose you’re ‘near sighted’ You can only see two adjacent players at the same time How would you sort them? This is how a bubble sort works! 1. Start at position i=0 2. Compare position i and i+1 3. If the player at position i is taller than the one at i+1, swap 4. Move one position right

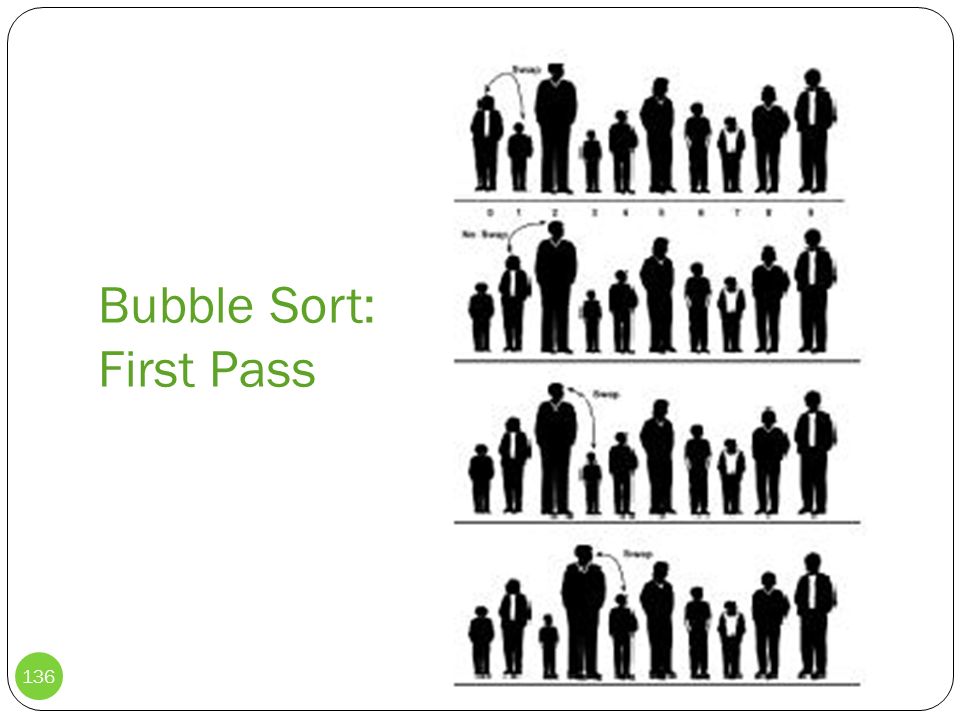

136 Bubble Sort: First Pass 136

137 Bubble Sort: End of First Pass 137 Note: Now the tallest person must be on the end Why? Do we understand the name ‘bubble sort’ now?

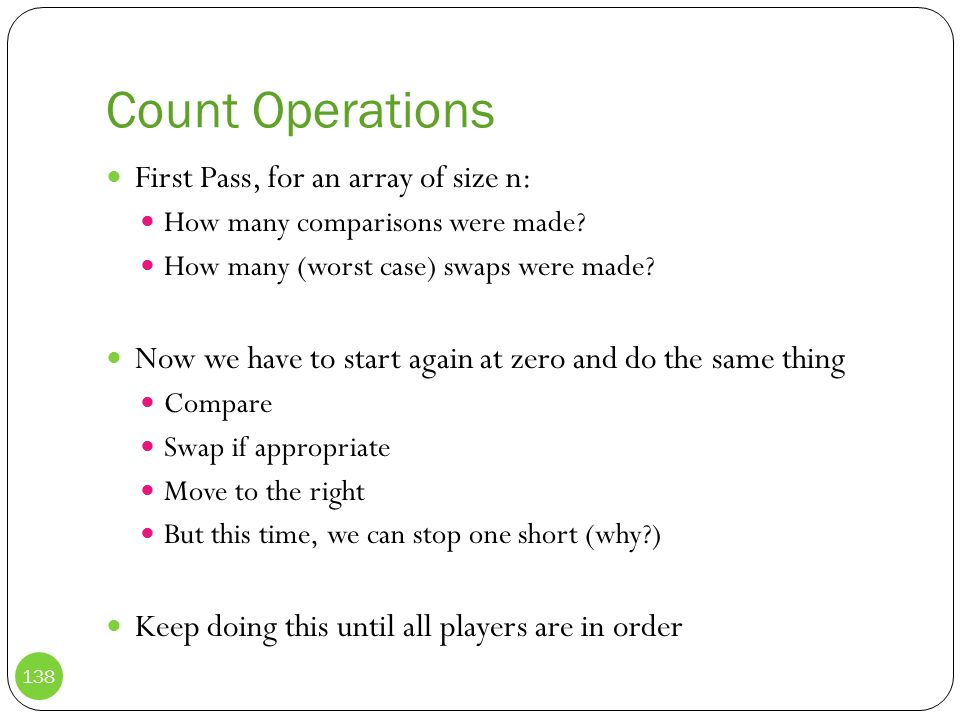

138 Count Operations 138 First Pass, for an array of size n: How many comparisons were made? How many (worst case) swaps were made? Now we have to start again at zero and do the same thing Compare Swap if appropriate Move to the right But this time, we can stop one short (why?) Keep doing this until all players are in order

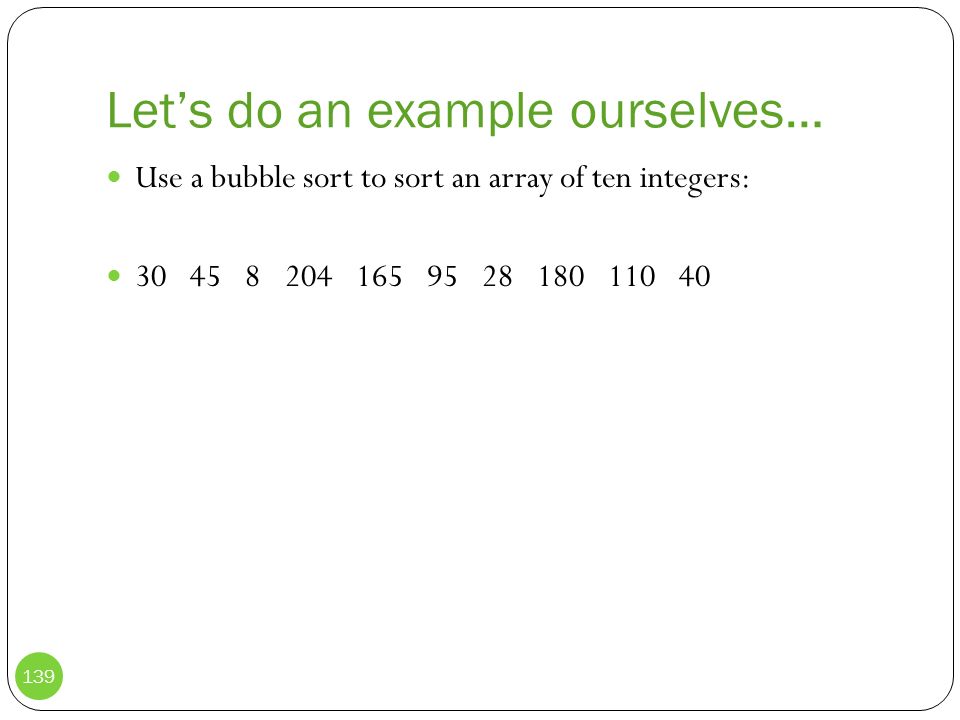

139 Let’s do an example ourselves… 139 Use a bubble sort to sort an array of ten integers: 30 45 8 204 165 95 28 180 110 40

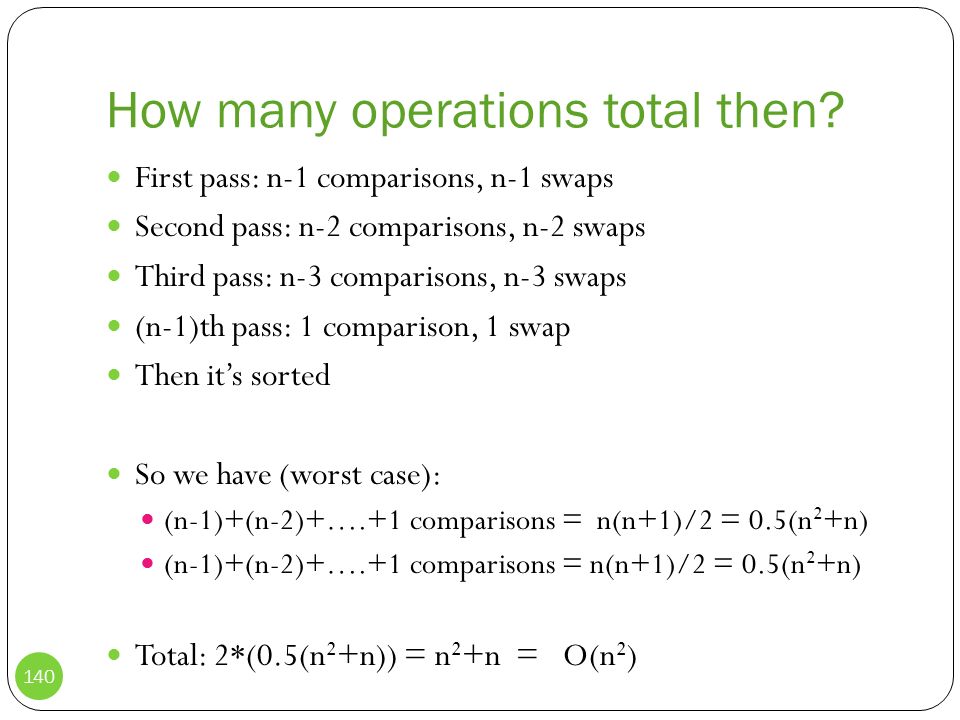

140 How many operations total then? 140 First pass: n-1 comparisons, n-1 swaps Second pass: n-2 comparisons, n-2 swaps Third pass: n-3 comparisons, n-3 swaps (n-1)th pass: 1 comparison, 1 swap Then it’s sorted So we have (worst case): (n-1)+(n-2)+….+1 comparisons = n(n+1)/2 = 0.5(n 2 +n) Total: 2*(0.5(n 2 +n)) = n 2 +n = O(n 2 )

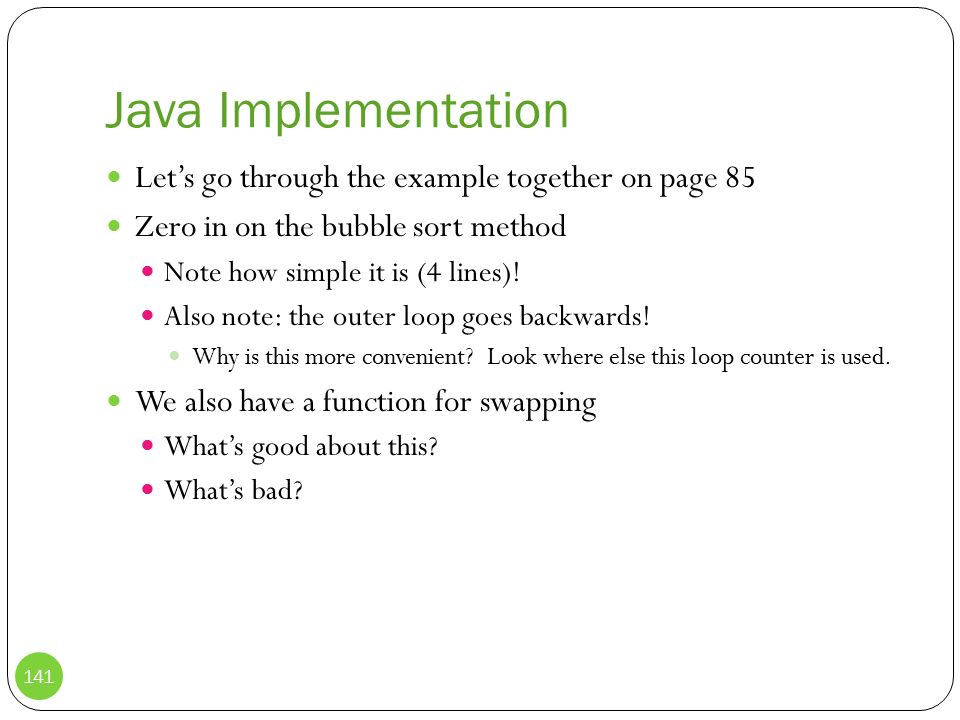

141 Java Implementation 141 Let’s go through the example together on page 85 Zero in on the bubble sort method Note how simple it is (4 lines)! Also note: the outer loop goes backwards! Why is this more convenient? Look where else this loop counter is used. We also have a function for swapping What’s good about this? What’s bad?

142 Invariants 142 Algorithms tend to have invariants, i.e. facts which are true all the time throughout its execution In the case of the bubble sort, what is always true is…. Worth thinking about when trying to understand algorithms

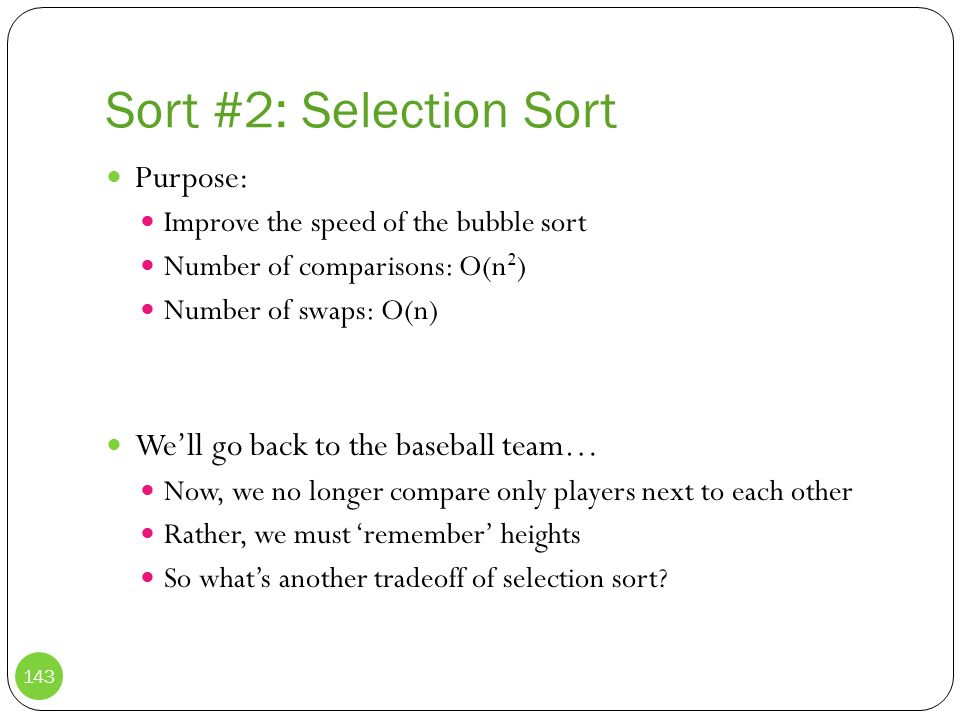

143 Sort #2: Selection Sort 143 Purpose: Improve the speed of the bubble sort Number of comparisons: O(n 2 ) Number of swaps: O(n) We’ll go back to the baseball team… Now, we no longer compare only players next to each other Rather, we must ‘remember’ heights So what’s another tradeoff of selection sort?

144 What’s Involved 144 Make a pass through all the players Find the shortest one Swap that one with the player at the left of the line At position 0 Now the leftmost is sorted Find the shortest of the remaining (n-1) players Swap that one with the player at position 1 And so on and so forth…

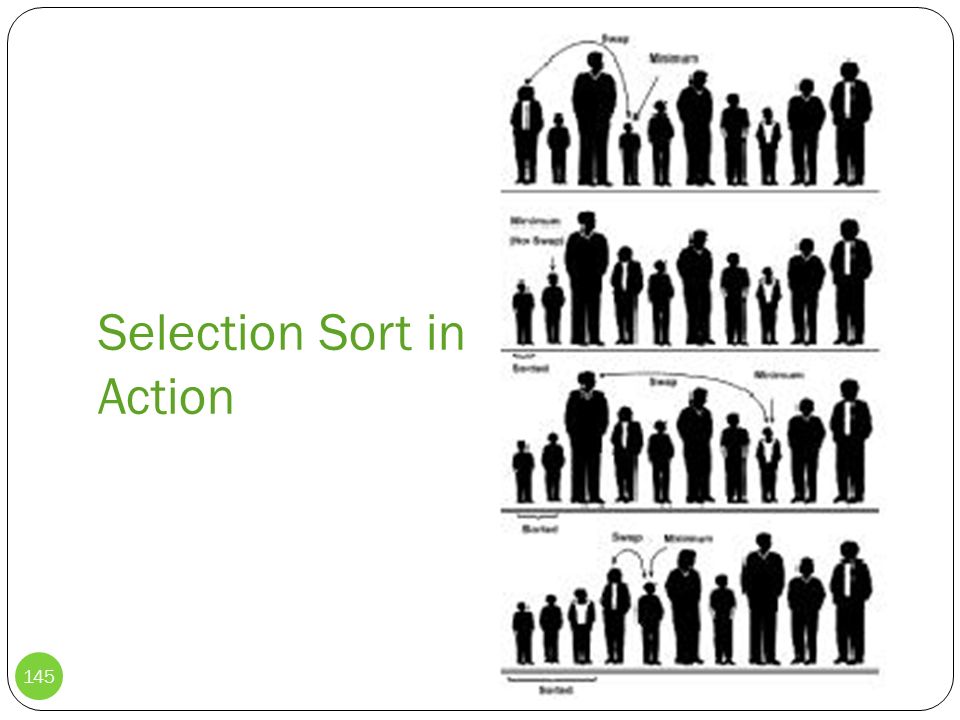

145 Selection Sort in Action 145

146 Count Operations 146 First Pass, for an array of size n: How many comparisons were made? How many (worst case) swaps were made? Now we have to start again at position one and do the same thing Find the smallest Swap with position one Keep doing this until all players are in order

147 Let’s do an example ourselves… 147 Use a selection sort to sort an array of ten integers: 30 45 8 204 165 95 28 180 110 40

148 How many operations total then? 148 First pass: n-1 comparisons, 1 swap Second pass: n-2 comparisons, 1 swap Third pass: n-3 comparisons, 1 swap (n-1)th pass: 1 comparison, 1 swap Then it’s sorted So we have (worst case): (n-1)+(n-2)+….+1 comparisons = n(n-1)/2 = 0.5(n 2 - n) 1+1+….+1 comparisons = n-1 Total: 0.5(n 2 - n) + (n – 1) = 0.5n 2 + 0.5n - 1 = O(n 2 )

149 Implementation – page 92 149 Let’s go through the function together. Things to watch: A bit more complex than bubble (6 lines) A bit more memory (one extra integer)

150 A method of an array class… 150 See page 93, we’ll go through it.

151 Sort #3: Insertion Sort 151 In most cases, the best one… 2x as fast as bubble sort Somewhat faster than selection in MOST cases Slightly more complex than the other two More advanced algorithms (quicksort) use it as a stage

152 Proceed.. 152 A subarray to the left is ‘partially sorted’ Start with the first element The player immediately to the right is ‘marked’. The ‘marked’ player is inserted into the correct place in the partially sorted array Remove first Marked player ‘walks’ to the left Shift appropriate elements until we hit a smaller one

153 Let’s do an example ourselves… 153 Use a insertion sort to sort an array of ten integers: 30 45 8 204 165 95 28 180 110 40

154 Count Operations 154 First Pass, for an array of size n: How many comparisons were made? How many swaps were made? Were there any? What were there? Now we have to start again at position two and do the same thing Move the marked player to the correct spot Keep doing this until all players are in order

155 How many operations total then? 155 First pass: 1 comparison, 1 copy Second pass: 2 comparisons, 2 copies Third pass: 3 comparisons, 3 copies (n-1)th pass: n-1 comparison, n-1 copies Then it’s sorted So we have (worst case): (n-1)+(n-2)+….+1 comparisons = n(n-1)/2 = 0.5(n 2 - n) (n-1)+(n-2)+….+1 copies = n(n-1)/2 = 0.5(n 2 - n) Total: 2*(0.5(n 2 +n)) = n 2 - n = O(n 2 )

156 Why are we claiming it’s better than selection sort? 156 A swap is an expensive operation. A copy is not. To see this, how many copies are required per swap? Selection/bubble used swaps, insertion used copies. Secondly, if an array is sorted or almost sorted, insertion sort runs in approximately O(n) time. Why is that? How many comparisons would you need per iteration? And how many copies? Bubble and selection would require O(n 2 ) comparisons even if the array was completely sorted initially!

157 Flow 157

158 Implementation 158 We’ll write the function (pages 99-100) together Use the control flow on the previous slide

159 And finally… 159 Encapsulate the functionality within an array class (p. 101- 102)

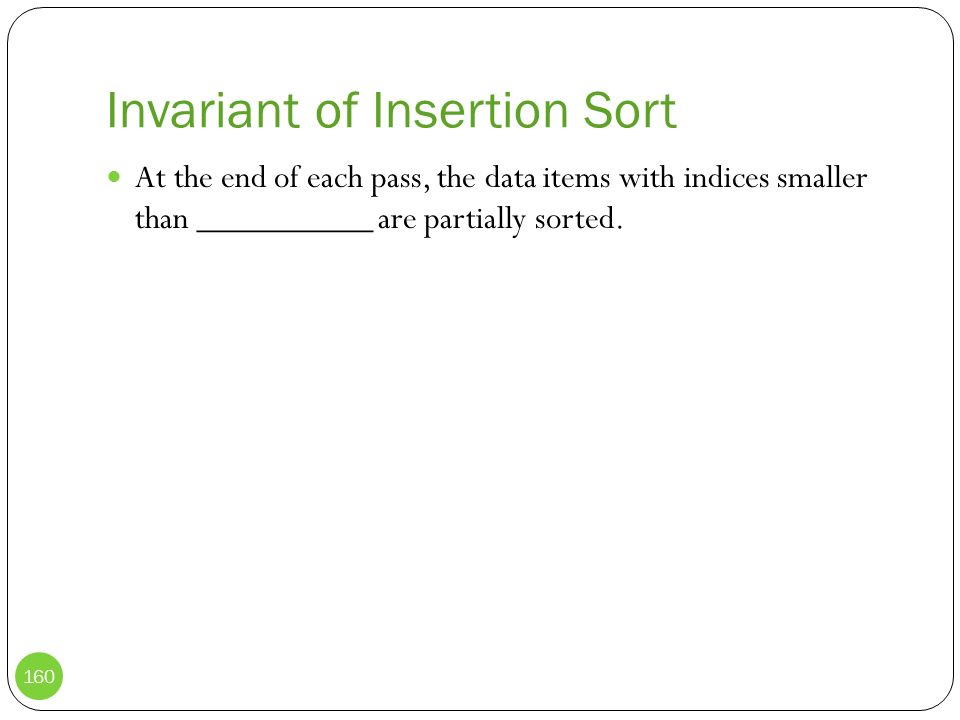

160 Invariant of Insertion Sort 160 At the end of each pass, the data items with indices smaller than __________ are partially sorted.

161 Sorting Objects 161 Let’s modify our insertion sort to work on a Person class, which has three private data members: lastName (String) firstName (String) age (int) What do we need for something like insertion sort to work? How do we define that?

162 Lexicographic Comparison 162 For Java Strings, you can lexicographically compare them through method compareTo(): s1.compareTo(s2); Returns an integer If s1 comes before s2 lexicographically, returns a value < 0 If s1 is the same as s2, return 0 If s1 comes after s2 lexicographically, returns a value > 0

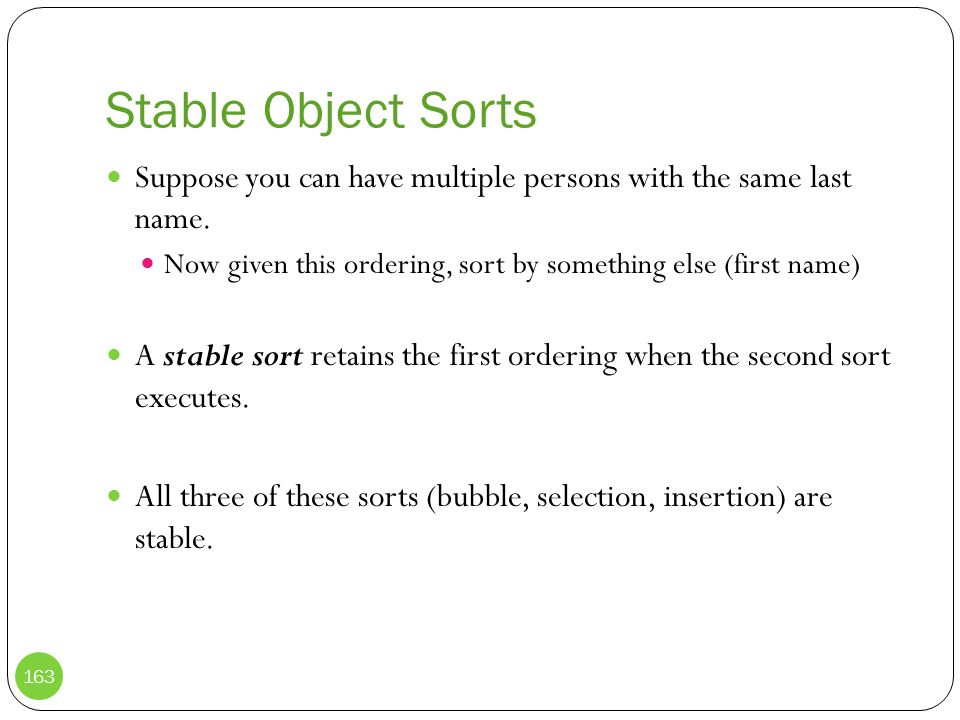

163 Stable Object Sorts 163 Suppose you can have multiple persons with the same last name. Now given this ordering, sort by something else (first name) A stable sort retains the first ordering when the second sort executes. All three of these sorts (bubble, selection, insertion) are stable.

164 Sort Comparison: Summary 164 Bubble Sort – hardly ever used Too slow, unless data is very small Selection Sort – slightly better Useful if: data is quite small and swapping is time-consuming compared to comparisons Insertion Sort – most versatile Best in most situations Still for large amounts of highly unsorted data, there are better ways – we’ll look at them Memory requirements are not high for any of these

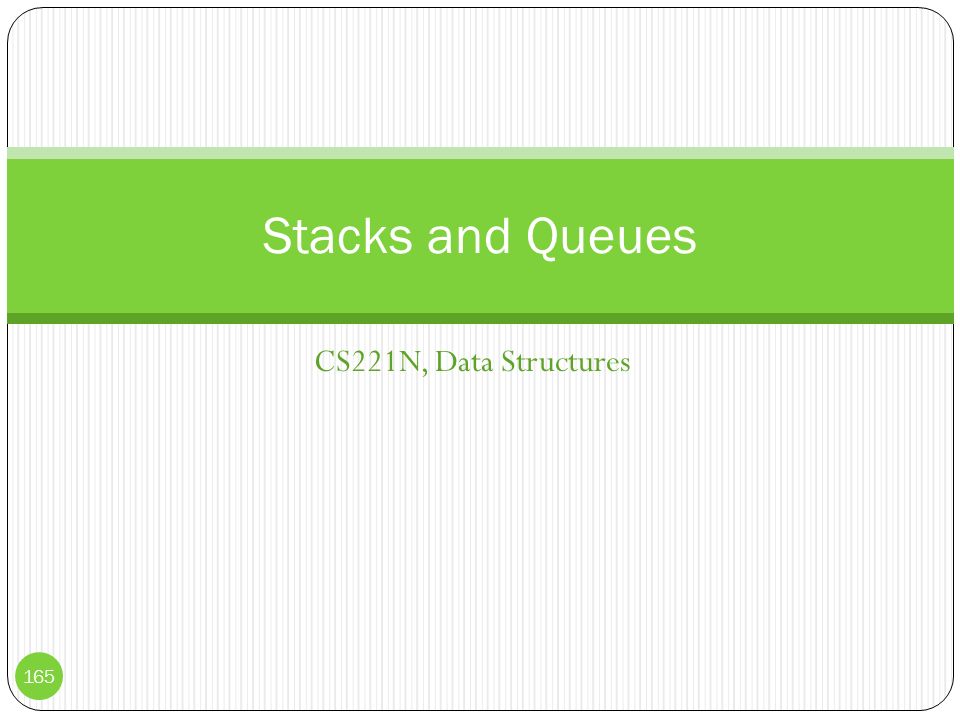

165 CS221N, Data Structures Stacks and Queues 165

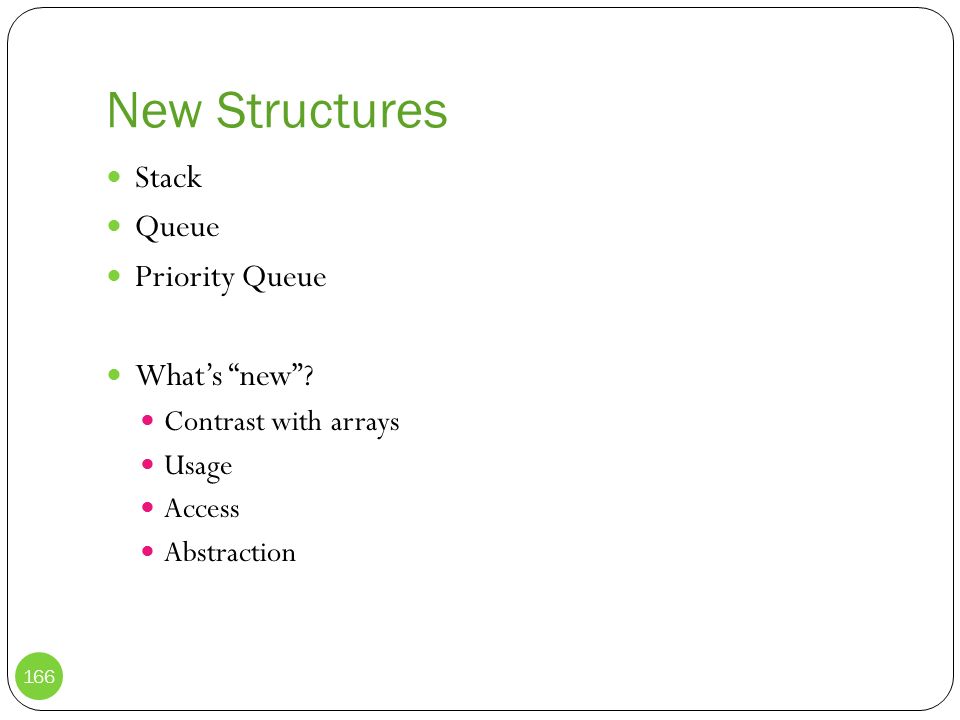

166 New Structures Stack Queue Priority Queue What’s “new”? Contrast with arrays Usage Access Abstraction 166

167 Usage 167 Arrays are conducive for databases Data which will be accessed and modified Easy operations for insertion, deletion and searching Although some of these are time consuming Stacks and queues are good for programming tools Data will not be touched by the user Used and then discarded

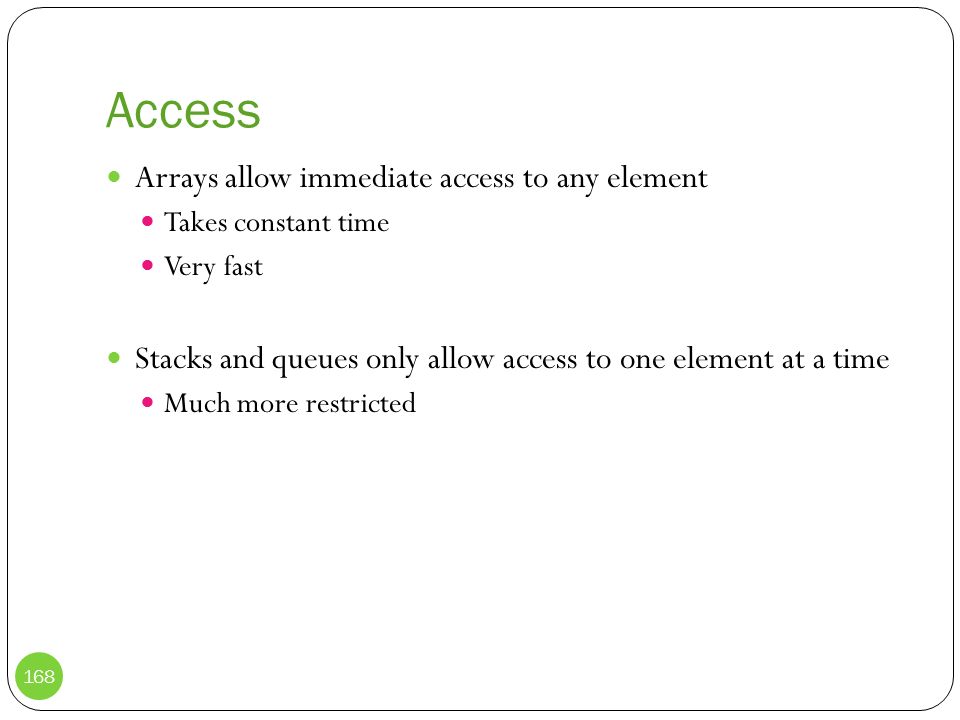

168 Access 168 Arrays allow immediate access to any element Takes constant time Very fast Stacks and queues only allow access to one element at a time Much more restricted

169 Abstraction 169 A bit higher than arrays. Why? When a user indexes an array, they specify a memory address Indirectly, because they say: Array name -> address of the first element Index -> offset from that address * size of array elements With stacks and queues, everything is done through methods User has no idea what goes on behind the scenes Also no initial size needed BIGGEST THING Stacks, queues and priority queues can use arrays as their underlying structure Or linked lists… From the user’s perspective, they are one and the same

170 Stack 170 A stack only allows access to the last item inserted To get the second-to-last, remove the last Analogy: US Postal Service If we receive a stack of mail, we typically open the top one first, pay the bill or whatever, then get rid of it and open the second

171 Performance Implication 171 Note what we can already infer about stack performance! It is critical that we are able to process mail efficiently Otherwise what happens to the letters on the bottom? In other words, what happens to the bills on the bottom if we never get to them? A stack is what is known as a Last-In, First-Out (LIFO) structure We can only insert to the top (push) We can only access the element on top (peek) We can only delete from the top (pop)

172 Applications 172 Compilers Balancing parentheses, braces, brackets Symbol tables Parsing arithmetic expressions Traversing nodes of trees and graphs Invoking methods Pocket calculators

173 The ‘push’ operation 173 Pushing involves placing an element on the top of the stack Analogy: Workday You’re given a long-term project A (push) A coworker interrupted for temporary help with project B (push) Someone in accounting stops by for a meeting on project C (push) Emergency call for help on project D (push) At any time, you’re working on the project most recently pushed

174 The ‘pop’ operation 174 Popping involves removing the top element from the stack Analogy: Workday Finish the emergency call with project D (pop) Finish the meeting on project C (pop) Finish the help on project B (pop) Complete the long-term project A (pop) When everything is popped off the stack, it is considered an empty stack Stacks are always initially empty

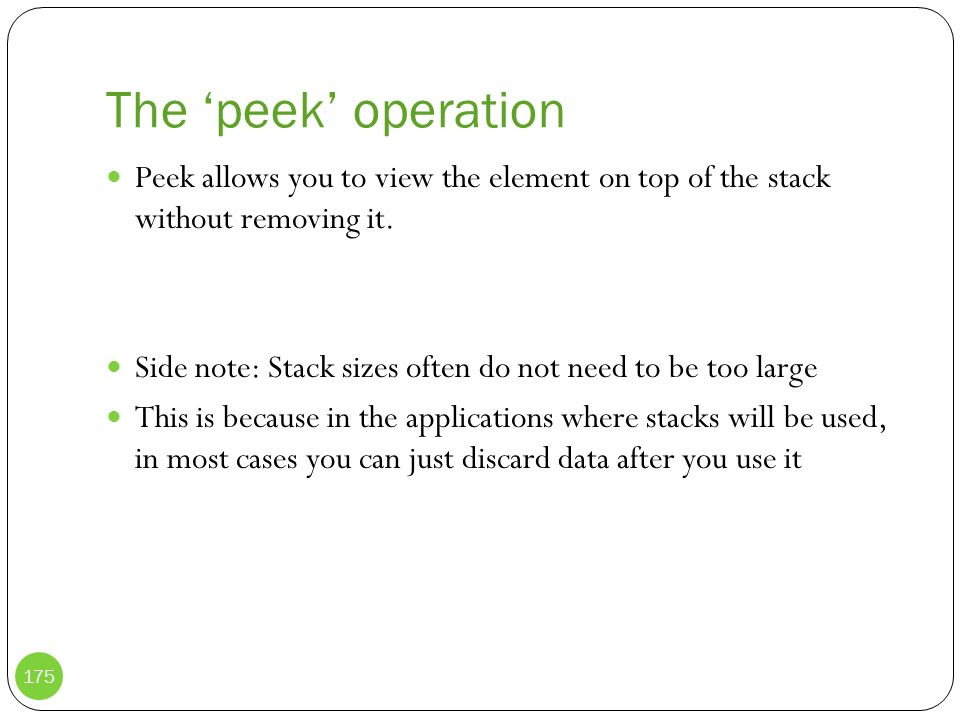

175 The ‘peek’ operation 175 Peek allows you to view the element on top of the stack without removing it. Side note: Stack sizes often do not need to be too large This is because in the applications where stacks will be used, in most cases you can just discard data after you use it

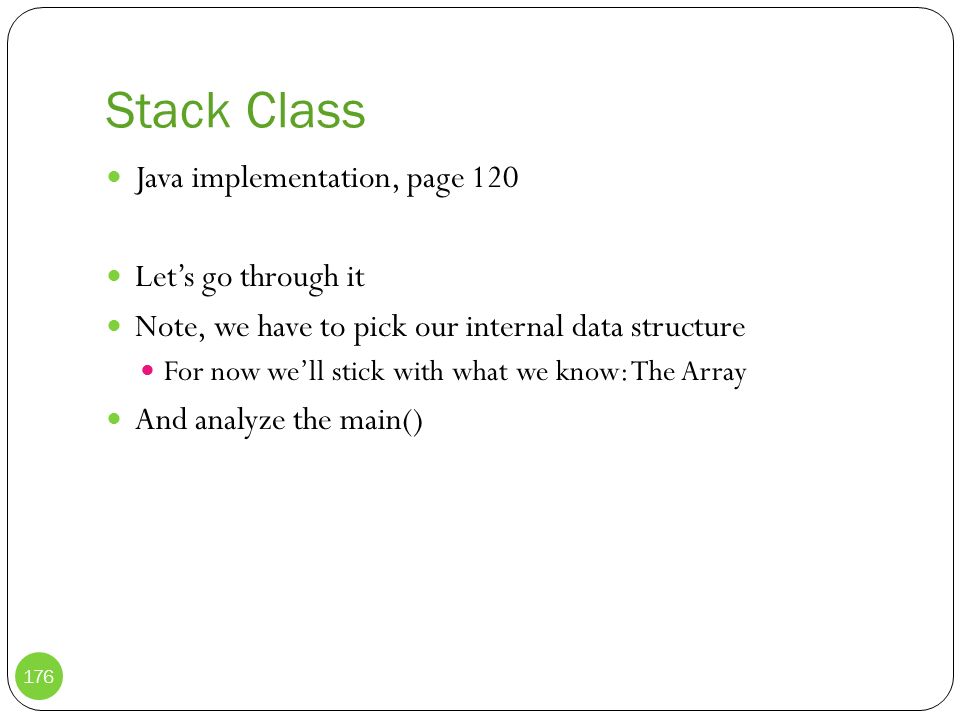

176 Stack Class 176 Java implementation, page 120 Let’s go through it Note, we have to pick our internal data structure For now we’ll stick with what we know: The Array And analyze the main()

177 Stack class methods 177 Constructor: Accepts a size, creates a new stack Internally allocates an array of that many slots push() Increments top and stores a data item there pop() Returns the value at the top and decrements top Note the value stays in the array! It’s just inaccessible (why?) peek() Return the value on top without changing the stack isFull(), isEmpty() Return true or false

178 Pictorally, let’s view the execution of main() 178 StackX theStack = new StackX(10);

179 179 theStack.push(20); top gets bumped up 20 gets stored in the slot with index top Push

180 180 theStack.push(40); top gets bumped up 40 gets stored in the slot with index top

181 181 theStack.push(60); top gets bumped up 60 gets stored in the slot with index top

182 182 theStack.push(80); top gets bumped up 80 gets stored in the slot with index top

183 Pop 183 while (!theStack.isEmpty()) { long value = theStack.pop() … The element indexed by top is stored in value top is decremented by 1

184 Print 184 while (!theStack.isEmpty()) { … System.out.print(value) System.out.print(“”)

185 Pop 185 while (!theStack.isEmpty()) { long value = theStack.pop() … The element indexed by top is stored in value top is decremented by 1

186 Print 186 while (!theStack.isEmpty()) { … System.out.print(value) System.out.print(“”)

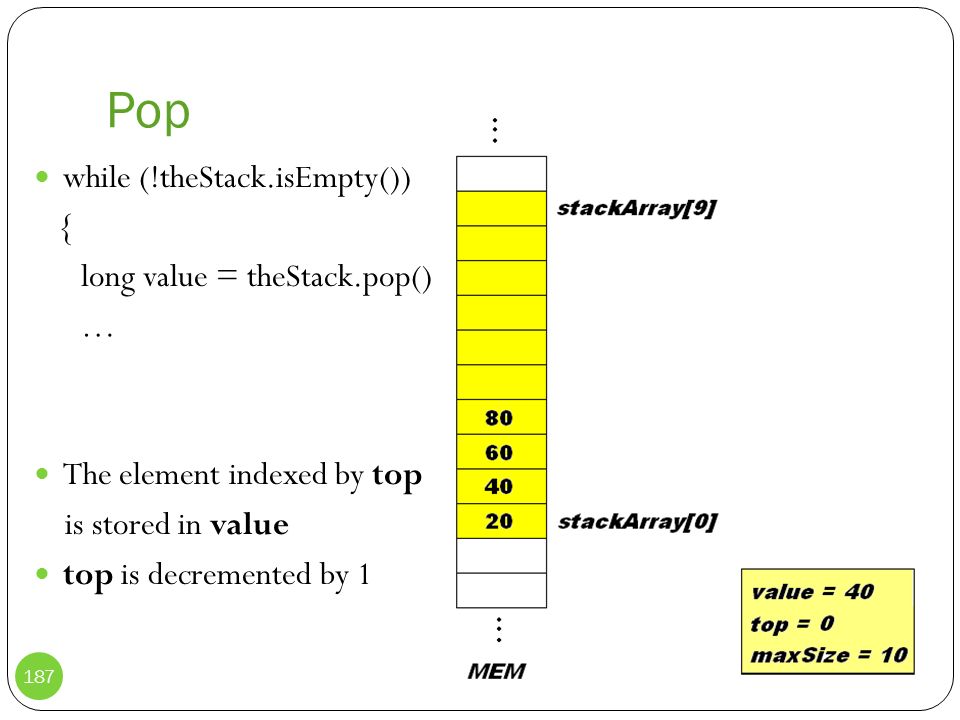

187 Pop 187 while (!theStack.isEmpty()) { long value = theStack.pop() … The element indexed by top is stored in value top is decremented by 1

188 Print 188 while (!theStack.isEmpty()) { … System.out.print(value) System.out.print(“”)

189 Pop 189 while (!theStack.isEmpty()) { long value = theStack.pop() … The element indexed by top is stored in value top is decremented by 1

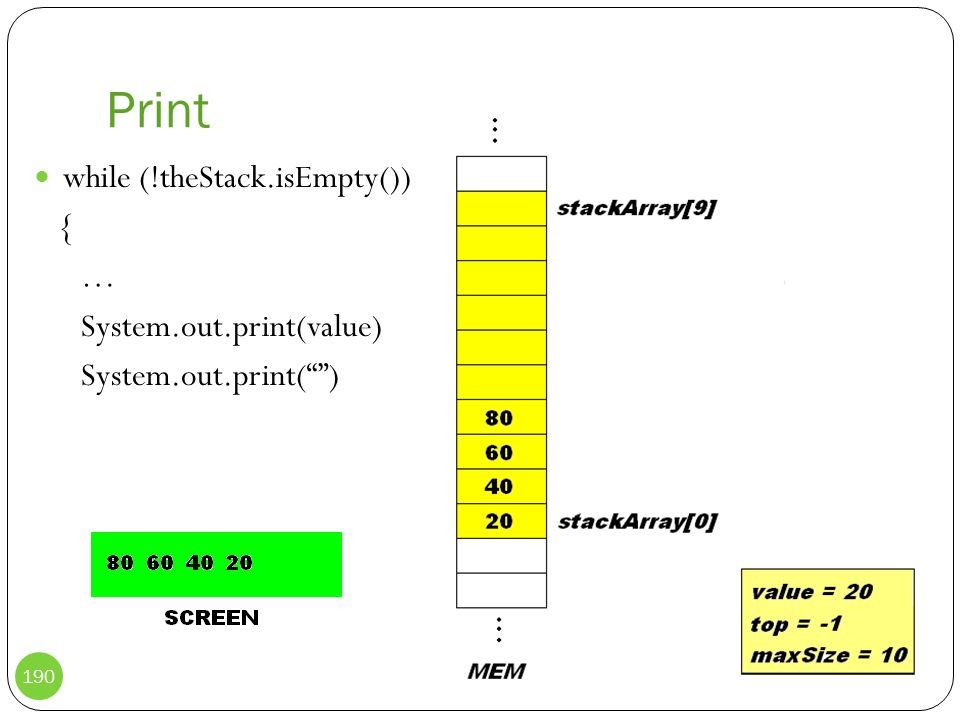

190 Print 190 while (!theStack.isEmpty()) { … System.out.print(value) System.out.print(“”)

191 Error Handling 191 When would it be responsible to perform error handling in the case of the stack? What function would we add it? And how would we do it?

192 Example Application: Word Reversal 192 Let’s use a stack to take a string and reverse its characters How could this work? Let’s look. Reminder of the available operations with Strings: If I have a string s s.charAt(j) <- Return character with index j s + “…” <- Append a string (or character to s) What would we need to change about our existing stack class? Reverser, page 125

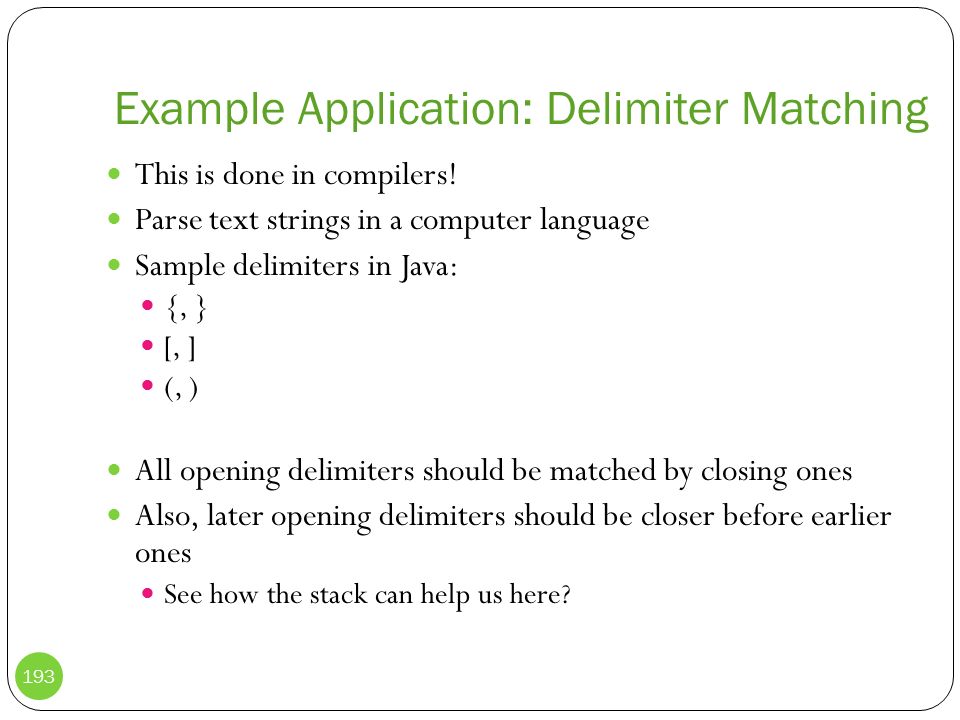

193 Example Application: Delimiter Matching 193 This is done in compilers! Parse text strings in a computer language Sample delimiters in Java: {, } [, ] (, ) All opening delimiters should be matched by closing ones Also, later opening delimiters should be closer before earlier ones See how the stack can help us here?

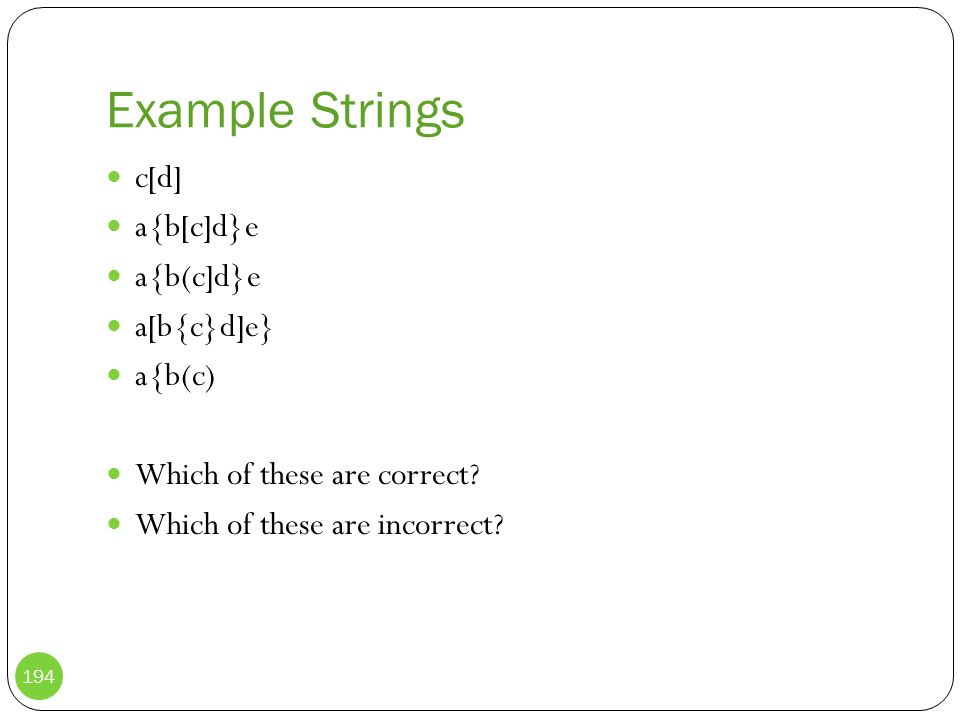

194 Example Strings 194 c[d] a{b[c]d}e a{b(c]d}e a[b{c}d]e} a{b(c) Which of these are correct? Which of these are incorrect?

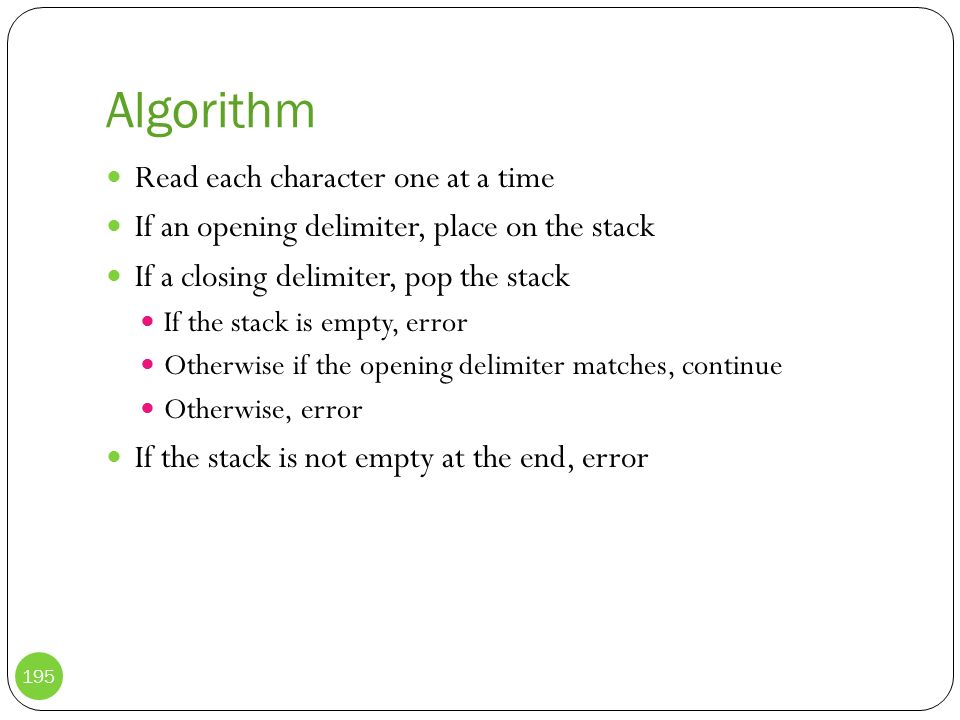

195 Algorithm 195 Read each character one at a time If an opening delimiter, place on the stack If a closing delimiter, pop the stack If the stack is empty, error Otherwise if the opening delimiter matches, continue Otherwise, error If the stack is not empty at the end, error

196 Example 196 Let’s look at a stack for a{b(c[d]e)f} CharacterStackAction ax {{push ‘{‘ b{x ({(push ‘(‘ c{(x [{([push ‘[‘ d{([x ]{(pop ‘[‘, match e{(x ){pop ‘(‘, match f{x }pop ‘{‘, match

197 Example 197 Let’s do one that errors: a[b{c}d]e} Together on the board

198 Java Implementation 198 Let’s implement the checker together Page 129 We’ll write a function which accepts a string input And returns true or false depending on if the string has all delimiters matching We can use the Stack class where the internal array held characters

199 Stacks: Evaluation 199 For the tools we saw: reversing words and matching delimiters, what about stacks made things easier? i.e. What would have been difficult with arrays? Why does using a stack make your program easier to understand? Efficiency Push -> O(1) (Insertion is fast, but only at the top) Pop -> O(1) (Deletion is fast, but only at the top) Peek -> O(1) (Access is fast, but only at the top)

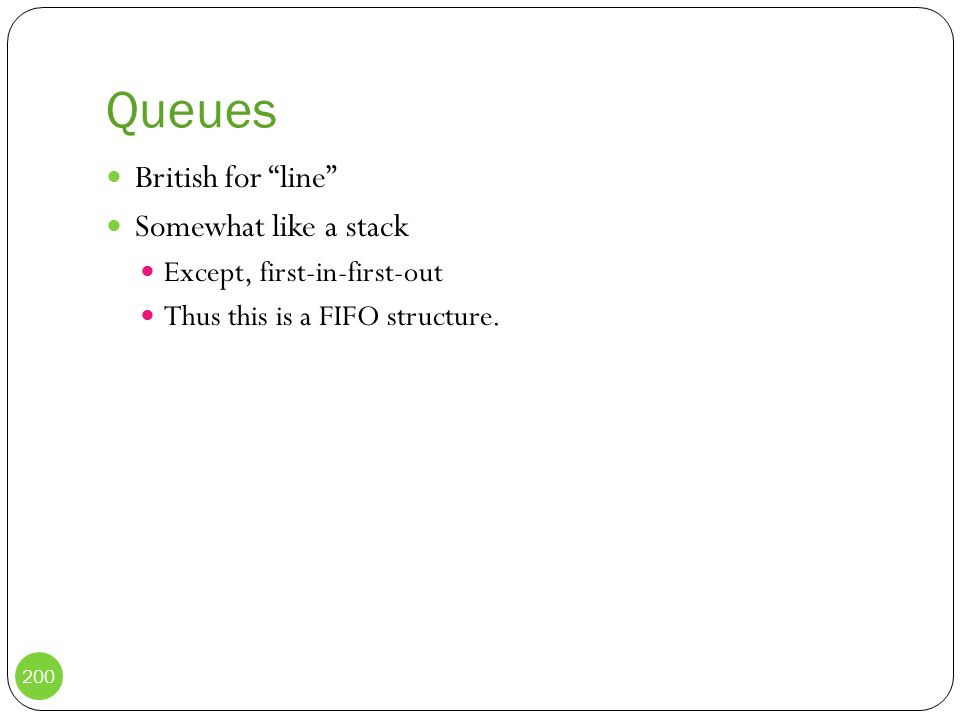

200 Queues 200 British for “line” Somewhat like a stack Except, first-in-first-out Thus this is a FIFO structure.

201 Analogy: 201 Line at the movie theatre Last person to line up is the last person to buy

202 Applications 202 Graph searching Simulating real-world situations People waiting in bank lines Airplanes waiting to take off Packets waiting to be transmitted over the internet Hardware Printer queue Keyboard strokes Guarantees the correct processing order

203 Queue Operations 203 insert() Also referred to as put(), add(), or enque() Inserts an element at the back of the queue remove() Also referred to as get(), delete(), or deque() Removes an element from the front of the queue peekRear() Element at the back of the queue peekFront() Element at the front of the queue

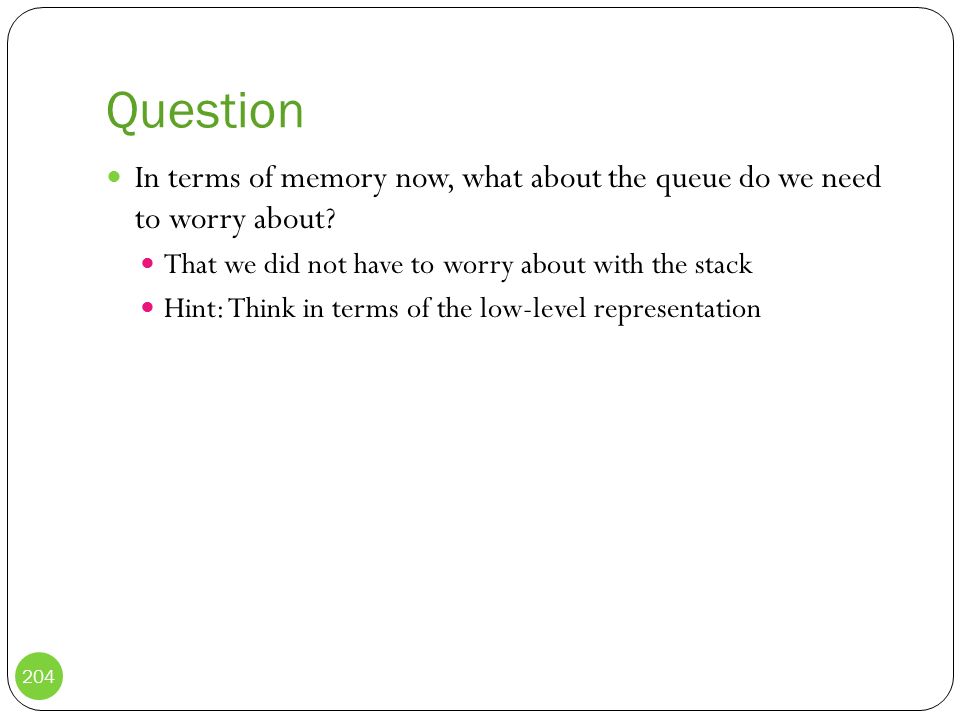

204 Question 204 In terms of memory now, what about the queue do we need to worry about? That we did not have to worry about with the stack Hint: Think in terms of the low-level representation

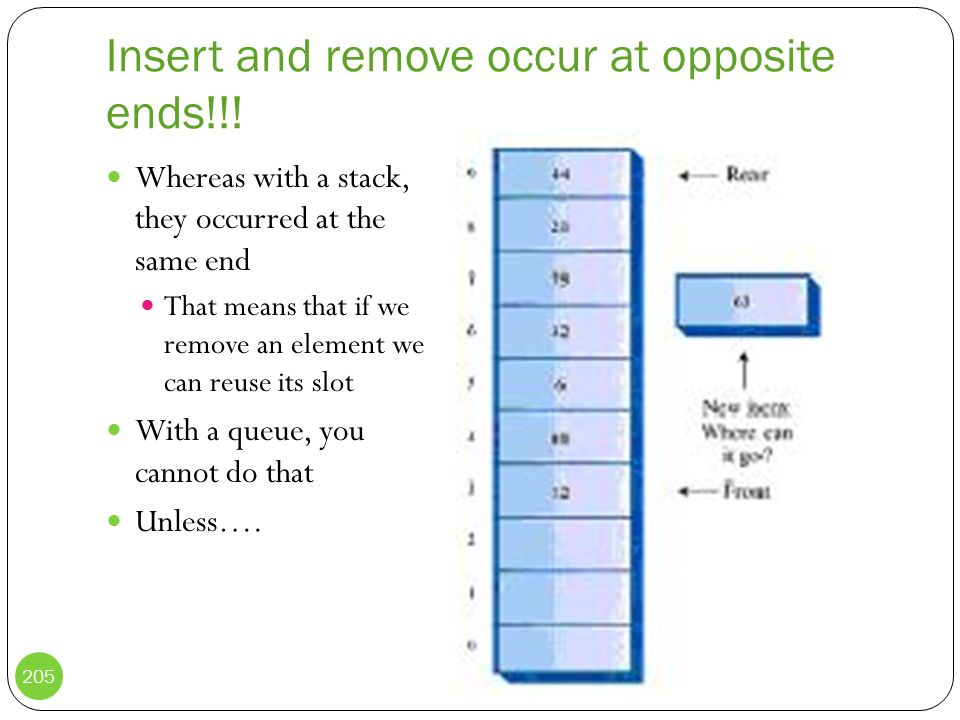

205 Insert and remove occur at opposite ends!!! 205 Whereas with a stack, they occurred at the same end That means that if we remove an element we can reuse its slot With a queue, you cannot do that Unless….

206 Circular Queue 206 Indices ‘wraparound’

207 Java Implementation 207 Page 137-138 in textbook, which again uses an internal array representation We’ll construct that class Then analyze the main function pictorally

208 Queue theQueue = new Queue(5); 208

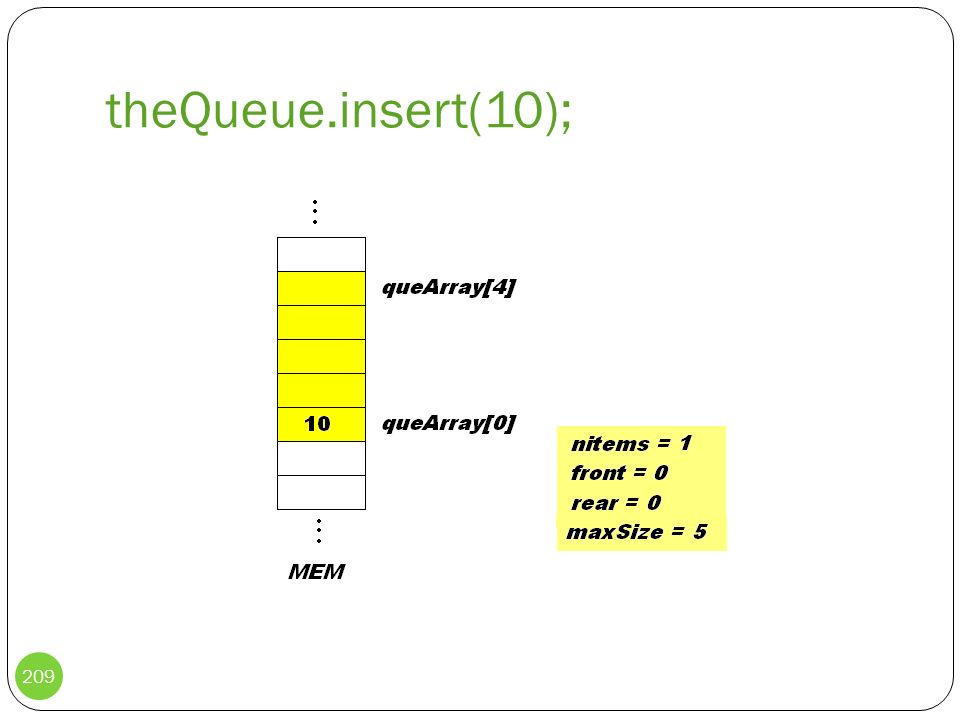

209 theQueue.insert(10); 209

210 theQueue.insert(20); 210

211 theQueue.insert(30); 211

212 theQueue.insert(30); 212

213 theQueue.insert(40); 213

214 theQueue.remove(); 214

215 theQueue.remove(); 215

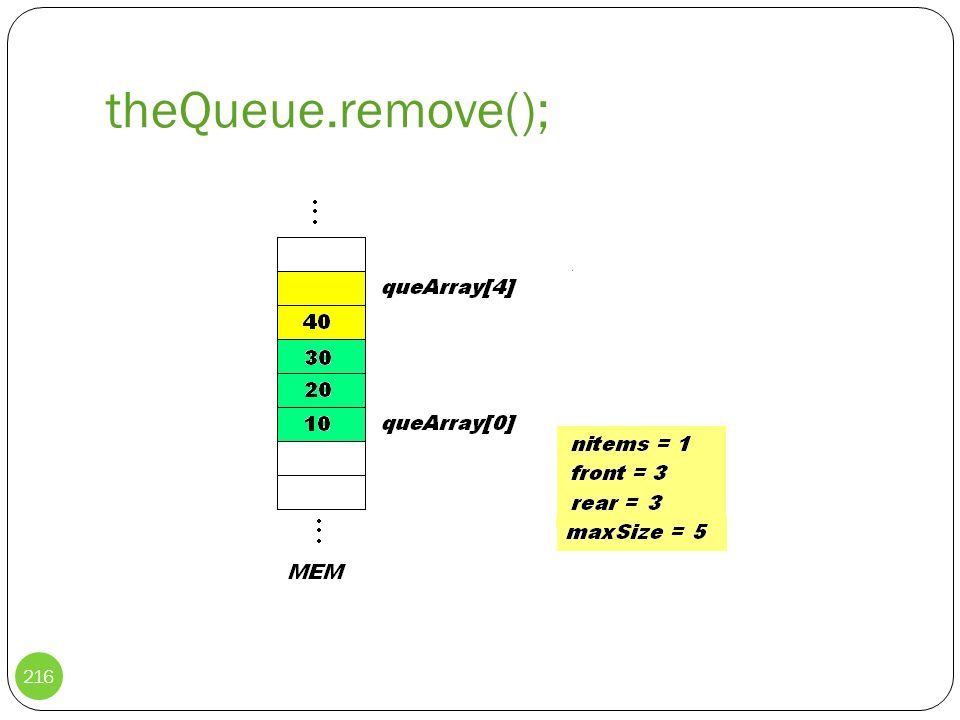

216 theQueue.remove(); 216

217 theQueue.insert(50); 217

218 theQueue.insert(60); 218

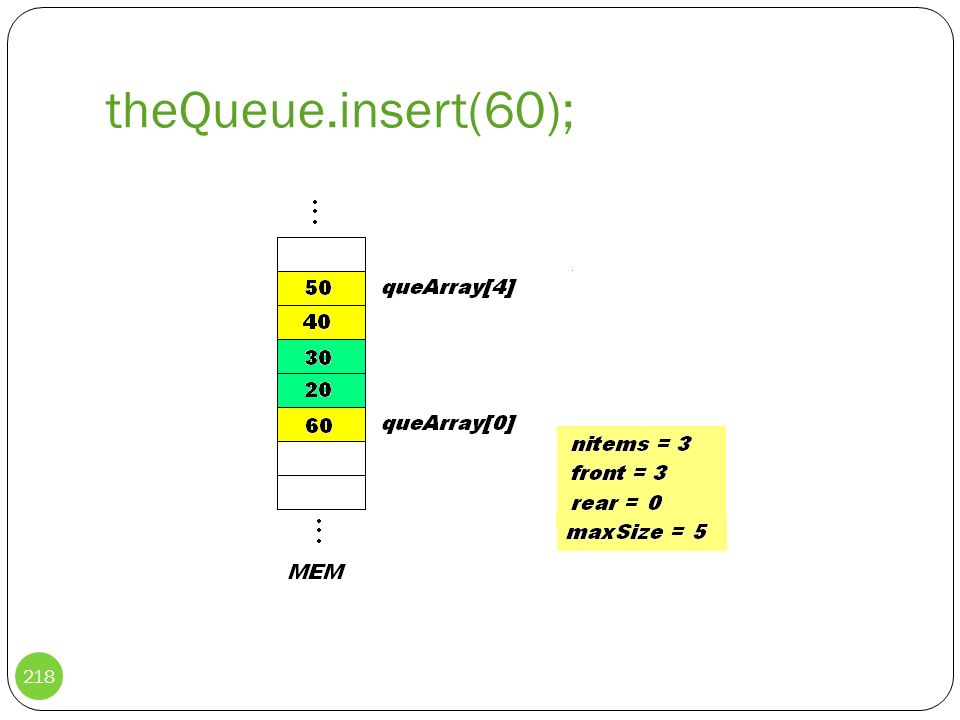

219 theQueue.insert(70); 219

220 theQueue.insert(80); 220

221 Remove and print… 221 while (!theQueue.isEmpty()) long n = theQueue.remove(); System.out.print(n);

222 Remove and print… 222 while (!theQueue.isEmpty()) long n = theQueue.remove(); System.out.print(n);

223 Remove and print… 223 while (!theQueue.isEmpty()) long n = theQueue.remove(); System.out.print(n);

224 Remove and print… 224 while (!theQueue.isEmpty()) long n = theQueue.remove(); System.out.print(n);

225 Remove and print… 225 while (!theQueue.isEmpty()) long n = theQueue.remove(); System.out.print(n);

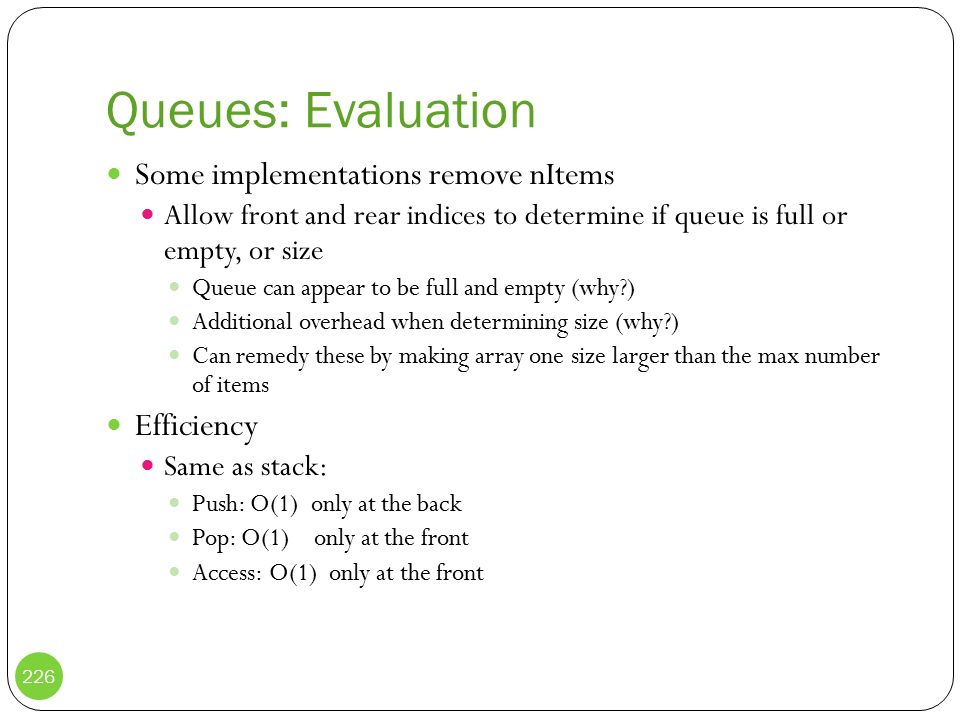

226 Queues: Evaluation 226 Some implementations remove nItems Allow front and rear indices to determine if queue is full or empty, or size Queue can appear to be full and empty (why?) Additional overhead when determining size (why?) Can remedy these by making array one size larger than the max number of items Efficiency Same as stack: Push: O(1) only at the back Pop: O(1) only at the front Access: O(1) only at the front

227 Priority Queues 227 Like a Queue Has a front and a rear Items are removed from the front Difference No longer FIFO Items are ordered We have seen ordered arrays. A priority queue is essentially an ‘ordered queue’ Mail analogy: you want to answer the most important first

228 Priority Queue Implementation 228 Almost NEVER use arrays. Why? Usually employs a heap (we’ll learn these later) Application in Computing Programs with higher priority, execute first Print jobs can be ordered by priority Nice feature: The min (or max) item can be found in O(1) time

229 (Time Pending) Java Implementation 229 Page 147 Biggest difference will be the insert() function Analysis delete() - O(1) insert() - O(n) (again, since arrays are used) findMin() - O(1) if arranged in ascending order findMax() – O(1) if arranged in descending order

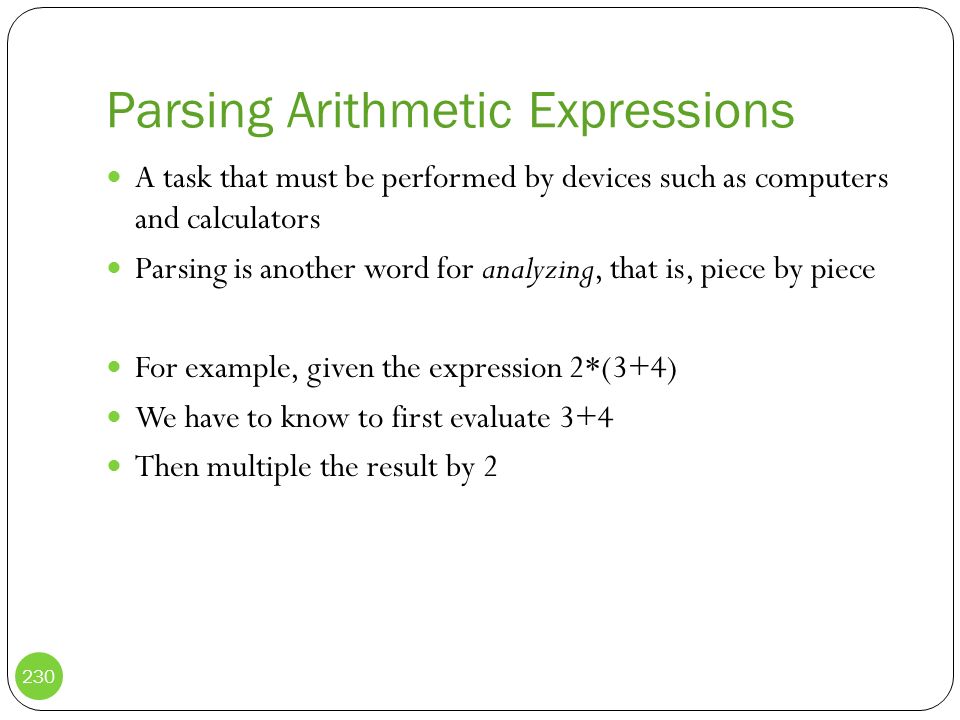

230 Parsing Arithmetic Expressions 230 A task that must be performed by devices such as computers and calculators Parsing is another word for analyzing, that is, piece by piece For example, given the expression 2*(3+4) We have to know to first evaluate 3+4 Then multiple the result by 2

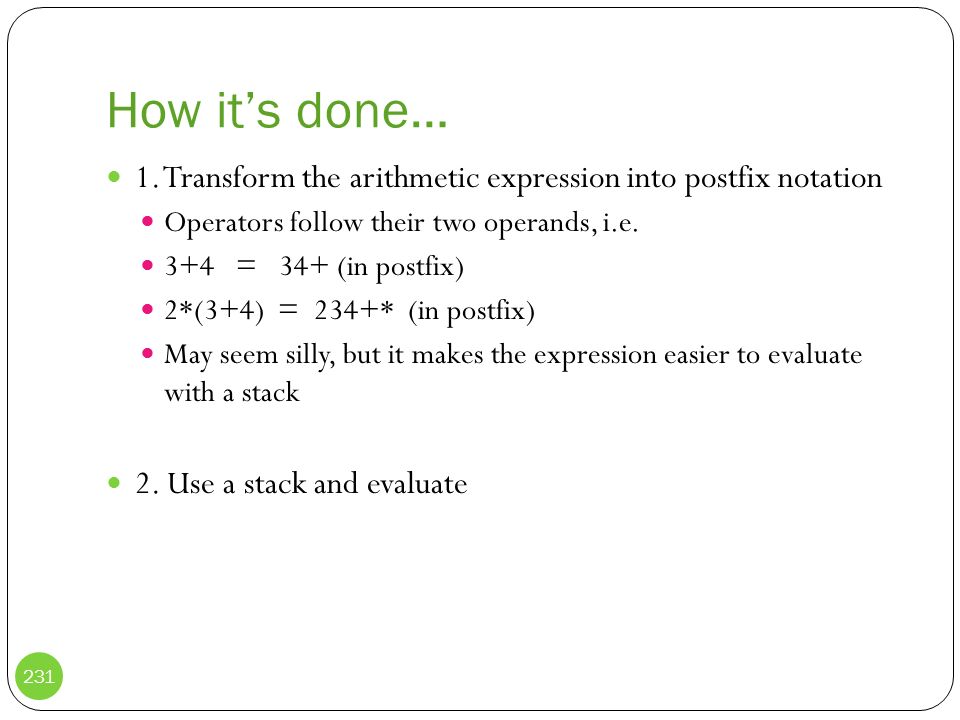

231 How it’s done… 231 1. Transform the arithmetic expression into postfix notation Operators follow their two operands, i.e. 3+4 = 34+ (in postfix) 2*(3+4) = 234+* (in postfix) May seem silly, but it makes the expression easier to evaluate with a stack 2. Use a stack and evaluate

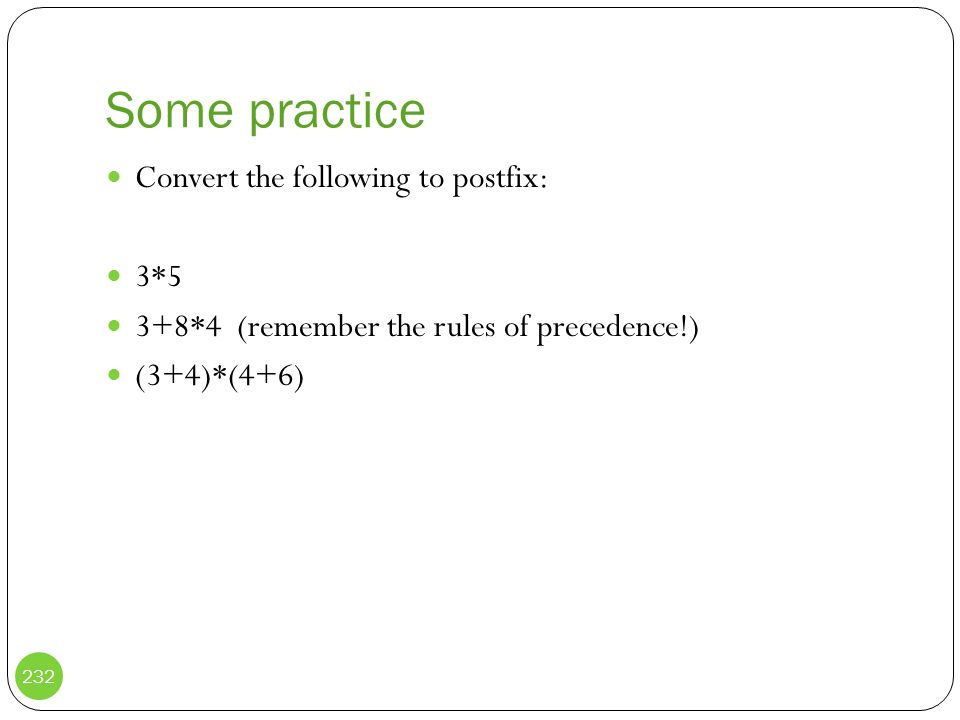

232 Some practice 232 Convert the following to postfix: 3*5 3+8*4 (remember the rules of precedence!) (3+4)*(4+6)

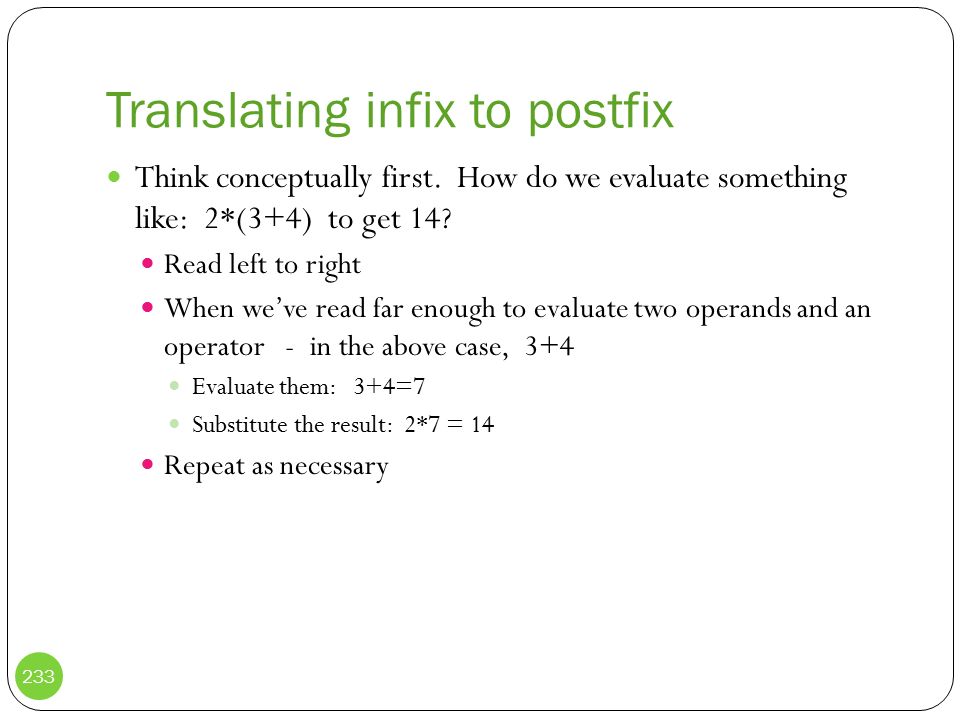

233 Translating infix to postfix 233 Think conceptually first. How do we evaluate something like: 2*(3+4) to get 14? Read left to right When we’ve read far enough to evaluate two operands and an operator - in the above case, 3+4 Evaluate them: 3+4=7 Substitute the result: 2*7 = 14 Repeat as necessary

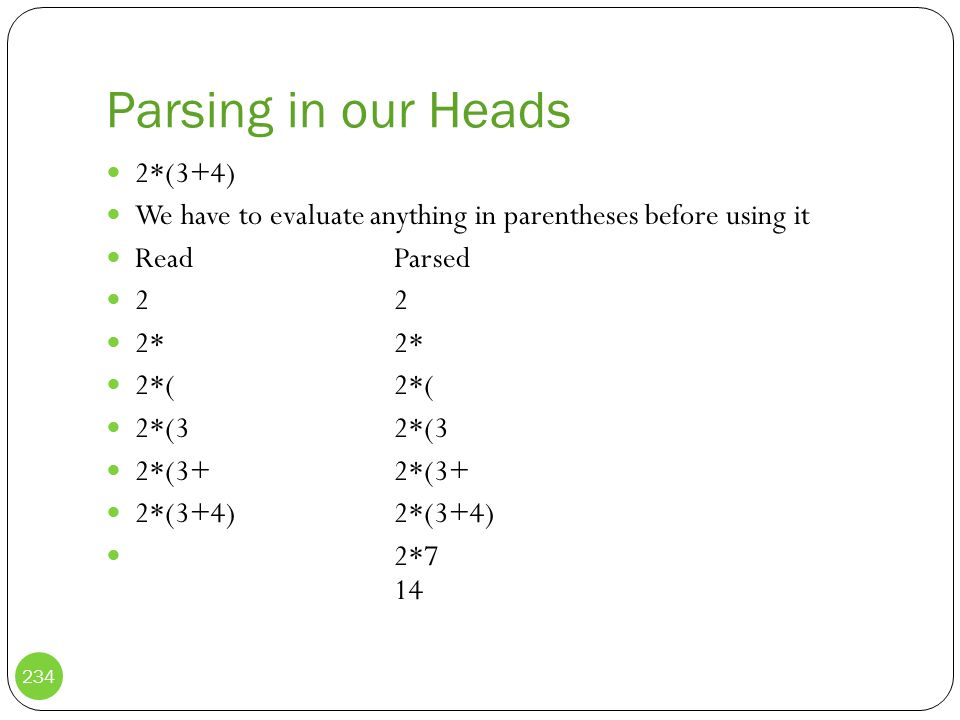

234 Parsing in our Heads 234 2*(3+4) We have to evaluate anything in parentheses before using it ReadParsed 22 2*2* 2*(2*( 2*(32*(3 2*(3+2*(3+ 2*(3+4)2*(3+4) 2*7 14

235 Precedence 235 3+4*5 Note here we don’t evaluate the ‘+’ until we know what follows the 4 (a ‘*’) So the ‘parsing’ proceeds like this: ReadParsed 33 +3+ 43+4 *3+4* 53+4*5 3+20 23

236 Summary 236 We go forward reading operands and operators When we have enough information to apply an operator, go backward and recall the operands, then evaluate Sometimes we have to defer evaluation based on precedence Think about this when we do the conversion

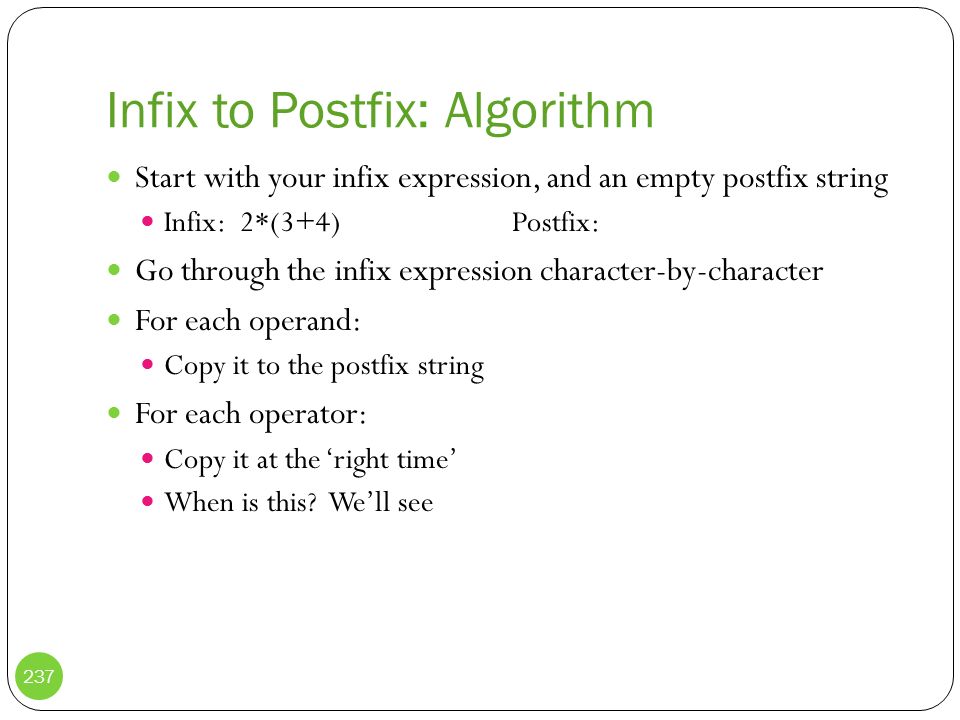

237 Infix to Postfix: Algorithm 237 Start with your infix expression, and an empty postfix string Infix: 2*(3+4) Postfix: Go through the infix expression character-by-character For each operand: Copy it to the postfix string For each operator: Copy it at the ‘right time’ When is this? We’ll see

238 Example: 2*(3+4) 238 ReadPostfixComment 22Operand *2Operator (2Operator 323Operand +Operator 4234Operand )234+Saw ), copy + 234+*Copy remaining ops

239 Example: 3+4*5 239 ReadPostfixComment 33Operand +3Operator 434Operand *34Operator 5345Operand 345*Saw 5, copy * 345*+Copy remaining ops

240 Rules on copying operators 240 You cannot copy an operator to the postfix string if: It is followed by a left parenthesis ‘(‘ It is followed by an operator with higher precedence (i.e., a ‘+’ followed by a ‘*’) If neither of these are true, you can copy an operator once you have copied both its operands We can use a stack to hold the operators before they are copied. Here’s how:

241 How can we use a stack? 241 Suppose we have our infix expression, empty postfix string and empty stack S. We can have the following rules: If we get an operand, copy it to the postfix string If we get a ‘(‘, push it onto S If we get a ‘)’: Keep popping S and copying operators to the postfix string until either S is empty or the item popped is a ‘(‘ Any other operator: If S is empty, push it onto S Otherwise, while S is not empty and the top of S is not a ‘(‘ or an operator of lower precedence, pop S and copy to the postfix string Push operator onto S To convince ourselves, let’s try some of the expressions

242 Example: 3+4*5 242 ReadPostfixStack

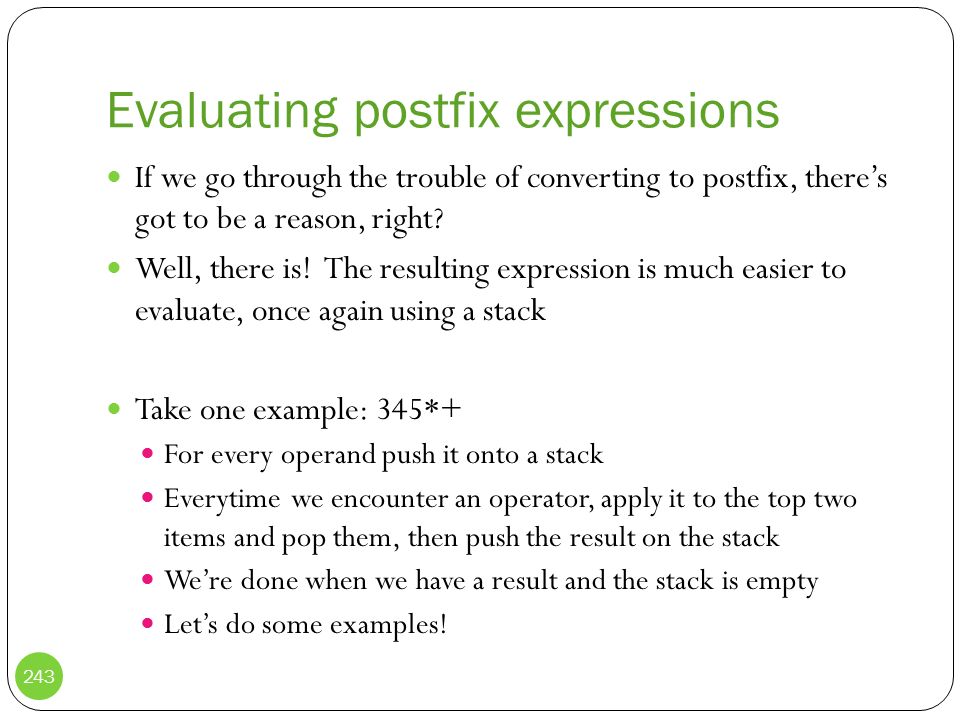

243 Evaluating postfix expressions 243 If we go through the trouble of converting to postfix, there’s got to be a reason, right? Well, there is! The resulting expression is much easier to evaluate, once again using a stack Take one example: 345*+ For every operand push it onto a stack Everytime we encounter an operator, apply it to the top two items and pop them, then push the result on the stack We’re done when we have a result and the stack is empty Let’s do some examples!

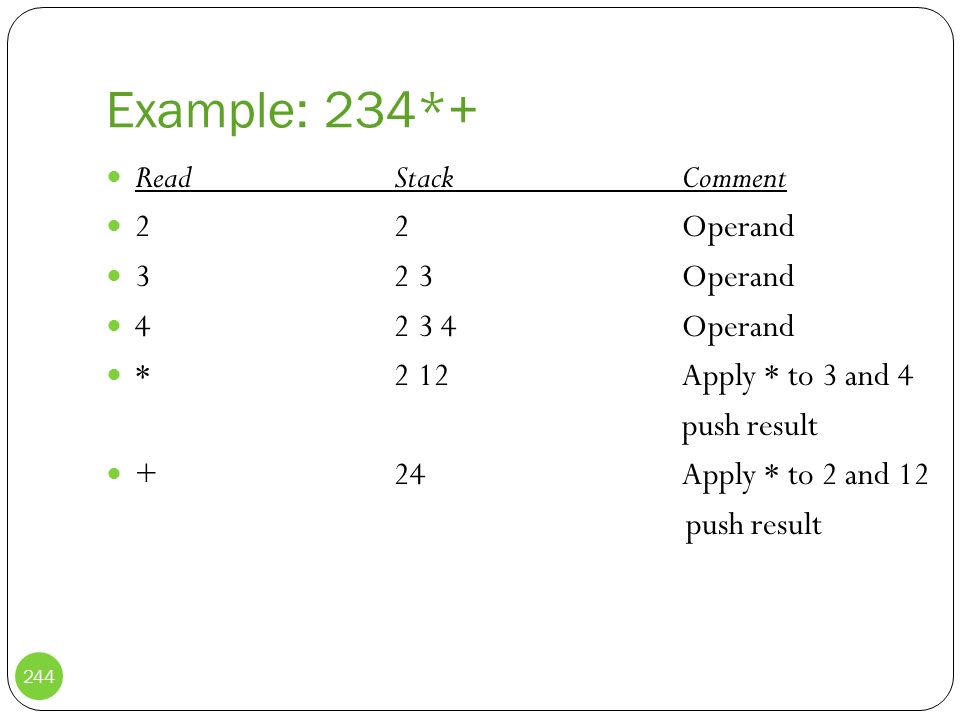

244 Example: 234*+ 244 ReadStackComment 22Operand 32 3Operand 42 3 4Operand *2 12Apply * to 3 and 4 push result +24Apply * to 2 and 12 push result

245 Why easier? 245 It is clear what operators go with which operands Order of operations is enforced – removed from our concern No parentheses to worry about

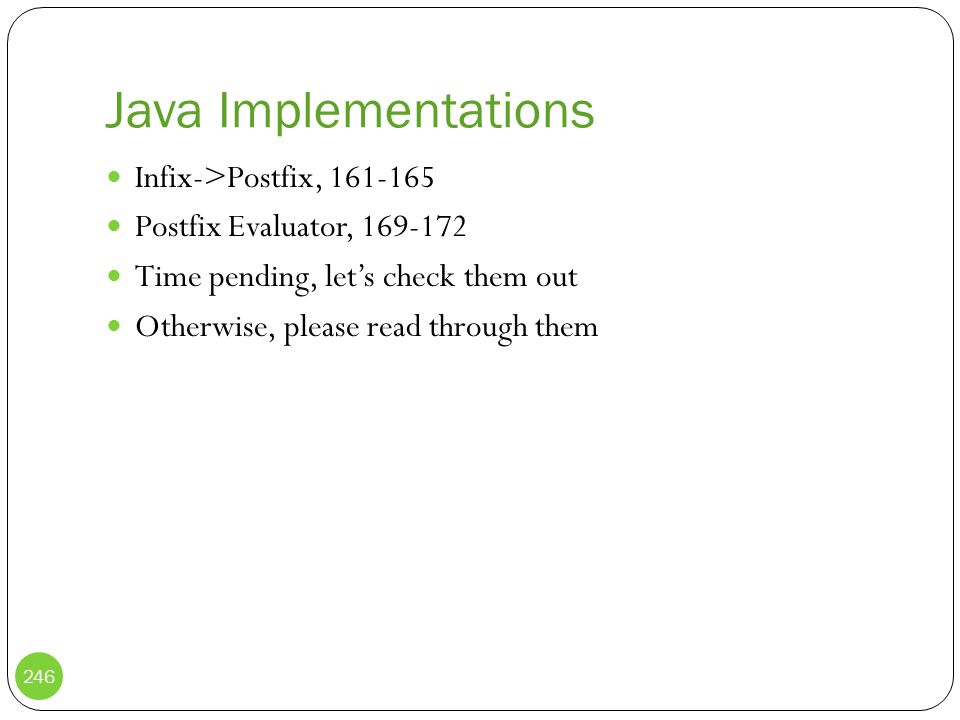

246 Java Implementations 246 Infix->Postfix, 161-165 Postfix Evaluator, 169-172 Time pending, let’s check them out Otherwise, please read through them

247 CS221N, Data Structures Linked Lists 247

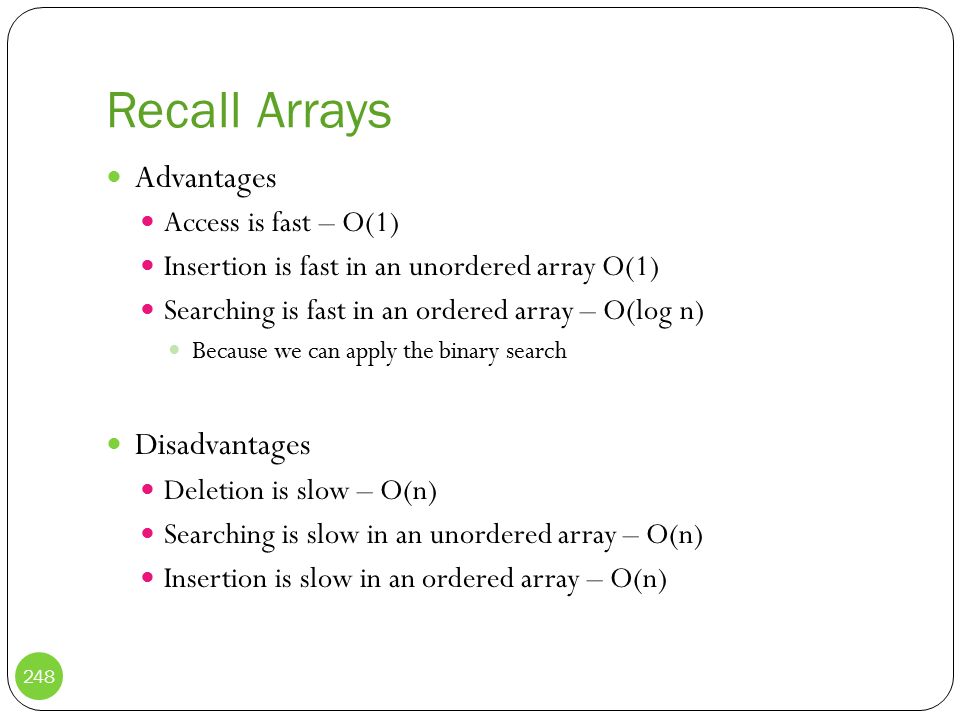

248 Recall Arrays Advantages Access is fast – O(1) Insertion is fast in an unordered array O(1) Searching is fast in an ordered array – O(log n) Because we can apply the binary search Disadvantages Deletion is slow – O(n) Searching is slow in an unordered array – O(n) Insertion is slow in an ordered array – O(n) 248

249 Recall stacks and queues 249 Not generally used for real-world data storage Why? Operations on the top of the stack are all fast: Access – O(1) Insertion – O(1) Deletion – O(1) But on any other element….

250 A versatile data structure 250 The linked list Second most commonly used behind arrays Used for real-world data storage We also saw last week that for stacks and queues, you could use arrays as an underlying data structure You also can use linked lists! Good in situations where structure will be frequently modified Bad in situations with frequent accesses (we’ll see why)

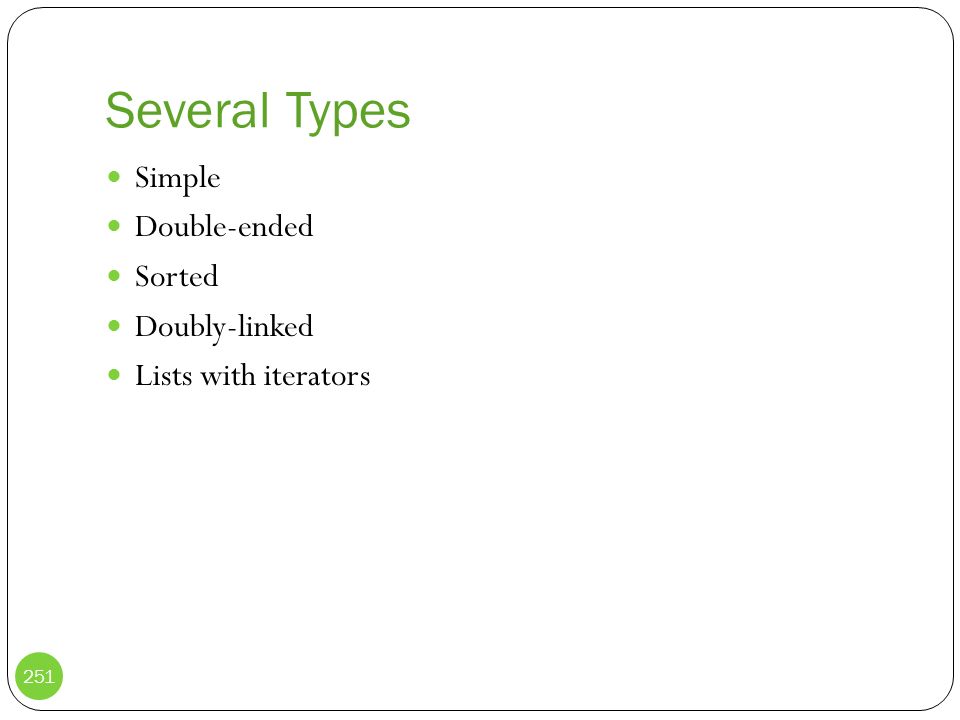

251 Several Types 251 Simple Double-ended Sorted Doubly-linked Lists with iterators

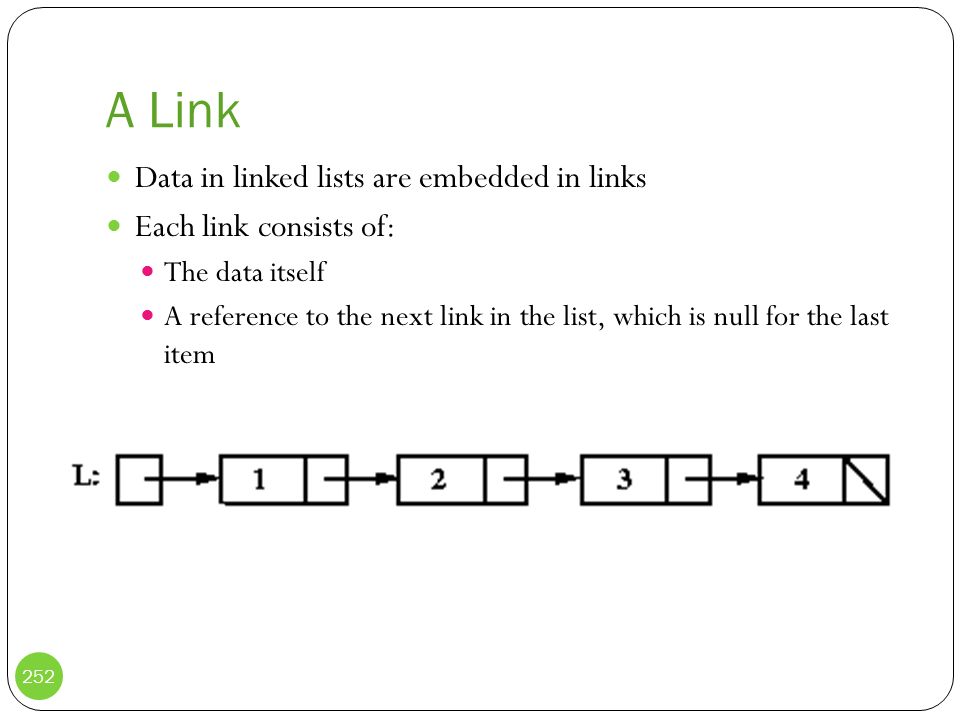

252 A Link 252 Data in linked lists are embedded in links Each link consists of: The data itself A reference to the next link in the list, which is null for the last item

253 The Link class 253 It makes sense to make Link its own class, since a list can then just be a collection of Link objects: This is sometimes called a self-referential class. Any theories why? class Link { public int iData; public Link next; // Does this cause trouble? Why not? }

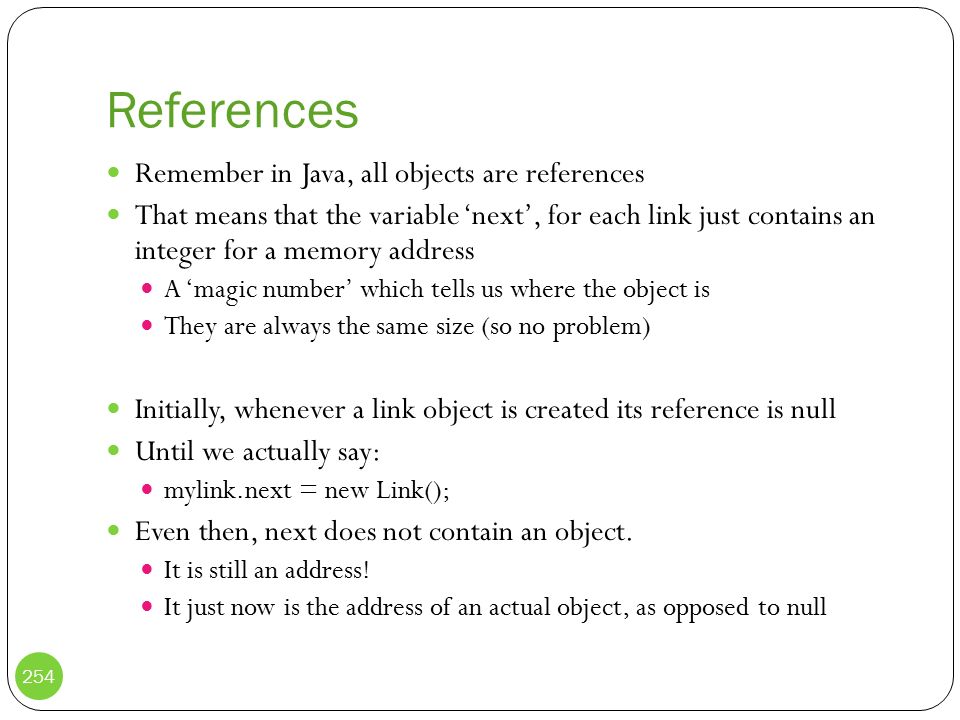

254 References 254 Remember in Java, all objects are references That means that the variable ‘next’, for each link just contains an integer for a memory address A ‘magic number’ which tells us where the object is They are always the same size (so no problem) Initially, whenever a link object is created its reference is null Until we actually say: mylink.next = new Link(); Even then, next does not contain an object. It is still an address! It just now is the address of an actual object, as opposed to null

255 Memory 255 How would this look in memory then? Let’s draw it on the board.

256 Recall the implication! 256 Access for linked lists is slow compared to arrays Arrays are like rows of houses They are arranged sequentially So it’s easy to just find, for example, the third house With linked lists, you have to follow links in the chain The next references How do we get the third element here:

257 Links of Records 257 We can have a link of personnel records: class Link{ public String name; public String address; public int ssn; public Link next; } We can also have a class for PersonnelRecords, and a linked list of those. Let’s do that together!

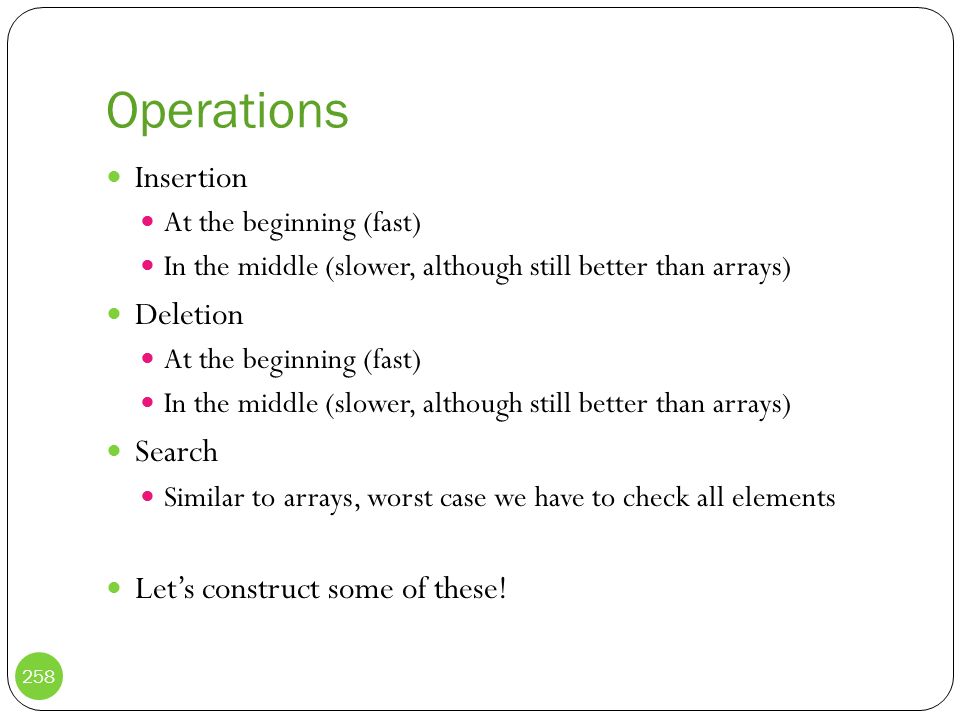

258 Operations 258 Insertion At the beginning (fast) In the middle (slower, although still better than arrays) Deletion At the beginning (fast) In the middle (slower, although still better than arrays) Search Similar to arrays, worst case we have to check all elements Let’s construct some of these!

259 LinkedList class 259 Start with: A private Link to the first element A constructor which sets this reference to null A method isEmpty() which returns true if the list is empty

260 insertFirst(): O(1) 260 Accept a new integer (p. 188) Create a new link Change the new link’s next reference to the current first Change first to reference the new link We could not execute these last two in reverse. Why?

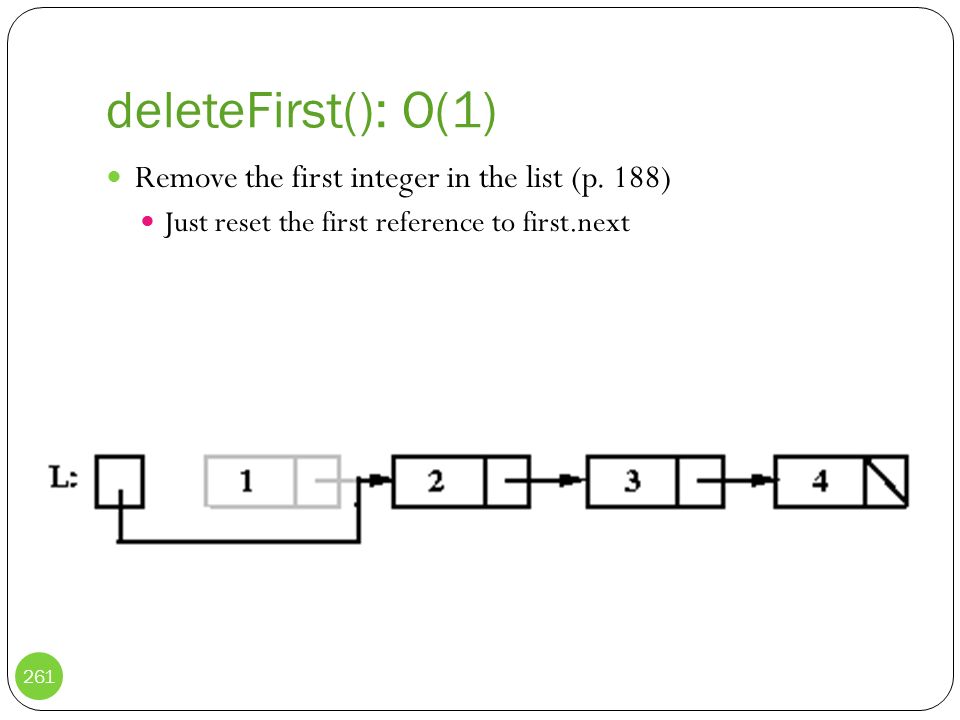

261 deleteFirst(): O(1) 261 Remove the first integer in the list (p. 188) Just reset the first reference to first.next

262 displayList() – p. 189 O(n) 262 Use a reference current to iterate through the elements Print the value Set current to current.next Stop when current becomes null Before setting current to current.next: After setting current to current.next:

263 main() function 263 LinkedList theList = new LinkedList(); theList.insertFirst(22); theList.insertFirst(44); theList.insertFirst(66); theList.insertFirst(88); theList.displayList(); while (!theList.isEmpty()) theList.deleteFirst(); theList.displayList();

264 find() – p. 194 O(n) 264 Essentially the same idea as displayList() Linearly iterate through the elements with a reference current Repeatedly set current to current.next Except this time, stop when you find the item! Before setting current to current.next: After setting current to current.next:

265 delete() – p. 194 O(n) 265 Pass a value stored in the list, and remove it First we have to find it, at that point it will be in current Set the previous element’s next reference to current.next When we find the value: After we delete the value:

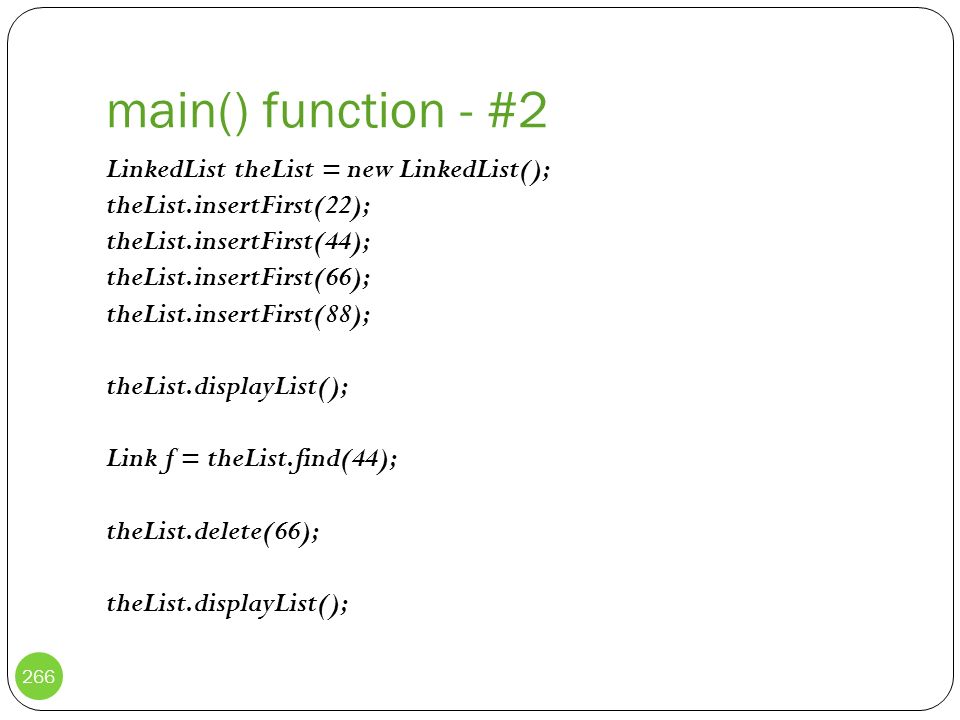

266 main() function - #2 266 LinkedList theList = new LinkedList(); theList.insertFirst(22); theList.insertFirst(44); theList.insertFirst(66); theList.insertFirst(88); theList.displayList(); Link f = theList.find(44); theList.delete(66); theList.displayList();

267 Double-Ended Lists 267 Just like a regular linked list, except there are now two references kept One to the beginning (first) And one to the end (last) Enables easy insertion at both ends You still cannot delete the last element any easier. Why? You cannot change find() to start from the end. Why?

268 insertLast() – p. 199 O(1) 268 What does this look like now? Let’s see: Create the new link with the new value (next=null) Set last.next to reference the new link Set last to reference the new link Might we also have to set first? When?

269 main() function - #3 269 LinkedList theList = new LinkedList(); theList.insertFirst(22); theList.insertFirst(44); theList.insertFirst(66); theList.insertLast(11); theList.insertLast(33); theList.insertLast(55); theList.displayList(); // Inserting items at the beginning reverses their order // Inserting items at the end, preserves their order!

270 Double-Ended Lists 270 Would we also have to modify delete()? When? Let’s do it.

271 Efficiency: Summary 271 Fast insertion/deletion at ends: O(1) Searching: O(n) Deleting a specific item: O(n) BUT, faster than arrays You have equal O(n) for the search But then an array requires an O(n) shift, where a list requires reference copies – O(1) Insertion at a specific point can be done, with similar results

272 Memory: Summary 272 A linked list uses (more or less) memory than an array? Why? A linked list uses memory more efficiently than an array. Size is flexible Never have to ‘overcompensate’ Usually results in empty slots with arrays

273 Abstract Data Types (ADT) 273 A central feature of the Java programming language Let’s review What is a datatype? What do we mean by abstraction? What is an interface?

274 Data Types 274 Examples of data types: int, float double These are called primitive data types When we refer to a datatype: Characteristics of the data Operations which you can perform on that data Object-oriented programming defines classes Which are also datatypes. They fit the description above.

275 Abstraction 275 Abstract: Considered apart from detailed specifications or implementation. Let’s ponder the following questions: What is an analogy of abstraction in the English language? How does abstraction equate to datatypes and operations? How can we describe abstraction in the context of object- oriented programming? What was an example of abstraction that we saw in stacks and queues?

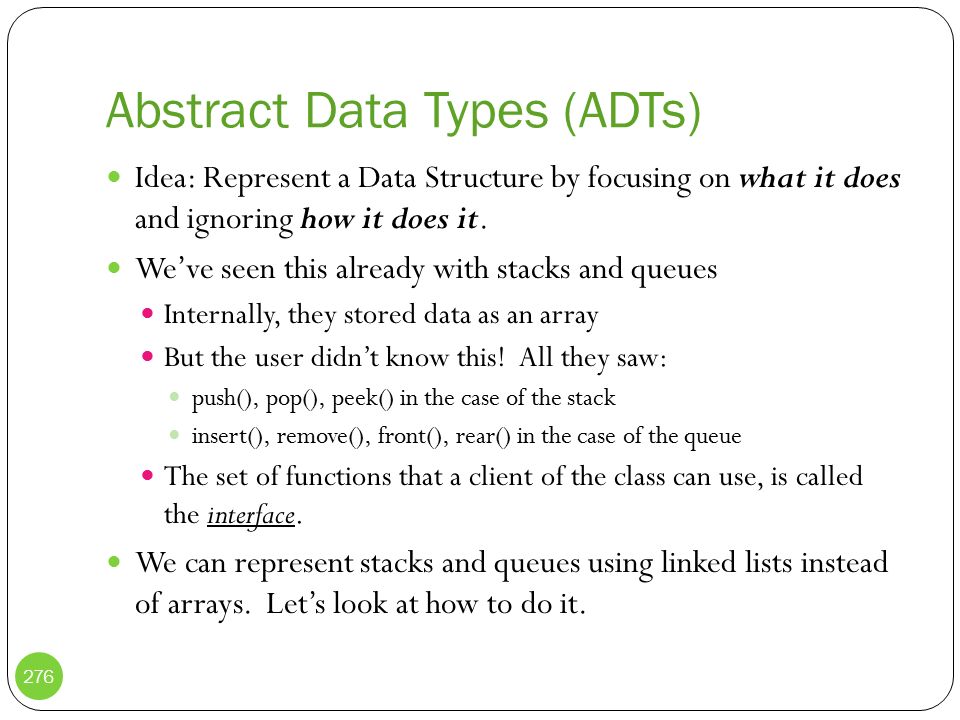

276 Abstract Data Types (ADTs) 276 Idea: Represent a Data Structure by focusing on what it does and ignoring how it does it. We’ve seen this already with stacks and queues Internally, they stored data as an array But the user didn’t know this! All they saw: push(), pop(), peek() in the case of the stack insert(), remove(), front(), rear() in the case of the queue The set of functions that a client of the class can use, is called the interface. We can represent stacks and queues using linked lists instead of arrays. Let’s look at how to do it.

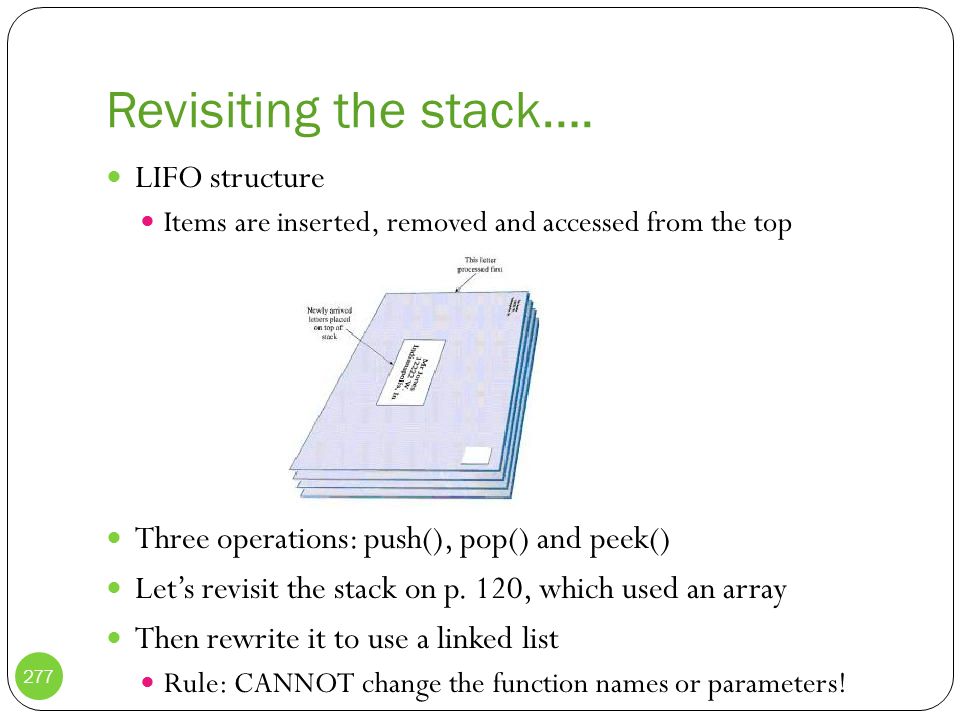

277 Revisiting the stack…. 277 LIFO structure Items are inserted, removed and accessed from the top Three operations: push(), pop() and peek() Let’s revisit the stack on p. 120, which used an array Then rewrite it to use a linked list Rule: CANNOT change the function names or parameters!

278 Revisiting the queue… 278 FIFO structure Items are inserted from the rear and removed from the front Four operations: insert(), remove(), front() and rear() Let’s look at the implementation with arrays, p.138 Change it to use linked lists

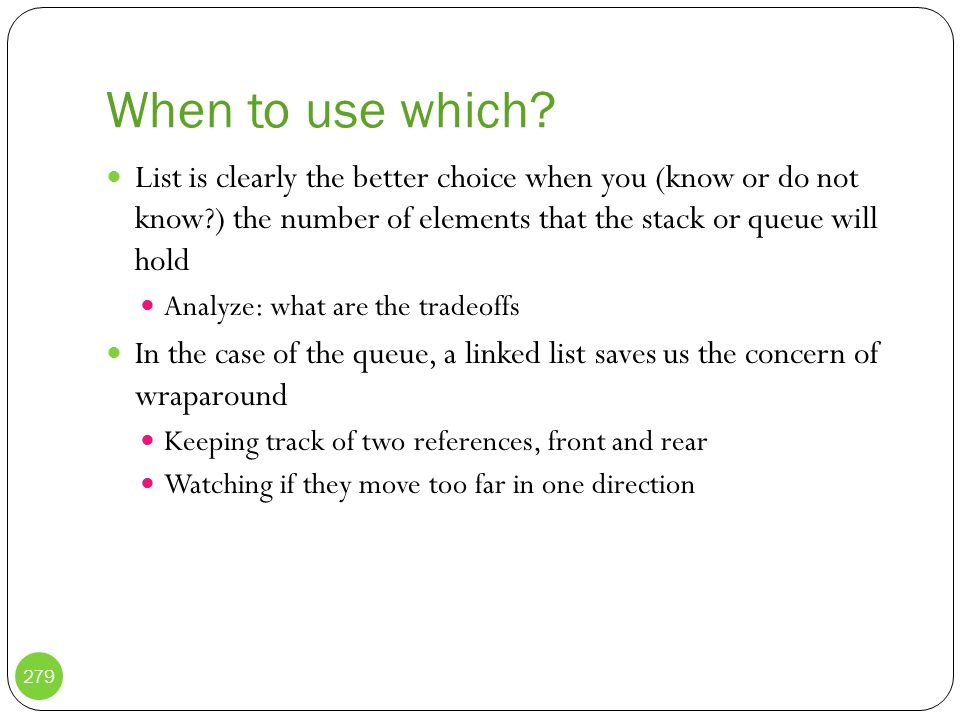

279 When to use which? 279 List is clearly the better choice when you (know or do not know?) the number of elements that the stack or queue will hold Analyze: what are the tradeoffs In the case of the queue, a linked list saves us the concern of wraparound Keeping track of two references, front and rear Watching if they move too far in one direction

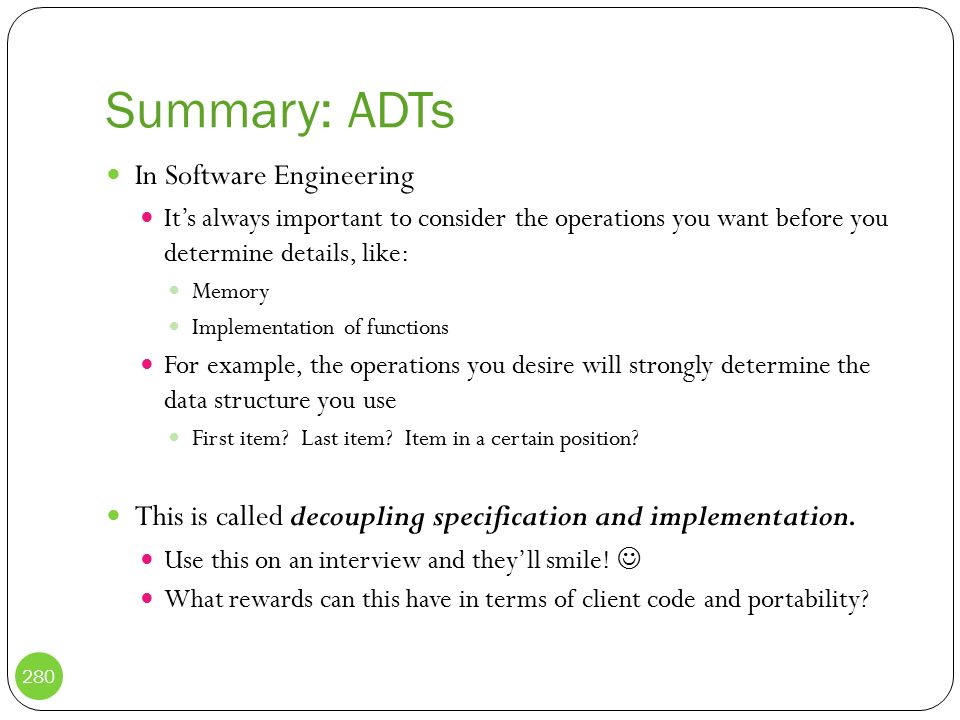

280 Summary: ADTs 280 In Software Engineering It’s always important to consider the operations you want before you determine details, like: Memory Implementation of functions For example, the operations you desire will strongly determine the data structure you use First item? Last item? Item in a certain position? This is called decoupling specification and implementation. Use this on an interview and they’ll smile! What rewards can this have in terms of client code and portability?

281 Sorted Lists 281 Linked list where the data is maintained in sorted order Useful in some applications Same applications where you’d use a sorted array But, insertion will be faster! And, memory will be used more efficiently But, a tad more difficult to implement Let’s check them out…

282 insert() p. 214 O(n) 282 We haven’t looked at inserting in the middle. Let’s see how it will be done: So for each element, we just insert at the correct spot O(n), worst case, to find the spot for insertion O(1) for the actual insertion Versus O(n) for arrays with the shift Would any other operation change (delete, find)?

283 main() function - #4 283 LinkedList theList = new LinkedList(); theList.insert(20); theList.insert(40); theList.displayList(); theList.insert(10); theList.insert(30); theList.insert(50); theList.displayList(); theList.remove(); theList.displayList();

284 Sorted Linked List: Efficiency 284 Insertion and deletion are O(n) for the search worst case Cannot do a binary search on a sorted linked list, like we could with arrays! Why not? Minimum value can be found in O(1) time If list is double-ended, the maximum can as well (why?) Thus, good if an application frequently accesses minimum (or maximum) item For which type of queue would this help us? Also good for a sorting algorithm! n insertions, each require O(n) comparisons so still O(n 2 ) However, O(n) copies as opposed to O(n 2 ) with insertion sort But twice the memory (why?)

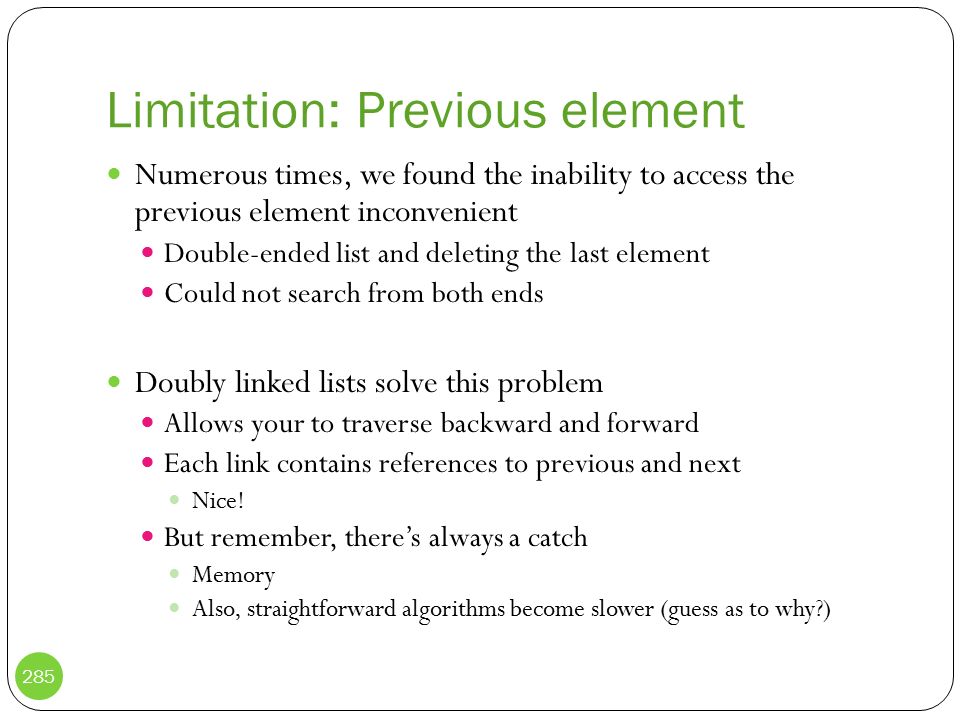

285 Limitation: Previous element 285 Numerous times, we found the inability to access the previous element inconvenient Double-ended list and deleting the last element Could not search from both ends Doubly linked lists solve this problem Allows your to traverse backward and forward Each link contains references to previous and next Nice! But remember, there’s always a catch Memory Also, straightforward algorithms become slower (guess as to why?)

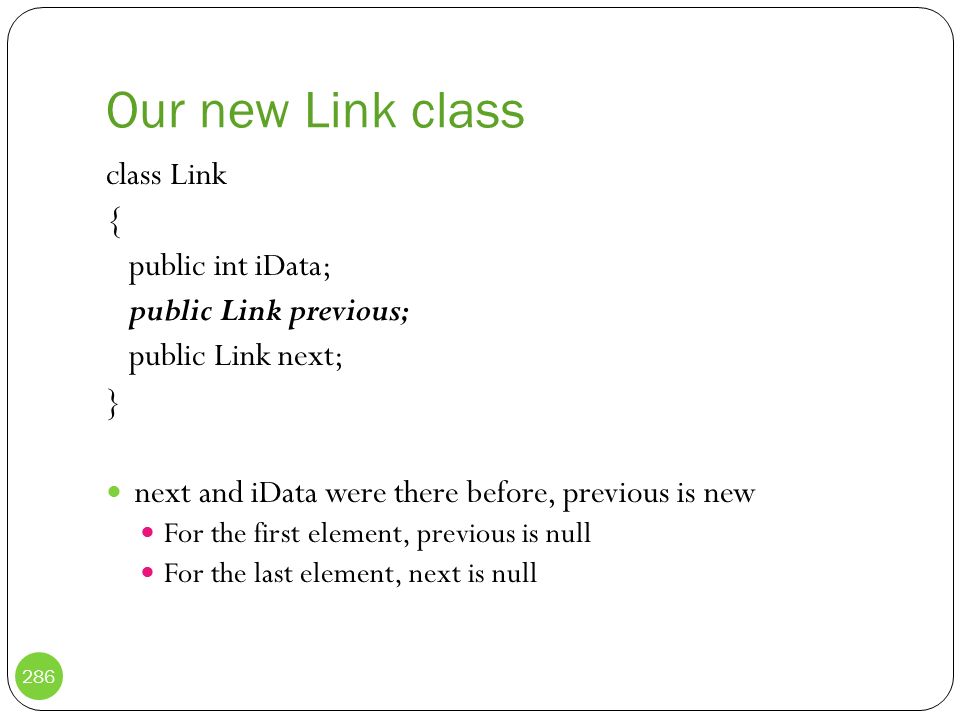

286 Our new Link class 286 class Link { public int iData; public Link previous; public Link next; } next and iData were there before, previous is new For the first element, previous is null For the last element, next is null

287 Pictorally… 287 Single-ended (‘L’ references the List) Double-ended (usually done) ‘F’ references the First element, ‘L’ the Last

288 Reverse Traversal O(n) 288 Forward traversal is the same as before Use current to reference a Link, and repeatedly set it to current.next Backward traversal is new It can only be done conveniently if the list is double-ended Now we repeatedly set current to current.previous See page 222

289 Java Implementation, p. 226 289 Methods isEmpty(), check if empty insertFirst(), insert at beginning insertLast(), insert at end insertAfter(), insert in the middle deleteFirst(), delete at beginning deleteLast(), delete at end deleteKey(), delete in the middle displayForward(), forward traversal displayBackward(), backward traversal

290 isEmpty() O(1) 290 Simple function Returns true if first is null.

291 insertFirst() O(1) 291 Steps Create a new link Set its next reference to first Set first’s previous reference to the new link Set first (and last if empty) to reference the new link Before After

292 insertLast() O(1) 292 Steps Create a new link Set it previous reference to last Set last’s next reference to the new link Set last (and first if empty) to reference the new link Before After

293 insertAfter() O(n) 293 Steps Find the element in the list to insert after (current) Set current.next’s previous reference to the new link Set link’s next reference to current.next Set current.next to the new link Set the link’s previous reference to current Before After

294 deleteFirst() O(1) 294 Steps Set first.next’s previous reference to null Remember first.next could be null!! Set first to first.next Before After

295 deleteLast() O(1) 295 Steps Set last.previous’ next reference to null Remember last.previous could be null!! Set last to last.previous Before After

296 deleteKey() O(n) 296 Steps Find the key, call it current Set current.previous’ next reference to current.next Set current.next’s previous reference to current.previous Be sure to handle the case when either is null!! This would be equivalent to deleteFirst() or deleteLast() Before After

297 displayForward() O(n) 297 Use a reference current to iterate through the elements Initially equal to first, print the value Set current to current.next Stop when current becomes null Before setting current to current.next: After setting current to current.next:

298 displayBackward() O(n) 298 Use a reference current to iterate through the elements Initially equal to last, print the value Set current to current.previous Stop when current becomes null Before setting current to current.previous: After setting current to current.previous:

299 Iterators 299 What have we seen? Ability to linearly traverse a list and find an item What have we been missing? Control over the items we traverse Suppose we wanted to perform an operation on all list elements which meet a certain criteria. Right now: Call find() repeatedly Find all unique elements that meet the critera Ensure no duplicates Perform operations Iterators make this easier

300 Idea 300 Provide a class which: Contains a reference to some element in the list Can easily increment itself to reference the next element class ListIterator() { private Link current; public ListIterator(Link l) {current = l;} public Link getCurrent() {return current;} public void nextLink() {current = current.next;} }

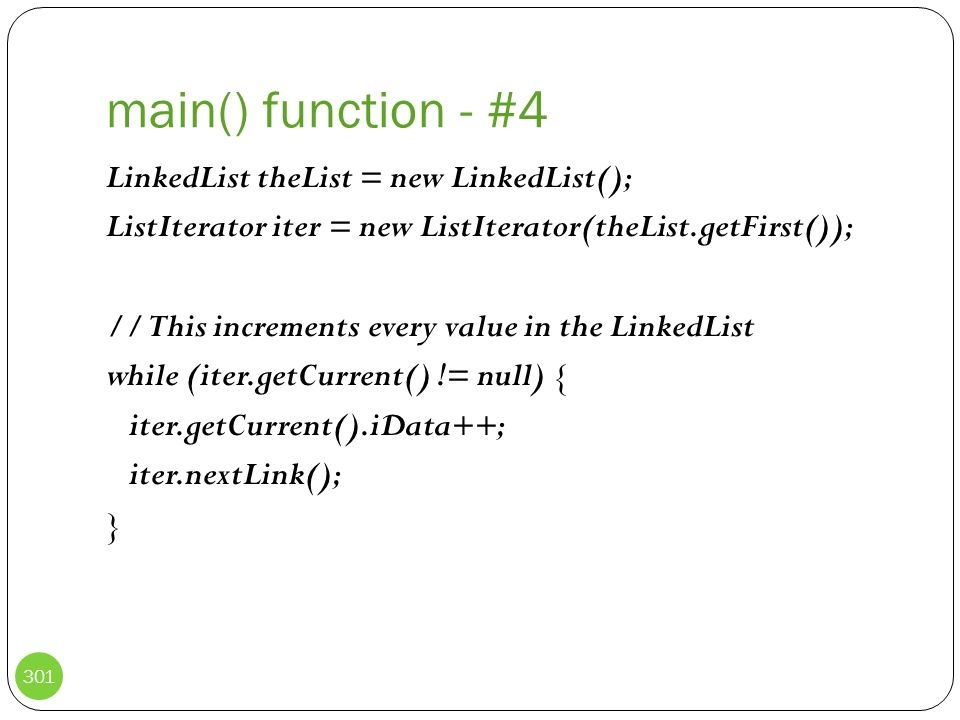

301 main() function - #4 301 LinkedList theList = new LinkedList(); ListIterator iter = new ListIterator(theList.getFirst()); // This increments every value in the LinkedList while (iter.getCurrent() != null) { iter.getCurrent().iData++; iter.nextLink(); }

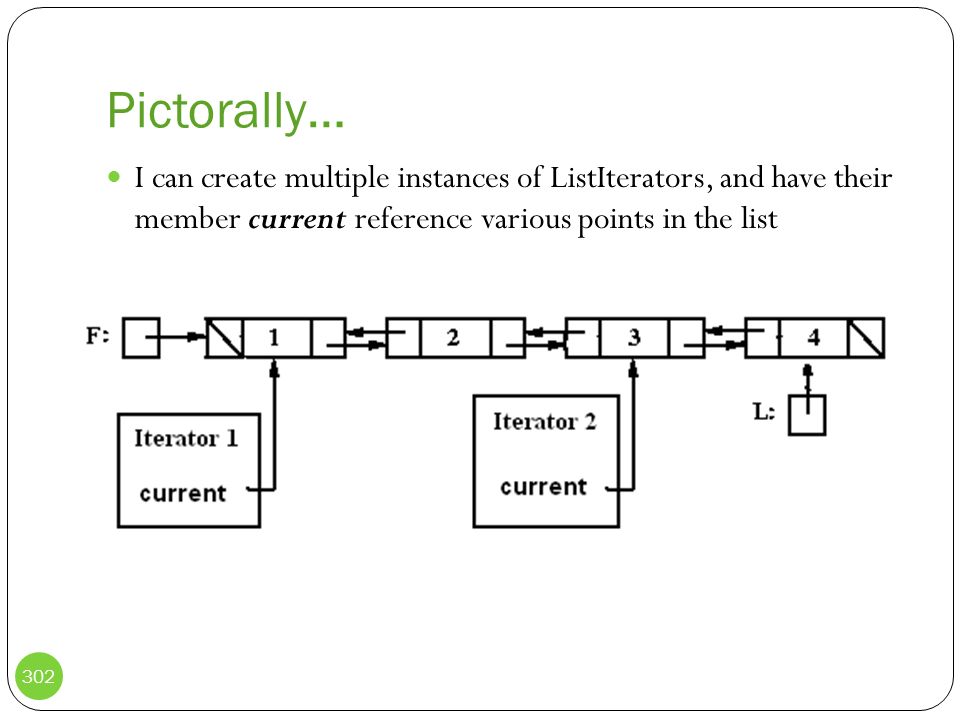

302 Pictorally… 302 I can create multiple instances of ListIterators, and have their member current reference various points in the list

303 Bidirectional Iterators 303 If we have a doubly-linked list, it’s easy. Let’s add two methods to our previous iterator class: One to access the previous Link prevLink() If we have a singly-linked list, it’s more difficult Must add a data member previous

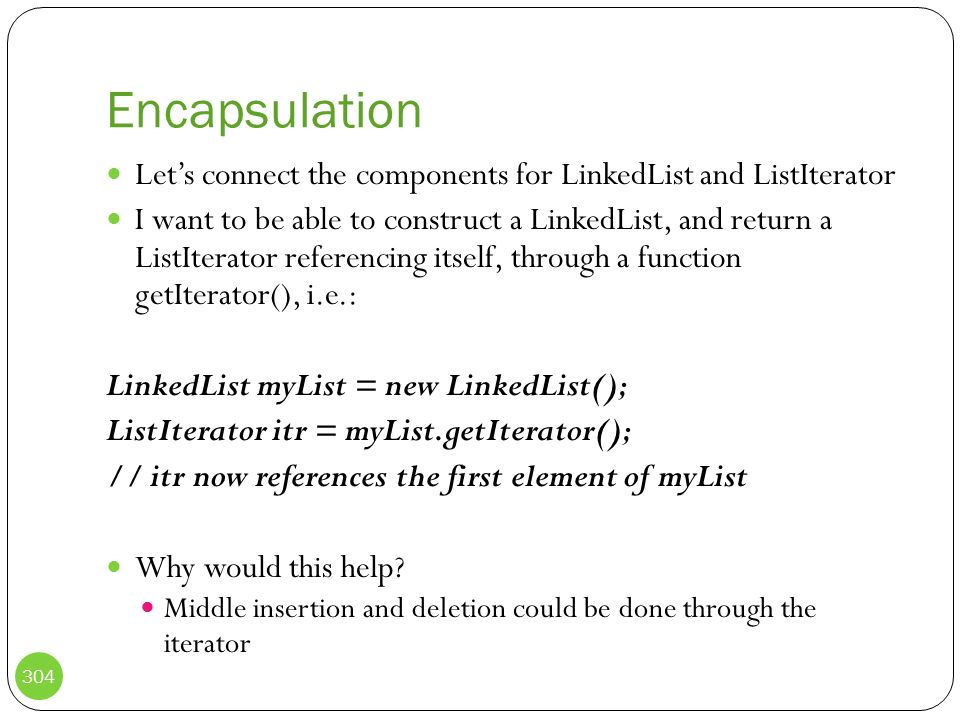

304 Encapsulation 304 Let’s connect the components for LinkedList and ListIterator I want to be able to construct a LinkedList, and return a ListIterator referencing itself, through a function getIterator(), i.e.: LinkedList myList = new LinkedList(); ListIterator itr = myList.getIterator(); // itr now references the first element of myList Why would this help? Middle insertion and deletion could be done through the iterator

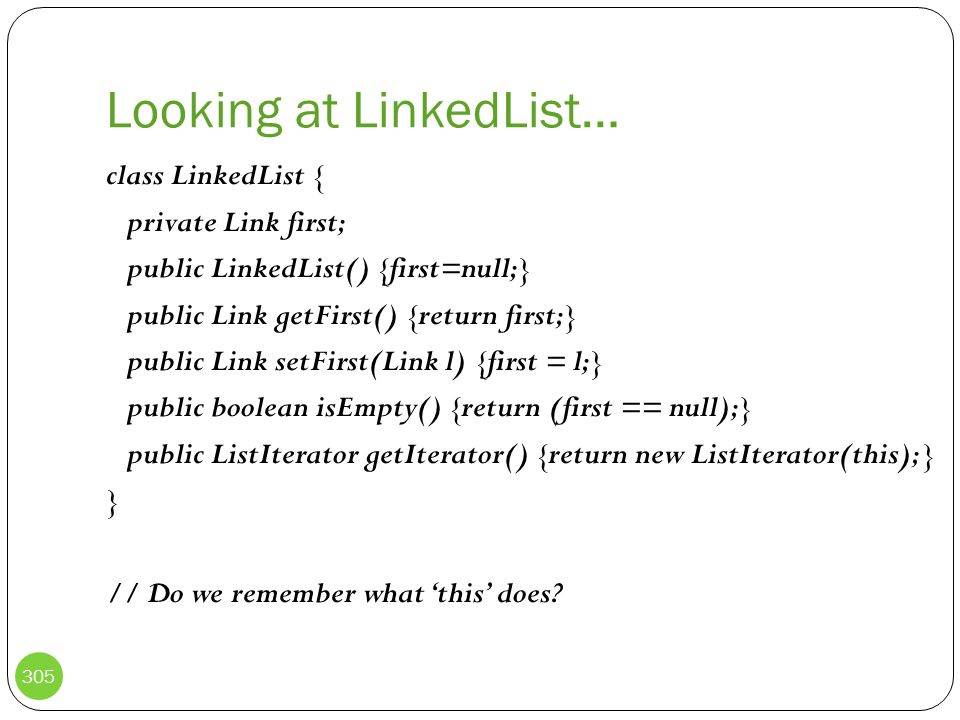

305 Looking at LinkedList… 305 class LinkedList { private Link first; public LinkedList() {first=null;} public Link getFirst() {return first;} public Link setFirst(Link l) {first = l;} public boolean isEmpty() {return (first == null);} public ListIterator getIterator() {return new ListIterator(this); } } // Do we remember what ‘this’ does?

306 ListIterator: p. 237 306 Let’s now change the ListIterator Make it bidirectional Contain a reference to the list, as opposed to a single link Methods ListIterator(): Pass a LinkedList reference, and set reset(): Reset iterator to the beginning of the list atEnd(): Check if we are at the end nextLink(): Move to the next link getCurrent(): Return the current link insertAfter(): Insert a link after the link referenced insertBefore(): Insert a link before the element referenced deleteCurrent(): Delete the currently referenced link

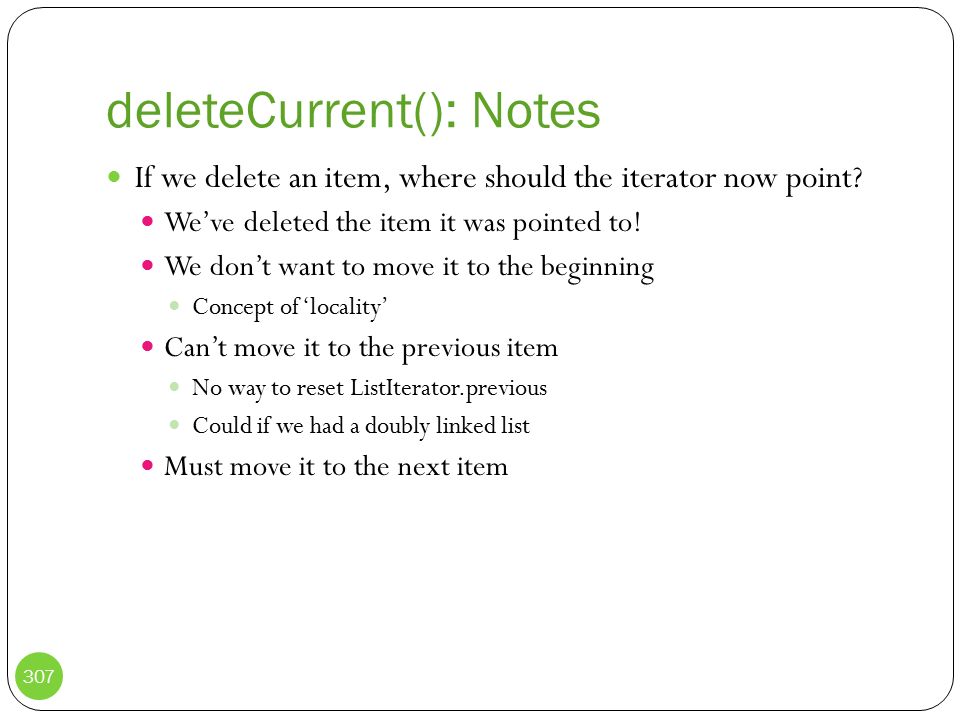

307 deleteCurrent(): Notes 307 If we delete an item, where should the iterator now point? We’ve deleted the item it was pointed to! We don’t want to move it to the beginning Concept of ‘locality’ Can’t move it to the previous item No way to reset ListIterator.previous Could if we had a doubly linked list Must move it to the next item

308 atEnd(): Notes 308 Our implementation checks if the iterator points to the last element. Tradeoffs: Looping becomes awkward Iterator is always pointing at a valid link, which is good for reliability Must be careful with iteration Let’s say we used a loop to display data First reset, then display, THEN loop: Go to the next, and display again Need one extra, because if we simply looped till iter.atEnd() was true, we’d hit a null reference

309 Another example 309 Deleting all links that contain values with multiples of three. How can we use the iterator to do this? Are we seeing now, why doubly linked lists are highly convenient?

310 CS221N, Data Structures Recursion 310

311 Final Exam In case anyone’s making travel plans now… Wednesday, December 10 12 noon – 3 PM Location: TBA 311

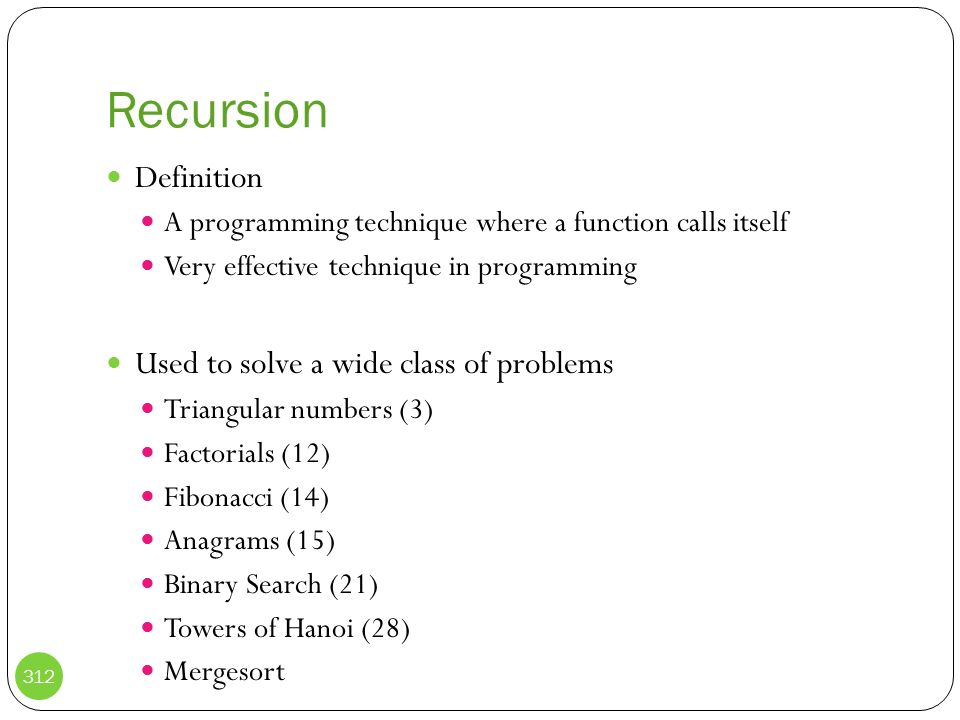

312 Recursion Definition A programming technique where a function calls itself Very effective technique in programming Used to solve a wide class of problems Triangular numbers (3) Factorials (12) Fibonacci (14) Anagrams (15) Binary Search (21) Towers of Hanoi (28) Mergesort 312

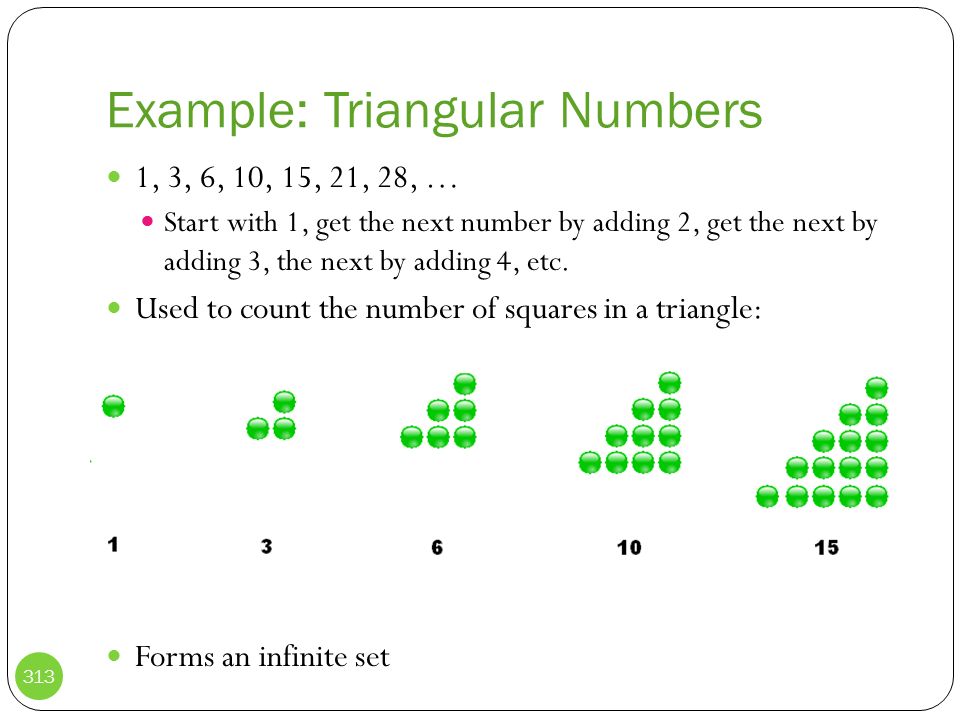

313 Example: Triangular Numbers 1, 3, 6, 10, 15, 21, 28, … Start with 1, get the next number by adding 2, get the next by adding 3, the next by adding 4, etc. Used to count the number of squares in a triangle: Forms an infinite set 313

314 Key with Recursion Separate the problem into: A base case which you know to be true A recursive step, which represents the answer to a larger problem in terms of a smaller one Idea, the recursive step will get you closer to the base case. Let’s solve triangle(n) in this way, where n is the row of the triangle: triangle(1) = 1 triangle(2) = 3 triangle(3) = 6 triangle(4) = 10 314

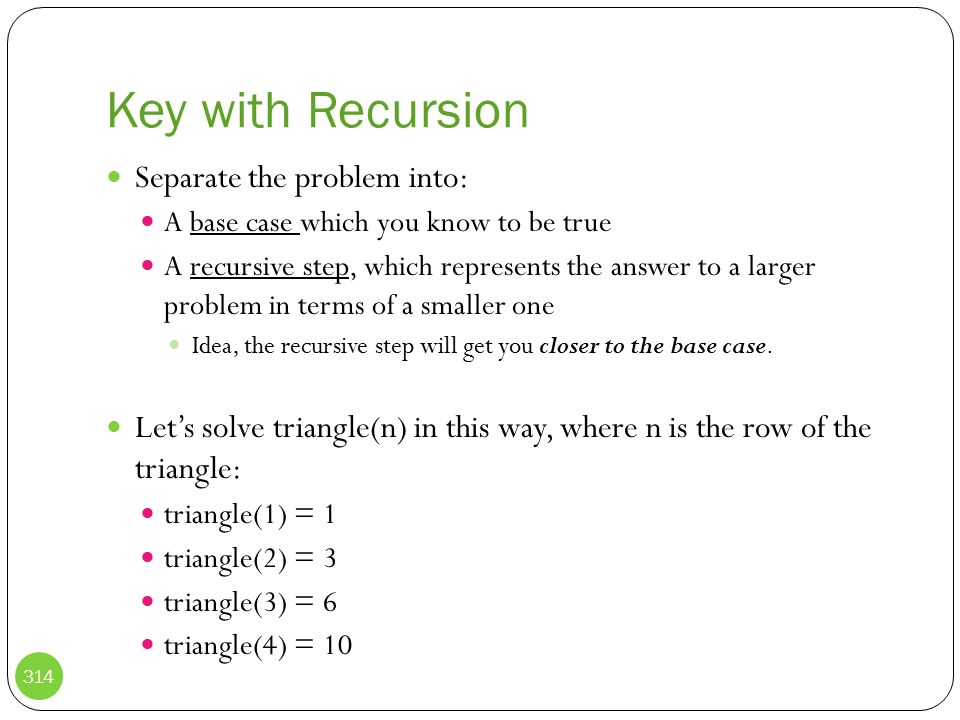

315 Triangular Numbers and Recursion Note: triangle(1) = 1 triangle(2) = 3 triangle(3) = 6 triangle(4) = 10 We can note that, in general: triangle(n) = n + triangle(n-1) This can be our recursive step Which will carry us to the base case: triangle(1) = 1 This cannot be broken down any further 315

316 Triangular Numbers and Recursion Here’s our recursive solution: triangle(1) = 1, triangle(n) = n + triangle(n-1) In Java: public int triangle(int n) { if (n == 1) return 1; else return n + triangle(n-1); } 316

317 Scope In Java, each function call creates a new ‘scope’ Each of which declares a new version of n, which is visible Suppose we call triangle(5) 317 public int triangle(int n) { if (n == 1) return 1; else return n + triangle(n-1); }

318 Recursive Methods Characteristics: They call themselves When they call themselves, they do so to solve a smaller problem A base case must exist What happens if it doesn’t? Therefore, the recursion must be able to stop at some point As it did with triangle, at n=1 triangle(1) = 1 318

319 Iteration Anything recursive can be made iterative, using a while or for loop: int triangle(int n) { int total = 0; while (n > 0) { total += n; n--; } 319

320 Efficiency of Recursion Recursion is very often simpler and easier to read But, often is slower. Why? Overhead of function calls Sometimes, you can make redundant recursive calls We’ll see an example of this with Fibonacci Also often uses more memory. Why? When we call triangle(1), we’re storing data from the outer recursive calls So the main merit is simplicity. 320

321 Mathematical Induction This can be a convenient way to represent a recursive problem: tri(n) = { 1 n = 1 { n*tri(n-1) n > 1 321

322 Example: Factorials Let’s start by representing fact(n) by mathematical induction: And, now let’s write the Java function: 322

323 Factorial Scope In Java, each function call creates a new ‘scope’ Each of which declares a new version of n, which is visible Suppose we call factorial(4) 323 public int factorial(int n) { if (n == 0) return 1; else return n * factorial(n-1); }

324 Fibonacci Numbers Mathematical Induction: fib(n) = {1 n = 0 {1 n = 1 {fib(n-1) + fib(n-2) n > 1 Produces the sequence: 1, 1, 2, 3, 5, 8, 13, 21, 34…. Would recursion or iteration be better here? Let’s think. Develop Java function Draw tree of recursive calls What’s bad? 324

325 Recall Binary Search: Idea 325 Only uses ordered arrays Check the middle element If it’s too low, restrict search to the first half of the array Otherwise restrict search to the second half of the array And repeat.

326 Binary Search 326 Array has values 1-100 First search: Check element 50 50 > 33, so repeat on first half (1-49) Second search: Check element 25 25 < 33, so repeat on second half (26-49) Third search: Check element 37 37 > 33, so repeat on first half (26-36) Fourth search: Check element 31 31 < 33, so repeat on second half (32-36) Fifth search: Check element 34 34 > 33, so repeat on first half (32-33) Sixth search: Check element 32 32 < 33, so repeat on second half (33) Seventh search: Check element 33! Found. So 7 comparisons. With linear search, it would’ve been 33.

327 Our implementation before was iterative… public int find(long key) { int lower = 0; int upper = nElems-1; int curIn; while (true) { curIn = (lower + upper) / 2; if (a[curIn] == key) return curIn; else if (lower > upper) return -1; else { if (a[curIn] < key) lower = curIn + 1; else upper = curIn – 1; } 327

328 But we can also do it recursively! If we think of binary search in these terms: Start lower at 0, and upper at n-1 Let mid = arr[lower+upper]/2 If arr[mid] = key, return mid # we’re done else if lower > upper, return -1 # not found else if arr[mid] > key: perform binarysearch on arr[lower…mid-1] else if arr[mid] < key: perform binarysearch on arr[mid+1…upper] So we have TWO base cases. One if the element is found, and the other if it is not found. 328

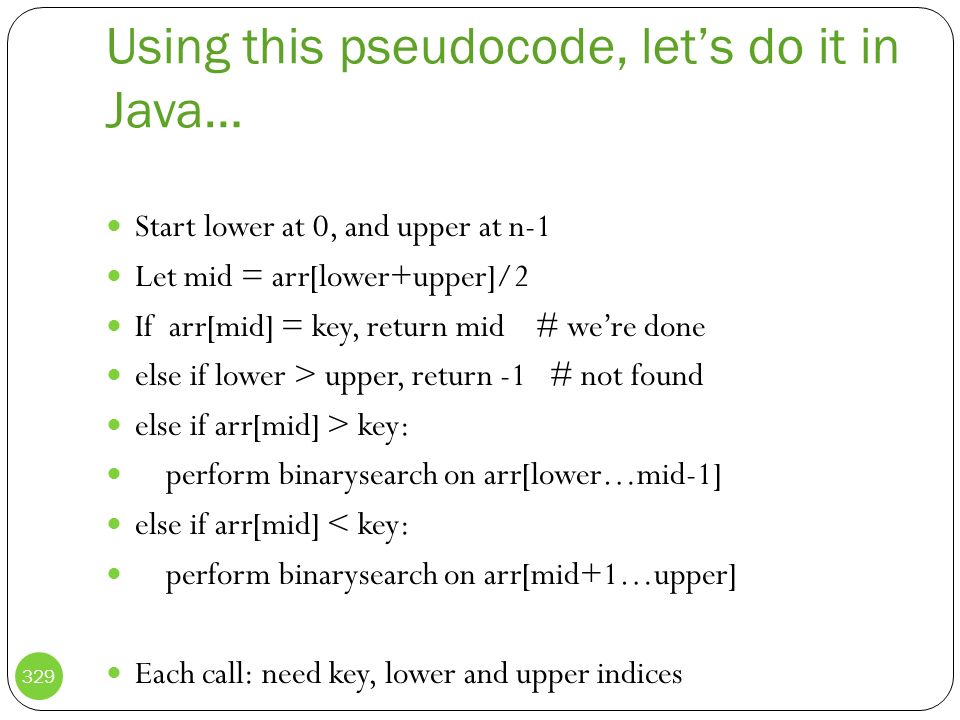

329 Using this pseudocode, let’s do it in Java… Start lower at 0, and upper at n-1 Let mid = arr[lower+upper]/2 If arr[mid] = key, return mid # we’re done else if lower > upper, return -1 # not found else if arr[mid] > key: perform binarysearch on arr[lower…mid-1] else if arr[mid] < key: perform binarysearch on arr[mid+1…upper] Each call: need key, lower and upper indices 329

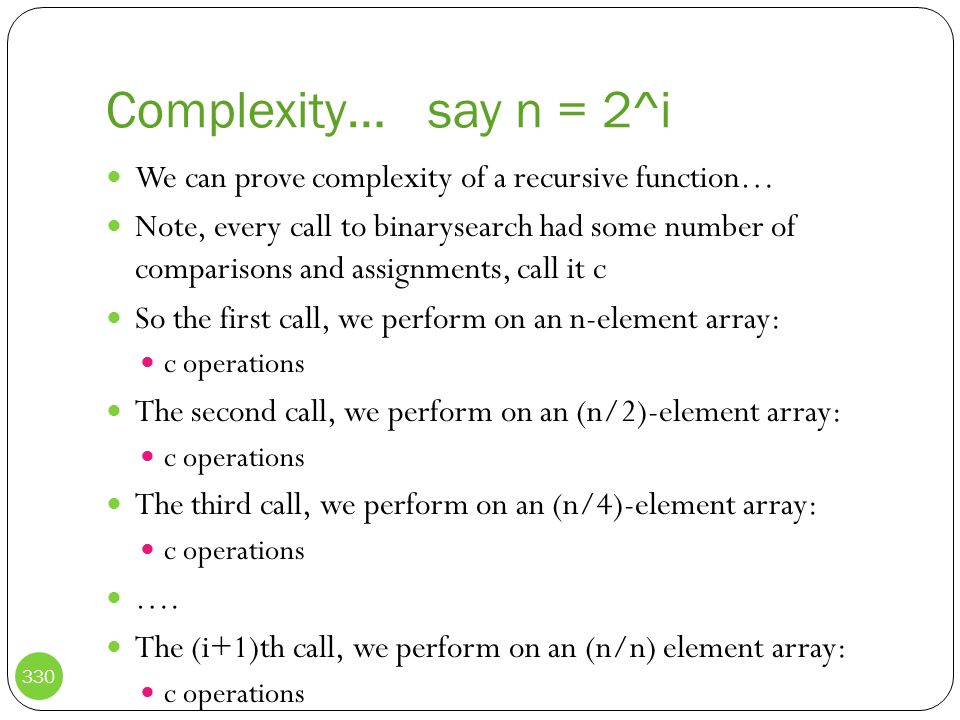

330 Complexity… say n = 2^i We can prove complexity of a recursive function… Note, every call to binarysearch had some number of comparisons and assignments, call it c So the first call, we perform on an n-element array: c operations The second call, we perform on an (n/2)-element array: c operations The third call, we perform on an (n/4)-element array: c operations …. The (i+1)th call, we perform on an (n/n) element array: c operations 330

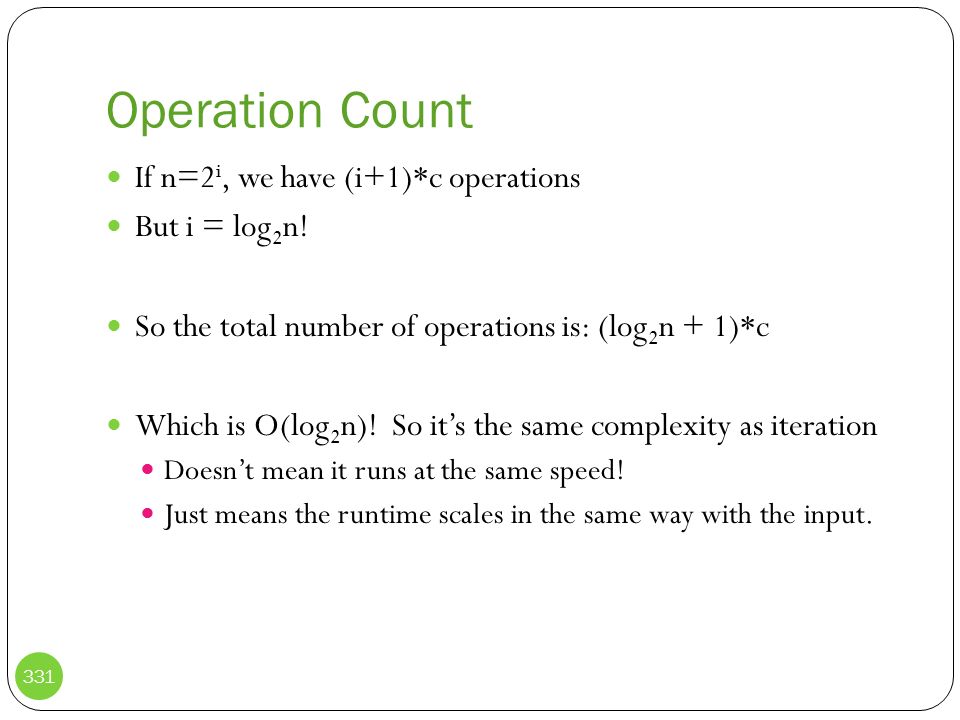

331 Operation Count If n=2 i, we have (i+1)*c operations But i = log 2 n! So the total number of operations is: (log 2 n + 1)*c Which is O(log 2 n)! So it’s the same complexity as iteration Doesn’t mean it runs at the same speed! Just means the runtime scales in the same way with the input. 331

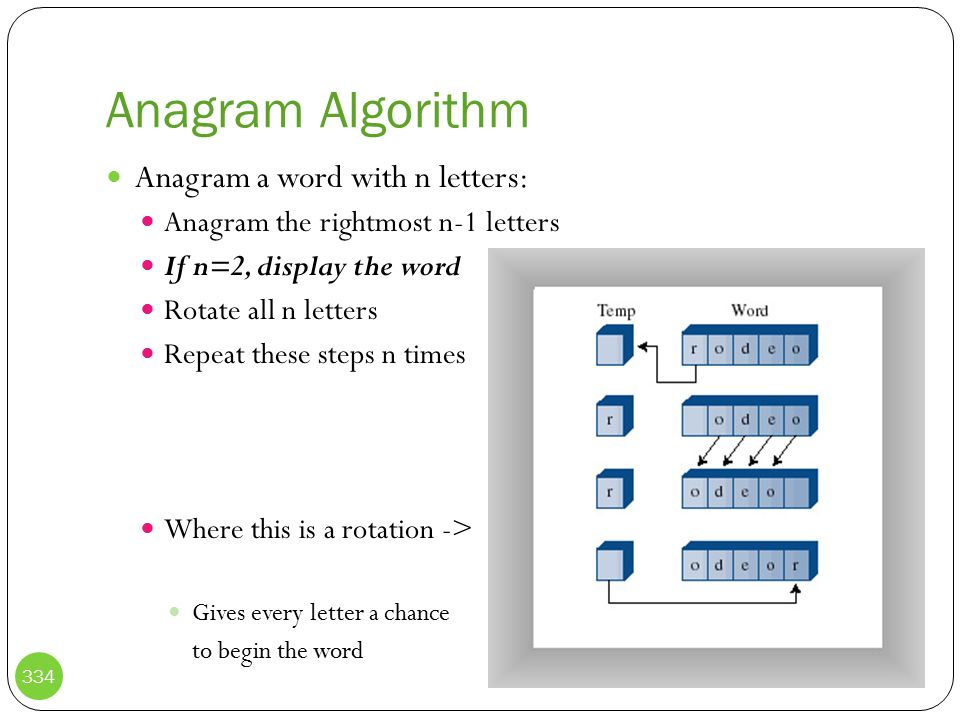

332 Anagrams Involves producing all possible combinations of the letters of a word. Example: Anagram the word cat: cat cta atc act tca tac Six possible combinations 332

333 Anagrams: General In general, for a word of n letters, there will be n! combinations assuming all letters are distinct We saw for cat (3 letters), there were 6 possible If some letter(s) repeat themselves, this will reduce the number of combinations. Example, tat only has 3: tat att tta 333

334 Anagram Algorithm Anagram a word with n letters: Anagram the rightmost n-1 letters If n=2, display the word Rotate all n letters Repeat these steps n times Where this is a rotation -> Gives every letter a chance to begin the word 334

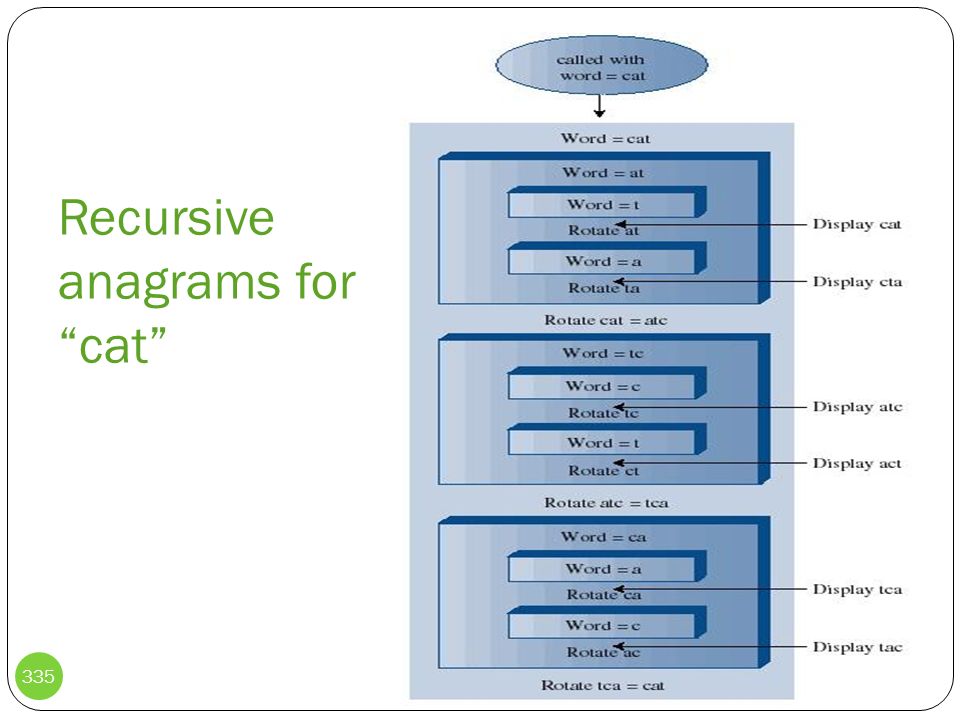

335 Recursive anagrams for “cat” 335

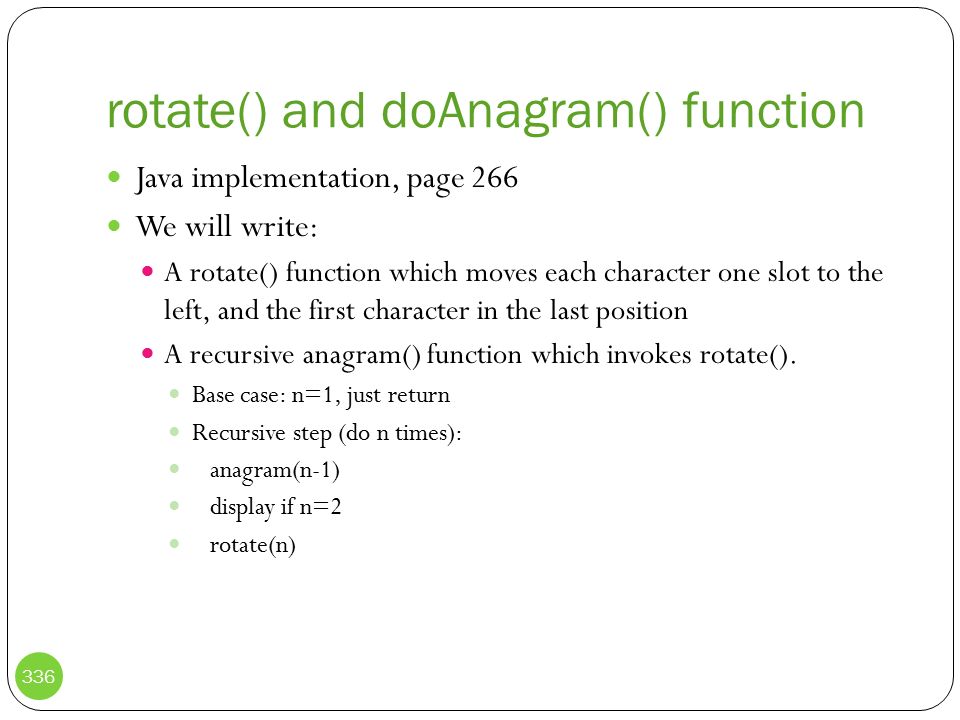

336 rotate() and doAnagram() function Java implementation, page 266 We will write: A rotate() function which moves each character one slot to the left, and the first character in the last position A recursive anagram() function which invokes rotate(). Base case: n=1, just return Recursive step (do n times): anagram(n-1) display if n=2 rotate(n) 336

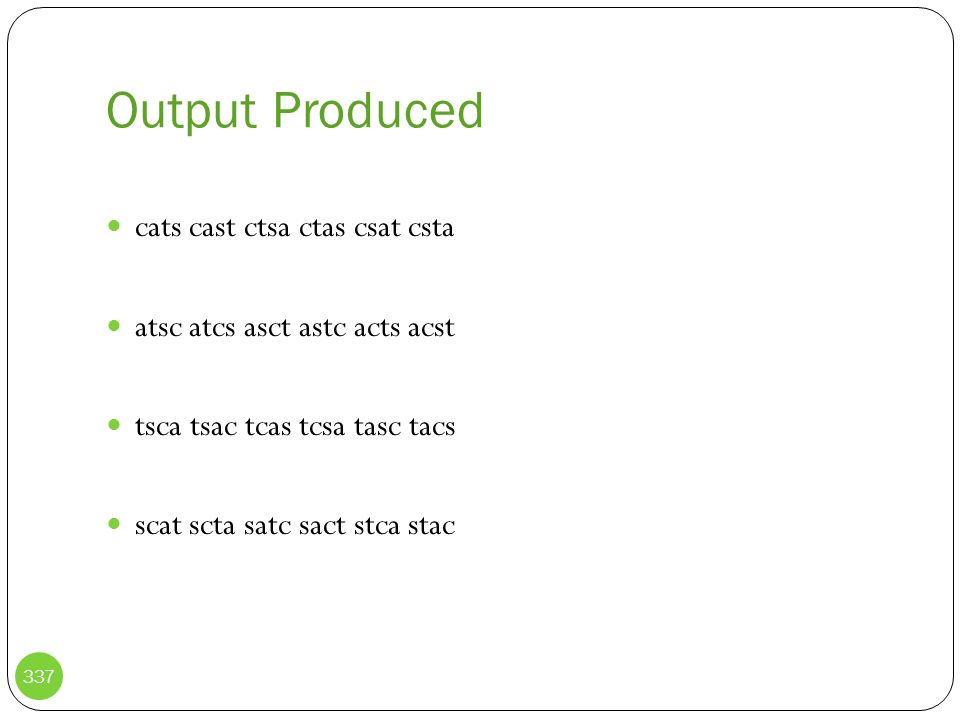

337 Output Produced cats cast ctsa ctas csat csta atsc atcs asct astc acts acst tsca tsac tcas tcsa tasc tacs scat scta satc sact stca stac 337

338 Towers of Hanoi An ancient puzzle consisting of disks on pegs A, B and C Start all disks on peg A Object: Transfer all disks from A to C Can only move one at a time Cannot place a disk on one that’s smaller Note: This algorithm is EXPENSIVE for large # of disks 338

339 Recursion With recursion, it’s always good to break a problem into smaller, easier problems For example: Completing the problem requires: Moving the top three disks to (B) Moving the lowermost disk to (C) Moving all three disks from (B) to (C) 339

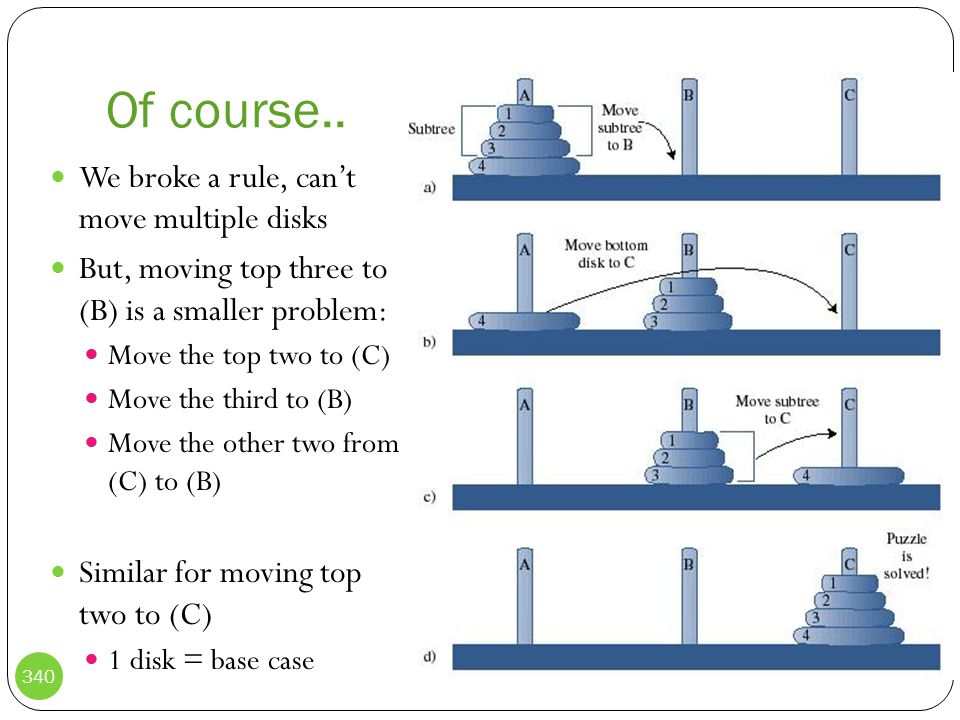

340 Of course.. We broke a rule, can’t move multiple disks But, moving top three to (B) is a smaller problem: Move the top two to (C) Move the third to (B) Move the other two from (C) to (B) Similar for moving top two to (C) 1 disk = base case 340

341 So… # A is source peg # B is intermediate peg # C is destination peg Solving TOH(n,A,B,C): Solve TOH(n-1,A,C,B) Move nth to C Solve TOH(n-1,B,A,C) 341

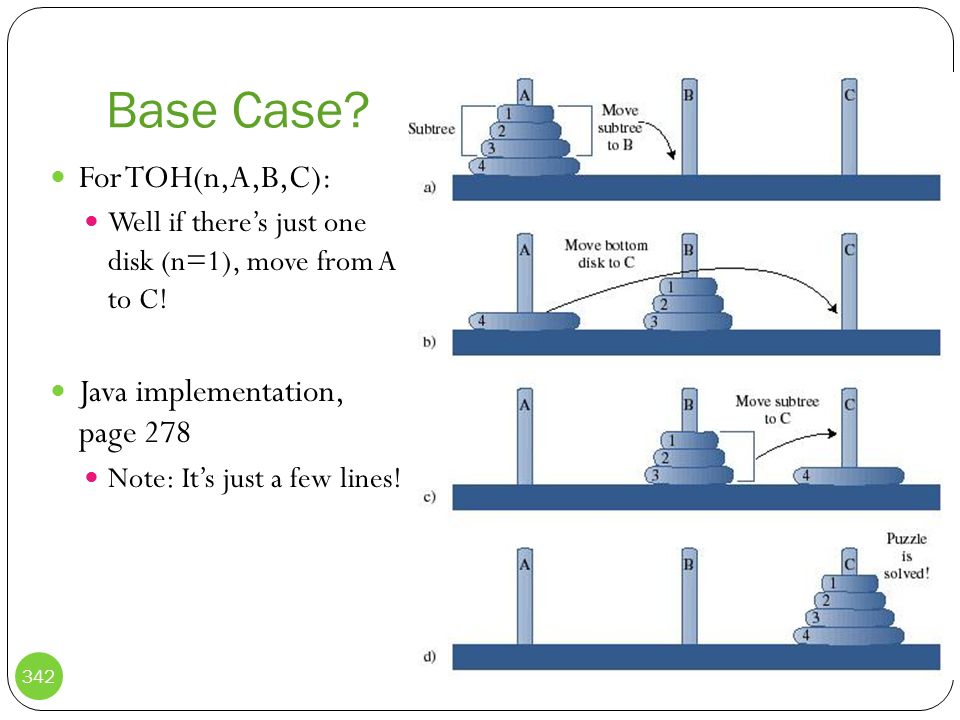

342 Base Case? For TOH(n,A,B,C): Well if there’s just one disk (n=1), move from A to C! Java implementation, page 278 Note: It’s just a few lines! 342

343 Complexity For n disks: (n disks) - 1 st call, 2 recursive calls (n disks) (n-1 disks) Two 2 nd calls, 2 recursive calls (n-2 disks) Four 3 rd calls, 2 recursive calls … (1 disk) Many nth calls, base case Let’s draw the tree See why, this is too expensive for large numbers of disks? Old legend: In remote India temple, monks continuously work at solving this problem with 64 disks and 3 diamond towers The world ends when they are finished No worries, it will take forever anyway…. 343

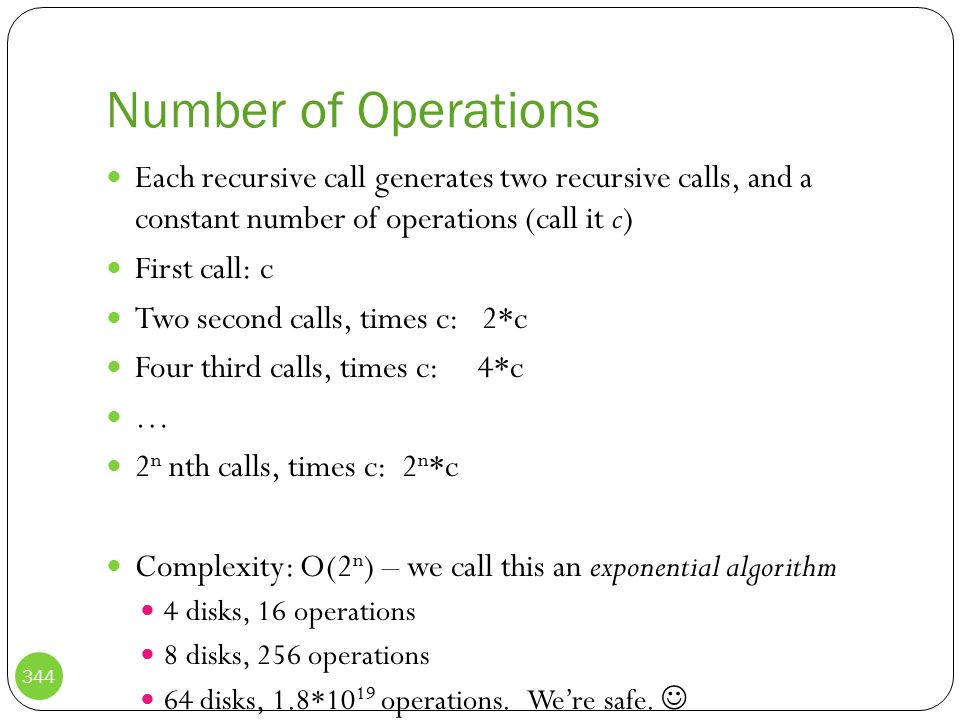

344 Number of Operations Each recursive call generates two recursive calls, and a constant number of operations (call it c) First call: c Two second calls, times c: 2*c Four third calls, times c: 4*c … 2 n nth calls, times c: 2 n *c Complexity: O(2 n ) – we call this an exponential algorithm 4 disks, 16 operations 8 disks, 256 operations 64 disks, 1.8*10 19 operations. We’re safe. 344

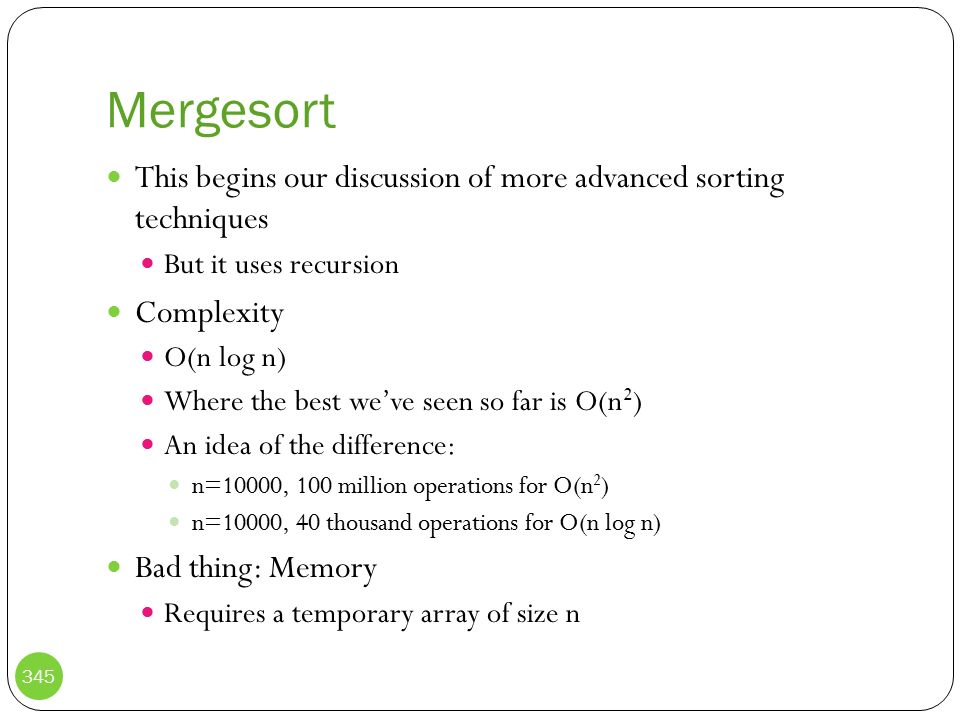

345 Mergesort This begins our discussion of more advanced sorting techniques But it uses recursion Complexity O(n log n) Where the best we’ve seen so far is O(n 2 ) An idea of the difference: n=10000, 100 million operations for O(n 2 ) n=10000, 40 thousand operations for O(n log n) Bad thing: Memory Requires a temporary array of size n 345

346 Merging Let’s say we have an array of size n Suppose we used recursion and solved a smaller problem (why would we ever do that? I don’t know ) and had two sorted subarrays: We could merge them by repeatedly comparing their first elements 346

347 Merge.. Have: two subarrays, and a temporary array of size n Compare first elements Take the lesser, and put it in the temporary array 347

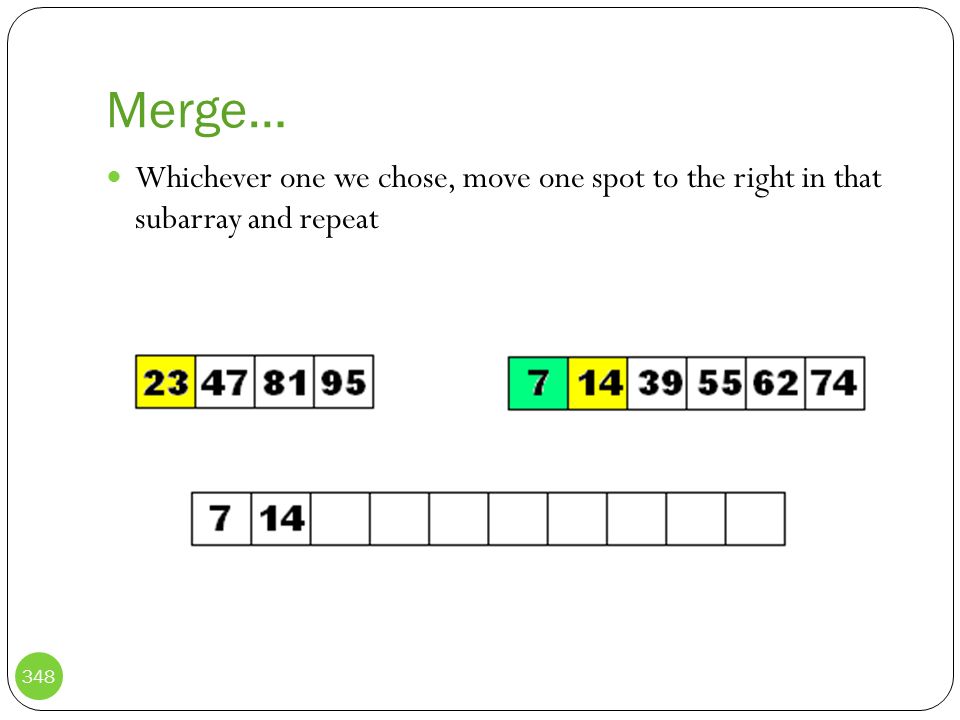

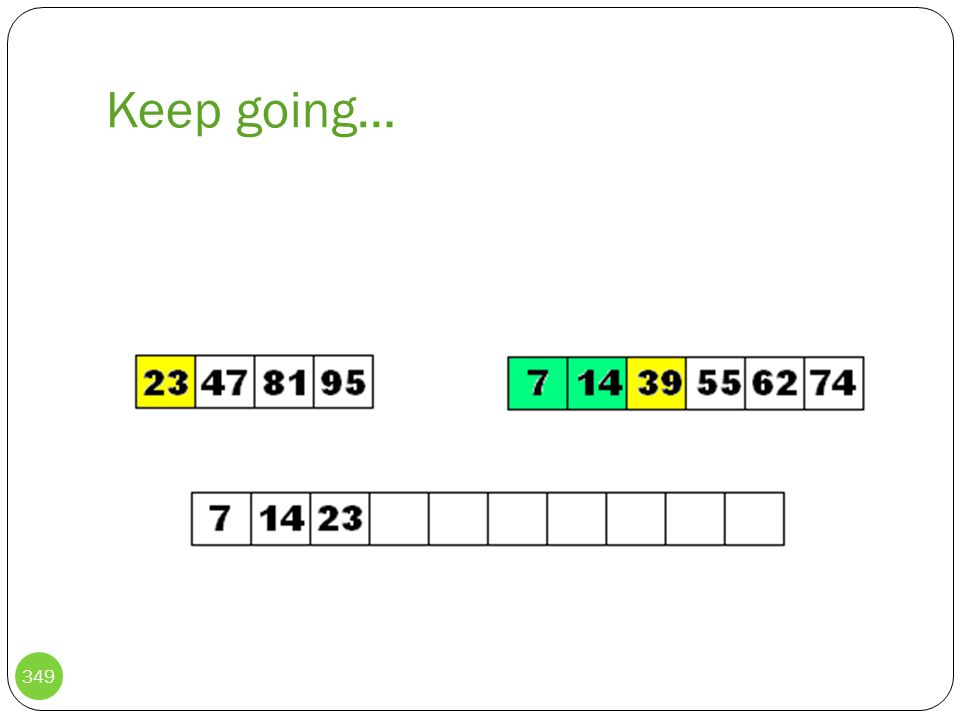

348 Merge… Whichever one we chose, move one spot to the right in that subarray and repeat 348

349 Keep going… 349

350 And going… 350

351 And going… 351

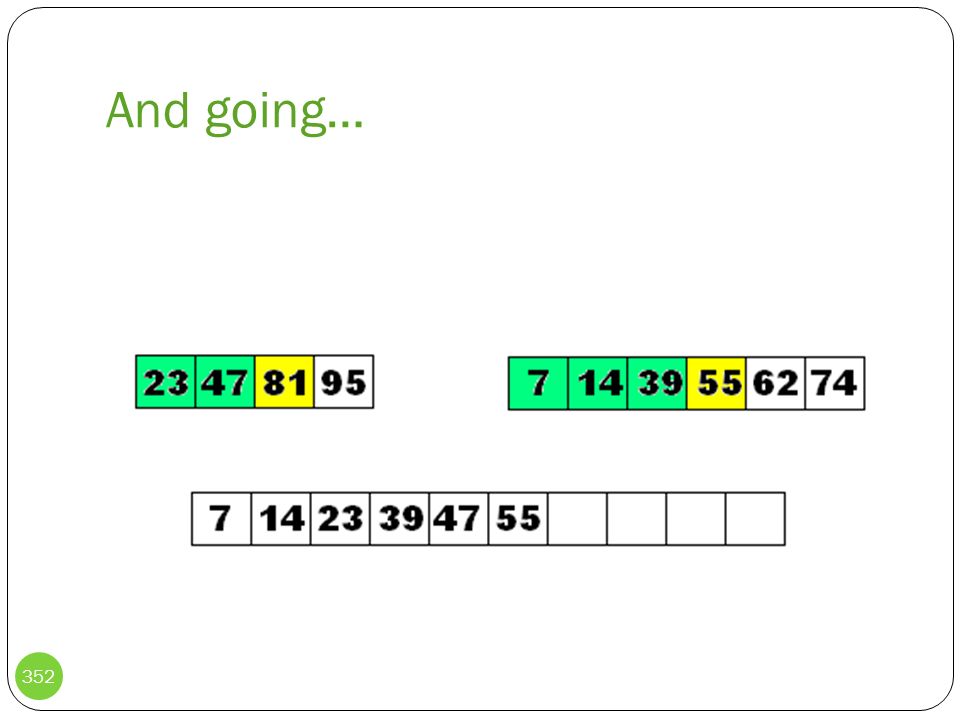

352 And going… 352

353 Get the idea? 353

354 Few more… 354

355 Put in the rest… When we get to the end of one subarray, just insert the rest of the other. 355

356 Finally… We’re done when the temporary array is full 356

357 So now, we know… If we have two sorted subarrays, we can merge them to sort the entire array. And we can do it in O(n) time. Just one comparison for each of the n elements Where recursion comes in… Say we start with n elements… And separate into two subarrays of n/2 elements… And separate them into four subarrays of n/4 elements… Until we get to subarrays of one element. Trivial to merge! 357

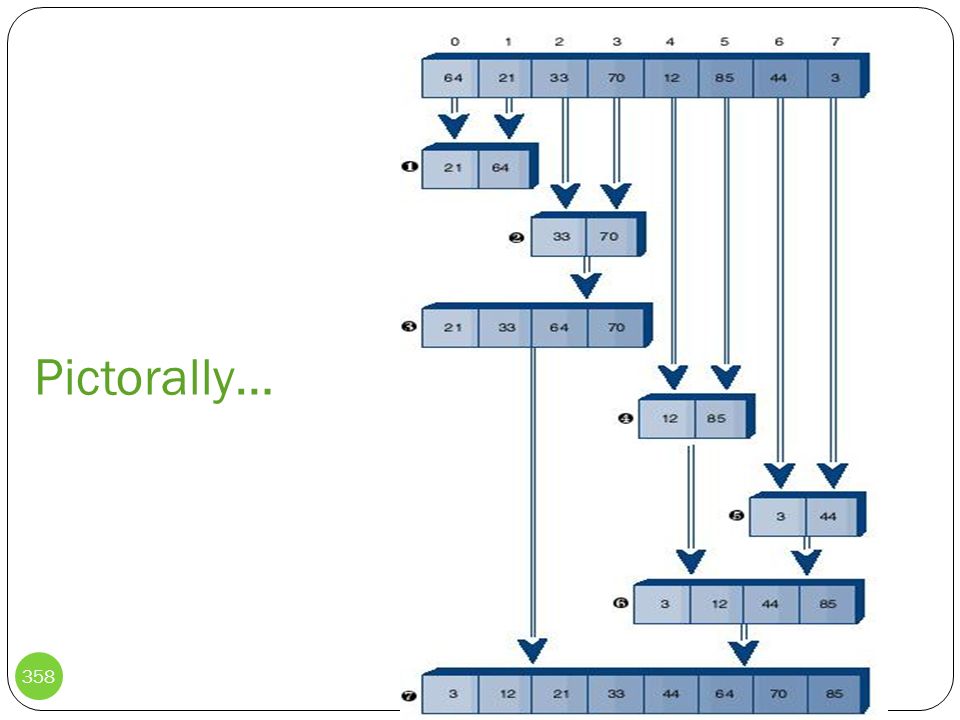

358 Pictorally… 358

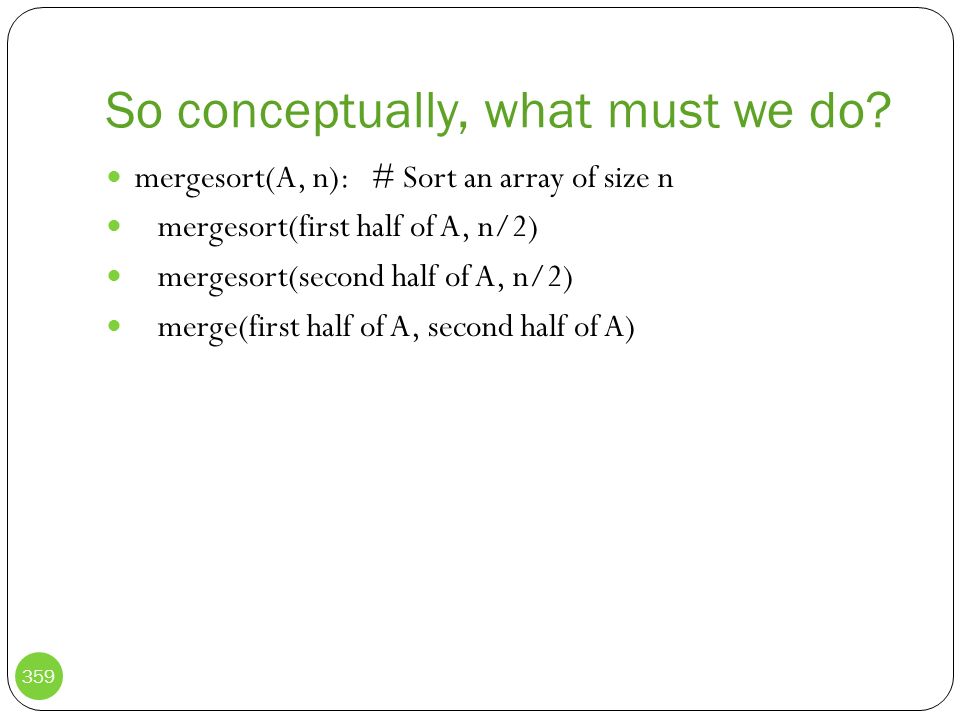

359 So conceptually, what must we do? mergesort(A, n): # Sort an array of size n mergesort(first half of A, n/2) mergesort(second half of A, n/2) merge(first half of A, second half of A) 359

360 Let’s add a merge() procedure to this class. (p. 289) class DArray { private long[] theArray; private int nElems; public Darray(int max) { theArray = new long[max]; nElems++; } public void insert(long value) { theArray[nElems] = value; nElems++; } 360

361 What merge() accepts A workspace array of size n The lower, middle and upper indices of theArray to merge First half is index lower to index (middle-1) Second half is index middle to index upper So n=upper-lower+1 361

362 Now write mergesort() Our recursive mergesort will accept: Workspace of size n, and lower/upper indices of theArray to sort Initial call will pass an empty workspace, 0, and nElems-1. 362

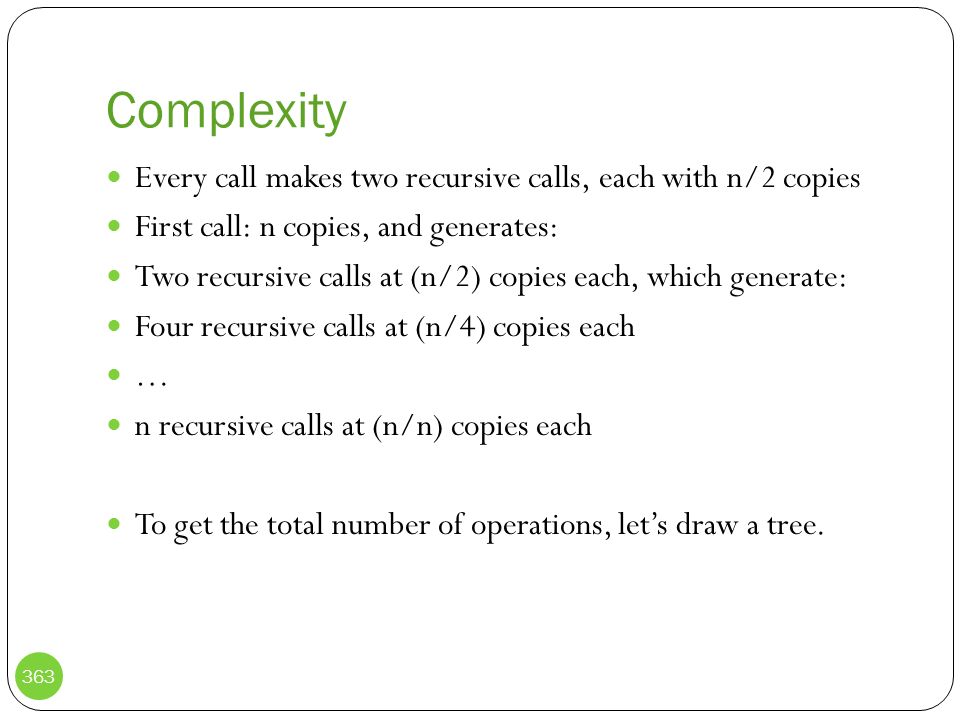

363 Complexity Every call makes two recursive calls, each with n/2 copies First call: n copies, and generates: Two recursive calls at (n/2) copies each, which generate: Four recursive calls at (n/4) copies each … n recursive calls at (n/n) copies each To get the total number of operations, let’s draw a tree. 363

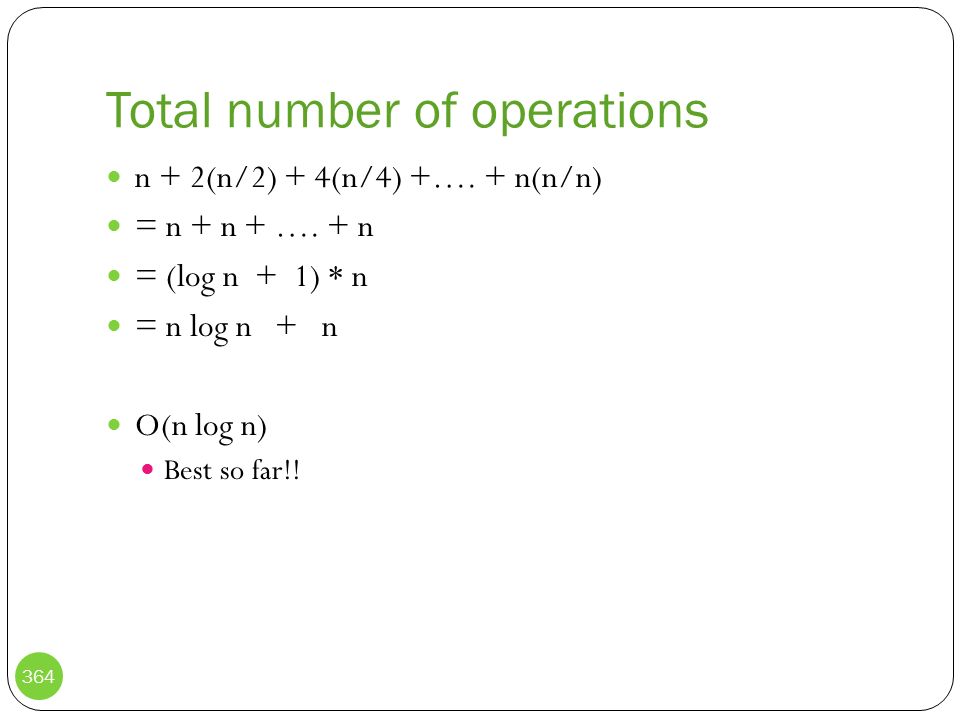

364 Total number of operations n + 2(n/2) + 4(n/4) +…. + n(n/n) = n + n + …. + n = (log n + 1) * n = n log n + n O(n log n) Best so far!! 364

365 CS221N, Data Structures Advanced Sorting 365

366 Radar Midterm Two weeks from this Friday on 3/27 In class Closed book 366

367 Improved Sorting Techniques What we have seen Bubble, selection and insertion Easy to implement Slower: O(n 2 ) Mergesort Faster: O(n log n) More memory (temporary array) What we’ll now see Shellsort, O(n log 2 n) Quicksort, O(n log n) Radix sort, O(k n) Limited to integers 367

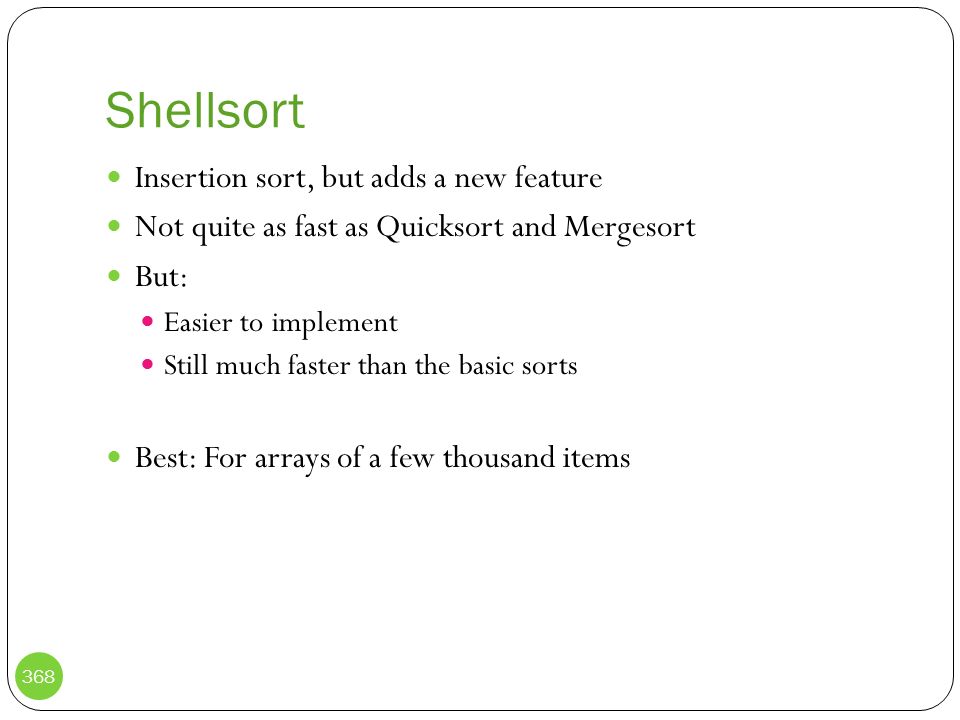

368 Shellsort Insertion sort, but adds a new feature Not quite as fast as Quicksort and Mergesort But: Easier to implement Still much faster than the basic sorts Best: For arrays of a few thousand items 368

369 Recall Insertion Sort.... 369 A subarray to the left is ‘partially sorted’ Start with the first element The player immediately to the right is ‘marked’. The ‘marked’ player is inserted into the correct place in the partially sorted array Remove first Marked player ‘walks’ to the left Shift appropriate elements until we hit a smaller one

370 The problem 370 If a small item is very far to the right Like in this case -> You must shift many intervening large items one space to the right Almost N copies Average case N/2 N items, N 2 /2 copies Better if: Move a small item many spaces, without shifting

371 Remember 371 What made insertion sort the best of the basic sorts? If the array is almost sorted, O(n) Shellsort has two steps: “Almost sort” the array Run insertion sort

372 The “Almost Sort” step Say we have a 10-element array: 60 30 80 90 0 20 70 10 40 50 Sort indices 0, 4, and 8: 0 30 80 90 40 20 70 10 60 50 Sort indices 1, 5, and 9: 0 20 80 90 40 30 70 10 60 50 Sort indices 2, 6: 0 20 70 90 40 30 80 10 60 50 Sort indices 3, 7 0 20 70 10 40 30 80 90 60 50 372

373 The “Almost Sort” step This is called a “4-sort”: 60 30 80 90 0 20 70 10 40 50 0 30 80 90 40 20 70 10 60 50 0 20 80 90 40 30 70 10 60 50 0 20 70 90 40 30 80 10 60 50 0 20 70 10 40 30 80 90 60 50 Once we’ve done this, the array is almost sorted, and we can run insertion sort on the whole thing Should be about O(n) time 373

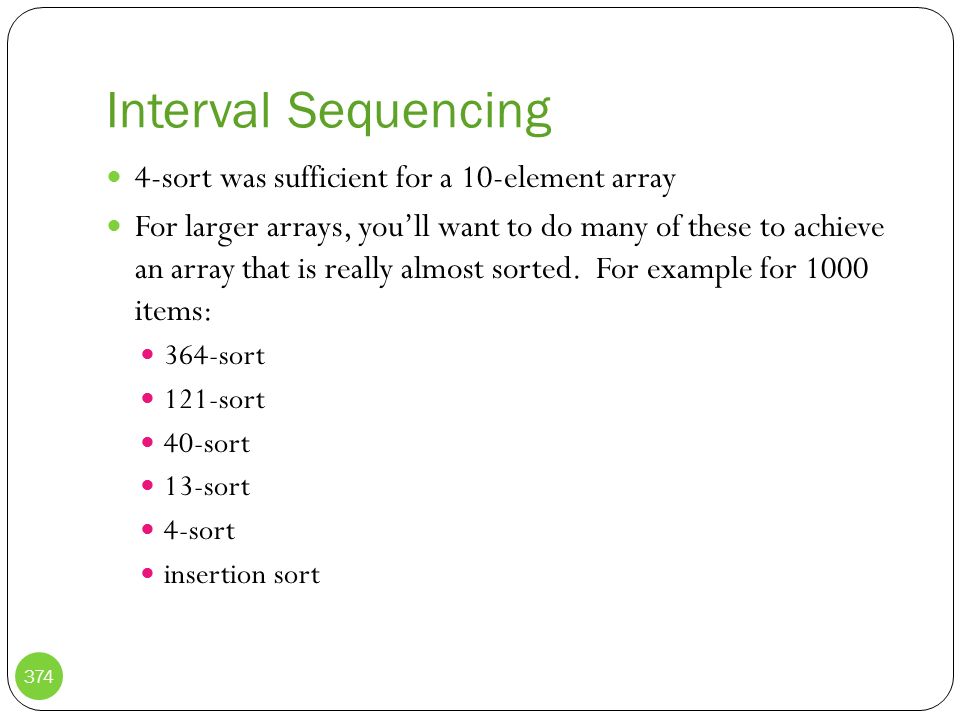

374 Interval Sequencing 4-sort was sufficient for a 10-element array For larger arrays, you’ll want to do many of these to achieve an array that is really almost sorted. For example for 1000 items: 364-sort 121-sort 40-sort 13-sort 4-sort insertion sort 374

375 Knuth’s Interval Sequence How to determine? Knuth’s algorithm: Start at h=1 Repeatedly apply the function h=3*h+1, until you pass the number of items in the array: h = 1, 4, 13, 40, 121, 364, 1093…. Thus the previous sequence for a 1000-element array So what interval sequences should we use for a 10000 element array? 375

376 Why is it better? When h is very large, you are sorting small numbers of elements and moving them across large distances Efficient When h is very small, you are sorting large numbers of elements and moving them across small distances Becomes more like traditional insertion sort But each successive sort, the overall array is more sorted So we should be nearing O(n) That’s the idea! 376

377 Let’s do our own example… Sort these fifteen elements: 8 10 1 15 7 4 12 13 2 6 11 14 3 9 5 What sequence of h should we use? Let’s do it on the board. 377

378 Java Implementation, page 322 What are function needs to do: Initialize h properly Have an outer loop start at outer=h and count up Have an inner loop which sorts outer, outer-h, outer-2h, etc. For example, if h is 4: We must sort (8, 4, 0), and (9, 5, 1), etc. Let’s check it out 378

379 Other Interval Sequences Original Shellsort: h = h / 2 Inefficient, leads to O(n2) Variation: h = h / 2.2 Need extra effort to make sure we eventually hit h=1 Flamig’s Approach (yields similar to Knuth) if (h < 5) h = 1; else h = (5*h-1) / 11; Rule of thumb: Values of h should be relatively prime More likely that they will intermingle all items on previous pass 379

380 Number of Operations Too difficult to perform analytically Estimates have been made Range: O(N 3/2 ) to O(N 7/6 ) Accepted: O(n log 2 n) Even if we assume worst case, it still is much better than insertion sort n=10, Shellsort 32 operations, Insertion Sort 100 n=100, Shellsort 1000 operations, Insertion Sort 10000 n=1000, Shellsort 32000 operations, Insertion Sort 1 million n=10000, ShellSort 1 million operations, Insertion Sort 100 million Optimistic yields 160,000 in the case of n=10000 380

381 Quicksort This will be the sort that is the most optimal in terms of performance and memory One must exercise care to avoid the worst case, which is still very expensive Central mechanism is partitioning, which we’ll look at first 381

382 Partitioning Idea: Divide data into two groups, such that: All items with a key value higher than a specified amount (the pivot) are in one group All items with a lower key value are in another Applications: Divide employees who live within 15 miles of the office with those who live farther away Divide households by income for taxation purposes Divide computers by processor speed Let’s see an example with an array 382

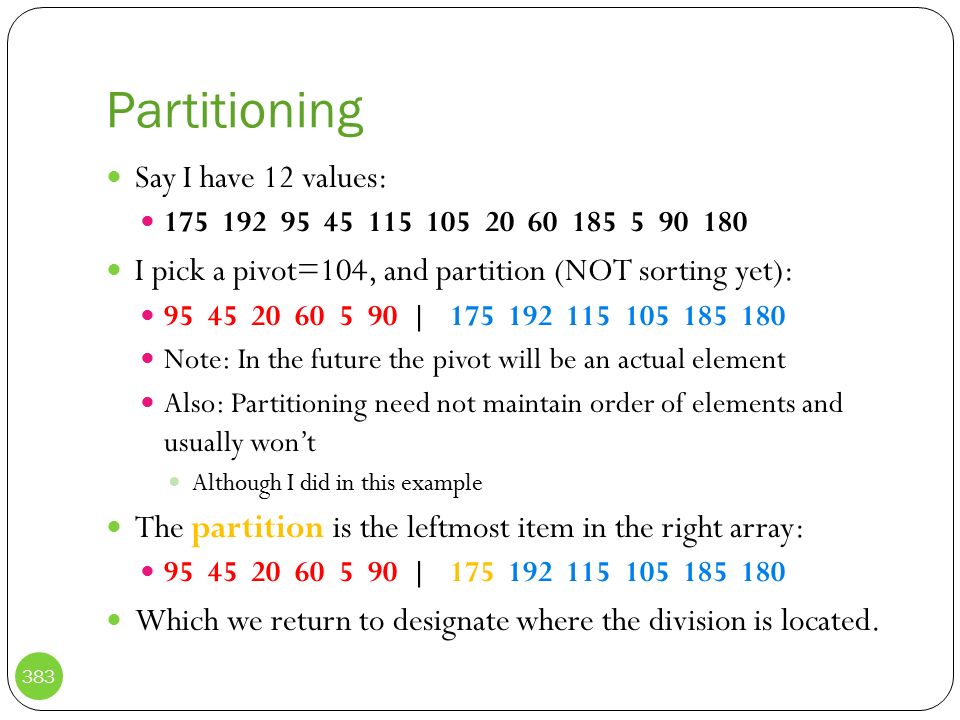

383 Partitioning Say I have 12 values: 175 192 95 45 115 105 20 60 185 5 90 180 I pick a pivot=104, and partition (NOT sorting yet): 95 45 20 60 5 90 | 175 192 115 105 185 180 Note: In the future the pivot will be an actual element Also: Partitioning need not maintain order of elements and usually won’t Although I did in this example The partition is the leftmost item in the right array: 95 45 20 60 5 90 | 175 192 115 105 185 180 Which we return to designate where the division is located. 383

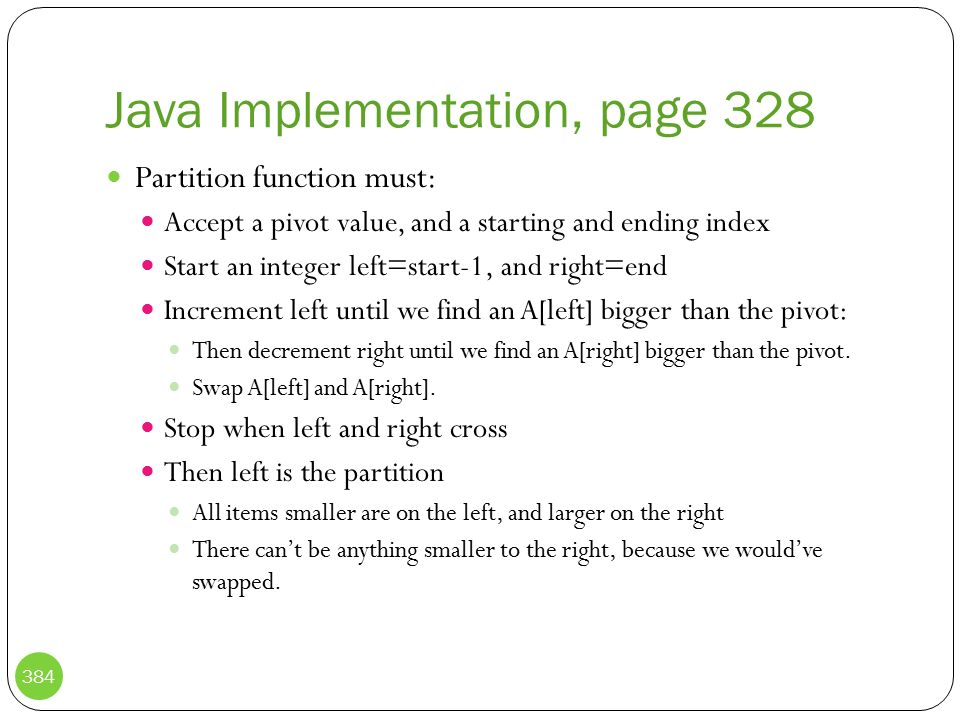

384 Java Implementation, page 328 Partition function must: Accept a pivot value, and a starting and ending index Start an integer left=start-1, and right=end Increment left until we find an A[left] bigger than the pivot: Then decrement right until we find an A[right] bigger than the pivot. Swap A[left] and A[right]. Stop when left and right cross Then left is the partition All items smaller are on the left, and larger on the right There can’t be anything smaller to the right, because we would’ve swapped. 384

385 Efficiency: Partitioning O(n) time left starts at 0 and moves one-by-one to the right right starts at n-1 and moves one-by-one to the left When left and right cross, we stop. So we’ll hit each element just once Number of comparisons is n+1 Number of swaps is worst case n/2 Worst case, we swap every single time Each swap involves two elements Usually, it will be less than this Since in the random case, some elements will be on the correct side of the pivot 385

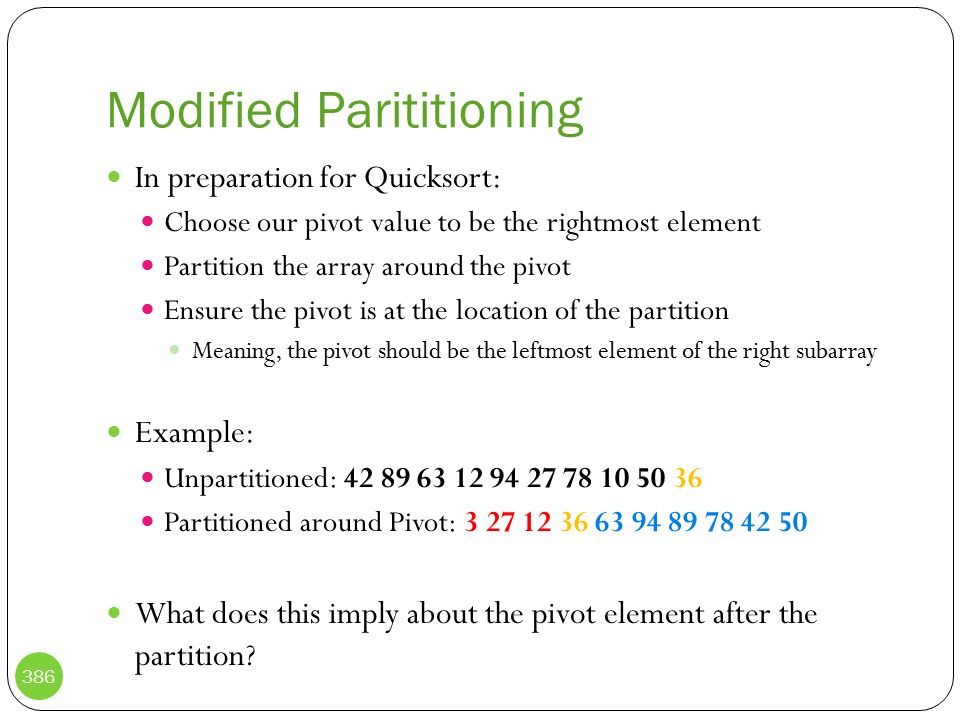

386 Modified Parititioning In preparation for Quicksort: Choose our pivot value to be the rightmost element Partition the array around the pivot Ensure the pivot is at the location of the partition Meaning, the pivot should be the leftmost element of the right subarray Example: Unpartitioned: 42 89 63 12 94 27 78 10 50 36 Partitioned around Pivot: 3 27 12 36 63 94 89 78 42 50 What does this imply about the pivot element after the partition? 386

387 Placing the Pivot Goal: Pivot must be in the leftmost position in the right subarray 3 27 12 36 63 94 89 78 42 50 Our algorithm does not do this currently. It currently will not touch the pivot left increments till it finds an element < pivot right decrements till it finds an element > pivot So the pivot itself won’t be touched, and will stay on the right: 3 27 12 63 94 89 78 42 50 36 387

388 Options We have this: 3 27 12 63 94 89 78 42 50 36 Our goal is the position of 36: 3 27 12 36 63 94 89 78 42 50 We could either: Shift every element in the right subarray up (inefficient) Just swap the leftmost with the pivot! Better We can do this because the right subarray is not in any particular order 3 27 12 36 94 89 78 42 50 63 388

389 Swapping the Pivot Just takes one more line to our Java method Basically, a single call to swap() Swaps A[end-1] (the pivot) with A[left] (the partition index) 389

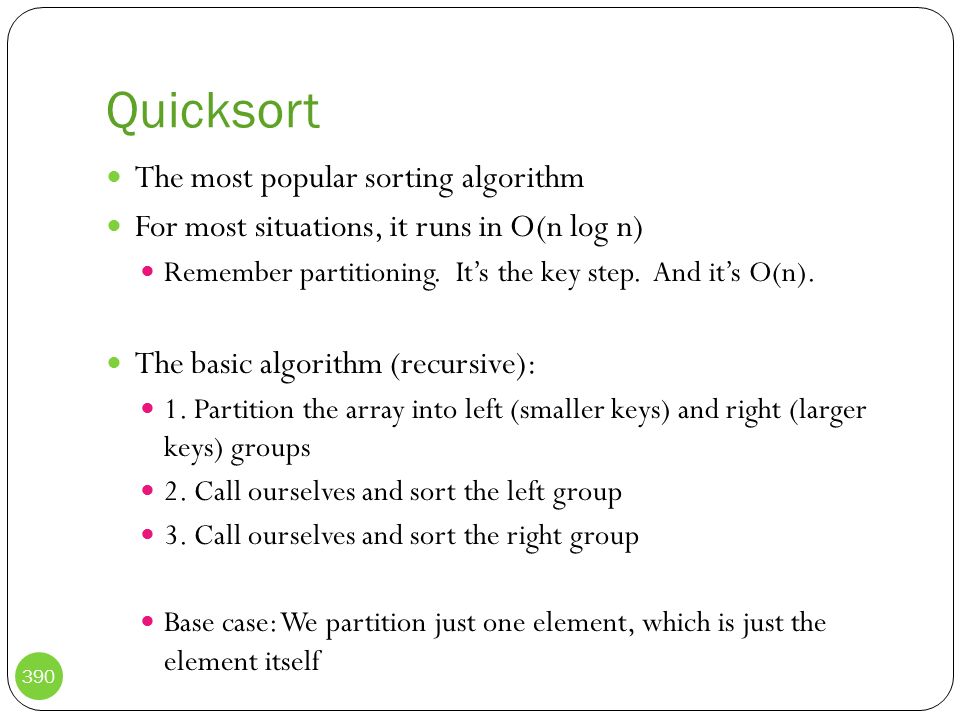

390 Quicksort The most popular sorting algorithm For most situations, it runs in O(n log n) Remember partitioning. It’s the key step. And it’s O(n). The basic algorithm (recursive): 1. Partition the array into left (smaller keys) and right (larger keys) groups 2. Call ourselves and sort the left group 3. Call ourselves and sort the right group Base case: We partition just one element, which is just the element itself 390

391 Java Implementation, page 333 We can probably just do this in our heads: 1. Choose the pivot to be the rightmost element 2. Partition the array into left (smaller keys) and right (larger keys) groups 3. Call ourselves and sort the left group 4. Call ourselves and sort the right group Base case: We partition just one element, which is just the element itself 391

392 Shall we try it on an array? 10 70 50 30 60 90 0 40 80 20 Let’s go step-by-step on the board 392

393 Best case… We partition the array each time into two equal subarrays Say we start with array of size n = 2 i We recurse until the base case, 1 element Draw the tree First call -> Partition n elements, n operations Second calls -> Each partition n/2 elements, 2(n/2)=n operations Third calls -> Each partition n/4, 4(n/4) = n operations … (i+1)th calls -> Each partition n/2 i = 1, 2 i (1) = n(1) = n ops Total: (i+1)*n = (log n + 1)*n -> O(n log n) 393

394 The VERY bad case…. If the array is inversely sorted. Let’s see the problem: 90 80 70 60 50 40 30 20 10 0 What happens after the partition? This: 0 20 30 40 50 60 70 80 90 10 This is almost sorted, but the algorithm doesn’t know it. It will then call itself on an array of zero size (the left subarray) and an array of n-1 size (the right subarray). Producing: 0 10 30 40 50 60 70 80 90 20 394

395 The VERY bad case… In the worst case, we partition every time into an array of 0 elements and an array of n-1 elements This yields O(n 2 ) time: First call: Partition n elements, n operations Second calls: Partition 0 and n-1 elements, n-1 operations Third calls: Partition 0 and n-2 elements, n-2 operations Draw the tree Yielding: Operations = n + n-1 + n-2 + … + 1 = n(n+1)/2 -> O(n 2 ) 395

396 Summary What caused the problem was “blindly” choosing the pivot from the right end. In the case of a reverse sorted array, this is not a good choice at all Can we improve our choice of the pivot? Let’s choose the middle of three values 396

397 Median-Of-Three Partitioning Everytime you partition, choose the median value of the left, center and right element as the pivot Example: 44 11 55 33 77 22 00 99 101 66 88 Pivot: Take the median of the leftmost, middle and rightmost 44 11 55 33 77 22 00 99 101 66 88 - Median: 44 Then partition around this pivot: 11 33 22 00 44 55 77 99 101 66 88 Increases the liklihood of an equal partition Also, it cannot possibly be the worst case 397

398 Let’s see how this fixes the worst case for Quicksort Here’s our array: 90 80 70 60 50 40 30 20 10 0 Let’s see on the board how this fixes things In fact in a perfectly reversed array, we choose the middle element as the pivot! Which is optimal We get O(n log n) Vast majority of the time, if you use QuickSort with a Median-Of-Three partition, you get O(n log n) behavior 398

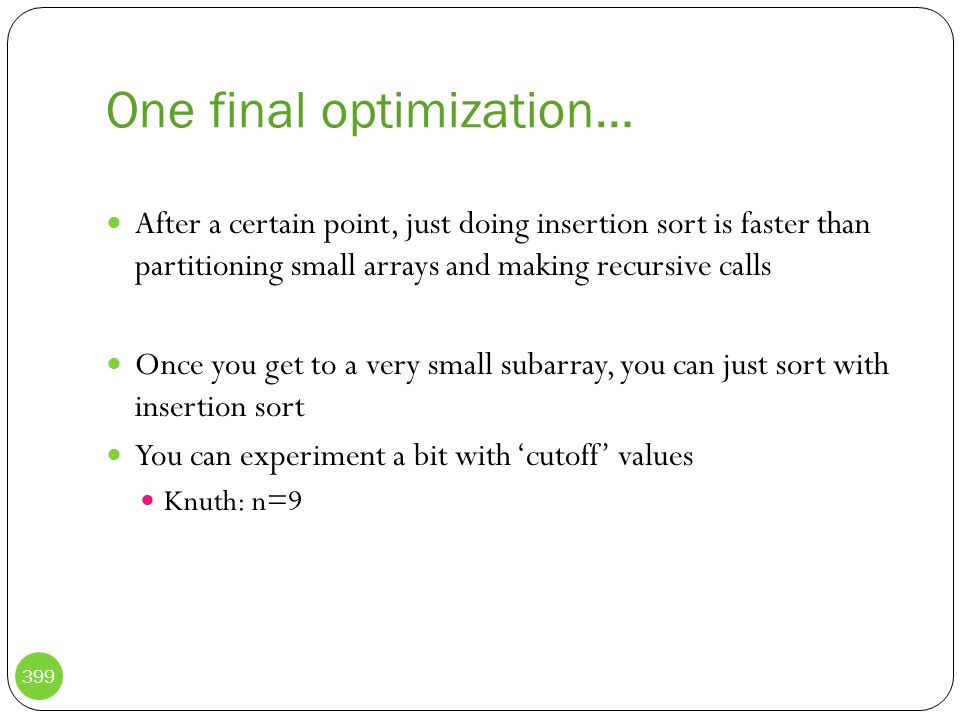

399 One final optimization… After a certain point, just doing insertion sort is faster than partitioning small arrays and making recursive calls Once you get to a very small subarray, you can just sort with insertion sort You can experiment a bit with ‘cutoff’ values Knuth: n=9 399

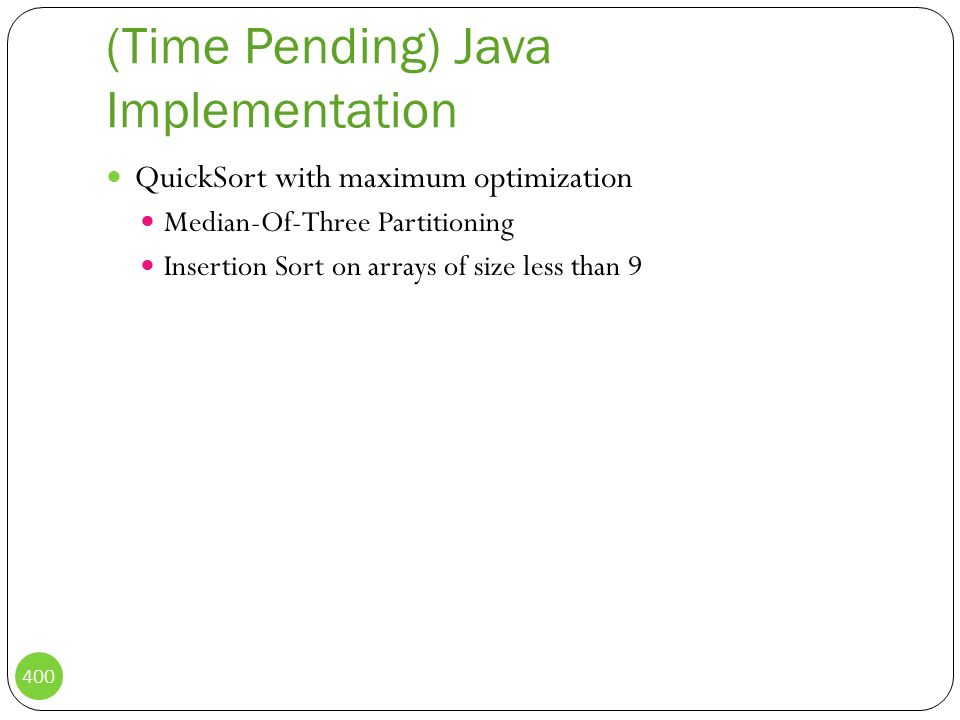

400 (Time Pending) Java Implementation QuickSort with maximum optimization Median-Of-Three Partitioning Insertion Sort on arrays of size less than 9 400

401 Operation Count Estimates For QuickSort n=8: 30 comparisons, 12 swaps n=12: 50 comparisons, 21 swaps n=16: 72 comparisons, 32 swaps n=64: 396 comparisons, 192 swaps n=100: 678 comparisons, 332 swaps n=128: 910 comparisons, 448 swaps The only competitive algorithm is mergesort But, takes much more memory like we said. 401

402 Radix Sort Idea: Disassemble elements into individual digits Sort digit by digit Does not require any comparisons Arrange data items according to digit values Makes sense: Arrange by the least significant digit first Then the second least, etc. Assumptions 402

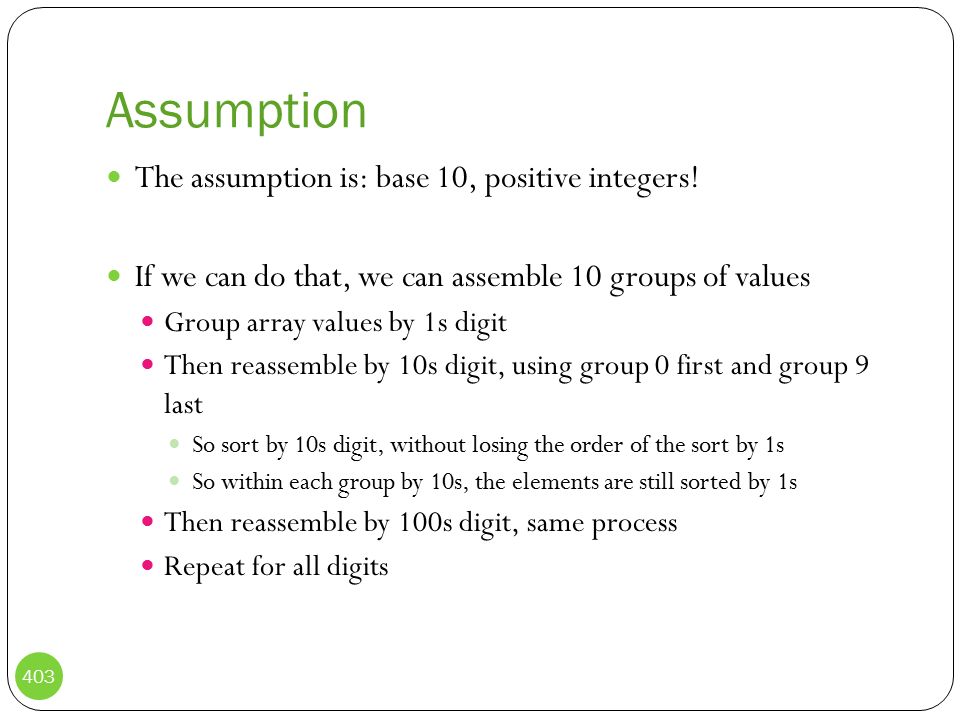

403 Assumption The assumption is: base 10, positive integers! If we can do that, we can assemble 10 groups of values Group array values by 1s digit Then reassemble by 10s digit, using group 0 first and group 9 last So sort by 10s digit, without losing the order of the sort by 1s So within each group by 10s, the elements are still sorted by 1s Then reassemble by 100s digit, same process Repeat for all digits 403

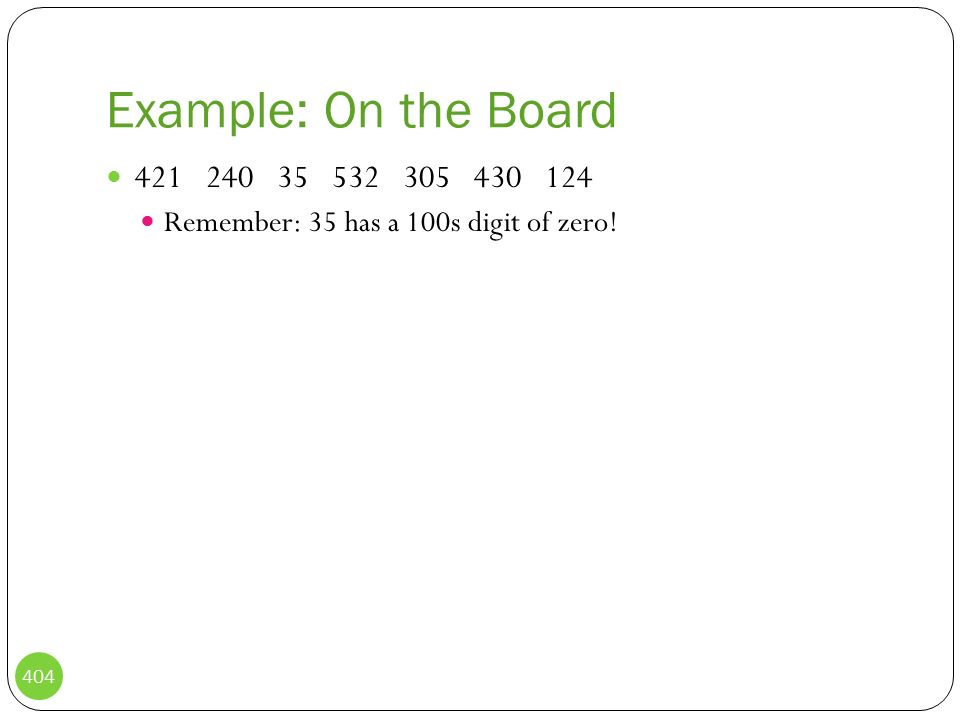

404 Example: On the Board 421 240 35 532 305 430 124 Remember: 35 has a 100s digit of zero! 404

405 Operations n Elements Copy each element once to a group, and once back again: 2n copies -> O(n) Then you have to copy k times, where k is the maximum number of digits in any value So, 2*k*n copies -> O(kn) Zero comparisons What will k typically be? For n=100 (unique values), you have at least 3 digits For n=1000 (unique values), you have at least 4 digits Generally, for n = 10 i, you have (i+1) digits or log 10 n 405

406 Logarithms Independently of the base, logarithmic functions grow at about the same rate So really, you are dealing with roughly O(n log n) complexity still Plus Houston, you’ve got memory… Need to store extra space for the groups! Like mergesort, double the memory So a solid argument can be made that Quicksort is still better Best case: Small numbers of digits And remember underlying assumption: Positive integers 406

407 Java Implementation Not in the book; will be left as an exercise This is your two-week assignment! Implement the entire Radix Sort. 407

408 CS221N, Data Structures Binary Trees 408

409 Binary Trees A fundamental data structure Combines advantages of arrays and linked lists Fast search time Fast insertion Fast deletion Moderately fast access time Of course, they’re a bit more complex to implement 409

410 Recall Ordered Arrays… Their search time is faster, because there is some ‘ordering’ to the elements. We can do binary search, O(log n) Instead of linear search, O(n) Their insertion time is slower, because you have to find the correct position to insert first That takes O(log n) time Instead of just dropping the element at the end, O(1) Trees provide ‘somewhat’ of an ordering Each of these algorithms will be O(log n) 410

411 Recall Linked Lists… Insertion and deletion are fast O(1) on the end In the middle, O(n) to find the position, but O(1) to insert/delete Better than the expensive shifting in arrays Finding is slower, O(n) Trees perform insertion/deletion similarly, by changing references But they provide shorter paths for finds that are log n in length, as opposed to a linked list which could be length n 411

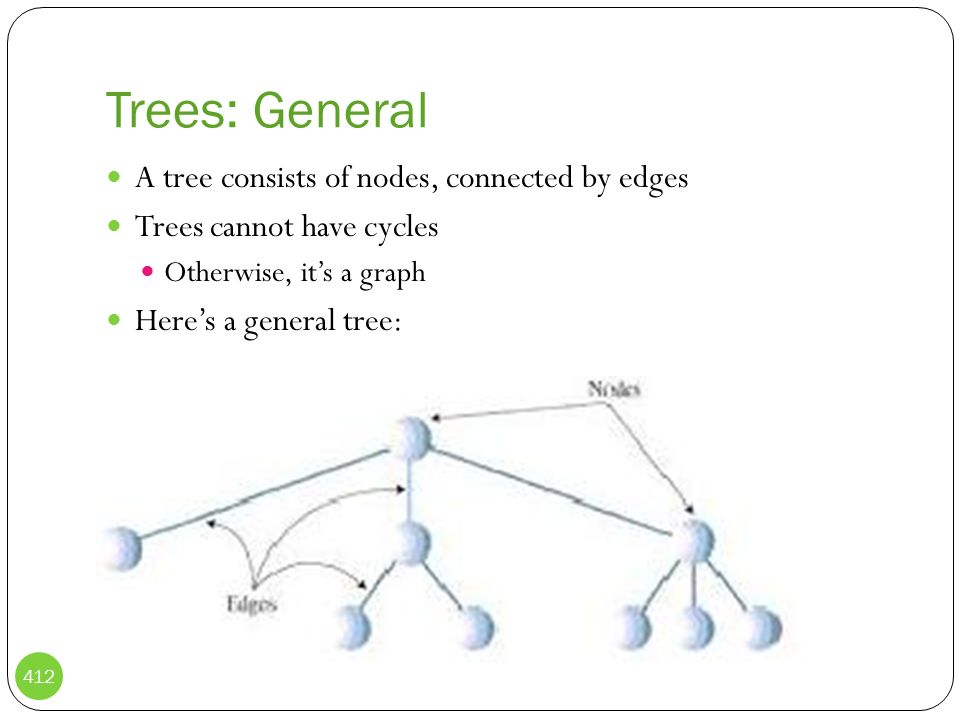

412 Trees: General A tree consists of nodes, connected by edges Trees cannot have cycles Otherwise, it’s a graph Here’s a general tree: 412

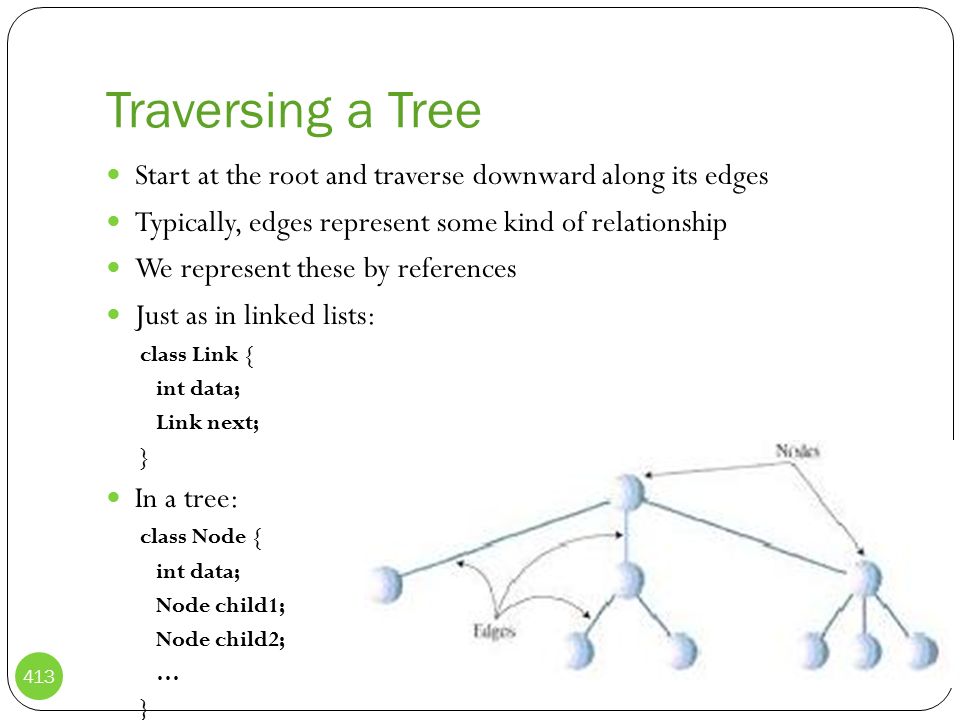

413 Traversing a Tree Start at the root and traverse downward along its edges Typically, edges represent some kind of relationship We represent these by references Just as in linked lists: class Link { int data; Link next; } In a tree: class Node { int data; Node child1; Node child2; … } 413

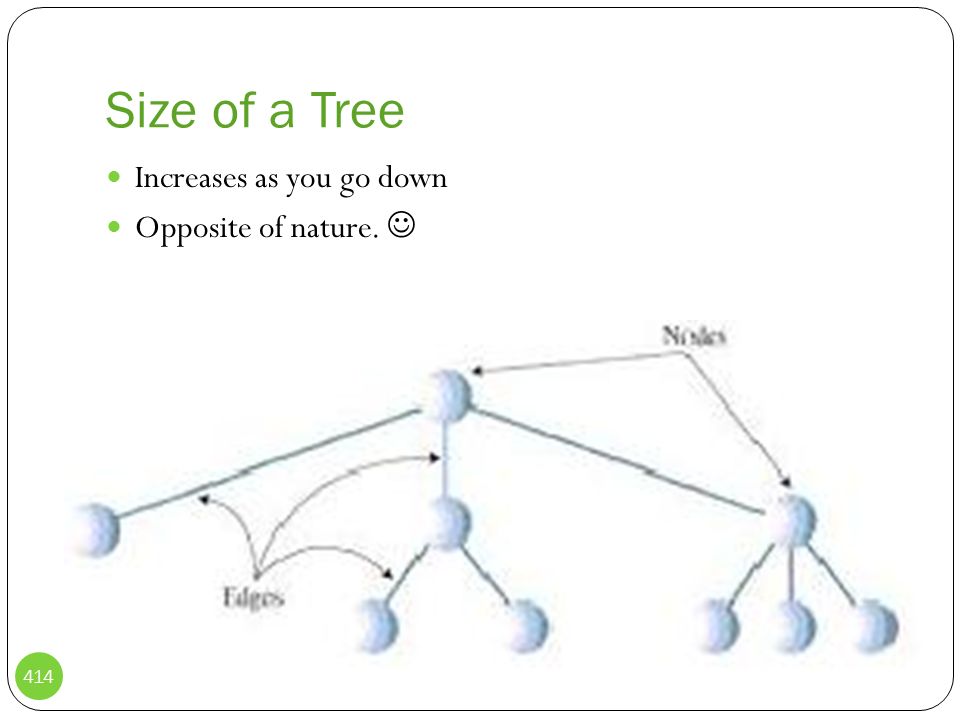

414 Size of a Tree Increases as you go down Opposite of nature. 414

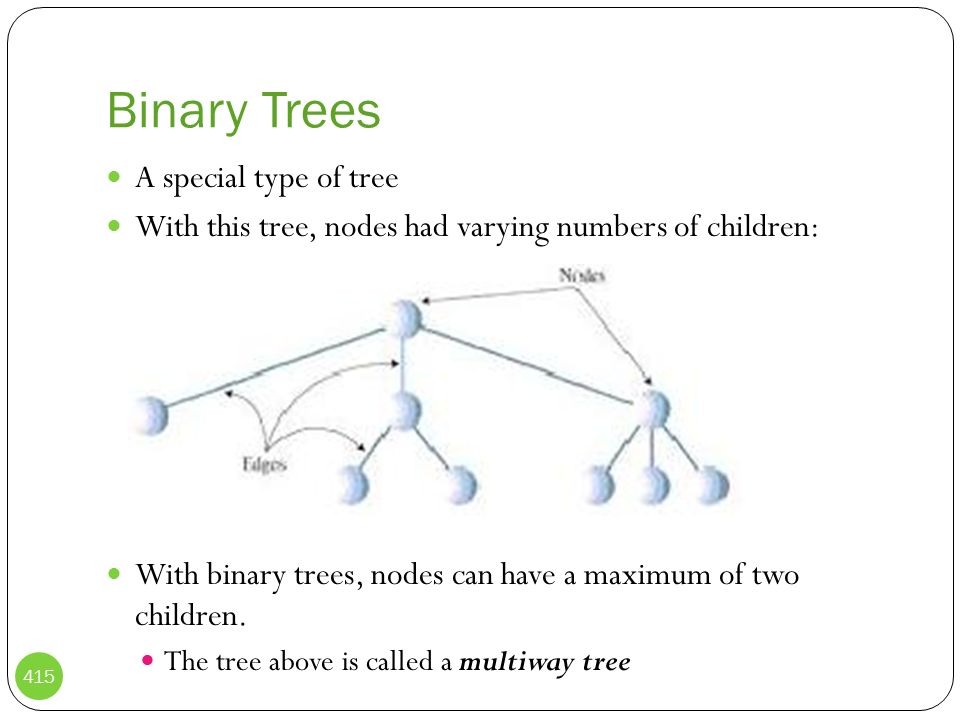

415 Binary Trees A special type of tree With this tree, nodes had varying numbers of children: With binary trees, nodes can have a maximum of two children. The tree above is called a multiway tree 415

416 A Binary Tree For now, note each node has no more than two children 416

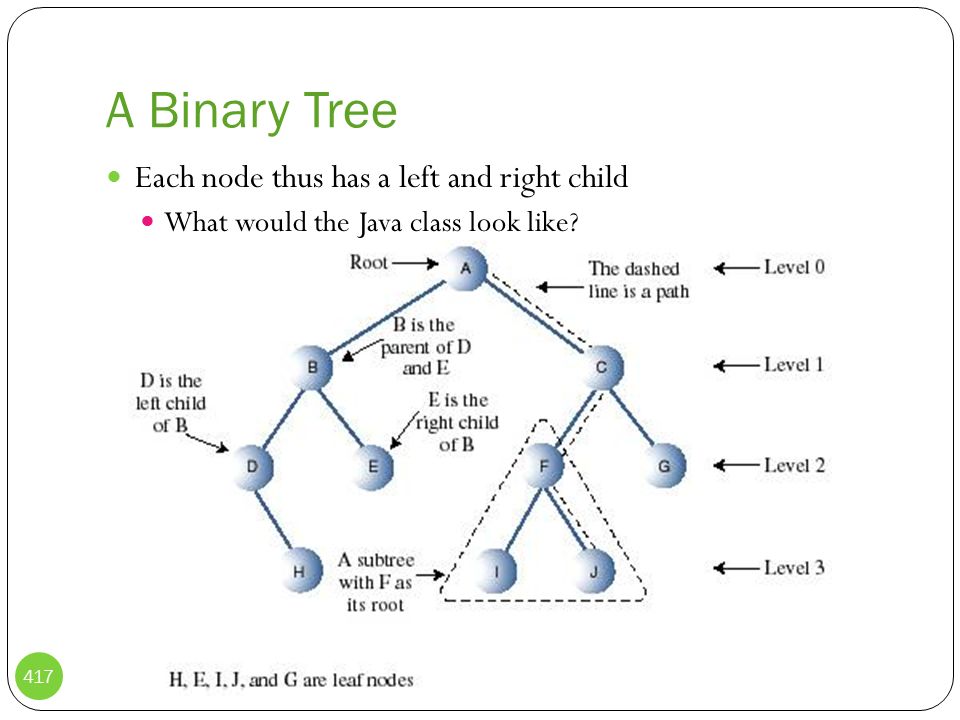

417 A Binary Tree Each node thus has a left and right child What would the Java class look like? 417

418 Binary Trees: Terms Path: Sequence of nodes connected by edges Green line is a path from A to J 418

419 Binary Trees: Terms Root: The node at the top of the tree Can be only one (in this case, A) 419

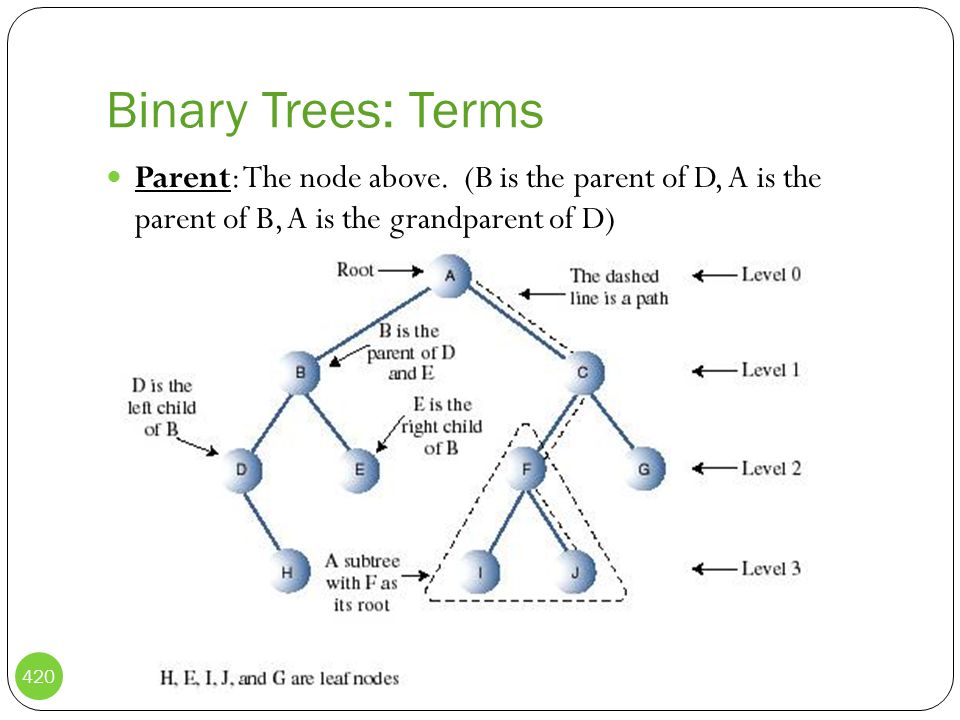

420 Binary Trees: Terms Parent: The node above. (B is the parent of D, A is the parent of B, A is the grandparent of D) 420

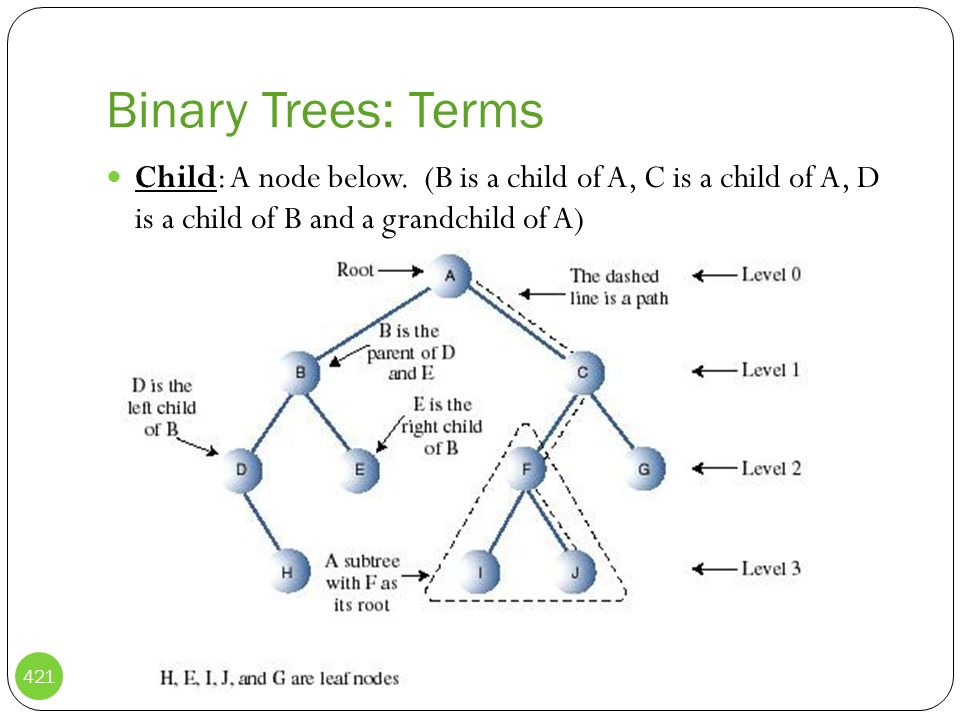

421 Binary Trees: Terms Child: A node below. (B is a child of A, C is a child of A, D is a child of B and a grandchild of A) 421

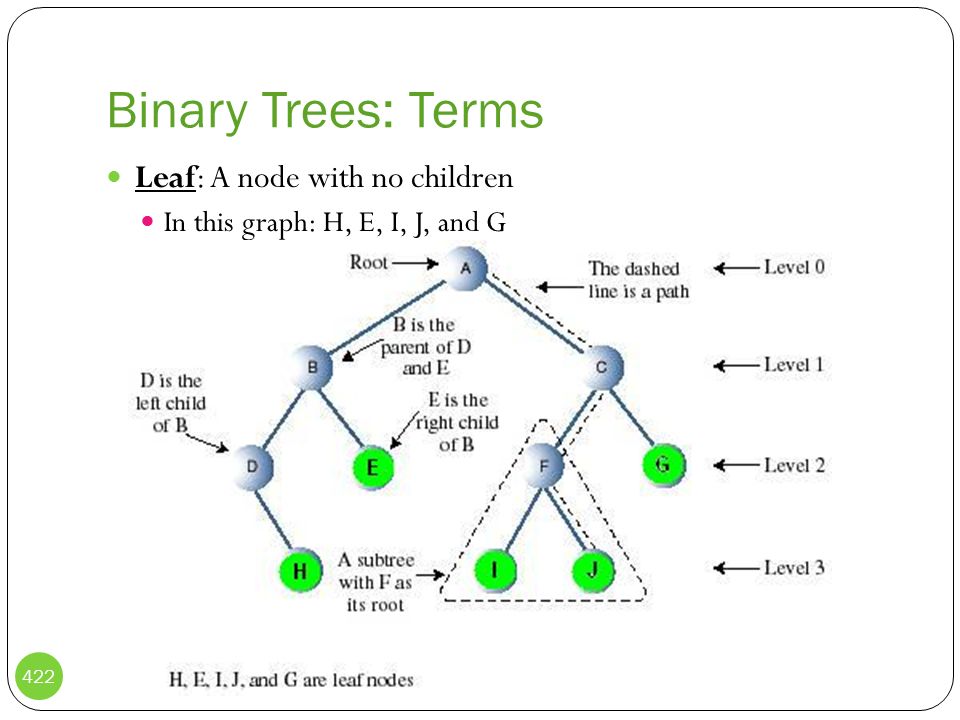

422 Binary Trees: Terms Leaf: A node with no children In this graph: H, E, I, J, and G 422

423 Binary Trees: Terms Subtree: A node’s children, it’s children’s children, etc. The hilited example is just one, there are many in this tree 423

424 Binary Trees: Terms Visit: Access a node, and do something with its data For example we can visit node B and check its value 424

425 Binary Trees: Terms Traverse: Visit all the nodes in some specified order. One example: A, B, D, H, E, C, F, I, J, G 425

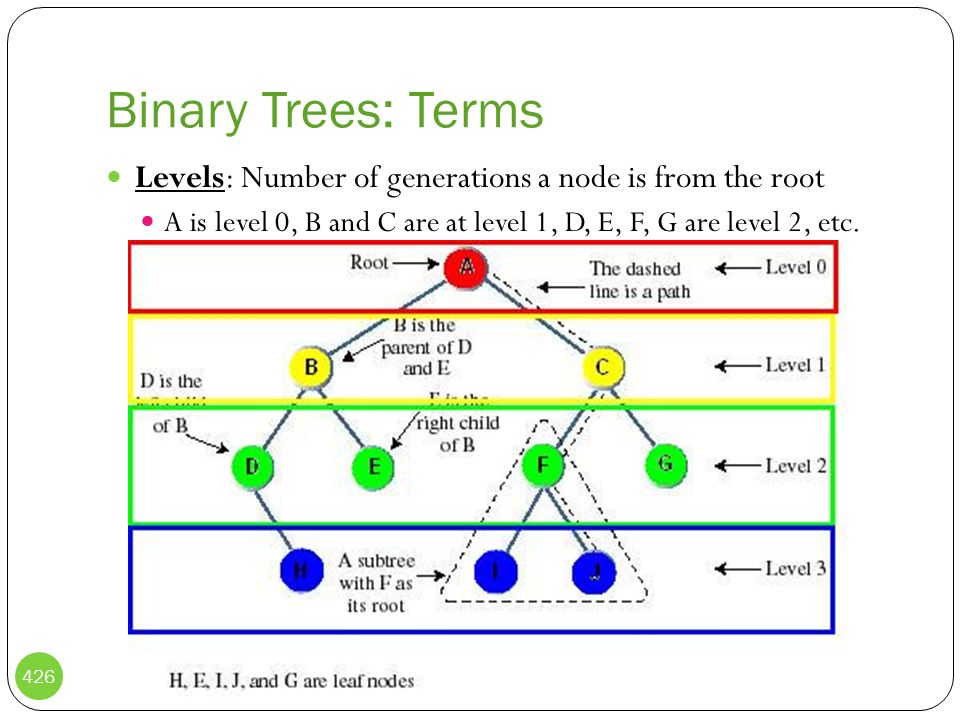

426 Binary Trees: Terms Levels: Number of generations a node is from the root A is level 0, B and C are at level 1, D, E, F, G are level 2, etc. 426

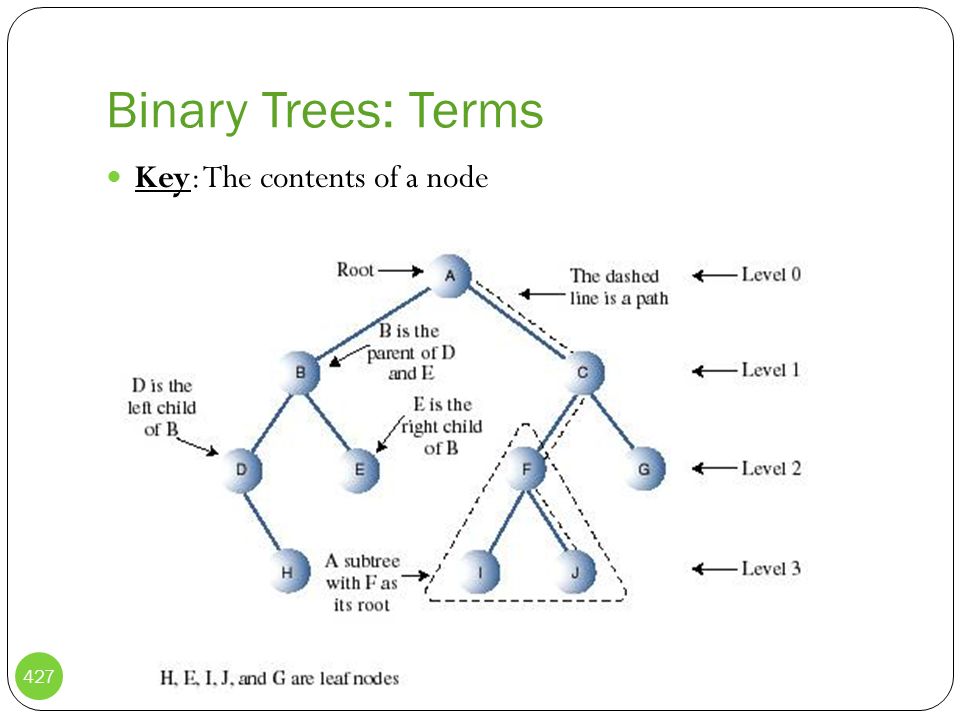

427 Binary Trees: Terms Key: The contents of a node 427

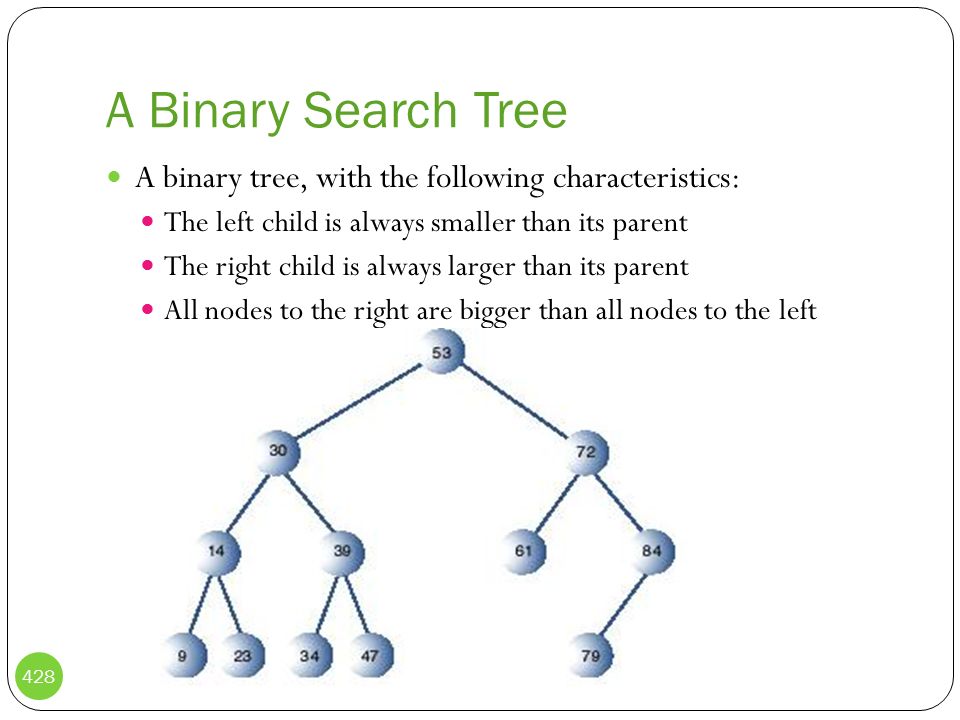

428 A Binary Search Tree A binary tree, with the following characteristics: The left child is always smaller than its parent The right child is always larger than its parent All nodes to the right are bigger than all nodes to the left 428

429 Integer Tree Will use this class for individual nodes: class Node { public int data; public Node left; public Node right; } Let’s sketch the Java template for a binary search tree (page 375) 429

430 Example main() function Page 275, with a slight tweak Insert three elements: 50, 25, 75 Search for node 25 If it was found, print that we found it If it was not found, print that we did not find it 430

431 Finding a node What do we know? For all nodes: All elements in the left subtree are smaller All elements in the right subtree are larger 431

432 Searching for a KEY We’ll start at the root, and check its value If the value = key, we’re done. If the value is greater than the key, look at its left child If the value is less than the key, look at its right child Repeat. 432

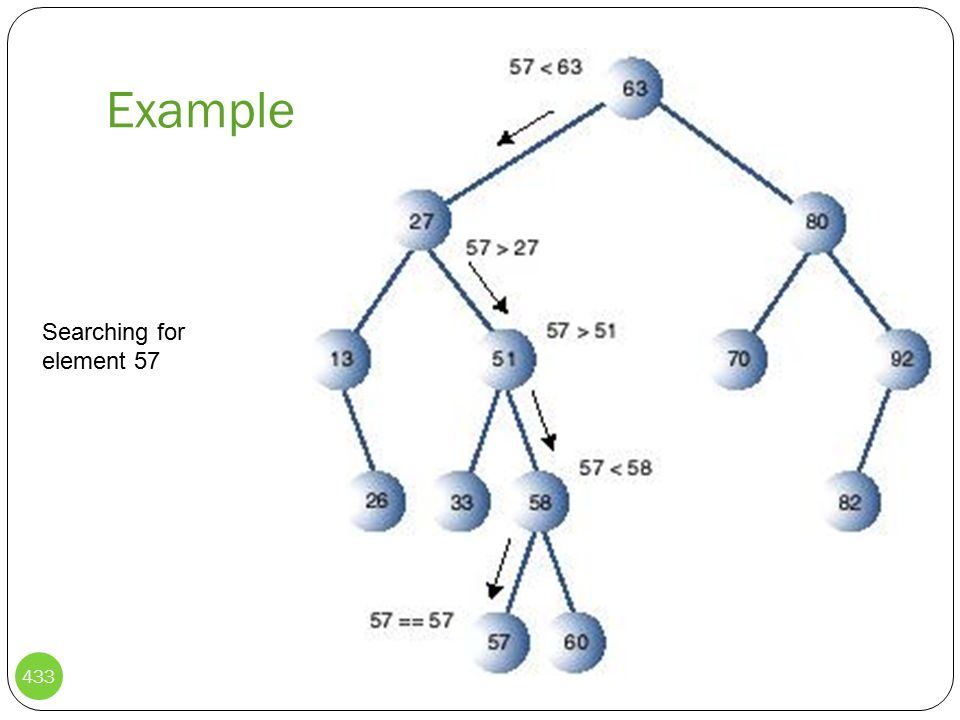

433 Example 433 Searching for element 57

434 Java Implementation – find() Pages 377-378 434

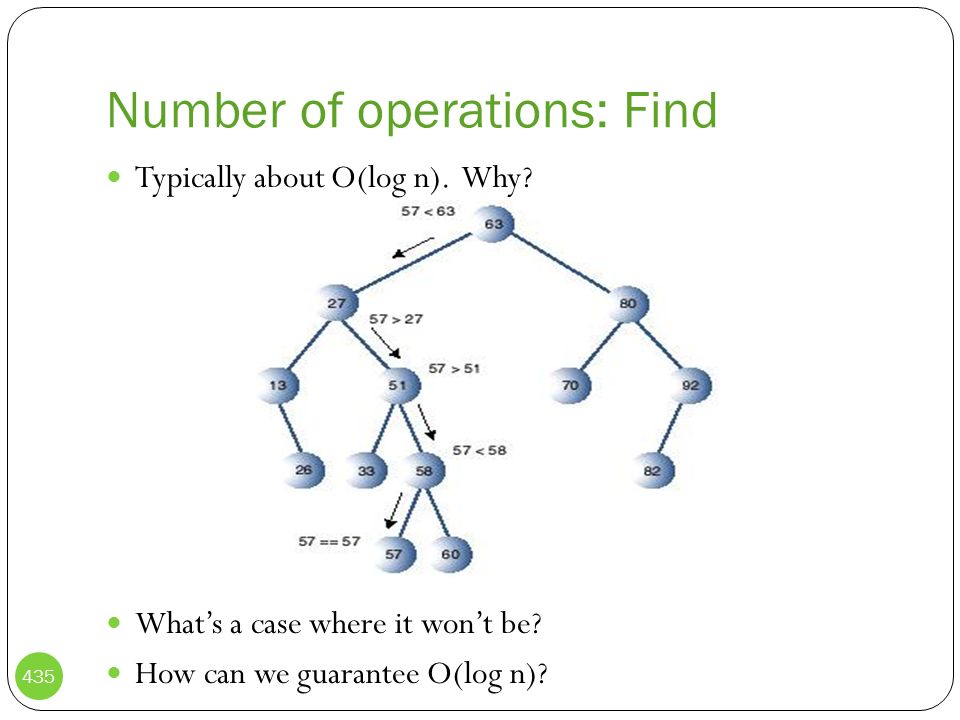

435 Number of operations: Find Typically about O(log n). Why? What’s a case where it won’t be? How can we guarantee O(log n)? 435

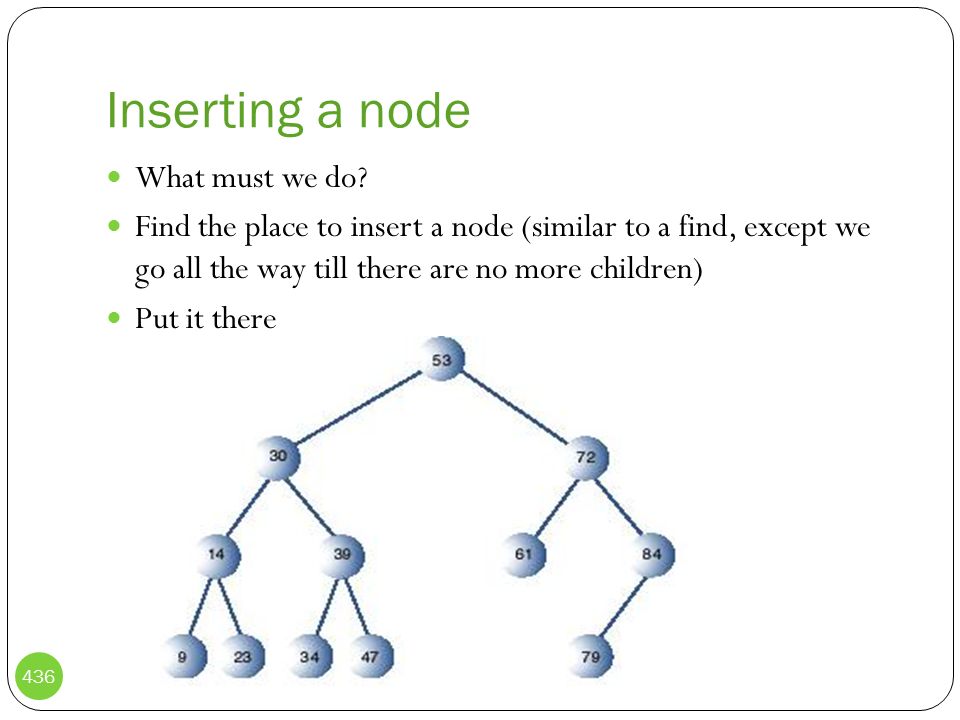

436 Inserting a node What must we do? Find the place to insert a node (similar to a find, except we go all the way till there are no more children) Put it there 436

437 Example 437 Inserting element 45

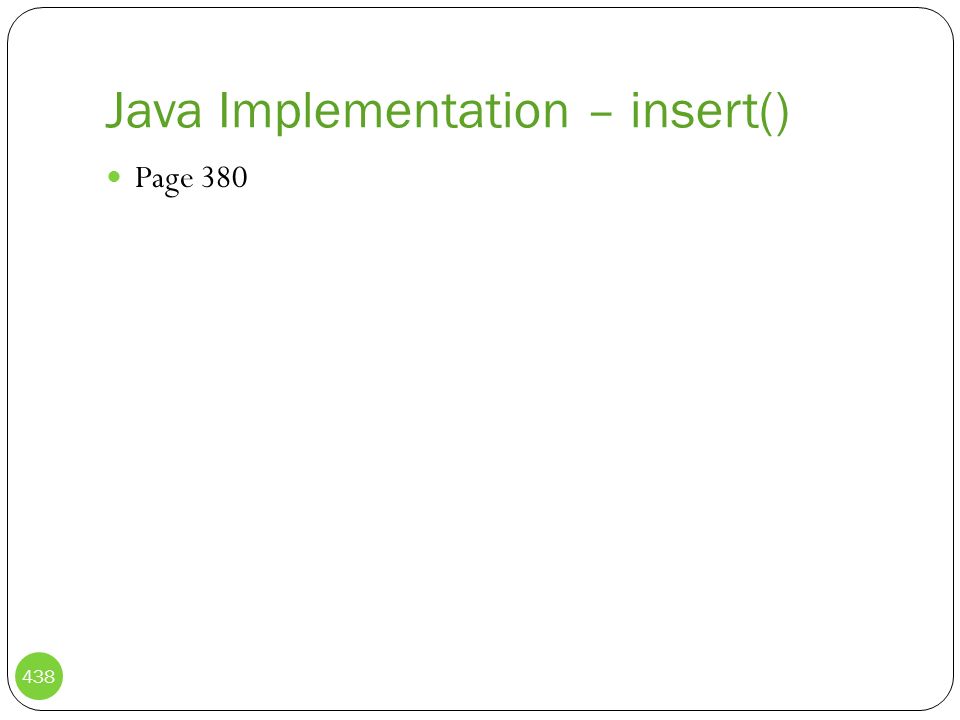

438 Java Implementation – insert() Page 380 438

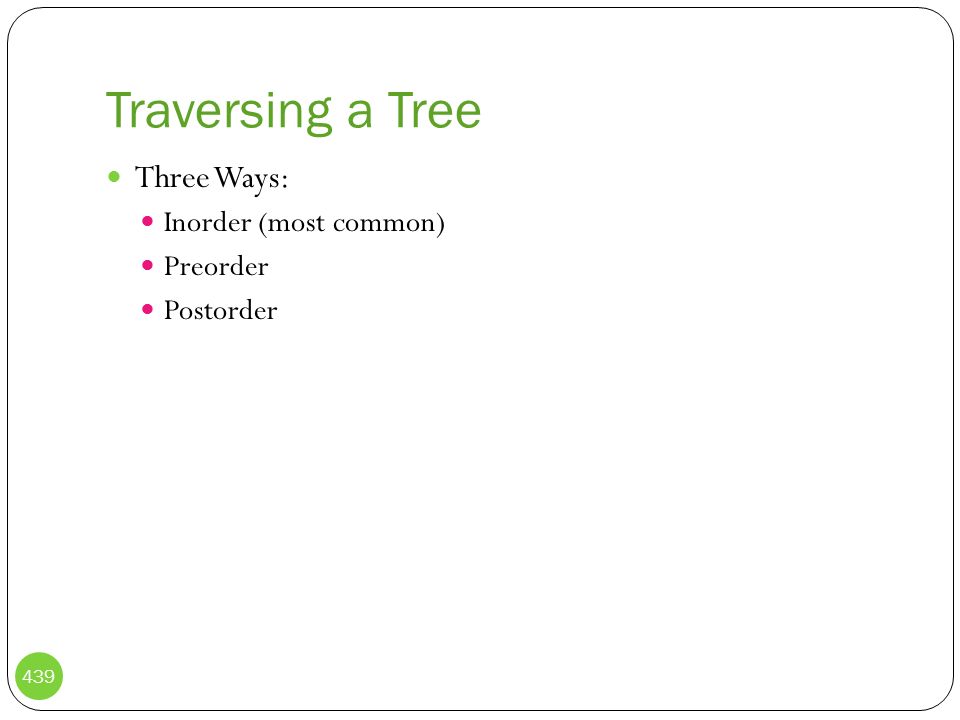

439 Traversing a Tree Three Ways: Inorder (most common) Preorder Postorder 439

440 Inorder Traversal Visits each node of the tree in ascending order: In this tree, an inorder traversal produces: 9 14 23 30 34 39 47 53 61 72 79 84 440

441 Inorder Traversal Ascending Order Implies: We have to print a node’s left child before the node itself, and the node itself before its right child 441

442 Inorder Traversal Ascending Order We can think of this recursively: start at the root, inorder traverse the left subtree, print the root, inorder traverse the right subtree 442

443 Java Implementation Page 382 A recursive function Let’s try it with a simple example 443

444 Preorder Traversal Prints all parents before children Prints all left children before right children. So with this tree: A preorder traversal produces: 53 30 14 9 23 39 34 47 72 61 84 79 444

445 Preorder Traversal Order: Root, left, right We can again do this recursively: print the root, preorder traverse the left subtree, preorder traverse the right subtree 445

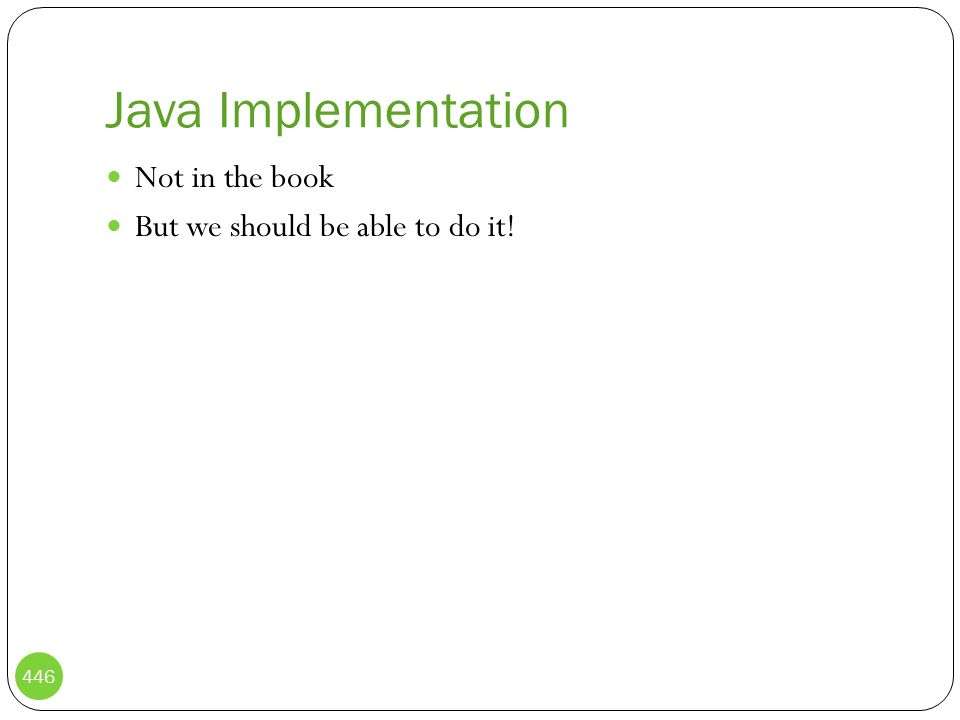

446 Java Implementation Not in the book But we should be able to do it! 446

447 Postorder Traversal Prints all children before parents Prints all left children before right children. So with this tree: A postorder traversal produces: 9 23 14 34 46 39 30 61 79 84 72 53 447

448 Preorder Traversal Order: Left, right, root We can again do this recursively: postorder traverse the left subtree, postorder traverse the right subtree, print the root 448

449 Java Implementation Not in the book But again, we should be able to do it! 449

450 Finding the Minimum In a binary search tree, this is always the leftmost child of the tree! Easy. Java? Start at the root, and traverse until you have no more left children 450

451 Finding the Maximum In a binary search tree, this is also easy – it’s the rightmost child in the tree Start at the root, traverse until there are no more right children Java? 451

452 Deletion This is the challenging one First, find the element you want to delete Once you’ve found it, one of three cases: 1. The node has no children (easy) 2. The node has one child (decently easy) 3. The node has two children (difficult) 452

453 Case 1: No Children To delete a node with no children: Find the node Set the appropriate child field in its parent to null Example: Removing 7 from the tree below 453

454 Java Implementation Start from page 390-391 Find the node first As we go through, keep track of: The parent Whether the node is a left or right child of its parent Then, handle the case when both children are null Set either the left or right child of the parent to null Unless it’s the root, in which case the tree is now empty 454

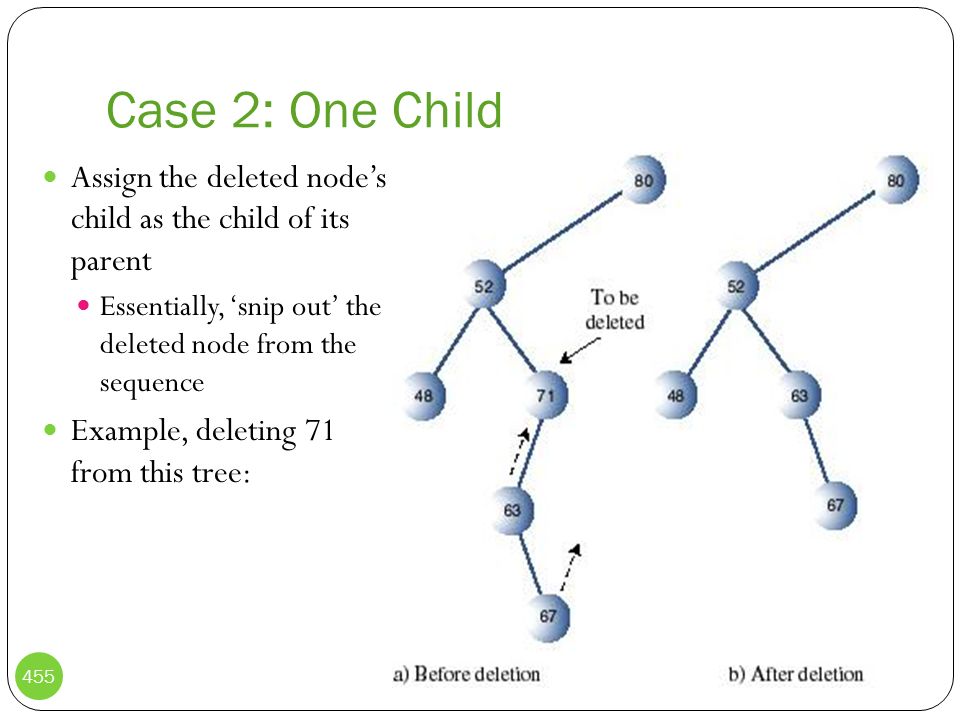

455 Case 2: One Child Assign the deleted node’s child as the child of its parent Essentially, ‘snip out’ the deleted node from the sequence Example, deleting 71 from this tree: 455

456 Java Implementation Pages 392-393 Two cases to handle. Either: The right child is null If the node is a left child, set its parent’s left child to the node’s left child If the node is a right child, set its parent’s right child to the node’s left child The left child is null If the node is a left child, set its parent’s left child to the node’s right child If the node is a right child, set its parent’s right child to the node’s right child 456

457 Case 3: Two Children Here’s the tough case. Let’s see an example of why it’s complicated… 457

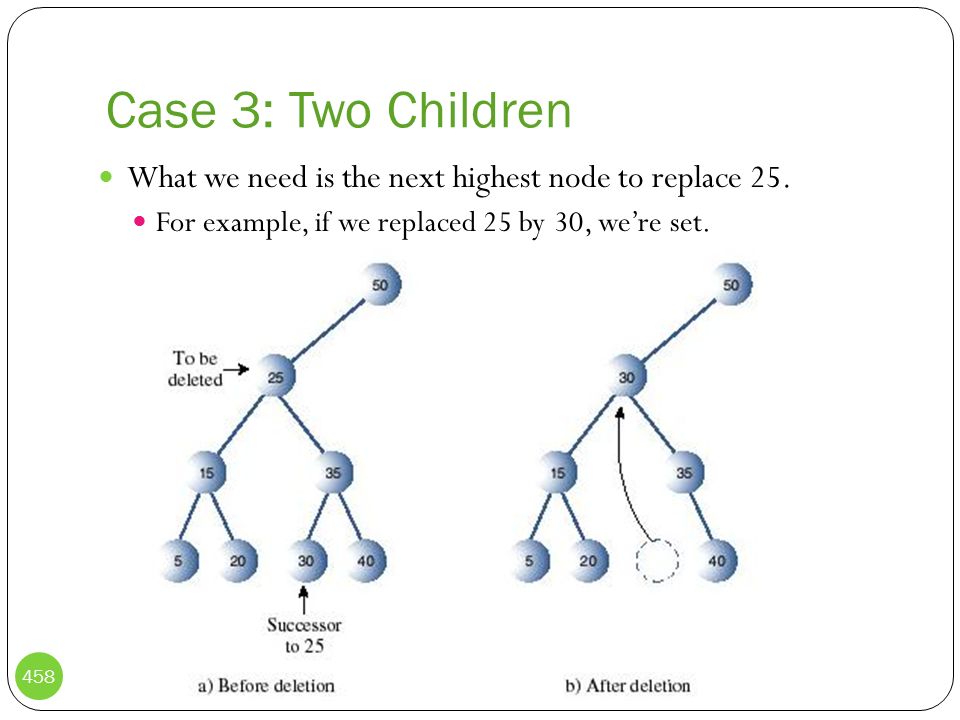

458 Case 3: Two Children What we need is the next highest node to replace 25. For example, if we replaced 25 by 30, we’re set. 458

459 Case 3: Two Children We call this the inorder successor of the deleted node i.e., 30 is the inorder successor of 25. This replaces 25. 459

460 Inorder successor The inorder successor is always going to be the smallest element in the right subtree In other words, the smallest element that is larger than the deleted node. 460

461 Finding the inorder successor Algorithm to find the inorder successor of some node X: First go to the right child of X Then keep moving to left children Until there are no more Then we are at the inorder successor This is what should replace X 461

462 Removing the successor We must remove the successor from its current spot, and place it in the spot of the deleted node If the successor is the deleted node’s right child: Set the successor’s left to the deleted node’s left Replace deleted node by successor 462

463 If the successor is not the deleted node’s right child, tougher We must add two steps: 1. Set the successor’s parent’s left to the successor’s right 2. Set the successor’s right to the deleted node’s right 3. Set the successor’s left to the deleted node’s left (as before) 4. Replace the deleted node by the successor (as before) 463

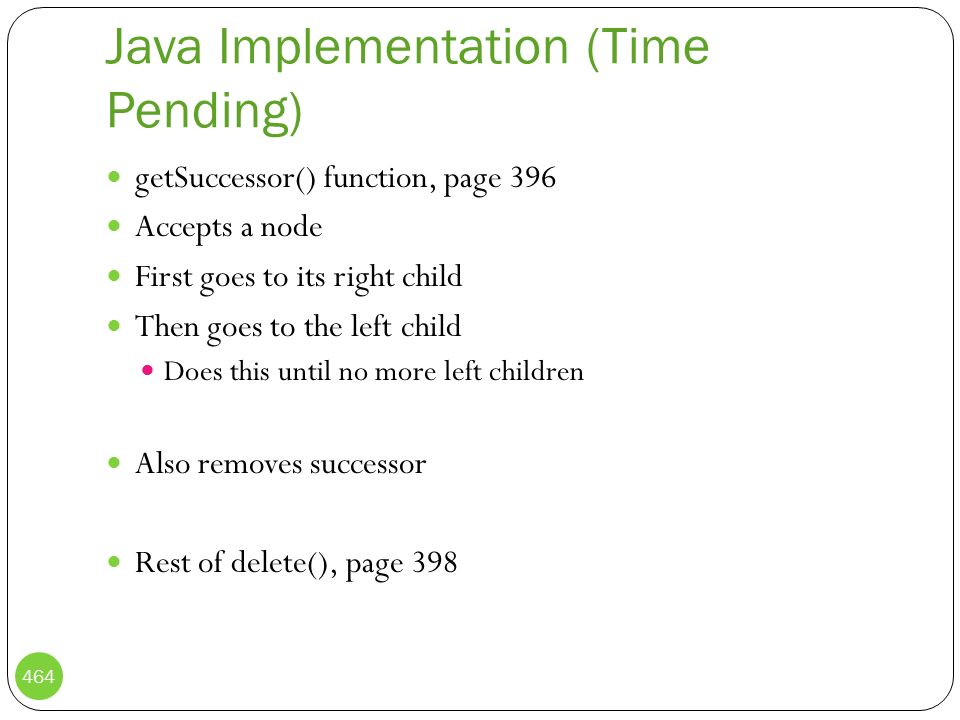

464 Java Implementation (Time Pending) getSuccessor() function, page 396 Accepts a node First goes to its right child Then goes to the left child Does this until no more left children Also removes successor Rest of delete(), page 398 464

465 Efficiency: Binary Search Trees Note that: Insertion, deletion, searching all involved visiting nodes of the tree until we found either: The position for insertion The value for deletion The value we were searching for For any of these, we would not visit more than the number of levels in the tree Because for every node we visit, we check its value, and if we’re not done, we go to one of its children 465

466 Efficiency: Binary Search Trees So for a tree of n nodes, how many levels are there: NodesLevels 11 32 73 154 315 …. 1,073,741,82430 It’s actually log(n) + 1! 466

467 So… All three of our algorithms: insertion, deletion, and searching take O(log n) time We go through log n + 1 levels, each time with one comparison. At the point of insertion or deletion, we just manipulate a constant number of references (say, c) That’s independent of n So the number of operations is log n + 1 + c, or O(log n) 467

468 Compare to Arrays Take 1 million elements and delete an element in the middle Arrays -> Average case, 500 thousand shifts Binary Search Trees -> 20 or fewer comparisons Similar case when comparing with insertion into an ordered array What is slow for a binary search tree is traversal Going through all elements in the entire tree But for a large database, this probably will never be necessary 468

469 Huffman Codes An algorithm to ‘compress’ data Purpose: Apply a compression algorithm to take a large file and store it as a smaller set of data Apply a decompression algorithm to take the smaller compressed data, and get the original back So, you only need to store the smaller compressed version, as long as you have a program to compress/decompress Compression Examples: WinZip, MP3 469

470 Quick Lesson In Binary Generally for an n-digit number in binary: b n-1 … b 2 b 1 b 0 = b n-1 2 n-1 + … + b 2 2 2 + b 1 2 1 + b 0 2 0 Assume unsigned bytes, convert these: 01011010 10000101 00101001 10011100 11111111 Everything internally is stored in binary 470

471 Characters Take one byte of memory (8 bits) All files are just sequences of characters Internal storage (ASCII Codes): CHARDECBINARY_ A6501000001 B6601000010 C6701000011... Y8901011001 Z9001011010 471

472 Example File ILOVETREES (ASCII: I=73, L=76, O=79, V=86,E=69,T=84,R=82,S=83) Internal Storage 01001001 01001100 01001111 01010110 01000101 01010100 01010010 01000101 01000101 01010011 All characters take one byte (8 bits) of storage, and those 8 bits correspond to the ASCII values 472

473 Underlying Motivation Why use the same number of bits to store all characters? For example, E is used much more often than Z So what if we only used two bits to store E And still used the eight to store Z We should save space. For example, with ILOVETREES, if we change E’s to 01: We save 6*3 = 18 bits For large files, we could start saving a significant amount of data! 473

474 One thing we must watch When choosing shorter codes, we cannot use any code that is the prefix of another code. For example, we could not have: E: 01 X: 01011000 Why? Because if we come across this in the file: …….010110000 We don’t know if it’s an E followed by something else, Or an X. 474

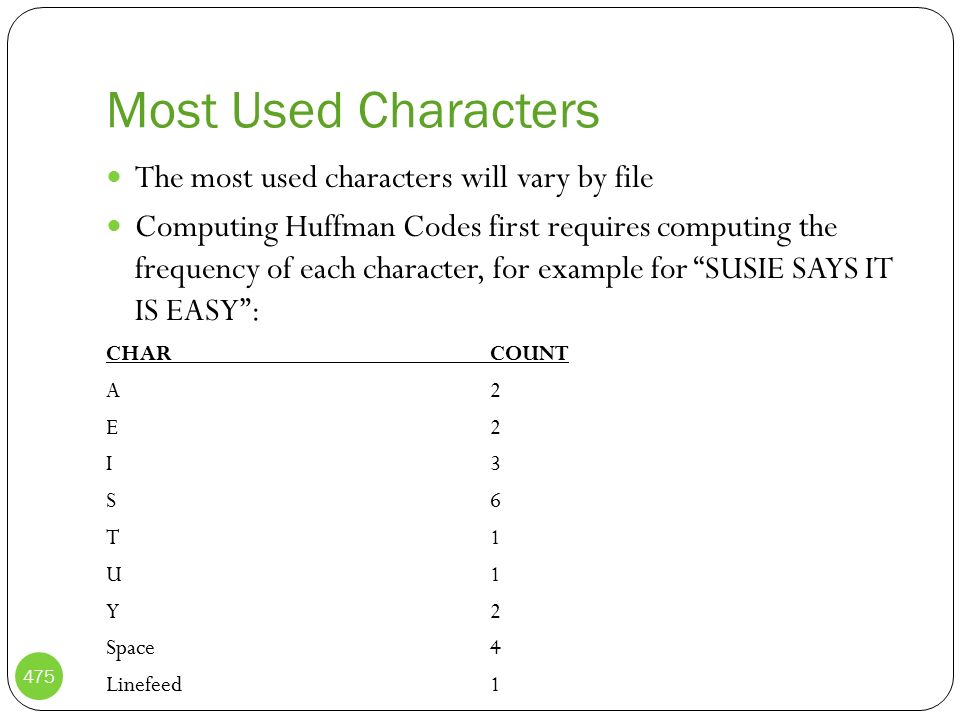

475 Most Used Characters The most used characters will vary by file Computing Huffman Codes first requires computing the frequency of each character, for example for “SUSIE SAYS IT IS EASY”: CHARCOUNT A2 E2 I3 S6 T1 U1 Y2 Space4 Linefeed1 475

476 Computing Huffman Codes Huffman Codes are varying bit lengths depending on frequency (remember S had the highest freq at 6): CHARCODE A010 E1111 I110 S10 T0110 U01111 Y1110 Space00 Linefeed01110 476

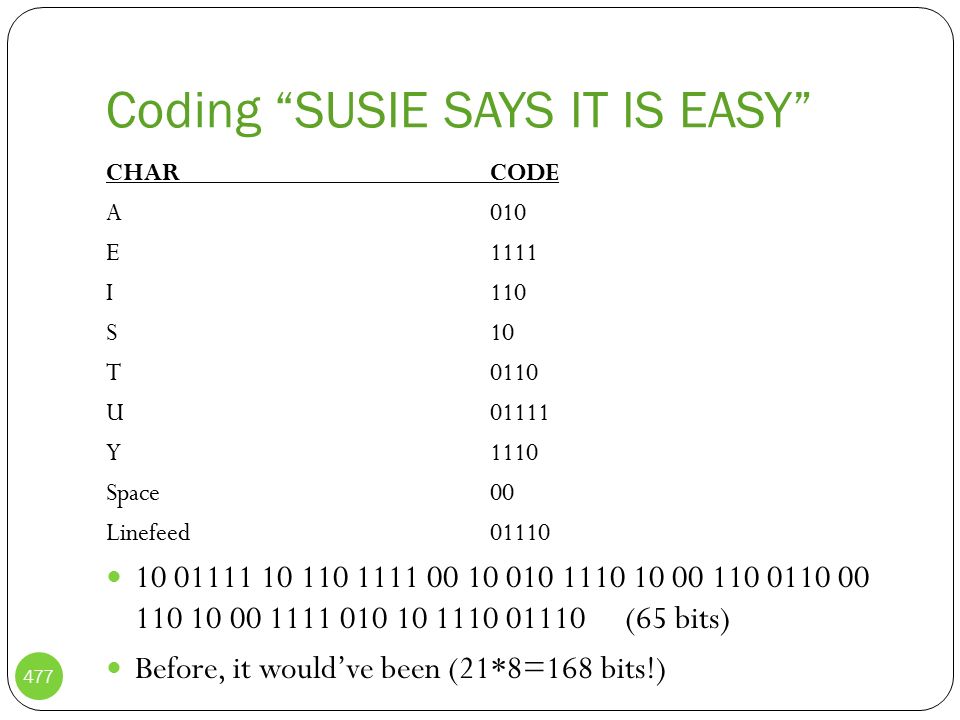

477 Coding “SUSIE SAYS IT IS EASY” CHARCODE A010 E1111 I110 S10 T0110 U01111 Y1110 Space00 Linefeed01110 10 01111 10 110 1111 00 10 010 1110 10 00 110 0110 00 110 10 00 1111 010 10 1110 01110 (65 bits) Before, it would’ve been (21*8=168 bits!) 477

478 A Huffman Tree Idea: Each character appears as a leaf in the tree The higher the frequency of a character, the higher up in the tree it is Number outside a leaf is its frequency Number outside a non- leaf is the sum of all child frequencies 478

479 A Huffman Tree Decoding a message: For each bit, go right (1) or left (0) Once you hit a character, print it, go back to the root and repeat Example: 0100110 Start at root: Go L(0), R(1), L(0), get A Go back to root Go L(0), R(1), R(1), L(0), get T 479

480 Encoding Decoding is thus easy when you have this tree However, we must produce the tree The idea will be to start with just characters and frequencies (the leaves), and then grow the tree 480

481 First step Start from the leaves, which contain single characters and their associated frequencies Store these nodes in a priority queue, ordered by frequency 481

482 Next Take the left two elements, and form a subtree The two leaves are the two characters The parent is empty, with a frequency as the sum of its two children Put this back in the priority queue, in the right spot 482

483 Continue this process… Again, adjoin the leftmost two elements (now we actually adjoin a leaf and a subtree): 483

484 Keep going… Adjoin leaves Y (2) and E (2), this forms a subtree with root frequency of 4 484

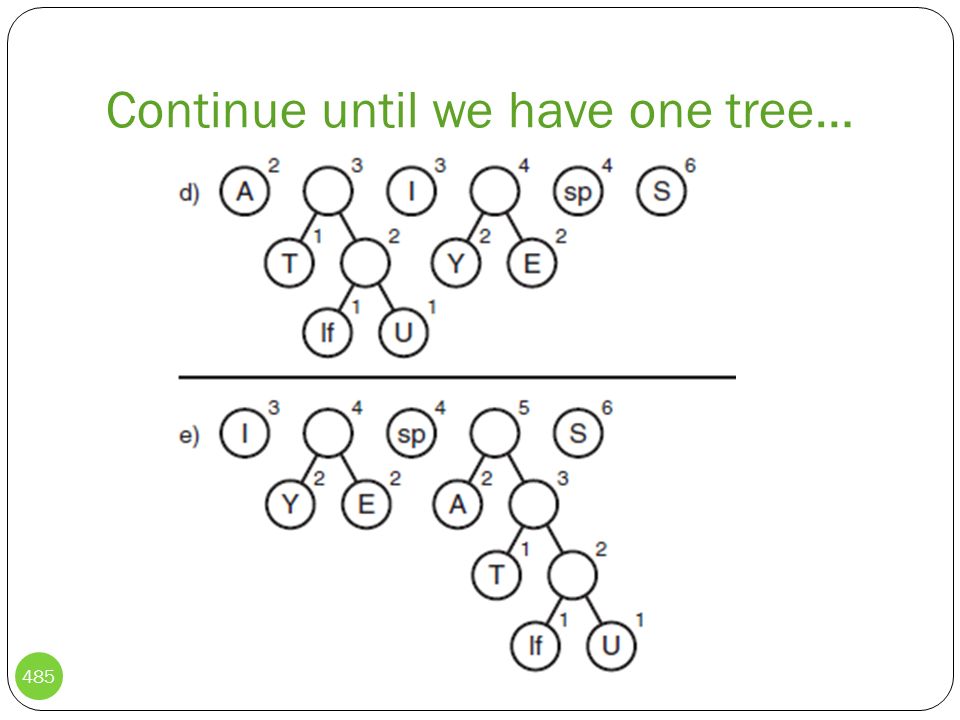

485 Continue until we have one tree… 485

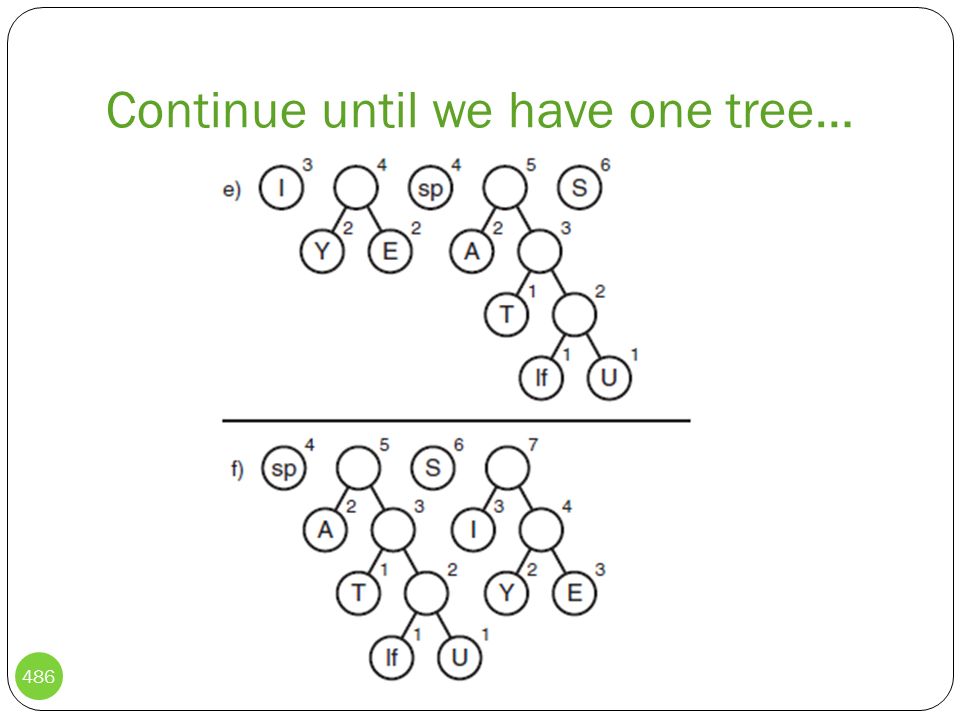

486 Continue until we have one tree… 486

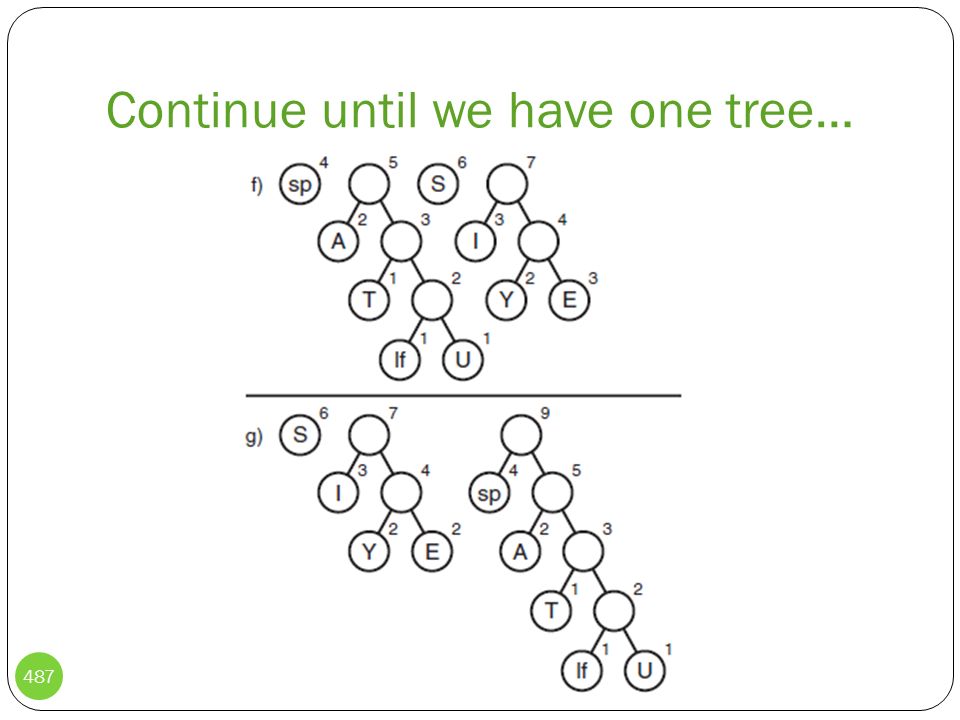

487 Continue until we have one tree… 487

488 Continue until we have one tree… 488

489 Our final tree 489 Note we were able to construct this from the frequency table

490 Obtaining the Huffman Code from the tree Once we construct the tree, we still need the Huffman Code to encode the file No way around this: we have to start from the root and traverse all possible paths to leaf nodes As we go along, keep track of if we go left (0) or right (1) So A went left (0), then right (1), then left (0) 490

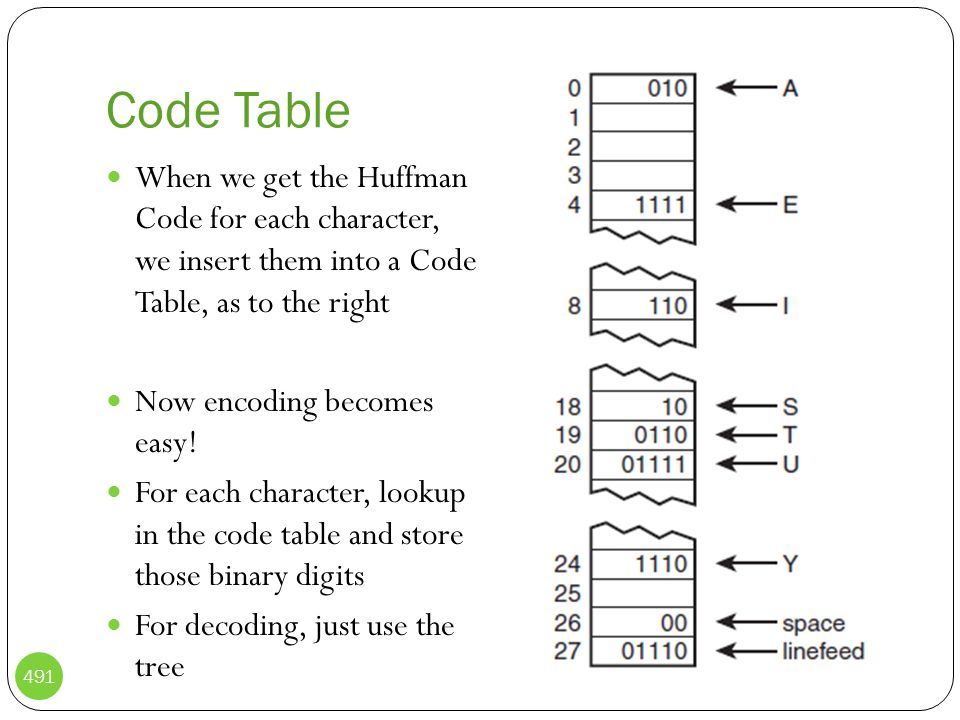

491 Code Table When we get the Huffman Code for each character, we insert them into a Code Table, as to the right Now encoding becomes easy! For each character, lookup in the code table and store those binary digits For decoding, just use the tree 491

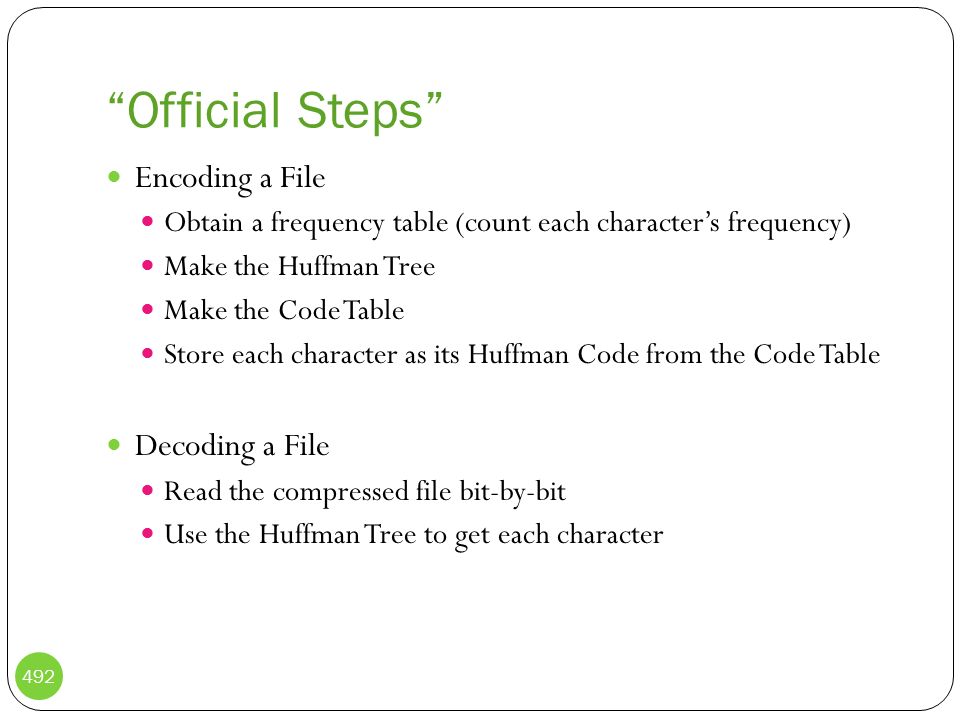

492 “Official Steps” Encoding a File Obtain a frequency table (count each character’s frequency) Make the Huffman Tree Make the Code Table Store each character as its Huffman Code from the Code Table Decoding a File Read the compressed file bit-by-bit Use the Huffman Tree to get each character 492

493 CS221N, Data Structures Red-Black Trees 493

494 Recall Binary Trees What were the advantages? We could perform the following operations quickly: Insertion Deletion Searching Because for n nodes: Height of the binary tree was log(n)+1 Each operation involved iteratively searching child nodes 494

495 Unbalanced binary trees Let’s form two binary search trees One inserting this sequence: 10 20 30 40 50 60 70 80 90 100 Another inserting this sequence: 100 90 80 70 60 50 40 30 20 10 What happens? Are insertion, deletion and searching still fast? What’s the underlying problem? 495

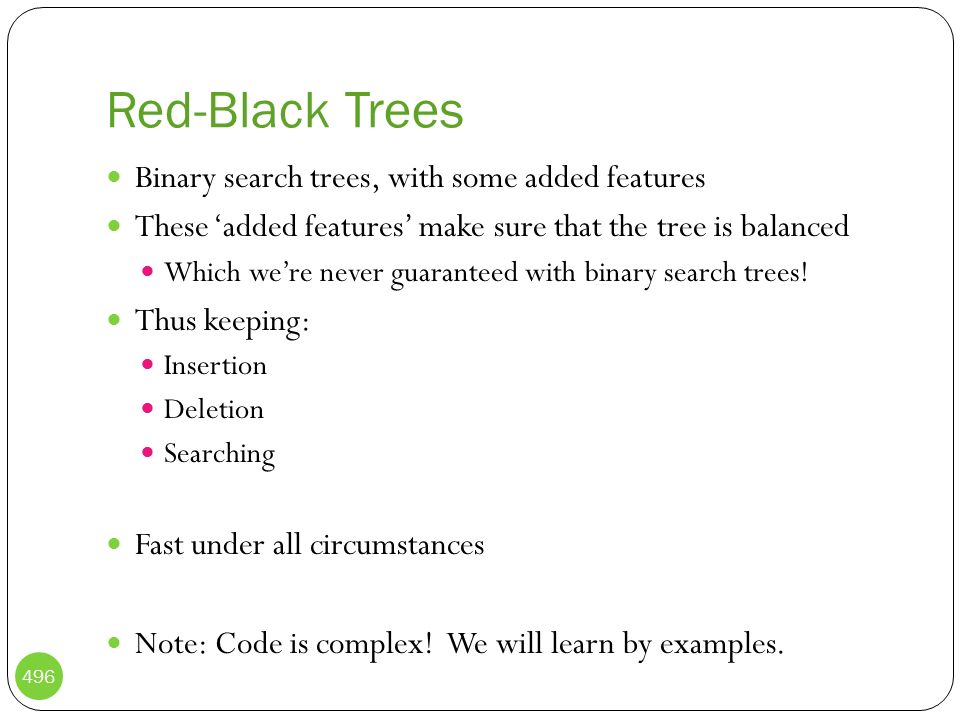

496 Red-Black Trees Binary search trees, with some added features These ‘added features’ make sure that the tree is balanced Which we’re never guaranteed with binary search trees! Thus keeping: Insertion Deletion Searching Fast under all circumstances Note: Code is complex! We will learn by examples. 496

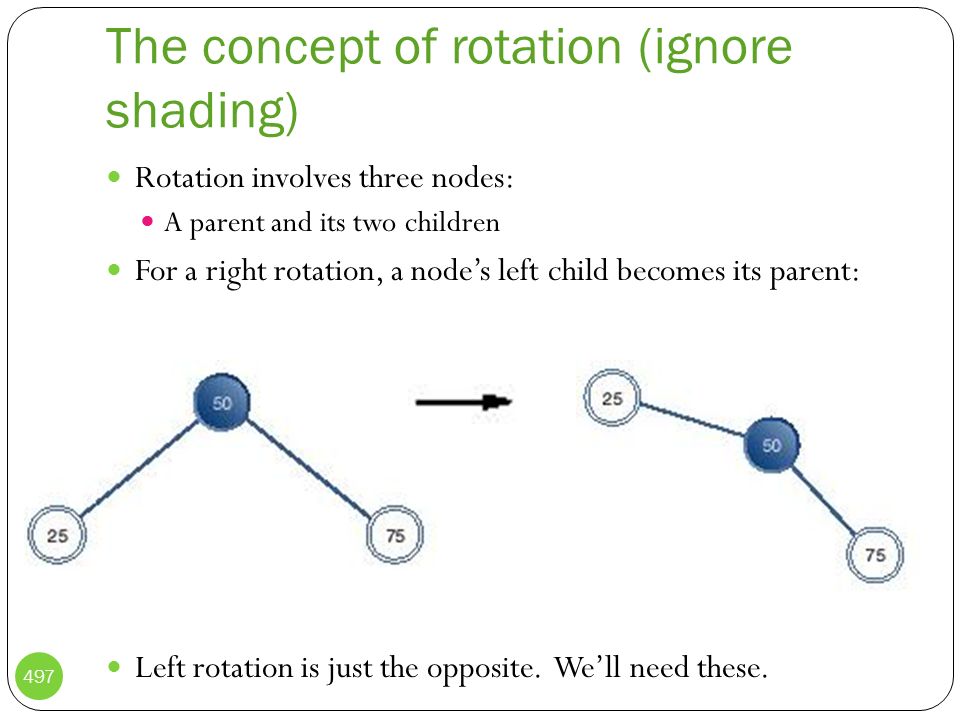

497 The concept of rotation (ignore shading) Rotation involves three nodes: A parent and its two children For a right rotation, a node’s left child becomes its parent: Left rotation is just the opposite. We’ll need these. 497

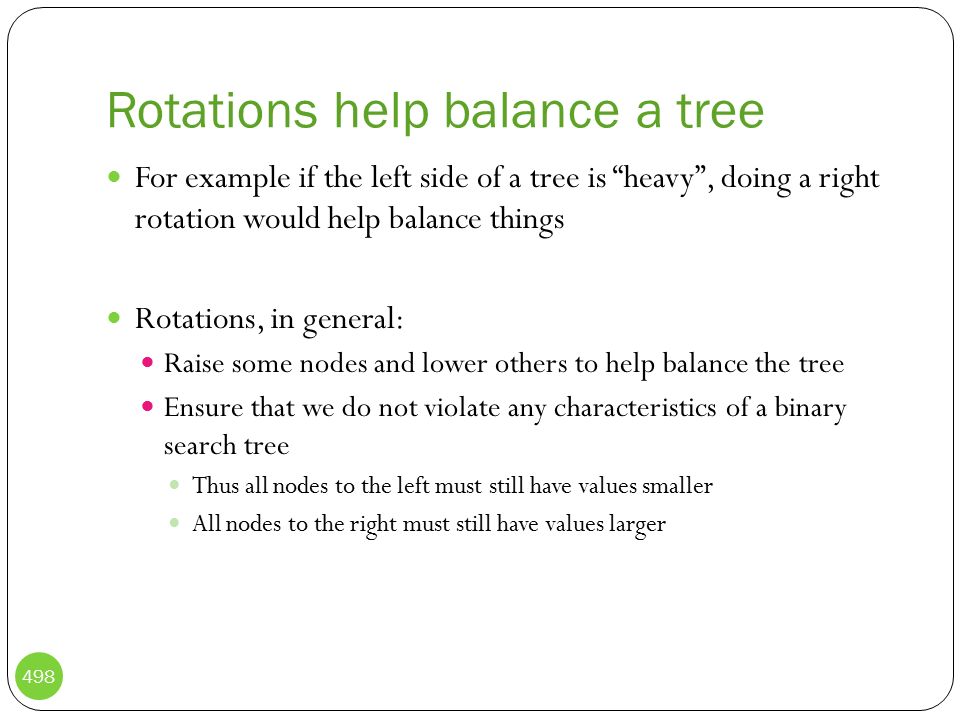

498 Rotations help balance a tree For example if the left side of a tree is “heavy”, doing a right rotation would help balance things Rotations, in general: Raise some nodes and lower others to help balance the tree Ensure that we do not violate any characteristics of a binary search tree Thus all nodes to the left must still have values smaller All nodes to the right must still have values larger 498

499 Rotations Involving Many Nodes A three node rotation was easy. Let’s look at a more complicated one. Let’s say we wanted to rotate the following tree, with 50 as our “top node”. Which node becomes the root? 499

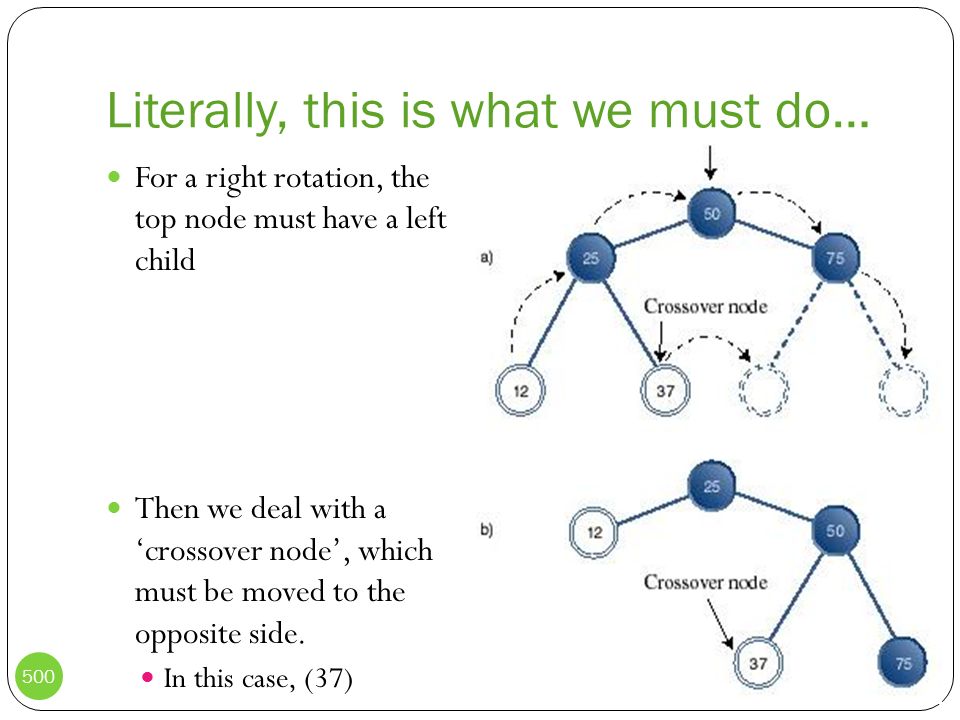

500 Literally, this is what we must do… For a right rotation, the top node must have a left child Then we deal with a ‘crossover node’, which must be moved to the opposite side. In this case, (37) 500

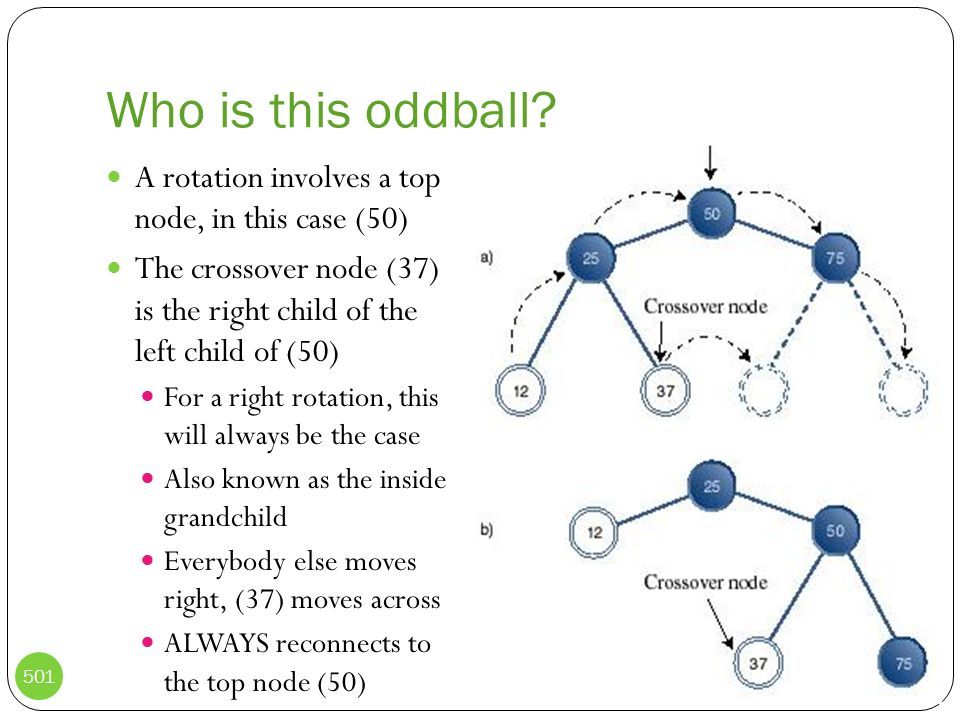

501 Who is this oddball? A rotation involves a top node, in this case (50) The crossover node (37) is the right child of the left child of (50) For a right rotation, this will always be the case Also known as the inside grandchild Everybody else moves right, (37) moves across ALWAYS reconnects to the top node (50) 501

502 So the steps of a right rotation.. Rotate every node, except the crossover, to the right. After this happens, the top node will have a null left child Move the crossover there To gain more practice, let’s try a left rotation. 502

503 Rotating with Subtrees Same principle. If we right rotate with (50) as the top node, we do the same thing but move subtrees (25) becomes the root The subtree with (37) is the ‘crossover’, and is moved to the left child of (50) 503

504 More Practice… Do a left-rotation on this tree, with (50) as the top node Do a right-rotation on this tree, with (25) as the top node Do a left-rotation on this tree, with (25) as the top node 504

505 Red-Black Trees: Characteristics Nodes are colored, either red or black During insertion and deletion, rules are followed that make sure the tree is balanced 505

506 Color? Really? How would we include ‘color’ as a characteristic of a Node? Let’s construct the Java class for a single Node. 506

507 Red-Black Rules: #1 Every node is either red or black. 507

508 Red-Black Rules: #2 The root of the tree MUST be black. 508

509 Red-Black Rules: #3 If a node is red, its children MUST be black The converse is NOT true; black nodes can have black or red children 509

510 Red-Black Rules: #4 Every path from the root to a leaf or null child must have the same number of black nodes. 510

511 Summary These are the four rules: All nodes are either red or black. The root must be black. A red node can only have black children. All paths to leaf or null have the same number of black children How do we uphold these rules? There are only two things we can do: Change node colors (color ‘flip’) Perform node rotations (we’ll see how) Note we only have to do these on insertion and deletion!! Because those are the only operations that change the structure of the tree. 511

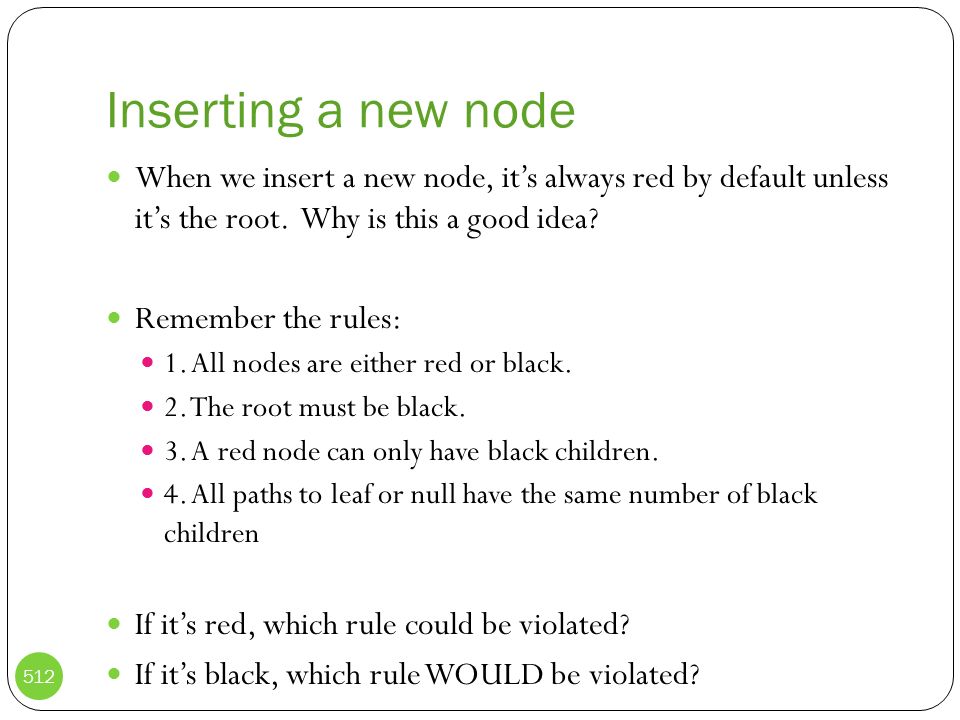

512 Inserting a new node When we insert a new node, it’s always red by default unless it’s the root. Why is this a good idea? Remember the rules: 1. All nodes are either red or black. 2. The root must be black. 3. A red node can only have black children. 4. All paths to leaf or null have the same number of black children If it’s red, which rule could be violated? If it’s black, which rule WOULD be violated? 512

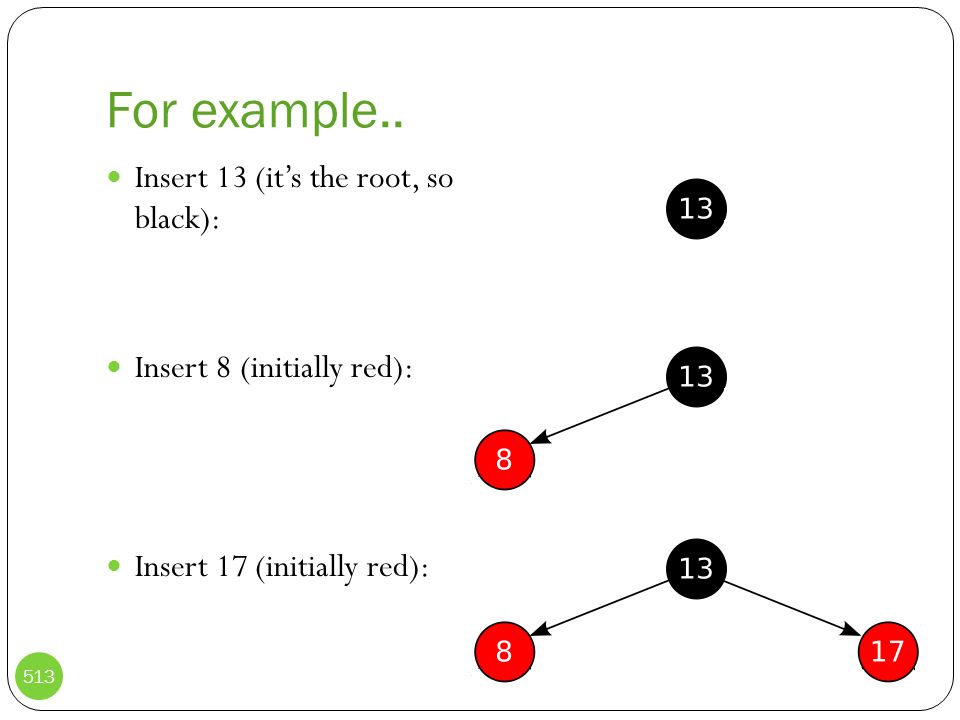

513 For example.. Insert 13 (it’s the root, so black): Insert 8 (initially red): Insert 17 (initially red): 513

514 Color Flip Now suppose we insert 15 (initially red). What rule is broken? We can fix it through a color flip: Change the colors of (8) and (17) to black Note: This is not too tough to fix. 514

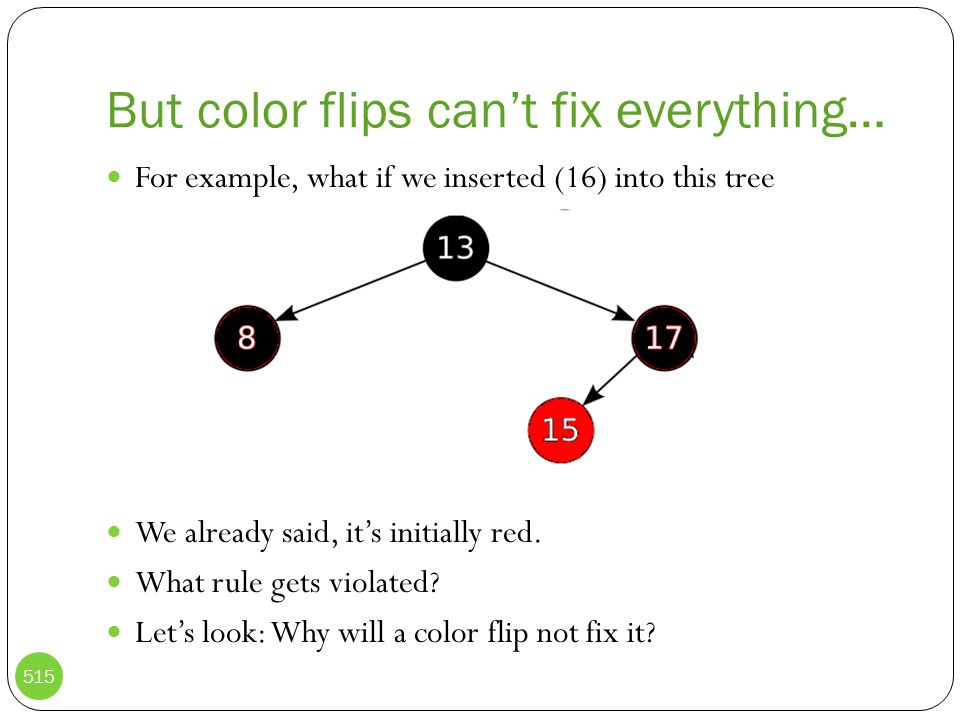

515 But color flips can’t fix everything… For example, what if we inserted (16) into this tree We already said, it’s initially red. What rule gets violated? Let’s look: Why will a color flip not fix it? 515

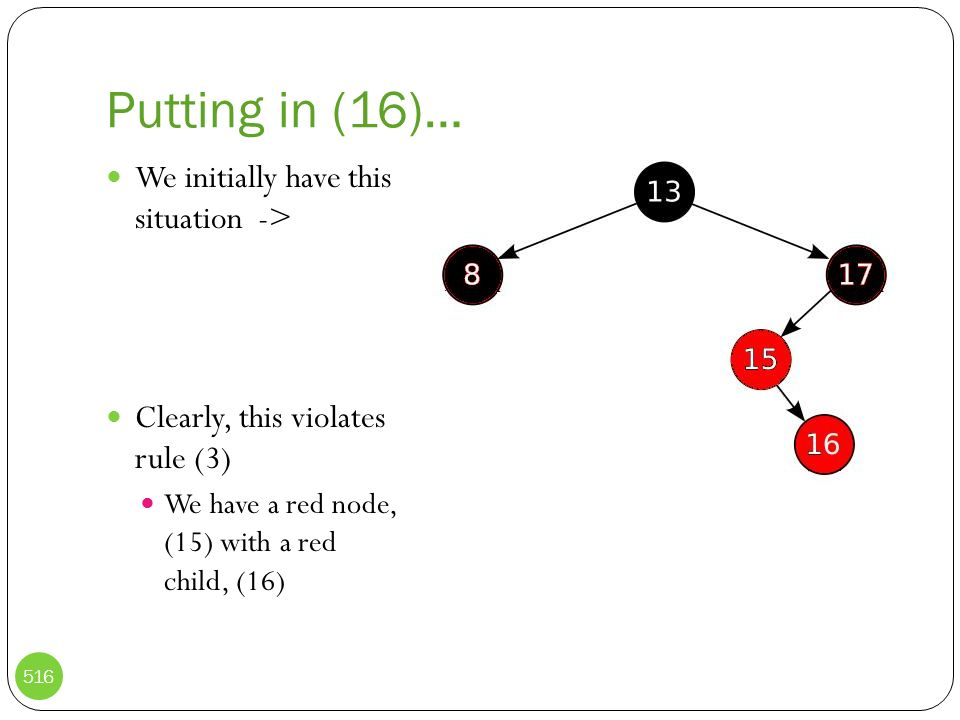

516 Putting in (16)… We initially have this situation -> Clearly, this violates rule (3) We have a red node, (15) with a red child, (16) 516

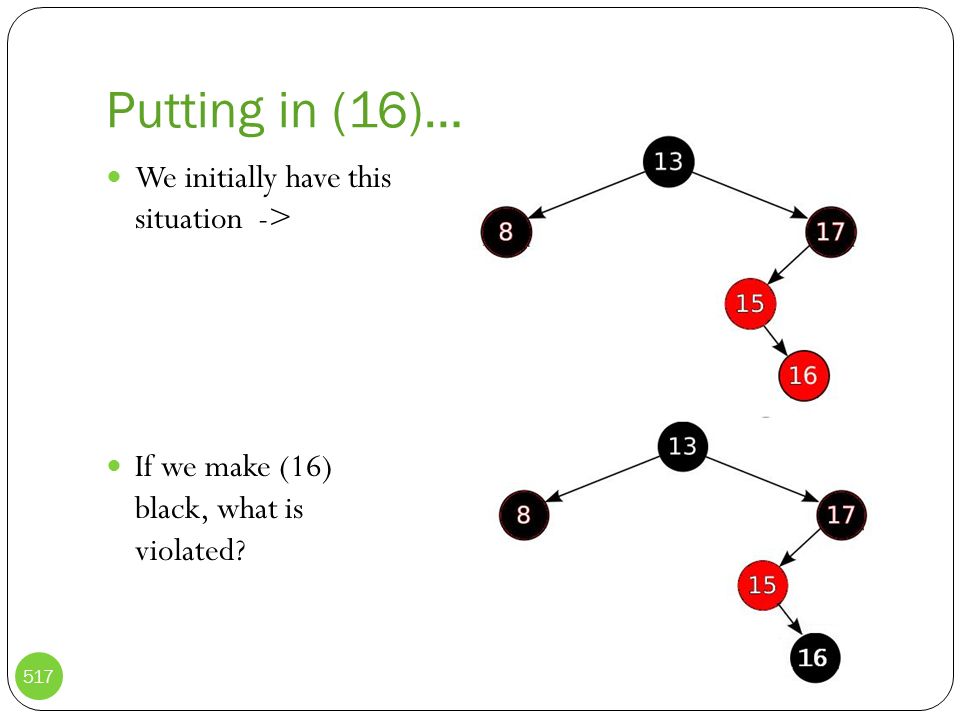

517 Putting in (16)… We initially have this situation -> If we make (16) black, what is violated? 517

518 Putting in (16)… We initially have this situation -> If we make (15) black, what is violated? 518

519 Putting in (16)… We initially have this situation -> Can we make (17) red and (15) black? What rule is violated then? 519

520 Need rotations To fix this situation: We have to color flip, to get rid of the rule (3) violation But we also have to rotate to fix other problems So, we need both color flips and rotations. 520

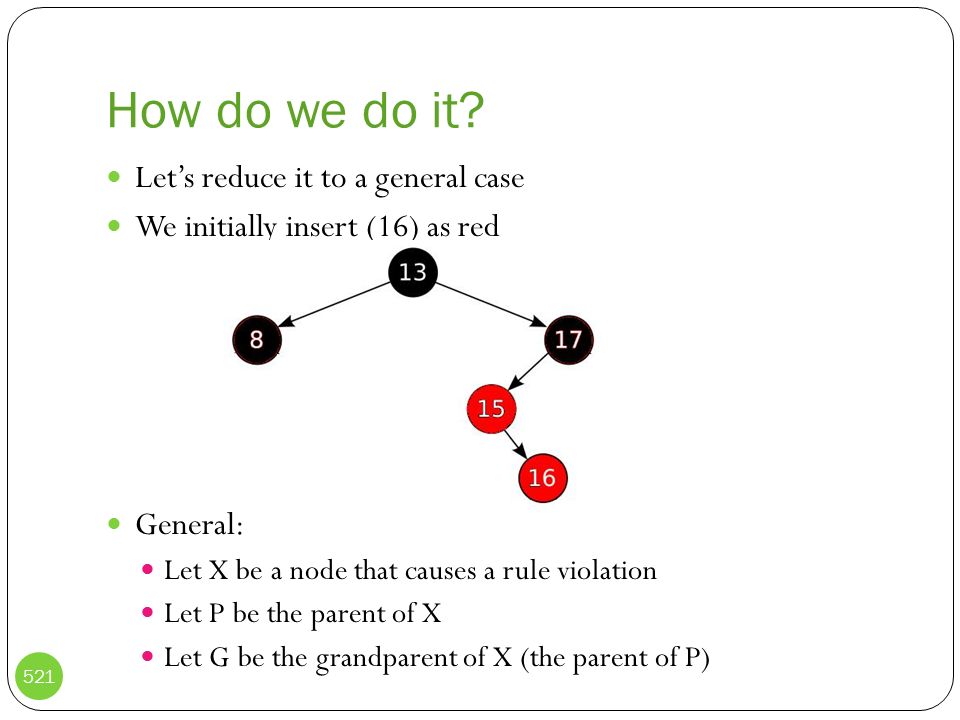

521 How do we do it? Let’s reduce it to a general case We initially insert (16) as red General: Let X be a node that causes a rule violation Let P be the parent of X Let G be the grandparent of X (the parent of P) 521

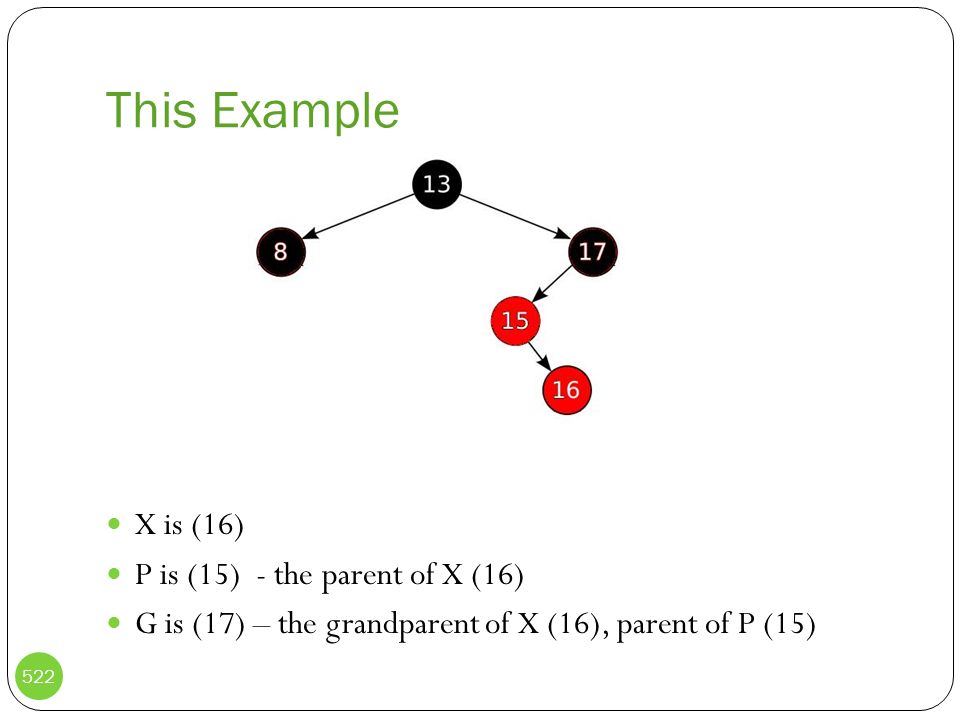

522 This Example X is (16) P is (15) - the parent of X (16) G is (17) – the grandparent of X (16), parent of P (15) 522

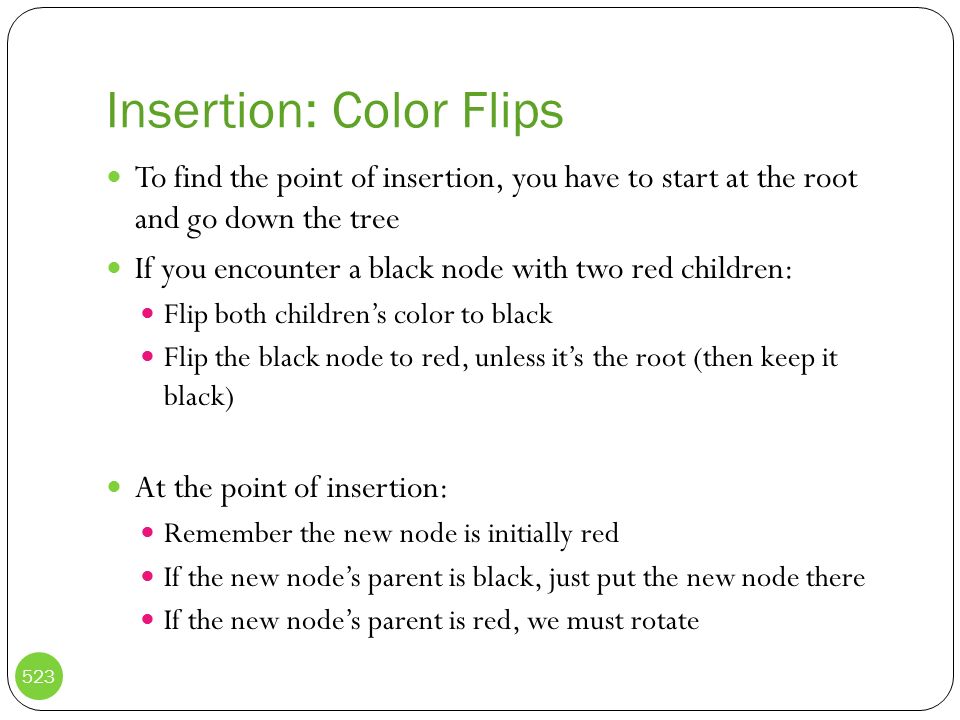

523 Insertion: Color Flips To find the point of insertion, you have to start at the root and go down the tree If you encounter a black node with two red children: Flip both children’s color to black Flip the black node to red, unless it’s the root (then keep it black) At the point of insertion: Remember the new node is initially red If the new node’s parent is black, just put the new node there If the new node’s parent is red, we must rotate 523

524 Color Flip: Revisit Again, let’s look at inserting (15), red We start at (13) which is black, and see it has two red children (8) and (17) Flip (8) and (17) to black Normally we’d flip (13) to red, but it’s the root Now go right to (17) Go left, that’s for (15) (17) is black, so we can just pop it in 524

525 Color Flip: Revisit Again, let’s look at inserting (16), red Start at (13), go right At (17), go left At (15), go right – that’s for (16) But now (15), the parent of (16), is red – so we must solve this with rotations 525

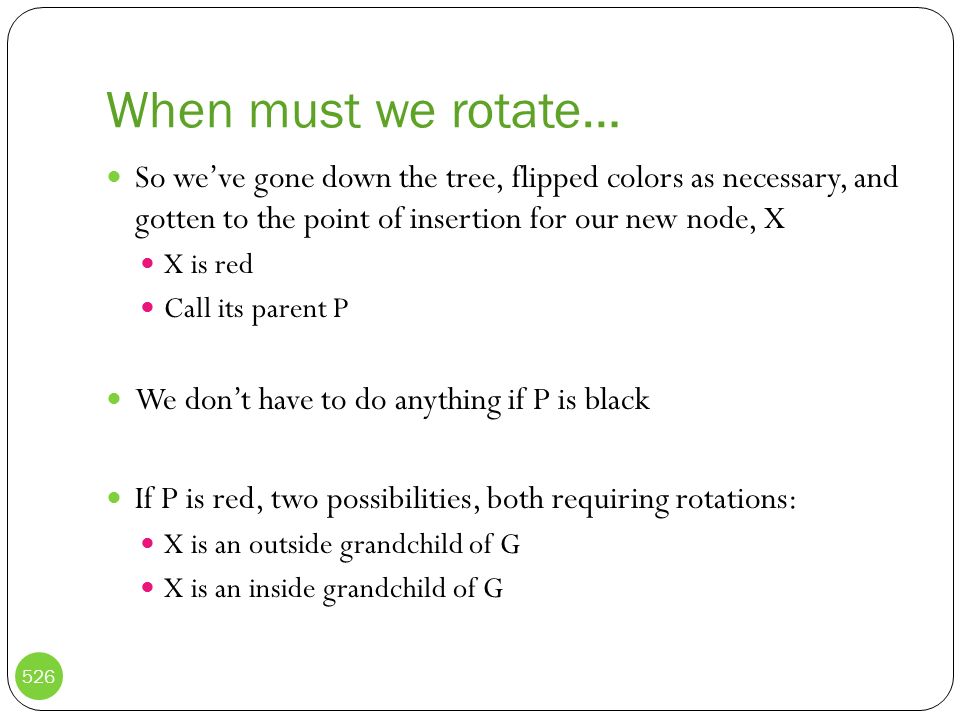

526 When must we rotate… So we’ve gone down the tree, flipped colors as necessary, and gotten to the point of insertion for our new node, X X is red Call its parent P We don’t have to do anything if P is black If P is red, two possibilities, both requiring rotations: X is an outside grandchild of G X is an inside grandchild of G 526

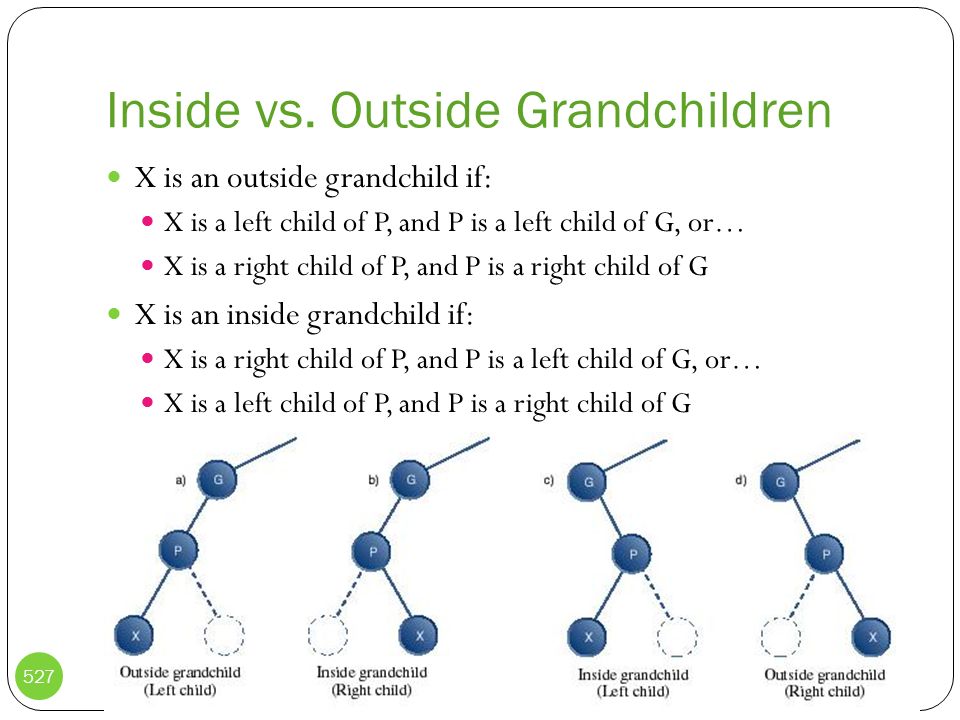

527 Inside vs. Outside Grandchildren X is an outside grandchild if: X is a left child of P, and P is a left child of G, or… X is a right child of P, and P is a right child of G X is an inside grandchild if: X is a right child of P, and P is a left child of G, or… X is a left child of P, and P is a right child of G 527

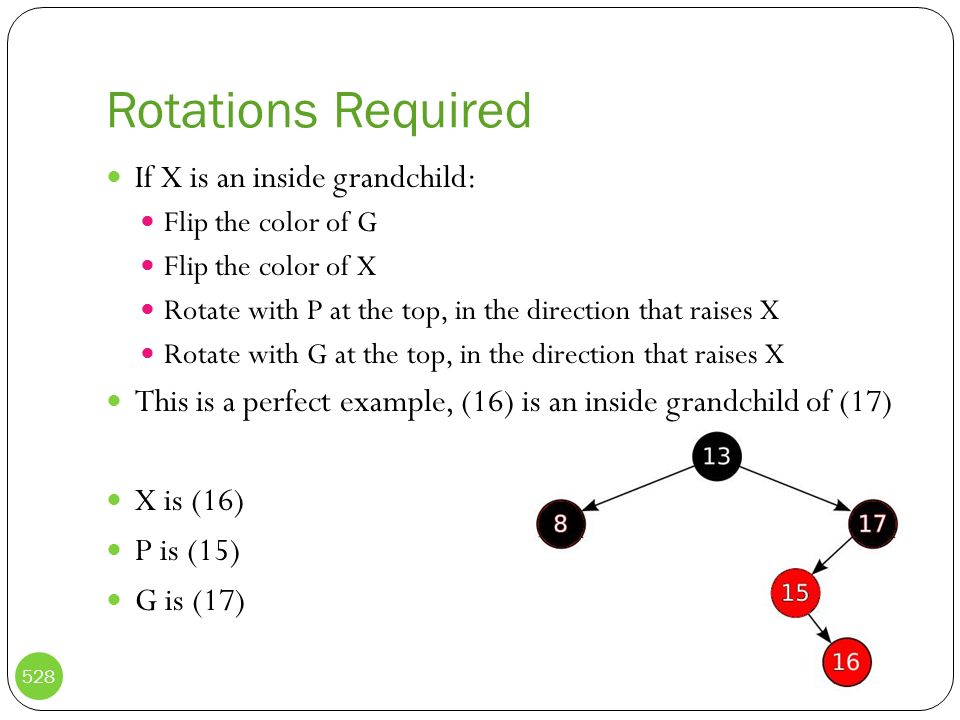

528 Rotations Required If X is an inside grandchild: Flip the color of G Flip the color of X Rotate with P at the top, in the direction that raises X Rotate with G at the top, in the direction that raises X This is a perfect example, (16) is an inside grandchild of (17) X is (16) P is (15) G is (17) 528

529 Step 1: Color Flips Flip the color of X (16) Flip the color of G (17) 529

530 Step 2: Rotate with P as the top Rotate with P (15) as the top, in the direction that raises X (16). In this case, it’s to the left 530

531 Step 3: Rotate with G as the top Rotate with G (17) as the top, in the direction that raises X (16). In this case, it’s to the right Now we’re good! 531

532 Rotations Required If X is an outside grandchild (easier): Flip the color of G Flip the color of P Rotate with G as the top, in the direction that raises X 532

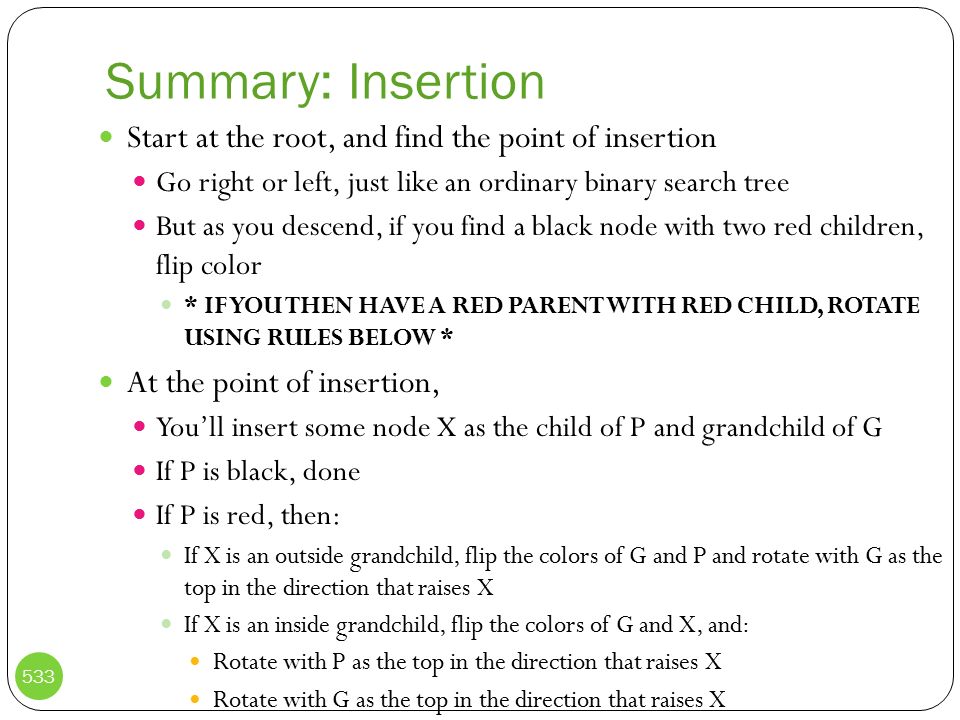

533 Summary: Insertion Start at the root, and find the point of insertion Go right or left, just like an ordinary binary search tree But as you descend, if you find a black node with two red children, flip color * IF YOU THEN HAVE A RED PARENT WITH RED CHILD, ROTATE USING RULES BELOW * At the point of insertion, You’ll insert some node X as the child of P and grandchild of G If P is black, done If P is red, then: If X is an outside grandchild, flip the colors of G and P and rotate with G as the top in the direction that raises X If X is an inside grandchild, flip the colors of G and X, and: Rotate with P as the top in the direction that raises X Rotate with G as the top in the direction that raises X 533

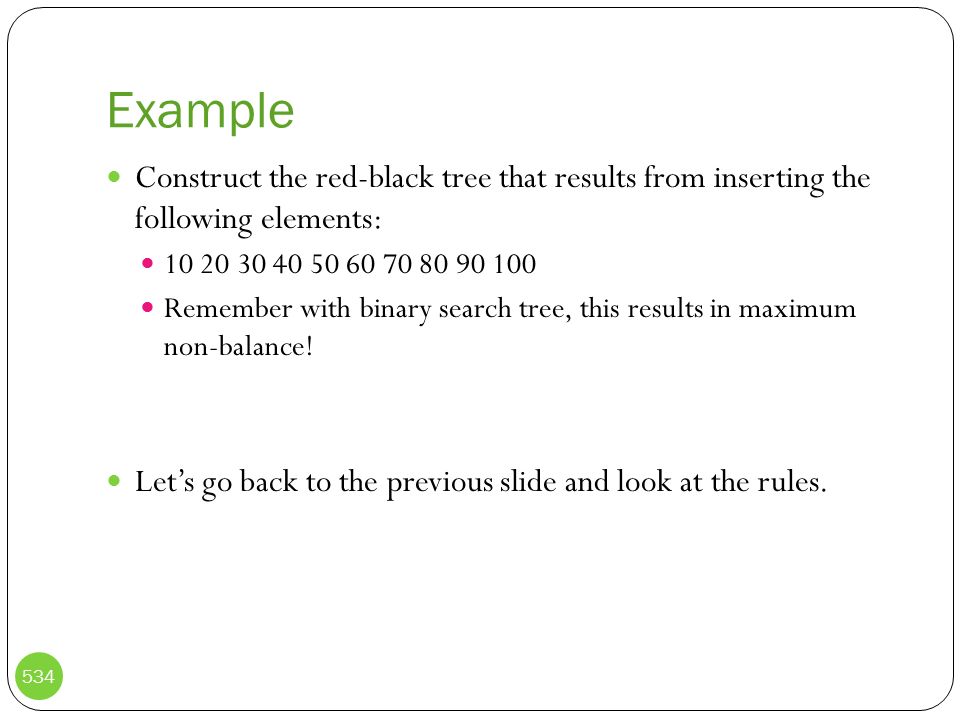

534 Example Construct the red-black tree that results from inserting the following elements: 10 20 30 40 50 60 70 80 90 100 Remember with binary search tree, this results in maximum non-balance! Let’s go back to the previous slide and look at the rules. 534

535 Another Example Draw the red-black tree that results from inserting the following elements: 1 6 8 11 13 15 17 22 25 27 535

536 Deletion: Red-Black Trees This is very difficult to do Remember: Deletion from a plain binary search tree is hard! In Red-Black Trees: You must delete just as you would from a binary search tree PLUS, uphold the properties of Red-Black Trees The code is long and complex Book skips it, so will I Some people don’t even do it. They just mark nodes as deleted or not, and interpret ‘deleted’ nodes as null 536

537 Memory Do Red-Black Trees take more or less memory than a binary search tree? Specifically, how much more? 537

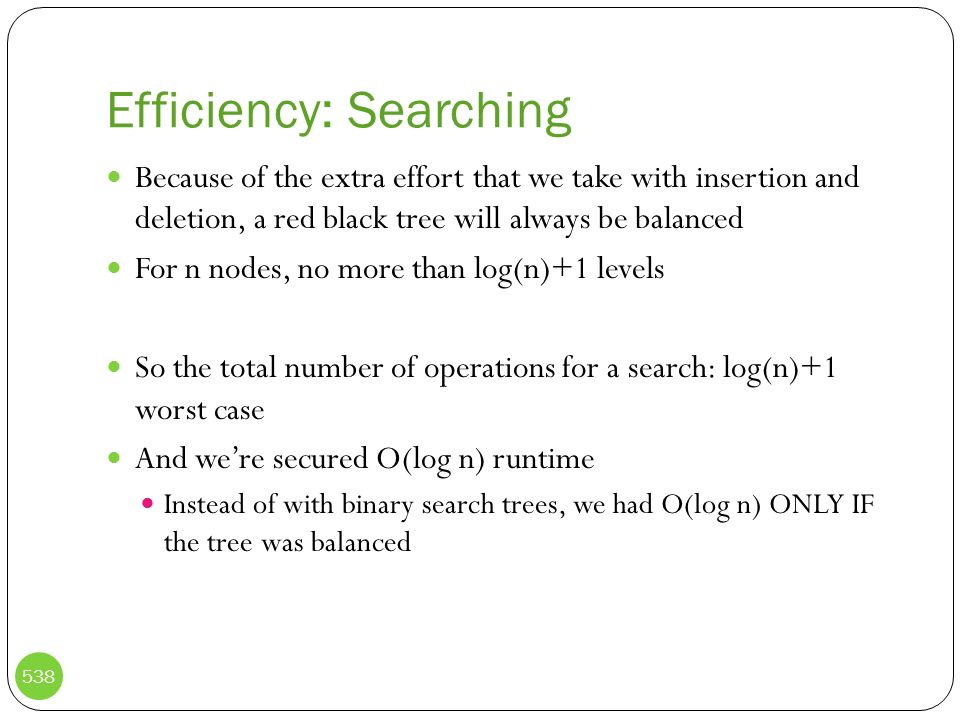

538 Efficiency: Searching Because of the extra effort that we take with insertion and deletion, a red black tree will always be balanced For n nodes, no more than log(n)+1 levels So the total number of operations for a search: log(n)+1 worst case And we’re secured O(log n) runtime Instead of with binary search trees, we had O(log n) ONLY IF the tree was balanced 538

539 Efficiency: Insertion Note: Insertion into a red-black tree will be (faster or slower?) than a regular binary search tree However, we’re still doing a constant amount of work! It’s just slightly more Find the point of insertion –> log(n)+1 As we go down, worst case we’ll flip three colors each time, so 3(log(n)+1) At the point of insertion: We may have to rotate, but we manipulate a constant number of references in either case, call it c Total number of operations: 3(log(n)+1) + c -> O(log n) 539

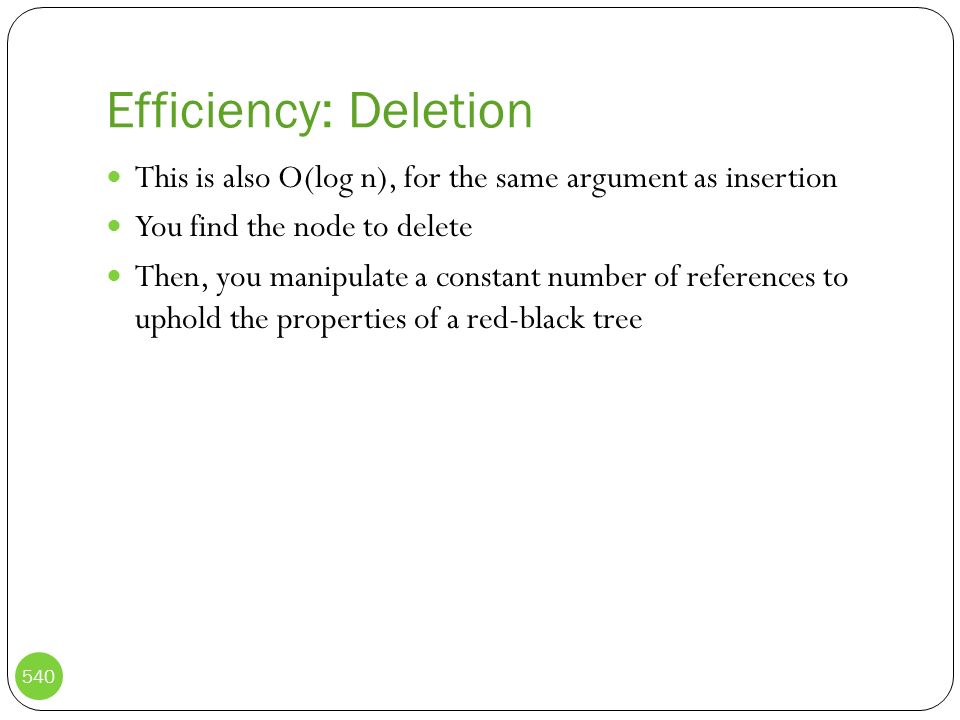

540 Efficiency: Deletion This is also O(log n), for the same argument as insertion You find the node to delete Then, you manipulate a constant number of references to uphold the properties of a red-black tree 540

541 Final Comparison Compare to binary search trees: If your data is fairly random, a binary search tree will likely be better Of course, you’re playing the odds But there is a penalty for inserting and deleting into a red-black tree, once the point of insertion is found Thus if the data would be fairly balanced in a binary search tree, it’s better If your data is fairly sorted, a red-black tree will likely be better May ask: why would our data ever be sorted? What would be a structure for which a red-black tree would be good? 541

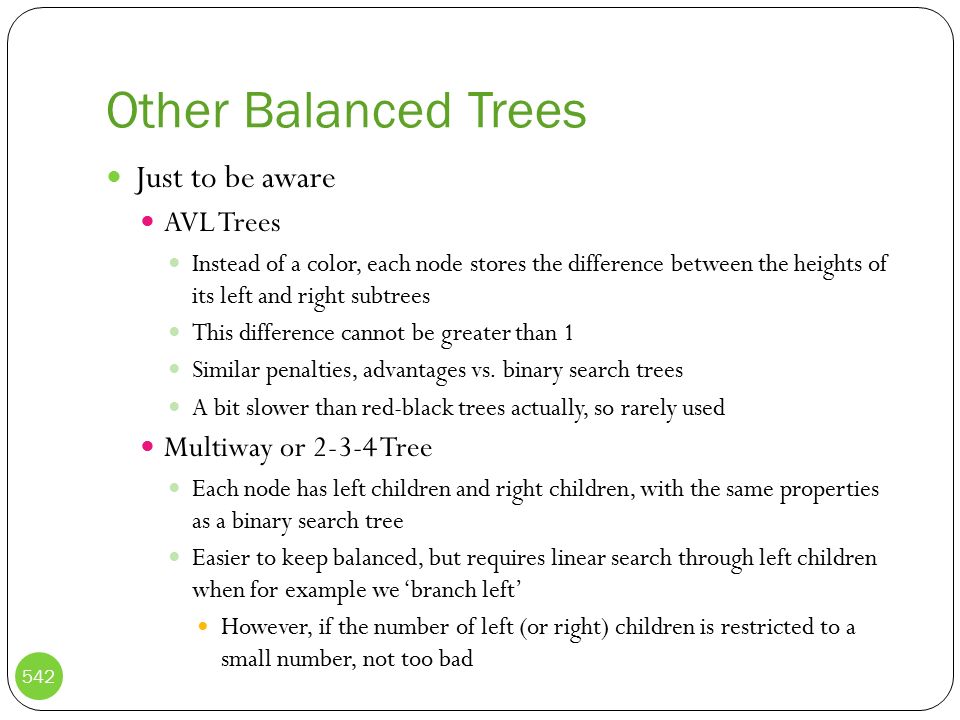

542 Other Balanced Trees Just to be aware AVL Trees Instead of a color, each node stores the difference between the heights of its left and right subtrees This difference cannot be greater than 1 Similar penalties, advantages vs. binary search trees A bit slower than red-black trees actually, so rarely used Multiway or 2-3-4 Tree Each node has left children and right children, with the same properties as a binary search tree Easier to keep balanced, but requires linear search through left children when for example we ‘branch left’ However, if the number of left (or right) children is restricted to a small number, not too bad 542

543 CS221N, Data Structures Hash Tables 543

544 Hash Tables: Overview Provide very fast insertion and searching Both are O(1) Is this too good to be true? Disadvantages Based on arrays, so the size must be known in advance Performance degrades when the table becomes full No convenient way to sort data Summary Best structure if you have no need to visit items in order and you can predict the size of your database in advance. 544

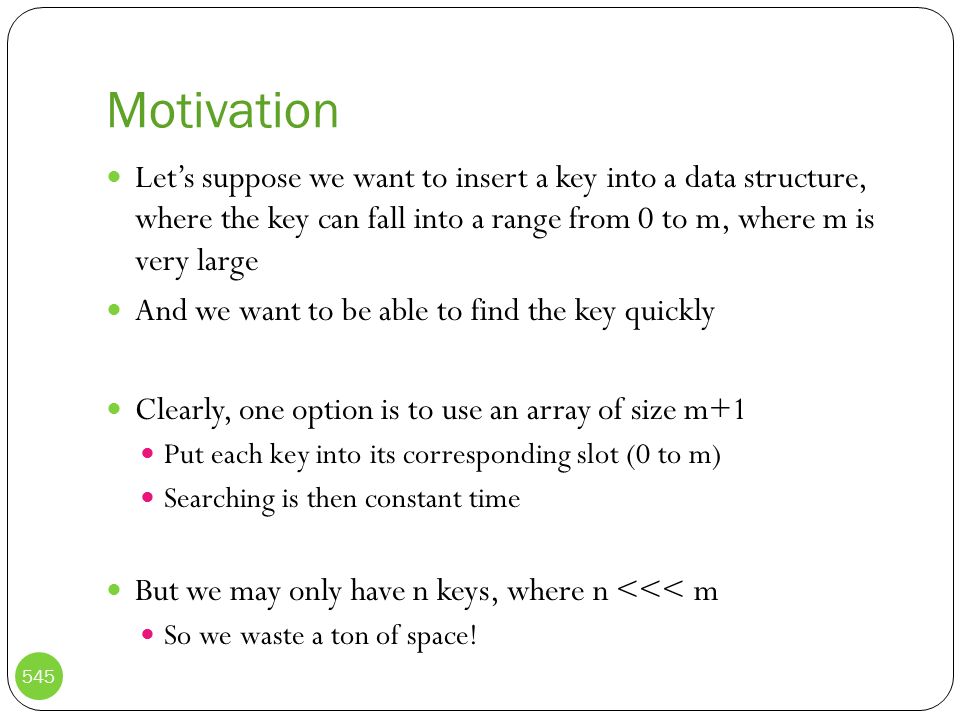

545 Motivation Let’s suppose we want to insert a key into a data structure, where the key can fall into a range from 0 to m, where m is very large And we want to be able to find the key quickly Clearly, one option is to use an array of size m+1 Put each key into its corresponding slot (0 to m) Searching is then constant time But we may only have n keys, where n <<< m So we waste a ton of space! 545

546 Motivation Moreover, we may not be storing integers For example, if we store words of the dictionary Our ‘range’ is ‘a’ to ‘zyzzyva’ And we’re talking hundreds of thousands of words in between So the ‘mapping’ is not necessarily clear For example, we won’t know immediately that the word ‘frog’ is at 85,467 th word in the dictionary And btw I’m not claiming that is right. 546

547 Hash Table Idea Provide easy searching and insertion by mapping keys to positions in an array This mapping is provided by a hash function Takes the key as input Produces an index as output The array is called a hash table. 547

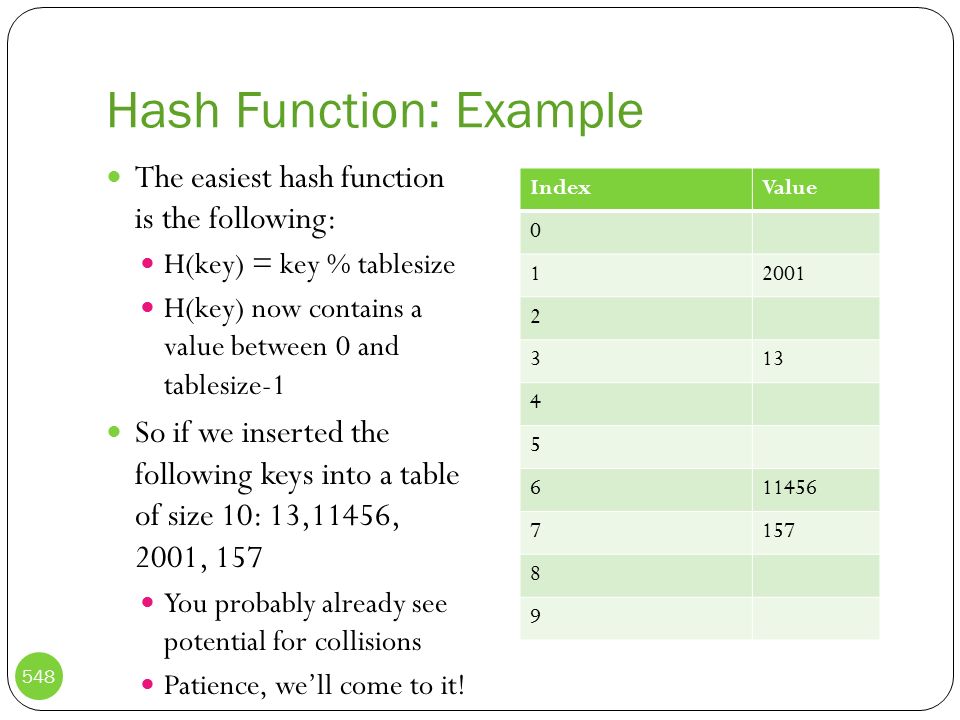

548 Hash Function: Example The easiest hash function is the following: H(key) = key % tablesize H(key) now contains a value between 0 and tablesize-1 So if we inserted the following keys into a table of size 10: 13,11456, 2001, 157 You probably already see potential for collisions Patience, we’ll come to it! 548 IndexValue 0 12001 2 313 4 5 611456 7157 8 9

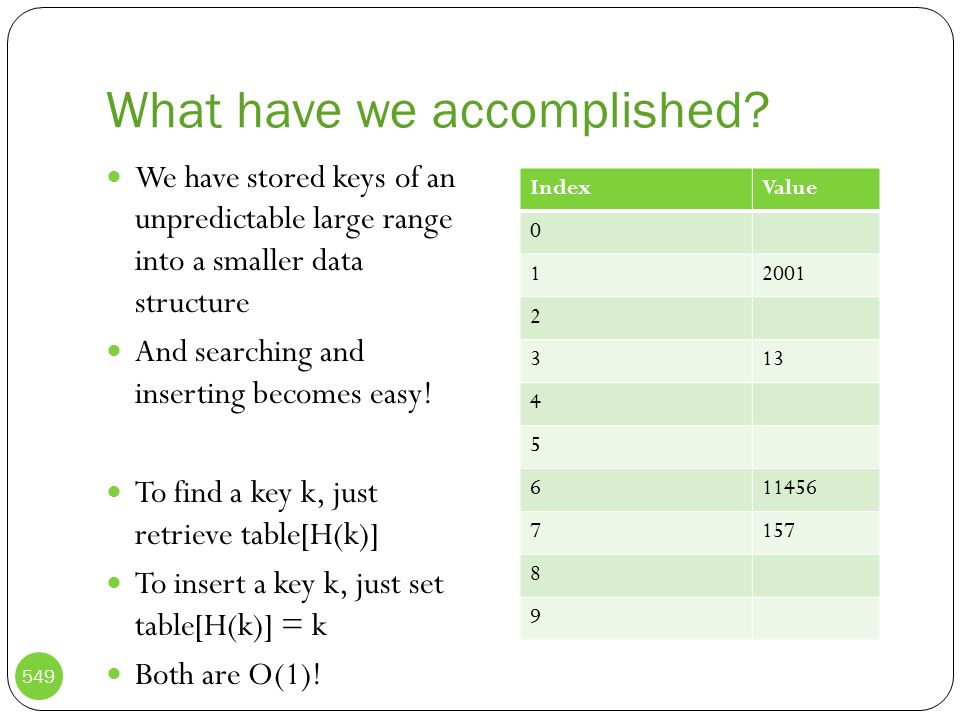

549 What have we accomplished? We have stored keys of an unpredictable large range into a smaller data structure And searching and inserting becomes easy! To find a key k, just retrieve table[H(k)] To insert a key k, just set table[H(k)] = k Both are O(1)! 549 IndexValue 0 12001 2 313 4 5 611456 7157 8 9

550 What’s our price? Of course, you’ve probably already realized, multiple values in our range could map to the same hash table index For example, if we used: H(k) = k % 10 Then, tried to insert 207 H(207) = 7 We have a collision at position 7 550 IndexValue 0 12001 2 313 4 5 611456 7157 8 9

551 What have we learned? If we use hash tables, we need the following: Some way of handling collisions. We’ll study a couple ways: Open addressing Which has 3 kinds: linear probing, quadratic probing, and double hashing Separate chaining Also, the choice of the hash function is delicate We can produce hash functions which are more or less likely to have high collision frequencies We’ll look at potential options 551

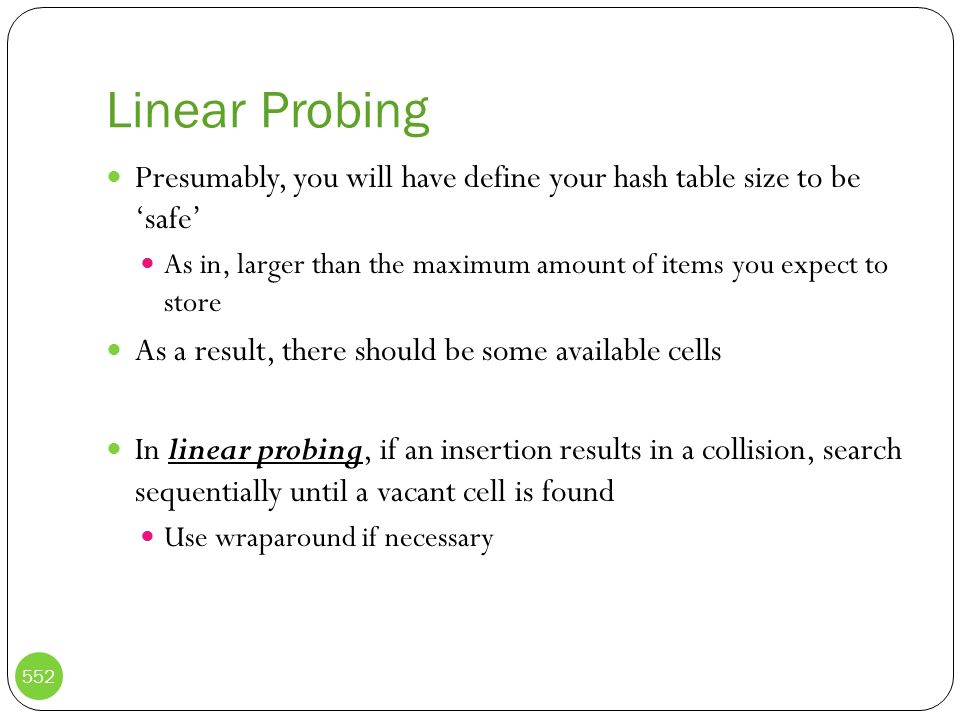

552 Linear Probing Presumably, you will have define your hash table size to be ‘safe’ As in, larger than the maximum amount of items you expect to store As a result, there should be some available cells In linear probing, if an insertion results in a collision, search sequentially until a vacant cell is found Use wraparound if necessary 552

553 Linear Probing: Example Again, say we insert element 207 H(207) = 207 % 10 = 7 This results in a collision with element 157 So we search linearly for the next available cell, which is at position 8 And put 207 there 553 IndexValue 0 12001 2 313 4 5 611456 7157 8207 9

554 Linear Probing Note: This complicates insertion and searching a bit! For example, if we then inserted element 426, we would have to check three cells before finding a vacant one at position 9 And searching, is not simply a matter of applying H(k) You apply H(k), and probe! 554 IndexValue 0 12001 2 313 4 5 611456 7157 8207 9426

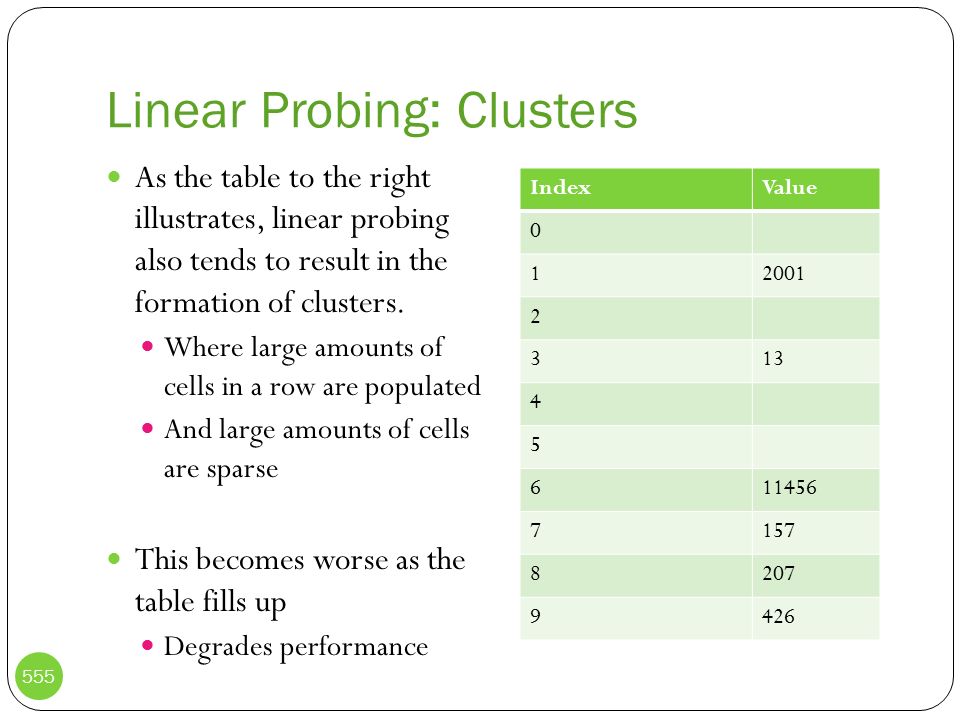

555 Linear Probing: Clusters As the table to the right illustrates, linear probing also tends to result in the formation of clusters. Where large amounts of cells in a row are populated And large amounts of cells are sparse This becomes worse as the table fills up Degrades performance 555 IndexValue 0 12001 2 313 4 5 611456 7157 8207 9426

556 Linear Probing: Clusters LaFore: A cluster is like a ‘faint scene’ at a mall Initially, the first arrivals come Later arrivals come because they wonder why everyone was in one place As the crowd gets bigger, more are attracted Same thing with clusters! Items that hash to a value in the cluster will add to its size 556 IndexValue 0 12001 2 313 4 5 611456 7157 8207 9426

557 Linear Probing One option: If the table becomes full enough, double its size Note this is not quite as simple as it seems Because for every value inside, you have to recompute its hash value The hash function is necessarily different: H(k) = k % 20 But, less clustering 557 IndexValue 0 12001 2 3 4 5 6426 7207 8 9 10 11 12 13 14 15 1611456 17157 18 19 20

558 Linear Probing Linear probing is the simplest way to handle collisions, and is thus worthy of explanation Let’s look at the Java implementation on page 533 This assumes a class with member variables: hashArray (the hash table) arraySize (the size of the hash table) Assume an empty slot contains -1 We’ll construct: hashFunc() find() insert() delete() 558

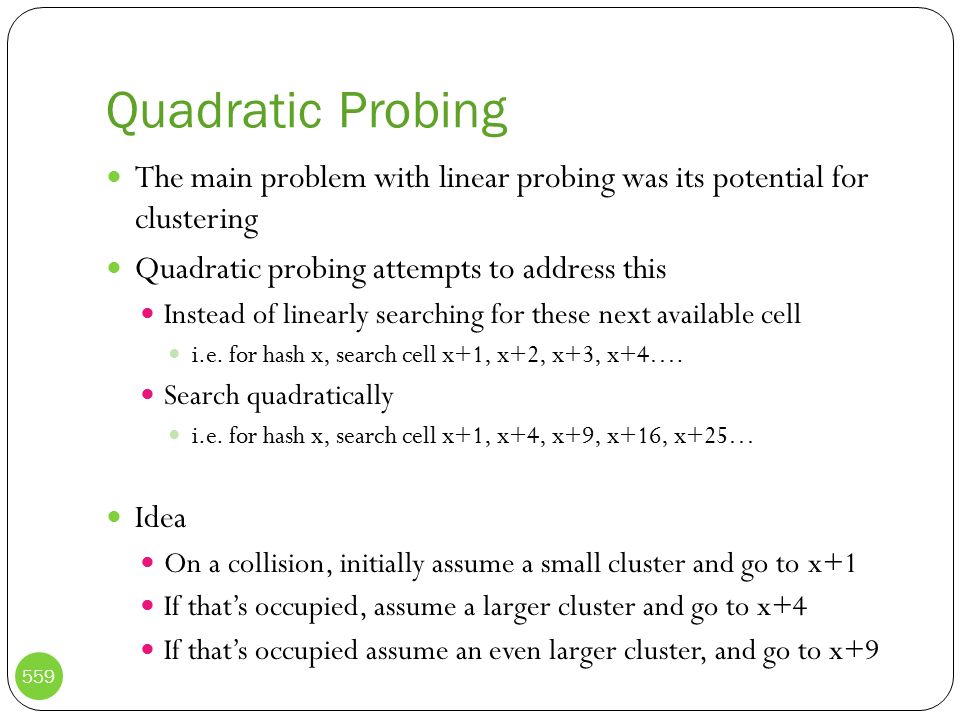

559 Quadratic Probing The main problem with linear probing was its potential for clustering Quadratic probing attempts to address this Instead of linearly searching for these next available cell i.e. for hash x, search cell x+1, x+2, x+3, x+4…. Search quadratically i.e. for hash x, search cell x+1, x+4, x+9, x+16, x+25… Idea On a collision, initially assume a small cluster and go to x+1 If that’s occupied, assume a larger cluster and go to x+4 If that’s occupied assume an even larger cluster, and go to x+9 559

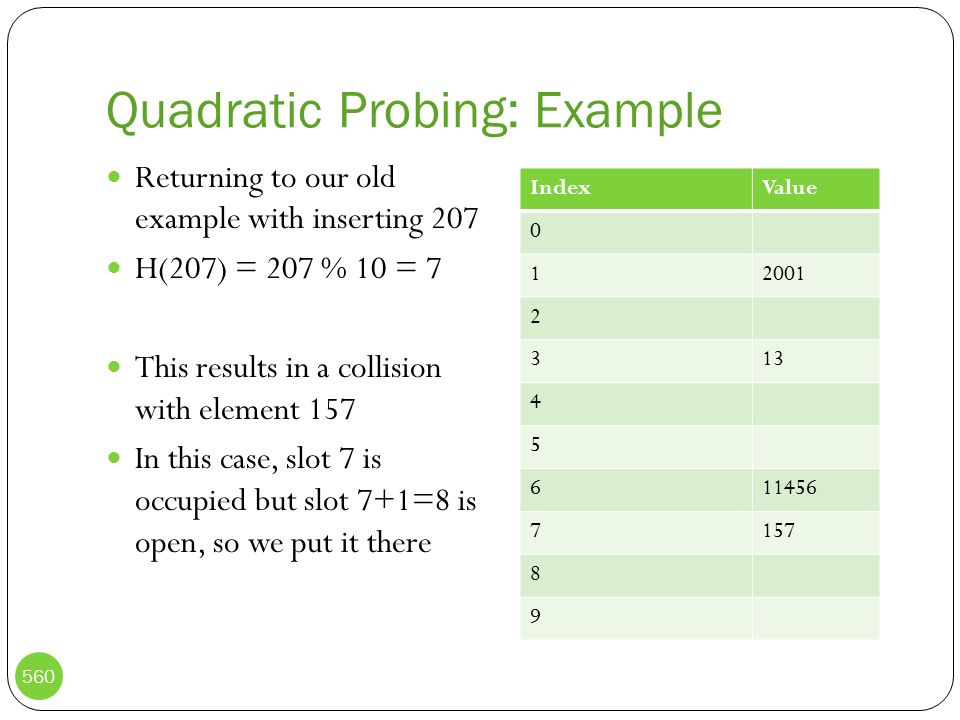

560 Quadratic Probing: Example Returning to our old example with inserting 207 H(207) = 207 % 10 = 7 This results in a collision with element 157 In this case, slot 7 is occupied but slot 7+1=8 is open, so we put it there 560 IndexValue 0 12001 2 313 4 5 611456 7157 8 9

561 Quadratic Probing Now, if we insert 426 H(426) = 426 % 10 = 6 Which is occupied Slot 6+1=7 is also occupied So we check slot: 6+4=10 This passes the end, so we wraparound to slot 0 and insert there 561 IndexValue 0 12001 2 313 4 5 611456 7157 8207 9

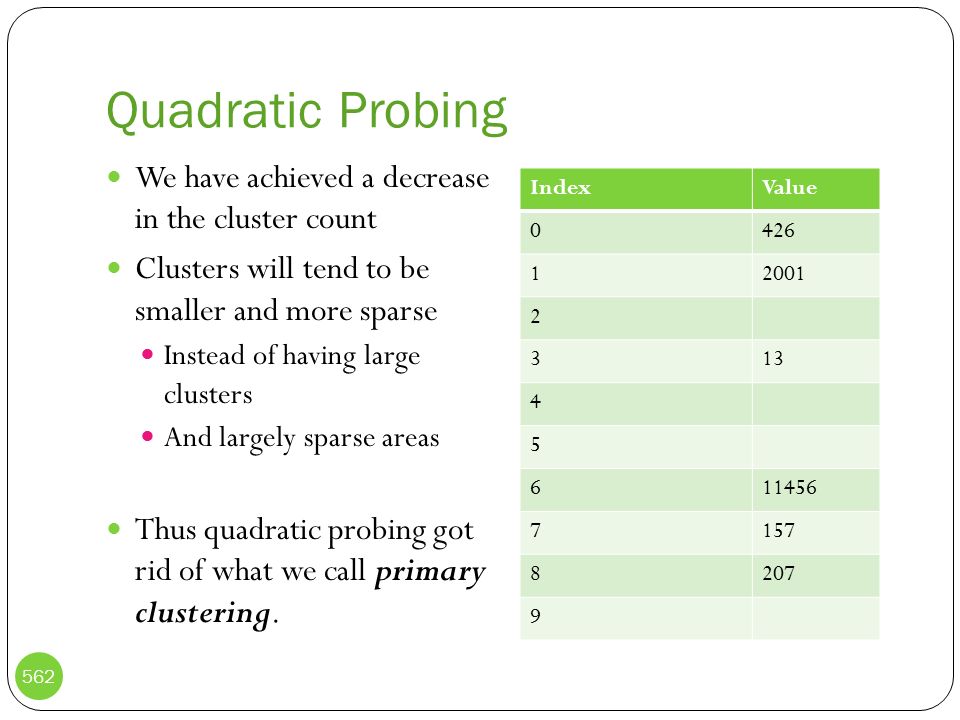

562 Quadratic Probing We have achieved a decrease in the cluster count Clusters will tend to be smaller and more sparse Instead of having large clusters And largely sparse areas Thus quadratic probing got rid of what we call primary clustering. 562 IndexValue 0426 12001 2 313 4 5 611456 7157 8207 9

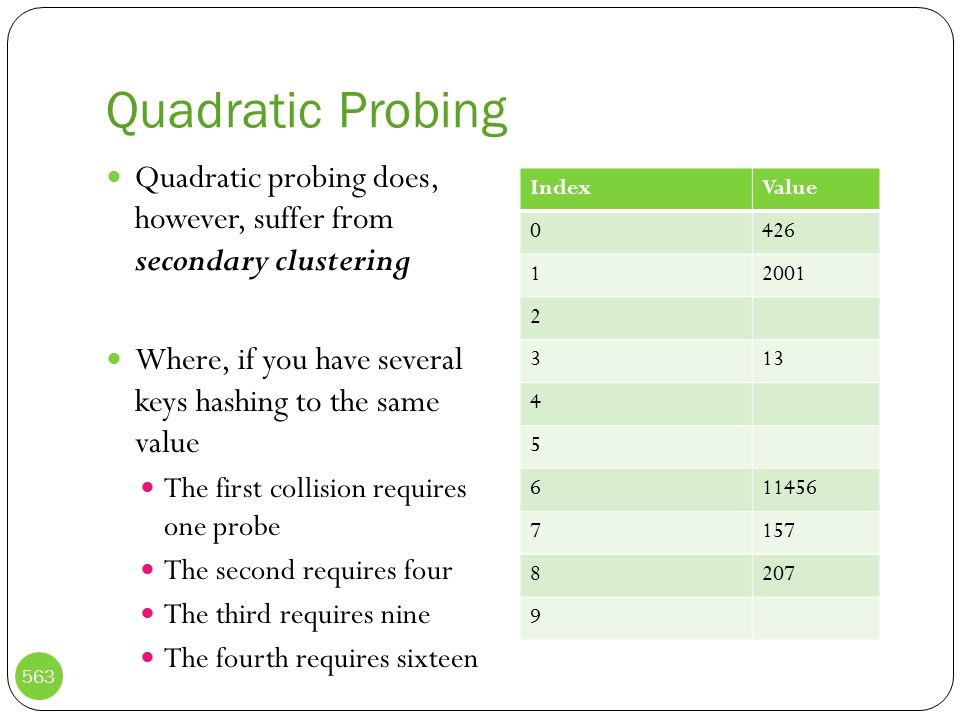

563 Quadratic Probing Quadratic probing does, however, suffer from secondary clustering Where, if you have several keys hashing to the same value The first collision requires one probe The second requires four The third requires nine The fourth requires sixteen 563 IndexValue 0426 12001 2 313 4 5 611456 7157 8207 9

564 Quadratic Probing Secondary clustering would happen if we inserted for example: 827, 10857, 707 1117 Because they all hash to 7 Not as serious a problem as primary clustering But there is a better solution that avoids both. 564 IndexValue 0426 12001 2 313 4 5 611456 7157 8207 9

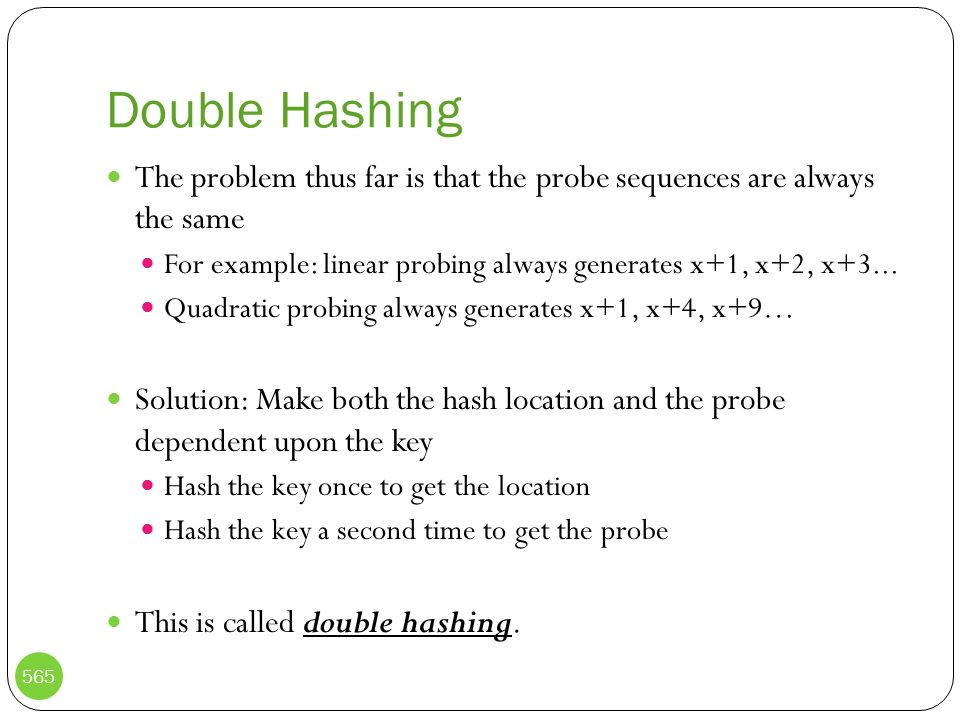

565 Double Hashing The problem thus far is that the probe sequences are always the same For example: linear probing always generates x+1, x+2, x+3... Quadratic probing always generates x+1, x+4, x+9… Solution: Make both the hash location and the probe dependent upon the key Hash the key once to get the location Hash the key a second time to get the probe This is called double hashing. 565

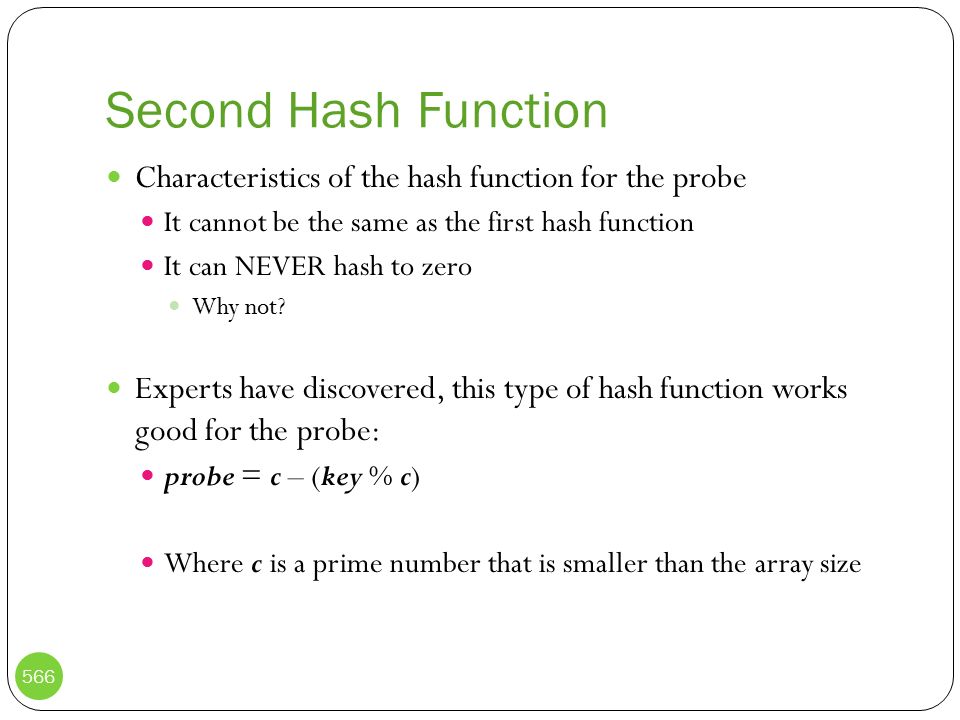

566 Second Hash Function Characteristics of the hash function for the probe It cannot be the same as the first hash function It can NEVER hash to zero Why not? Experts have discovered, this type of hash function works good for the probe: probe = c – (key % c) Where c is a prime number that is smaller than the array size 566

567 Double Hashing: Example Returning to our old example with inserting 207 H(207) = 207 % 10 = 7 This results in a collision with element 157 So we hash again, to get the probe Suppose we choose c=5 Then: P(207) = 5 – (207 % 5) P(207) = 5 – 2 = 3 567 IndexValue 0 12001 2 313 4 5 611456 7157 8 9

568 Double Hashing: Example So we insert 207 at position: H(207) + P(207) = 7+3 = 10 Wrapping around, this will put 207 at position 0 568 IndexValue 0207 12001 2 313 4 5 611456 7157 8 9

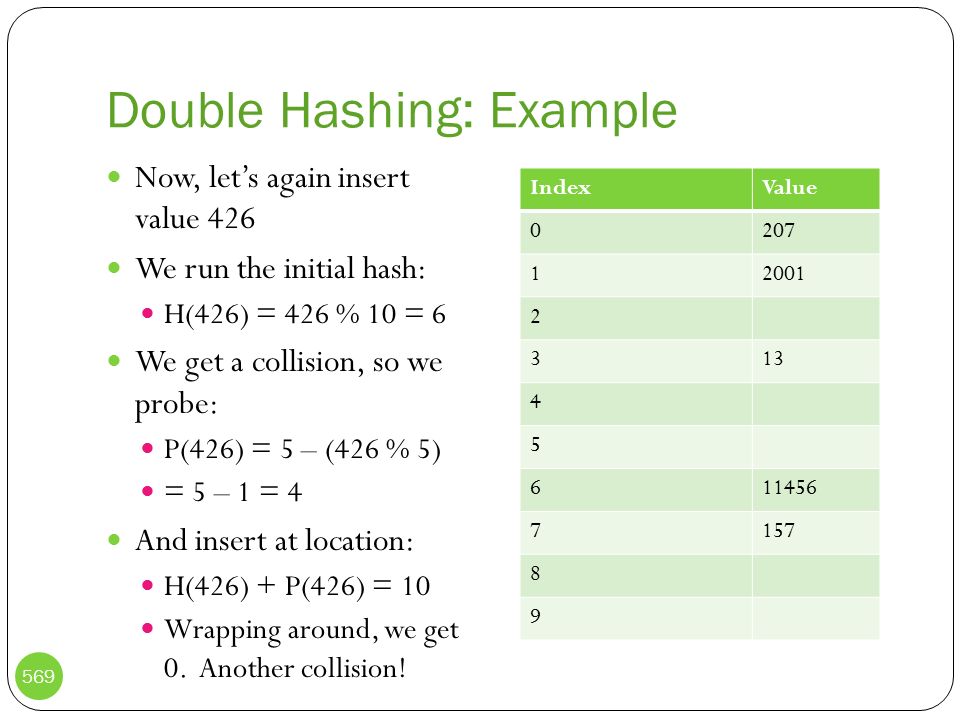

569 Double Hashing: Example Now, let’s again insert value 426 We run the initial hash: H(426) = 426 % 10 = 6 We get a collision, so we probe: P(426) = 5 – (426 % 5) = 5 – 1 = 4 And insert at location: H(426) + P(426) = 10 Wrapping around, we get 0. Another collision! 569 IndexValue 0207 12001 2 313 4 5 611456 7157 8 9

570 Double Hashing: Example So, we probe again P(426) = 4 So we insert at location 0+4 = 4, and this time there is no collision Double hashing will in general produce the fewest clusters Because both the hash and probe are key-dependent 570 IndexValue 0207 12001 2 313 4426 5 611456 7157 8 9

571 Java Implementation, page 547 Let’s try this again: Again, we have our hash table stored in hashArray And arraySize as the size of the hash table Again, assume positive integers and all entries are initially -1 Let’s construct hashFunc() hashFunc2() find() insert() delete() 571

572 Note… What is a potential problem with choosing a hash table of size 10 and a c of 5 for the probe, as we just did? Suppose we had a value k where H(k) = 0 and P(k) = 5 i.e., k = 0 What would the probe sequence be? What’s the problem? 572

573 Probe Sequence The probe sequence may never find an open cell! Because H(0) = 0, we’ll start at hash location 0 If we have a collision, P(0) = 5 so we’ll next check 0+5=5 If we have a collision there, we’ll next check 5+5=10, with wraparound we get 0 We’ll infinitely check 0 and 5, and never find an open cell! 573

574 Double Hashing Requirement The root of the problem is that the table size is not prime! For example if the size were 11: 0, 5, 10, 4, 9, 3, 8, 2, 7, 1, 6 If there is even one open cell, the probing is guaranteed to find it Thus, very important – a requirement of double hashing is that the table size is prime. So our previous table size of 10 is not a good idea We would want 11, or 13, etc. Generally, for open addressing, double hashing is best 574

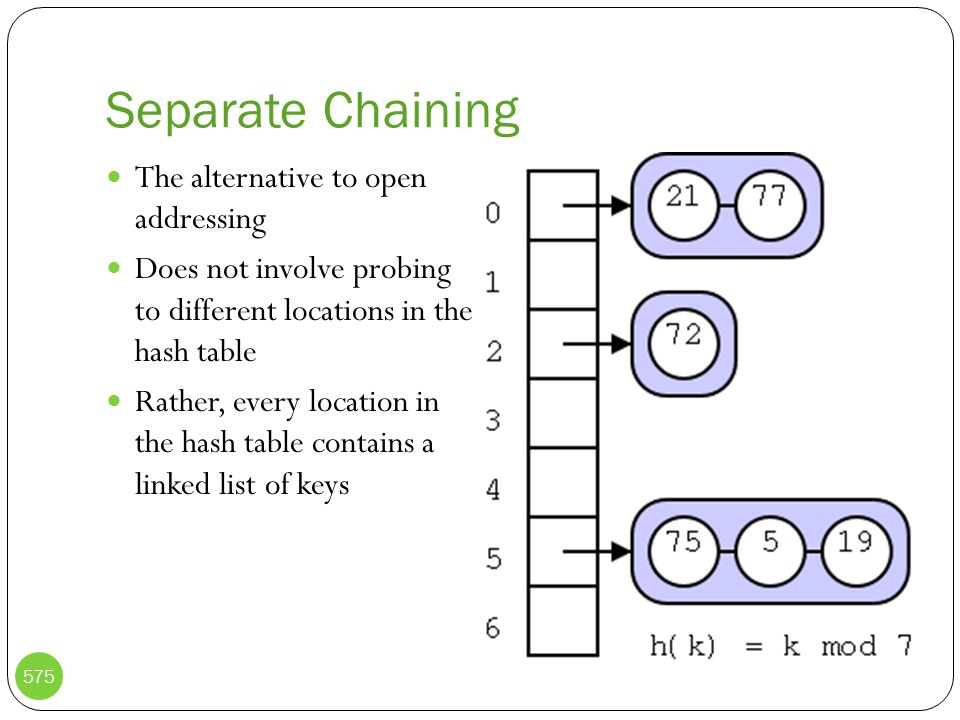

575 Separate Chaining The alternative to open addressing Does not involve probing to different locations in the hash table Rather, every location in the hash table contains a linked list of keys 575

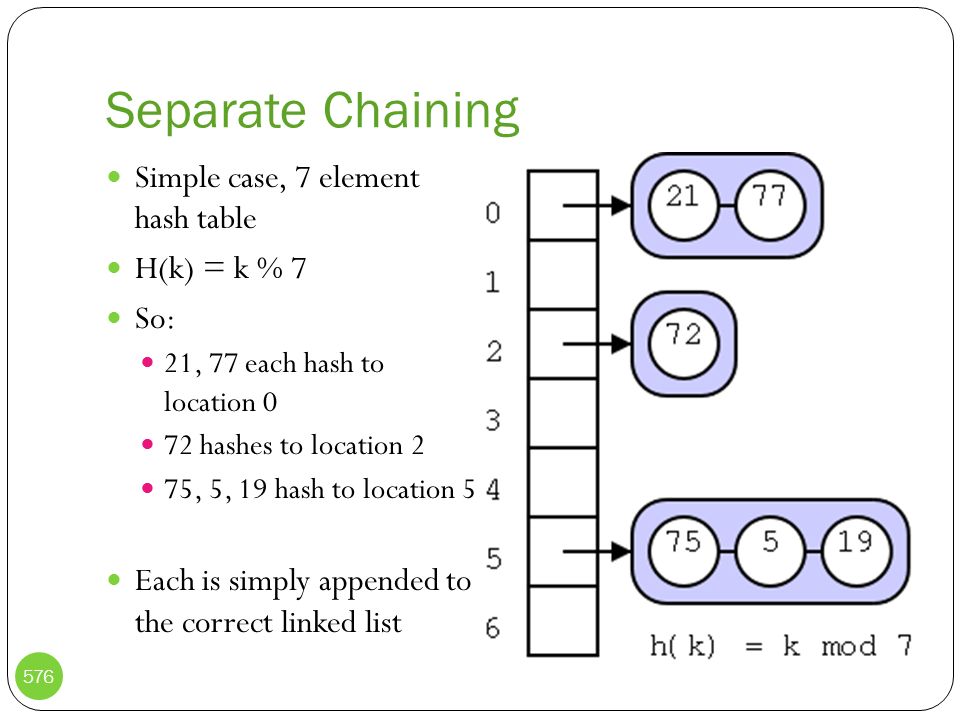

576 Separate Chaining Simple case, 7 element hash table H(k) = k % 7 So: 21, 77 each hash to location 0 72 hashes to location 2 75, 5, 19 hash to location 5 Each is simply appended to the correct linked list 576

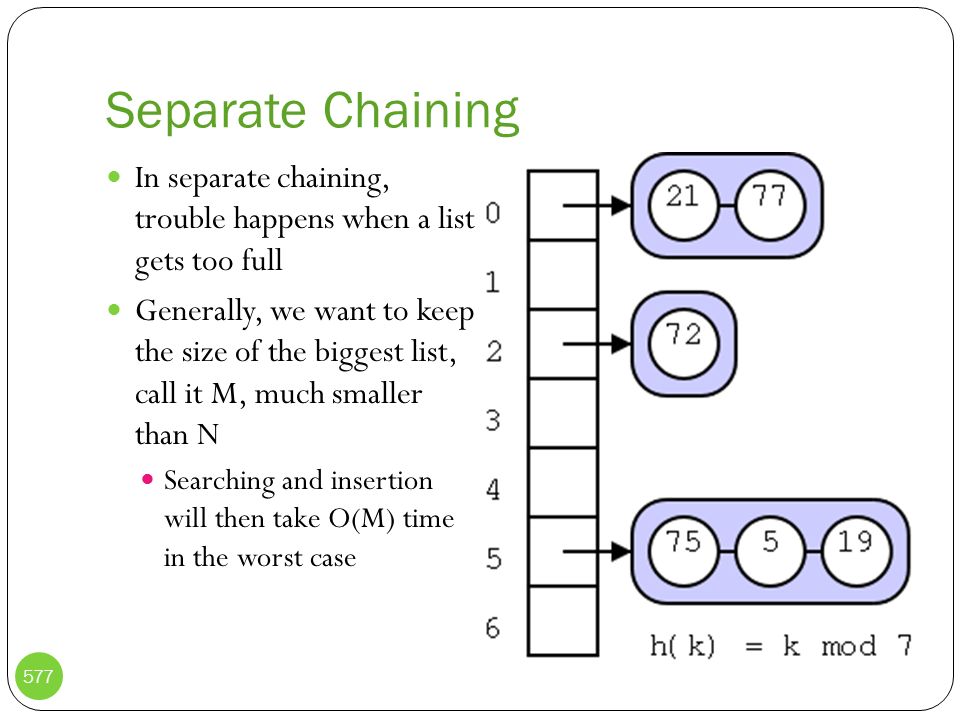

577 Separate Chaining In separate chaining, trouble happens when a list gets too full Generally, we want to keep the size of the biggest list, call it M, much smaller than N Searching and insertion will then take O(M) time in the worst case 577

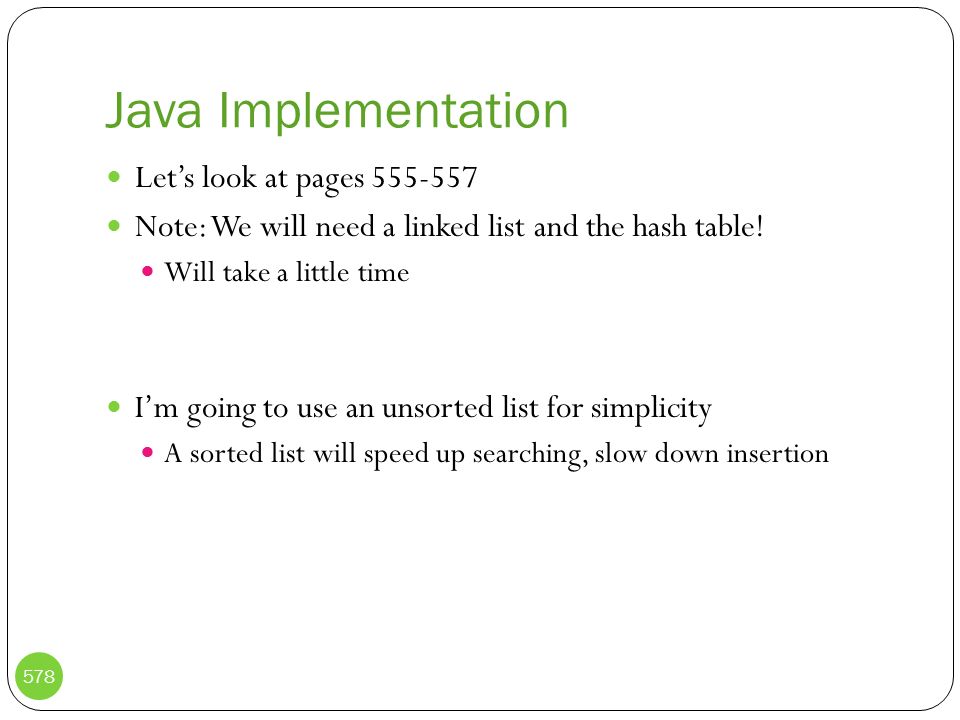

578 Java Implementation Let’s look at pages 555-557 Note: We will need a linked list and the hash table! Will take a little time I’m going to use an unsorted list for simplicity A sorted list will speed up searching, slow down insertion 578

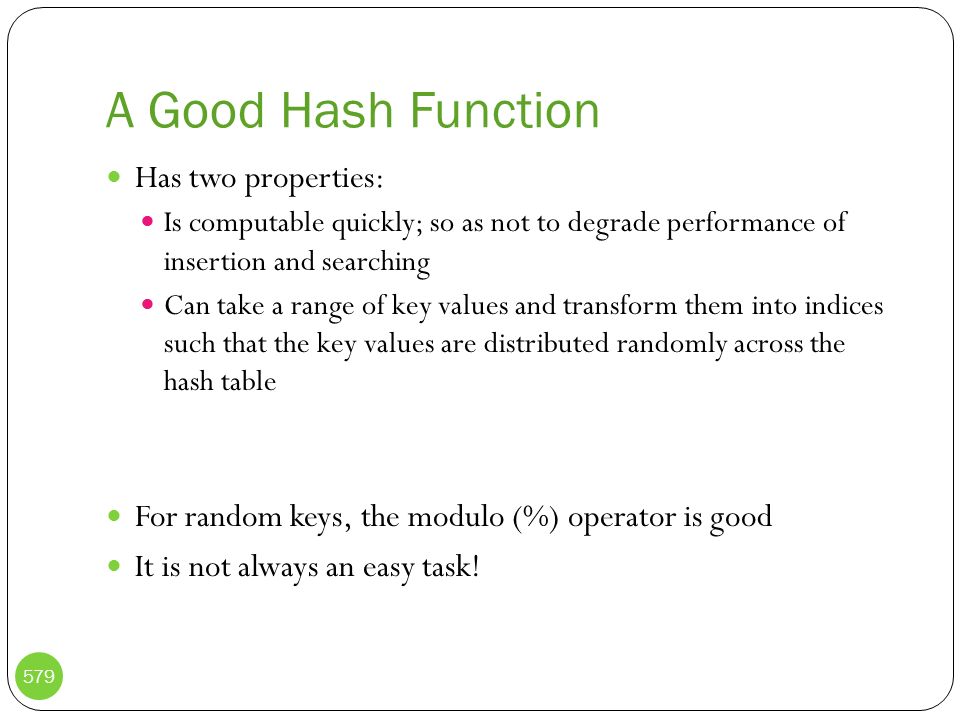

579 A Good Hash Function Has two properties: Is computable quickly; so as not to degrade performance of insertion and searching Can take a range of key values and transform them into indices such that the key values are distributed randomly across the hash table For random keys, the modulo (%) operator is good It is not always an easy task! 579

580 For example… Data can be highly non-random For example, a car-part ID: 033-400-03-94-05-0-535 For each set of digits, there can be a unique range or set of values! i.e. Digits 3-5 could be a category code, where the only acceptable values are 100, 150, 200, 250, up to 850. Digits 6-7 could be a month of introduction (0-12) Digit 12 could be “yes” or “no” (0 or 1) Digits 13-15 could be a checksum, a function of all the other digits in the code 580

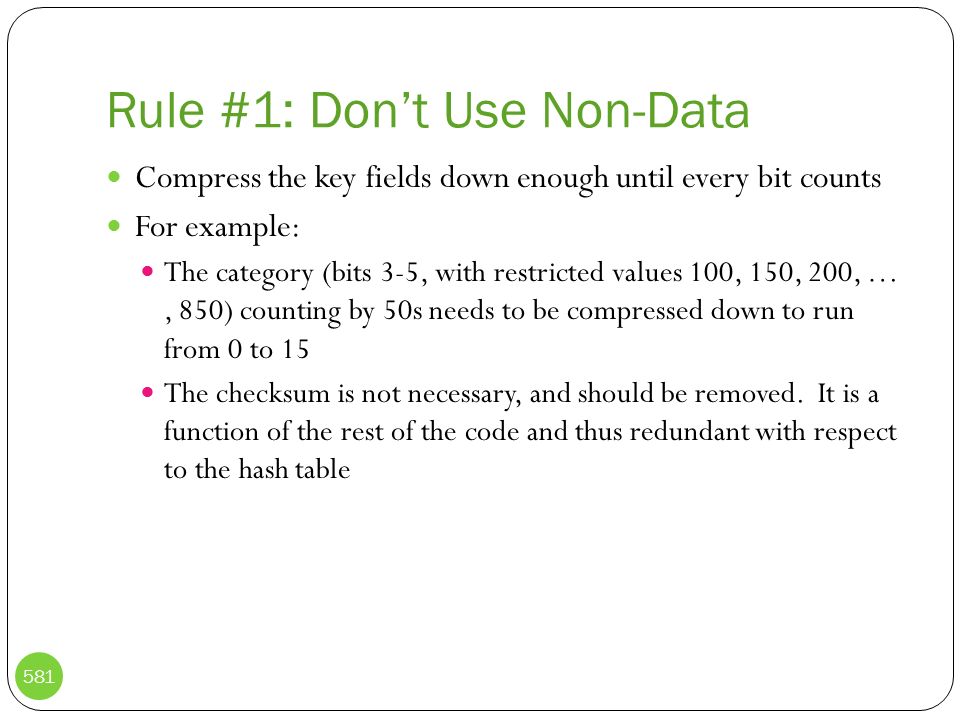

581 Rule #1: Don’t Use Non-Data Compress the key fields down enough until every bit counts For example: The category (bits 3-5, with restricted values 100, 150, 200, …, 850) counting by 50s needs to be compressed down to run from 0 to 15 The checksum is not necessary, and should be removed. It is a function of the rest of the code and thus redundant with respect to the hash table 581

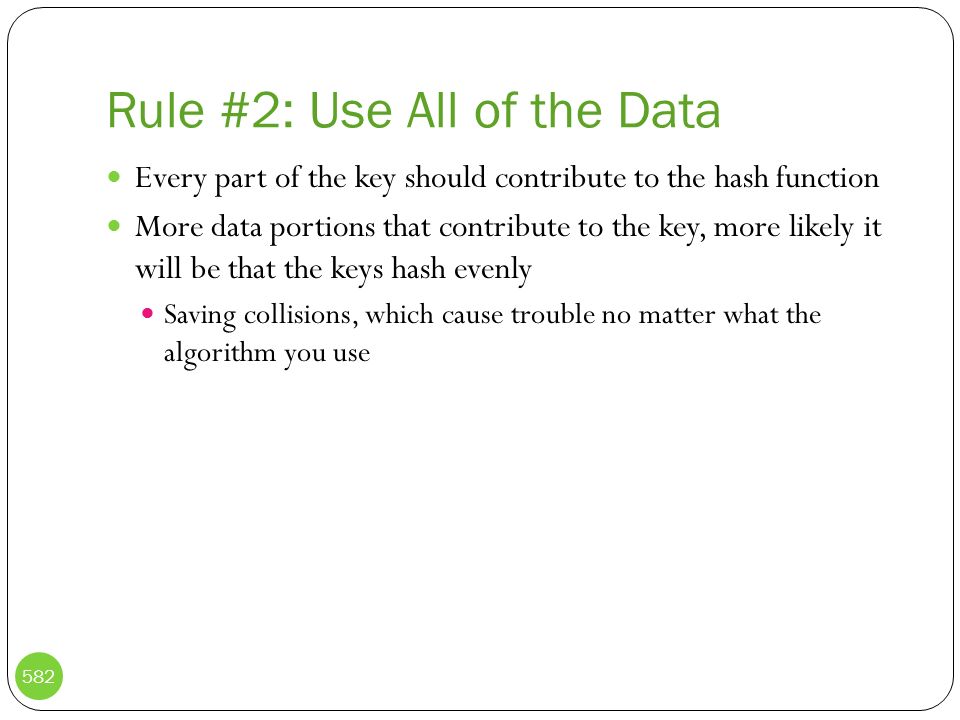

582 Rule #2: Use All of the Data Every part of the key should contribute to the hash function More data portions that contribute to the key, more likely it will be that the keys hash evenly Saving collisions, which cause trouble no matter what the algorithm you use 582

583 Rule #3: Use a Prime Number for Modulo Base This is a requirement for double hashing Important for quadratic probing Especially important if the keys may not be randomly distributed The more keys that share a divisor with the array size, the more collisions Example, non-random data which are multiples of 50 If the table size is 50, they all hash to the same spot If the table size is 10, they all hash to the same pot If the table size is 53, no keys divide evenly into the table size. Better! 583

584 Hashing Efficiency Insertion and Searching are O(1) in the best case This implies no collisions If you minimize collisions, you can approach this runtime If collisions occur: Access times depend on resulting probe lengths Every probe equals one more access So every worst case insertion or search time is proportional to: The number of required probes if you use open addressing The number of links in the longest list it you use separate chaining 584

585 Efficiency: Linear Probing Let’s assume a load factor L, where L is the percentage of hash table slots which are occupied. Knuth showed that, for a successful search: P = (1 + 1 / (1 – L) 2 ) / 2 For an unsuccessful search: P = (1 + 1 / (1 – L) ) / 2 585

586 Efficiency: Linear Probing What’s the ideal load factor? At L=0.5: Successful search takes 1.5 probes Unsuccessful takes 2.5 At L = 2/3: Successful: 2.0 Unsuccessful: 5.0 Good to keep load factor under 0.5! 586

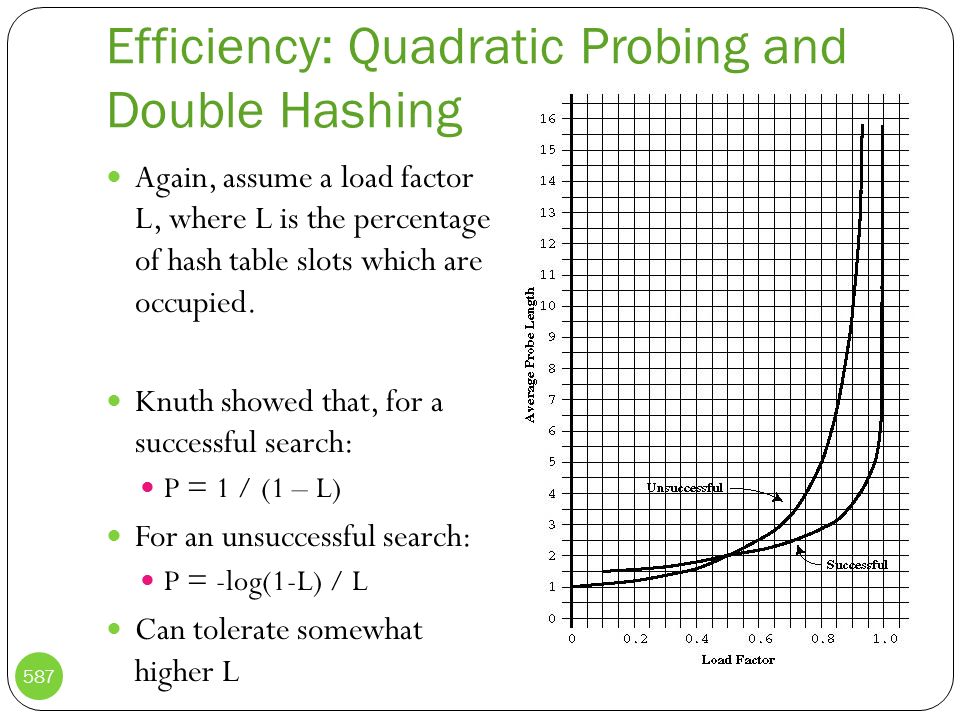

587 Efficiency: Quadratic Probing and Double Hashing Again, assume a load factor L, where L is the percentage of hash table slots which are occupied. Knuth showed that, for a successful search: P = 1 / (1 – L) For an unsuccessful search: P = -log(1-L) / L Can tolerate somewhat higher L 587

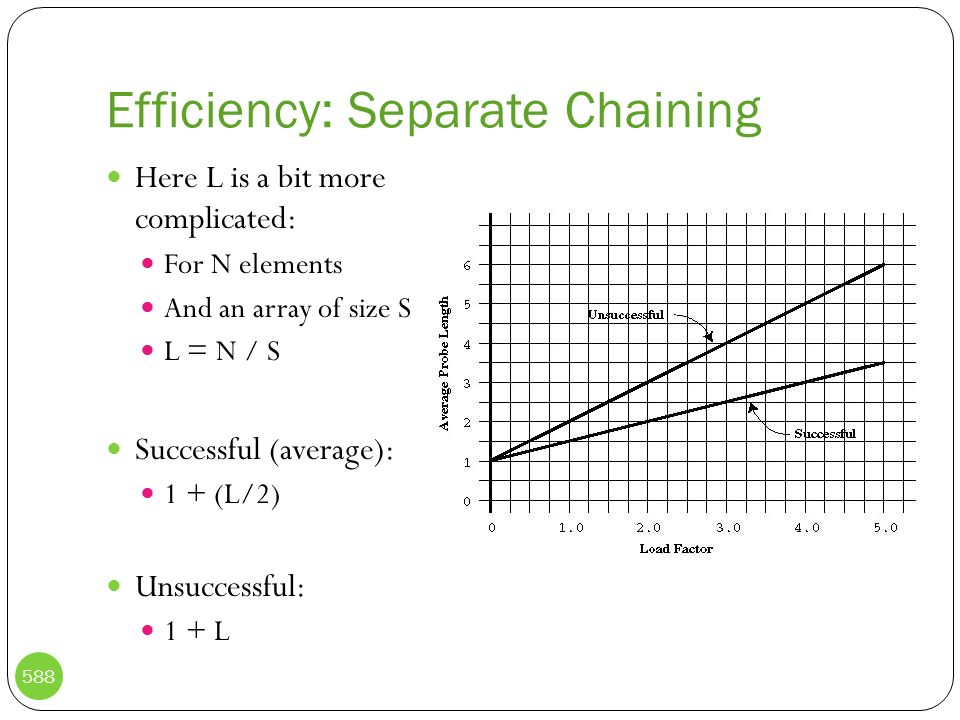

588 Efficiency: Separate Chaining Here L is a bit more complicated: For N elements And an array of size S L = N / S Successful (average): 1 + (L/2) Unsuccessful: 1 + L 588

589 Summary: When to use What If the number of items that will be inserted is uncertain, use separate chaining Must create a LinkedList class But performance degrades only linearly With open addressing, major penalties Otherwise, use double hashing, unless… Plenty of memory available Low load factors Then linear or quadratic probing should be done for ease of implementation 589

590 (Time Pending) Application to Disk Storage 590

591 CS221N, Data Structures Heaps 591

592 Heaps: Motivation Recall priority queues. What were they? An ordered queue Offered us O(1) removal, searching of: The largest element if ordered from highest to lowest The smallest element if ordered from lowest to highest Insertion still takes O(n) time Heaps attempt to accomplish the same thing with a tree where a node is always larger than its children Enforce balancing O(log n) insertion, O(log n) deletion O(1) searching of maximum element (max-heap) You could trivially accomplish O(1) for the minimum as well 592

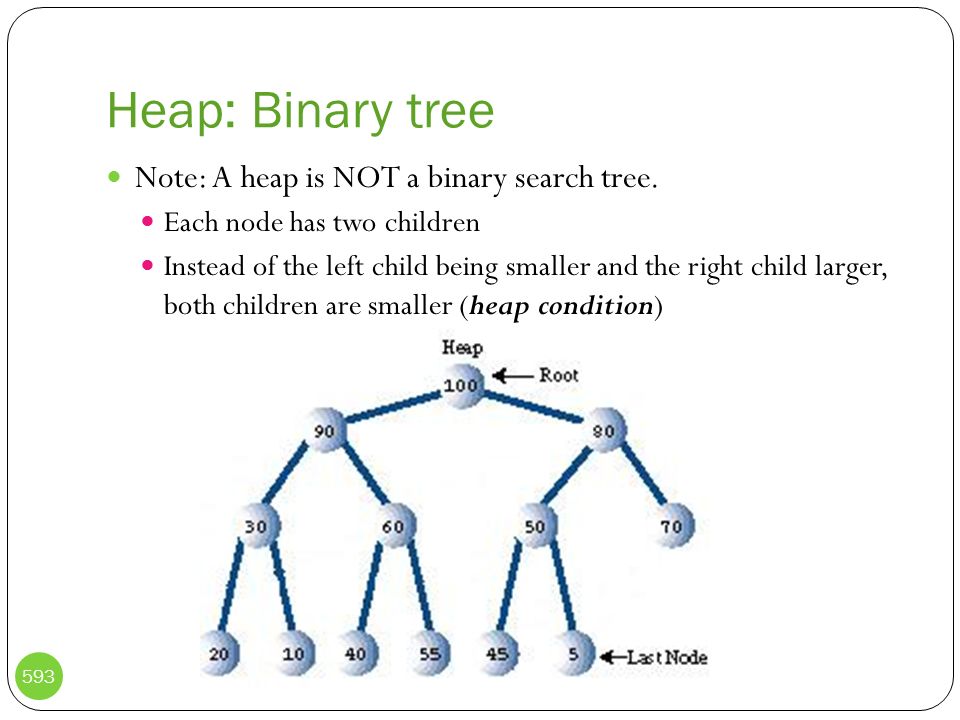

593 Heap: Binary tree Note: A heap is NOT a binary search tree. Each node has two children Instead of the left child being smaller and the right child larger, both children are smaller (heap condition) 593

594 Complete A heap is a complete binary tree In that, each row is completely filled in reading from left to right The last row need not be 594

595 Array Implementation Heaps are usually implemented with arrays It will become clear why 595

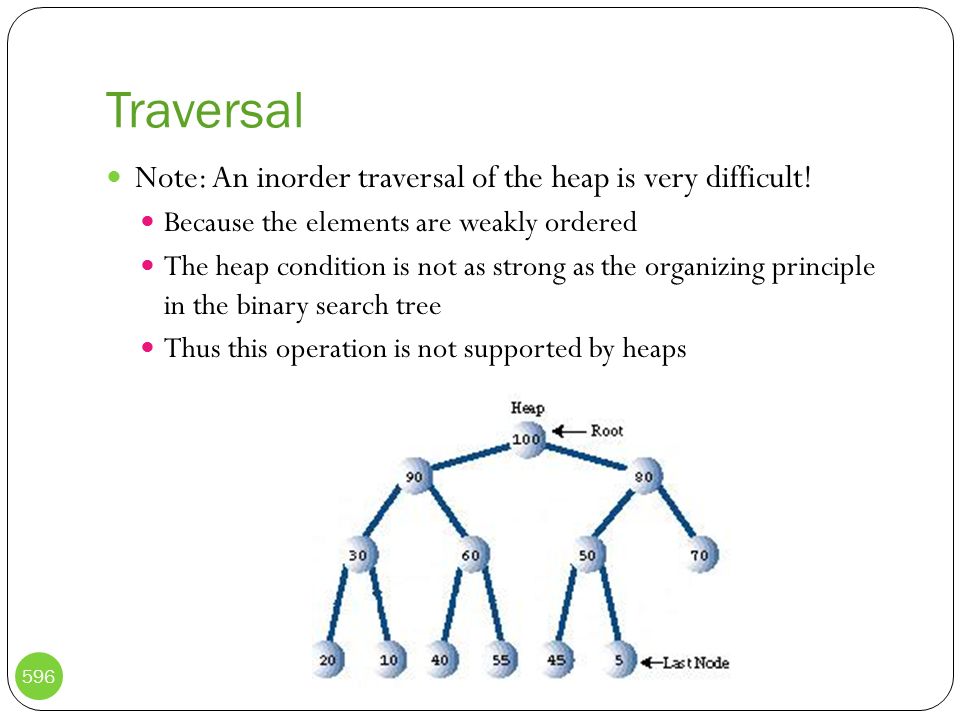

596 Traversal Note: An inorder traversal of the heap is very difficult! Because the elements are weakly ordered The heap condition is not as strong as the organizing principle in the binary search tree Thus this operation is not supported by heaps 596

597 Arbitrary search and deletion Searching and deleting any element other than the maximum is also not supported For the same reasons, they are difficult and expensive There are actually only two operations that a heap supports…. 597

598 Supported Operations A heap only supports two operations: Deletion of the maximum element Insertion of a new element These are actually the two required operations for a priority queue! 598

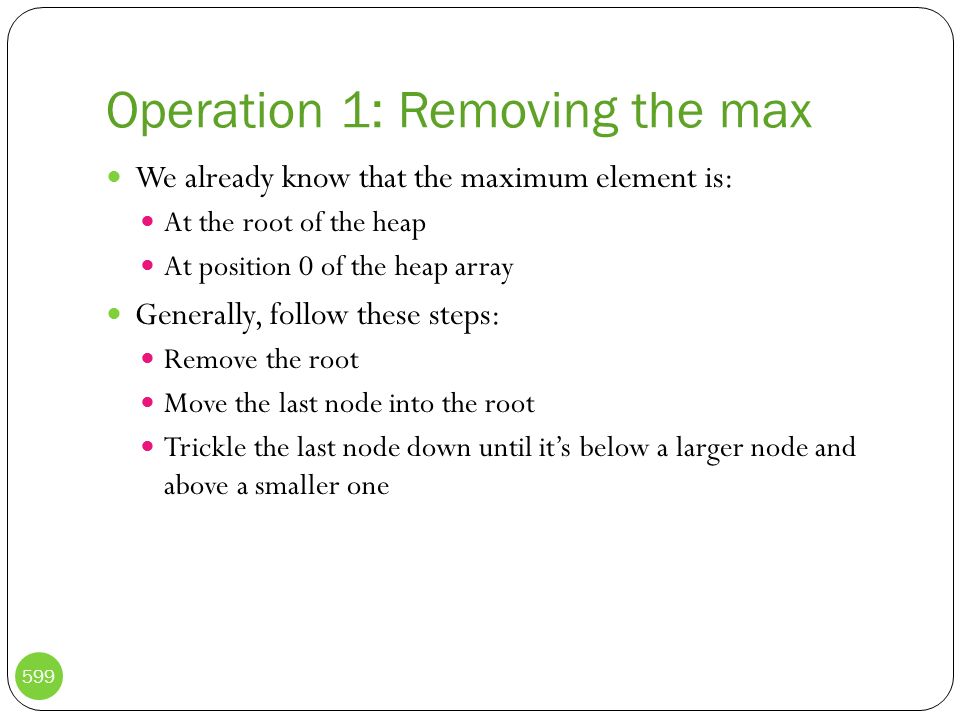

599 Operation 1: Removing the max We already know that the maximum element is: At the root of the heap At position 0 of the heap array Generally, follow these steps: Remove the root Move the last node into the root Trickle the last node down until it’s below a larger node and above a smaller one 599

600 Example Delete node 95 (the max) from the following heap: 600

601 Step 1 Remove the root and replace it by the last node 601

602 Step 2 Trickle the node down the tree, swap until it lies between larger and smaller nodes 602

603 Step 2 Trickle the node down the tree, swap until it lies between larger and smaller nodes 603

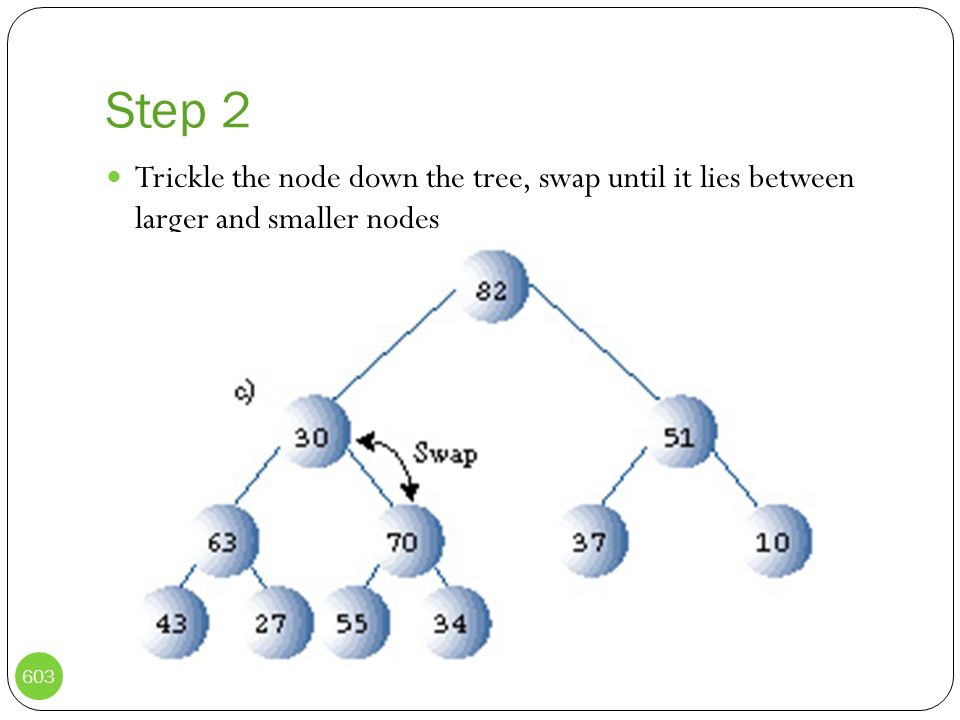

604 Step 2 Trickle the node down the tree, swap until it lies between larger and smaller nodes 604

605 Step 2 Trickle the node down the tree, swap until it lies between larger and smaller nodes 605

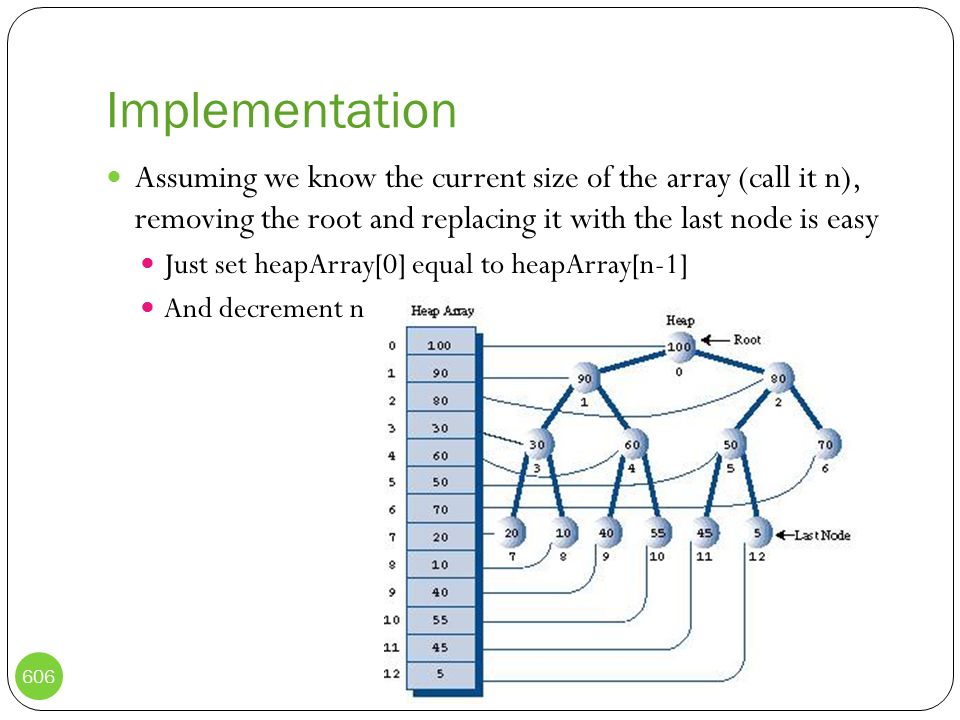

606 Implementation Assuming we know the current size of the array (call it n), removing the root and replacing it with the last node is easy Just set heapArray[0] equal to heapArray[n-1] And decrement n 606

607 Trickling Down Once we’ve moved the last element to the root, if either or both children are larger: Find the bigger child and swap 607

608 Trickling Down Note, given a node at index x: Its parent is at (x-1)/2 Its children are at 2x+1 and 2x+2 608

609 Trickling Down So generally, for trickling down: Start x at 0 while (heapArray[x] < heapArray[2x+1] or heapArray[x] < heapArray[2x+2]) largerChild = max(heapArray[2x+1], heapArray[2x+2]) swap(heapArray[x], largerChild) if (largerChild was left child) x = 2x+1 else x = 2x+2 Of course, we need checks if we are at the bottom… 609

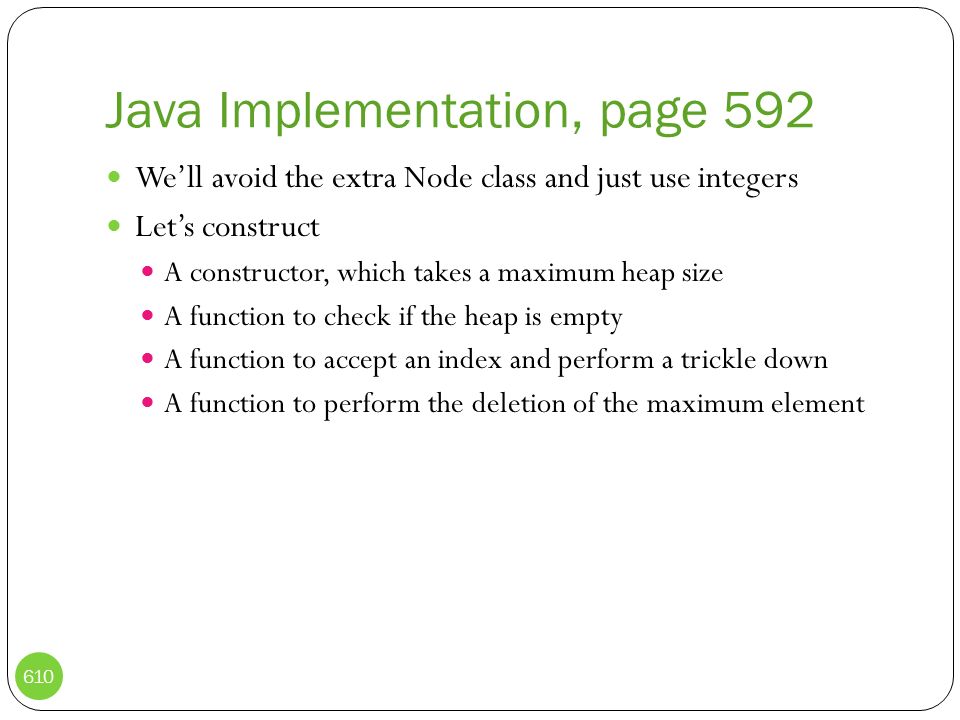

610 Java Implementation, page 592 We’ll avoid the extra Node class and just use integers Let’s construct A constructor, which takes a maximum heap size A function to check if the heap is empty A function to accept an index and perform a trickle down A function to perform the deletion of the maximum element 610

611 Operation 2: Insertion Generally, follow the following steps: Insert the new node at the next available spot in the bottom row If it violates the heap condition (translation: it’s bigger than its parent) Trickle the node upwards, until it’s smaller than the parent 611

612 Example Add node 95 to the following tree: 612

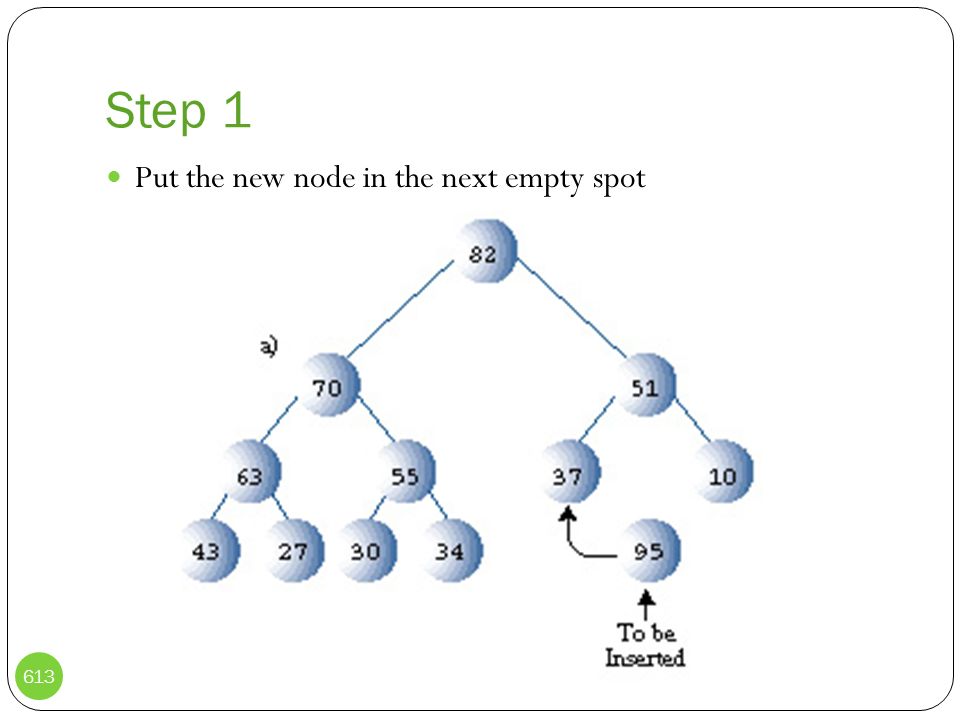

613 Step 1 Put the new node in the next empty spot 613

614 Step 2 If the node is larger than the parent, swap it 614

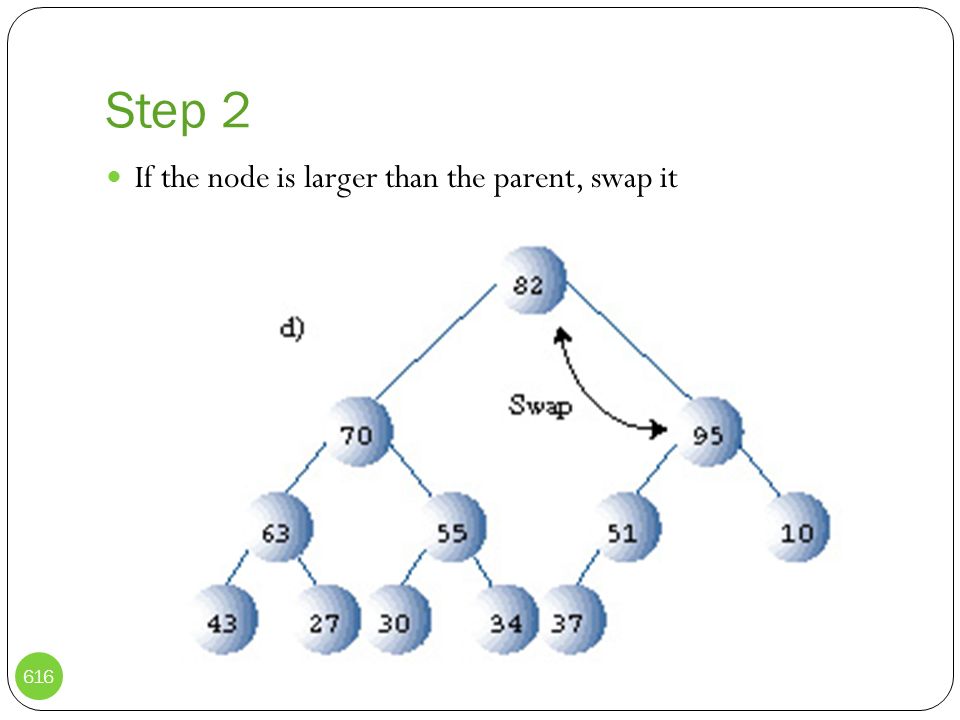

615 Step 2 If the node is larger than the parent, swap it 615

616 Step 2 If the node is larger than the parent, swap it 616

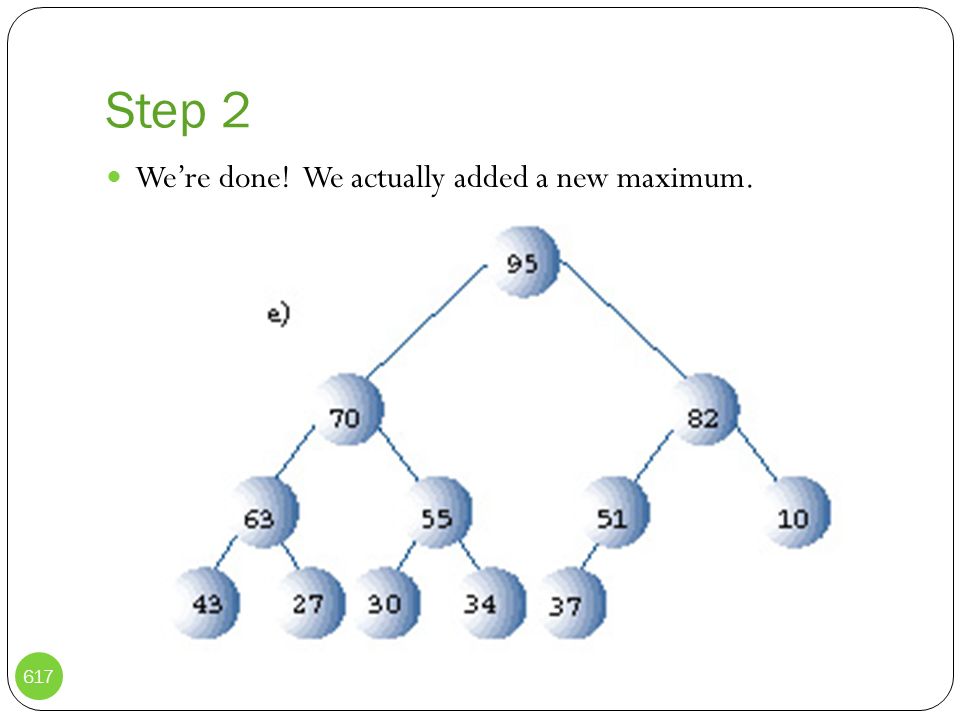

617 Step 2 We’re done! We actually added a new maximum. 617

618 Implementation Once again, step 1 is easy If the current size of the heap is n Set heapArray[n] to the new key Increment n 618

619 Trickling Up Again, given a node at index x: Its parent is at (x-1)/2 Its children are at 2x+1 and 2x+2 619

620 Trickling Up General approach will be: while (heapArray[(x-1)/2] < heapArray[x] and we’re not at the root) swap(heapArray[x], heapArray[(x-1)/2] x = (x-1)/2 Let’s look at the implementation.. 620

621 Java Implementation, page 592 Again, we’re avoiding the Node class and just using integers Let’s implement Constructor Function to check if the heap is empty A function which takes an index and trickles that node up A function which performs the insertion 621

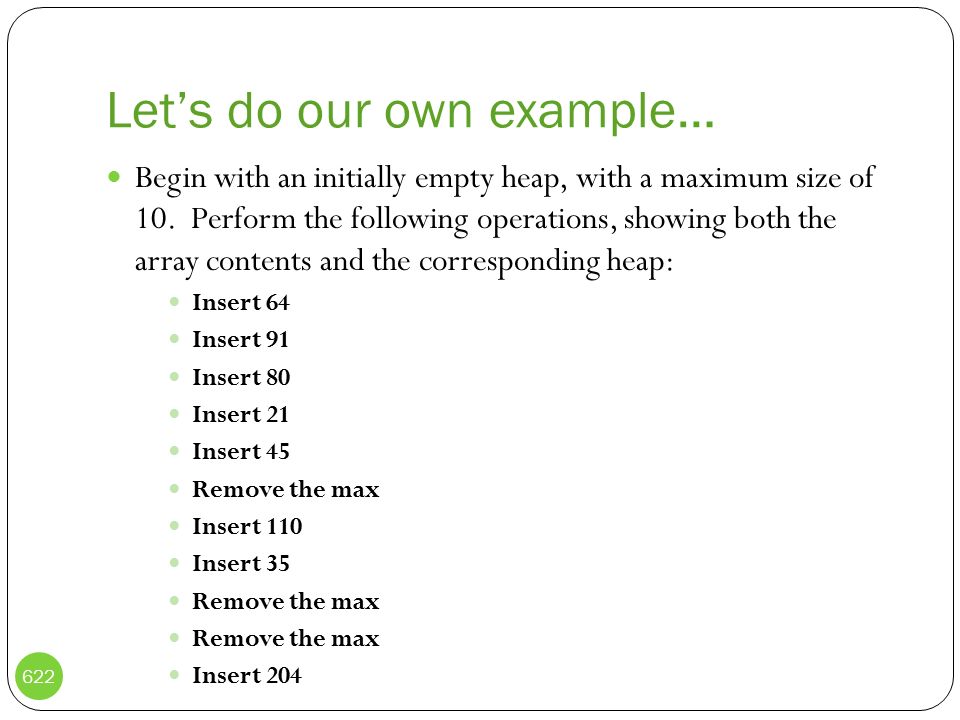

622 Let’s do our own example… Begin with an initially empty heap, with a maximum size of 10. Perform the following operations, showing both the array contents and the corresponding heap: Insert 64 Insert 91 Insert 80 Insert 21 Insert 45 Remove the max Insert 110 Insert 35 Remove the max Insert 204 622

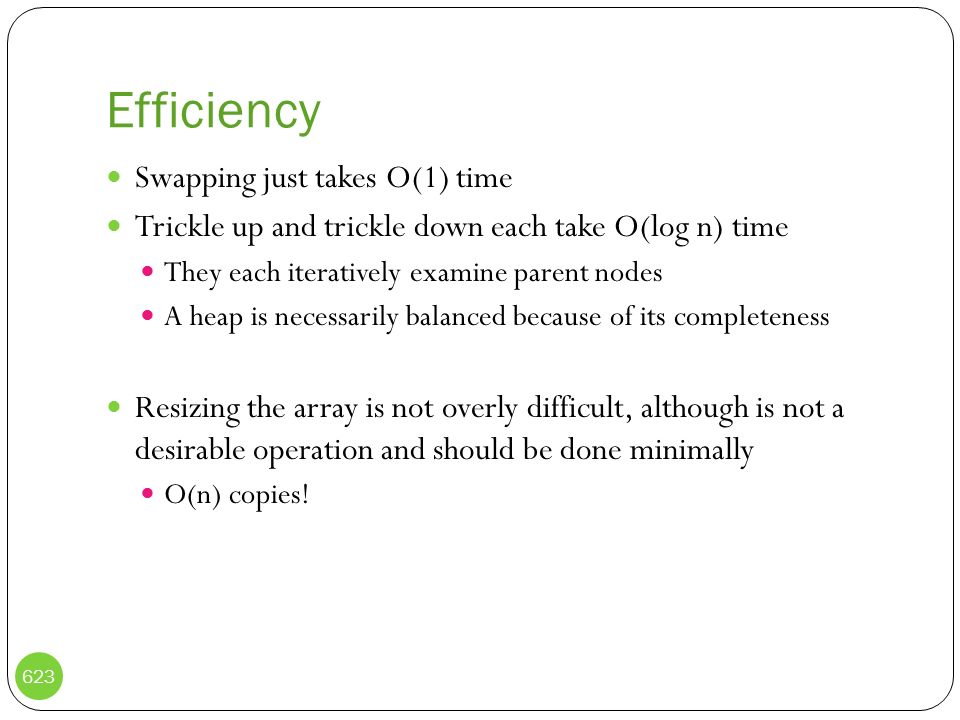

623 Efficiency Swapping just takes O(1) time Trickle up and trickle down each take O(log n) time They each iteratively examine parent nodes A heap is necessarily balanced because of its completeness Resizing the array is not overly difficult, although is not a desirable operation and should be done minimally O(n) copies! 623

624 Why use arrays? Actually you can use trees if you want to This is called a tree heap Let’s construct the Node class… will look similar to the binary search tree (but remember the properties are different!) Difficult to implement however If you know how many elements are in the tree, you can find the last element by converting the size to binary For example, if there are 29 nodes: 29 = 11101 in binary. Remove the first digit, get 1101 Go right (1), right (1), left (0) and right(1) to get to the 29 th node Once you find the last node, our operations become relatively easy But you’re adding an O(log n) operation just to find the last element.  624

625 Heapsort If I had a collection of n integers that I wanted to sort: Insert all n into the heap Remove the maximum element n times Really? That easy? Yes! 625

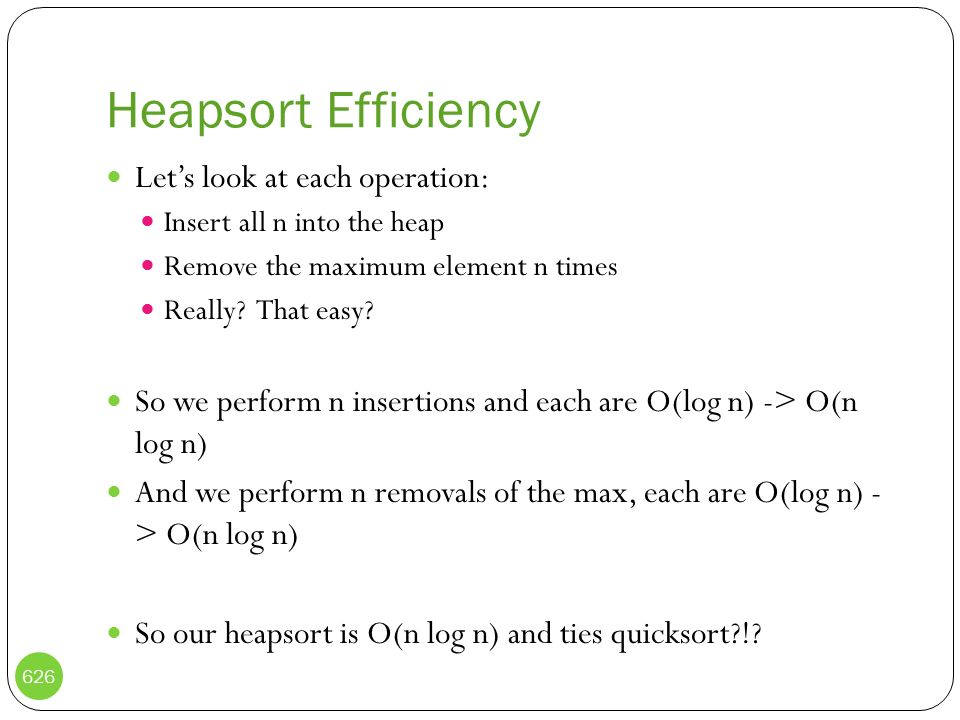

626 Heapsort Efficiency Let’s look at each operation: Insert all n into the heap Remove the maximum element n times Really? That easy? So we perform n insertions and each are O(log n) -> O(n log n) And we perform n removals of the max, each are O(log n) - > O(n log n) So our heapsort is O(n log n) and ties quicksort?!? 626

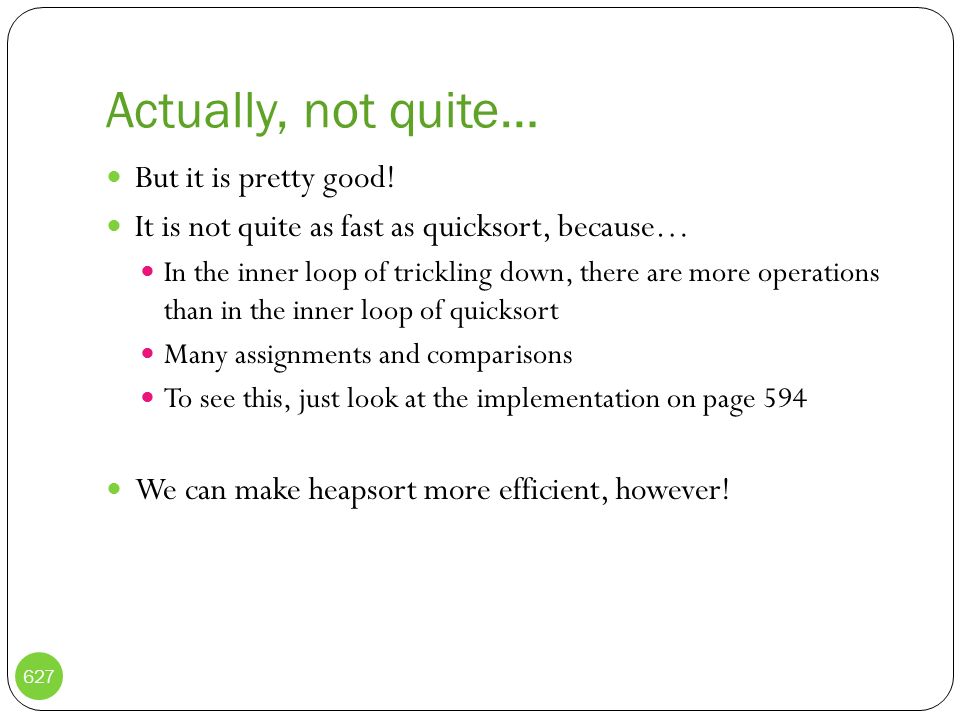

627 Actually, not quite… But it is pretty good! It is not quite as fast as quicksort, because… In the inner loop of trickling down, there are more operations than in the inner loop of quicksort Many assignments and comparisons To see this, just look at the implementation on page 594 We can make heapsort more efficient, however! 627

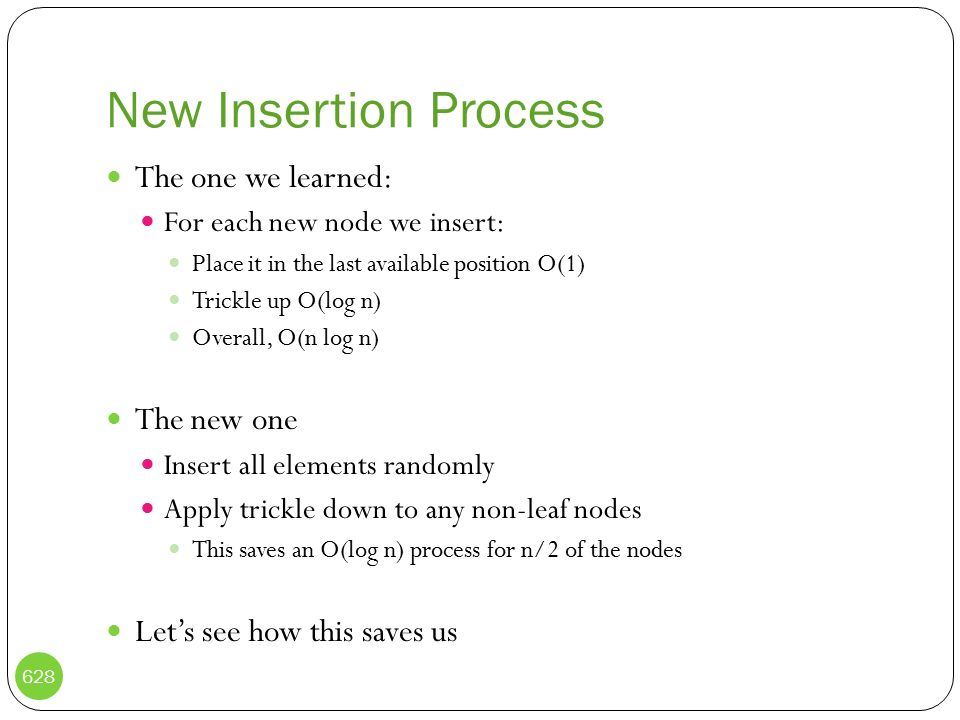

628 New Insertion Process The one we learned: For each new node we insert: Place it in the last available position O(1) Trickle up O(log n) Overall, O(n log n) The new one Insert all elements randomly Apply trickle down to any non-leaf nodes This saves an O(log n) process for n/2 of the nodes Let’s see how this saves us 628

629 Revisiting Trickle Down… To the right, you can see the trickling down of the root node 30: Continue to swap positions until 30 is between a smaller and larger node 629

630 What we can note… Trickling down requires correct subheaps 630

631 What we can note… However, the leaf nodes in the bottom row, already must be correct heaps So we don’t have to apply trickle down to them These comprise roughly half the nodes in the tree 631

632 So, summary with insertion So with insertion, we actually can save operations Instead of n operations of trickle up, we have n/2 operations of trickle down Overall Randomly insert n elements -> n*O(1) = O(n) Trickle down n/2 elements -> (n/2)*O(log n) = O(n log n) So it’s still O(n log n), but you’re doing half as many trickles Not a huge savings, but well worth it! 632

633 One way: Iteratively Note that, the bottom row of nodes begins at index n/2 So, apply trickle down to nodes (n/2)-1 to 0 (the root) Note we have to go in reverse, because trickle down works properly only if subtrees are correct heaps 633

634 Second Way: Recursion Called ‘heapify’, and pass a node index Envision as: If the index is larger than (n/2)-1, do nothing Otherwise: Heapify the left subtree Heapify the right subtree Trickle down this node Java implementation, page 603 634

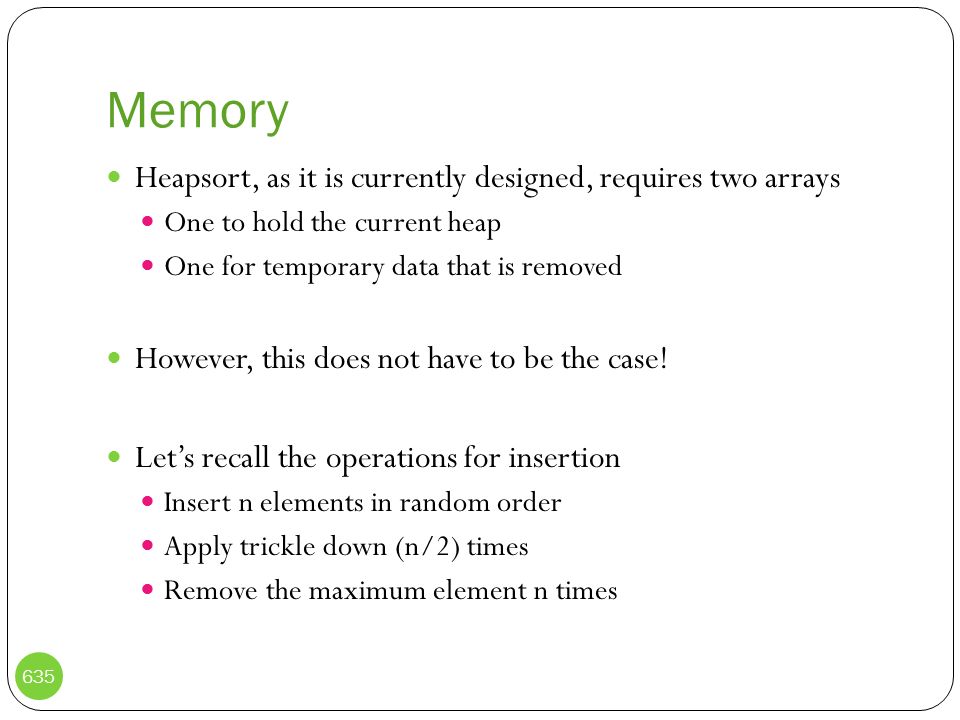

635 Memory Heapsort, as it is currently designed, requires two arrays One to hold the current heap One for temporary data that is removed However, this does not have to be the case! Let’s recall the operations for insertion Insert n elements in random order Apply trickle down (n/2) times Remove the maximum element n times 635

636 Sharing Space Note: We don’t necessarily need two arrays for heapsort! n/2 trickle down operations can be easily done on the same array, it’s just swapping contents of cells 636

637 Sharing Space When we remove the maximum element, one slot becomes open at the end of the subarray we are sorting We can just insert the maximum element there! The result will be a sorted array 637

638 (Time Pending) Java Implementation, page 605 Summary: Get the array size from the user -> 1 Fill with random data -> n Turn array into a heap with n/2 applications of trickle down -> (n/2)*(log n) Remove items from the heap -> n log n Write back to the end of the array -> n Total: (3n/2)*(log n) + 2n + 1 -> O(n log n) 638

639 CS221N, Data Structures Graphs 639

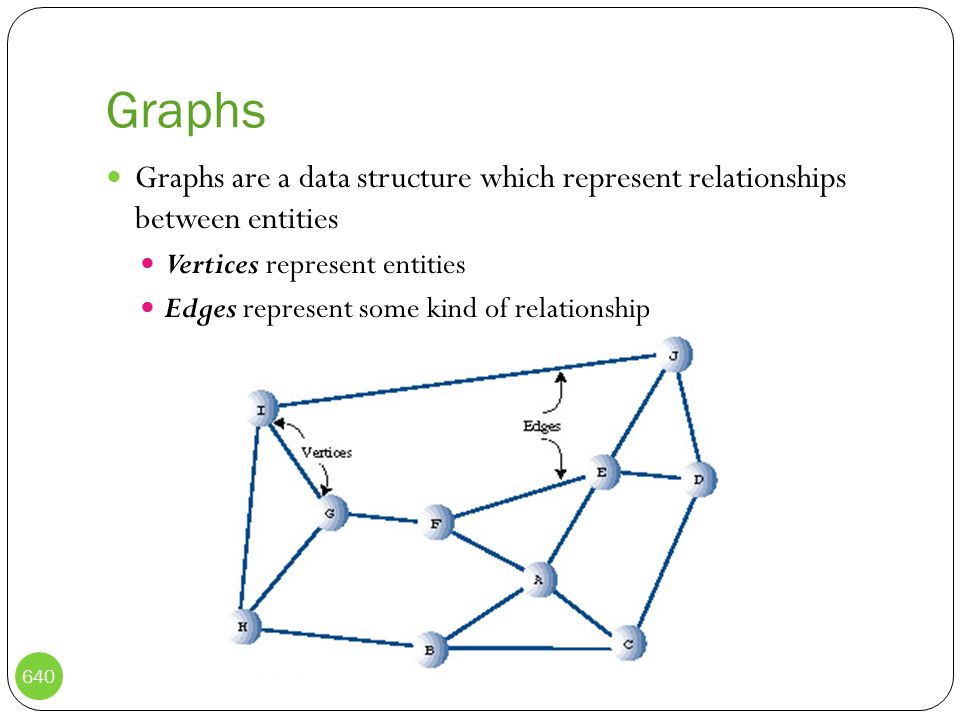

640 Graphs Graphs are a data structure which represent relationships between entities Vertices represent entities Edges represent some kind of relationship 640

641 Example The graph on the previous page could be used to model San Jose freeway connections: 641

642 Adjacency Two vertices are adjacent to one another if they are connected by a single edge For example: I and G are adjacent A and C are adjacent I and F are not adjacent Two adjacent nodes are considered neighbors 642

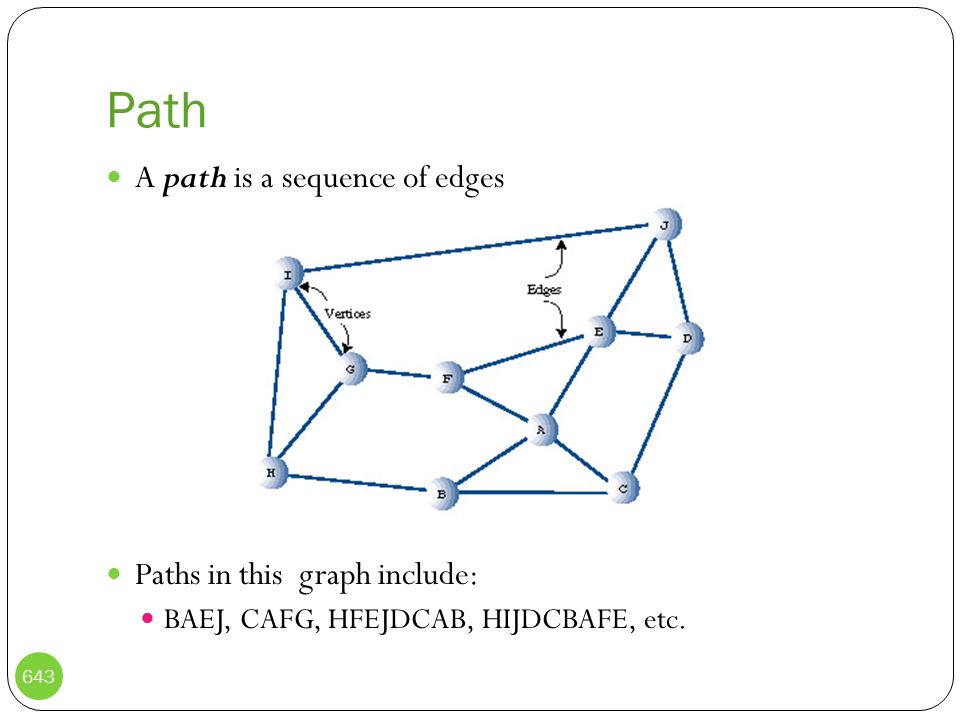

643 Path A path is a sequence of edges Paths in this graph include: BAEJ, CAFG, HFEJDCAB, HIJDCBAFE, etc. 643

644 Connected Graphs A graph is connected if there is at least one path from every vertex to every other vertex 644

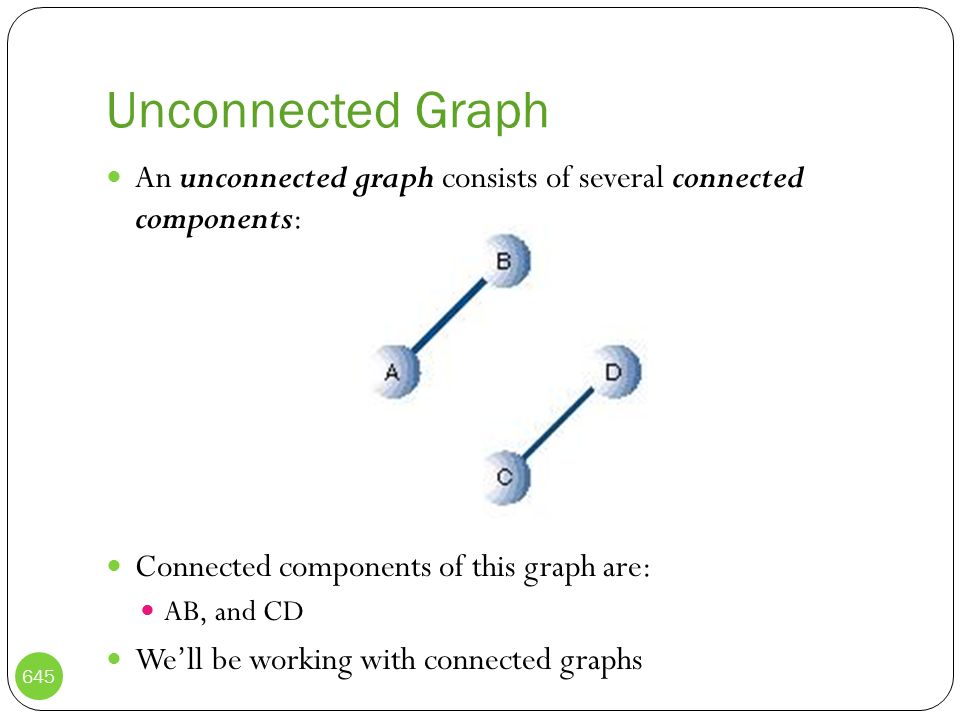

645 Unconnected Graph An unconnected graph consists of several connected components: Connected components of this graph are: AB, and CD We’ll be working with connected graphs 645

646 Directed Graphs A graph where edges have directions Usually designated by an arrow 646

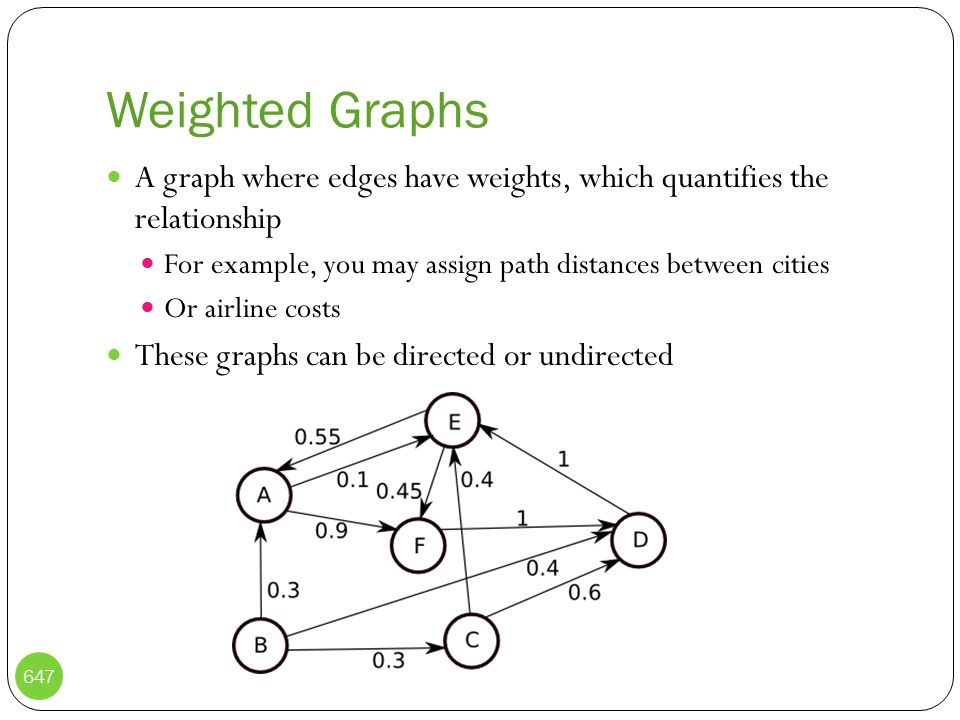

647 Weighted Graphs A graph where edges have weights, which quantifies the relationship For example, you may assign path distances between cities Or airline costs These graphs can be directed or undirected 647

648 Vertices: Java Implementation We can represent a vertex as a Java class with: Character data A boolean data member to check if it has been visited Now we need to specify edges. But in a graph, we don’t know how many there will be! We can do this using either an adjacency matrix or an adjacency list. We’ll look at both. 648

649 Adjacency Matrix An adjacency matrix for a graph with n nodes, is size n x n Position (i, j) contains a 1 if there is an edge connecting node i with node j Zero otherwise For example, here is a graph and its adjacency matrix: 649

650 Redundant? This may seem a bit redundant: Why store two pieces of information for the same edge? i.e., (A, B) and (B, A) Unfortunately, there’s no easy way around it Because edges have no direction No concept of ‘parents’ and ‘children’ 650

651 Adjacency List An array of linked lists Index by vertex, and obtain a linked list of neighbors Here is the same graph, with its adjacency list: 651

652 Application: Searches A fundamental operation for a graph is: Starting from a particular vertex Find all other vertices which can be reached by following paths Example application How many towns in the US can be reached by train from Tampa? Two approaches Depth first search (DFS) Breadth first search (BFS) 652

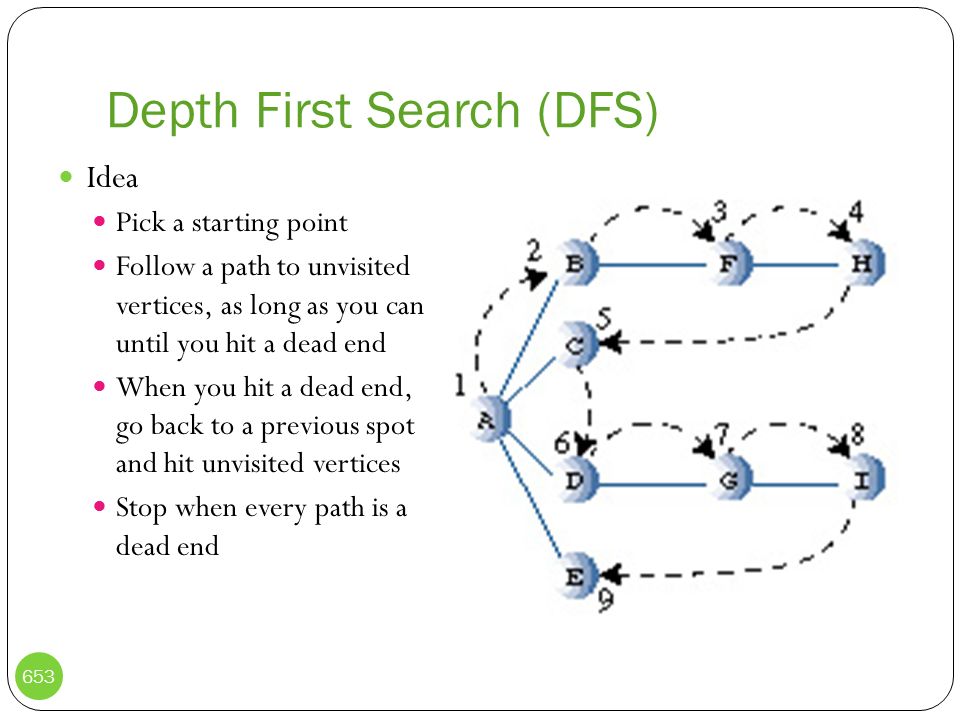

653 Depth First Search (DFS) Idea Pick a starting point Follow a path to unvisited vertices, as long as you can until you hit a dead end When you hit a dead end, go back to a previous spot and hit unvisited vertices Stop when every path is a dead end 653

654 Depth First Search (DFS) Algorithm Pick a vertex (call it A) as your starting point Visit this vertex, and: Push it onto a stack of visited vertices Mark it as visited (so we don’t visit it again) Visit any neighbor of A that hasn’t yet been visited Repeat the process When there are no more unvisited neighbors Pop the vertex off the stack Finished when the stack is empty Note: We get as far away from the starting point until we reach a dead end, then pop (can be applied to mazes) 654

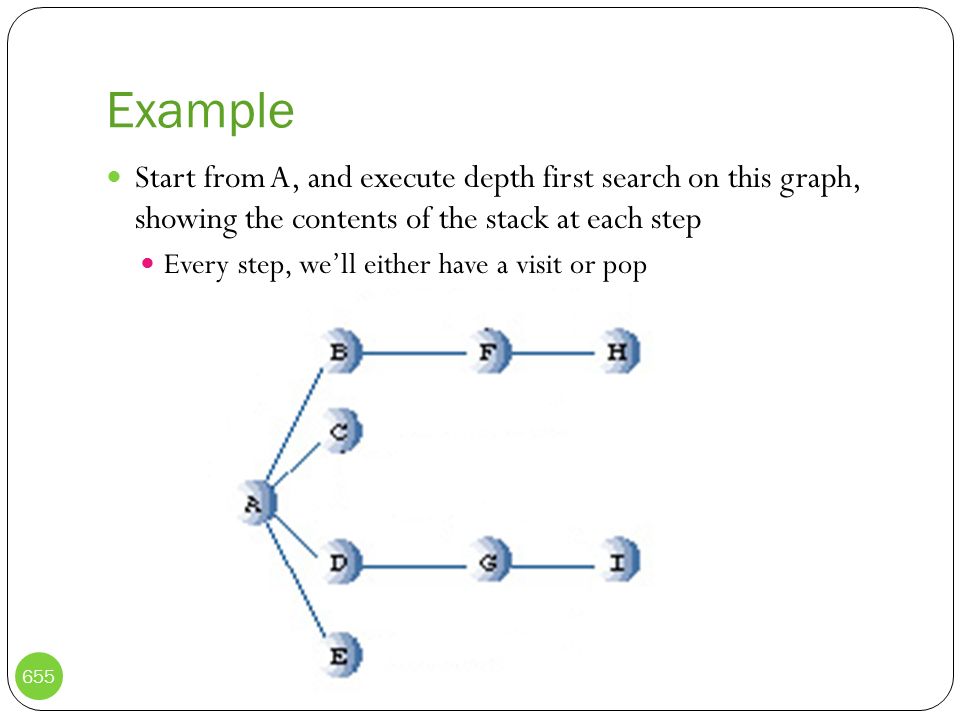

655 Example Start from A, and execute depth first search on this graph, showing the contents of the stack at each step Every step, we’ll either have a visit or pop 655

656 Depth First Search: Complexity Let |V| be the number of vertices in a graph And let |E| be the number of edges In the worst case, we visit every vertex and every edge: O(|V| + |E|) time At first glance, this doesn’t look too bad But remember a graph can have lots of edges! Worst case, every vertex is connected to every other: (n-1) + (n-2) + … + 1 = O(n 2 ) So it can be expensive if the graph has many edges 656

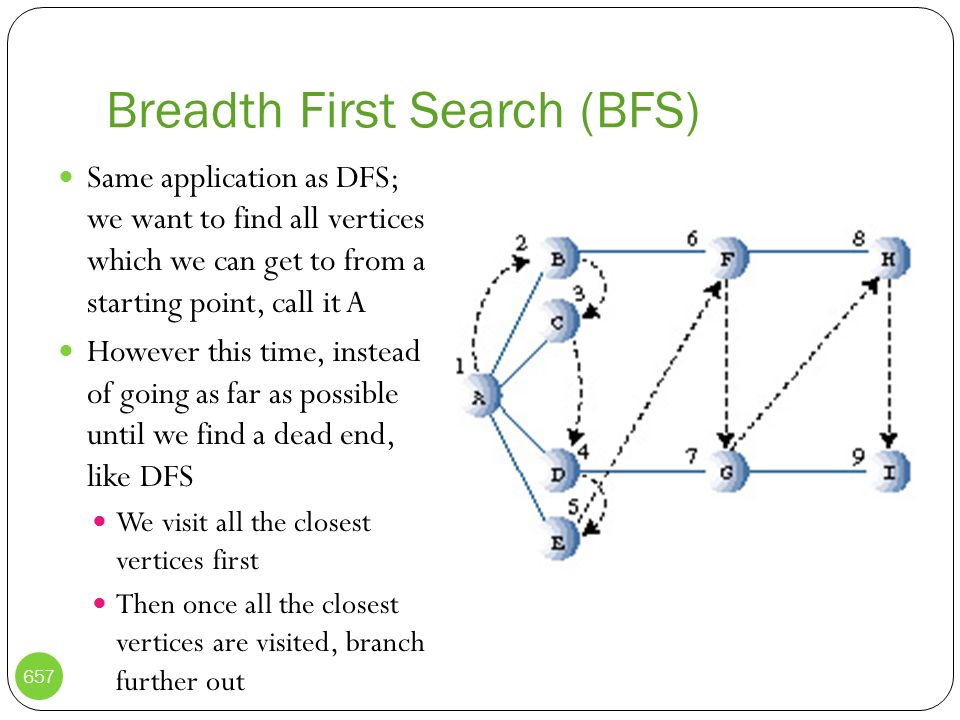

657 Breadth First Search (BFS) Same application as DFS; we want to find all vertices which we can get to from a starting point, call it A However this time, instead of going as far as possible until we find a dead end, like DFS We visit all the closest vertices first Then once all the closest vertices are visited, branch further out 657

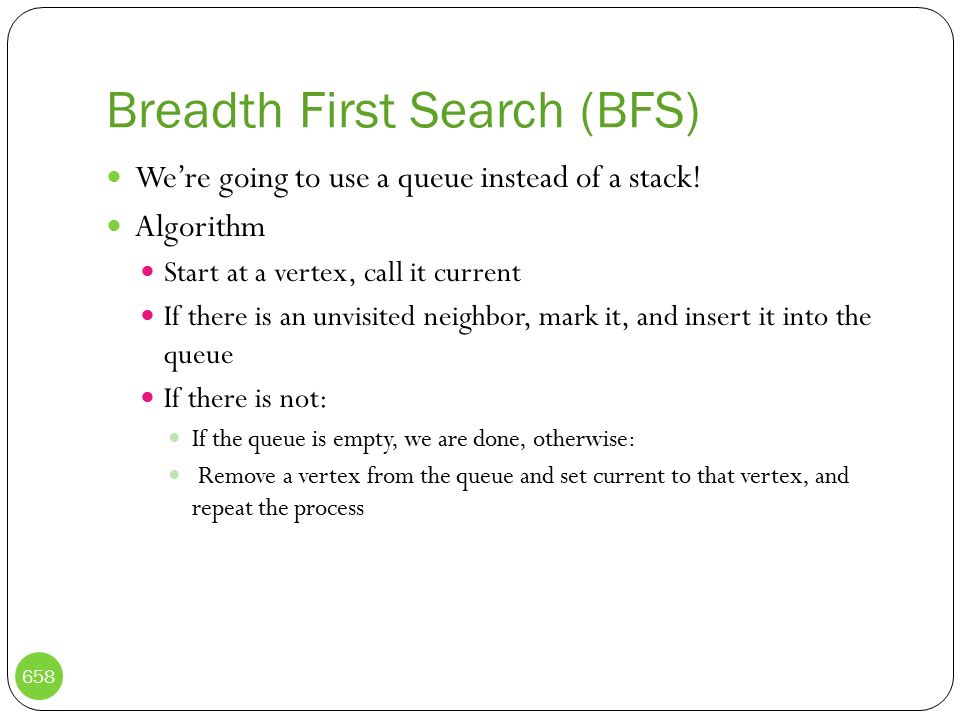

658 Breadth First Search (BFS) We’re going to use a queue instead of a stack! Algorithm Start at a vertex, call it current If there is an unvisited neighbor, mark it, and insert it into the queue If there is not: If the queue is empty, we are done, otherwise: Remove a vertex from the queue and set current to that vertex, and repeat the process 658

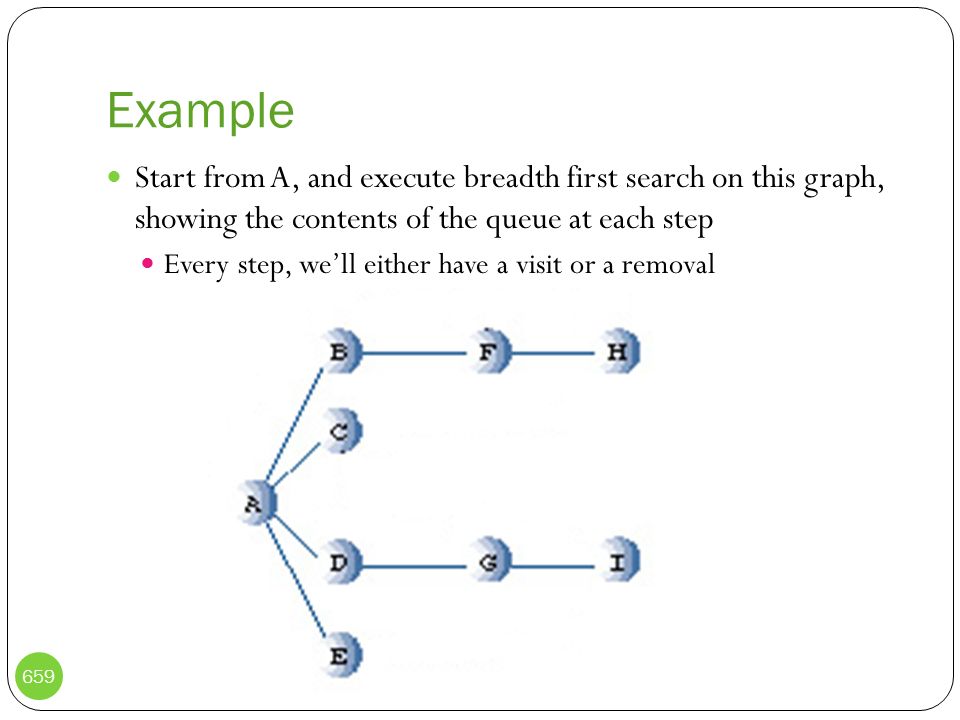

659 Example Start from A, and execute breadth first search on this graph, showing the contents of the queue at each step Every step, we’ll either have a visit or a removal 659

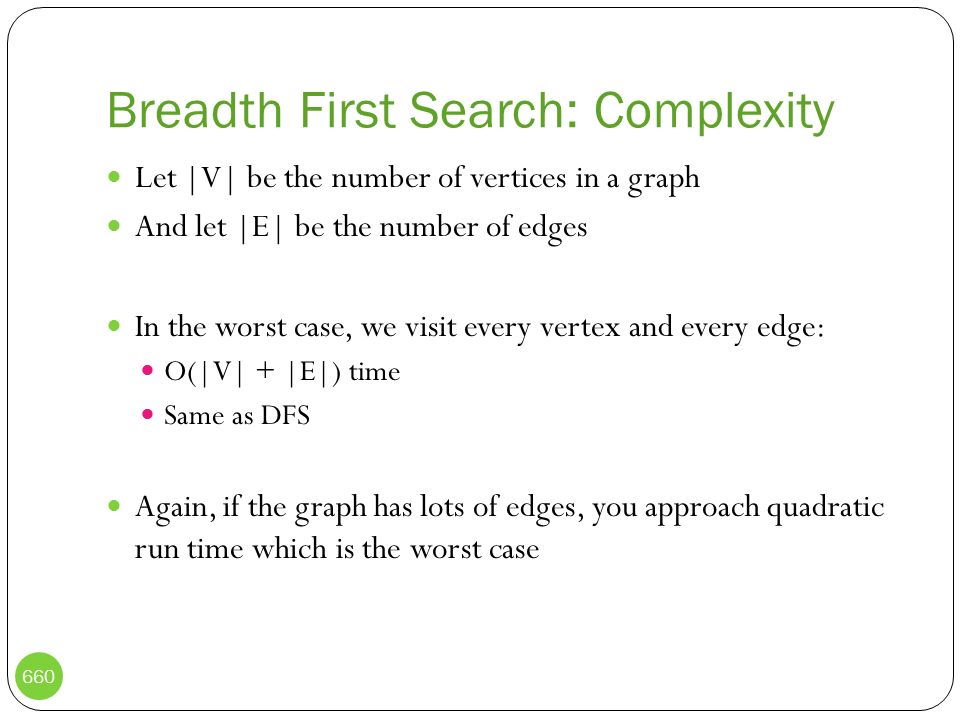

660 Breadth First Search: Complexity Let |V| be the number of vertices in a graph And let |E| be the number of edges In the worst case, we visit every vertex and every edge: O(|V| + |E|) time Same as DFS Again, if the graph has lots of edges, you approach quadratic run time which is the worst case 660

661 Minimum Spanning Trees (MSTs) On that note of large numbers of edges slowing down our precious search algorithms: Let’s look at MSTs, which can help ameliorate this problem It would be nice to take a graph and reduce the number of edges to the minimum number required to span all vertices: 661 What’s the number of edges now?

662 We’ve done it already… Actually, if you execute DFS you’ve already computed the MST! Think about it: you follow a path for as long as you can, then backtrack (visit every vertex at most once) You just have to save edges as you go 662

663 Directed Graphs A directed graph is a graph where the edges have direction, signified by arrows: This will simplify the adjacency matrix a bit… 663

664 Adjacency Matrix The adjacency matrix for this graph does not contain redundant entries Because now each edge has a source and a sink So entry (i, j) is only set to 1 if there is an edge going from i to j 0 otherwise 664

665 Topological Sort Only works with DAGs (Directed Acyclic Graphs) That is if the graph has a cycle, this will not work Idea: Sort all vertices such that if a vertex’s successor always appears after it in a list (application: course prerequisites) 665

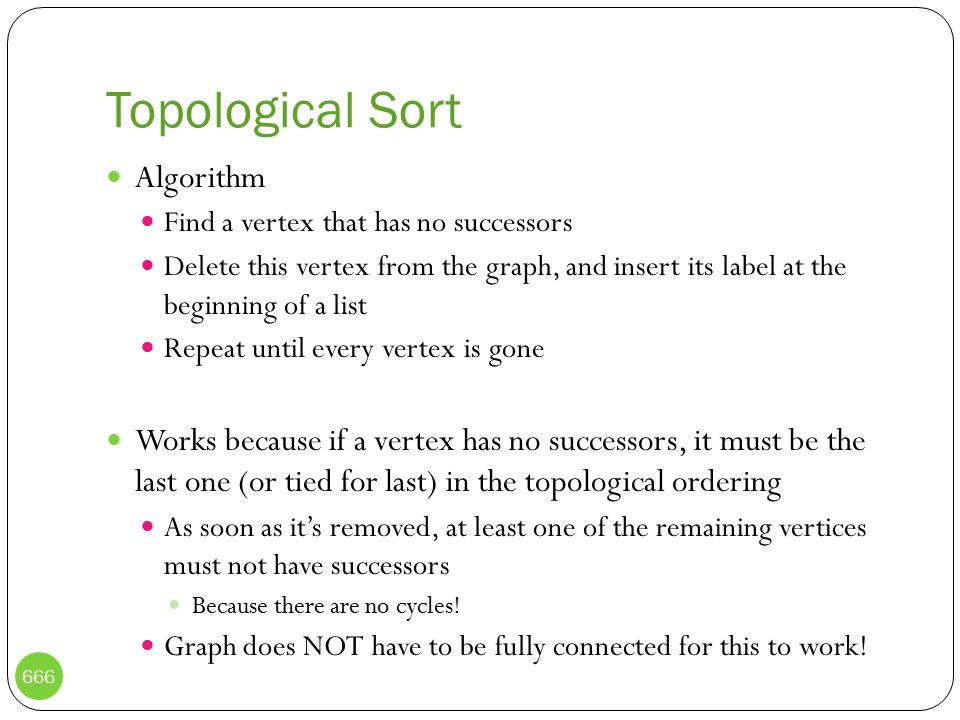

666 Topological Sort Algorithm Find a vertex that has no successors Delete this vertex from the graph, and insert its label at the beginning of a list Repeat until every vertex is gone Works because if a vertex has no successors, it must be the last one (or tied for last) in the topological ordering As soon as it’s removed, at least one of the remaining vertices must not have successors Because there are no cycles! Graph does NOT have to be fully connected for this to work! 666

667 Weighted Graphs Once again, a graph where edges have weights, which quantifies the relationship These graphs can be directed or undirected 667

668 Weighted Graph: Adjacency List The adjacency list for a weighted graph contains edge weights Instead of 0 and 1 If there is no edge connecting vertices i and j, a weight of INFINITY is used (not 0!) Because ‘0’ can also be a weight Also most applications of weighted graphs are to find minimum spanning trees or shortest path (we’ll look at this) Also remember if the graph is undirected, redundant information should be stored 668

669 Weighted Graph: Adjacency List 669 ABCDEF AINF 0.10.9 B0.3INF0.30.4INF C 0.60.4INF D 1 E0.55INF 0.45 FINF 1

670 Dijkstra’s Algorithm Given a weighted graph, find the shortest path (in terms of edge weights) between two vertices in the graph Numerous applications Cheapest airline fare between departure and arrival cities Shortest driving distance in terms of mileage 670

671 Dijkstra’s Algorithm Suppose in the graph below, we wanted the shortest path from B to F Idea: Maintain a table of the current shortest paths from B to all other vertices (and the route it takes) When finished, the table will hold the shorest path from B to all other vertices 671

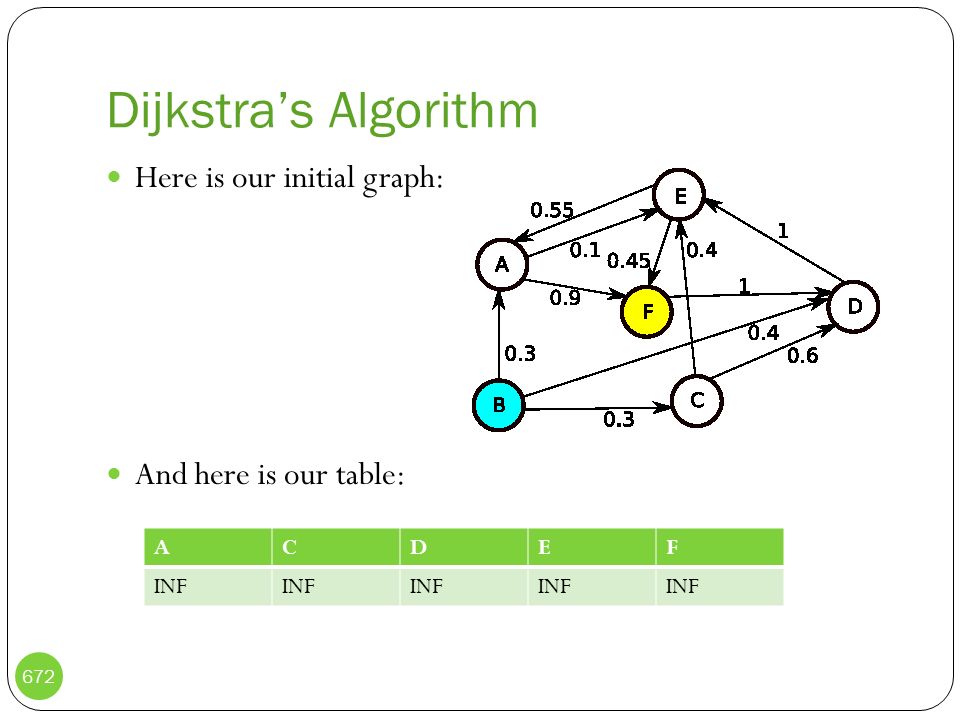

672 Dijkstra’s Algorithm Here is our initial graph: And here is our table: 672 ACDEF INF

673 Step 1 Take all edges leaving B, and put their weights in the table Along with the source vertex And here is our table: 673 ACDEF 0.3 (B) 0.4 (B)INF

674 Step 2 Pick the edge with the smallest weight and mark it as the shortest path from B (How do we know that?) And here is our table: 674 ACDEF 0.3* (B)0.3 (B)0.4 (B)INF

675 Step 3 Now choose one of the edges with minimal weight and repeat the process (explore adj. vertices and mark their total weight) And here is our table: 675 ACDEF 0.3* (B)0.3 (B)0.4 (B)INF

676 Step 4 In this case, we’ll look at A Explore adjacent vertices Enter the total weight from B to those vertices IF that weight is smaller than the current entry in the table Ignore the ones marked (*) So here is our table: 676 ACDEF 0.3* (B)0.3 (B)0.4 (B)0.4 (A)1.2 (A)

677 Step 5 Now, A is marked and we’ve visited its neighbors So pick the lowest entry in the table (in this case C) and repeat the process So here is our table: 677 ACDEF 0.3* (B) 0.4 (B)0.4 (A)1.2 (A)

678 Step 6 Visit C’s neighbors that are unmarked Insert their total weight into the table, IF it’s smaller than the current entry So in fact, nothing changes in the table: 678 ACDEF 0.3* (B) 0.4 (B)0.4 (A)1.2 (A)

679 Step 7 Now we visit D Which only contains one edge to E 0.4+1 = 1.4, which is larger than 0.4 So again, nothing changes in the table: 679 ACDEF 0.3* (B) 0.4* (B)0.4 (A)1.2 (A)

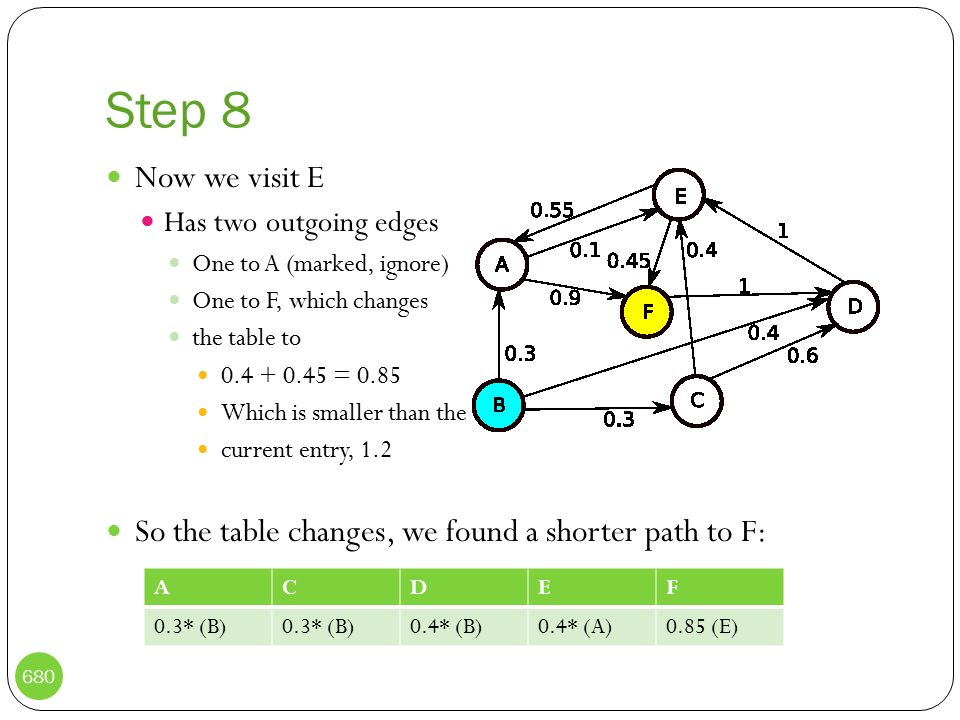

680 Step 8 Now we visit E Has two outgoing edges One to A (marked, ignore) One to F, which changes the table to 0.4 + 0.45 = 0.85 Which is smaller than the current entry, 1.2 So the table changes, we found a shorter path to F: 680 ACDEF 0.3* (B) 0.4* (B)0.4* (A)0.85 (E)

681 Step 9 Only one vertex left, so we’re actually finished Shortest path can be obtained by starting from the destination entry and working backwards F <- E <- A <- B Shortest path from B to F is: B -> A -> E -> F Total weight: 0.85 681 ACDEF 0.3* (B) 0.4* (B)0.4* (A)0.85* (E)

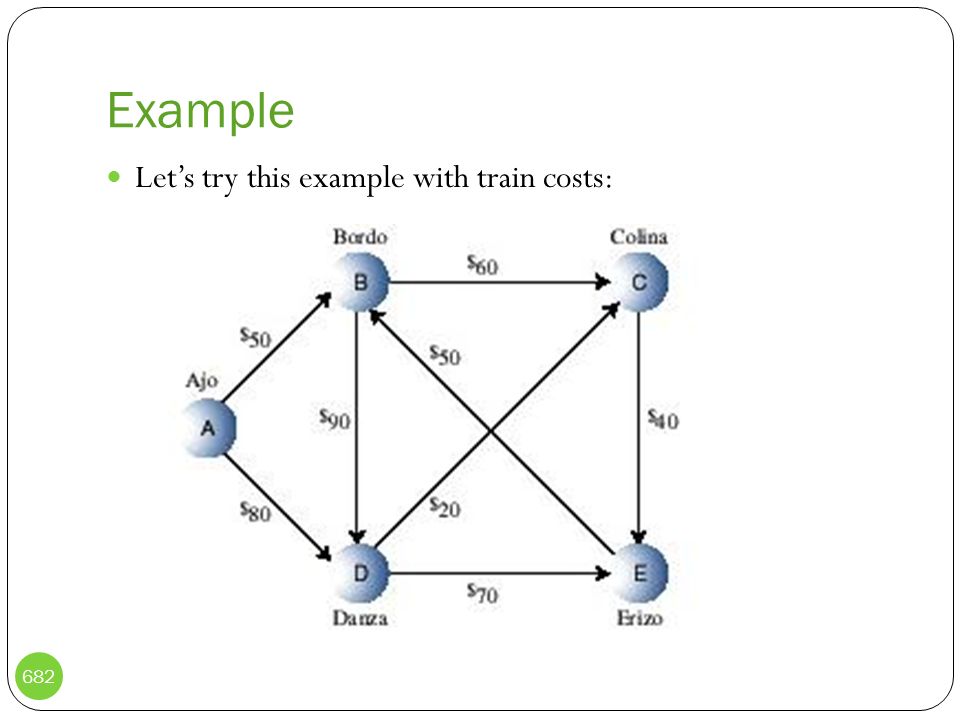

682 Example Let’s try this example with train costs: 682


Download ppt "Data Structures & Algorithm in Java Robert Lafore Introduction 1."

Similar presentations


Ads by Google
