1. Copyright ©: Nahrstedt, Angrave, Abdelzaher1 Synchronization

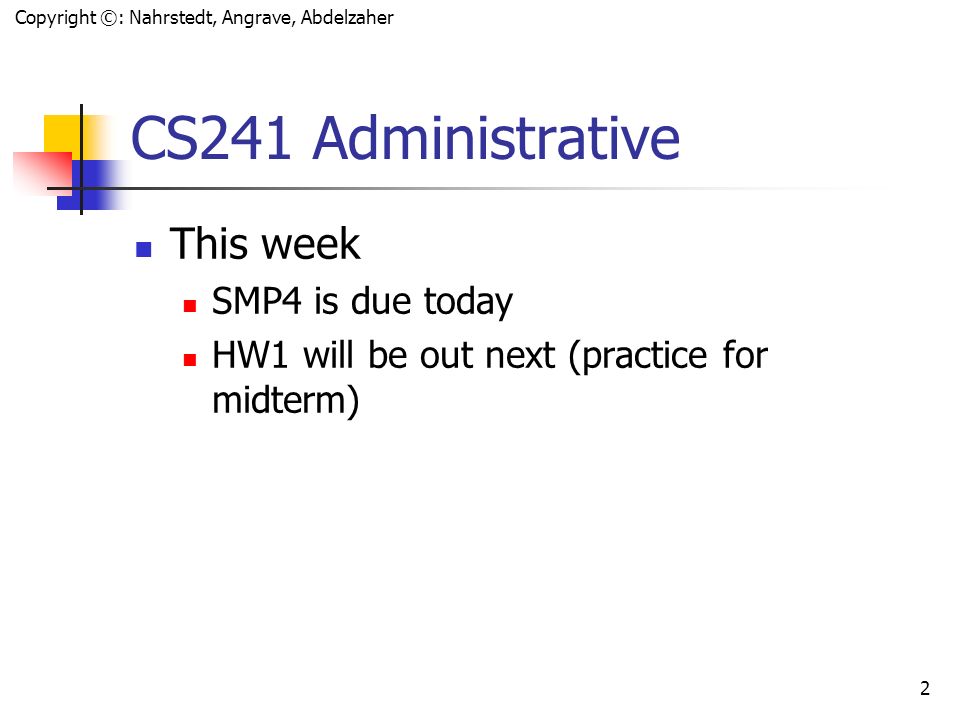

2. Copyright ©: Nahrstedt, Angrave, Abdelzaher 2 CS241 Administrative This week SMP4 is due today HW1 will be out next (practice for midterm)

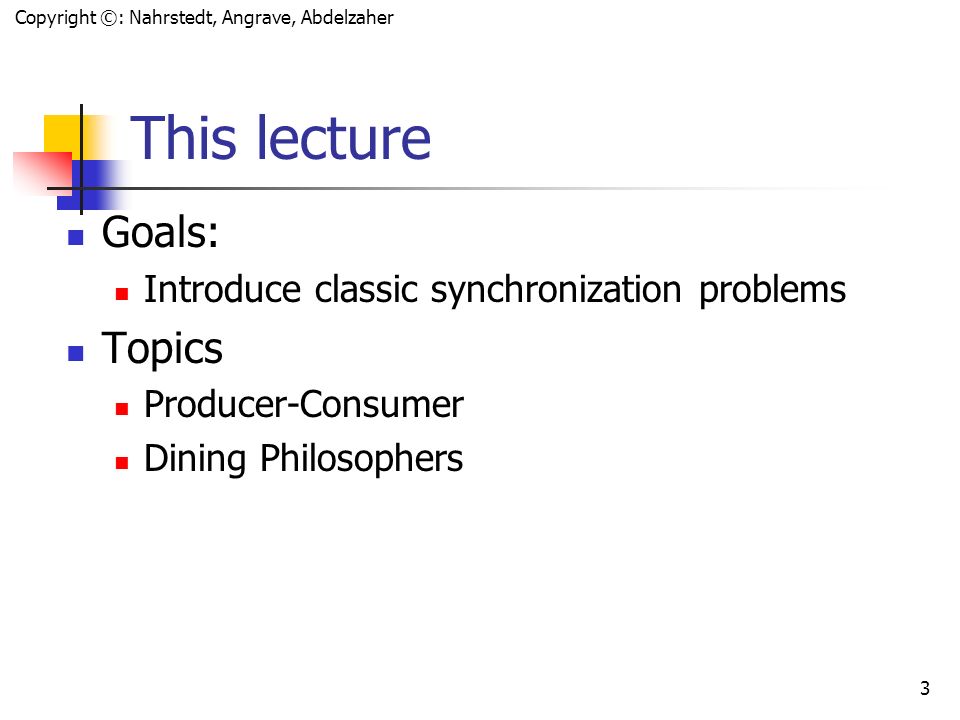

3. Copyright ©: Nahrstedt, Angrave, Abdelzaher 3 This lecture Goals: Introduce classic synchronization problems Topics Producer-Consumer Dining Philosophers

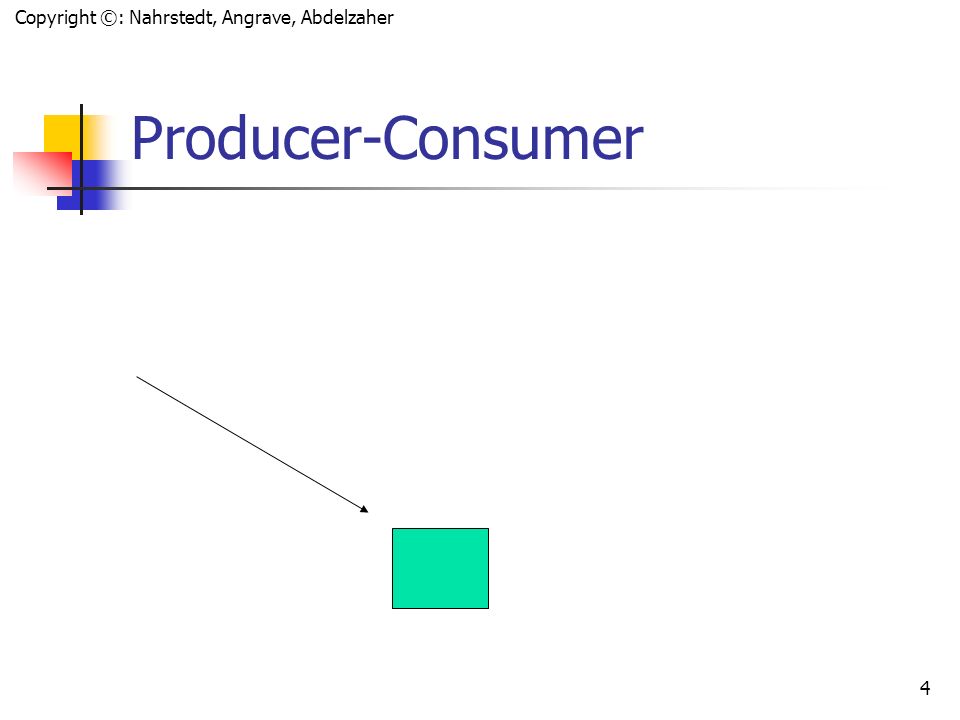

4. Copyright ©: Nahrstedt, Angrave, Abdelzaher 4 Producer-Consumer

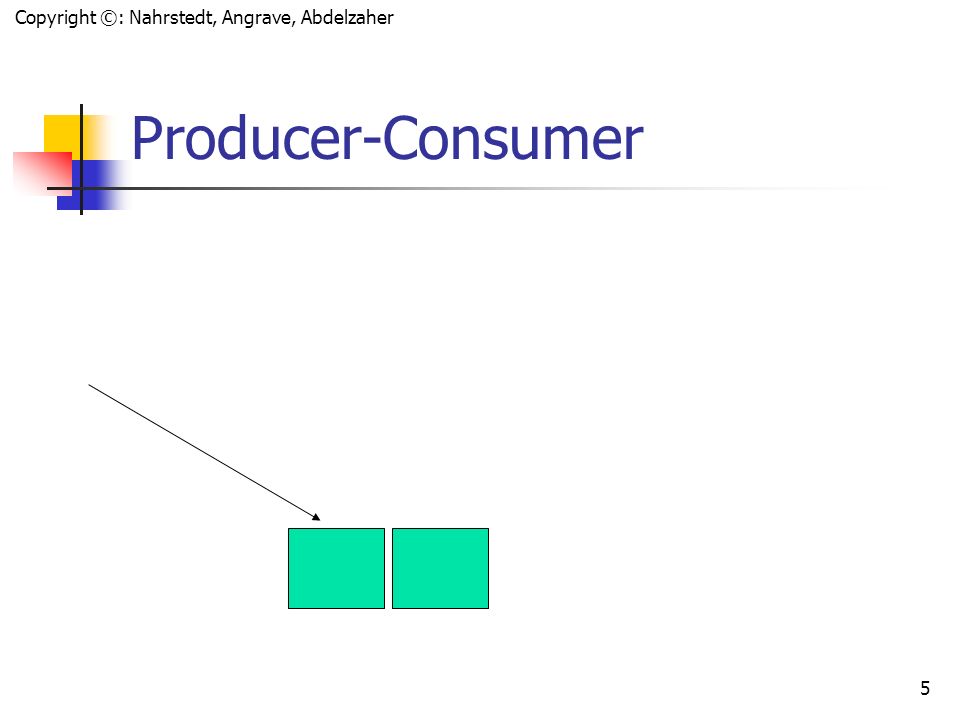

5. Copyright ©: Nahrstedt, Angrave, Abdelzaher 5 Producer-Consumer

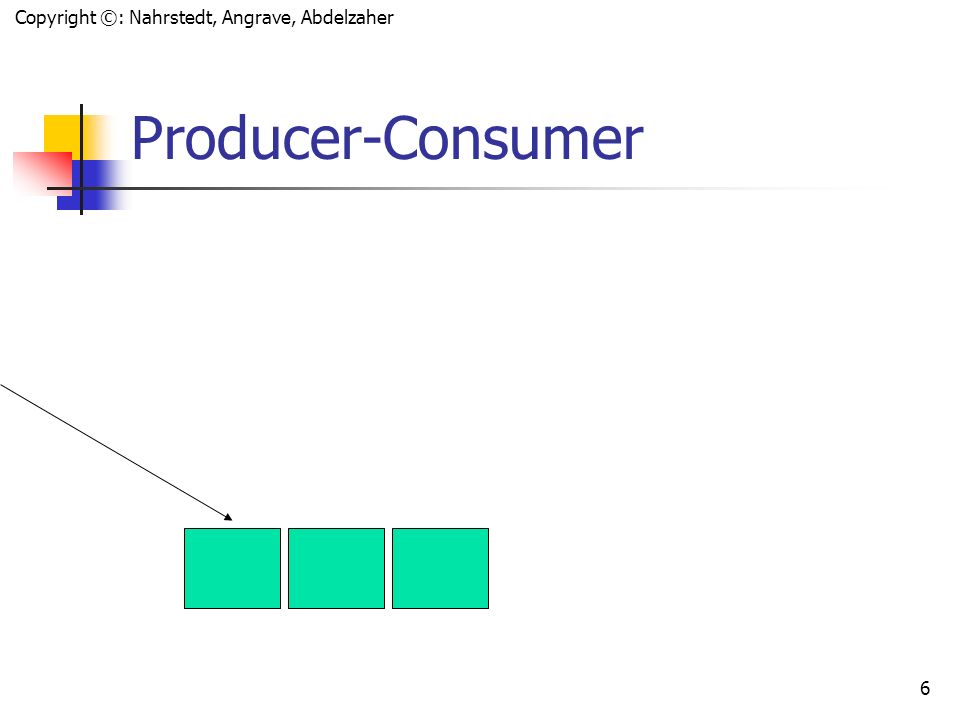

6. Copyright ©: Nahrstedt, Angrave, Abdelzaher 6 Producer-Consumer

7. Copyright ©: Nahrstedt, Angrave, Abdelzaher 7 Producer-Consumer

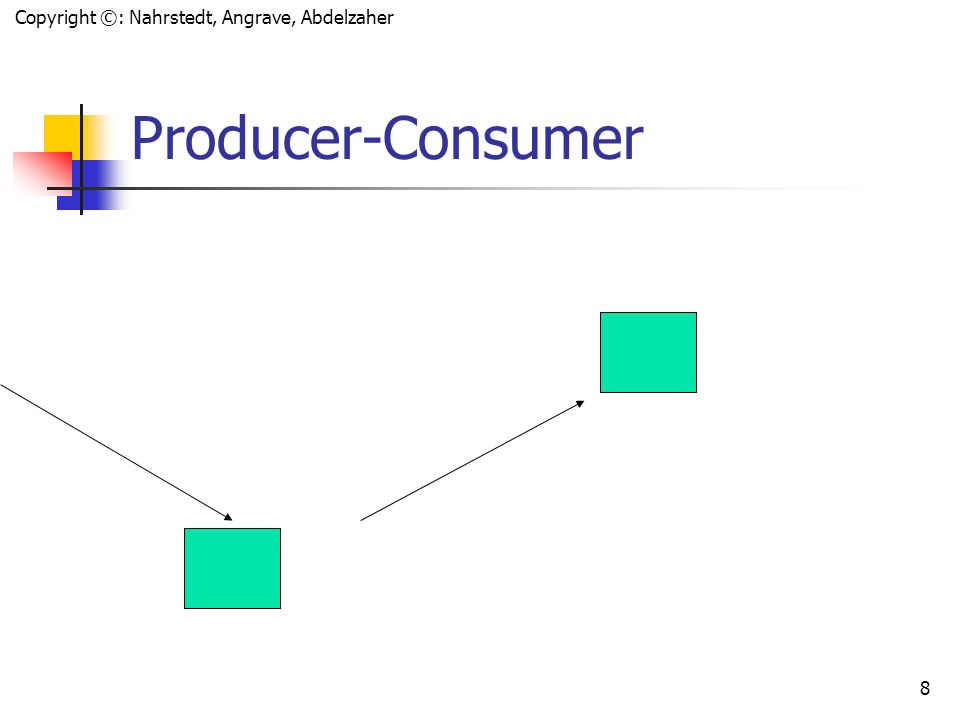

8. Copyright ©: Nahrstedt, Angrave, Abdelzaher 8 Producer-Consumer

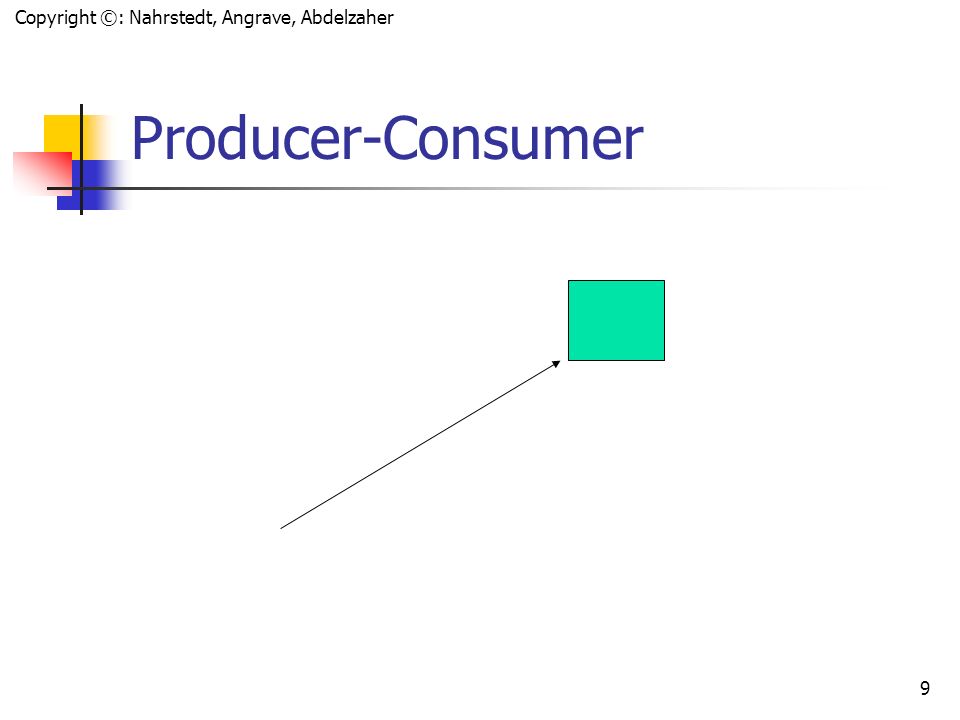

9. Copyright ©: Nahrstedt, Angrave, Abdelzaher 9 Producer-Consumer

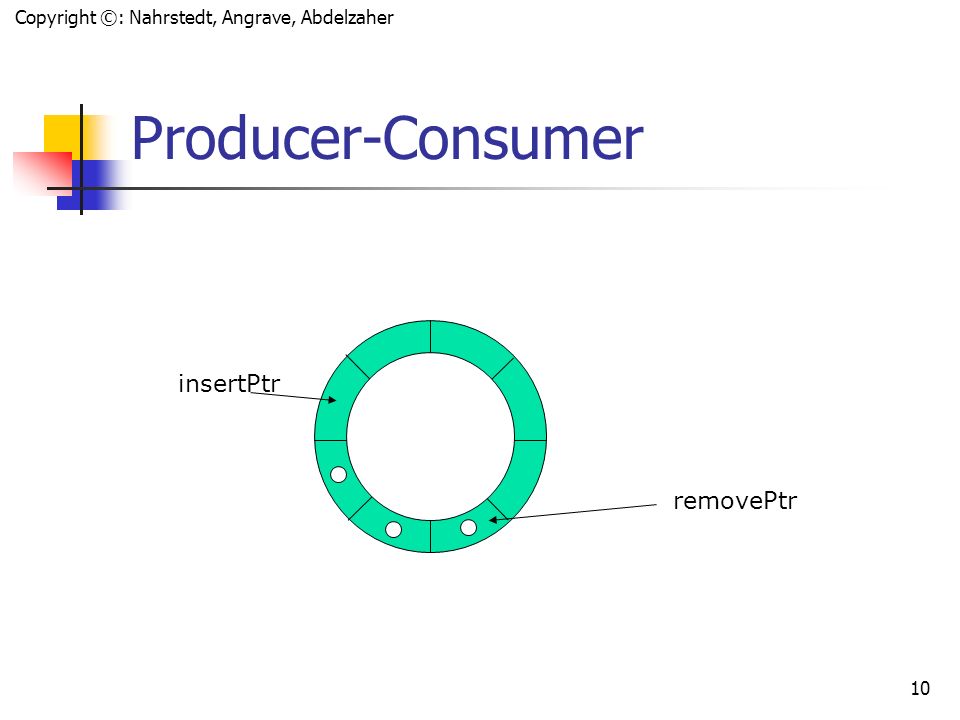

10. Copyright ©: Nahrstedt, Angrave, Abdelzaher 10 Producer-Consumer insertPtr removePtr

11. Copyright ©: Nahrstedt, Angrave, Abdelzaher 11 Producer-Consumer insertPtr removePtr

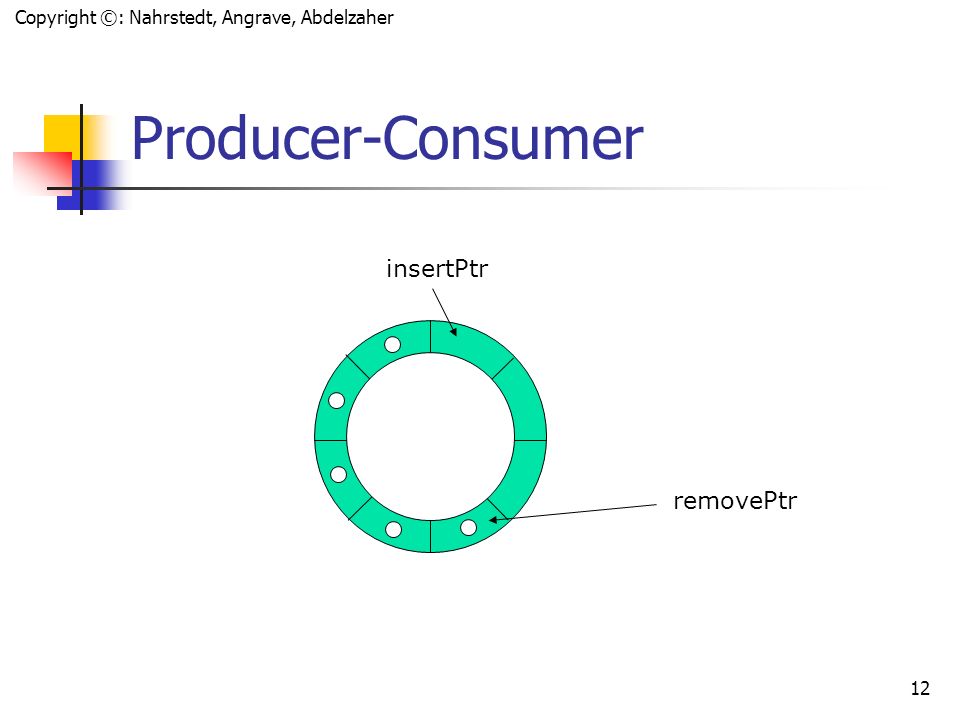

12. Copyright ©: Nahrstedt, Angrave, Abdelzaher 12 Producer-Consumer insertPtr removePtr

13. Copyright ©: Nahrstedt, Angrave, Abdelzaher 13 Producer-Consumer insertPtr removePtr

14. Copyright ©: Nahrstedt, Angrave, Abdelzaher 14 Producer-Consumer insertPtr removePtr

15. Copyright ©: Nahrstedt, Angrave, Abdelzaher 15 Producer-Consumer insertPtr removePtr

16. Copyright ©: Nahrstedt, Angrave, Abdelzaher 16 Producer-Consumer insertPtr removePtr

17. Copyright ©: Nahrstedt, Angrave, Abdelzaher 17 Producer-Consumer insertPtr removePtr BUFFER FULL: Producer must be blocked!

18. Copyright ©: Nahrstedt, Angrave, Abdelzaher 18 Producer-Consumer insertPtr removePtr

19. Copyright ©: Nahrstedt, Angrave, Abdelzaher 19 Producer-Consumer insertPtr removePtr

20. Copyright ©: Nahrstedt, Angrave, Abdelzaher 20 Producer-Consumer insertPtr removePtr

21. Copyright ©: Nahrstedt, Angrave, Abdelzaher 21 Producer-Consumer insertPtr removePtr

22. Copyright ©: Nahrstedt, Angrave, Abdelzaher 22 Producer-Consumer insertPtr removePtr

23. Copyright ©: Nahrstedt, Angrave, Abdelzaher 23 Producer-Consumer insertPtr removePtr

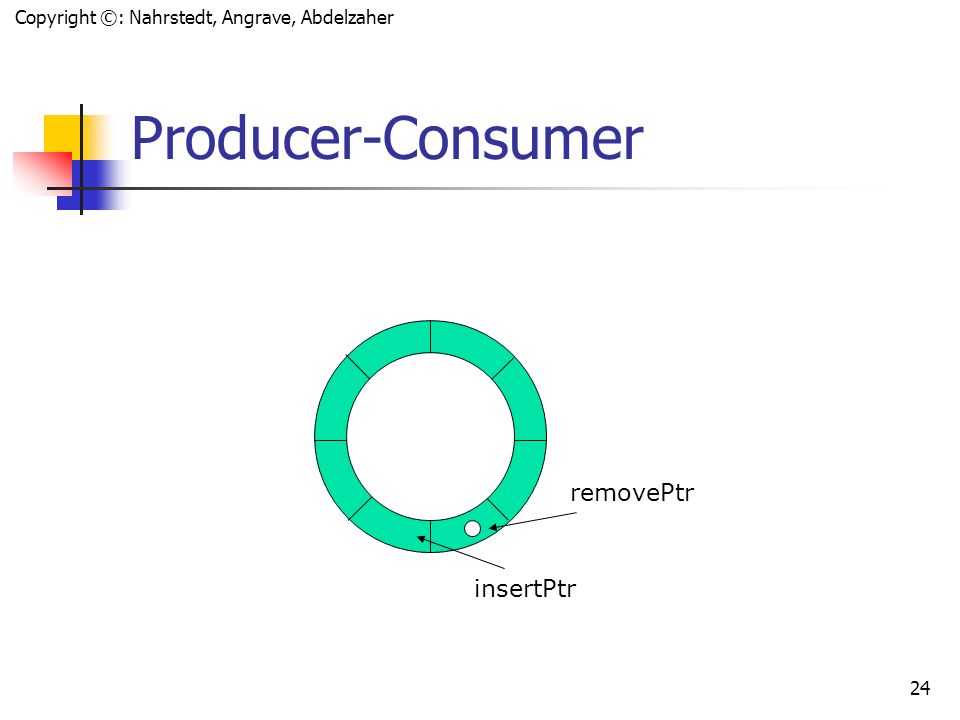

24. Copyright ©: Nahrstedt, Angrave, Abdelzaher 24 Producer-Consumer insertPtr removePtr

25. Copyright ©: Nahrstedt, Angrave, Abdelzaher 25 Producer-Consumer insertPtr removePtr BUFFER EMPTY: Consumer must be blocked!

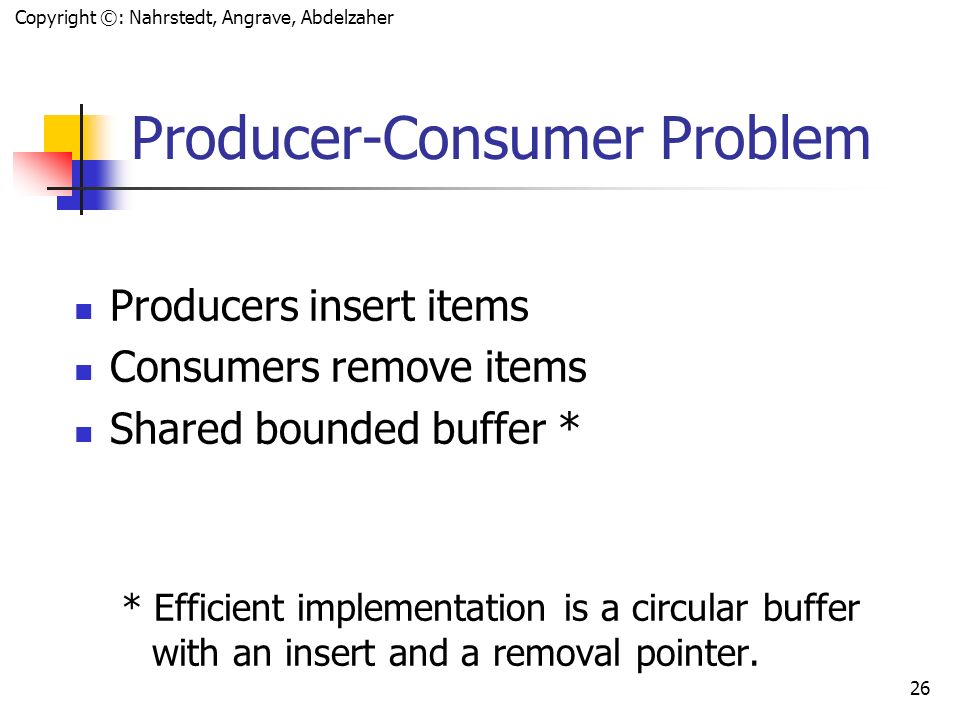

26. Copyright ©: Nahrstedt, Angrave, Abdelzaher 26 Producer-Consumer Problem Producers insert items Consumers remove items Shared bounded buffer * * Efficient implementation is a circular buffer with an insert and a removal pointer.

27. Copyright ©: Nahrstedt, Angrave, Abdelzaher 27 Producer-Consumer Problem Producer inserts items. Updates insertion pointer. Consumer executes destructive reads on the buffer. Updates removal pointer Both update information about how full/empty the buffer is. Solution should allow multiple readers/writers

28. Copyright ©: Nahrstedt, Angrave, Abdelzaher 28 Challenge Prevent buffer overflow Prevent buffer underflow Proper synchronization

29. Copyright ©: Nahrstedt, Angrave, Abdelzaher 29 Solution Prevent overflow: block producer when full! Counting semaphore to count #free slots 0  block producer Prevent underflow: block consumer when empty!Counting semaphore to count #items in buffer 0  block consumer Mutex to protect accesses to shared buffer & pointers.

30. Copyright ©: Nahrstedt, Angrave, Abdelzaher 30 Assembling the solution sem_wait(slots), sem_post(slots) sem_wait(items), sem_post(items) mutex_lock(m) mutex_unlock(m) insertptr=(insertptr+1) % N removalptr=(removalptr+1) % N Initialize semaphore slots to size of buffer Initialize semaphore items to zero.

31. Copyright ©: Nahrstedt, Angrave, Abdelzaher 31 Pseudocode getItem() Error checking/EINTR handling not shown sem_wait(items) mutex_lock(mutex) result=buffer[ removePtr ]; removePtr=(removePtr +1 ) % N mutex_unlock(mutex) sem_post(slots)

32. Copyright ©: Nahrstedt, Angrave, Abdelzaher 32 Pseudocode putItem(data) Error checking/EINTR handling not shown sem_wait(slots) mutex_lock(mutex) buffer[ insertPtr]= data; insertPtr=(insertPtr + 1 ) % N mutex_unlock(mutex) sem_post(items)

33. Copyright ©: Nahrstedt, Angrave, Abdelzaher 33 Dining Philosophers

34. Copyright ©: Nahrstedt, Angrave, Abdelzaher 34 Dining Philosopher Challenge { Think | Eat } N Philosophers circular table with N chopsticks To eat the Philosopher must first pickup two chopsticks i th Philosopher needs i th & i+1 st chopstick Only put down chopstick when Philosopher has finished eating Devise a solution which satisfies mutual exclusion but avoids starvation and deadlock

35. Copyright ©: Nahrstedt, Angrave, Abdelzaher 35 Seems simple enough …? while(true) { think() lock(chopstick[i]) lock(chopstick[(i+1) % N]) eat() unlock(chopstick[(i+1) % N]) unlock(chopstick[i]) }

36. Copyright ©: Nahrstedt, Angrave, Abdelzaher 36 What if? Made picking up left and right chopsticks an atomic operation? or, N-1 Philosophers but N chopsticks?

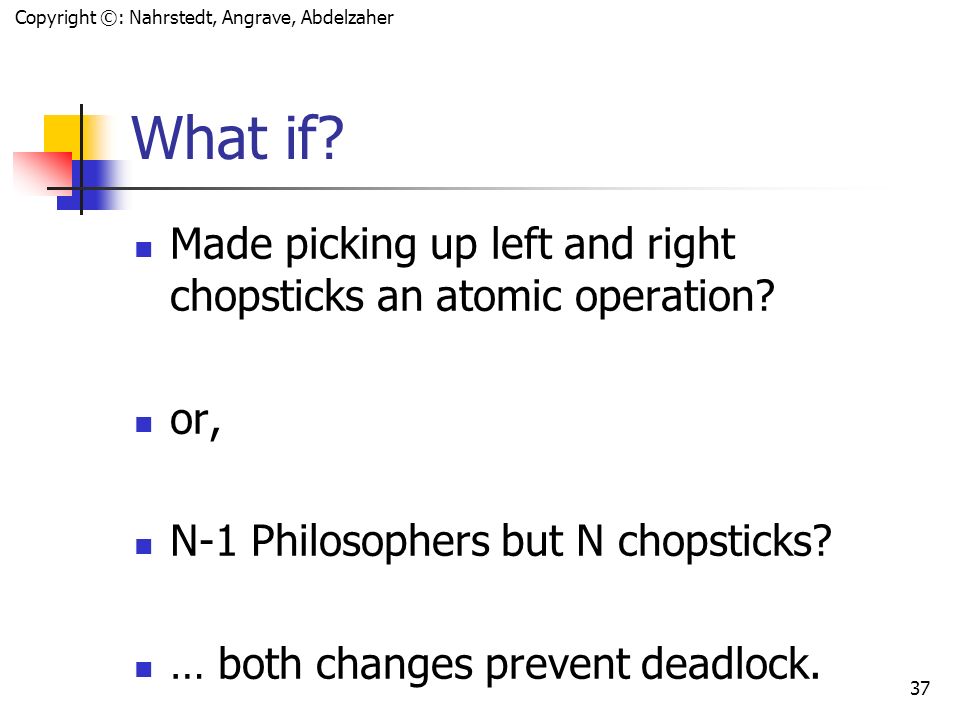

37. Copyright ©: Nahrstedt, Angrave, Abdelzaher 37 What if? Made picking up left and right chopsticks an atomic operation? or, N-1 Philosophers but N chopsticks? … both changes prevent deadlock.

38. Copyright ©: Nahrstedt, Angrave, Abdelzaher 38 Formal Requirements for Deadlock Mutual exclusion Hold and wait condition No preemption condition Circular wait condition Original scenario & our proposed ritual had all four of these properties.

39. Copyright ©: Nahrstedt, Angrave, Abdelzaher 39 Formal Requirements for Deadlock Mutual exclusion Exclusive use of chopsticks Hold and wait condition Hold 1 chopstick, wait for next No preemption condition Cannot force another to undo their hold Circular wait condition Each waits for next neighbor to put down chopstick

40. Copyright ©: Nahrstedt, Angrave, Abdelzaher 40 Define the Input and Output of the Following time() Input Output ctime() Input Output gettimeofday() Input Output
