1. doc.: IEEE 802.11-15/1520r4 Submission January 2016 Slide 1 IEEE 802.11 LRLP TIG Long Range Low Power January 2016 Date: 2015-12-11 Authors:

2. doc.: IEEE 802.11-15/1520r4 Submission IEEE 802.11 LRLP TIG Agenda Call for a secretary Approve Agenda Review policy and procedures for non-PAR meeting Approval of November Minutes (11-15-1390r0) Review of submitted contributions, order of presentation Presentations of contributions Development of TIG output report (11-15-1446r4 or subsequent revision) Review schedule, teleconferences, objectives for next meeting Adjourn Slide 2 November 2015

3. doc.: IEEE 802.11-15/1520r4 Submission Guidelines for IEEE-SA Meetings l All IEEE-SA standards meetings shall be conducted in compliance with all applicable laws, including antitrust and competition laws. l Don’t discuss the interpretation, validity, or essentiality of patents/patent claims. l Don’t discuss specific license rates, terms, or conditions. l Relative costs, including licensing costs of essential patent claims, of different technical approaches may be discussed in standards development meetings. l Technical considerations remain primary focus l Don’t discuss or engage in the fixing of product prices, allocation of customers, or division of sales markets. l Don’t discuss the status or substance of ongoing or threatened litigation. l Don’t be silent if inappropriate topics are discussed… do formally object. --------------------------------------------------------------- If you have questions, contact the IEEE-SA Standards Board Patent Committee Administrator at patcom@ieee.org or visit http://standards.ieee.org/about/sasb/patcom/index.html See IEEE-SA Standards Board Operations Manual, clause 5.3.10 and “Promoting Competition and Innovation: What You Need to Know about the IEEE Standards Association's Antitrust and Competition Policy” for more details. This slide set is available at https://development.standards.ieee.org/myproject/Public/mytools/mob/preparslides.ppt Slide 3

4. doc.: IEEE 802.11-15/1520r4 Submission LRLP Meeting Plan for the Week Monday PM1 Tuesday AM1 Thursday PM1 Slide 4Tim Godfrey (EPRI) November 2015

5. doc.: IEEE 802.11-15/1520r4 Submission Approval of Minutes November Minutes 11-15-1390r011-15-1390r0 Teleconference Minutes 11-16-0097r011-16-0097r0 Slide 5 November 2015

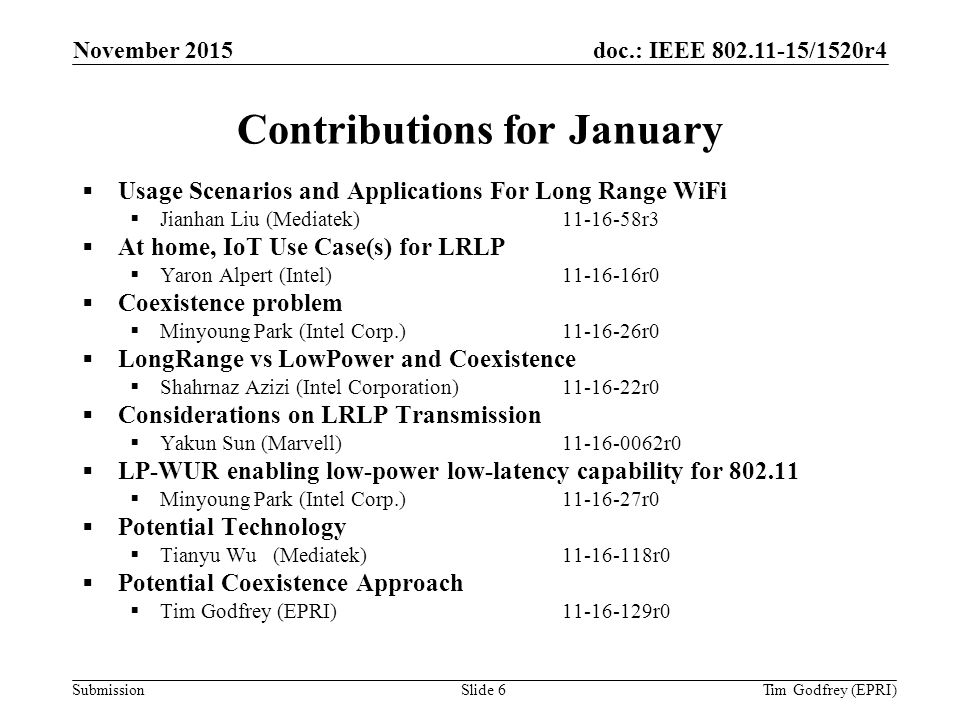

6. doc.: IEEE 802.11-15/1520r4 Submission Contributions for January  Usage Scenarios and Applications For Long Range WiFi  Jianhan Liu (Mediatek) 11-16-58r3  At home, IoT Use Case(s) for LRLP  Yaron Alpert (Intel)11-16-16r0  Coexistence problem  Minyoung Park (Intel Corp.) 11-16-26r0  LongRange vs LowPower and Coexistence  Shahrnaz Azizi (Intel Corporation) 11-16-22r0  Considerations on LRLP Transmission  Yakun Sun (Marvell) 11-16-0062r0  LP-WUR enabling low-power low-latency capability for 802.11  Minyoung Park (Intel Corp.) 11-16-27r0  Potential Technology  Tianyu Wu (Mediatek)11-16-118r0  Potential Coexistence Approach  Tim Godfrey (EPRI) 11-16-129r0 Slide 6Tim Godfrey (EPRI) November 2015

7. doc.: IEEE 802.11-15/1520r4 Submission Recap of WNG presentation Slide 7

8. doc.: IEEE 802.11-15/1520r4 Submission Why is this needed when we have 802.11ah? Additional band support has some incremental cost –RF components, antennas, etc. –This Long Range mode involves only coding and MAC changes This capability is intended for standard, broad-market implementations –Would operate on existing network, on standard APs and routers –Energy and M2M desire to leverage existing customer broadband Objective: LRLP would eventually become available on all mainstream consumer and enterprise WLAN devices –Ideally every AP would support this capability in "next generation" silicon Tim Godfrey, EPRISlide 8 Source: 11-15-0545-01-0wng-Integrated Long Range Mode.pptx

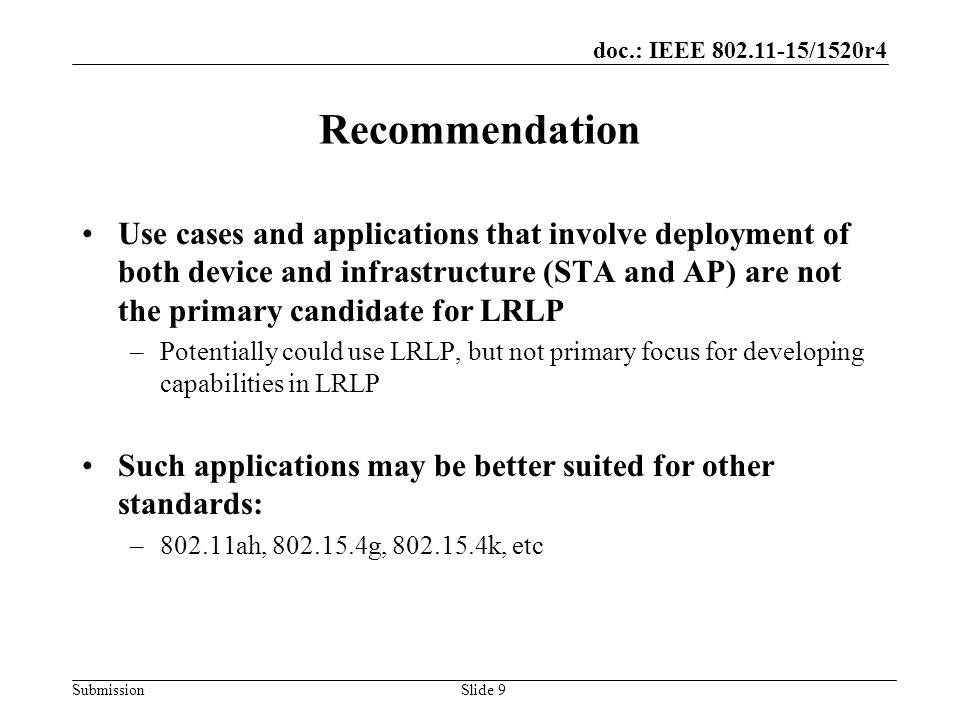

9. doc.: IEEE 802.11-15/1520r4 Submission Recommendation Use cases and applications that involve deployment of both device and infrastructure (STA and AP) are not the primary candidate for LRLP –Potentially could use LRLP, but not primary focus for developing capabilities in LRLP Such applications may be better suited for other standards: –802.11ah, 802.15.4g, 802.15.4k, etc Slide 9

10. doc.: IEEE 802.11-15/1520r4 Submission Output Document Development Review of two teleconferences –8 December: Use CasesChitto Ghosh –9 December: TechnicalMichael Fischer Updated output report 11-15-1446r511-15-1446r5 Slide 10

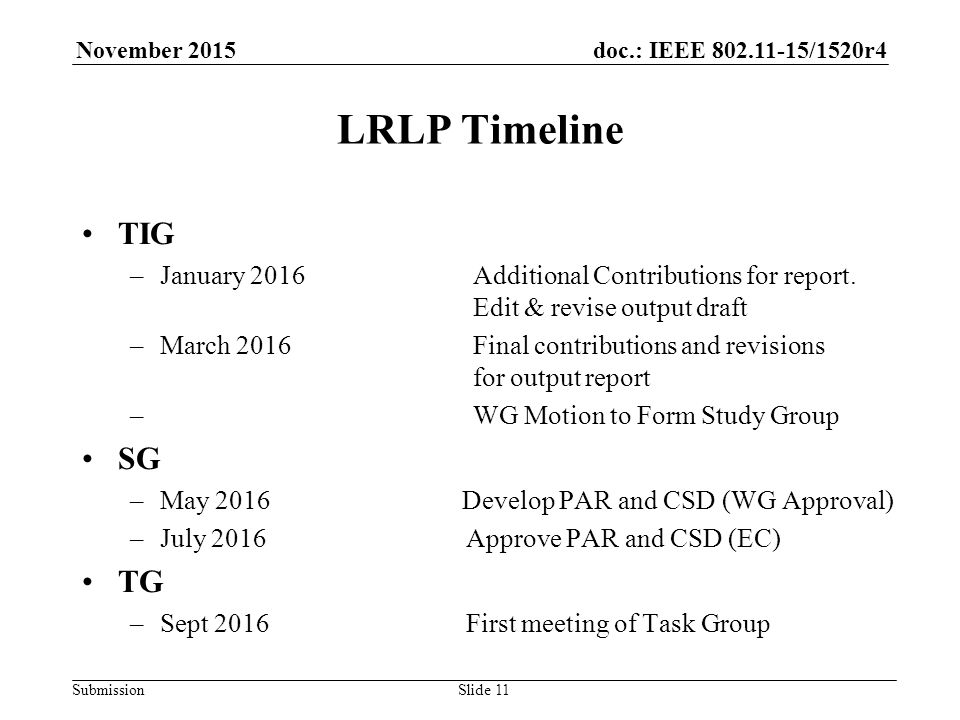

11. doc.: IEEE 802.11-15/1520r4 Submission LRLP Timeline TIG –January 2016 Additional Contributions for report. Edit & revise output draft –March 2016 Final contributions and revisions for output report – WG Motion to Form Study Group SG –May 2016 Develop PAR and CSD (WG Approval) –July 2016Approve PAR and CSD (EC) TG –Sept 2016 First meeting of Task Group Slide 11 November 2015

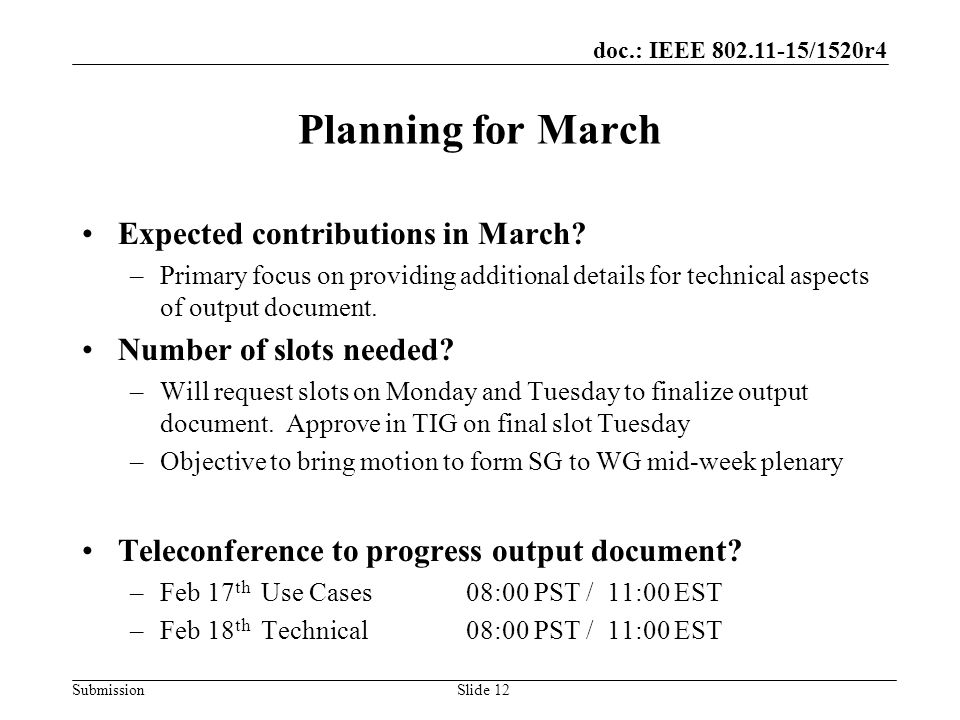

12. doc.: IEEE 802.11-15/1520r4 Submission Planning for March Expected contributions in March? –Primary focus on providing additional details for technical aspects of output document. Number of slots needed? –Will request slots on Monday and Tuesday to finalize output document. Approve in TIG on final slot Tuesday –Objective to bring motion to form SG to WG mid-week plenary Teleconference to progress output document? –Feb 17 th Use Cases08:00 PST / 11:00 EST –Feb 18 th Technical08:00 PST / 11:00 EST Slide 12
