1. Feb-12 Risk Management Zemmer Lee, SVP Training, Citi Group Financial Risk Management

2. Zemmer LeeFeb-2012 slide 2

3. Zemmer LeeFeb-2012 slide 3 Risk Business Risk Financial Risk – market risk – credit risk – liquidity risk Operational Risk Legal Risk

4. Zemmer LeeFeb-2012 slide 4 Risk Management Examples of good and bad risk management Good or bad risk management is NOT the same as profits and losses. There are many examples of good RM that lead to losses and bad RM that lead to gains.

5. Zemmer LeeFeb-2012 slide 5 Barings February 26, 1995 233 year old bank 28 year old Nick Leeson $1,300,000,000 loss bought by ING for $1.5

6. Zemmer LeeFeb-2012 slide 6 Metallgesellshaft 14th largest industrial group 58,000 employees offered long term oil contracts hedge by long-term forward contracts short term contracts were used (rolling hedge) 1993 price fell from $20 to $15 $1B margin call in cash

7. Zemmer LeeFeb-2012 slide 7 Orange County Bob Citron, the county treasures $7.5B portfolio (schools, cities) borrowed $12.5B, invested in 5yr. notes interest rates increased reported at cost - big mistake! realized loss of $1.64B

8. Zemmer LeeFeb-2012 slide 8 Public Funds ($ million) Orange County1,640 San Diego357 West Virginia279 Florida State Treasury200 Cuyahoga County137 Texas State55

9. Zemmer LeeFeb-2012 slide 9 Derivatives 1993-1995 ($ million) Shova Shell, Japan1,580 Kashima Oil, Japan1,450 Metallgesellschaft1,340 Barings, U.K.1,330 Codelco, Chile200 Procter & Gamble, US157

10. Zemmer LeeFeb-2012 slide 10 Investec Clali, Jan-01 Client bought put options without sufficient funds. Loss is 8-15M NIS.

11. Zemmer LeeFeb-2012 slide 11 Barings$1.3B Bank Negara, Malaysia 92$3B Banesto, Spain$4.7B Credit Lyonnais$10B S&L, U.S.A.$150B Japan$500B Financial Losses

12. Zemmer Lee slide 12 Value of an Option at Expiration E. Call XUnderlying

13. Zemmer LeeFeb-2012 slide 13 Call Value before Expiration E. Call XUnderlying

14. Zemmer LeeFeb-2012 slide 14 Call Value before Expiration E. Call XUnderlying premium

15. Zemmer LeeFeb-2012 slide 15 Put Value at Expiration E. Put XUnderlying X

16. Zemmer LeeFeb-2012 slide 16 Put Value before Expiration E. Put XUnderlying premium X

17. Zemmer LeeFeb-2012 slide 17 Collar Firm B has shares of firm C of value $200M They do not want to sell the shares, but need money. Moreover they would like to decrease the exposure to financial risk. How to get it done?

18. Zemmer LeeFeb-2012 slide 18 Collar 1. Buy a protective Put option (3y to maturity, strike = 90% of spot). 2. Sell an out-the-money Call option (3y to maturity, strike above spot). 3. Take a “cheap” loan at 90% of the current value.

19. Zemmer LeeFeb-2012 slide 19 Collar payoff payoff 90 100Kstock 90 K

20. Zemmer LeeFeb-2012 slide 20 Options in Hi Tech Many firms give options as a part of compensation. There is a vesting period and then there is a longer time to expiration. Most employees exercise the options at vesting with same-day-sale (because of tax). How this can be improved?

21. Zemmer LeeFeb-2012 slide 21 Long term options payoff k K stock 50 K Sell a call Your option Result

22. Zemmer LeeFeb-2012 slide 22 Example You have 10,000 vested options for 10 years with strike $5, while the stock is traded at $10. An immediate exercise will give you $50,000 before tax. Selling a (covered) call with strike $15 will give you $60,000 now (assuming interest rate 6% and 50% volatility) and additional profit at the end of the period!

23. Zemmer LeeFeb-2012 slide 23 Example payoff 10 15 26 50 K Your option Result 60 exercise

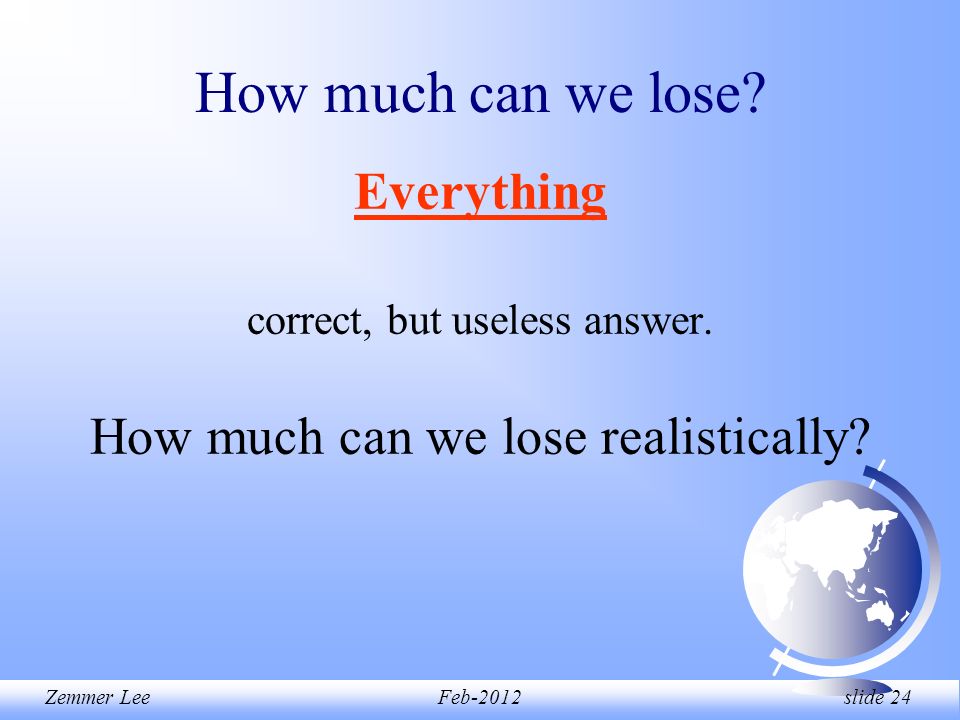

24. Zemmer LeeFeb-2012 slide 24 How much can we lose? Everything correct, but useless answer. How much can we lose realistically?

25. Zemmer LeeFeb-2012 slide 25 What is the current Risk? duration, convexity volatility delta, gamma, vega rating target zone Bonds Stocks Options Credit Forex Total?

26. Zemmer LeeFeb-2012 slide 26 Standard Approach

27. Zemmer LeeFeb-2012 slide 27 Modern Approach Financial Institution

28. Zemmer LeeFeb-2012 slide 28 Risk Management Risk measurement Reporting to board Limits monitoring Diversification, reinsurance Vetting Reporting to regulators Decision making based on risk

29. Zemmer LeeFeb-2012 slide 29 Who manages risk? Citibank Bank of England CIBC J. P. Morgan Bankers Trust AIG General Re Swiss Re Aetna Zurich Nike Sony Dell Computers Philip Morris Ford Motor

30. Zemmer LeeFeb-2012 slide 30 Regulators BIS FSA SEC ISDA FASB Bank of Israel Galai’s committee

31. Zemmer LeeFeb-2012 slide 31 Basic Steps in RM process Identify risks Data base (market + position) Risk measurement Regulators Risk Management Reporting Strategic decisions

32. Zemmer LeeFeb-2012 slide 32 Building a RM system Initial study of risks Decision, Risk Manager Risk measurement system Responsibilities and structure Testing Active Risk Management Staff training and maintenance

33. Zemmer LeeFeb-2012 slide 33 Risk Management and Risk Measurement

34. Zemmer LeeFeb-2012 slide 34 Risk Management System Predict future Identify business opportunities Be always right! Risk Management System Can Predict loss, given event Identify most dangerous scenarios Recommend how to change risk profile Can NOT

35. Zemmer LeeFeb-2012 slide 35 Tool, not rule! Limits, Duration, ALM, DFA, VaR

36. Zemmer LeeFeb-2012 slide 36 Definition VaR is defined as the predicted worst-case loss at a specific confidence level (e.g. 99%) over a certain period of time.

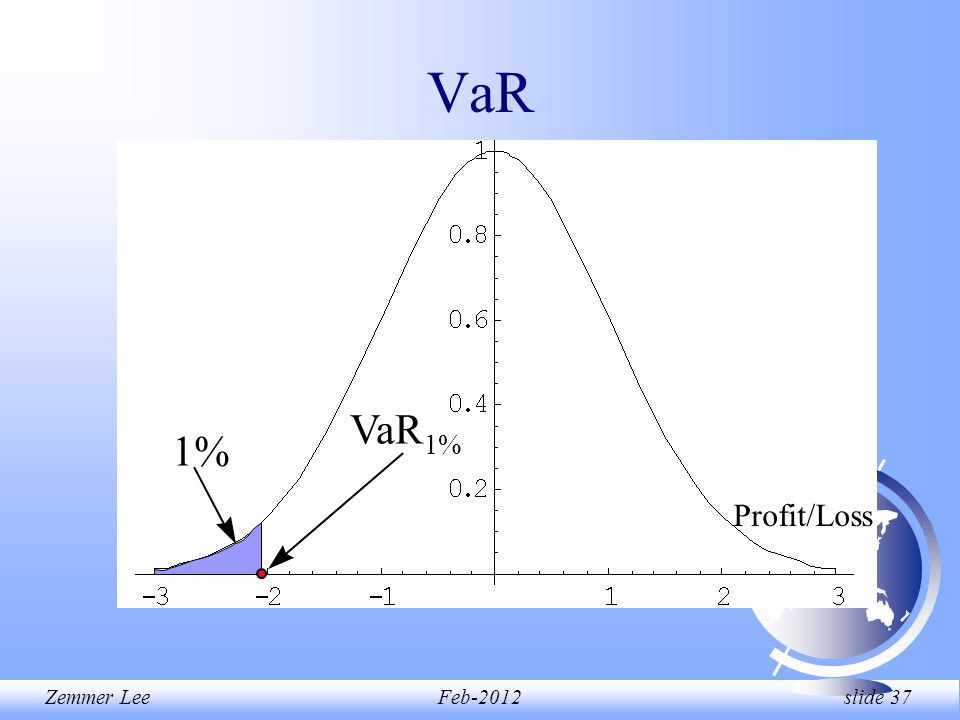

37. Zemmer LeeFeb-2012 slide 37 Profit/Loss VaR 1% VaR 1%

38. Zemmer LeeFeb-2012 slide 38 Meaning of VaR A portfolio manager has a daily VaR equal $1M at 99% confidence level. This means that there is only one chance in 100 that a daily loss bigger than $1M occurs, 1% VaR under normal market conditions.

39. Zemmer LeeFeb-2012 slide 39 History of VaR 80’s - major US banks - proprietary 93 G-30 recommendations 94 - RiskMetrics by J.P.Morgan 98 - Basel SEC, FSA, ISDA, pension funds, dealers Widely used and misused!

40. Zemmer LeeFeb-2012 slide 40 Risk Management Structure Market data Current position Risk Mapping Valuation Value-at-Risk Reporting and Risk Management

41. Zemmer LeeFeb-2012 slide 41 interest rates and dollar are NOT independent Value Interest Rate dollar

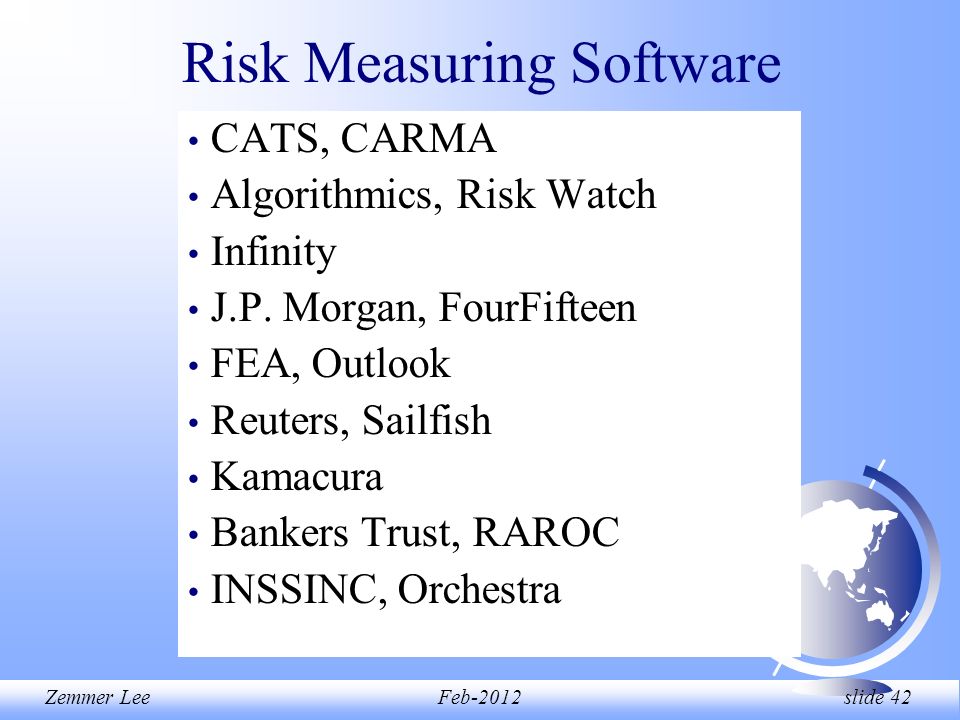

42. Zemmer LeeFeb-2012 slide 42 Risk Measuring Software CATS, CARMA Algorithmics, Risk Watch Infinity J.P. Morgan, FourFifteen FEA, Outlook Reuters, Sailfish Kamacura Bankers Trust, RAROC INSSINC, Orchestra

43. Zemmer LeeFeb-2012 slide 43 Qualitative Requirements An independent risk management unit Board of directors involvement Internal model as an integral part Internal controller and risk model Backtesting Stress test

44. Zemmer LeeFeb-2012 slide 44 Quantitative Requirements 99% confidence interval 10 business days horizon At least one year of historic data Data base revised at least every quarter All types of risk exposure Derivatives

45. Zemmer LeeFeb-2012 slide 45 Types of Assets and Risks Real projects - cashflow versus financing Fixed Income Optionality Credit exposure Legal, operational, authorities

46. Zemmer LeeFeb-2012 slide 46 Risk Factors There are many bonds, stocks and currencies. The idea is to choose a small set of relevant economic factors and to map everything on these factors. Exchange rates Interest rates (for each maturity and indexation) Spreads Stock indices

47. Zemmer LeeFeb-2012 slide 47 How to measure VaR Historical Simulations Variance-Covariance Monte Carlo Analytical Methods

48. Zemmer LeeFeb-2012 slide 48 Historical Simulations Fix current portfolio. Pretend that market changes are similar to those observed in the past. Calculate P&L (profit-loss). Find the lowest quantile.

49. Zemmer LeeFeb-2012 slide 49 Returns year 1% of worst cases

50. Zemmer LeeFeb-2012 slide 50 Profit/Loss VaR 1% VaR 1%

51. Zemmer LeeFeb-2012 slide 51 Weights Since old observations can be less relevant, there is a technique that assigns decreasing weights to older observations. Typically the decrease is exponential. See RiskMetrics Technical Document for details.

52. Zemmer LeeFeb-2012 slide 52 Variance Covariance Means and covariances of market factors Mean and standard deviation of the portfolio Delta or Delta-Gamma approximation VaR 1% =  P – 2.33  P Based on the normality assumption!

53. Zemmer LeeFeb-2012 slide 53  Variance-Covariance 2.33   -2.33  1%

54. Zemmer LeeFeb-2012 slide 54 Monte Carlo

55. Zemmer LeeFeb-2012 slide 55 Monte Carlo Distribution of market factors Simulation of a large number of events P&L for each scenario Order the results VaR = lowest quantile

56. Zemmer LeeFeb-2012 slide 56 Monte Carlo Simulation

57. Zemmer LeeFeb-2012 slide 57 Real Projects Most daily returns are invisible. Proper financing should be based on risk exposure of each specific project. Note that accounting standards not always reflect financial risk properly.

58. Zemmer LeeFeb-2012 slide 58 Example You are going to invest in Japan. Take a loan in Yen. Financial statements will reflect your investment according to the exchange rate at the day of investment and your liability will be linked to yen. Actually there is no currency risk.

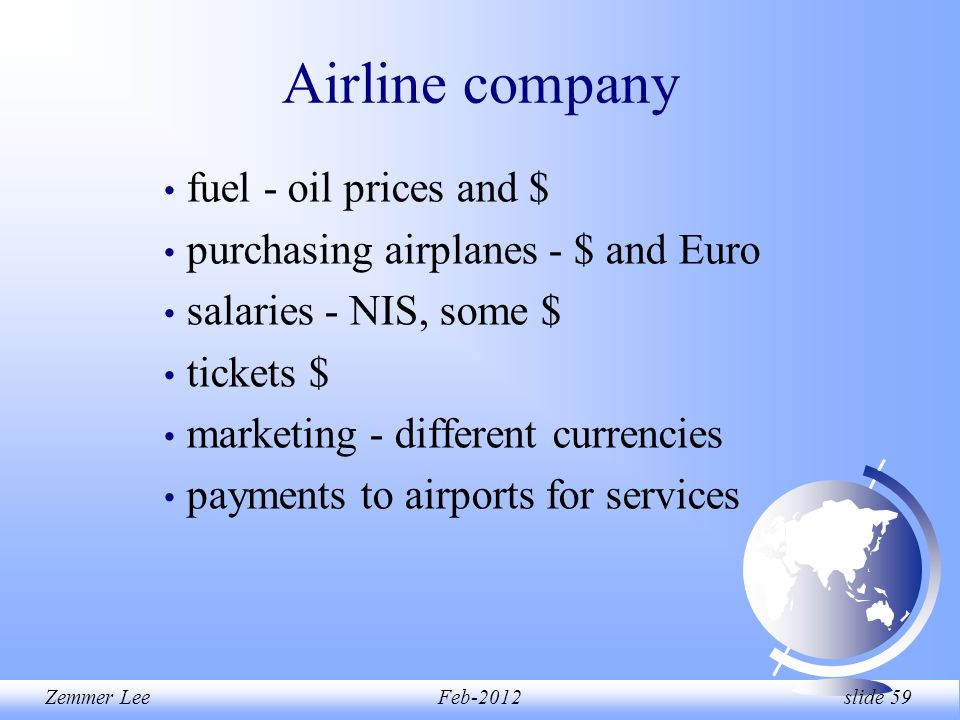

59. Zemmer LeeFeb-2012 slide 59 Airline company fuel - oil prices and $ purchasing airplanes - $ and Euro salaries - NIS, some $ tickets $ marketing - different currencies payments to airports for services

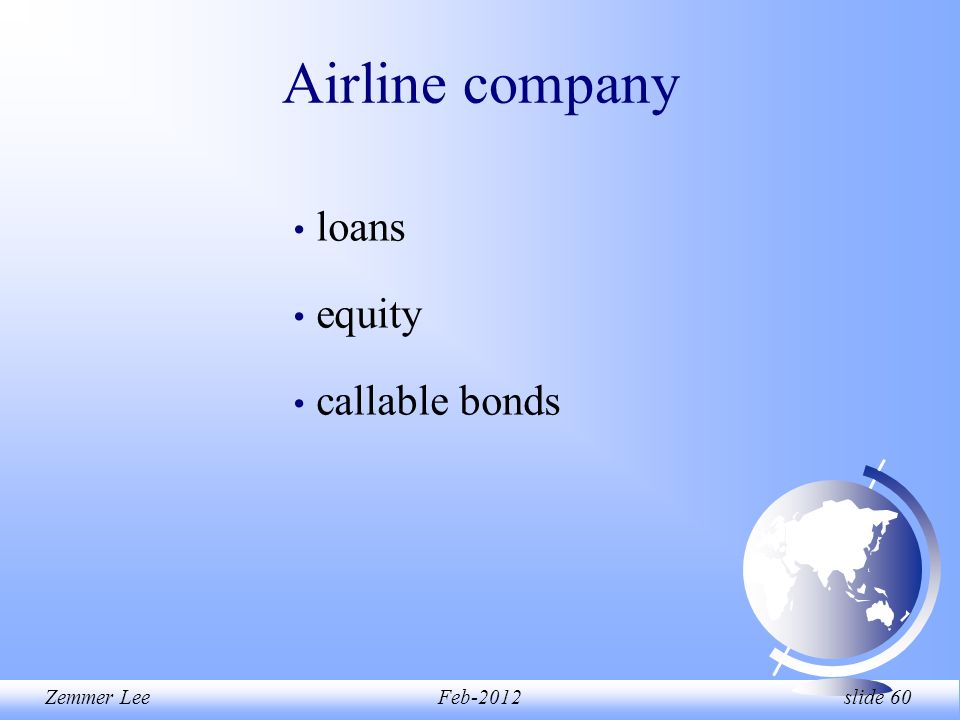

60. Zemmer LeeFeb-2012 slide 60 Airline company loans equity callable bonds

61. Zemmer LeeFeb-2012 slide 61 Airline company Base currency - by major stockholder. Time horizon - by time of possible price change. Earnings at risk, not value at risk, since there is too much optionality in setting prices. One can create a one year cashflow forecast and measure its sensitivity to different market events.

62. Zemmer LeeFeb-2012 slide 62 Reporting Division of VaR by business units, areas of activity, counterparty, currency. Performance measurement - RAROC (Risk Adjusted Return On Capital).

63. Zemmer LeeFeb-2012 slide 63 How VaR is used Internal Risk Management Reporting Regulators

64. Zemmer LeeFeb-2012 slide 64 Backtesting Verification of Risk Management models. Comparison if the model’s forecast VaR with the actual outcome - P&L. Exception occurs when actual loss exceeds VaR. After exception - explanation and action.

65. Zemmer LeeFeb-2012 slide 65 Backtesting Green zone - up to 4 exceptions Yellow zone - 5-9 exceptions Red zone - 10 exceptions or more OK increasing k intervention

66. Zemmer LeeFeb-2012 slide 66 Stress Designed to estimate potential losses in abnormal markets. Extreme events Fat tails Central questions: How much we can lose in a certain scenario? What event could cause a big loss?

67. Zemmer LeeFeb-2012 slide 67 Unifying Approach One number Based on Statistics Portfolio Theory Verification Widely Accepted Easy Comparison

68. Zemmer LeeFeb-2012 slide 68 Board of Directors (Basle, September 1998) periodic discussions with management concerning the effectiveness of the internal control system a timely review of evaluations of internal controls made by management, internal and external auditors periodic efforts to ensure that management has promptly followed up on recommendations and concerns expressed by auditors and supervisory authorities on internal control weaknesses a periodic review of the appropriateness of the bank’s strategy and risk limits.

69. Zemmer LeeFeb-2012 slide 69 How to hedge financial risk? Static hedge Forwardsagreements that fix the price Futures Optionsstatic hedge Dynamic delta or vega hedge, with a variable amount of options held. It is applicable if there is a very liquid market and low transaction costs.

70. Zemmer LeeFeb-2012 slide 70 RMG http://www.riskmetrics.com/ http://www.pictureofrisk.com/ http://www.riskmetrics.com/rm/splash.html rmgaccess

71. Zemmer LeeFeb-2012 slide 71 Consulting Oliver, Wyman and Co. Willis Corroon Richard Scora Ernst and Young Enterprise Advisors Kamakura

72. Zemmer LeeFeb-2012 slide 72 Regulators BIS G-30 FSA SEC market risk disclosure rules market risk reporting FED, FRB our GARP report Swiss Central Bank Financial Accounting Standards Board

73. Zemmer LeeFeb-2012 slide 73 SEC reports Edgar Yahoo – find symbol – profile – raw SEC reports  market risk in 10K 7A

74. Zemmer LeeFeb-2012 slide 74 3 methods Sensitivity – requires a deep understanding of positions Tabular – when there are 1-2 major risk factors Value-at-Risk – for active risk management

75. Zemmer LeeFeb-2012 slide 75 KPMG report Survey of disclosures: SEC Market Risk, 1999 SEC: http://www.sec.gov/smbus/forms/regsk.htm#quan http://www.sec.gov/rules/othern/derivfaq.htm GARP http://www.garp.com/

76. Zemmer LeeFeb-2012 slide 76 World Experience Bankers Trust, J.P. Morgan, investment banks Bank regulators, commercial banks Insurance, dealers Investment funds (LTCM) Real companies Investors learn to read risk information!

77. Zemmer LeeFeb-2012 slide 77 Nike Salaries are paid in Asia Shoes are sold worldwide Financing comes from USA Marketing, storing, shipping worldwide use VaR since 1998.

78. Zemmer LeeFeb-2012 slide 78 What is more risky and why? A. 1 year bond B. 10 year bond

79. Zemmer LeeFeb-2012 slide 79 What is more risky and why? A. An in-the-money option? B. An out-of-the-money option?
