1. INFSO-RI-031688 Enabling Grids for E-sciencE www.eu-egee.org SAML-XACML interoperability Oscar Koeroo

2. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 2 index The current setup The architectural big picture (EGEE/OSG) How will this work The requirements Work done and decisions made Stuff to do

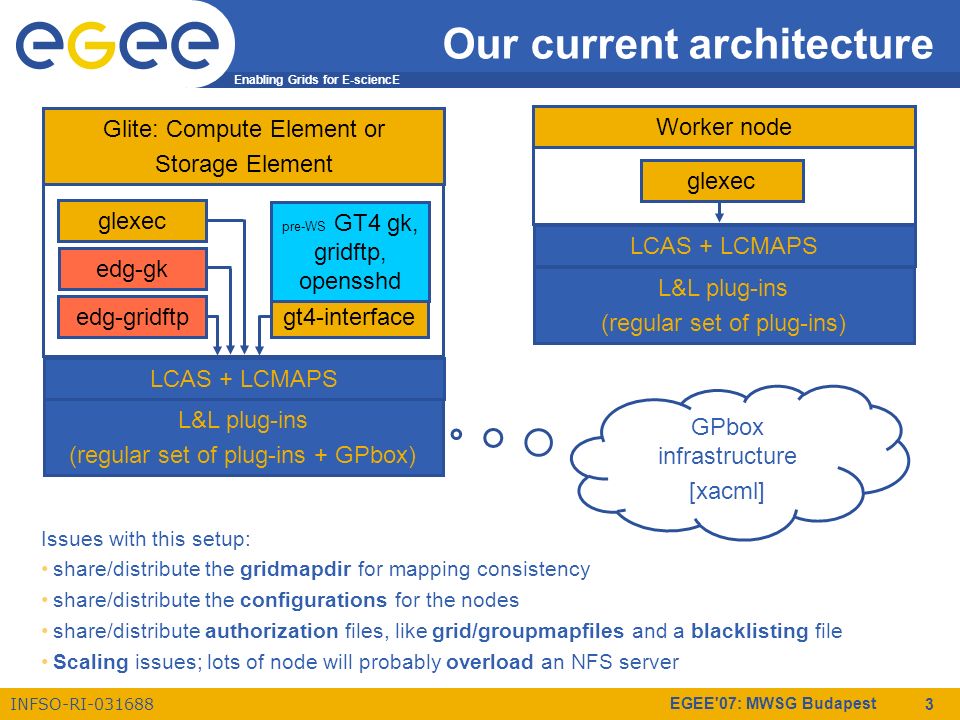

3. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 3 L&L plug-ins (regular set of plug-ins) L&L plug-ins (regular set of plug-ins + GPbox) Our current architecture LCAS + LCMAPS Glite: Compute Element or Storage Element edg-gk glexec edg-gridftpgt4-interface pre-WS GT4 gk, gridftp, opensshd LCAS + LCMAPS Worker node glexec L&L plug-ins (regular set of plug-ins) Issues with this setup: share/distribute the gridmapdir for mapping consistency share/distribute the configurations for the nodes share/distribute authorization files, like grid/groupmapfiles and a blacklisting file Scaling issues; lots of node will probably overload an NFS server GPbox infrastructure [xacml]

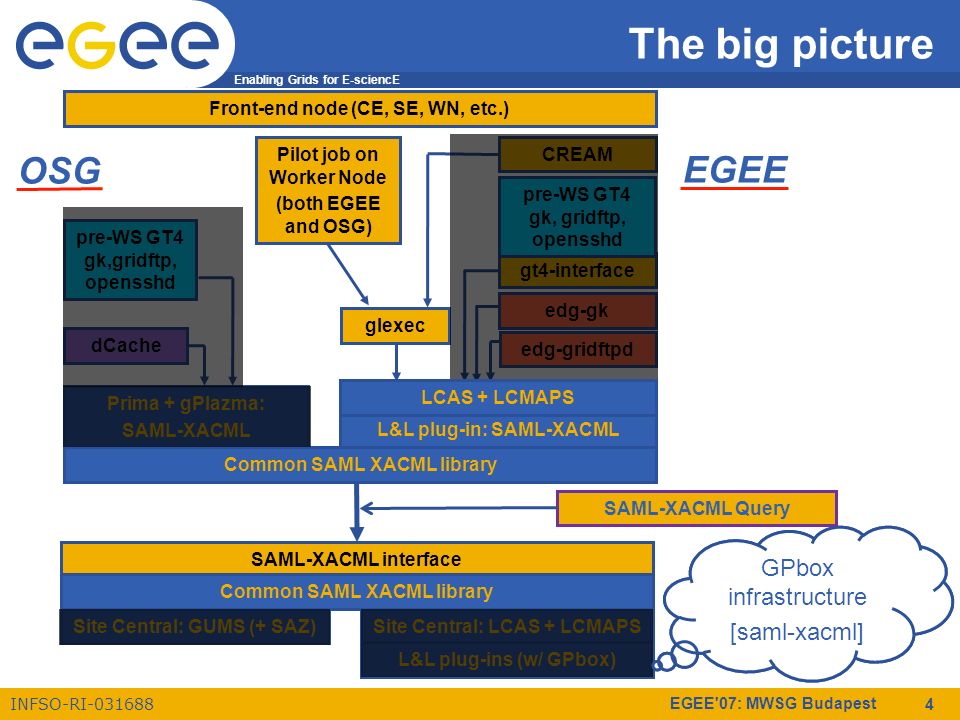

4. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 4 pre-WS GT4 gk,gridftp, opensshd The big picture SAML-XACML Query OSG EGEE glexec edg-gk edg-gridftpd gt4-interface pre-WS GT4 gk, gridftp, opensshd dCache Common SAML XACML library L&L plug-in: SAML-XACML Prima + gPlazma: SAML-XACML LCAS + LCMAPS CREAM Pilot job on Worker Node (both EGEE and OSG) Site Central: LCAS + LCMAPS L&L plug-ins (regu. set) Site Central: GUMS (+ SAZ) SAML-XACML interface Common SAML XACML library Front-end node (CE, SE, WN, etc.) L&L plug-ins (w/ GPbox) GPbox infrastructure [xacml] GPbox infrastructure [saml-xacml]

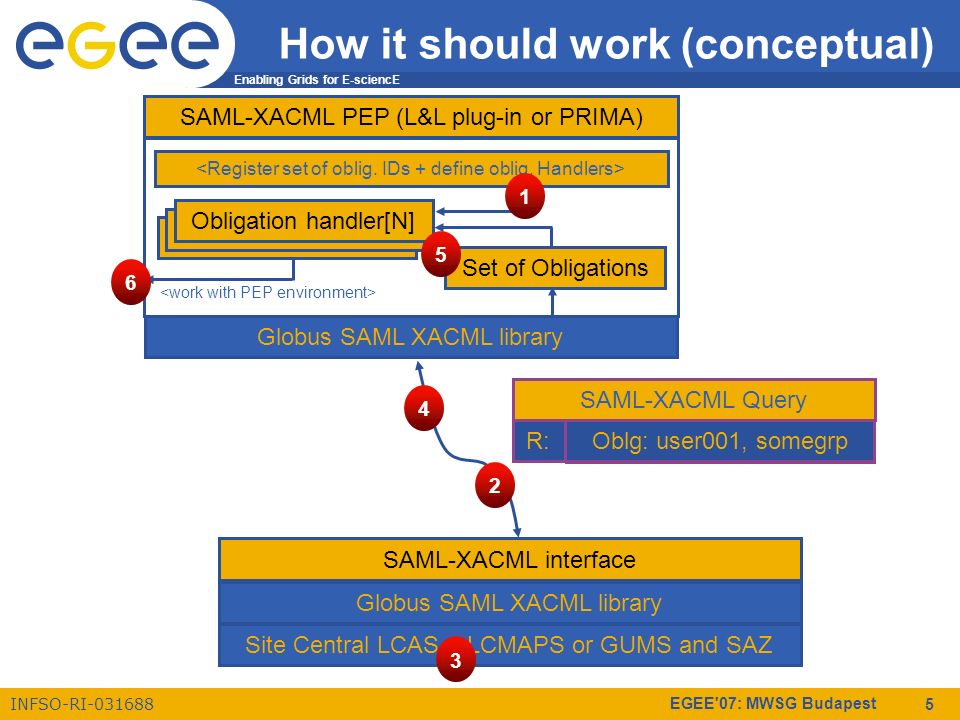

5. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 5 How it should work (conceptual) SAML-XACML interface Globus SAML XACML library Site Central LCAS + LCMAPS or GUMS and SAZ SAML-XACML PEP (L&L plug-in or PRIMA) Globus SAML XACML library Set of Obligations Obligation handler[N] SAML-XACML Query Q: map.user.to.some.poolOblg: user001, somegrp R: 1 2 3 4 5 6

6. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 6 SAML-XACML lib requirements Requirements to Globus –Initial focus on Java and C environment  C-clients (PEP) & C-service (PDP) Prima & gPlazma LCAS and LCMAPS plug-ins Newly to be created Site Central service with the LCAS and LCMAPS back-end will be C-based  Java initially server-side only (PDP) The GUMS server is a Java-Tomcat environment –Uses TLS connection for client (PEP) / server (PDP) comm. –Must be able to mix our PDP and PEP implementations –Must be separate from the existing Globus Toolkit  We want the library to be lightweight and easily portable

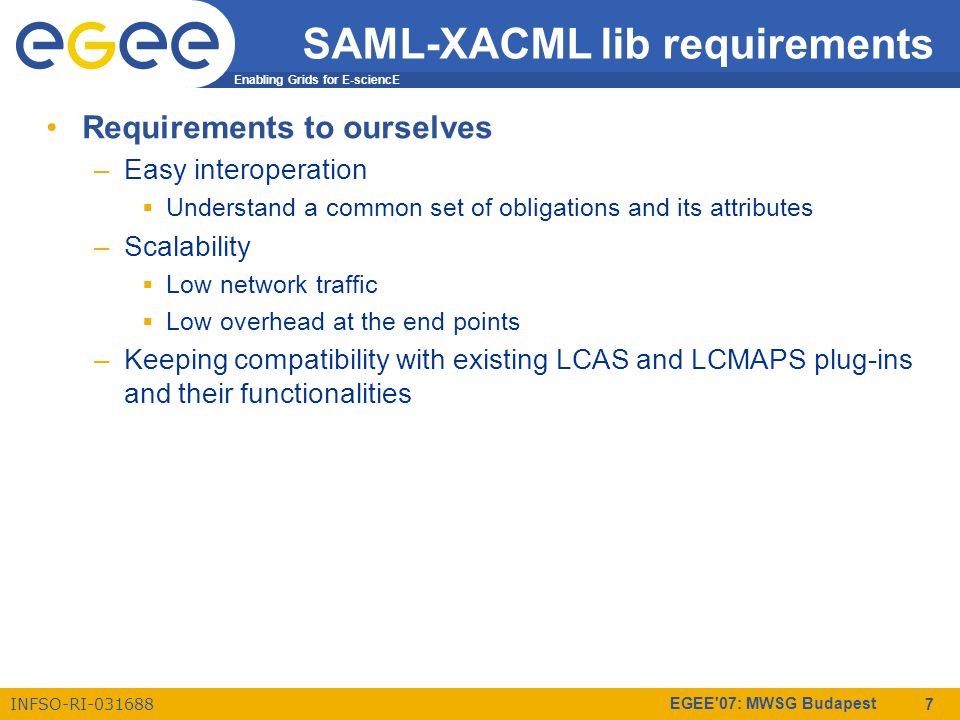

7. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 7 SAML-XACML lib requirements Requirements to ourselves –Easy interoperation  Understand a common set of obligations and its attributes –Scalability  Low network traffic  Low overhead at the end points –Keeping compatibility with existing LCAS and LCMAPS plug-ins and their functionalities

8. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 8 Work done and decisions made Understanding the scope of usage  Interesting for everybody who was not at the MWSG UCSD lunch Understanding the term stateful PDP  Note: XACML PDP is (usually only) stateless  Passing stateful information (the results of a pool account mapping) from the obligations’ attributes Discussing SAML-XACML protocol details –“Using standard protocols” != “Being standards compliant” –Generation of the protocol stack must be reproducible Using Globus SAML-XACML instead of OpenSAML –Globus is committed to fix potential deviation to the specs Testing the alfa version of the SAML-XACML library –C and Java; Ongoing process… Compilation of a tentative lists of obligations –for EGEE and OSG (next slide…)

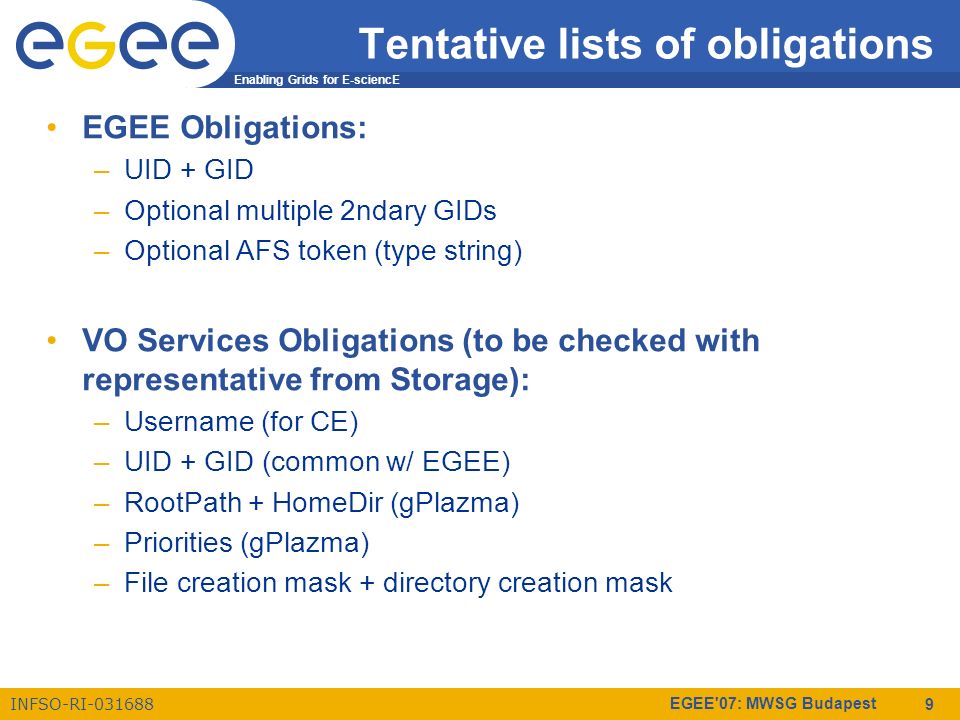

9. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 9 Tentative lists of obligations EGEE Obligations: –UID + GID –Optional multiple 2ndary GIDs –Optional AFS token (type string) VO Services Obligations (to be checked with representative from Storage): –Username (for CE) –UID + GID (common w/ EGEE) –RootPath + HomeDir (gPlazma) –Priorities (gPlazma) –File creation mask + directory creation mask

10. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 10 Stuff to do…. Other obligations (or no obligation, just a binary AuthZ decision) Reproducibility of the protocol stack, credits to: –Yuri Demchenko –Valerio Venturi –Vincenzo Ciaschini –Alberto Forti –and others… Timeline: –Library beta:~end of October ‘07 –Client (LCMAPS plugin)Library beta + 1 month –Service (beta)Library beta + 2 months –Service (production)~Q1 2008

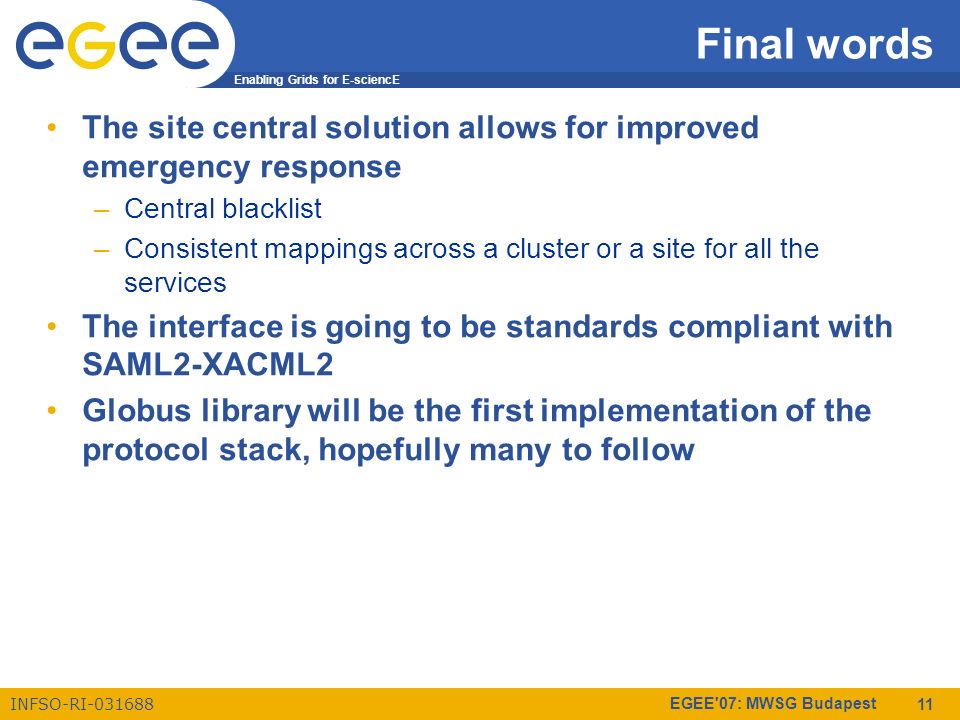

11. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 11 Final words The site central solution allows for improved emergency response –Central blacklist –Consistent mappings across a cluster or a site for all the services The interface is going to be standards compliant with SAML2-XACML2 Globus library will be the first implementation of the protocol stack, hopefully many to follow

12. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 12 Alterative setups SAML-XACML interface Site Central: LCAS + LCMAPS L&L plug-ins (regular set of plug-ins) LCAS + LCMAPS Glite: Compute Element or Storage Element glexec gt4-interface LCAS + LCMAPS Worker node glexec L&L plug-in: SAML-XACML edg-gk edg-gridftp pre-WS GT4 gk, gridftp, opensshd L&L plug-ins (regular set of plug-ins) NFS mount SAML-XACML protocol

13. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 13 The big picture (Glite) SAML-XACML interface Site Central: LCAS + LCMAPS L&L plug-ins (regular set of plug-ins) LCAS + LCMAPS Glite: Compute Element or Storage Element glexec gt4-interface L&L plug-in: SAML-XACML LCAS + LCMAPS Worker node glexec L&L plug-in: SAML-XACML Oblg: user001, somegrp SAML-XACML Query Q: R: map.user.to.some.pool GPBox LCMAPS plug-in edg-gk edg-gridftp pre-WS GT4 gk, gridftp, opensshd

14. Enabling Grids for E-sciencE INFSO-RI-031688 EGEE'07: MWSG Budapest 14 The big picture (OSG) SAML-XACML interface GUMS + SAZ LCAS + LCMAPS Worker node glexec L&L plug-in: SAML-XACML Oblg: user001, somegrp SAML-XACML Query Q: R: map.user.to.some.pool Oblg: Prima + gPlazma: SAML-XACML OSG: Compute Element or Storage Element GT4 gatekeeper, gridftp, (opensshd) dCache
