Pressure. The amount of force an object puts on a surface. Pressure is measured by a barometer. Atmospheric pressure comes from air being pulled down.

Similar presentations


Presentation on theme: "Pressure. The amount of force an object puts on a surface. Pressure is measured by a barometer. Atmospheric pressure comes from air being pulled down."— Presentation transcript:

1 Pressure

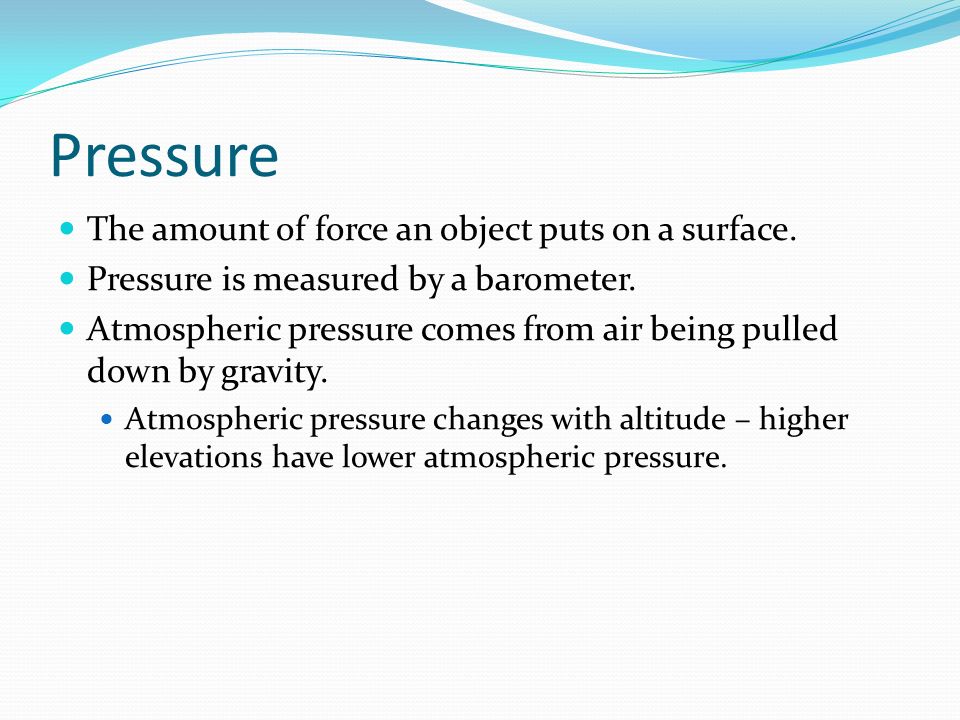

2 The amount of force an object puts on a surface. Pressure is measured by a barometer. Atmospheric pressure comes from air being pulled down by gravity. Atmospheric pressure changes with altitude – higher elevations have lower atmospheric pressure.

3 Units of pressure There are a few units of pressure that we use in chemistry. kPa = kilopascal atm = atmosphere Mm Hg = millimeters of mercury Torr Psi = pounds per square inch

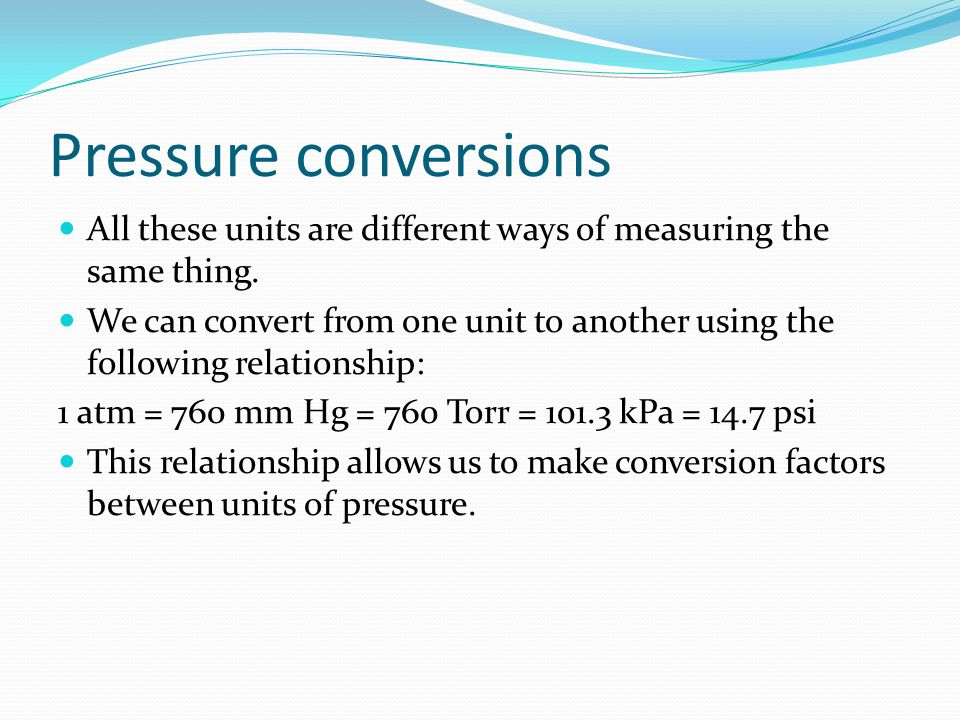

4 Pressure conversions All these units are different ways of measuring the same thing. We can convert from one unit to another using the following relationship: 1 atm = 760 mm Hg = 760 Torr = 101.3 kPa = 14.7 psi This relationship allows us to make conversion factors between units of pressure.

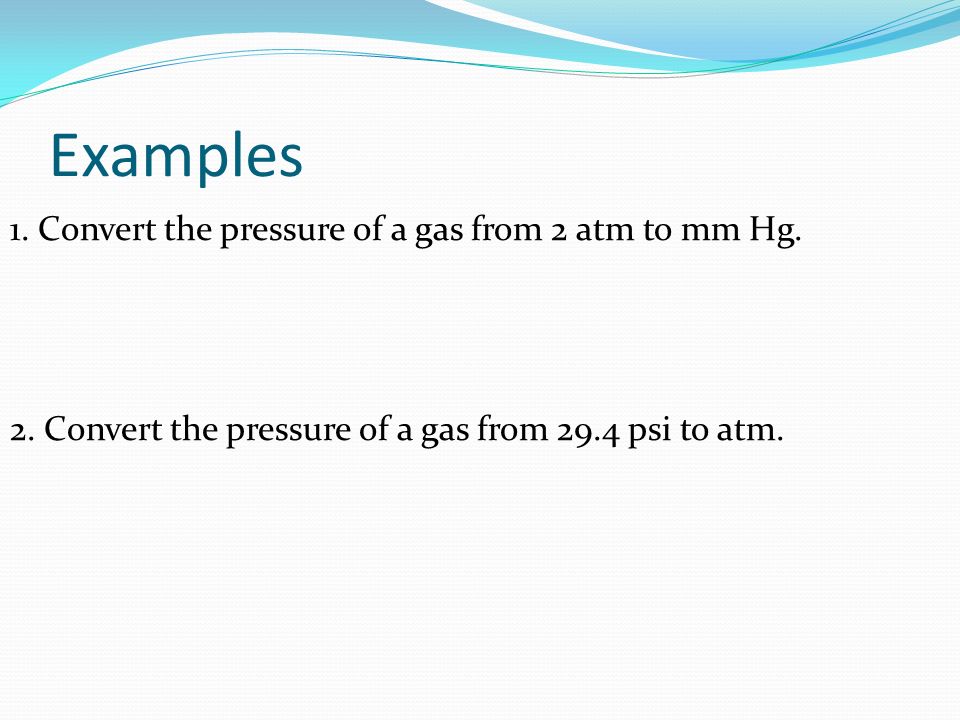

5 Examples 1. Convert the pressure of a gas from 2 atm to mm Hg. 2. Convert the pressure of a gas from 29.4 psi to atm.

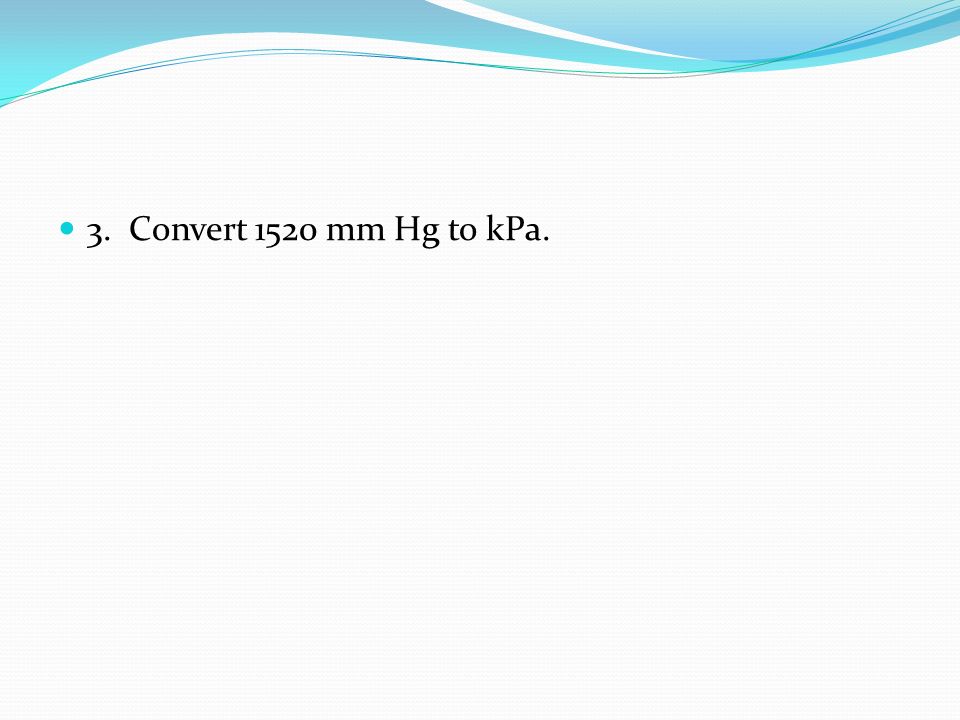

6 3. Convert 1520 mm Hg to kPa.

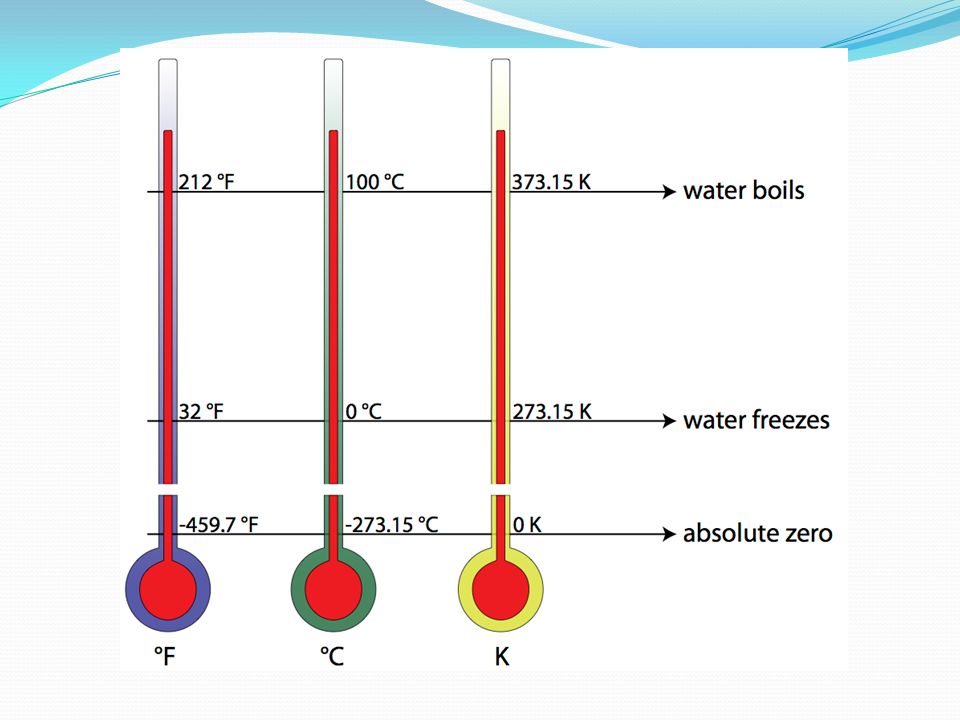

7 Temperature The measure of the kinetic energy of particles. The higher the temperature, the more energy the particles have. There are 3 major temperature scales Fahrenheit, Celsius, Kelvin All 3 scales are related K = o C + 273 o F = o C(1.80) + 32

8

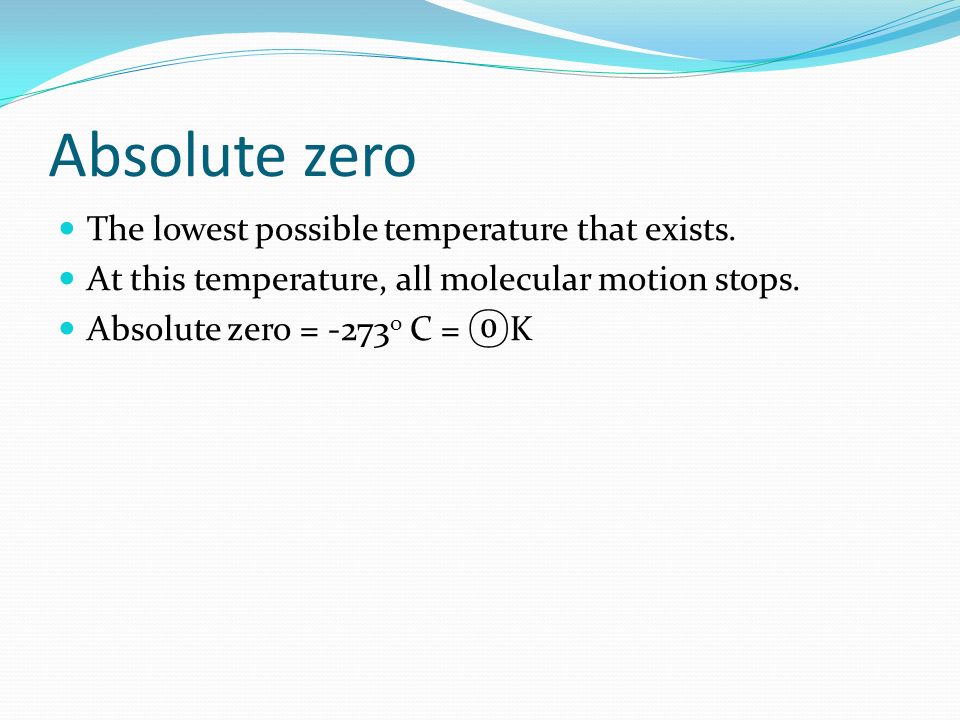

9 Absolute zero The lowest possible temperature that exists. At this temperature, all molecular motion stops. Absolute zero = -273 o C = ⓪K

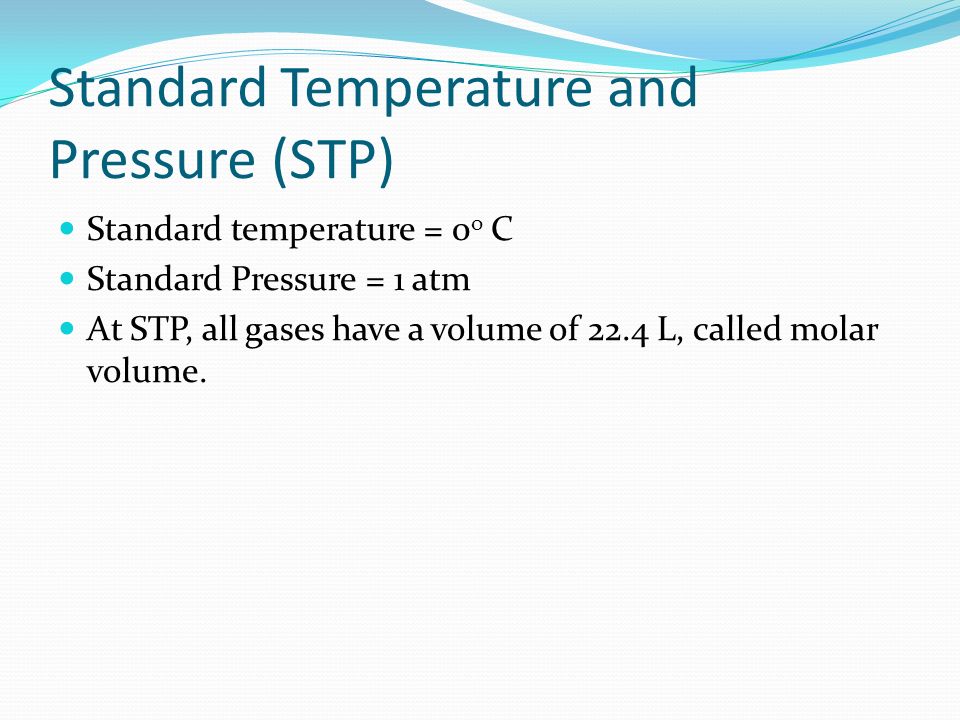

10 Standard Temperature and Pressure (STP) Standard temperature = 0 o C Standard Pressure = 1 atm At STP, all gases have a volume of 22.4 L, called molar volume.

11 Temperature Conversions Convert 50 K to degrees Celsius. Convert 50 o C to Kelvin.
