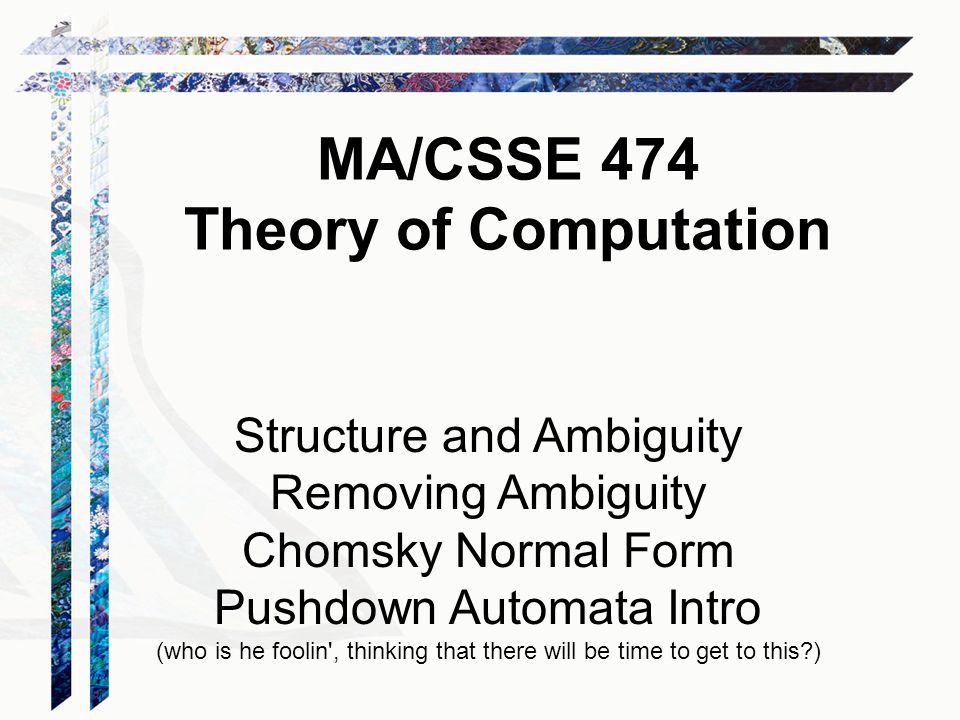

1. Structure and Ambiguity Removing Ambiguity Chomsky Normal Form Pushdown Automata Intro (who is he foolin', thinking that there will be time to get to this?) MA/CSSE 474 Theory of Computation

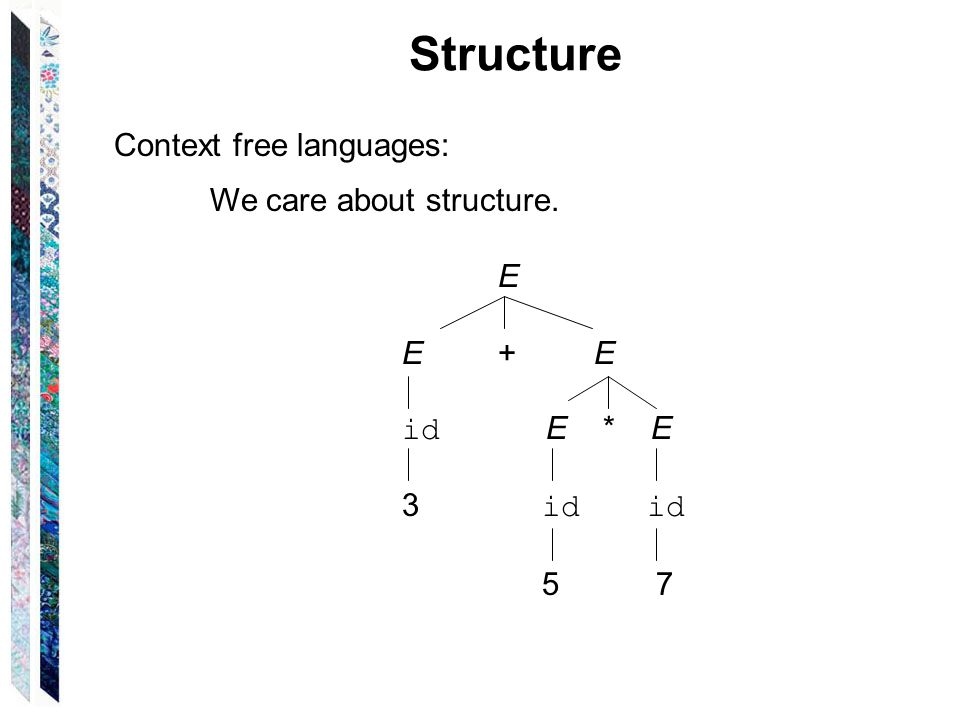

2. Context free languages: We care about structure. E E +E id E * E 3 id id 5 7 Structure

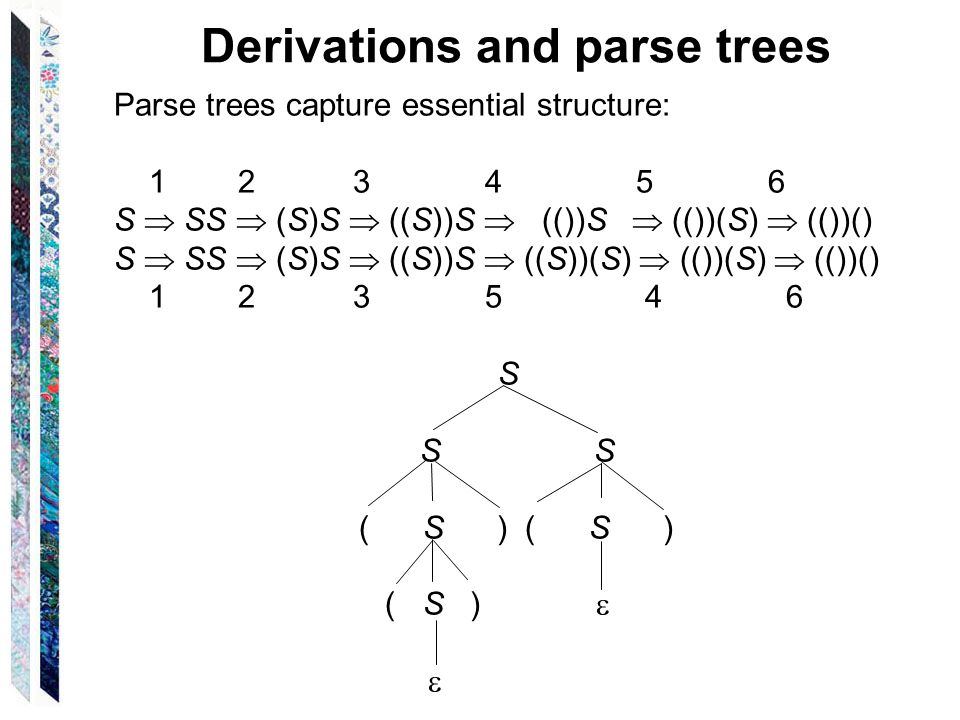

3. Parse trees capture essential structure: 1 2 3 4 5 6 S  SS  (S)S  ((S))S  (())S  (())(S)  (())() S  SS  (S)S  ((S))S  ((S))(S)  (())(S)  (())() 1 2 3 5 4 6 S S S ( S ) ( S ) ( S )   Derivations and parse trees

4. Parse Trees A parse tree, derived from a grammar G = (V, , R, S), is a rooted, ordered tree in which: ● Every leaf node is labeled with an element of   {  }, ● The root node is labeled S, ● Every other node is labeled with an element of N, and ● If m is a non-leaf node labeled X and the (ordered) children of m are labeled x 1, x 2, …, x n, then R contains the rule X  x 1 x 2, … x n.

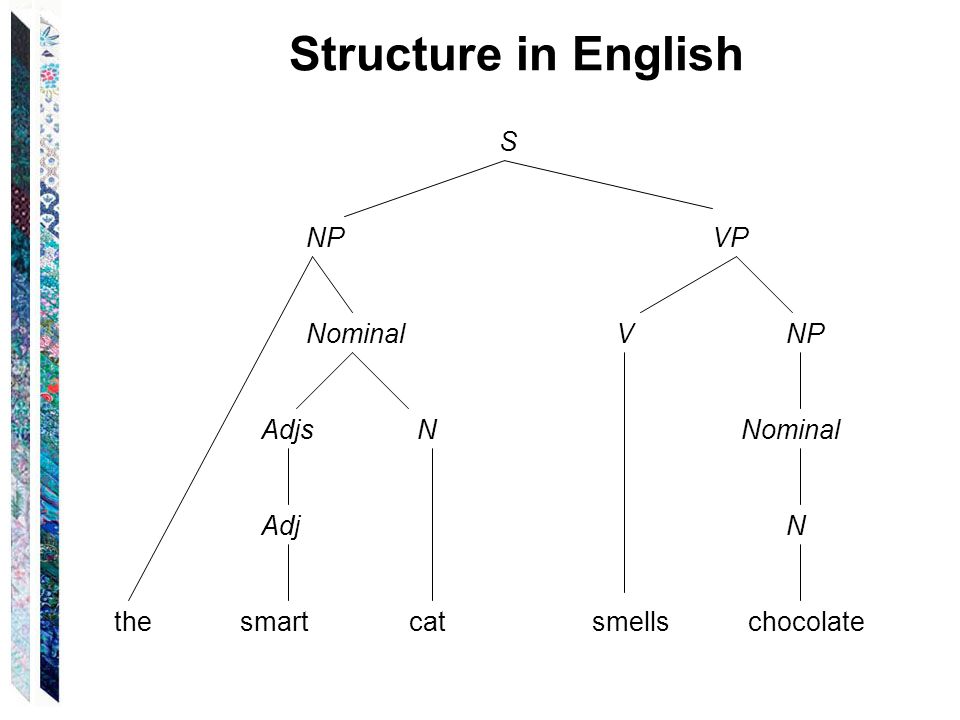

5. S NP VP Nominal VNP Adjs N Nominal AdjN the smart cat smells chocolate Structure in English

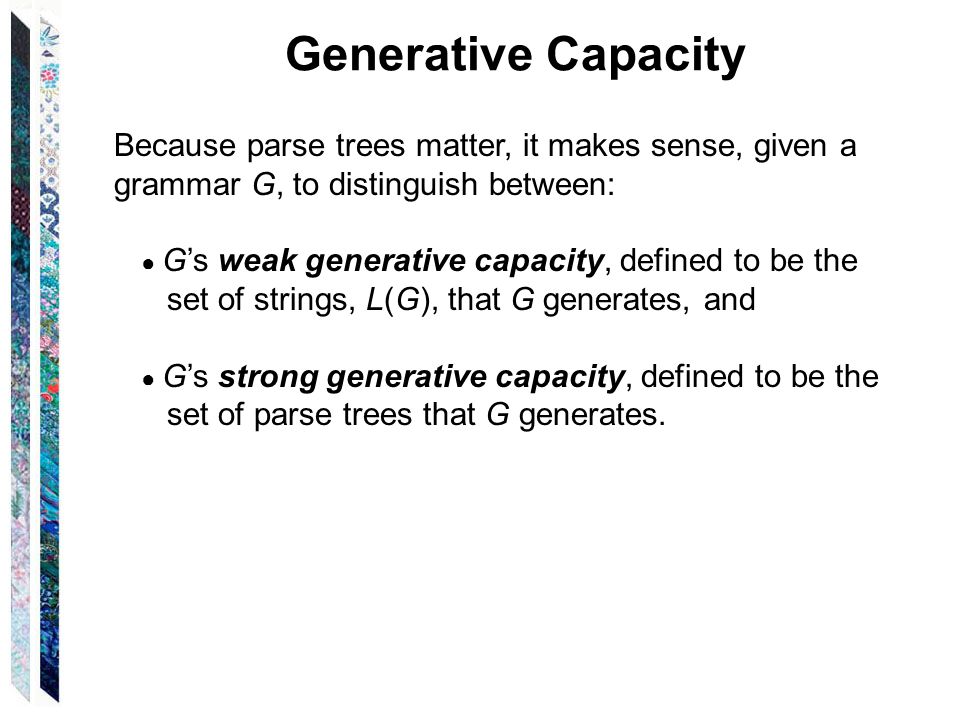

6. Generative Capacity Because parse trees matter, it makes sense, given a grammar G, to distinguish between: ● G’s weak generative capacity, defined to be the set of strings, L(G), that G generates, and ● G’s strong generative capacity, defined to be the set of parse trees that G generates.

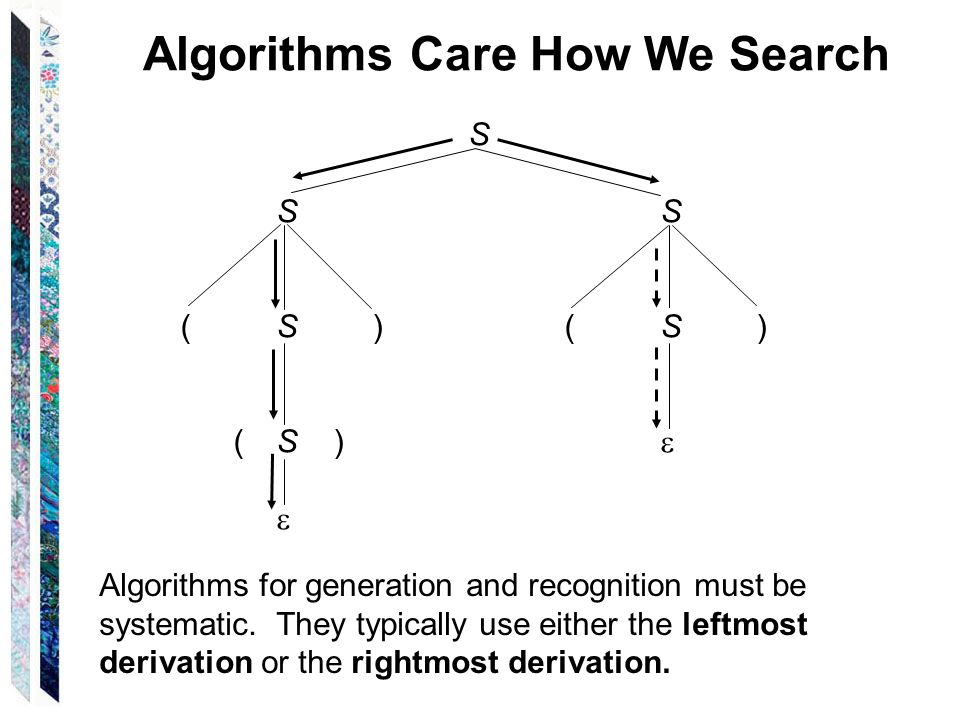

7. Algorithms Care How We Search Algorithms for generation and recognition must be systematic. They typically use either the leftmost derivation or the rightmost derivation. S (S)(S) (S )  

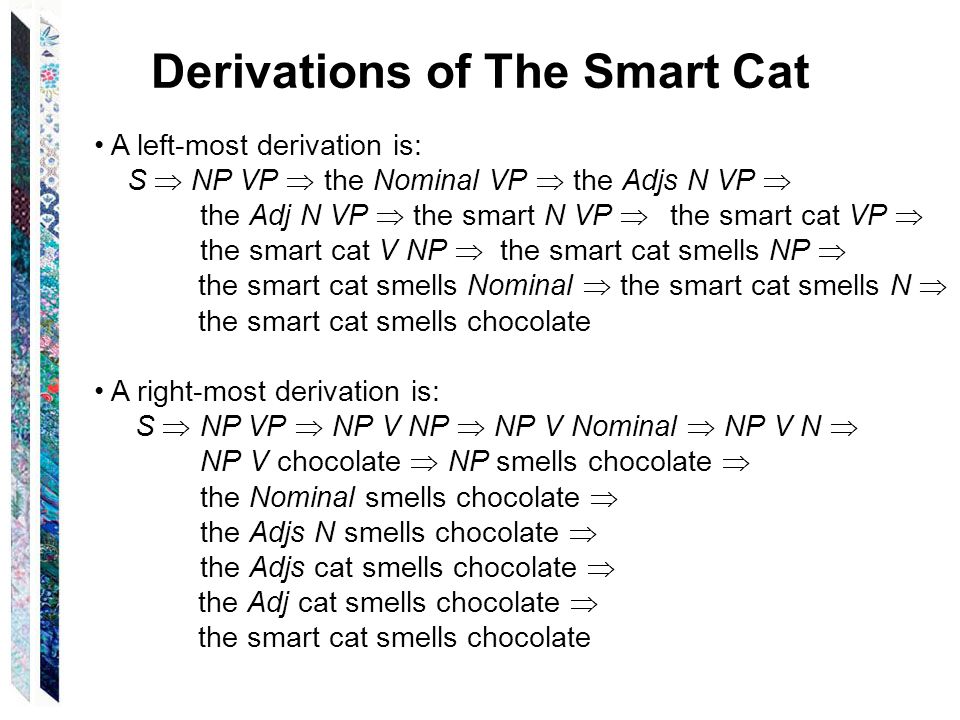

8. Derivations of The Smart Cat A left-most derivation is: S  NP VP  the Nominal VP  the Adjs N VP  the Adj N VP  the smart N VP  the smart cat VP  the smart cat V NP  the smart cat smells NP  the smart cat smells Nominal  the smart cat smells N  the smart cat smells chocolate A right-most derivation is: S  NP VP  NP V NP  NP V Nominal  NP V N  NP V chocolate  NP smells chocolate  the Nominal smells chocolate  the Adjs N smells chocolate  the Adjs cat smells chocolate  the Adj cat smells chocolate  the smart cat smells chocolate

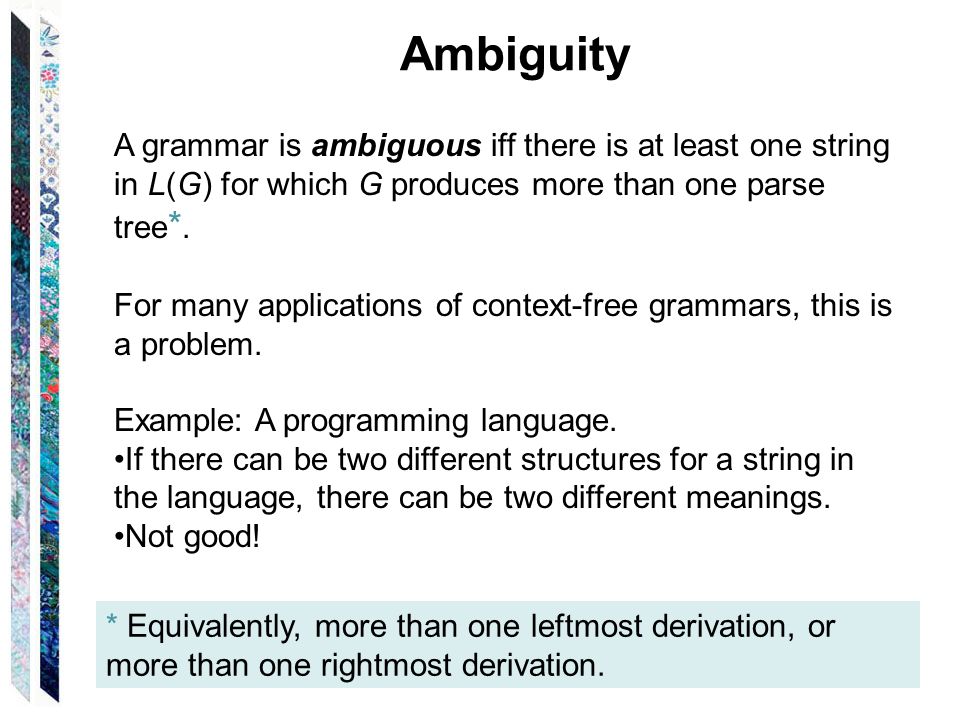

9. Ambiguity A grammar is ambiguous iff there is at least one string in L(G) for which G produces more than one parse tree *. For many applications of context-free grammars, this is a problem. Example: A programming language. If there can be two different structures for a string in the language, there can be two different meanings. Not good! * Equivalently, more than one leftmost derivation, or more than one rightmost derivation.

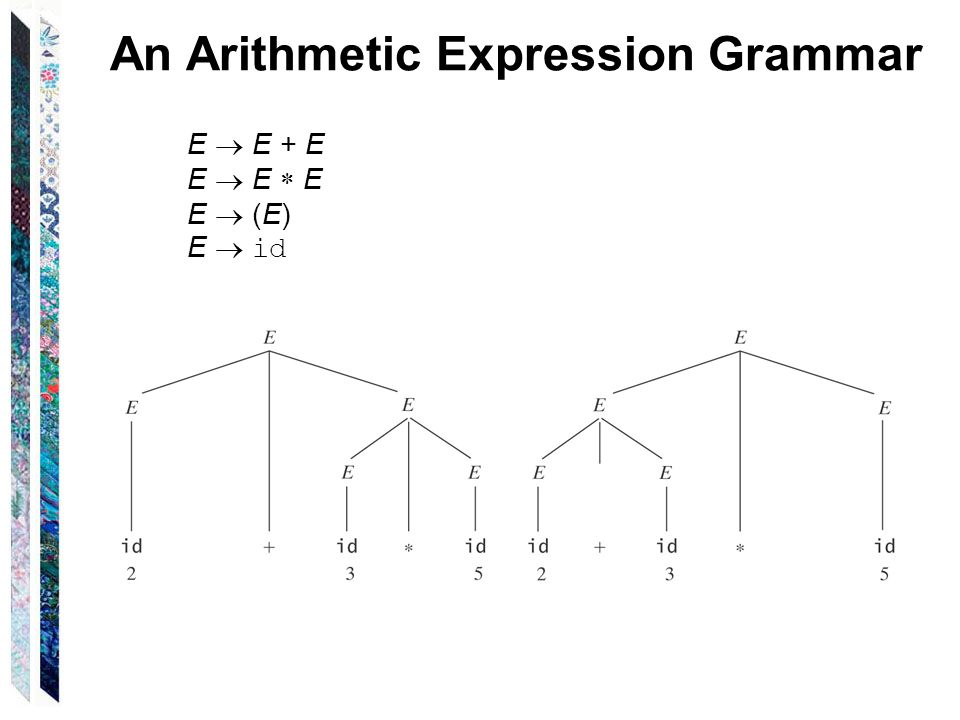

10. An Arithmetic Expression Grammar E  E + E E  E  E E  (E) E  id

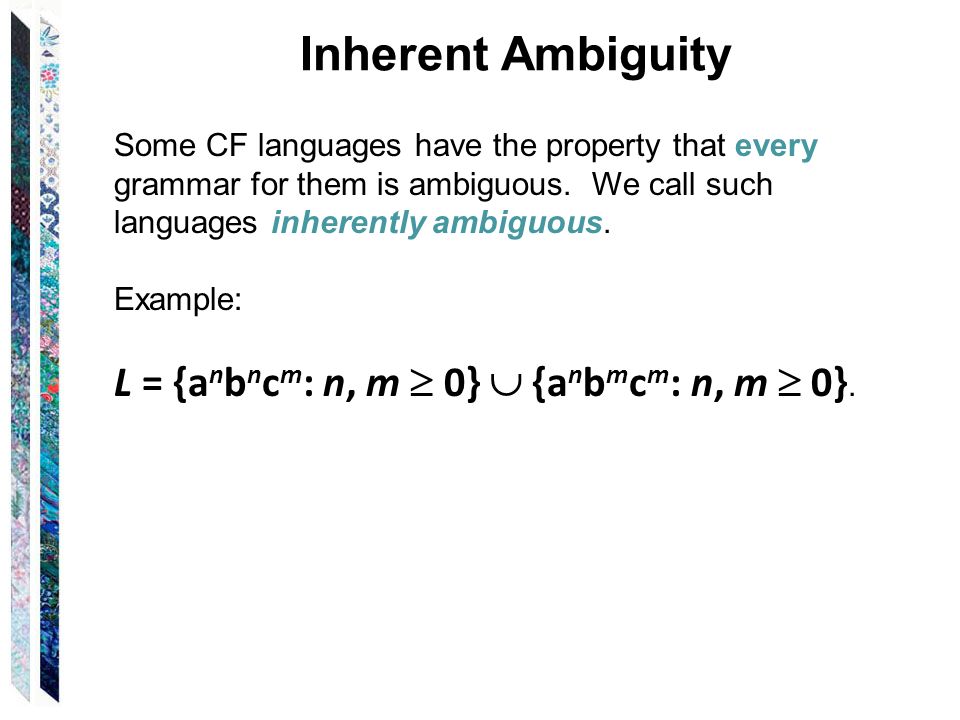

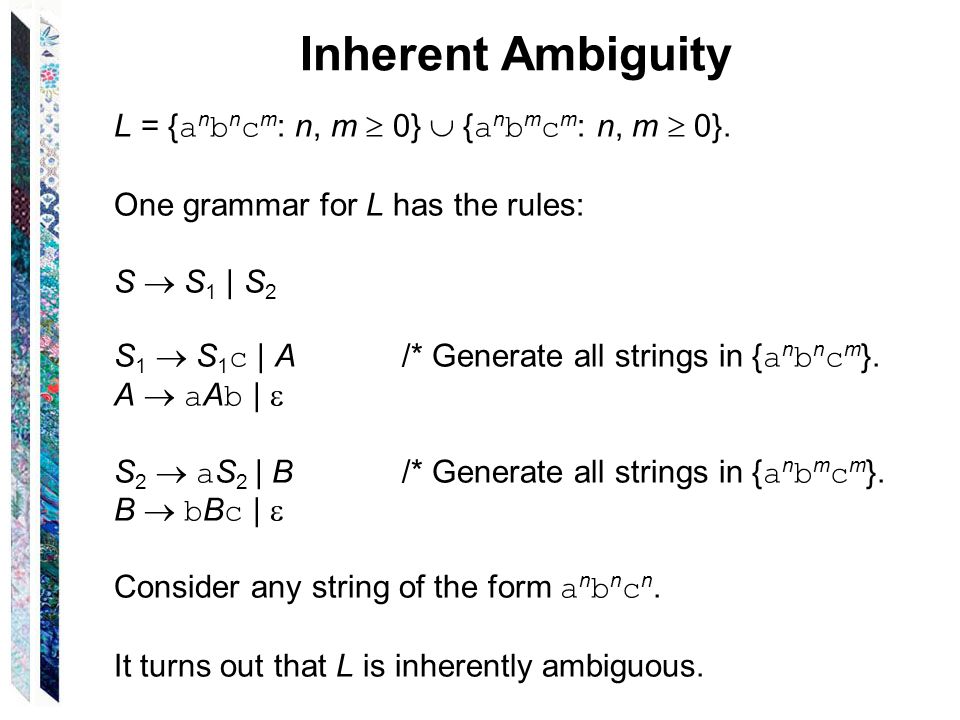

11. Inherent Ambiguity Some CF languages have the property that every grammar for them is ambiguous. We call such languages inherently ambiguous. Example: L = {a n b n c m : n, m  0}  {a n b m c m : n, m  0}.

12. Inherent Ambiguity L = { a n b n c m : n, m  0}  { a n b m c m : n, m  0}. One grammar for L has the rules: S  S 1 | S 2 S 1  S 1 c | A/* Generate all strings in { a n b n c m }. A  a A b |  S 2  a S 2 | B/* Generate all strings in { a n b m c m }. B  b B c |  Consider any string of the form a n b n c n. It turns out that L is inherently ambiguous.

13. Ambiguity and undecidability Both of the following problems are undecidable*: Given a context-free grammar G, is G ambiguous? Given a context-free language L, is L inherently ambiguous? Informal definition of undecidable for the first problem: There is no algorithm (procedure that is guaranteed to always halt) that, given a grammar G, determines whether G is ambiguous.

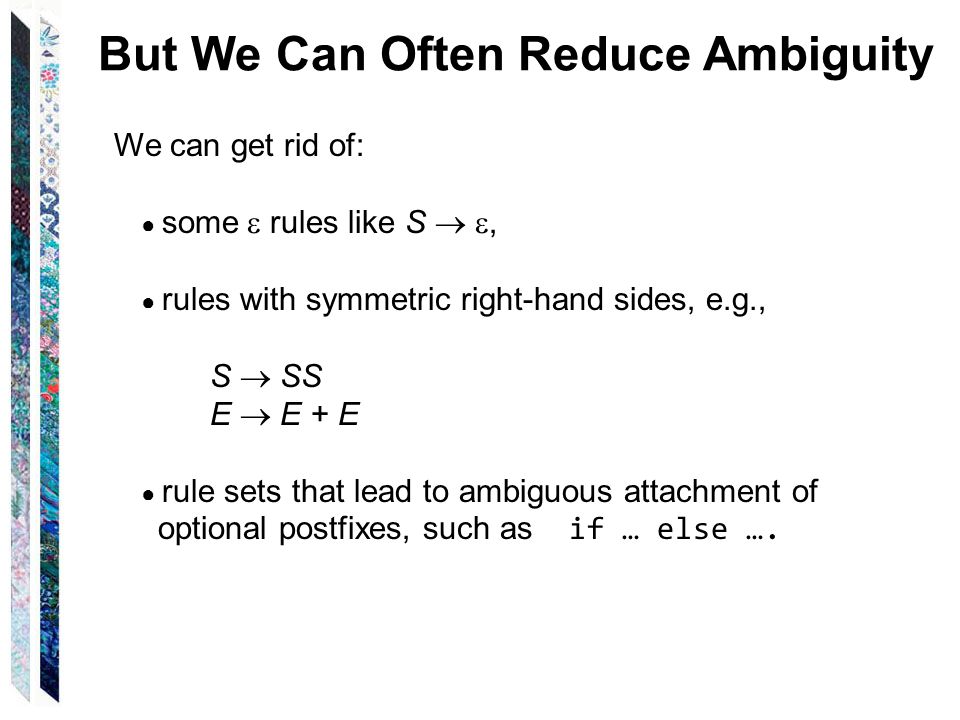

14. But We Can Often Reduce Ambiguity We can get rid of: ● some  rules like S  , ● rules with symmetric right-hand sides, e.g., S  SS E  E + E ● rule sets that lead to ambiguous attachment of optional postfixes, such as if … else ….

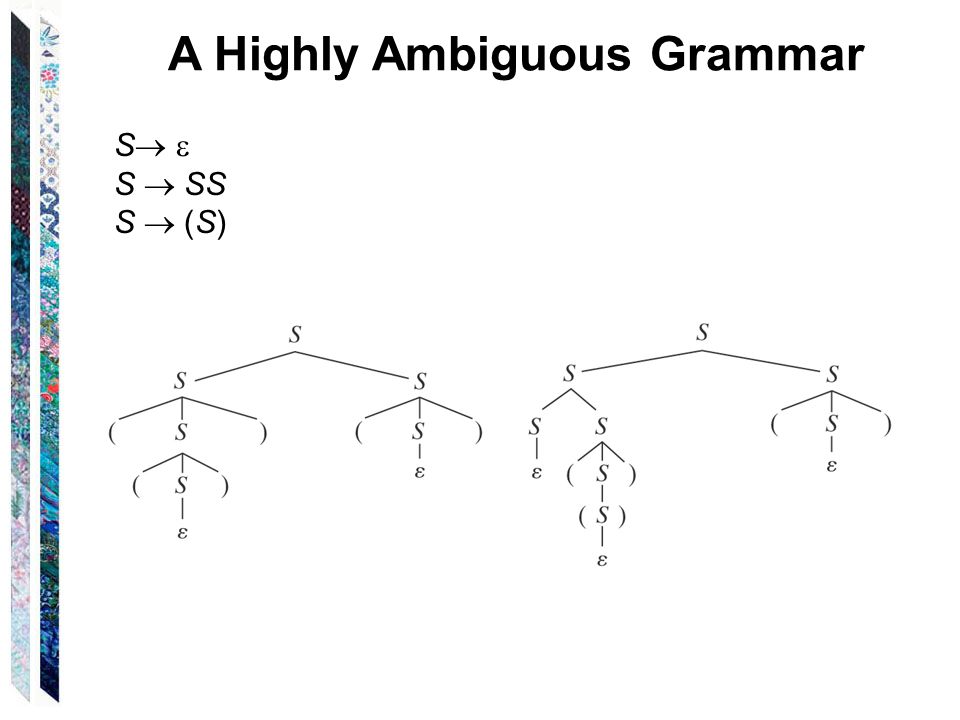

15. A Highly Ambiguous Grammar S   S  SS S  (S)

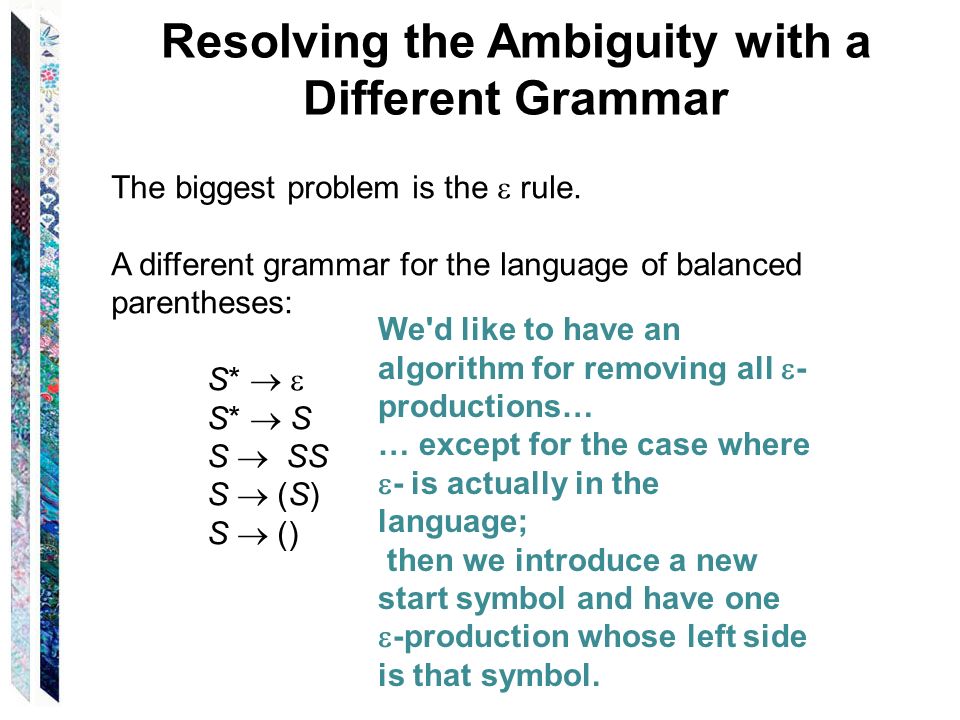

16. Resolving the Ambiguity with a Different Grammar The biggest problem is the  rule. A different grammar for the language of balanced parentheses: S*   S*  S S  SS S  (S) S  () We'd like to have an algorithm for removing all  - productions… … except for the case where  - is actually in the language; then we introduce a new start symbol and have one  -production whose left side is that symbol.

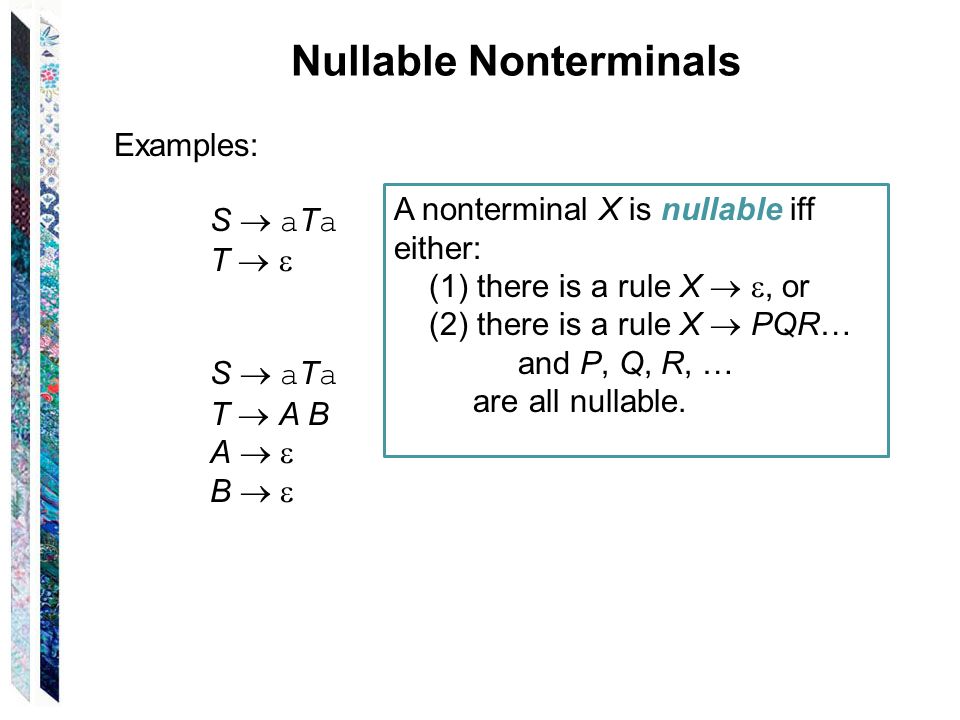

17. Nullable Nonterminals Examples: S  a T a T   S  a T a T  A B A   B   A nonterminal X is nullable iff either: (1) there is a rule X  , or (2) there is a rule X  PQR… and P, Q, R, … are all nullable.

18. Nullable Nonterminals A nonterminal X is nullable iff either: (1) there is a rule X  , or (2) there is a rule X  PQR… and P, Q, R, … are all nullable. So compute N, the set of nullable nonterminals, as follows: 1. Set N to the set of nonterminals that satisfy (1). 2. Repeat until an entire pass is made without adding anything to N Evaluate all other nonterminals with respect to (2). If any nonterminal satisfies (2) and is not in N, insert it.

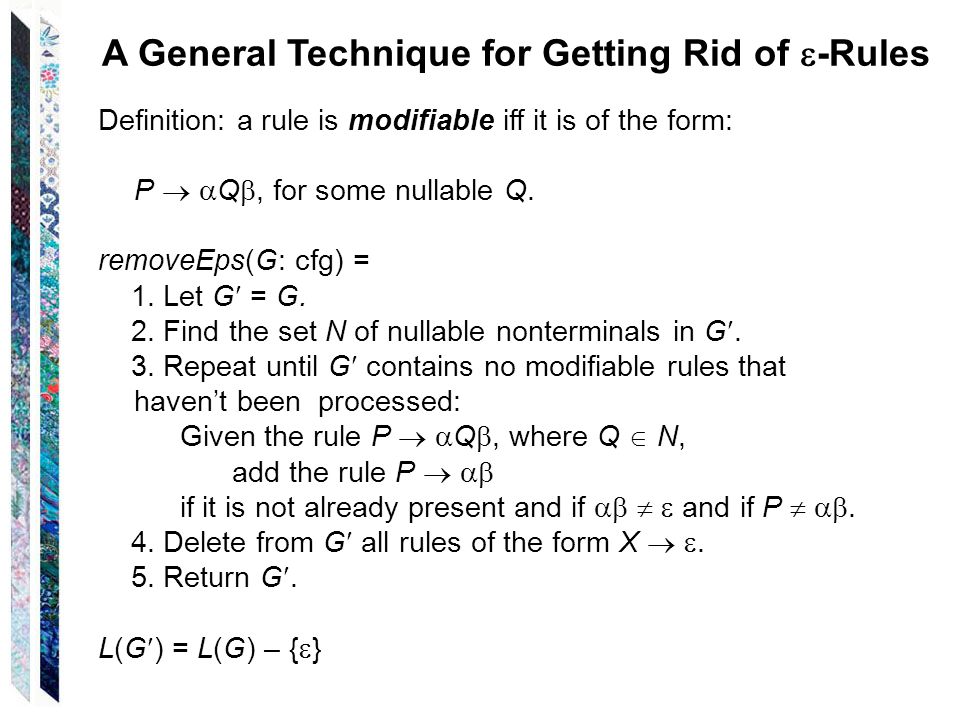

19. A General Technique for Getting Rid of  -Rules Definition: a rule is modifiable iff it is of the form: P   Q , for some nullable Q. removeEps(G: cfg) = 1. Let G = G. 2. Find the set N of nullable nonterminals in G. 3. Repeat until G contains no modifiable rules that haven’t been processed: Given the rule P   Q , where Q  N, add the rule P   if it is not already present and if    and if P  . 4. Delete from G all rules of the form X  . 5. Return G. L(G) = L(G) – {  }

20. An Example G = {{S, T, A, B, C, a, b, c }, { a, b, c }, R, S), R = {S  a T a T  ABC A  a A | C B  B b | C C  c |  } removeEps(G: cfg) = 1. Let G = G. 2. Find the set N of nullable nonterminals in G. 3. Repeat until G contains no modifiable rules that haven’t been processed: Given the rule P   Q , where Q  N, add the rule P   if it is not already present and if    and if P  . 4. Delete from G all rules of the form X  . 5. Return G.

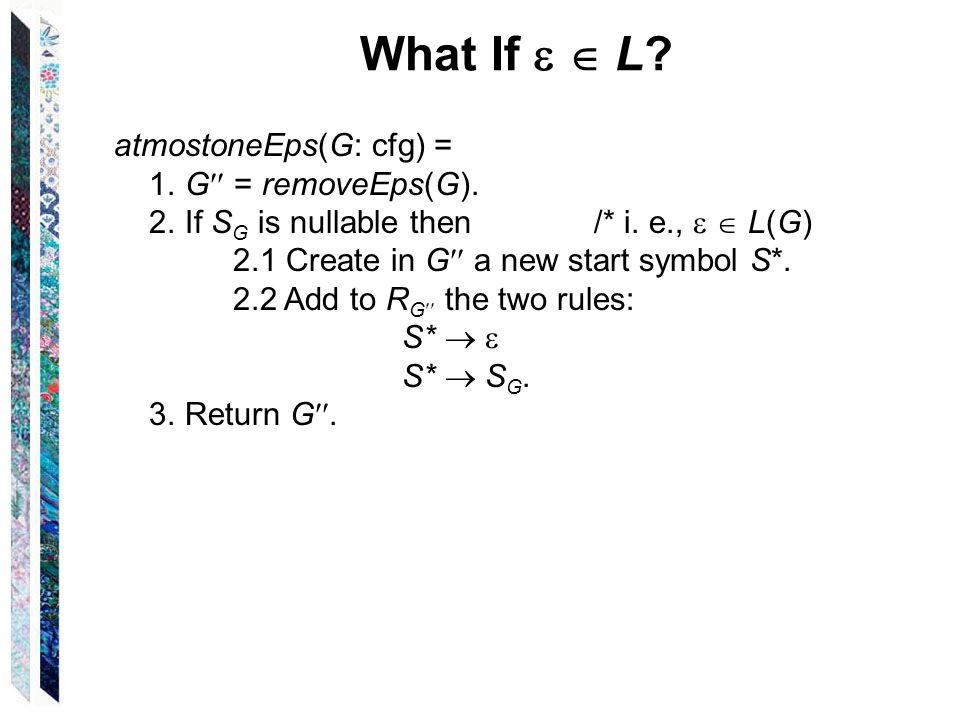

21. What If   L? atmostoneEps(G: cfg) = 1. G  = removeEps(G). 2. If S G is nullable then/* i. e.,   L(G) 2.1 Create in G  a new start symbol S*. 2.2 Add to R G  the two rules: S*   S*  S G. 3. Return G .

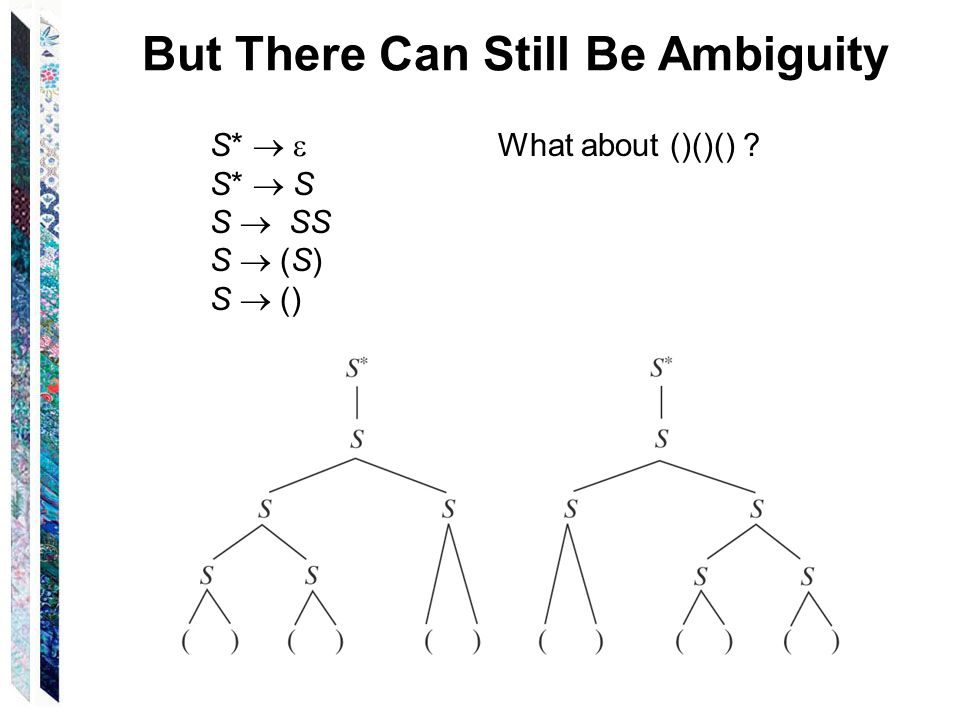

22. But There Can Still Be Ambiguity S*   What about ()()() ? S*  S S  SS S  (S) S  ()

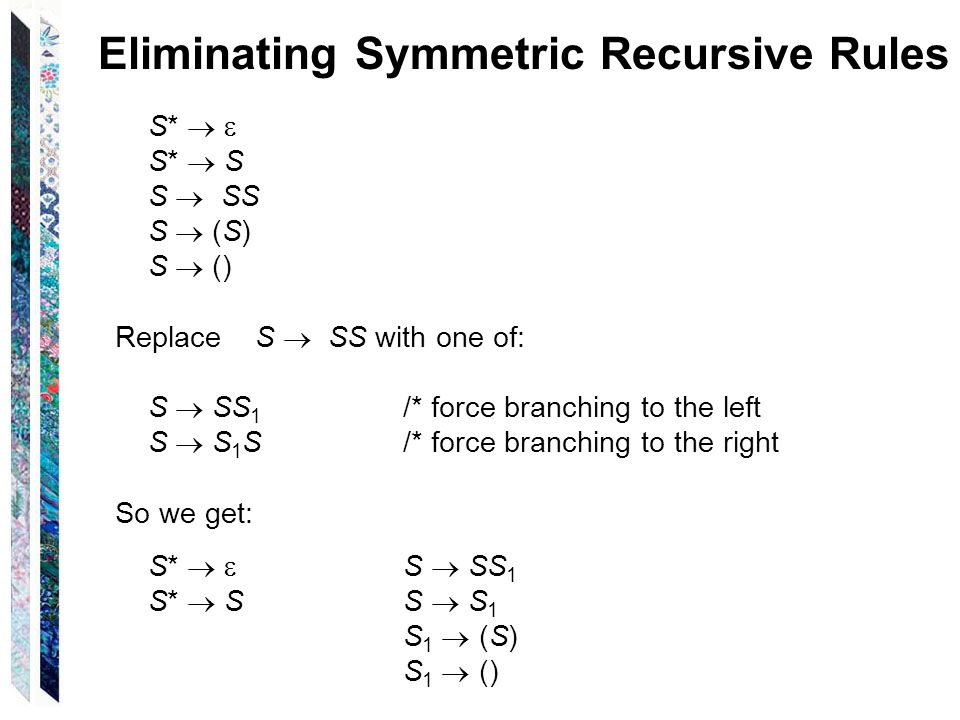

23. Eliminating Symmetric Recursive Rules S*   S*  S S  SS S  (S) S  () Replace S  SS with one of: S  SS 1 /* force branching to the left S  S 1 S /* force branching to the right So we get: S*   S  SS 1 S*  SS  S 1 S 1  (S) S 1  ()

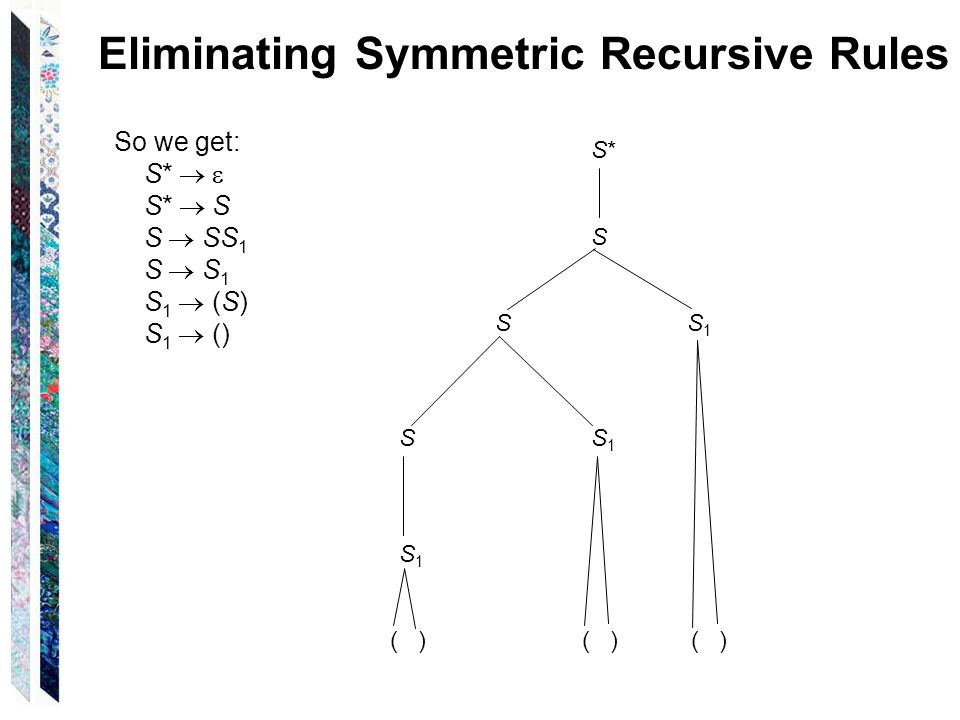

24. Eliminating Symmetric Recursive Rules So we get: S*   S*  S S  SS 1 S  S 1 S 1  (S) S 1  () S* S SS 1 S 1 ( ) ( ) ( )

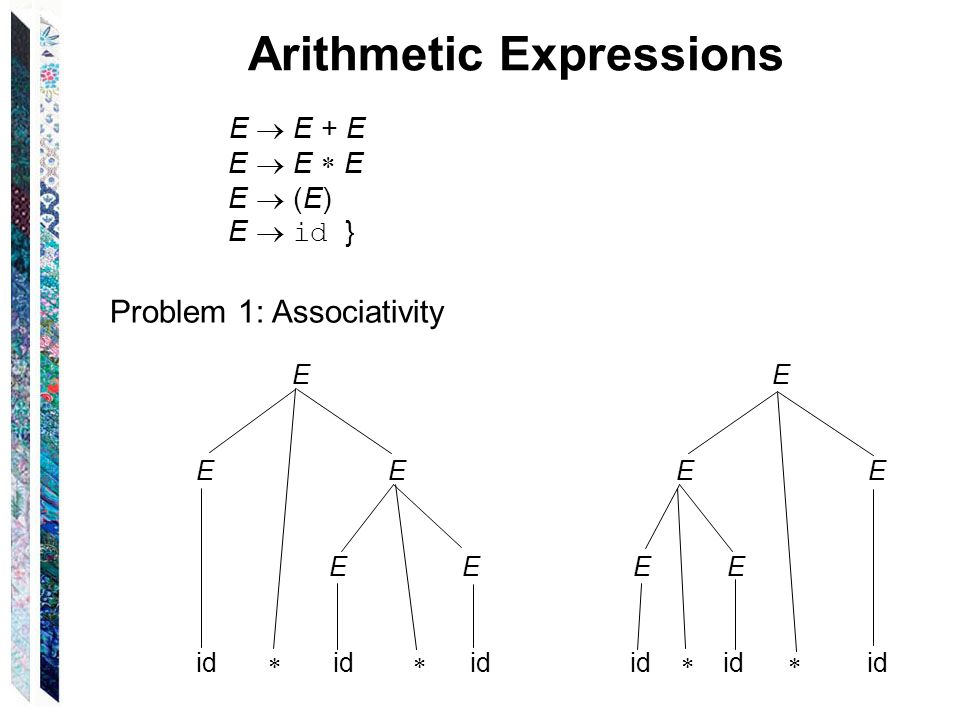

25. Arithmetic Expressions E  E + E E  E  E E  (E) E  id } E E EE E id  id  id Problem 1: Associativity

26. Arithmetic Expressions E  E + E E  E  E E  (E) E  id } E E EE E id  id + id Problem 2: Precedence

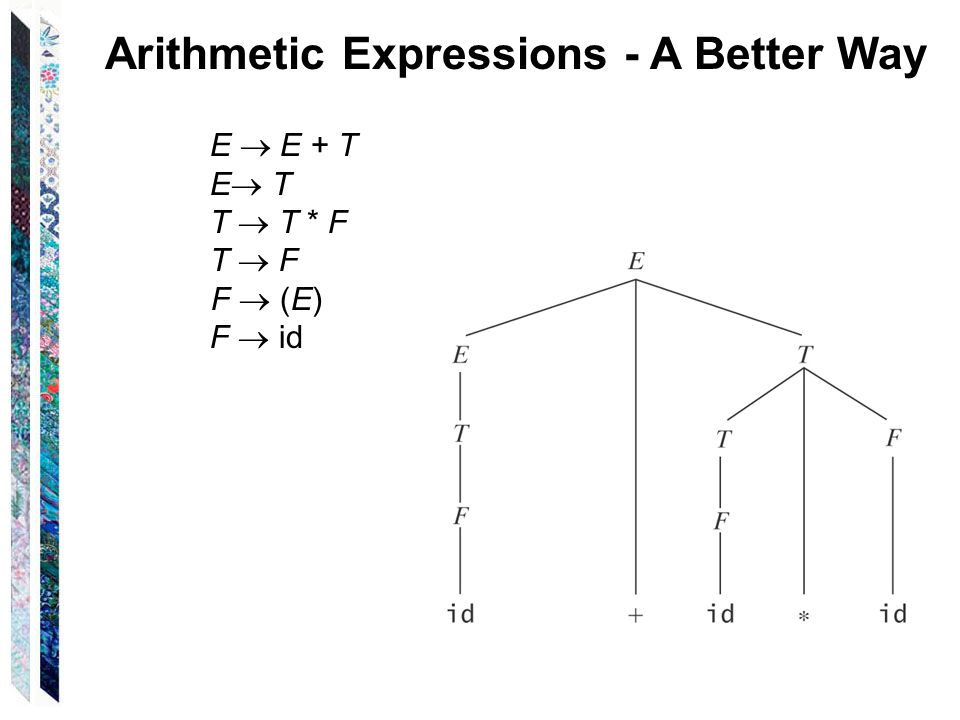

27. Arithmetic Expressions - A Better Way E  E + T E  T T  T * F T  F F  (E) F  id

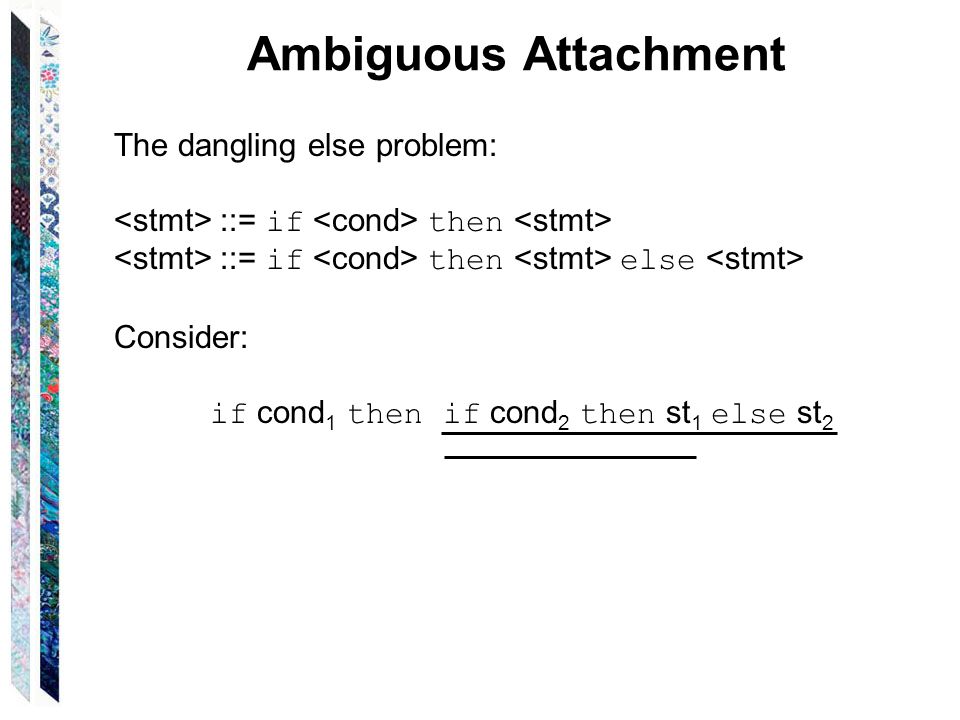

28. Ambiguous Attachment The dangling else problem: ::= if then ::= if then else Consider: if cond 1 then if cond 2 then st 1 else st 2

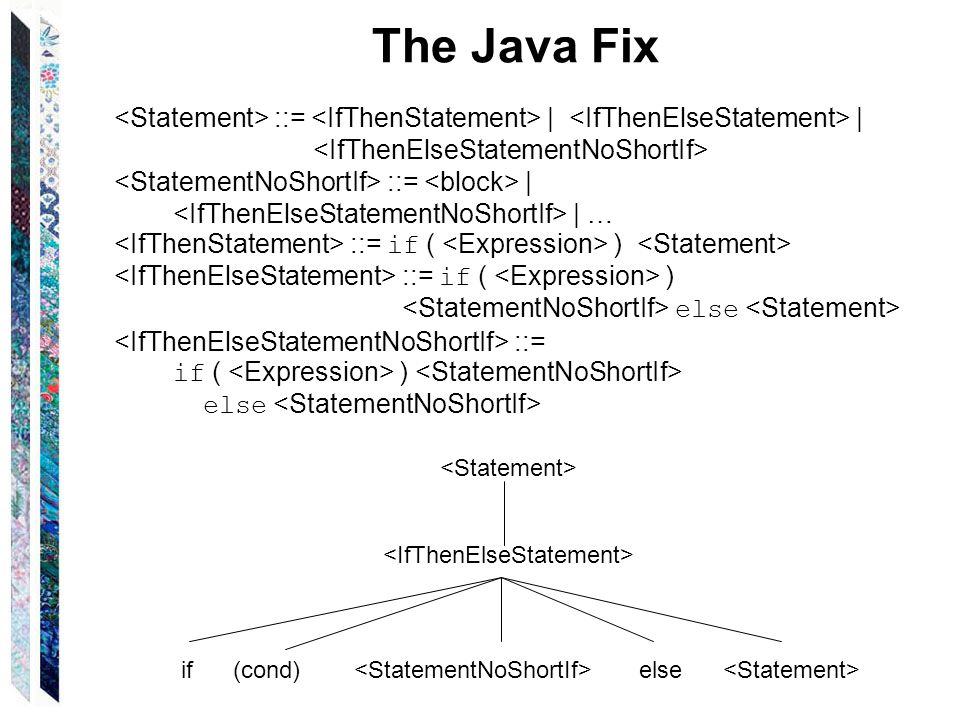

29. ::= | | ::= | | … ::= if ( ) else ::= if ( ) else if (cond) else The Java Fix

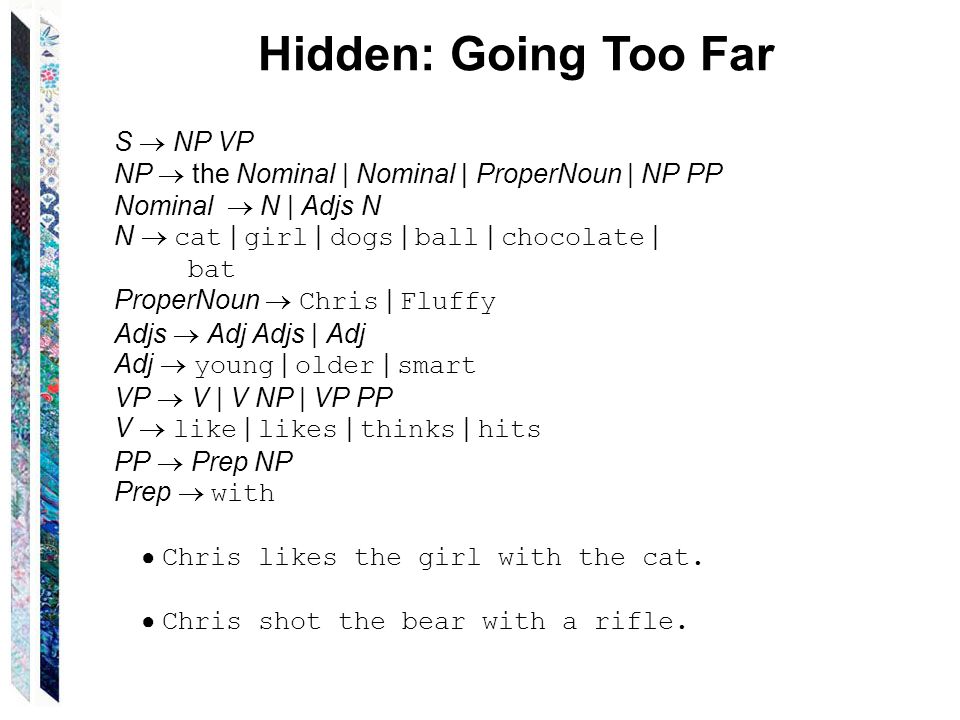

30. Hidden: Going Too Far S  NP VP NP  the Nominal | Nominal | ProperNoun | NP PP Nominal  N | Adjs N N  cat | girl | dogs | ball | chocolate | bat ProperNoun  Chris | Fluffy Adjs  Adj Adjs | Adj Adj  young | older | smart VP  V | V NP | VP PP V  like | likes | thinks | hits PP  Prep NP Prep  with ● Chris likes the girl with the cat. ● Chris shot the bear with a rifle.

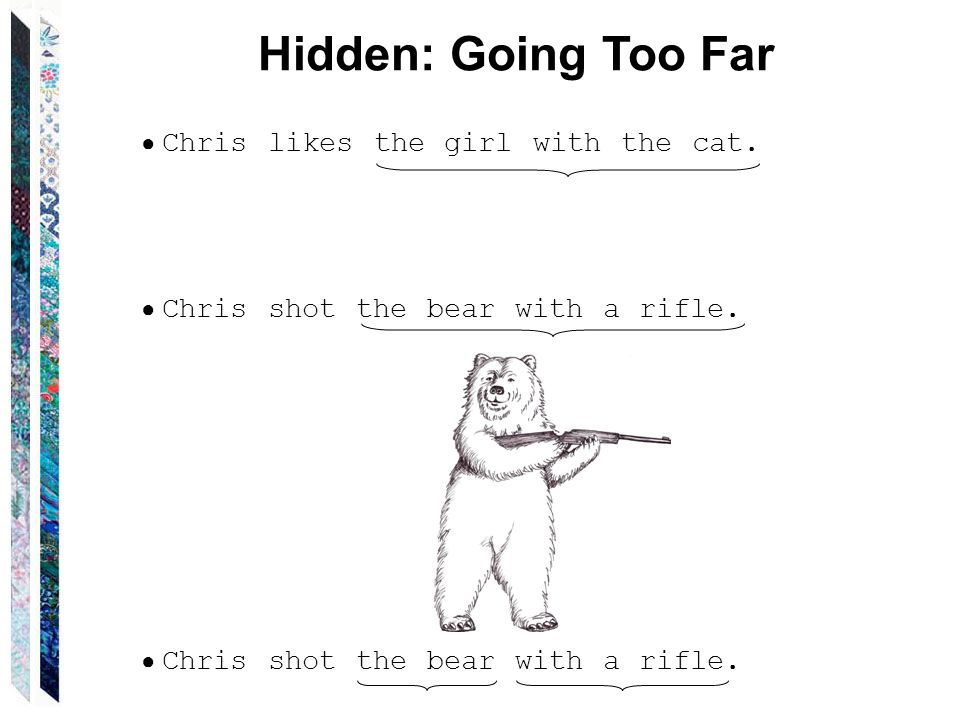

31. ● Chris likes the girl with the cat. ● Chris shot the bear with a rifle. Hidden: Going Too Far

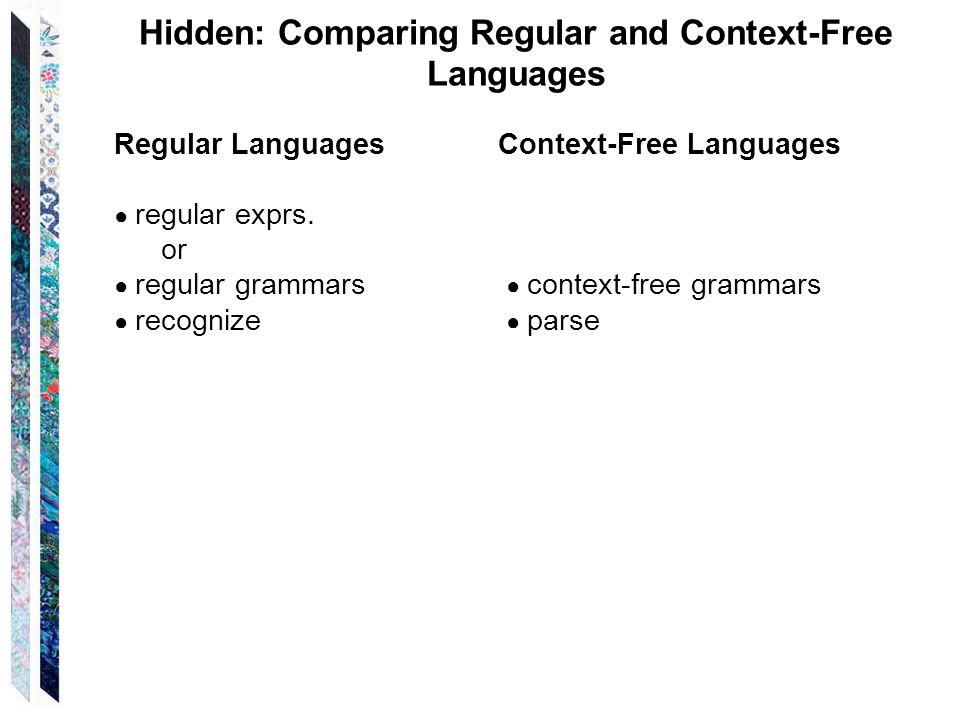

32. Hidden: Comparing Regular and Context-Free Languages Regular LanguagesContext-Free Languages ● regular exprs. or ● regular grammars ● context-free grammars ● recognize ● parse

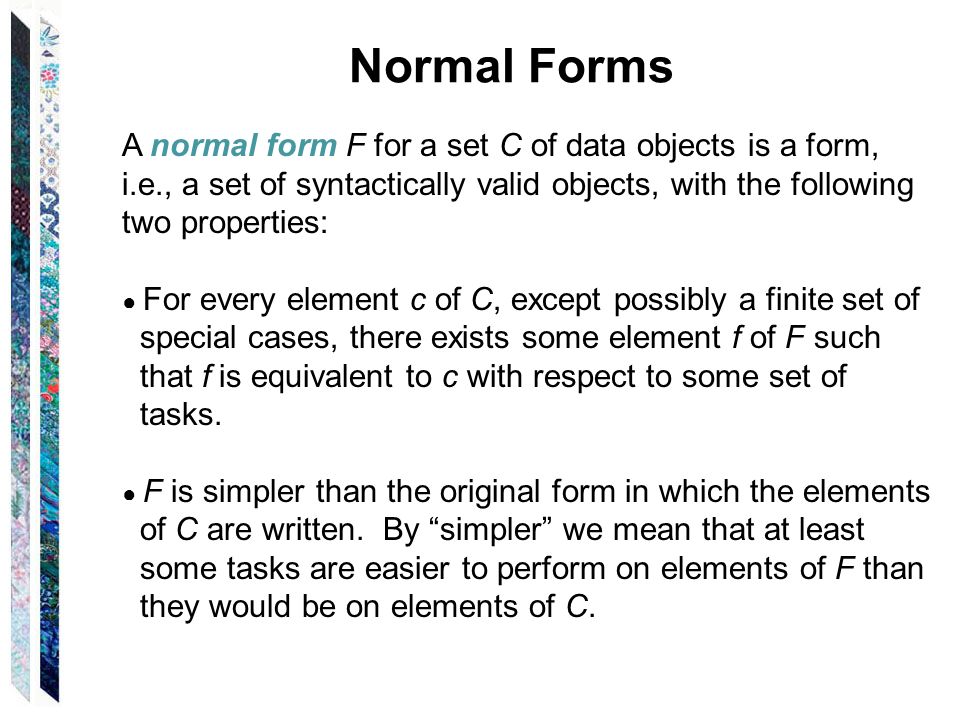

33. Normal Forms A normal form F for a set C of data objects is a form, i.e., a set of syntactically valid objects, with the following two properties: ● For every element c of C, except possibly a finite set of special cases, there exists some element f of F such that f is equivalent to c with respect to some set of tasks. ● F is simpler than the original form in which the elements of C are written. By “simpler” we mean that at least some tasks are easier to perform on elements of F than they would be on elements of C.

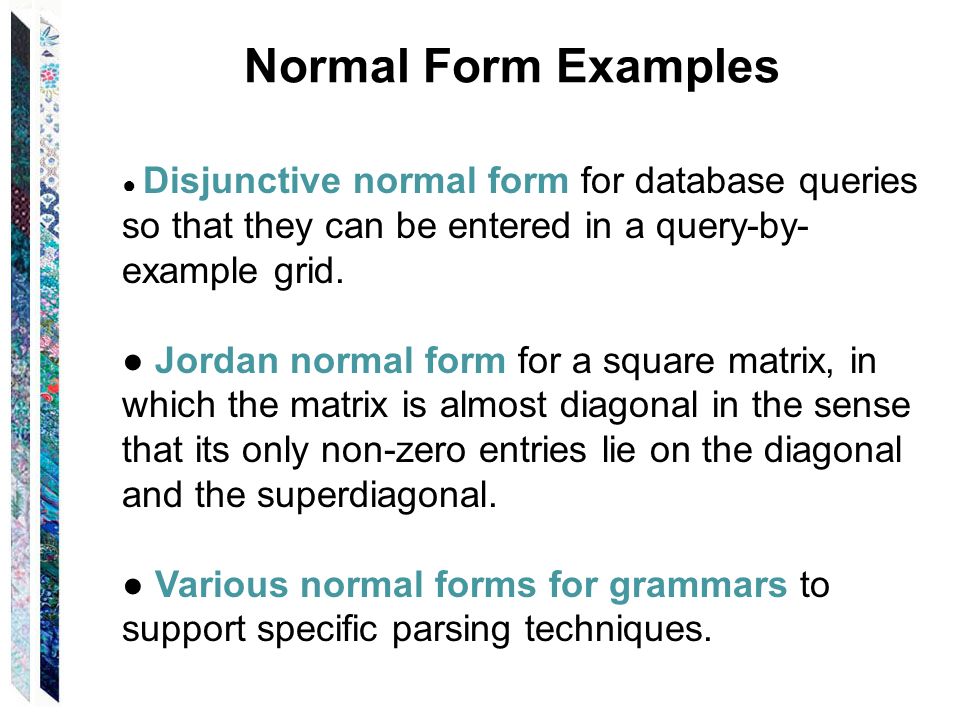

34. Normal Form Examples ● Disjunctive normal form for database queries so that they can be entered in a query-by- example grid. ● Jordan normal form for a square matrix, in which the matrix is almost diagonal in the sense that its only non-zero entries lie on the diagonal and the superdiagonal. ● Various normal forms for grammars to support specific parsing techniques.

35. Normal Forms for Grammars Chomsky Normal Form, in which all rules are of one of the following two forms: ● X  a, where a  , or ● X  BC, where B and C are elements of V - . Advantages: ● Parsers can use binary trees. ● Exact length of derivations is known: S AB AAB B aab BB b b

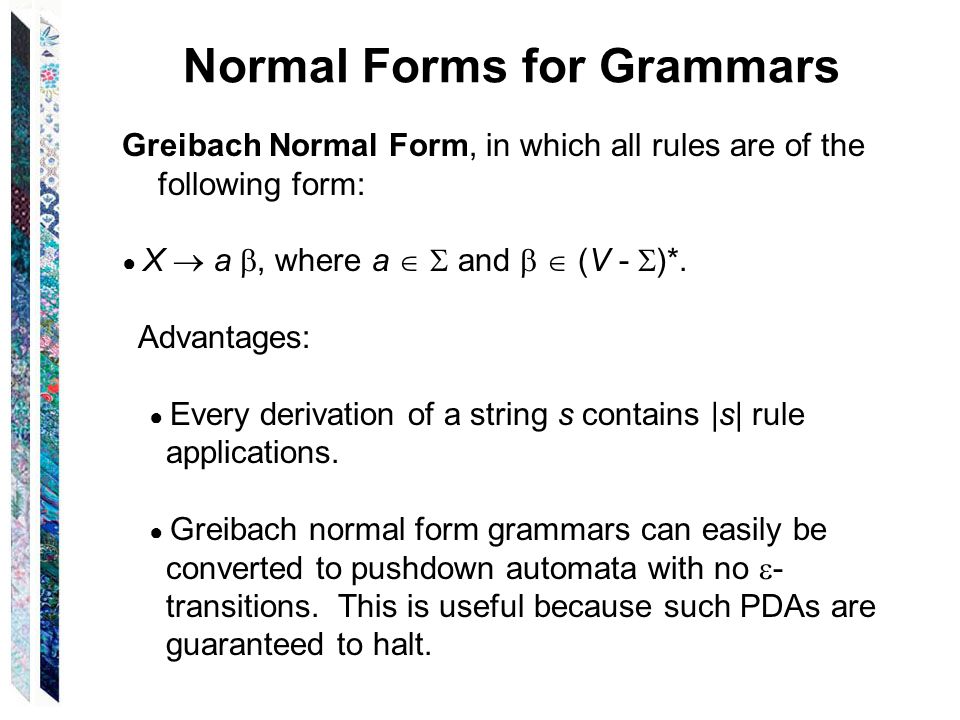

36. Normal Forms for Grammars Greibach Normal Form, in which all rules are of the following form: ● X  a , where a   and   (V -  )*. Advantages: ● Every derivation of a string s contains |s| rule applications. ● Greibach normal form grammars can easily be converted to pushdown automata with no  - transitions. This is useful because such PDAs are guaranteed to halt.

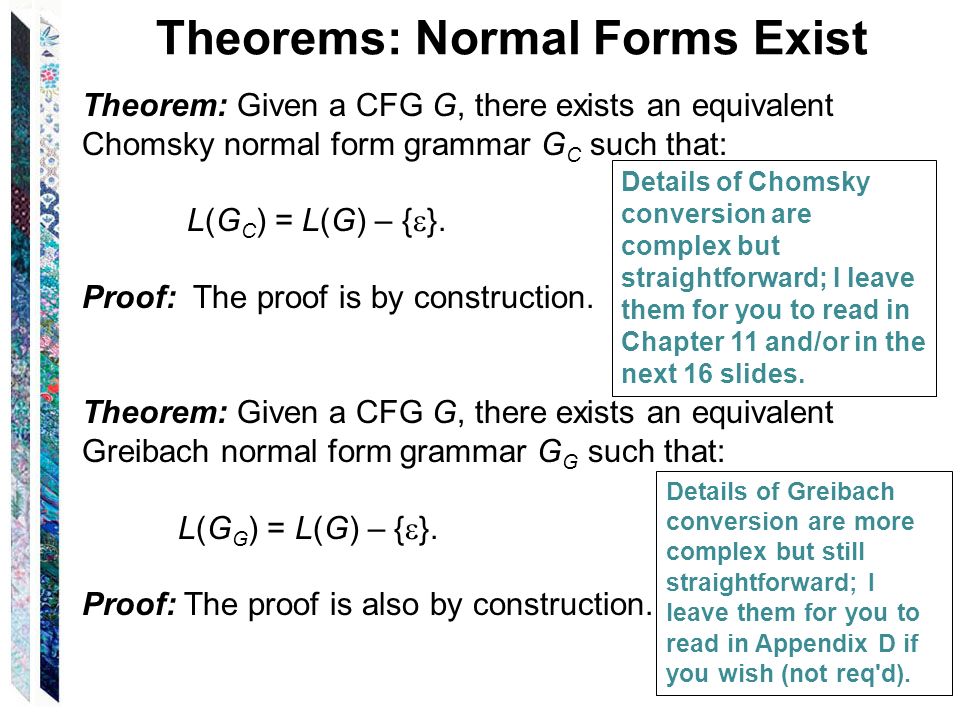

37. Theorems: Normal Forms Exist Theorem: Given a CFG G, there exists an equivalent Chomsky normal form grammar G C such that: L(G C ) = L(G) – {  }. Proof: The proof is by construction. Theorem: Given a CFG G, there exists an equivalent Greibach normal form grammar G G such that: L(G G ) = L(G) – {  }. Proof: The proof is also by construction. Details of Chomsky conversion are complex but straightforward; I leave them for you to read in Chapter 11 and/or in the next 16 slides. Details of Greibach conversion are more complex but still straightforward; I leave them for you to read in Appendix D if you wish (not req'd).

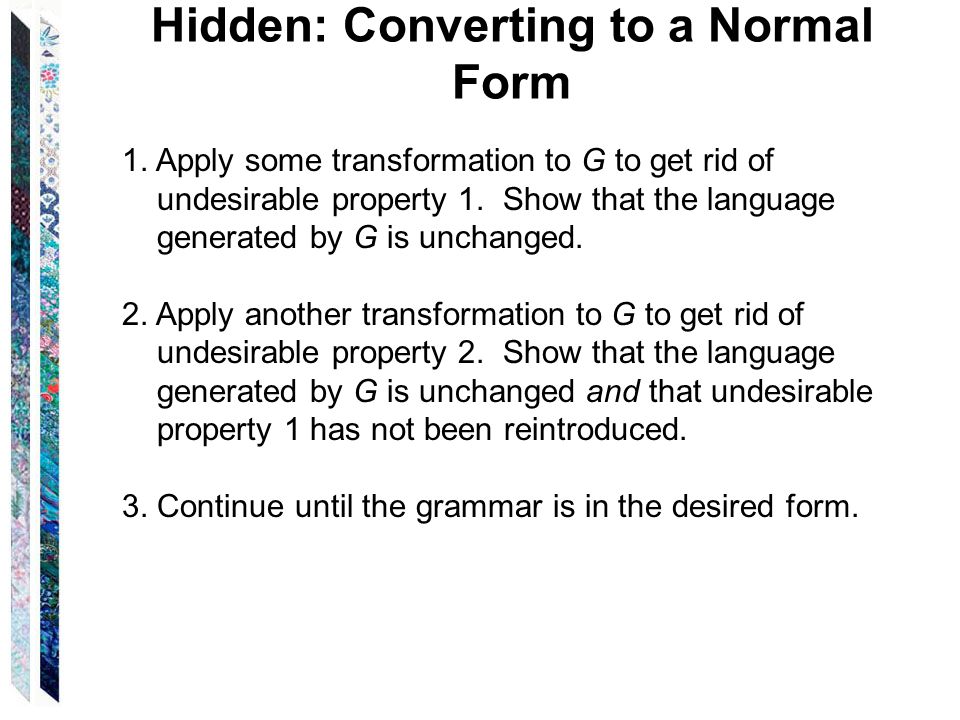

38. Hidden: Converting to a Normal Form 1. Apply some transformation to G to get rid of undesirable property 1. Show that the language generated by G is unchanged. 2. Apply another transformation to G to get rid of undesirable property 2. Show that the language generated by G is unchanged and that undesirable property 1 has not been reintroduced. 3. Continue until the grammar is in the desired form.

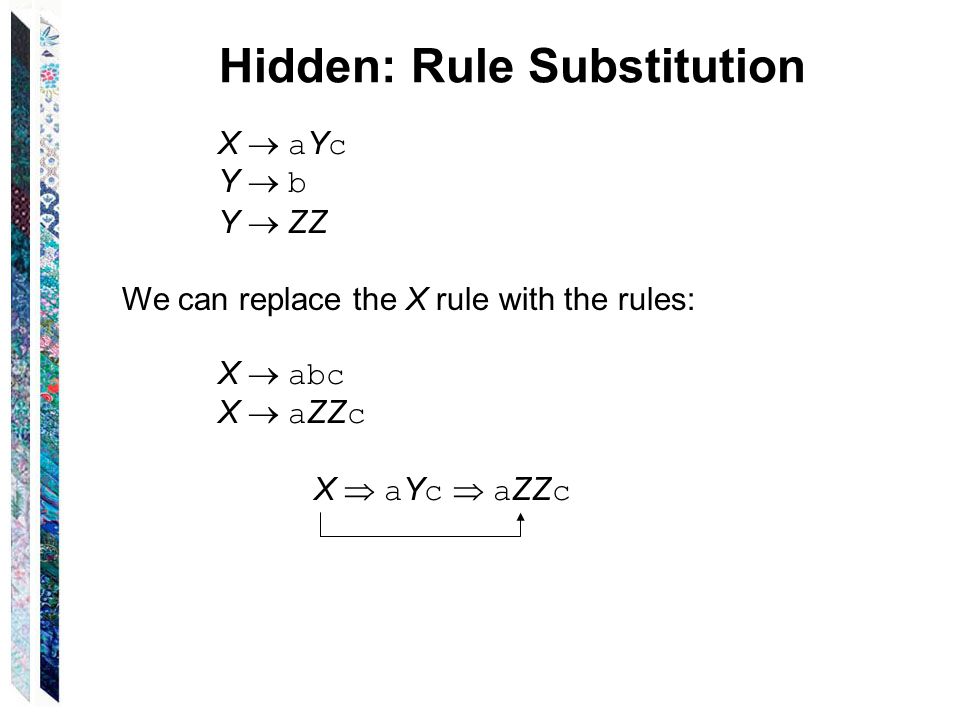

39. Hidden: Rule Substitution X  a Y c Y  b Y  ZZ We can replace the X rule with the rules: X  abc X  a ZZ c X  a Y c  a ZZ c

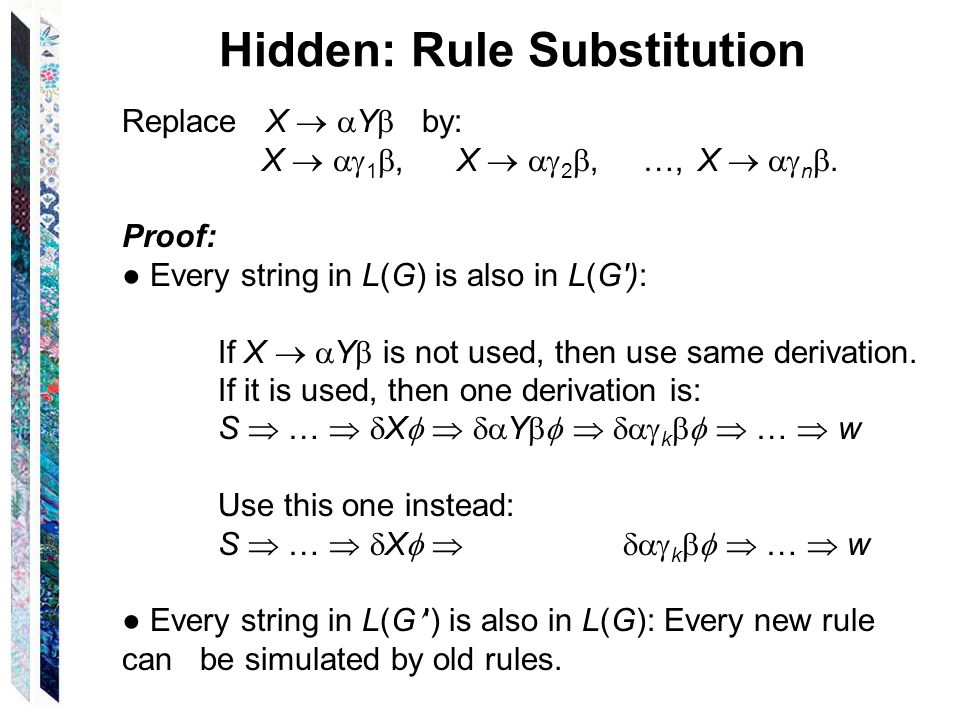

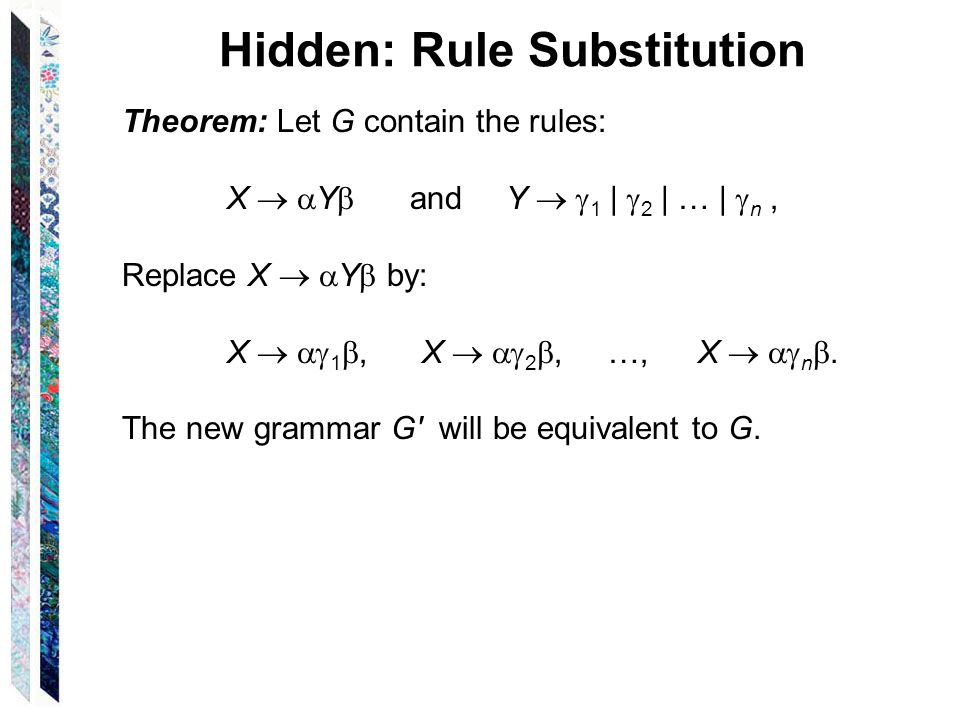

40. Hidden: Rule Substitution Theorem: Let G contain the rules: X   Y  and Y   1 |  2 | … |  n, Replace X   Y  by: X   1 , X   2 , …, X   n . The new grammar G' will be equivalent to G.

41. Hidden: Rule Substitution Replace X   Y  by: X   1 , X   2 , …, X   n . Proof: ● Every string in L(G) is also in L(G'): If X   Y  is not used, then use same derivation. If it is used, then one derivation is: S  …   X    Y    k   …  w Use this one instead: S  …   X    k   …  w ● Every string in L(G') is also in L(G): Every new rule can be simulated by old rules.

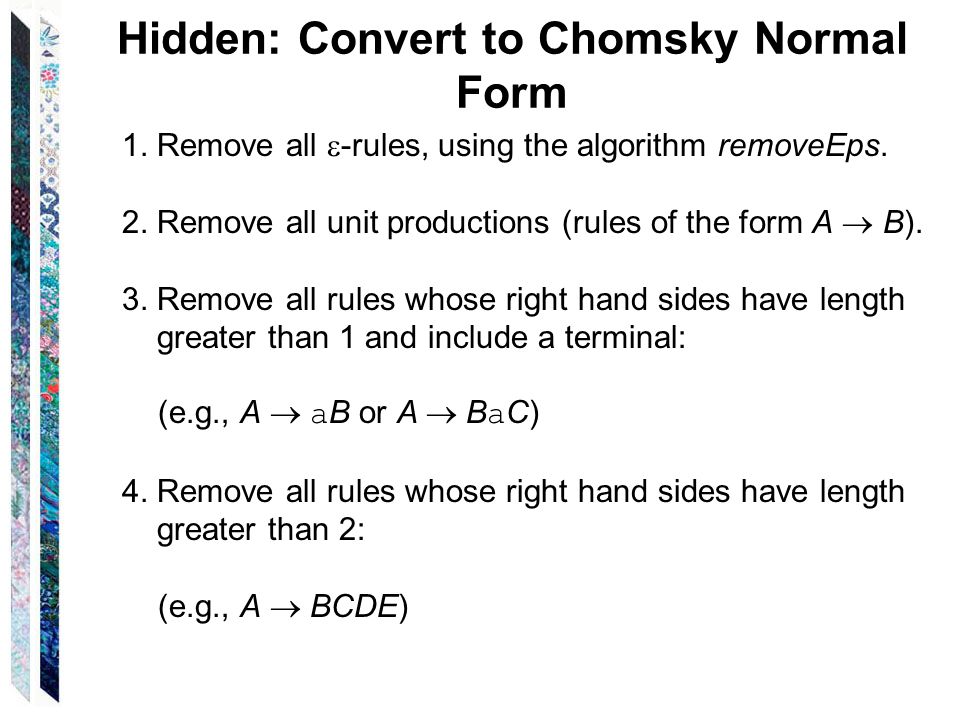

42. Hidden: Convert to Chomsky Normal Form 1. Remove all  -rules, using the algorithm removeEps. 2. Remove all unit productions (rules of the form A  B). 3. Remove all rules whose right hand sides have length greater than 1 and include a terminal: (e.g., A  a B or A  B a C) 4. Remove all rules whose right hand sides have length greater than 2: (e.g., A  BCDE)

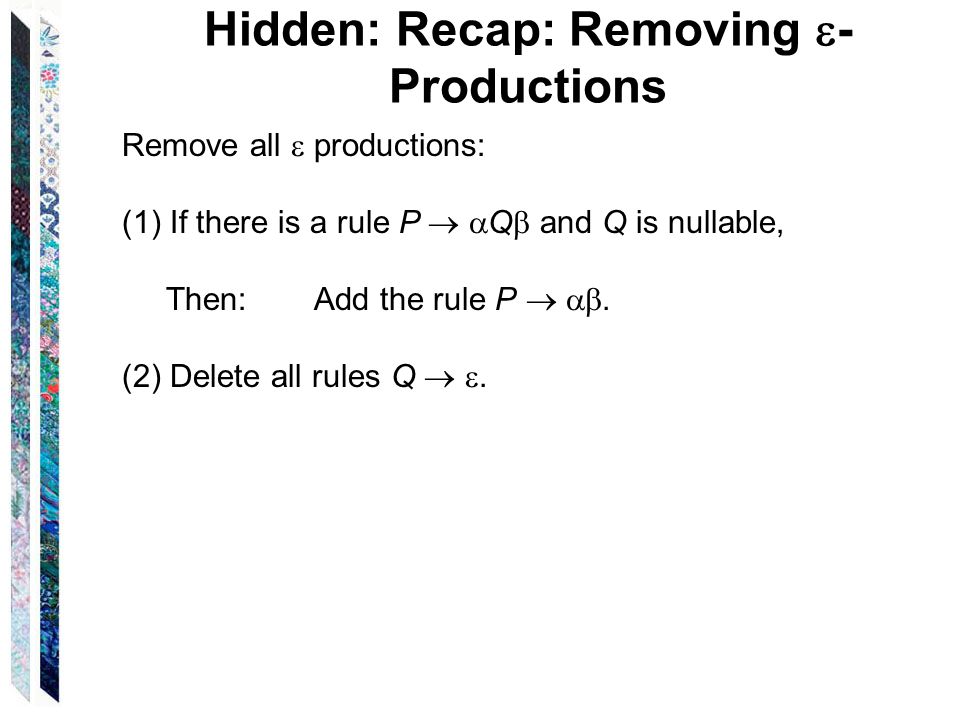

43. Remove all  productions: (1) If there is a rule P   Q  and Q is nullable, Then: Add the rule P  . (2) Delete all rules Q  . Hidden: Recap: Removing  - Productions

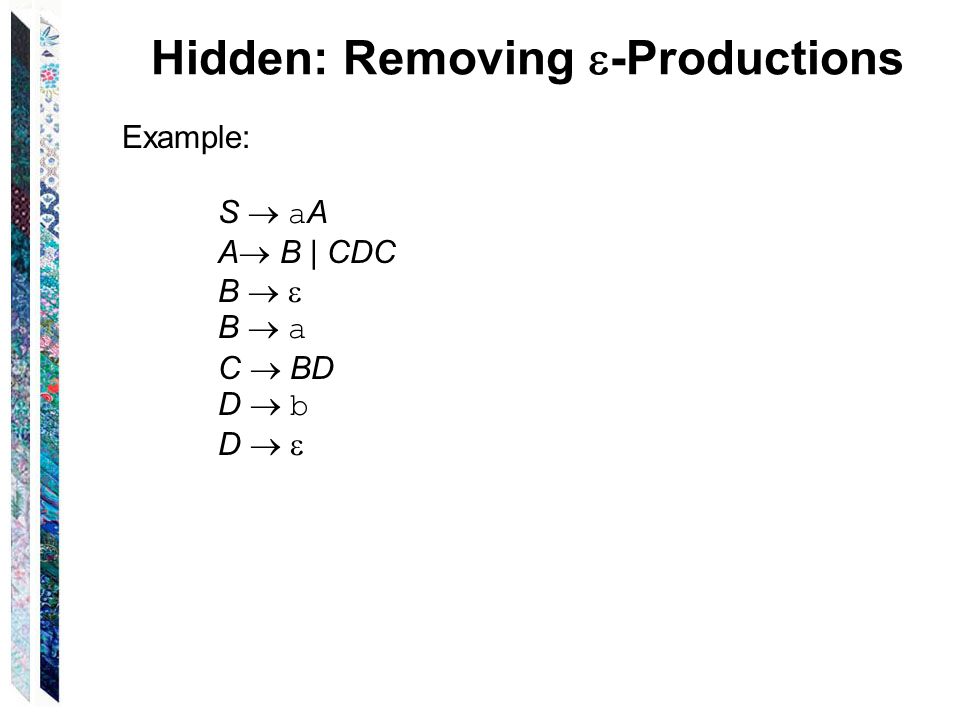

44. Example: S  a A A  B | CDC B   B  a C  BD D  b D   Hidden: Removing  -Productions

45. Hidden: Unit Productions A unit production is a rule whose right-hand side consists of a single nonterminal symbol. Example: S  X Y X  A A  B | a B  b Y  T T  Y | c

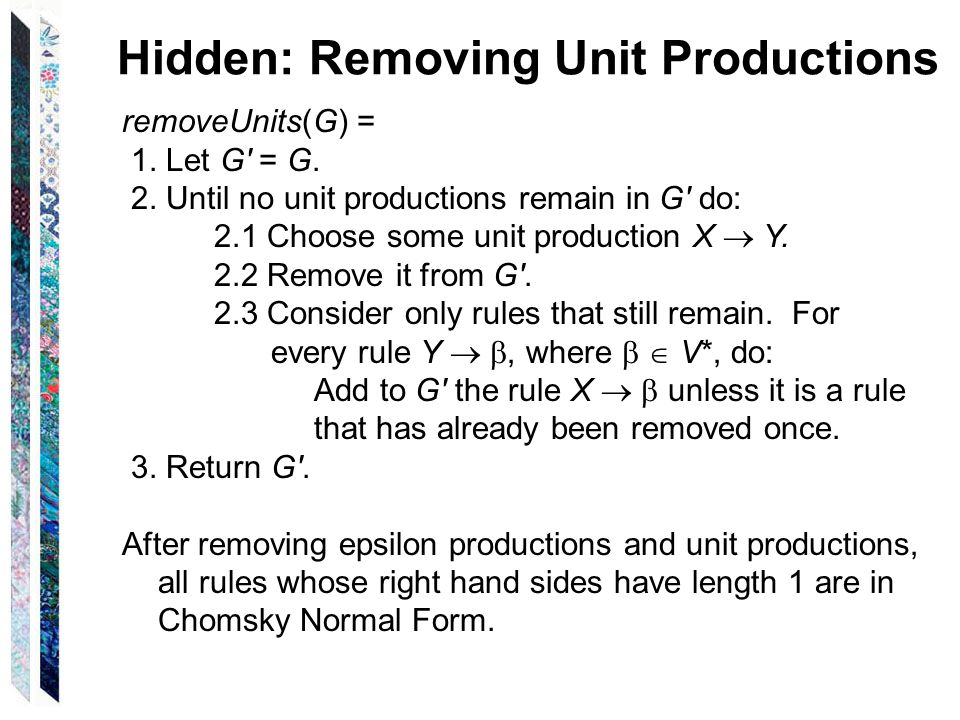

46. removeUnits(G) = 1. Let G' = G. 2. Until no unit productions remain in G' do: 2.1 Choose some unit production X  Y. 2.2 Remove it from G'. 2.3 Consider only rules that still remain. For every rule Y  , where   V*, do: Add to G' the rule X   unless it is a rule that has already been removed once. 3. Return G'. After removing epsilon productions and unit productions, all rules whose right hand sides have length 1 are in Chomsky Normal Form. Hidden: Removing Unit Productions

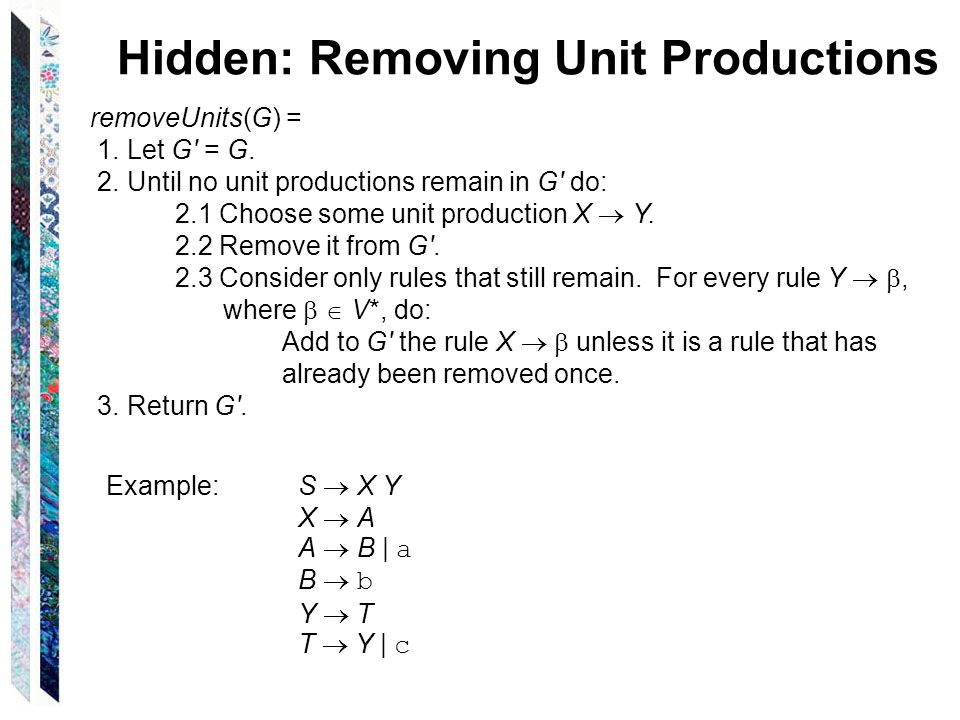

47. removeUnits(G) = 1. Let G' = G. 2. Until no unit productions remain in G' do: 2.1 Choose some unit production X  Y. 2.2 Remove it from G'. 2.3 Consider only rules that still remain. For every rule Y  , where   V*, do: Add to G' the rule X   unless it is a rule that has already been removed once. 3. Return G'. Hidden: Removing Unit Productions Example:S  X Y X  A A  B | a B  b Y  T T  Y | c

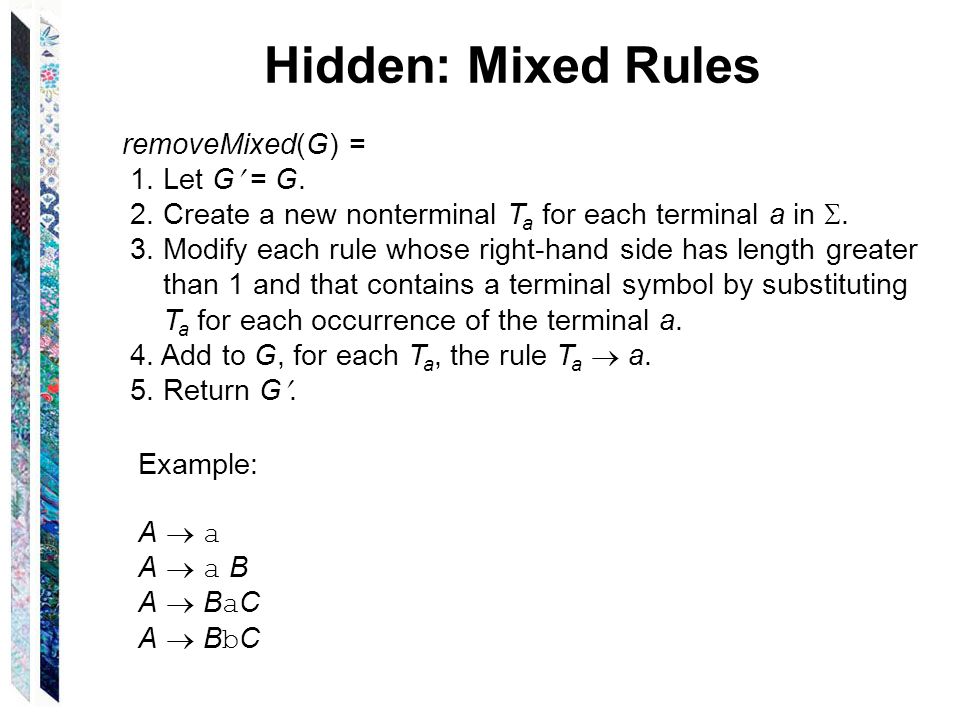

48. Hidden: Mixed Rules removeMixed(G) = 1. Let G = G. 2. Create a new nonterminal T a for each terminal a in . 3. Modify each rule whose right-hand side has length greater than 1 and that contains a terminal symbol by substituting T a for each occurrence of the terminal a. 4. Add to G, for each T a, the rule T a  a. 5. Return G. Example: A  a A  a B A  B a C A  B b C

49. Hidden: Long Rules removeLong(G) = 1. Let G = G. 2. For each rule r of the form: A  N 1 N 2 N 3 N 4 …N n, n > 2 create new nonterminals M 2, M 3, … M n-1. 3. Replace r with the rule A  N 1 M 2. 4. Add the rules: M 2  N 2 M 3, M 3  N 3 M 4, … M n-1  N n-1 N n. 5. Return G. Example: A  BCDEF

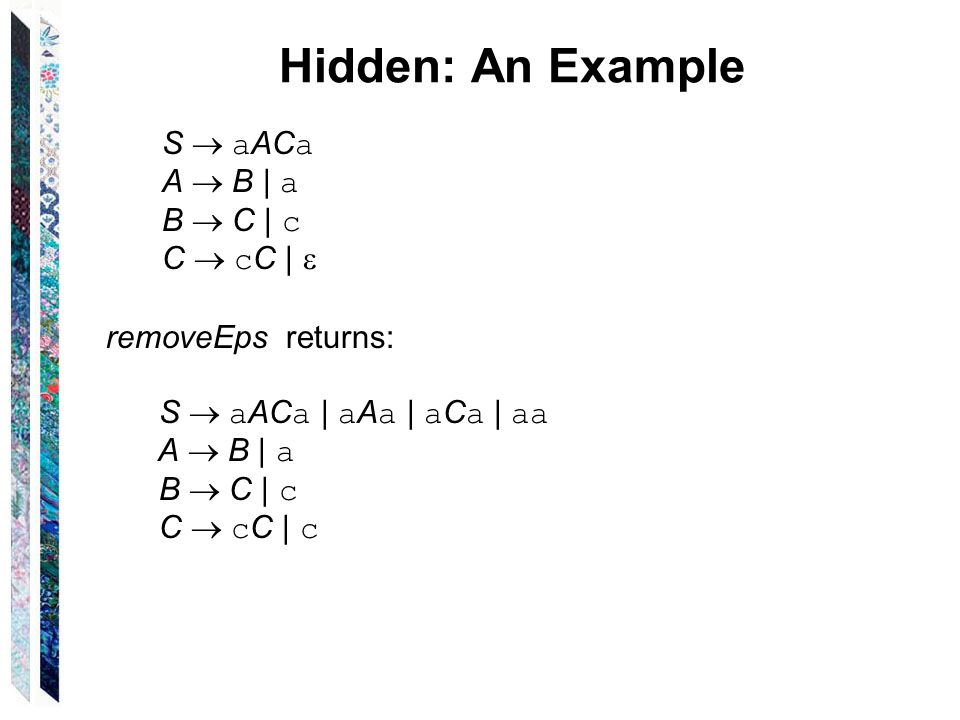

50. Hidden: An Example S  a AC a A  B | a B  C | c C  c C |  removeEps returns: S  a AC a | a A a | a C a | aa A  B | a B  C | c C  c C | c

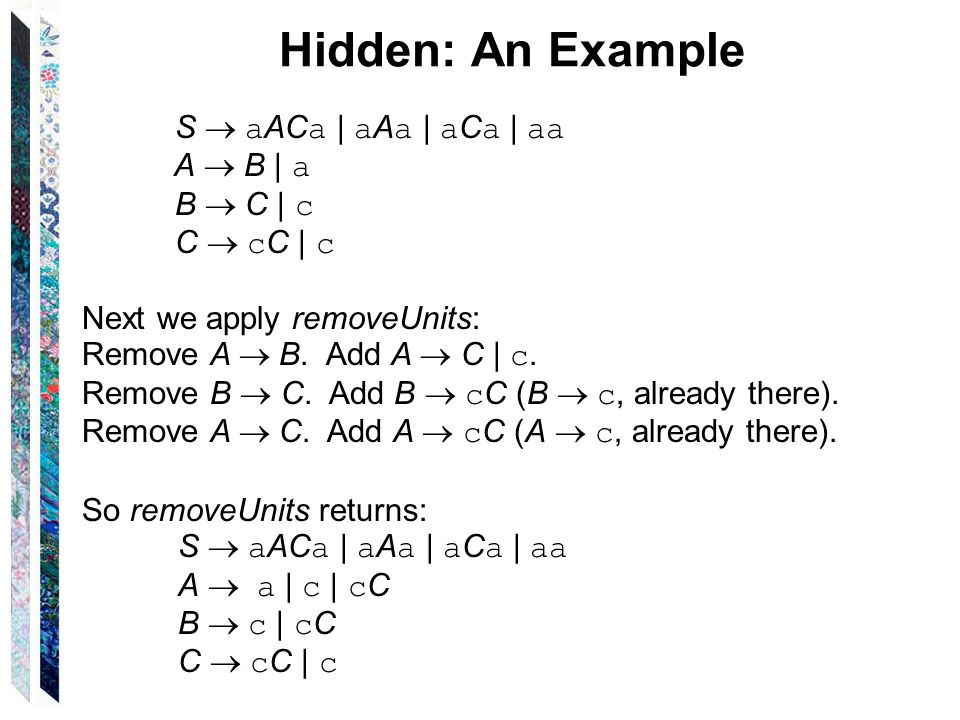

51. Hidden: An Example Next we apply removeUnits: Remove A  B. Add A  C | c. Remove B  C. Add B  c C (B  c, already there). Remove A  C. Add A  c C (A  c, already there). So removeUnits returns: S  a AC a | a A a | a C a | aa A  a | c | c C B  c | c C C  c C | c S  a AC a | a A a | a C a | aa A  B | a B  C | c C  c C | c

52. Hidden: An Example S  a AC a | a A a | a C a | aa A  a | c | c C B  c | c C C  c C | c Next we apply removeMixed, which returns: S  T a ACT a | T a AT a | T a CT a | T a T a A  a | c | T c C B  c | T c C C  T c C | c T a  a T c  c

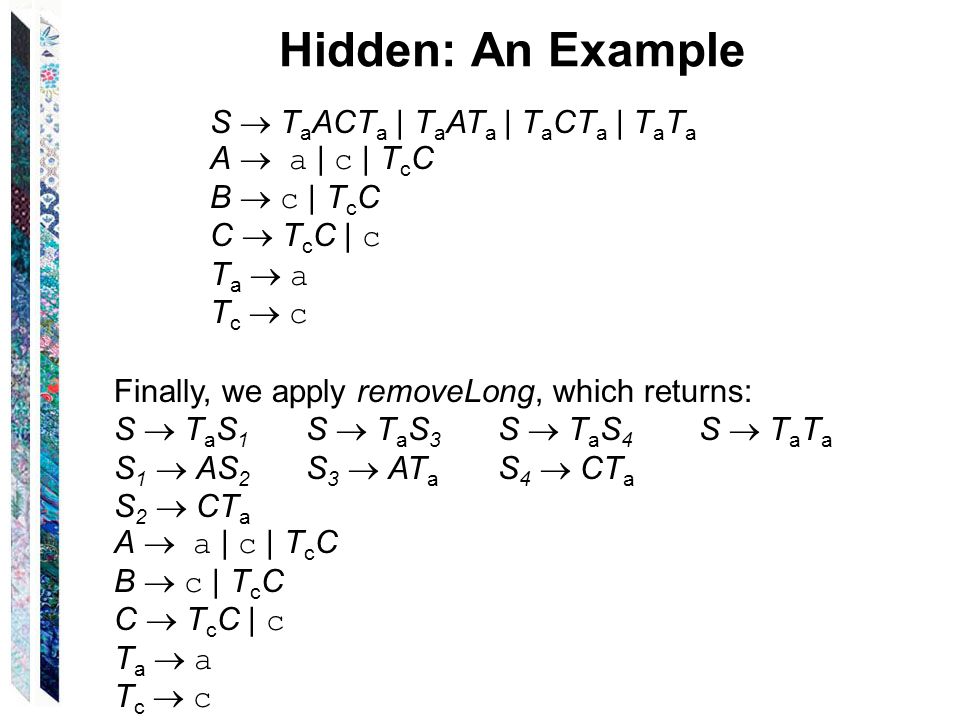

53. Hidden: An Example S  T a ACT a | T a AT a | T a CT a | T a T a A  a | c | T c C B  c | T c C C  T c C | c T a  a T c  c Finally, we apply removeLong, which returns: S  T a S 1 S  T a S 3 S  T a S 4 S  T a T a S 1  AS 2 S 3  AT a S 4  CT a S 2  CT a A  a | c | T c C B  c | T c C C  T c C | c T a  a T c  c

54. The Price of Normal Forms E  E + E E  (E) E  id Converting to Chomsky normal form: E  E E E  P E E  L E  E   E R E  id L  ( R  ) P  + Conversion doesn’t change weak generative capacity but it may change strong generative capacity.
