1. M.Sc. Seminar - Keren Lenz Supervisor - Dr. Yossi Gil July 1 st 2007 Simple and Safe SQL Queries with C++ Templates A RA R AT -

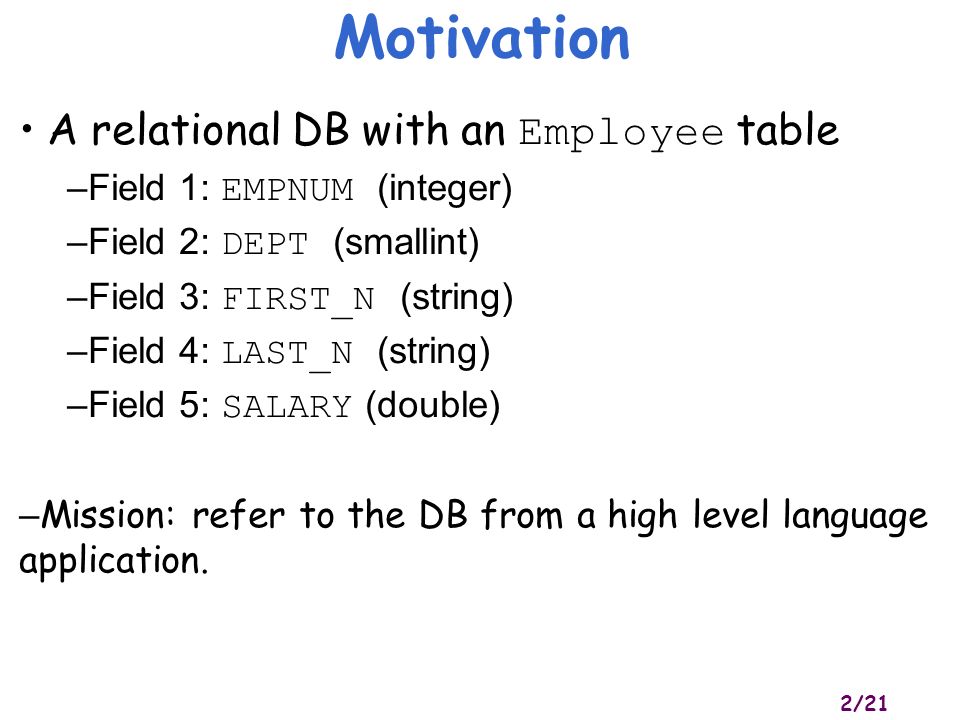

2. 2/21 Motivation A relational DB with an Employee table –Field 1: EMPNUM (integer)‏ –Field 2: DEPT (smallint)‏ –Field 3: FIRST_N (string)‏ –Field 4: LAST_N (string)‏ –Field 5: SALARY (double) – Mission: refer to the DB from a high level language application.

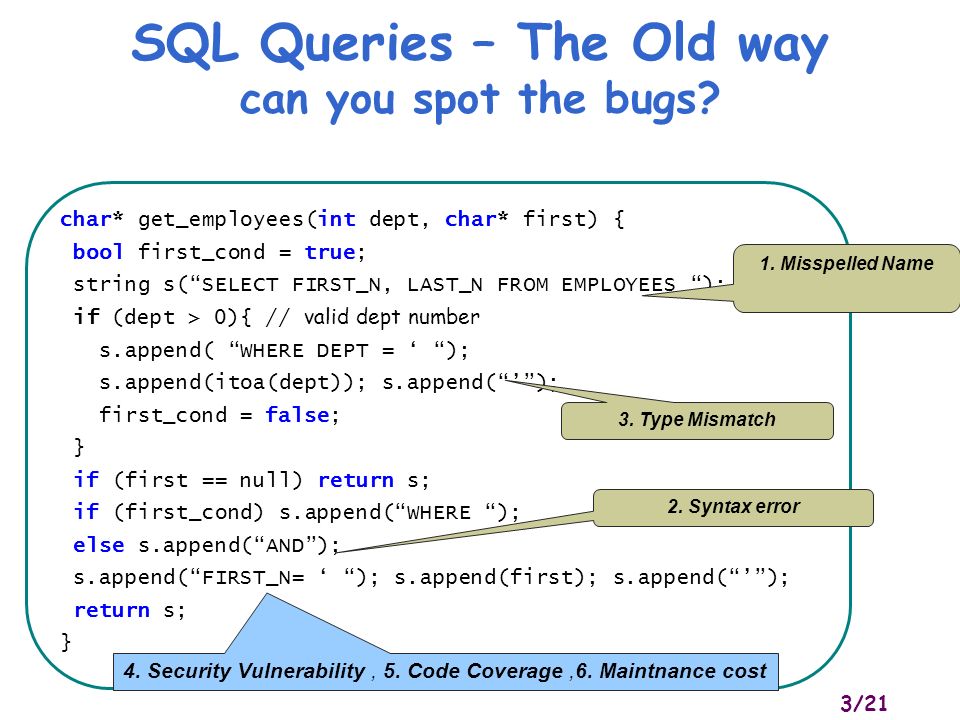

3. 3/21 SQL Queries – The Old way can you spot the bugs? char* get_employees(int dept, char* first) { bool first_cond = true; string s(“SELECT FIRST_N, LAST_N FROM EMPLOYEES “); if (dept > 0){ // valid dept number s.append( “WHERE DEPT = ‘ “); s.append(itoa(dept)); s.append(“’”); first_cond = false; } if (first == null) return s; if (first_cond) s.append(“WHERE “); else s.append(“AND”); s.append(“FIRST_N= ‘ “); s.append(first); s.append(“’”); return s; } 1. Misspelled Name 2. Syntax error 3. Type Mismatch 4. Security Vulnerability, 5. Code Coverage,6. Maintnance cost

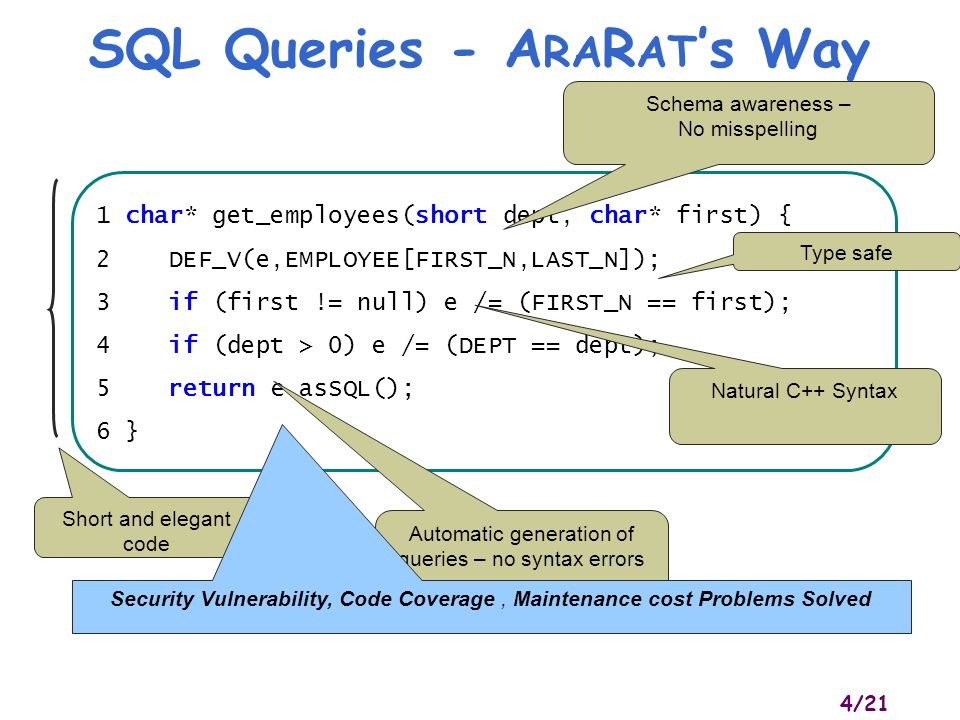

4. 4/21 SQL Queries - A RA R AT ’s Way 1 char* get_employees(short dept, char* first) { 2 DEF_V(e,EMPLOYEE[FIRST_N,LAST_N]); 3 if (first != null) e /= (FIRST_N == first); 4 if (dept > 0) e /= (DEPT == dept); 5 return e.asSQL(); 6 } Short and elegant code Type safe Schema awareness – No misspelling Automatic generation of queries – no syntax errors Natural C++ Syntax Security Vulnerability, Code Coverage, Maintenance cost Problems Solved

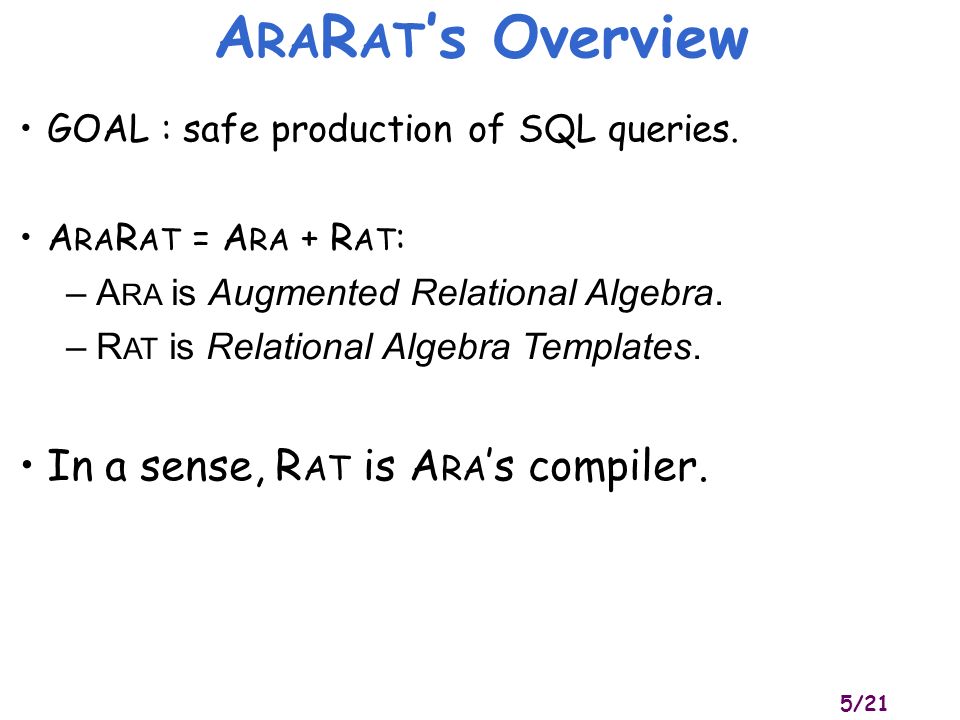

5. 5/21 A RA R AT ’s Overview GOAL : safe production of SQL queries. A RA R AT = A RA + R AT : –A RA is Augmented Relational Algebra. –R AT is Relational Algebra Templates. In a sense, R AT is A RA ’s compiler.

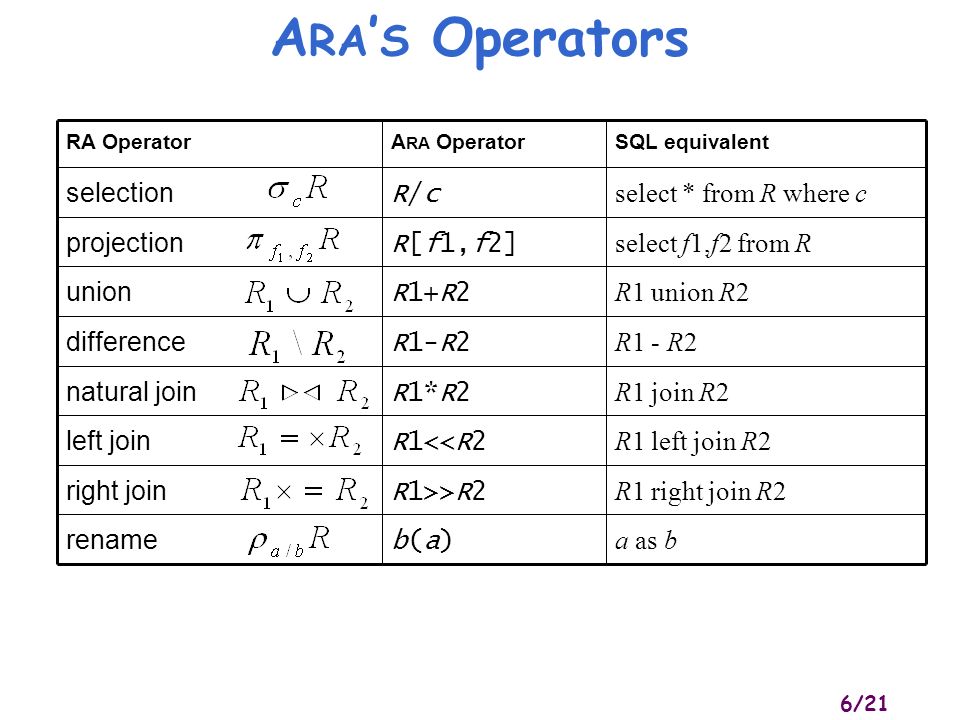

6. 6/21 A RA ’ S Operators RA OperatorA RA OperatorSQL equivalent selection R/cR/c select * from R where c projection R[f1,f2] select f1,f2 from R union R1+R2 R1 union R2 difference R1-R2 natural join R1*R2 R1 join R2 left join R1<<R2 R1 left join R2 right join R1>>R2 R1 right join R2 rename b(a)‏b(a)‏ a as b

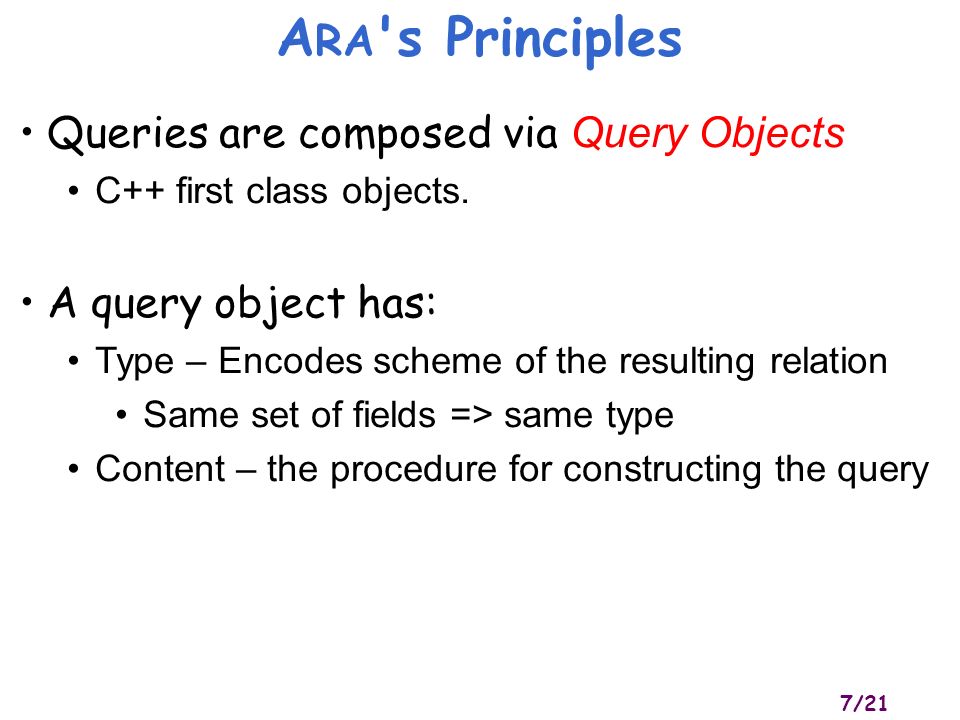

7. 7/21 A RA 's Principles Queries are composed via Query Objects C++ first class objects. A query object has: Type – Encodes scheme of the resulting relation Same set of fields => same type Content – the procedure for constructing the query

8. 8/21 Primitive Query Objects – A Primitive QO is defined for each DB table –Option 1: Manually, using macros –Option 2: Automatically by the DB2ARA tool –Represent a query that returns all fields SELECT * FROM DEF_F(EMPNUM)‏ DEF_F(DEPT)‏ DEF_F(FIRST_N)‏ DEF_F(LAST_N)‏ DEF_F(SALARY)‏ DEF_R(EMPLOYEE, (EMPNUM/integer, FIRST_N/String, LAST_N/String, DEPT/SmallInt, SALARY/double));

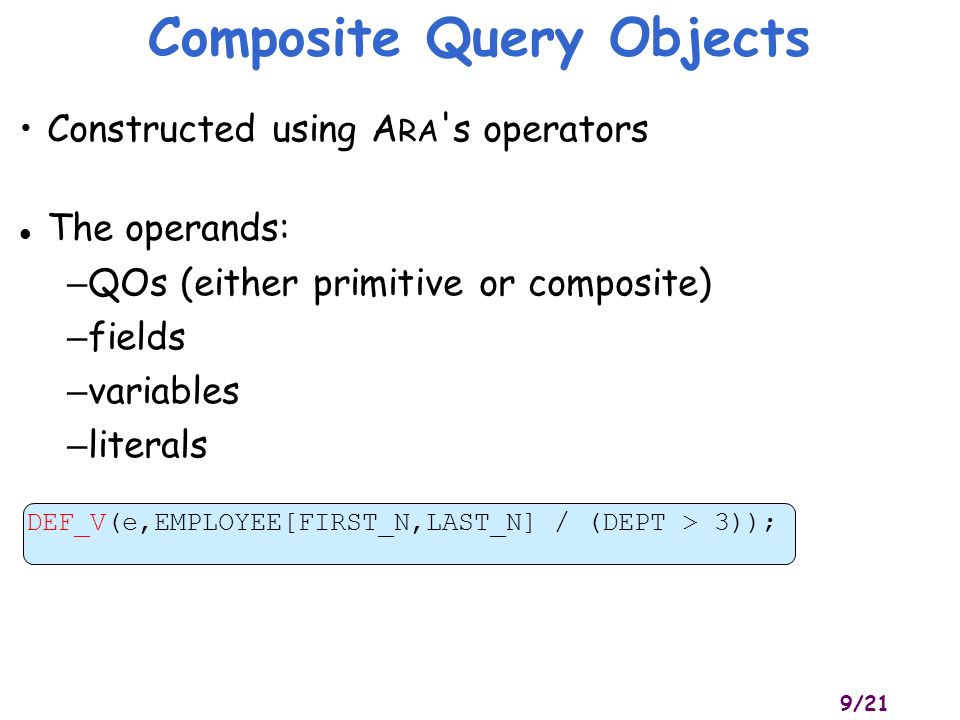

9. 9/21 Composite Query Objects Constructed using A RA 's operators The operands: – QOs (either primitive or composite) ‏ – fields – variables – literals DEF_V(e,EMPLOYEE[FIRST_N,LAST_N] / (DEPT > 3));

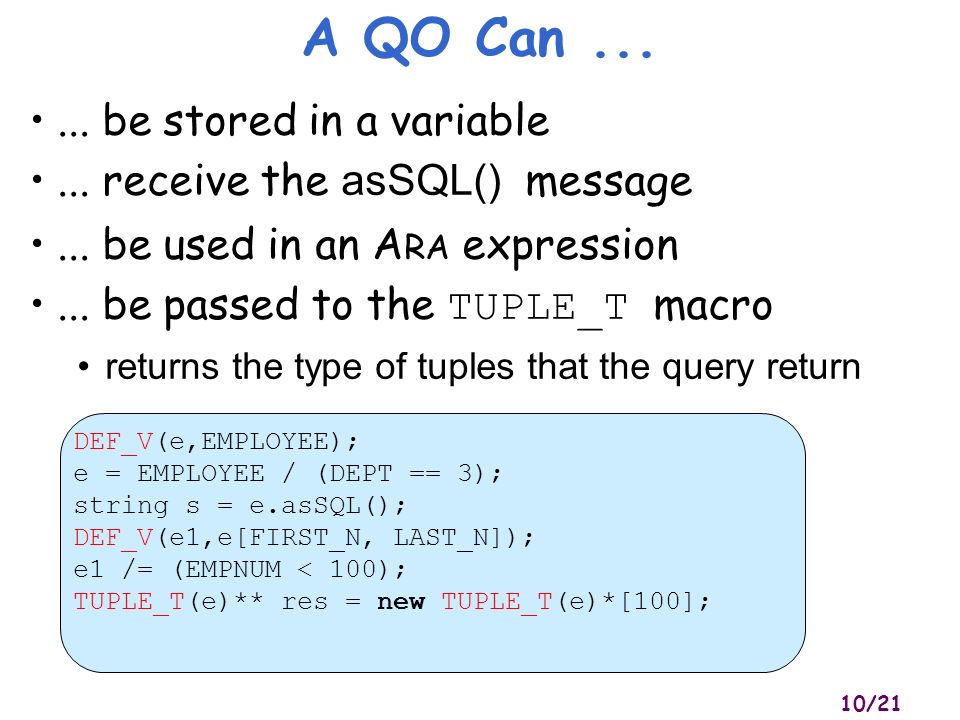

10. 10/21 A QO Can...... be stored in a variable... receive the asSQL() message... be used in an A RA expression... be passed to the TUPLE_T macro returns the type of tuples that the query return DEF_V(e,EMPLOYEE); e = EMPLOYEE / (DEPT == 3); string s = e.asSQL(); DEF_V(e1,e[FIRST_N, LAST_N]); e1 /= (EMPNUM < 100); TUPLE_T(e)** res = new TUPLE_T(e)*[100];

11. 11/21 Using A RA ’s Syntax #include "rat" // Global RAT declarations and macros #include "employee.h" // Primitive query objects and other DEF_F(FULL_N); DEF_F(ID); int main(int argc, char* argv[]) { const string s = ( (EMPLOYEE / (DEPT > 3 && SALARY < 3.14)) ‏ [FIRST_N, LAST_N, FULL_N(cat(LAST_N, ", ", FIRST_N)), ID(EMPNUM)] ).asSQL(); //... execute the SQL query in s using e.g., ADO. return 0; }

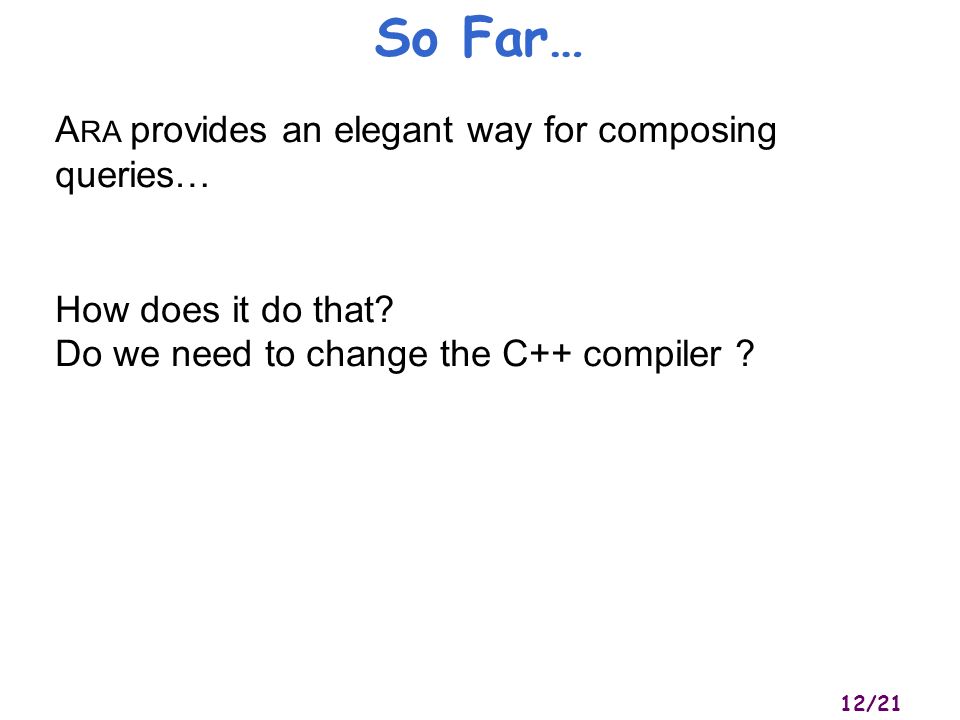

12. 12/21 So Far… A RA provides an elegant way for composing queries… How does it do that? Do we need to change the C++ compiler ?

13. 13/21 Template Programming C++ templates are Turing-complete –Can compute anything at compile-time template struct Factorial { enum { value = N * Factorial ::value }; }; template <> struct Factorial { enum { value = 1 }; }; // Factorial ::value == 24 // Factorial ::value == 1 void foo() { int x = Factorial ::value; // == 24 int y = Factorial ::value; // == 1 }

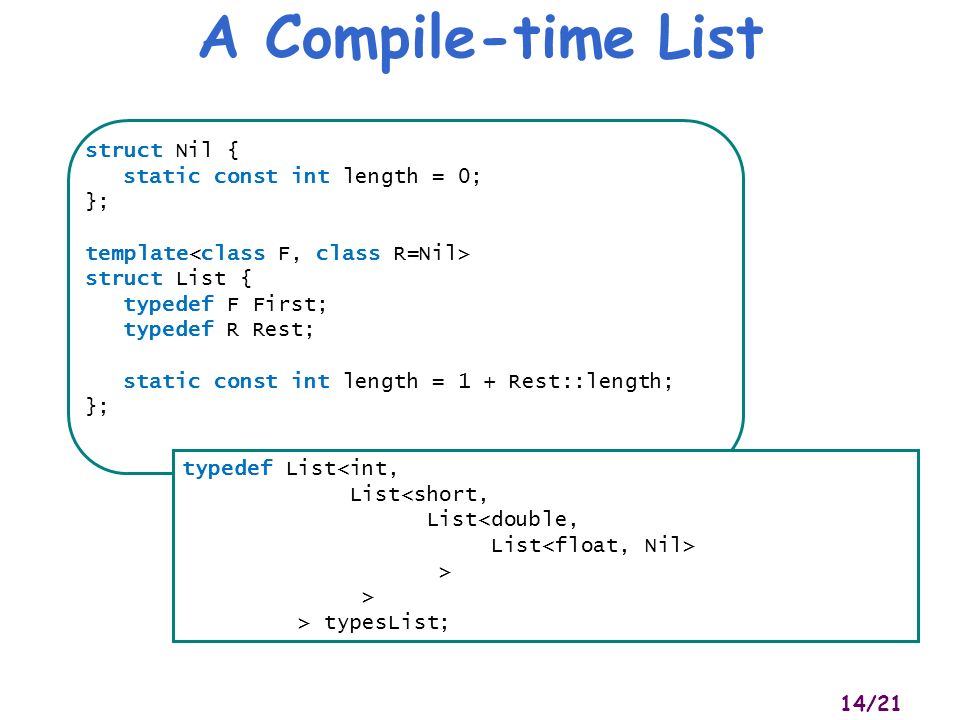

14. 14/21 A Compile-time List struct Nil { static const int length = 0; }; template struct List { typedef F First; typedef R Rest; static const int length = 1 + Rest::length; }; typedef List<int, List<short, List<double, List > > typesList;

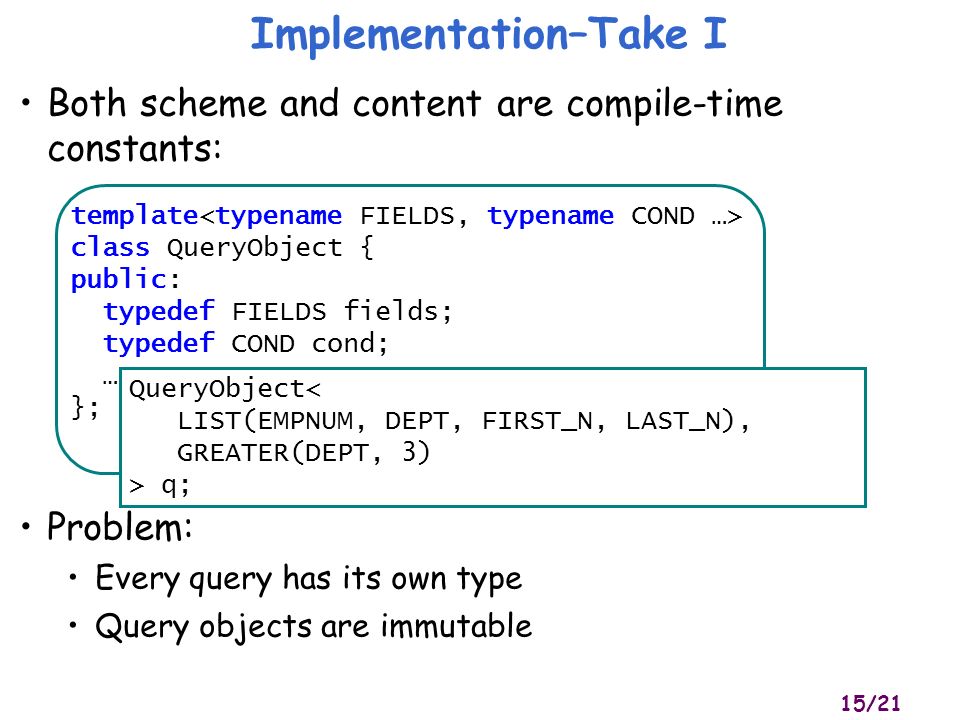

15. 15/21 Implementation–Take I Both scheme and content are compile-time constants: Problem: Every query has its own type Query objects are immutable template class QueryObject { public: typedef FIELDS fields; typedef COND cond; … }; QueryObject< LIST(EMPNUM, DEPT, FIRST_N, LAST_N), GREATER(DEPT, 3) ‏ > q;

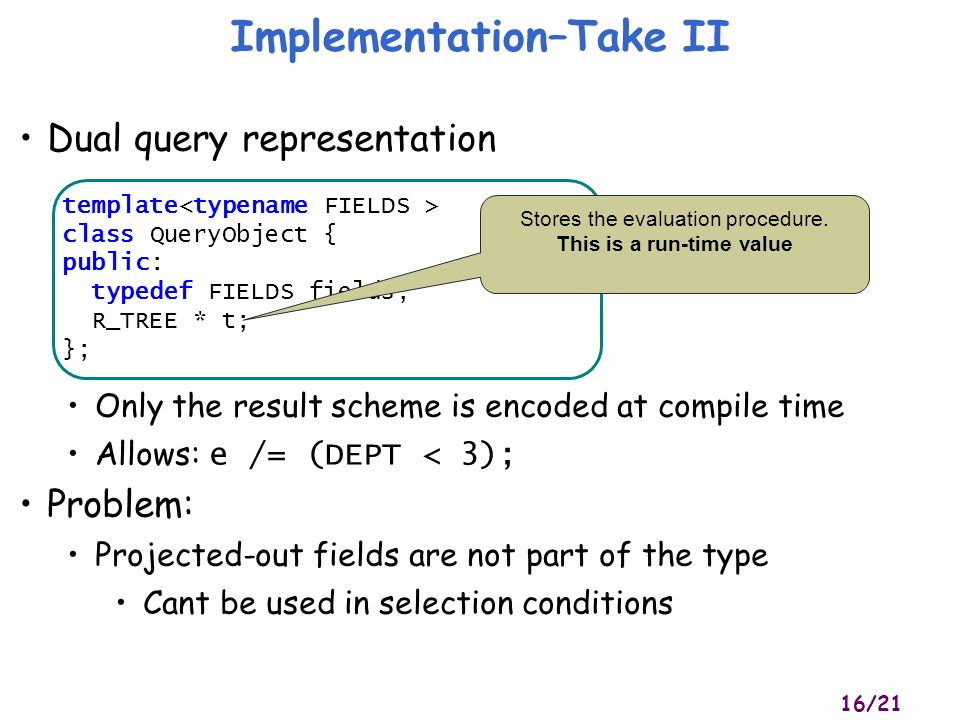

16. 16/21 Implementation–Take II Dual query representation Only the result scheme is encoded at compile time Allows: e /= (DEPT < 3) ‏ ; Problem: Projected-out fields are not part of the type Cant be used in selection conditions template class QueryObject { public: typedef FIELDS fields; R_TREE * t; }; Stores the evaluation procedure. This is a run-time value

17. 17/21 Implementation–Take III Projection Resilience Allows SELECT criteria with fields that were projected out template class QueryObject{ public: typedef FIELDS fields; R_TREE * t; typedef DICTIONARY dict;... }; Saves only Active Fields that dictate the result relation type Saves all the FIELDs we had so far DEF_V(e,EMPLOYEE[FIRST_N,LAST_N]); e /= (DEPT == dept);

18. 18/21 Type Checking – Make sure all of E ’s FIELDS exist in Q ’s dictionary – Fetch E ’s FIELD types from Q. – Enables using the same field name with distinct types in different tables – Resolve e’s type. – It must be bool –Incorporate e’s content, e.t, into q.t – Changes q’s content but not it’s type – e has no compile time representation in the q template Q operator/(Q& q, const E& e);

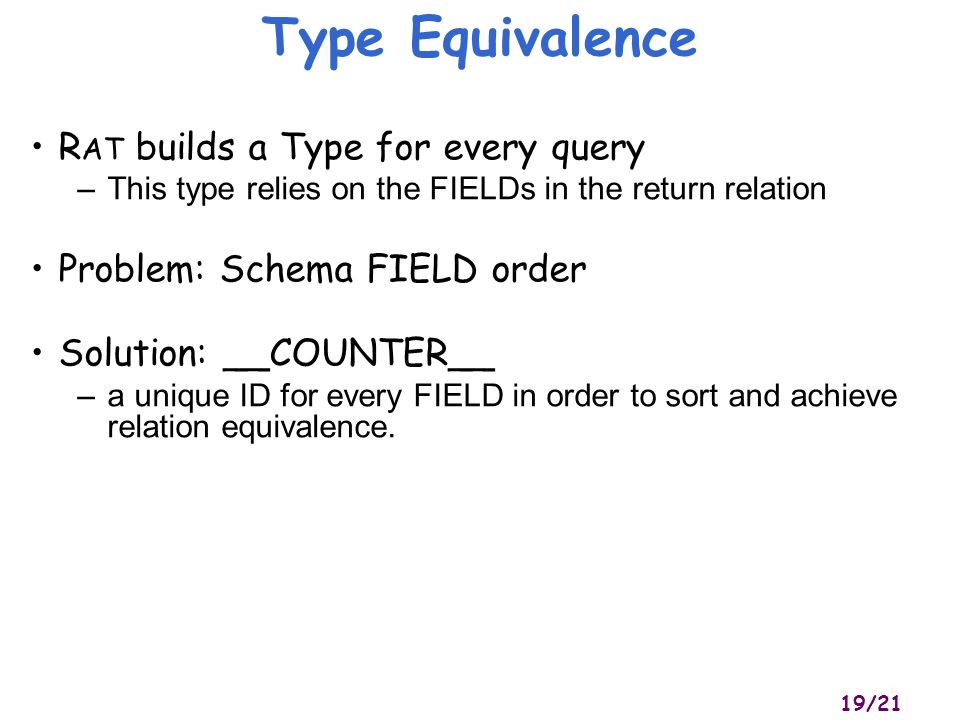

19. 19/21 Type Equivalence R AT builds a Type for every query –This type relies on the FIELDs in the return relation Problem: Schema FIELD order Solution: __COUNTER__ –a unique ID for every FIELD in order to sort and achieve relation equivalence.

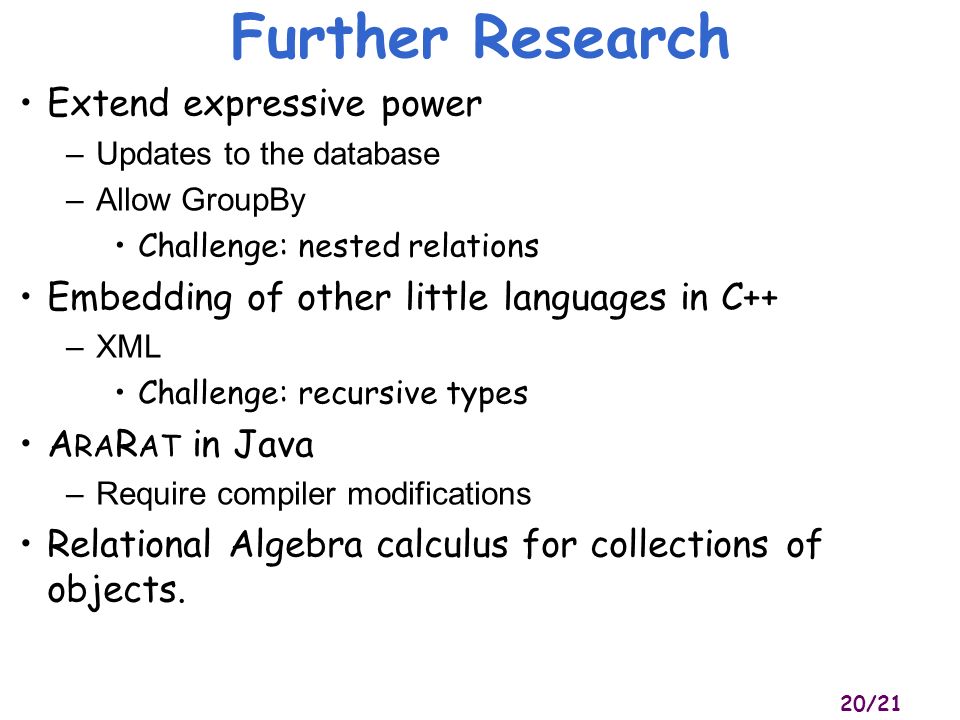

20. 20/21 Extend expressive power –Updates to the database –Allow GroupBy Challenge: nested relations Embedding of other little languages in C++ –XML Challenge: recursive types A RA R AT in Java –Require compiler modifications Relational Algebra calculus for collections of objects. Further Research

21. 21/21 Questions?
