1. Behavioural Patterns GoF pg. 221 -222 Iterator GoF pg. 257 – 271 Memento GoF pg. 283-291 By: Dan Sibbernsen

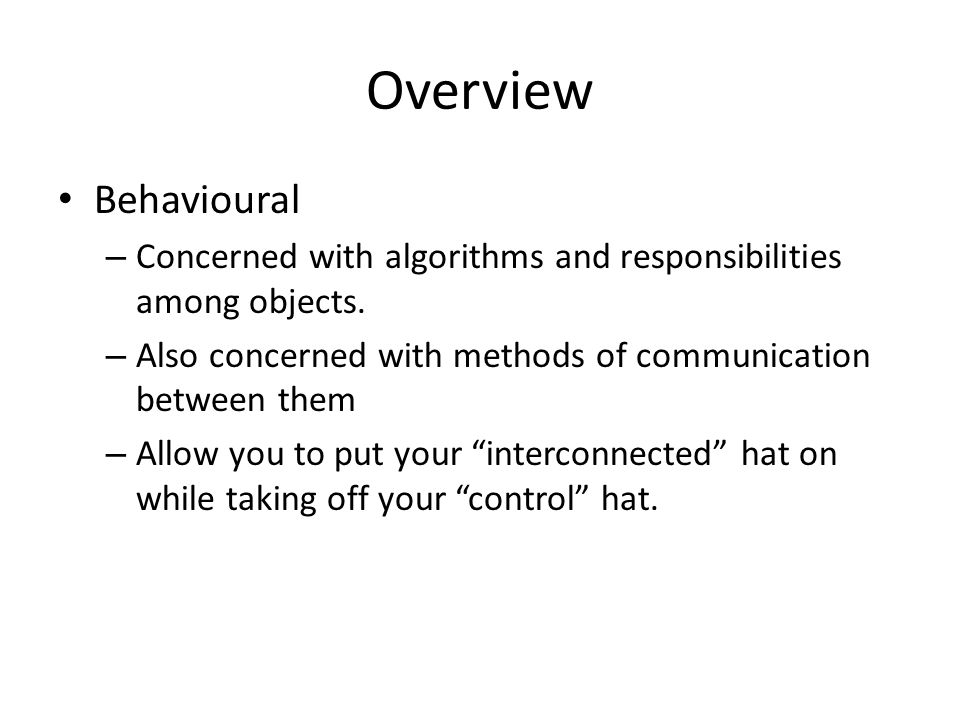

2. Overview Behavioural – Concerned with algorithms and responsibilities among objects. – Also concerned with methods of communication between them – Allow you to put your “interconnected” hat on while taking off your “control” hat.

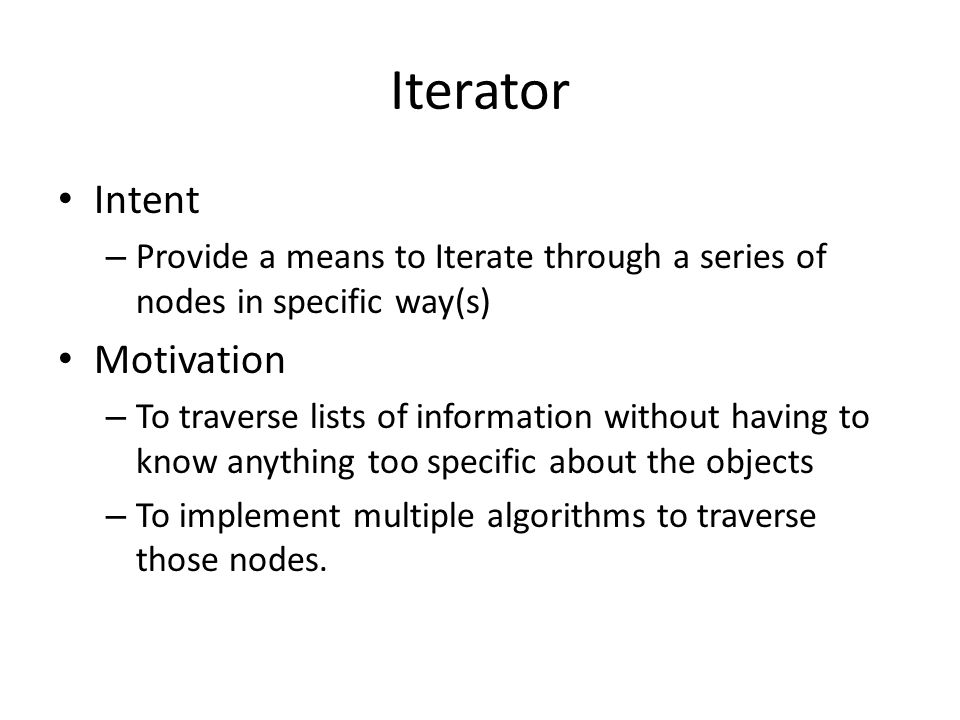

3. Iterator Intent – Provide a means to Iterate through a series of nodes in specific way(s) Motivation – To traverse lists of information without having to know anything too specific about the objects – To implement multiple algorithms to traverse those nodes.

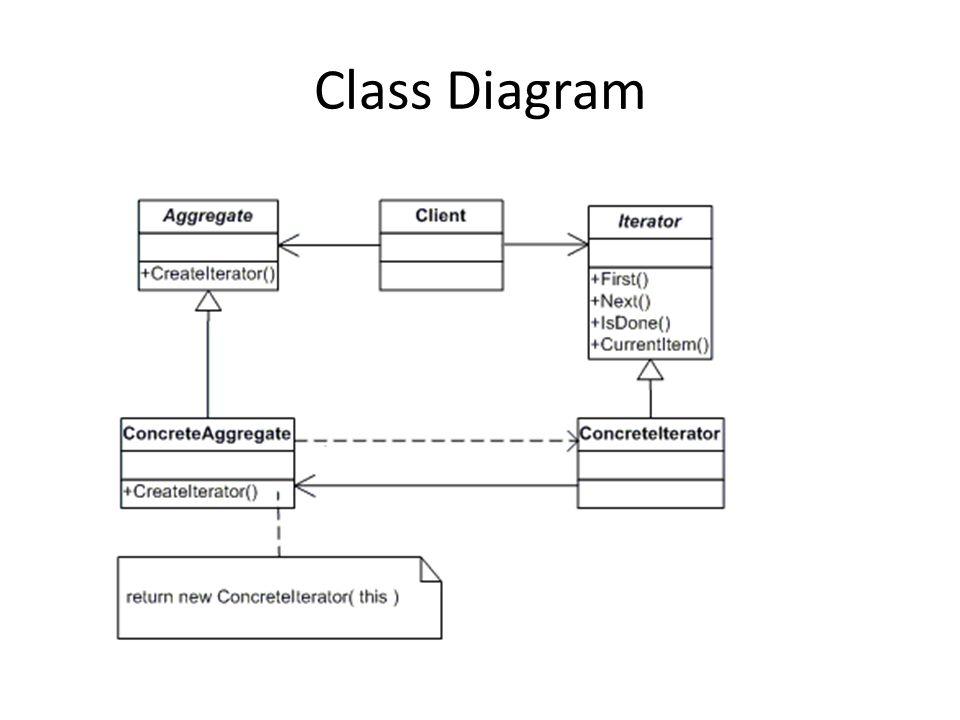

4. Class Diagram

5. Iterator:Implementation Who Controls the Iteration? – External Iterator Client controls iteration Client must explicitly request next() on each node – Internal Iterator Iterator controls iteration Client hands an operation to the Iterator, Iterator tells every child in the aggregate to perform it.

6. Implementation Benefits External Iterator – More flexible than Internal. Can compare 2 collections easily Internal Iterator – Easier to use, as they define the iteration logic for you. Makes portability easier.

7. Who defines the traversal Algorithm? Algorithm can be held by a class outside of the Iterator. It could be held by the aggregate can hold it. – Called “the cursor.” – Allows the algorithm to access private members of the aggregate (and not break encapsulation) Algorithm is held by the iterator – Allows algorithms to be swapped out easily.

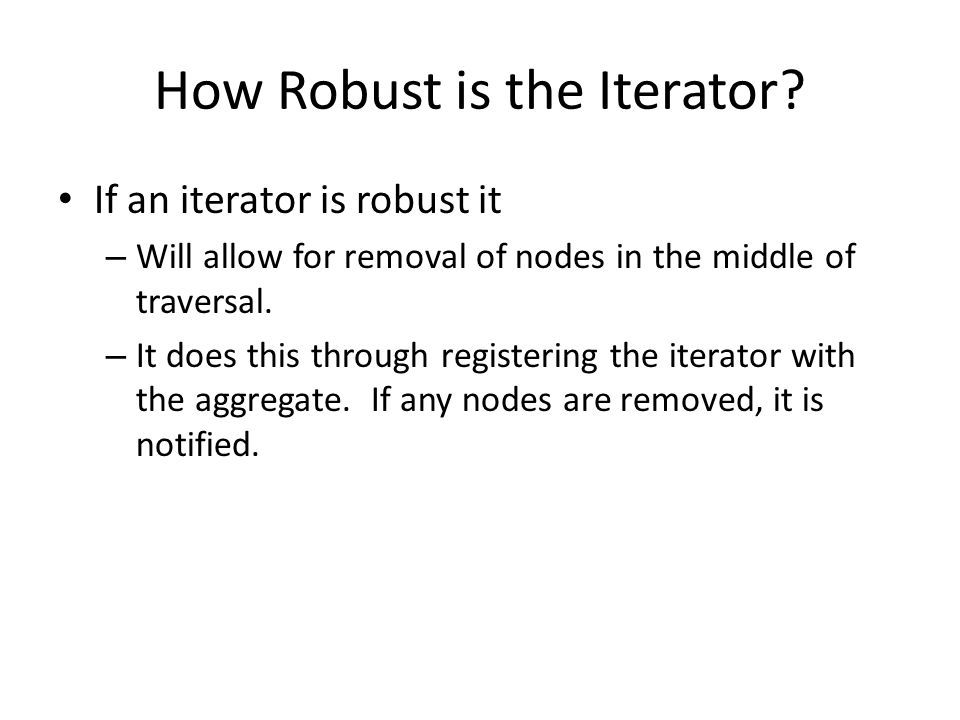

8. How Robust is the Iterator? If an iterator is robust it – Will allow for removal of nodes in the middle of traversal. – It does this through registering the iterator with the aggregate. If any nodes are removed, it is notified.

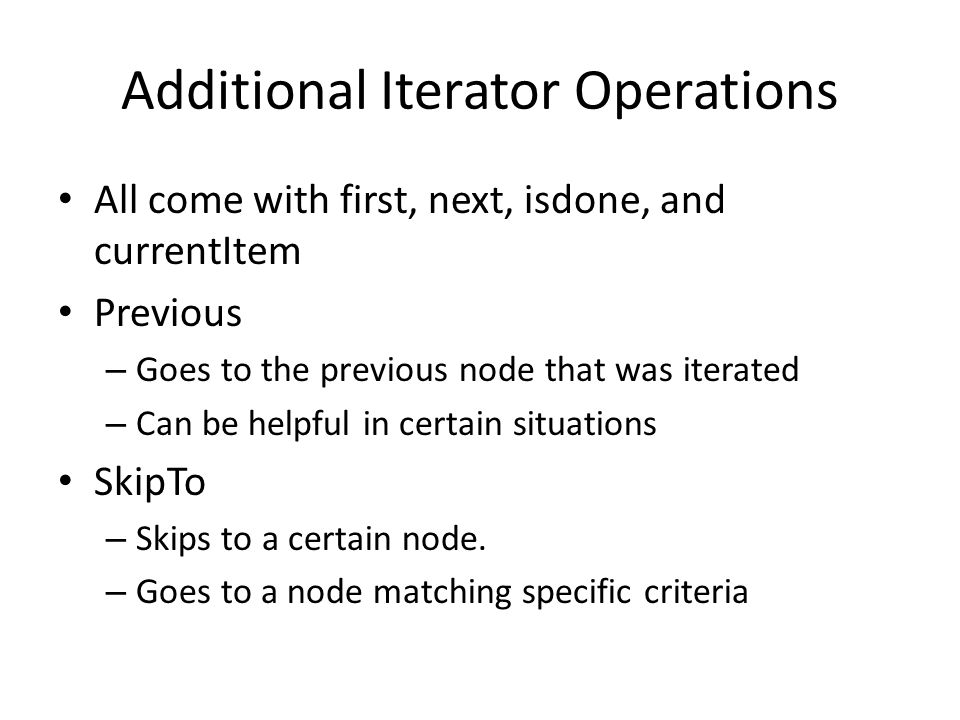

9. Additional Iterator Operations All come with first, next, isdone, and currentItem Previous – Goes to the previous node that was iterated – Can be helpful in certain situations SkipTo – Skips to a certain node. – Goes to a node matching specific criteria

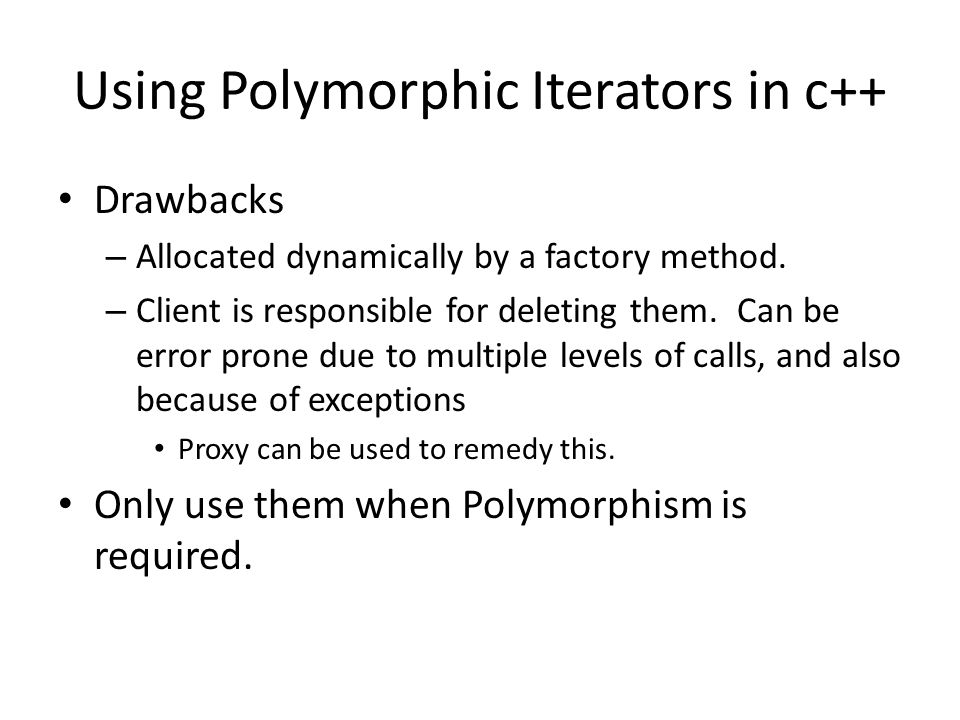

10. Using Polymorphic Iterators in c++ Drawbacks – Allocated dynamically by a factory method. – Client is responsible for deleting them. Can be error prone due to multiple levels of calls, and also because of exceptions Proxy can be used to remedy this. Only use them when Polymorphism is required.

11. Iterators may have privileged access Makes coupling tighter between Iterator and Aggregate Can be problematic if there are multiple iterators you want to apply – Solution: make private iterator-specific functions “protected” so that only Iterator subclasses can access them

12. Iterators for composites Use an Internal iterator to keep track of the levels-deep it has traversed. This happens recursively so everything is stored on the stack.

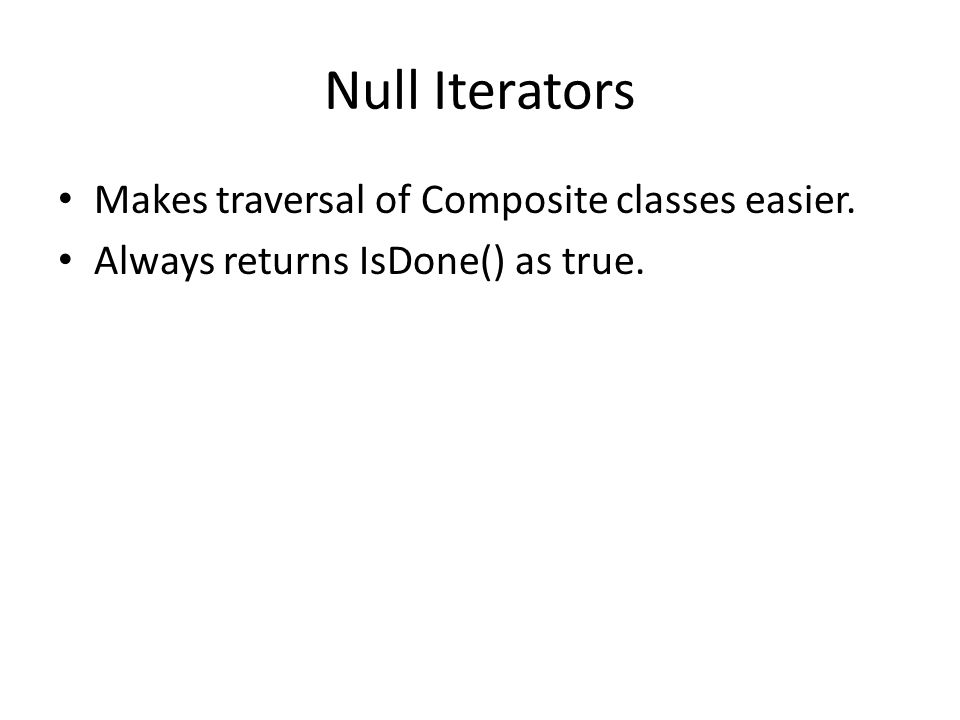

13. Null Iterators Makes traversal of Composite classes easier. Always returns IsDone() as true.

14. Related Patterns Composite Factory Method Memento

15. Consequences (good) “Supports variations in the traversal of an aggregate.” “Iterators simplify the Aggregate interface.” “More than one traversal can be pending on an aggregate.”

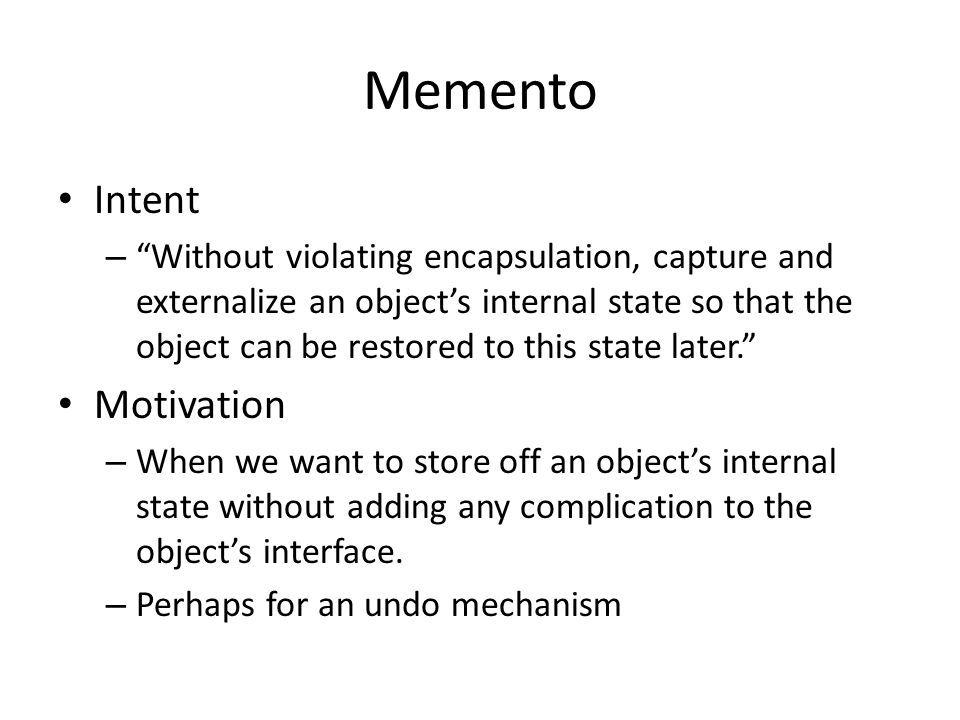

16. Memento Intent – “Without violating encapsulation, capture and externalize an object’s internal state so that the object can be restored to this state later.” Motivation – When we want to store off an object’s internal state without adding any complication to the object’s interface. – Perhaps for an undo mechanism

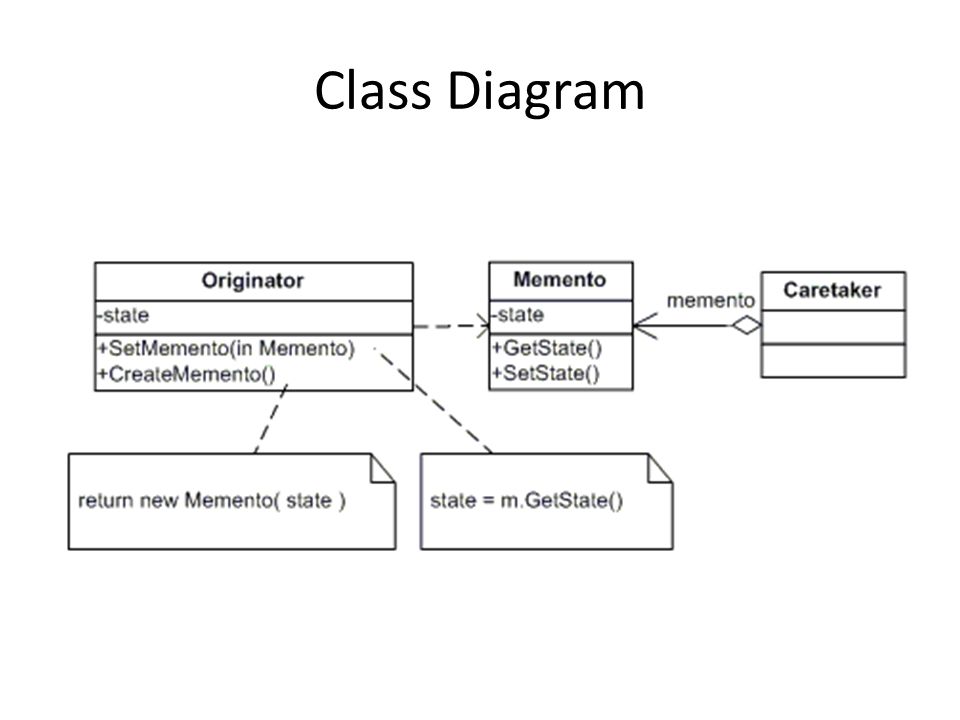

17. Class Diagram

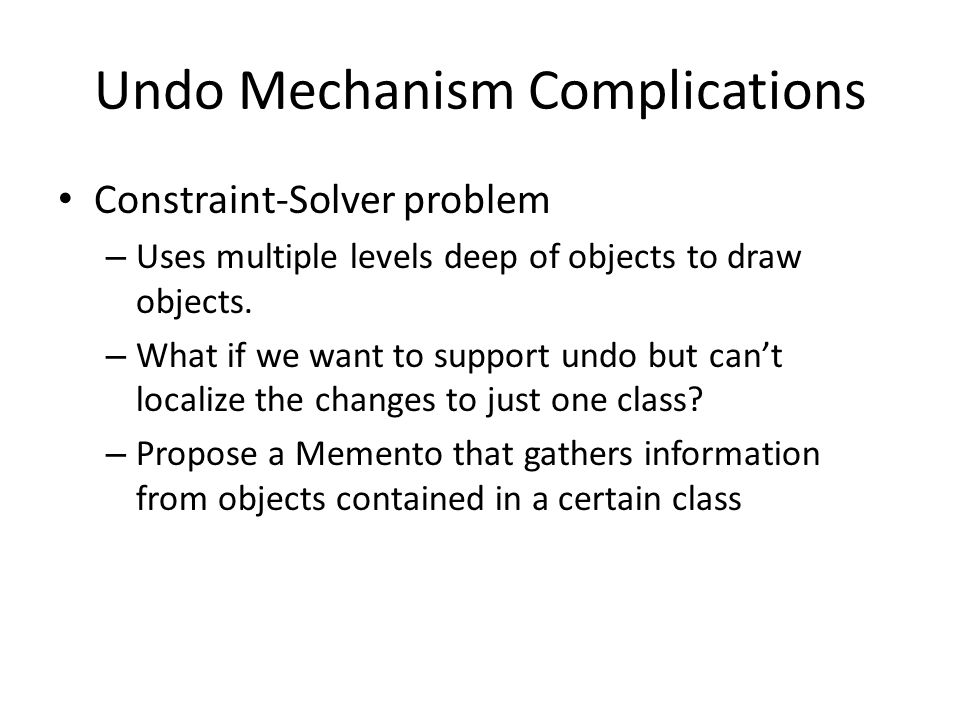

18. Undo Mechanism Complications Constraint-Solver problem – Uses multiple levels deep of objects to draw objects. – What if we want to support undo but can’t localize the changes to just one class? – Propose a Memento that gathers information from objects contained in a certain class

19. Applicability Use this – when you want to save state on a hierarchy’s elements. – When the hierarchy’s interface would be broken if implementation details were exposed.

20. Participants Memento – stores the state of the Originator Originator – Creates the memento – “Uses the memento to restore its internal state” CareTaker – Keeps track of the Memento – Never uses the Memento’s Interface to the Originator

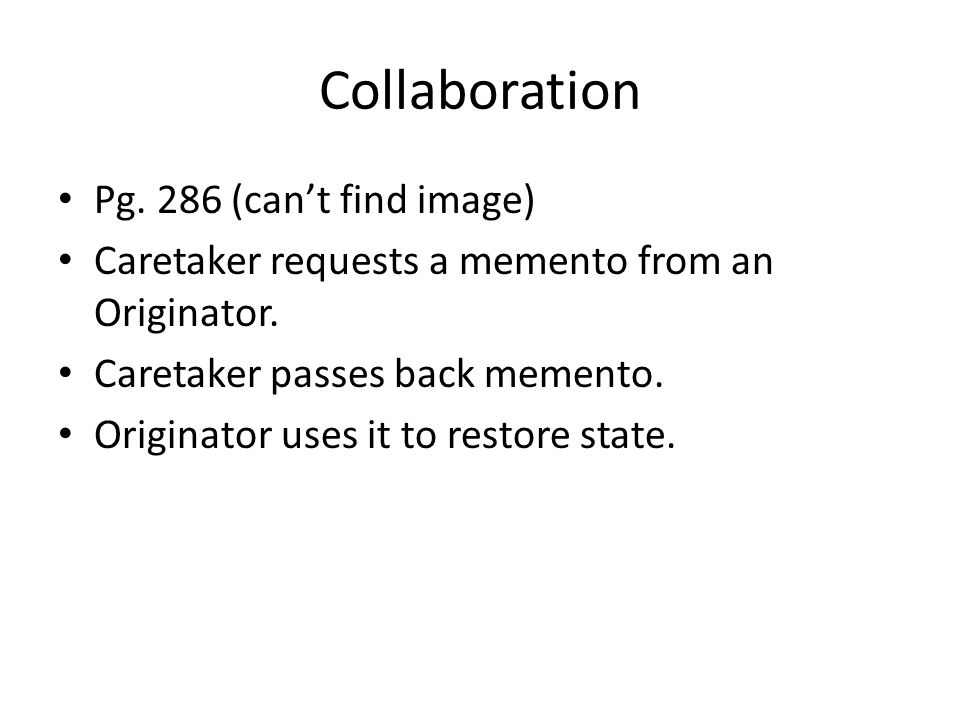

21. Collaboration Pg. 286 (can’t find image) Caretaker requests a memento from an Originator. Caretaker passes back memento. Originator uses it to restore state.

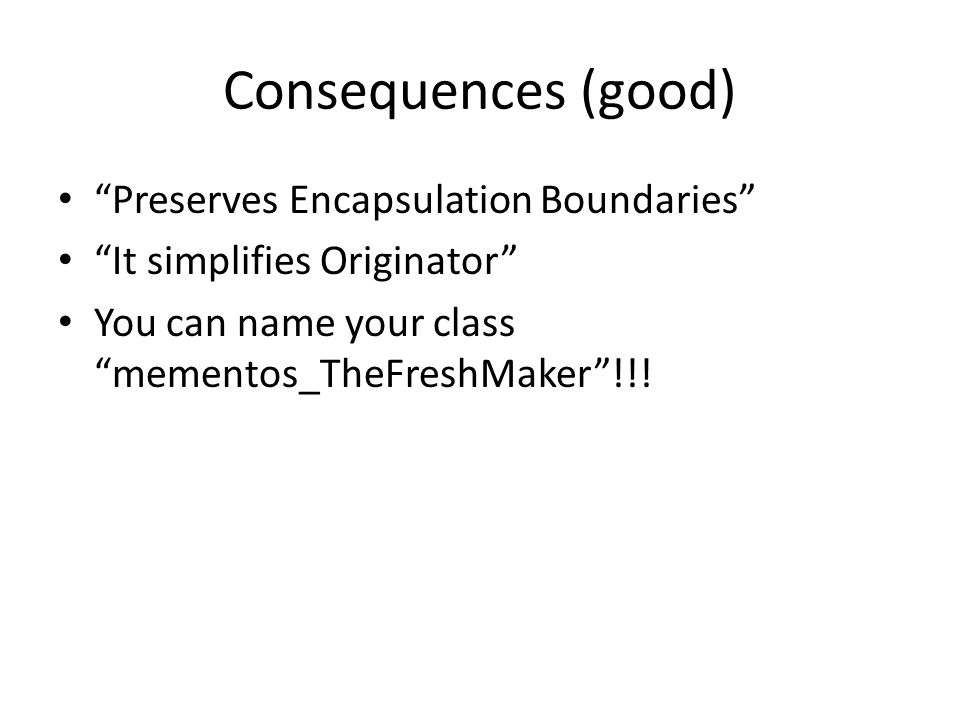

22. Consequences (good) “Preserves Encapsulation Boundaries” “It simplifies Originator” You can name your class “mementos_TheFreshMaker”!!!

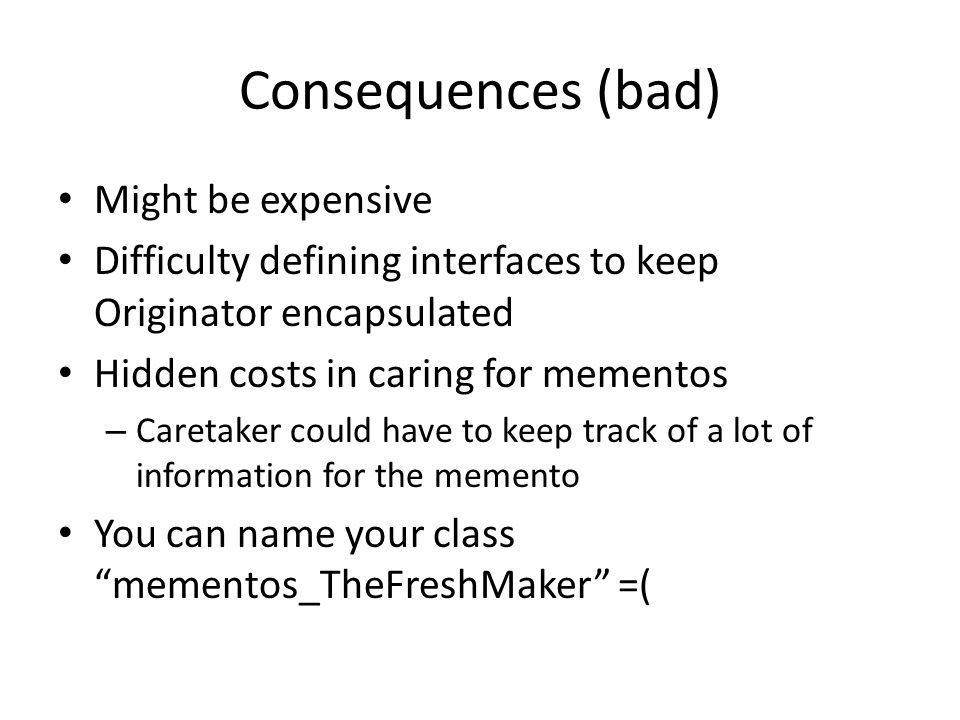

23. Consequences (bad) Might be expensive Difficulty defining interfaces to keep Originator encapsulated Hidden costs in caring for mementos – Caretaker could have to keep track of a lot of information for the memento You can name your class “mementos_TheFreshMaker” =(

24. Implementation Language Support – C++ lets you call Originator a friend of Memento, thus giving it access to all private members of Memento that it needs

25. Storing Incremental Changes If storing state happens incrementally, then we can just record the changes of what’s happened in a new memento object. This helps with memory difficulties.

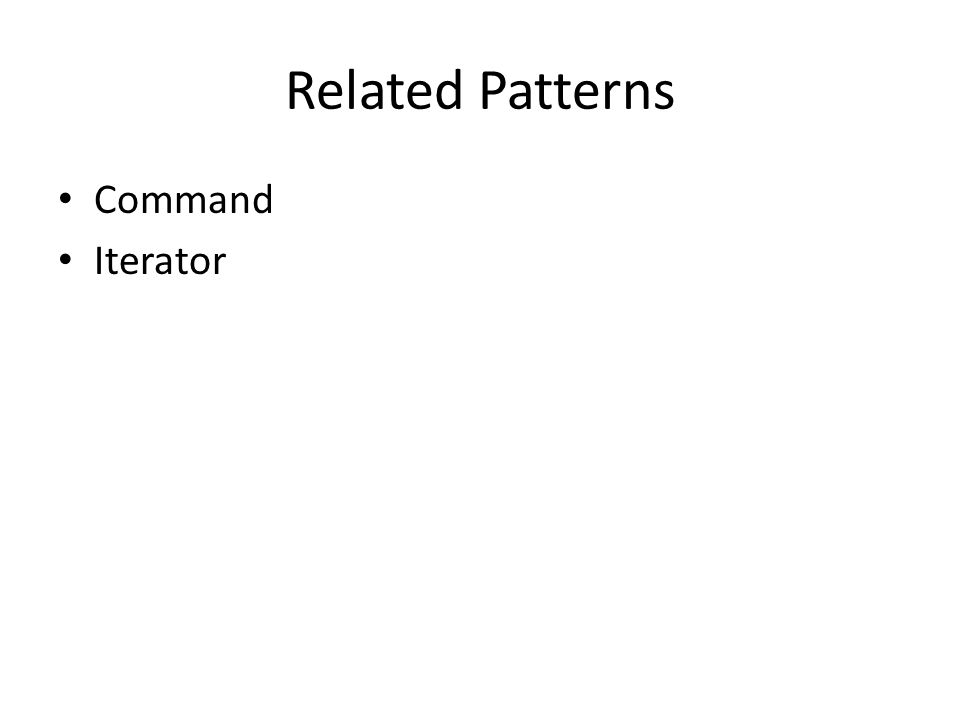

26. Related Patterns Command Iterator
