DNA Recombination and Recombinant DNA technology Chapter 21
2
DNA recombination: different DNA molecules break and link to form new DNA molecules. recombinant DNA technology: two or more than two DNA molecules are combined together to form a new DNA molecules.
3
Section 1 DNA Recombination and Gene Transfer in Nature
4

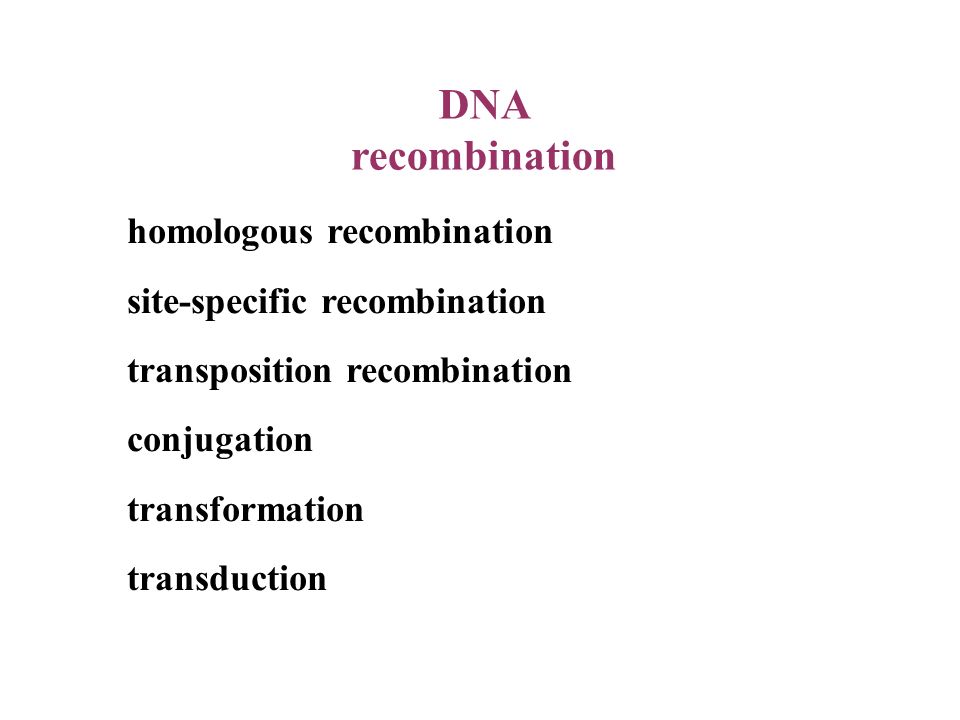

DNA recombination homologous recombination site-specific recombination transposition recombination conjugation transformation transduction
5
The recombination happened between homologous sequences is called homologous recombination, also called general recombination. I. homologous recombination
6

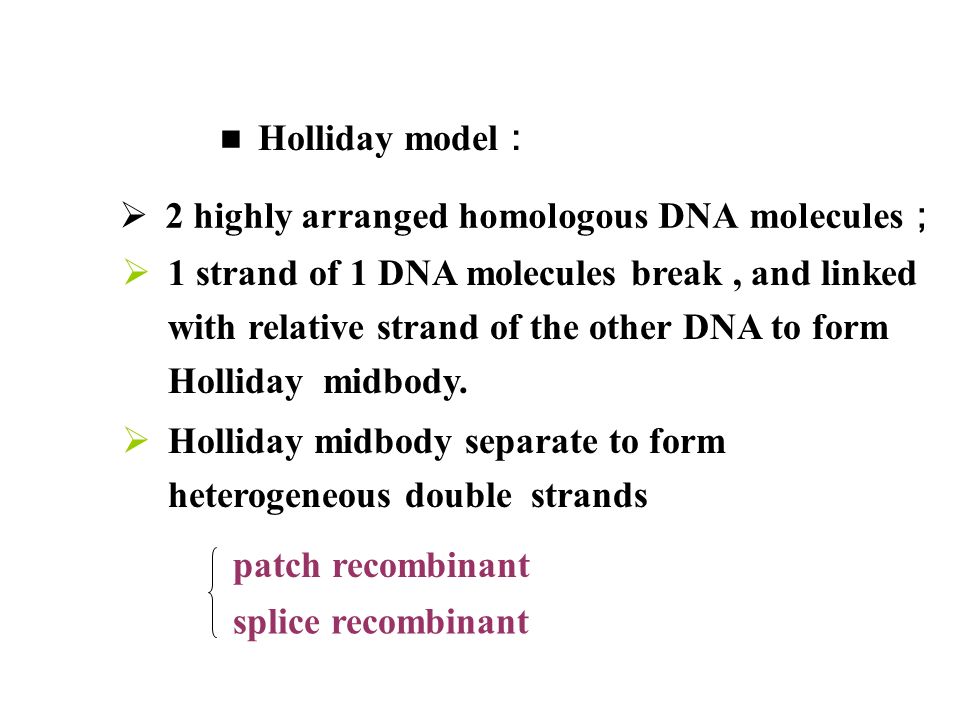

Holliday model : 2 highly arranged homologous DNA molecules ; patch recombinant splice recombinant 1 strand of 1 DNA molecules break, and linked with relative strand of the other DNA to form Holliday midbody. Holliday midbody separate to form heterogeneous double strands
7

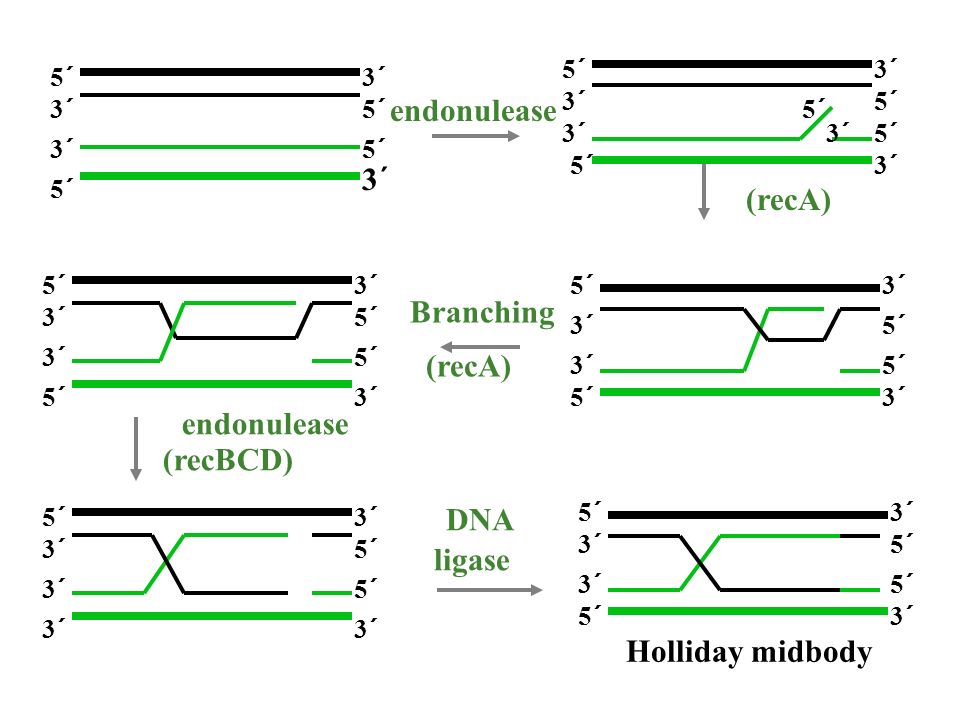

endonulease (recA) Branching (recA) endonulease (recBCD) DNA ligase 5´3´ 5´ 3´ 5´ 3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´3´ 5´ 3´ 5´3´ 5´3´ 5´3´ 5´ 3´ 5´3´ 5´3´ Holliday midbody 5´3´ 5´3´ 5´3´ 5´3´
8
Holliday 5´3´ 5´3´ 5´3´ 5´3´ 5´ 3´ 5´ 3´ 5´ 3´ 5´ 3´ 5´ 3´ 5´ 3´ endonuclease (ruvC) endonuclease (ruvC) DNA 连接酶 DNA 连接酶 patch recombinant splice recombinant
9

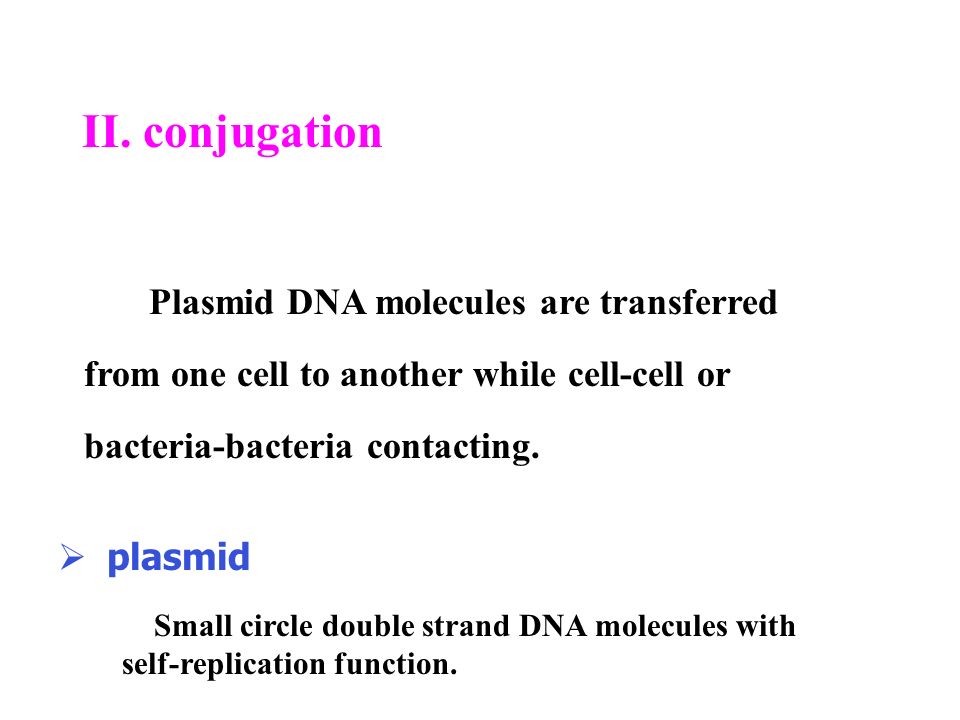

Plasmid DNA molecules are transferred from one cell to another while cell-cell or bacteria-bacteria contacting. II. conjugation Small circle double strand DNA molecules with self-replication function. plasmid
10

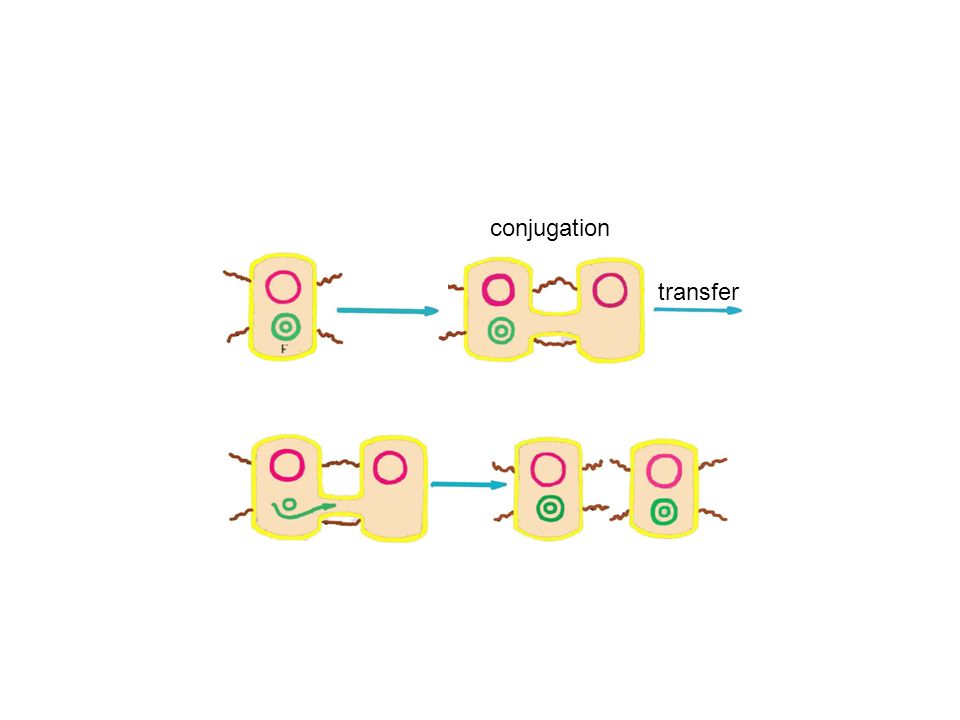

conjugation transfer
11

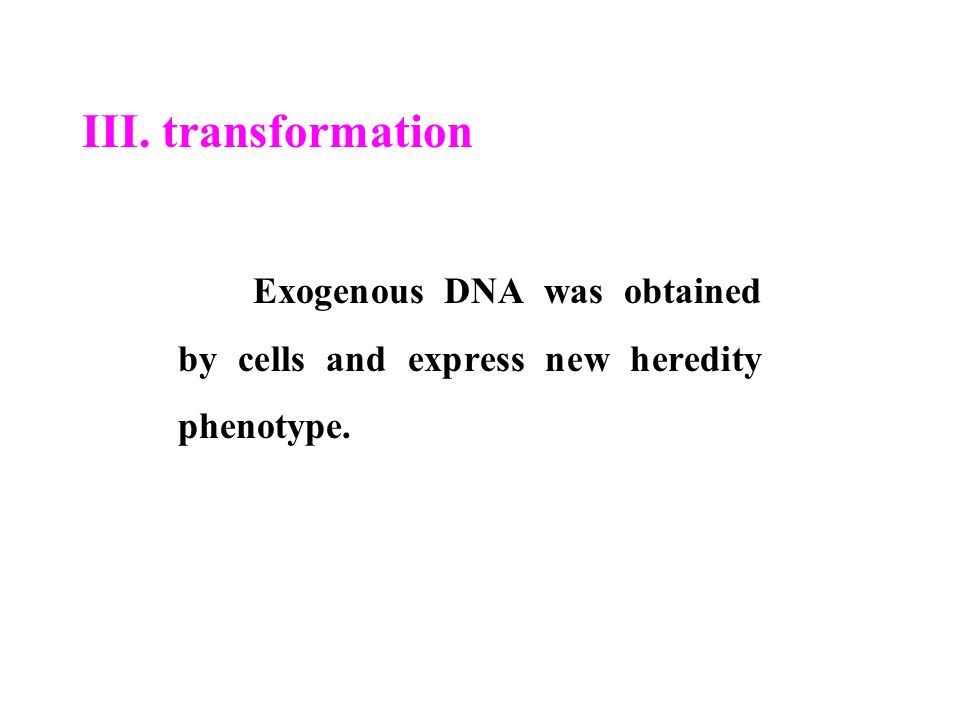

ransformation Exogenous DNA was obtained by cells and express new heredity phenotype. III. transformation
12

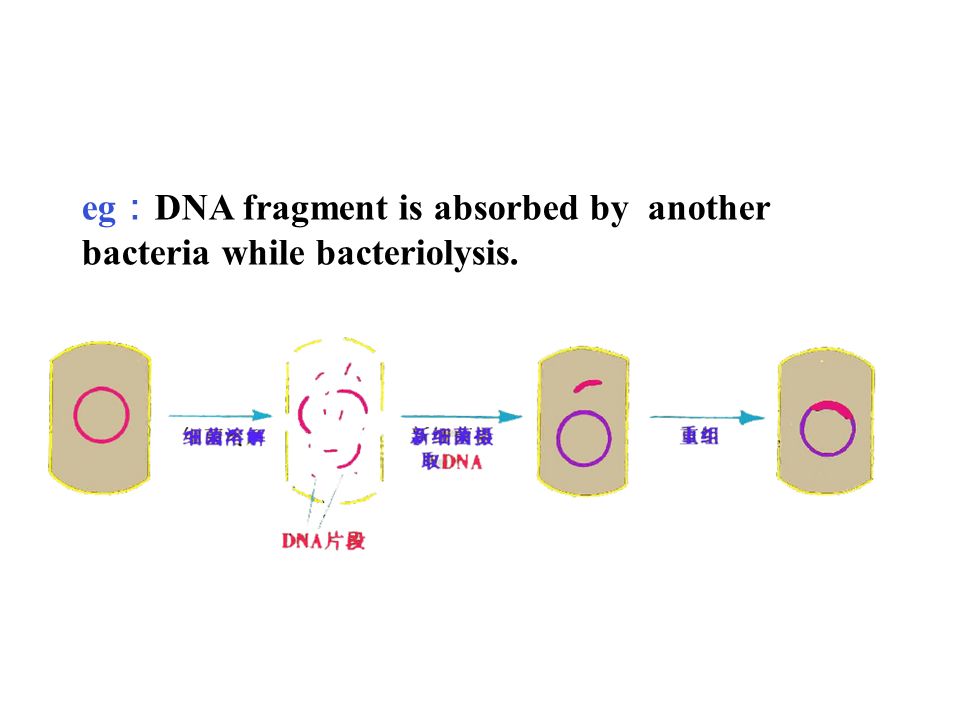

eg : DNA fragment is absorbed by another bacteria while bacteriolysis.
13

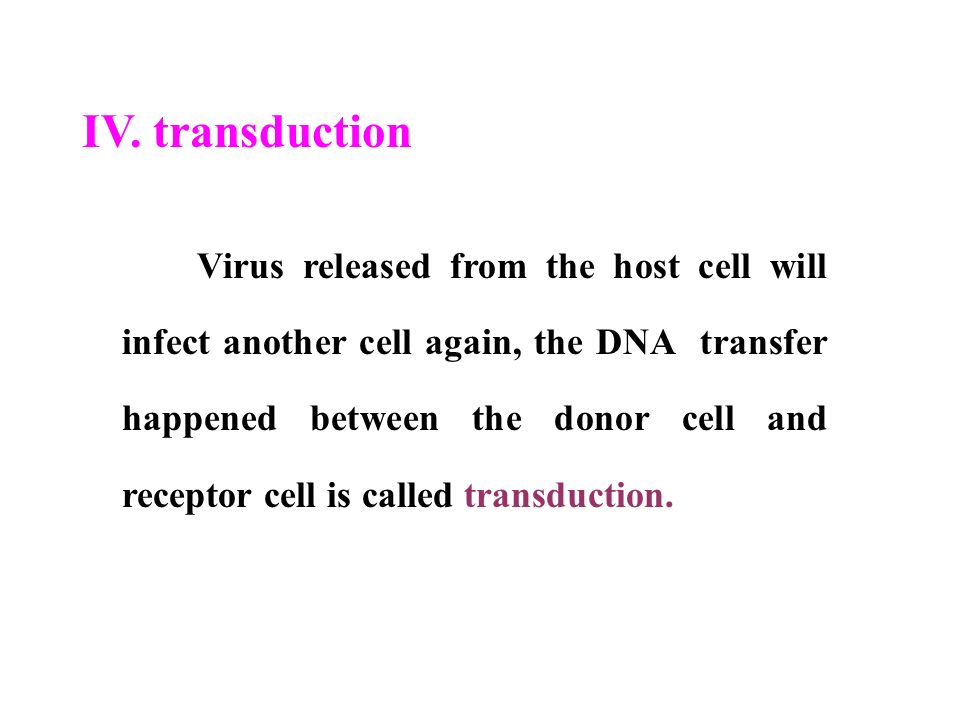

Virus released from the host cell will infect another cell again, the DNA transfer happened between the donor cell and receptor cell is called transduction. IV. transduction
14

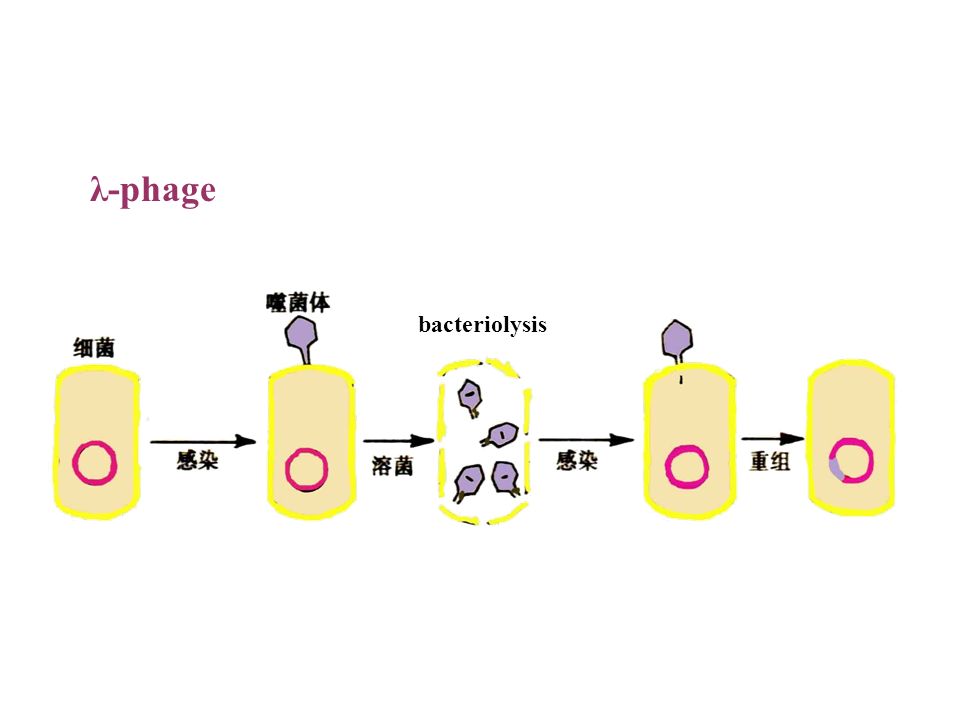

λ-phage bacteriolysis
15
Section 2 Recombinant DNA Technology
16
Also called gene engineering, means to repair or recombine genes and let the living body generate new phenotype.
17

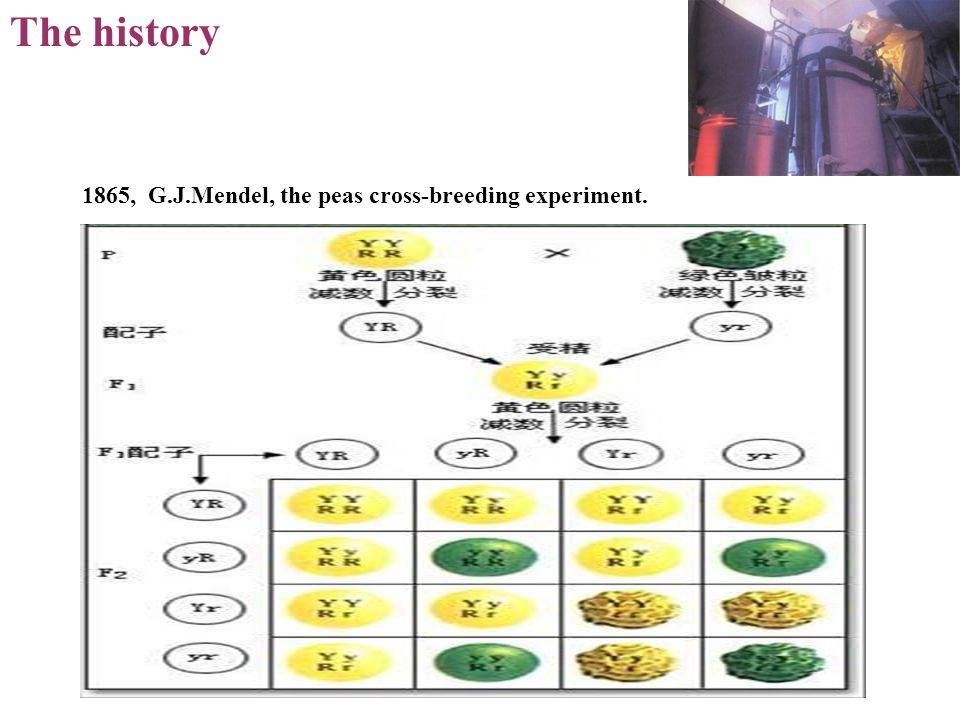

1865, G.J.Mendel, the peas cross-breeding experiment. The history
18
In 1973, the first recombinant DNA molecule was constructed in Stanford university. Mosaic plasmid anti-streptomycin plasmid anti-tetracycline plasmid splicing E.Coli E.Coli anti-streptomycin and anti-tetracycline
19

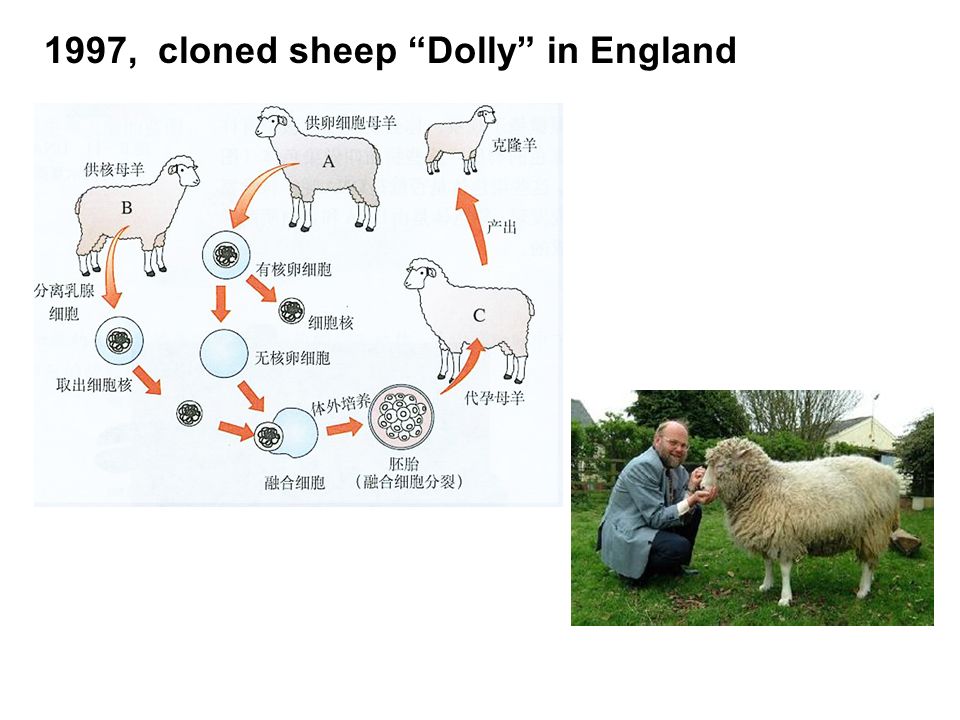

1997, cloned sheep “Dolly” in England
20

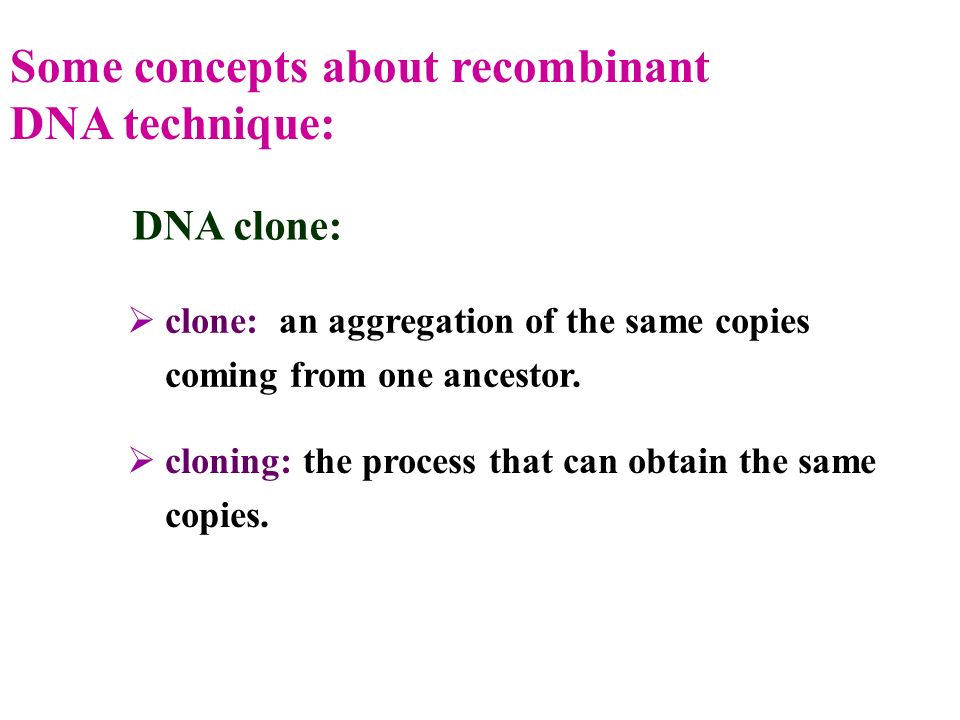

Some concepts about recombinant DNA technique: clone: an aggregation of the same copies coming from one ancestor. cloning: the process that can obtain the same copies. DNA clone:
21
Technique level : molecular clone (DNA clone) cell clone individual clone ( animal or plant)
22

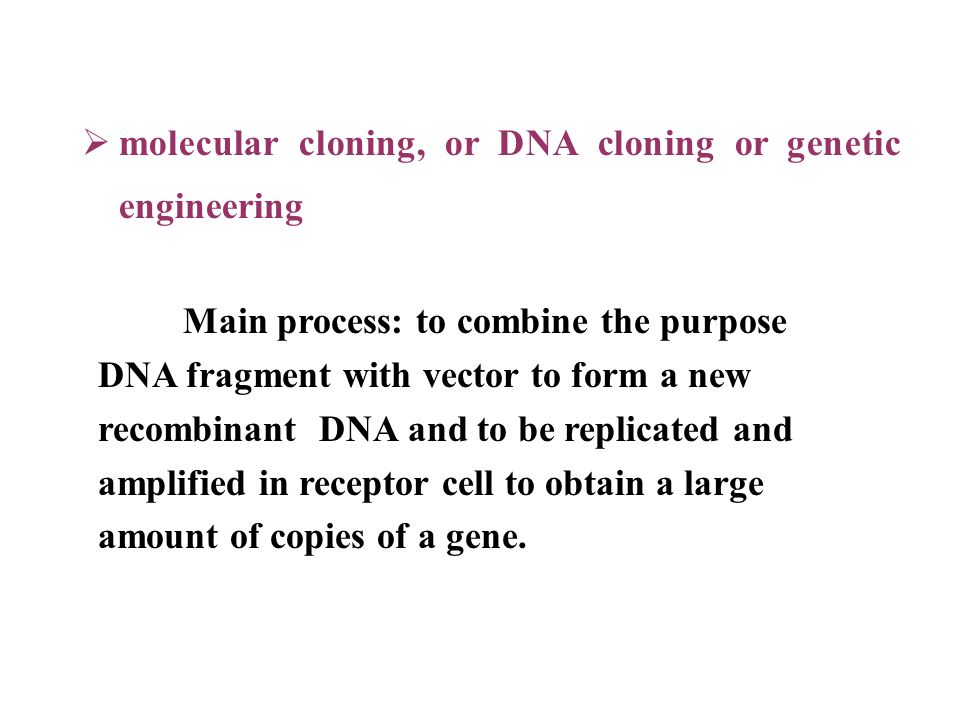

Main process: to combine the purpose DNA fragment with vector to form a new recombinant DNA and to be replicated and amplified in receptor cell to obtain a large amount of copies of a gene. molecular cloning, or DNA cloning or genetic engineering
23
purposes : ① to obtain a gene’s copy that we are interest in. ② to obtain the production of the gene---protein.
24

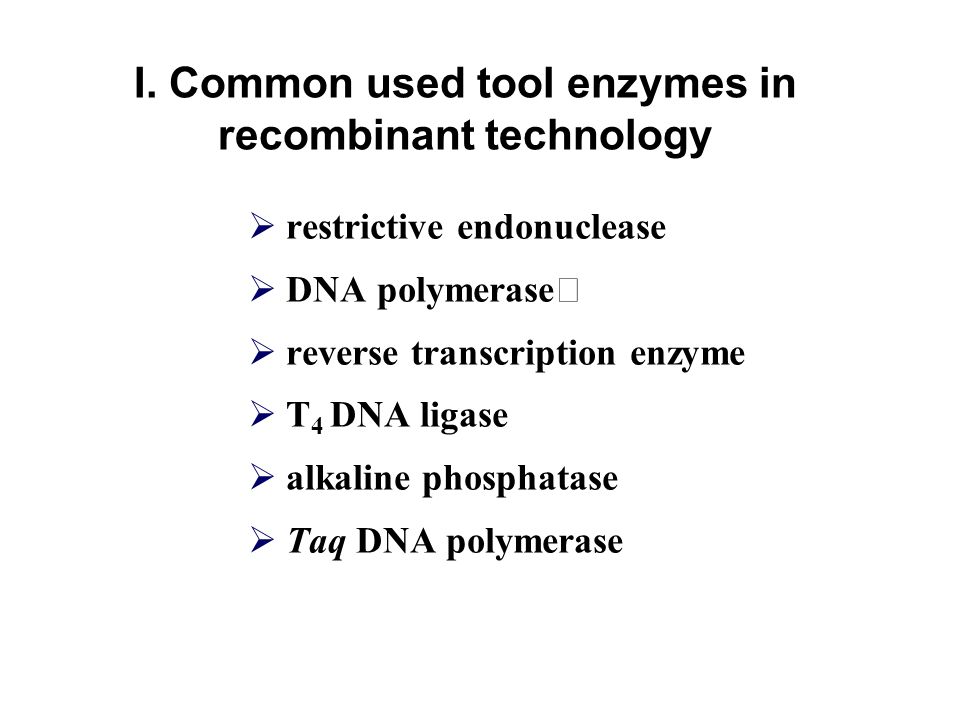

I. Common used tool enzymes in recombinant technology r restrictive endonuclease DNA polymerase Ⅰ r reverse transcription enzyme T 4 DNA ligase a alkaline phosphatase T Taq DNA polymerase
25

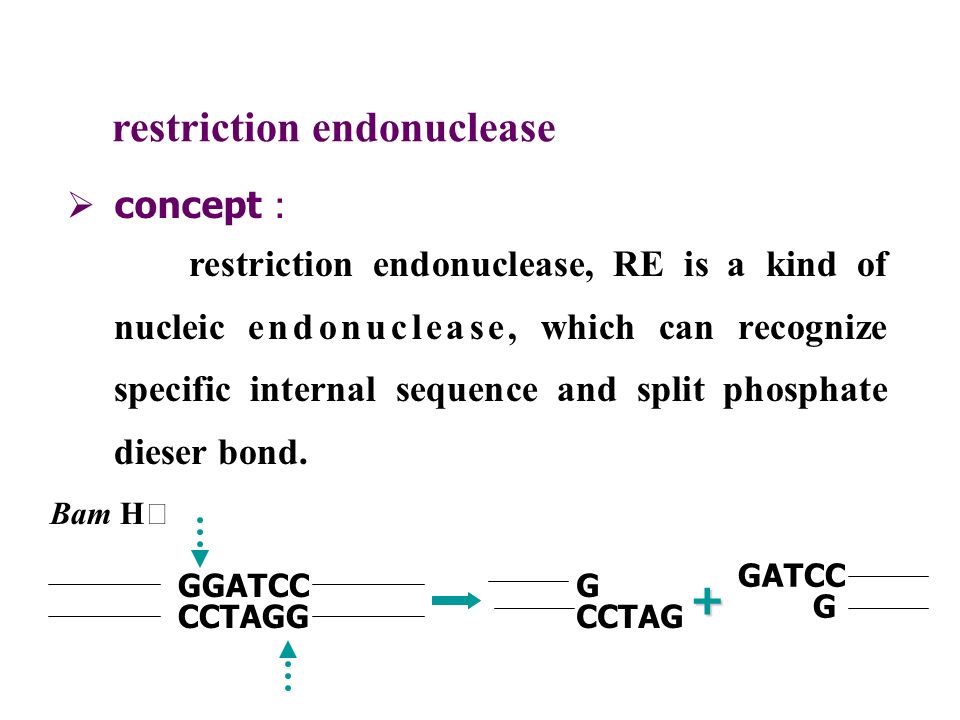

restriction endonuclease restriction endonuclease, RE is a kind of nucleic endonuclease, which can recognize specific internal sequence and split phosphate dieser bond. GGATCC CCTAGG G CCTAG GATCC G+ Bam H Ⅰ concept :
26

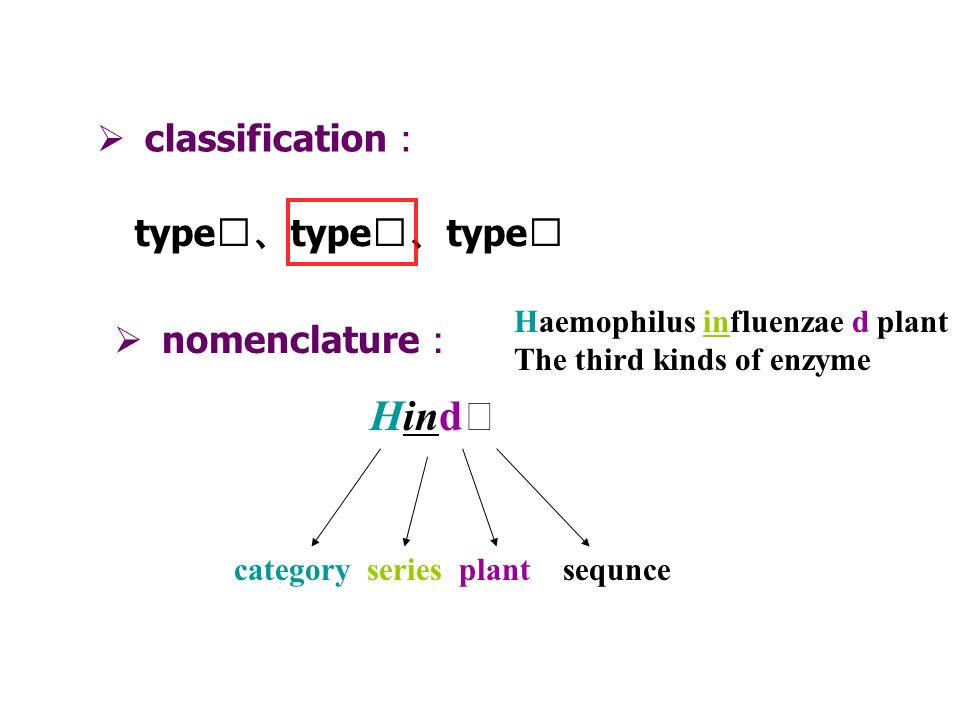

type Ⅰ、 type Ⅱ、 type Ⅲ classification : nomenclature : Hind Ⅲ category series plant sequnce Haemophilus influenzae d plant The third kinds of enzyme
27

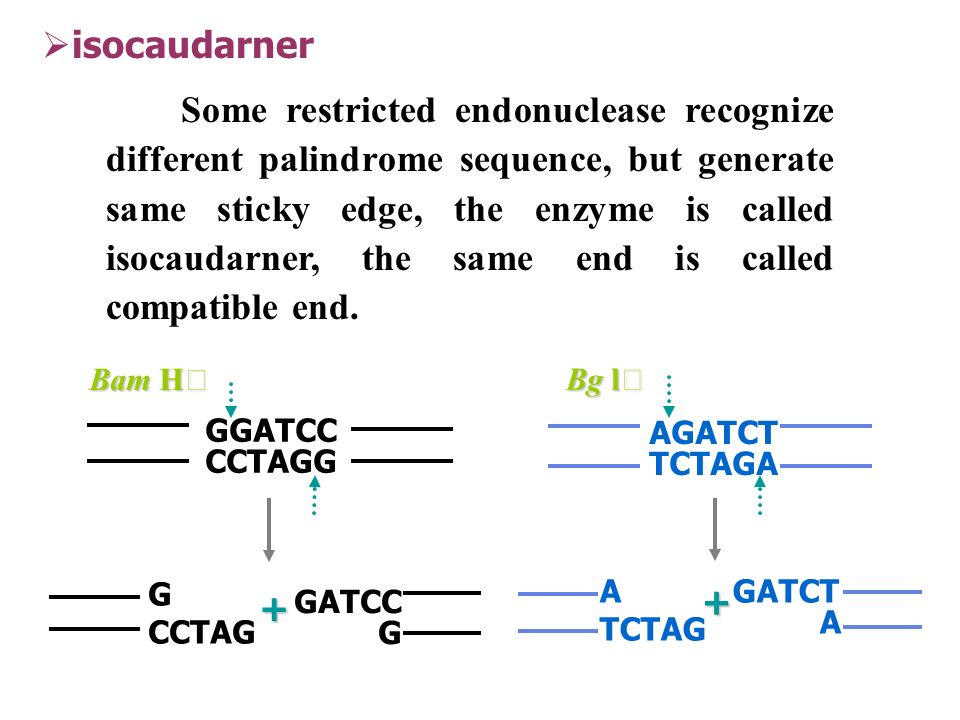

Some restricted endonuclease recognize different palindrome sequence, but generate same sticky edge, the enzyme is called isocaudarner, the same end is called compatible end. Bam H Ⅰ Bg l Ⅱ GGATCC CCTAGG AGATCT TCTAGA G CCTAG GATCC G+ + A TCTAG GATCT A isocaudarner
28

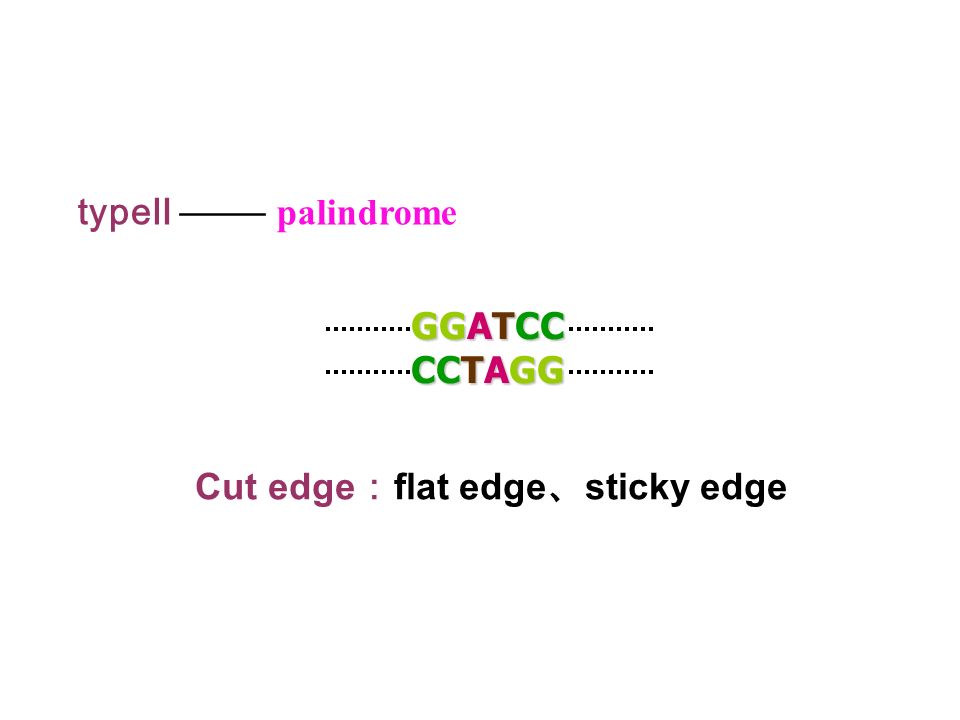

type Ⅱ —— palindrome Cut edge : flat edge 、 sticky edge GGATCC CCTAGG
29
Bam H Ⅰ GTC CAG G CCTAG GATCC G+ GGATCC CCTAGG Hind Ⅱ GTCGAC CAGCTG GAC CTG+ Flat edge Sticky edge
30

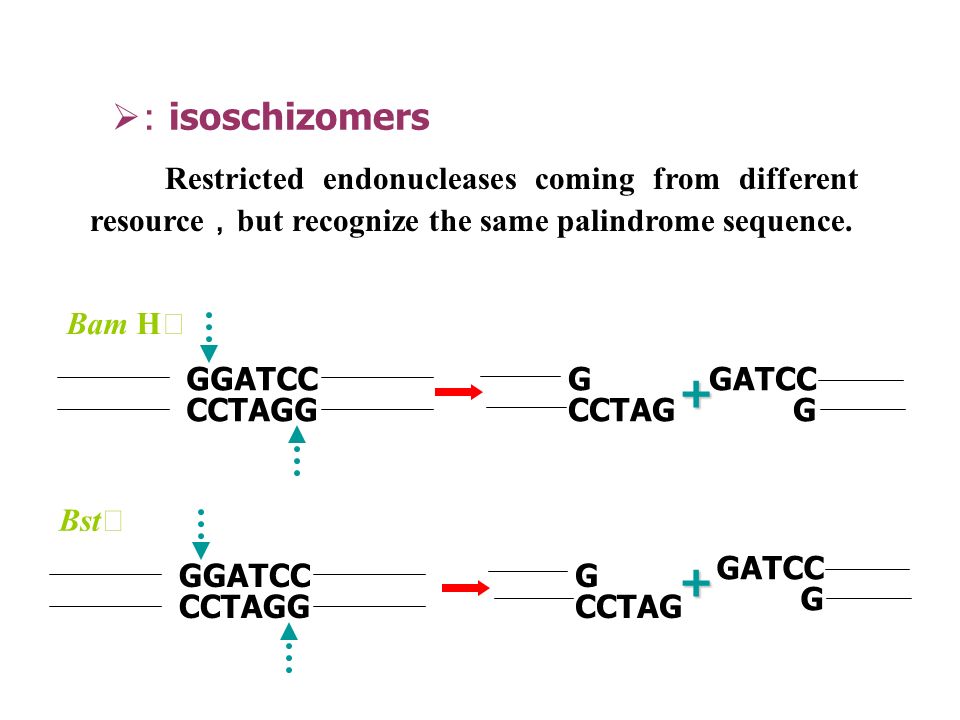

Restricted endonucleases coming from different resource , but recognize the same palindrome sequence. GGATCC CCTAGG G CCTAG GATCC G+ Bam H Ⅰ GGATCC CCTAGG G CCTAG GATCC G+ Bst Ⅰ : isoschizomers
31

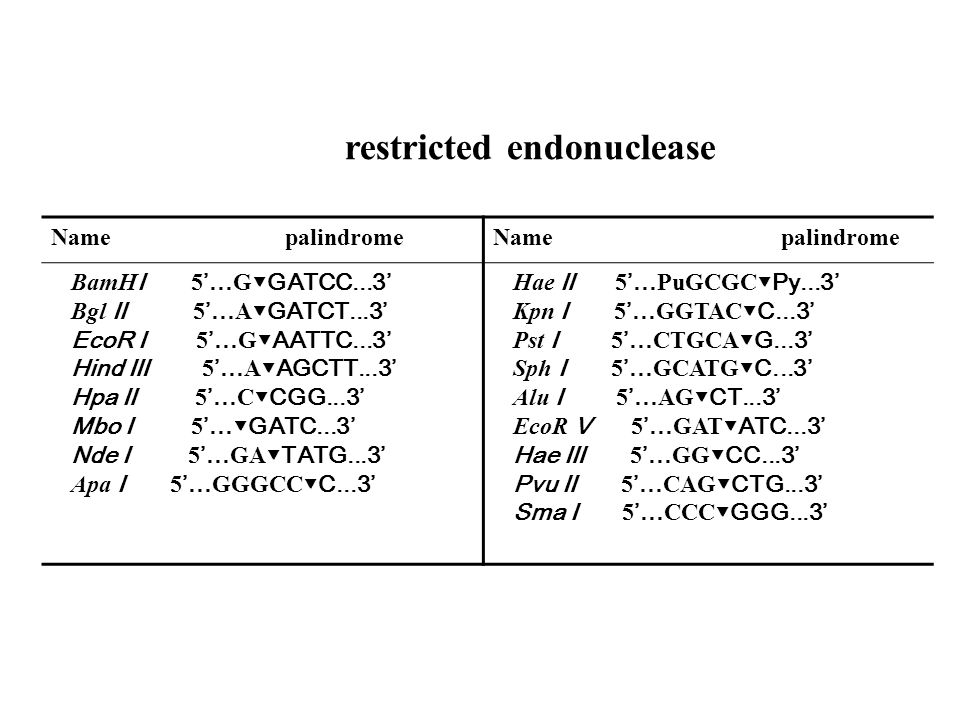

Name palindrome BamH Ⅰ 5 ’… G ▼ GATCC...3’ Bgl Ⅱ 5 ’… A ▼ GATCT...3’ EcoR Ⅰ 5 ’… G ▼ AATTC...3’ Hind Ⅲ 5 ’… A ▼ AGCTT...3’ Hpa Ⅱ 5 ’… C ▼ CGG...3’ Mbo Ⅰ 5 ’… ▼ GATC...3’ Nde Ⅰ 5 ’… GA ▼ TATG...3’ Apa Ⅰ 5 ’… GGGCC ▼ C...3’ Hae Ⅱ 5 ’… PuGCGC ▼ Py...3’ Kpn Ⅰ 5 ’… GGTAC ▼ C...3’ Pst Ⅰ 5 ’… CTGCA ▼ G...3’ Sph Ⅰ 5 ’… GCATG ▼ C...3’ Alu Ⅰ 5 ’… AG ▼ CT...3’ EcoR Ⅴ 5 ’… GAT ▼ ATC...3’ Hae Ⅲ 5 ’… GG ▼ CC...3’ Pvu Ⅱ 5 ’… CAG ▼ CTG...3’ Sma Ⅰ 5 ’… CCC ▼ GGG...3’ restricted endonuclease
32
II. Common used vectors in recombinant technology concept of vector: Some DNA molecules which can carry purpose gene we want to study and amplify the gene or express the protein encoded by the gene. classification of vectors: cloning vector expression vector
33

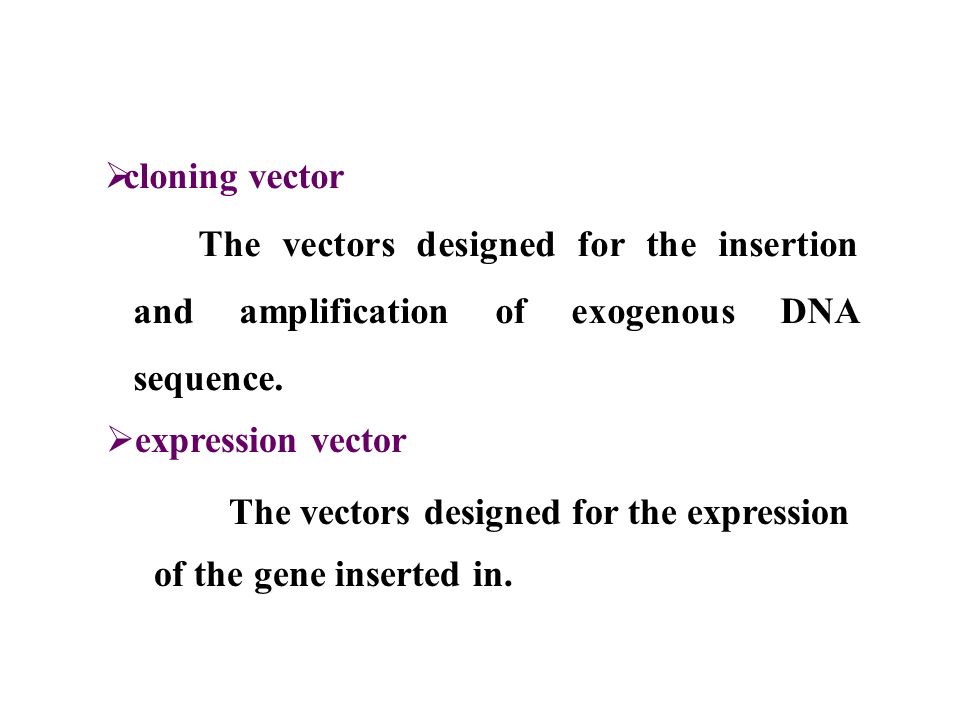

cloning vector The vectors designed for the insertion and amplification of exogenous DNA sequence. expression vector The vectors designed for the expression of the gene inserted in.
34

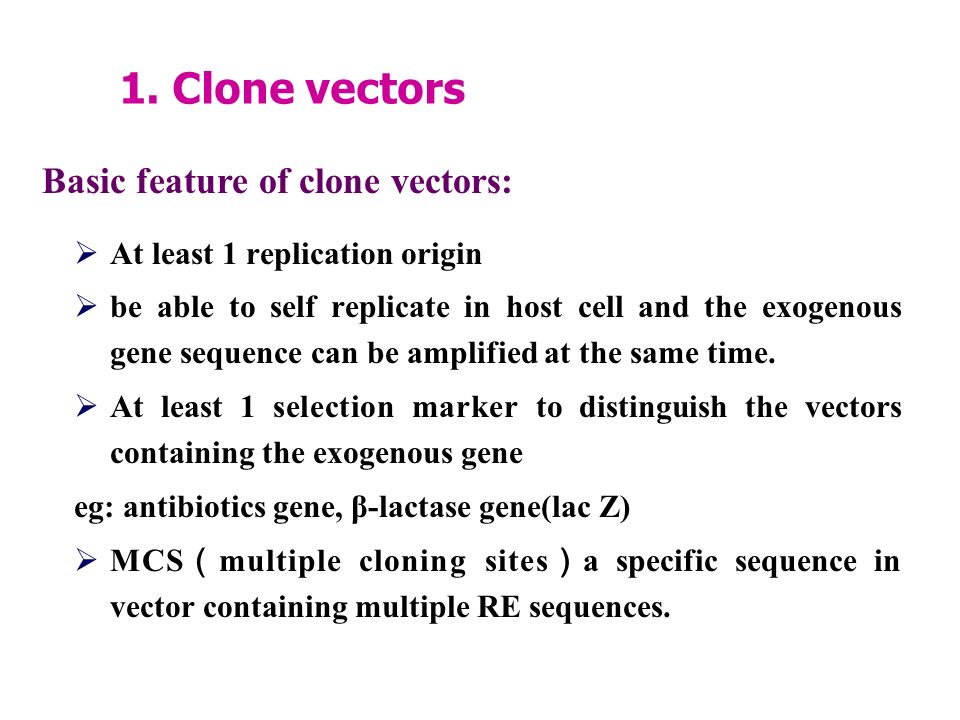

1. Clone vectors At least 1 replication origin be able to self replicate in host cell and the exogenous gene sequence can be amplified at the same time. At least 1 selection marker to distinguish the vectors containing the exogenous gene eg: antibiotics gene, β-lactase gene(lac Z) MCS ( multiple cloning sites ) a specific sequence in vector containing multiple RE sequences. Basic feature of clone vectors:
35

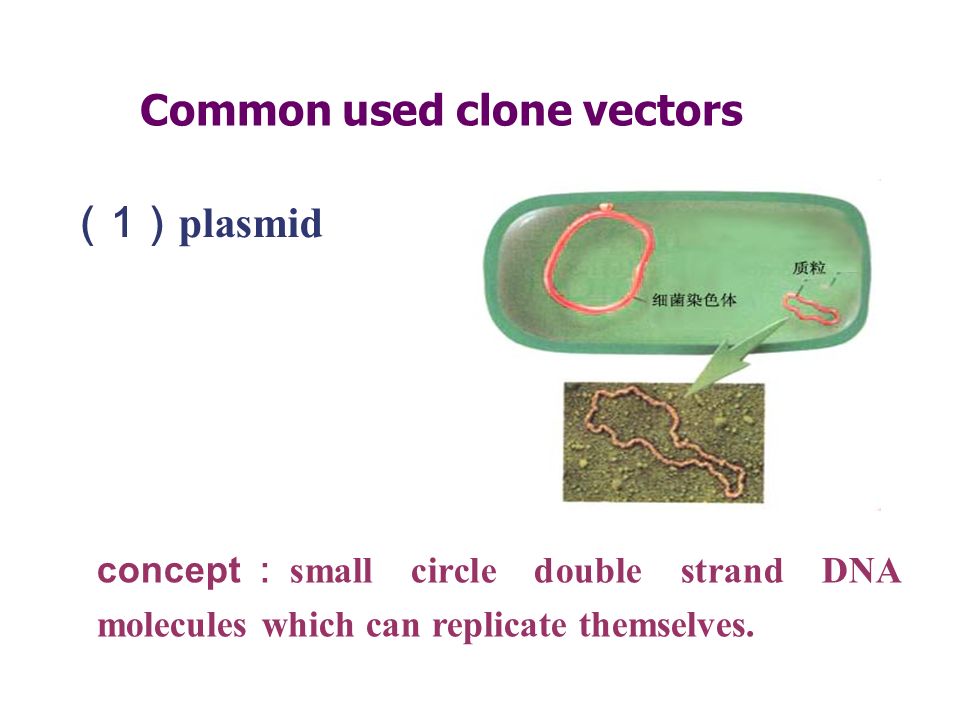

( 1 ) plasmid concept: small circle double strand DNA molecules which can replicate themselves. Common used clone vectors
36
pUC18 质粒载体图谱
37

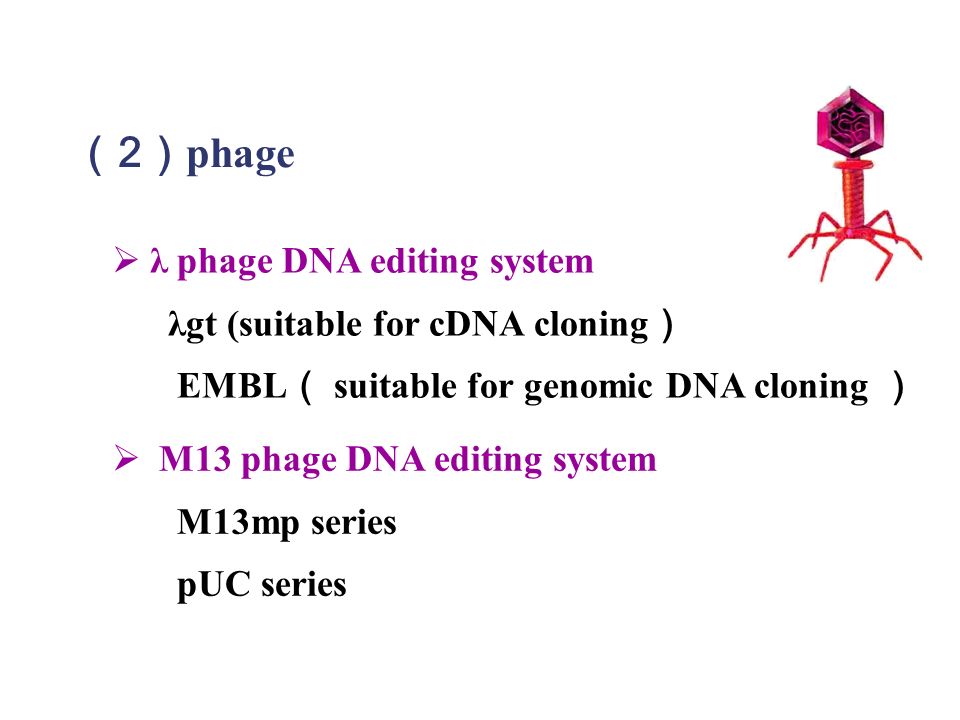

λ phage DNA editing system λgt (suitable for cDNA cloning ) EMBL ( suitable for genomic DNA cloning ) ( 2 ) phage M13 phage DNA editing system M13mp series pUC series
38
cosmid yeast artificial chromosome, YAC bacterial artificial chromosome, BAC animal virus (adenovirus, retroviral vectors) ( 3 ) other clone vectors
39
Concept : Means those vectors that can express the exogenous gene in the host cells. Classification according to the host : eukaryotes expression vectors prokaryotes expression vectors 2. expression vectors
40

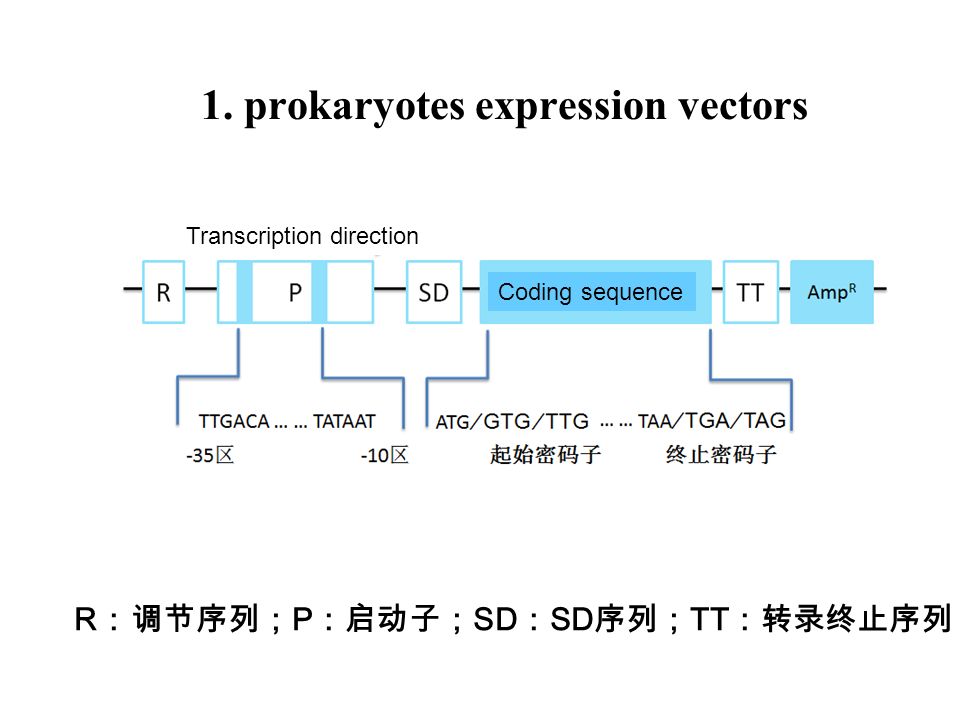

1. prokaryotes expression vectors R :调节序列; P :启动子; SD : SD 序列; TT :转录终止序列 Transcription direction Coding sequence
41

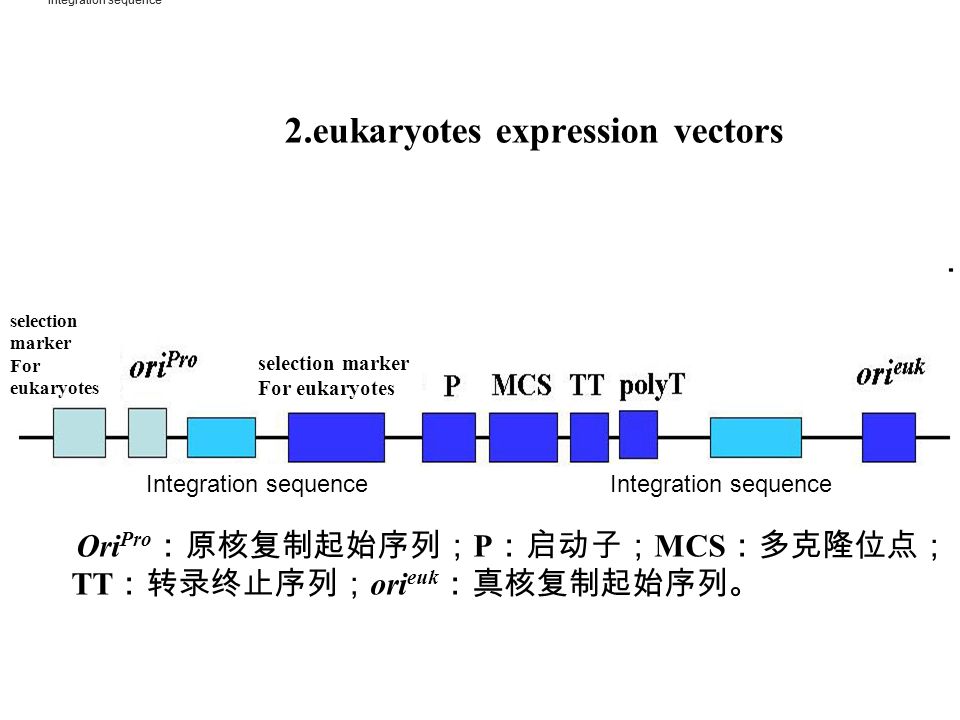

2.eukaryotes expression vectors Ori Pro :原核复制起始序列; P :启动子; MCS :多克隆位点; TT :转录终止序列; ori euk :真核复制起始序列。 selection marker For eukaryotes selection marker For eukaryotes integration sequence Integration sequence
42
section 3 basic priciple and operation of DNA recombination
43
basic principle obtaining of purpose gene vector selection and construction the connection of exogenous gene and vector recombinant DNA transferring to cells the screening of recombinant DNA the expression of recombinant DNA Isolationselectionconnectiontransformation screening and identification
44

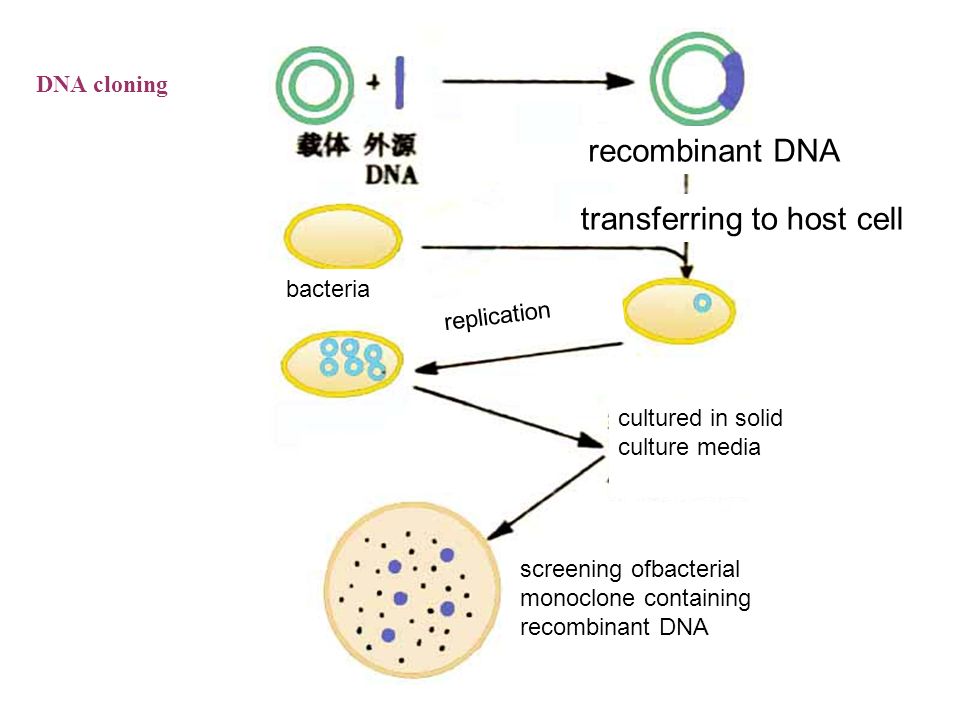

DNA cloning recombinant DNA transferring to host cell replication cultured in solid culture media screening ofbacterial monoclone containing recombinant DNA bacteria
45

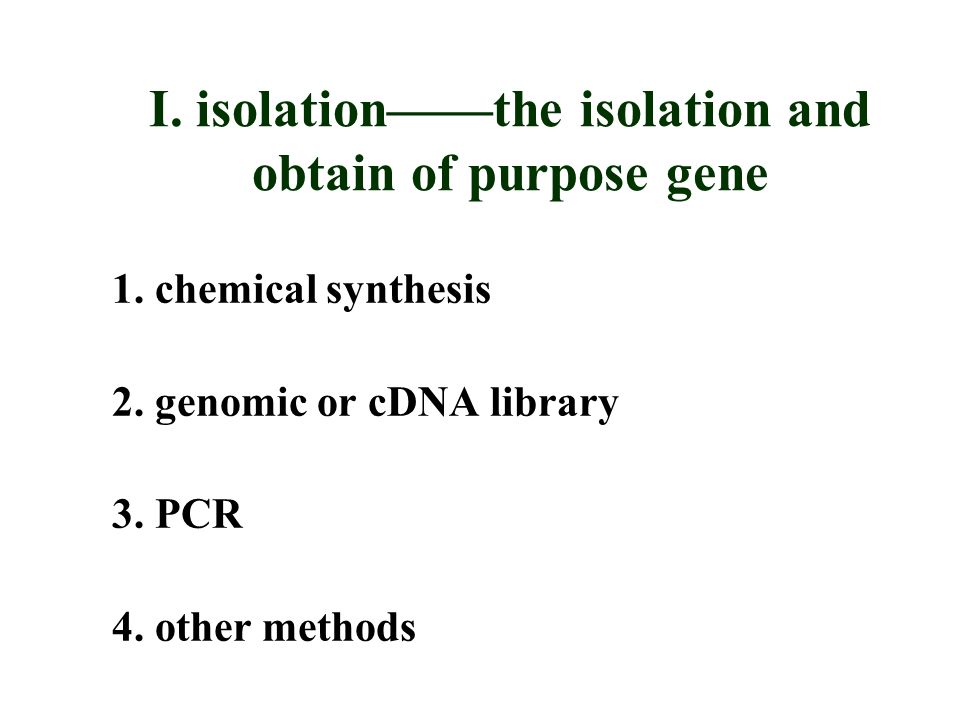

I. isolation——the isolation and obtain of purpose gene 1. chemical synthesis 2. genomic or cDNA library 3. PCR 4. other methods
46

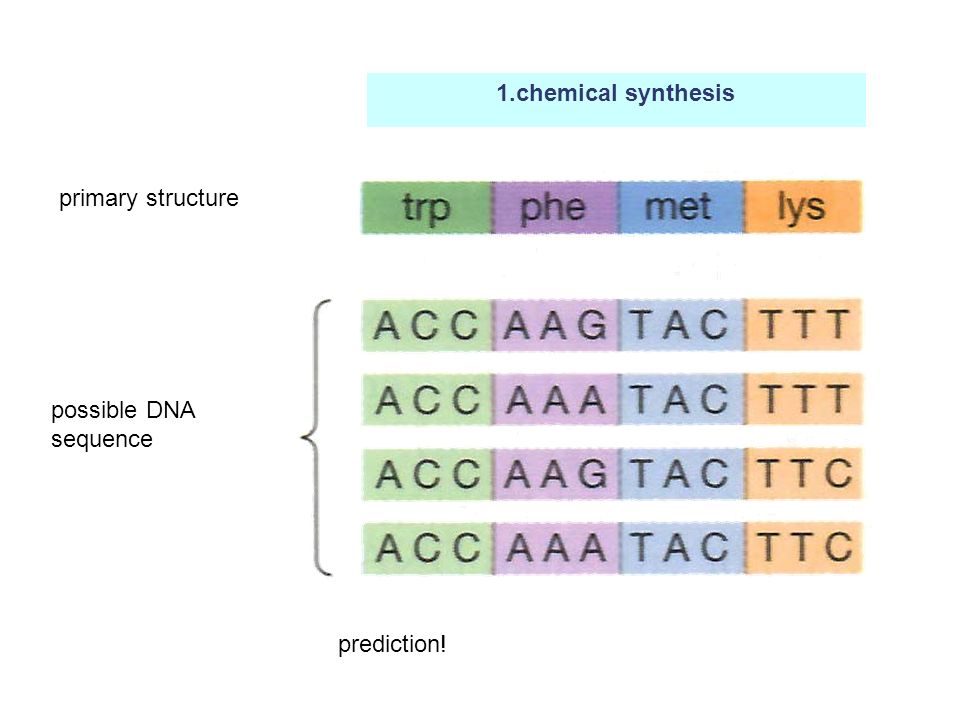

1.chemical synthesis primary structure possible DNA sequence prediction!
47

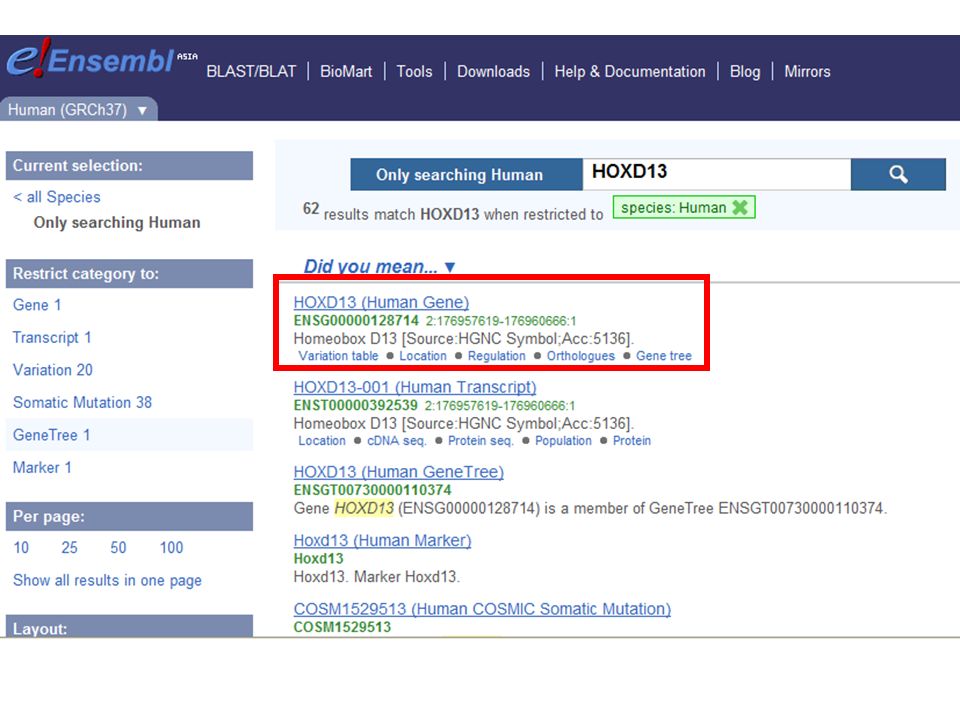

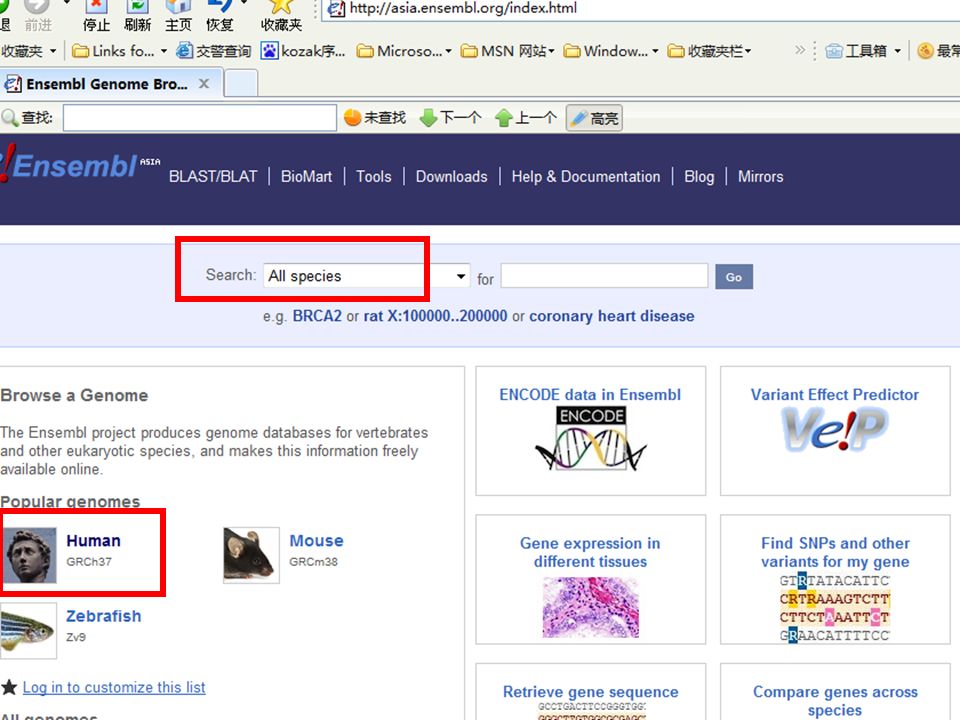

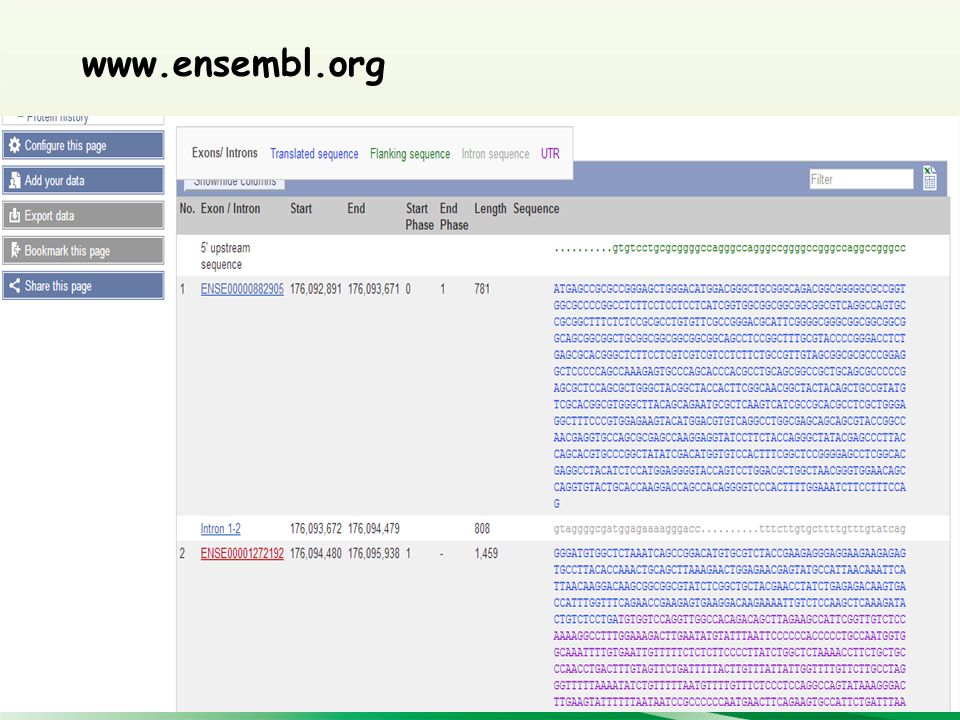

www.ensembl.org
48

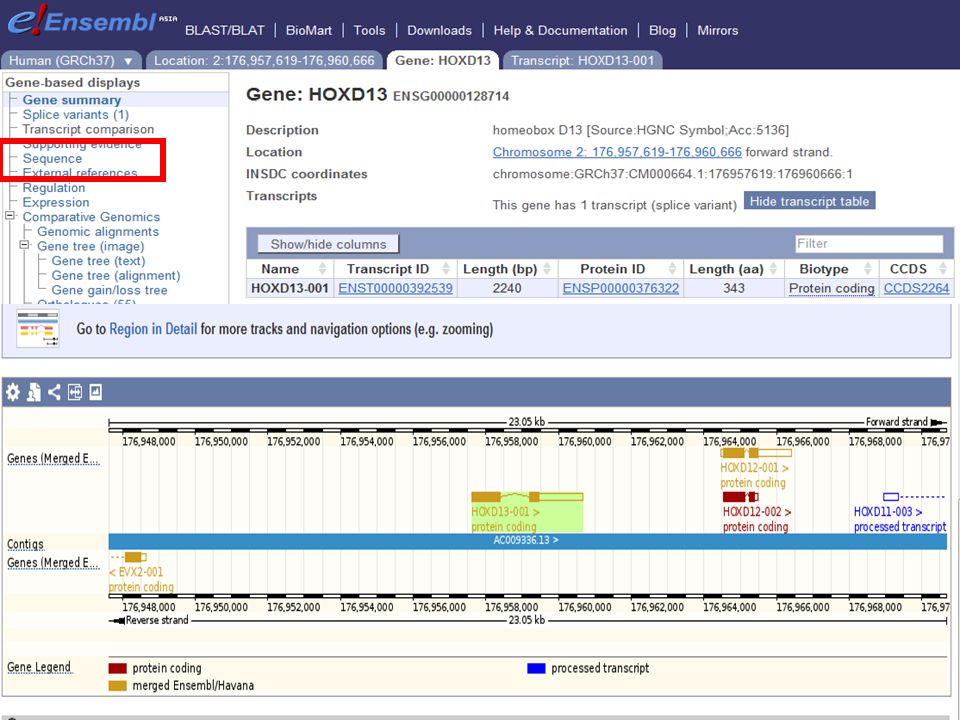

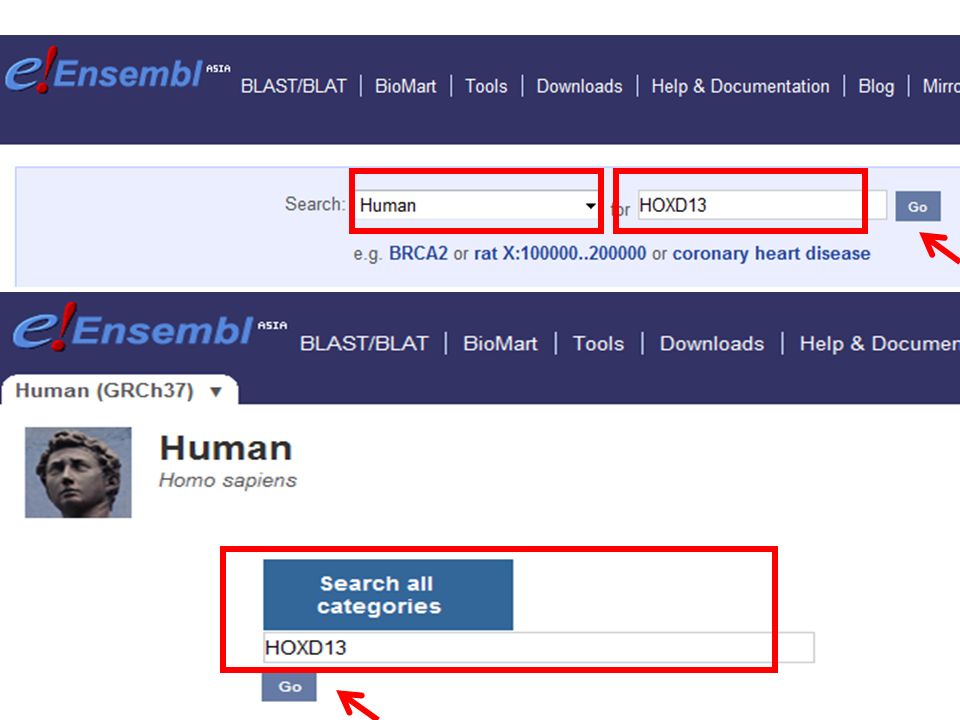

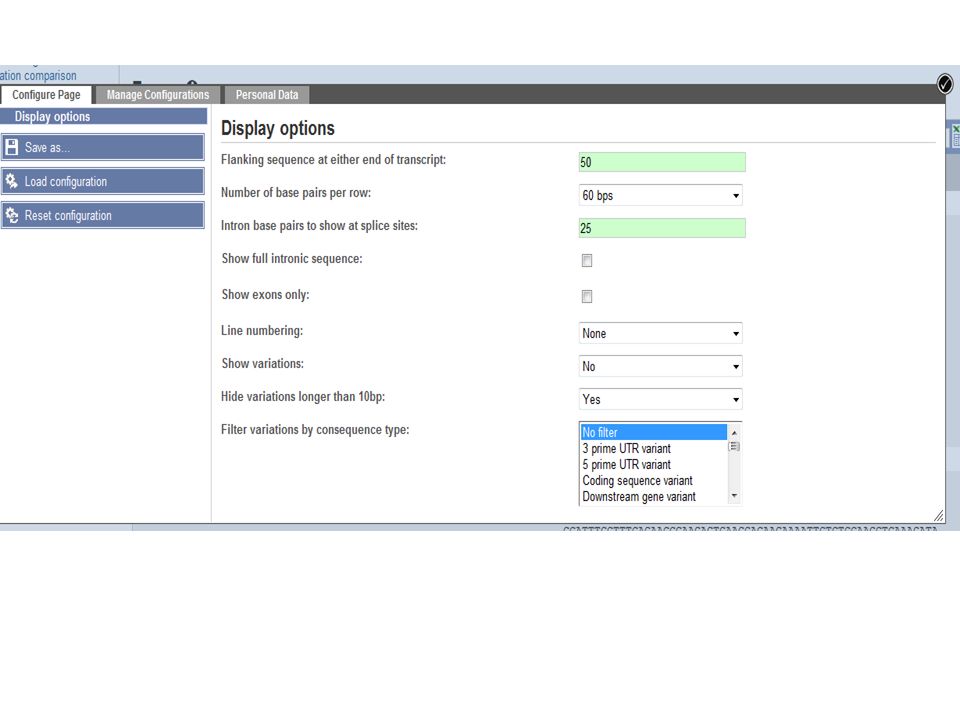

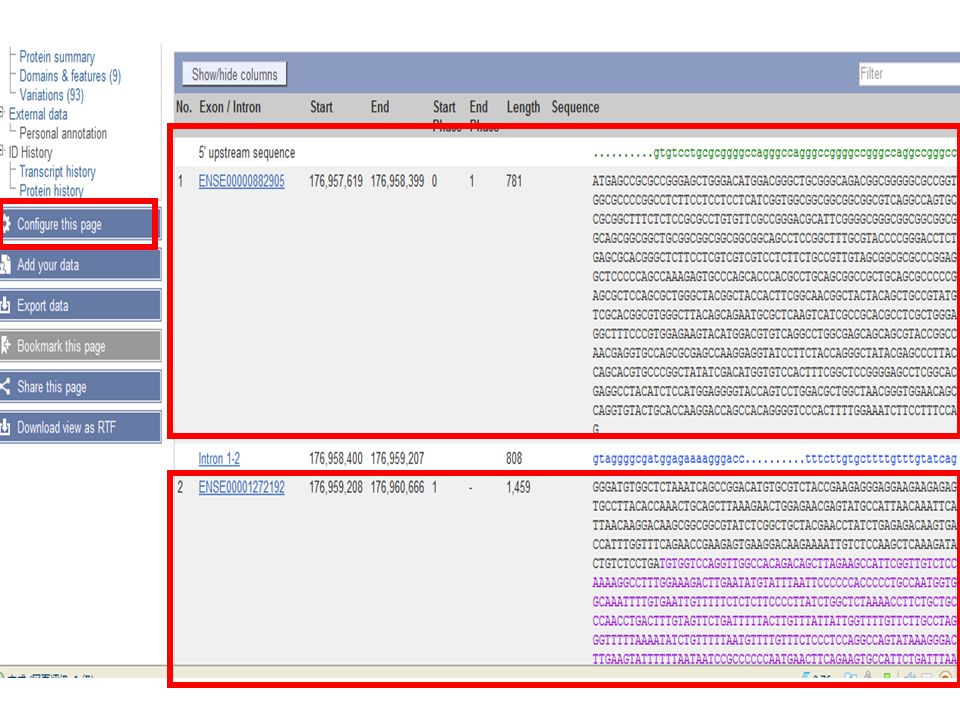

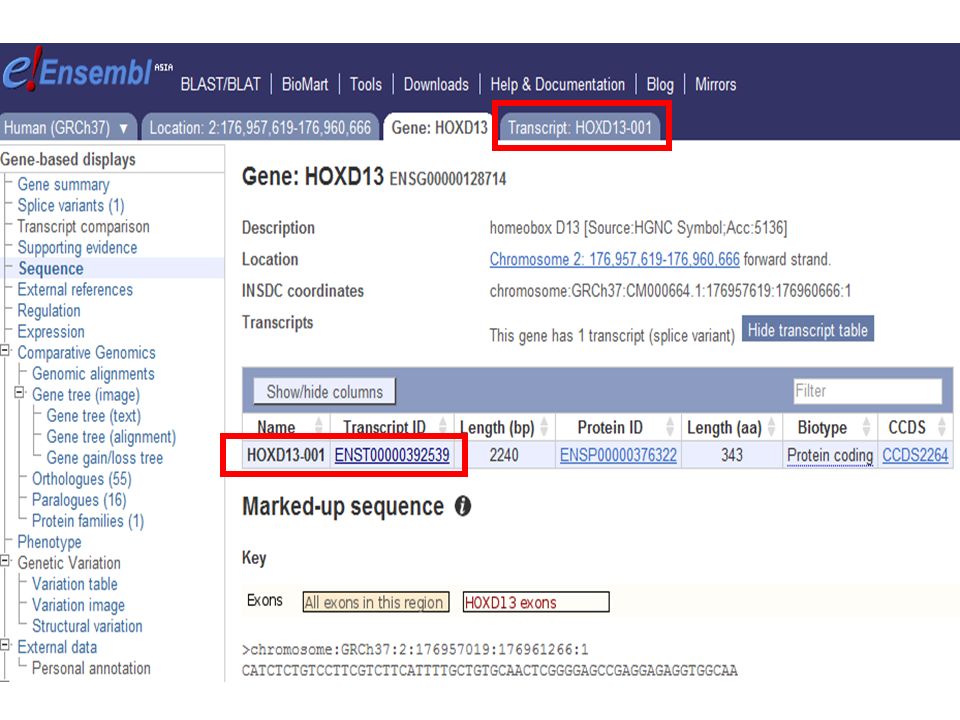

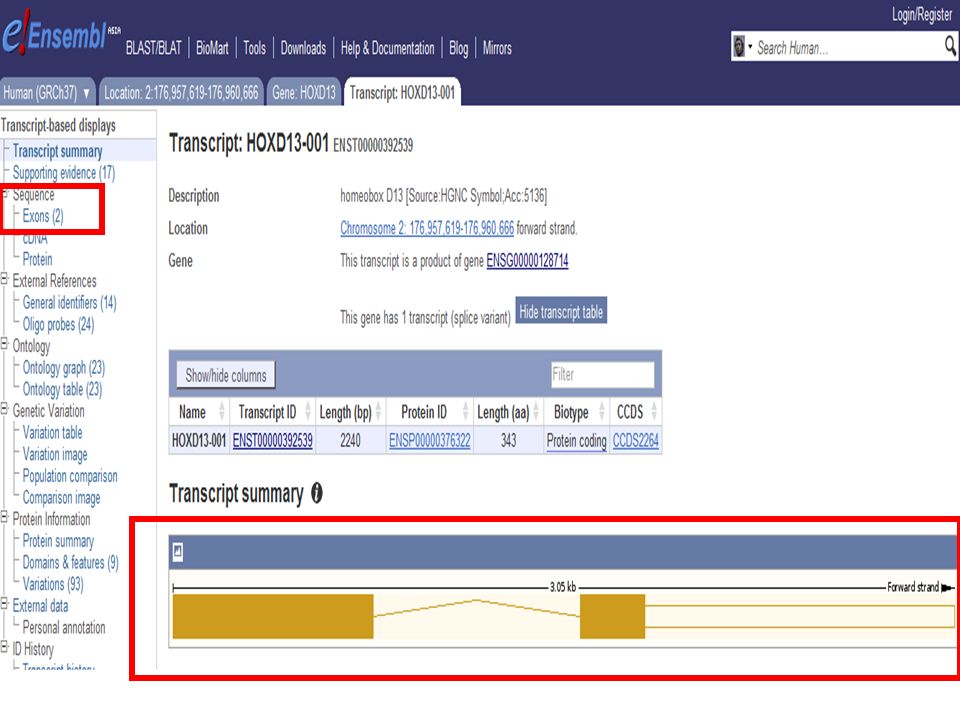

ENSEMBL www.ensembl.org
58

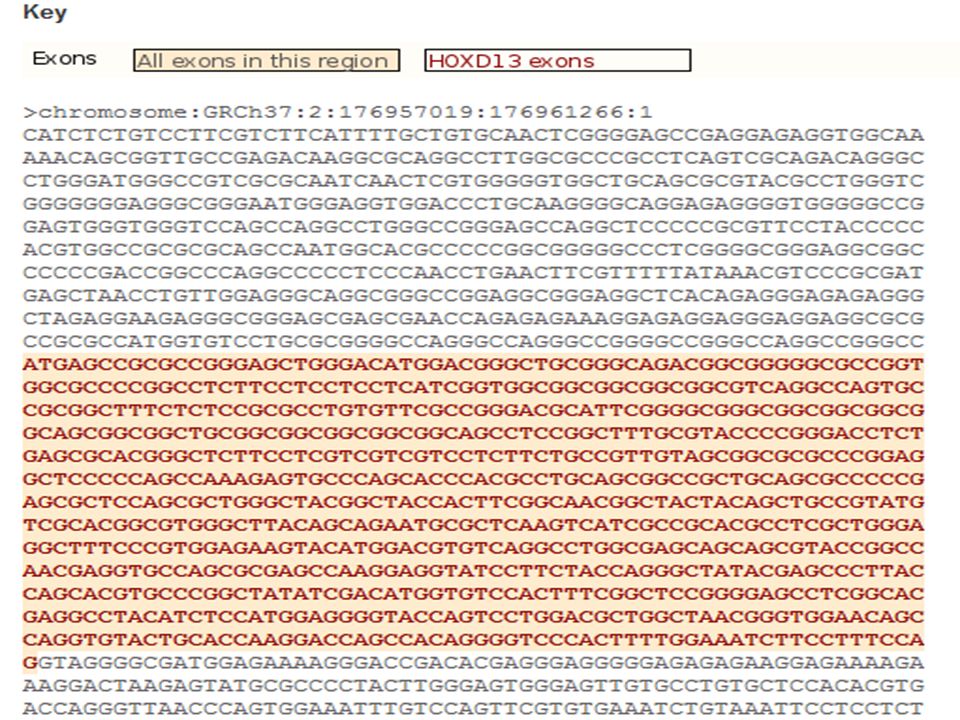

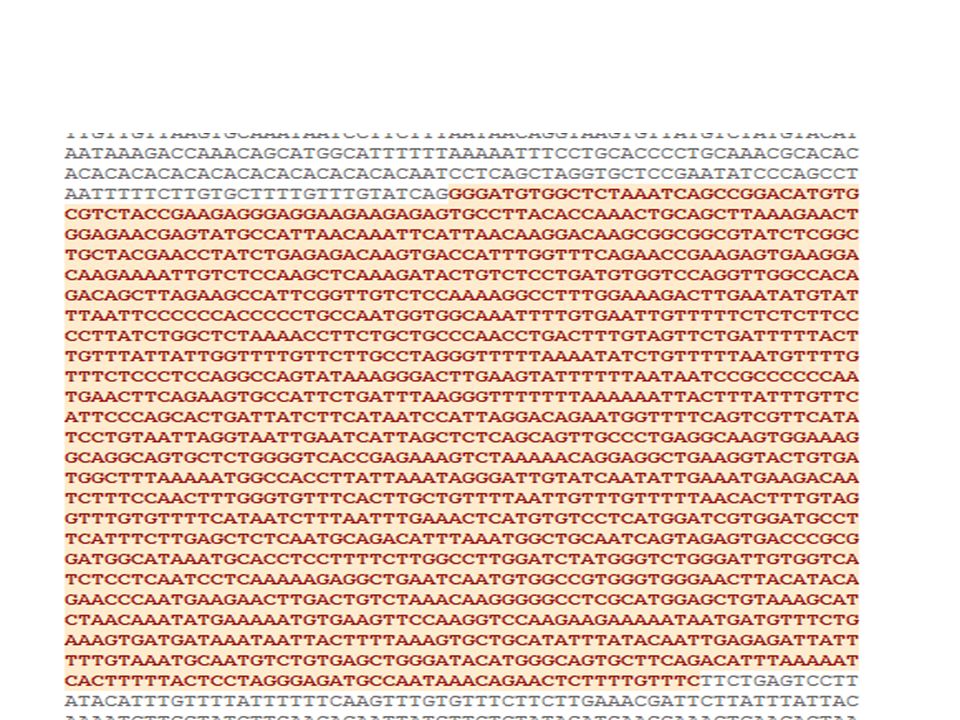

EXON 1 of HOXD13
59

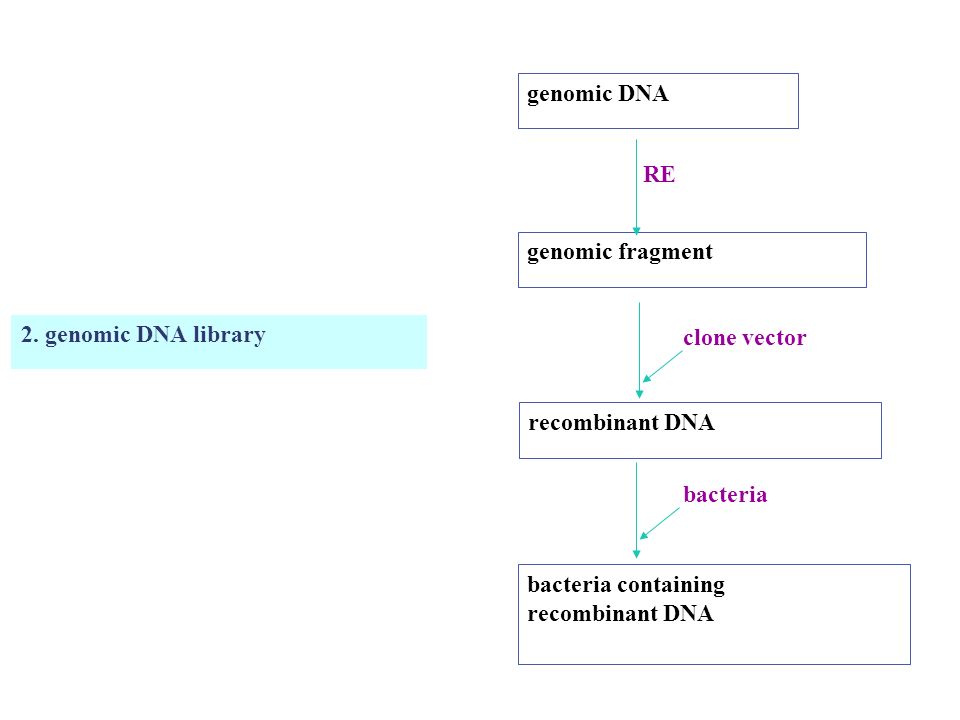

genomic DNA genomic fragment clone vector recombinant DNA bacteria containing recombinant DNA RE bacteria 2. genomic DNA library
60

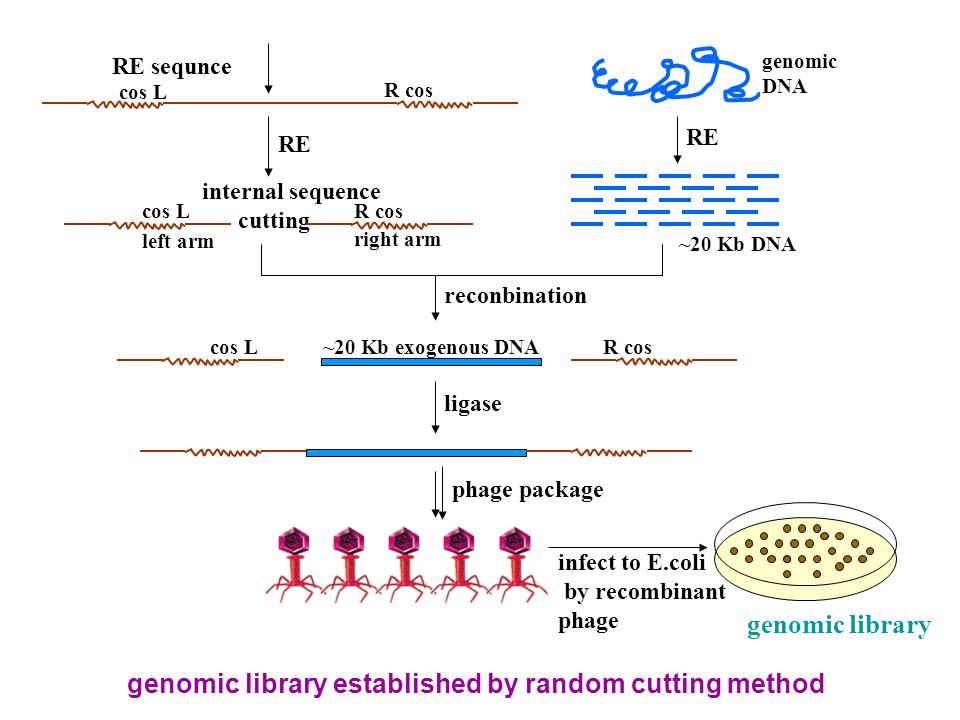

RE sequnce RE internal sequence cutting cos L R cos cos L left arm R cos right arm genomic DNA RE reconbination ligase infect to E.coli by recombinant phage ~20 Kb DNA cos LR cos~20 Kb exogenous DNA genomic library genomic library established by random cutting method phage package
61

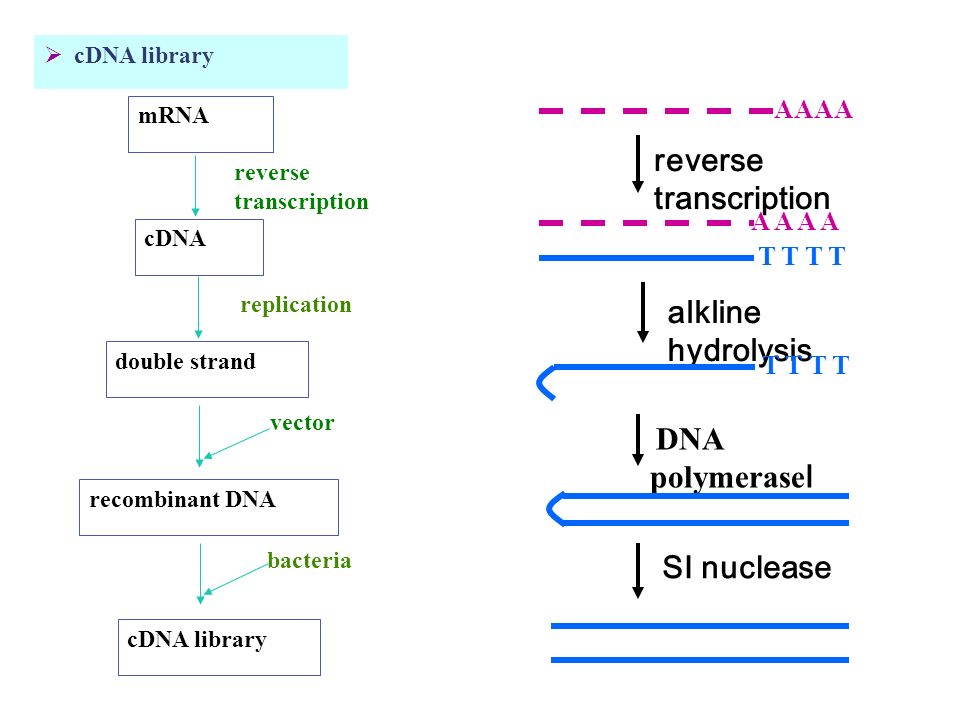

mRNA cDNA double strand recombinant DNA cDNA library reverse transcription vector bacteria cDNA library reverse transcription A A T T T T AAAA SI nuclease DNA polymerase Ⅰ alkline hydrolysis T T T T replication
62

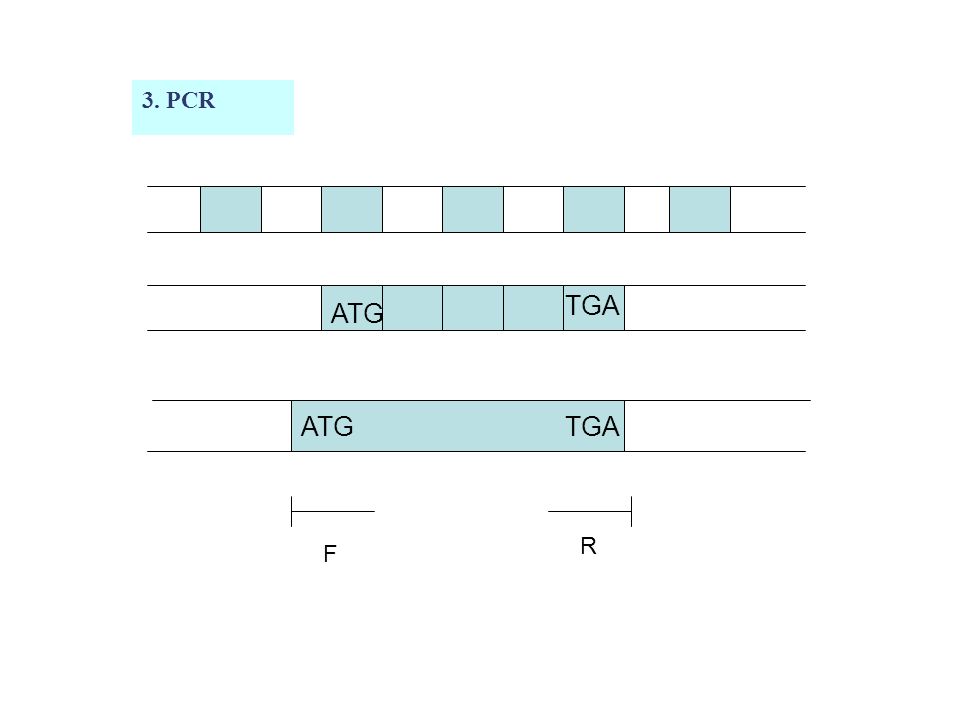

3. PCR ATGTGA F ATG TGA R
63

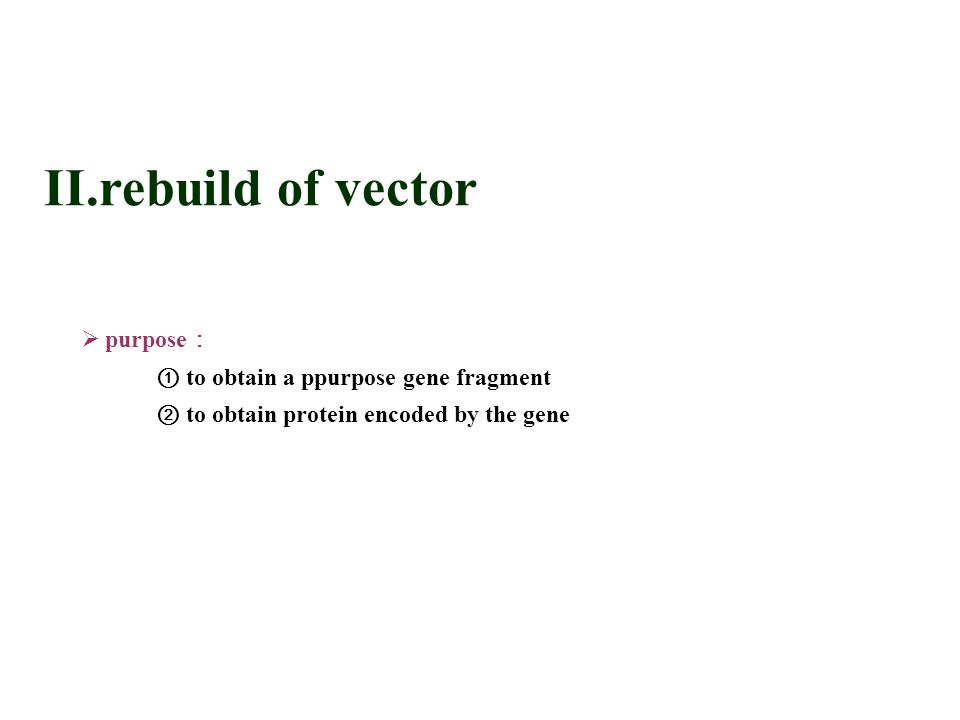

II.rebuild of vector purpose : ① to obtain a ppurpose gene fragment ② to obtain protein encoded by the gene
64

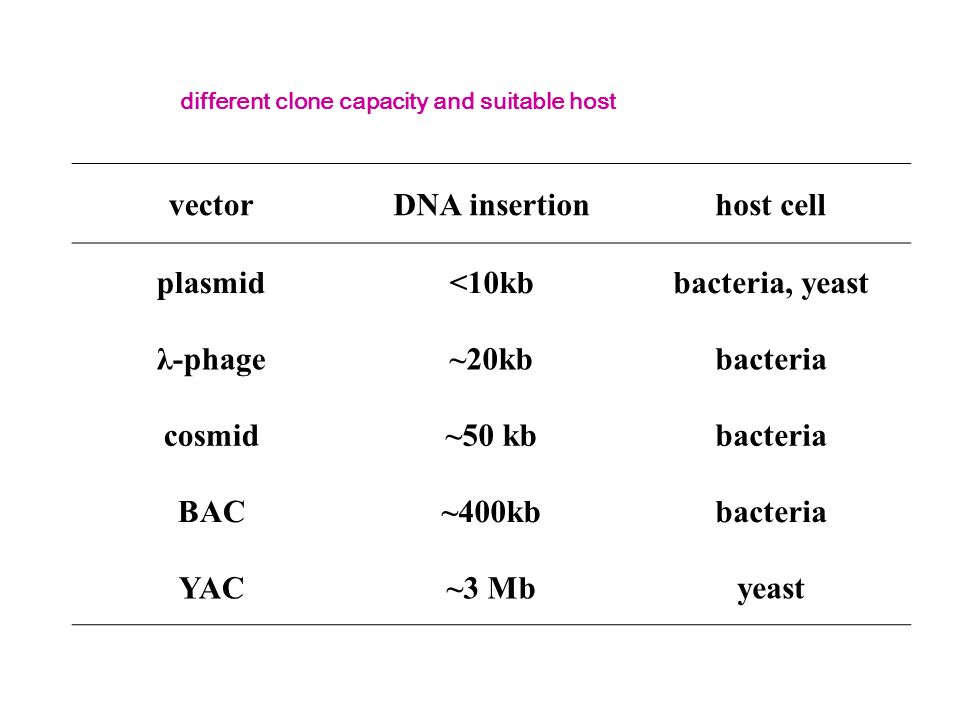

vectorDNA insertionhost cell plasmid<10kbbacteria, yeast λ-phage~20kbbacteria cosmid~50 kbbacteria BAC~400kbbacteria YAC~3 Mbyeast different clone capacity and suitable host
65

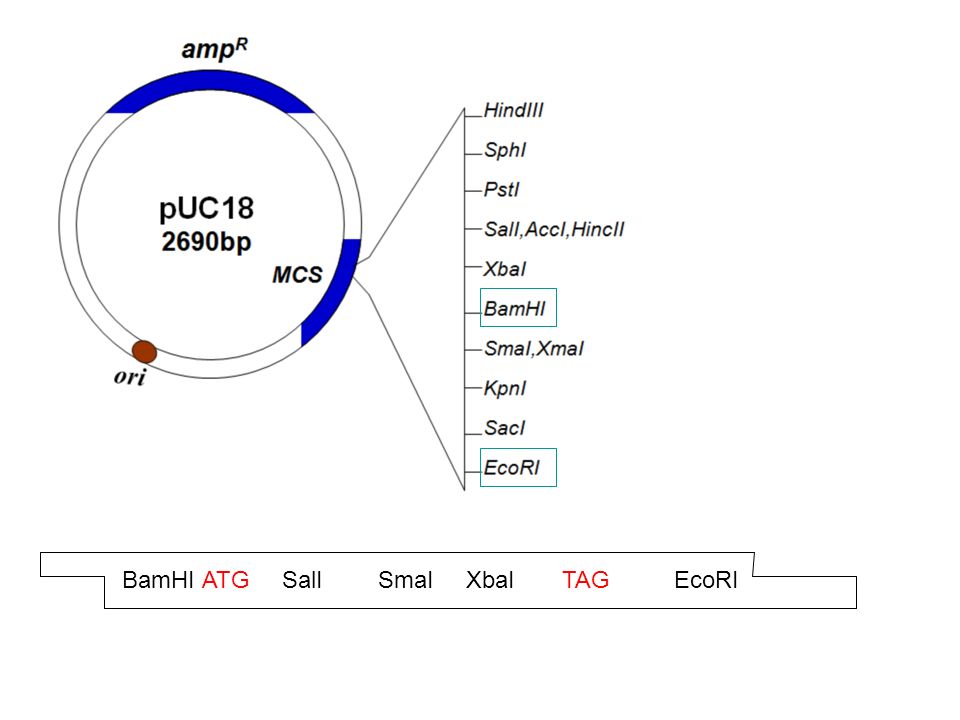

EcoRISalIATGTAGBamHIXbaISmaI
66

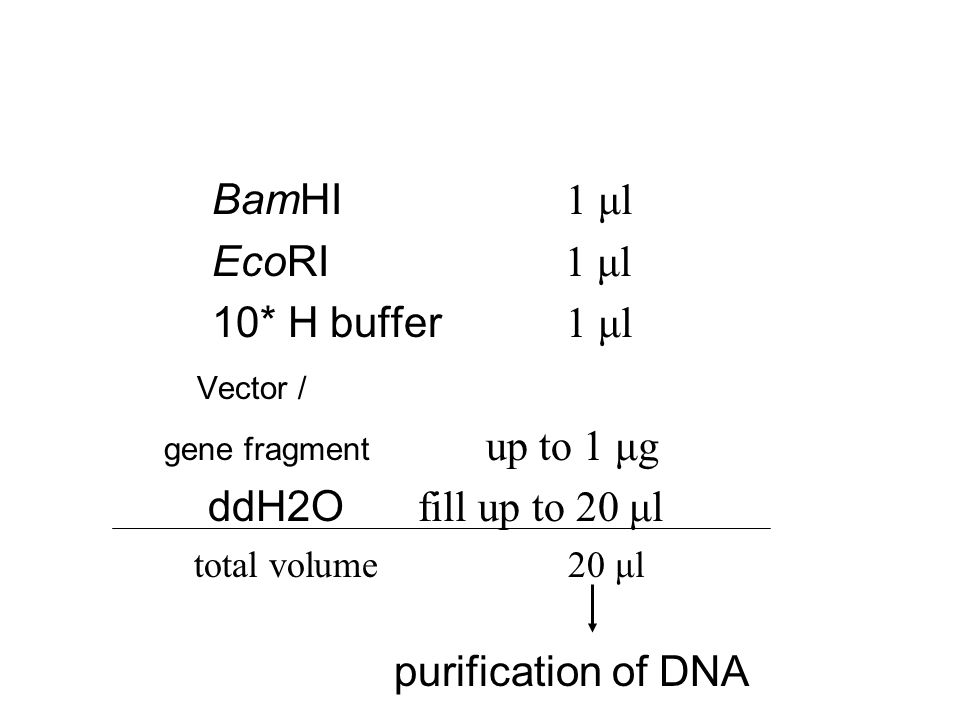

BamHI 1 μl EcoRI 1 μl 10* H buffer 1 μl Vector / gene fragment up to 1 μg ddH2O fill up to 20 μl total volume 20 μl purification of DNA
67

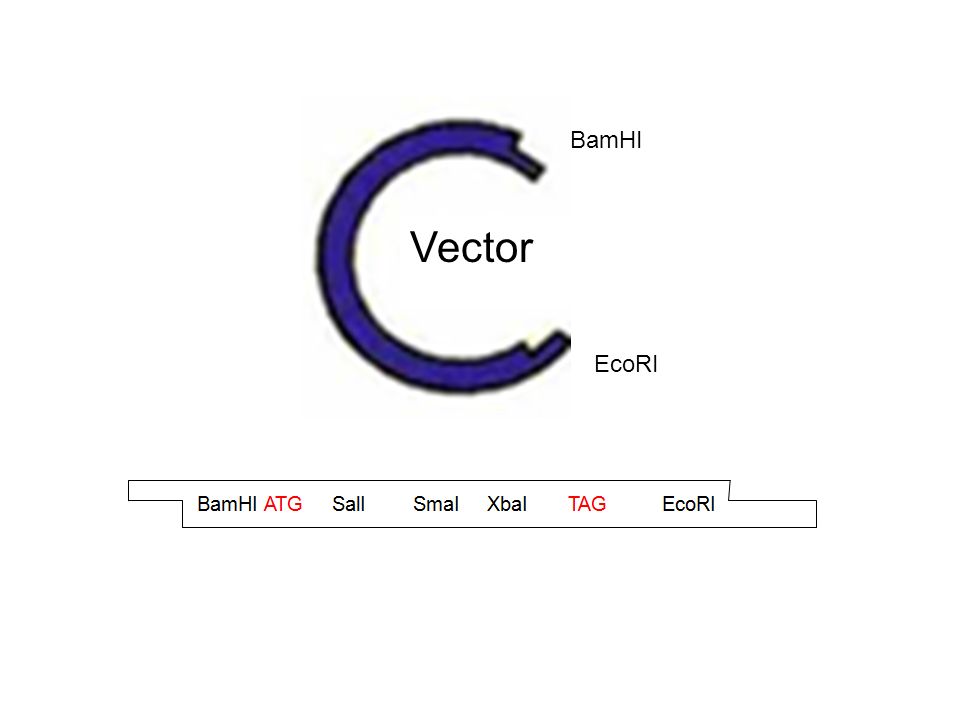

Vector BamHI EcoRI
68

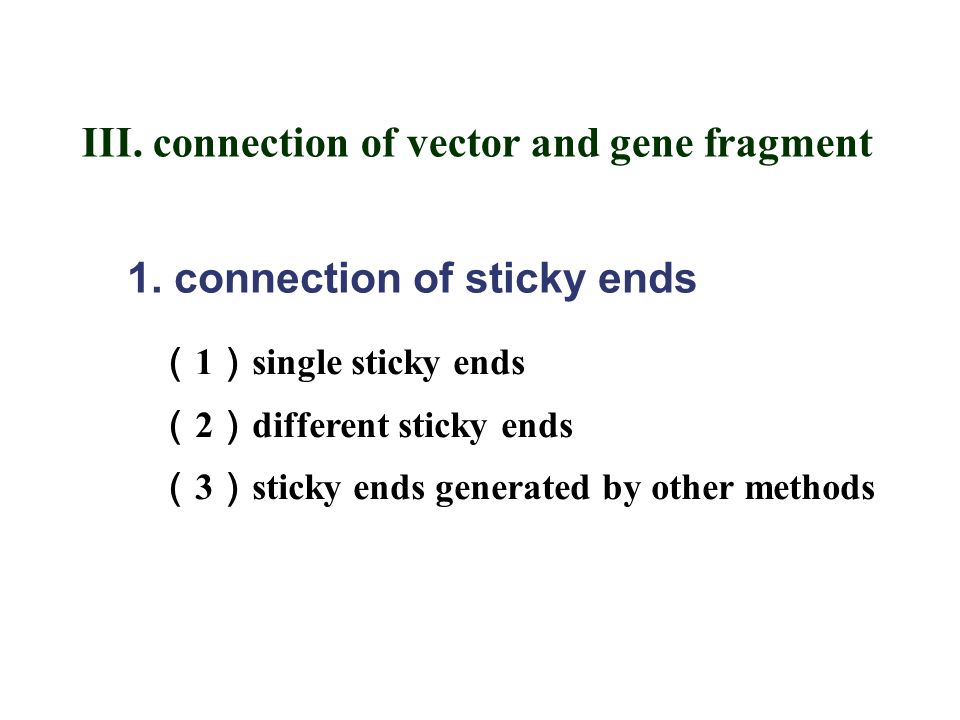

III. connection of vector and gene fragment ( 1 ) single sticky ends ( 2 ) different sticky ends ( 3 ) sticky ends generated by other methods 1. connection of sticky ends
69

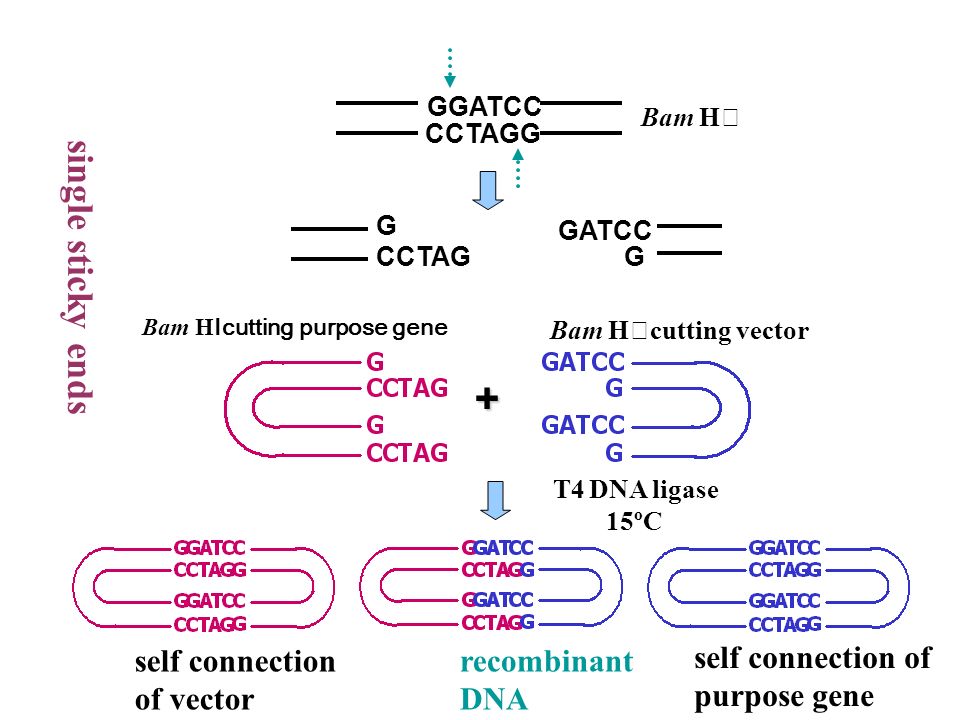

Bam H Ⅰ GGATCC CCTAGG T4 DNA ligase 15ºC GATCC G CCTAG + Bam H Ⅰ cutting purpose gene Bam H Ⅰ cutting vector recombinant DNA self connection of vector self connection of purpose gene single sticky ends
70

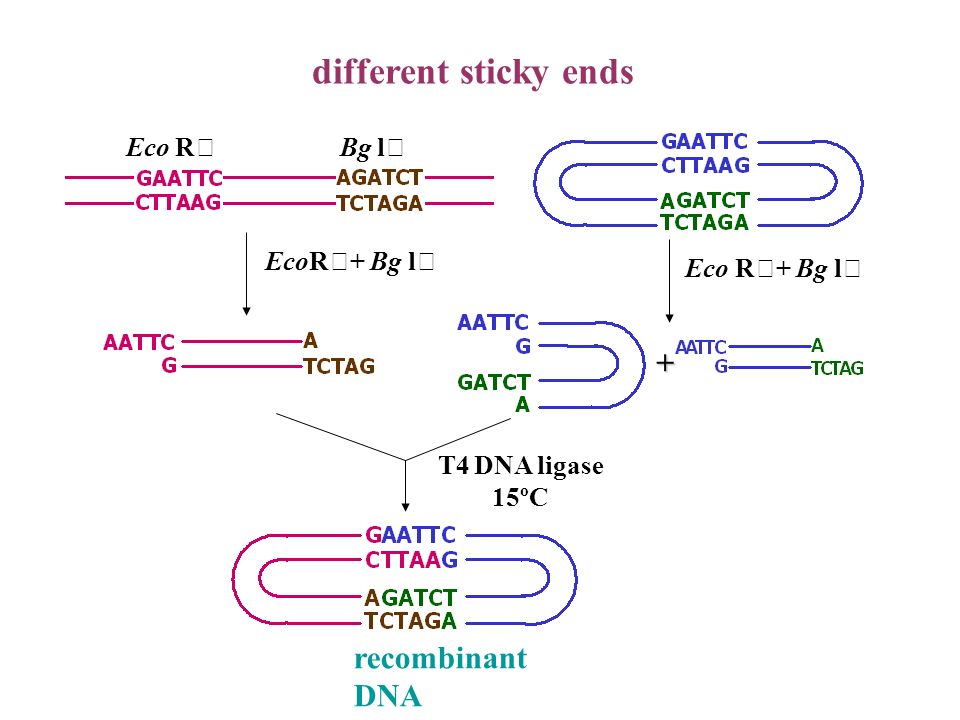

different sticky ends Eco R Ⅰ Bg l Ⅱ + EcoR Ⅰ + Bg l Ⅱ T4 DNA ligase 15ºC recombinant DNA
71

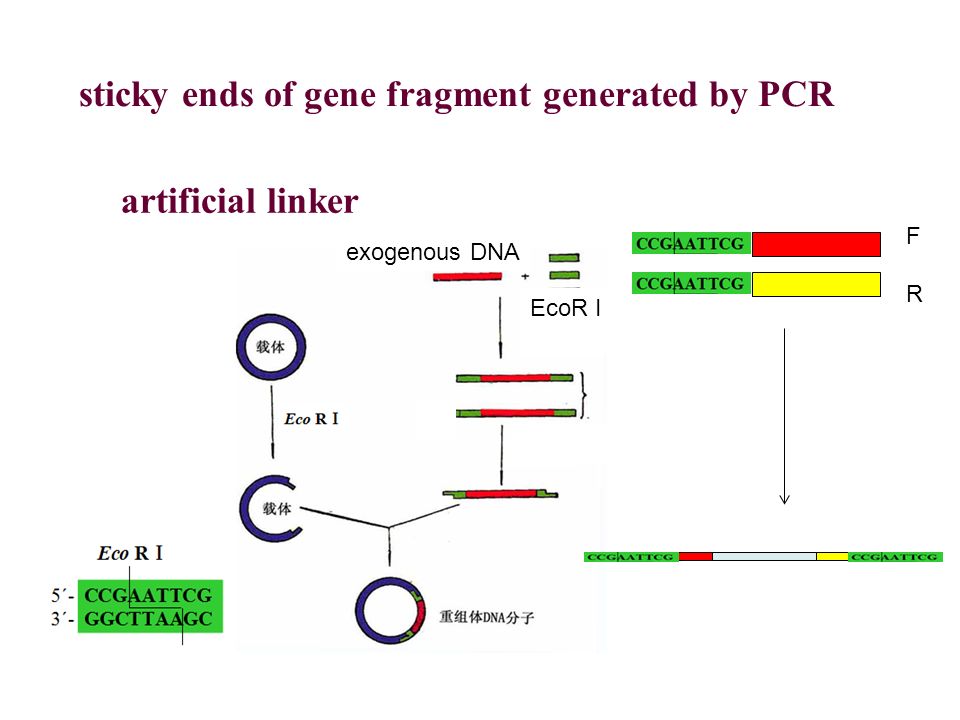

artificial linker sticky ends of gene fragment generated by PCR exogenous DNA EcoR I FRFR
72

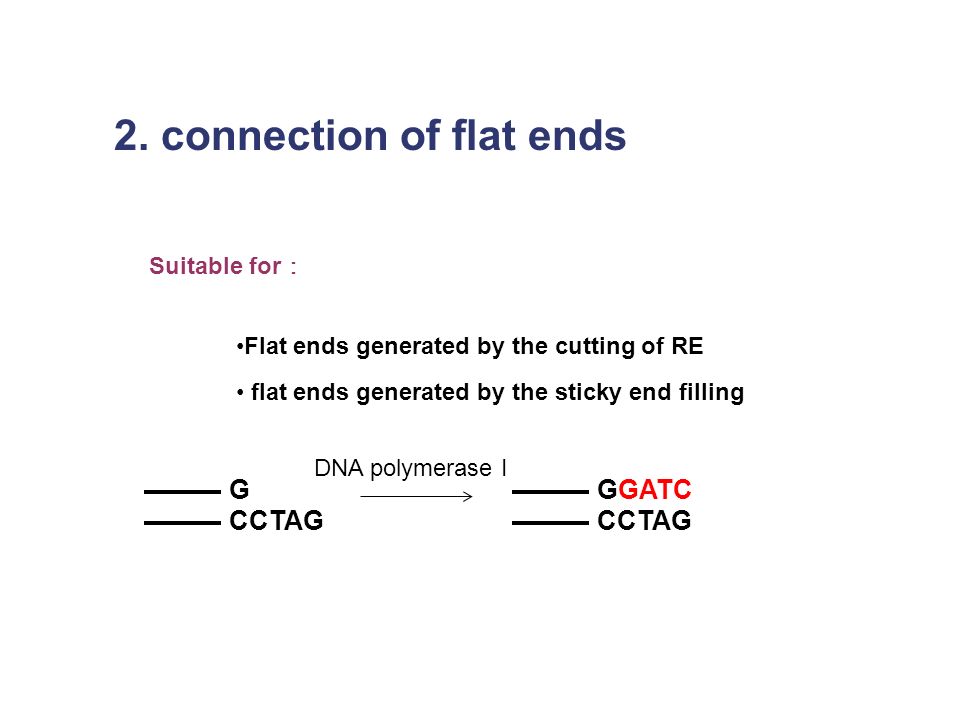

Flat ends generated by the cutting of RE flat ends generated by the sticky end filling Suitable for : 2. connection of flat ends G CCTAG GGATC CCTAG DNA polymerase I
73
Purpose DNA vector RE T4 DNA ligase 15ºC Recombinant DNA Self connection Of vector Self connection Of fragment
74

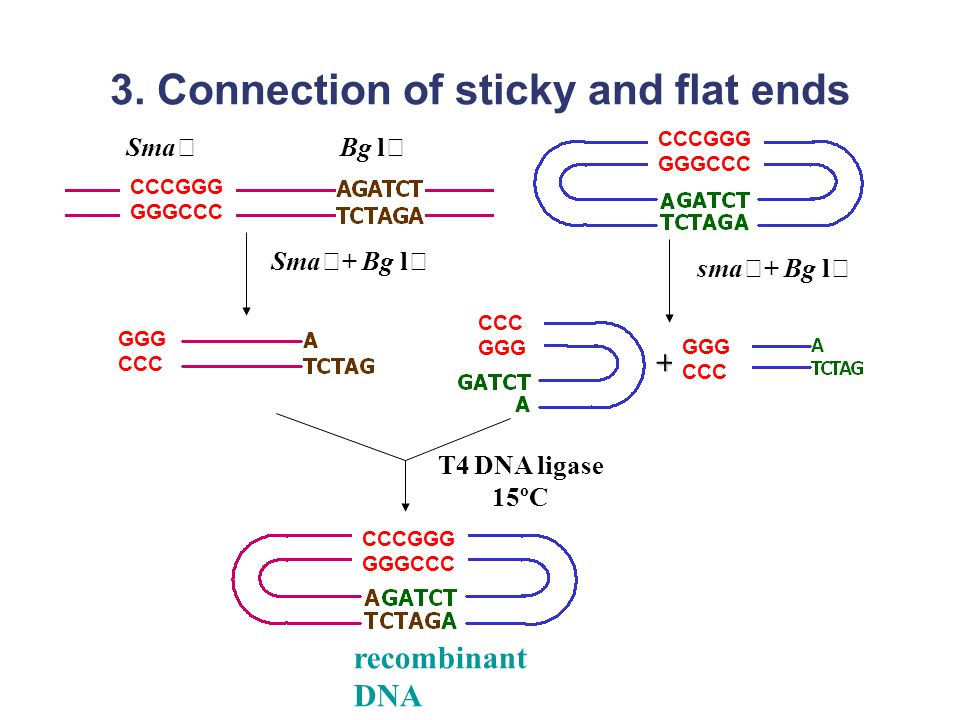

3. Connection of sticky and flat ends Sma Ⅰ Bg l Ⅱ CCCGGG GGGCCC CCCGGG GGGCCC + Sma Ⅰ + Bg l Ⅱ sma Ⅰ + Bg l Ⅱ GGG CCC GGG CCC T4 DNA ligase 15ºC recombinant DNA CCCGGG GGGCCC
75

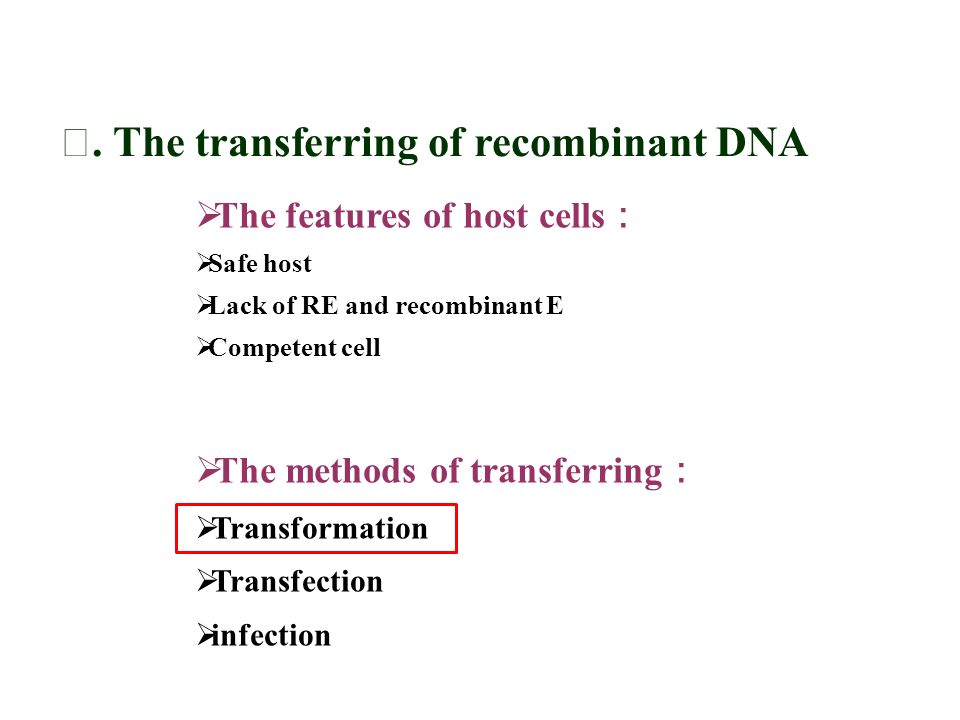

The features of host cells : Safe host Lack of RE and recombinant E Competent cell The methods of transferring : Transformation Transfection infection Ⅳ. The transferring of recombinant DNA
76

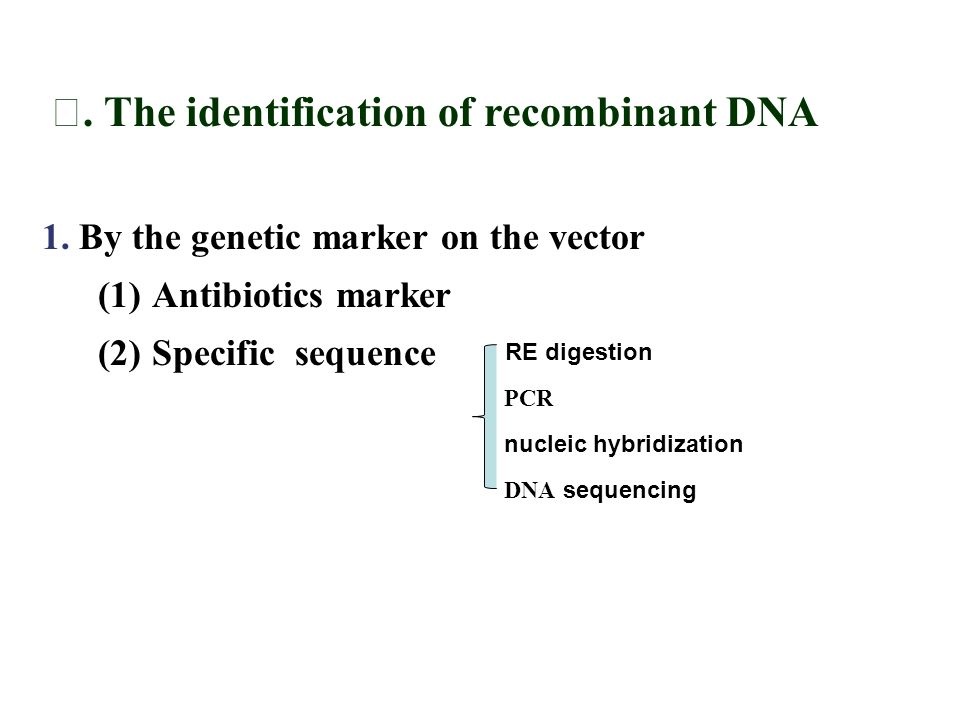

1. By the genetic marker on the vector (1)Antibiotics marker (2)Specific sequence Ⅴ. The identification of recombinant DNA RE digestion PCR nucleic hybridization DNA sequencing
77

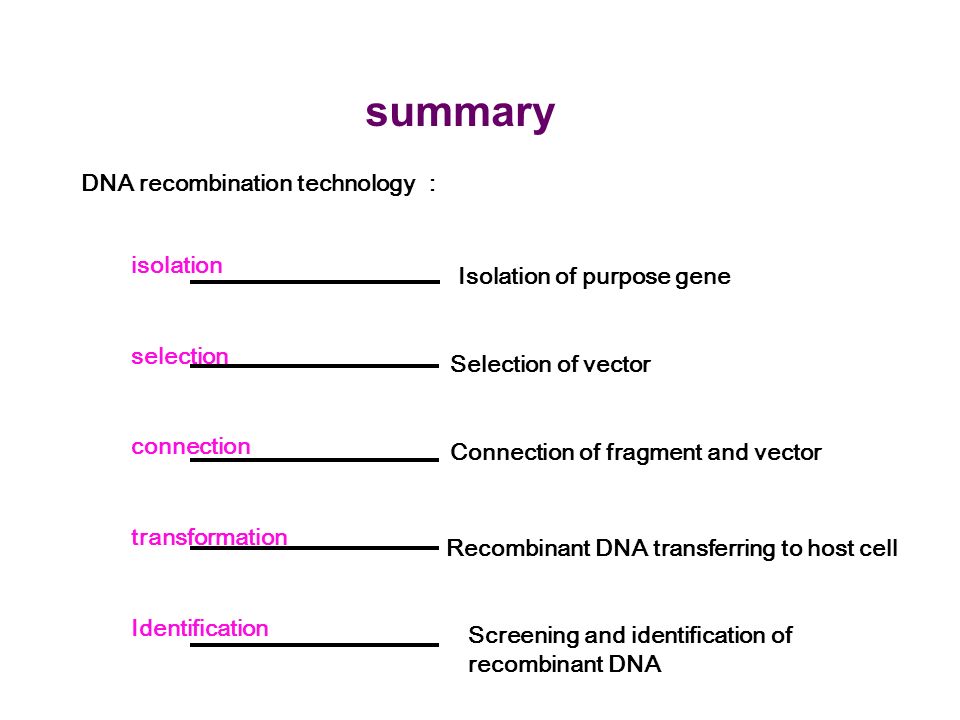

DNA recombination technology : summary isolation Isolation of purpose gene selection Selection of vector connection Connection of fragment and vector transformation Recombinant DNA transferring to host cell Identification Screening and identification of recombinant DNA
78

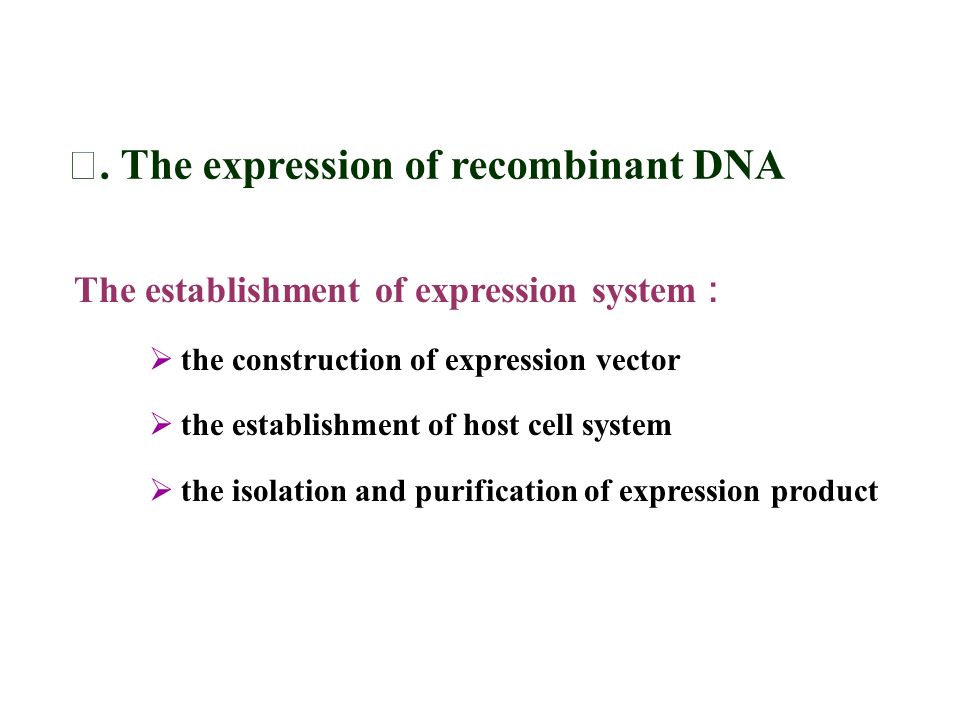

The establishment of expression system : the construction of expression vector the establishment of host cell system the isolation and purification of expression product Ⅵ. The expression of recombinant DNA
79

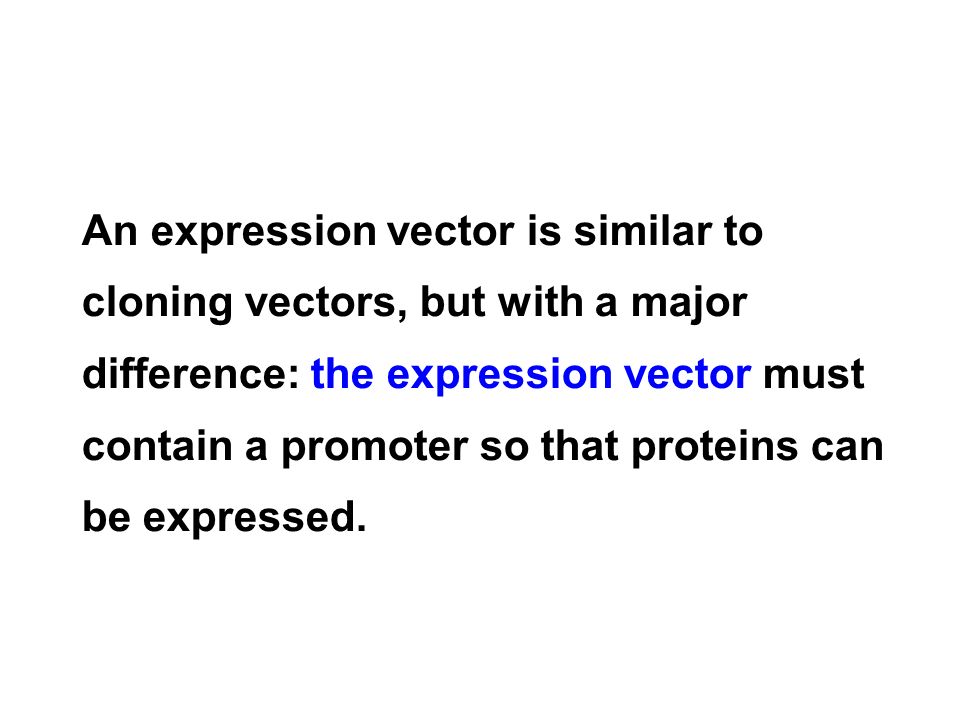

An expression vector is similar to cloning vectors, but with a major difference: the expression vector must contain a promoter so that proteins can be expressed.
80

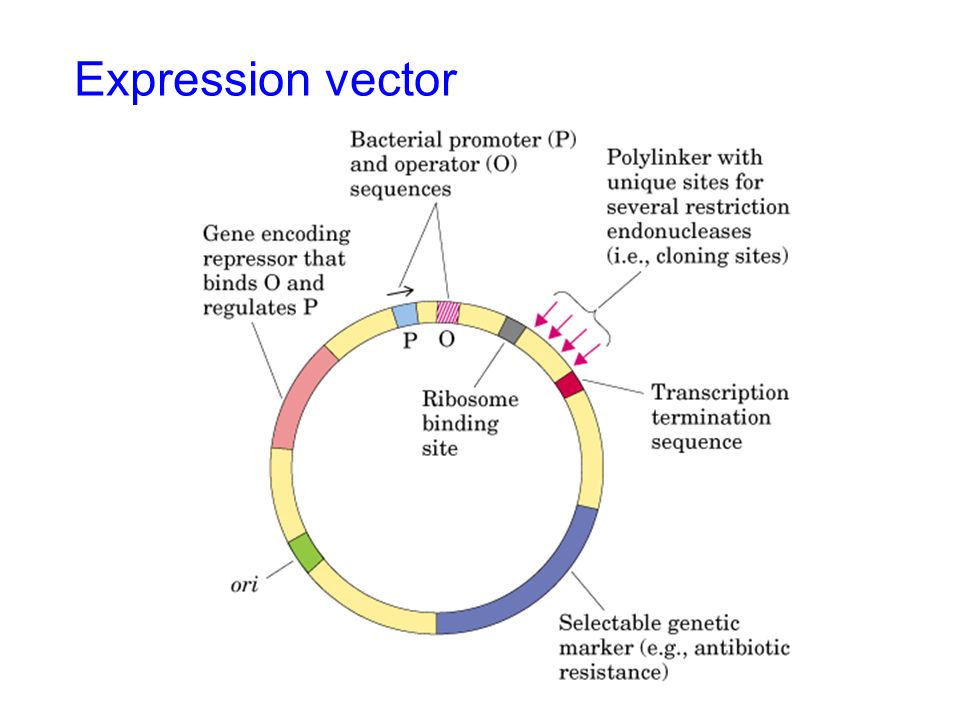

Expression vector
82
Section 4 Application of Recombinant DNA Technology in Medicine
83

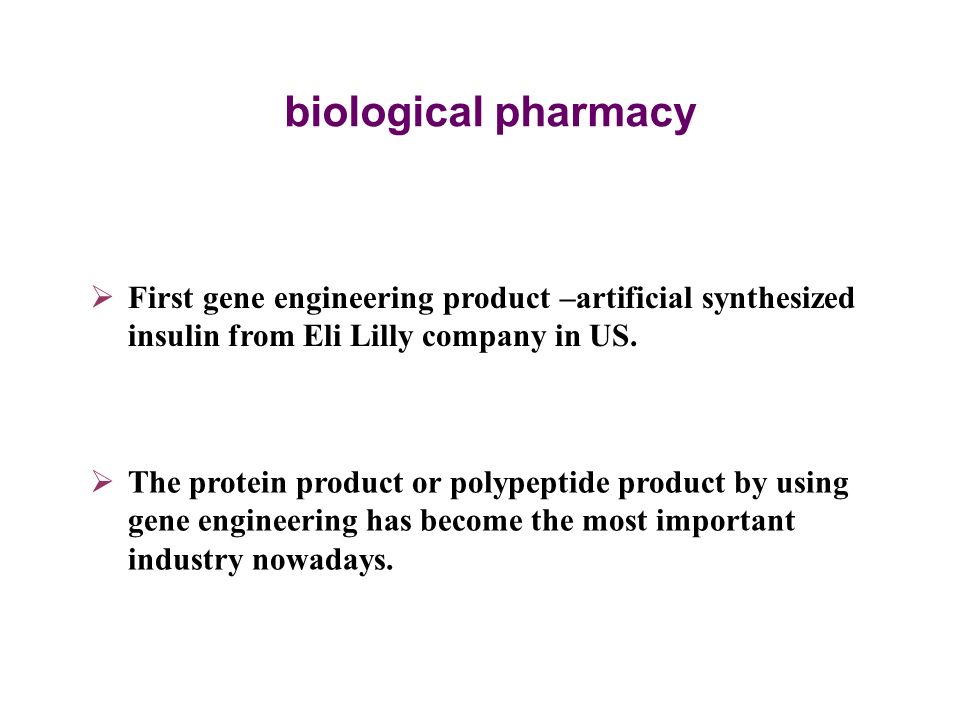

biological pharmacy The protein product or polypeptide product by using gene engineering has become the most important industry nowadays. First gene engineering product –artificial synthesized insulin from Eli Lilly company in US.
84

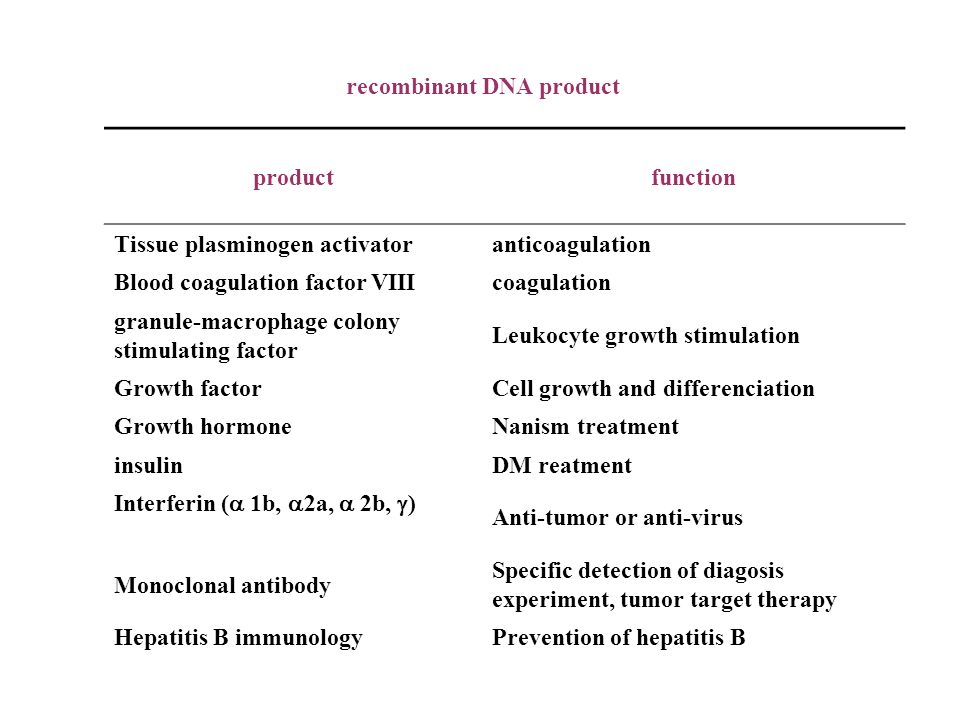

recombinant DNA product productfunction Tissue plasminogen activatoranticoagulation Blood coagulation factor VIIIcoagulation granule-macrophage colony stimulating factor Leukocyte growth stimulation Growth factorCell growth and differenciation Growth hormoneNanism treatment insulinDM reatment Interferin ( 1b, 2a, 2b, ) Anti-tumor or anti-virus Monoclonal antibody Specific detection of diagosis experiment, tumor target therapy Hepatitis B immunologyPrevention of hepatitis B
85

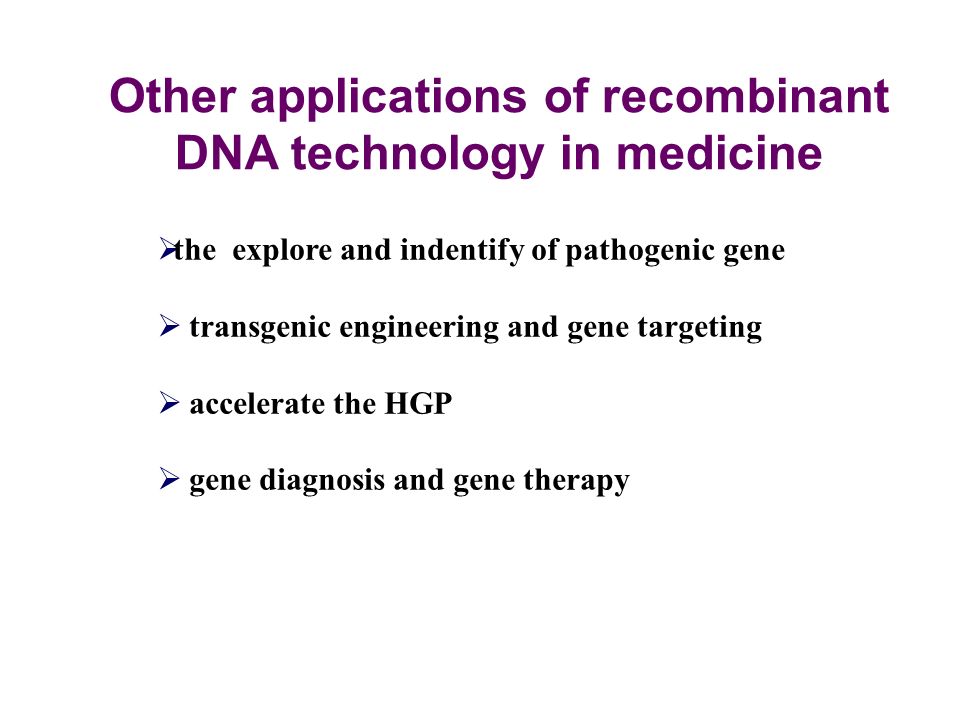

Other applications of recombinant DNA technology in medicine the explore and indentify of pathogenic gene transgenic engineering and gene targeting accelerate the HGP gene diagnosis and gene therapy
