1. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology IIAcoustic Reality II.6 (M Sept 30) The Euler Space and Tunings

2. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology De harmoniae veris principiis per speculum musicum repraesentatis (1773) p.350 De harmoniae veris principiis per speculum musicum repraesentatis (1773) p.350 Tentamen novae theoriae musicae ex certissismis harmoniae principiis dilucide expositae (1739) Tentamen novae theoriae musicae ex certissismis harmoniae principiis dilucide expositae (1739) The Euler Space and Tunings 1707-1783

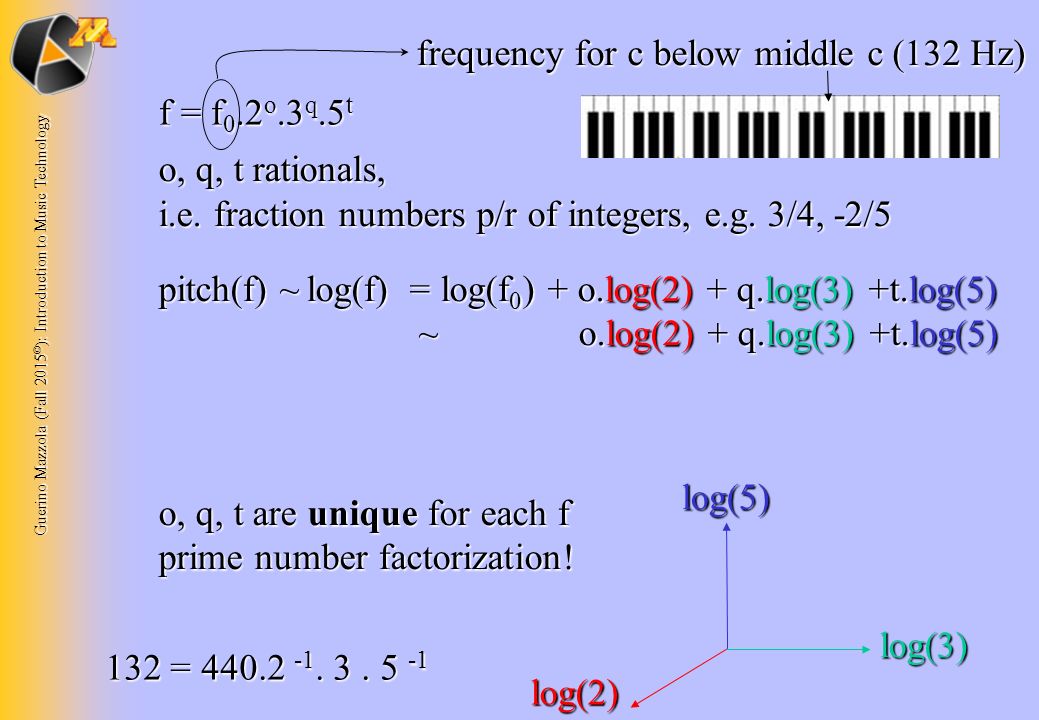

3. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology f = f 0.2 o.3 q.5 t log(2) log(3) log(5) frequency for c below middle c (132 Hz) o, q, t rationals, i.e. fraction numbers p/r of integers, e.g. 3/4, -2/5 pitch(f) ~ log(f) = log(f 0 ) + o.log(2) + q.log(3) +t.log(5) ~ o.log(2) + q.log(3) +t.log(5) ~ o.log(2) + q.log(3) +t.log(5) o, q, t are unique for each f prime number factorization! 132 = 440.2 -1. 3. 5 -1

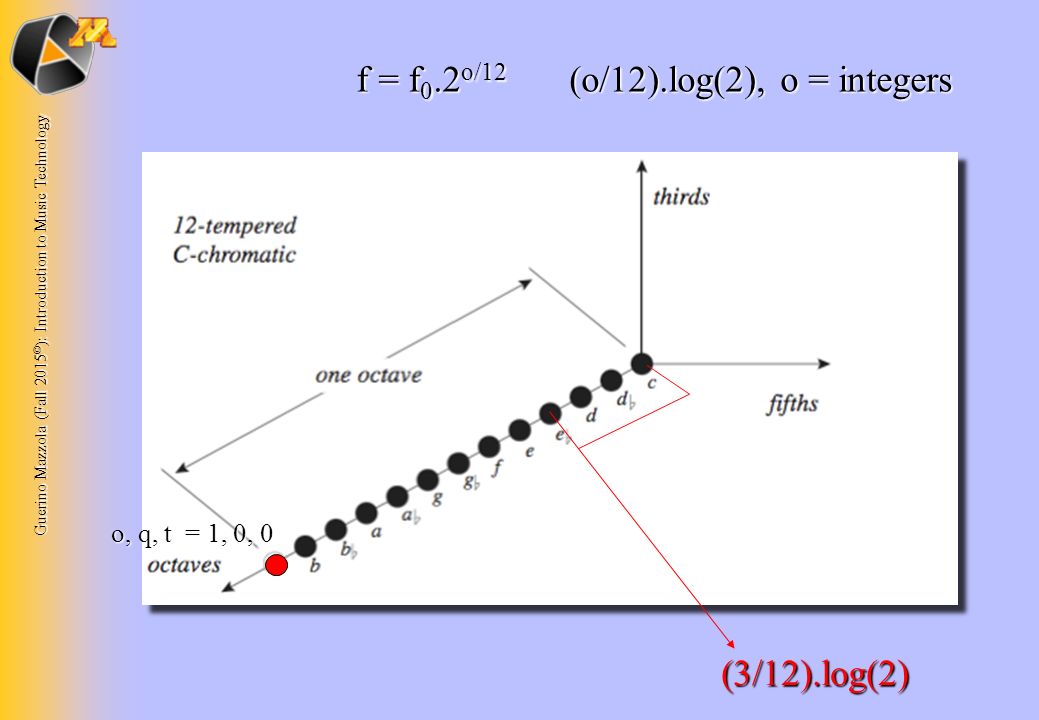

4. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology (o/12).log(2), o = integers f = f 0.2 o/12 (3/12).log(2) o, q, t = 1, 0, 0

5. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology frequency ratios in 12-tempered tuning 01234567891011

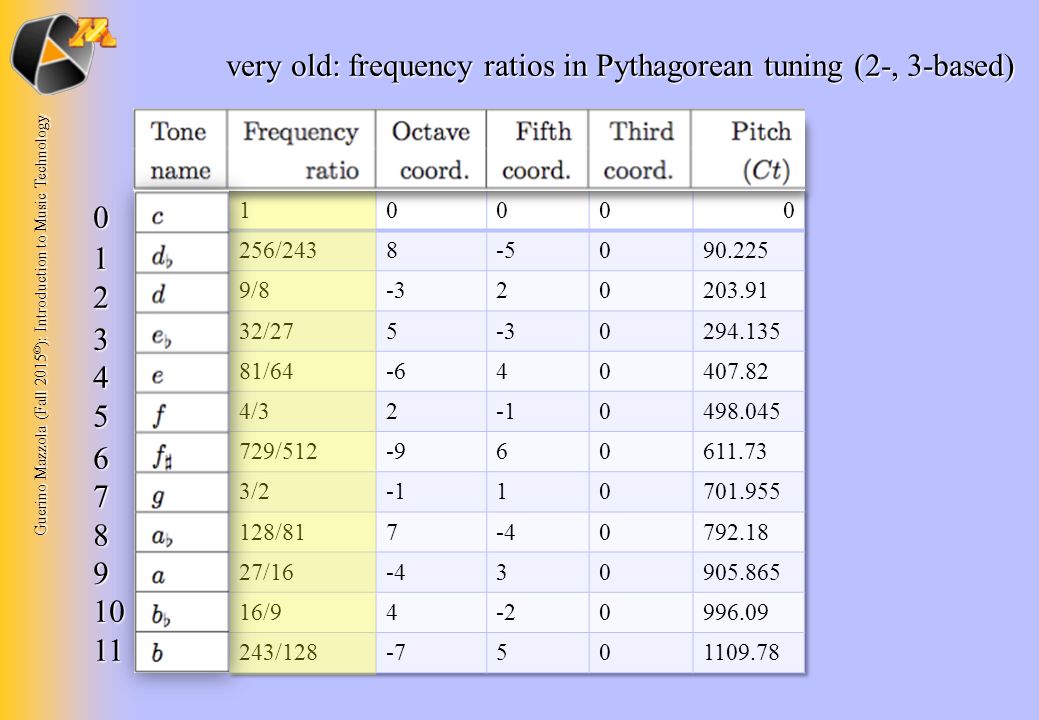

6. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology very old: frequency ratios in Pythagorean tuning (2-, 3-based) 01234567891011

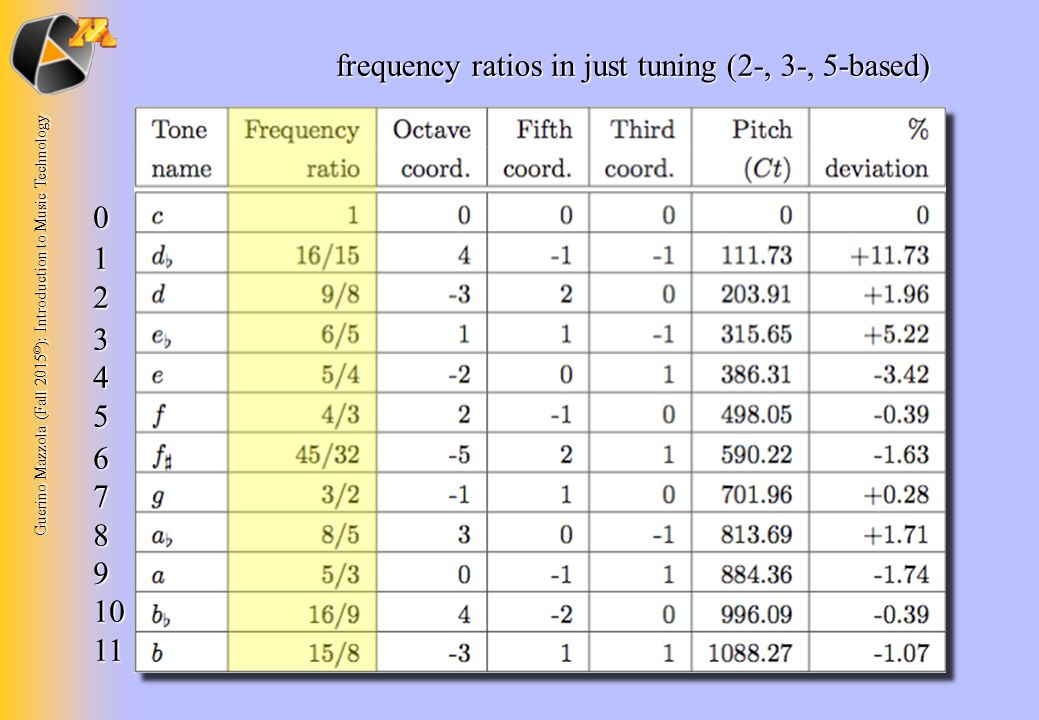

7. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology frequency ratios in just tuning (2-, 3-, 5-based) 01234567891011

8. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology frequency ratios in Pythagorean tuning (2-, 3-based) 01234567891011

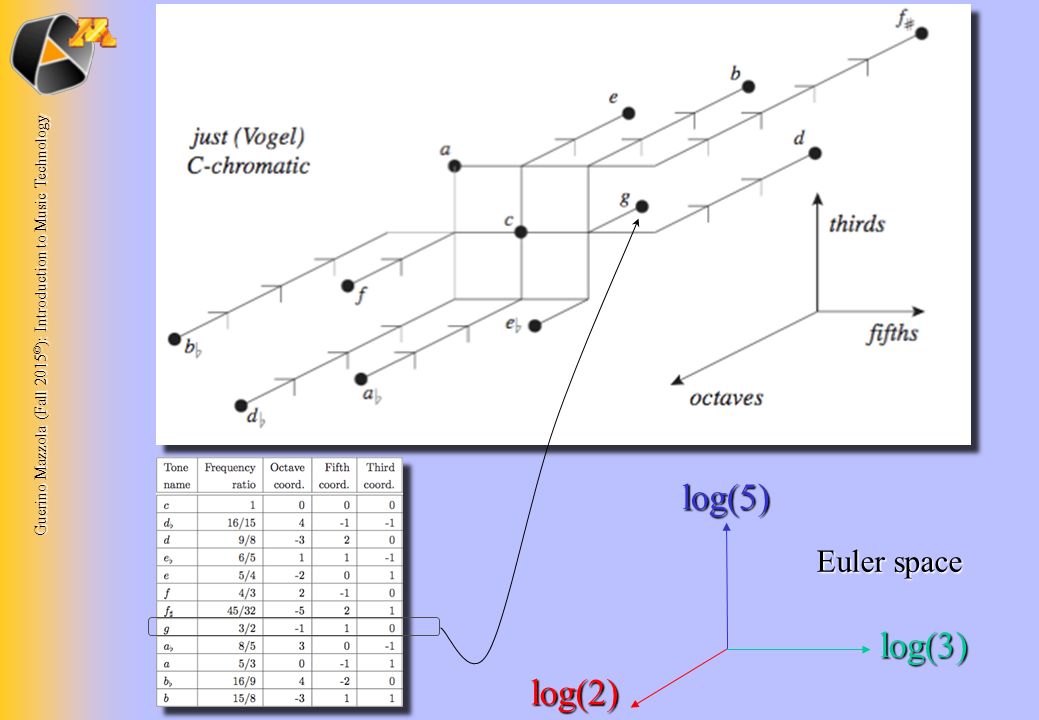

9. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology log(2) log(3)log(5) Euler space

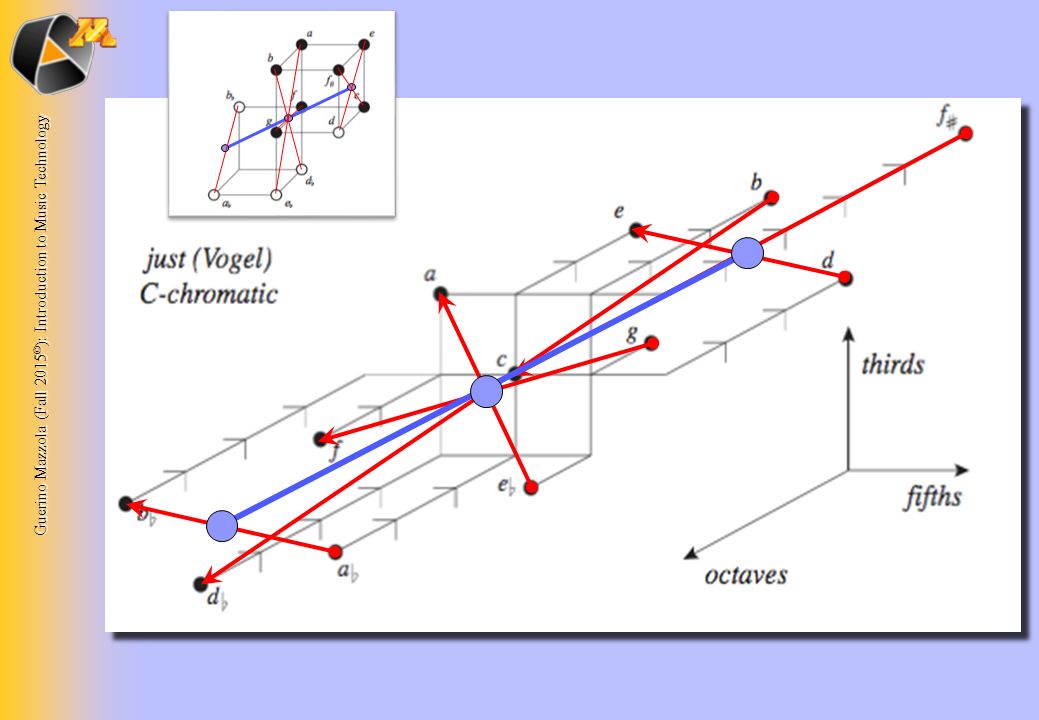

10. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology

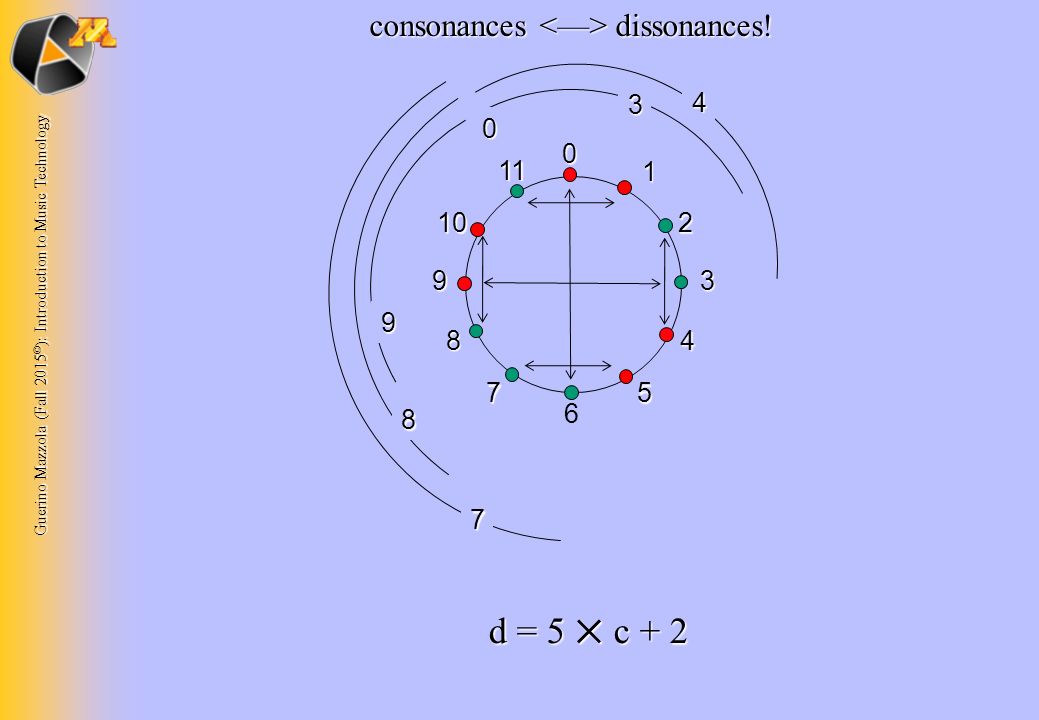

11. 601 2 3 4 57 8 9 10 11 3 4 0 9 8 7 consonances dissonances! d = 5 c + 2

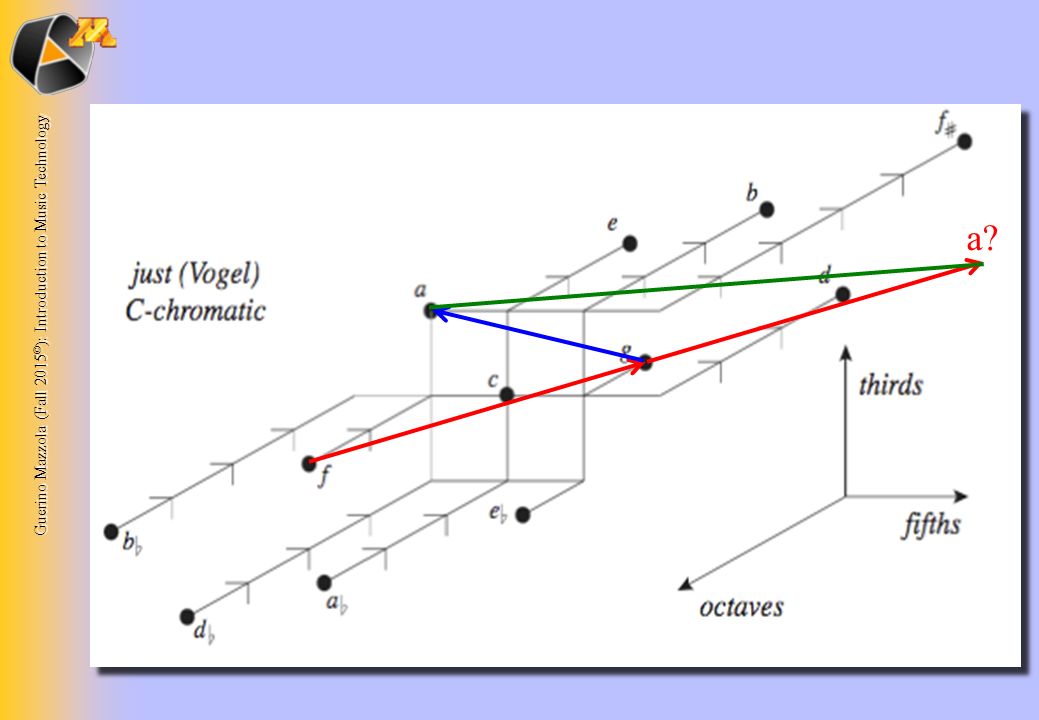

12. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology a?

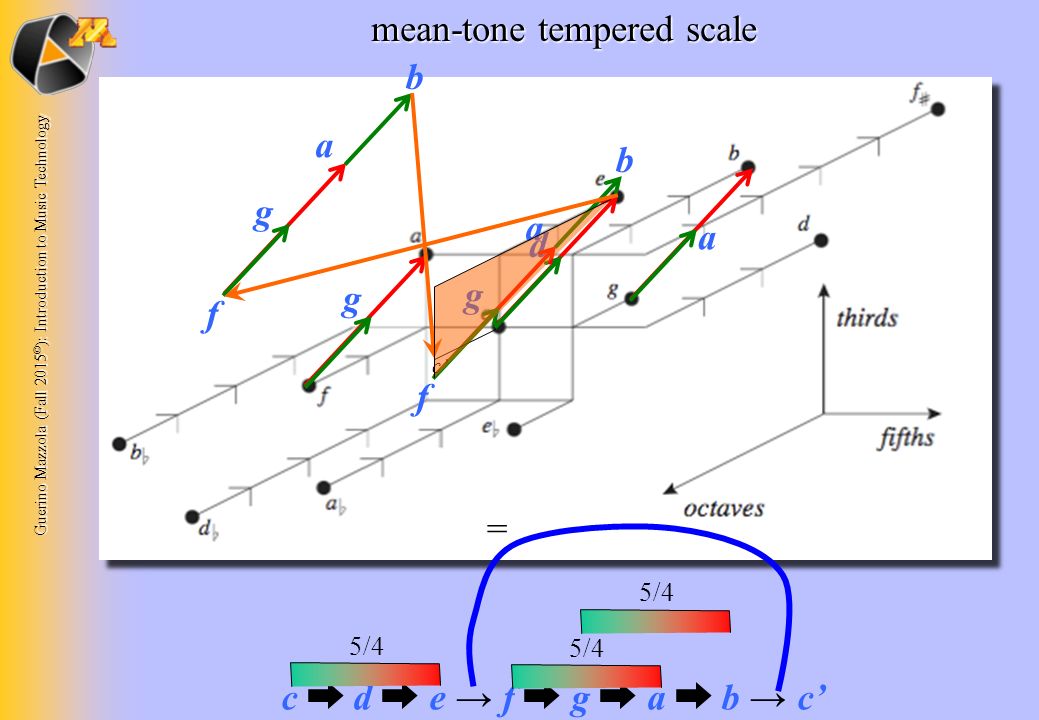

13. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology 5/4 g a d f g a b mean-tone tempered scale c ➡ d ➡ e → f ➡ g ➡ a ➡ b → c’ f g a b 5/4 = c’

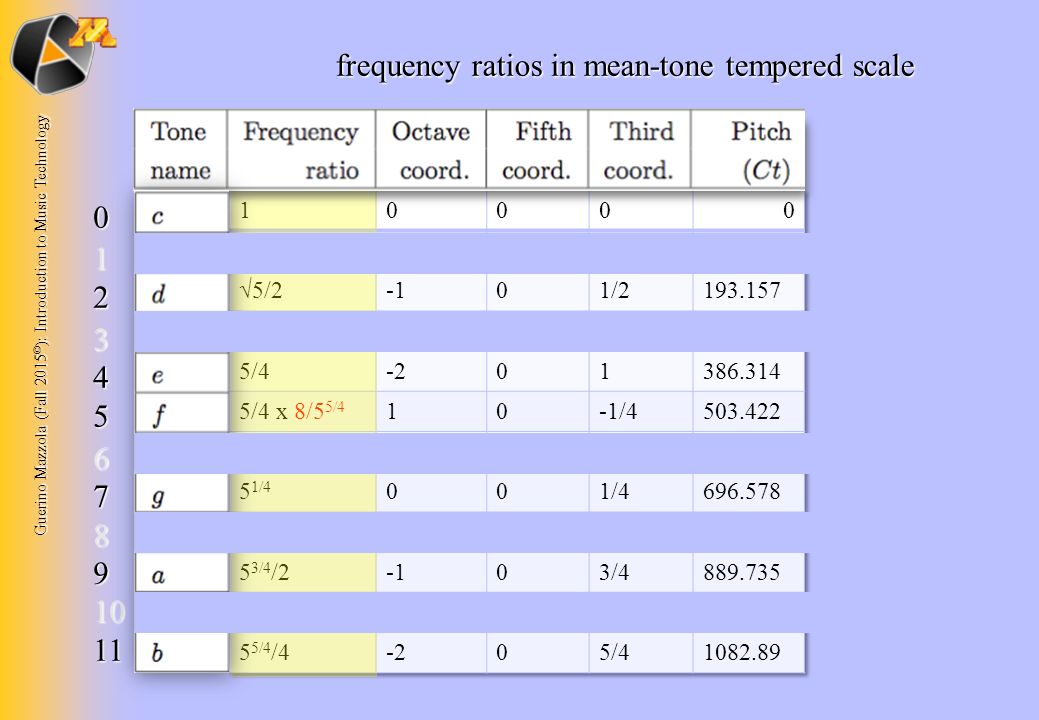

14. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology frequency ratios in mean-tone tempered scale 01234567891011

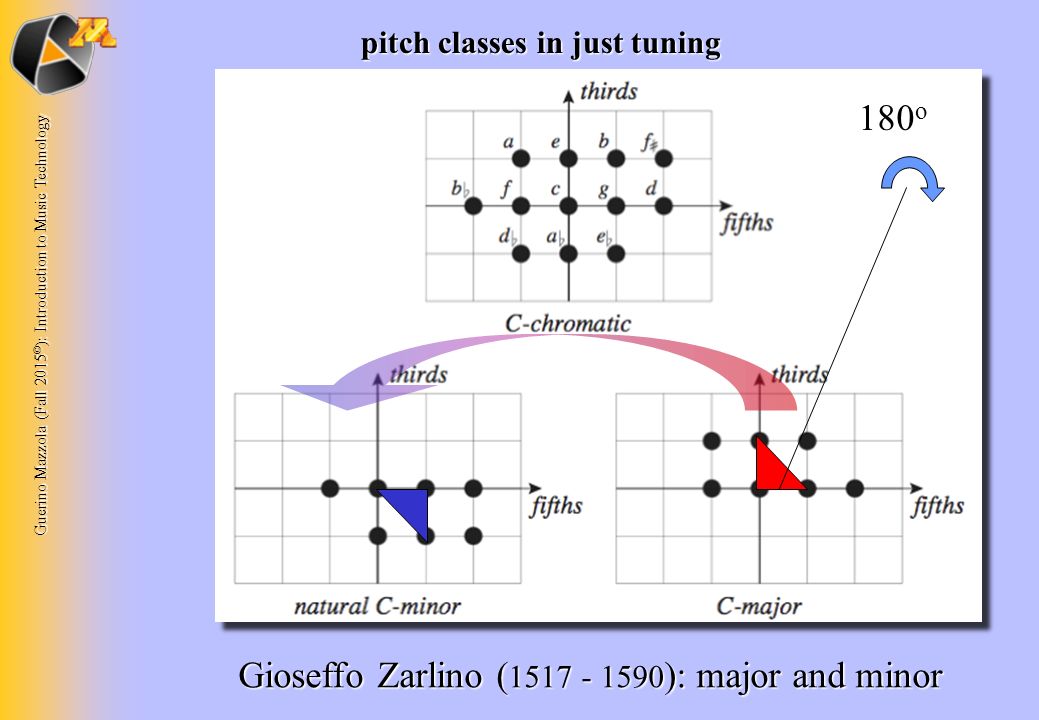

15. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology Gioseffo Zarlino ( 1517 - 1590 ): major and minor 180 o pitch classes in just tuning

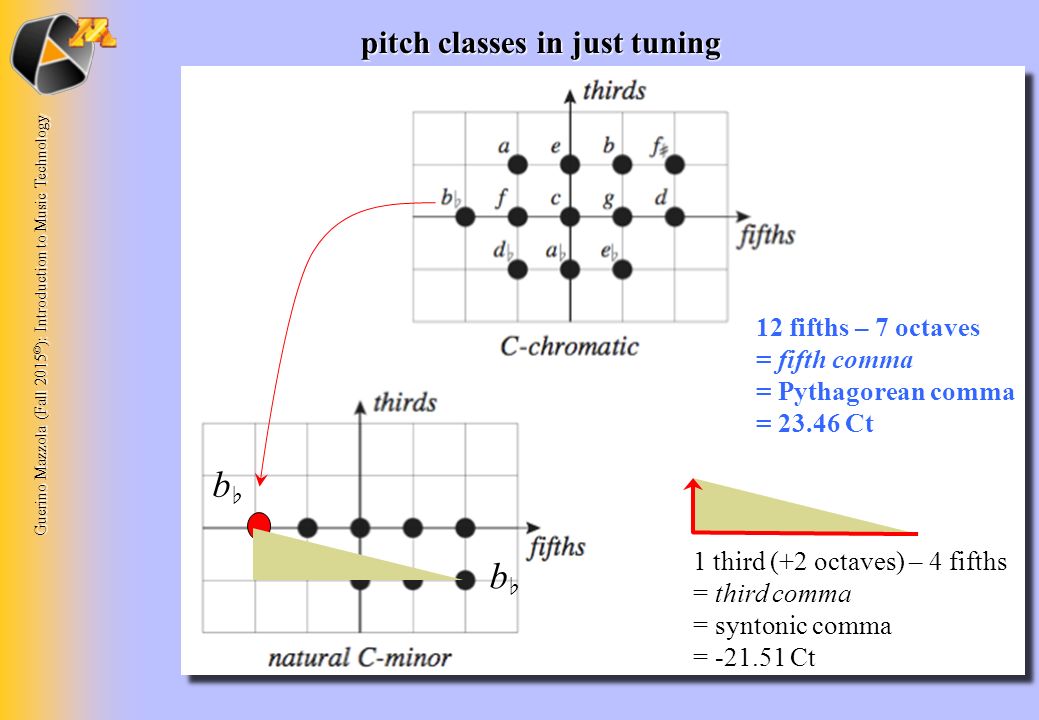

16. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology pitch classes in just tuning b♭b♭ b♭b♭ 1 third (+2 octaves) – 4 fifths = third comma = syntonic comma = -21.51 Ct 12 fifths – 7 octaves = fifth comma = Pythagorean comma = 23.46 Ct

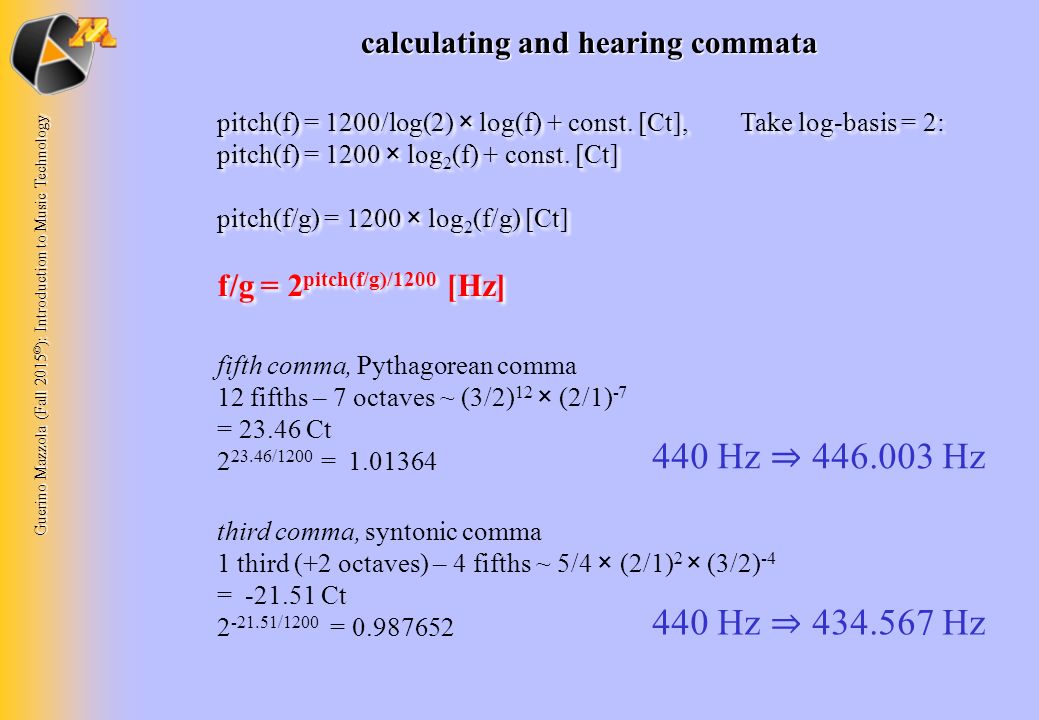

17. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology calculating and hearing commata third comma, syntonic comma 1 third (+2 octaves) – 4 fifths ~ 5/4 × (2/1) 2 × (3/2) -4 = -21.51 Ct 2 -21.51/1200 = 0.987652 fifth comma, Pythagorean comma 12 fifths – 7 octaves ~ (3/2) 12 × (2/1) -7 = 23.46 Ct 2 23.46/1200 = 1.01364 pitch(f) = 1200/log(2) × log(f) + const. [Ct], Take log-basis = 2: pitch(f) = 1200 × log 2 (f) + const. [Ct] pitch(f/g) = 1200 × log 2 (f/g) [Ct] f/g = 2 pitch(f/g)/1200 [Hz] pitch(f) = 1200/log(2) × log(f) + const. [Ct], Take log-basis = 2: pitch(f) = 1200 × log 2 (f) + const. [Ct] pitch(f/g) = 1200 × log 2 (f/g) [Ct] f/g = 2 pitch(f/g)/1200 [Hz] 440 Hz ⇒ 446.003 Hz 440 Hz ⇒ 434.567 Hz

18. Guerino Mazzola (Fall 2015 © ): Introduction to Music Technology pitch classes in 12-tempered tuning 601 2 3 4 57 8 9 10 11 c g Ÿ 12 Ÿ d = 5 x k +2 unique formula that exchanges consonances and dissonances of counterpoint!
