1. PERSISTENT SURVEILLANCE FOR PIPELINE PROTECTION AND THREAT INTERDICTION ARIES Town Meeting on Edge Plasma Physics and Plasma Material Interactions in the Fusion Power Plant Regime 20-21 May 2010 UC San Diego Carbon as a flow-through, consumable PFC material Peter Stangeby University of Toronto UNIVERSITY OF TORONTO Institute for Aerospace Studies

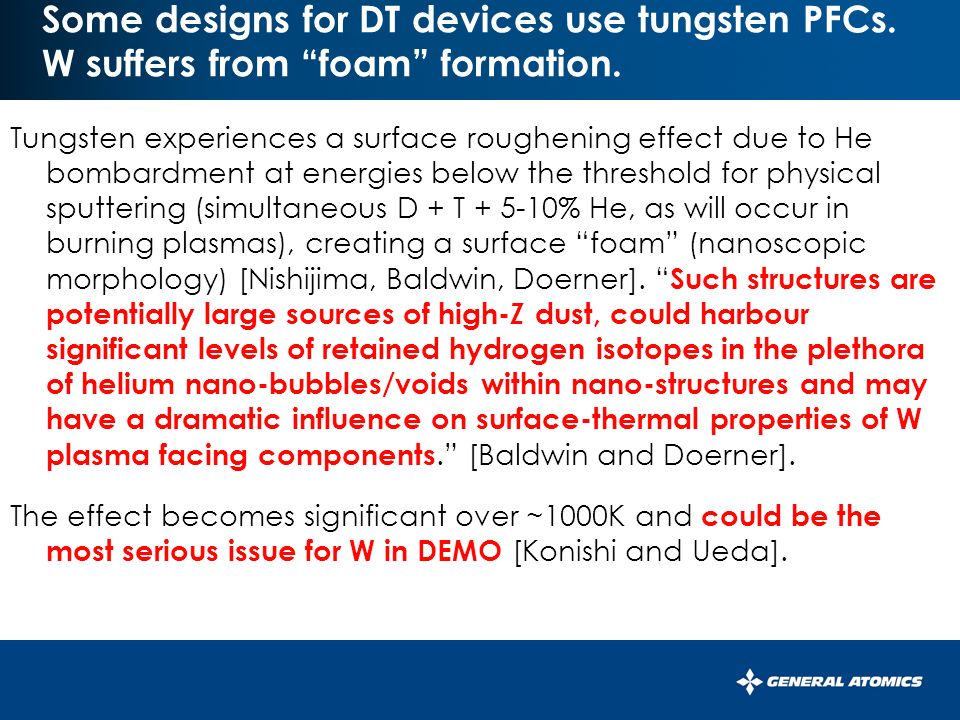

2. Some designs for DT devices use tungsten PFCs. W suffers from “foam” formation. Tungsten experiences a surface roughening effect due to He bombardment at energies below the threshold for physical sputtering (simultaneous D + T + 5-10% He, as will occur in burning plasmas), creating a surface “foam” (nanoscopic morphology) [Nishijima, Baldwin, Doerner]. “ Such structures are potentially large sources of high- Z dust, could harbour significant levels of retained hydrogen isotopes in the plethora of helium nano-bubbles/voids within nano-structures and may have a dramatic influence on surface-thermal properties of W plasma facing components.” [Baldwin and Doerner]. The effect becomes significant over ~1000K and could be the most serious issue for W in DEMO [Konishi and Ueda].

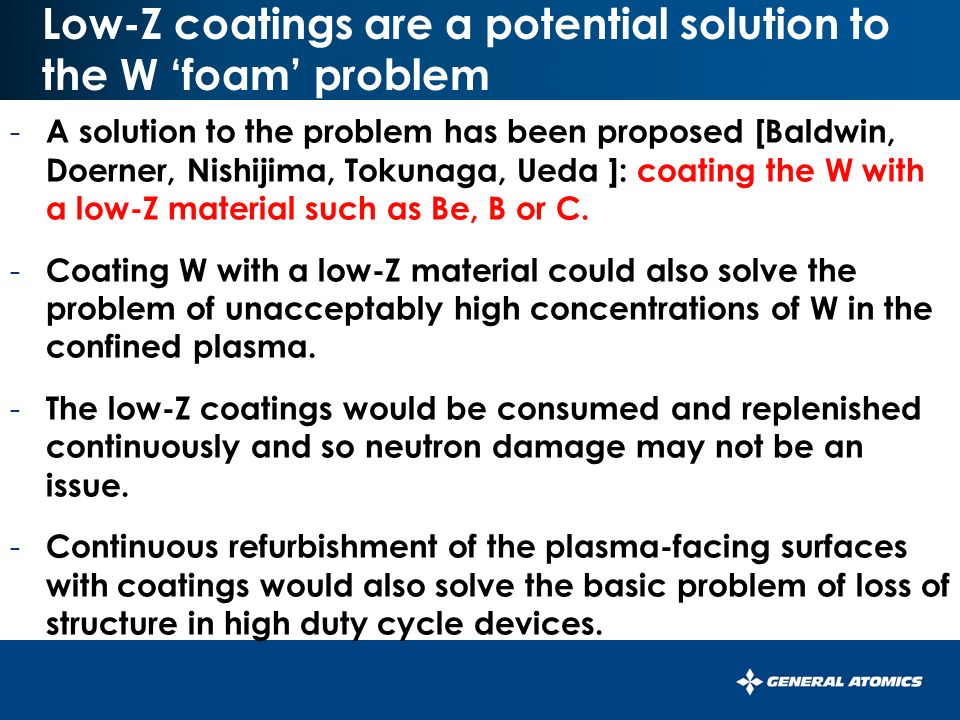

3. Low-Z coatings are a potential solution to the W ‘foam’ problem - A solution to the problem has been proposed [Baldwin, Doerner, Nishijima, Tokunaga, Ueda ]: coating the W with a low-Z material such as Be, B or C. - Coating W with a low-Z material could also solve the problem of unacceptably high concentrations of W in the confined plasma. - The low-Z coatings would be consumed and replenished continuously and so neutron damage may not be an issue. - Continuous refurbishment of the plasma-facing surfaces with coatings would also solve the basic problem of loss of structure in high duty cycle devices.

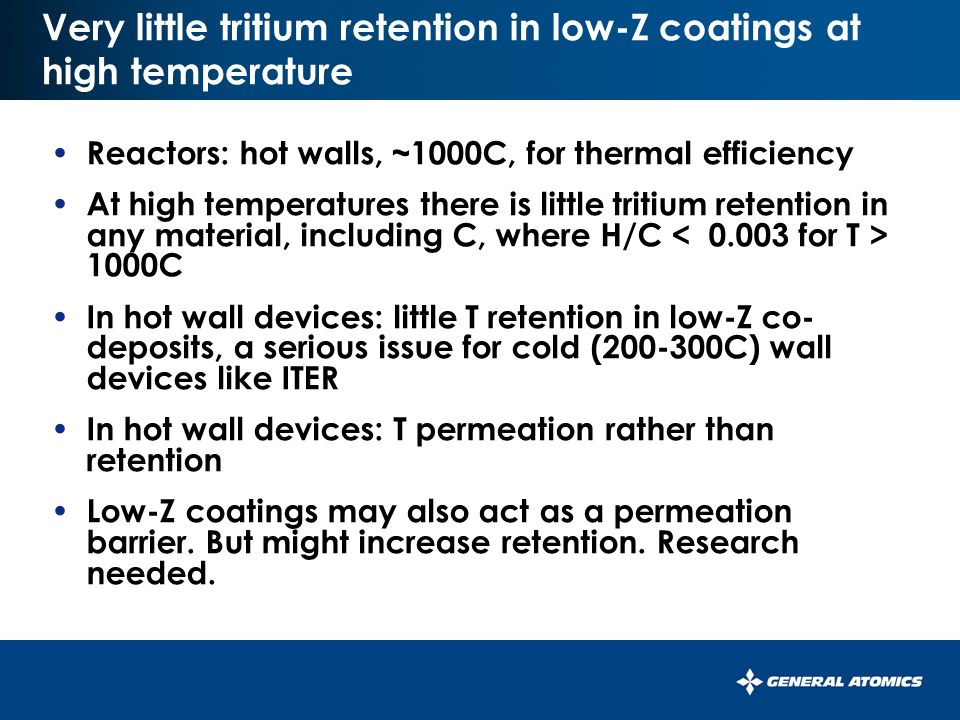

4. Very little tritium retention in low-Z coatings at high temperature Reactors: hot walls, ~1000C, for thermal efficiency At high temperatures there is little tritium retention in any material, including C, where H/C 1000C In hot wall devices: little T retention in low-Z co- deposits, a serious issue for cold (200-300C) wall devices like ITER In hot wall devices: T permeation rather than retention Low-Z coatings may also act as a permeation barrier. But might increase retention. Research needed.

5. Reactors will make their own PFCs to interact with PWI in present devices usually does little to the PFC material. Plasma is still interacting the installed material. In reactors, PWI will strongly ‘work’ the PFC material, (re-) creating the wall material the plasma reacts with. This situation will be so different from what we see today that we may have little reliable idea of the consequences.

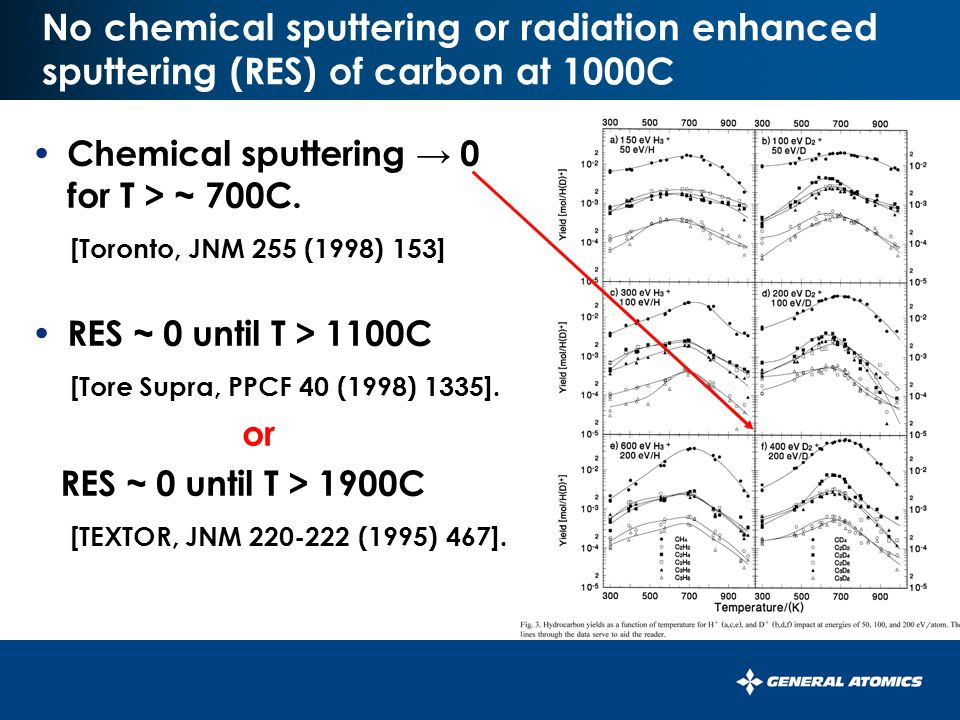

6. No chemical sputtering or radiation enhanced sputtering (RES) of carbon at 1000C Chemical sputtering → 0 for T > ~ 700C. [Toronto, JNM 255 (1998) 153] RES ~ 0 until T > 1100C [Tore Supra, PPCF 40 (1998) 1335]. or RES ~ 0 until T > 1900C [TEXTOR, JNM 220-222 (1995) 467].

7. Rough estimate of rate at which tokamaks ‘work’ PFC materials. The material circulation rate = gross erosion rate = rate at which material is worked is not to be confused with the net erosion rate, which is the required (external) refurbishment rate. Assume P rad = 75% P heat 0.25P heat = γkT s φ s γ = 7, sheath heat transmission coefficient T s = 10 eV, plasma average temperature at surfaces φ s = total D/T-ion flux to all surfaces, targets and walls Y eff (Be/B/C/W) = 0.021/0.0097/0.005/0.0005 3 UNIVERSITY OF TORONTO Institute for Aerospace Studies

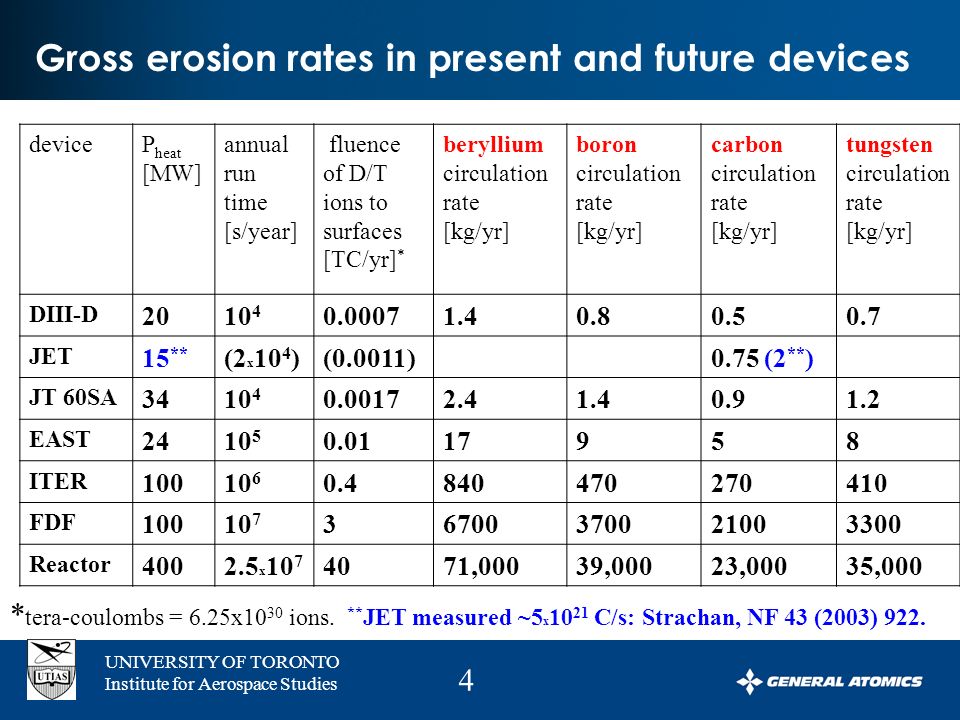

8. Gross erosion rates in present and future devices deviceP heat [MW] annual run time [s/year] fluence of D/T ions to surfaces [TC/yr] * beryllium circulation rate [kg/yr] boron circulation rate [kg/yr] carbon circulation rate [kg/yr] tungsten circulation rate [kg/yr] DIII-D 2010 4 0.00071.40.80.50.7 JET 15 ** (2 x 10 4 )(0.0011)0.75 (2 ** ) JT 60SA 3410 4 0.00172.41.40.91.2 EAST 2410 5 0.0117958 ITER 10010 6 0.4840470270410 FDF 10010 7 36700370021003300 Reactor 4002.5 x 10 7 4071,00039,00023,00035,000 * tera-coulombs = 6.25x10 30 ions. ** JET measured ~5 x 10 21 C/s: Strachan, NF 43 (2003) 922. 4 UNIVERSITY OF TORONTO Institute for Aerospace Studies

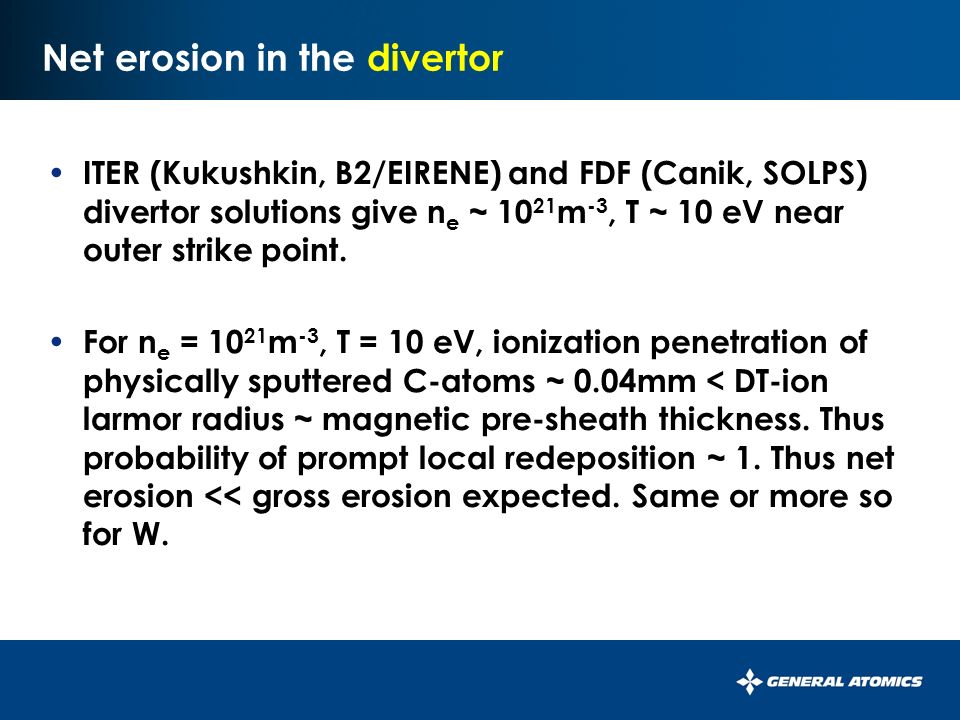

9. Net erosion in the divertor ITER (Kukushkin, B2/EIRENE) and FDF (Canik, SOLPS) divertor solutions give n e ~ 10 21 m -3, T ~ 10 eV near outer strike point. For n e = 10 21 m -3, T = 10 eV, ionization penetration of physically sputtered C-atoms ~ 0.04mm < DT-ion larmor radius ~ magnetic pre-sheath thickness. Thus probability of prompt local redeposition ~ 1. Thus net erosion << gross erosion expected. Same or more so for W.

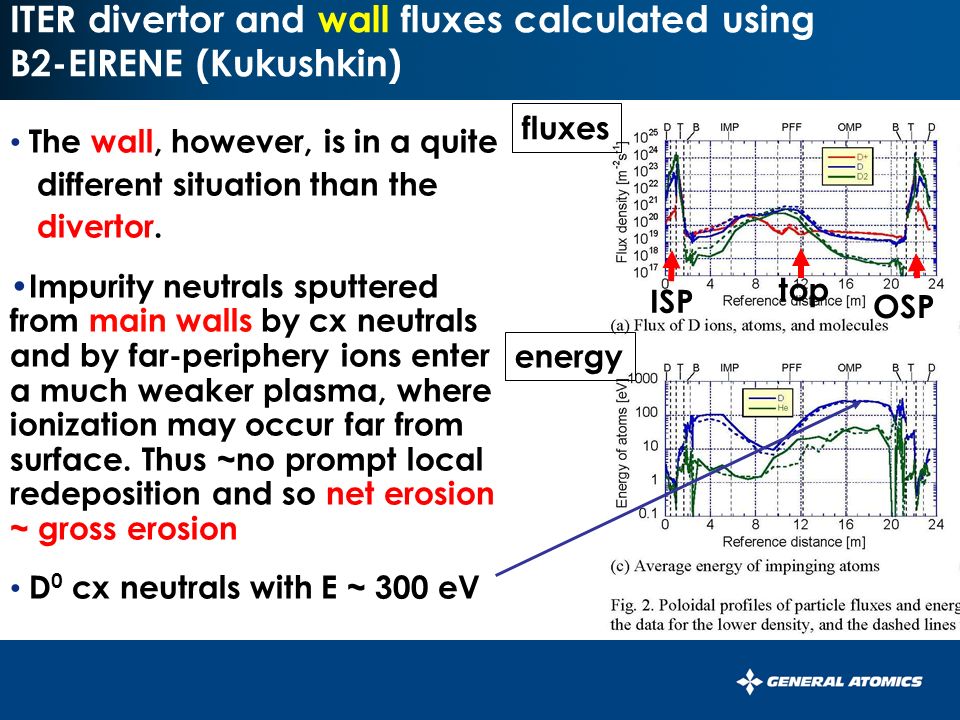

10. ITER divertor and wall fluxes calculated using B2-EIRENE (Kukushkin) The wall, however, is in a quite different situation than the divertor. Impurity neutrals sputtered from main walls by cx neutrals and by far-periphery ions enter a much weaker plasma, where ionization may occur far from surface. Thus ~no prompt local redeposition and so net erosion ~ gross erosion D 0 cx neutrals with E ~ 300 eV ISP OSP top fluxes energy

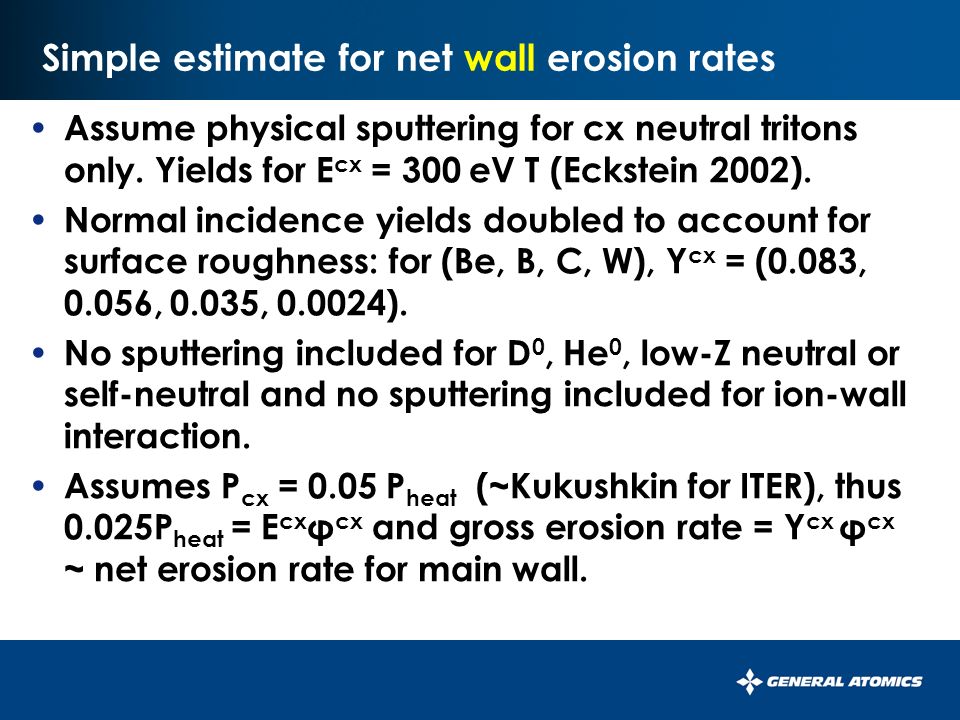

11. Simple estimate for net wall erosion rates Assume physical sputtering for cx neutral tritons only. Yields for E cx = 300 eV T (Eckstein 2002). Normal incidence yields doubled to account for surface roughness: for (Be, B, C, W), Y cx = (0.083, 0.056, 0.035, 0.0024). No sputtering included for D 0, He 0, low-Z neutral or self-neutral and no sputtering included for ion-wall interaction. Assumes P cx = 0.05 P heat (~Kukushkin for ITER), thus 0.025P heat = E cx φ cx and gross erosion rate = Y cx φ cx ~ net erosion rate for main wall.

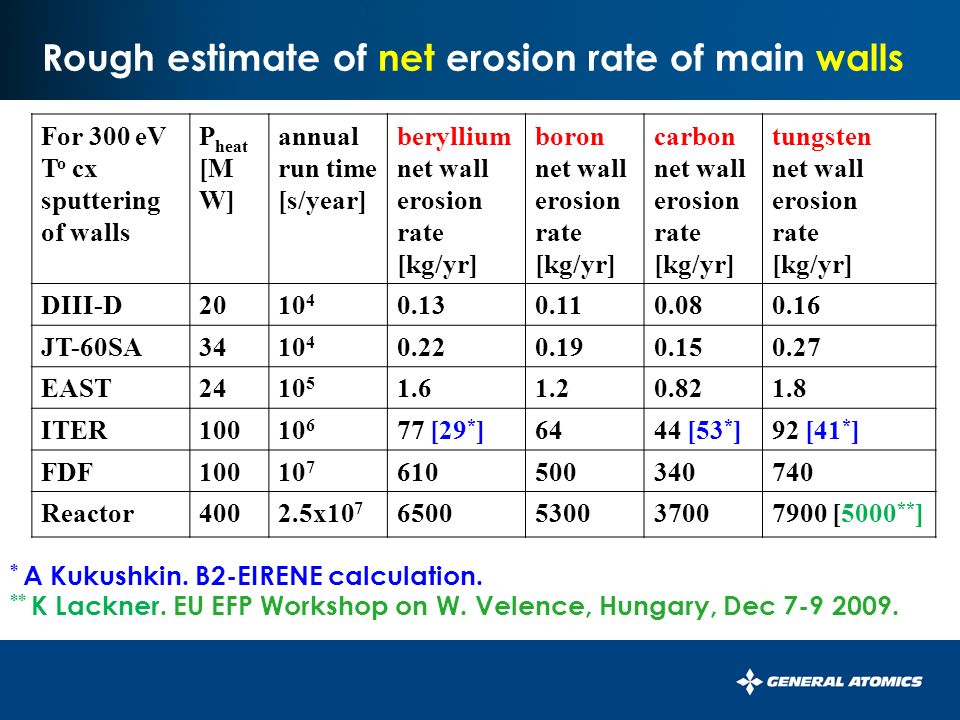

12. Rough estimate of net erosion rate of main walls For 300 eV T o cx sputtering of walls P heat [M W] annual run time [s/year] beryllium net wall erosion rate [kg/yr] boron net wall erosion rate [kg/yr] carbon net wall erosion rate [kg/yr] tungsten net wall erosion rate [kg/yr] DIII-D2010 4 0.130.110.080.16 JT-60SA3410 4 0.220.190.150.27 EAST2410 5 1.61.20.821.8 ITER10010 6 77 [29 * ]6444 [53 * ]92 [41 * ] FDF10010 7 610500340740 Reactor4002.5x10 7 6500530037007900 [5000 ** ] * A Kukushkin. B2-EIRENE calculation. ** K Lackner. EU EFP Workshop on W. Velence, Hungary, Dec 7-9 2009.

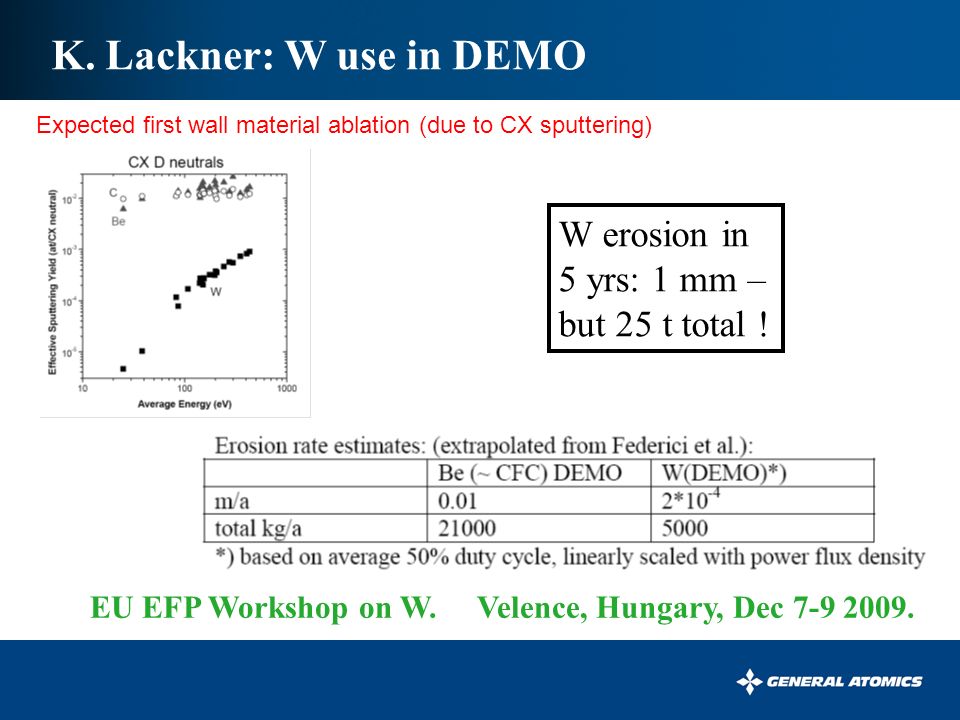

13. Expected first wall material ablation (due to CX sputtering) W erosion in 5 yrs: 1 mm – but 25 t total ! K. Lackner: W use in DEMO EU EFP Workshop on W. Velence, Hungary, Dec 7-9 2009.

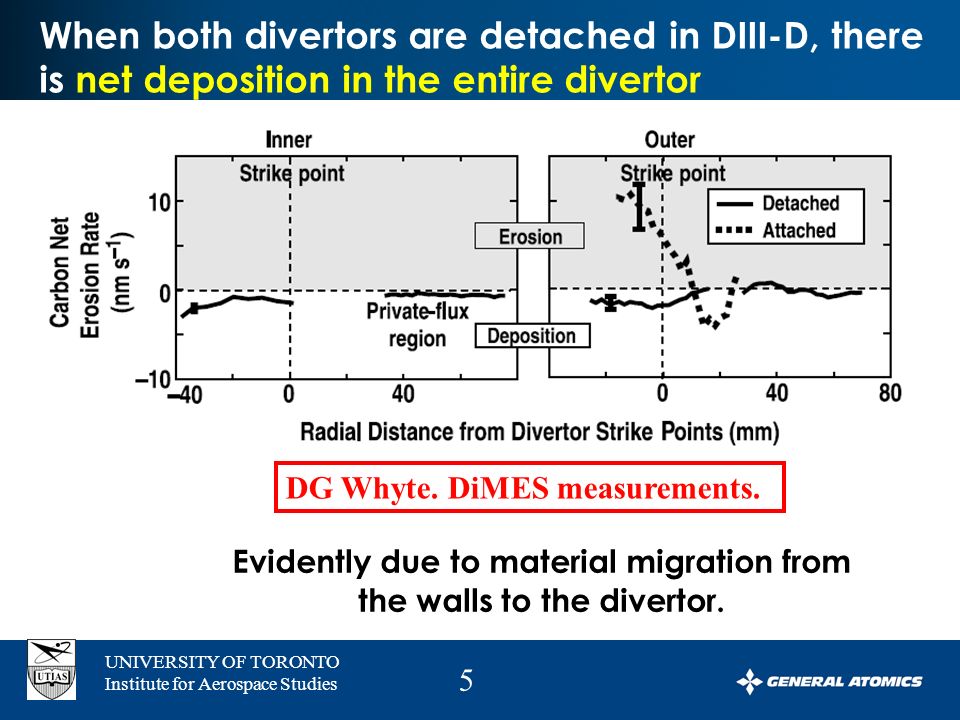

14. When both divertors are detached in DIII-D, there is net deposition in the entire divertor DG Whyte. DiMES measurements. Evidently due to material migration from the walls to the divertor. 5 UNIVERSITY OF TORONTO Institute for Aerospace Studies

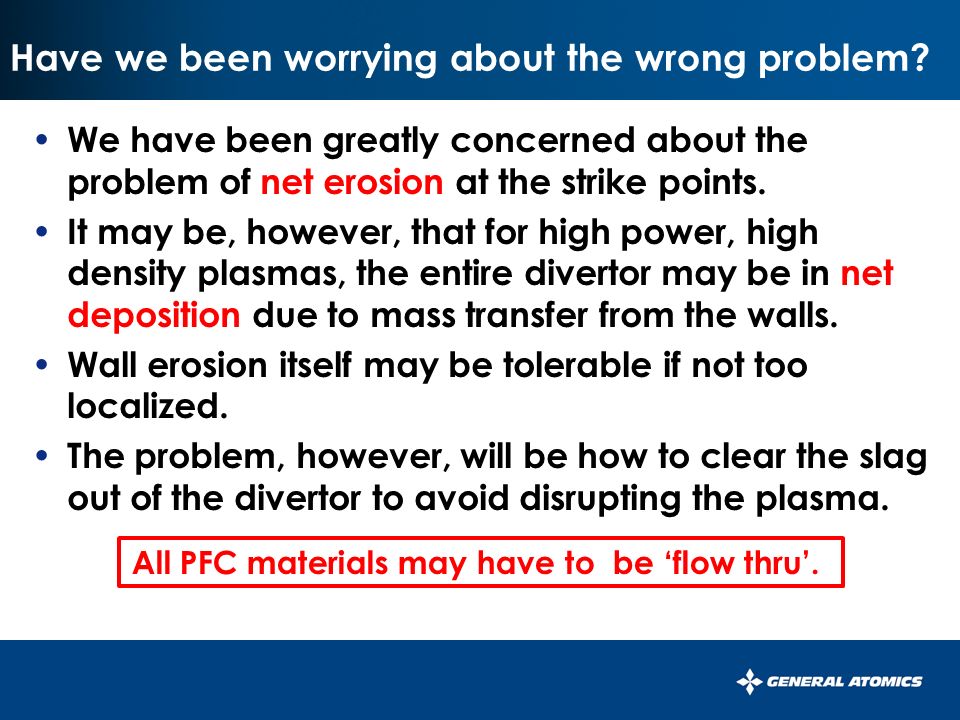

15. Have we been worrying about the wrong problem? We have been greatly concerned about the problem of net erosion at the strike points. It may be, however, that for high power, high density plasmas, the entire divertor may be in net deposition due to mass transfer from the walls. Wall erosion itself may be tolerable if not too localized. The problem, however, will be how to clear the slag out of the divertor to avoid disrupting the plasma. All PFC materials may have to be ‘flow thru’.

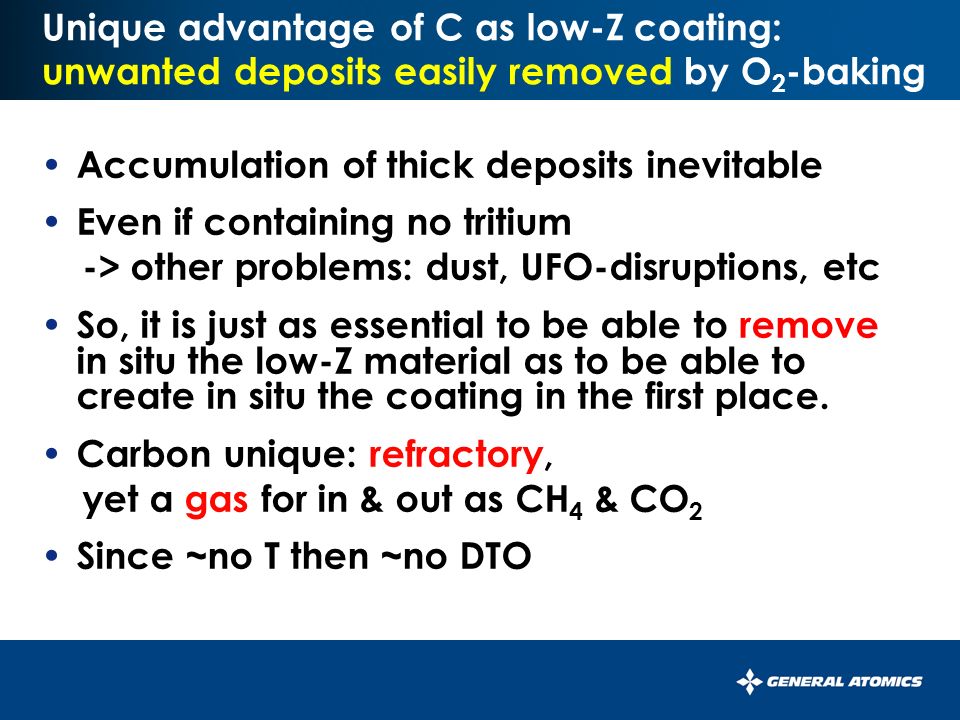

16. Unique advantage of C as low-Z coating: unwanted deposits easily removed by O 2 -baking Accumulation of thick deposits inevitable Even if containing no tritium -> other problems: dust, UFO-disruptions, etc So, it is just as essential to be able to remove in situ the low-Z material as to be able to create in situ the coating in the first place. Carbon unique: refractory, yet a gas for in & out as CH 4 & CO 2 Since ~no T then ~no DTO

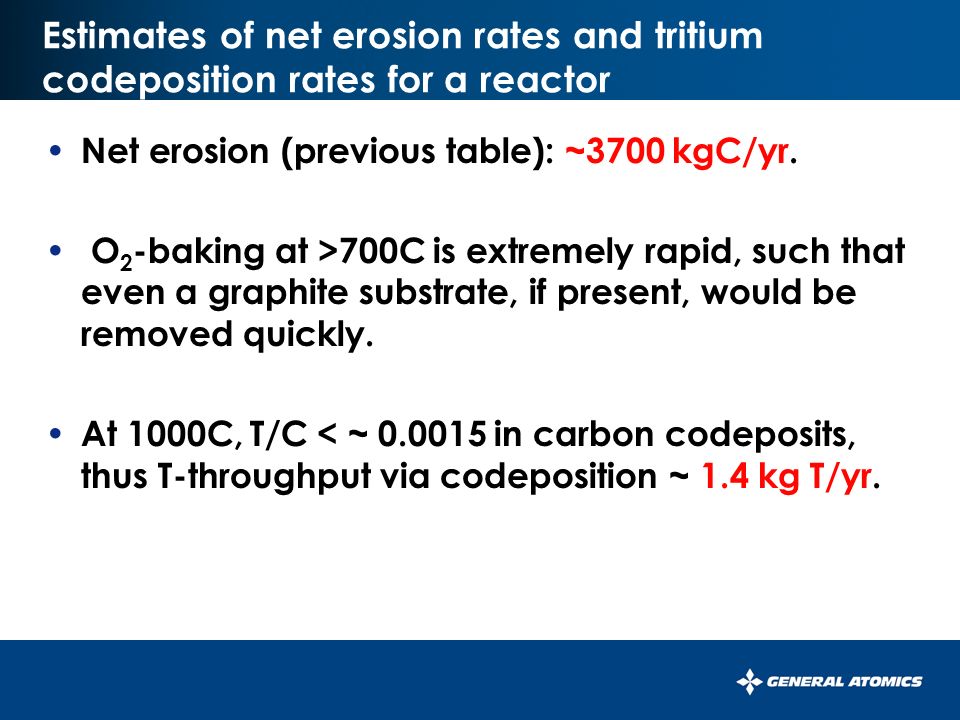

17. Estimates of net erosion rates and tritium codeposition rates for a reactor Net erosion (previous table): ~3700 kgC/yr. O 2 -baking at >700C is extremely rapid, such that even a graphite substrate, if present, would be removed quickly. At 1000C, T/C < ~ 0.0015 in carbon codeposits, thus T-throughput via codeposition ~ 1.4 kg T/yr.

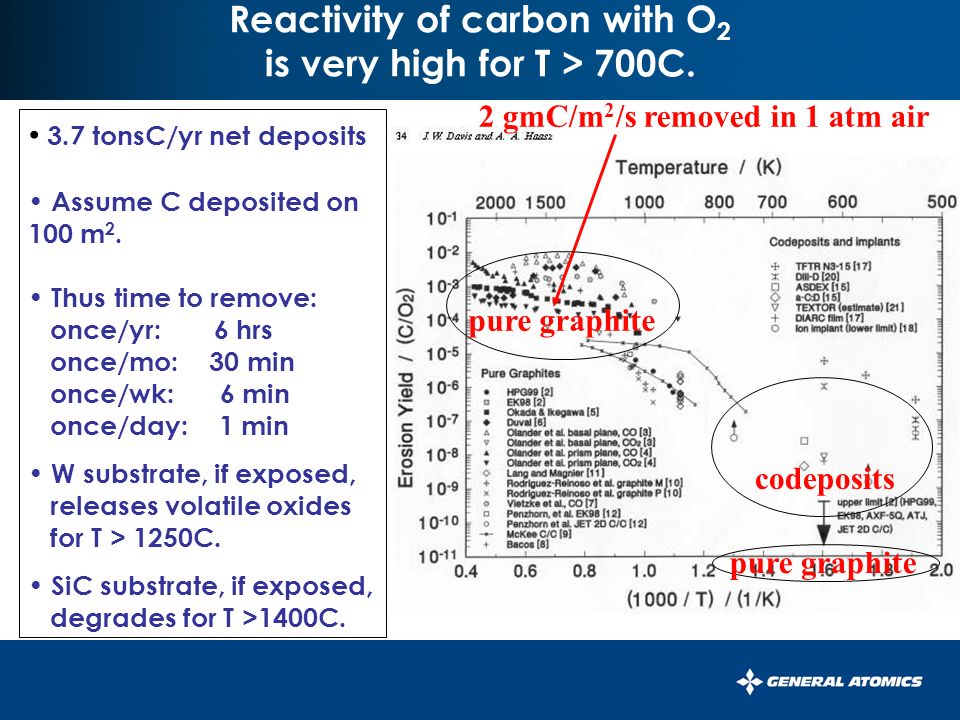

18. Reactivity of carbon with O 2 is very high for T > 700C. 2 gmC/m 2 /s removed in 1 atm air 3.7 tonsC/yr net deposits Assume C deposited on 100 m 2. Thus time to remove: once/yr: 6 hrs once/mo: 30 min once/wk: 6 min once/day: 1 min W substrate, if exposed, releases volatile oxides for T > 1250C. SiC substrate, if exposed, degrades for T >1400C. pure graphite codeposits pure graphite

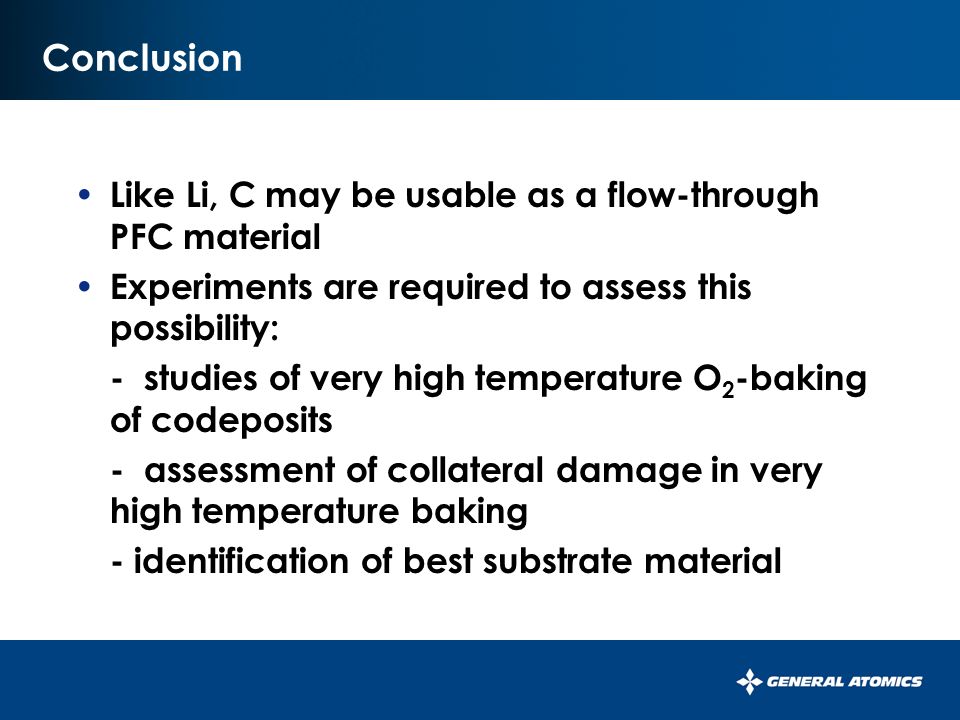

19. Conclusion Like Li, C may be usable as a flow-through PFC material Experiments are required to assess this possibility: - studies of very high temperature O 2 -baking of codeposits - assessment of collateral damage in very high temperature baking - identification of best substrate material

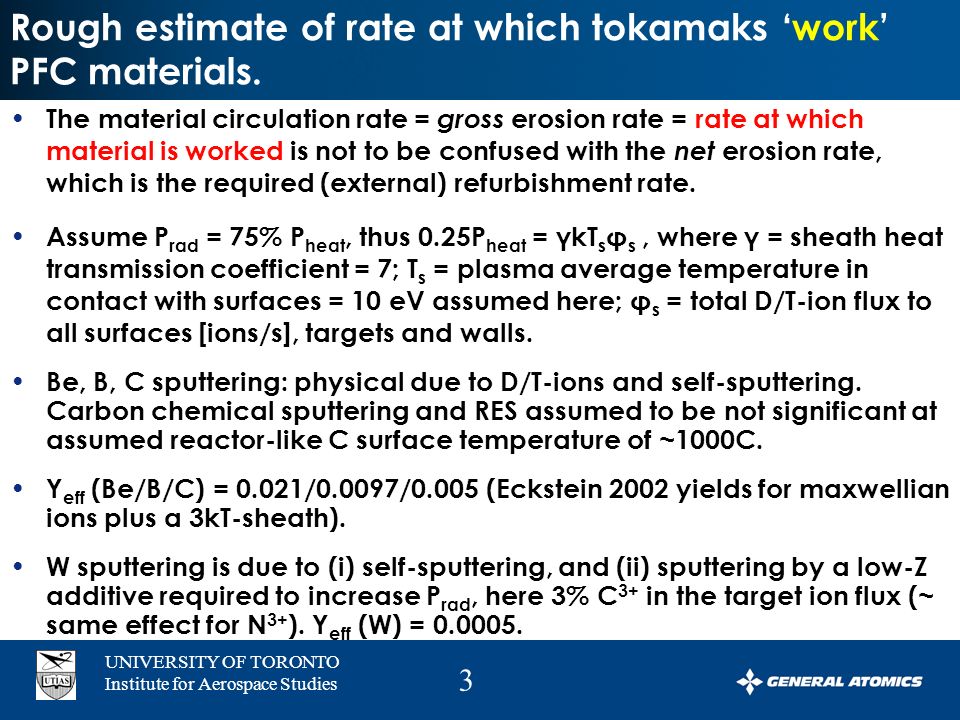

20. Rough estimate of rate at which tokamaks ‘work’ PFC materials. The material circulation rate = gross erosion rate = rate at which material is worked is not to be confused with the net erosion rate, which is the required (external) refurbishment rate. Assume P rad = 75% P heat, thus 0.25P heat = γkT s φ s, where γ = sheath heat transmission coefficient = 7; T s = plasma average temperature in contact with surfaces = 10 eV assumed here; φ s = total D/T-ion flux to all surfaces [ions/s], targets and walls. Be, B, C sputtering: physical due to D/T-ions and self-sputtering. Carbon chemical sputtering and RES assumed to be not significant at assumed reactor-like C surface temperature of ~1000C. Y eff (Be/B/C) = 0.021/0.0097/0.005 (Eckstein 2002 yields for maxwellian ions plus a 3kT-sheath). W sputtering is due to (i) self-sputtering, and (ii) sputtering by a low-Z additive required to increase P rad, here 3% C 3+ in the target ion flux (~ same effect for N 3+ ). Y eff (W) = 0.0005. 3 UNIVERSITY OF TORONTO Institute for Aerospace Studies
