1 CSN1, Ferrara, 14-18 Settembre 2009 LHCf Status Report Oscar Adriani

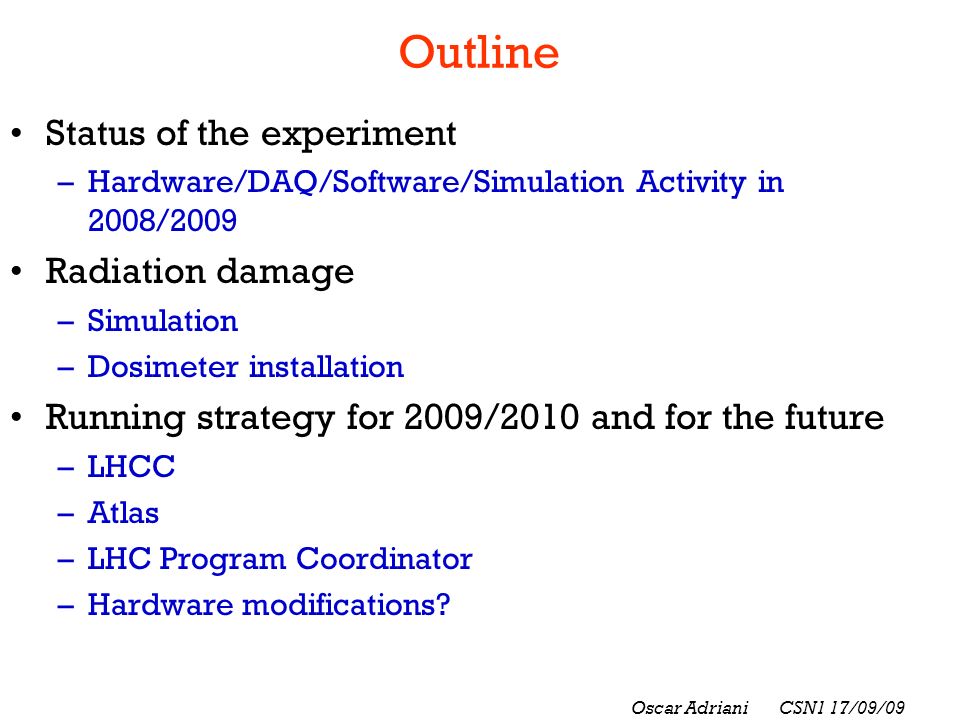

2 Oscar Adriani CSN1 17/09/09 Outline Status of the experiment –Hardware/DAQ/Software/Simulation Activity in 2008/2009 Radiation damage –Simulation –Dosimeter installation Running strategy for 2009/2010 and for the future –LHCC –Atlas –LHC Program Coordinator –Hardware modifications?

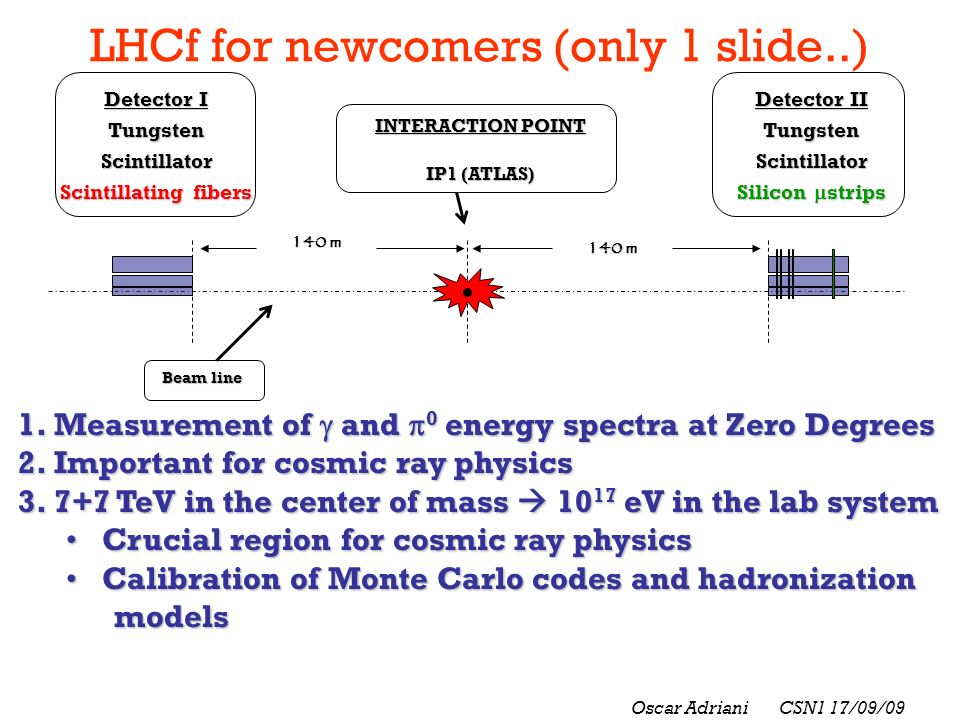

3 Oscar Adriani CSN1 17/09/09 LHCf for newcomers (only 1 slide..) INTERACTION POINT IP1 (ATLAS) Beam line Detector II TungstenScintillator Silicon  strips Detector I TungstenScintillator Scintillating fibers 140 m 1.Measurement of  and  0 energy spectra at Zero Degrees 2.Important for cosmic ray physics 3.7+7 TeV in the center of mass  10 17 eV in the lab system Crucial region for cosmic ray physicsCrucial region for cosmic ray physics Calibration of Monte Carlo codes and hadronizationCalibration of Monte Carlo codes and hadronizationmodels

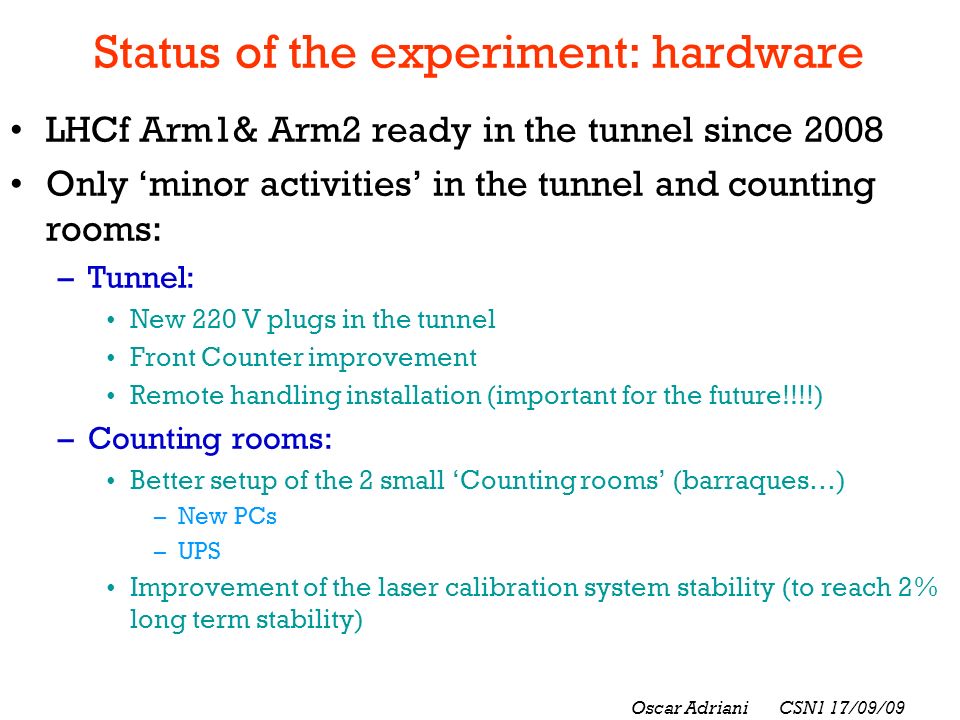

4 Oscar Adriani CSN1 17/09/09 Status of the experiment: hardware LHCf Arm1& Arm2 ready in the tunnel since 2008 Only ‘minor activities’ in the tunnel and counting rooms: –Tunnel: New 220 V plugs in the tunnel Front Counter improvement Remote handling installation (important for the future!!!!) –Counting rooms: Better setup of the 2 small ‘Counting rooms’ (barraques…) –New PCs –UPS Improvement of the laser calibration system stability (to reach 2% long term stability)

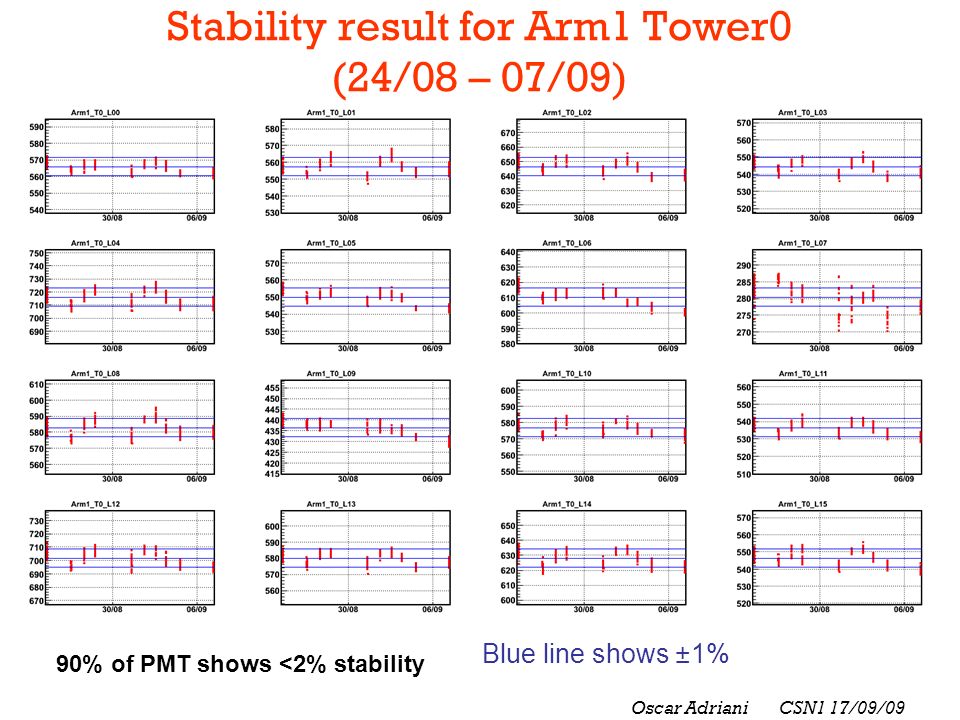

5 Oscar Adriani CSN1 17/09/09 Stability result for Arm1 Tower0 (24/08 – 07/09) Blue line shows ±1% 90% of PMT shows <2% stability

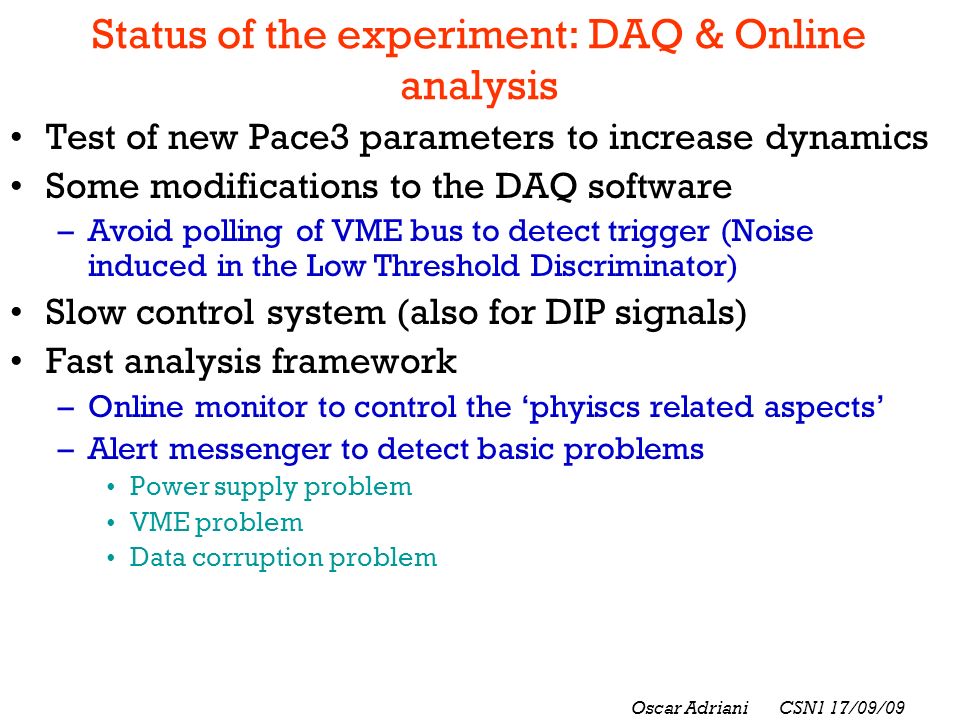

6 Oscar Adriani CSN1 17/09/09 Test of new Pace3 parameters to increase dynamics Some modifications to the DAQ software –Avoid polling of VME bus to detect trigger (Noise induced in the Low Threshold Discriminator) Slow control system (also for DIP signals) Fast analysis framework –Online monitor to control the ‘phyiscs related aspects’ –Alert messenger to detect basic problems Power supply problem VME problem Data corruption problem Status of the experiment: DAQ & Online analysis

7 Oscar Adriani CSN1 17/09/09 Status of the experiment: Simulation and physics Work done in the last months: –Fluka/Epics comparison –Background estimate –Particle identification –MC at different energies (very important for dose related stuff!  see later) –  0 analysis

8 Oscar Adriani CSN1 17/09/09  0 measurement (paper submitted to Astroparticle Physics) Reconstruction method –Mass, energy and momentum of  0 are reconstructed from energy and incident position of gamma-ray pair measured by the two calorimeters. Energy reconstruction for gamma-ray Correction of shower “leak-in” Incident position Event selection Multi-hit cut, PID cut, Reconstructed mass cut. E2+E’1 E1 Gamma2 Gamma1

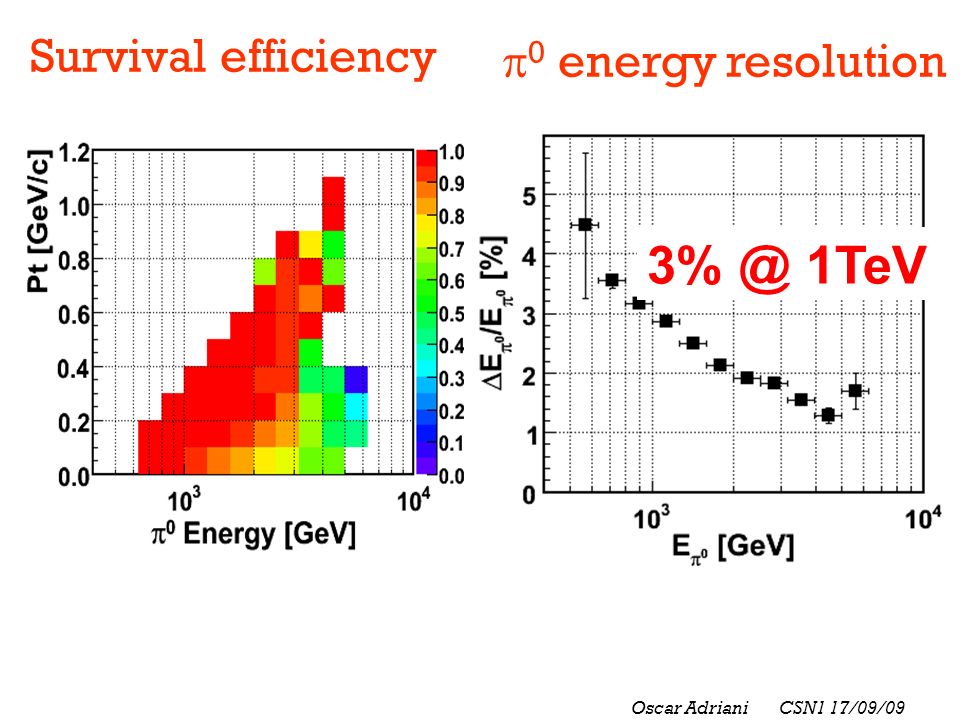

9 Oscar Adriani CSN1 17/09/09 Survival efficiency  0 energy resolution 3% @ 1TeV

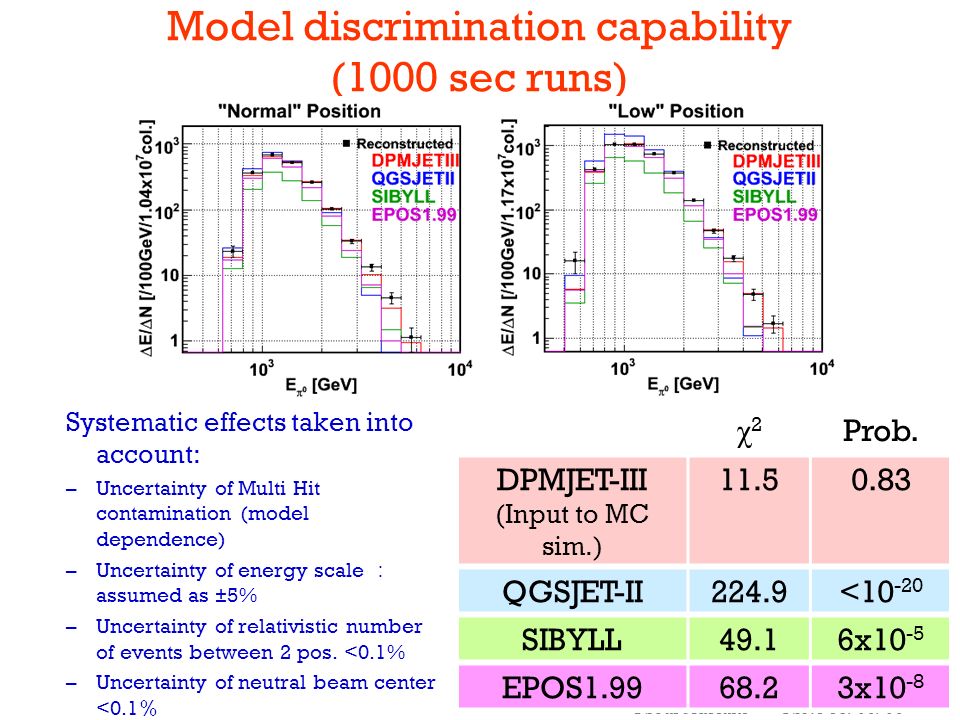

10 Oscar Adriani CSN1 17/09/09 Model discrimination capability (1000 sec runs) χ2χ2 Prob. DPMJET-III (Input to MC sim.) 11.50.83 QGSJET-II224.9<10 -20 SIBYLL49.16x10 -5 EPOS1.9968.23x10 -8 Systematic effects taken into account: –Uncertainty of Multi Hit contamination (model dependence) –Uncertainty of energy scale : assumed as ±5% –Uncertainty of relativistic number of events between 2 pos. <0.1% –Uncertainty of neutral beam center <0.1 %

11 Oscar Adriani CSN1 17/09/09 Radiation damage studies Radiation damage study is very important for LHCf Plastic scintillator starts to degrade at 10 Gy 10 Gy 100 Gy1000 Gy

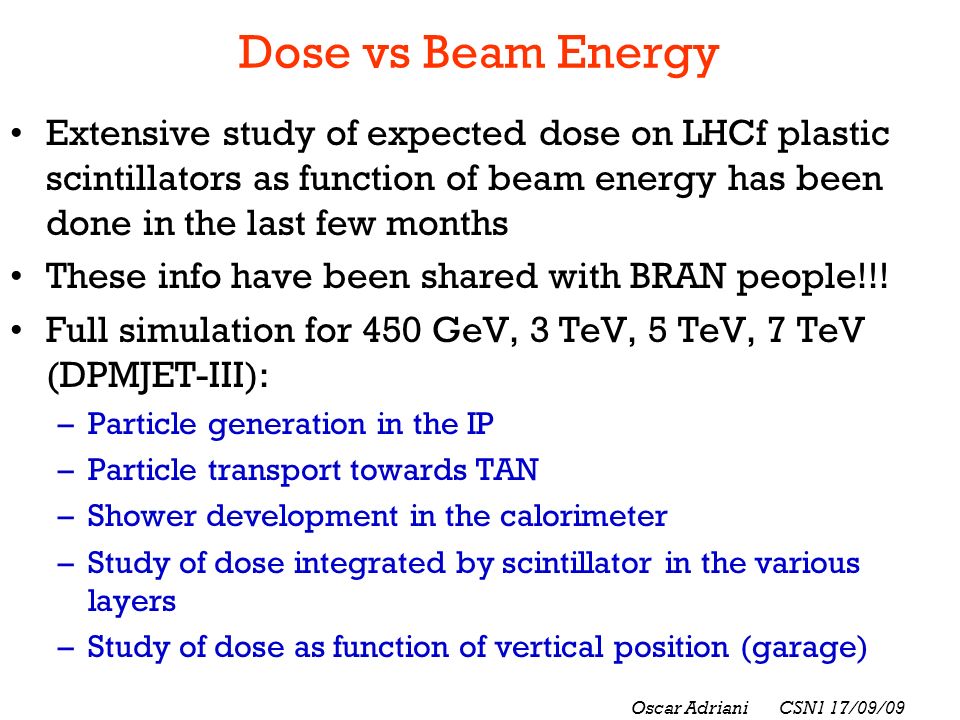

12 Oscar Adriani CSN1 17/09/09 Dose vs Beam Energy Extensive study of expected dose on LHCf plastic scintillators as function of beam energy has been done in the last few months These info have been shared with BRAN people!!! Full simulation for 450 GeV, 3 TeV, 5 TeV, 7 TeV (DPMJET-III): –Particle generation in the IP –Particle transport towards TAN –Shower development in the calorimeter –Study of dose integrated by scintillator in the various layers –Study of dose as function of vertical position (garage)

13 Oscar Adriani CSN1 17/09/09 Dose estimation at 7+7 TeV 2.5×10 -2 Gy/100sec 20mm calorimeter 40mm calorimeter Lumi=10 29 cm -2 s -1 Please note: 100 s at 10 29 cm -2 s -1  0.01 nb -1

14 Oscar Adriani CSN1 17/09/09 Position dependence of Radiation Damage Previous estimation is average dose in each scintillator The position dependence has also been obtained The maximum point is 1.6 times larger than average 7+7 TeV

15 Oscar Adriani CSN1 17/09/09 Results on radiation damage The dose approximately scale as E 3 Energy (TeV) Dose rate (Gy/hour at 10 29 cm -2 s -1 ) Dose rate (Gy/nb -1 ) Time to reach 1KGy at 10 29 cm -2 s -1 (days) Integrated lumi to reach 1KGy (nb -1 ) 0.45+0.454.610 -4 1.2710 -3 91407.910 5 3+31.310 -1 0.353302.910 3 5+56.110 -1 1.768590 7+71.64.327230 3.5 TeV Monte Carlo is running now. Results will come before next LHCC (23/09)

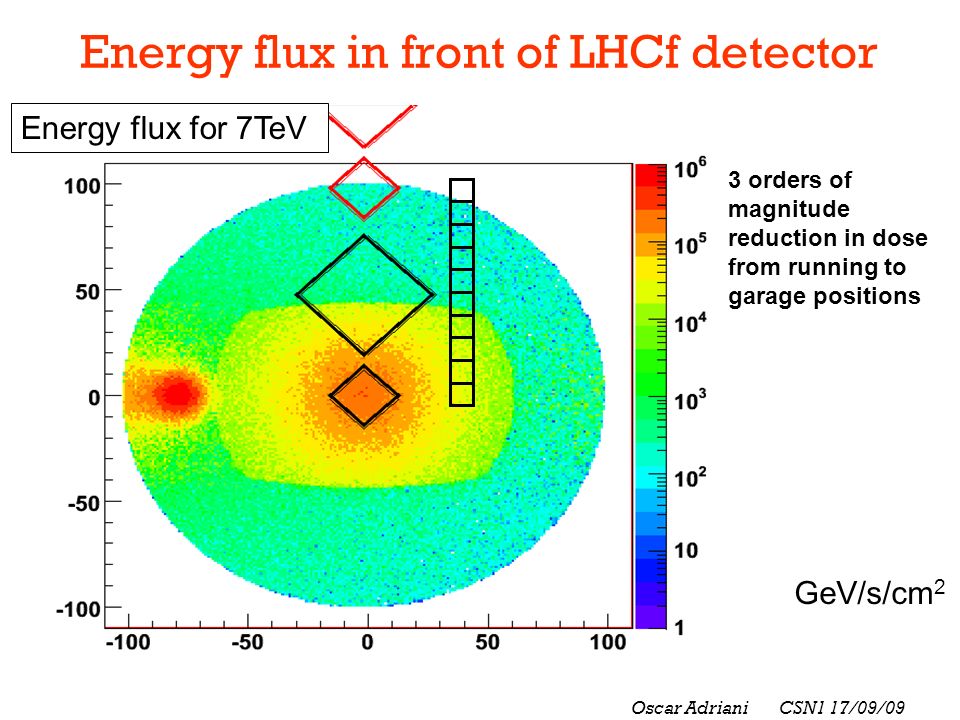

16 Oscar Adriani CSN1 17/09/09 Energy flux in front of LHCf detector Energy flux for 7TeV GeV/s/cm 2 3 orders of magnitude reduction in dose from running to garage positions

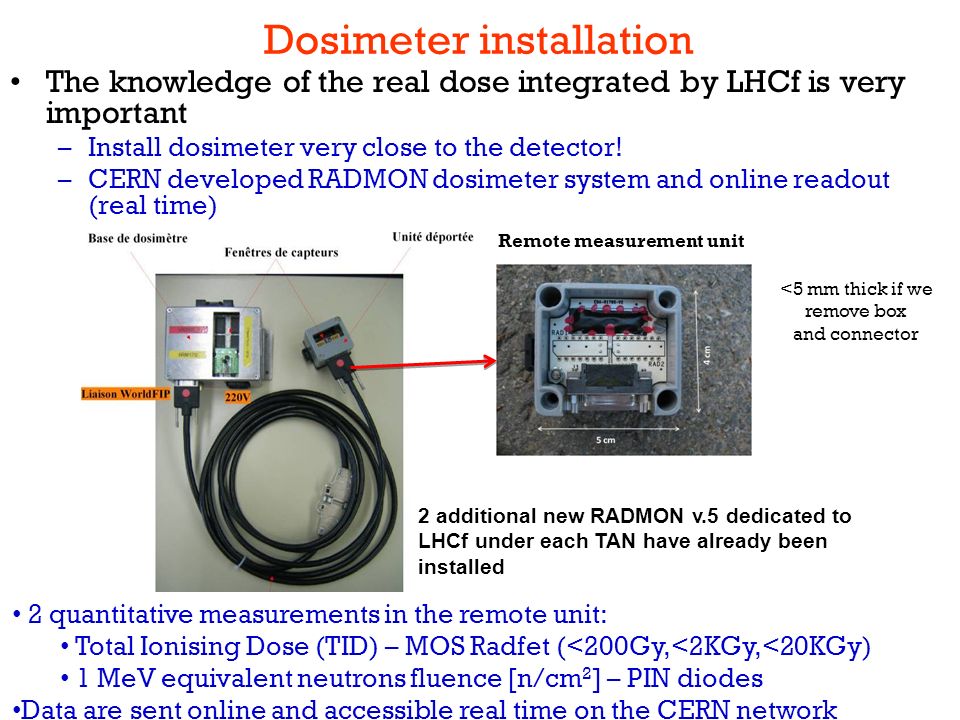

17 Oscar Adriani CSN1 17/09/09 Dosimeter installation The knowledge of the real dose integrated by LHCf is very important –Install dosimeter very close to the detector! –CERN developed RADMON dosimeter system and online readout (real time) Remote measurement unit <5 mm thick if we remove box and connector 2 quantitative measurements in the remote unit: Total Ionising Dose (TID) – MOS Radfet (<200Gy,<2KGy,<20KGy) 1 MeV equivalent neutrons fluence [n/cm 2 ] – PIN diodes Data are sent online and accessible real time on the CERN network 2 additional new RADMON v.5 dedicated to LHCf under each TAN have already been installed

18 Oscar Adriani CSN1 17/09/09 Where to install dosimeter? –There is a 7 mm slot between LHCf back end and BRAN- IC front end –Dosimeter will move up and down together with LHCf to precisely know the integrated dose! LHCfBRAN 7 mm gap IP

19 Oscar Adriani CSN1 17/09/09 Original LHCf running plan (summary of many past years slides…) The detector has been designed for low luminosity/high energy beam (see LOI, TDR): –Optimal Lumi  10 29 cm -2 s -1 –Maximum Lumi < 10 31 cm -2 s -1 –Energy = 7+7 TeV The detector should take data in the first LHC phase, at low luminosity and high energy The detector is removed once Lumi is too high The detector will come back in dedicated low luminosity future runs –Crossing angle to improve the acceptance –Heavy/Light ions?

20 Oscar Adriani CSN1 17/09/09 LHCf Running strategy (NEW!!!) Due to dramatic change of the LHC schedule, define the best running strategy is the MOST IMPORTANT point now for LHCf! –The incident of LHC caused us many troubles Big delay –We were ready at very beginning! –Atlas e.m. ZDC were not ready, they will be ready at December 2009 Change in the machine plans –Low energy soon (3.5 TeV) –Higher energy later (5 TeV) –Highest energy (7 TeV) when??? –High luminosity also at low energy Interference with BRAN Radiation damage –Possible improvement of the detector? Atlas e.m. ZDC or

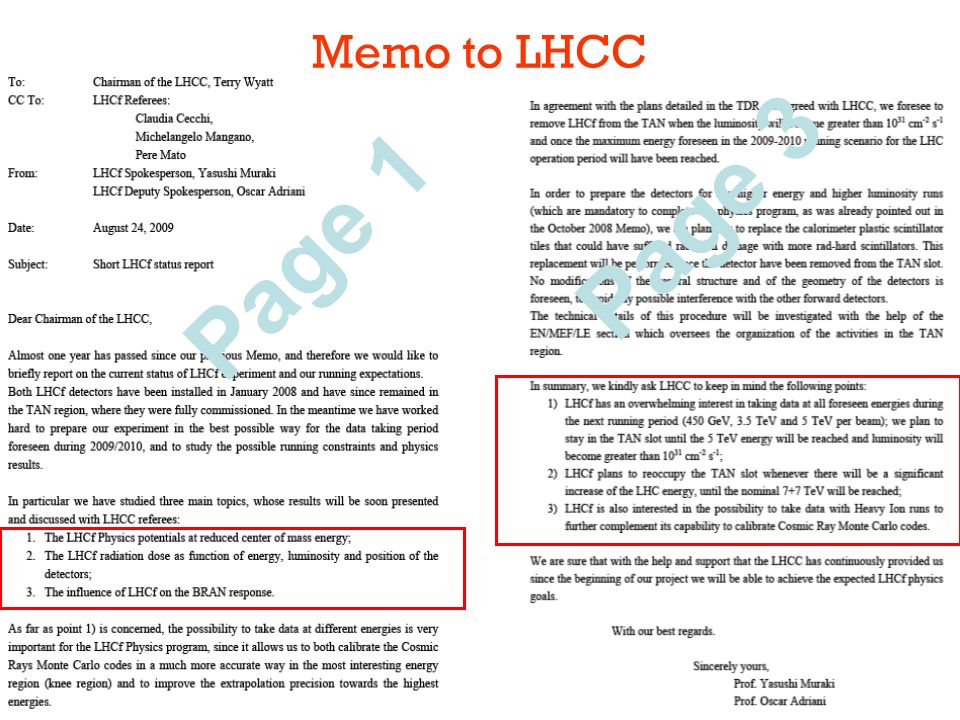

21 Oscar Adriani CSN1 17/09/09 Memo to LHCC Page 1 Page 3

22 Oscar Adriani CSN1 17/09/09 BRAN Interference Dose reduction by 3 orders of magnitude in the garage position But…. No signal from BRAN-IC if LHCf is not on the beam!!!!

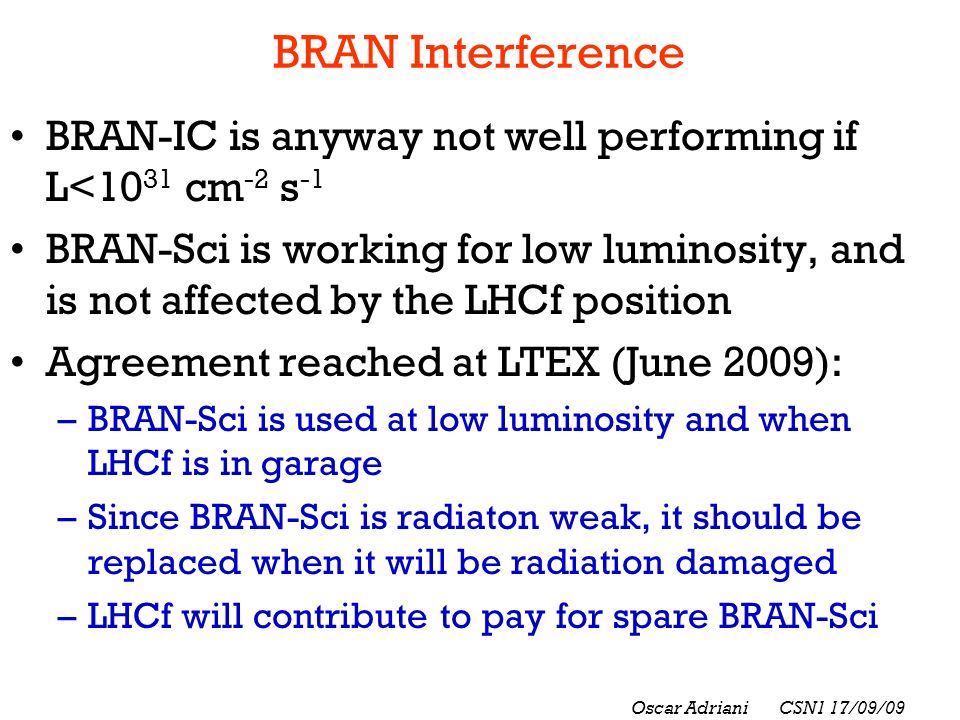

23 Oscar Adriani CSN1 17/09/09 BRAN Interference BRAN-IC is anyway not well performing if L<10 31 cm -2 s -1 BRAN-Sci is working for low luminosity, and is not affected by the LHCf position Agreement reached at LTEX (June 2009): –BRAN-Sci is used at low luminosity and when LHCf is in garage –Since BRAN-Sci is radiaton weak, it should be replaced when it will be radiation damaged –LHCf will contribute to pay for spare BRAN-Sci

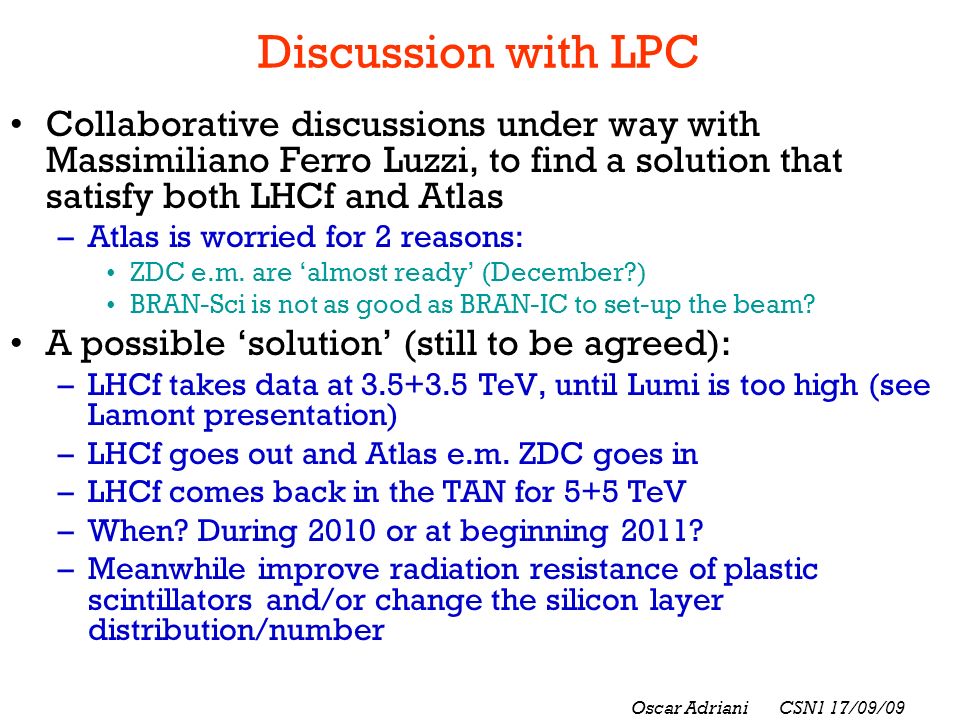

24 Oscar Adriani CSN1 17/09/09 Discussion with LPC Collaborative discussions under way with Massimiliano Ferro Luzzi, to find a solution that satisfy both LHCf and Atlas –Atlas is worried for 2 reasons: ZDC e.m. are ‘almost ready’ (December?) BRAN-Sci is not as good as BRAN-IC to set-up the beam? A possible ‘solution’ (still to be agreed): –LHCf takes data at 3.5+3.5 TeV, until Lumi is too high (see Lamont presentation) –LHCf goes out and Atlas e.m. ZDC goes in –LHCf comes back in the TAN for 5+5 TeV –When? During 2010 or at beginning 2011? –Meanwhile improve radiation resistance of plastic scintillators and/or change the silicon layer distribution/number

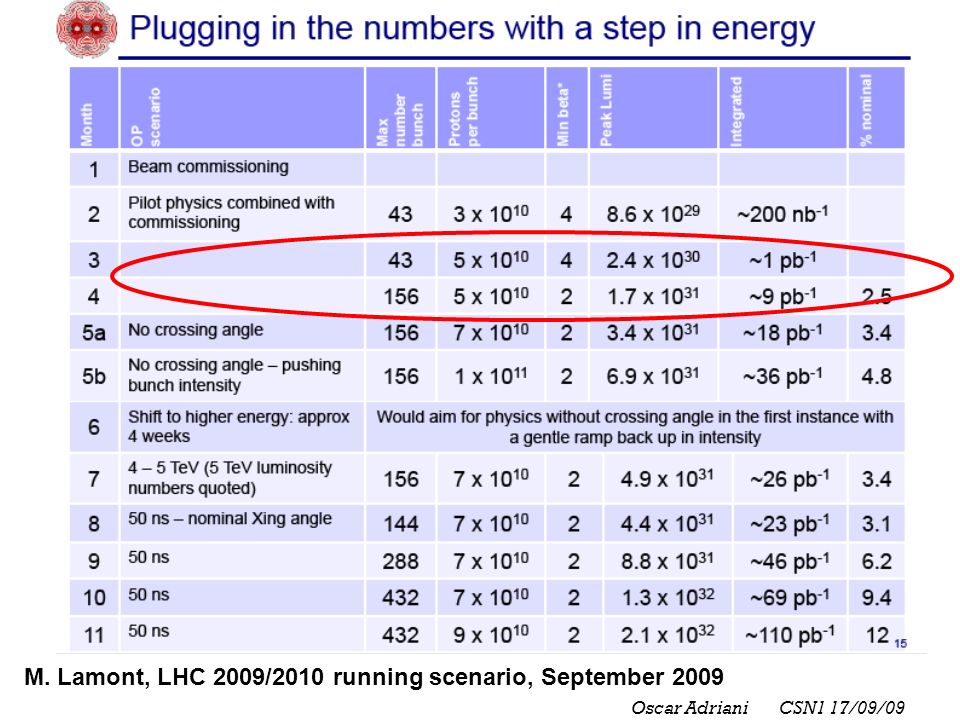

25 Oscar Adriani CSN1 17/09/09 M. Lamont, LHC 2009/2010 running scenario, September 2009

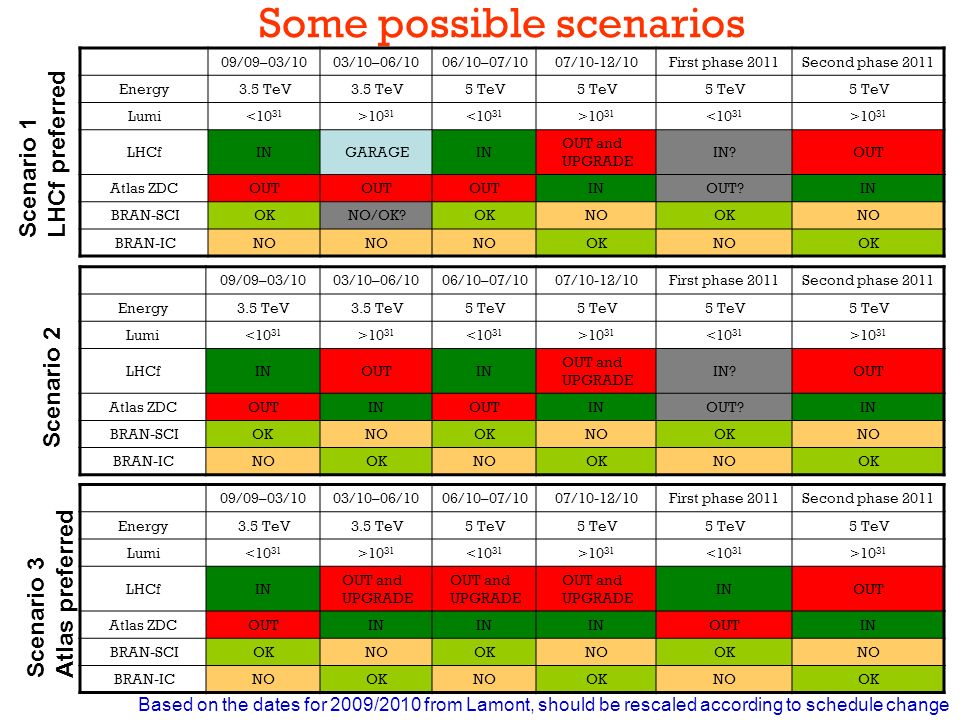

26 Oscar Adriani CSN1 17/09/09 Some possible scenarios 09/09–03/1003/10–06/1006/10–07/1007/10-12/10First phase 2011Second phase 2011 Energy3.5 TeV 5 TeV Lumi<10 31 >10 31 <10 31 >10 31 <10 31 >10 31 LHCfINGARAGEIN OUT and UPGRADE IN?OUT Atlas ZDCOUT INOUT?IN BRAN-SCIOKNO/OK?OKNOOKNO BRAN-ICNO OKNOOK Based on the dates for 2009/2010 from Lamont, should be rescaled according to schedule change Scenario 1 LHCf preferred 09/09–03/1003/10–06/1006/10–07/1007/10-12/10First phase 2011Second phase 2011 Energy3.5 TeV 5 TeV Lumi<10 31 >10 31 <10 31 >10 31 <10 31 >10 31 LHCfINOUTIN OUT and UPGRADE IN?OUT Atlas ZDCOUTINOUTINOUT?IN BRAN-SCIOKNOOKNOOKNO BRAN-ICNOOKNOOKNOOK Scenario 2 09/09–03/1003/10–06/1006/10–07/1007/10-12/10First phase 2011Second phase 2011 Energy3.5 TeV 5 TeV Lumi<10 31 >10 31 <10 31 >10 31 <10 31 >10 31 LHCfIN OUT and UPGRADE INOUT Atlas ZDCOUTIN OUTIN BRAN-SCIOKNOOKNOOKNO BRAN-ICNOOKNOOKNOOK Scenario 3 Atlas preferred

27 Oscar Adriani CSN1 17/09/09 Improve the radiation resistance of LHCf Basic idea: –The existing LHCf is fine for low luminosity –Many difficulties due to LHC, Atlas, BRAN etc. –To be in a safer position the LHCf collaboration started a discussion how to improve the radiation resistance of the detector Data taking at all energies 7+7 TeV later on…. At high lumi!

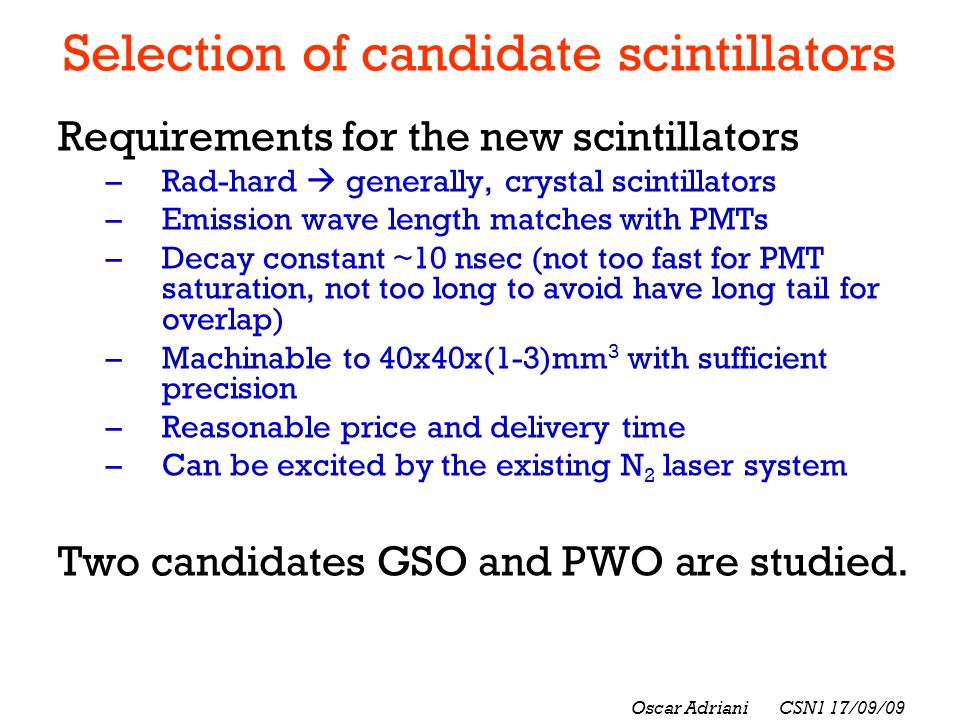

28 Oscar Adriani CSN1 17/09/09 Selection of candidate scintillators Requirements for the new scintillators –Rad-hard  generally, crystal scintillators –Emission wave length matches with PMTs –Decay constant ~10 nsec (not too fast for PMT saturation, not too long to avoid have long tail for overlap) –Machinable to 40x40x(1-3)mm 3 with sufficient precision –Reasonable price and delivery time –Can be excited by the existing N 2 laser system Two candidates GSO and PWO are studied.

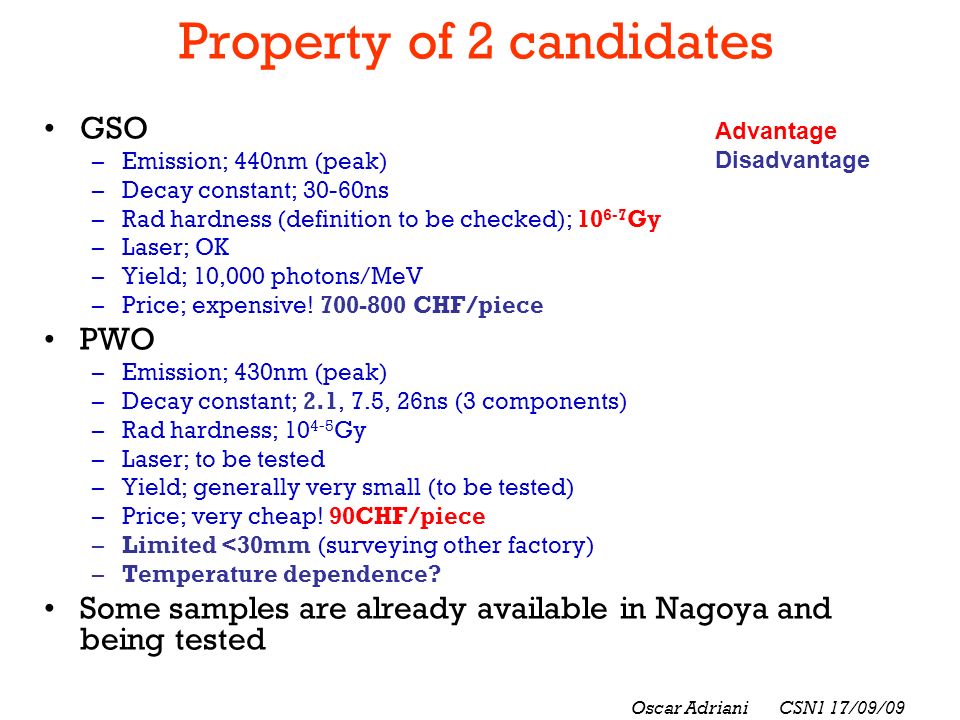

29 Oscar Adriani CSN1 17/09/09 Property of 2 candidates GSO –Emission; 440nm (peak) –Decay constant; 30-60ns –Rad hardness (definition to be checked); 10 6-7 Gy –Laser; OK –Yield; 10,000 photons/MeV –Price; expensive! 700-800 CHF/piece PWO –Emission; 430nm (peak) –Decay constant; 2.1, 7.5, 26ns (3 components) –Rad hardness; 10 4-5 Gy –Laser; to be tested –Yield; generally very small (to be tested) –Price; very cheap! 90CHF/piece –Limited <30mm (surveying other factory) –Temperature dependence? Some samples are already available in Nagoya and being tested Advantage Disadvantage

30 Oscar Adriani CSN1 17/09/09 GSO with N 2 laser 337nm laser GSO transmits 337nm GSO is excited by 337nm FWHM is ~25ns

31 Oscar Adriani CSN1 17/09/09 Japan money Supplementary budget from Japan government is approved  GSO can be selected. ~7MYen/50K€ can be used for upgrade. All cost for GSO scintillator tiles (~5MYen/30K€) can be covered. Because there is so far no demerit known in GSO except cost, we should investigate more realistic and technical procedure for upgrade with GSO.

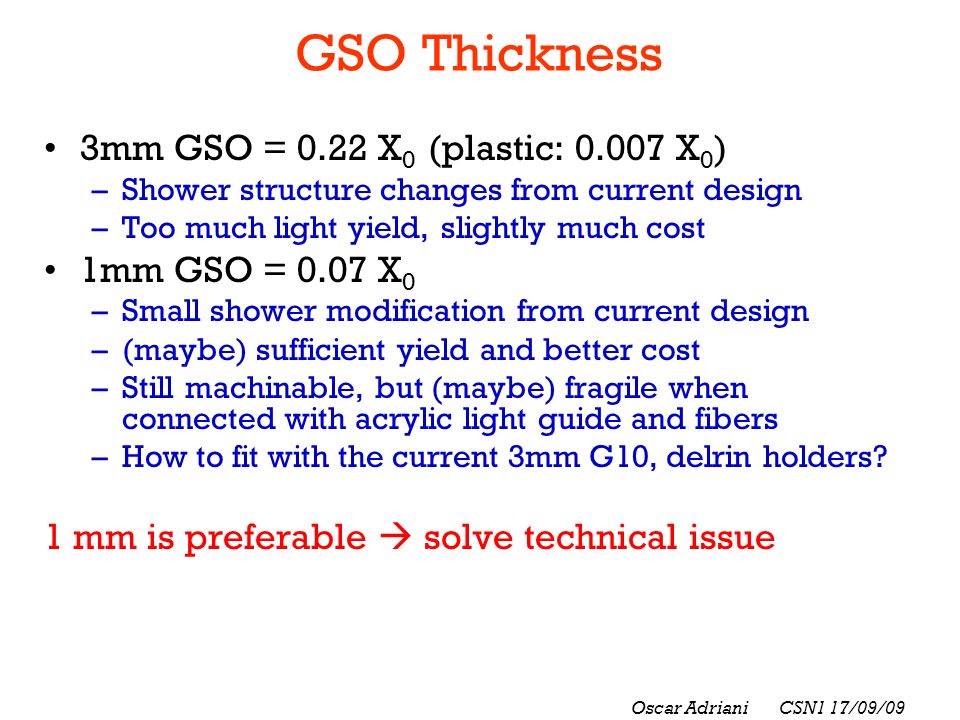

32 Oscar Adriani CSN1 17/09/09 GSO Thickness 3mm GSO = 0.22 X 0 (plastic: 0.007 X 0 ) –Shower structure changes from current design –Too much light yield, slightly much cost 1mm GSO = 0.07 X 0 –Small shower modification from current design –(maybe) sufficient yield and better cost –Still machinable, but (maybe) fragile when connected with acrylic light guide and fibers –How to fit with the current 3mm G10, delrin holders? 1 mm is preferable  solve technical issue

33 Oscar Adriani CSN1 17/09/09 Modifications of silicon part Basic idea –In the ‘original’ LHCf silicon part is only used to measure the impact point –But… it can be used as a cross check for energy scale!!!!! –How can we optimize the distribution of existing silicon layers (4 X and 4 Y) to measure the energy???? –Should we increase the number of silicon layers to improve the energy resolution???

34 Oscar Adriani CSN1 17/09/09 ARM2-Silicon Energy Resolution  E/E ~ 12% Total energy measured in silicon (ADC) 200 GeV electrons SPS beam test data By looking only at the silicon energy measured, we have an energy resolution ~ 10%!!!!! We can use it as a check for the radiation damage of the scintillators Presented at Pisa CSN1 last year!

35 Oscar Adriani CSN1 17/09/09 Optimization of silicon layer positions for energy reconstruction Geometrical configuration of this simulation study Silicon layers are inserted at the front of all scintillator layers. For energy reconstruction, we sum dE of all scintillator layers, 2, 8 and 16 of the 16 silicon layers. Silicon layer positions in the current Arm2 detector. X,Y XYXYXYX Y Distribute 8 silicon layers.

36 Oscar Adriani CSN1 17/09/09 Event view (1): Good event Hit Position 100GeV Gamma-ray hits near the center of the 25mm calorimeter dE at each scint. layer Sum of dE at each silicon layer

37 Oscar Adriani CSN1 17/09/09 Event view (2): Problematic event Hit Position 100GeV Gamma-ray hits near the edge of the 25mm calorimeter. dE of Shower leakage particles

38 Oscar Adriani CSN1 17/09/09 Uniformity of Sum(dE) Map of sum(dE) of Scin. Map of sum(dE) of Si X Y Map(Si) / Map(Scin.) The silicon layers have more dE than scintillator layers due to additional dE by particles leaking out from the calorimeters. The difference increases near the top and left edges.

39 Oscar Adriani CSN1 17/09/09 Energy Resolutions for  Good energy resolution of the silicon layers !! Hit Position Selection 4<x<20, 4<y<20 Preliminary!!!!!

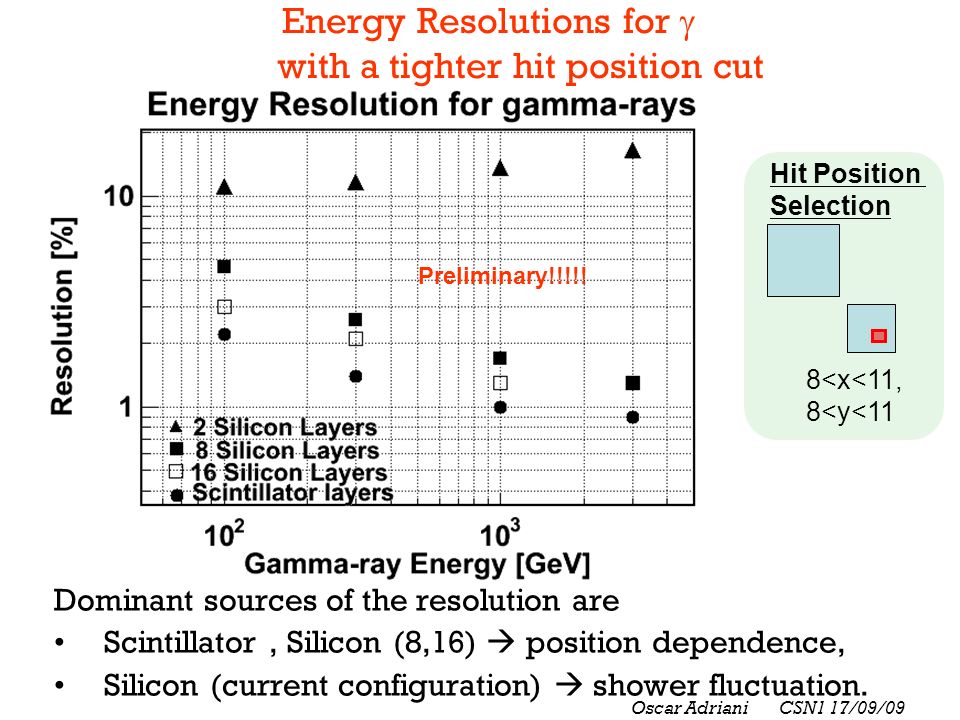

40 Oscar Adriani CSN1 17/09/09 Energy Resolutions for  with a tighter hit position cut Hit Position Selection 8<x<11, 8<y<11 Dominant sources of the resolution are Scintillator, Silicon (8,16)  position dependence, Silicon (current configuration)  shower fluctuation. Preliminary!!!!!

41 Oscar Adriani CSN1 17/09/09 Conclusions Handling all the technical and political aspect of the LHCf running is not trivial… Big effort from all the collaboration It seems that we have support from LPC and LHCC We are trying to find a solution that is acceptable both from LHCf and ATLAS Meanwhile we are working for a safer future: –GSO –New silicon layer structure (INFN CSN1 will certainly be kept informed!) I did not mention that a long and detailed (50 pages) technical paper on the silicon part is ready to be submitted to JINST

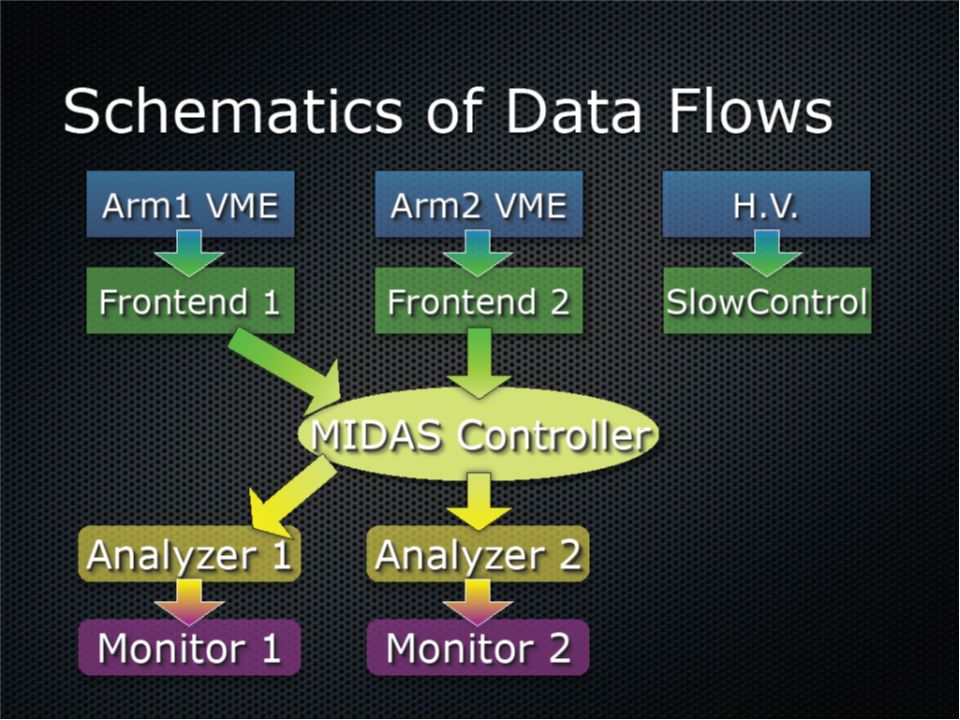

42 Oscar Adriani CSN1 17/09/09

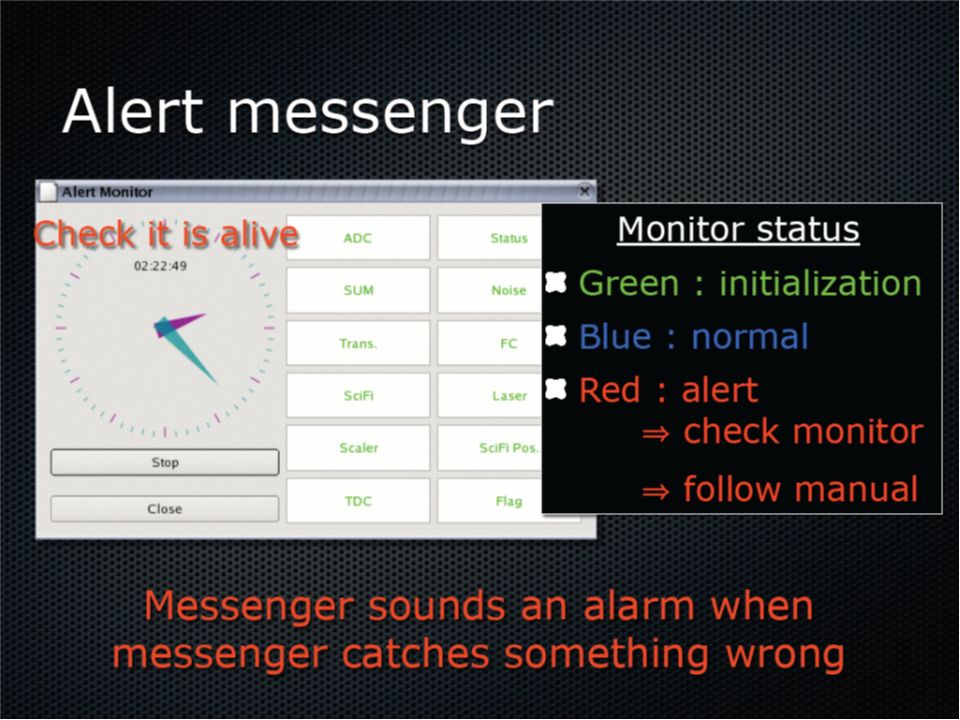

43

44 Dose estimation as function of vertical position 6.940.041.14 Gy/100s Gy/h h/10Gy 7TeV w/ pipe 450GeV w/ pipe 7TeV w/o pipe 5TeV w/o pipe 1TeV w/o pipe 450GeV w/o pipe In garage 3 orders of magnitude reduction

45 Oscar Adriani CSN1 17/09/09 ATLAS ZDC memorandum

46 Oscar Adriani CSN1 17/09/09 Crystal scintillators Wavelength 350-600nm Decay constant 10 - a few 10 nsec Rad hardness >10 3 Gy = 10 5 Rad No hydroscopic
