1. The Microsoft Technical Roadshow 2006 Making Your Life Easier With Windows Server 2003 R2 Melville Thomson IT Pro Evangelist Melville.thomson@microsoft.com http://blogs.technet.com/melville

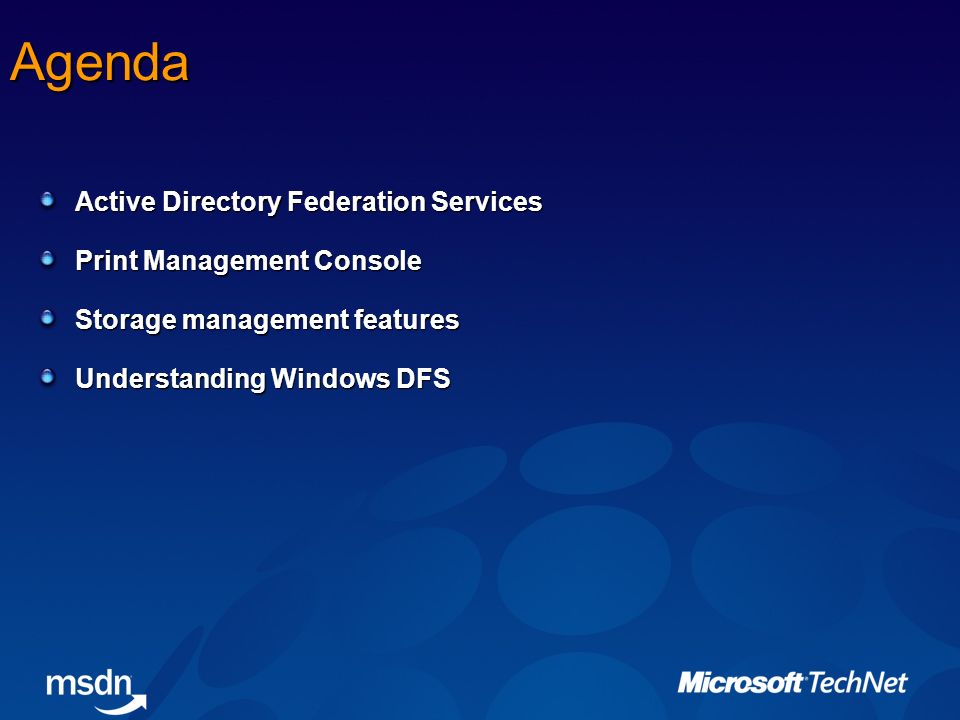

2. Active Directory Federation Services Print Management Console Storage management features Understanding Windows DFS Agenda

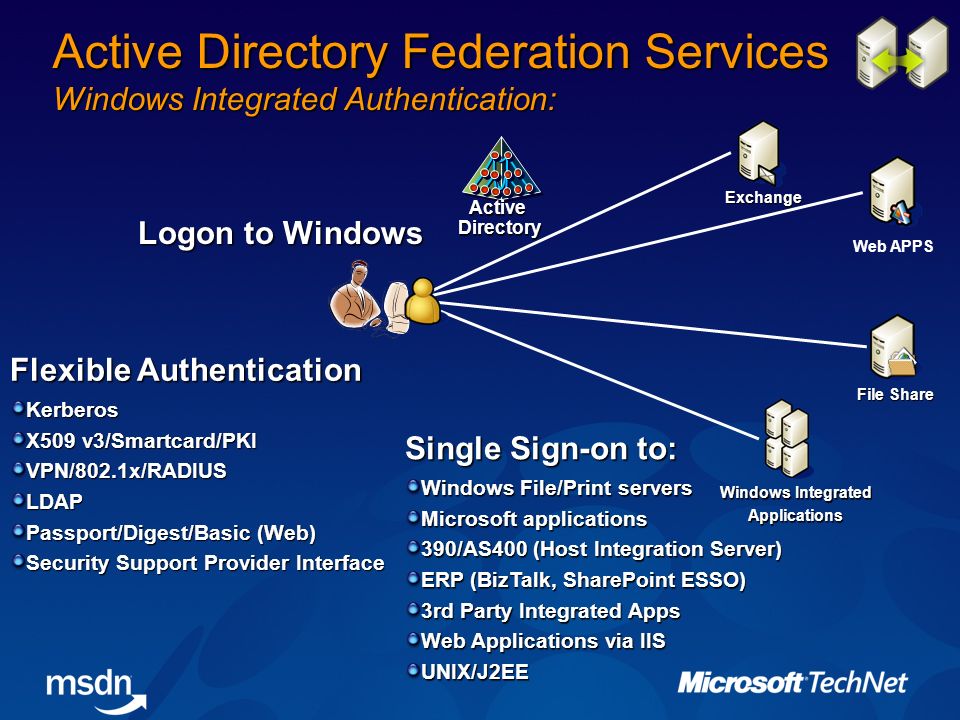

3. Active Directory Federation Services Windows Integrated Authentication: ActiveDirectory Logon to Windows Flexible Authentication Kerberos X509 v3/Smartcard/PKI VPN/802.1x/RADIUSLDAP Passport/Digest/Basic (Web) Security Support Provider Interface Single Sign-on to: Windows File/Print servers Microsoft applications 390/AS400 (Host Integration Server) ERP (BizTalk, SharePoint ESSO) 3rd Party Integrated Apps Web Applications via IIS UNIX/J2EE Exchange Web APPS File Share Windows Integrated Applications

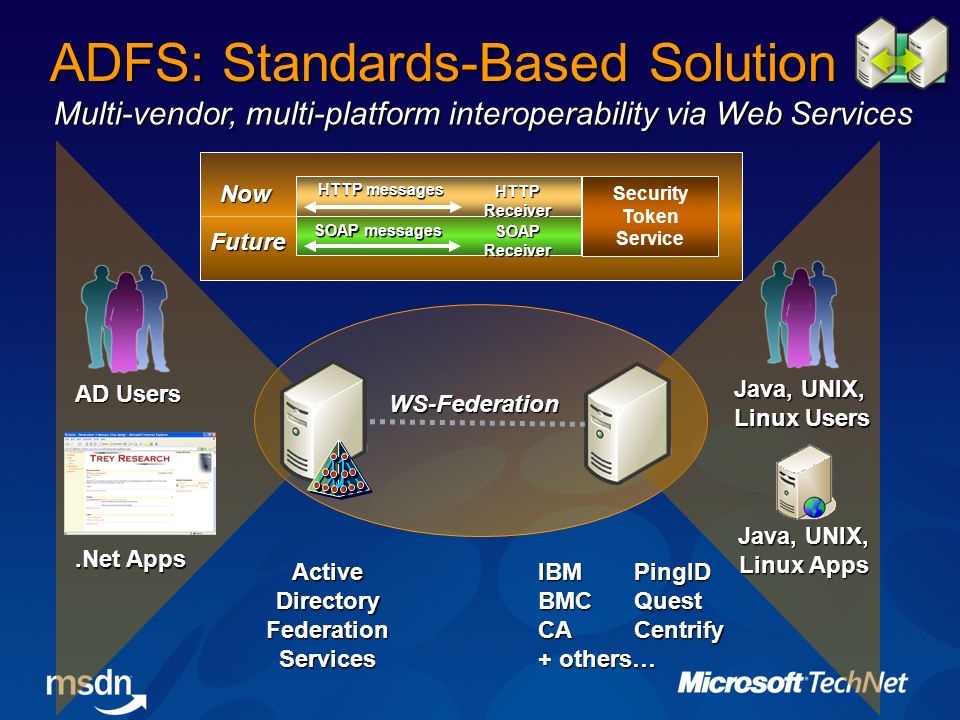

4. ADFS: Standards-Based Solution AD Users.Net Apps Active Directory Federation Services Java, UNIX, Linux Users Java, UNIX, Linux Apps IBM PingID BMC Quest CA Centrify + others… Multi-vendor, multi-platform interoperability via Web Services WS-Federation Security Token Service HTTP messages SOAP messages SOAP Receiver HTTP Receiver Now Future

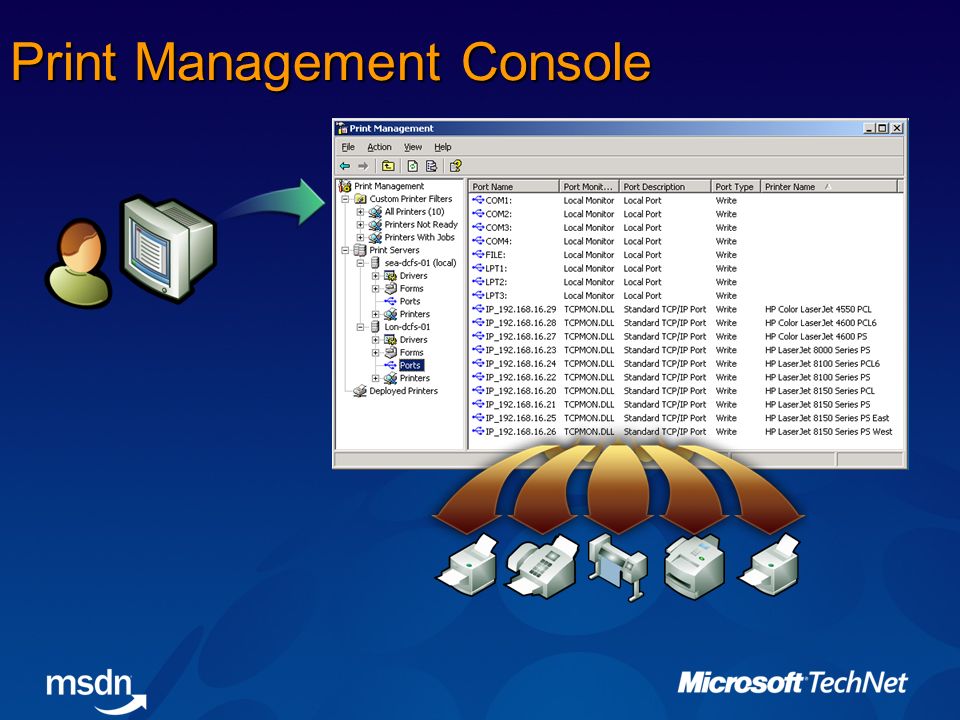

5. Print Management Console

6. The Microsoft Technical Roadshow 2006 Print Management Console Melville Thomson IT Pro Evangelist Demo

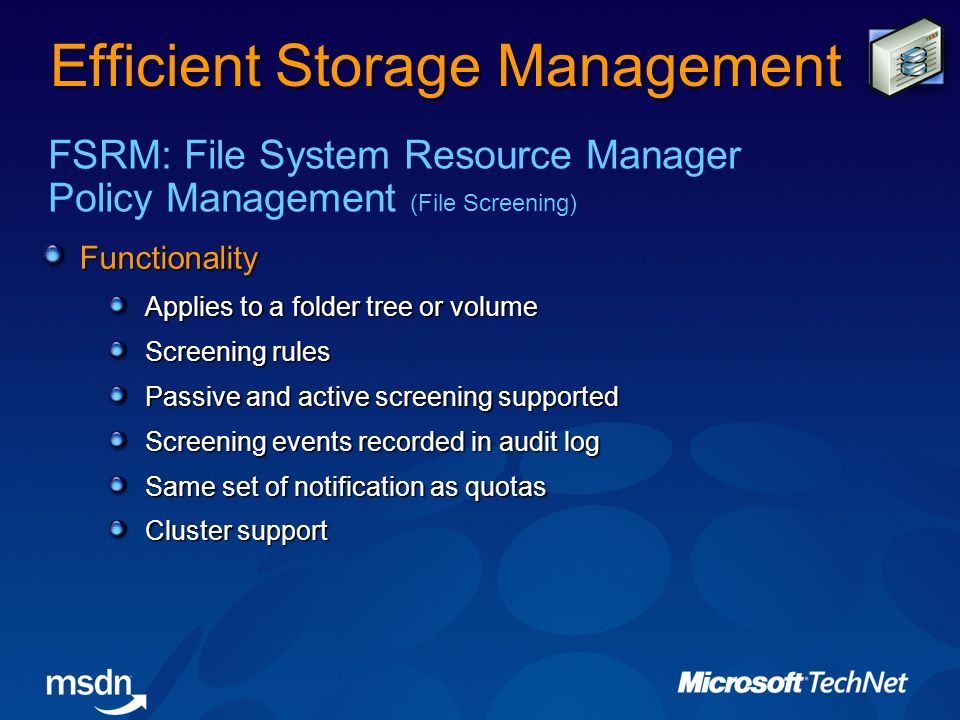

7. Efficient Storage Management Functionality Applies to a folder tree or volume Screening rules Passive and active screening supported Screening events recorded in audit log Same set of notification as quotas Cluster support FSRM: File System Resource Manager Policy Management (File Screening)

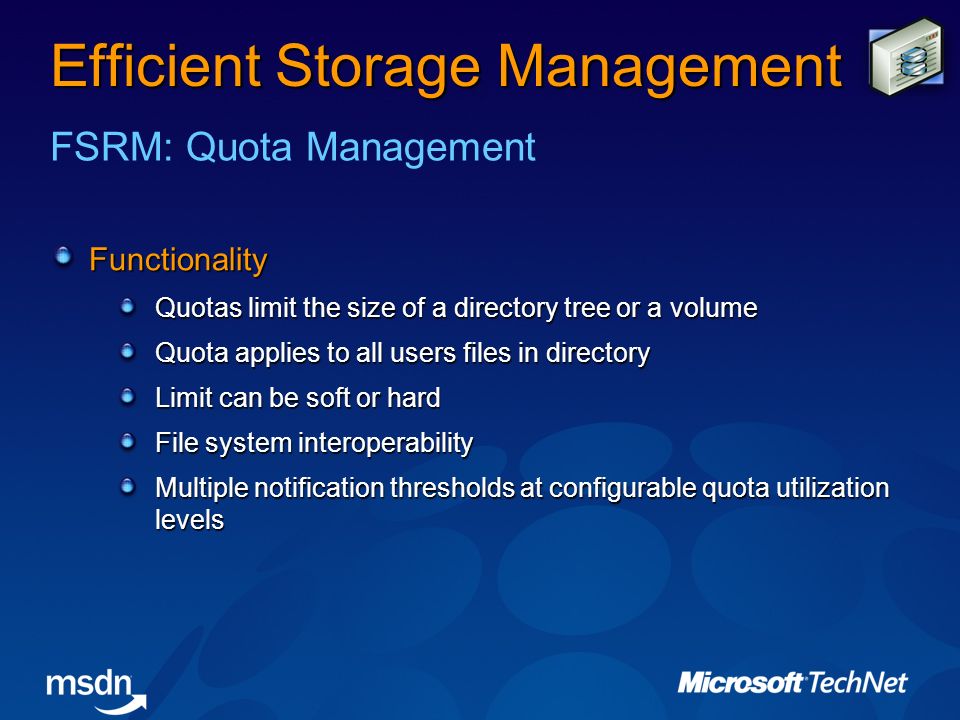

8. Efficient Storage Management Functionality Quotas limit the size of a directory tree or a volume Quota applies to all users files in directory Limit can be soft or hard File system interoperability Multiple notification thresholds at configurable quota utilization levels FSRM: Quota Management

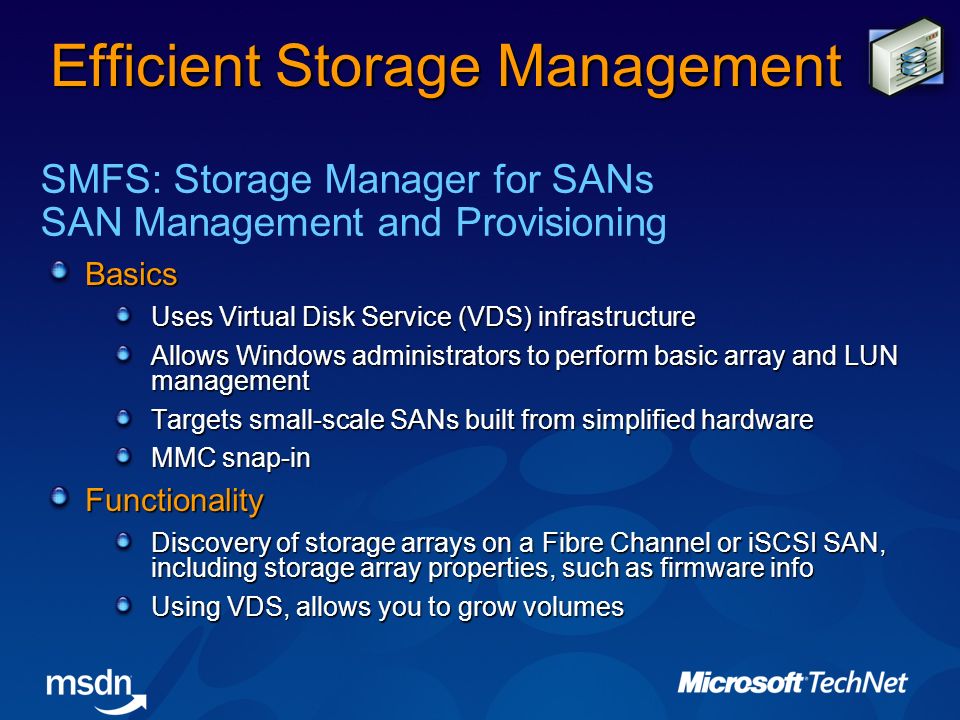

9. Efficient Storage Management Basics Uses Virtual Disk Service (VDS) infrastructure Allows Windows administrators to perform basic array and LUN management Targets small-scale SANs built from simplified hardware MMC snap-in Functionality Discovery of storage arrays on a Fibre Channel or iSCSI SAN, including storage array properties, such as firmware info Using VDS, allows you to grow volumes SMFS: Storage Manager for SANs SAN Management and Provisioning

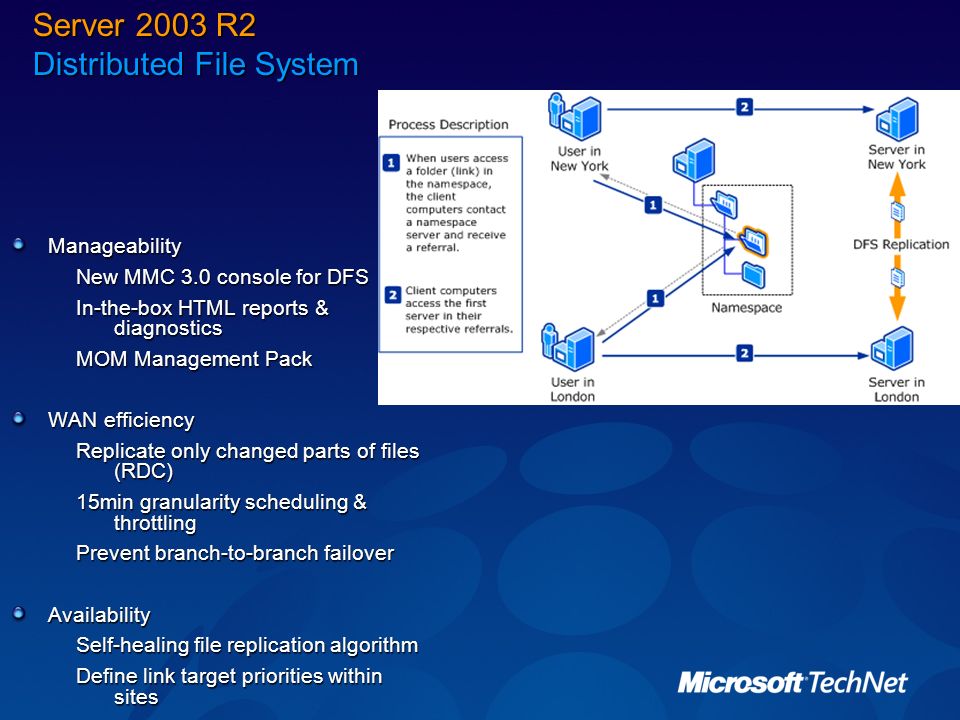

10. Server 2003 R2 Distributed File System Manageability New MMC 3.0 console for DFS In-the-box HTML reports & diagnostics MOM Management Pack WAN efficiency Replicate only changed parts of files (RDC) 15min granularity scheduling & throttling Prevent branch-to-branch failover Availability Self-healing file replication algorithm Define link target priorities within sites

11. Enabling Technologies DFS Namespaces in R2 Windows Server 2003 Referrals can be sorted by site proximity (Site costing) DFS Servers gained ability to host root for multiple DFS namespaces DFS Servers able to host root for legacy UNC file servers Windows Server R2 Define link target priorities within sites (preferred servers) Improved client fail-back control

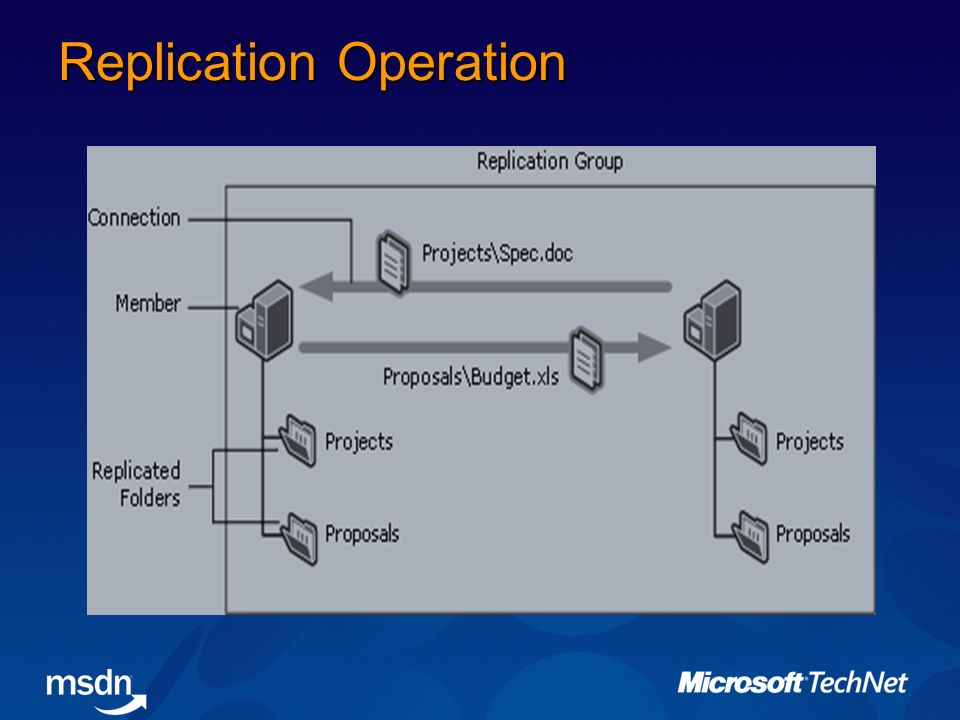

12. Replication Operation

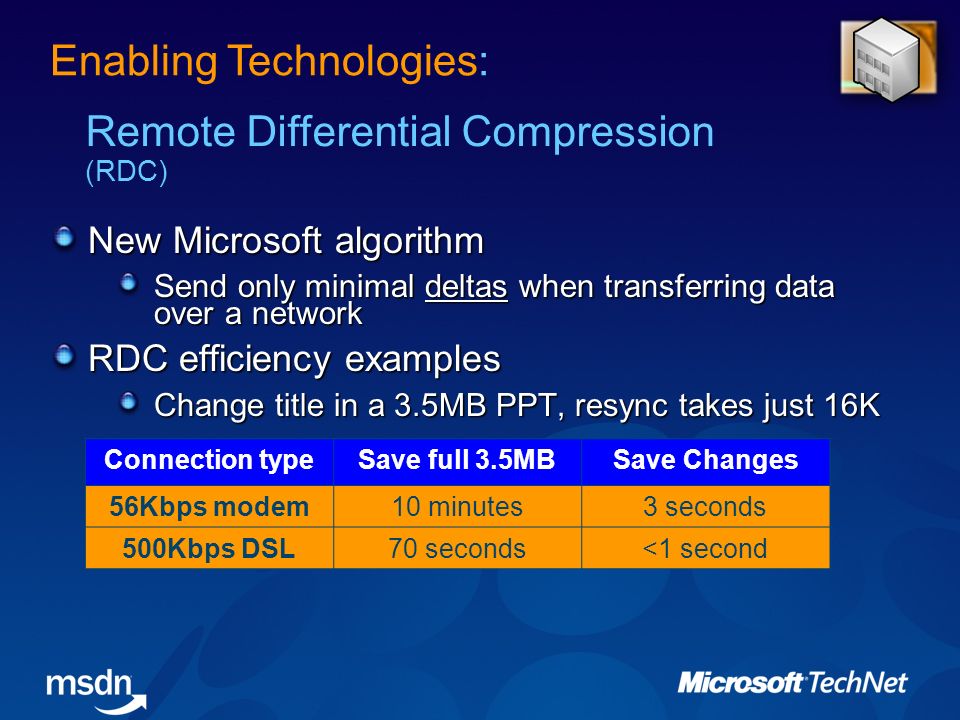

13. New Microsoft algorithm Send only minimal deltas when transferring data over a network RDC efficiency examples Change title in a 3.5MB PPT, resync takes just 16K Enabling Technologies: Remote Differential Compression (RDC) Connection typeSave full 3.5MBSave Changes 56Kbps modem10 minutes3 seconds 500Kbps DSL70 seconds<1 second

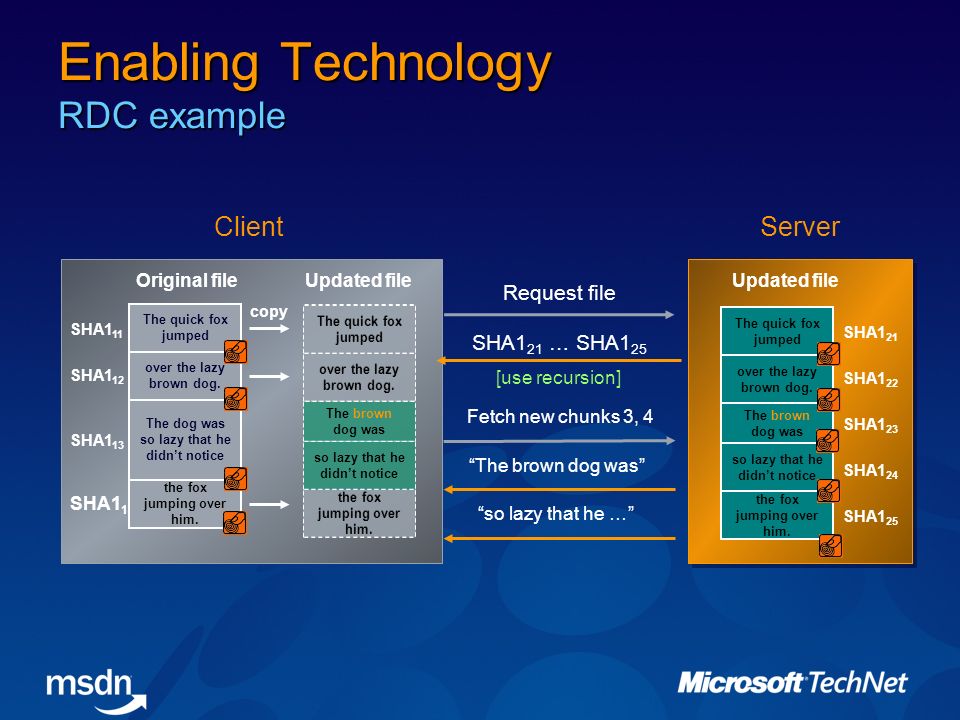

14. Enabling Technology RDC example Original fileUpdated file The quick fox jumped over the lazy brown dog. the fox jumping over him. “The brown dog was” “so lazy that he …” copy SHA1 21 SHA1 22 SHA1 23 SHA1 24 SHA1 25 SHA1 11 SHA1 12 SHA1 13 SHA1 14 The quick fox jumped over the lazy brown dog. The dog was so lazy that he didn’t notice the fox jumping over him. The quick fox jumped over the lazy brown dog. The brown dog was the fox jumping over him. so lazy that he didn’t notice The quick fox jumped over the lazy brown dog. The brown dog was the fox jumping over him. so lazy that he didn’t notice [use recursion] ClientServer Request file SHA1 21 … SHA1 25 Fetch new chunks 3, 4

15. Customer Video PAUL SMITH Customer Case Study Melville Thomson IT Pro Evangelist

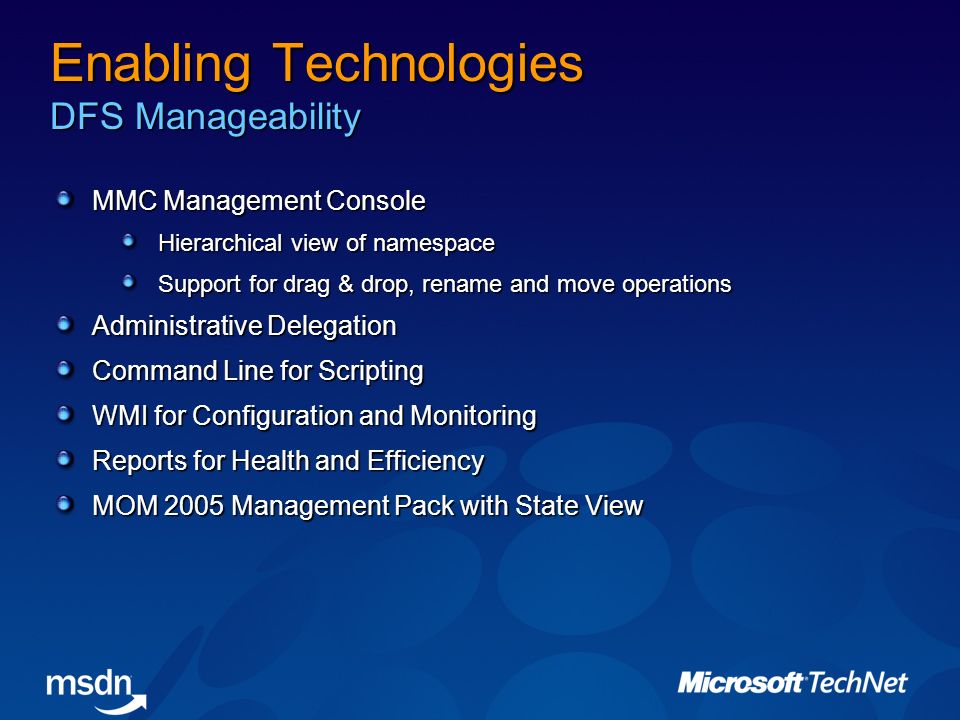

16. Enabling Technologies DFS Manageability MMC Management Console Hierarchical view of namespace Support for drag & drop, rename and move operations Administrative Delegation Command Line for Scripting WMI for Configuration and Monitoring Reports for Health and Efficiency MOM 2005 Management Pack with State View

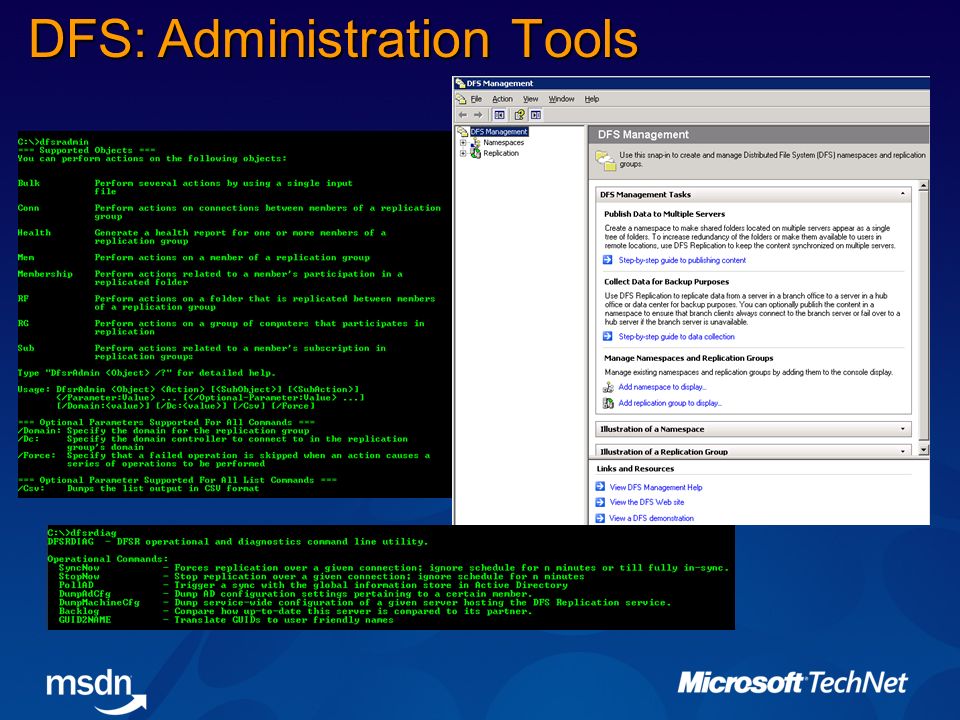

17. DFS: Administration Tools

18. The Microsoft Technical Roadshow 2006 DFS Management Console Name: Melville Thomson Title: IT Pro Evangelist Demos Dfsradmin and Dfsrdiag command line tools

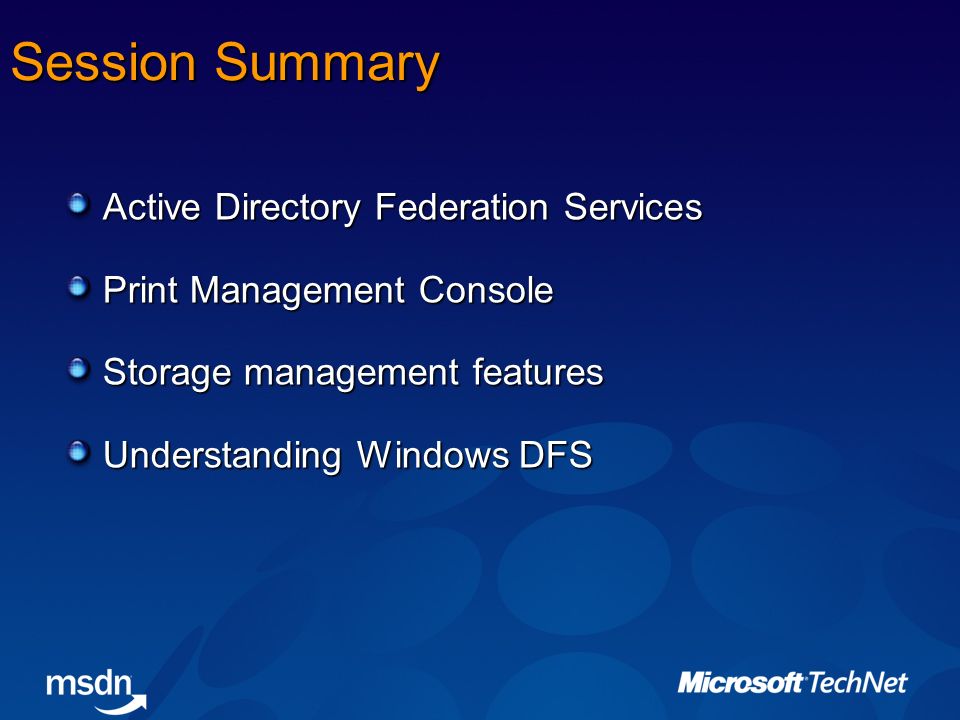

19. Session Summary Active Directory Federation Services Print Management Console Storage management features Understanding Windows DFS
