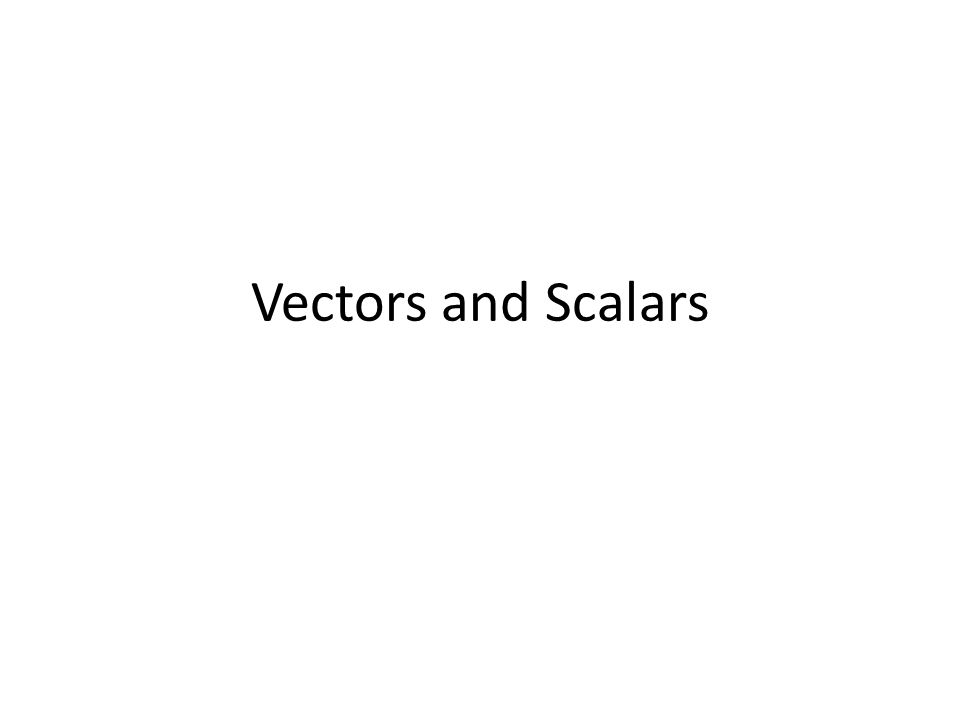

1. Vectors and Scalars

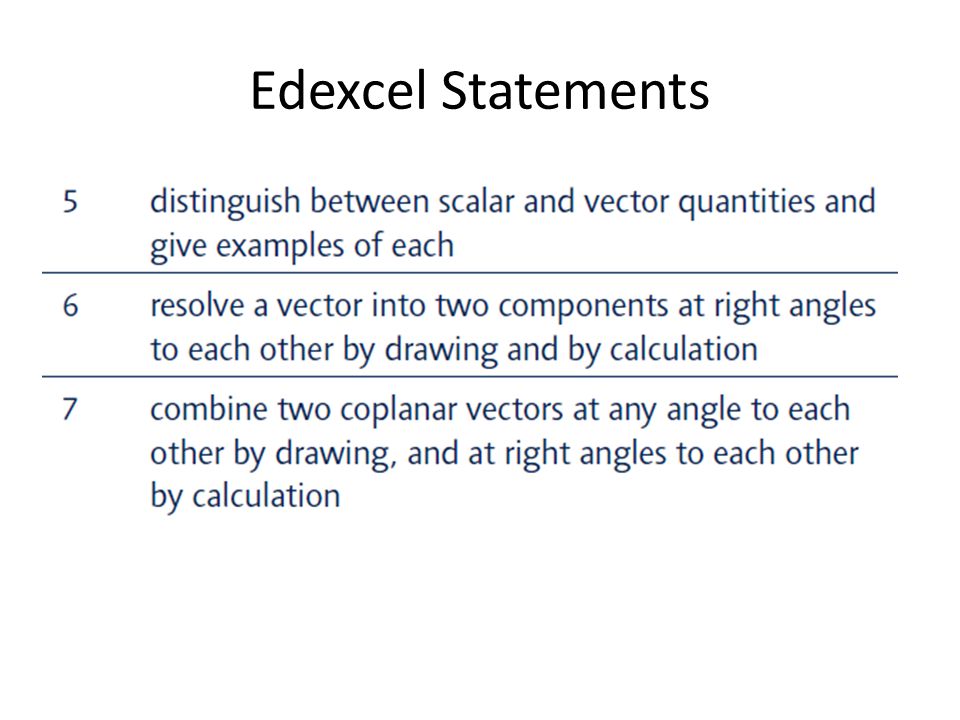

2. Edexcel Statements

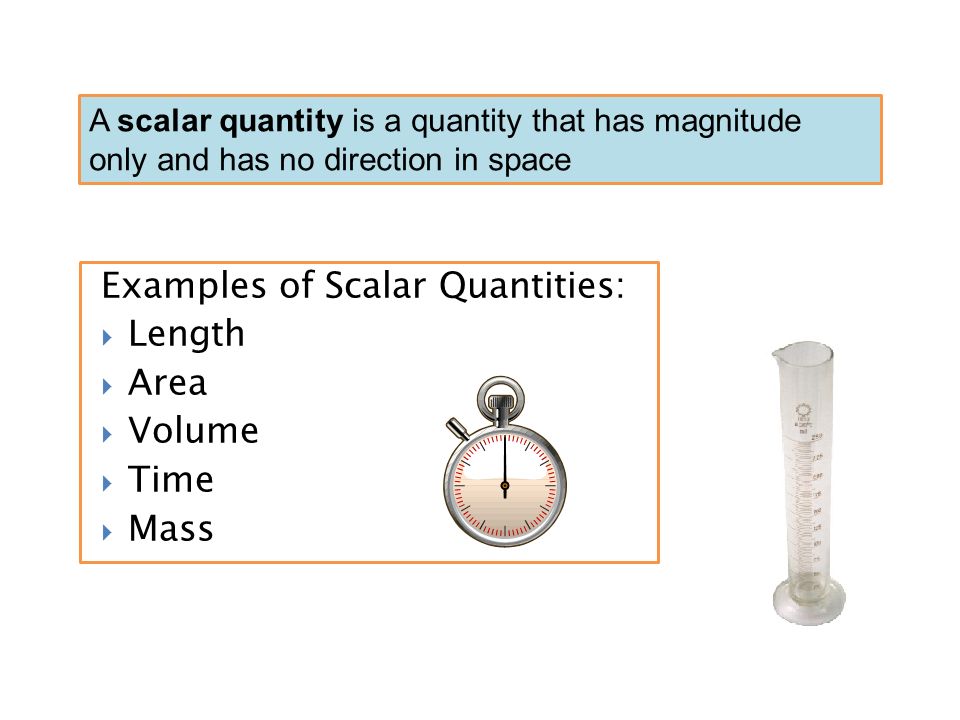

3. A scalar quantity is a quantity that has magnitude only and has no direction in space Examples of Scalar Quantities:  Length  Area  Volume  Time  Mass

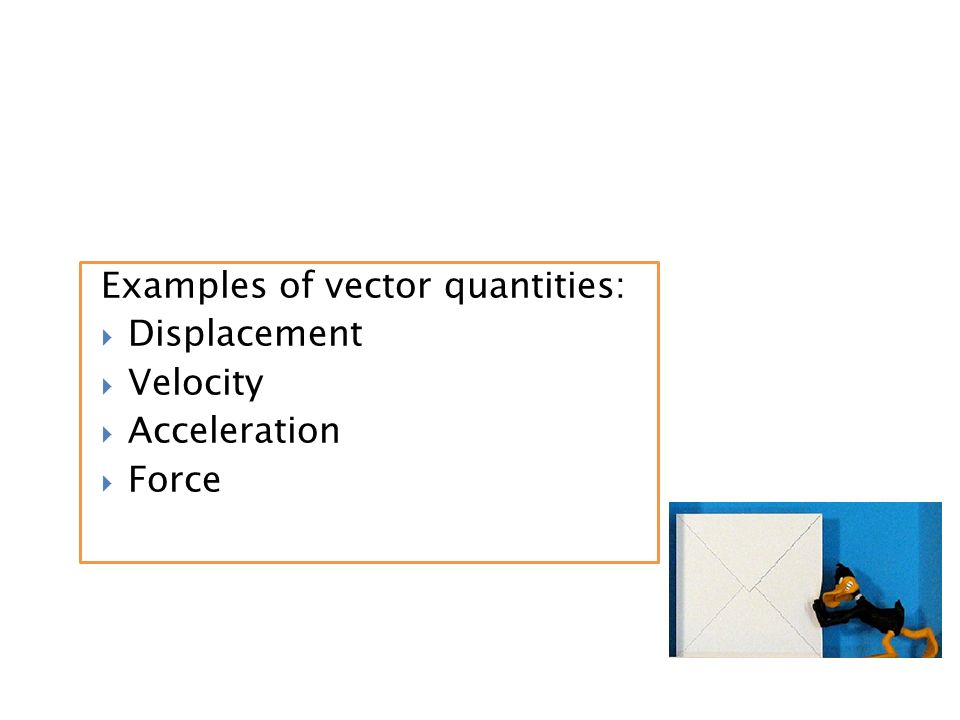

4. Examples of vector quantities:  Displacement  Velocity  Acceleration  Force

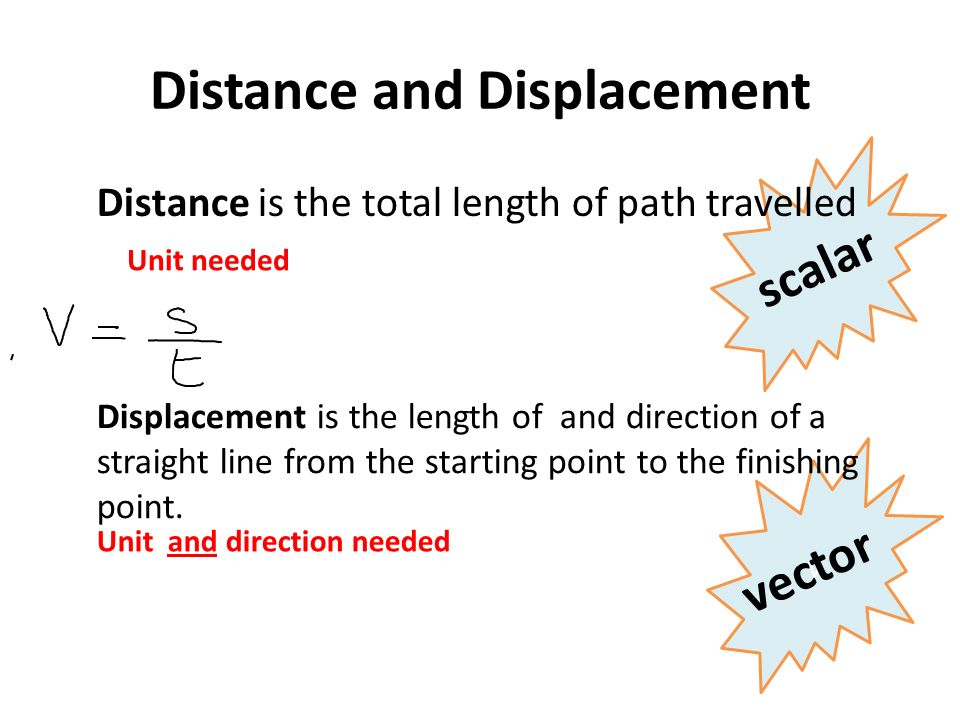

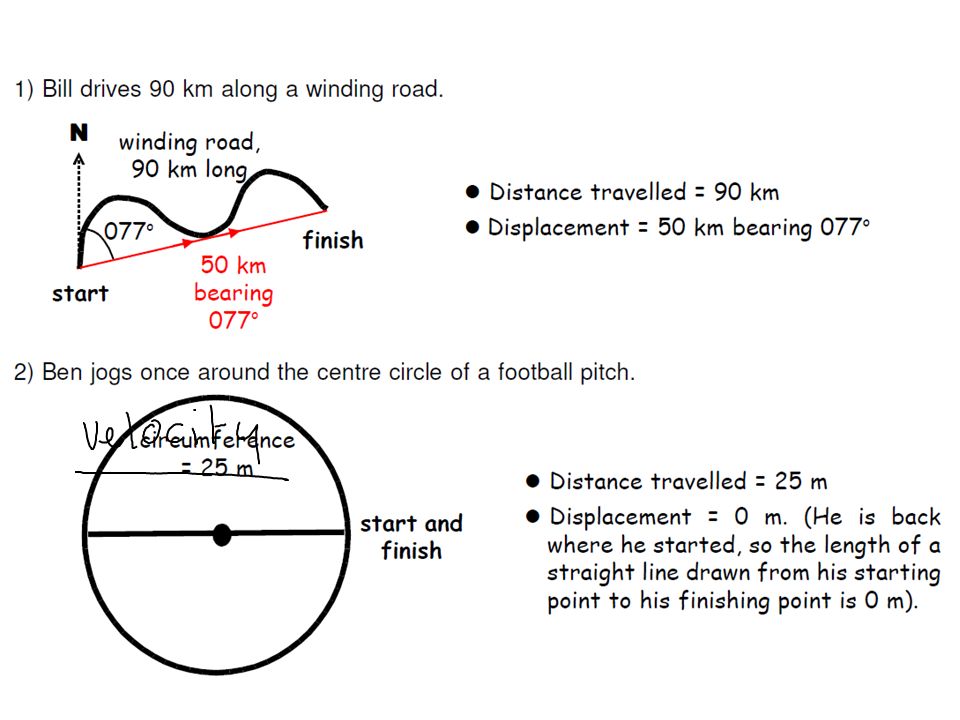

5. V Distance and Displacement Distance is the total length of path travelled scalar Displacement is the length of and direction of a straight line from the starting point to the finishing point. vector Unit needed Unit and direction needed

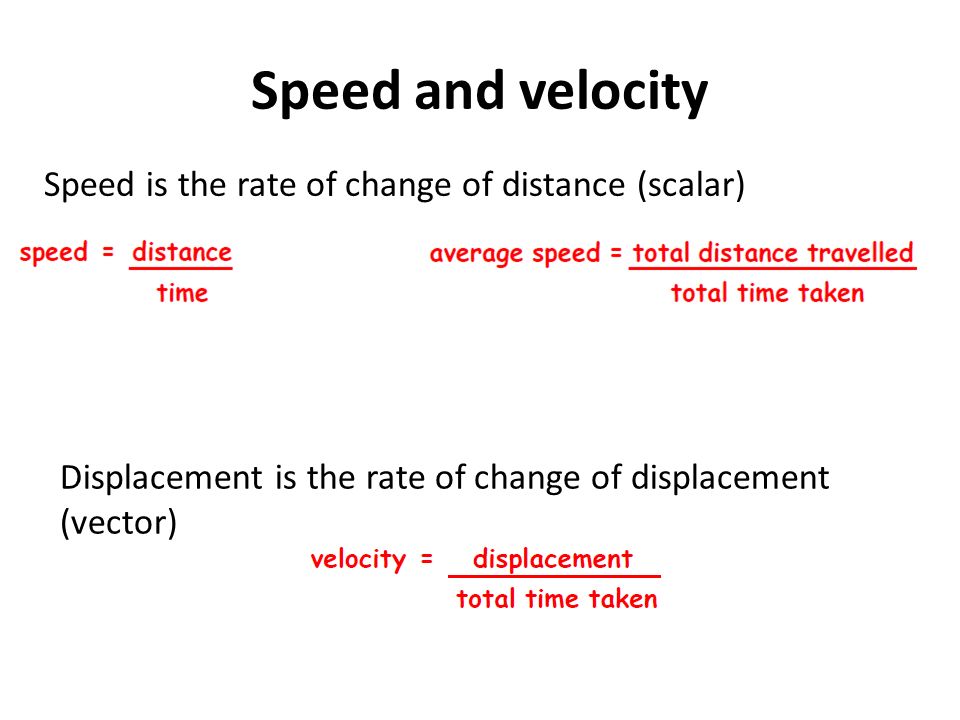

7. Speed and velocity Speed is the rate of change of distance (scalar) Displacement is the rate of change of displacement (vector)

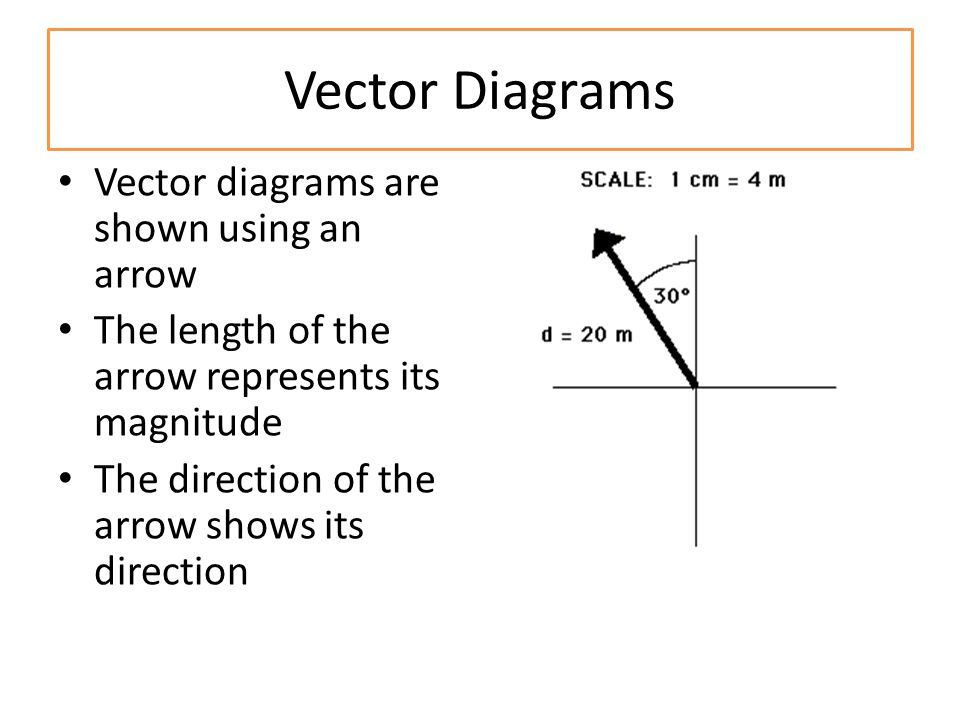

8. Vector diagrams are shown using an arrow The length of the arrow represents its magnitude The direction of the arrow shows its direction Vector Diagrams

9. Adding vectors Two (or more) vector quantities may be added using the ‘tip to tail’ rule. The single vector obtained is the resultant vector You need to be able to add vectors both diagrammatically (using a scale drawing ) or mathematically, using trigonometry.

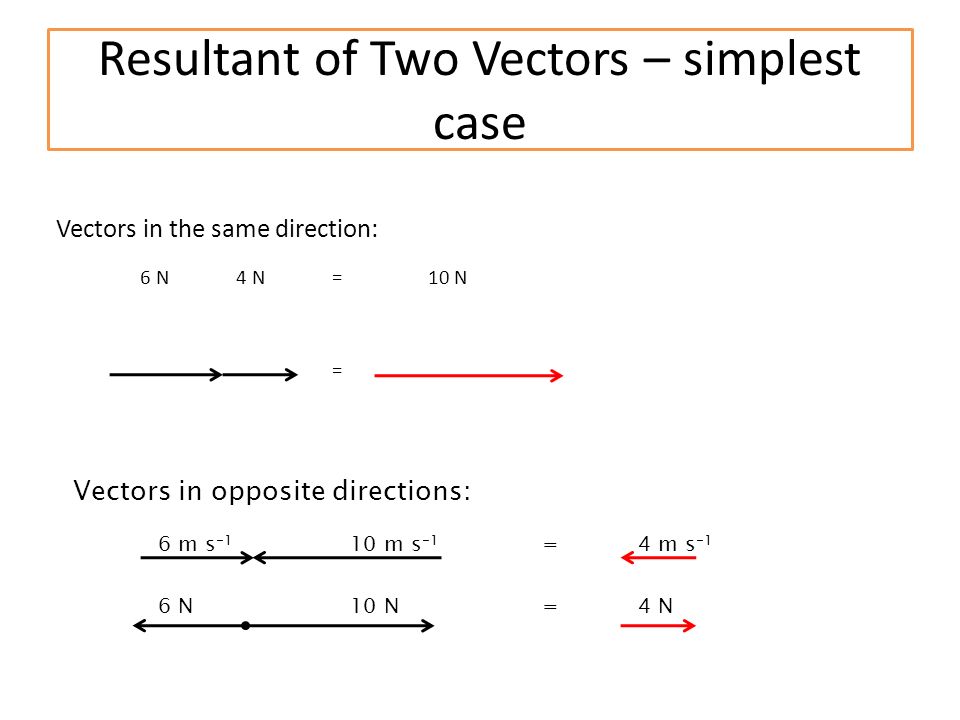

10. Vectors in opposite directions: 6 m s -1 10 m s -1 =4 m s -1 6 N10 N=4 N Resultant of Two Vectors – simplest case Vectors in the same direction: 6 N4 N=10 N =

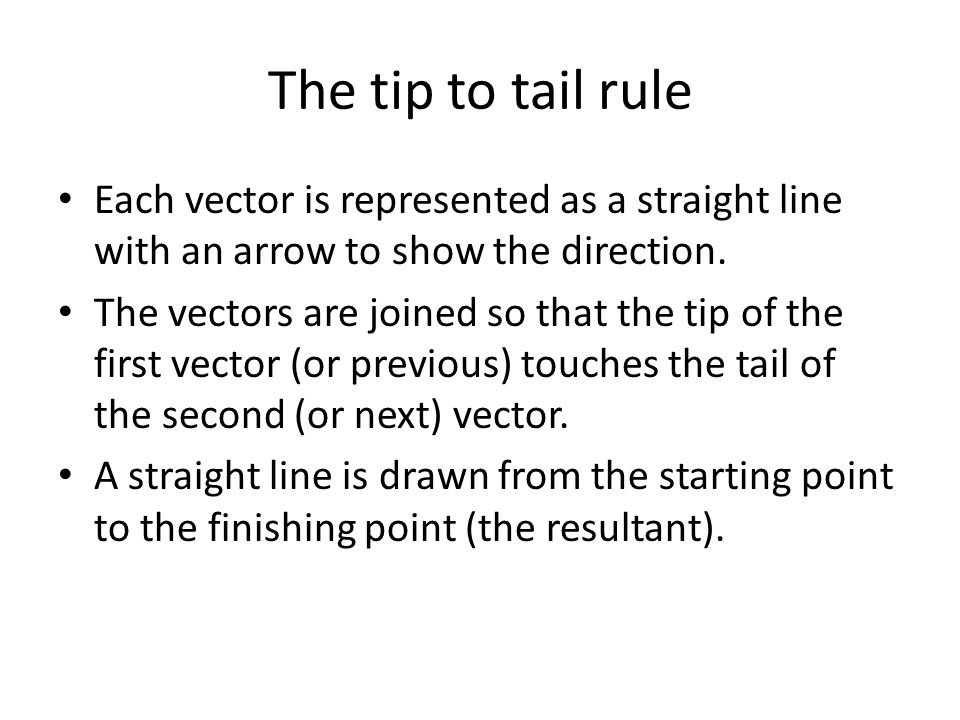

11. The tip to tail rule Each vector is represented as a straight line with an arrow to show the direction. The vectors are joined so that the tip of the first vector (or previous) touches the tail of the second (or next) vector. A straight line is drawn from the starting point to the finishing point (the resultant).

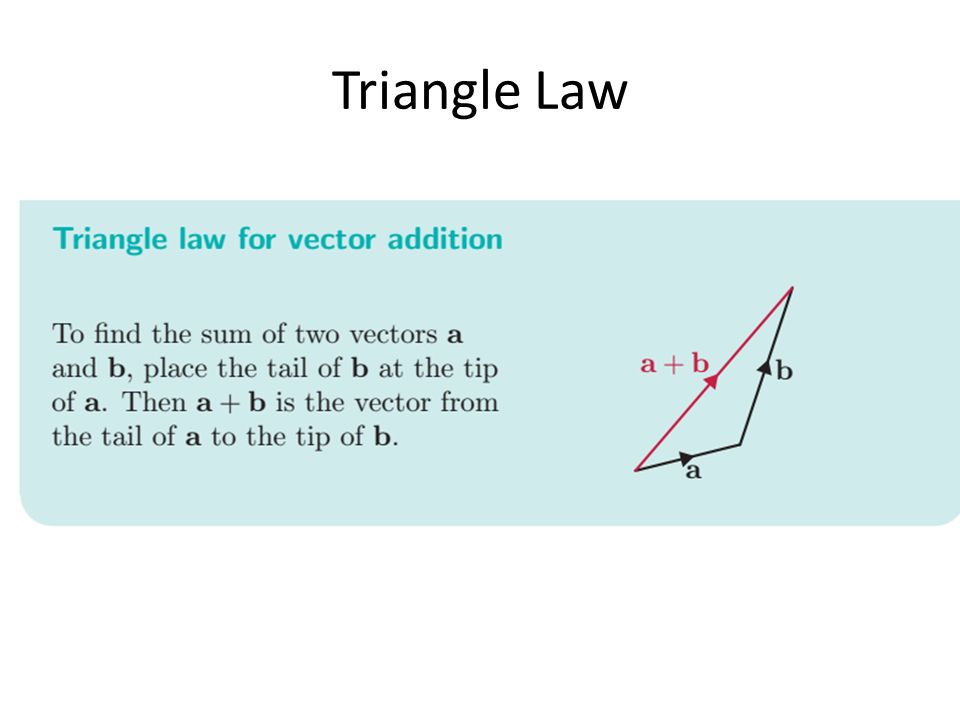

13. Triangle Law

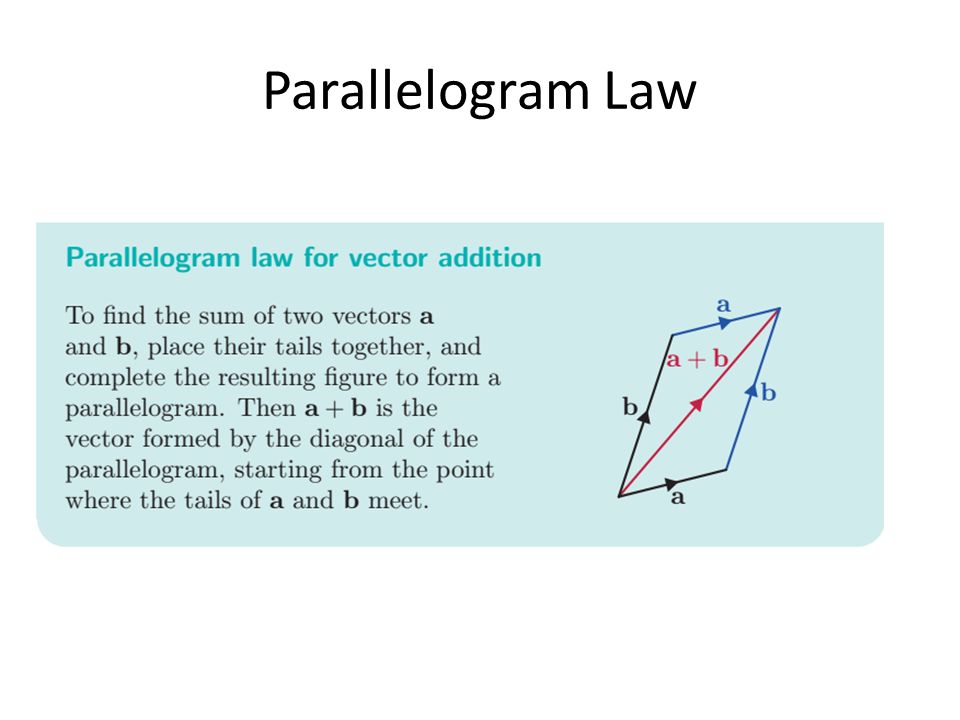

14. Parallelogram Law

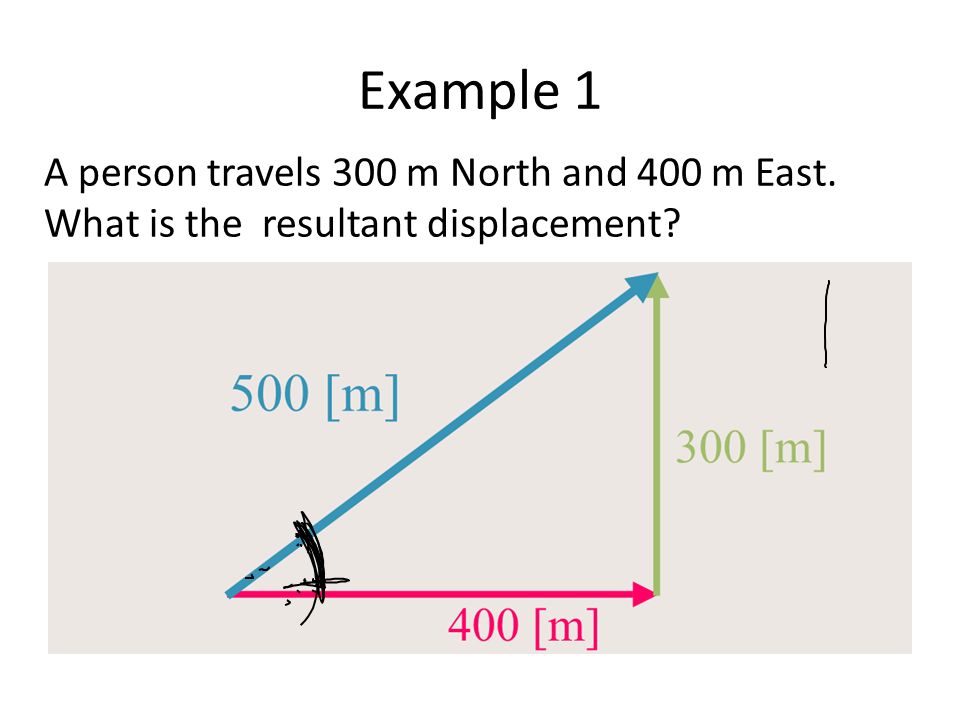

15. Example 1 A person travels 300 m North and 400 m East. What is the resultant displacement?

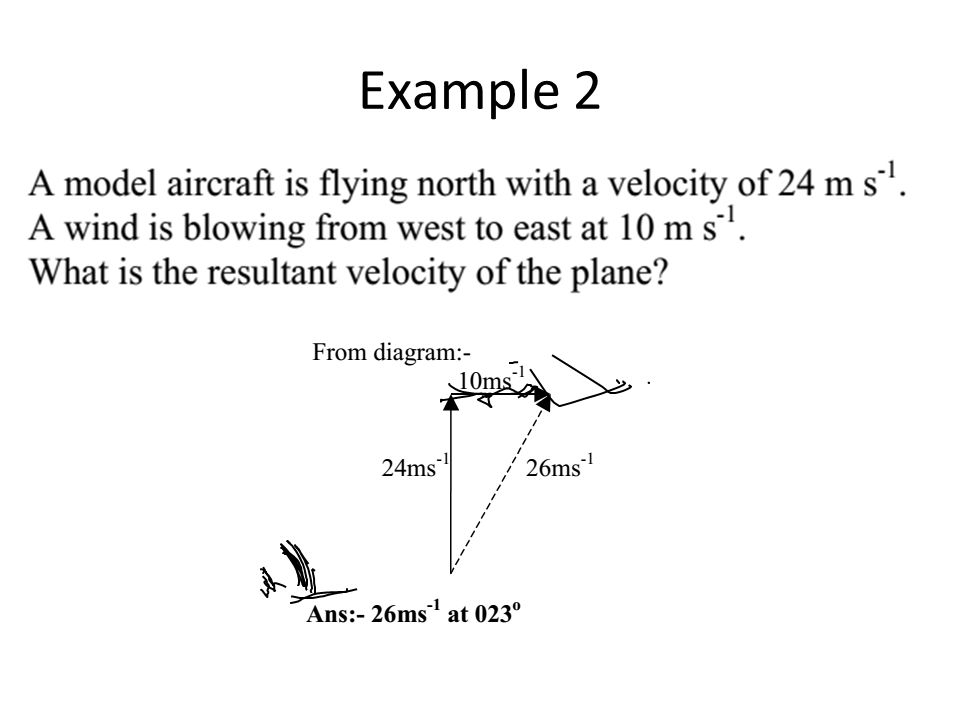

16. Example 2
