A soccer ball has a velocity of 4m/s. How far does the ball travel in 3 seconds?

Similar presentations


Presentation on theme: "A soccer ball has a velocity of 4m/s. How far does the ball travel in 3 seconds?"— Presentation transcript:

1

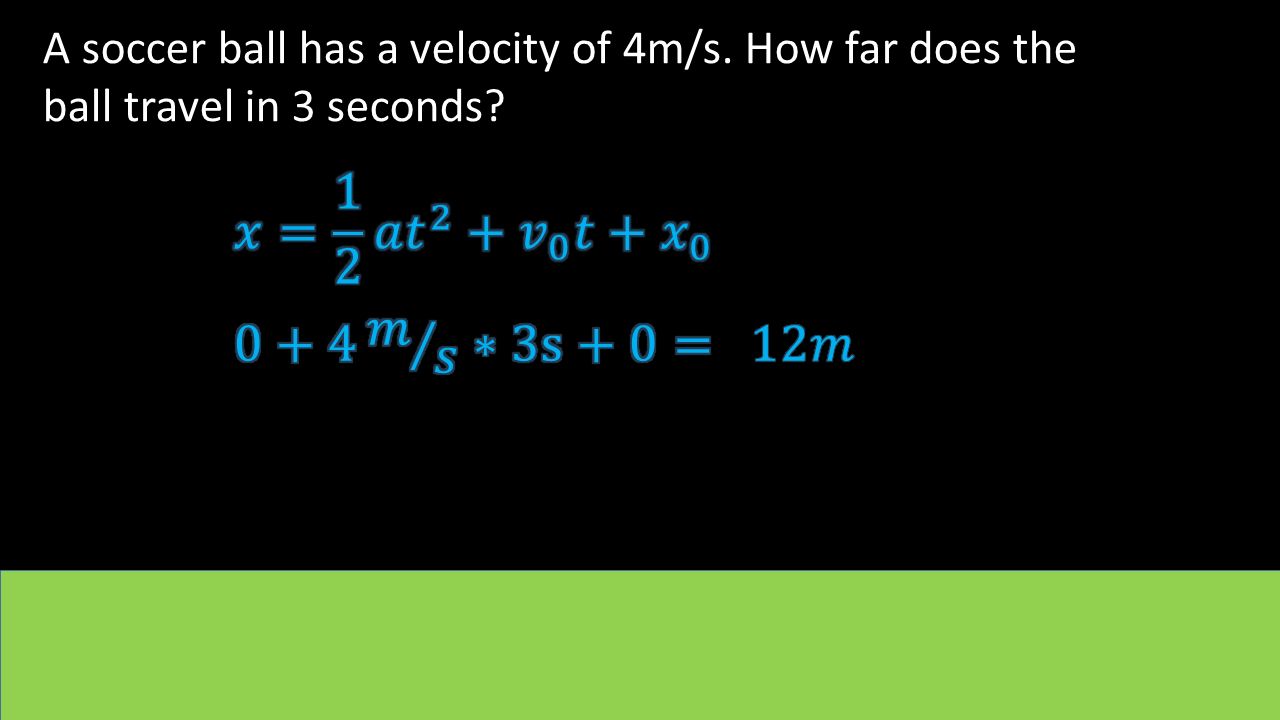

2 A soccer ball has a velocity of 4m/s. How far does the ball travel in 3 seconds?

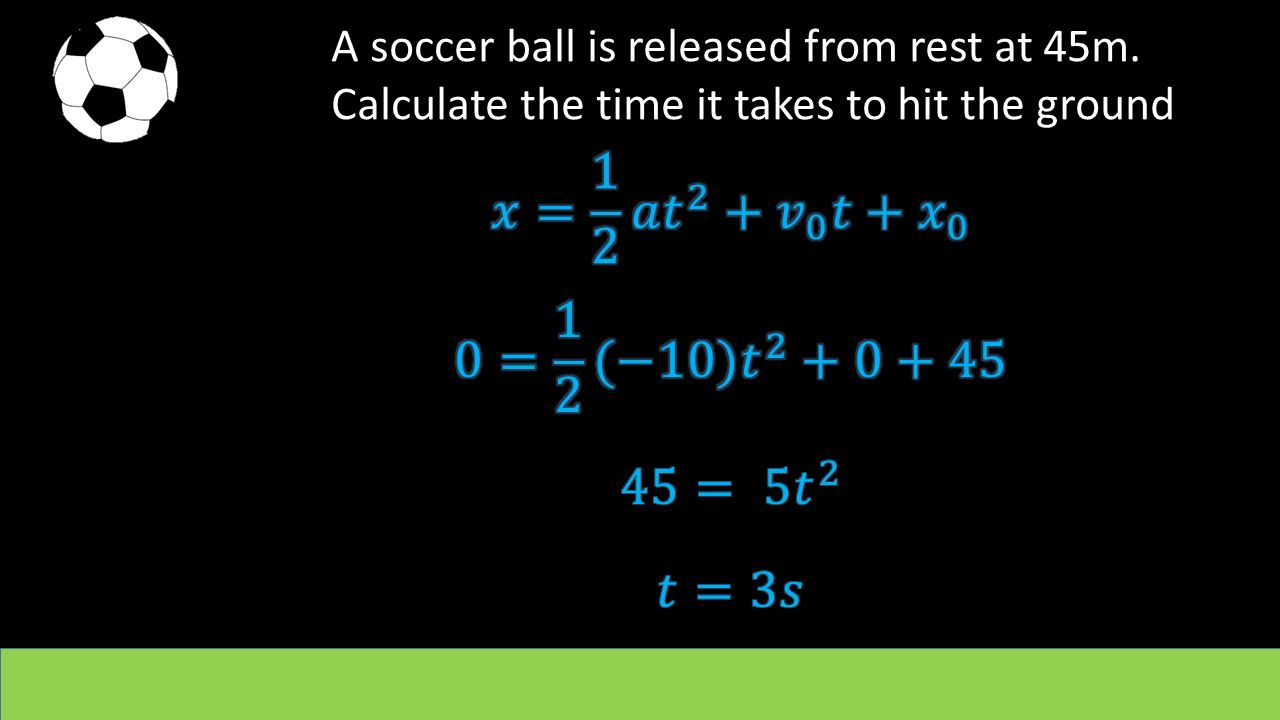

3 A soccer ball is released from rest at 45m. Calculate the time it takes to hit the ground

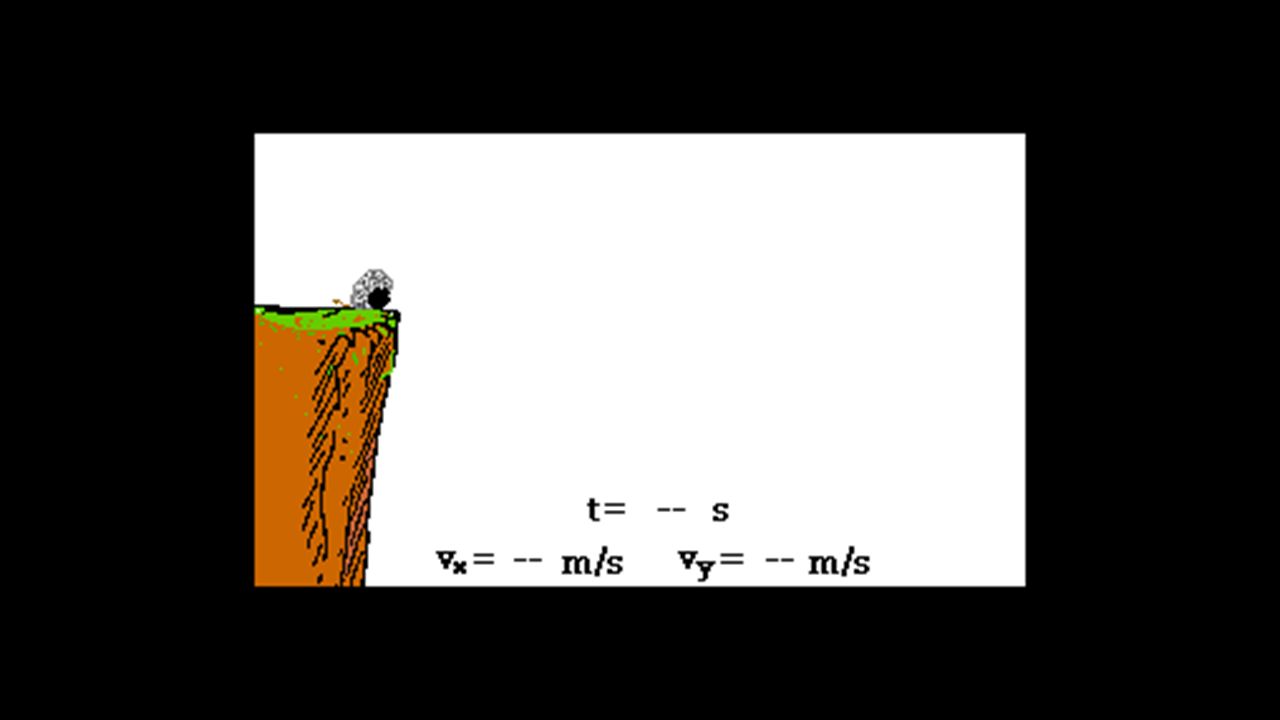

4

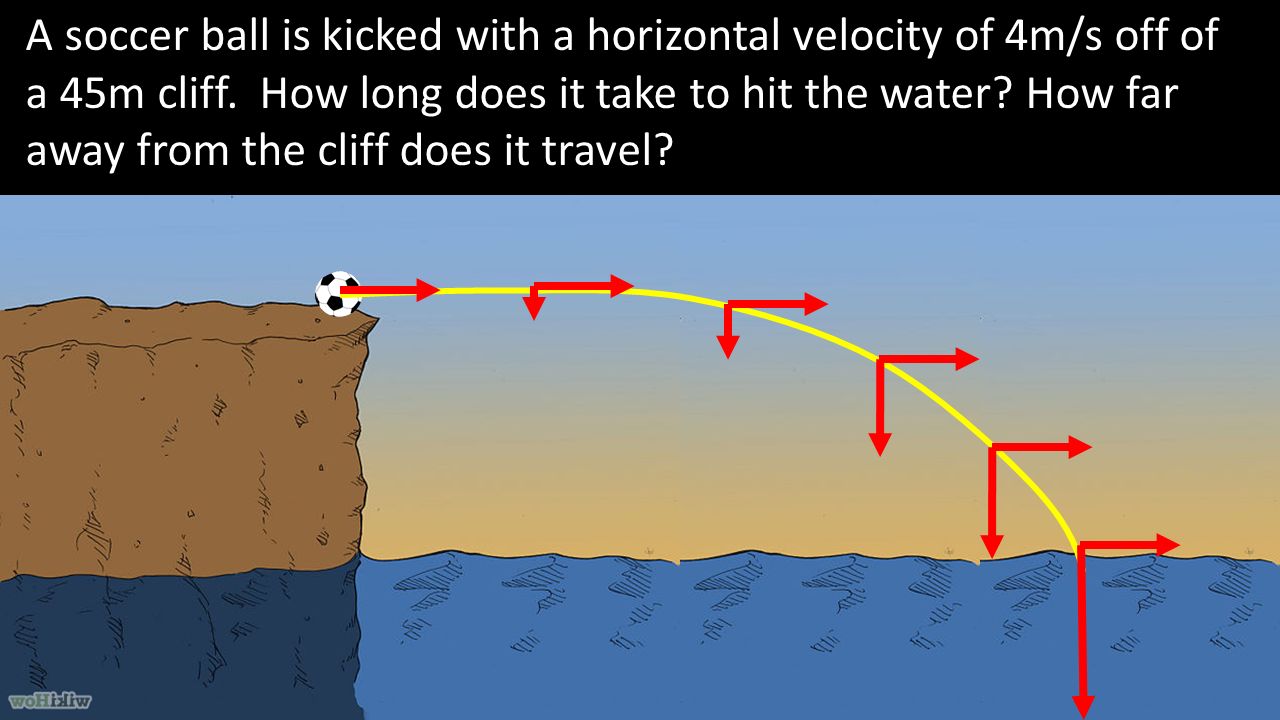

5 A soccer ball is kicked with a horizontal velocity of 4m/s off of a 45m cliff. How long does it take to hit the water? How far away from the cliff does it travel?

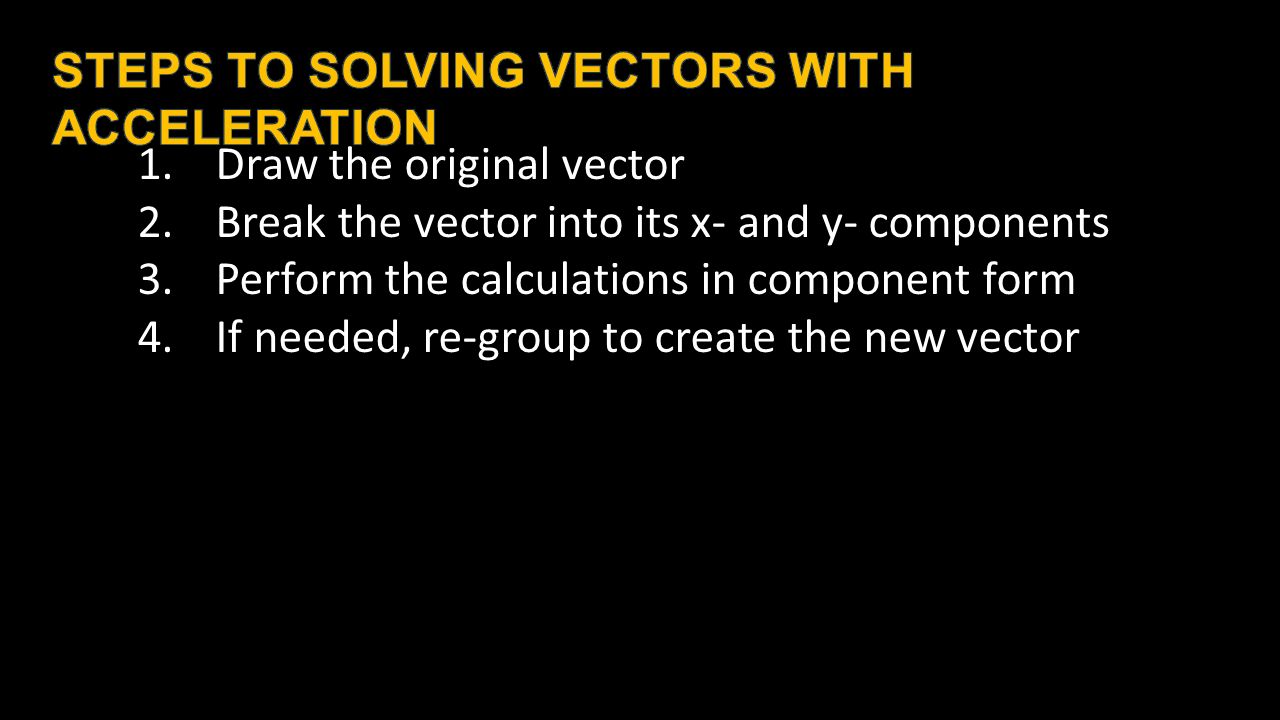

6 1.Draw the original vector 2.Break the vector into its x- and y- components 3.Perform the calculations in component form 4.If needed, re-group to create the new vector

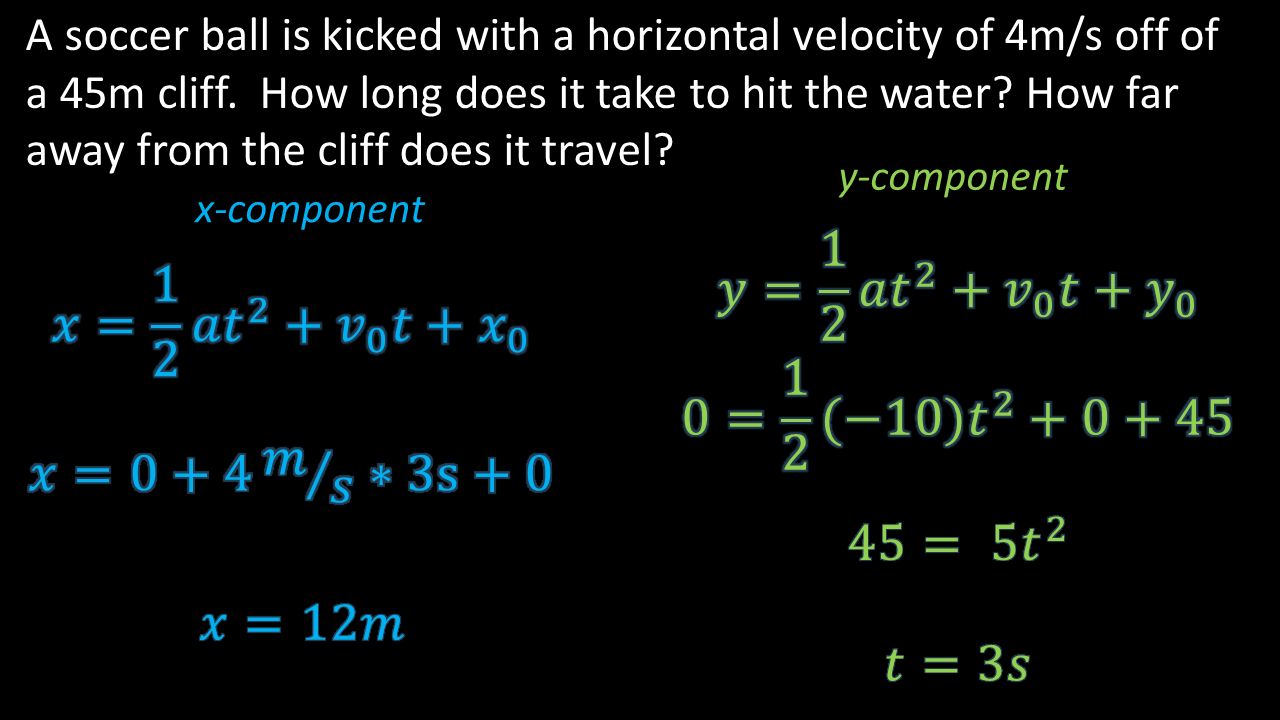

7 A soccer ball is kicked with a horizontal velocity of 4m/s off of a 45m cliff. How long does it take to hit the water? How far away from the cliff does it travel? x-component y-component

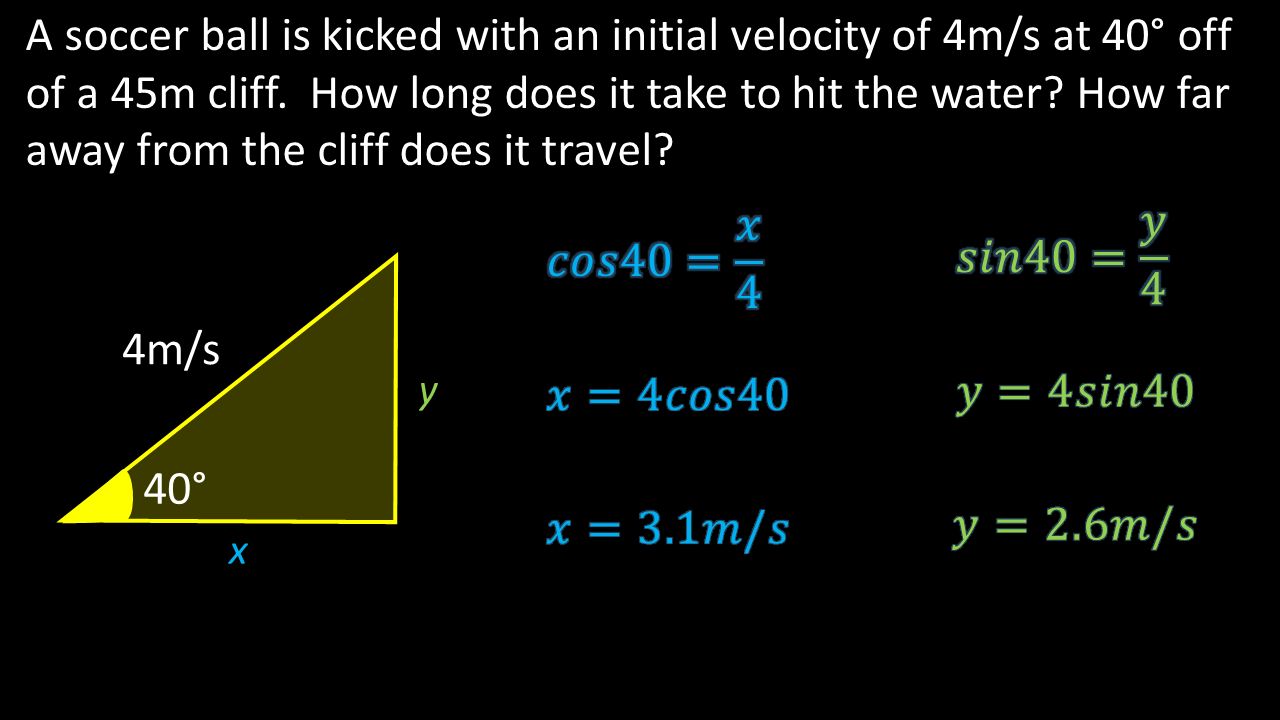

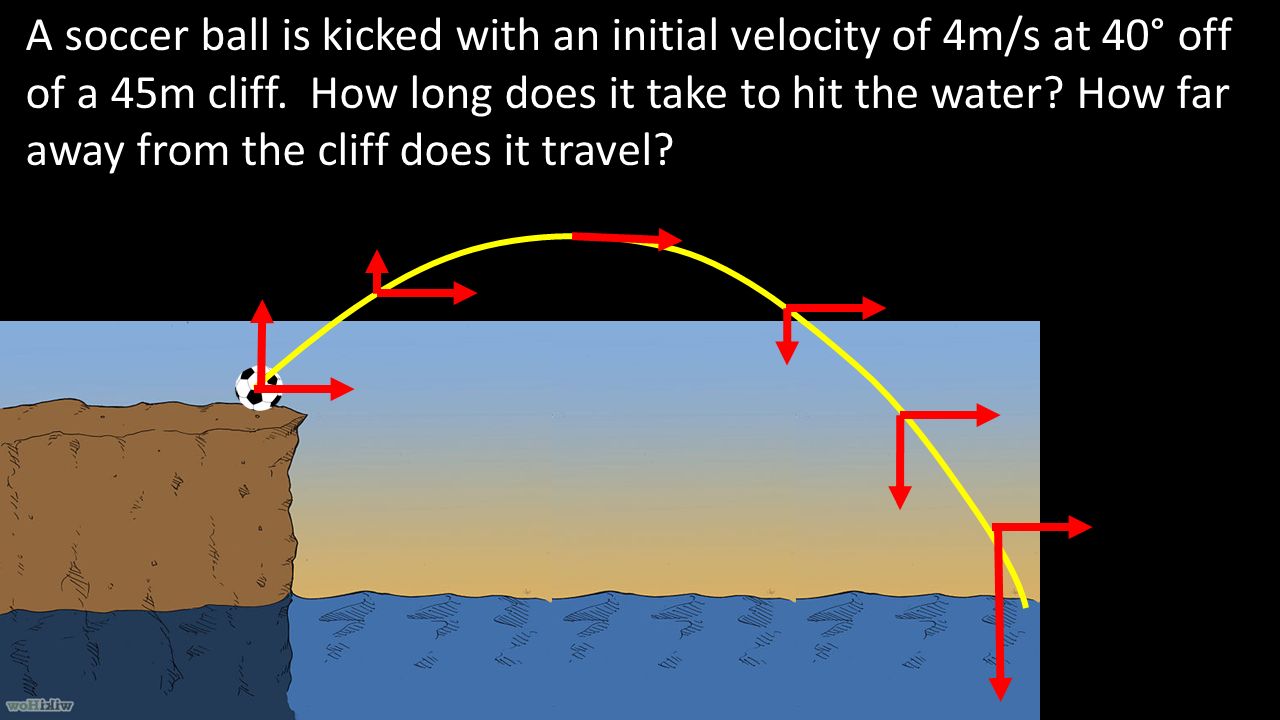

8 A soccer ball is kicked with an initial velocity of 4m/s at 40° off of a 45m cliff. How long does it take to hit the water? How far away from the cliff does it travel?

9 4m/s 40° x y

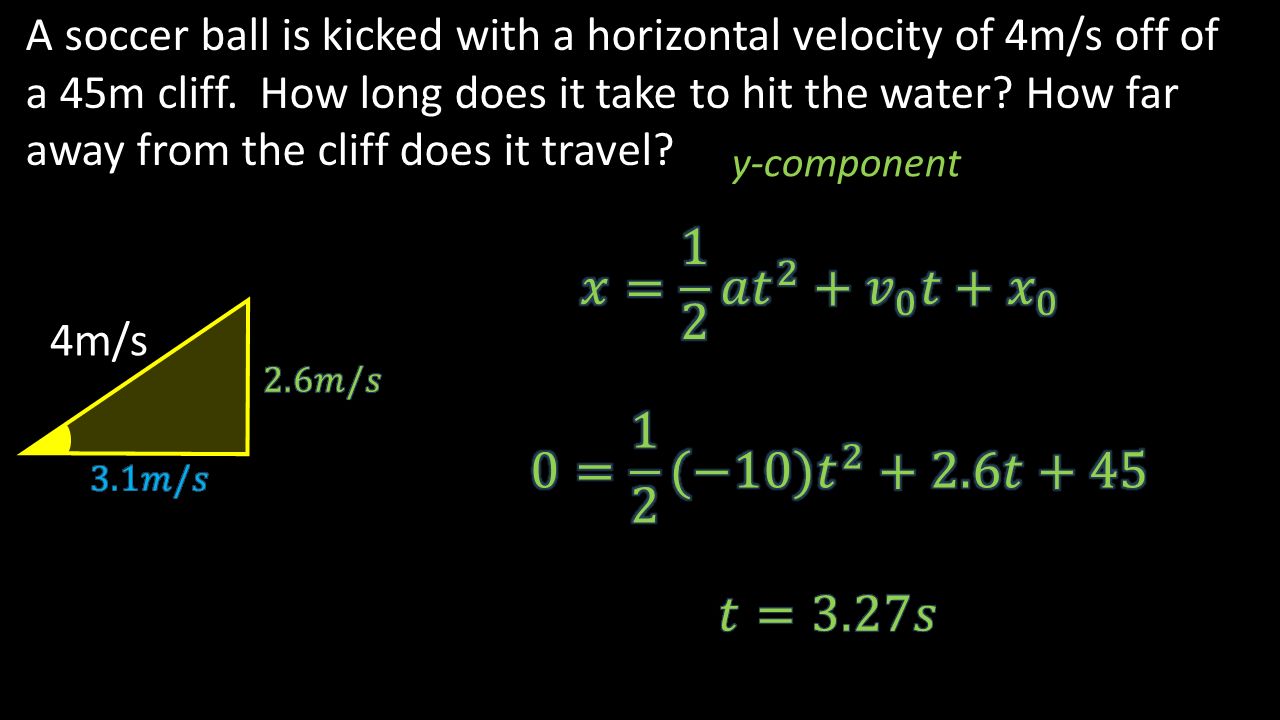

10 A soccer ball is kicked with a horizontal velocity of 4m/s off of a 45m cliff. How long does it take to hit the water? How far away from the cliff does it travel? y-component 4m/s

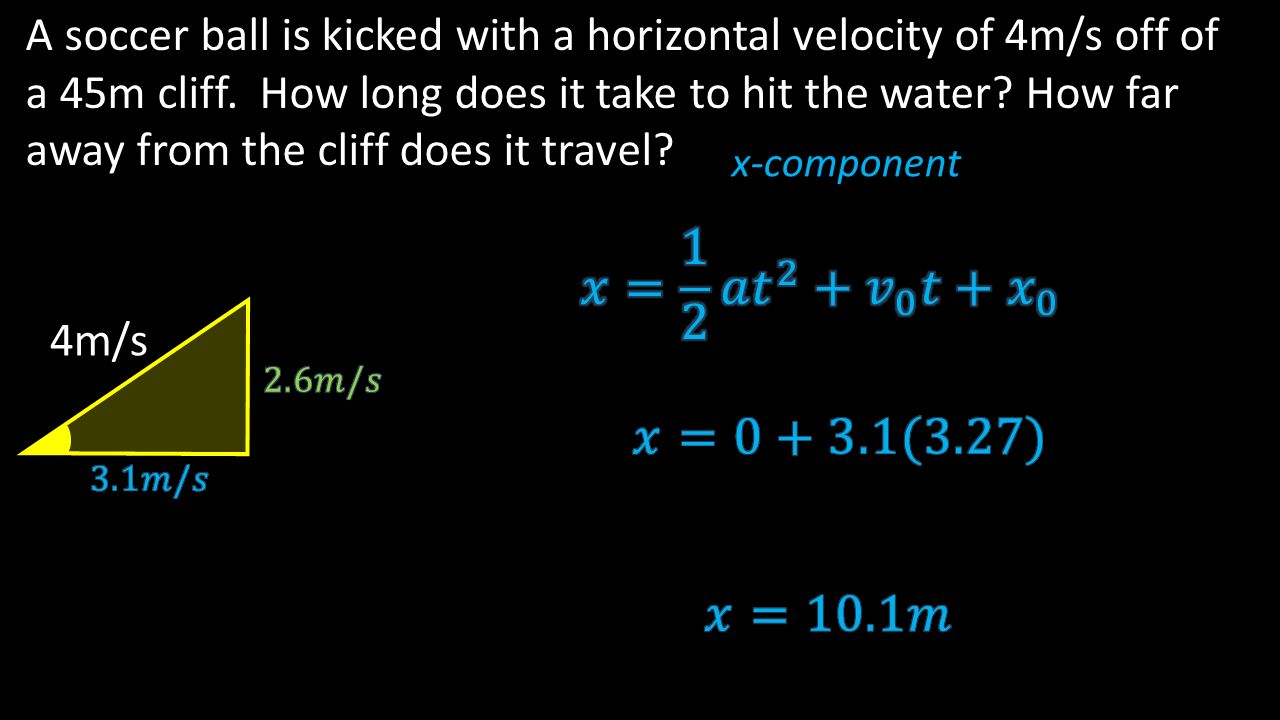

11 A soccer ball is kicked with a horizontal velocity of 4m/s off of a 45m cliff. How long does it take to hit the water? How far away from the cliff does it travel? x-component 4m/s
