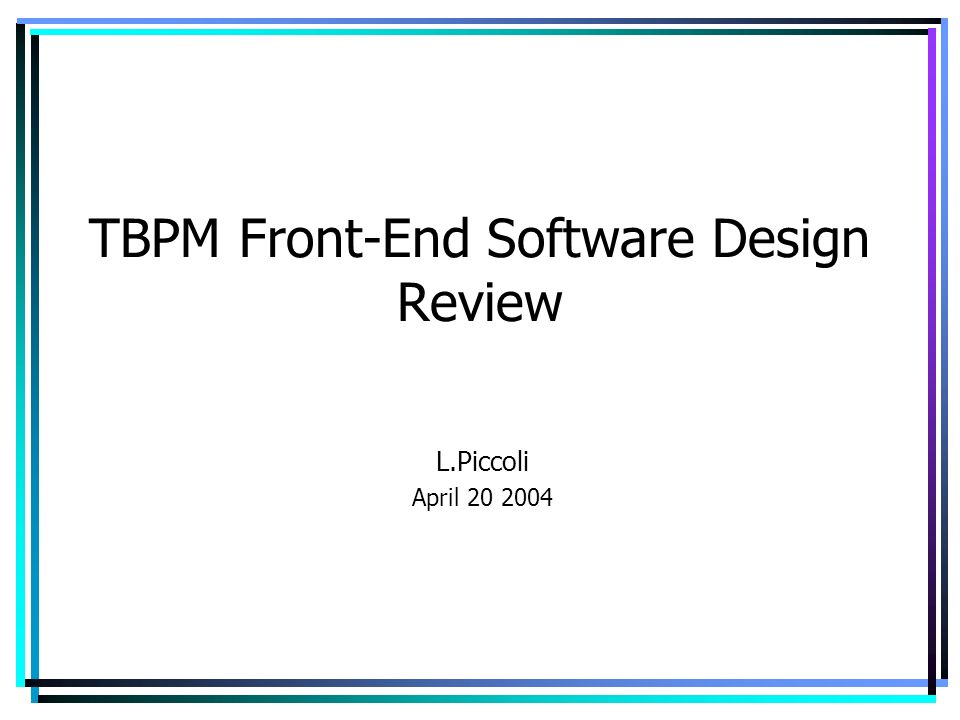

1. TBPM Front-End Software Design Review L.Piccoli April 20 2004

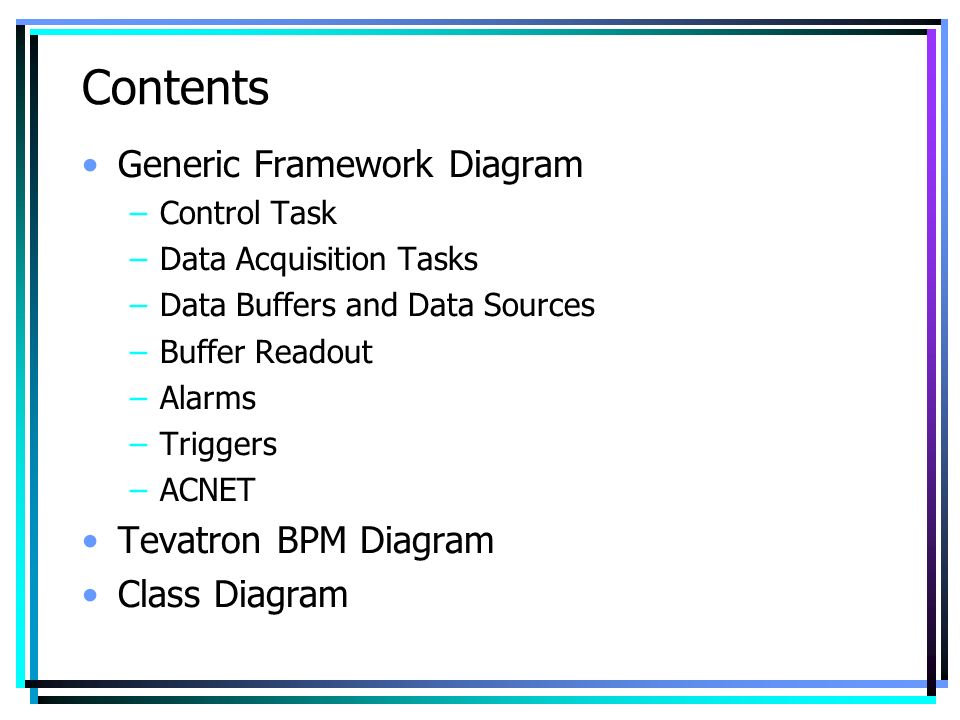

2. Contents Generic Framework Diagram –Control Task –Data Acquisition Tasks –Data Buffers and Data Sources –Buffer Readout –Alarms –Triggers –ACNET Tevatron BPM Diagram Class Diagram

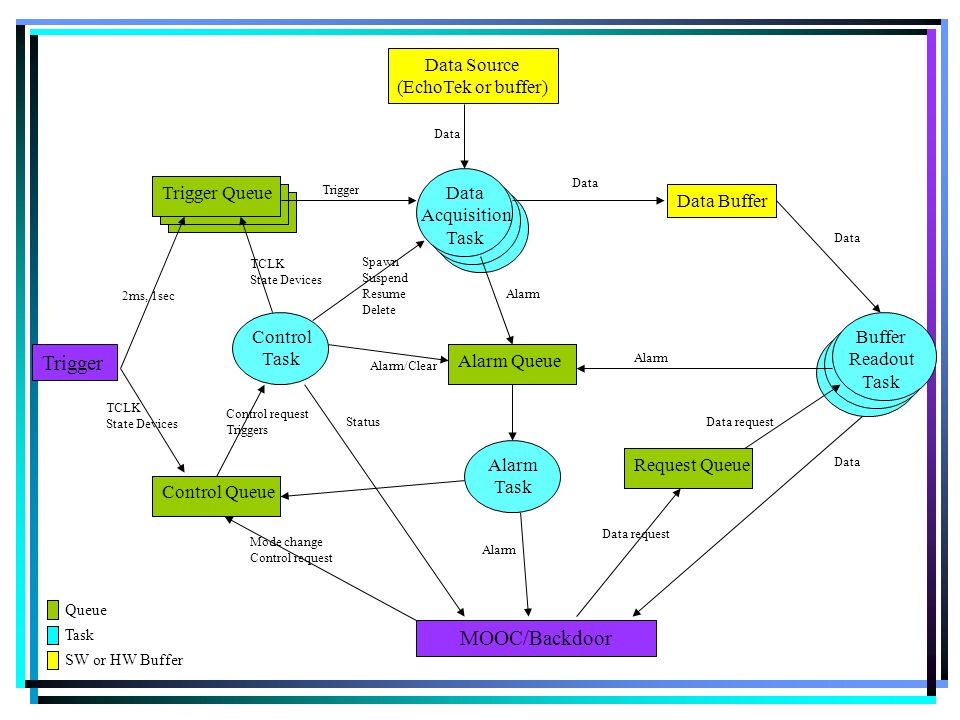

3. Data Acquisition Task Trigger Queue Trigger Data Source (EchoTek or buffer) MOOC/Backdoor Control Queue Alarm Queue Alarm Task Request Queue 2ms, 1sec TCLK State Devices TCLK State Devices Spawn Suspend Resume Delete Data Control request Triggers Status Alarm/Clear Alarm Trigger Data Data request Mode change Control request Data request Alarm Buffer Readout Task Data Buffer Control Task Queue Task SW or HW Buffer

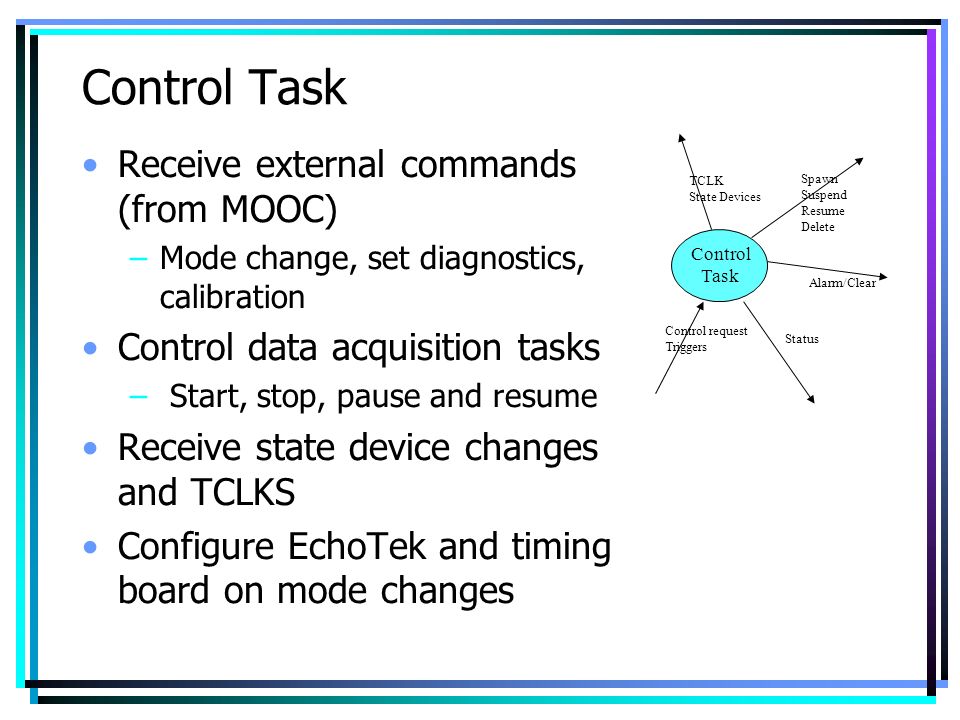

4. Control Task Receive external commands (from MOOC) –Mode change, set diagnostics, calibration Control data acquisition tasks – Start, stop, pause and resume Receive state device changes and TCLKS Configure EchoTek and timing board on mode changes TCLK State Devices Spawn Suspend Resume Delete Control request Triggers Status Alarm/Clear Control Task

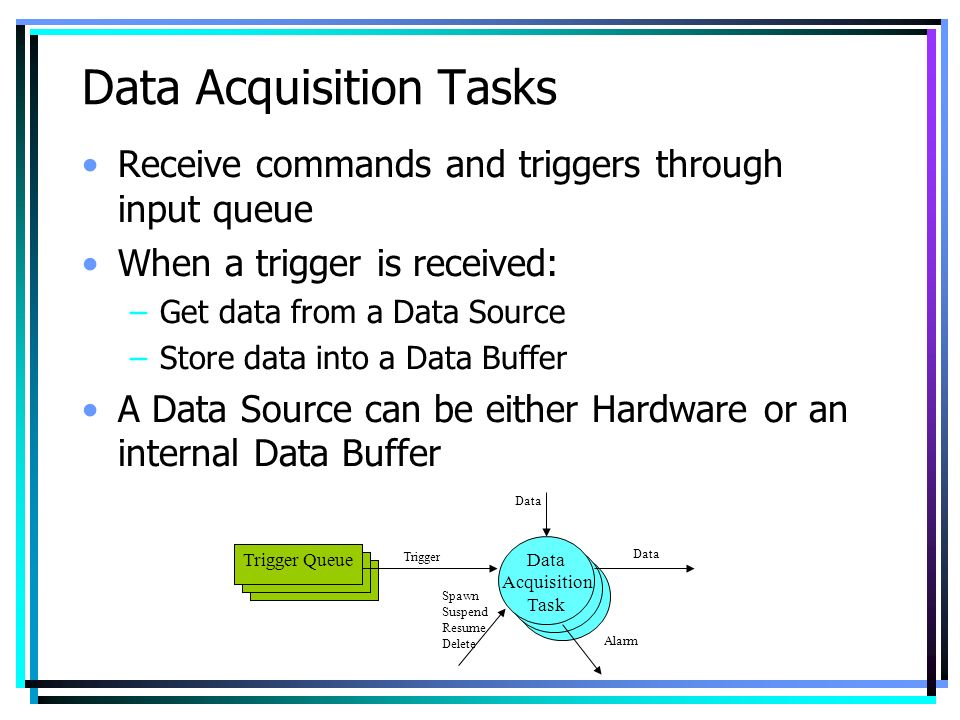

5. Data Acquisition Tasks Receive commands and triggers through input queue When a trigger is received: –Get data from a Data Source –Store data into a Data Buffer A Data Source can be either Hardware or an internal Data Buffer Data Acquisition Task Trigger Queue Spawn Suspend Resume Delete Data Alarm Trigger

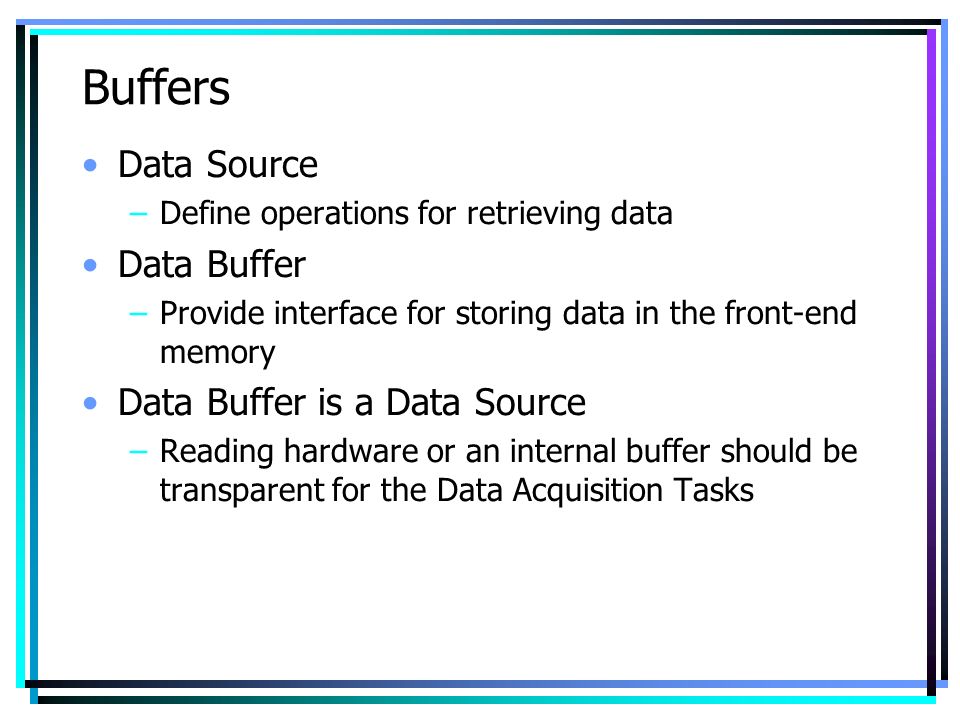

6. Buffers Data Source –Define operations for retrieving data Data Buffer –Provide interface for storing data in the front-end memory Data Buffer is a Data Source –Reading hardware or an internal buffer should be transparent for the Data Acquisition Tasks

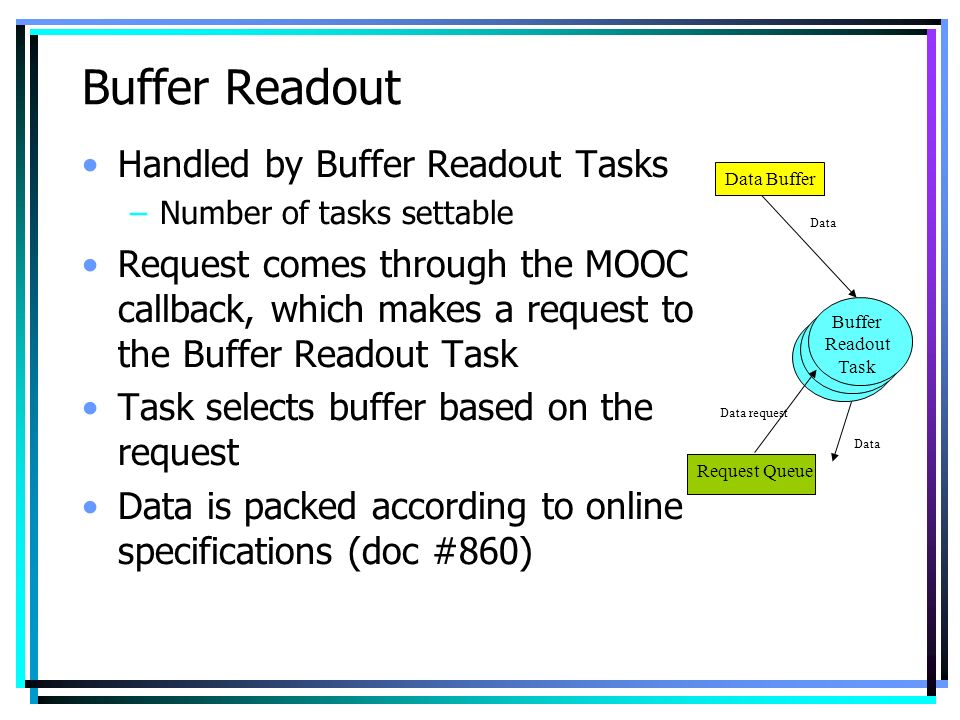

7. Buffer Readout Handled by Buffer Readout Tasks –Number of tasks settable Request comes through the MOOC callback, which makes a request to the Buffer Readout Task Task selects buffer based on the request Data is packed according to online specifications (doc #860) Request Queue Data Data request Buffer Readout Task Data Buffer

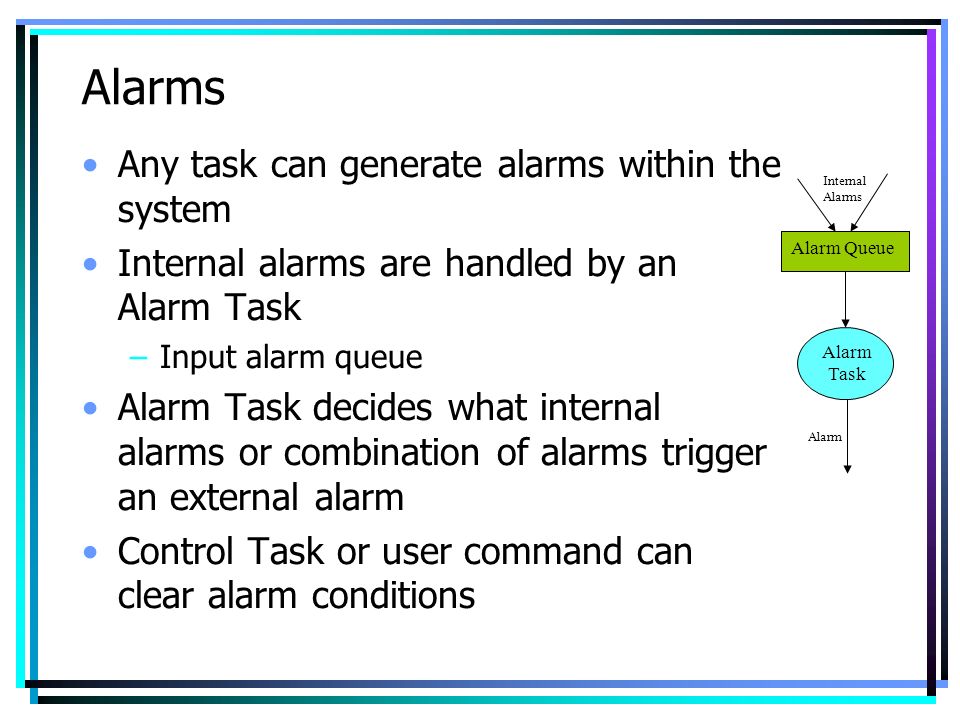

8. Alarms Any task can generate alarms within the system Internal alarms are handled by an Alarm Task –Input alarm queue Alarm Task decides what internal alarms or combination of alarms trigger an external alarm Control Task or user command can clear alarm conditions Alarm Queue Alarm Task Alarm Internal Alarms

9. Triggers Created by Trigger Generators Type of triggers: –TCLKs –State Device Changes –Time events (2 ms, 1 sec) Triggers are sent to the input queues of the Data Acquisition Tasks –Tasks are in a loop doing data acquisition and waiting for triggers Trigger 2ms, 1sec TCLK State Devices

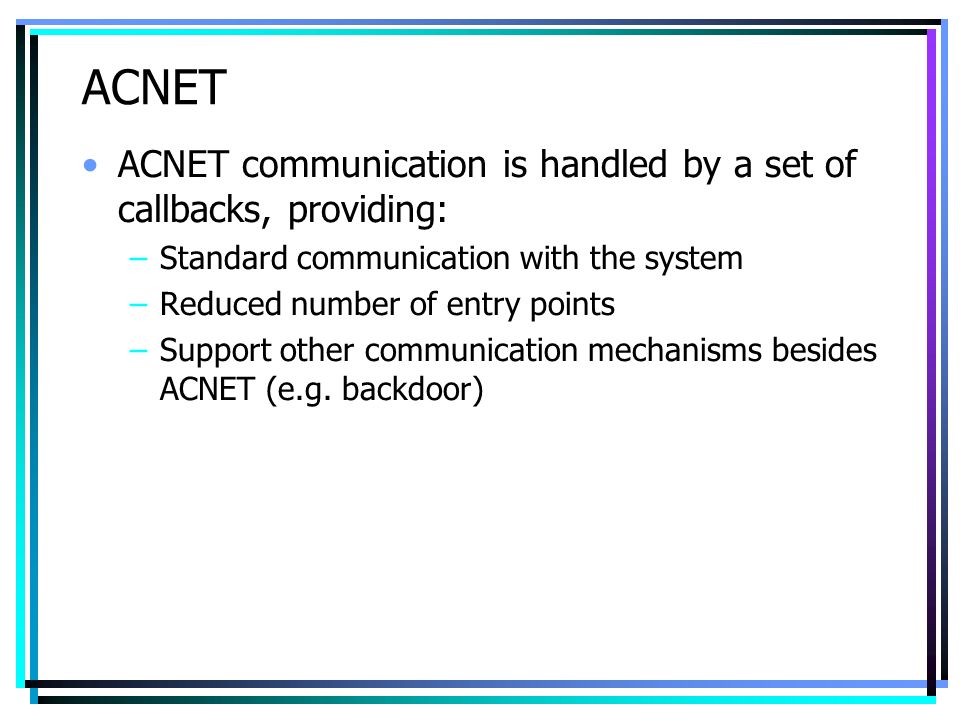

10. ACNET ACNET communication is handled by a set of callbacks, providing: –Standard communication with the system –Reduced number of entry points –Support other communication mechanisms besides ACNET (e.g. backdoor)

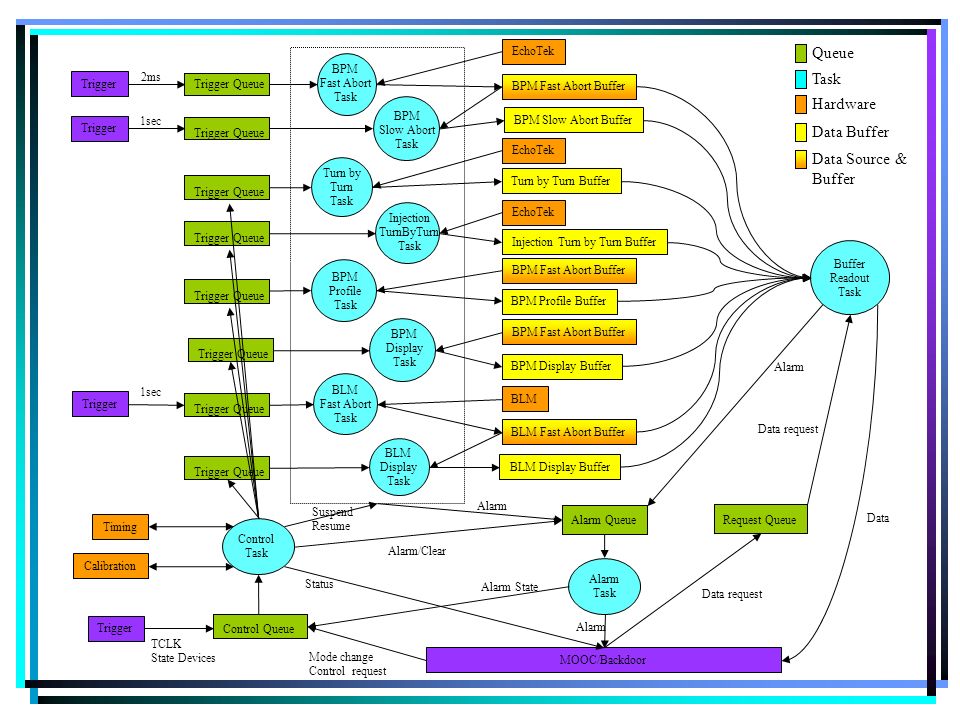

11. Trigger Queue BPM Slow Abort Task BPM Fast Abort Task Trigger MOOC/Backdoor Control Queue Alarm Queue Alarm Task Request Queue TCLK State Devices Suspend Resume Status Alarm/Clear Alarm Data Data request Mode change Control request Data request Alarm Buffer Readout Task 2ms Trigger 1sec Control Task Alarm Trigger Turn by Turn Task BPM Profile Task BPM Display Task Injection TurnByTurn Task BLM Fast Abort Task BLM Display Task 1sec Injection Turn by Turn Buffer BPM Fast Abort Buffer EchoTek BPM Slow Abort Buffer Turn by Turn Buffer EchoTek BPM Fast Abort Buffer BPM Profile Buffer BPM Fast Abort Buffer BPM Display Buffer BLM BLM Fast Abort Buffer BLM Display Buffer EchoTek Trigger Queue Trigger Timing Calibration Queue Task Hardware Data Buffer Data Source & Buffer Alarm State

12. Software Portability Generic framework allows reusability of: –Data acquisition model –Data buffer model –Control model –Event model –Alarm system Only classes that contain code for the new environment need to be written: –Define control operations (mode change, hardware configuration) –Define data types and structures –Hardware access classes –Specific data acquisition routines –Alarm conditions

13. Class Diagram
