Parent LINEAR Function Start at the Origin 1 2 1 2 Symmetry with Respect to the Origin.

Similar presentations


Presentation on theme: "Parent LINEAR Function Start at the Origin 1 2 1 2 Symmetry with Respect to the Origin."— Presentation transcript:

1

2

3

4 Parent LINEAR Function Start at the Origin 1 2 1 2 Symmetry with Respect to the Origin

5 Parent QUADRATIC Function Start at the Origin 1 2 1 4 Symmetry with Respect to the y-axis

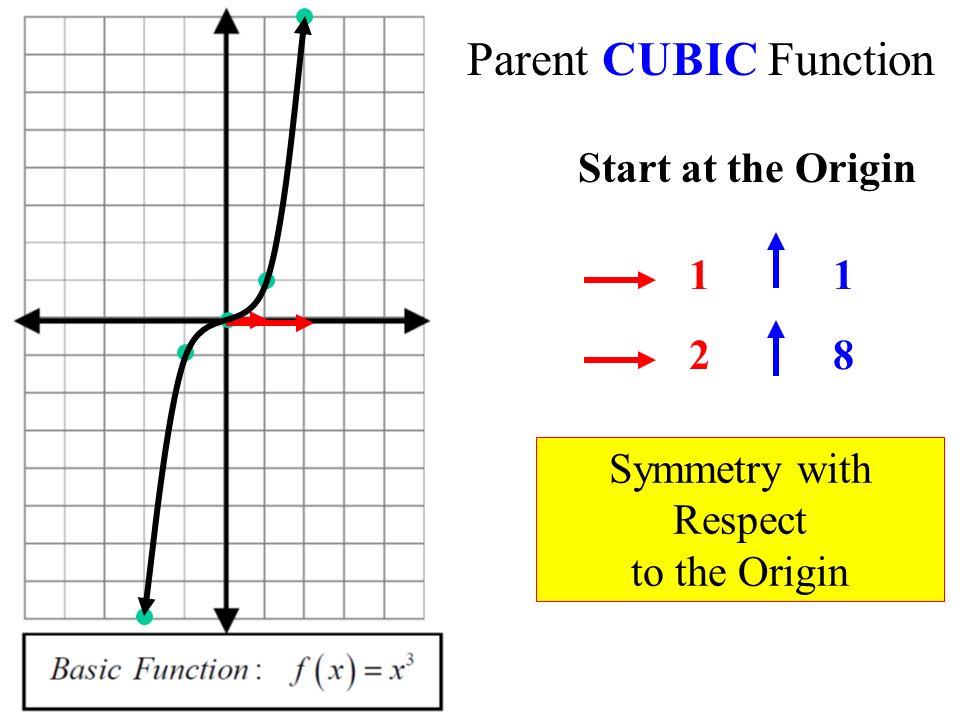

6 Parent CUBIC Function Start at the Origin 1 2 1 8 Symmetry with Respect to the Origin

7 Parent SQUARE ROOT Function Start at the Origin 1 4 1 2 NO Symmetry

8 Parent ABSOLUTE VALUE Function Start at the Origin 1 2 1 2 Symmetry with Respect to the y-axis

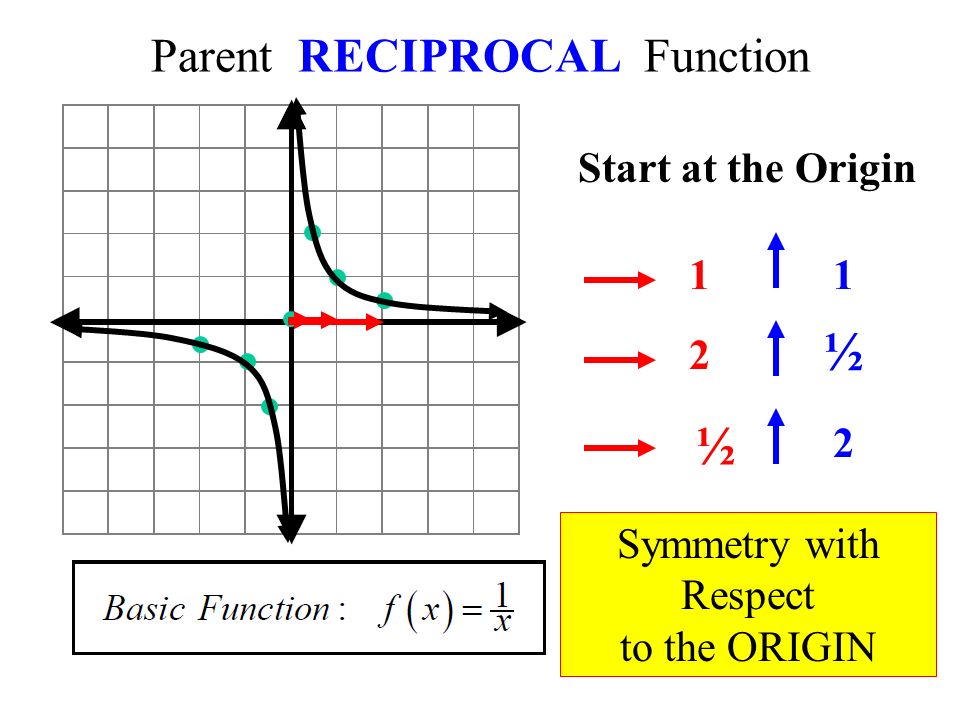

9 Parent RECIPROCAL Function Start at the Origin 1 2 1 ½ Symmetry with Respect to the ORIGIN ½ 2

10

11 Represent The BASIC Function Represents a Transformation of the BASIC Function

12 d Translates the x-axis up or down

13 d > 0 d < 0

14 c Translates the y-axis left or right

15 2 Units The direction of the translation depends on when c Translates the y-axis left or right

16 2 Units The direction of the translation depends on when c Translates the y-axis left or right

17 2 Units

18 a Is the DILATION FACTOR

19 Determines the number of spaces you need to go up or down to get back on the graph

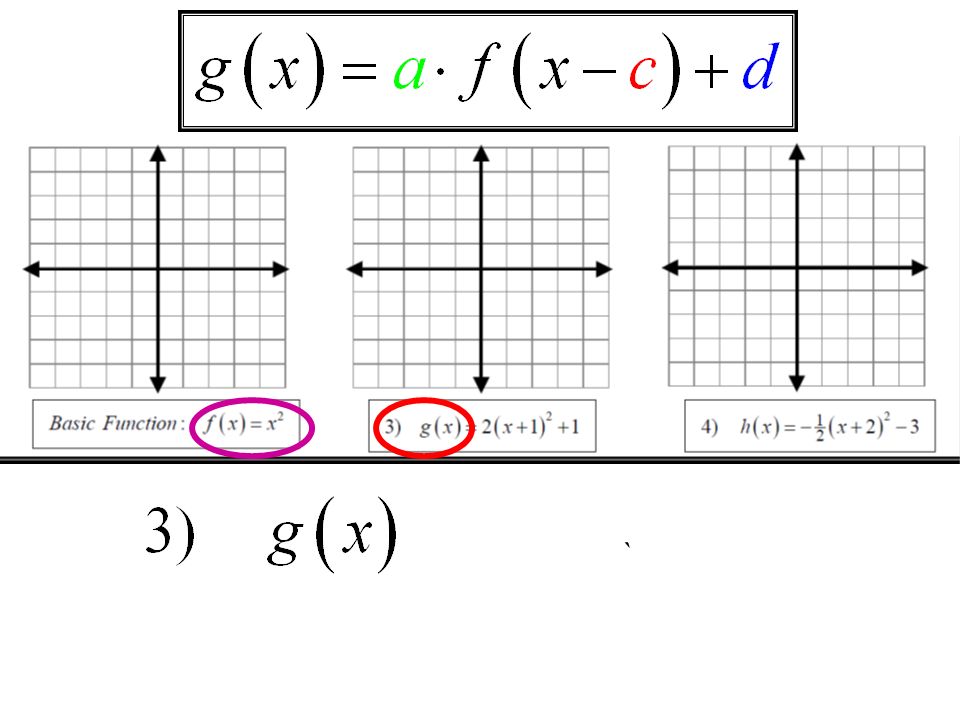

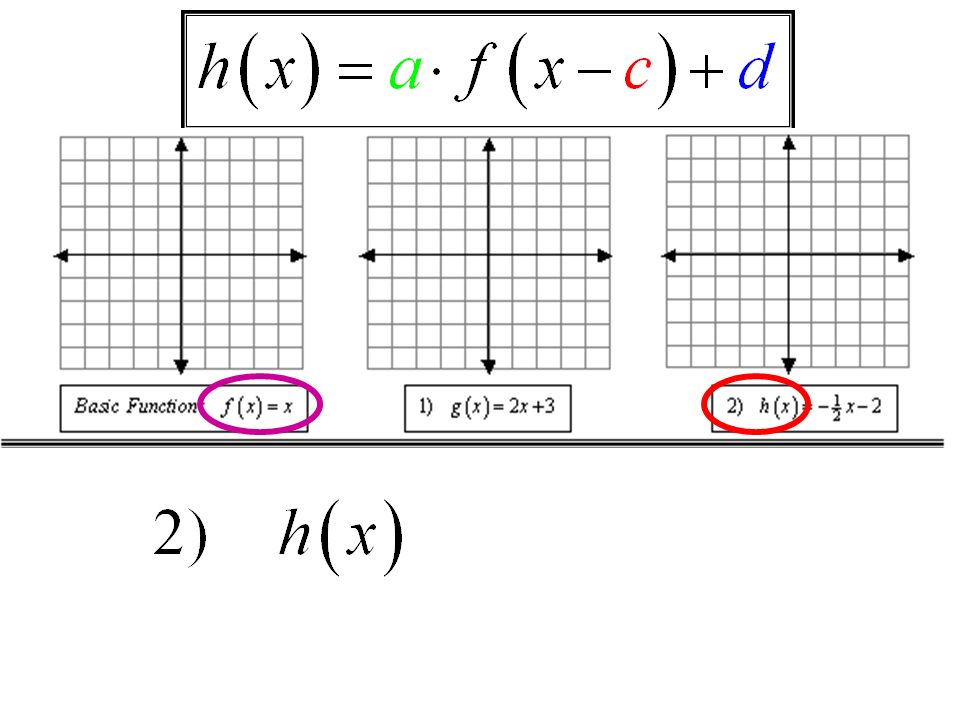

20 Transformation Worksheet

21

22

23

24

25

26

27 `

28

29

30

31

32

33

34

35

36

37

38

39

40 Translate the x-axis up or down Translate the y-axis left or right Graph Using The Properties of the Basic Function & Applying The DILATION FACTOR

41

42 d

43 Translated Origin

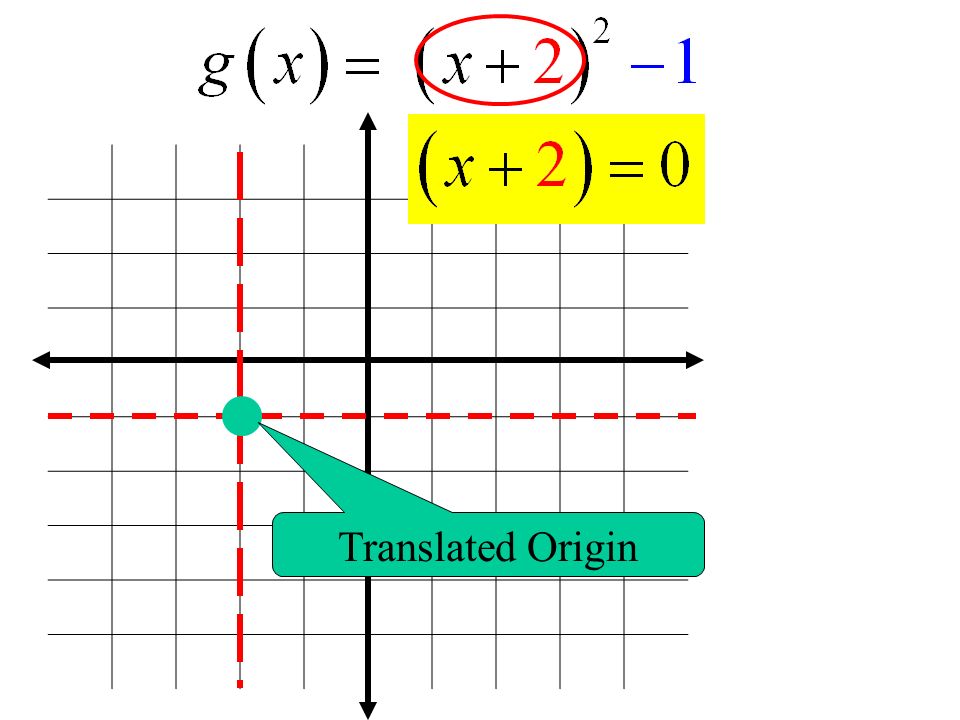

44 a

45 Symmetry with respect to the Translated y-axis

46

47 d

48

49 Translated Origin

50 a

51 Up 1 x 3

52 Up 4 x 3 Off The Graph

53 Symmetry with respect to the Translated y-axis

54

55

56 d

57

58 Translated Origin

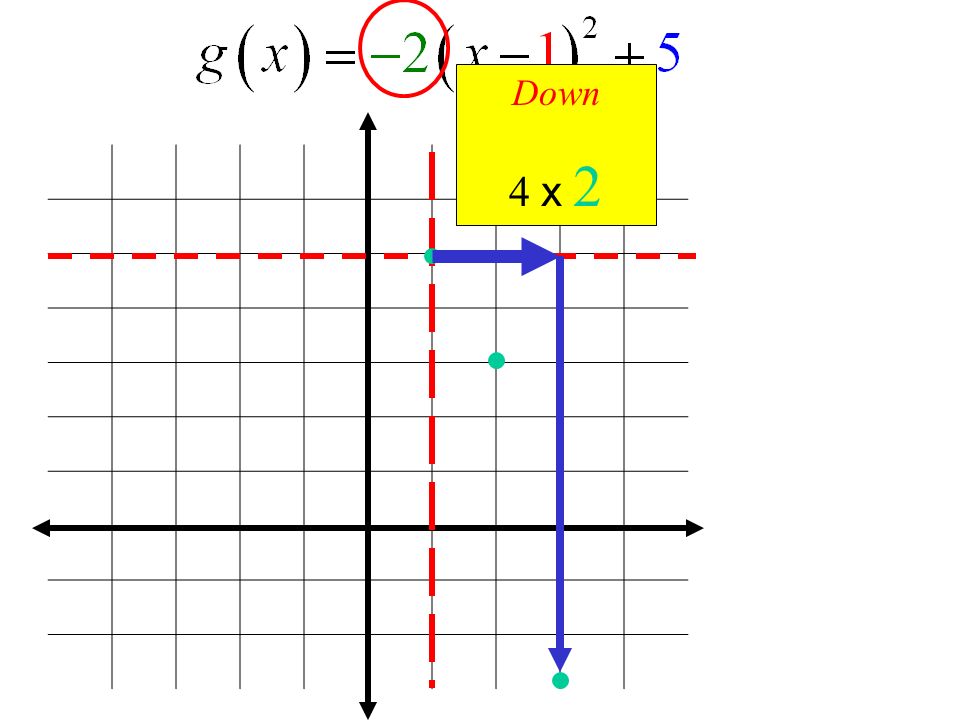

59 Down 1 x 2

60 Down 4 x 2

61 Symmetry with respect to the Translated y-axis

62
