1. MACHINE LEARNING COURSE Instructor Dr. Ricardo Vilalta

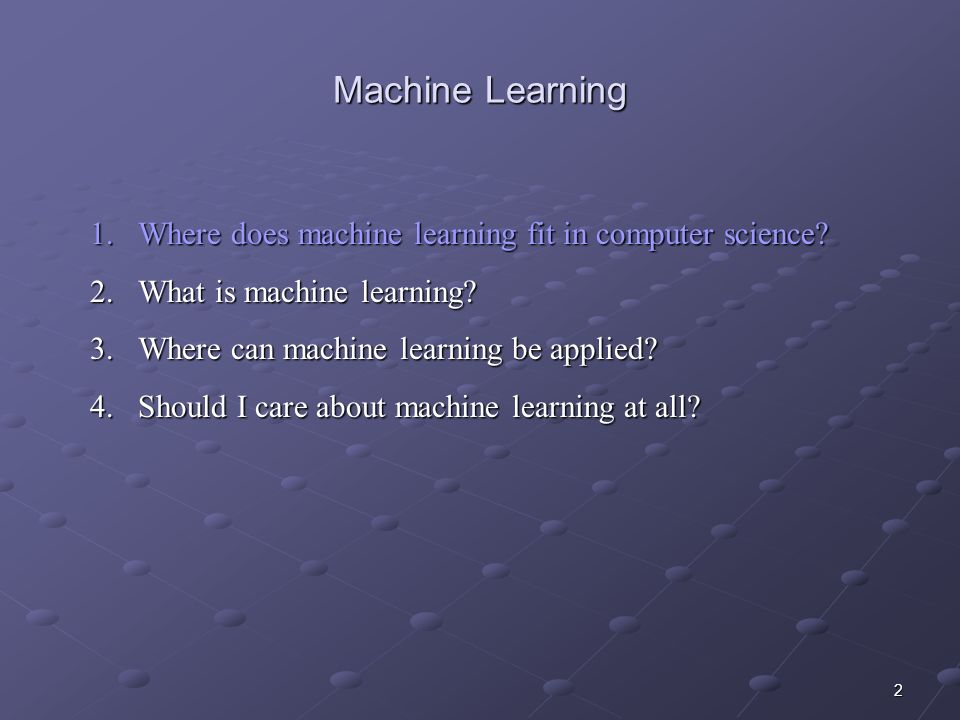

2. 2 Machine Learning 1.Where does machine learning fit in computer science? 2.What is machine learning? 3.Where can machine learning be applied? 4.Should I care about machine learning at all?

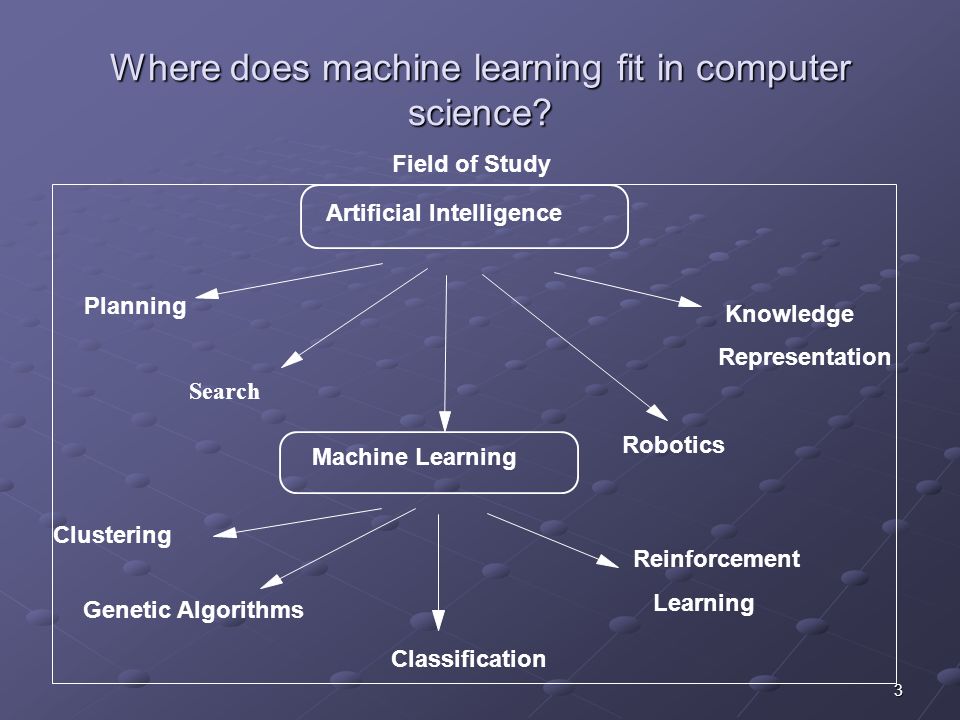

3. 3 Where does machine learning fit in computer science? Search Artificial Intelligence Planning Knowledge Representation Machine Learning Robotics Clustering Classification Genetic Algorithms Reinforcement Learning Field of Study

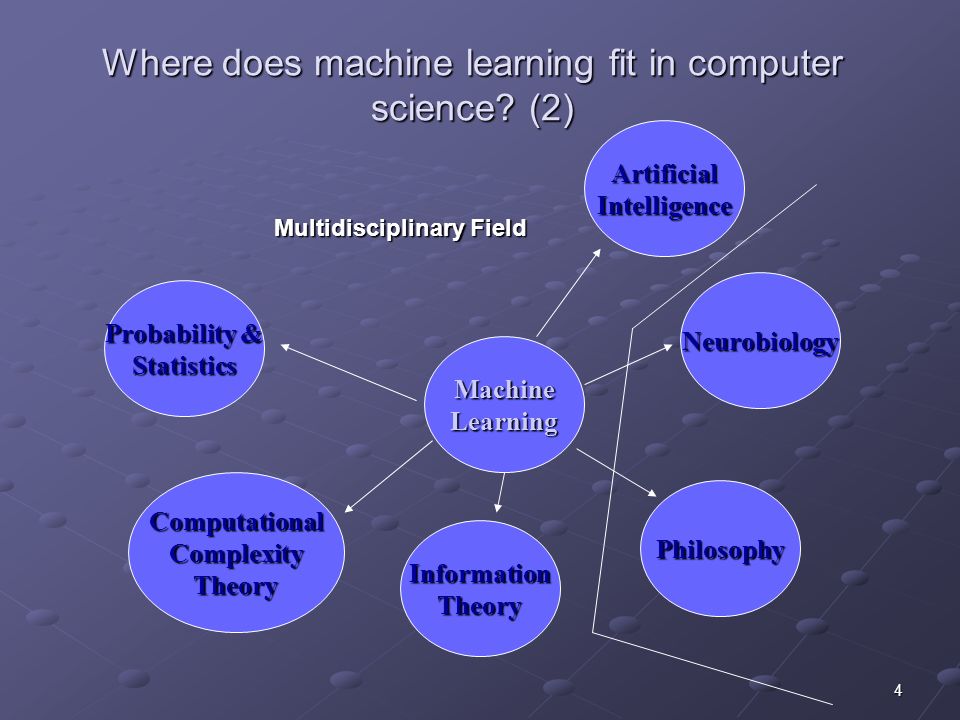

4. 4 Where does machine learning fit in computer science? (2) MachineLearning Probability & Statistics ComputationalComplexityTheory InformationTheory Philosophy Neurobiology ArtificialIntelligence Multidisciplinary Field

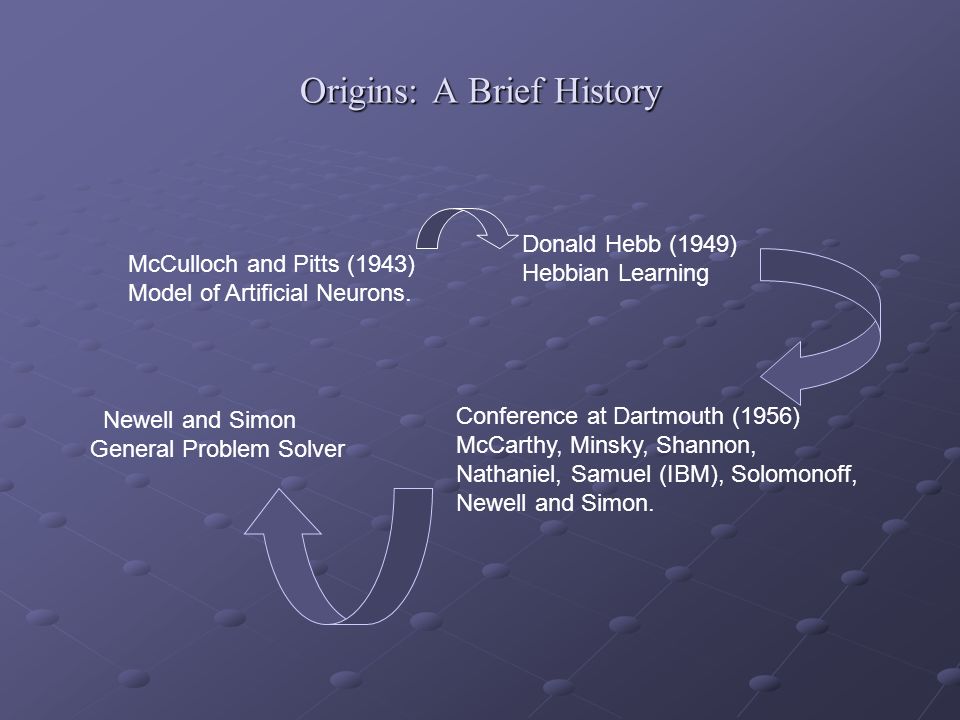

5. Origins: A Brief History McCulloch and Pitts (1943) Model of Artificial Neurons. Donald Hebb (1949) Hebbian Learning Conference at Dartmouth (1956) McCarthy, Minsky, Shannon, Nathaniel, Samuel (IBM), Solomonoff, Newell and Simon. Newell and Simon General Problem Solver

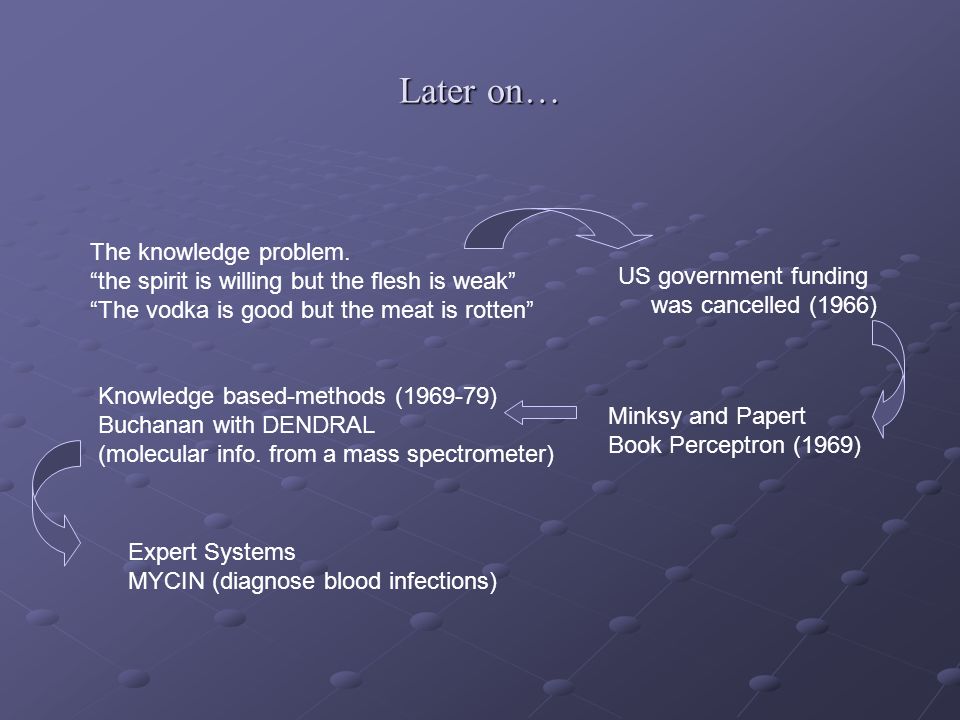

6. Later on… The knowledge problem. “the spirit is willing but the flesh is weak” “The vodka is good but the meat is rotten” US government funding was cancelled (1966) Minksy and Papert Book Perceptron (1969) Knowledge based-methods (1969-79) Buchanan with DENDRAL (molecular info. from a mass spectrometer) Expert Systems MYCIN (diagnose blood infections)

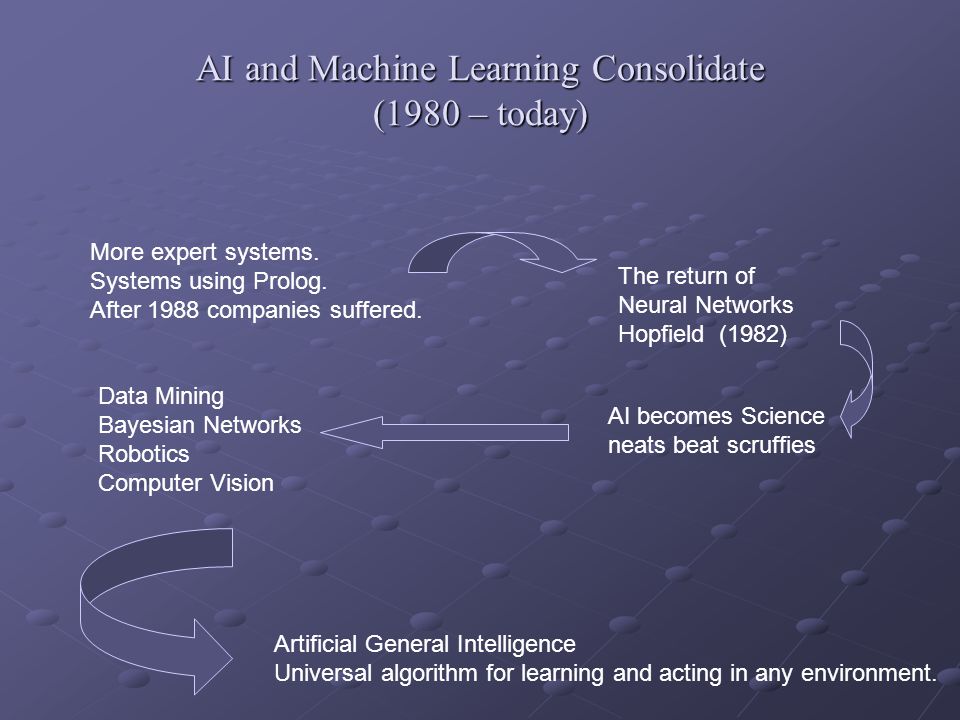

7. AI and Machine Learning Consolidate (1980 – today) More expert systems. Systems using Prolog. After 1988 companies suffered. The return of Neural Networks Hopfield (1982) AI becomes Science neats beat scruffies Data Mining Bayesian Networks Robotics Computer Vision Artificial General Intelligence Universal algorithm for learning and acting in any environment.

8. 8 Where does machine learning fit in computer science? (3) Selection Target Data Preprocessing Data Preprocessed Data Transformation Transformed Data Patterns Data Mining Interpretation & Evaluation Knowledge Knowledge Discovery and Data Mining

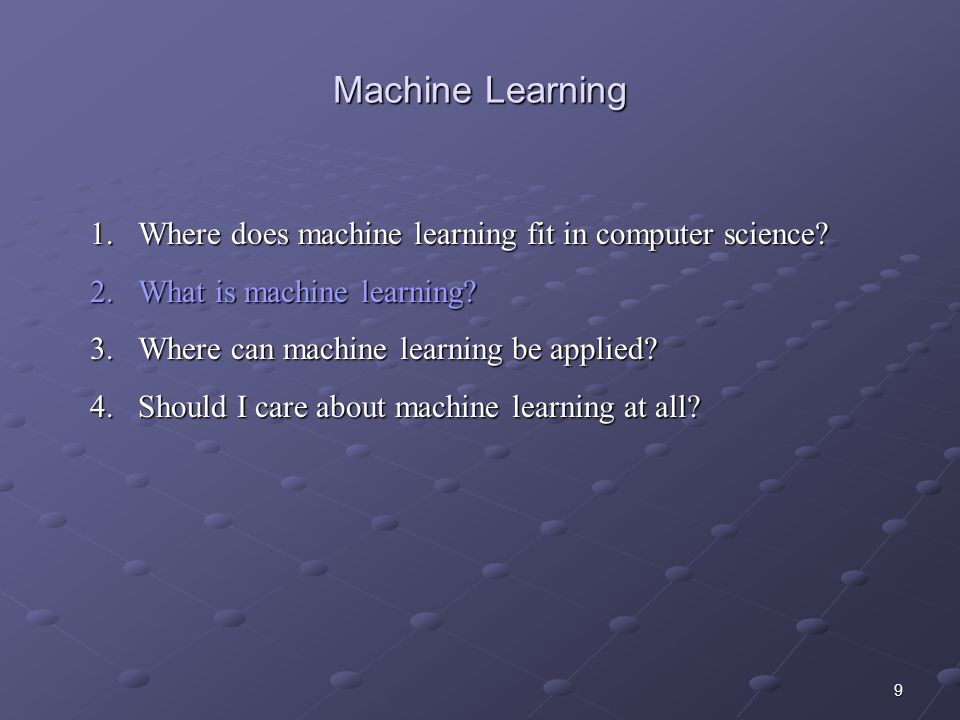

9. 9 Machine Learning 1.Where does machine learning fit in computer science? 2.What is machine learning? 3.Where can machine learning be applied? 4.Should I care about machine learning at all?

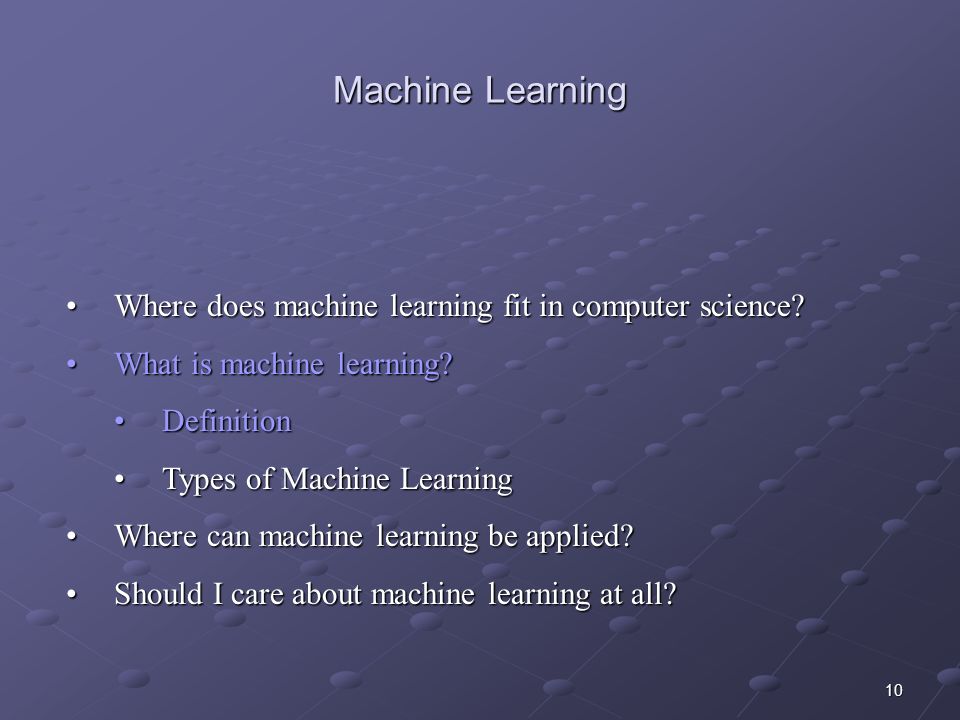

10. 10 Machine Learning Where does machine learning fit in computer science?Where does machine learning fit in computer science? What is machine learning?What is machine learning? DefinitionDefinition Types of Machine LearningTypes of Machine Learning Where can machine learning be applied?Where can machine learning be applied? Should I care about machine learning at all?Should I care about machine learning at all?

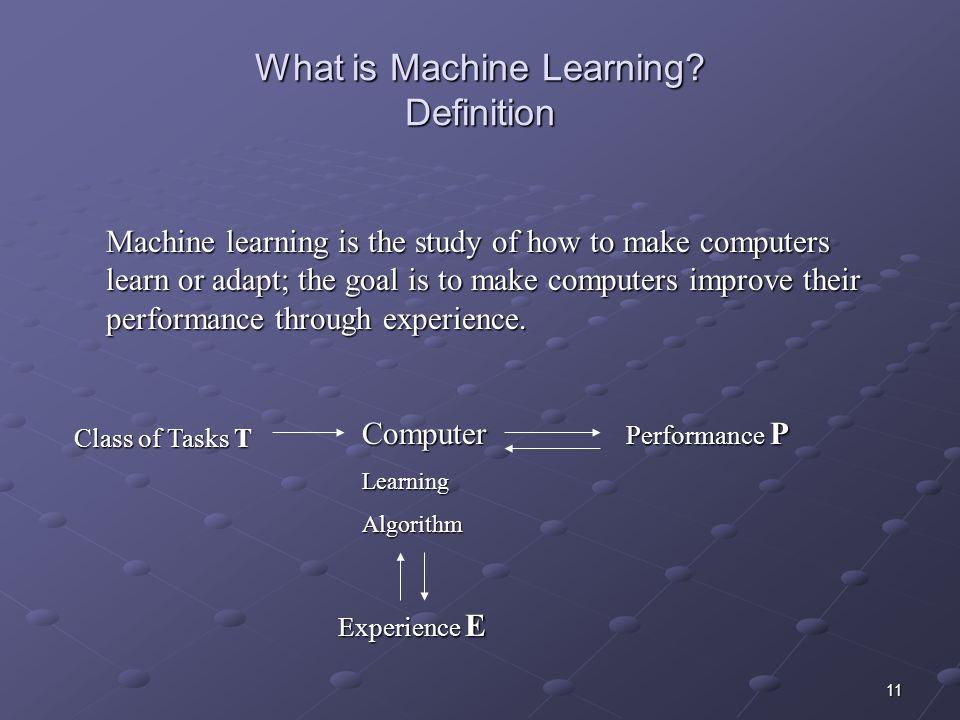

11. 11 What is Machine Learning? Definition Machine learning is the study of how to make computers learn or adapt; the goal is to make computers improve their performance through experience. Experience E ComputerLearningAlgorithm Class of Tasks T Performance P

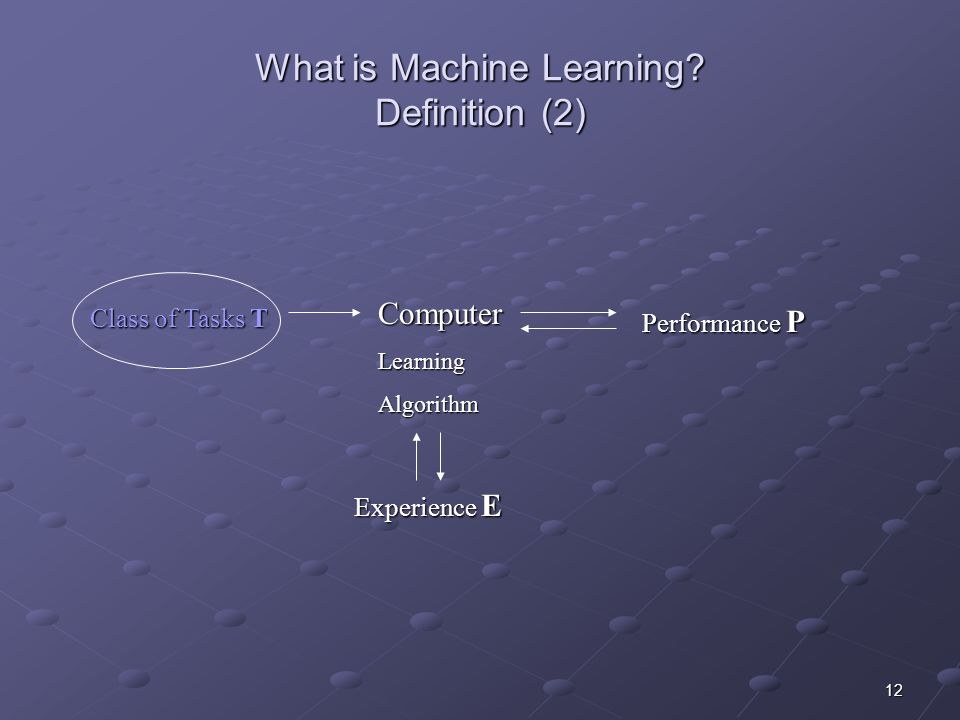

12. 12 What is Machine Learning? Definition (2) Experience E ComputerLearningAlgorithm Class of Tasks T Performance P

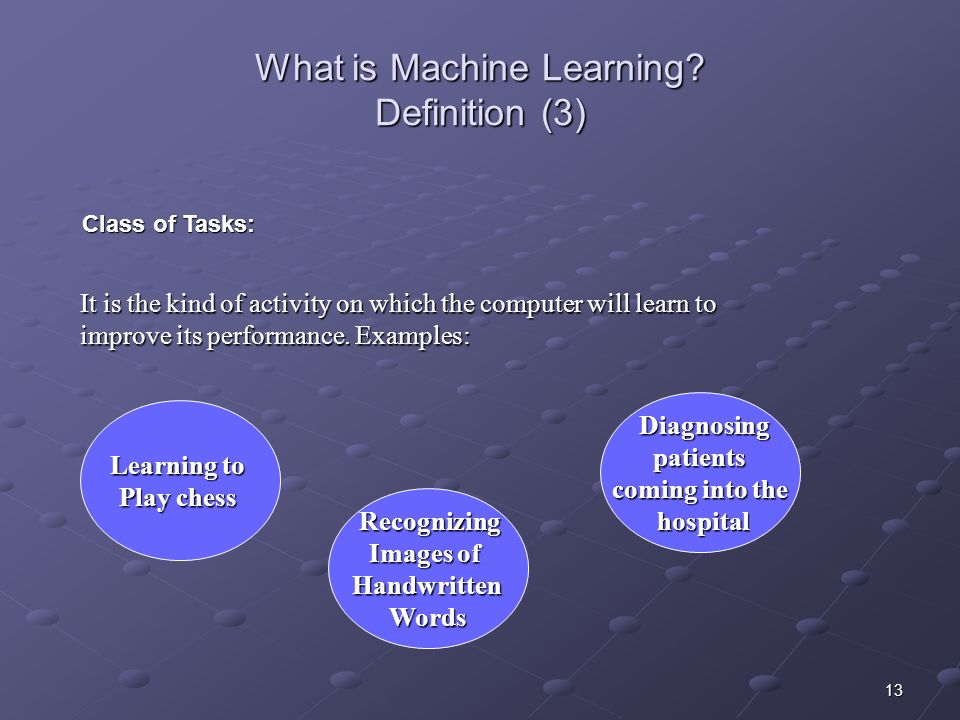

13. 13 What is Machine Learning? Definition (3) It is the kind of activity on which the computer will learn to improve its performance. Examples: Learning to Play chess Recognizing Recognizing Images of HandwrittenWords Diagnosing Diagnosingpatients coming into the hospital hospital Class of Tasks:

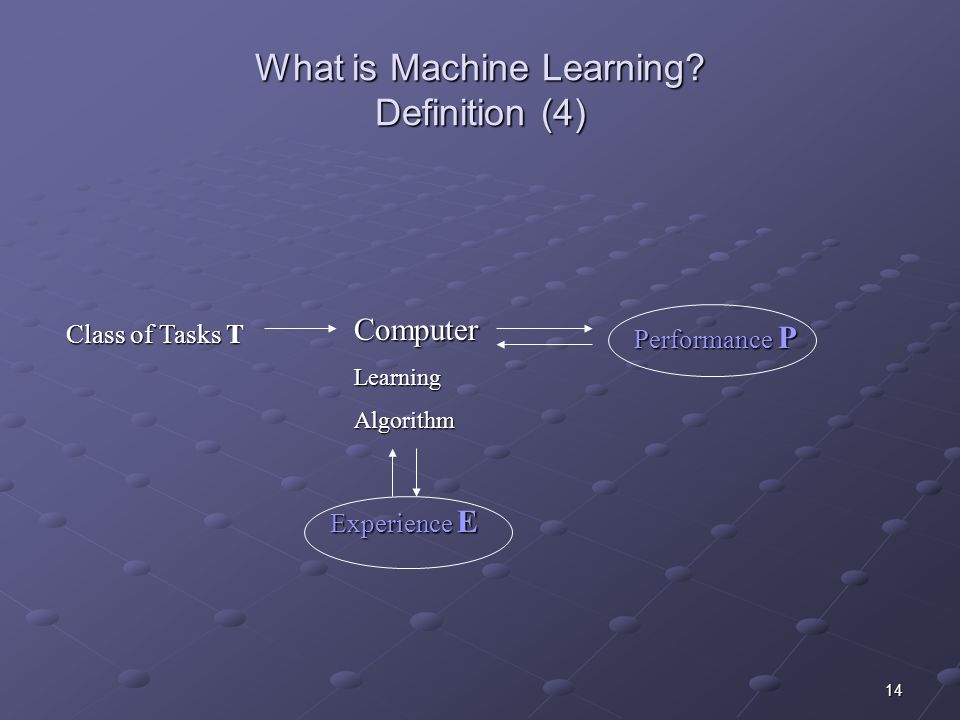

14. 14 What is Machine Learning? Definition (4) Experience E ComputerLearningAlgorithm Class of Tasks T Performance P

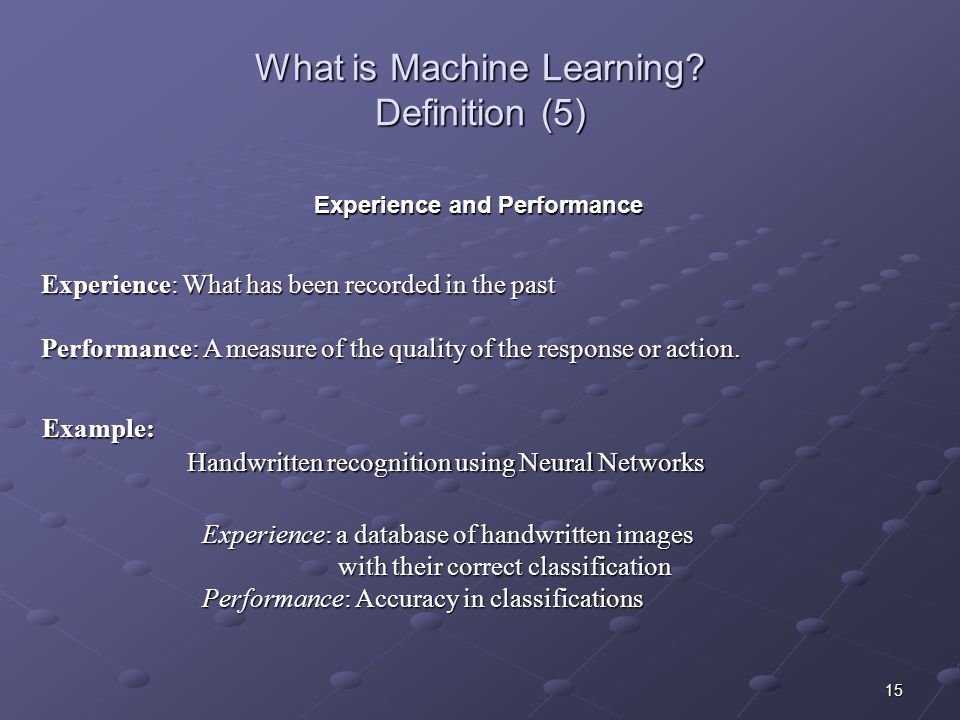

15. 15 What is Machine Learning? Definition (5) Experience: What has been recorded in the past Experience: What has been recorded in the past Performance: A measure of the quality of the response or action. Performance: A measure of the quality of the response or action. Example: Handwritten recognition using Neural Networks Experience: a database of handwritten images with their correct classification with their correct classification Performance: Accuracy in classifications Experience and Performance

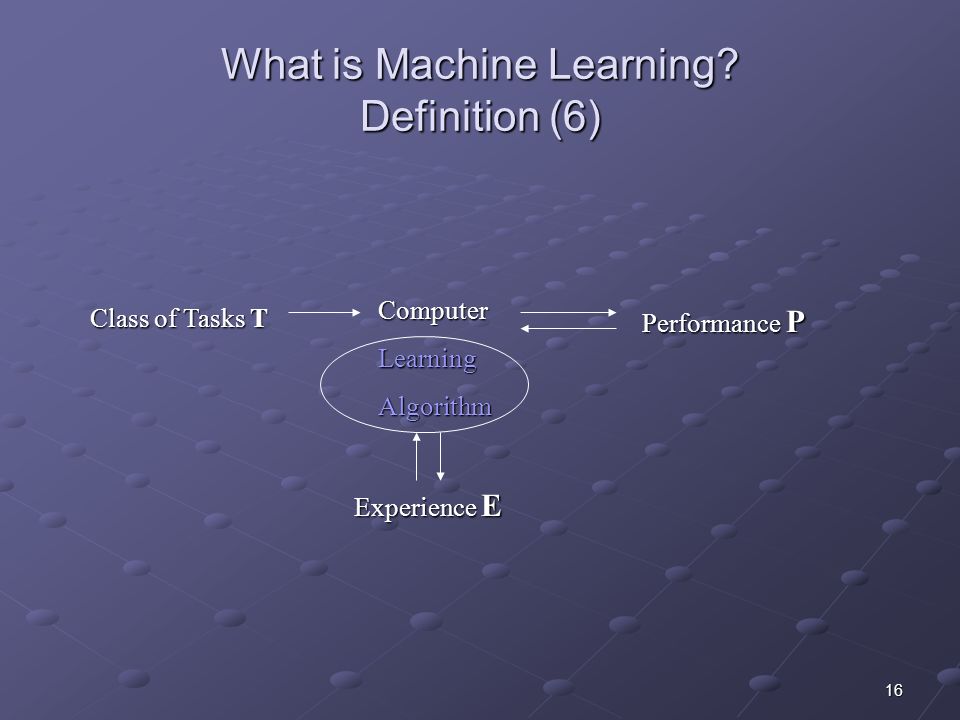

16. 16 What is Machine Learning? Definition (6) Experience E ComputerLearningAlgorithm Class of Tasks T Performance P

17. 17 What is Machine Learning? Definition (7) Example: Diagnosing a patient coming into the hospital. Features:  X 1 : Temperature  X 2 : Blood pressure  X 3 : Blood type  X 4 : Age  X 5 : Weight  Etc. Given a new example X = Given a new example X = F(X) = w 1 x 1 + w 2 x 2 + w 3 x 3 = … + w n x n If F(X) > T predict heart disease otherwise predict no heart disease The Representation of the Target Knowledge Designing a Learning System

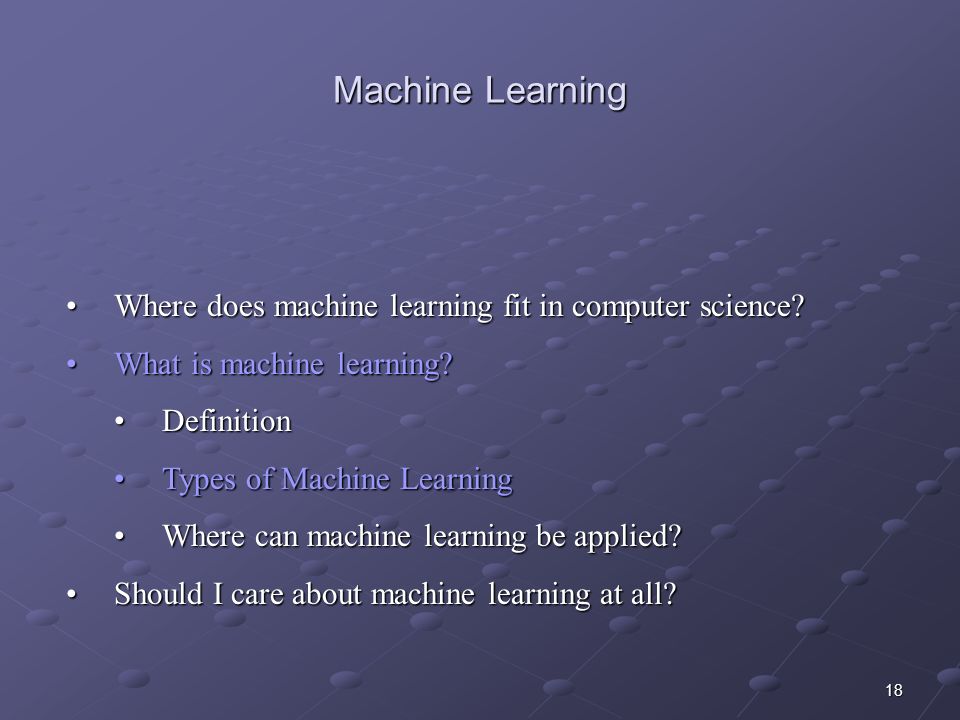

18. 18 Machine Learning Where does machine learning fit in computer science?Where does machine learning fit in computer science? What is machine learning?What is machine learning? DefinitionDefinition Types of Machine LearningTypes of Machine Learning Where can machine learning be applied?Where can machine learning be applied? Should I care about machine learning at all?Should I care about machine learning at all?

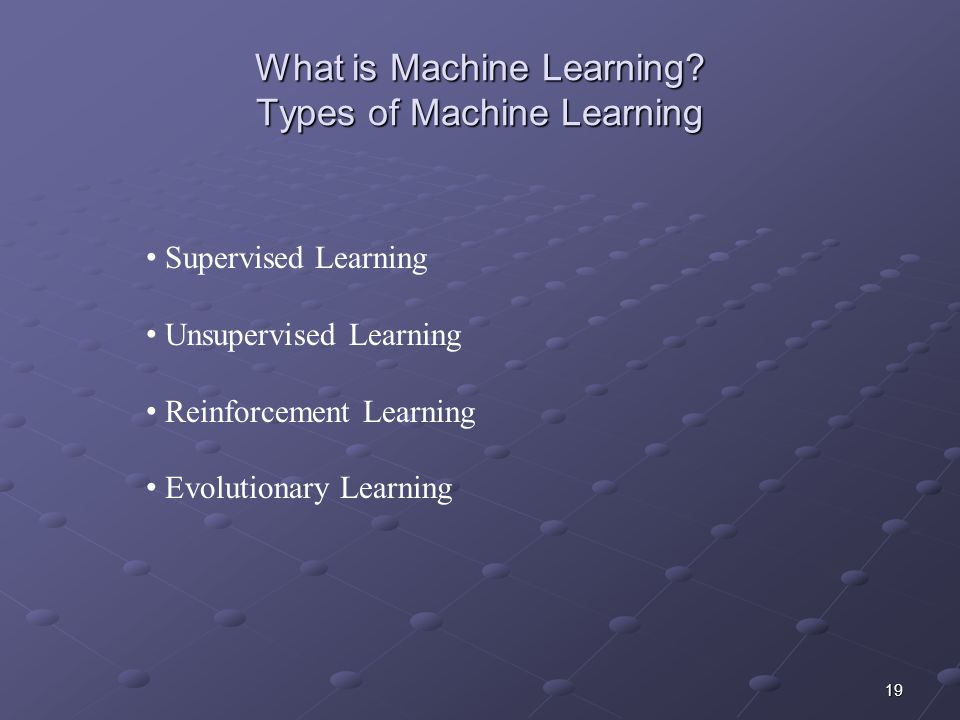

19. 19 What is Machine Learning? Types of Machine Learning Supervised Learning Unsupervised Learning Reinforcement Learning Evolutionary Learning

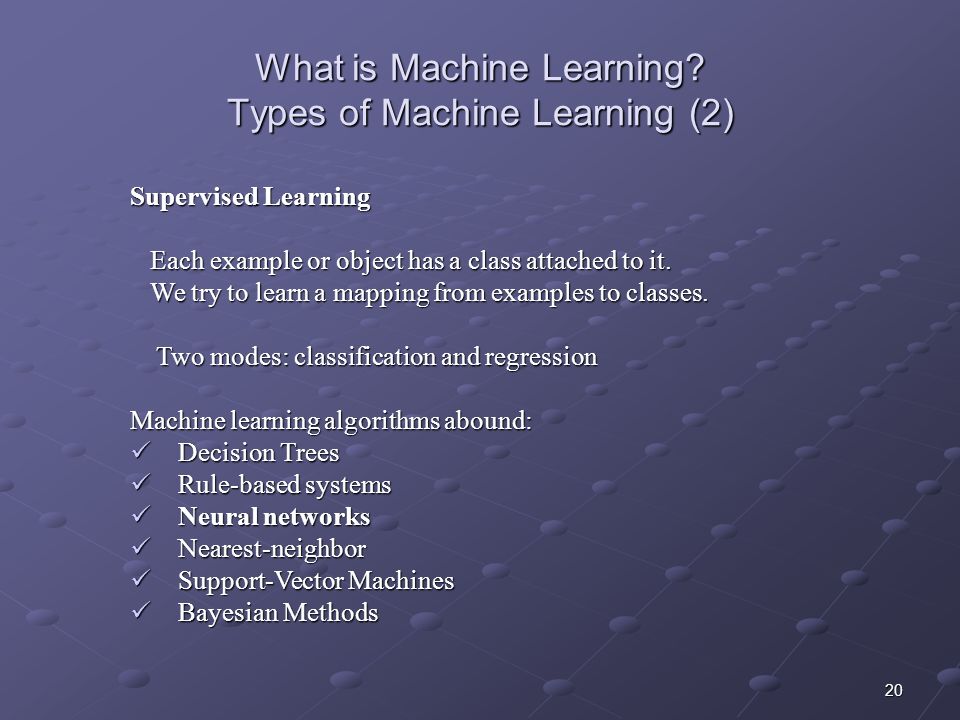

20. 20 What is Machine Learning? Types of Machine Learning (2) Supervised Learning Each example or object has a class attached to it. Each example or object has a class attached to it. We try to learn a mapping from examples to classes. We try to learn a mapping from examples to classes. Two modes: classification and regression Two modes: classification and regression Machine learning algorithms abound: Decision Trees Decision Trees Rule-based systems Rule-based systems Neural networks Neural networks Nearest-neighbor Nearest-neighbor Support-Vector Machines Support-Vector Machines Bayesian Methods Bayesian Methods

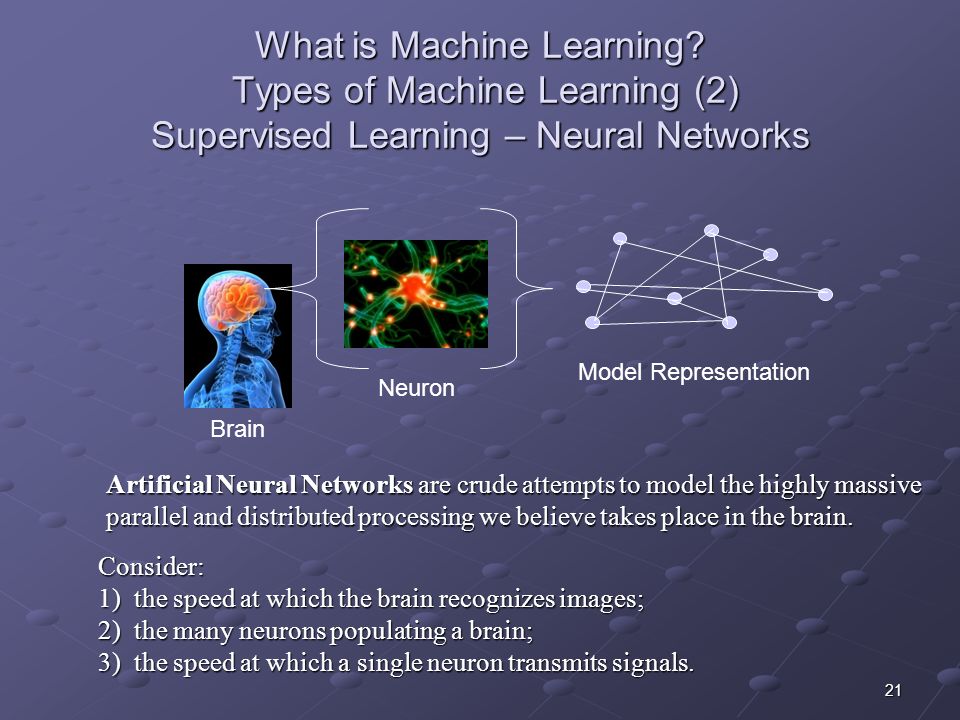

21. 21 What is Machine Learning? Types of Machine Learning (2) Supervised Learning – Neural Networks Artificial Neural Networks are crude attempts to model the highly massive parallel and distributed processing we believe takes place in the brain. Consider: 1)the speed at which the brain recognizes images; 2)the many neurons populating a brain; 3)the speed at which a single neuron transmits signals. Brain Neuron Model Representation

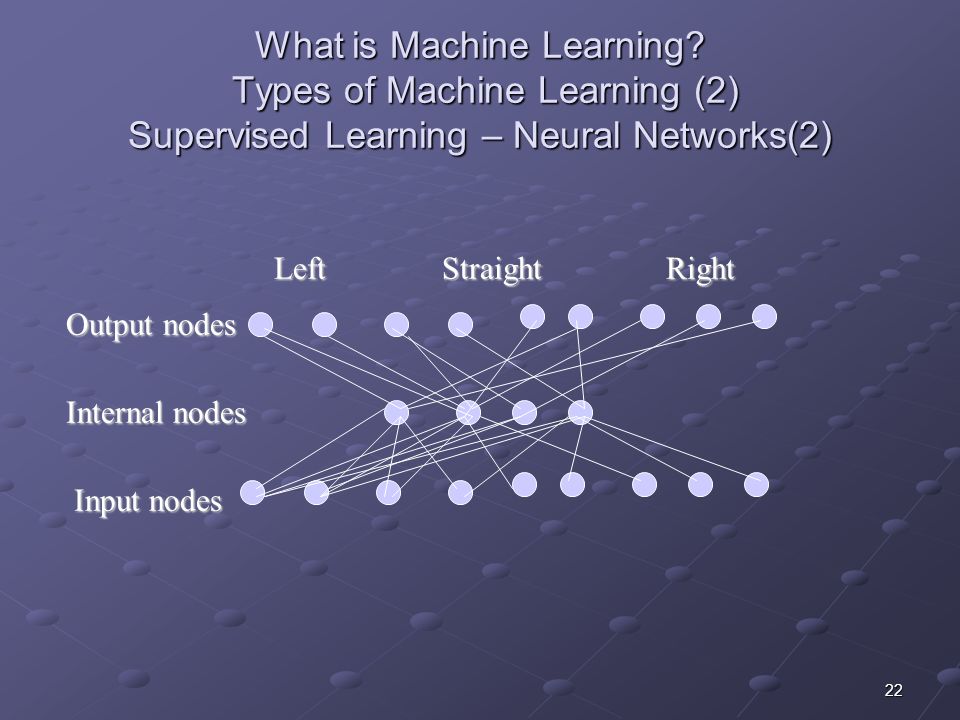

22. 22 What is Machine Learning? Types of Machine Learning (2) Supervised Learning – Neural Networks(2) Input nodes Internal nodes Output nodes LeftStraightRight

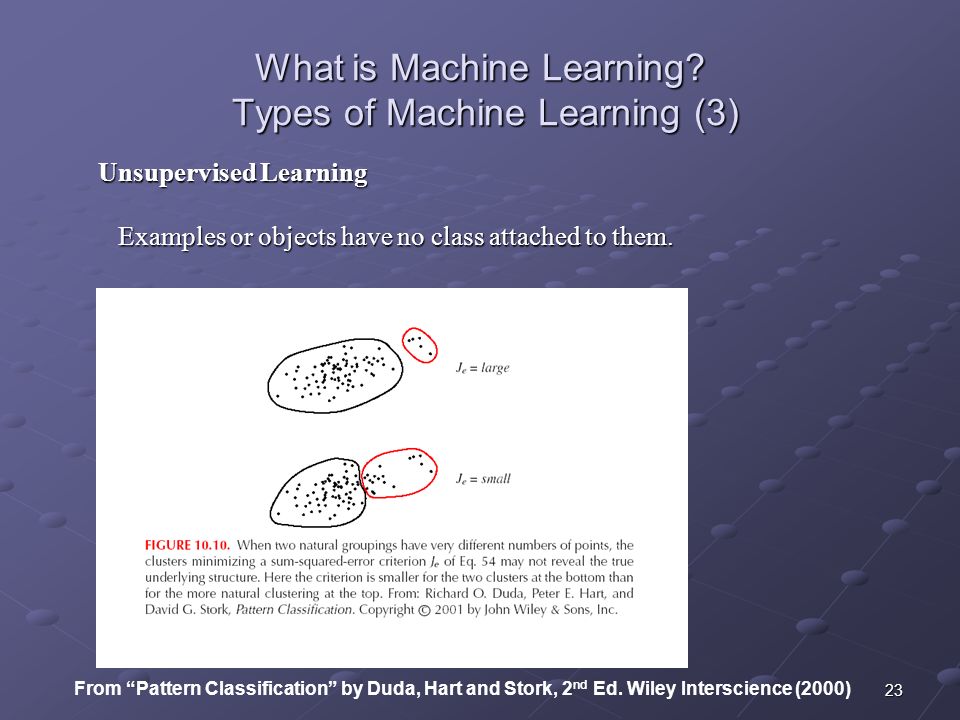

23. 23 What is Machine Learning? Types of Machine Learning (3) Unsupervised Learning Examples or objects have no class attached to them. Examples or objects have no class attached to them. From “Pattern Classification” by Duda, Hart and Stork, 2 nd Ed. Wiley Interscience (2000)

24. 24 What is Machine Learning? Types of Machine Learning (4) Reinforcement Learning Supervised Learning: Example Class Reinforcement Learning: Situation Reward …

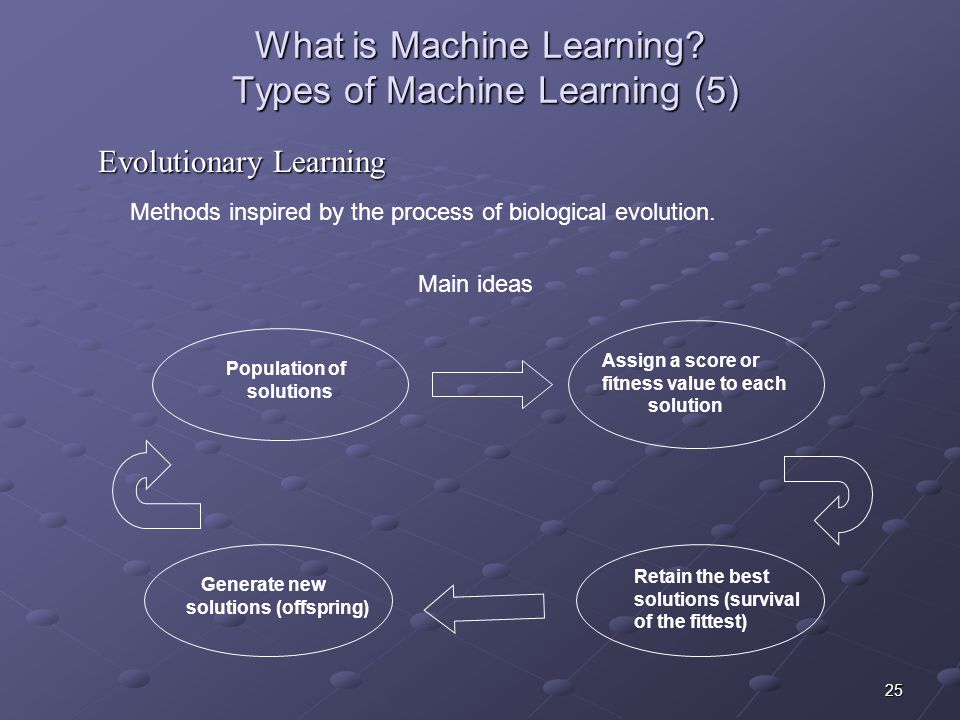

25. 25 What is Machine Learning? Types of Machine Learning (5) Evolutionary Learning Methods inspired by the process of biological evolution. Main ideas Population of solutions Assign a score or fitness value to each solution Retain the best solutions (survival of the fittest) Generate new solutions (offspring)

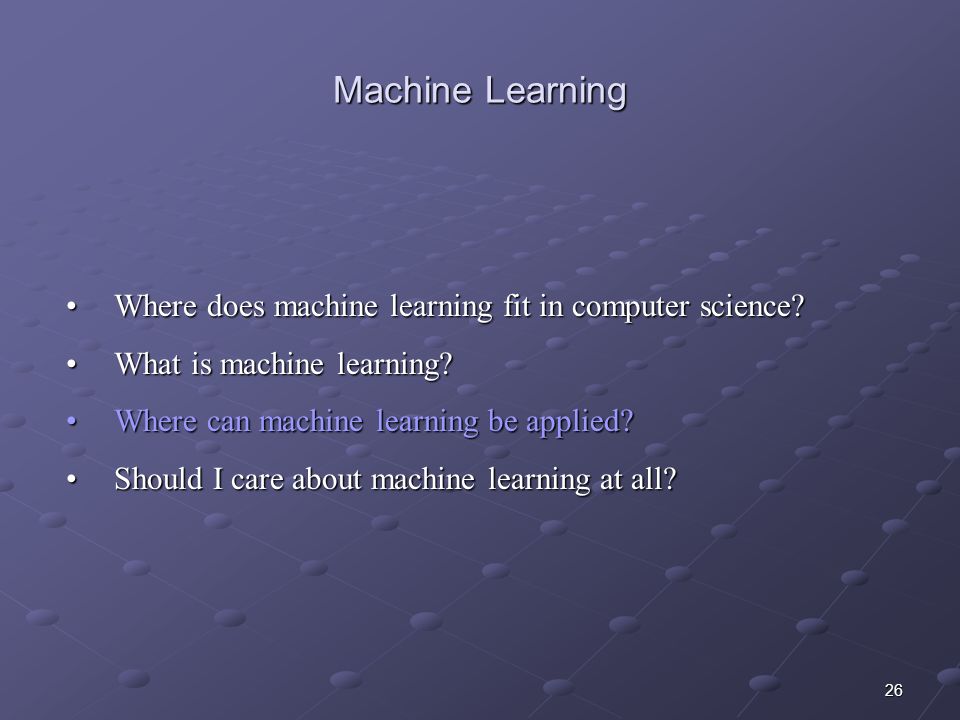

26. 26 Machine Learning Where does machine learning fit in computer science?Where does machine learning fit in computer science? What is machine learning?What is machine learning? Where can machine learning be applied?Where can machine learning be applied? Should I care about machine learning at all?Should I care about machine learning at all?

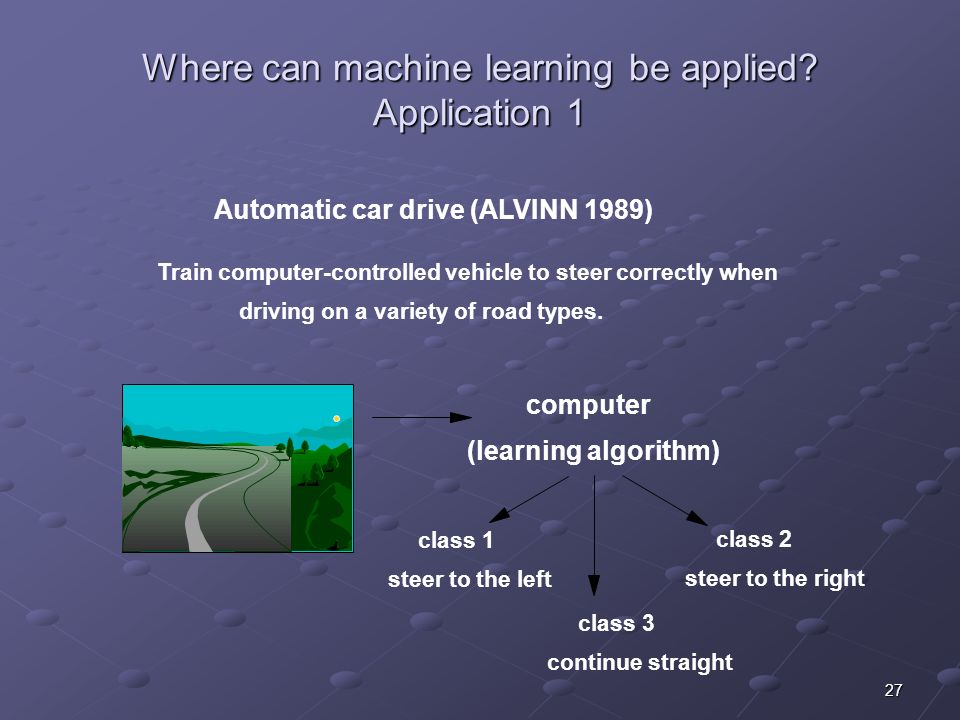

27. 27 Where can machine learning be applied? Application 1

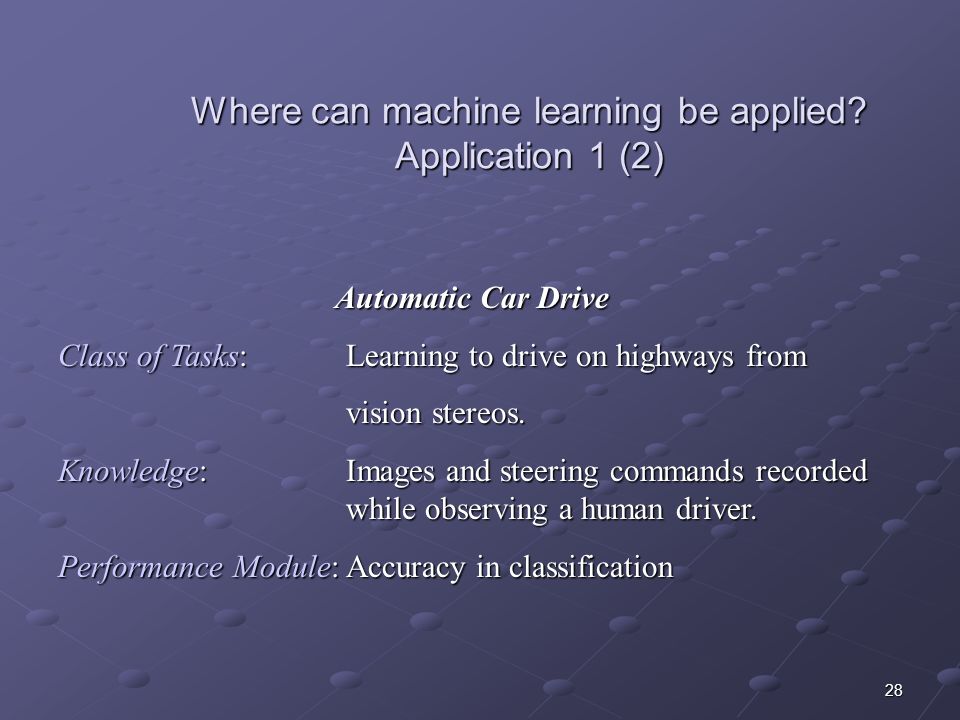

28. 28 Where can machine learning be applied? Application 1 (2) Automatic Car Drive Class of Tasks: Learning to drive on highways from vision stereos. Knowledge: Images and steering commands recorded while observing a human driver. Performance Module: Accuracy in classification

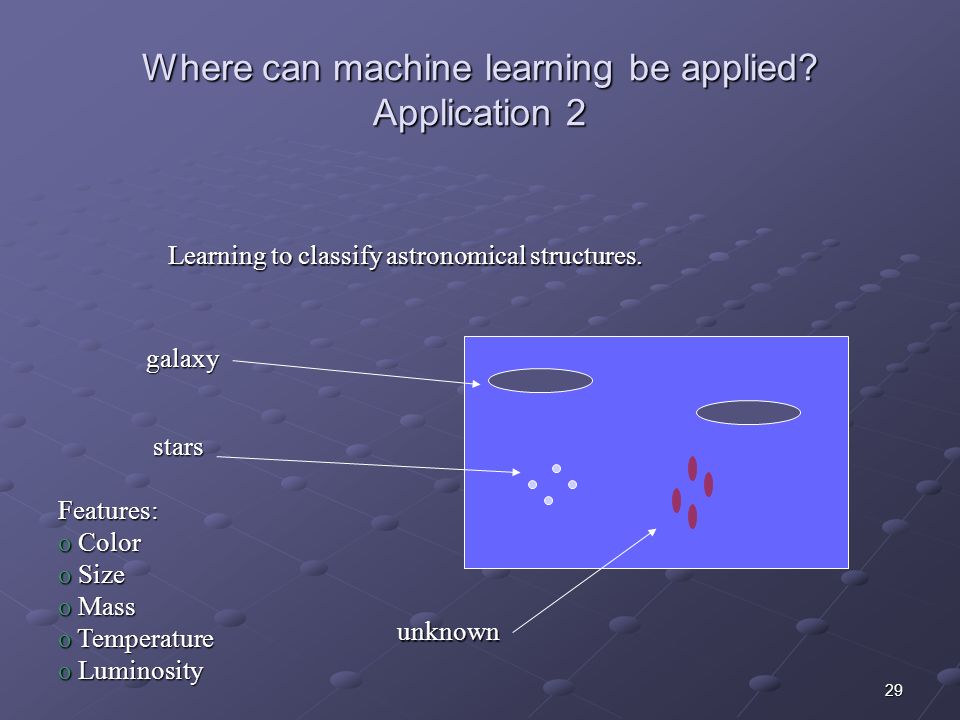

29. 29 Where can machine learning be applied? Application 2 Learning to classify astronomical structures. galaxy stars Features: o Color o Size o Mass o Temperature o Luminosity unknown

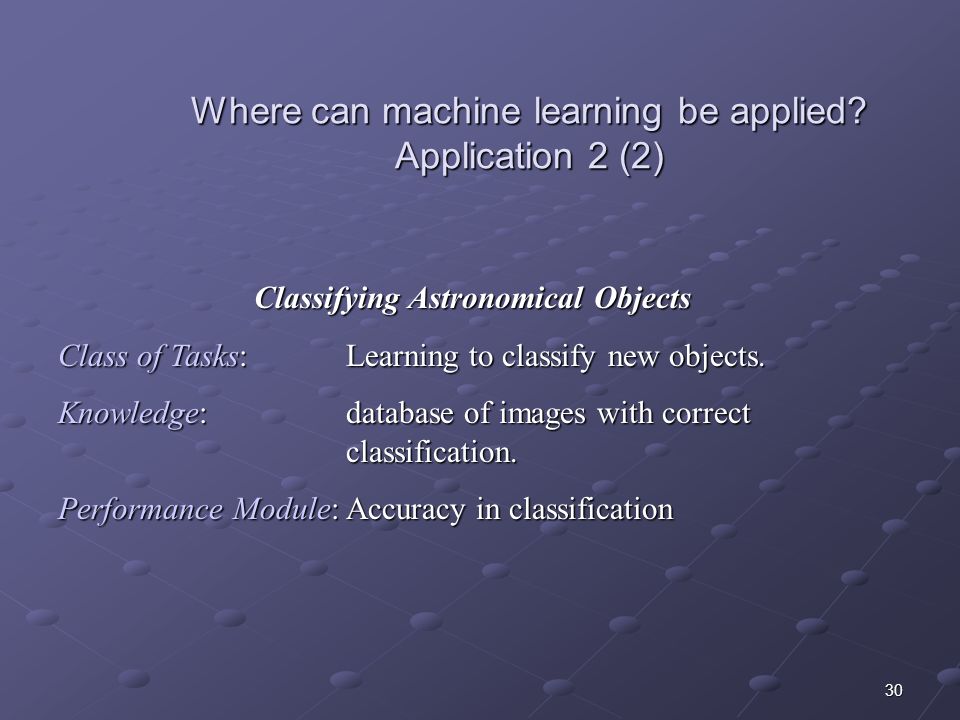

30. 30 Where can machine learning be applied? Application 2 (2) Classifying Astronomical Objects Class of Tasks: Learning to classify new objects. Knowledge: database of images with correct classification. Performance Module: Accuracy in classification

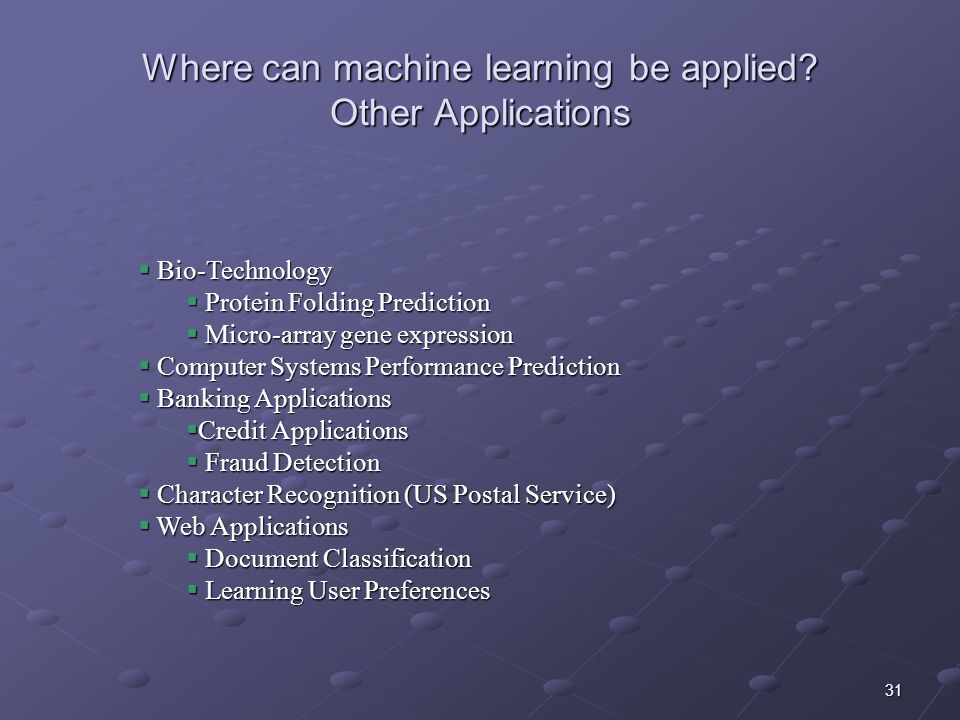

31. 31 Where can machine learning be applied? Other Applications  Bio-Technology  Protein Folding Prediction  Micro-array gene expression  Computer Systems Performance Prediction  Banking Applications  Credit Applications  Fraud Detection  Character Recognition (US Postal Service)  Web Applications  Document Classification  Learning User Preferences

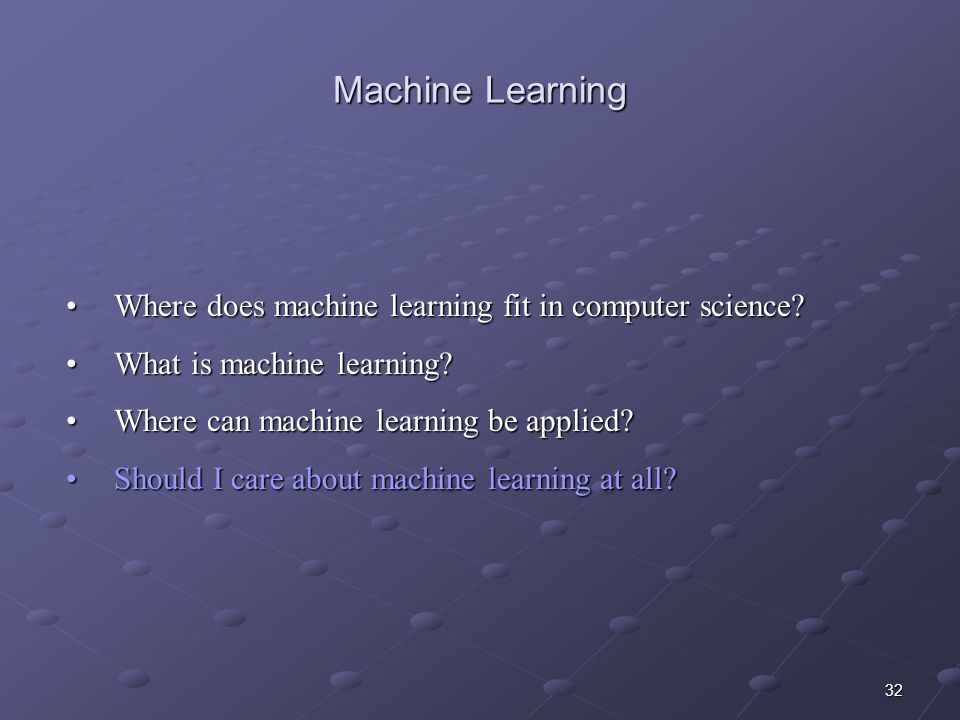

32. 32 Machine Learning Where does machine learning fit in computer science?Where does machine learning fit in computer science? What is machine learning?What is machine learning? Where can machine learning be applied?Where can machine learning be applied? Should I care about machine learning at all?Should I care about machine learning at all?

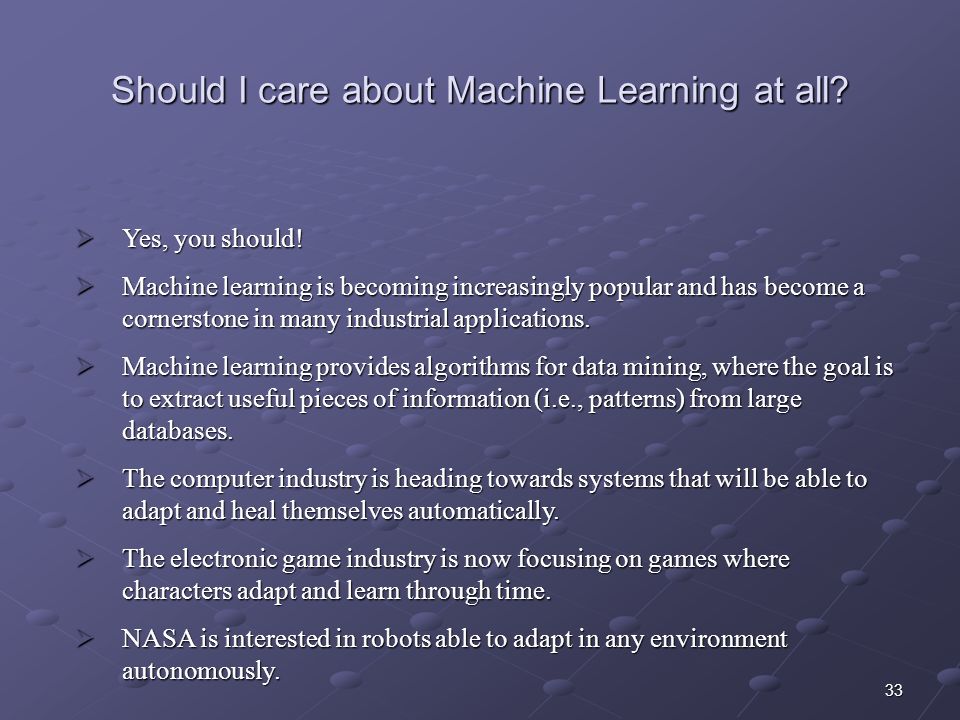

33. 33 Should I care about Machine Learning at all?  Yes, you should!  Machine learning is becoming increasingly popular and has become a cornerstone in many industrial applications.  Machine learning provides algorithms for data mining, where the goal is to extract useful pieces of information (i.e., patterns) from large databases.  The computer industry is heading towards systems that will be able to adapt and heal themselves automatically.  The electronic game industry is now focusing on games where characters adapt and learn through time.  NASA is interested in robots able to adapt in any environment autonomously.

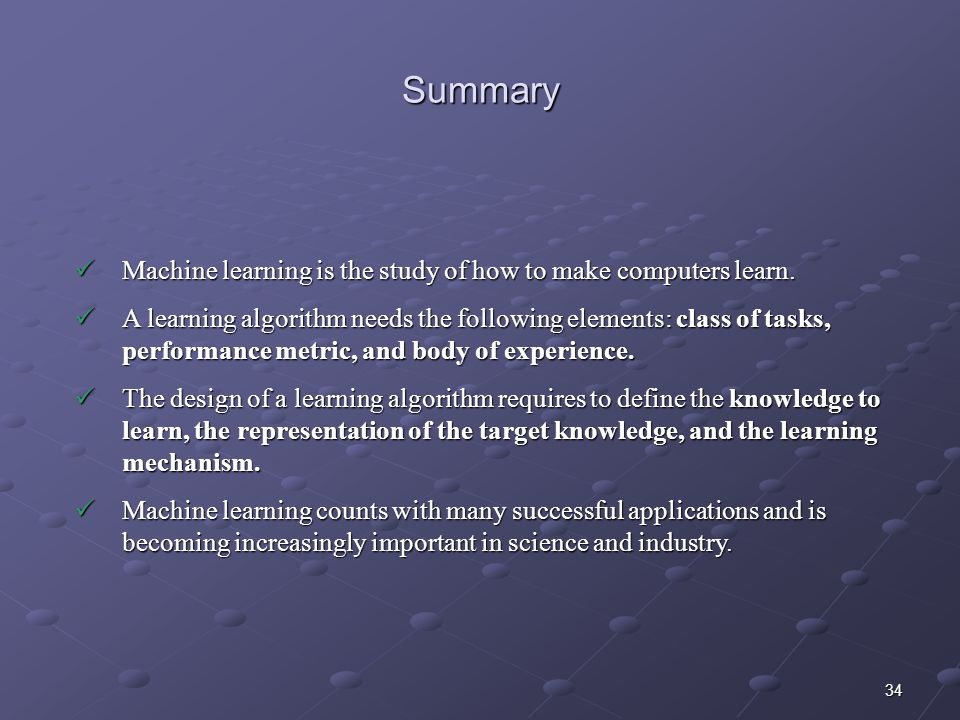

34. 34 Summary Machine learning is the study of how to make computers learn. Machine learning is the study of how to make computers learn. A learning algorithm needs the following elements: class of tasks, performance metric, and body of experience. A learning algorithm needs the following elements: class of tasks, performance metric, and body of experience. The design of a learning algorithm requires to define the knowledge to learn, the representation of the target knowledge, and the learning mechanism. The design of a learning algorithm requires to define the knowledge to learn, the representation of the target knowledge, and the learning mechanism. Machine learning counts with many successful applications and is becoming increasingly important in science and industry. Machine learning counts with many successful applications and is becoming increasingly important in science and industry.
