Presentation on theme: "Abj 4.1: Introduction to Forces in Fluids: Surface Force: Shear/Viscous/Frictional Force Forces in Fluids Surface Force and Stress Surface."— Presentation transcript:

1 abj 4.1: Introduction to Forces in Fluids: Surface Force: Shear/Viscous/Frictional Force Forces in Fluids Surface Force and Stress Surface Force: Area as A Vector, and Outward Normal to The System Description of Surface Force: Stress Vector and Stress Tensor Newtonian Fluids and Newton’s Viscosity Law Laminar Flow as A Flow of Layers of Fluids, and Shear Stress as A “Sliding” Friction Between Adjacent Layers of Fluid abj

2 Very Brief Summary of Important Points and Equations [1]
Forces in Fluids Forces in fluids are distributive. Classified according to geometry of distribution: Line force Surface force = Pressure Friction Volume/Body force The Importance of A Clear Definition of The SYSTEM of Interest Convention: as an outward normal to the system (pointing from system to surroundings) A = System B = Surroundings B = System A = Surroundings abj

3 Very Brief Summary of Important Points and Equations [2]
Surface Force/Stress Component/Index Convention Sign Convection The difference between the component of stress (tensor) VS component of force (vector) Newton’s Viscosity Law for Newtonian Fluids Dynamic Viscosity m Kinematic Viscosity n Index convention: direction plane Sign Convention has a positive numerical value when the product of the signs of plane i and force direction j is positive. abj

4 Forces in fluids are distributive
Classified according to the geometry of distribution Line force Surface force Volume (Body) force Described by Described by Pressure (normal) Friction/Viscous/Shear (tangential) [neglect the normal component] abj

5 Surface Force: Area as A Vector, and Outward Normal to The System
abj Surface Force: Area as A Vector, and Outward Normal to The System The importance of the system of interest again 1. Area is a vector 2. Its direction is – by convention - OUTWARD NORMAL to the system of interest A = System B = Surroundings A B B = System A = Surroundings Whenever you see a surface with a normal vector, you know – by convention - which side is being considered a system of interest. abj

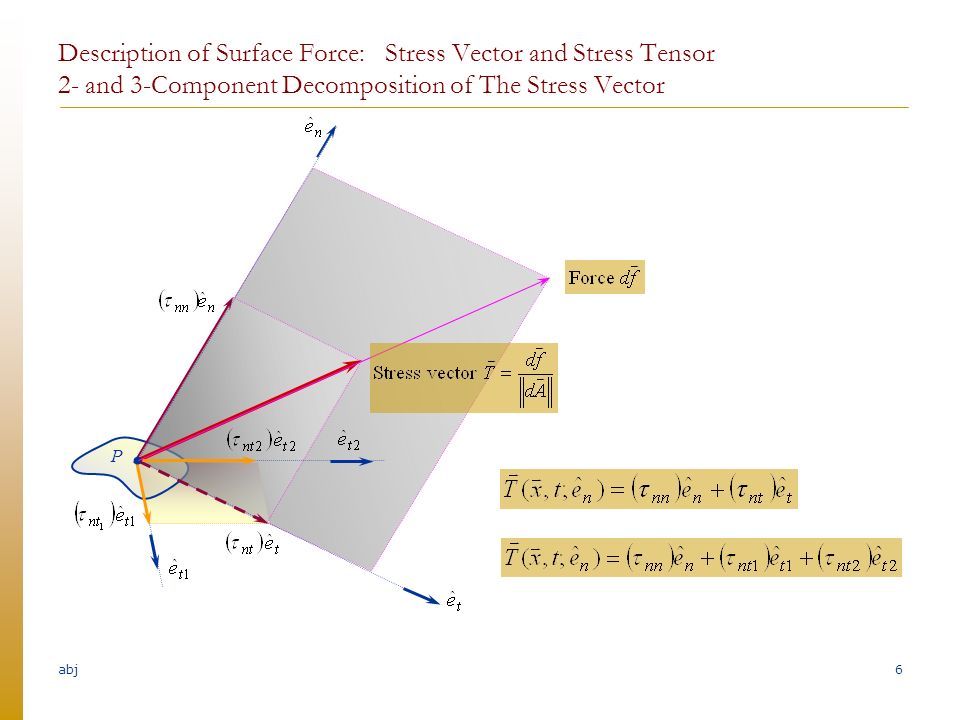

6 abj Description of Surface Force: Stress Vector and Stress Tensor 2- and 3-Component Decomposition of The Stress Vector P abj

7 abj Decomposition of Three Stress Vectors on Three Mutually Perpendicular Planes at A Point: Stress Tensor at A Point (Cartesian Coordinates) Stress Index Convention x y z Decomposition of three stress vectors on three mutually perpendicular planes at a point results in nine components of a tensor called the stress tensor at that point: Index convention: direction plane abj

8 Some Properties (Symmetric Tensor)
abj Some Properties (Symmetric Tensor) x y = Symmetry of the stress tensor at a point, e.g., From angular momentum consideration with body couple neglected, it follows Stress tensor at a point is symmetric, i.e., (in matrix notation: ) This reduces the general 9 independent components of the stress tensor to 6 independent components (good - less variables to deal with). abj

9 Stress Sign Conventions
abj Stress Sign Conventions x y z x z y x y z Sign Conventions: (Note that some books use different index convention, e.g., reverse) The sign of (the numerical value of) the stress components: sign of the component t i j = sign of plane i x sign of direction j On the negative plane, the sign of the component of stress is opposite to the sign of the component of force. Index convention: direction plane abj

10 Note the difference: component of stress (tensor) VS component of force (vector)
On the negative plane, the sign of the component of stress is opposite to the sign of the component of force. Component of stress: x y Component of the force due to that stress: Area is a vector. It is signed. abj

11 Constitutive Relation: Newton’s Viscosity Law for Newtonian Fluids
abj Constitutive Relation: Newton’s Viscosity Law for Newtonian Fluids Assuming that the velocity field is a simple shear flow: u x y y = 0 u(y) Slope du/dy = strain rate plane y Top layer of fluid Bottom layer of fluid plane y Consider the relation between the shear stress tyx and the shear deformation rate du/dy. Newtonian fluids are the fluids in which shear stress is linearly proportional to shear deformation rate. Newtonian fluids: Newton’s viscosity law m = Dynamic/Absolute viscosity, n = Kinematic viscosity, abj

12 The Importance of A Clear Definition of The SYSTEM of Interest, Again.
abj The Importance of A Clear Definition of The SYSTEM of Interest, Again. A = System B = Surroundings A B the external force due to the surrounding B on the system A the external force due to the surrounding A on the system B B = System A = Surroundings Are you talking about the external force/stress due to the surrounding B on the system A or the external force/stress due to the surrounding A on the system B? Although they are action/reaction, they are not the same force. abj

13 Some Notes on Newton’s Viscosity Law
abj Some Notes on Newton’s Viscosity Law u x y y = 0 u(y) slope plane y y Top layer of fluid Bottom layer of fluid It is a field/instantaneous equation, i.e., it is a function of position and time: At the wall, we often refer to the shear stress there as the wall shear stress: It is a signed equation, the signs of strain rate du/dy , and stress txy (according to the stress sign convention) should be taken into accounted. Carefully consider which system and which stress are under consideration: Lower/Pink element (unit outward normal is ), or Upper/Grey element (unit outward normal is ). Both have the same value of , but the system and the force are different. abj

14 Newton’s Viscosity Law in The Natural Coordinates (n-t )
abj Newton’s Viscosity Law in The Natural Coordinates (n-t ) x y y x u(y) ut(n) n t x y x’, t y’, n y’, n x’, t y’, n x’, t x y Note also that ut(n) and u(y) are two different velocity profiles. and are two different stresses acting on two different planes. abj

15 Constitutive Relation: Other Types of Fluids
abj Constitutive Relation: Other Types of Fluids Newtonian and Non-Newtonian fluids’ stress-strain rate relation. From Fox, R. W., McDonald, A. T., and Pritchard, P. J., 2004, Introduction to Fluid Mechanics, Sixth Edition, Wiley, New York. Question: What will happen if shear stress is gradually applied and increased from zero to each of these fluids? abj

16 Dynamic Viscosity (m) VS Temperature
Fox et al. (2010) abj

17 Kinematic Viscosity (n ) VS Temperature
Fox et al. (2010) abj

18 Example 1: Sketch The Velocity Profile and Examine The Shear Force/Stress
Assume that the followings are simple shear flows; that is, there is only one dominant velocity component, and this velocity component is a function of the traverse/normal coordinate: Question: Sketch the velocity profile along the traverse AB. State the sign ( + / - ) of the component of the stress, the sign/direction (+ / - ) of the component of the force due to that stress, on the surface with the outward normal given. See next page  abj

19 Flow between two stationary parallel plates
Solid wall element W E C D Plate is moving at the speed U. y A B Still air U x W y Flow A B Flow between two stationary parallel plates (Channel flow) D C E LW F G UW H abj

20 Laminar Flow as A Flow of Layers of Fluids, and Shear Stress as A “Sliding” Friction Between Adjacent Layers of Fluid Laminar flow can be thought of as a stack of layers of fluid sliding over one another. In between the layers, there is a sliding frictional force. A Physical View of Shear Stress as A Sliding Friction in Laminar Flow The direction of the sliding frictional force is such that the adjacent surrounding exerts the frictional force opposing the relative velocity/motion of the system with respect to the adjacent surroundings. system relative to the surrounding floor. system relative to the surrounding floor. Sliding frictional force is opposing the relative velocity of the system [relative to the adjacent surrounding floor]. abj

21 Sliding Friction: Drag Backward – Drag Forward
Sliding friction between the two layers y relatively faster upper layer relatively slower lower layer A) Shear stress on the faster layer: system B) Shear stress on the slower layer: system Due to “sliding friction” between the two layers, faster layer is being dragged backward by the slower layer. slower layer is being dragged forward by the faster layer. abj

22 Example 1: Sketch The Velocity Profile and Examine The Shear Force/Stress
Assume that the followings are simple shear flows; that is, there is only one dominant velocity component, and this velocity component is a function of the traverse/normal coordinate: Question: Sketch the velocity profile along the traverse AB. State the sign ( + / - ) of the component of the stress, the sign/direction (+ / - ) of the component of the force due to that stress, on the surface with the outward normal given. See next page  abj

23 Flow between two stationary parallel plates
Solid wall element W E C D Plate is moving at the speed U. y A B Still air U x W y Flow A B Flow between two stationary parallel plates (Channel flow) D C E LW F G UW H abj

24 Example abj
