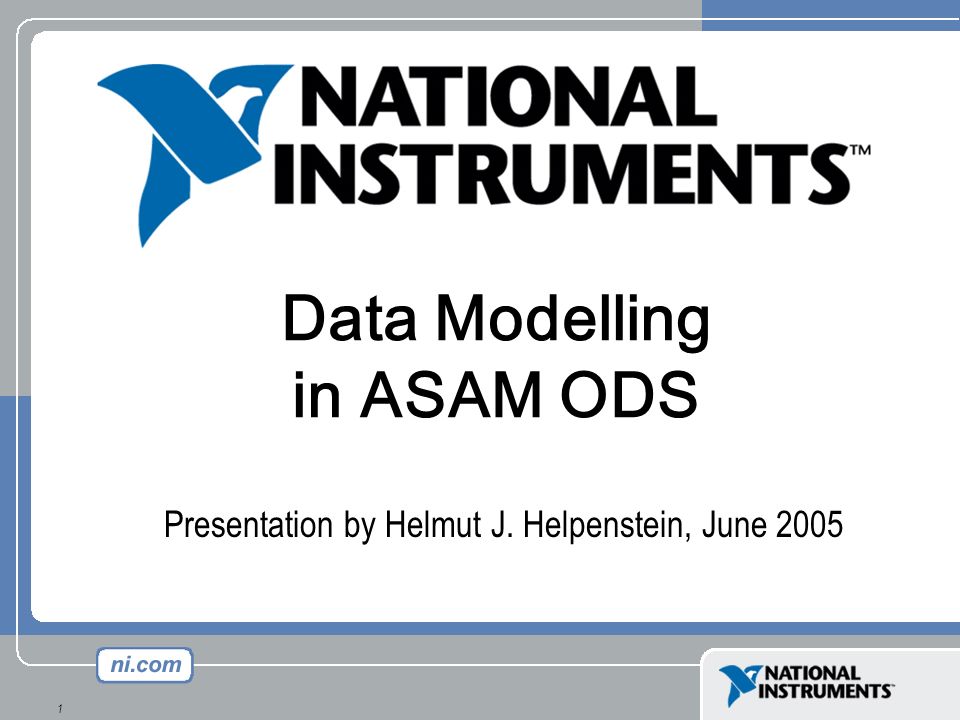

1 1 Data Modelling in ASAM ODS Presentation by Helmut J. Helpenstein, June 2005

2 2 ASAM ODS supports a particular way of storing data x y Technical data Meta information Application AApplication B

3 3 Goals of ODS way Combination of data and meta data Meta data according to a Base Model The Base Model defines common attributes and relationships for all test and measurement data defines rules and methods how to derive customized (application specific) data models from the ASAM ODS Base Model

4 4 Base Model and Application Model base model derivation application model

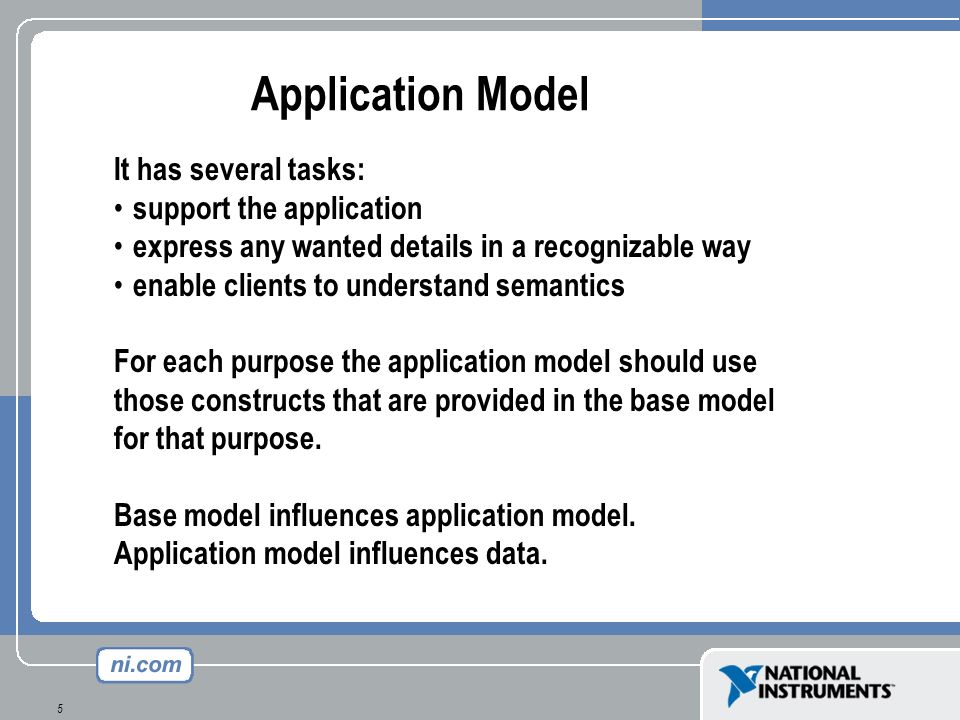

5 5 Application Model It has several tasks: support the application express any wanted details in a recognizable way enable clients to understand semantics For each purpose the application model should use those constructs that are provided in the base model for that purpose. Base model influences application model. Application model influences data.

6 6 Application Model and Data application model instantiation data

7 7 Constructs in the Base Model Hierarchical structures tests - measurements, equipments - devices, … Values application attributes, instance attributes, parameters Measurement data submatrices, local columns, value sequence References pointers to other elements Groups units, quantities, users

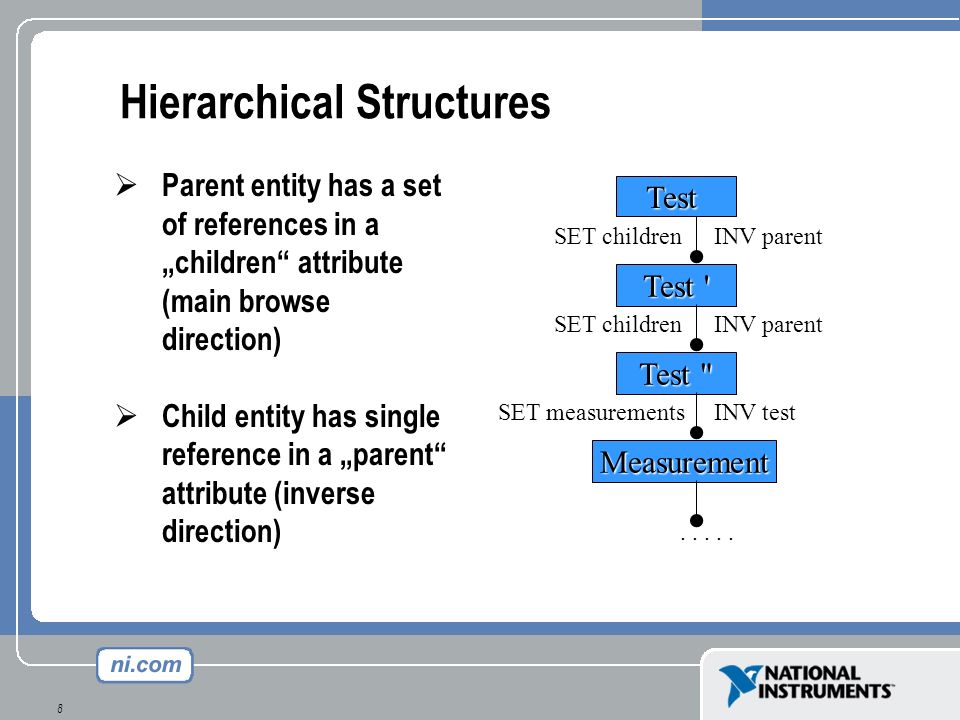

8 8 Hierarchical Structures  Parent entity has a set of references in a „children“ attribute (main browse direction)  Child entity has single reference in a „parent“ attribute (inverse direction) Test Test ' INV parentSET children Test " INV parentSET children Measurement INV testSET measurements.....

9 9 Add a value to one or more instances Application attribute: - is attached to ALL instances - easily recognizable by application - ideal for generic client Instance attribute: - is attached to 1 instance - recognizable by application - acceptable for generic client Parameter: - has reference to 1 instance of specific type - requires special application model - not for use in generic clients Entity A Attribute a Instance A1 InstAtt a1 Entity A Parameter P Instance A1 Instance P1 value

10 10 Measurement data Application attribute: - recognizable by special application - single values Instance attribute or Parameter: - extremely special Local columns: - ODS way => easily recognizable by applications and generic clients - sequences of values - concept of submatrices to handle all measurement cases - dedicated entities Entity A Attribute a Instance A1 InstAtt a1 Entity A Parameter P Instance A1 Instance P1 value AoMeasurement AoMeasurementQuantityAoSubmatrix AoLocalColumn

11 11 Submatrices and value matrix Submatrix sma Time MeaQ_A 0.1 xxx1 0.2 xxx2 0.3 xxx3 0.4 xxx4 Submatrix smb Time MeaQ_B 0.2 yyy1 0.24 yyy2 0.28 yyy3 0.32 yyy4 0.36 yyy5 0.4 yyy6 Value matrix Time MeaQ_A MeaQ_B 0.1 xxx1 0.2 xxx2 yyy1 0.24 yyy2 0.28 yyy3 0.3 xxx3 0.32 yyy4 0.36 yyy5 0.4 xxx4 yyy6

12 12 Base model for measurement values BASEELEM AoMeasurement - name - id - measurement_quantities - submatrices BASEELEM AoMeasurementQuantity - name - id - local_columns BAESELEM AoSubmatrix - name - id - number_of_rows - local_columns BASEELEM AoLocalColumn - name - id - sequence_representation - generation_parameters - values - external_component seq_rep values gen_pars ext_comp explicit x implicit_linear x raw_linear x x external_comp x raw_lin_ext x x

13 13 References / Relations In a model, each entity is determined by ist attributes. In ASAM ODS application models, entities are called Application Elements, their attributes can contain values (numerical or text) or relations (references to other objects). Example: In a directory there are some files. APPLELEM directory - name (string) - id (integer) - files (set of file) APPLELEM file - name (string) - id (integer) - home (directory) c:\meyer\abc (177) house.doc (29) car.txt (56) list.xls (115) INSTELEM directory - "c:\meyer\abc" - 177 - 29,56,115 INSTELEM file - "house.doc" - 29 - 177 INSTELEM file - "car.txt" - 56 - 177 INSTELEM file - "list.xls" - 115 - 177

14 14 Groups An item belongs to one or more groups A group has one or more items This is a many-to- many relationship (n:m) BASEELEM AoUnit name (string) id (integer) groups (SET of AoUnitGroup) phys_dim (AoPhysicalDimension) factor (double) offset (double) BASEELEM AoUnitGroup name (string) id (integer) units (SET of AoUnit) AoUnitAoUnitGroup

15 15 Example of application model TestBed (AoTest) | Test (AoSubTest) | | | | | -----------------------------------+ | +--------------------+ | | | Engine (AoUnitUnderTest) Measurement (AoMeasurement) User (AoUser) | | test engineer | | User (AoUser) MeaQuantity (AoMeasurementQuantity) design engineer

16 16 Filtered data TestBed Location="Aachen" | Test Type="class C" | || | |-----------------+ | +-----+ | | | | Measurement | | Begin > 200502 | | | | | Engine Fuel="Diesel" | | | NumberOfCylinders=5 MeaQuantity | | | | test engineer | Description="Test Engineer" | Division="Block D" | (Test.Type="class C") | | Description="Design Engineer" design engineer Division="Block D"

17 17 Select Measurements in DIAdem Precondition: Modelling according to ODS way Size of example data: 45 MB many TestBeds, each with many Tests Measurements can be imported with their MeasurementQuantities We want to find data in a limited set, described by filtering with conditions - enabled by modelling in ODS way MeasurementQuantities can be displayed Screenshots display the filtering process
