1. A way of understanding diffusion: Random Walk Spread of molecules from one spot is proportional to square root of time for random walk. Therefore, to go 2X as far takes 4X as long.

2. A way of understanding diffusion: Fick’s Law J is flux D is diffusion constant  is concentration

3. Diffusion Constant: What controls it? Random thermal motions: D = kTv/f f depends on size of particle and viscosity of solution. Spheres: scale as m 1/3 (radius scaling)

4. FRAP - Fluorescence Recovery After Photobleaching

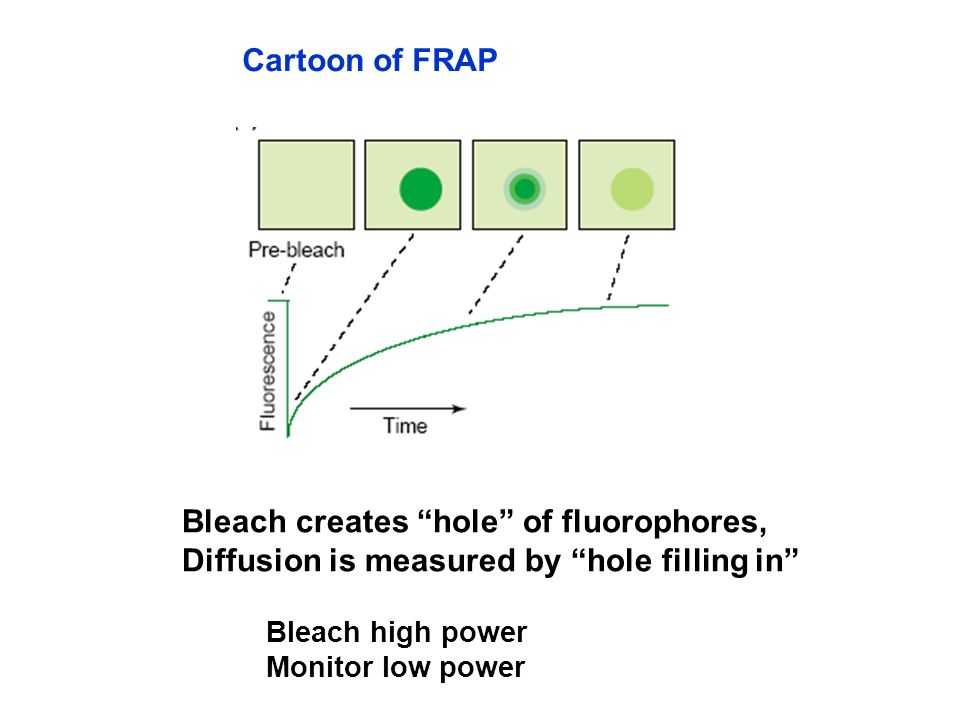

5. Cartoon of FRAP Bleach creates “hole” of fluorophores, Diffusion is measured by “hole filling in” Bleach high power Monitor low power

6. Analysis of membrane compartments Cells expressing VSVG–GFP were incubated at 40 °C to retain VSVG–GFP in the endoplasmic reticulum (ER) under control conditions (top panel) or in the presence of tunicamycin (bottom panel). Fluorescence recovery after photobleaching (FRAP) revealed that VSVG– GFP was highly mobile in ER membranes at 40 °C but was immobilized in the presence of tunicamycin( Nehls et al, 2000 Nature Cell Biology)

7. Experimental Setup Laser beam focused or through small field diaphragm Rapid shutter to switch from high powered beam for bleach to attenuated beam for recovery same power won’t work-Keep bleaching) Detector: PMT, camera ? Original apparatus used stationary laser spot (still sometimes used) Later improvement included scanning mirror to scan spot over sample. Now can be done with laser scanning confocal instruments. (for some cases-e.g. membranes)

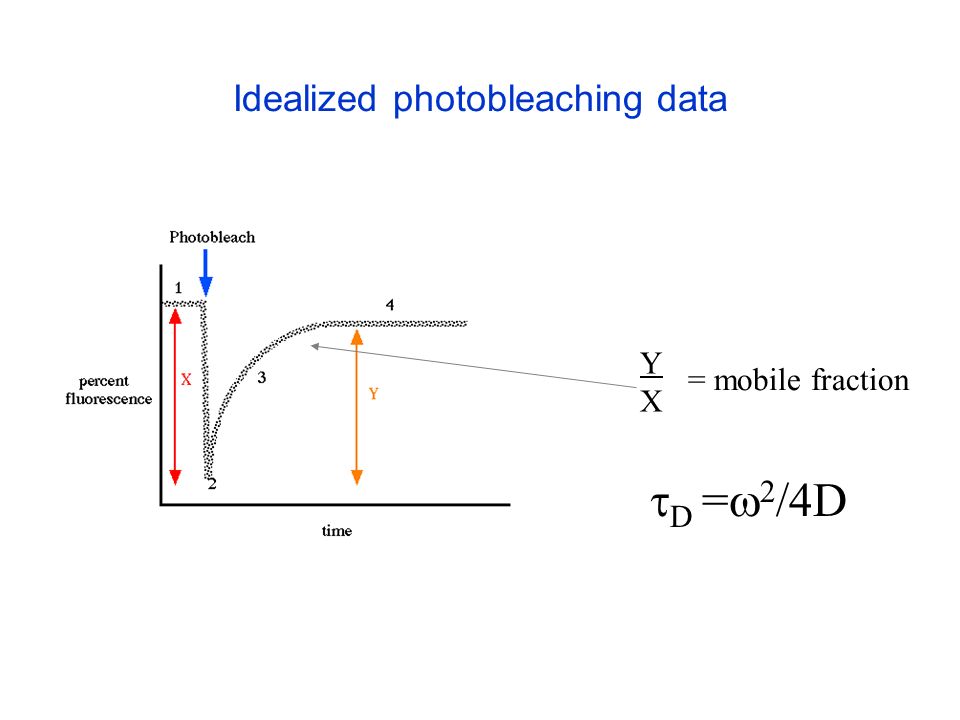

8. Idealized photobleaching data YXYX = mobile fraction  D =  2 /4D

9. Real FRAP data

10. More Diffusion types Important for Large macromolecules: Collisions, obstacles, binding Fully recovers

11. A B Both A and B will have similar D in Membrane although Very different sizes Binding to immobilized matrix will reduce fraction of molecules diffusing intra extracellular

12. Diffusion of membrane components can be seen as a two dimensional diffusion problem Membrane is modeled as infinite plane Viscosity of the lipid bilayer is ~ 2 orders of magnitude higher than water As shown by Saffman and Delbruck, the translational diffusion coefficient for membrane components depends only on the size of the membrane spanning domain

13. Spot Photobleaching Bleach and monitor single diffraction limited spot Assumes infinite reservoir of fluorescent molecules (hole can fill back in) Use  D =  2 /4D to obtain D Determine  = nominal width of Gaussian spot by other optical method 1/e 2 point Fit fluorescence recovery curve to obtain  D Axelrod et al., 1976

14. PSF and Beam Waist Imaging sub-resolution 100 nm fluorescent beads Use 1/e 2 points to get ω beam waist (87%)  D =  2 /4D

15. Different bleaching geometries yield different types of information 1.Line photobleaching generates a one-dimensional diffusion problem Allows collection of more fluorescence, averaging F x Note that beam is still Gaussian Line scan of single points

16. Scanning over bleach spot improves ability to characterize recovery curves Allows accurate characterization of the bleach geometry and size for each individual experiment Simplifies fits of recovery curves to: where a is a constant reflecting extent of bleaching. Koppel, 1979 Biophys. J. 281 Allows compensation for photobleaching during monitoring and sample drift.

17. No recovery Recovery Pre-bleach image PhotobleachPost-bleach image Different bleaching geometries yield different types of information

18. FRAP of GFP in Mitochondria Suggests barriers (cristae) need to be large Occlude 90% space Verkman, TIBS, 2002 Fast limit: cytoplasm Slow limit: membrane bound

19. Size dependence of dextrans (polysaccharides) diffusion in solution Not simple spheres: Random coils No simple m 1/3 scaling Verkman, J. Cell Biology 1999

20. Diffusion of FITC Dextrans, Ficolls in MDCK Cell Cytoplasm Heavy dextrans very slow Mobile fraction low: binding More polarizable Verkman, J. Cell Biology 1999

21. Problem is much more complicated because of three dimensional freely diffusing geometry. FRAP in Cytoplasm

22. Problems with FRAP of cytoplasmic components (2 orders of magnitude faster than membranes) 1.Diffusion is fast compared to bleaching and monitoring rate  D =ms : cannot truly scan 2If use small bleach regions, redistribution may occur during bleaching. In fact, often cannot observe bleach of small region at all. 3.By enlarging the size of the bleach region, can overcome this problem: but lose localization

23. One solution is to measure cytoplasmic diffusion by comparing to characteristic times of known samples in solutions of known viscosity. e.g. Luby-Phelps et al., 1994. SekSek et al. 1997. D = kT/f Not reliable, cytoplasm complicated collection of fluid, cytoskeletal components, endosome, etc: simple viscosity not sufficient Photobleaching of cytoplasmic components  D =  2 /4D

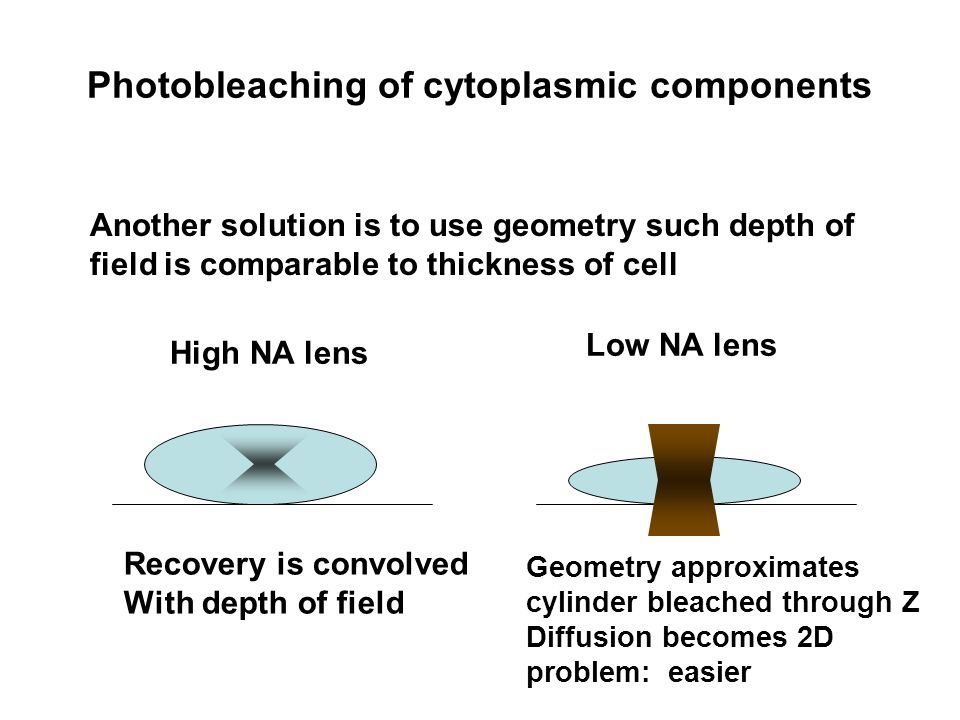

24. Another solution is to use geometry such depth of field is comparable to thickness of cell High NA lens Low NA lens Geometry approximates cylinder bleached through Z Diffusion becomes 2D problem: easier Photobleaching of cytoplasmic components Recovery is convolved With depth of field

25. Multiphoton bleaching Need 3D treatment

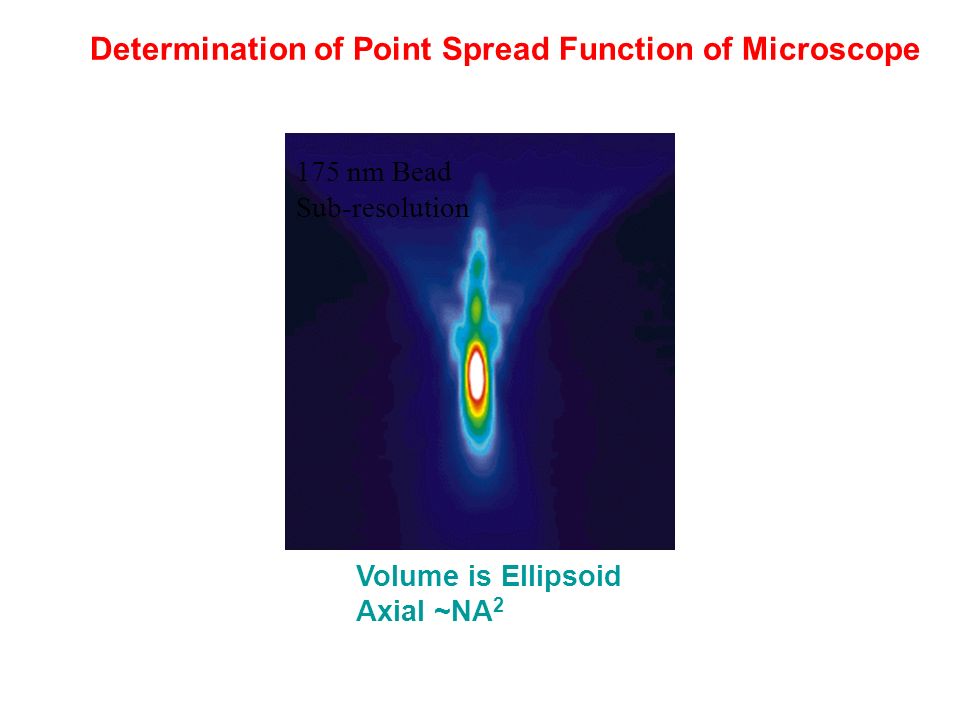

26. Determination of Point Spread Function of Microscope 175 nm Bead Sub-resolution Volume is Ellipsoid Axial ~NA 2

27. Typical 2-photon Photobleaching setup (Point Bleach) 1-p would need pinhole Bleach high power Monitor low power ~20% for 2-p Controls power

28. Fluorescence Loss in Photobleaching “FLIP” continuous bleaching measure of mobility Figure 3 | Fluorescence loss in photobleaching. Protein fluorescence in a small area of the cell (box) is bleached repetitively. Loss of fluorescence in areas outside the box indicates that the fluorescent protein diffuses between the bleached and unbleached areas. Repetitive photobleaching of an endoplasmic reticulum (ER) GFP-tagged membrane protein reveals the continuity of the ER in a COS-7 cell. Image times are indicated in the lower right corners. The postbleach image was obtained immediately after the first photobleach. The cell was repeatedly photobleached in the same box every 40 s. After 18 min, the entire ER fluorescence was depleted, indicating that all of the GFP-tagged protein was highly mobile and that the entire ER was continuous with the region in the bleach box. ( Nehls et al, 2000 Nature Cell Biology)

29. Photobleaching experiments Obtain diffusion coefficient Binding/mobile fraction Define active transport/directed flow mechanisms Define trafficking rates through intracellular compartments (including cytoplasm, fast)

30. Fluctuation (fluorescence) Correlation Spectroscopy (FCS) Fluctuations in excitation volume due to Diffusion, reactions

31. Compares probability of detecting photon at time t with some latter time t + τ

33. Form for translational diffusion N=concentration of molecules in focal volume τDτD =diffusion time, R=ω z /ω xy of observation volume

34. FCS of Rhodamine in Sucrose Solution Higher concentrations Shorter correlation times webb

36. APPLICATIONS – peptides bound to soluble receptors, – ligands bound to membrane-anchored receptors, – viruses bound to cells, – antibodies bound to cells, – primers bound to target nucleic acids, – regulatory proteins /protein-complexes in interaction with target DNA or RNA – enzymatic products. If the diffusion properties of the reactants are too similar, both reactants have to be labeled with fluorescent dyes with different excitation and emission spectra.

37. Mathematical model for autocorrelation Two component autocorrelation curve

38. Binding to mobile receptorBinding to immobile receptorMotility along microtubule Concentration Diffusion of receptor Concentration Kd On rate (M -1 sec -1 ) Off rate (sec -1 ) Mobile/immobile Mean squared displacement The slow component in living cells

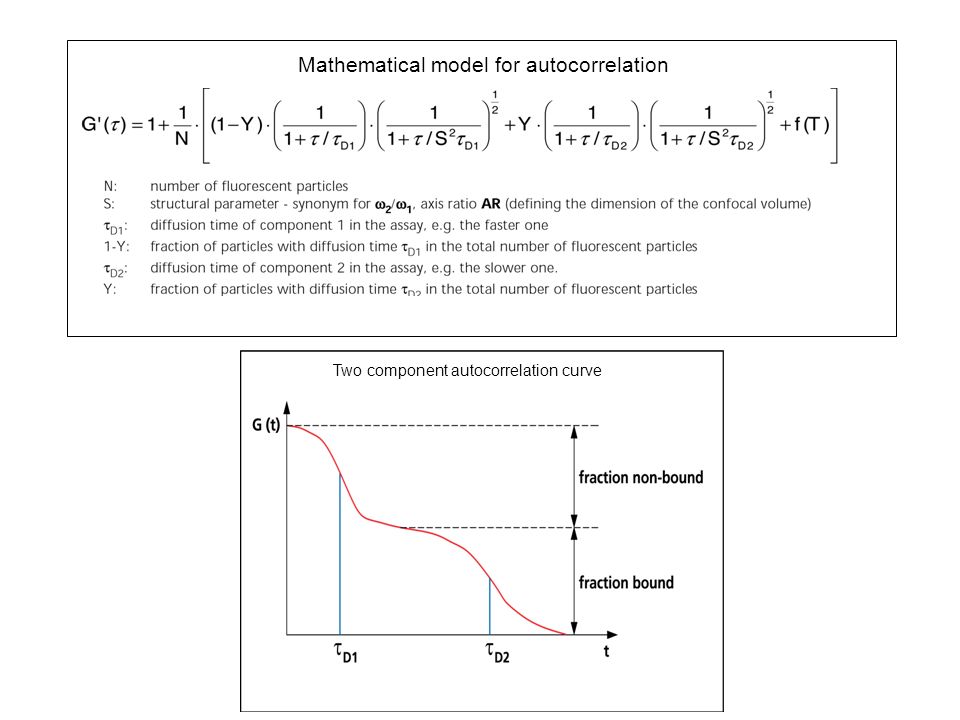

39. fluorescent molecules Cross-correlation spectroscopy 3D Gaussian confocal detection volume ~1 femtoliter diffusion trajectories Individual fluorescent molecules are detected as single channel photon count fluctuations. Bound molecules are detected as coincident dual channel fluctuations. Cross-correlation analysis provides a measure of the number and rate of diffusion of bound molecules. Cross-correlation function G rg (t) = 1 1.02 1.04 1.06 1.08 1.1 10100100010000 microseconds Alexa488 RNA Syto61 cross-correlation Dual channel fluctuation 10000 15000 20000 25000 30000 35000 40000 45000 50000 012345678910 seconds Alexa488 RNA Syto61 Count rate
