1 Is this your room? Then you already know about entropy

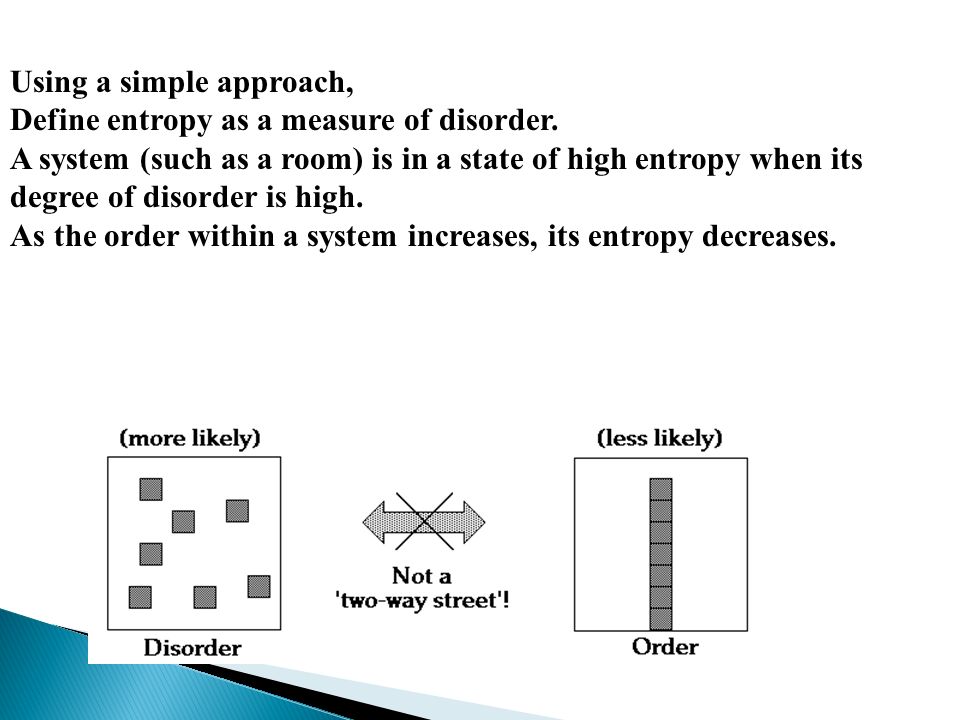

2 Using a simple approach, Define entropy as a measure of disorder. A system (such as a room) is in a state of high entropy when its degree of disorder is high. As the order within a system increases, its entropy decreases.

3 For better or for worse, nature 'likes' chaos, disorder, high entropy... In fact, much of our life consists in fighting this disorder! A system (such as a room) is in a state of high entropy when its degree of disorder is high.

4 This can be explained in terms of probabilities. Disordered states are simply more likely to exist (or emerge) than ordered states. The spontaneous direction of change is from a less probable to a more probable state, as illustrated above. 2 20 ways to arrange?

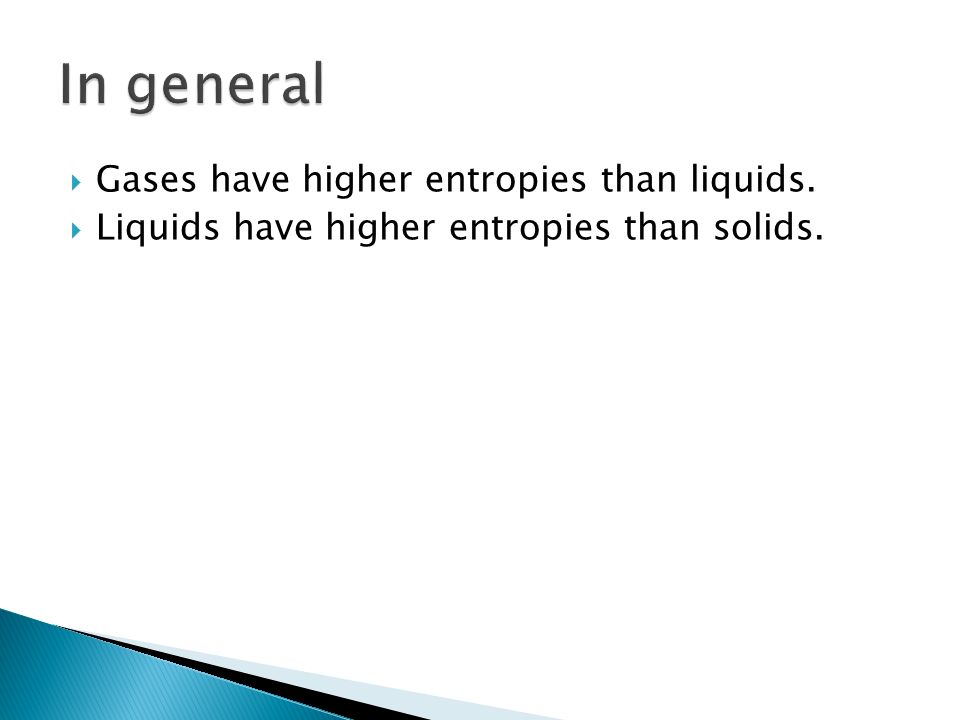

5  Gases have higher entropies than liquids.  Liquids have higher entropies than solids.

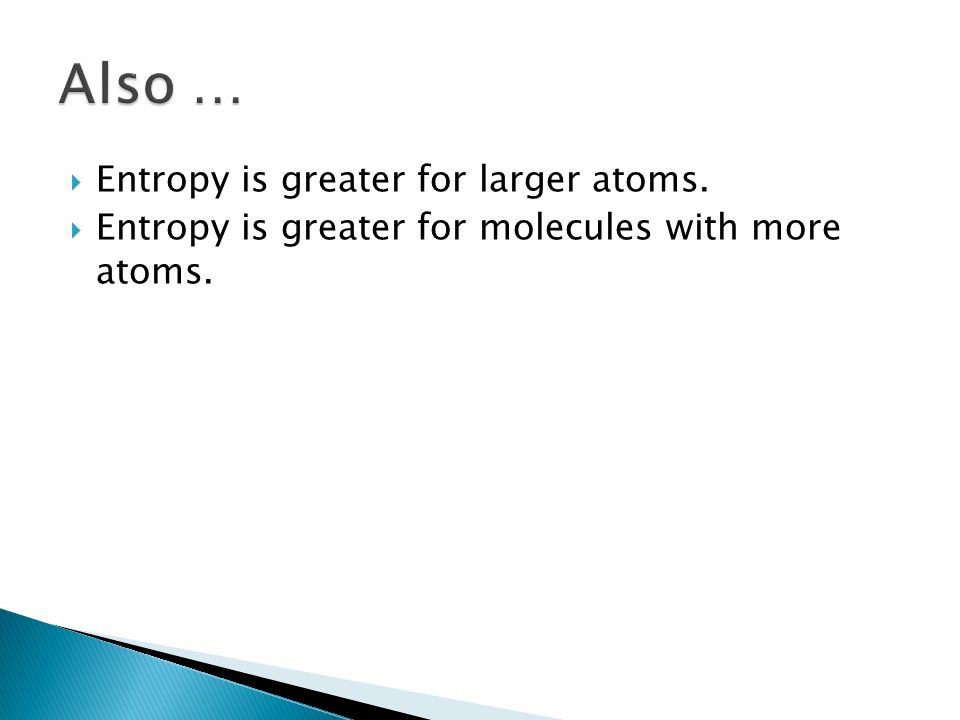

6  Entropy is greater for larger atoms.  Entropy is greater for molecules with more atoms.

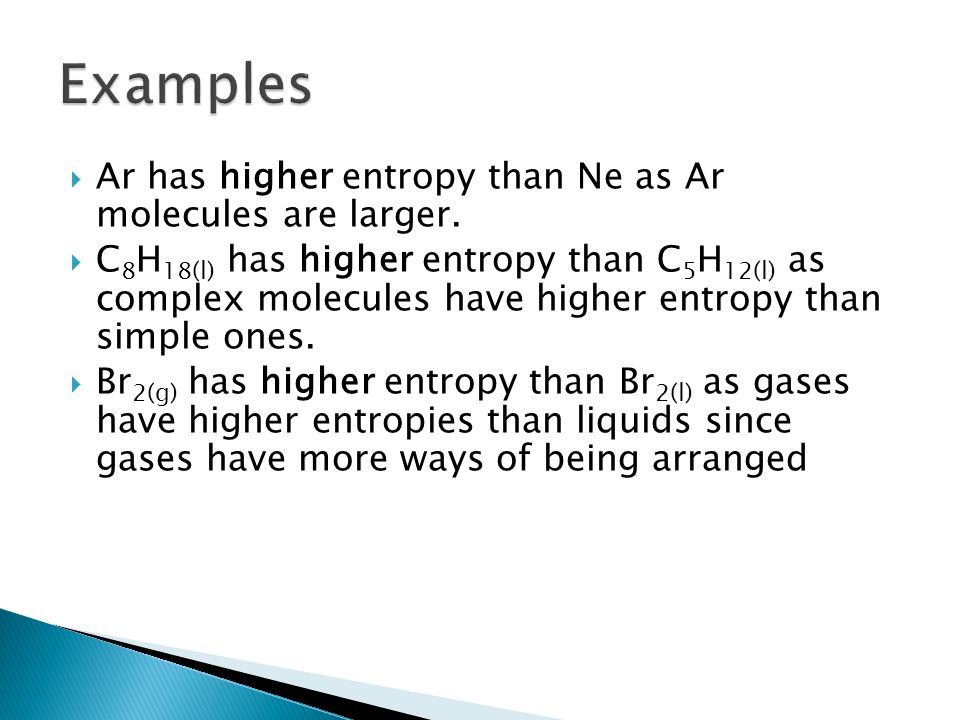

7  Ar has higher entropy than Ne as Ar molecules are larger.  C 8 H 18(l) has higher entropy than C 5 H 12(l) as complex molecules have higher entropy than simple ones.  Br 2(g) has higher entropy than Br 2(l) as gases have higher entropies than liquids since gases have more ways of being arranged

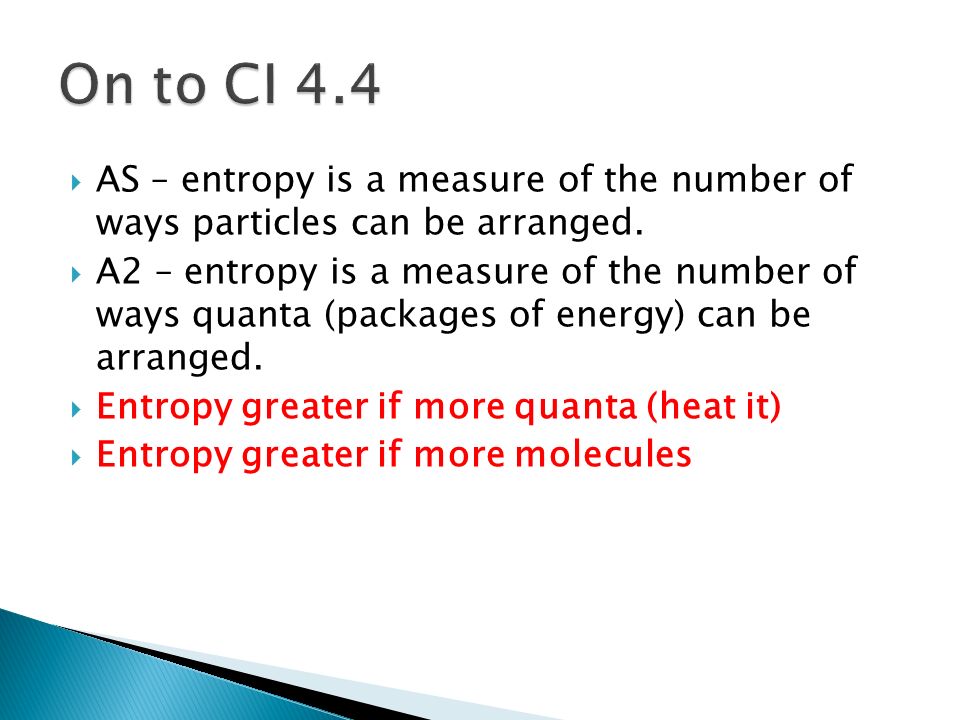

8  AS – entropy is a measure of the number of ways particles can be arranged.  A2 – entropy is a measure of the number of ways quanta (packages of energy) can be arranged.  Entropy greater if more quanta (heat it)  Entropy greater if more molecules

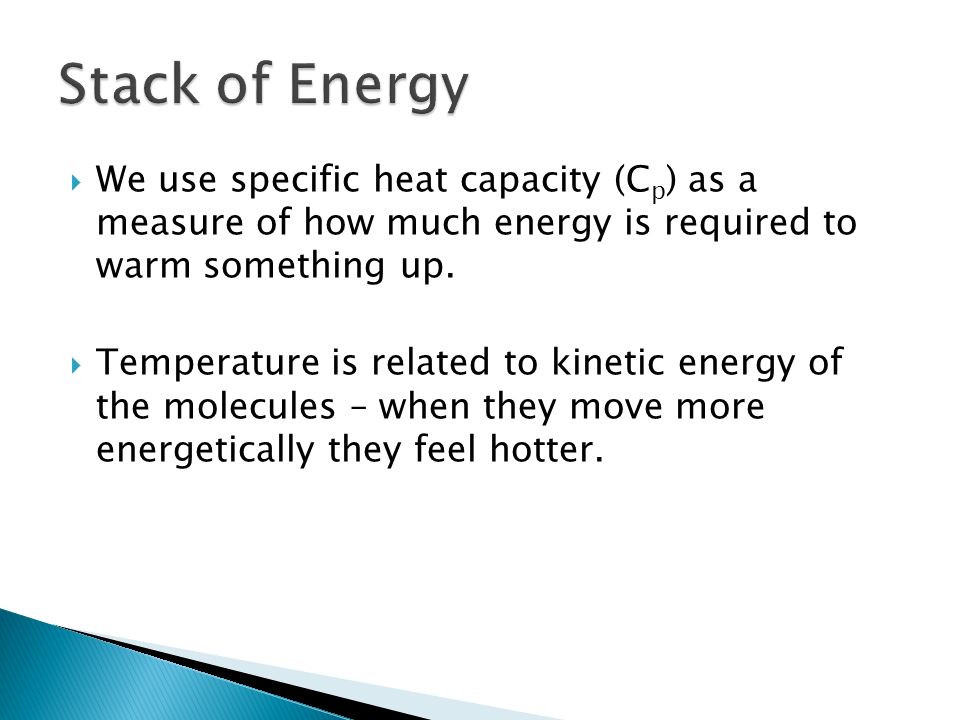

9  We use specific heat capacity (C p ) as a measure of how much energy is required to warm something up.  Temperature is related to kinetic energy of the molecules – when they move more energetically they feel hotter.

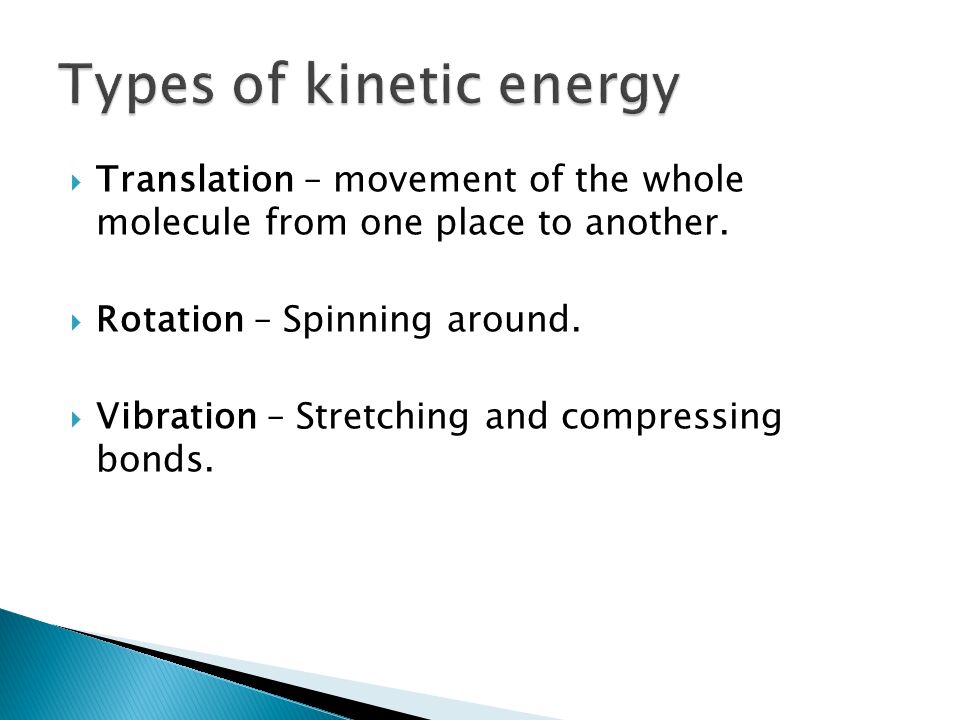

10  Translation – movement of the whole molecule from one place to another.  Rotation – Spinning around.  Vibration – Stretching and compressing bonds.

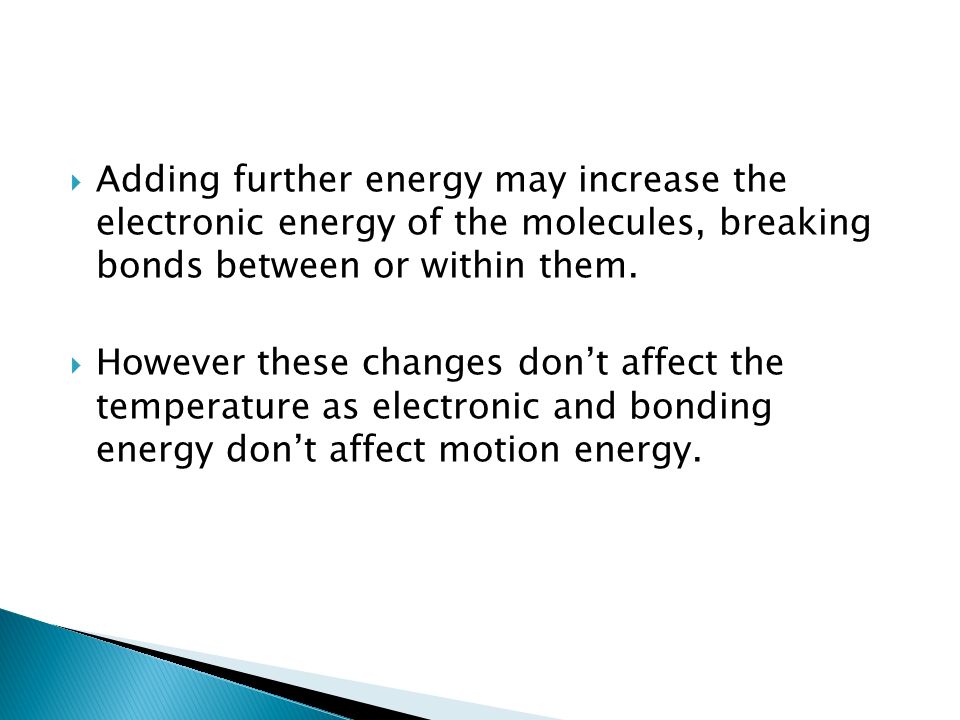

11  Adding further energy may increase the electronic energy of the molecules, breaking bonds between or within them.  However these changes don’t affect the temperature as electronic and bonding energy don’t affect motion energy.

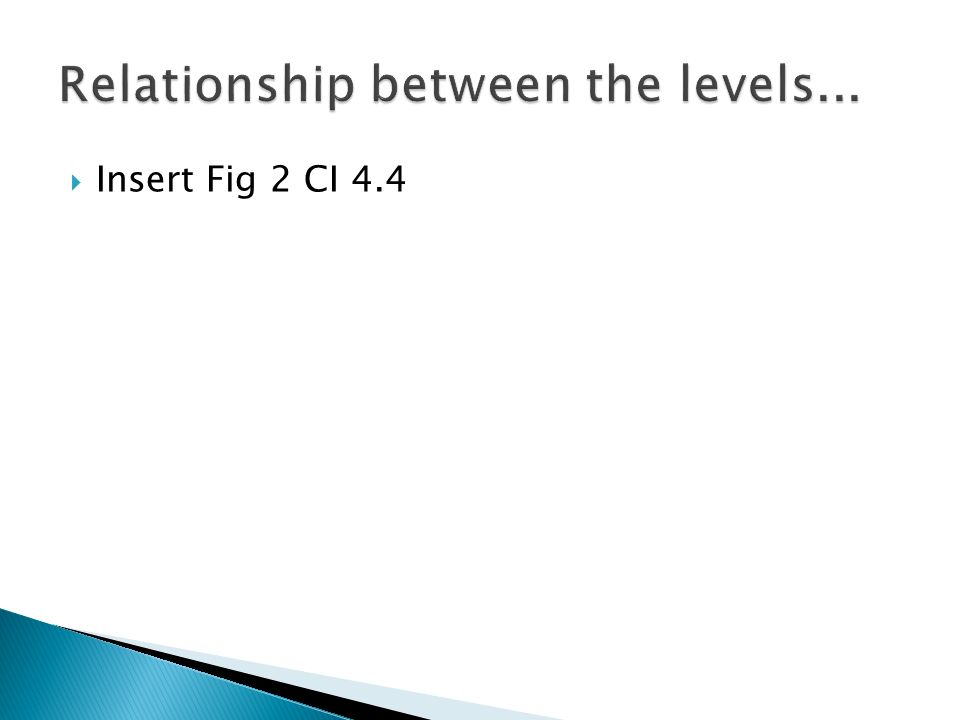

12  Insert Fig 2 CI 4.4

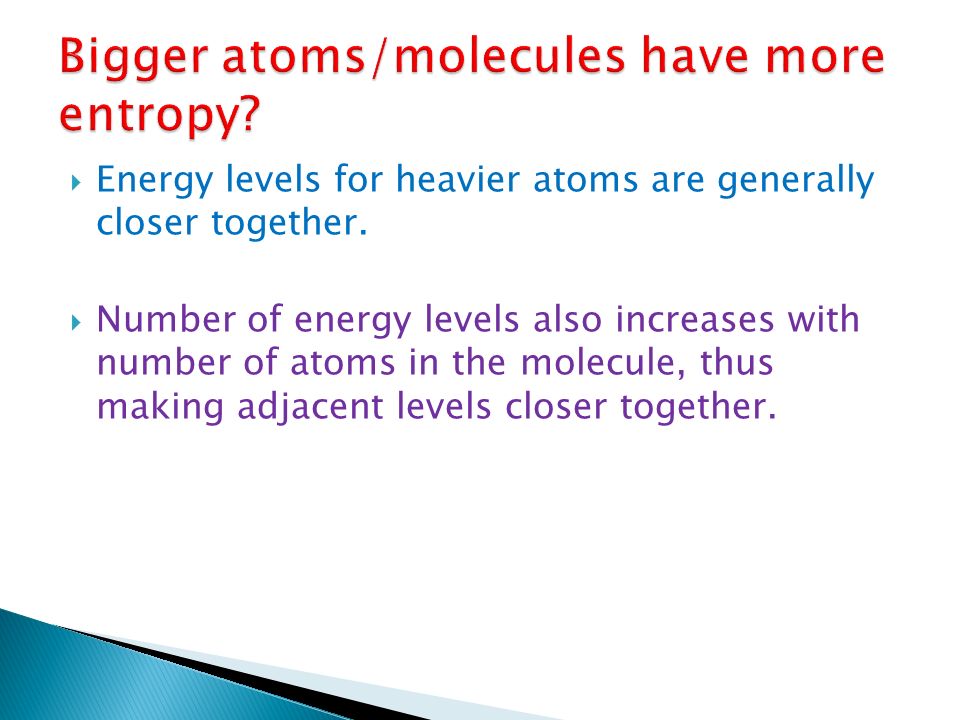

13  Energy levels for heavier atoms are generally closer together.  Number of energy levels also increases with number of atoms in the molecule, thus making adjacent levels closer together.

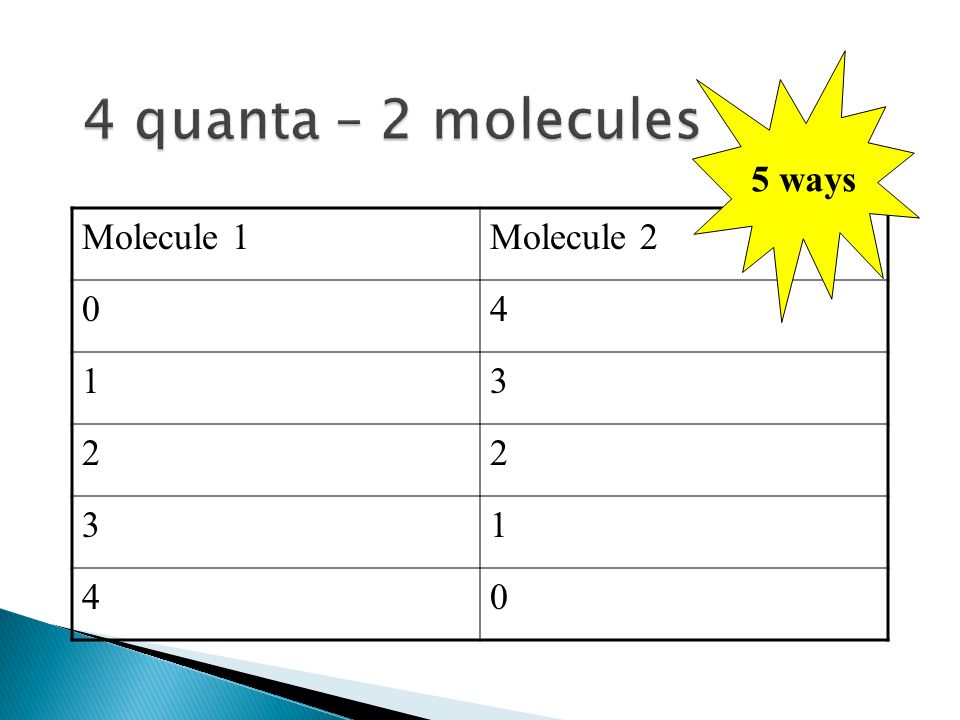

14 Molecule 1Molecule 2 04 13 22 31 40 5 ways

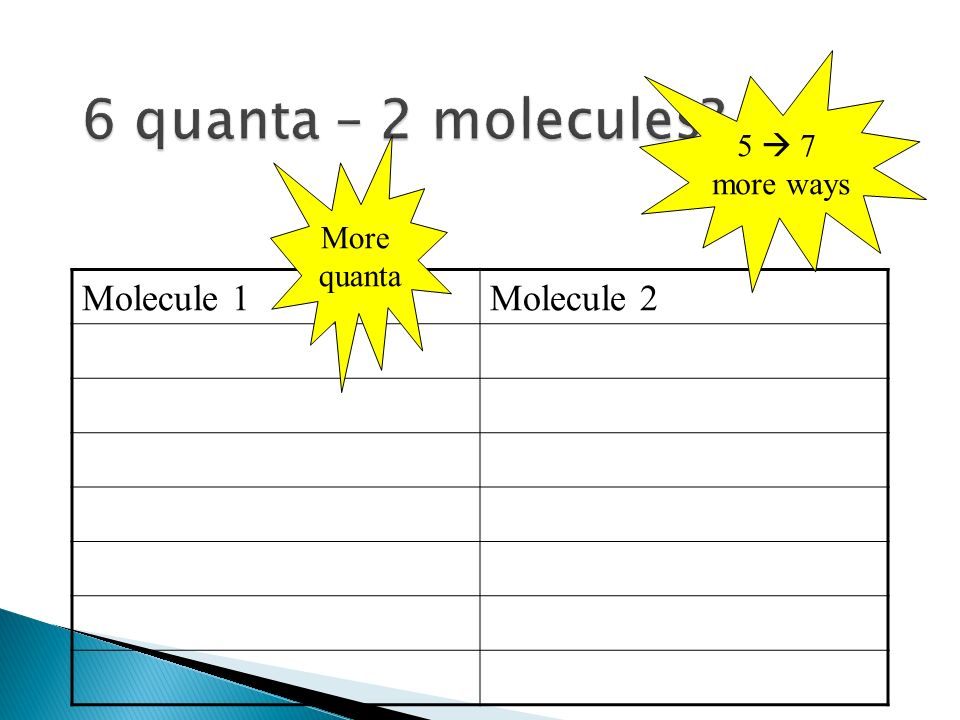

15 Molecule 1Molecule 2 More quanta 5  7 more ways

16 Molecule 1Molecule 2 04 13 22 31 40 5 ways

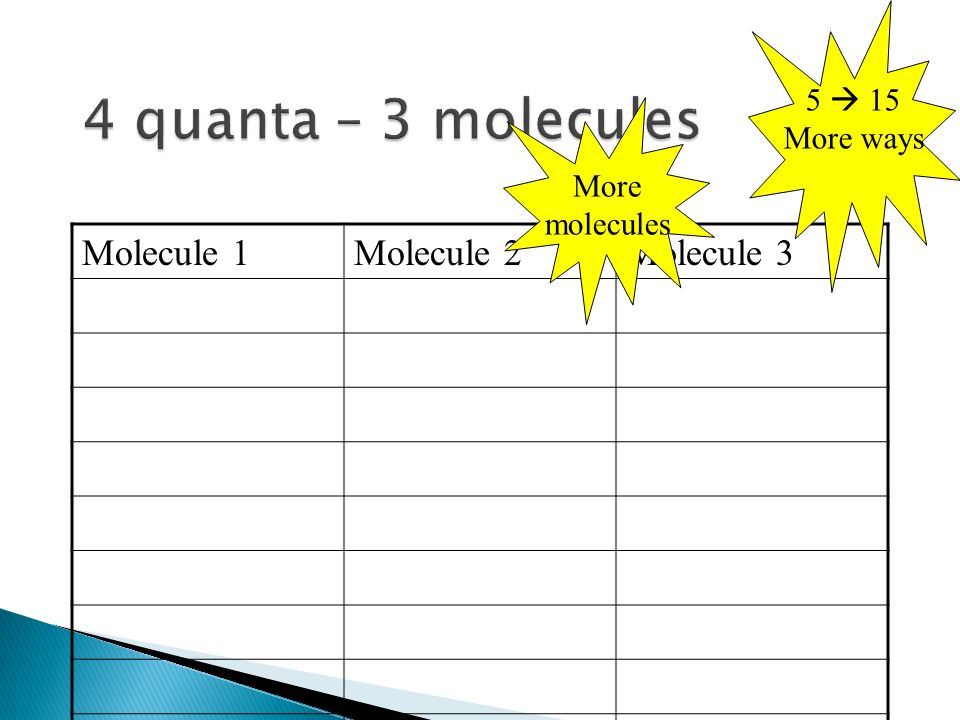

17 Molecule 1Molecule 2Molecule 3 More molecules 5  15 More ways

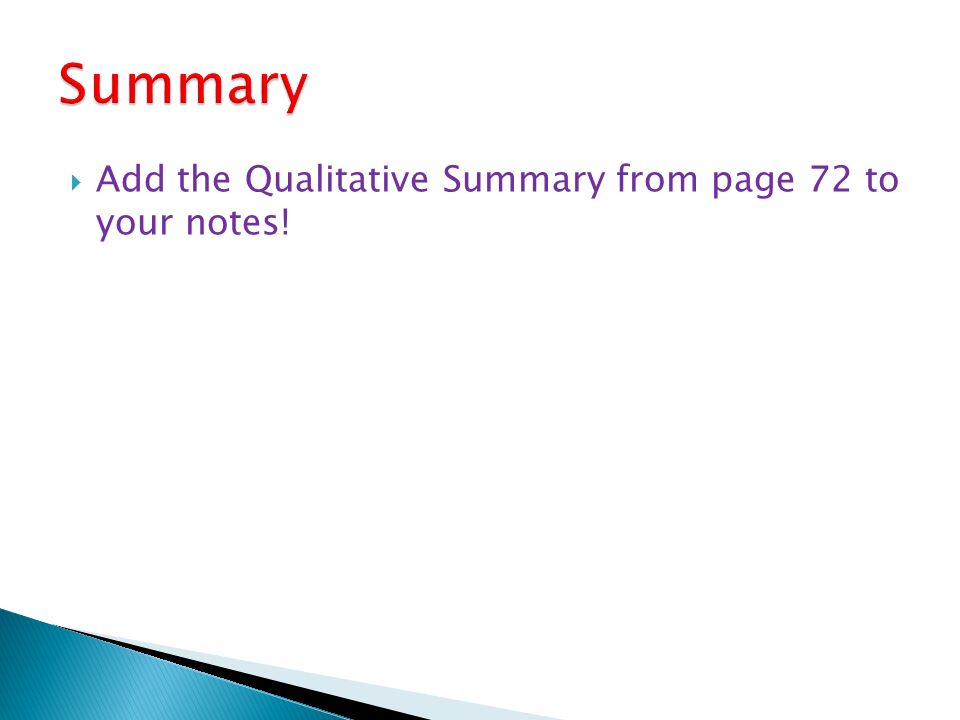

18  Add the Qualitative Summary from page 72 to your notes!

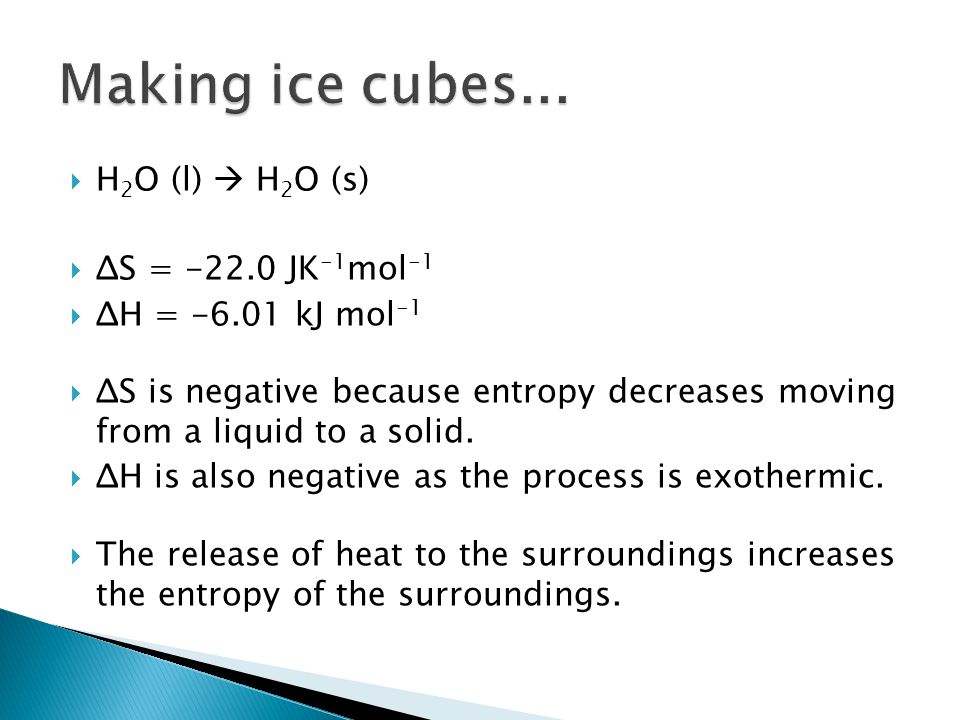

19  H 2 O (l)  H 2 O (s)  ΔS = -22.0 JK -1 mol -1  ΔH = -6.01 kJ mol -1  ΔS is negative because entropy decreases moving from a liquid to a solid.  ΔH is also negative as the process is exothermic.  The release of heat to the surroundings increases the entropy of the surroundings.

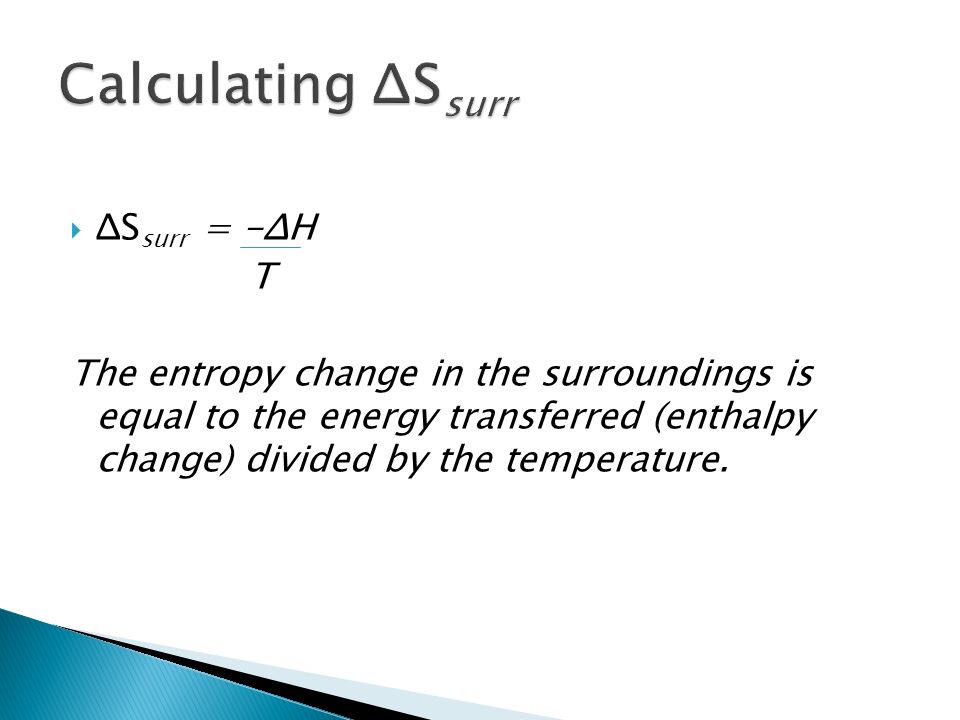

20  ΔS surr = -ΔH T The entropy change in the surroundings is equal to the energy transferred (enthalpy change) divided by the temperature.

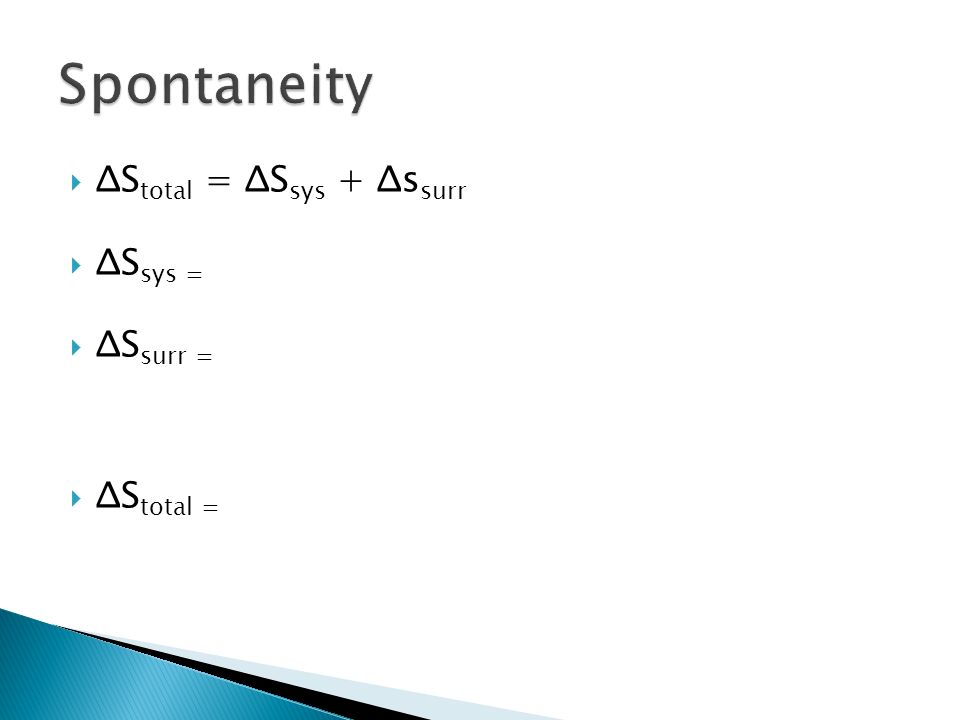

21  ΔS total = ΔS sys + Δs surr  ΔS sys =  ΔS surr =  ΔS total =

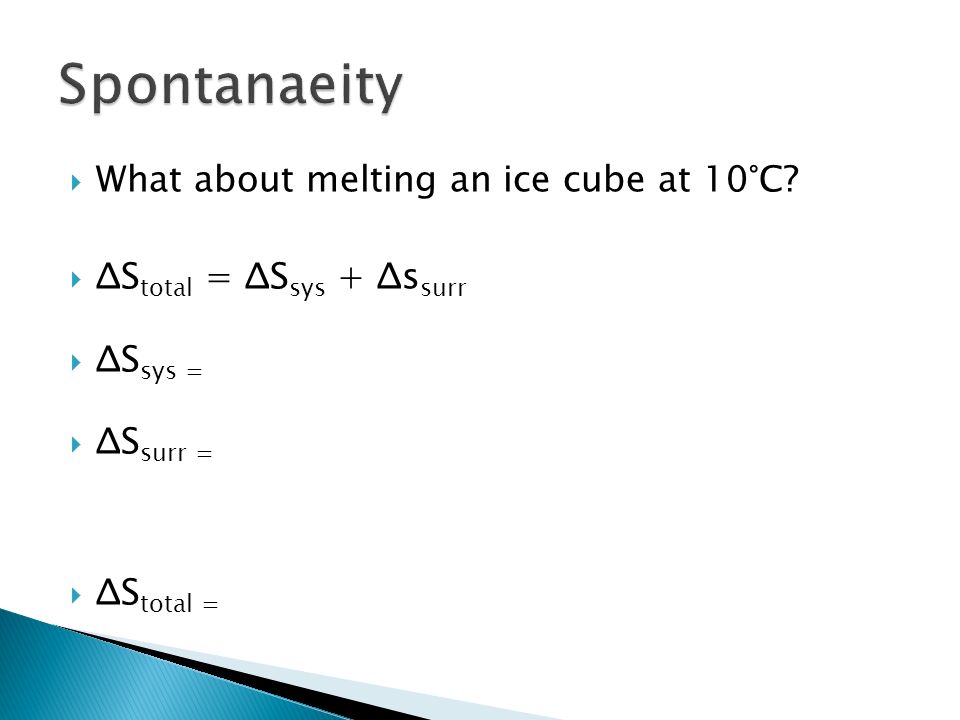

22  What about melting an ice cube at 10°C?  ΔS total = ΔS sys + Δs surr  ΔS sys =  ΔS surr =  ΔS total =

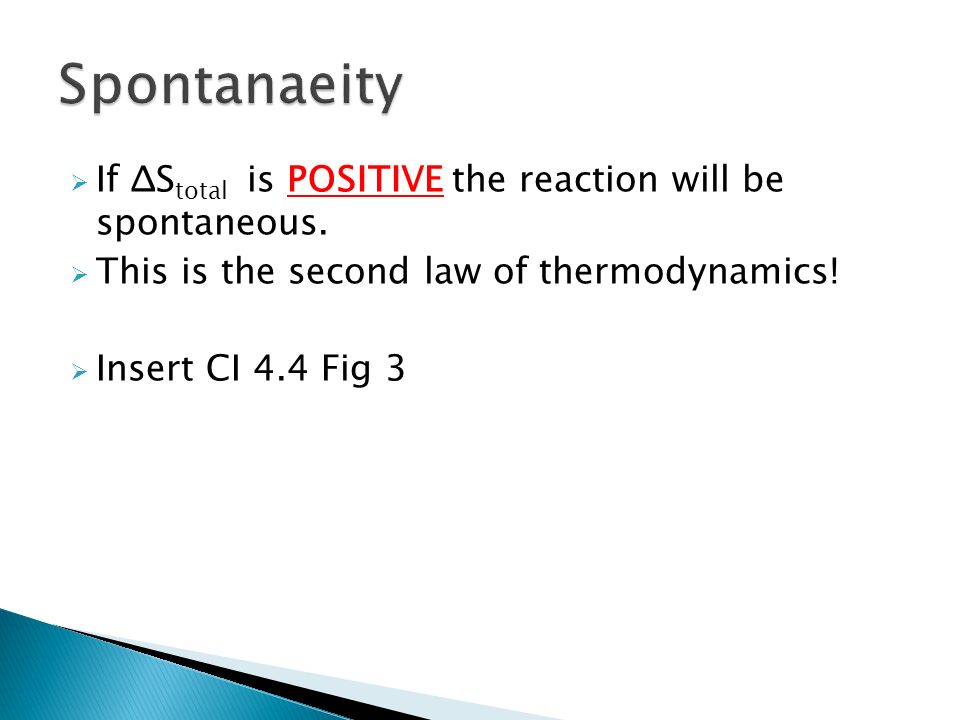

23  If ΔS total is POSITIVE the reaction will be spontaneous.  This is the second law of thermodynamics!  Insert CI 4.4 Fig 3

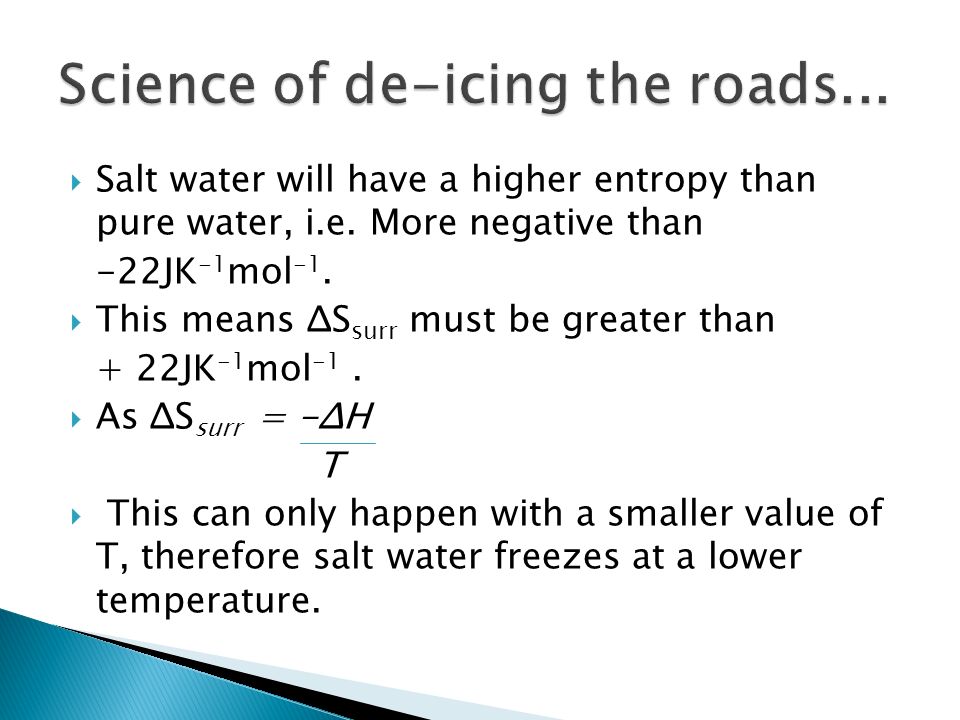

24  Salt water will have a higher entropy than pure water, i.e. More negative than -22JK -1 mol -1.  This means ΔS surr must be greater than + 22JK -1 mol -1.  As ΔS surr = -ΔH T  This can only happen with a smaller value of T, therefore salt water freezes at a lower temperature.

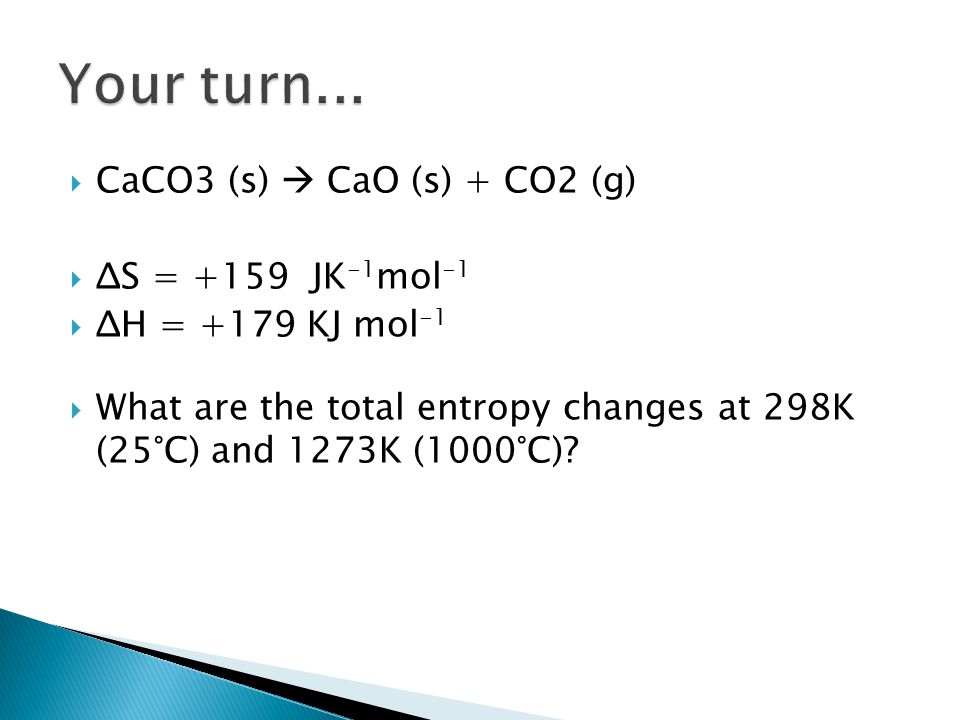

25  CaCO3 (s)  CaO (s) + CO2 (g)  ΔS = +159 JK -1 mol -1  ΔH = +179 KJ mol -1  What are the total entropy changes at 298K (25°C) and 1273K (1000°C)?

26  CaCO3 (s)  CaO (s) + CO2 (g)  ΔS = +159 JK -1 mol -1  ΔH = +179 KJ mol -1  298K (25°C) = -442 JK -1 mol -1  1273K (1000°C) = +18 JK -1 mol -1

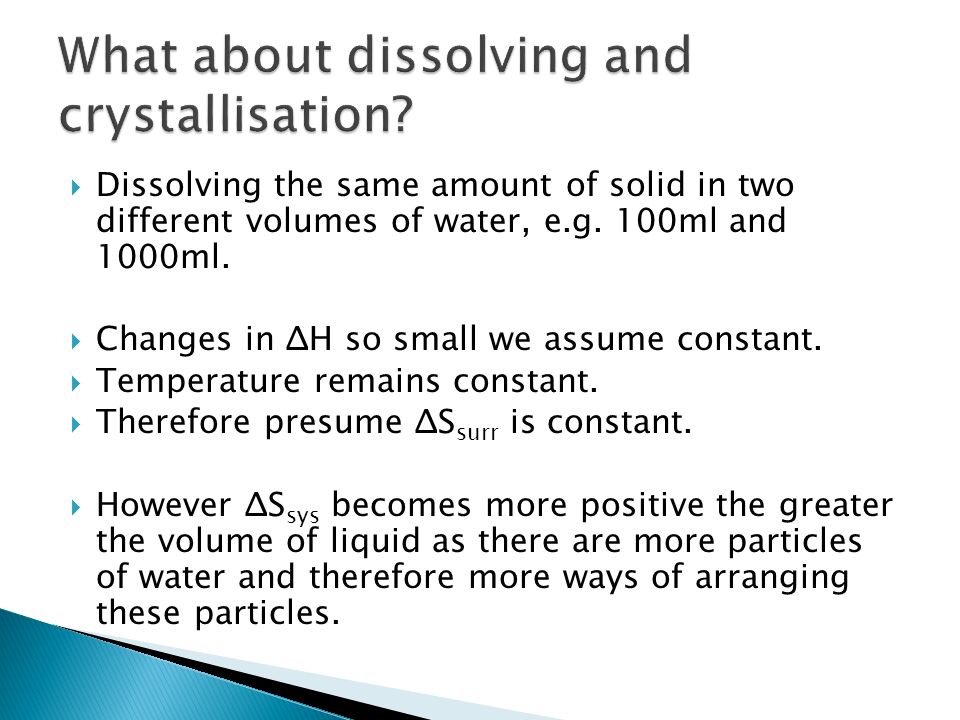

27  Dissolving the same amount of solid in two different volumes of water, e.g. 100ml and 1000ml.  Changes in ΔH so small we assume constant.  Temperature remains constant.  Therefore presume ΔS surr is constant.  However ΔS sys becomes more positive the greater the volume of liquid as there are more particles of water and therefore more ways of arranging these particles.

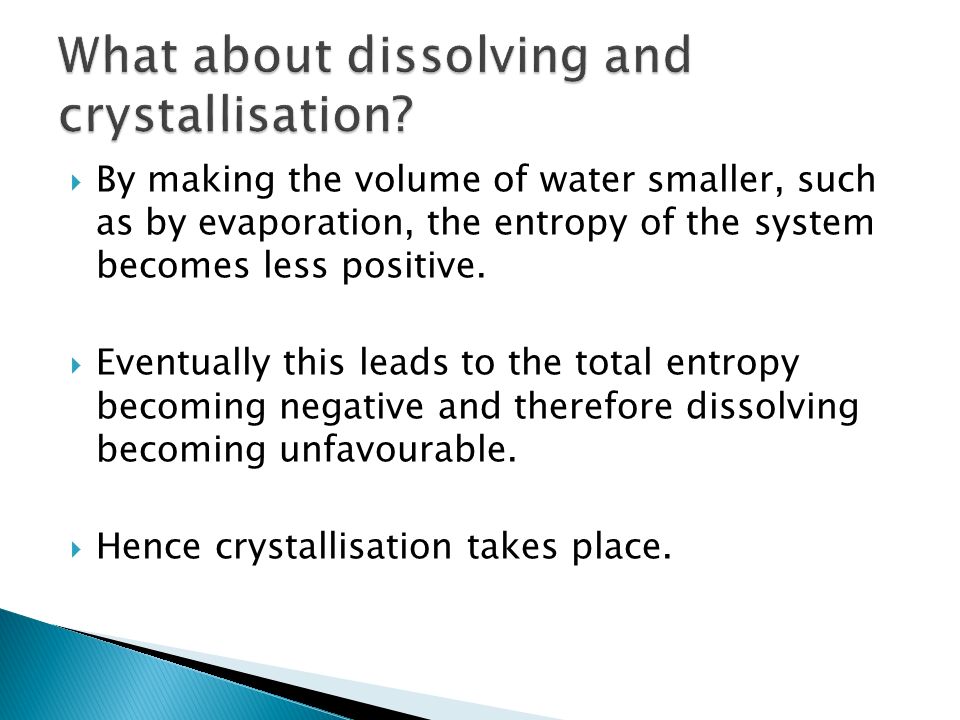

28  By making the volume of water smaller, such as by evaporation, the entropy of the system becomes less positive.  Eventually this leads to the total entropy becoming negative and therefore dissolving becoming unfavourable.  Hence crystallisation takes place.

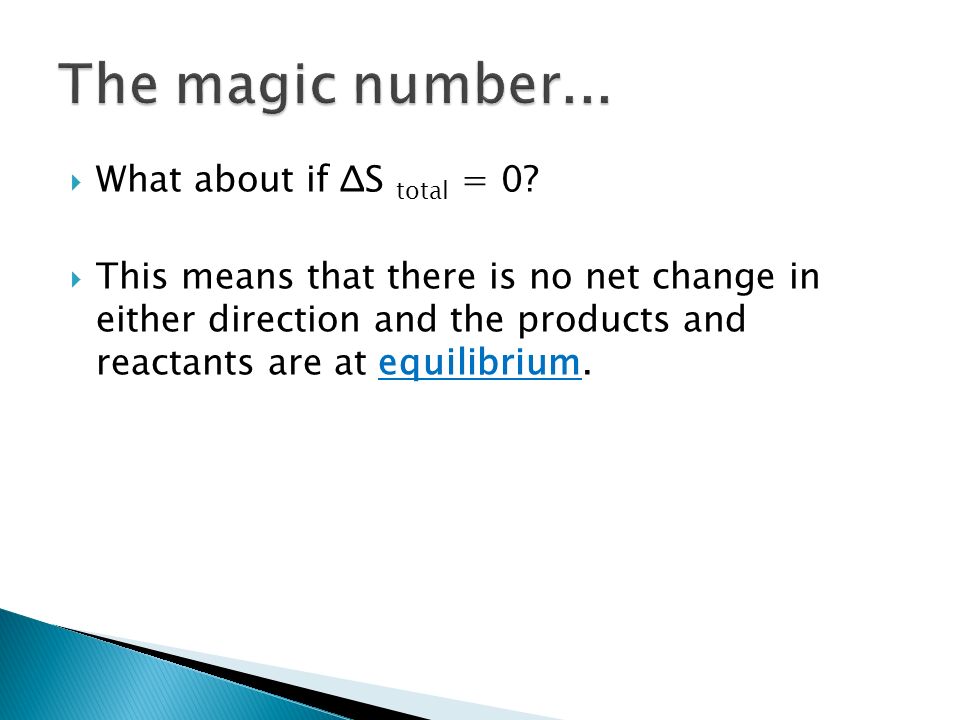

29  What about if ΔS total = 0?  This means that there is no net change in either direction and the products and reactants are at equilibrium.

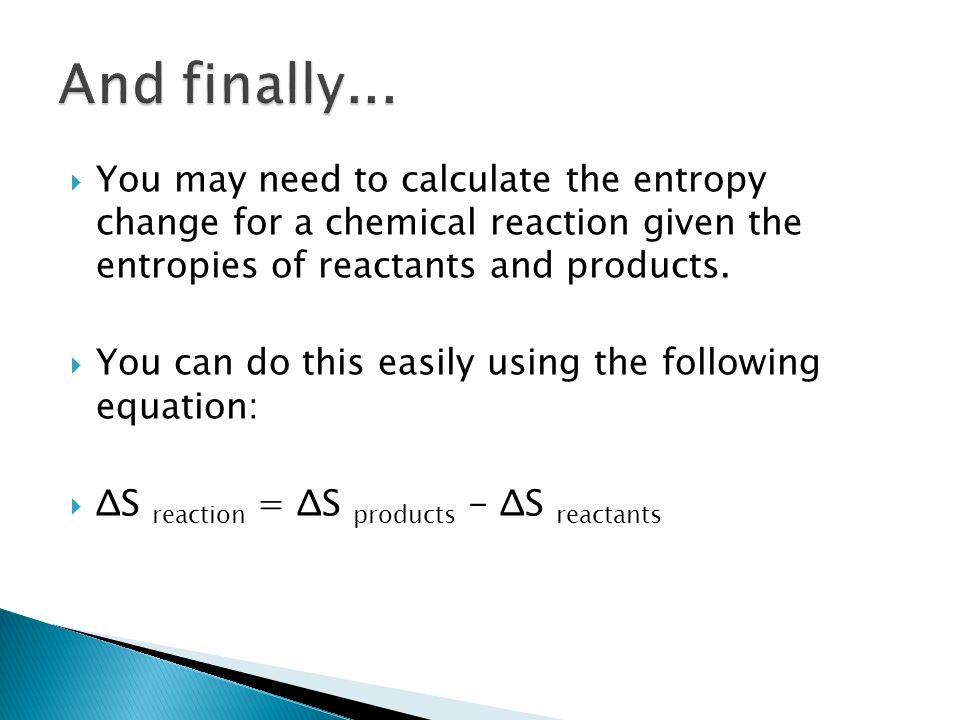

30  You may need to calculate the entropy change for a chemical reaction given the entropies of reactants and products.  You can do this easily using the following equation:  ΔS reaction = ΔS products - ΔS reactants

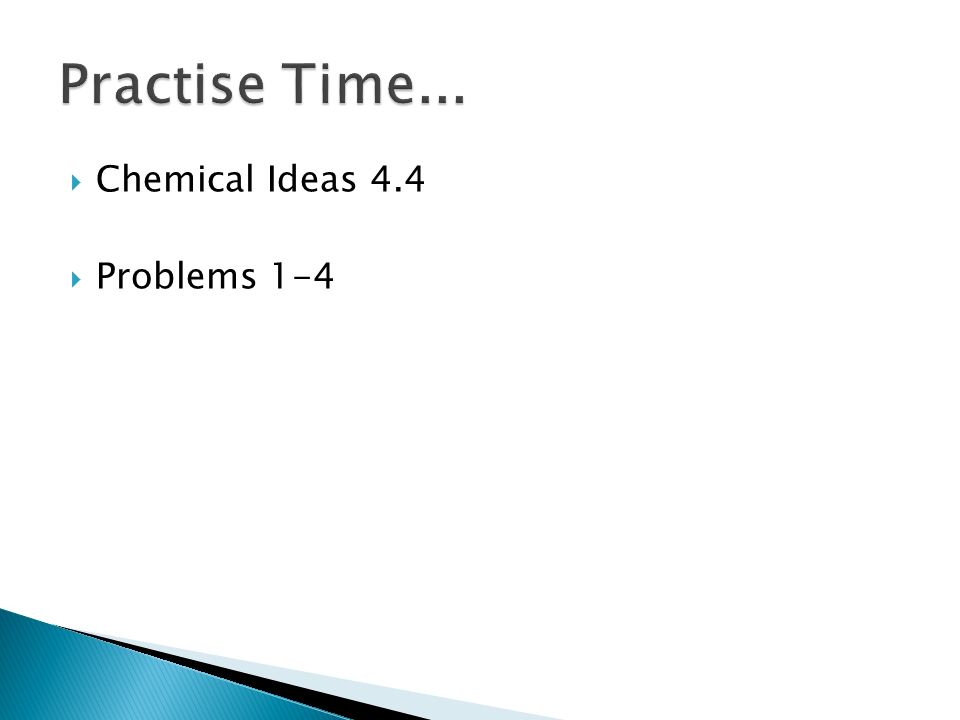

31  Chemical Ideas 4.4  Problems 1-4
