1
Why is proper protein production so important?
2
Cystic Fibosis – most common genetic disease Progeria Porphyria
3
Sickle Cell Anemia Achondrolplasia Tay Sach’s
4
Developmental Abnormalities
5

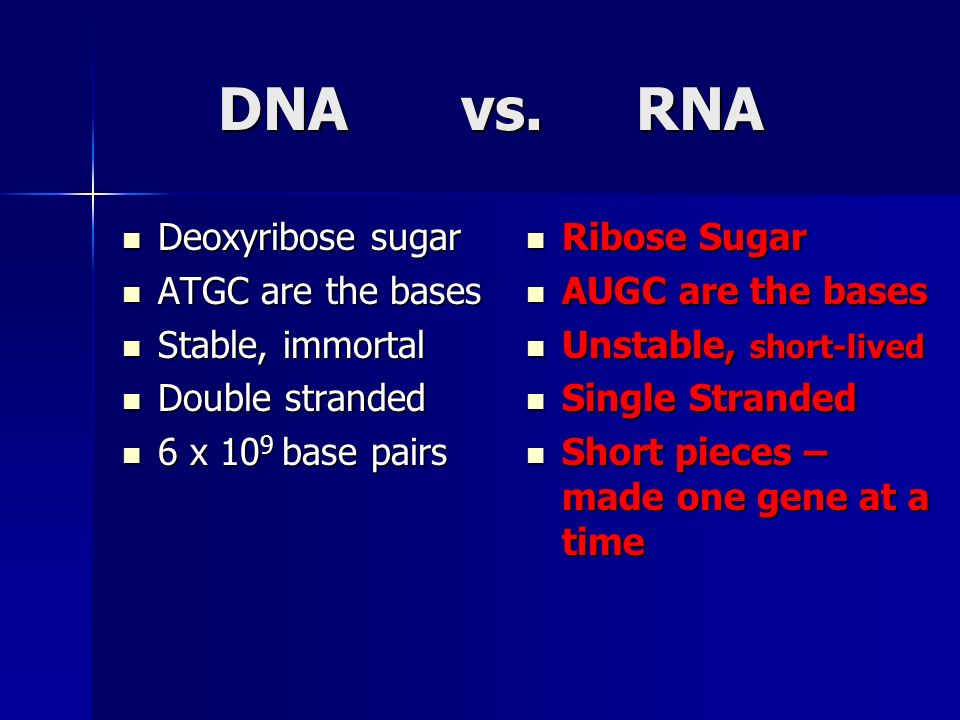

DNA vs. RNA Deoxyribose sugar Deoxyribose sugar ATGC are the bases ATGC are the bases Stable, immortal Stable, immortal Double stranded Double stranded 6 x 10 9 base pairs 6 x 10 9 base pairs Ribose Sugar Ribose Sugar AUGC are the bases AUGC are the bases Unstable, short-lived Unstable, short-lived Single Stranded Single Stranded Short pieces – made one gene at a time Short pieces – made one gene at a time
7
Types of RNA mRNA – flat, single chain (no secondary structure) – directs protein production mRNA – flat, single chain (no secondary structure) – directs protein production tRNA – shaped like a cloverleaf, matches nucleotides in the mRNA with the correct amino acids tRNA – shaped like a cloverleaf, matches nucleotides in the mRNA with the correct amino acids rRNA makes up the ribosome – actually catalyzes peptide bond formation rRNA makes up the ribosome – actually catalyzes peptide bond formation
8

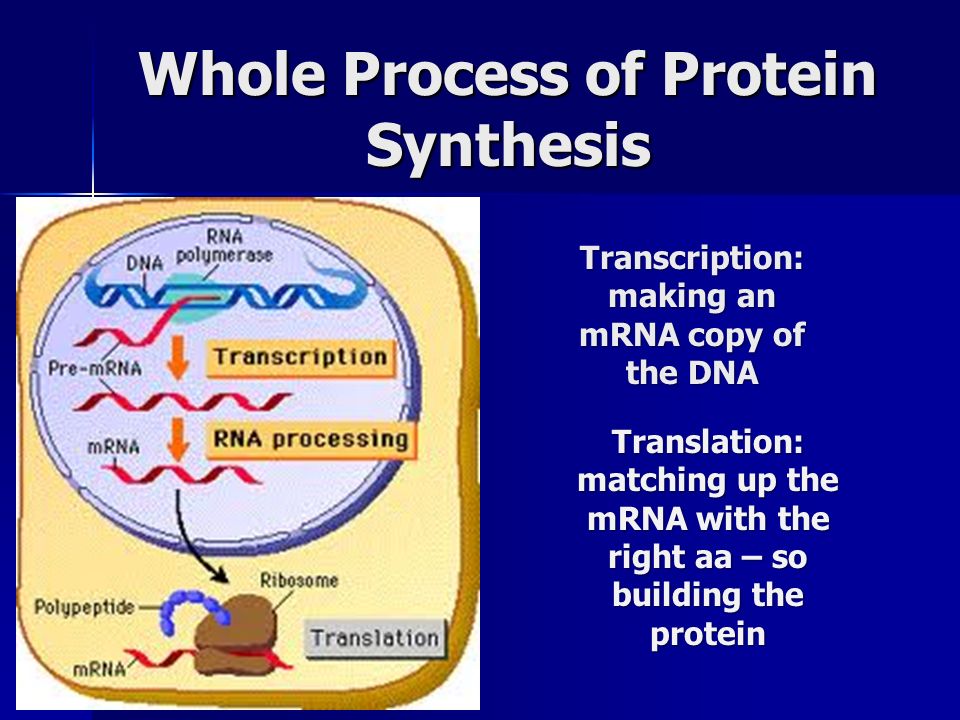

Whole Process of Protein Synthesis Transcription: making an mRNA copy of the DNA Translation: matching up the mRNA with the right aa – so building the protein
9

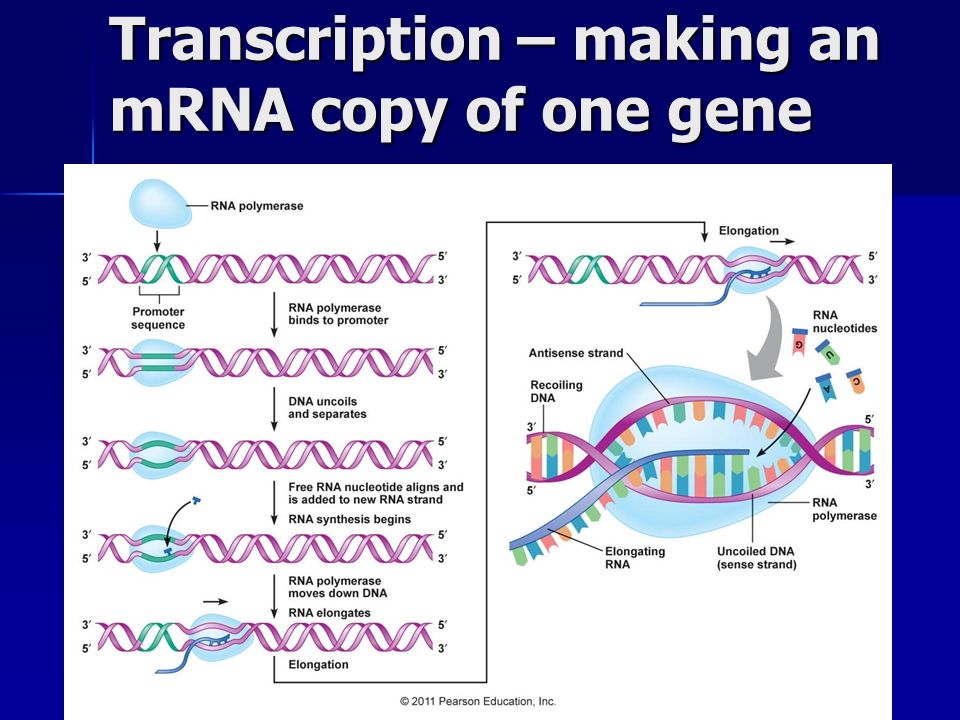

Transcription – making an mRNA copy of one gene
10

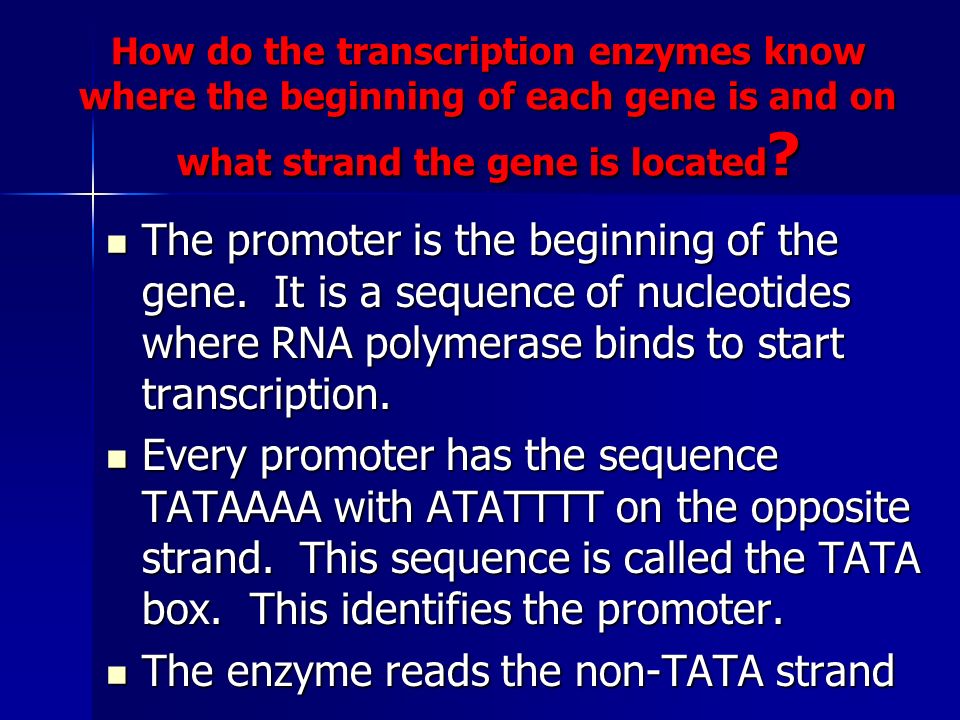

How do the transcription enzymes know where the beginning of each gene is and on what strand the gene is located ? The promoter is the beginning of the gene. It is a sequence of nucleotides where RNA polymerase binds to start transcription. The promoter is the beginning of the gene. It is a sequence of nucleotides where RNA polymerase binds to start transcription. Every promoter has the sequence TATAAAA with ATATTTT on the opposite strand. This sequence is called the TATA box. This identifies the promoter. Every promoter has the sequence TATAAAA with ATATTTT on the opposite strand. This sequence is called the TATA box. This identifies the promoter. The enzyme reads the non-TATA strand The enzyme reads the non-TATA strand
11

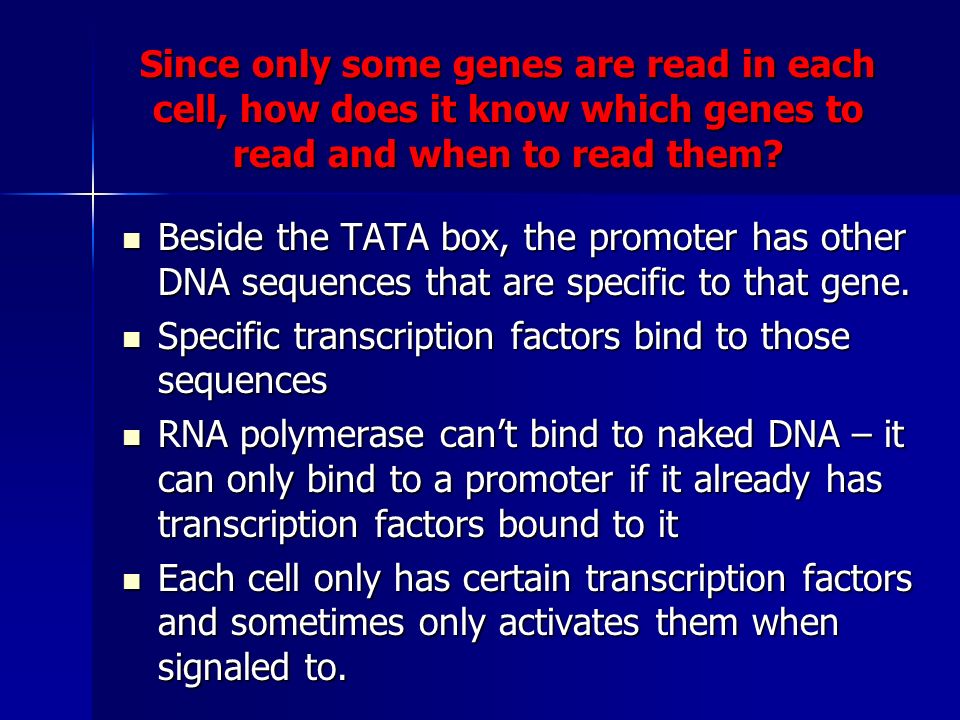

Since only some genes are read in each cell, how does it know which genes to read and when to read them? Beside the TATA box, the promoter has other DNA sequences that are specific to that gene. Beside the TATA box, the promoter has other DNA sequences that are specific to that gene. Specific transcription factors bind to those sequences Specific transcription factors bind to those sequences RNA polymerase can’t bind to naked DNA – it can only bind to a promoter if it already has transcription factors bound to it RNA polymerase can’t bind to naked DNA – it can only bind to a promoter if it already has transcription factors bound to it Each cell only has certain transcription factors and sometimes only activates them when signaled to. Each cell only has certain transcription factors and sometimes only activates them when signaled to.
12

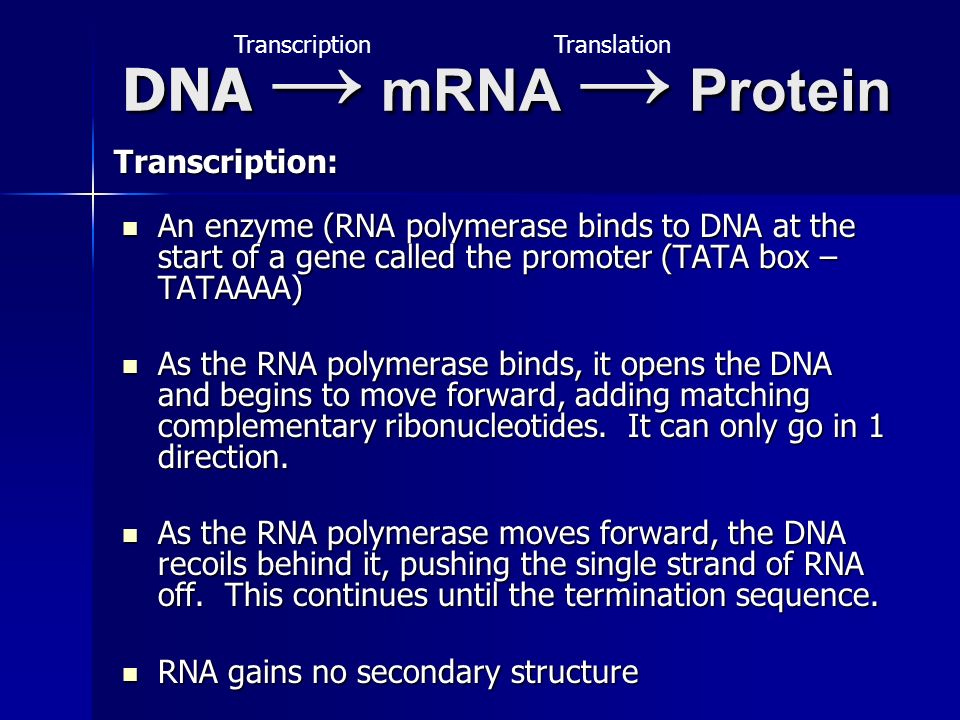

DNA → mRNA → Protein An enzyme (RNA polymerase binds to DNA at the start of a gene called the promoter (TATA box – TATAAAA) An enzyme (RNA polymerase binds to DNA at the start of a gene called the promoter (TATA box – TATAAAA) As the RNA polymerase binds, it opens the DNA and begins to move forward, adding matching complementary ribonucleotides. It can only go in 1 direction. As the RNA polymerase binds, it opens the DNA and begins to move forward, adding matching complementary ribonucleotides. It can only go in 1 direction. As the RNA polymerase moves forward, the DNA recoils behind it, pushing the single strand of RNA off. This continues until the termination sequence. As the RNA polymerase moves forward, the DNA recoils behind it, pushing the single strand of RNA off. This continues until the termination sequence. RNA gains no secondary structure RNA gains no secondary structure TranscriptionTranslation Transcription:
13

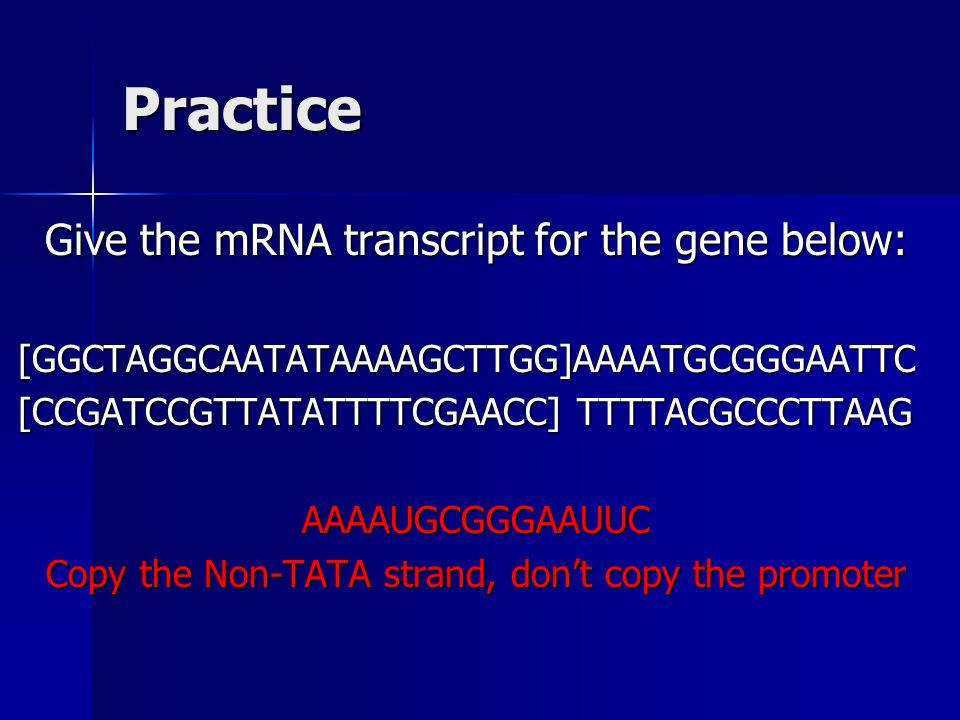

Practice Give the mRNA transcript for the gene below: [GGCTAGGCAATATAAAAGCTTGG]AAAATGCGGGAATTC [CCGATCCGTTATATTTTCGAACC] TTTTACGCCCTTAAG AAAAUGCGGGAAUUC Copy the Non-TATA strand, don’t copy the promoter
14

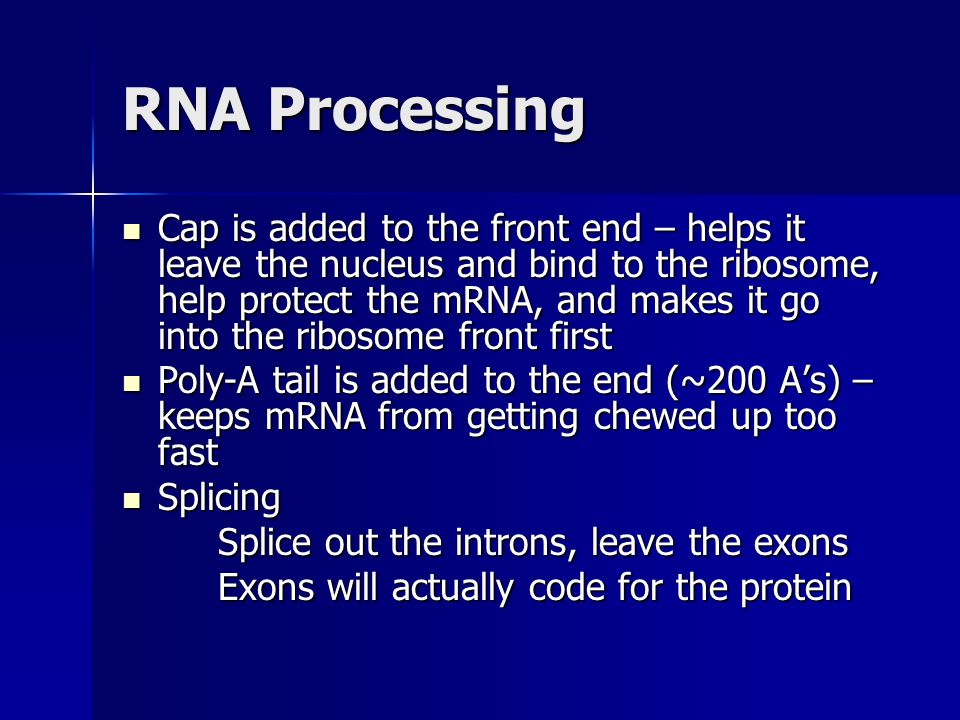

RNA Processing Cap is added to the front end – helps it leave the nucleus and bind to the ribosome, help protect the mRNA, and makes it go into the ribosome front first Cap is added to the front end – helps it leave the nucleus and bind to the ribosome, help protect the mRNA, and makes it go into the ribosome front first Poly-A tail is added to the end (~200 A’s) – keeps mRNA from getting chewed up too fast Poly-A tail is added to the end (~200 A’s) – keeps mRNA from getting chewed up too fast Splicing Splicing Splice out the introns, leave the exons Exons will actually code for the protein
15

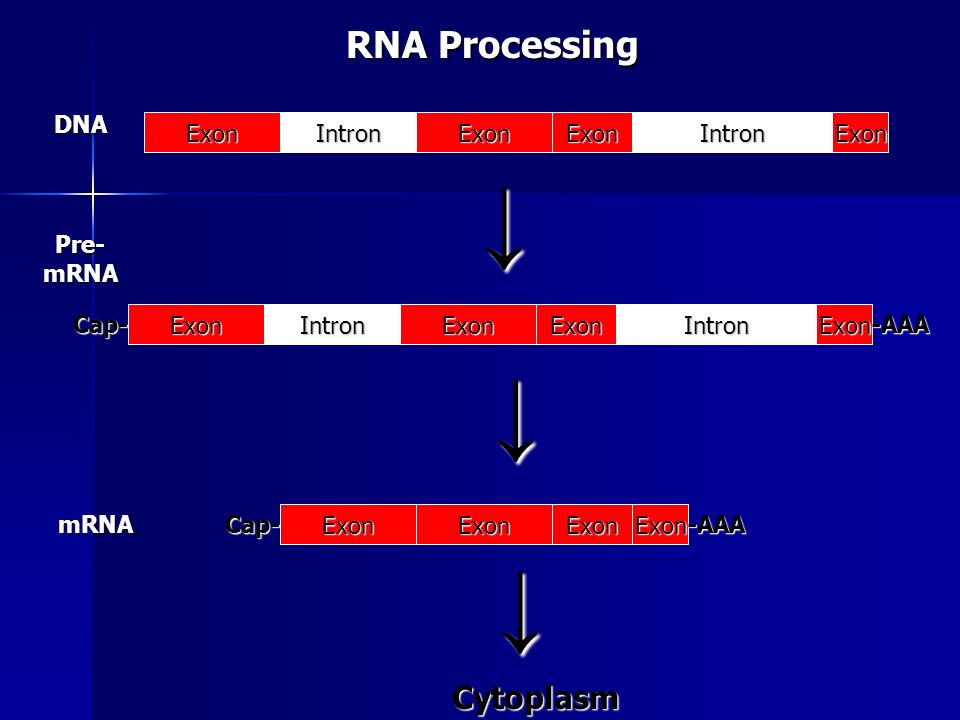

ExonIntronExonExonIntronExon DNA ↓ ExonIntronExonExonIntronExon Cap--AAA Pre- mRNA ExonExonExonExon Cap--AAAmRNA ↓ ↓ Cytoplasm RNA Processing
16

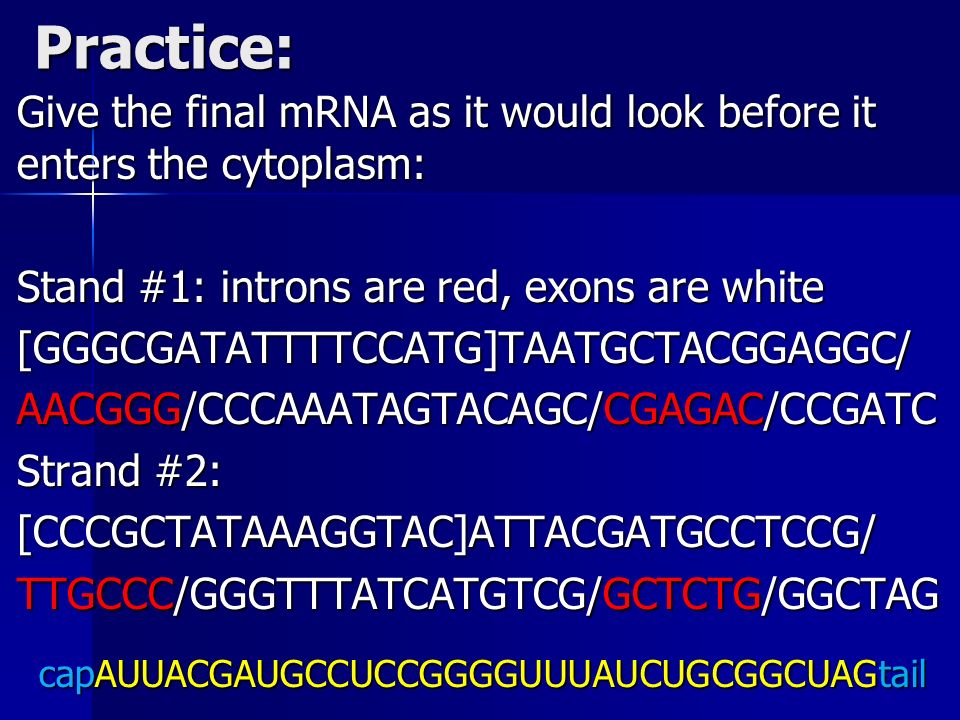

Practice: Give the final mRNA as it would look before it enters the cytoplasm: Stand #1: introns are red, exons are white [GGGCGATATTTTCCATG]TAATGCTACGGAGGC/ AACGGG/CCCAAATAGTACAGC/CGAGAC/CCGATC Strand #2: [CCCGCTATAAAGGTAC]ATTACGATGCCTCCG/ TTGCCC/GGGTTTATCATGTCG/GCTCTG/GGCTAG capAUUACGAUGCCUCCGGGGUUUAUCUGCGGCUAGtail
17

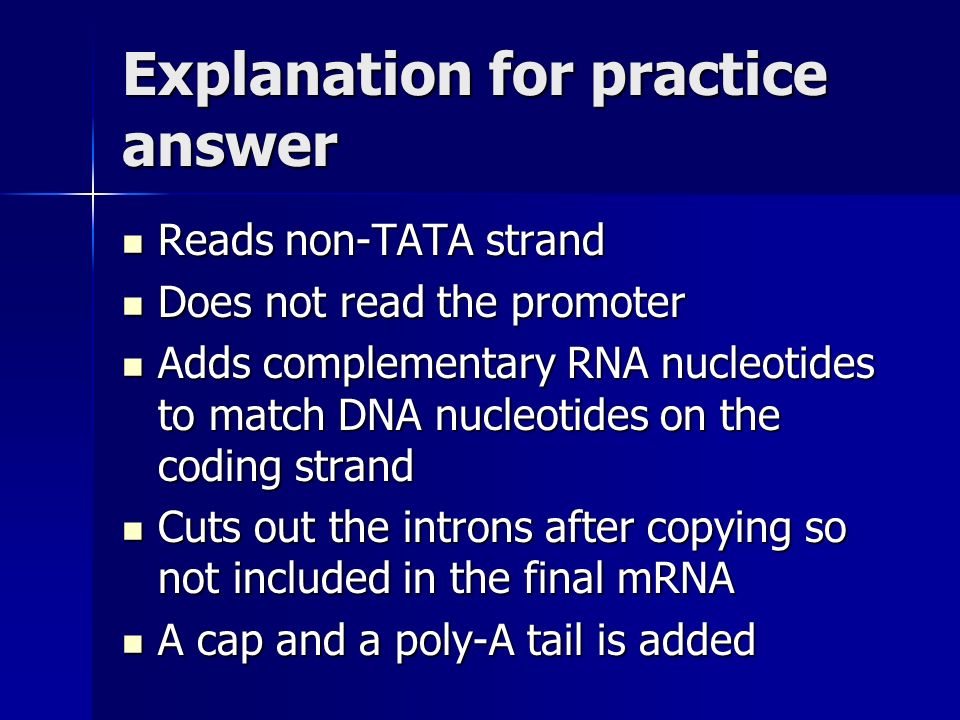

Explanation for practice answer Reads non-TATA strand Reads non-TATA strand Does not read the promoter Does not read the promoter Adds complementary RNA nucleotides to match DNA nucleotides on the coding strand Adds complementary RNA nucleotides to match DNA nucleotides on the coding strand Cuts out the introns after copying so not included in the final mRNA Cuts out the introns after copying so not included in the final mRNA A cap and a poly-A tail is added A cap and a poly-A tail is added
18

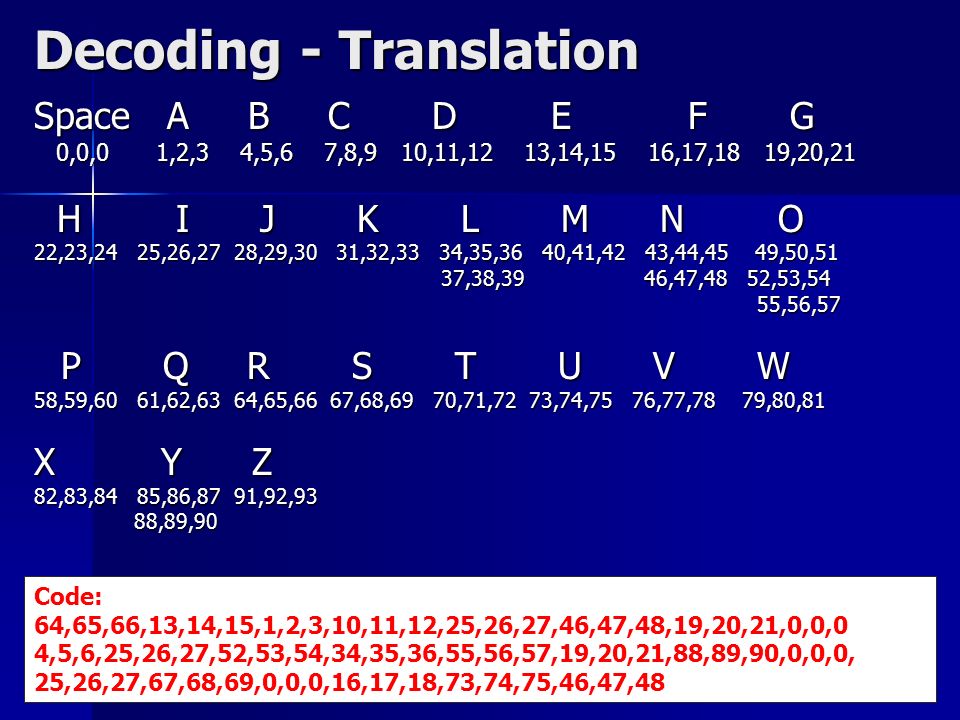

Decoding - Translation Space A B C D E F G 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 H I J K L M N O H I J K L M N O 22,23,24 25,26,27 28,29,30 31,32,33 34,35,36 40,41,42 43,44,45 49,50,51 37,38,39 46,47,48 52,53,54 37,38,39 46,47,48 52,53,54 55,56,57 55,56,57 P Q R S T U V W P Q R S T U V W 58,59,60 61,62,63 64,65,66 67,68,69 70,71,72 73,74,75 76,77,78 79,80,81 X Y Z 82,83,84 85,86,87 91,92,93 88,89,90 88,89,90 Code: 4,5,6,25,26,27,52,53,54,34,35,36,55,56,57,19,20,21,88,89,90,0,0,0, 25,26,27,67,68,69,0,0,0,70,71,72,22,23,24,13,14,15,0,0,0,4,5,6,13,14,15, 67,68,69,70,71,72,0,0,0,7,8,9,37,38,39,1,2,3,67,68,69,67,68,69
19

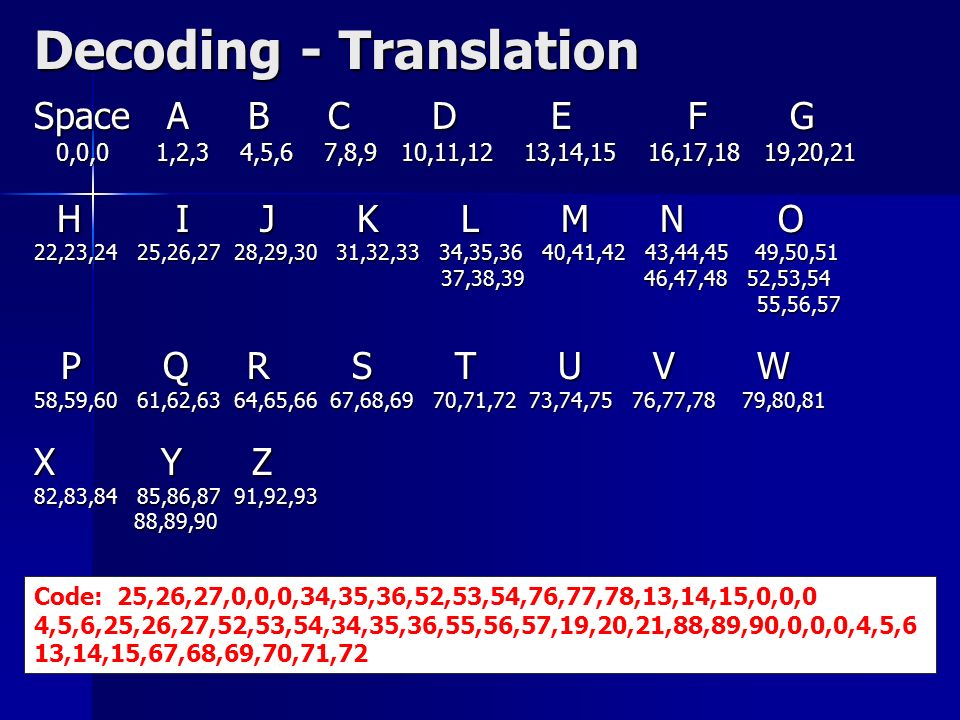

Decoding - Translation Space A B C D E F G 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 H I J K L M N O H I J K L M N O 22,23,24 25,26,27 28,29,30 31,32,33 34,35,36 40,41,42 43,44,45 49,50,51 37,38,39 46,47,48 52,53,54 37,38,39 46,47,48 52,53,54 55,56,57 55,56,57 P Q R S T U V W P Q R S T U V W 58,59,60 61,62,63 64,65,66 67,68,69 70,71,72 73,74,75 76,77,78 79,80,81 X Y Z 82,83,84 85,86,87 91,92,93 88,89,90 88,89,90 Code: 64,65,66,13,14,15,1,2,3,10,11,12,25,26,27,46,47,48,19,20,21,0,0,0 4,5,6,25,26,27,52,53,54,34,35,36,55,56,57,19,20,21,88,89,90,0,0,0, 25,26,27,67,68,69,0,0,0,16,17,18,73,74,75,46,47,48
20
Decoding - Translation Space A B C D E F G 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 0,0,0 1,2,3 4,5,6 7,8,9 10,11,12 13,14,15 16,17,18 19,20,21 H I J K L M N O H I J K L M N O 22,23,24 25,26,27 28,29,30 31,32,33 34,35,36 40,41,42 43,44,45 49,50,51 37,38,39 46,47,48 52,53,54 37,38,39 46,47,48 52,53,54 55,56,57 55,56,57 P Q R S T U V W P Q R S T U V W 58,59,60 61,62,63 64,65,66 67,68,69 70,71,72 73,74,75 76,77,78 79,80,81 X Y Z 82,83,84 85,86,87 91,92,93 88,89,90 88,89,90 Code: 25,26,27,0,0,0,34,35,36,52,53,54,76,77,78,13,14,15,0,0,0 4,5,6,25,26,27,52,53,54,34,35,36,55,56,57,19,20,21,88,89,90,0,0,0,4,5,6 13,14,15,67,68,69,70,71,72
21

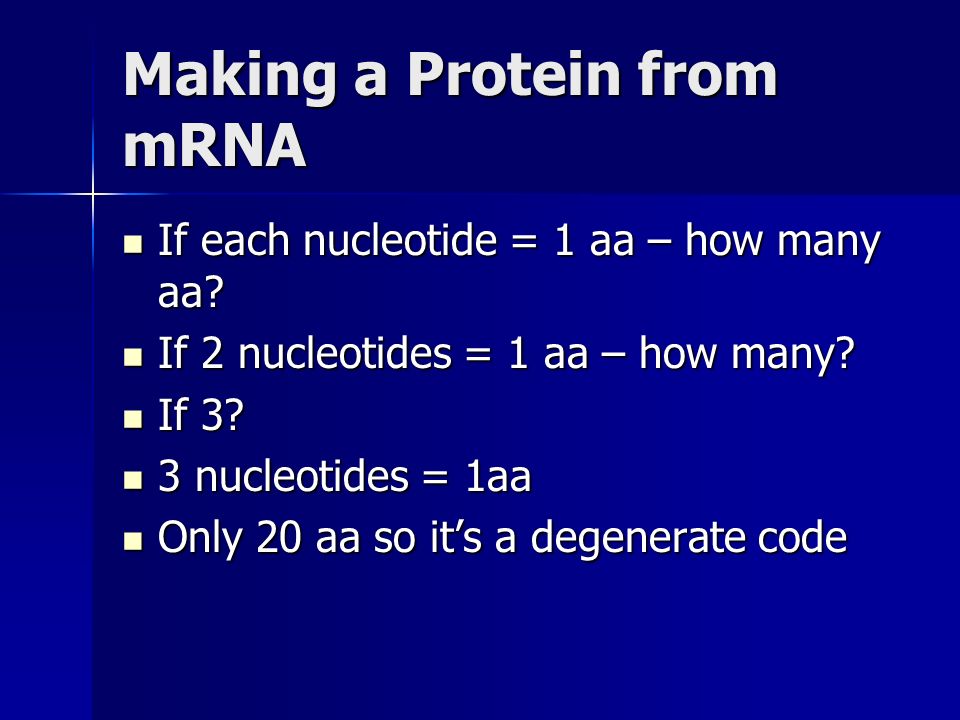

Making a Protein from mRNA If each nucleotide = 1 aa – how many aa? If each nucleotide = 1 aa – how many aa? If 2 nucleotides = 1 aa – how many? If 2 nucleotides = 1 aa – how many? If 3? If 3? 3 nucleotides = 1aa 3 nucleotides = 1aa Only 20 aa so it’s a degenerate code Only 20 aa so it’s a degenerate code
22

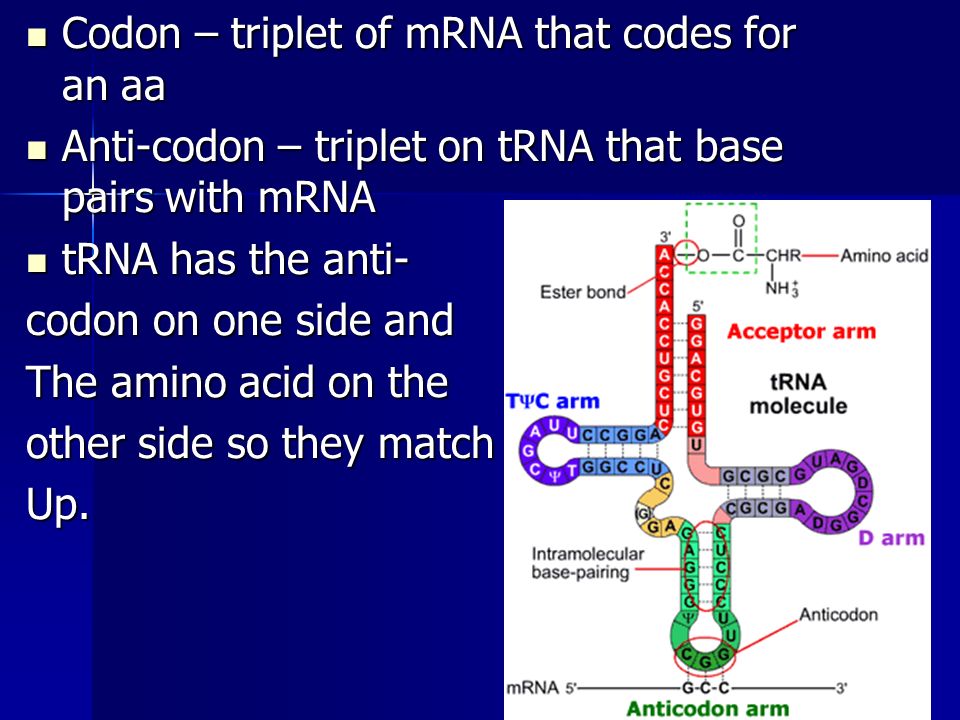

Codon – triplet of mRNA that codes for an aa Codon – triplet of mRNA that codes for an aa Anti-codon – triplet on tRNA that base pairs with mRNA Anti-codon – triplet on tRNA that base pairs with mRNA tRNA has the anti- tRNA has the anti- codon on one side and The amino acid on the other side so they match Up.
23

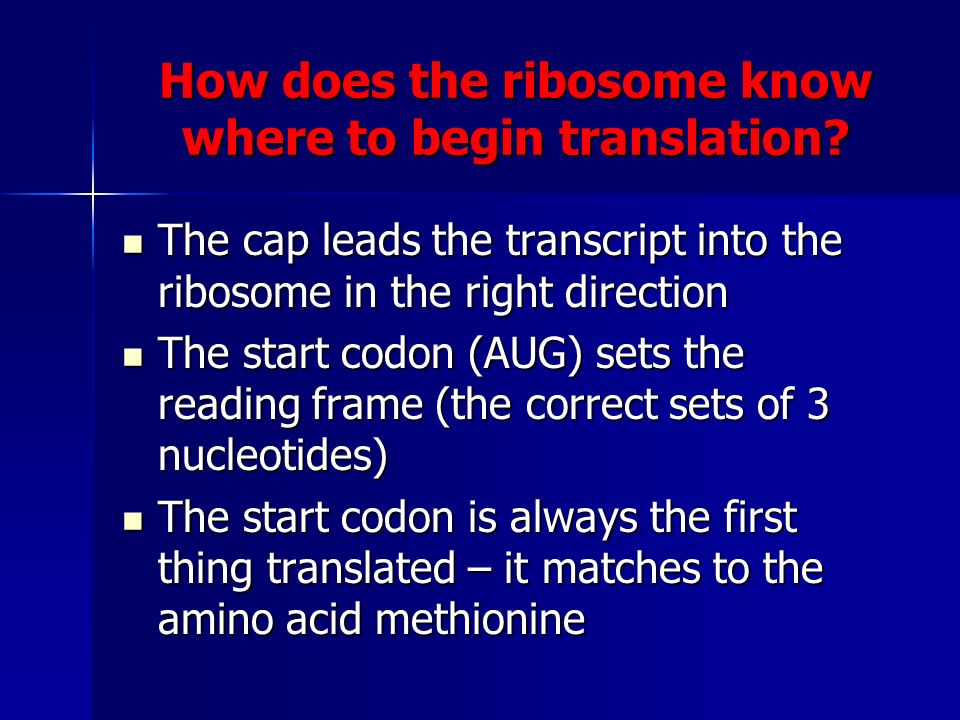

How does the ribosome know where to begin translation? The cap leads the transcript into the ribosome in the right direction The cap leads the transcript into the ribosome in the right direction The start codon (AUG) sets the reading frame (the correct sets of 3 nucleotides) The start codon (AUG) sets the reading frame (the correct sets of 3 nucleotides) The start codon is always the first thing translated – it matches to the amino acid methionine The start codon is always the first thing translated – it matches to the amino acid methionine
24

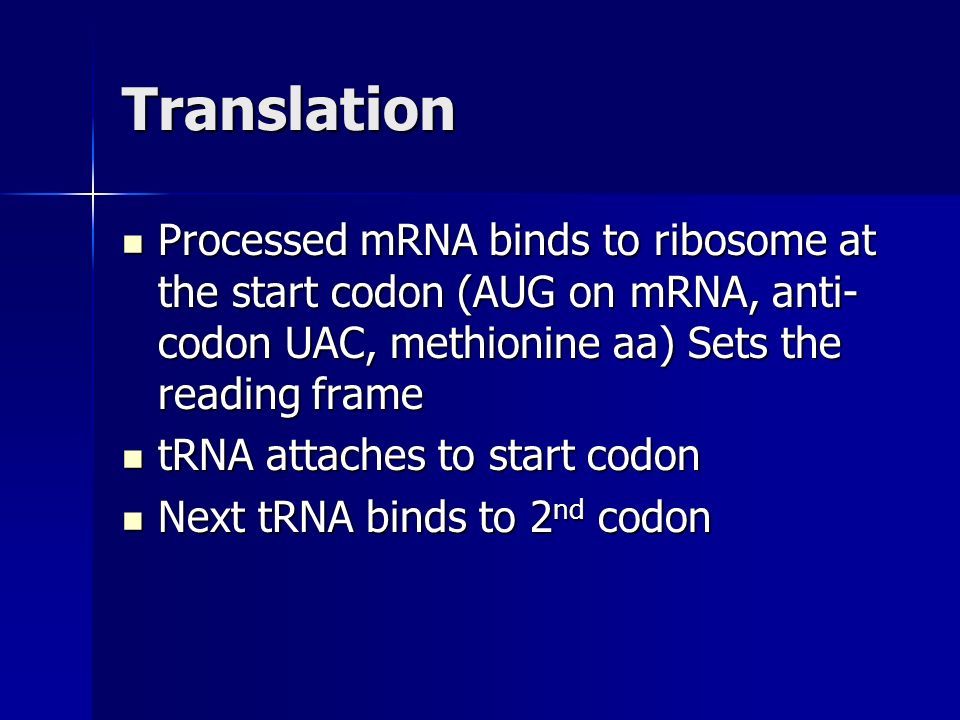

Translation Processed mRNA binds to ribosome at the start codon (AUG on mRNA, anti- codon UAC, methionine aa) Sets the reading frame Processed mRNA binds to ribosome at the start codon (AUG on mRNA, anti- codon UAC, methionine aa) Sets the reading frame tRNA attaches to start codon tRNA attaches to start codon Next tRNA binds to 2 nd codon Next tRNA binds to 2 nd codon
25

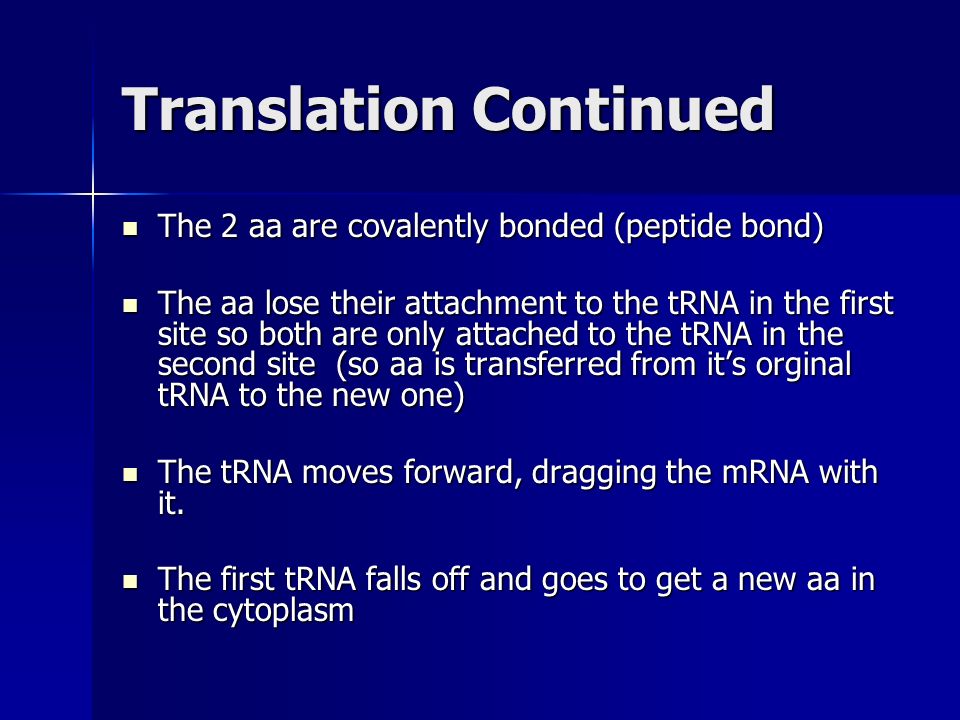

Translation Continued The 2 aa are covalently bonded (peptide bond) The 2 aa are covalently bonded (peptide bond) The aa lose their attachment to the tRNA in the first site so both are only attached to the tRNA in the second site (so aa is transferred from it’s orginal tRNA to the new one) The aa lose their attachment to the tRNA in the first site so both are only attached to the tRNA in the second site (so aa is transferred from it’s orginal tRNA to the new one) The tRNA moves forward, dragging the mRNA with it. The tRNA moves forward, dragging the mRNA with it. The first tRNA falls off and goes to get a new aa in the cytoplasm The first tRNA falls off and goes to get a new aa in the cytoplasm
26

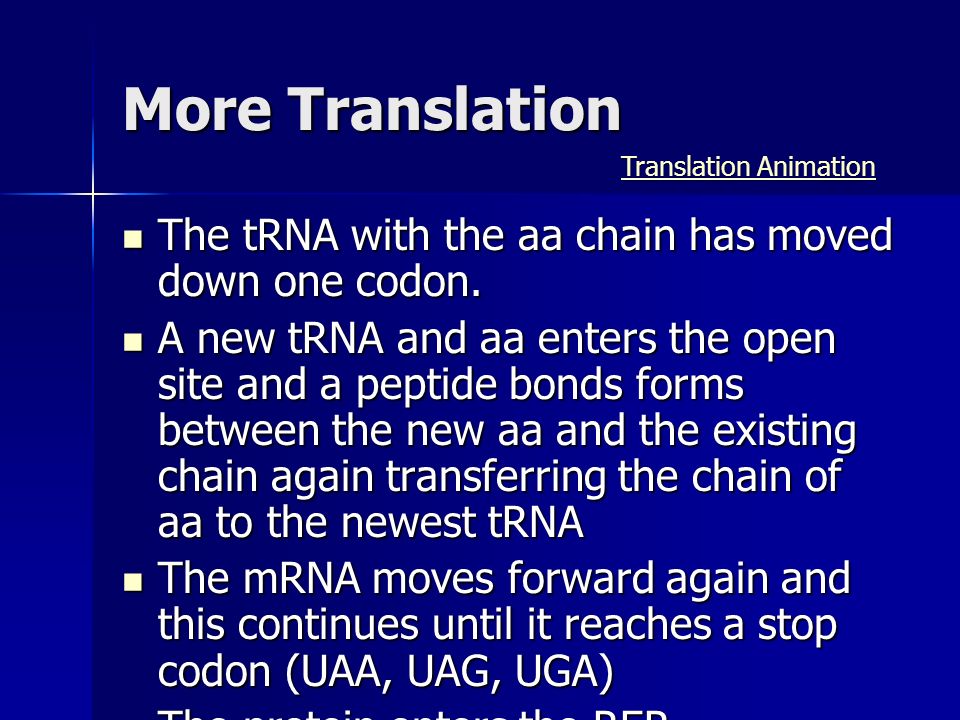

More Translation The tRNA with the aa chain has moved down one codon. The tRNA with the aa chain has moved down one codon. A new tRNA and aa enters the open site and a peptide bonds forms between the new aa and the existing chain again transferring the chain of aa to the newest tRNA A new tRNA and aa enters the open site and a peptide bonds forms between the new aa and the existing chain again transferring the chain of aa to the newest tRNA The mRNA moves forward again and this continues until it reaches a stop codon (UAA, UAG, UGA) The mRNA moves forward again and this continues until it reaches a stop codon (UAA, UAG, UGA) The protein enters the RER. The protein enters the RER. Translation Animation Translation Animation
27

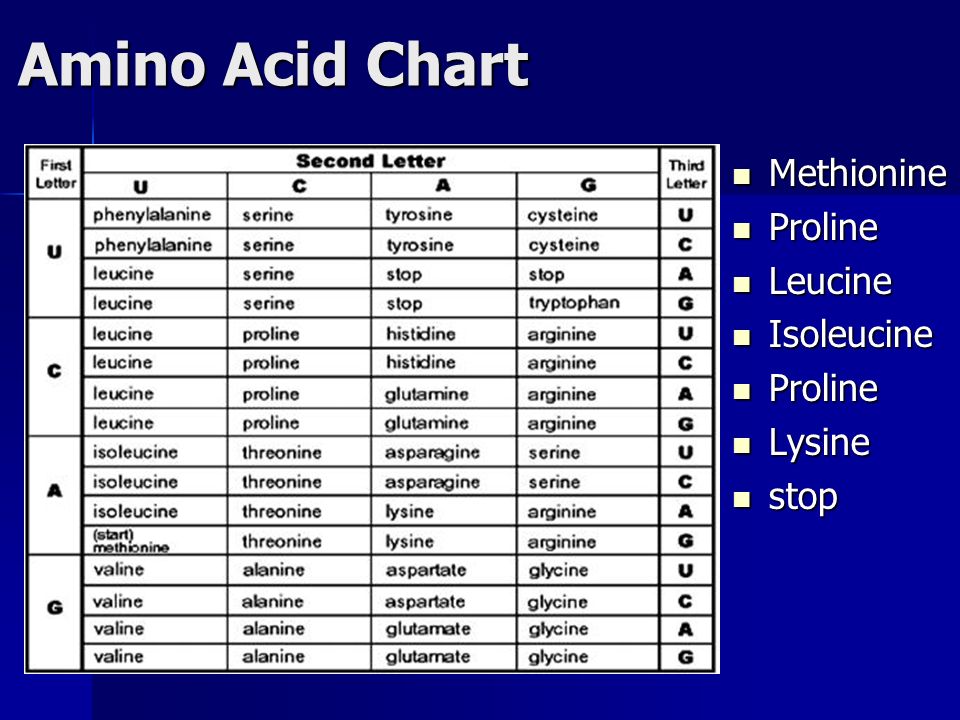

Amino Acid Chart Methionine Methionine Proline Proline Leucine Leucine Isoleucine Isoleucine Proline Proline Lysine Lysine stop stop
28

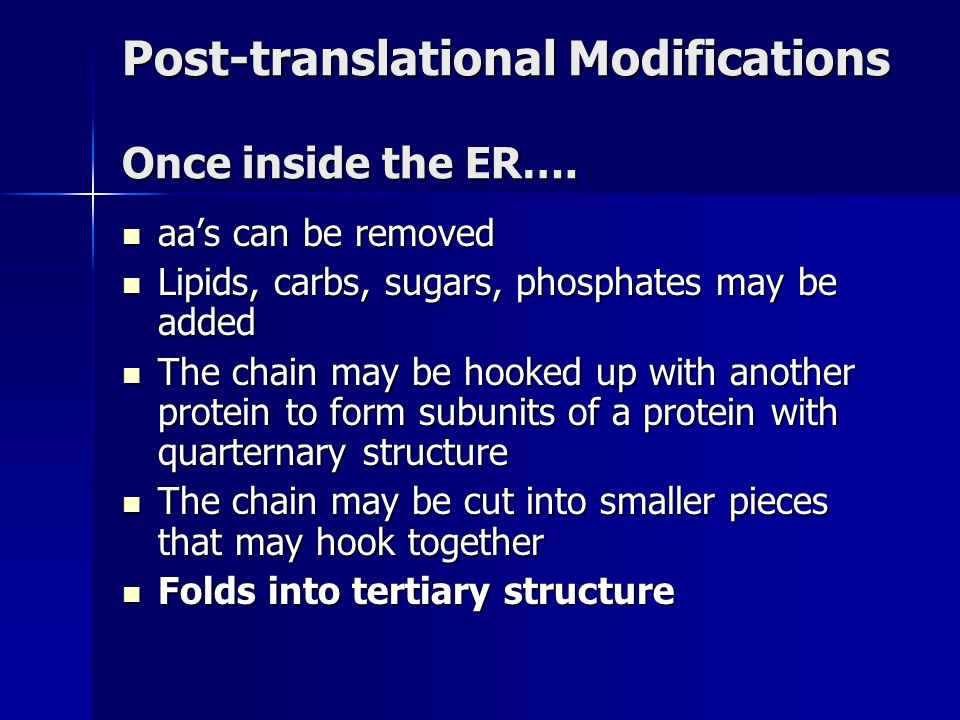

Post-translational Modifications Once inside the ER…. aa’s can be removed aa’s can be removed Lipids, carbs, sugars, phosphates may be added Lipids, carbs, sugars, phosphates may be added The chain may be hooked up with another protein to form subunits of a protein with quarternary structure The chain may be hooked up with another protein to form subunits of a protein with quarternary structure The chain may be cut into smaller pieces that may hook together The chain may be cut into smaller pieces that may hook together Folds into tertiary structure Folds into tertiary structure
29

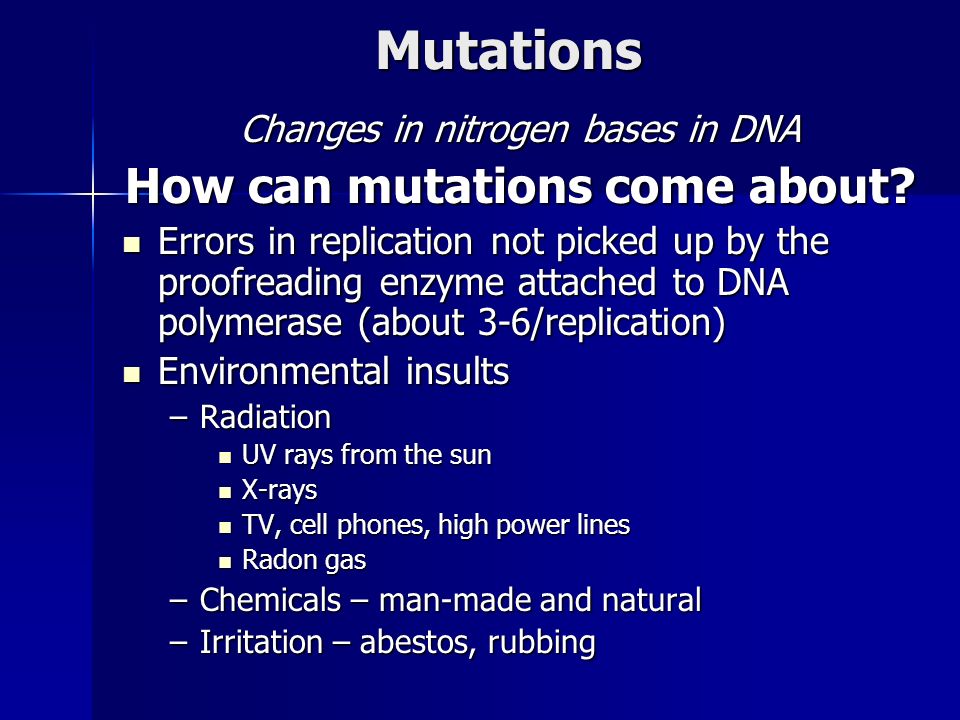

Mutations Changes in nitrogen bases in DNA How can mutations come about? Errors in replication not picked up by the proofreading enzyme attached to DNA polymerase (about 3-6/replication) Environmental insults –R–R–R–Radiation UV rays from the sun X-rays TV, cell phones, high power lines Radon gas –C–C–C–Chemicals – man-made and natural –I–I–I–Irritation – abestos, rubbing
30

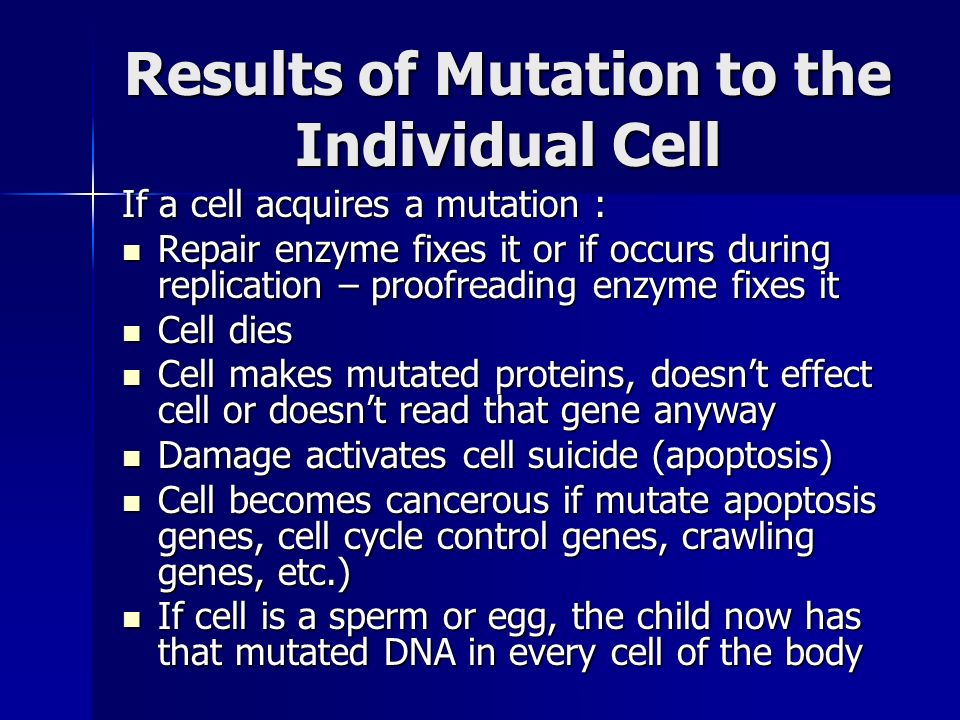

Results of Mutation to the Individual Cell If a cell acquires a mutation : Repair enzyme fixes it or if occurs during replication – proofreading enzyme fixes it Repair enzyme fixes it or if occurs during replication – proofreading enzyme fixes it Cell dies Cell dies Cell makes mutated proteins, doesn’t effect cell or doesn’t read that gene anyway Cell makes mutated proteins, doesn’t effect cell or doesn’t read that gene anyway Damage activates cell suicide (apoptosis) Damage activates cell suicide (apoptosis) Cell becomes cancerous if mutate apoptosis genes, cell cycle control genes, crawling genes, etc.) Cell becomes cancerous if mutate apoptosis genes, cell cycle control genes, crawling genes, etc.) If cell is a sperm or egg, the child now has that mutated DNA in every cell of the body If cell is a sperm or egg, the child now has that mutated DNA in every cell of the body
31

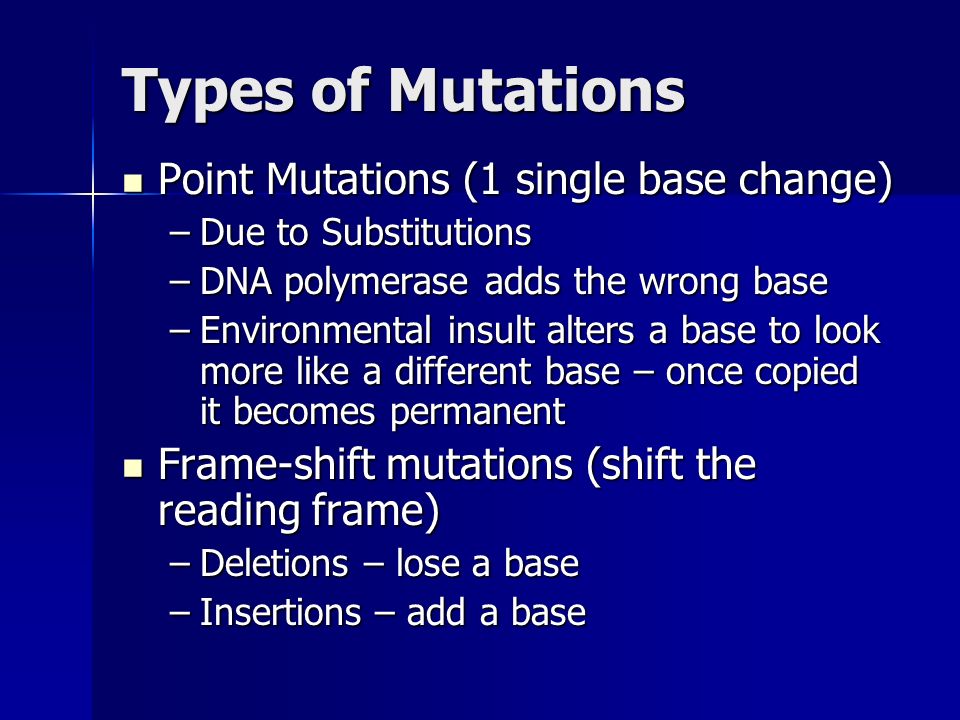

Types of Mutations Point Mutations (1 single base change) Point Mutations (1 single base change) –Due to Substitutions –DNA polymerase adds the wrong base –Environmental insult alters a base to look more like a different base – once copied it becomes permanent Frame-shift mutations (shift the reading frame) Frame-shift mutations (shift the reading frame) –Deletions – lose a base –Insertions – add a base
32

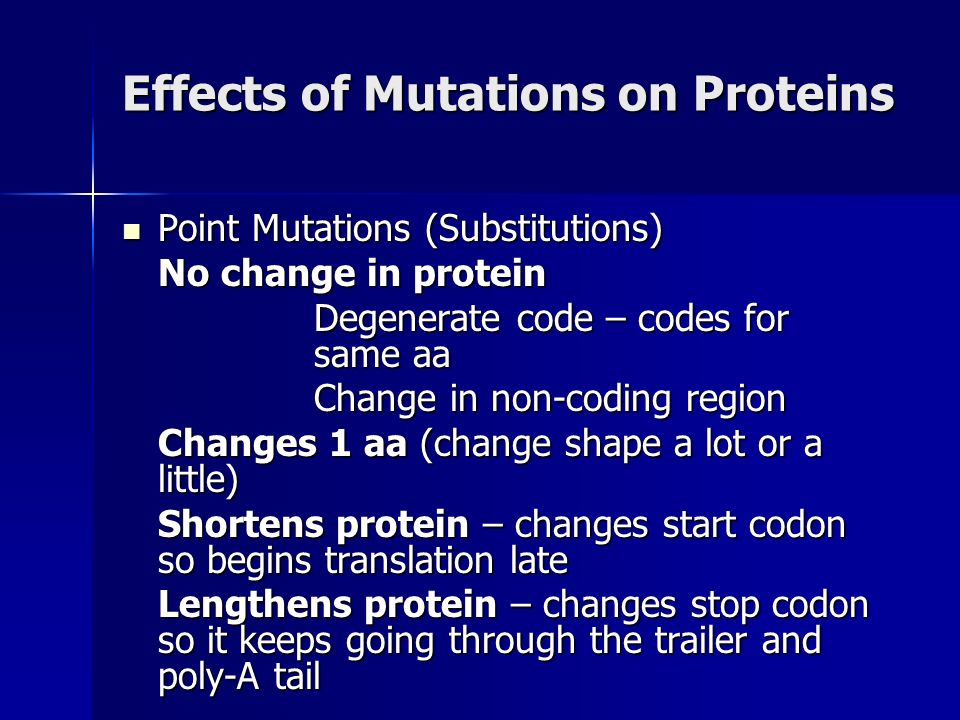

Effects of Mutations on Proteins Point Mutations (Substitutions) Point Mutations (Substitutions) No change in protein Degenerate code – codes for same aa Change in non-coding region Changes 1 aa (change shape a lot or a little) Shortens protein – changes start codon so begins translation late Lengthens protein – changes stop codon so it keeps going through the trailer and poly-A tail
33

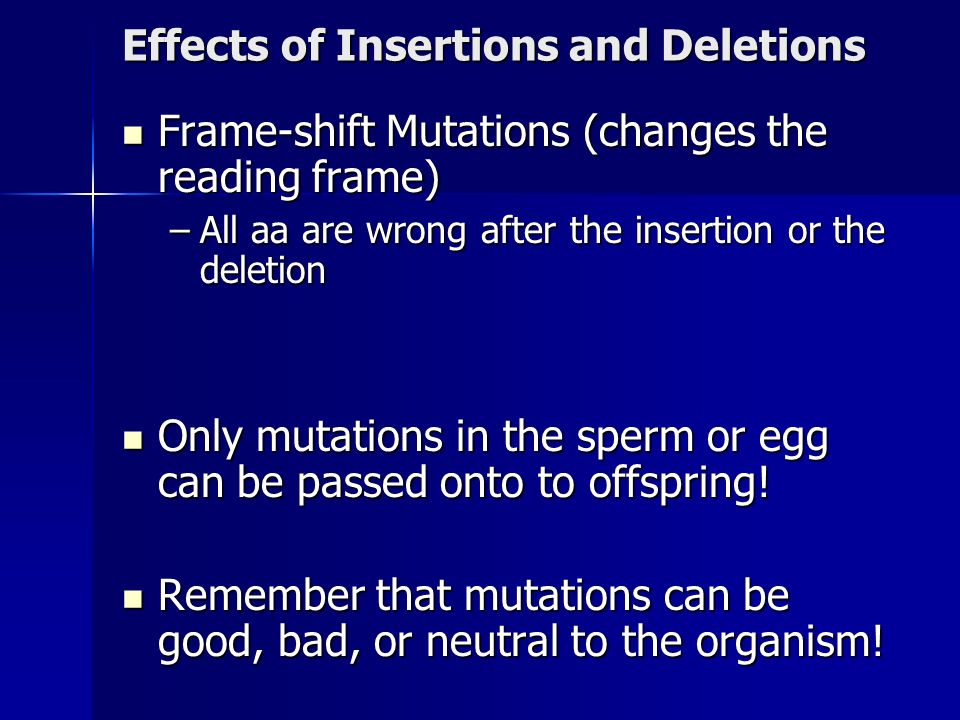

Effects of Insertions and Deletions Frame-shift Mutations (changes the reading frame) Frame-shift Mutations (changes the reading frame) –All aa are wrong after the insertion or the deletion Only mutations in the sperm or egg can be passed onto to offspring! Only mutations in the sperm or egg can be passed onto to offspring! Remember that mutations can be good, bad, or neutral to the organism! Remember that mutations can be good, bad, or neutral to the organism!
