1. Momentum By: Heather Britton

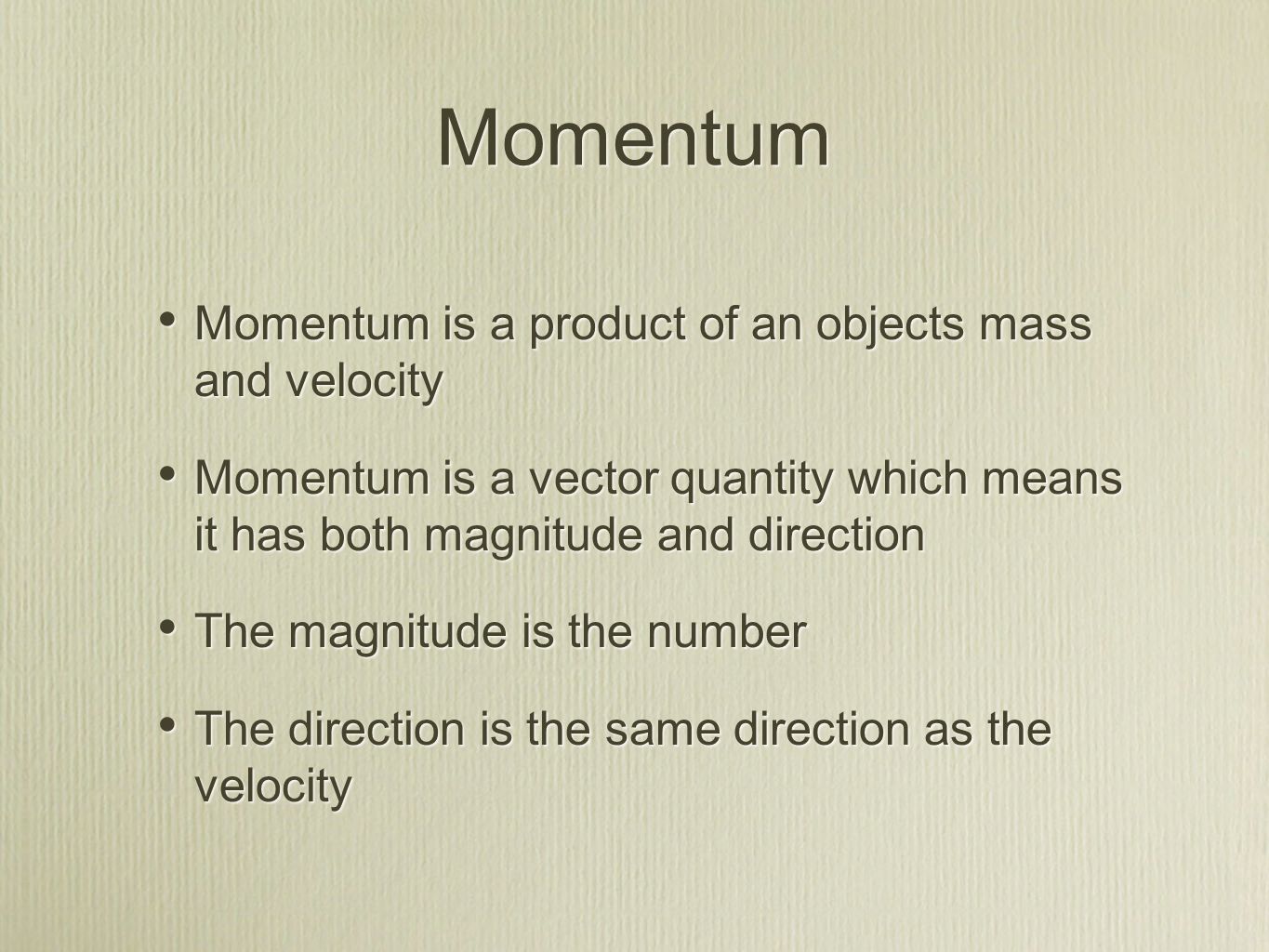

2. Momentum Momentum is a product of an objects mass and velocity Momentum is a vector quantity which means it has both magnitude and direction The magnitude is the number The direction is the same direction as the velocity Momentum is a product of an objects mass and velocity Momentum is a vector quantity which means it has both magnitude and direction The magnitude is the number The direction is the same direction as the velocity

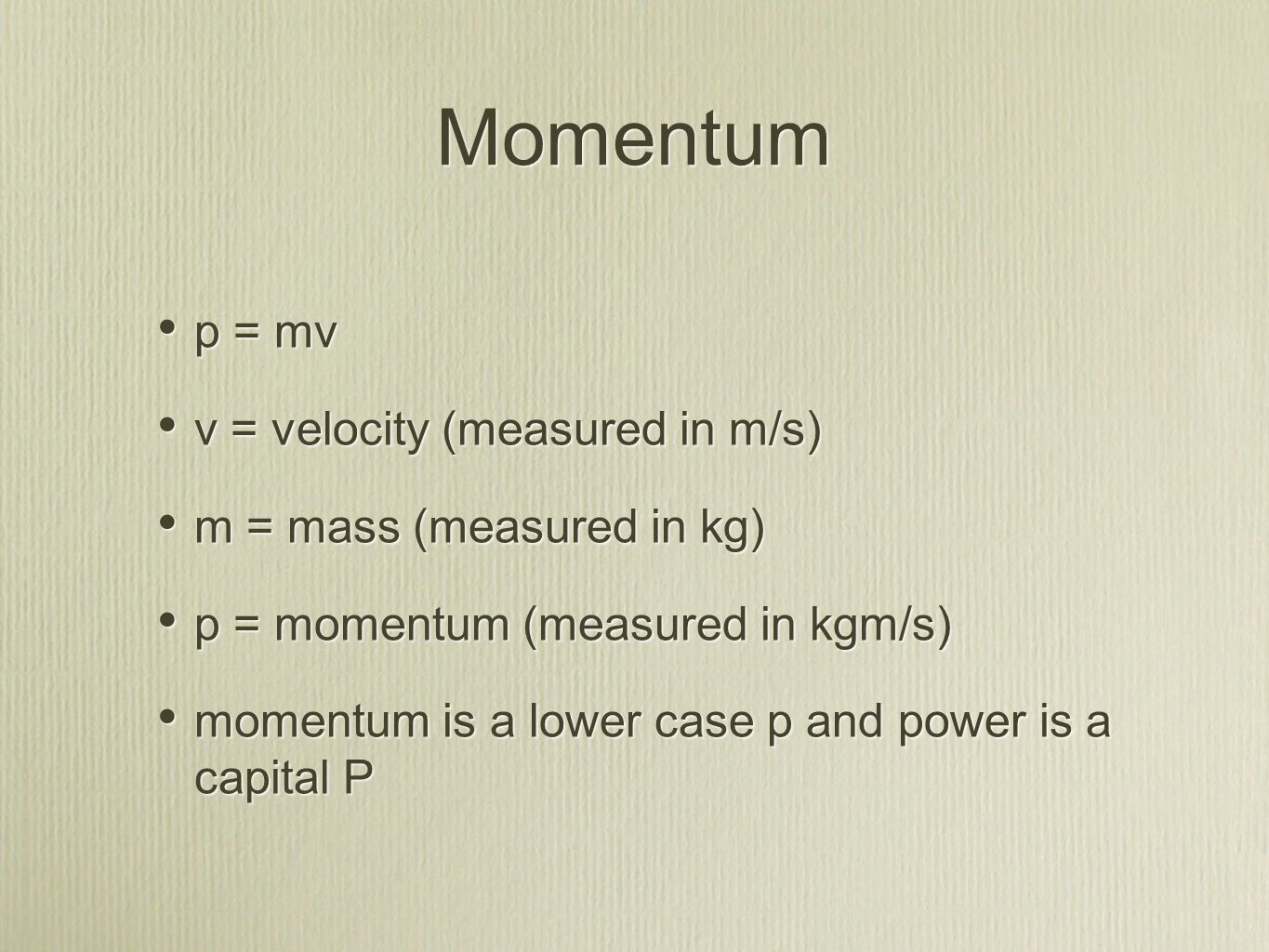

3. Momentum p = mv v = velocity (measured in m/s) m = mass (measured in kg) p = momentum (measured in kgm/s) momentum is a lower case p and power is a capital P p = mv v = velocity (measured in m/s) m = mass (measured in kg) p = momentum (measured in kgm/s) momentum is a lower case p and power is a capital P

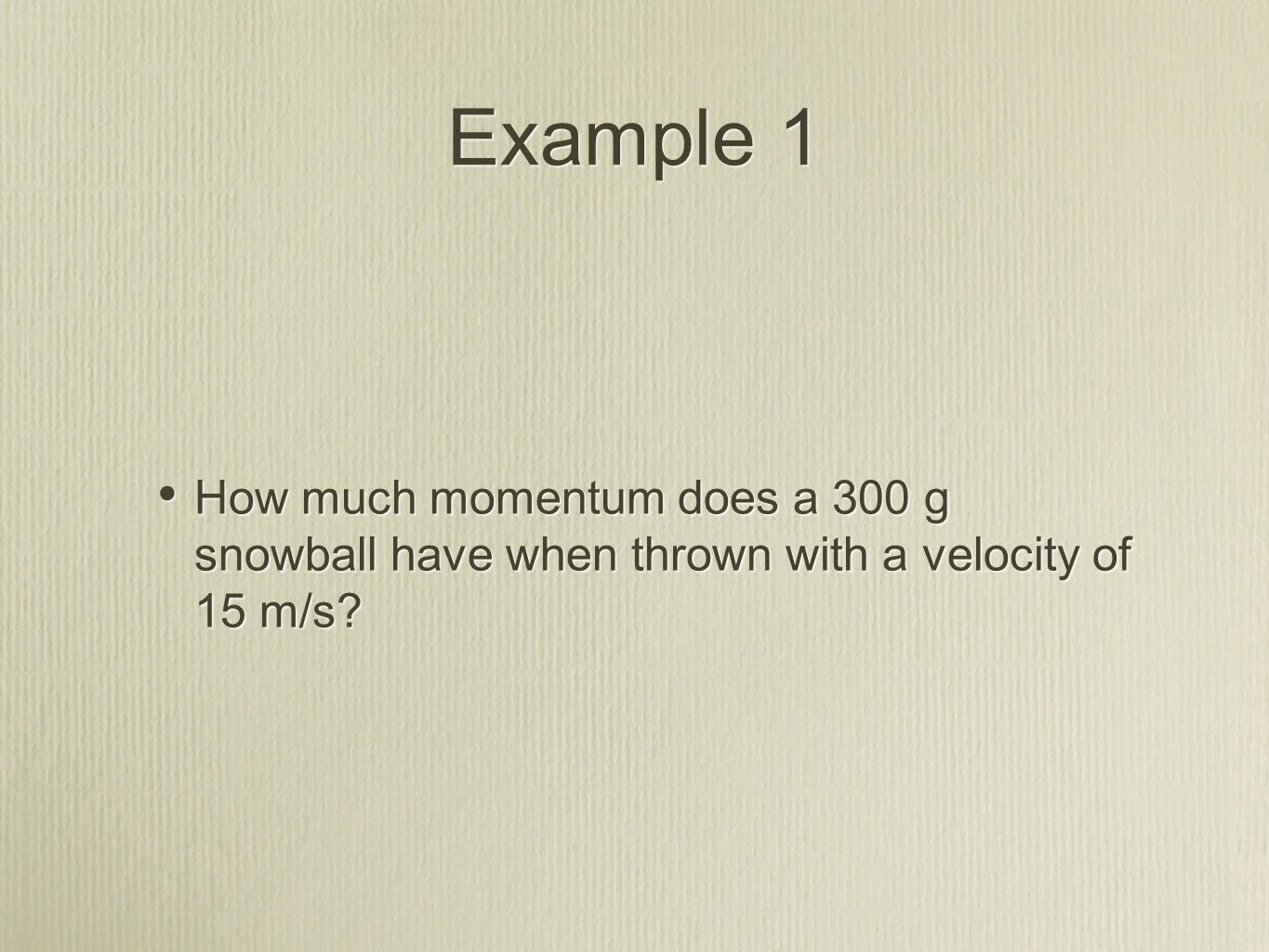

4. Example 1 How much momentum does a 300 g snowball have when thrown with a velocity of 15 m/s?

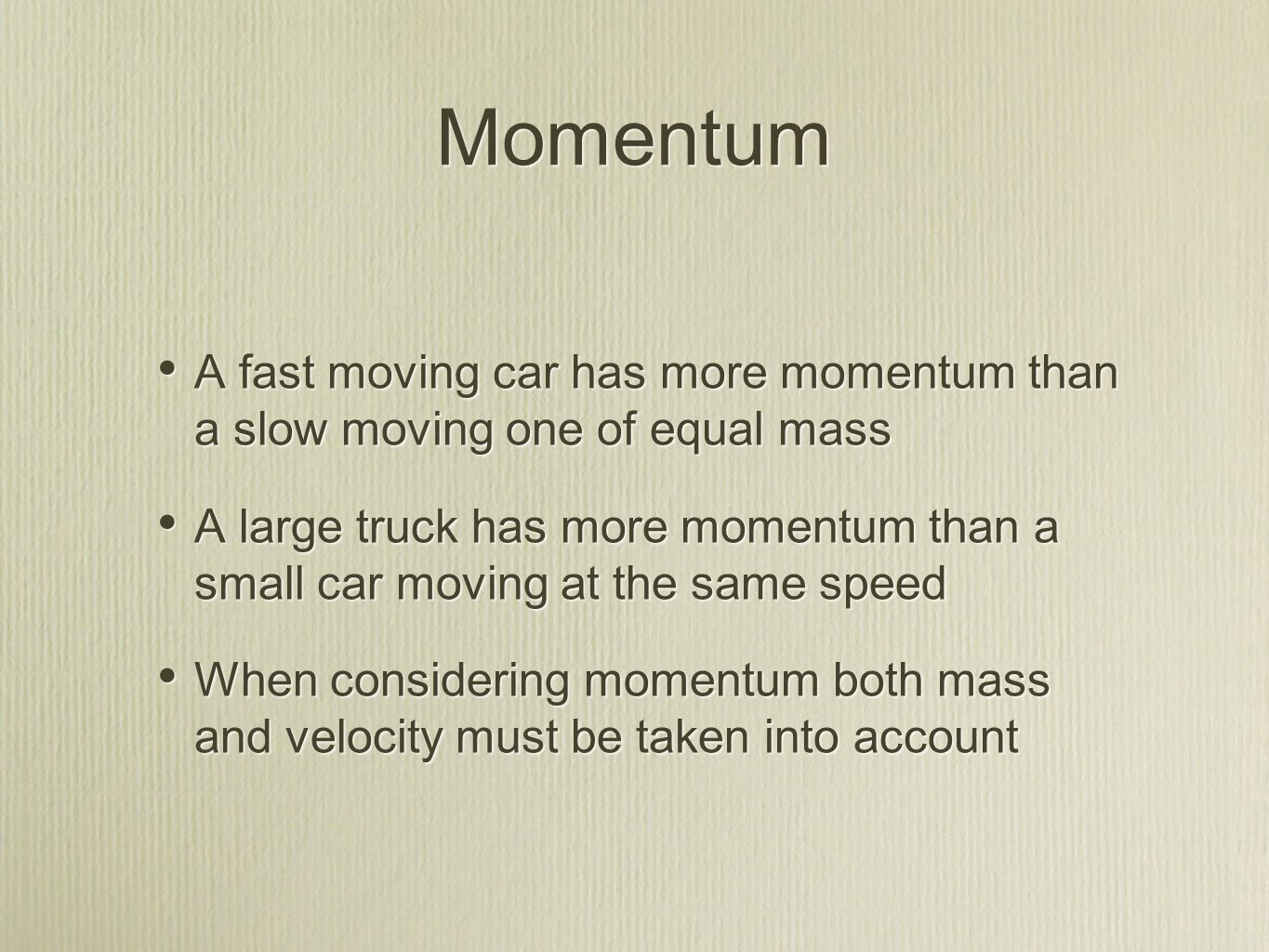

5. Momentum A fast moving car has more momentum than a slow moving one of equal mass A large truck has more momentum than a small car moving at the same speed When considering momentum both mass and velocity must be taken into account A fast moving car has more momentum than a slow moving one of equal mass A large truck has more momentum than a small car moving at the same speed When considering momentum both mass and velocity must be taken into account

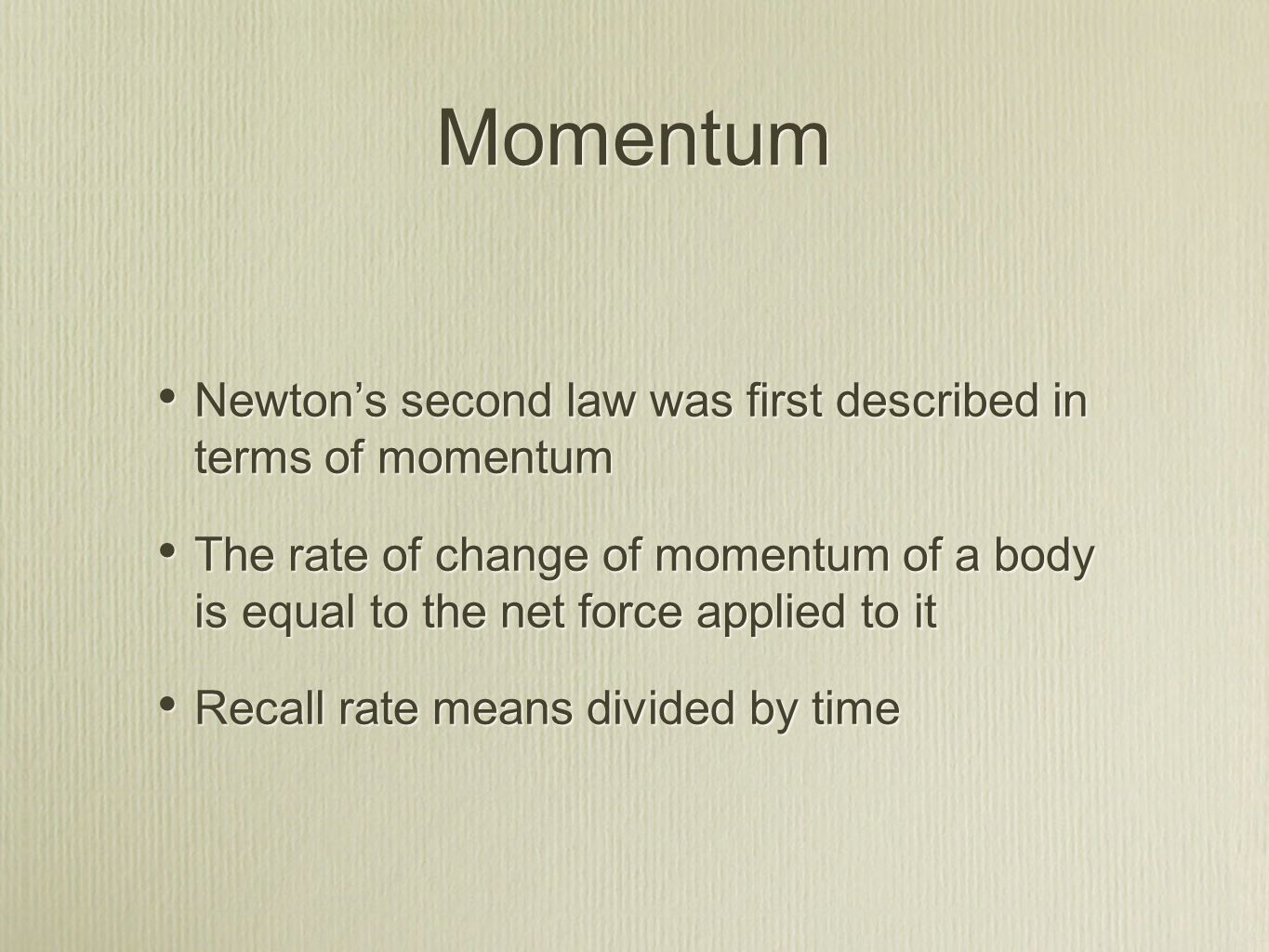

6. Momentum Newton’s second law was first described in terms of momentum The rate of change of momentum of a body is equal to the net force applied to it Recall rate means divided by time Newton’s second law was first described in terms of momentum The rate of change of momentum of a body is equal to the net force applied to it Recall rate means divided by time

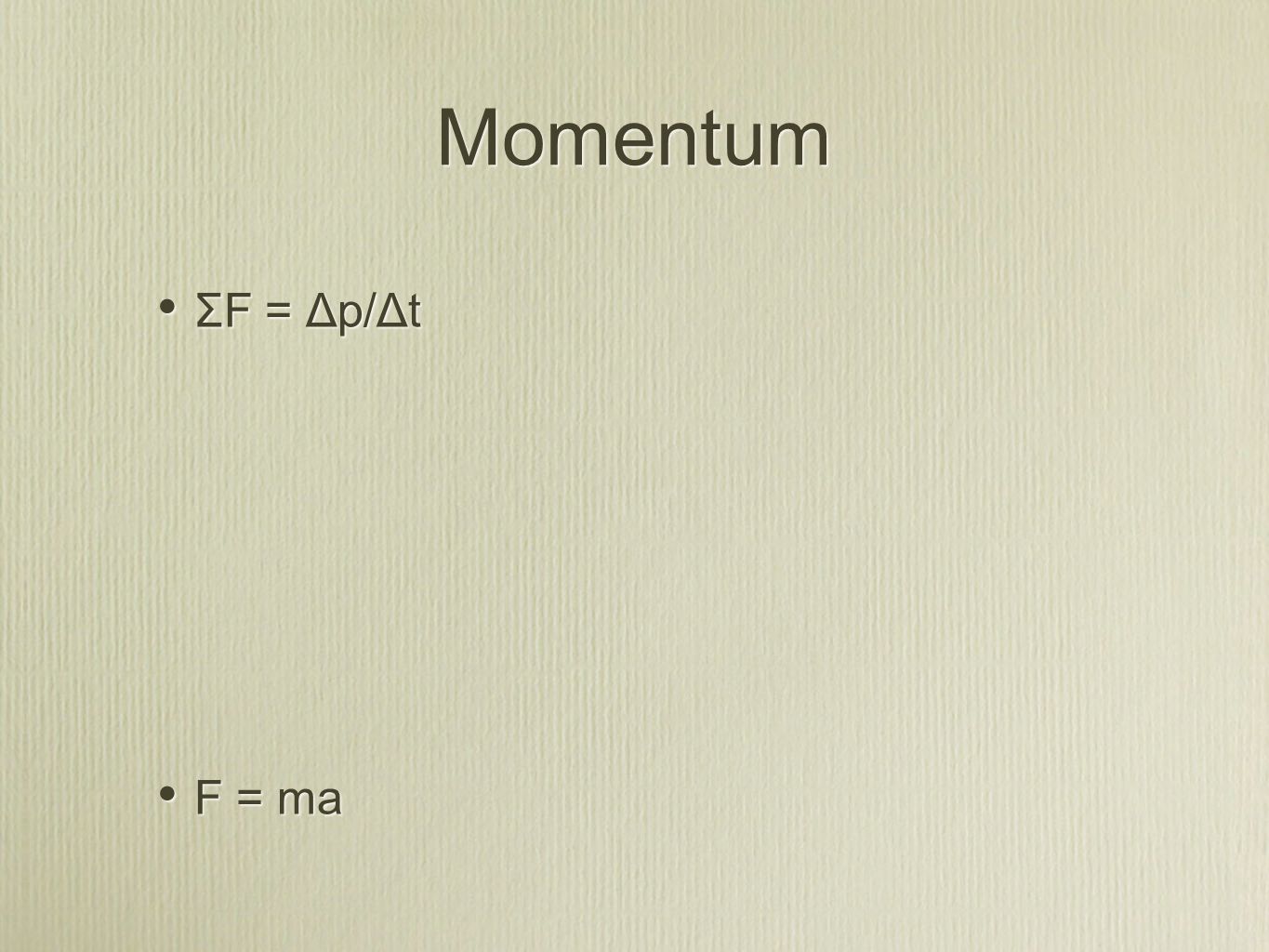

7. Momentum ΣF = Δp/Δt F = ma ΣF = Δp/Δt F = ma

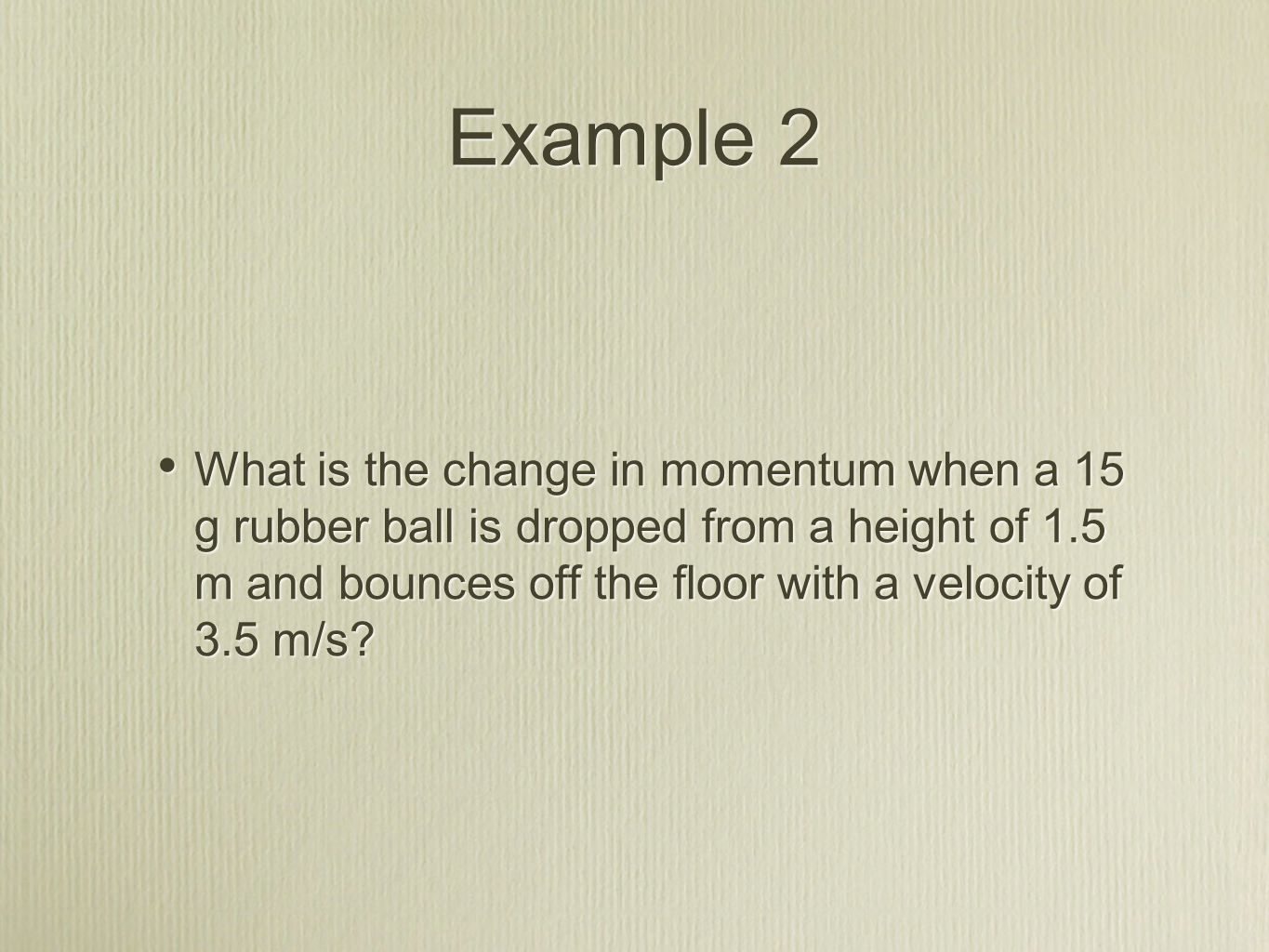

8. Example 2 What is the change in momentum when a 15 g rubber ball is dropped from a height of 1.5 m and bounces off the floor with a velocity of 3.5 m/s?

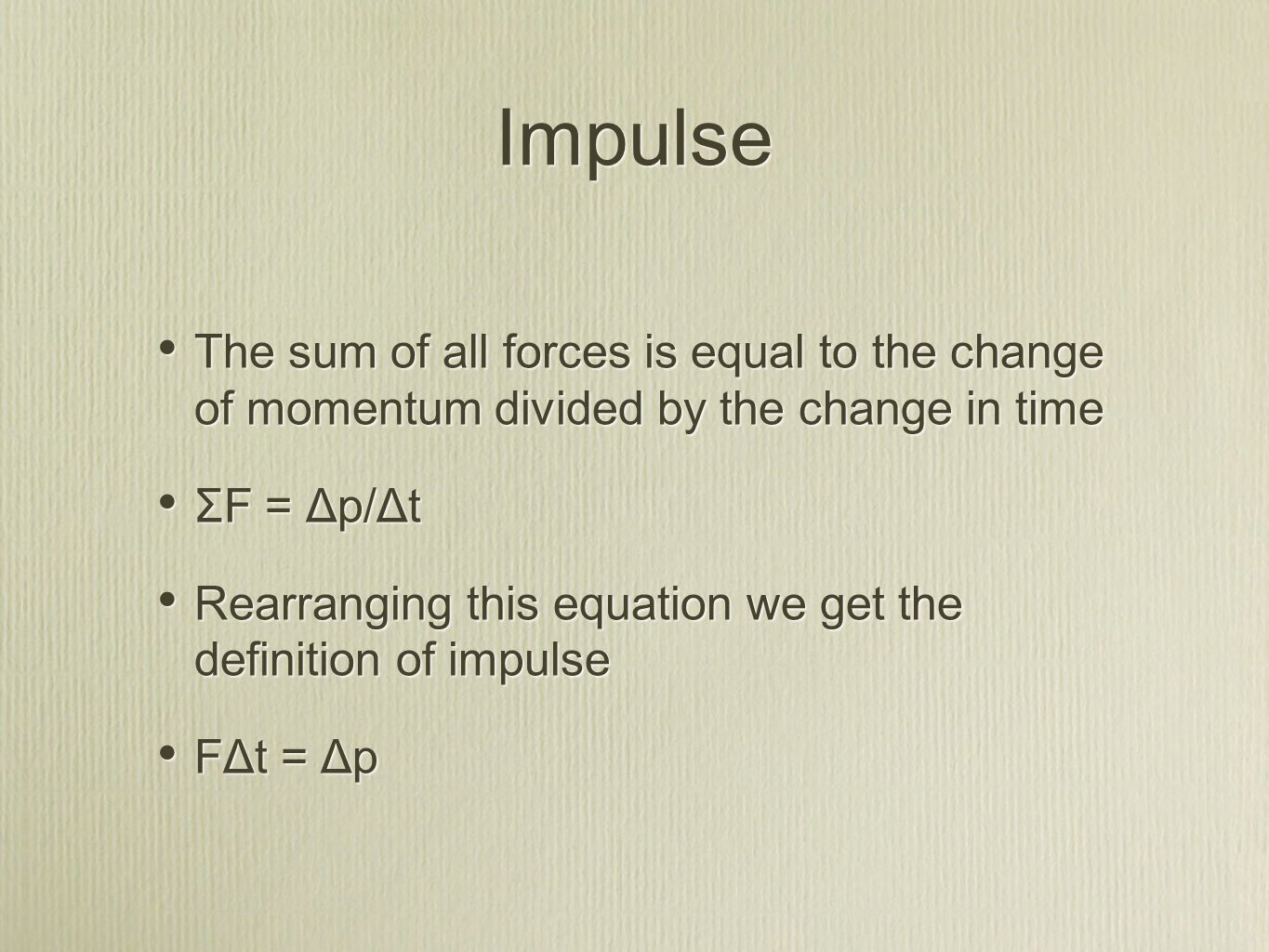

9. Impulse The sum of all forces is equal to the change of momentum divided by the change in time ΣF = Δp/Δt Rearranging this equation we get the definition of impulse FΔt = Δp The sum of all forces is equal to the change of momentum divided by the change in time ΣF = Δp/Δt Rearranging this equation we get the definition of impulse F Δt = Δp

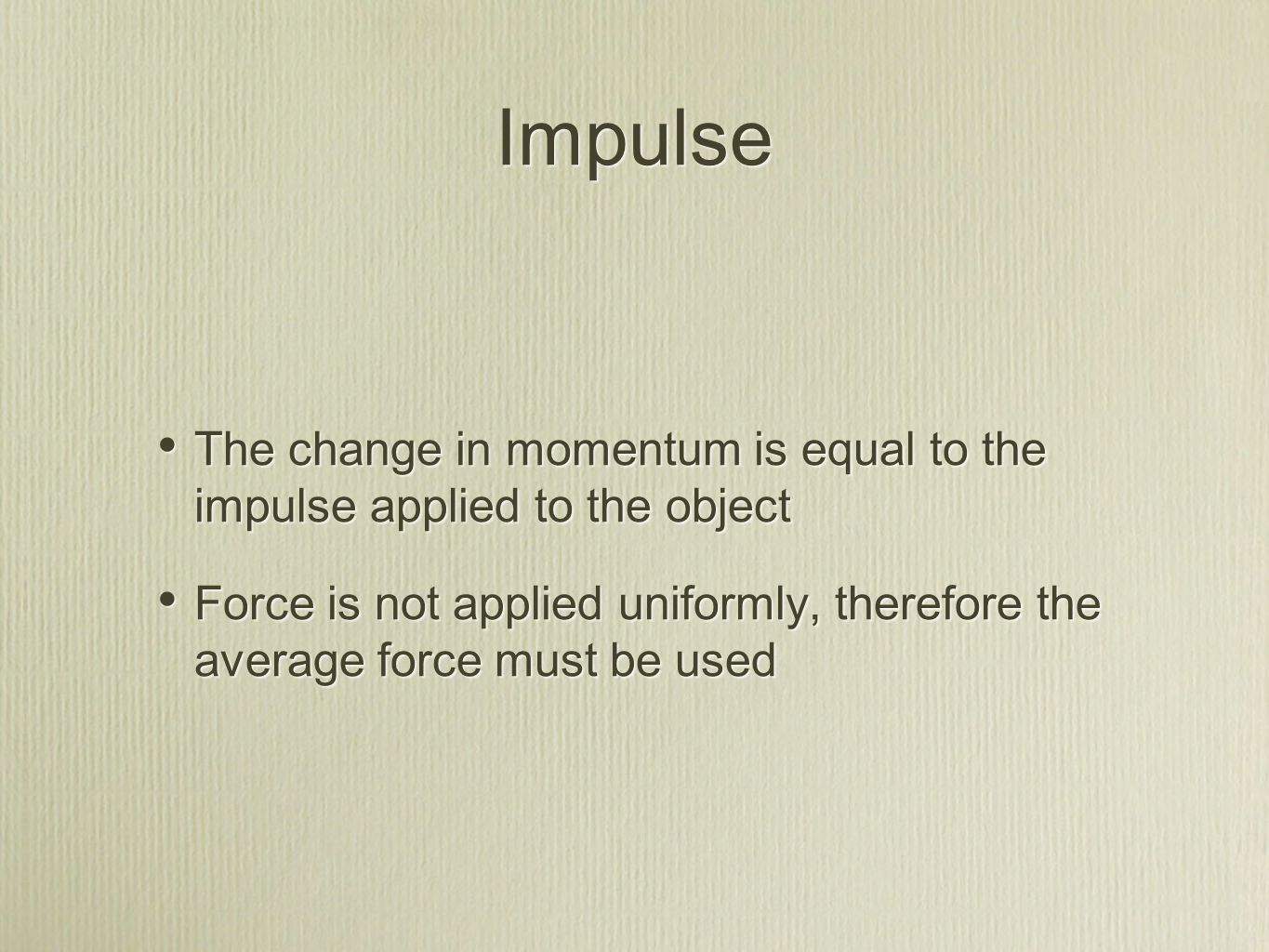

10. Impulse The change in momentum is equal to the impulse applied to the object Force is not applied uniformly, therefore the average force must be used The change in momentum is equal to the impulse applied to the object Force is not applied uniformly, therefore the average force must be used

11. Impulse Real life examples of how force is reduced include: Bending your knees when landing after jumping Air bags in cars In both of these examples time in increased, therefore force in reduced Real life examples of how force is reduced include: Bending your knees when landing after jumping Air bags in cars In both of these examples time in increased, therefore force in reduced

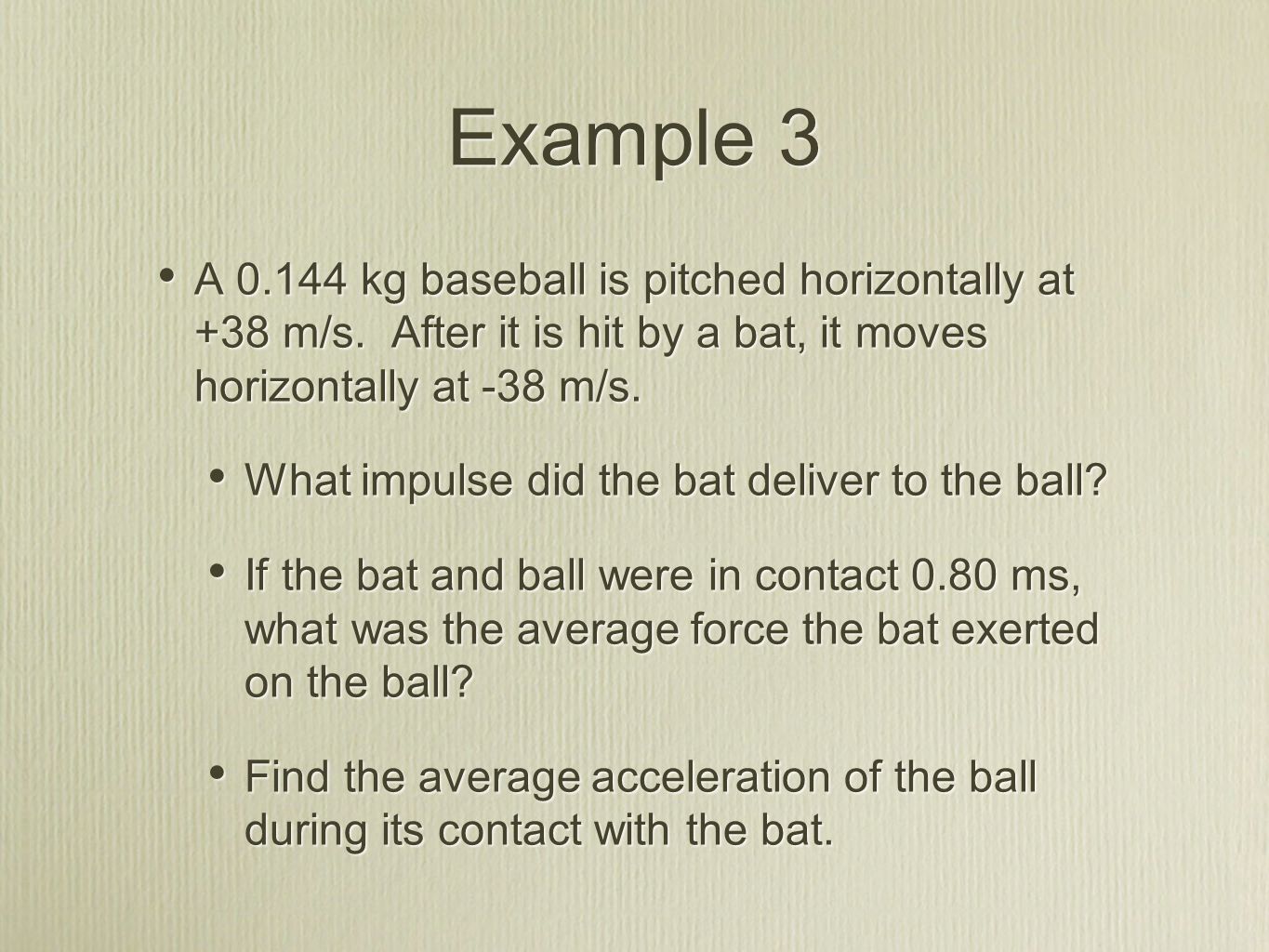

12. Example 3 A 0.144 kg baseball is pitched horizontally at +38 m/s. After it is hit by a bat, it moves horizontally at -38 m/s. What impulse did the bat deliver to the ball? If the bat and ball were in contact 0.80 ms, what was the average force the bat exerted on the ball? Find the average acceleration of the ball during its contact with the bat. A 0.144 kg baseball is pitched horizontally at +38 m/s. After it is hit by a bat, it moves horizontally at -38 m/s. What impulse did the bat deliver to the ball? If the bat and ball were in contact 0.80 ms, what was the average force the bat exerted on the ball? Find the average acceleration of the ball during its contact with the bat.
