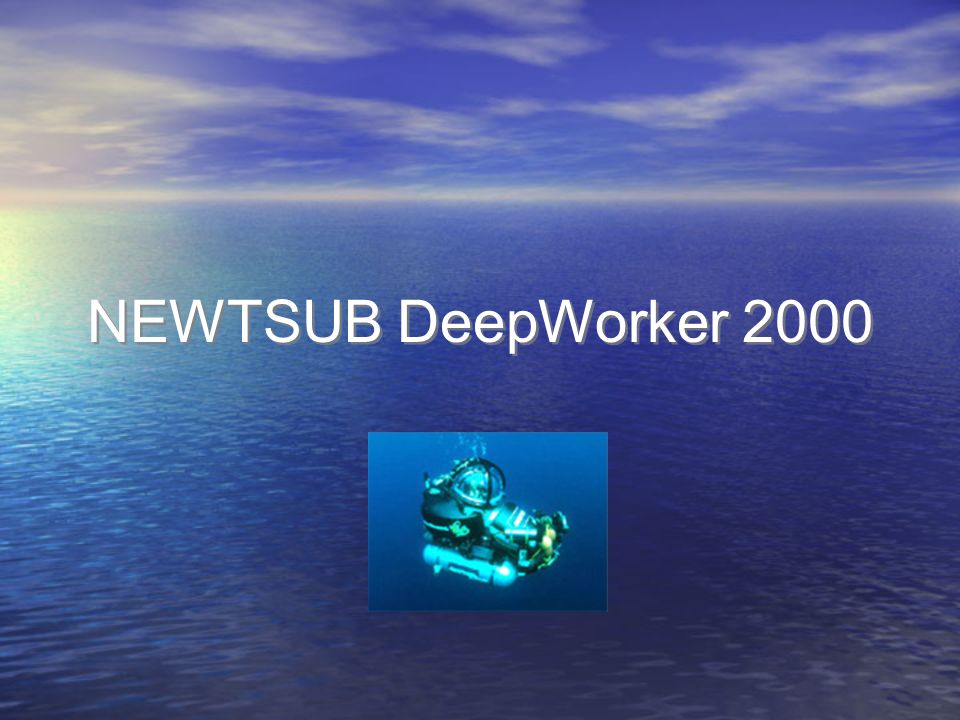

1. NEWTSUB DeepWorker 2000

2. Designed by Dr. Phil Nuytten and designers from Nuytco Nuytco’s Past designs: Deep Rover, WASP, Newt Suit, and Remora Products used around the world The DeepWorker is the “sports car of submersibles” Designed by Dr. Phil Nuytten and designers from Nuytco Nuytco’s Past designs: Deep Rover, WASP, Newt Suit, and Remora Products used around the world The DeepWorker is the “sports car of submersibles”

3. NEWTSUB DeepWorker 2000 In the past, submersibles were… large and heavy - needed special equipment to transport, launch, and recover tethered - tethers created drag -hard to maneuver -had power issues In the past, submersibles were… large and heavy - needed special equipment to transport, launch, and recover tethered - tethers created drag -hard to maneuver -had power issues

4. NEWTSUB DeepWorker 2000 Vehicle Specifications Length8.25 ft. Beam5.3 ft. Height5.75 ft. Weight in air1.3 tons Operating Depth2,000 ft. Payload250 lb. Life Support106 person hours Speed3-4 knots max Accommodation1 person (pilot)

5. NEWTSUB DeepWorker 2000  Acrylic dome  Titanium battery pods Lights   Tool attachment http://www.youtube.com/watch?v=DneVTWFpjpM&NR=1

6. NEWTSUB DeepWorker 2000 Tracking DeepWorker: -Ship sends out ultrashort baseline (USBL) - Transponder on DeepWorker receives ping and sends out two on different frequencies - First= range and bearing - Second= water depth - WinFrog uses ship’s GPS and gyrocompass to derive DeepWorker’s acoustic pings - Arc View GIS is a program that produces bathymetry, sidescan, and multibeam bottom imagery - VHF multi-channel radio for communication

7. NEWTSUB DeepWorker 2000 Maneuvering: - Intuitive - Hands free - Touch screen computer - Tools  Forward  Backward  Rise  Sink  LeftRight 

8. NEWTSUB DeepWorker 2000 Deployment and Recover: - Stern mounted A-frame - Stern mounted crane - Lines

9. NEWTSUB DeepWorker 2000 Future: - Adding Second Pressure Sphere - Submarine rescues - Tourism
