1. Emulsion Simulation Y. Caffari (IPN Lyon) F. Juget (IPH Neuchatel) A. Marotta (CNRS-IN2P3 Lyon) CERN 3-5/05/2006

2. Outline ORFEO development program Event simulation for algorithm comparison Event simulation for data/MC comparison Electron data/MC comparison A new effect of the reconstruction seen in the data/MC comparison that must be simulated Outlook

3. ORFEO development program The next version of ORFEO will work under the new general simulation framework (OpRelease); The ORFEO version actually on the web (working with OpRoot) has been validated (micro-tracks, smearing…) update to the simulation procedure and new packages (to add new features and reproduce effects not related to physics or to emulsions) will be tested under this version till the new one will be fully operative; The OpRelease framework has 3 working possibility: full detector+rock, full detector, single brick; The ORFEO smearing features are implemented in OpRelease; A new simulation of the brick structure (CS doublet, packing… ) is under development; A package to read the new output (in the official OpRelease format) and process events with the emulsion reconstruction program will come soon; A I/O package to reproduce the old output will be provided too for back compatibility.

4. Event simulation for algorithm comparison The algorithm comparison is performed by using the simulated data stored @ http://ntslab01.na.infn.it/opera_sim/ORFEO_production/ ;http://ntslab01.na.infn.it/opera_sim/ORFEO_production/ The default parameters are chosen in such a way to be in “reasonable agreement” with the OPERA test beam data BUT they are not supposed to be used for data/MC comparison; in fact, in such a case a “good” data/MC agreement is not expected; The efficiencies are parameterized by using the reference brick Actually, this parameterization does not fit with the efficiencies parameterized in the other tests beam made, so in data/MC comparison a parameterization obtained from data should be used; The micro-tracks smearing, in position and angle, are obtained by using a 2 points simulation of the micro-track (see next slide)  x =0.25 micron,  y =0.25 micron,  z =2.5 micron; These values should be tuned in the case of data/MC comparison;

5. 2 points simulation of a micro-track 10. GeV muons y2y2  x=  x 1 +  x 2 -  y=  y 1 +  y 2 -  z=  z 1 +  z 2 y1y1 z1z1 x2x2 z2z2 x1x1 zz By taking into account that dx and dy are statistical errors gaussian distributed and dz is a maximal error with a flat distribution, these assumptions automatically give the expected dependences on  : “Since the base-tracks are constructed by using the 2 points at base, the same results are obtained for free for base- tracks too”

6. Transversal and longitudinal resolution for simulated 10.GeV pions at  =0.7 mrad SlopLong1  =0.037 SlopLong2  =0.037 SlopTr1  =0.008 SlopTr1  =0.008 Smearing parameters are: Sx=0.25 micron, Sy=0.25 micron, Sz=2.5 micron.

7. Emulsion simulation for data/MC comparison: Event generation Event generation in the ORFEO official version: Actually is used a modified version of OpRoot/Geant3 (the modified files are provided with the ORFEO tar file); The cut on the micro-tracks minimum energy is removed; A smallest propagation step (as respect to the official OpRoot) is used to reproduce the correct Moliere radius (as suggested in the Geant3 manual); The compton production is on; To simulate a test beam: the beam momentum, particles density and slopes can be chosen by using the standard OpRoot Config.C file.

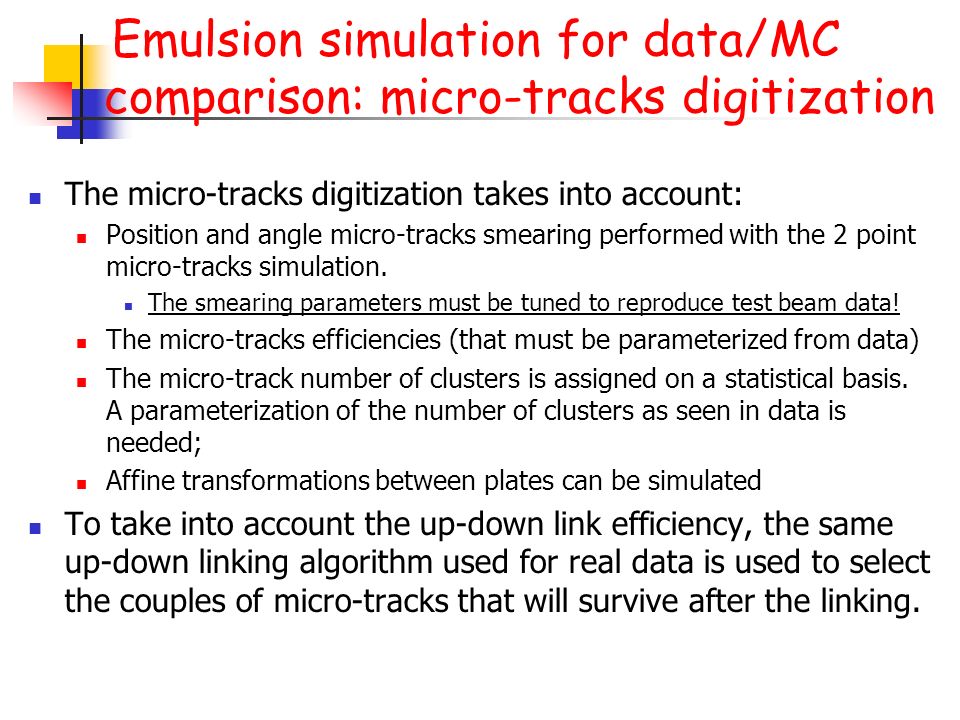

8. Emulsion simulation for data/MC comparison: micro-tracks digitization The micro-tracks digitization takes into account: Position and angle micro-tracks smearing performed with the 2 point micro-tracks simulation. The smearing parameters must be tuned to reproduce test beam data! The micro-tracks efficiencies (that must be parameterized from data) The micro-track number of clusters is assigned on a statistical basis. A parameterization of the number of clusters as seen in data is needed; Affine transformations between plates can be simulated To take into account the up-down link efficiency, the same up-down linking algorithm used for real data is used to select the couples of micro-tracks that will survive after the linking.

9. Data vs MC: Pions 4 GeV The events were generated with OpRoot The smearing parameters are: Sx=0.25 micron, Sy=0.25 micron, Sz=2.5 micron. these value are the same used for all the “official” productions NO parameters optimization was made for this set of data.

10. TRIGGER MC Tx  =0.0055 MC Ty  =0.0029 data Tx  =0.0053 data Tx  =0.0022

11. Slopes resolution (Tmicro-Tbase) Tx-Tx 1  =0.01 Ty-Ty 2  =0.01 Ty-Ty 1  =0.01 Tx-Tx 2  =0.01 Tx-Tx 1  =0.009 Tx-Tx 2  =0.01 Ty-Ty 2  =0.009 Ty-Ty 2  =0.009 MCdata

12. eCHI2P vs PH This is the results of the micro slopes resolution simulation (eCHI2P) and of the micro pulse height parametrization (bt PH) bg rejected MCData

13. Base Track angle resolution Bin(i-1)=T(i)-T(1), i>1 MCData Tx Mean=11.5 RMS=5.3 Tx Mean=11.7 RMS=5.3 Tx Mean=11.2 RMS=5.3 Ty Mean=11.4 RMS=5.2

14. Base Pulse and eCHI2P MC PH Mean=26.6 RMS=2.9 data PH Mean=26.6 RMS=3.0 MC eCHI2P Mean=0.7 RMS=0.5 data eCHI2P Mean=0.8 RMS=0.8

15. Number of segments followed without propagation (strongly related to micro track efficiencies) Data MC+eff. Assuming eff.=84.% (84.% at theta<0.1mrad measured data)

16. MC: no correlation between Micro tracks momentum and pulse height by construction Pulse height vs plate number and energy loss Data MC

17. The events were generated with OpRoot The smearing parameters are: Sx=0.4 micron, Sy=0.25 micron, Sz=2.5 micron. (these value were obtained with a tuning on the data) Eff. Measured in the empty brick by using cosmic muons Pulse Height parametrized by using the data in the empty brick; Data vs MC:Electrons 6 GeV

18. TRIGGER MC Ty  =0.0025 data Tx  =0.0037 data Tx  =0.0022 MC Tx  =0.0043

19. Slopes resolution (Tmicro-Tbase) Tx-Tx 1  =0.013 Ty-Ty 2  =0.007 Ty-Ty 1  =0.008 Tx-Tx 2  =0.014 Tx-Tx 1  =0.014 Tx-Tx 2  =0.014 Ty-Ty 2  =0.008 Ty-Ty 2  =0.008 MCdata

20. eCHI2P vs PH This is the results of the micro track slopes resolution simulation (eCHI2P) and of the micro track pulse height parametrization (bt PH) bg rejected MCData

21. MC vs data comparison Selected tracks characteristics: The track starts in the 1 st plate; Number of segments [3,15] ; The track is in a box with a surface of 1.8x1.8cm 2 ; The first segment of the track is in a cone around the beam direction with open angle defined by the beam width; Yes NO

22. Base Track angle resolution Bin(i-1)=T(i)-T(1), i>1 MCData

23. Base Pulse and eCHI2P MC PH Mean=26.4 RMS=3.0 data PH Mean=26.3 RMS=3.0 MC eCHI2P Mean=1.2 RMS=0.9 data eCHI2P Mean=1.1 RMS=1.0

24. MC: no correlation between Micro tracks momentum and pulse height by construction Pulse height vs plate number and energy loss Data MC

25. about efficiencies… Brick not exposed to the e beam Reference brick eff. Eff lead MC pions Eff no lead MC pions

26. Number of segments followed without propagation (strongly related to micro track efficiencies) Data MC without Efficiencies micro track rejection Eff. As measured in Empty brick (only cosmics exposition) MC+eff.

27. A new effect of the reconstruction seen in the data/MC comparison that must be simulated The effect as it was seen in the data and in the MC; The source of the effect (as suggested by Cristiano Bozza); Looking for a threshold effect in the data…; Our suggestion for an upgrade of the simulation procedure; A set of test that we need/suggest;

28. The effect seen in the data/MC comparison Frederic Yvan

29. The effect seen in the data/MC comparison Blu real data Red simulation

30. The effect seen in the data/MC comparison Blu Geant4 Red Geant3 Green real data

31. The effect seen in the data/MC comparison Blu real data Red simulation

32. The source of the effect “ When SmartTracker7 finds that two micro-tracks have one grain in common, only the one with more grains survives, and the other is discarded… …Background can “kill” good tracks (e.g. a Compton electron might “cross” some good track, “eating” its grains), and this is not obtained by just adding background to MC data at a micro-track level.” (From an email of C. Bozza)

33. Looking for a threshold in the data… the plot of the minimum distance between micro-tracks in a view will give us the real dimension of the “problem”. Coming soon…

34. Our suggestion for an upgrade of the simulation procedure. A transversal dimension must be added to the micro-track this will introduce a threshold effect… related to the cluster size, function of the energy… If the distance between 2 micro-tracks at fixed z is less then the threshold, a function f(n c1,n c2 ) will help to decide if 1 micro must be rejected In such a way the effect is additive in fact by adding the bg micro-tracks the overlap probability will increase!!!

35. Tests program All the tests should be done on both oil and dry objective and for different configuration parameters (grey level…) From any test beam: Measure of the threshold (minimum distance between micro- tracks couples in a view); … From e test beam: Cluster size dimension as a function of the energy (number of plate…); … From  test beam: Number of times that the first base-track of a secondary track is seen as a function of the distance of the primary vertex from the lead surface; …

36. Conclusions The emulsion simulation package (ORFEO) is going to be fully implemented in the OpRelease framework; 2 different simulation procedure for algorithms comparison and for data/MC comparison defined; A new tracking effect was seen in data/MC comparison. A procedure to reproduce it in the simulation is under development; Some tests on data are needed to improve the simulation properly.
