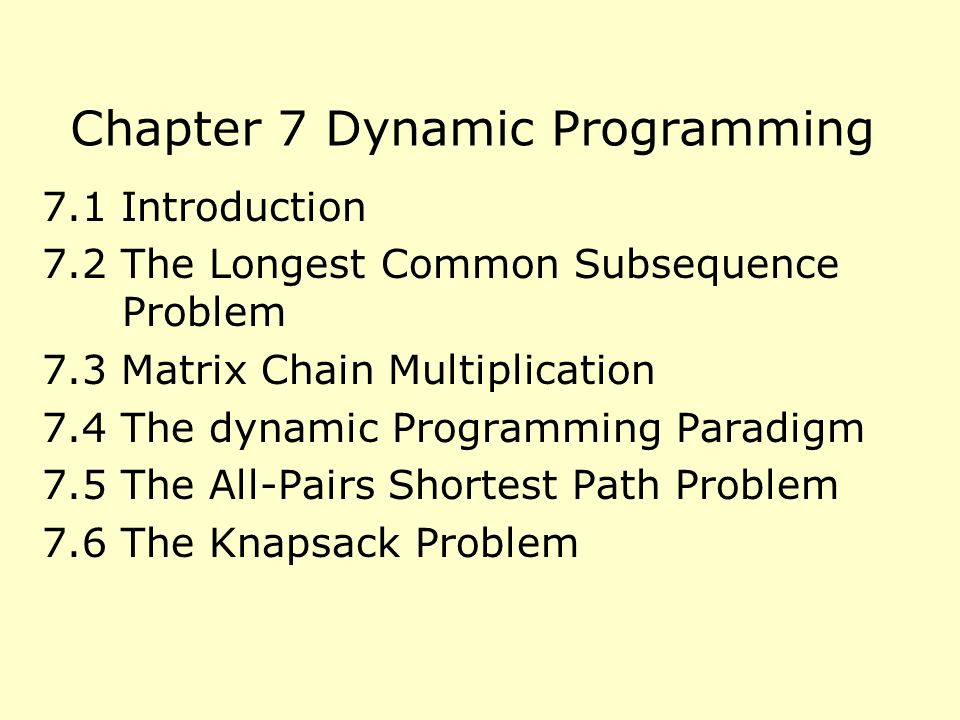

1 Chapter 7 Dynamic Programming 7.1 Introduction 7.2 The Longest Common Subsequence Problem 7.3 Matrix Chain Multiplication 7.4 The dynamic Programming Paradigm 7.5 The All-Pairs Shortest Path Problem 7.6 The Knapsack Problem

2 7.1 Introduction  Main idea:  Dynamic programming is a powerful algorithm design technique that is widely used to solve combinatorial optimization problems.  An algorithm that employs this technique is not recursive by itself, but the underlying solution of the problem is usually stated in the form of a recursive function.  For this reason, this technique resorts to evaluating the recurrence in a bottom-up manner, saving intermediate results that are used later on to compute the desired solution.

3 Example 7.1 One of the most popular examples used to introduce recursion and induction is the problem of computing the Fibonacci sequence: 1. procedure f(n) 2. if (n=1) or (n=2) then return 1 3. else return f(n-1)+f(n-2) 7.1 The recursive procedure looks like the following. Time complexity: (1)Using recurrence: T(n)=θ(φ n ) (2) Using dynamic programming: Θ(n)

4 7.2 The longest Common subsequence Problem  Problem: Given two strings A and B of lengths n and m, respectively, over an alphabet , determine the length of the longest subsequence that is common to both A and B. Here, a subsequence of A=a 1 a 2, … a n is a string of the form, where each i j is between 1 and n and

5 7.2 The longest Common subsequence Problem  Solution: In order to make use of the dynamic programming technique, we first find a recursive formula for the length of the longest common subsequence. Let A=a 1 a 2, … a n and B=b 1 b 2, … b m. Let L[i,j] denote the length of a longest common subsequence of a 1 a 2, … a i and b 1 b 2,..b j. Note that i or j may be zero, in which case one or both of a 1 a 2, … a i and b 1 b 2,..b j may be the empty string. Naturally, if i=0 or j=0, then L[i,j]=0.

6 7.2 The longest Common subsequence Problem  Observation 7.1 Suppose that both i and j are greater than 0. Then If a i =b j, L[i,j]=L[i-1,j-1]+1. If a i /=b j,L[i,j]=max{L[i,j-1], L[i-1,j]}  So we have:

7 Algorithm 7.1 LCS Input: Two strings A and B of lengths n and m, respectively, over an alphabet. Output: The length of the longest common subsequence of A and B. 1. For i 0 to n 2. L[I,0] 0 3.End for 4.For j 0 to m 5. L[0,j] 0 6.End for 7.For i 1 to n 8. for j 1 to m 9. if = then L[i,j] L[i-1,j-1]+1 10. else L[i,j] max{L[i,j-1],L[i-1,j]} 11. end if 12. End for 13.End for 14.Return L[n,m] 7.2

8 Theorem 7.1  An optimal solution to the longest common subsequence problem can be found in (nm) time and (min{m,n}) space. 7.2

9 7.3 Matrix Chain Multiplication  Example: Suppose we want to compute the product M 1 M 2 M 3 of three matricesM 1,M 2 and M 3 of dimensions 2*10,10*2 and 2*10, using the standard method of matrix multiplication. If we multiple M 1 and M 2 and then multiply the result by M 3, the number of scalar multiplications will be 2*10*2+2*2*10=80. If, instead, we multplyM1 by the result of multiplying M 2 and M 3, then the number of scalar multiplications becomes 10*2*10+2*10*10=400. Thus, carrying out the multiplicationM 1 (M 2 M 3 ) costs five times the multiplication(M 1 M 2 )M 3.

10 7.3 Matrix Chain Multiplication  Problem: Let M1,M2, …,Mn to be n matrices, try to find a order of multiplication that makes the cost of multiplying a chain of the n matrices to be least.  Time complexity: Using the brute-force method: Using dynamic programming: (n 3 )

11 7.3 Matrix Chain Multiplication  solution: let M 1,M 2, …,M n be n matrices, r 1,r 2, …,r n+1, where r i and r i+1 are, respectively, the number of rows and columns in matrix M i, 1in. M ij denotes the product of M i M i+1 … M j. C[i,j] denotes the cost of number of scalar multiplications. Let k be an index between i+1 and j. compute the two matrices M i,k-1 =M i M i+1 … M k-1, and M k,j =M k M k+1 … M j. Then M i,j =M i,k-1 M kj.

12 7.3 Matrix Chain Multiplication  So the cost of M[i,j]:  It follows that in order to find the minimum number of scalar multiplications required to perform the matrix multiplication M 1 M 2 … M n, we only need to solve the recurrence

13 Algorithm 7.2 MATCHAIN Input: An array r[1..n+1] of positive integers corresponding to the dimensions of a chain of n matrices, where r[1..n] are the number of rows in the n matrices and r[n+1] is the number of columns in. Output: The least number of scalar multiplications required to multiply the n matrices. 7.3

14 Algorithm 7.2 MATCHAIN 1.For i 1 to n {Fill in diagonal } 2. C[i,i] 0 3.End for 4.For d 1 to n-1 {fill in diagonal to } 5. for i 1 to n-d {fill in entries in diagonal } 6. j i+d 7. comment: The next three lines compute C[i,j] 8. C[i,j] 9. For k i+1 to j 10. C[i,j] min{C[i,j],C[i,k-1]+C[k,j]+r[i]r[k]r[j+1]} 11. end for 12. end for 13.End for 14.Return C[1,n] 7.3

15 Theorem 7.2  The minimum number of scale multiplications required to multiply a chain of n matrices can be found in ( ) time and ( ) space. 7.3

16 7.4 The Dynamic Programming Paradigm  Save solutions to subproblems in order to avoid their recomputation.  All the table entries generated by the algorithm represent optimal solutions to the subinstances considered by the algorithm.  Principle of optimality: Given an optimal sequence of decisions, each subsequence must be an optimal sequence of decisions by itself.

17 7.5 The all-pairs Shortest Path Problem  Problem: Let G=(V,E) be a directed graph in which each edge (i,j) has a nonegative length l[i,j]. If there is no edge from vertex i to vertex j, then l[i,j]=. The problem is to find the distance from each vertex to all other vertices, where the distance from vertex x to vertex y is the length of a shortest path from x to y.

18 7.5 The all-pairs Shortest Path Problem  Solution: assume that V={1,2, …,n}, let i and j be two different vertices in V. define d k i,j to be the length of a shortest path from i to j that does not pass through any vertex in {k+1,K+2, …,n}.Thus

19 Algorithm 7.3 FLOYD Input: An n*n matrix l[1..n,1..n] such that l[i,j] is the length of the edge (i,j) in a directed graph G=({1,2, …,n},E). Output: A matrix D with D[i,j]= the distance from i to j. 1.D l {copy the input matrix l into D} 2.For k 1 to n 3. for i 1 to n 4. for j 1 to n 5. D[i,j]=min{D[i,j],D[i,k]+D[k,j]} 6. end for 7. end for 8.End for 7.5

20 7.6 The Knapsack Problem  Problem: Let U={u 1,u 2, …,u n } be a set of n items to be packed in a knapsack of size C. For 1jn, let s j and v j be the size an value of the jth item, respectively, where C and s j,v j, 1jn, are all positive integers. The objective is to fill the knapsack with some items from U whose total size is at most C and such that their total value is maximum. More formally, given U of n items, we want to find a subset SU such that is maximized subject to the constraint

21 7.6 The Knapsack Problem  Solution: Let V[i,j] denote the value obtained by filling a knapsack of size j with items taken from the first i items {u 1,u 2, …,u i } in an optimal way.

22 7.6 The Knapsack Problem  solution: Observation 7.2 V[i,j] is the maximum of the following two quantities:  V[i-1,j]: The maximum value obtained by filling a knapsack of size j with items taken from {u 1,u 2, …, u i-1 } only in an optimal way.  V[i-1, j-s i ]+v i : The maximum value obtained by filling a knapsack of size j-s i with items taken from {u 1,u 2, … u i-1 } in an optimal way plus the value of item u i. This case applies only if j>=s i and it amounts to adding item u i to the knapsack.

23 7.6 The Knapsack Problem  Solution: Observation 7.2 implies the following recurrences for finding the value in an optimal packing:

24 Algorithm 7.4 KNAPSACK Input: A set of items U={,, …, } with sizes,, … and values,, …, and a knapsack capacity C. Output: The maximum value of the function subject to C for some subset of items S U. 1. For i 0 to n 2. V[i,0] 0 3.End for 4.for j 0 to C 5. V[0,j] 0 6.End for 7.for i 1 to n 8.For j 0 to C 9. V[i,j] V[i-1,j] 10. if j then V[i,j] max{V[i,j],V[i-1,j- ]+ } 11.End for 12.End for 13.Return V[n,C] 7.6

25 Theorem 7.3  An optimal solution to the Knapsack problem can be found in (nC) time and (C) space. 7.6
