1 Chapter 4: Section 1

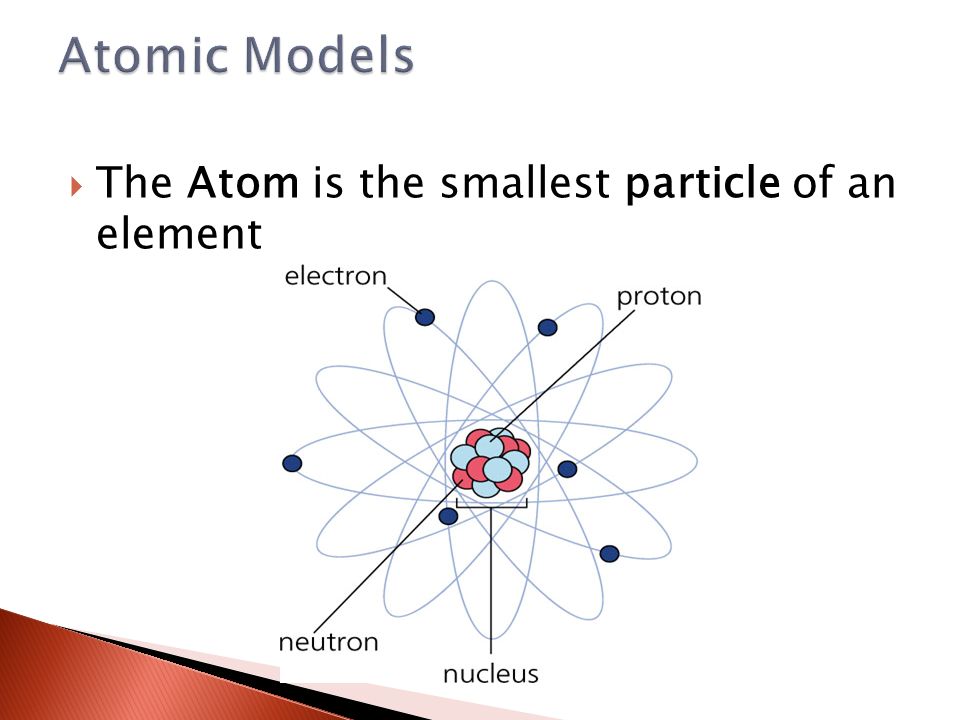

2  The Atom is the smallest particle of an element

3  The Atomic theory grew as a series of models that developed from experimental evidence. As more evidence was collected, the theory and models were revised.

4  All elements are composed of atoms that cannot be divided

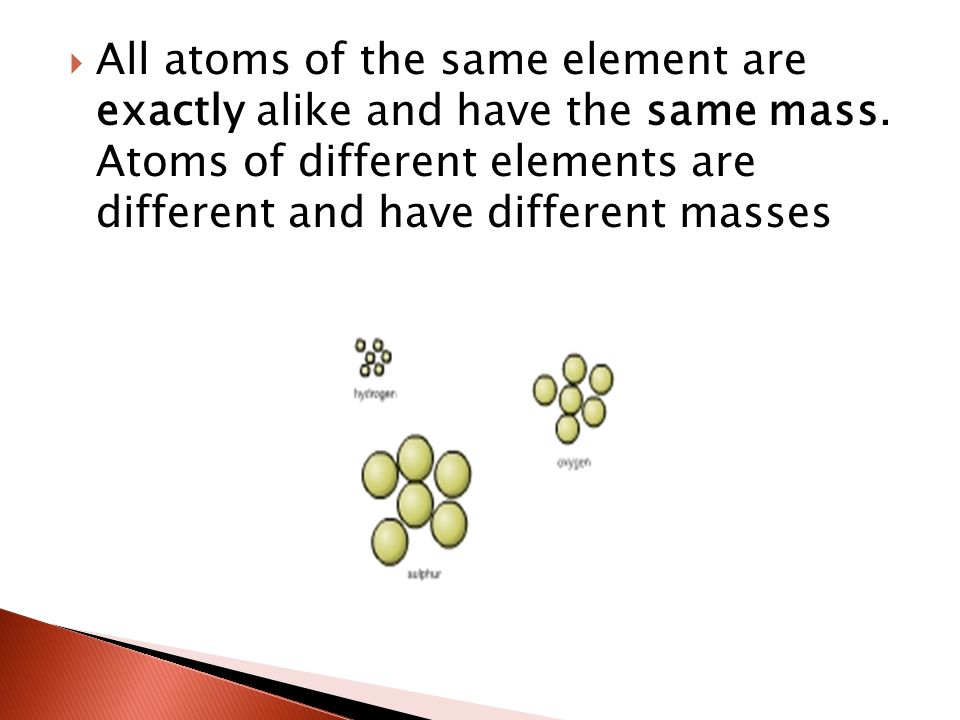

5  All atoms of the same element are exactly alike and have the same mass. Atoms of different elements are different and have different masses

6  An atom of one element cannot be changed into an atom of another element.

7  Atoms cannot be created or destroyed in any chemical change, only rearranged ◦ Law of ____________ __ ____

8  Every compound is composed of atoms of different elements, combined in a specific ratio

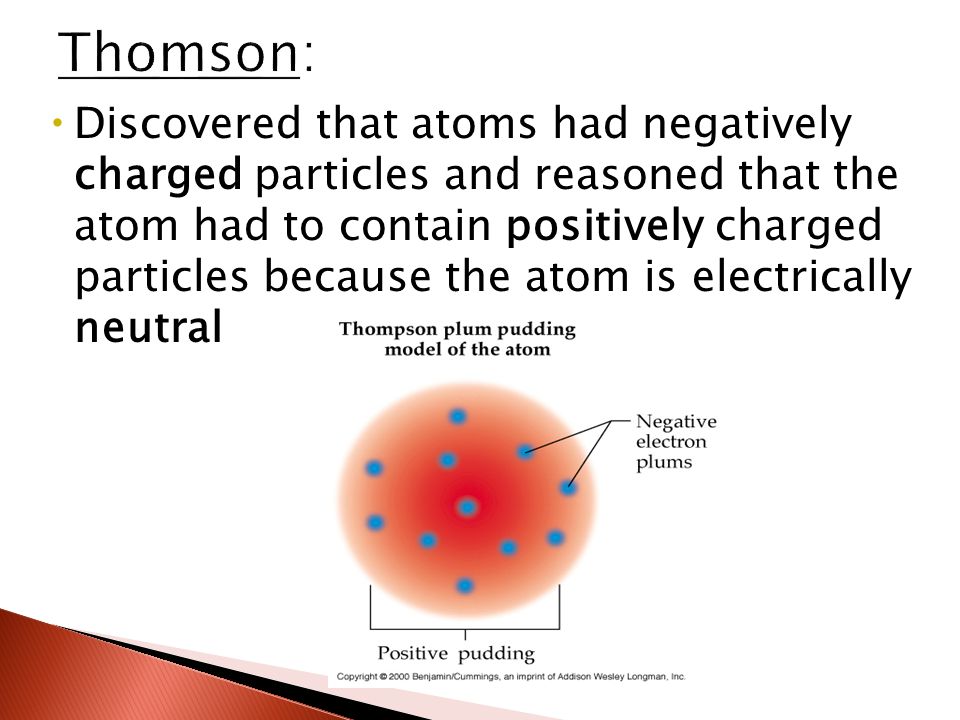

9  Discovered that atoms had negatively charged particles and reasoned that the atom had to contain positively charged particles because the atom is electrically neutral 

10  Inferred that an atom’s positive charge must be clustered in a tiny region in its center called a nucleus

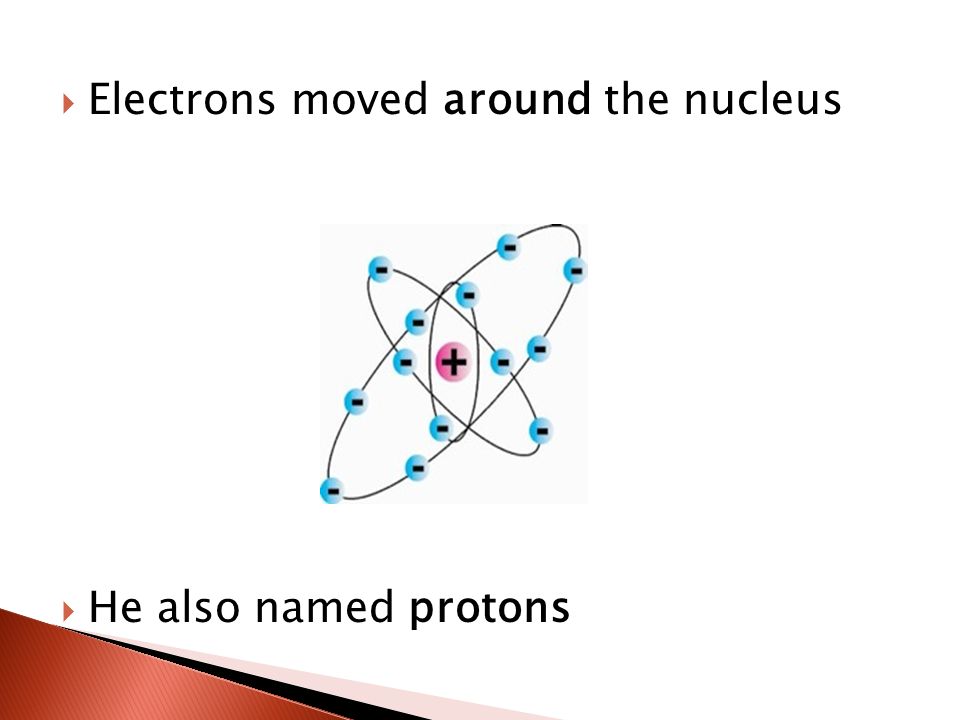

11  Electrons moved around the nucleus  He also named protons

12  Theory came from Gold foil experiment. (see figure 4 & 5, pages 104 & 105)  some of the alpha particles had run into massive concentrations of positive charge and, since like charges repel, had been hurled straight back by them

13  Showed that electrons could only have specific amounts of energy, leading them to move in certain orbits around the nucleus

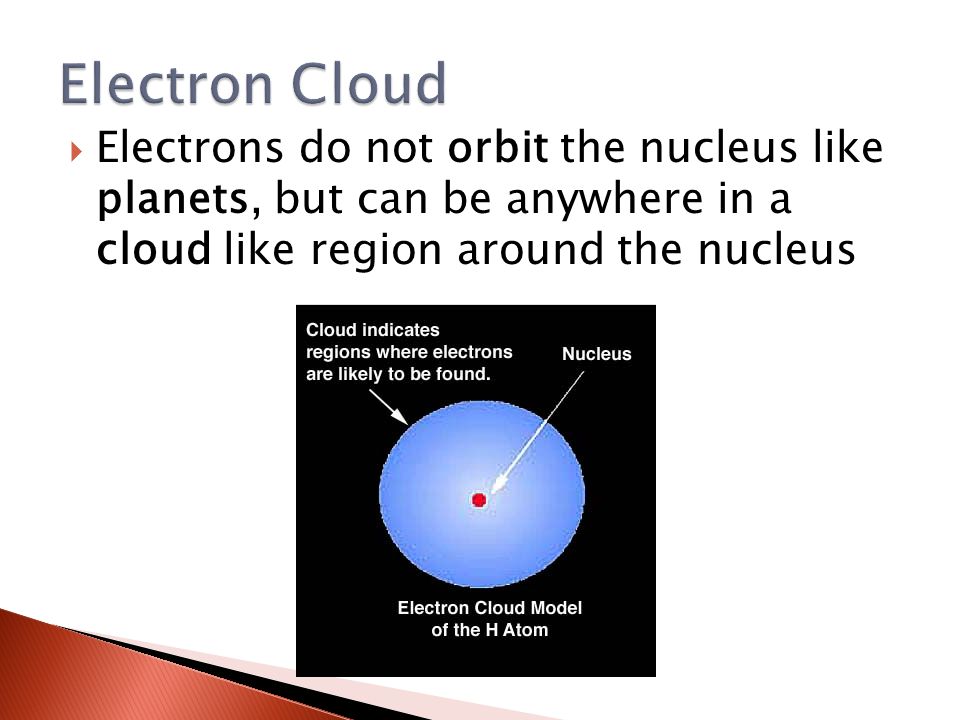

14  Electrons do not orbit the nucleus like planets, but can be anywhere in a cloud like region around the nucleus

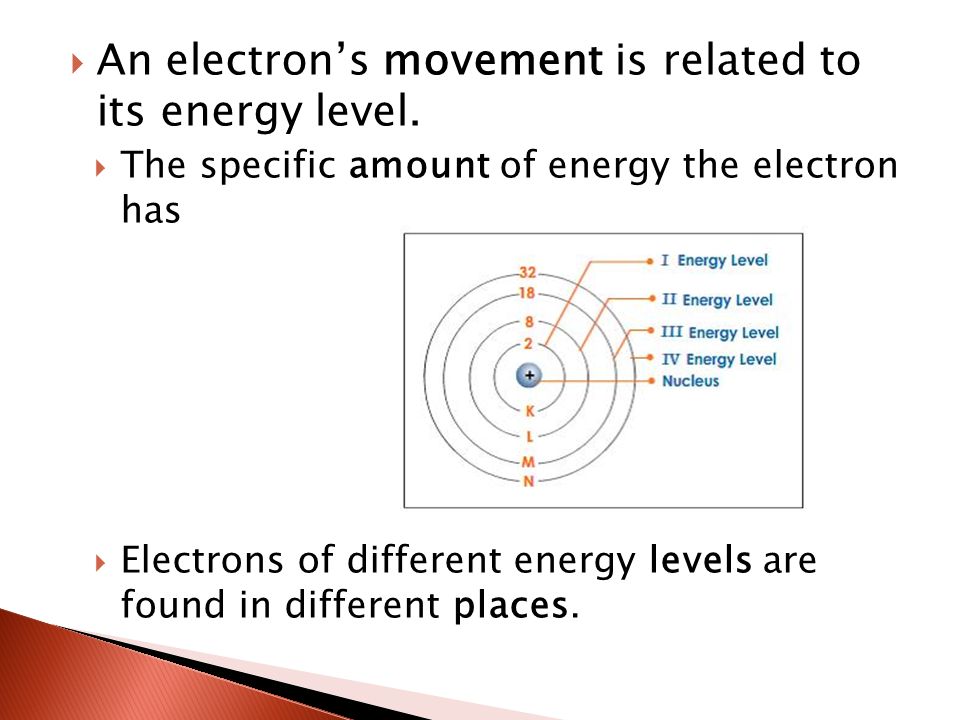

15  An electron’s movement is related to its energy level.  The specific amount of energy the electron has  Electrons of different energy levels are found in different places.

16  James Chadwick discovered the neutrons, which are found in the nucleus, they have no charge and almost as much mass as the protons

17  The model consists of an atom made up of a nucleus which contains the protons and neutrons surrounded by a cloudlike region of moving electrons contained in energy levels

18  Protons are shown by a plus sign(1+), AMU = 1

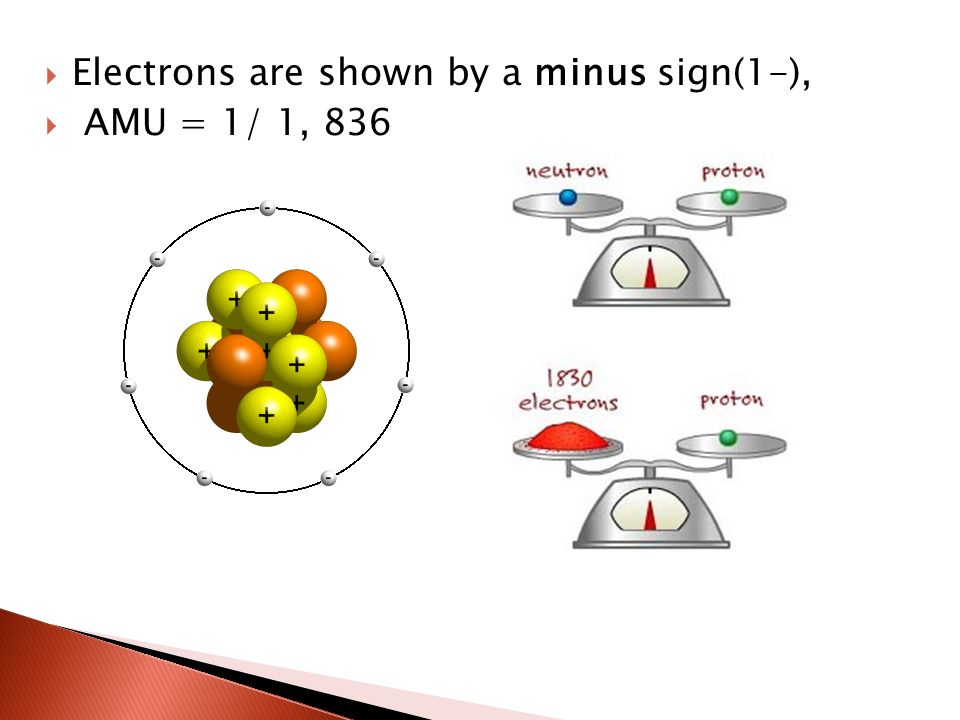

19  Electrons are shown by a minus sign(1-),  AMU = 1/ 1, 836

20 ◦ Neutrons are shown by a zero sign(0), ◦ AMU = 1

21  Every atom of an element has the same number of protons

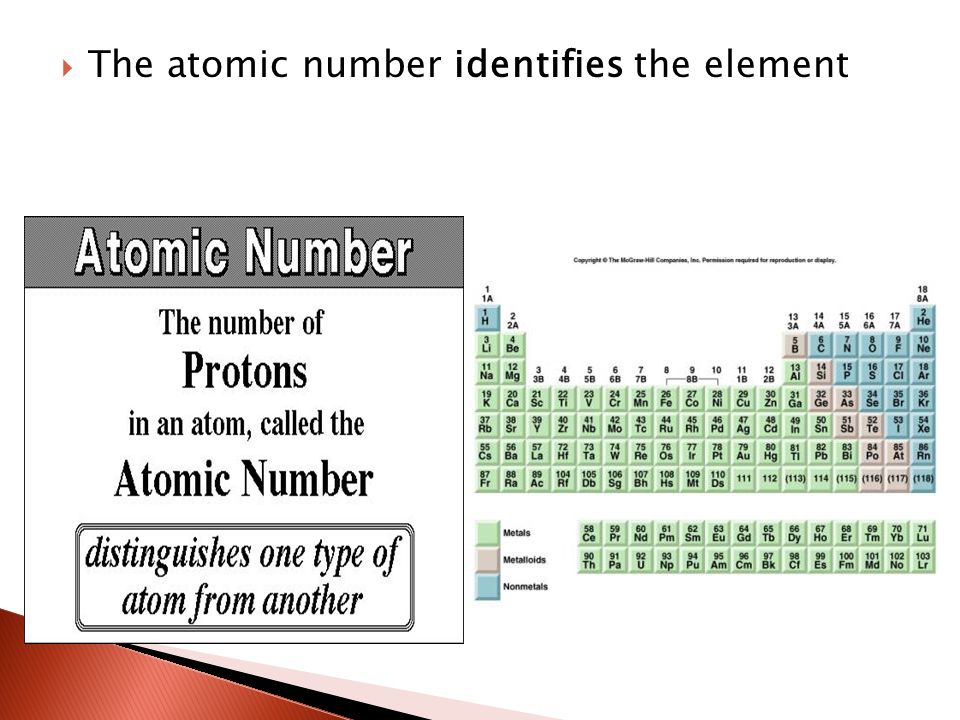

22  The atomic number identifies the element

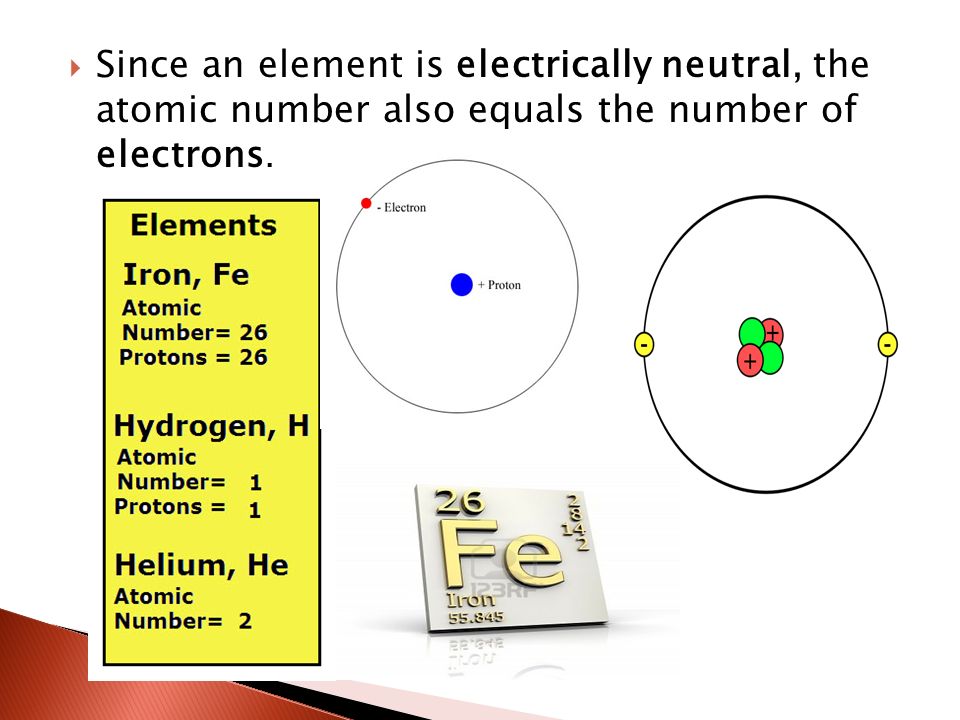

23  Since an element is electrically neutral, the atomic number also equals the number of electrons.

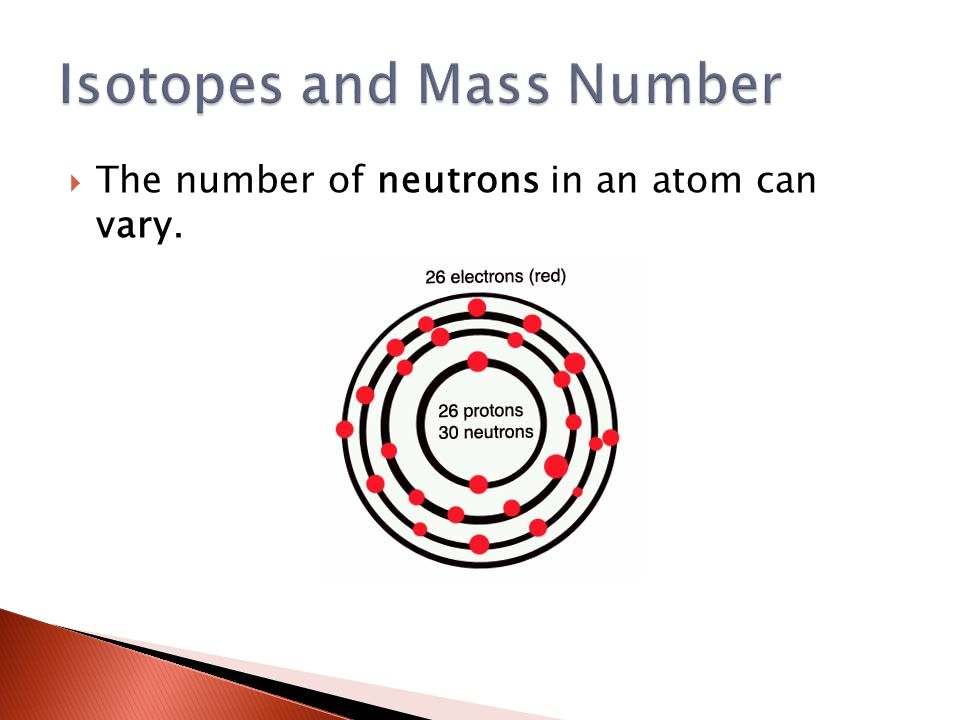

24  The number of neutrons in an atom can vary.

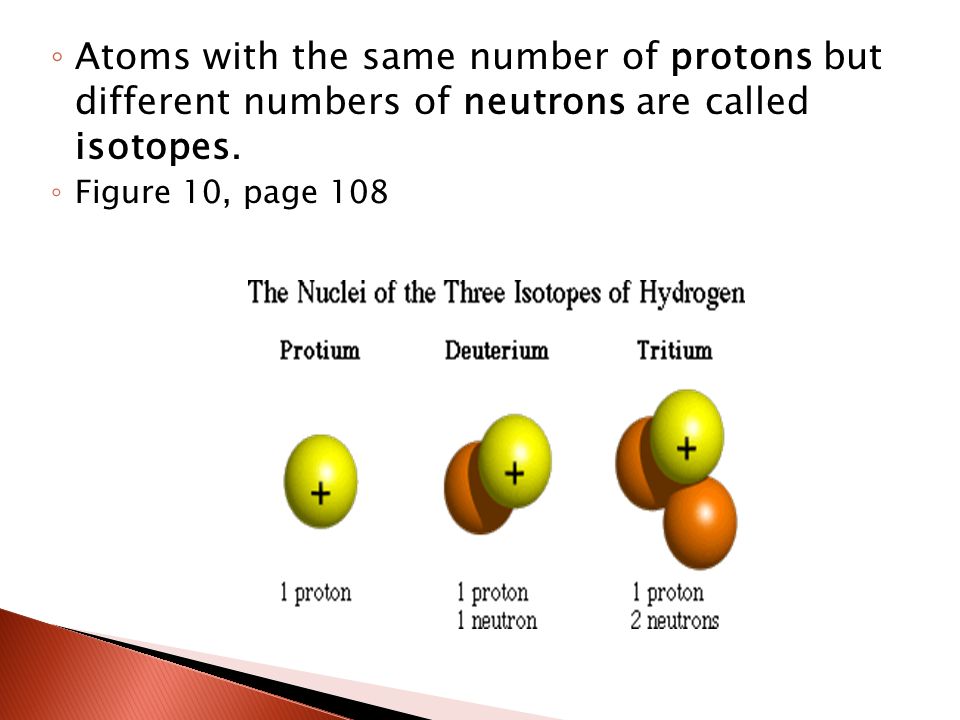

25 ◦ Atoms with the same number of protons but different numbers of neutrons are called isotopes. ◦ Figure 10, page 108

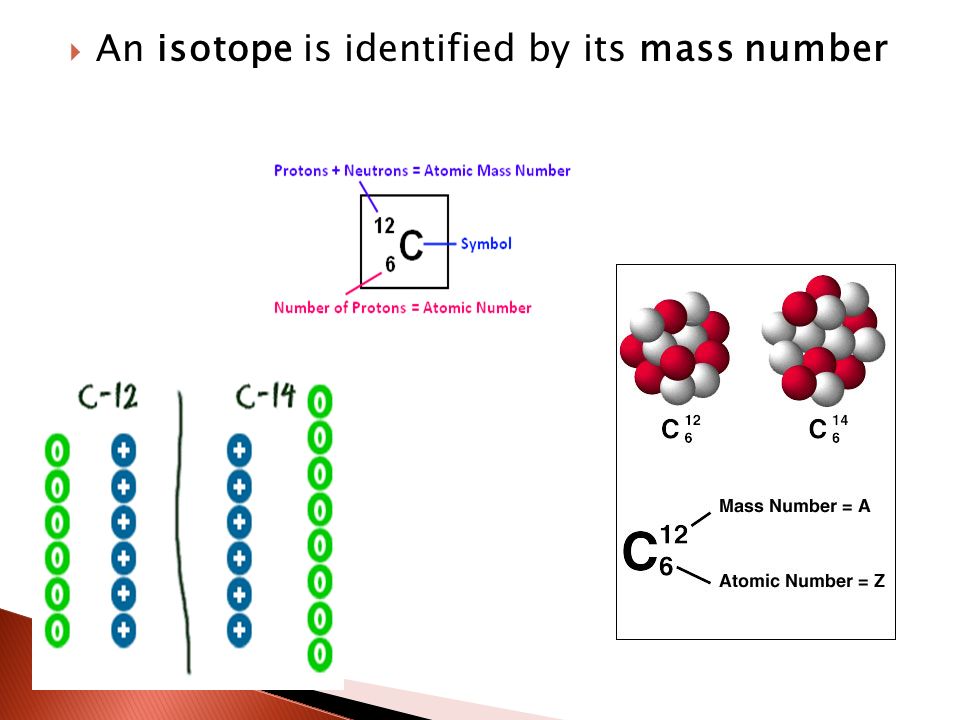

26  An isotope is identified by its mass number

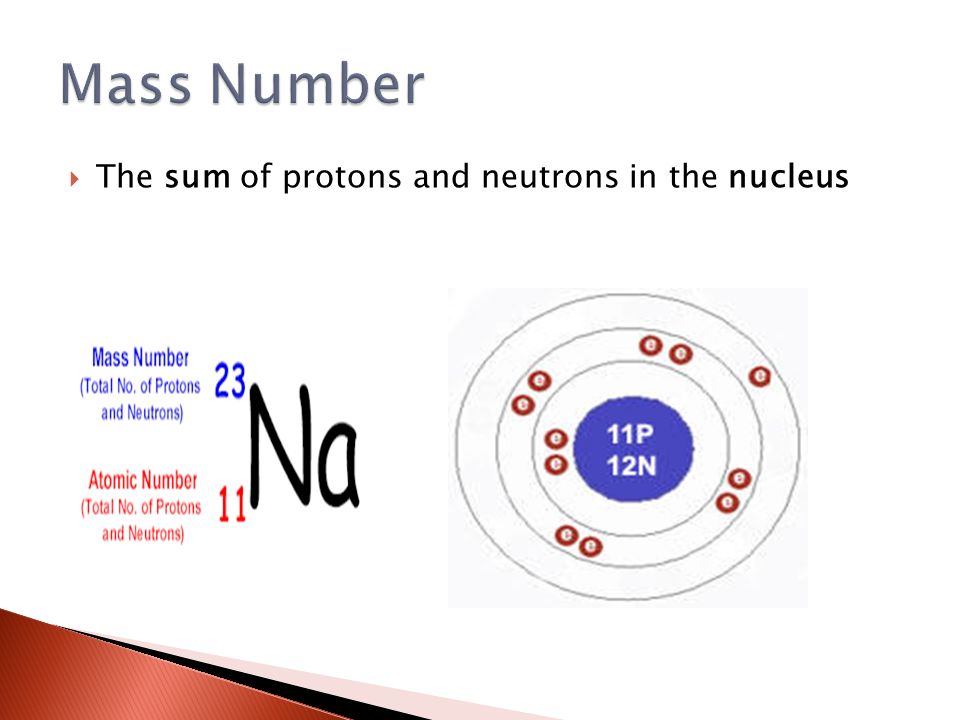

27  The sum of protons and neutrons in the nucleus

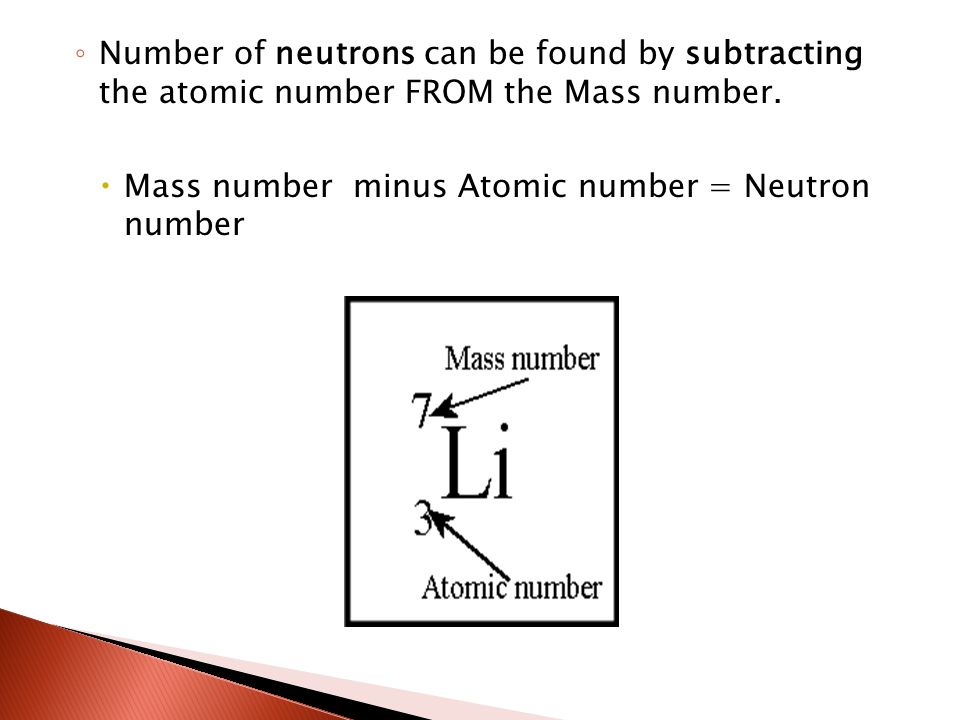

28 ◦ Number of neutrons can be found by subtracting the atomic number FROM the Mass number.  Mass number minus Atomic number = Neutron number
