1 Compensatory Fuzzy Logic Discovery of strategically useful knowledge Prof. Dr. Rafael Alejandro Espin Andrade Management Technology Studies Center Industrial.

Similar presentations


Presentation on theme: "1 Compensatory Fuzzy Logic Discovery of strategically useful knowledge Prof. Dr. Rafael Alejandro Espin Andrade Management Technology Studies Center Industrial."— Presentation transcript:

1

2 1 Compensatory Fuzzy Logic Discovery of strategically useful knowledge Prof. Dr. Rafael Alejandro Espin Andrade Management Technology Studies Center Industrial Engineering Faculty Technical University of Havana CUJAE espin@ind.cujae.edu.cuespin@ind.cujae.edu.cu, rafaelespin@yahoo.comrafaelespin@yahoo.com

3 2

4 3

5 Why a new multivalued fuzzy logic Learning, Judgment, Reasoning and Decision Making are parts of a same process of thinking, and have to be studied and modeled as a hole. No compensation among truth value of basic predicates are an obstacle to model human judgment and decision making. Associativity is an obstacle to get compensatory operators with sensitivity to changes in truth values of basic predicates, and possibilities of interpretation of composed predicates truth values according a scale

6 5 It is not yet enough a formal field Bad behavior of multi-valued logic systems Pragmatic Combination of operators without axiomatic formalization Confluence of Objectives using only one operator Fuzzy Logic based Decision Making Modeling

7 Compensatory Logic It allows compensation among truth value of basic predicates inside the composed predicate. It is a not associative system. It is a sensitive and interpretable system It generalizes Classic Logic in a new and complete way. It is possible to model decision making problems under risk, in a compatible way with utility theory. It explains the experimental results of descriptive prospect theory as a rational way to think It allows a new mixed inference way using statistical and logical inference Its properties allows a better way to deal with modeling from natural and professional languages

8 Existing efforts to create fuzzy semantics standards Using min-max logic Using a pragmatic combination of operators

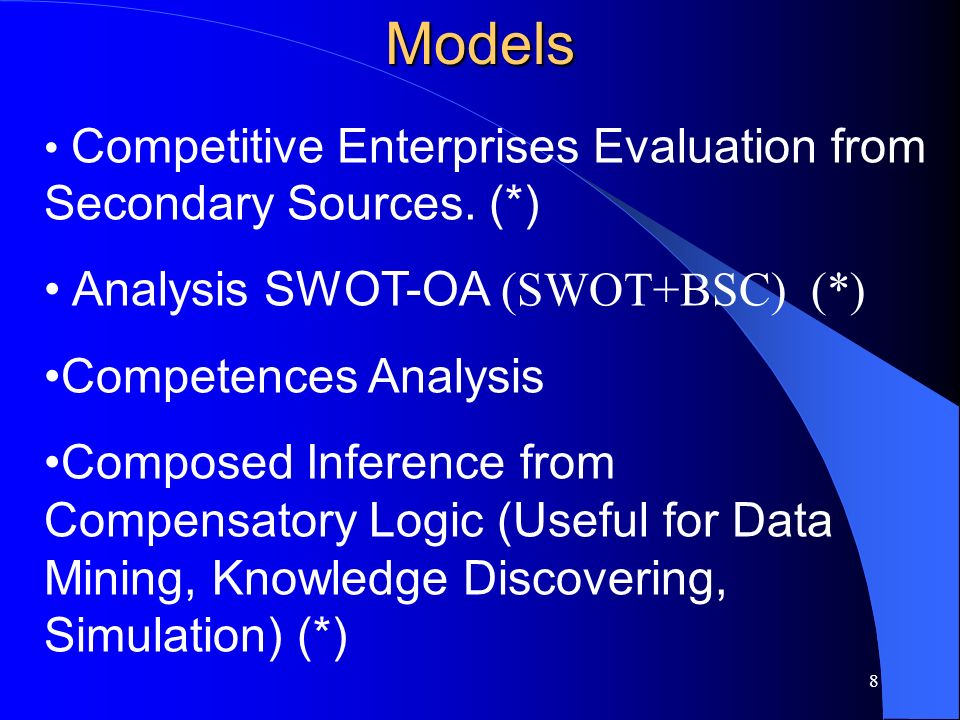

9 8 Models Competitive Enterprises Evaluation from Secondary Sources. (*) Analysis SWOT-OA (SWOT+BSC) (*) Competences Analysis Composed Inference from Compensatory Logic (Useful for Data Mining, Knowledge Discovering, Simulation) (*)

10 9Models Integral Project Evaluation Negotiation: New Theoretical Treatment of Cooperative n- person Games Theory: Quantitative Indexes for Decision Making in Business Negotiation (Good Deal Index, Convenience Counterpart Index) SDI’Readiness

11 Compensatory Conjunction Geometric Mean

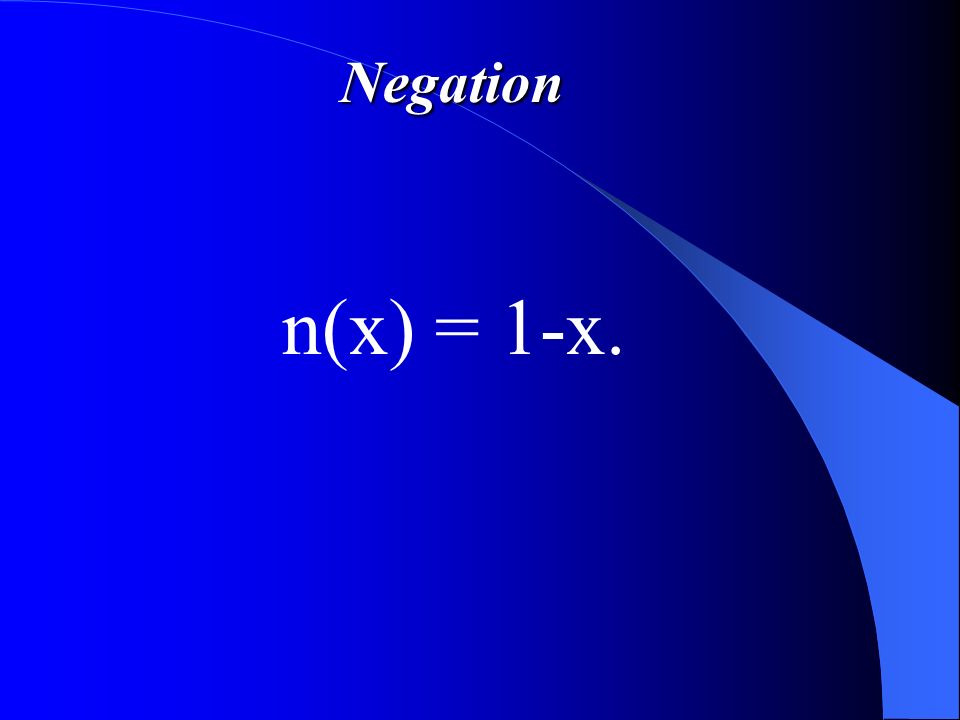

12 Negation n(x) = 1-x.

13 Compensatory Disjunction Dual of Geometric Mean

14 Zadeh Implication i(x,y)=d(n(x),c(x,y)) i(x,y)=d(n(x),c(x,y))

15 Rule: Definition of And Operators of CFL using SWRL Rule: Definition of Negation

16 Rule Definition of Or Operators of CFL using SWRL

17 Rule Definition of Implication

18 Operators of CFL using SWRL Rule Definition of Equivalence

19 Creating Ontologies from fuzzy trees Create the tree from formulation in natural language Create classes using OWL or SWRL (using built ins for membership functions) Use the created built ins to create the new classes inside SWRL

20 19 No Associativity Level Properties

21 20 c(x,y,z) x y z c(c(x,y),z) c(x,y c(x,y) z xy As higher level a basic predicate be, more influence it will has in the truth value of the composed predicate. Both trees are the same for Associative Logic Systems.

22 21 Natural Implication i(x,y)=d(n(x),y) i(x,y)=d(n(x),y)

23 22 Natural Implication

24 23 Zadeh Implication i(x,y)=d(n(x),c(x,y)) i(x,y)=d(n(x),c(x,y))

25 24

26 25 Universal and Existential Quantifiers

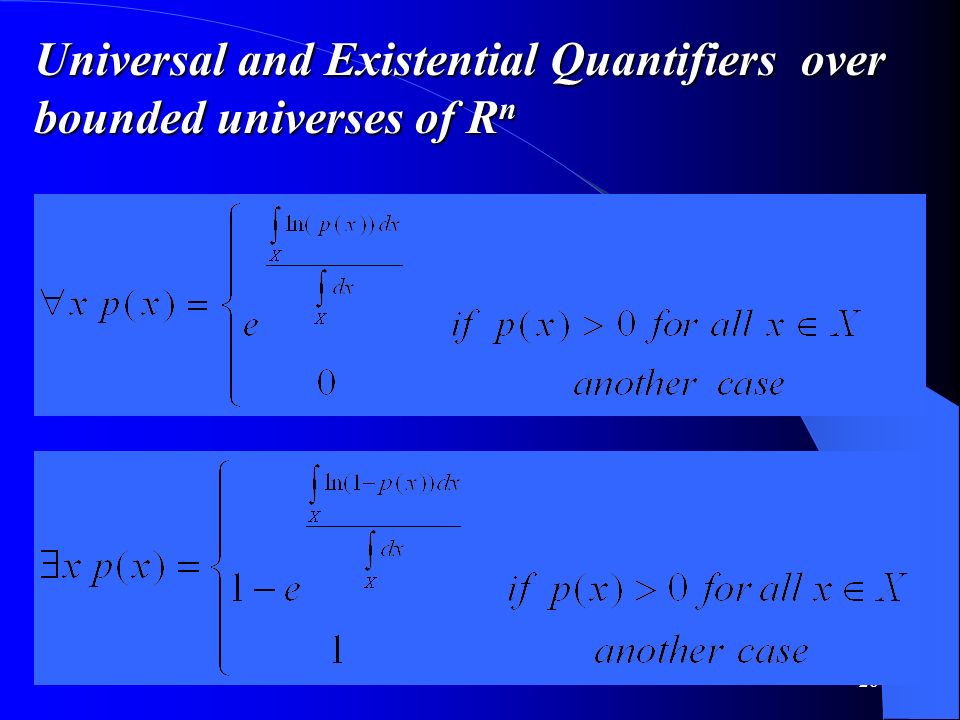

27 26 Universal and Existential Quantifiers over bounded universes of R n

28 27 Compatibility with Propositional Classical Calculus

29 28 Natural Zadeh Ax 1 0.5859 0.5685 Ax 2 0.5122 0.5073 Ax 3 0.5556 0.5669 Ax 4 0.5859 0.5661 Ax 5 0.8533 0.5859 Ax 6 0.5026 0.5038 Ax 7 0.5315 0.5137 Ax 8 0.5981 0.5981 Compatibility with Propositional Classical Calculus (Kleene Axioms)

30 Theorem of Compatibility: Exclusive Property of CFL useful to get fuzzy ontologies and connected it with non fuzzy ones p is an only is a correct formula (tautology) of Propositional Calculus according to bivalued logic if it has truth value greater than 0.5 in CFL

31 30 Inference Logic Inference Statistical Inference Composed Inference Composed Inference: It allows to make and to model hypothesis using ‘Background Knowledge, to estimate truth value of hypothesis using a sample and search in parameters space of the model increasing truth

32 31 Hypothesis 1. If past time t from t0 is short, PIB at t0 is high, and exchange rate peso-dollar is good, and inflation too, then inflation at t0+t will be good. (sufficient condition for goodness of future inflation) 2. If past time t from t0 is short, PIB at t0 is high, and exchange rate peso-dollar is good, and inflation too, then exchange rate at t0+t will be good. (sufficient condition for goodness of future exchange rate) 3. If past time t from t0 is short, PIB at t0 is high, and exchange rate peso-dollar is good, and inflation too, then PIB at t0+t will be high. (sufficient condition for goodness of future PIB)

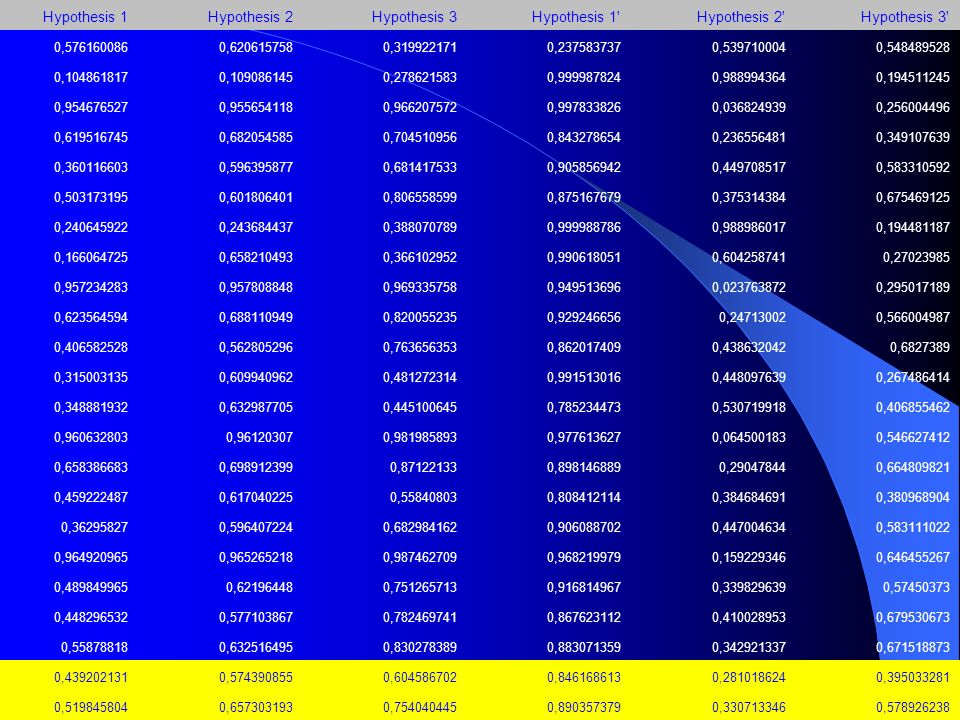

33 32 Hypothesis 1 Hypothesis 2 Hypothesis 3 Hypothesis 1' Hypothesis 2' Hypothesis 3' 0,5761600860,6206157580,3199221710,2375837370,5397100040,548489528 0,1048618170,1090861450,2786215830,9999878240,9889943640,194511245 0,9546765270,9556541180,9662075720,9978338260,0368249390,256004496 0,6195167450,6820545850,7045109560,8432786540,2365564810,349107639 0,3601166030,5963958770,6814175330,9058569420,4497085170,583310592 0,5031731950,6018064010,8065585990,8751676790,3753143840,675469125 0,2406459220,2436844370,3880707890,9999887860,9889860170,194481187 0,1660647250,6582104930,3661029520,9906180510,6042587410,27023985 0,9572342830,9578088480,9693357580,9495136960,0237638720,295017189 0,6235645940,6881109490,8200552350,9292466560,247130020,566004987 0,4065825280,5628052960,7636563530,8620174090,4386320420,6827389 0,3150031350,6099409620,4812723140,9915130160,4480976390,267486414 0,3488819320,6329877050,4451006450,7852344730,5307199180,406855462 0,9606328030,961203070,9819858930,9776136270,0645001830,546627412 0,6583866830,6989123990,871221330,8981468890,290478440,664809821 0,4592224870,6170402250,558408030,8084121140,3846846910,380968904 0,362958270,5964072240,6829841620,9060887020,4470046340,583111022 0,9649209650,9652652180,9874627090,9682199790,1592293460,646455267 0,4898499650,621964480,7512657130,9168149670,3398296390,57450373 0,4482965320,5771038670,7824697410,8676231120,4100289530,679530673 0,558788180,6325164950,8302783890,8830713590,3429213370,671518873 0,4392021310,5743908550,6045867020,8461686130,2810186240,395033281 0,5198458040,6573031930,7540404450,8903573790,3307133460,578926238

34 33 Hypothesis 1 Hypothesis 2 Hypothesis 3 Hypothesis 1' Hypothesis 2' Hypothesis 3' 0,1299372340,7869777840,1631829760,8973134180,789958430,246740413 0,0404711070,0455763840,22692019510,988998310,194313157 0,966012970,9665869120,9746867830,9999997640,0311855550,255212475 0,3163758350,6147287270,5123564710,9992266560,4394299510,291353006 0,0996509010,6624305260,5893426640,9998384730,6429388080,545153518 0,2185480010,5491560520,7216170820,9996374650,5085262540,645300844 0,0313754610,0365781170,21959195310,9889988690,194313157 0,0405254070,7761505620,2853534180,9999987450,7701015610,25525313 0,9660184210,9665942510,9758358470,999827850,0191211770,28913524 0,3148475360,5966085090,687599510,9998591160,4391146530,545002502 0,1006468960,5673399710,6795110540,9996110130,59031470,645417242 0,0314307950,7934731970,2785790810,9999987390,7898840480,255253529 0,044879210,8023291910,3177939590,9990852990,7944143930,292286066 0,9660146760,9665682350,9845196480,9999686390,0619250260,544546456 0,3154236650,5584469850,7561935580,9996607250,4503903630,64520529 0,0358676320,8230771090,3113271360,9990809730,8177209380,2923171 0,0418854880,7203532110,5629563640,9998333640,7220644470,545194081 0,9660160880,9665096090,9879186830,9999244760,1587548220,644565563 0,0328168160,7325049230,5588135140,9998325760,7366382740,54520045 0,0430137510,5919698440,6589184240,999598710,636963190,645474182 0,0339667720,5970427790,6556852870,9995968130,644843290,645483123 0,152934340,4930607550,4764690060,9925850580,3610833330,353165336 0,0641334760,7275864950,589116450,9996444460,5522322950,534562806

35 34 : as true as false : almost false Membership Functions

36 35 As true as false:10; Almost false:5 Membership function

37 36 As true as false:40; Almost false:15

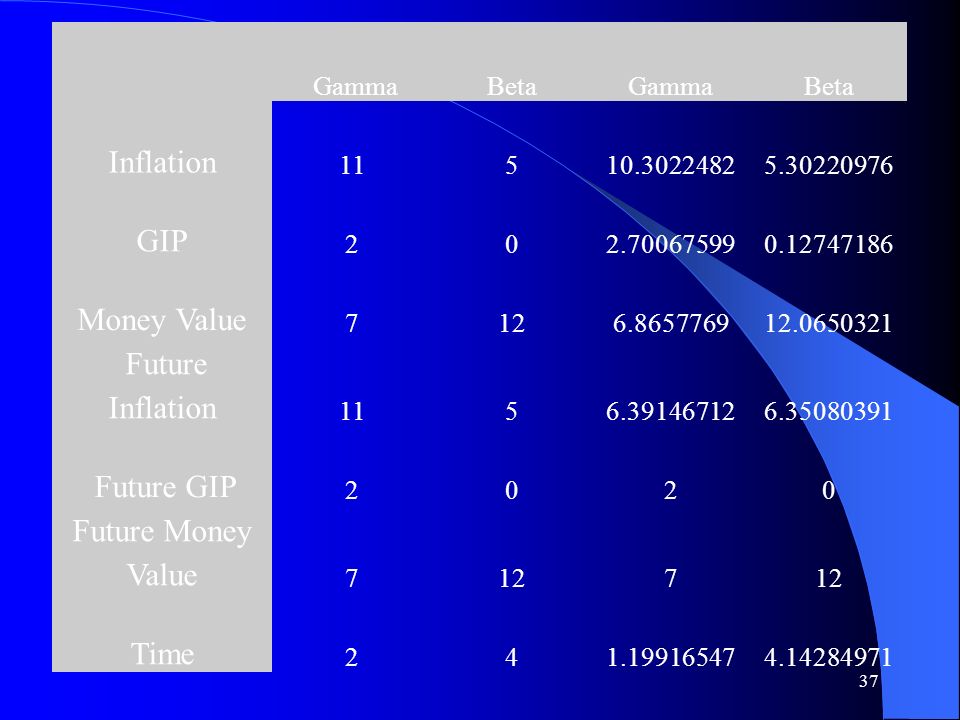

38 37 GammaBetaGammaBeta Inflation 11510.30224825.30220976 GIP 202.700675990.12747186 Money Value 7126.865776912.0650321 Future Inflation 1156.391467126.35080391 Future GIP 2020 Future Money Value 7127 Time 241.199165474.14284971

39 38 Relation between CFL and Utility Theory Two possible outlooks of Decision Making problem under risk using Compensatory Fuzzy Logic are possible First one Security: All scenarios are convenient in correspondence with its probabilities of occurrence (Its is equivalent to be risk adverse)

40 39Hedges Operators which models words like very, more or least, enough, etc. They modifies the truth value intensifying or un-intensifying judgments. More used functions to define hedges are functions f(x)=x a, a is an exponent greater or equal to cero. It is used to use 2 and 3 as exponents to define the words very and hyper respectively, and ½ for more or less.

41 40 Function u(x)=ln(v(x) have second diferential positive (risk averse) when v es sigmoidal.

42 41 Relation between CFL and Utility Theory Second outlook Opportunity: There are convenient scenarios according with their probabilities (It is equivalent to be risk prone)

43 42 These preferences are represented by u(x)=-ln(1-v(x) (It is proved by increasing transformations). This function have negative second differential (risk prone) when v is sigmoidal.

44 Teoremas Teorema 1: Si f es un predicado difuso que representa la conveniencia de los premios. El punto de vista de la seguridad usando LDC representa las preferencias de un decisor averso al riesgo con función de utilidad u(x)=ln(f(x)). El punto de vista de la oportunidad usando LDC representa las preferencias de un decisor propenso al riesgo con función utilidad u(x)=- ln(1-f(x)) 43

45 Teoremas Teorema 2: Dada un decisor con función utilidad u acotada en el intervalo (m,M). Si el decisor es averso al riesgo, el predicado de la Lógica Difusa Compensatoria que representa la conveniencia de los precios es v(x)=exp(u(x)-M). Si es propenso al riesgo, el predicado de la Lógica Difusa Compensatoria que representa la conveniencia de los premios es v(x)=1-exp(1- u(x)-m). 44

46 45 Prospect Theory It is a descriptive decision making theory of decision making under risks, based on experiments. It deserved the nobel prize of Economy for Kahnemann and Tervsky in 2003. Individual decision makers are used to be risk averse attitude about benefits and risk prone attitude about loses More general There is a reference value a, satisfying for x a is concave.

47 46 Prospect Theory Differential of the function for loses is great than differential for benefits. Individual decision makers are used to attribute not linear weights to utilities using probabilities of the correspondent scenarios. That function are used to be concave in certain interval [0,b] and convex in [b,1]; b is a real number greater than 0 and less than 1.

48 47 Rational explanation of Experimental Results of Kahnemann and Tervsky 56 lotteries and its experimental equivalents were used from experiments of Kahnemann and Tervsky. We estimated the truth value of the statement: ‘Every lottery is equivalent (in preference) to its experimental equivalent’, according CFL for each preference model: Universal (Risk Averse), Existential (Risk Prone), Conjunction Rule and Disjunction Rule. Best parameters of membership functions maximizing the statement truth value for all the models.

49 48 Rational explanation of Experimental Results of Kahnemann and Tervsky Result: Experimental results of Kahnemann and Tervsky can be explained as result of a new based-CFL rationality working with no linear membership functions of probabilities and considering that security and opportunity are both desirables for individual decision makers.

50 49 Prize1 Prize2 Prob1 Prob2 Equiv Universal Existential Conjunction Disjunction 501500.050.951280.810462670.810430850.845790780.86240609 -50-1500.950.05-600.987295880.986995530.988304720.988450983 -50-1500.750.25-710.989876880.98985640.990409110.990496525 -50-1500.5 -920.992824630.991934670.993553690.993616354 -50-1500.250.75-1130.995471710.99308220.995784860.995822571 -50-1500.050.95-1320.996806820.989314350.997207260.997233981 1002000.950.051180.809567380.761060930.856505440.874712043 1002000.750.251300.799248630.771465570.84159660.86176461 1002000.5 1410.774196230.762444960.824369460.845652063 1002000.250.751620.754728970.752403390.795425260.822098935 1002000.050.951780.728081360.728081180.770014010.801244793 -100-2000.950.05-1120.995471580.995351340.995695790.995718909 -100-2000.750.25-1210.996342170.996338210.996443670.996456576 -100-2000.5 -1420.997628270.997345180.997777680.997786734 -100-2000.250.75-1580.998434690.997642250.998487050.998493062 -100-2000.050.95-1790.999051410.995891860.99912270.999126427 0.916836920.895940070.930799360.942636789

51 50

52 51 Users and Groups

53 52 Organizations and Matrices

54 53 Organizations and Matrices

55 54 Organization Matrices

56 55 Job Parameters

57 56 Parameters Configuration

58 57 Parameters Configuration

59 58

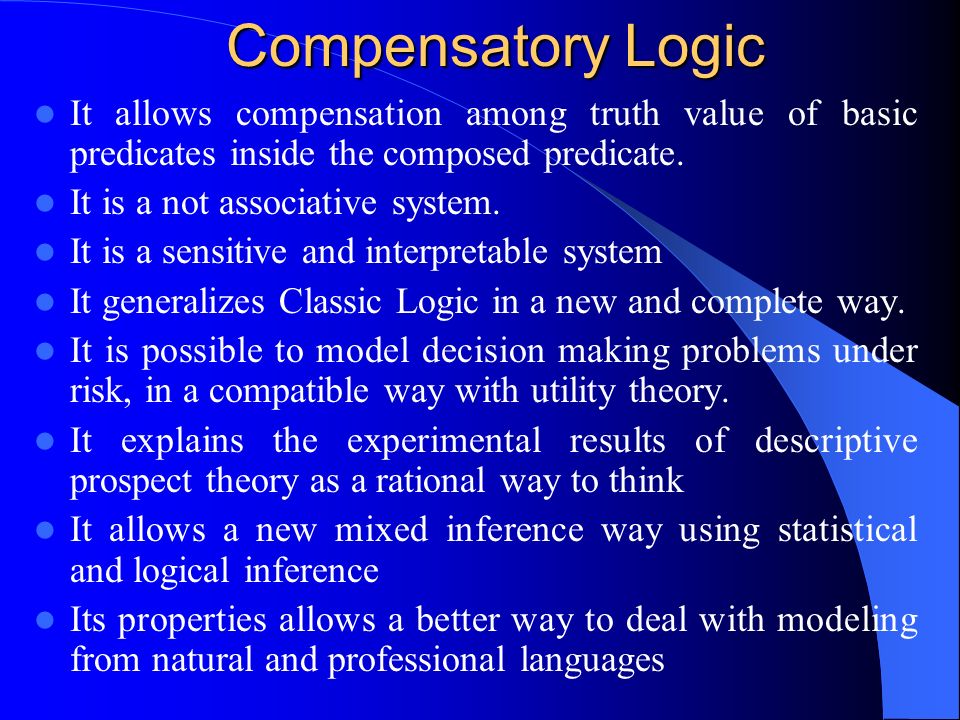

60 Compensatory Logic It allows compensation among truth value of basic predicates inside the composed predicate. It is a not associative system. It is a sensitive and interpretable system It generalizes Classic Logic in a new and complete way. It is possible to model decision making problems under risk, in a compatible way with utility theory. It explains the experimental results of descriptive prospect theory as a rational way to think It allows a new mixed inference way using statistical and logical inference Its properties allows a better way to deal with modeling from natural and professional languages

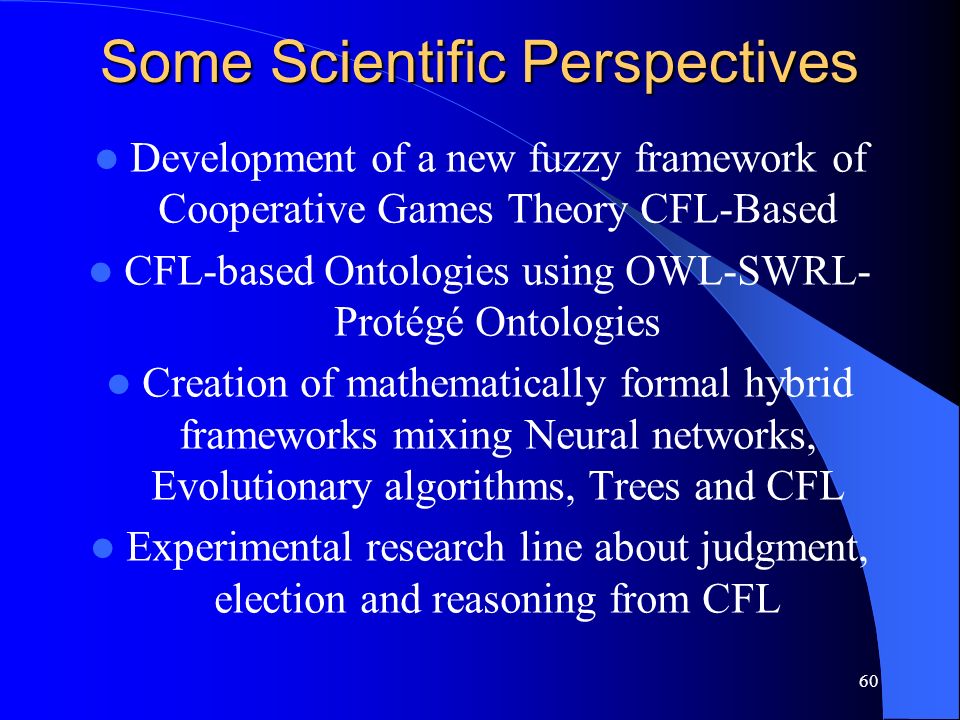

61 60 Some Scientific Perspectives Development of a new fuzzy framework of Cooperative Games Theory CFL-Based CFL-based Ontologies using OWL-SWRL- Protégé Ontologies Creation of mathematically formal hybrid frameworks mixing Neural networks, Evolutionary algorithms, Trees and CFL Experimental research line about judgment, election and reasoning from CFL
