1. Shortest Path Analysis and 2nd-Order Analysis Ming-Chih Kao U of M Medical School mckao@med.umich.edu

2. Other major contributors in these projects… Xianghong Jasmine Zhou Assistant Professor of Biological Sciences USC Wing Hung Wong Professor of Statistics and of Health Research and Policy Stanford University

3. Gene Expression Profiling

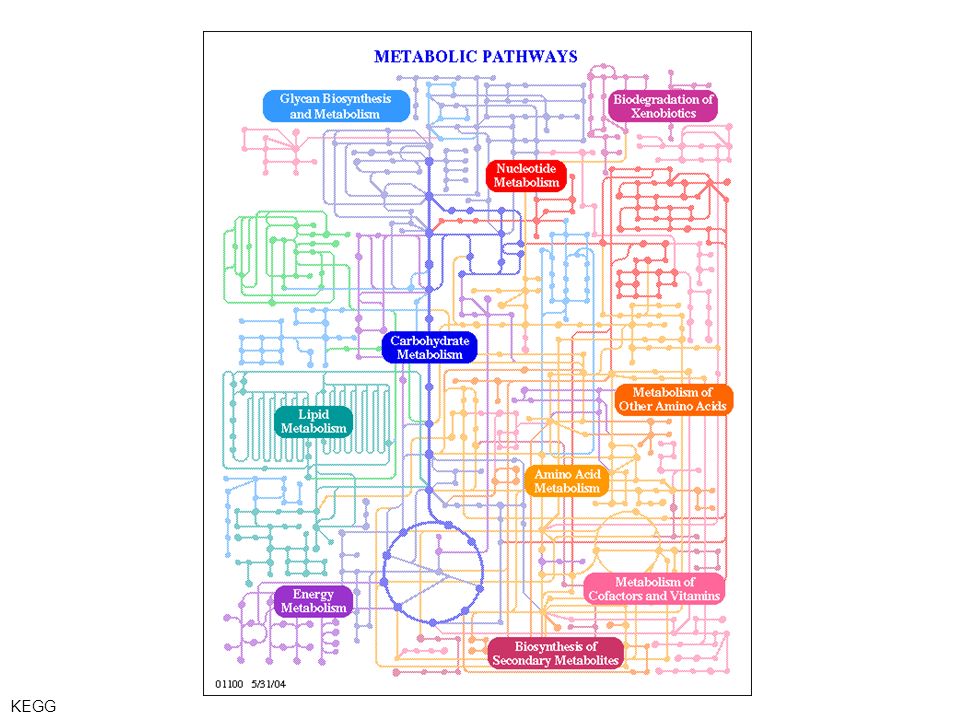

4. KEGG

6. Transitive Functional Annotation By Shortest Path Analysis of Gene Expression Data

7. Shortest Path Analysis Transitive Co-Expression a b d c

8. a b c d e f g 5 22 41 24 44 11 26 19 102 36 51 38 c(a,b)>0.6, d(a,b)=(1-|c(a,b)|) 6 * 10 5 ab Shortest Path Analysis Gene Expression Similarity Graph

9. Shortest Path Analysis The Shortest Path Distance from a to d:d: a  g  d 68 a  b  c  d 59 a  f  e  d 162 41 a b c d e f g 24 44 11 26 22 19 102 36 551 38 Use Dijkstra's shortest path algorithm, time complexity =  (N 2 +E) a  g 84  c  d

10. Shortest Path Analysis Validation Question: Are genes on the shortest path really involved in the same biological process? Using genes with known functions to construct shortest paths, to check how many transitive genes have the same function as the two anchor genes? Data: Rosetta microarray compendium which includes 300 deletion and drug treatment experiments of S. cerevisiae

11. Shortest Path Analysis Validation: Scheme

12. Level 1 Level 0 Shortest Path Analysis Validation: Functional Similarity abcd e GO Biological Process tree abe c ab ce d ab c de (cell cycle) (mitosis) (metaphase)

13. Shortest Path Analysis Validation: Results The percentages of L0- and L1-match transitive genes in the three cellular compartments. Values shown above the bars are the numbers of genes.

14. Shortest Path Analysis Related Genes Not Co-Expressed Are Found

15. Shortest Path Analysis Comparison with Hierarchical Clustering

16. Shortest Path Analysis Gene Function Prediction: Scheme

17. Shortest Path Analysis Summary Predicted functions for 246 unknown yeast genes and found that a significant number is supported by evidence other than the data we used Proposed a hypothesis regarding the fundamental nature of expression relationships Verified that genes on the same shortest path are likely to be involved in the same biological process Comparison with hierarchical clustering reveals the specificity of the SP approach

18. Integrating Cross-Platform Microarray Data by Second-order Analysis: Functional Annotation and Network Reconstruction

19. 2nd-Order Analysis Current Challenges in Microarray Data Analysis 1. How to effectively combine the expression data sets generated with different technology/laboratory platforms? 2. How to identify functionally related genes without co-expression pattern? 3. How to identify transcription cascades?

20. Microarray Platforms 2nd-Order Analysis Multiple Microarray Technology Platforms

21. 2nd-Order Analysis Public Microarray Data Sources Stanford and NCBI databases:  788 microarray experiments (61 datasets) for yeast  348 experiments (15 datasets) for worm  736 (44 datasets) for Arabidopsis thaliana  1,553 (20 datasets) for mouse  4,135 (90 datasets) for Human

22. Transcription Factor 1 Transcription Factor 3 Transcription Factor 2 gene1 gene2 gene3 gene5 gene4 gene6 gene7 Amplification of signal ? ?

23. Experimental groups exp. correlation First-order correlation Second-order Correlation

24. Chromatin Silencing Amino acid Starvation Gamma Radiation Protein Metabolism DNA Damage Heat Steady Expression of SDA1-CDC5 Expression Correlation POG1-MPT5, SDA1-CDC5 Expression of POG1-MPT5 Experimental groups Regulation of Cell Cycle: POG1-MPT5 and SDA1-CDC5 2nd-Order Analysis An Example

25. Group functionally related genes that may not exhibit similar expression patterns Data:  Stanford Microarray Database (cDNA array)  NCBI GEO Database (Affymetrix array)  Rosetta Compendium (cDNA array) =  39 experimental groups subjected to different (types) of perturbations, such as cell cycle, heat shock, osmotic pressure, starvation, zinc, nitrogen depletion, etc. 2nd-Order Analysis Validation

26. 43 functional classes 2,429 genes 5,142 doublets 278,799 Quadruplets Homogenous Quadruplets 84% Heterogeneous Quadruplets 16% 2nd-Order Analysis Validation: Scheme

27. 2nd-Order Analysis Validation: Comparison

28. 2nd-Order Analysis Validation: Results 2 nd -order analysis groups functionally related genes The derived quadruplets give rise to a set of 2,597 distinct and novel gene pairs 97% of the 2,597 pairs are missed by the standard methods Reasons for the poor performance of the 1 st - order method Inter-dataset variations Cross-doublet gene pairs need not show high expression correlation Sensitivity to gene pairs which are only co-expressed in a subset of the data sets

29. c a b d e f 5 Cell Cycle c a b d e f 5 Heat shock Starvation c a b d e f 5 Nitrogen Depletion c a b d e f 5 c a b d e f 5 Radiation Osmotic pressure c a b d e f 5

30. 2nd-Order Analysis Interaction Modules

32. For each gene occurred in the 100 tightest and most stable clusters of known genes, we masked its function and make prediction based on our 2-step procedure, and check the predicted function and its true function. Results: We made predictions for 179 doublets, among which 163 are correct  91% success ratio 2nd-Order Analysis Interaction Modules: Leave-one-out Cross Validation

33. 2nd-Order Analysis Interaction Modules: Functional Prediction 79 functions of 69 unknown yeast genes involved in diverse biological processes Experimental studies in the literature and in our laboratory  YLR183C in “mitosis” Regulation of G1/S transition  YLL051C in “cation transport” Ferric-chelate reductase activity and iron-regulated expression

34. 2nd-Order Analysis Frequently Occurring Tight Clusters Transcription Factors

35. 2nd-Order Analysis Frequently Occurring TCs with 2nd-Order Correlation

36. Relevance Networks Transcription Factors Set 1 Transcription Factor Set 2 Cooperativity

37. Three types of transcription cascades

38. 2nd-Order Analysis ChIP-Chip

39. 2nd-Order Analysis Transcription Module Results 60 transcription modules identified 34 pairs showed high 2nd-order correlation 29% (P<10 -5 ) of those modules pairs are participants in transcription cascades  2 pairs in Type I cascades  8 pairs in Type II cascades  3 pairs in Type III cascades These transcription cascades inter-connect into a partial cellular regulatory network

41. Avg. Expression Leu3 module vs. Met4 module Avg. Expression Correlation Leu3 module vs. Met4 module 1.0 1.0 2nd-Order Analysis Leu3 and Met4 Transcription Cascade

42. 2nd-Order Analysis Hierarchical clustering of transcriptional modules

43. 2nd-Order Analysis Assigning transcription factor to pathways For an unknown transcription factor in a module cluster, we can annotate its function by integrating the evidence of two dimensions: the functions of known genes in its target module the functions of known transcription factors regulating other modules in the same cluster

44. 2nd-Order Analysis Summary We developed a framework to integrate many microarray data sets in a platform-independent way, and investigated its properties and applications: Group together functionally-related genes without direct expression similarity Cluster the functional interaction into modules and functional annotation for unknown genes Reveal the cooperativity in the regulatory network and reconstruct transcription cascades
