1. by Larry R. Bohman

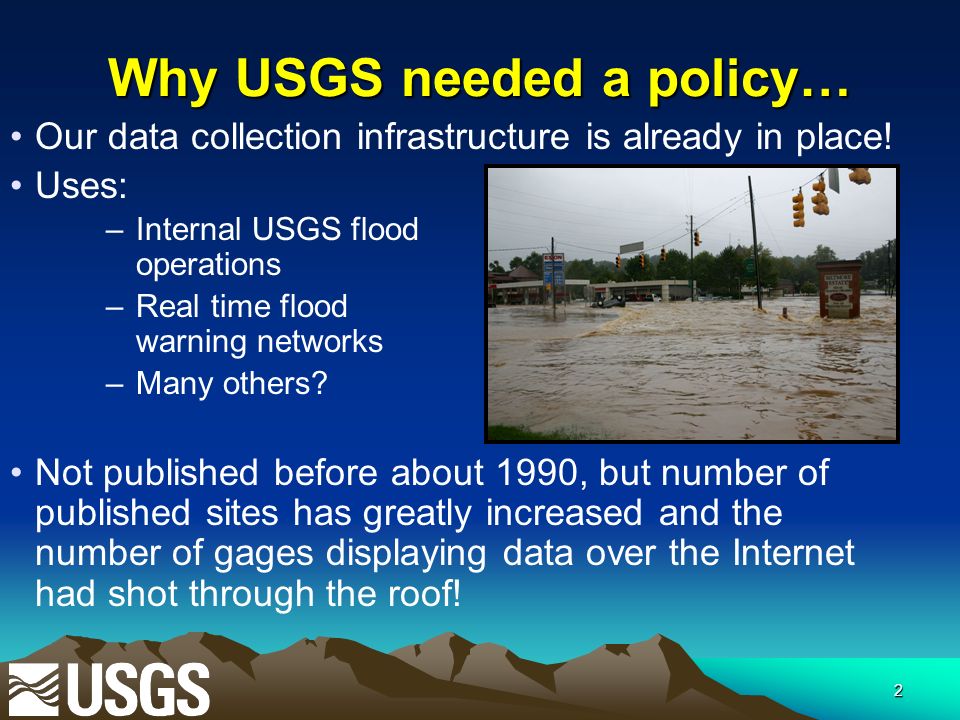

2. 2 Our data collection infrastructure is already in place! Uses: Why USGS needed a policy… Not published before about 1990, but number of published sites has greatly increased and the number of gages displaying data over the Internet had shot through the roof! –Internal USGS flood operations –Real time flood warning networks –Many others?

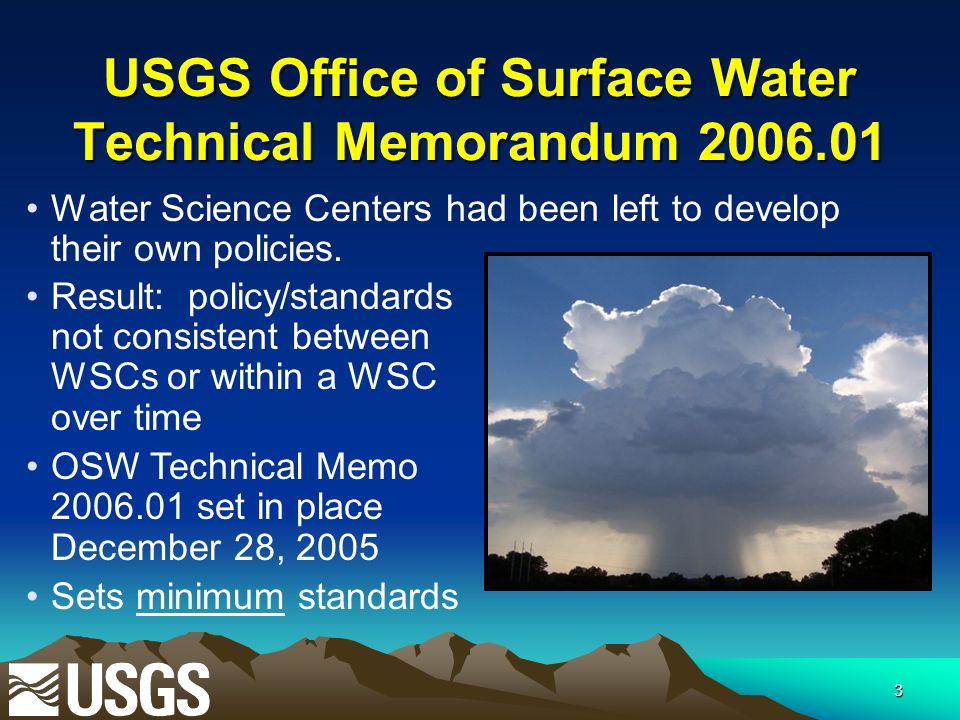

3. 3 Water Science Centers had been left to develop their own policies. USGS Office of Surface Water Technical Memorandum 2006.01 Result: policy/standards not consistent between WSCs or within a WSC over time OSW Technical Memo 2006.01 set in place December 28, 2005 Sets minimum standards

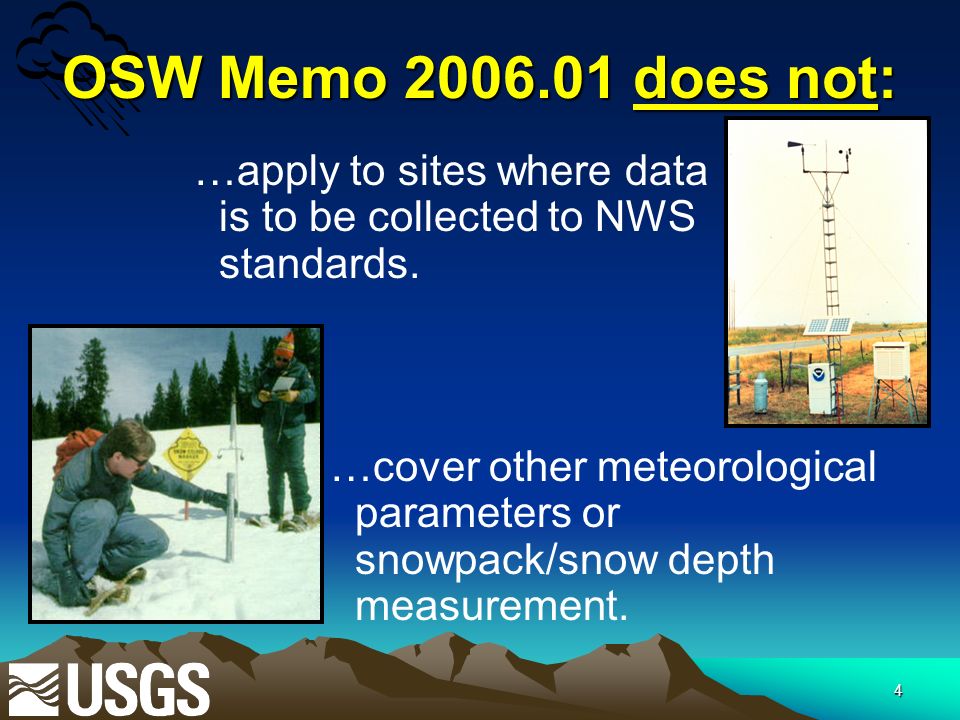

4. 4 …apply to sites where data is to be collected to NWS standards. OSW Memo 2006.01 does not: …cover other meteorological parameters or snowpack/snow depth measurement.

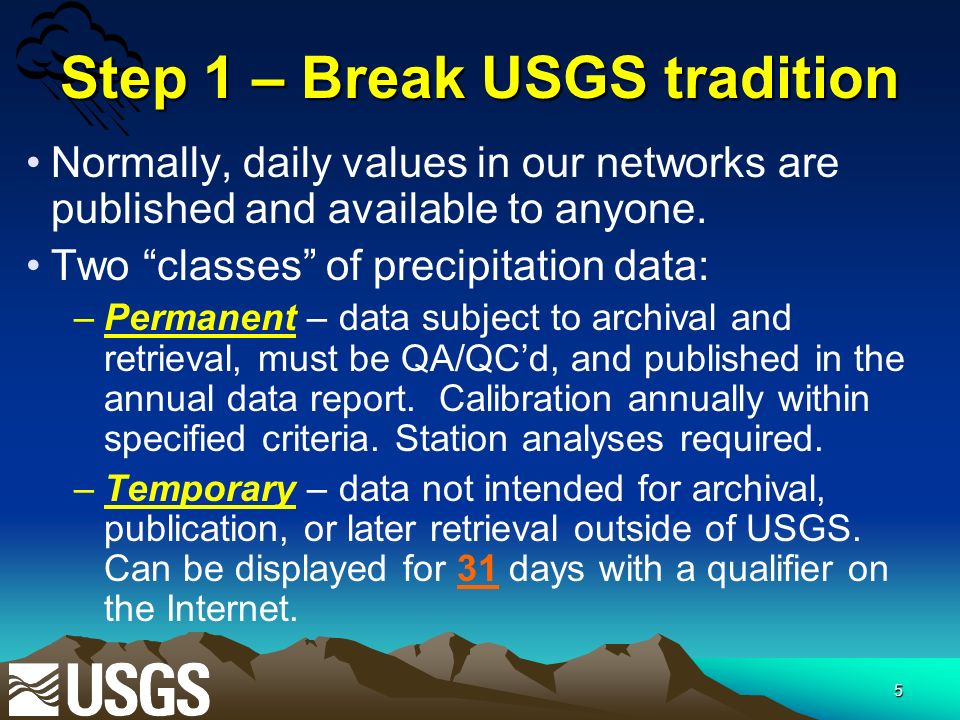

5. 5 Normally, daily values in our networks are published and available to anyone. Two “classes” of precipitation data: –Permanent – data subject to archival and retrieval, must be QA/QC’d, and published in the annual data report. Calibration annually within specified criteria. Station analyses required. –Temporary – data not intended for archival, publication, or later retrieval outside of USGS. Can be displayed for 31 days with a qualifier on the Internet. Step 1 – Break USGS tradition

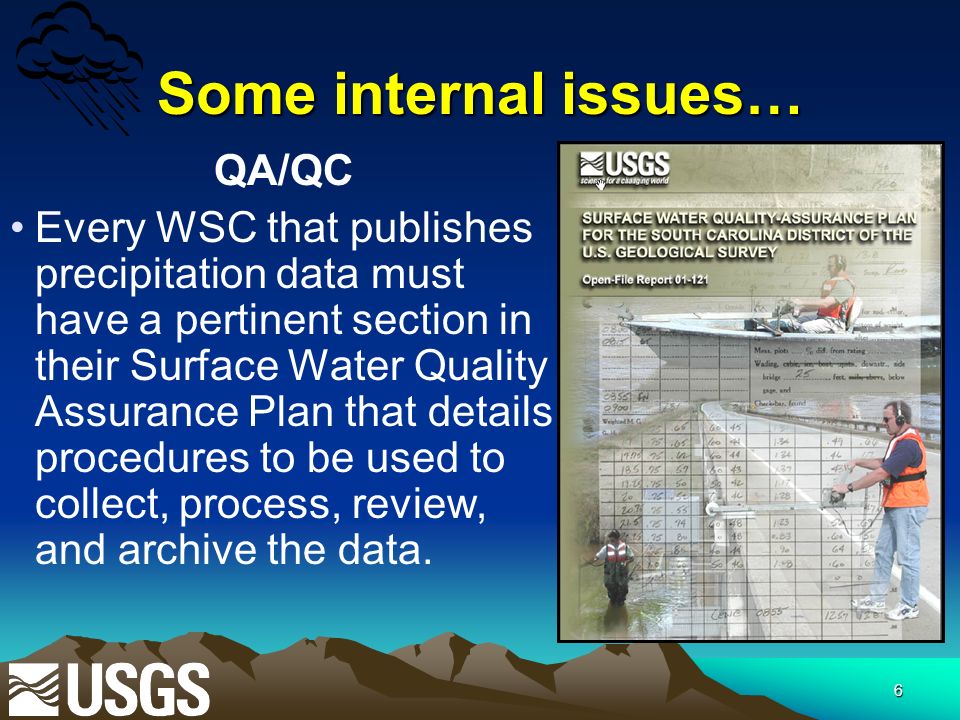

6. 6 QA/QC Every WSC that publishes precipitation data must have a pertinent section in their Surface Water Quality Assurance Plan that details procedures to be used to collect, process, review, and archive the data. Some internal issues…

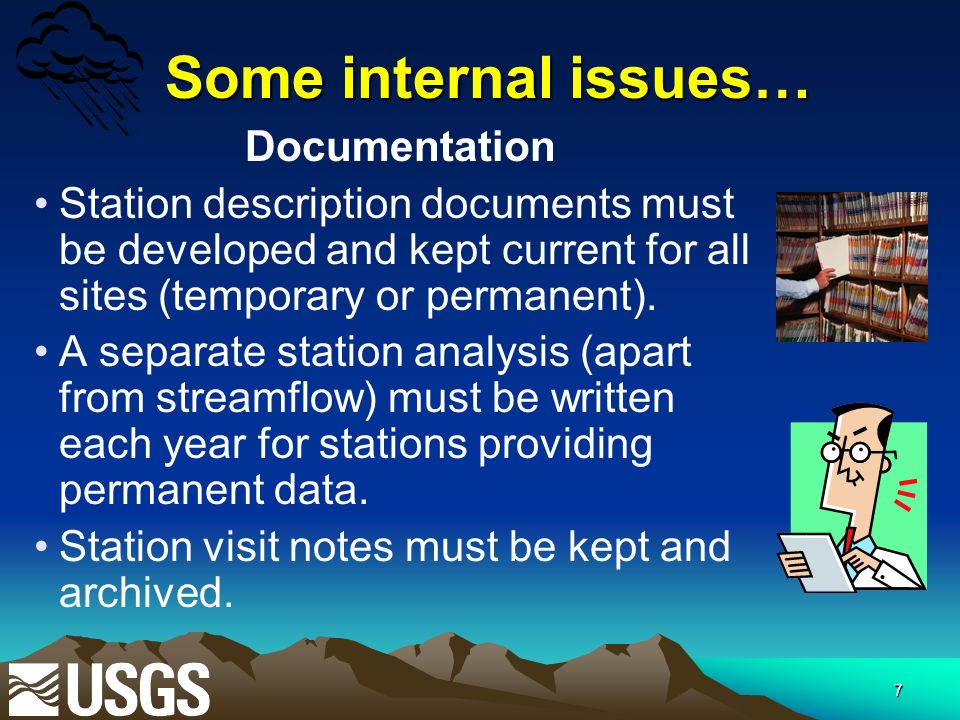

7. 7 Documentation Station description documents must be developed and kept current for all sites (temporary or permanent). A separate station analysis (apart from streamflow) must be written each year for stations providing permanent data. Station visit notes must be kept and archived. Some internal issues…

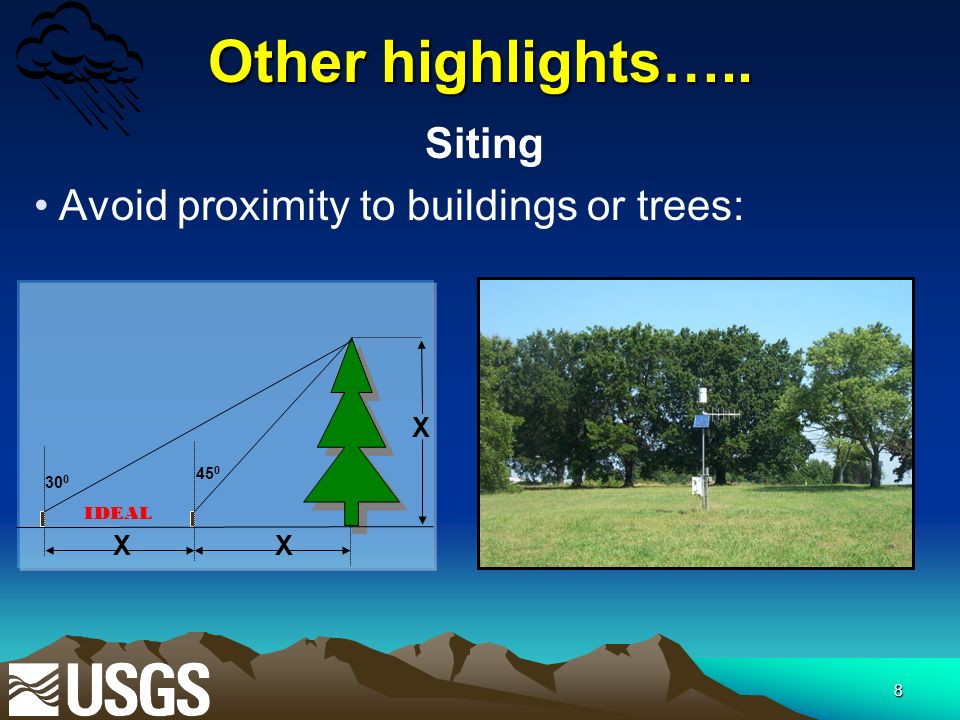

8. 8 Siting Avoid proximity to buildings or trees: Other highlights….. XX 45 0 30 0 X IDEAL

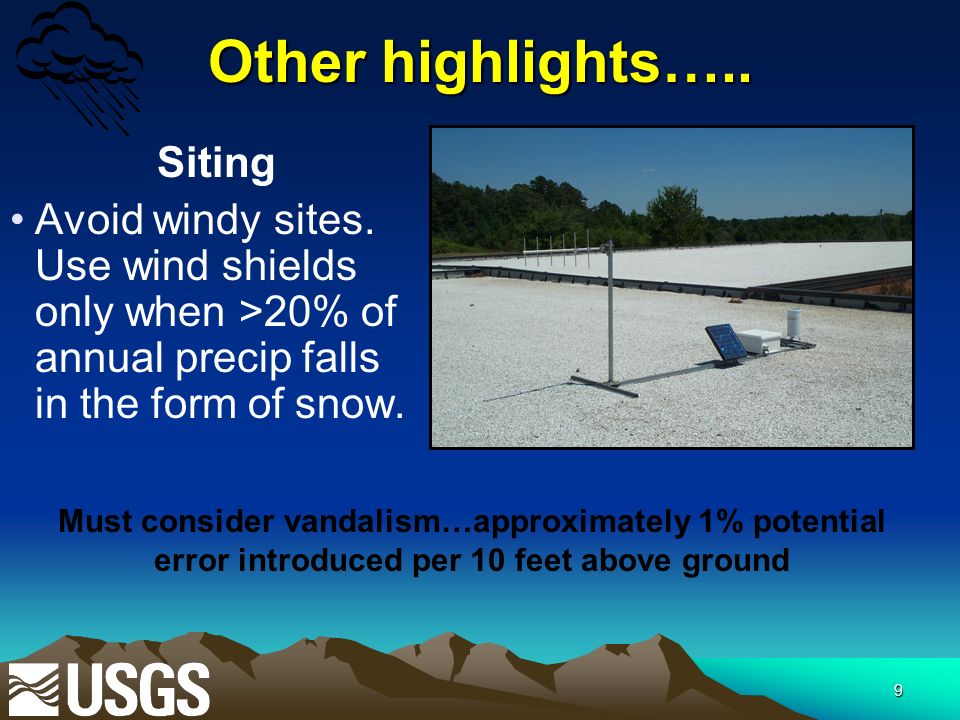

9. 9 Siting Avoid windy sites. Use wind shields only when >20% of annual precip falls in the form of snow. Other highlights….. Must consider vandalism…approximately 1% potential error introduced per 10 feet above ground

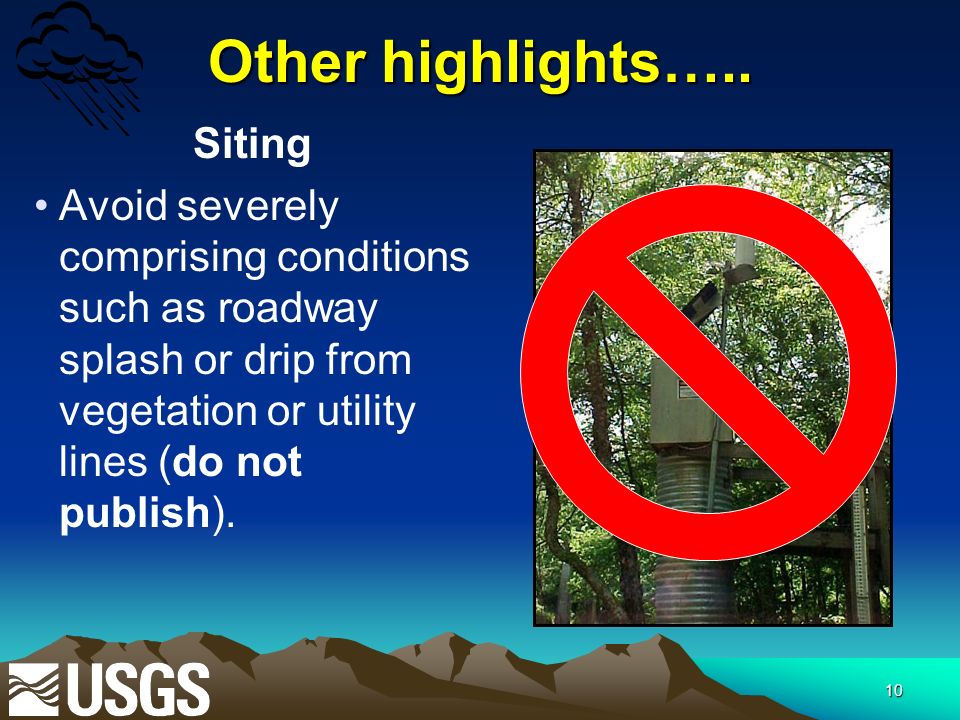

10. 10 Siting Avoid severely comprising conditions such as roadway splash or drip from vegetation or utility lines (do not publish). Other highlights…..

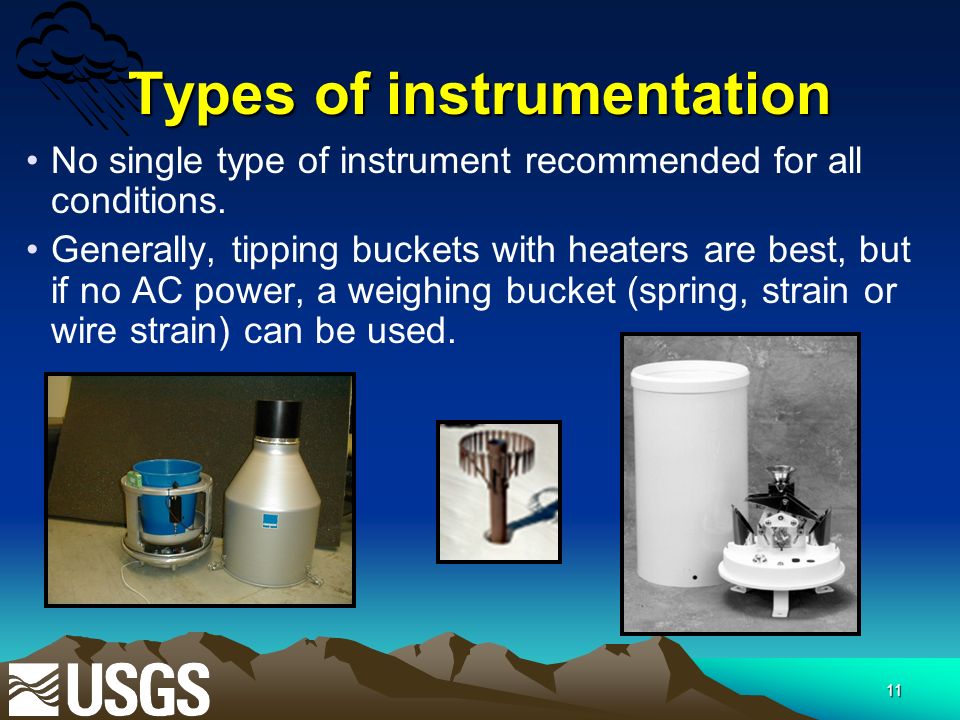

11. 11 No single type of instrument recommended for all conditions. Generally, tipping buckets with heaters are best, but if no AC power, a weighing bucket (spring, strain or wire strain) can be used. Types of instrumentation

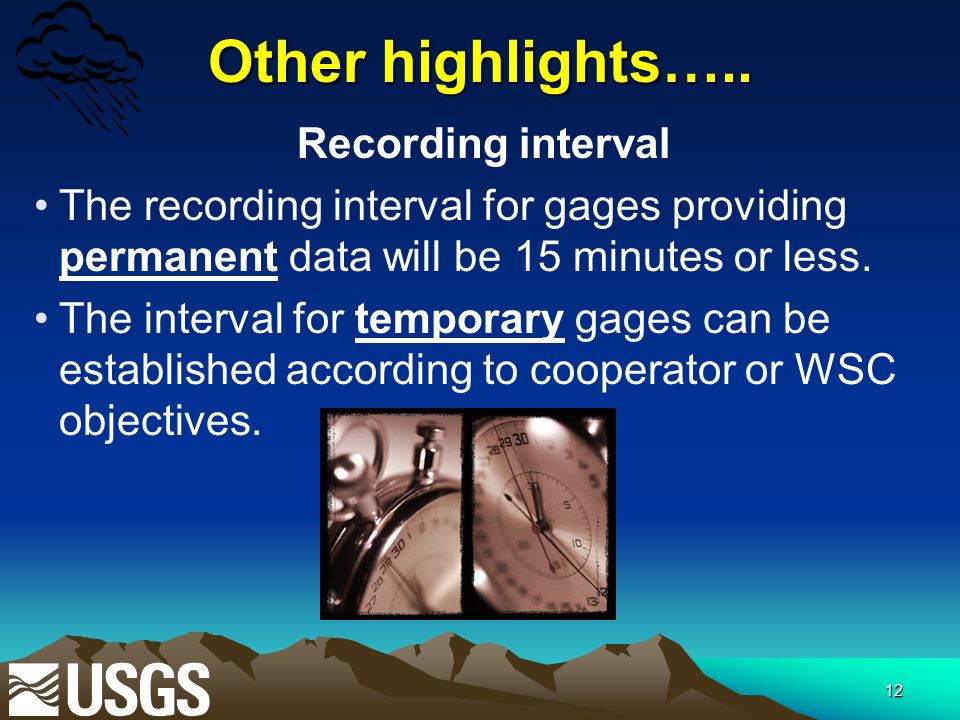

12. 12 Recording interval The recording interval for gages providing permanent data will be 15 minutes or less. The interval for temporary gages can be established according to cooperator or WSC objectives. Other highlights…..

13. 13 Station descriptions, naming, and numbering conventions Other highlights….. A station description document will be maintained for both temporary and permanent rain gages. New rain gages will have separate 15-digit station numbers and names, even if associated with a streamflow gage

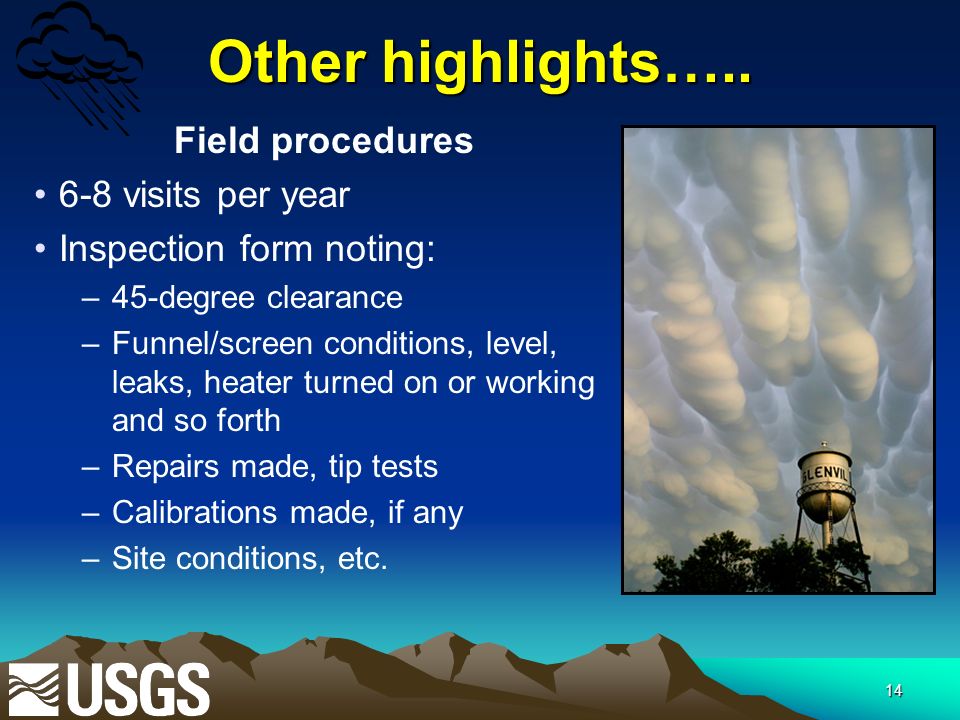

14. 14 Field procedures 6-8 visits per year Inspection form noting: –45-degree clearance –Funnel/screen conditions, level, leaks, heater turned on or working and so forth –Repairs made, tip tests –Calibrations made, if any –Site conditions, etc. Other highlights…..

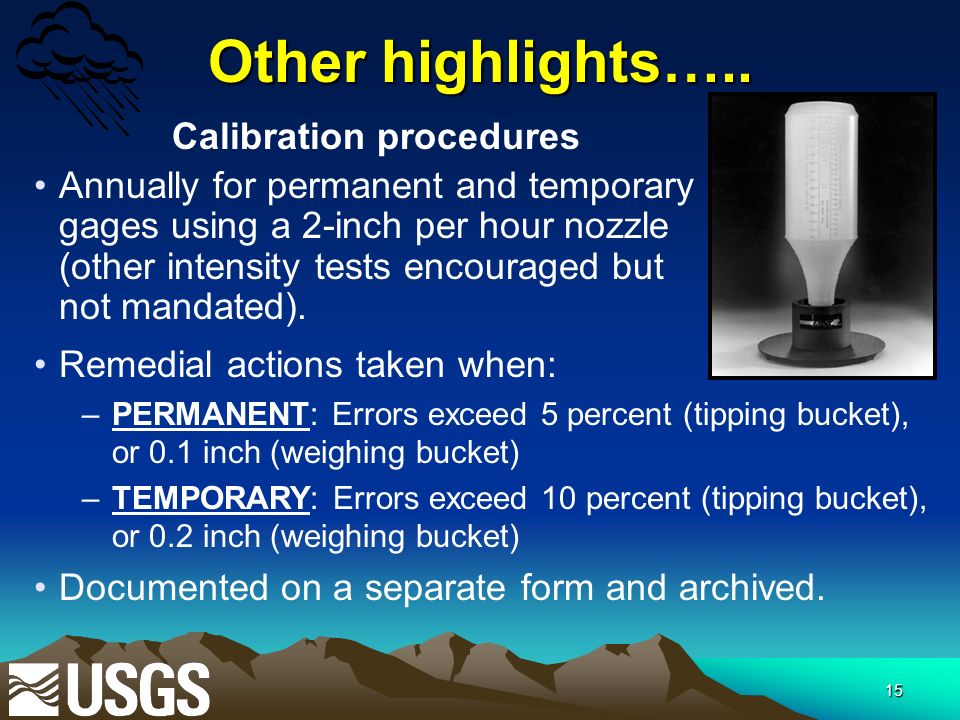

15. 15 Calibration procedures Annually for permanent and temporary gages using a 2-inch per hour nozzle (other intensity tests encouraged but not mandated). Other highlights….. Remedial actions taken when: –PERMANENT: Errors exceed 5 percent (tipping bucket), or 0.1 inch (weighing bucket) –TEMPORARY: Errors exceed 10 percent (tipping bucket), or 0.2 inch (weighing bucket) Documented on a separate form and archived.

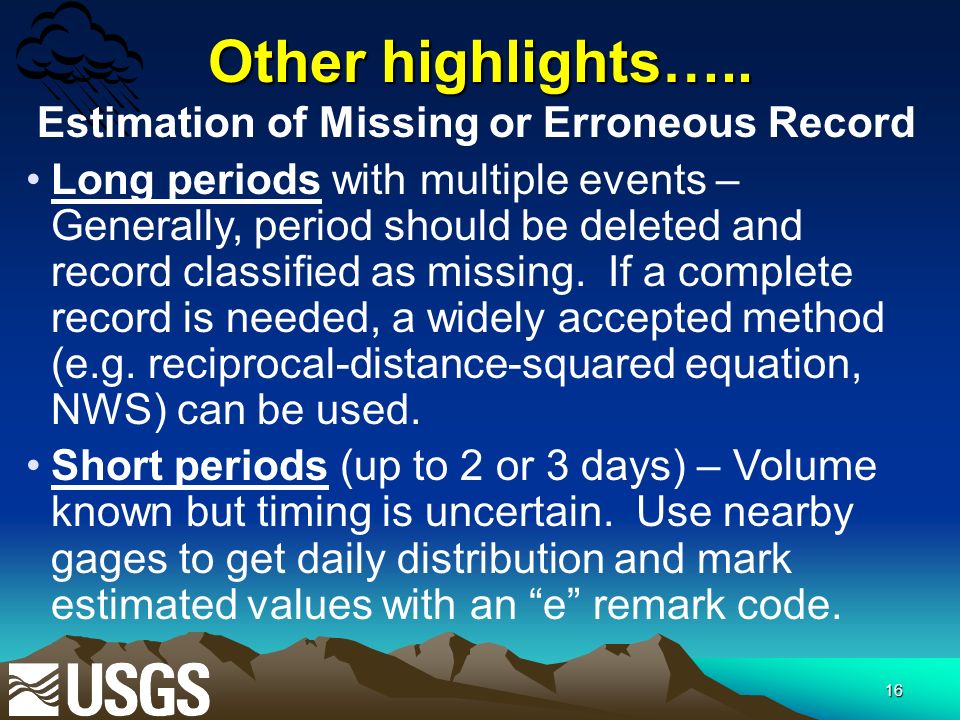

16. 16 Other highlights….. Estimation of Missing or Erroneous Record Long periods with multiple events – Generally, period should be deleted and record classified as missing. If a complete record is needed, a widely accepted method (e.g. reciprocal-distance-squared equation, NWS) can be used. Short periods (up to 2 or 3 days) – Volume known but timing is uncertain. Use nearby gages to get daily distribution and mark estimated values with an “e” remark code.

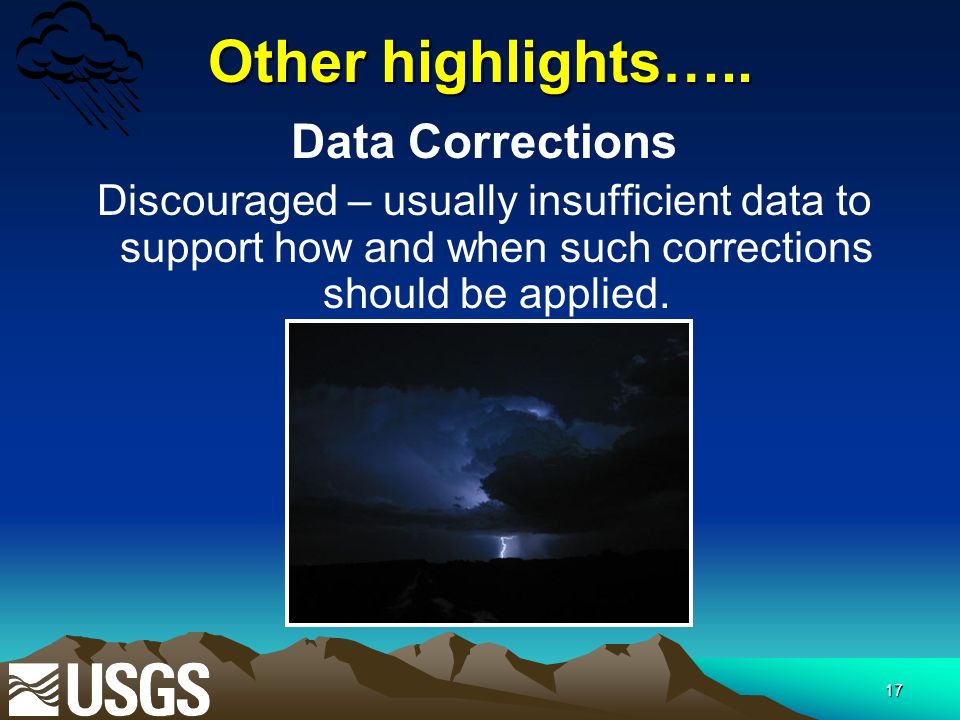

17. 17 Data Corrections Discouraged – usually insufficient data to support how and when such corrections should be applied. Other highlights…..

18. 18 Other highlights….. Station Analysis A separate analysis narrative must be written each year for permanent data sites. Describes current equipment, problems noted, missing record, calibrations, estimate computations, extremes, comparisons with nearby stations, and any recommendations.

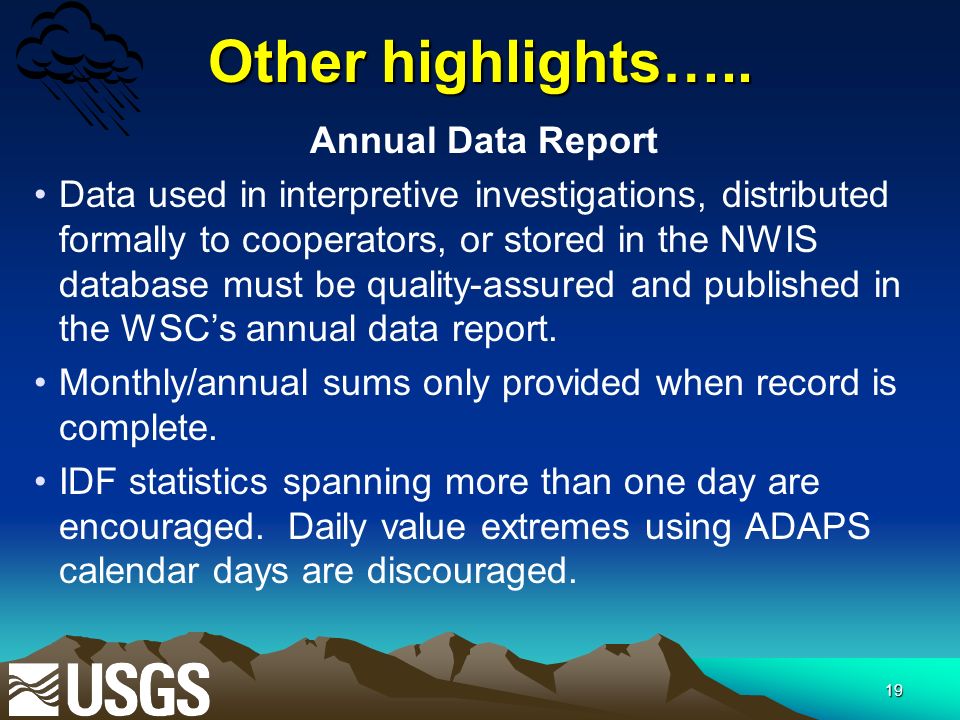

19. 19 Annual Data Report Data used in interpretive investigations, distributed formally to cooperators, or stored in the NWIS database must be quality-assured and published in the WSC’s annual data report. Monthly/annual sums only provided when record is complete. IDF statistics spanning more than one day are encouraged. Daily value extremes using ADAPS calendar days are discouraged. Other highlights…..

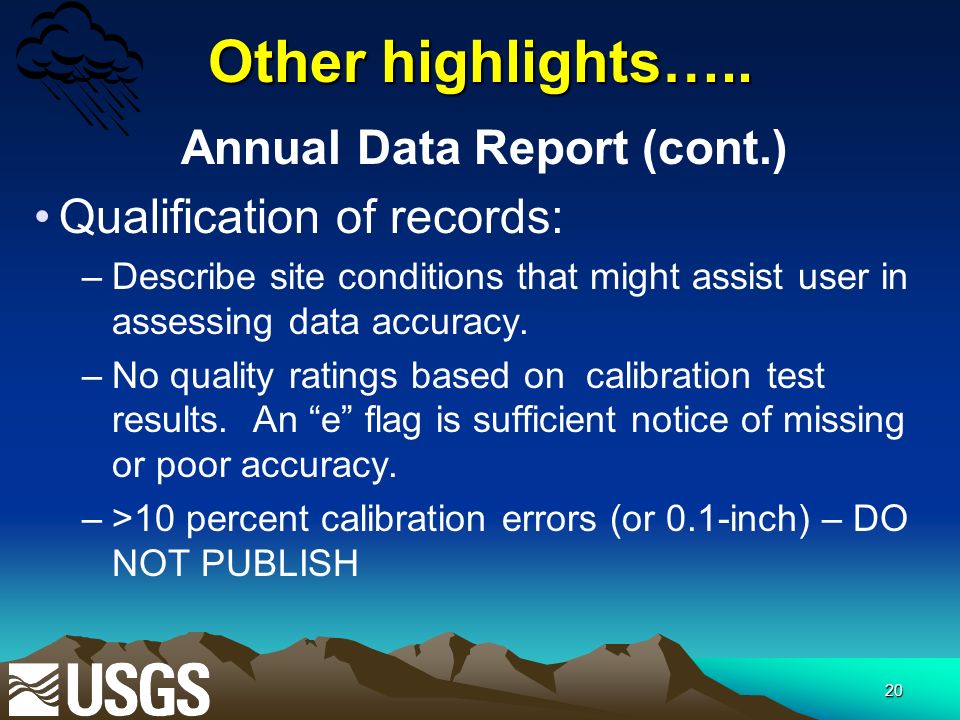

20. 20 Annual Data Report (cont.) Qualification of records: –Describe site conditions that might assist user in assessing data accuracy. –No quality ratings based on calibration test results. An “e” flag is sufficient notice of missing or poor accuracy. –>10 percent calibration errors (or 0.1-inch) – DO NOT PUBLISH Other highlights…..

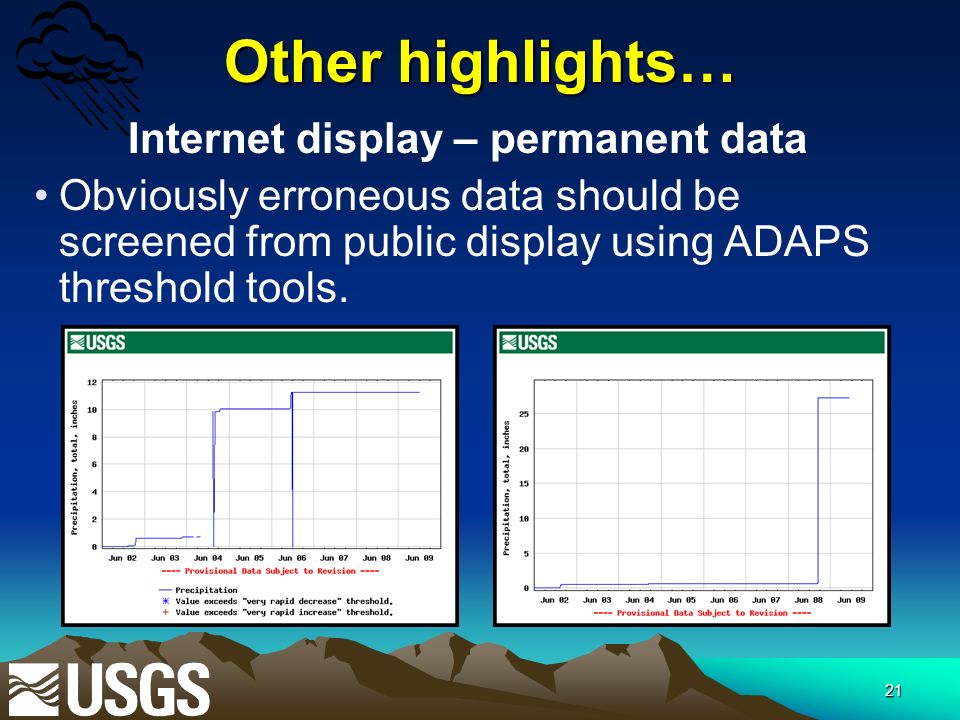

21. 21 Internet display – permanent data Obviously erroneous data should be screened from public display using ADAPS threshold tools. Other highlights…

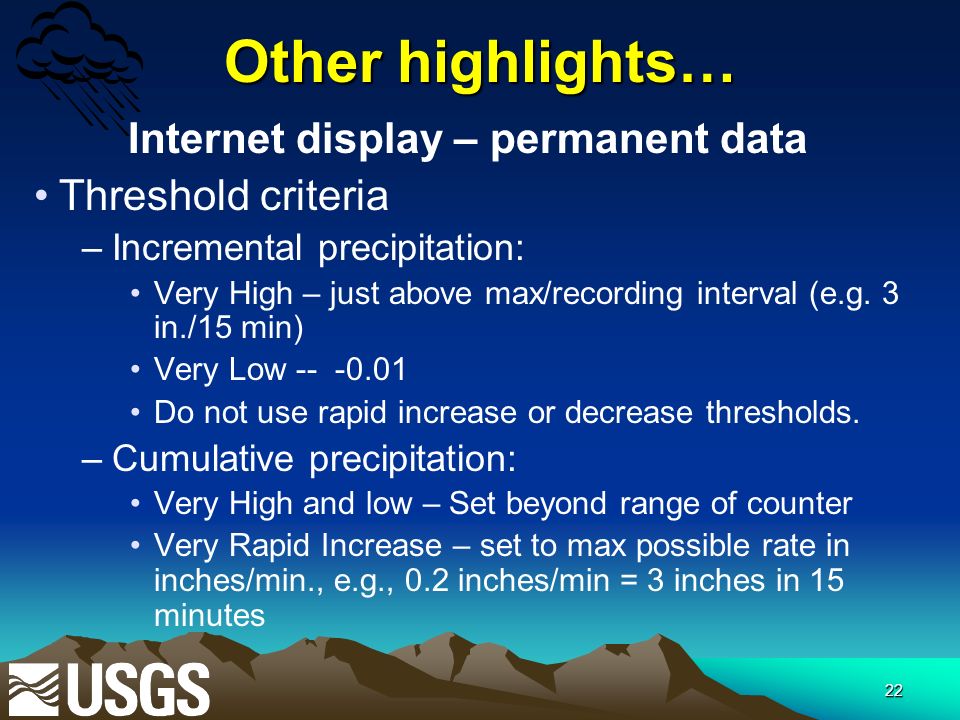

22. 22 Internet display – permanent data Threshold criteria –Incremental precipitation: Very High – just above max/recording interval (e.g. 3 in./15 min) Very Low -- -0.01 Do not use rapid increase or decrease thresholds. –Cumulative precipitation: Very High and low – Set beyond range of counter Very Rapid Increase – set to max possible rate in inches/min., e.g., 0.2 inches/min = 3 inches in 15 minutes Other highlights…

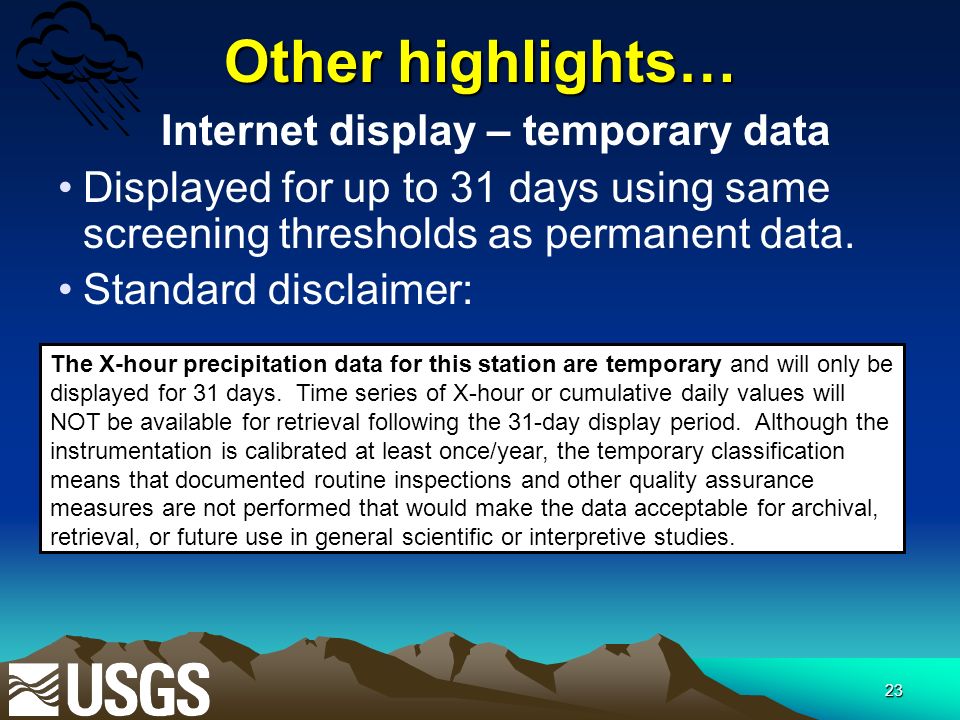

23. 23 Internet display – temporary data Displayed for up to 31 days using same screening thresholds as permanent data. Standard disclaimer: Other highlights… The X-hour precipitation data for this station are temporary and will only be displayed for 31 days. Time series of X-hour or cumulative daily values will NOT be available for retrieval following the 31-day display period. Although the instrumentation is calibrated at least once/year, the temporary classification means that documented routine inspections and other quality assurance measures are not performed that would make the data acceptable for archival, retrieval, or future use in general scientific or interpretive studies.

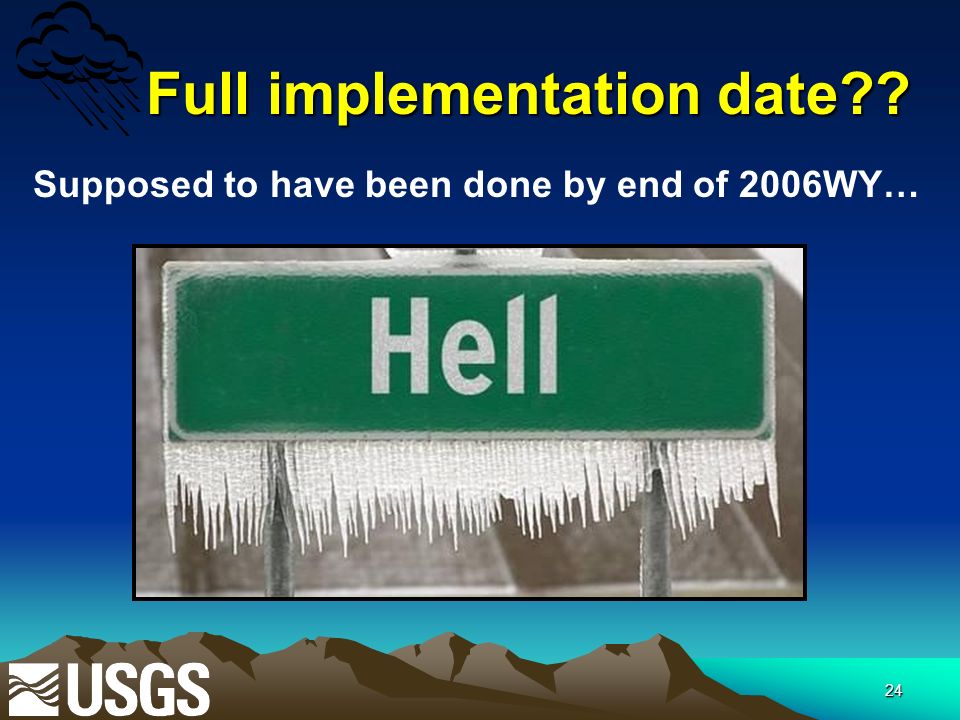

24. 24 Supposed to have been done by end of 2006WY… Full implementation date??
