1. PIER ( Peer-to-Peer Information Exchange and Retrieval ) 30 March 07 Neha Singh

2. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

3. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

4. Motivation: What is Very Large? Single Site Clusters Distributed 10’s – 100’s “The database research community prides itself on scalable technologies. Yet database systems traditionally do not excel on one important scalability dimension the degree of distribution. This limitation has hampered the impact of database technologies on massively distributed systems like the Internet.” Database CommunityNetwork Community Internet Scale 1000’s – Millions

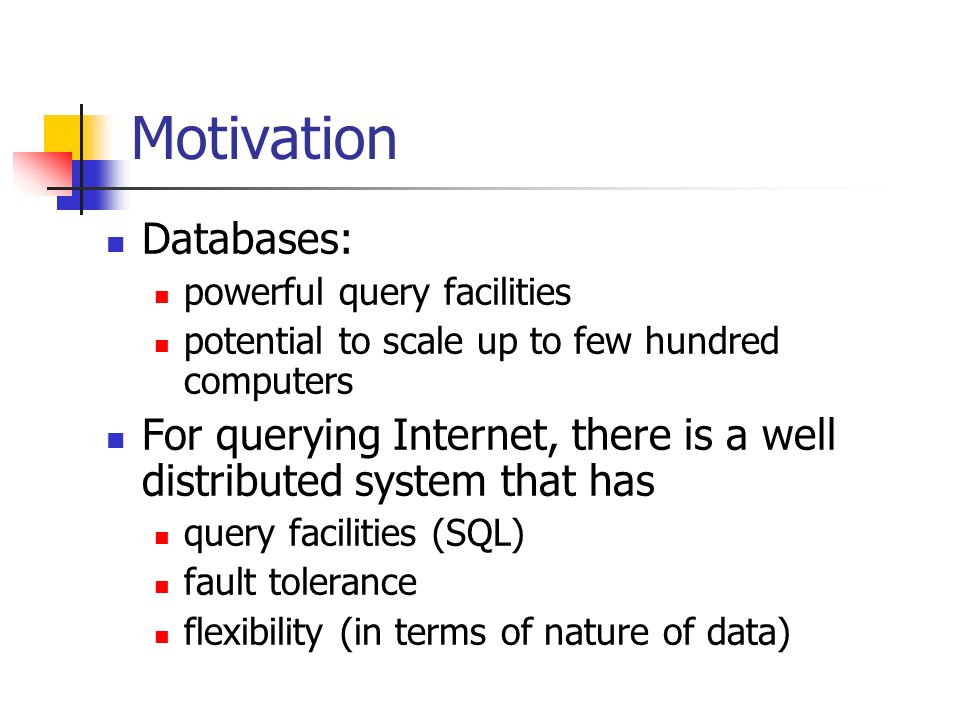

5. Motivation Databases: powerful query facilities potential to scale up to few hundred computers For querying Internet, there is a well distributed system that has query facilities (SQL) fault tolerance flexibility (in terms of nature of data)

6. Databases + P2P DHTs Databases carry a lot of other expensive baggage ACID transactions Consistency above all else Need to unite the query processor with DHTs DHTs + Relational Query Processing = PIER  Bringing complex queries to DHTs

7. Outline Motivation Introduction What is PIER Design Principles Architecture Join Algorithms Experimental Results Conclusion

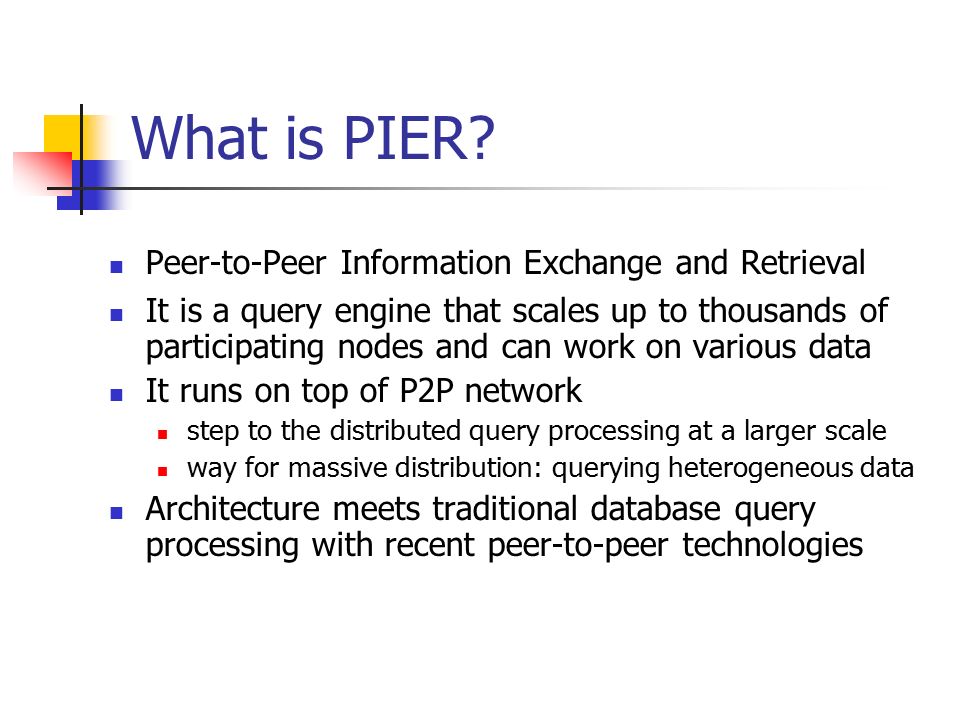

8. What is PIER? Peer-to-Peer Information Exchange and Retrieval It is a query engine that scales up to thousands of participating nodes and can work on various data It runs on top of P2P network step to the distributed query processing at a larger scale way for massive distribution: querying heterogeneous data Architecture meets traditional database query processing with recent peer-to-peer technologies

9. Design Principles Relaxed Consistency Brewer states that a distributed data system can only have two out of three of the following properties : 1. (C)onsistency 2. (A)vailability 3. Tolerance of network (P)artitions Pier : Priority : A,P and sacrifice C (Sacrificing Consistency in face of Availability and Partition tolerance) ie. “Best effort results”

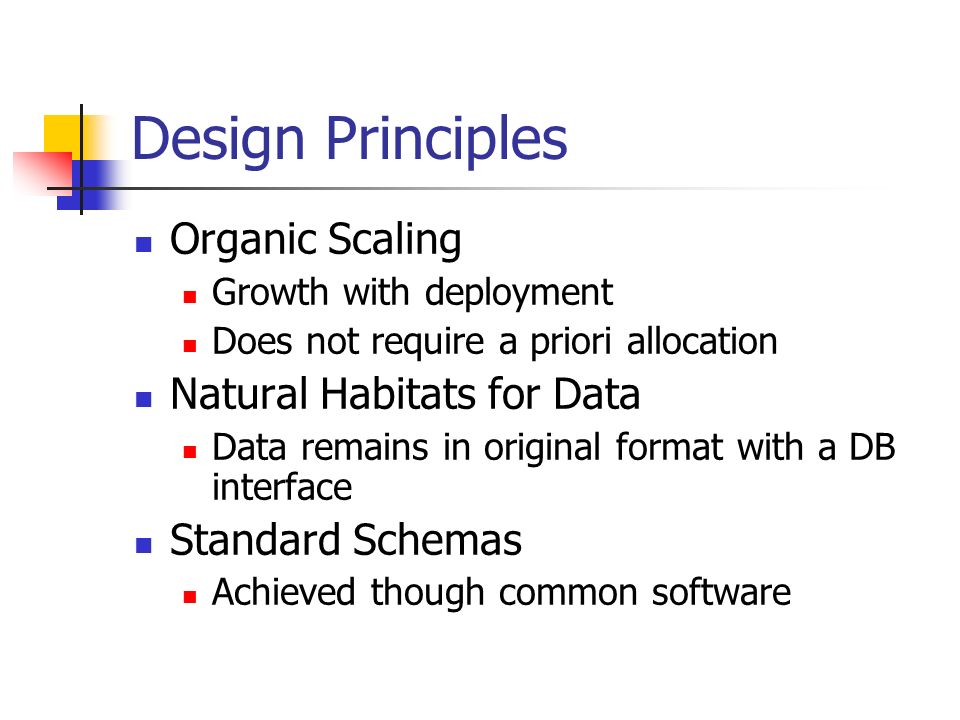

10. Design Principles Organic Scaling Growth with deployment Does not require a priori allocation Natural Habitats for Data Data remains in original format with a DB interface Standard Schemas Achieved though common software

11. Initial Design Assumptions Overlay Network DHTs are highly scalable Resilient to network failures But DHTs provided limited functionalities Design challenge: get lots of functionality from this simple interface Decouple Storage PIER is just the query engine, no storage Query data that is in situ Give up ACID guarantees Why not a design p2p storage manager too? Not needed for many applications Hard problem in itself – leave for others to solve (or not)

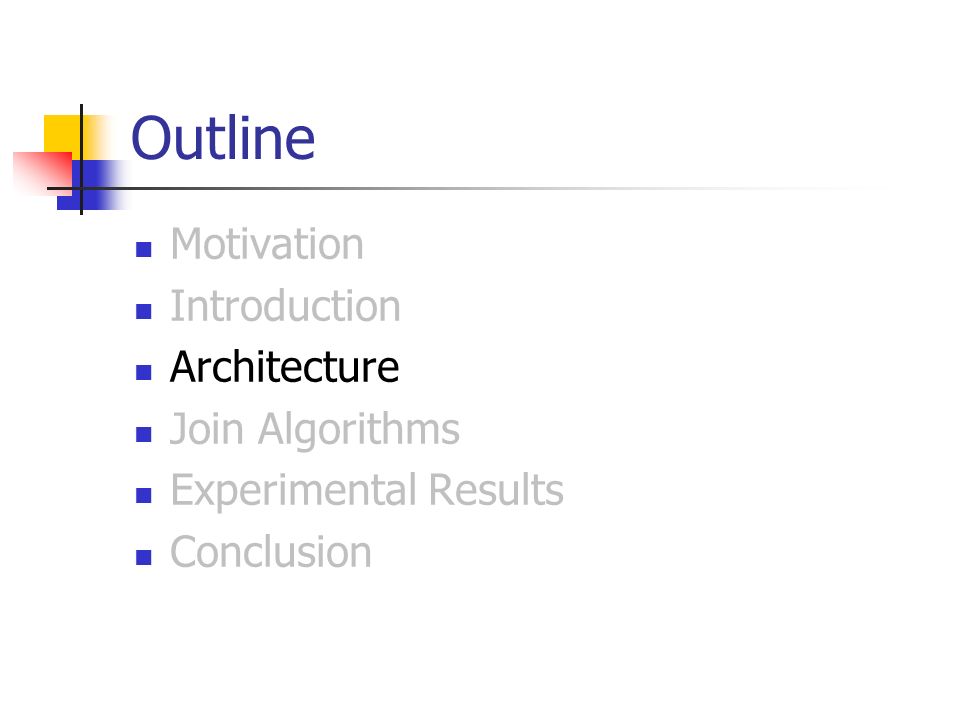

12. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

13. PIER Architecture

14. Physical NetworkOverlay Network Query Plan Declarative Queries Select R.Cpr,R.name, s.Address From R,S Where R.cpr=S.cpr

15. Architecture: DHT: Routing lookup(key)  ipaddr join(landmarkNode) leave() CALLBACK: locationMapChange() DHT is divided into 3 modules Very simple interface Any routing algorithm here: CAN, Chord, Pastry, etc. Overlay Routing API:

16. Architecture: DHT: Storage Stores and retrieves records, which consist of key/value pairs. Keys are used to locate items and can be any data type or structure supported A complex storage system can be used but here using a simple in-memory storage system. store(key, item) retrieve(key)  item remove(key)

17. DHT – Provider (1/2) Provider ties routing and storage manager layers and provides an interface Each object in the DHT has a namespace, resourceID and instanceID DHT key = hash(namespace,resourceID) namespace - application or group of object, table resourceID – what is object, primary key or any attribute instanceID – integer, to separate items with the same namespace and resourceID CAN’s mapping of resourceID/Object is equivalent to an index

18. DHT – Provider (2/2) Node R1 (1..n) Table R (namespace) (1..n) tuples (n+1..m) tuples Node R2 (n+1..m) rID1 item rID3 item rID2 item get (namespace, resourceID)  item put (namespace, resourceID, item, lifetime) renew (namespace, resourceID, instanceID, lifetime)  bool multicast(namespace, resourceID, item) unicast(ns, rid, item) lscan(namespace)  items CALLBACK: newData(ns, item)

19. Architecture: PIER Consists only of the relational execution engine Executes a pre-optimized query plan Query plan is a box-and-arrow description of how to connect basic operators together selection, projection, join, group-by/aggregation, and some DHT specific operators such as rehash

20. Query Processor How it works? performs selection, projection, joins, grouping, aggregation simultaneous execution of multiple operators pipelined together results are produced and queued as quick as possible How it modifies data? insert, update and delete different items via DHT interface How it selects data to process? dilated-reachable snapshot – data, published by reachable nodes at the query arrival time

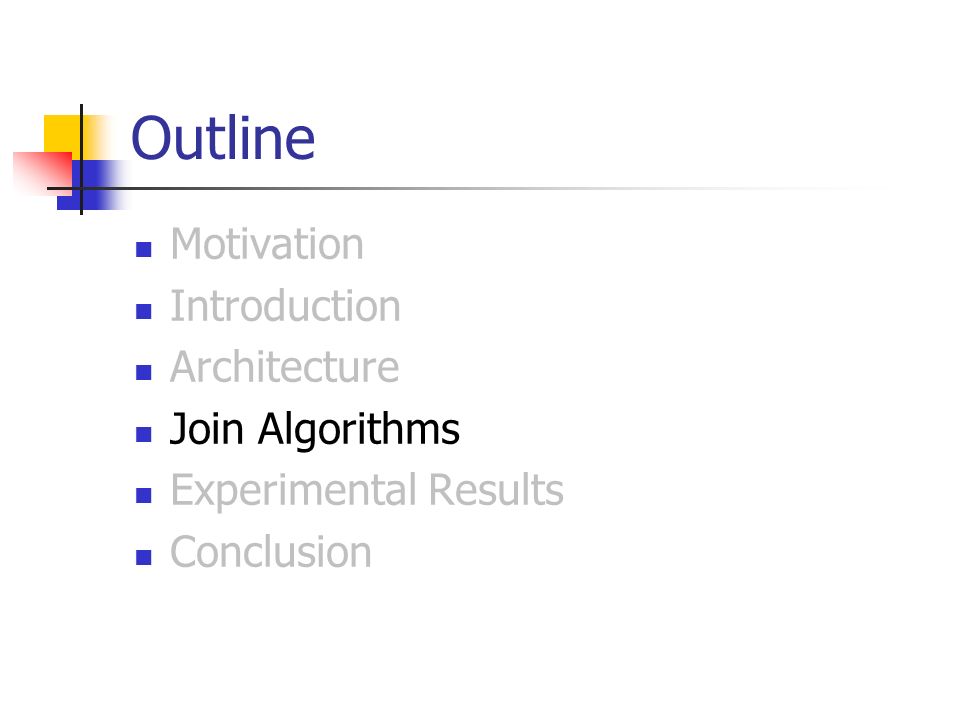

21. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

22. Joins: The Core of Query Processing Goal: Get tuples that have the same value for a particular attribute(s) (the join attribute(s)) to the same site, then append tuples together. Algorithms come from existing database literature, minor adaptations to use DHT.

23. DHT based Distributed Joins DHTs have been used as both Content Addressable Network For routing tuples by value Have implemented 2 binary equi-joins and 2 band-width reducing rewrite schemes

24. Joins: Symmetric Hash Join (SHJ) Algorithm for each site (Scan) Use two lscan calls to retrieve all data stored at that site from the source tables (Rehash) put a copy of each eligible tuple with the hash key based on the value of the join attribute (Listen) use newData to see the rehashed tuples (Compute) Run standard one-site join algorithm on the tuples as they arrive Scan/Rehash steps must be run on all sites that store source data Listen/Compute steps can be run on fewer nodes by choosing the hash key differently

25. Joins: Fetch Matches (FM) Algorithm for each site (Scan) Use lscan to retrieve all data from ONE table (Get) Based on the value for the join attribute, issue a get for the possible matching tuples from the other table Note, one table (the one we issue the get s for) must already be hashed/stored on the join attribute Big picture: SHJ is put based FM is get based

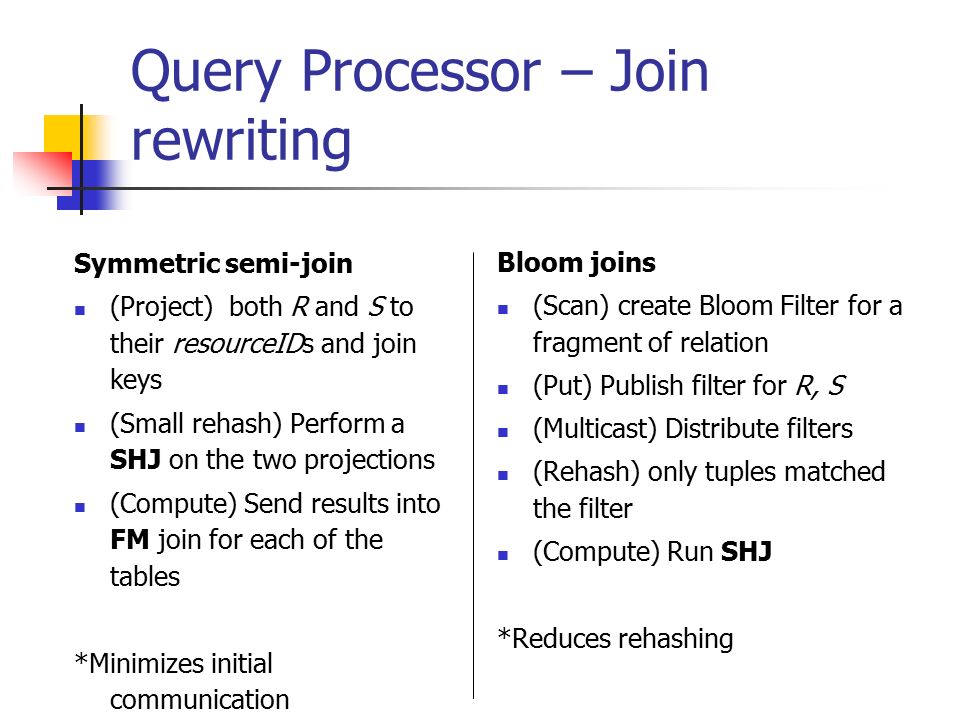

26. Query Processor – Join rewriting Symmetric semi-join (Project) both R and S to their resourceIDs and join keys (Small rehash) Perform a SHJ on the two projections (Compute) Send results into FM join for each of the tables *Minimizes initial communication Bloom joins (Scan) create Bloom Filter for a fragment of relation (Put) Publish filter for R, S (Multicast) Distribute filters (Rehash) only tuples matched the filter (Compute) Run SHJ *Reduces rehashing

27. Joins: Additional Strategies Bloom Filters Use of bloom filters can be used to reduce the amount of data rehashed in the SHJ Symmetric Semi-Join Run a SHJ on the source data projected to only have the hash key and join attributes. Use the results of this mini-join as source for two FM joins to retrieve the other attributes for tuples that are likely to be in the answer set Big Picture: Tradeoff bandwidth (extra rehashing) for latency (time to exchange filters)

28. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

29. Workload Parameters CAN configuration: d = 4 |R| =10 |S| Constants provide 50% selectivity f(x,y) evaluated after the join 90% of R tuples match a tuple in S Result tuples are 1KB each Symmetric hash join used

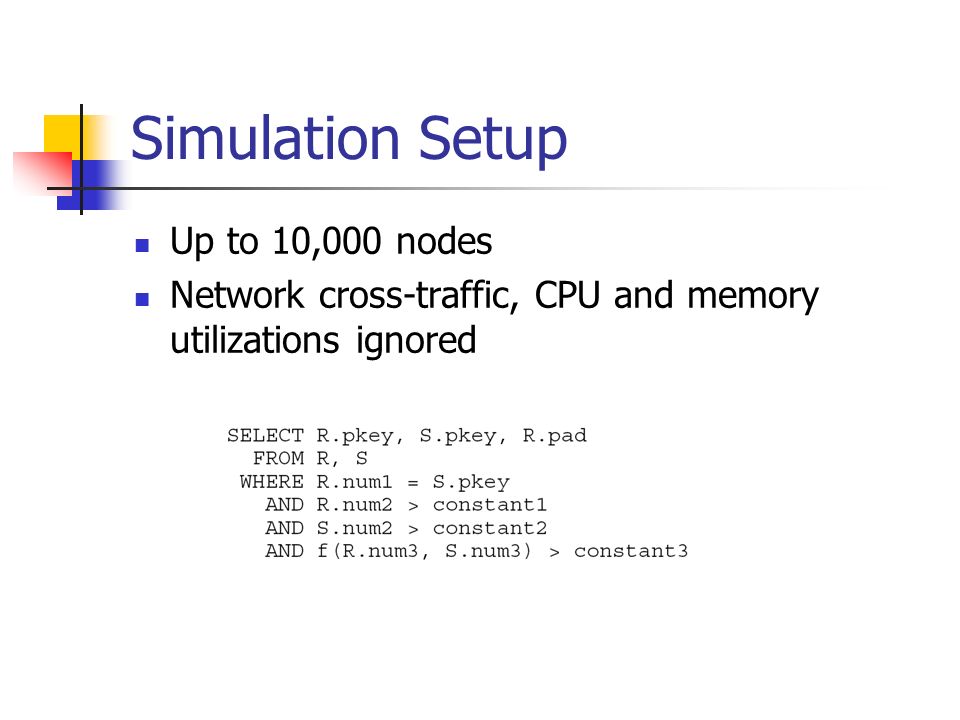

30. Simulation Setup Up to 10,000 nodes Network cross-traffic, CPU and memory utilizations ignored

31. Scalability Simulations of 1 SHJ Join Warehousing Full Parallelization

32. Result 1 (Scalability) The system scales well as long as the number of computation nodes is large enough to avoid network congestion at those nodes.

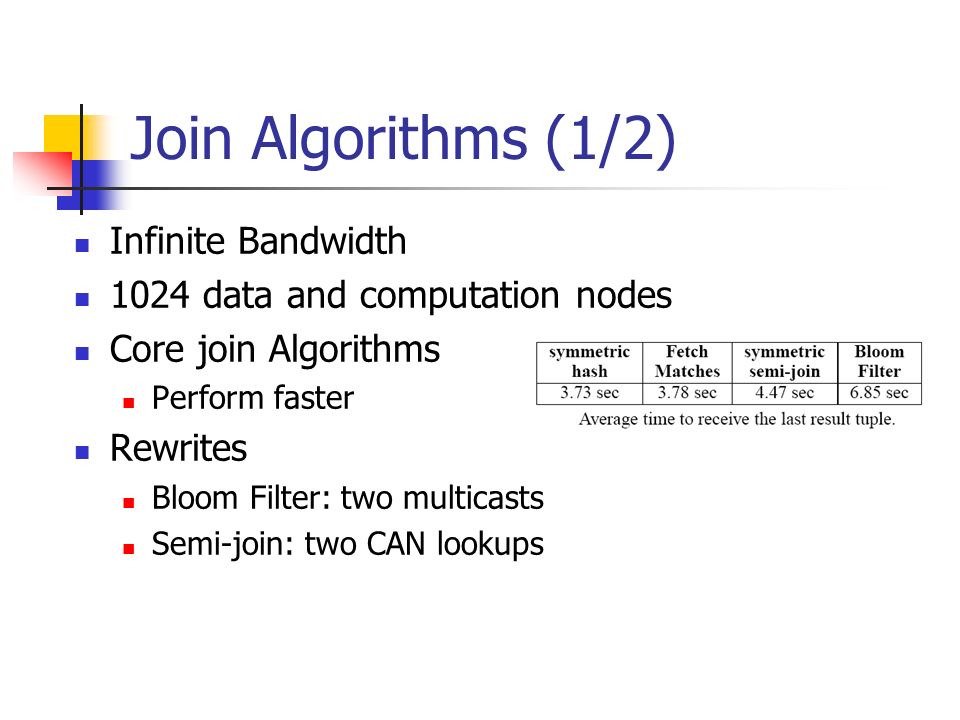

33. Join Algorithms (1/2) Infinite Bandwidth 1024 data and computation nodes Core join Algorithms Perform faster Rewrites Bloom Filter: two multicasts Semi-join: two CAN lookups

34. Performance: Join Algorithms R + S = 25 GB n = m = 1024 inbound capacity = 10 Mbps hop latency =100 ms

35. At 40% selectivity, bottleneck switches from computation nodes to query sites

36. Soft State Failure detection and recovery 15 second failure detection 4096 nodes Refresh period Time to reinsert lost tuples Average recall decreases as the failure rate increases and increases as the refresh period decreases.

37. Some real-world results 1 SHJ Join on Millennium Cluster

38. Outline Motivation Introduction Architecture Join Algorithms Experimental Results Conclusion

39. Applications P2P Databases Highly distributed and available data Network Monitoring Distributed intrusion detection Fingerprint queries

40. Conclusion Distributed data needs a distributed query processor DHTs too simple, databases too complex PIER occupies a point in the middle of this new design space The primary technical contributions of this paper is architectural and evaluative, rather than algorithmic It presents the first serious treatment of scalability issues in P2P style relational query engine

41. References Ryan Huebsch, Joseph M. Hellerstein, Nick Lanham, Boon Thau Loo, Scott Shenker, Ion Stoica. Querying the Internet with PIER. VLDB 2003 Matthew Harren, Joseph M. Hellerstein, Ryan Huebsch, Boon Thau Loo, Scott Shenker, and Ion Stoica, Complex Queries in DHT- based Peer-to-Peer Networks. IPTPS, March 2002.

42. Thanks you

43. Extra Slides

44. Transit Stub Topology GT-ITM 4 Domains, 10 nodes per domain, 3 stubs per node 50ms, 10ms, 2ms latency 10Mbps inbound links Similar trends as fully connected topology A bit longer end-to- end delays
