Lecture 3: Design Specification, Composition, Persistence

Similar presentations


Presentation on theme: "Lecture 3: Design Specification, Composition, Persistence"— Presentation transcript:

1 Topics in Computer Science: COMS E6998-07-2015-03 Micro-service Application and API Development
Lecture 3: Design Specification, Composition, Persistence Dr. Donald F. Ferguson (Admin:

2 Contents

3 Top Level Design Specification

4 Top-Level Design Specification Template

5 4+1 architectural view model http://en. wikipedia

6 The Architecture Views http://en. wikipedia
Logical view : The logical view is concerned with the functionality that the system provides to end-users. UML Diagrams used to represent the logical view include Class diagram, Communication diagram, Sequence diagram.[2] Development view : The development view illustrates a system from a programmer's perspective and is concerned with software management. This view is also known as the implementation view. It uses the UML Component diagram to describe system components. UML Diagrams used to represent the development view include the Package diagram.[2] Process view : The process view deals with the dynamic aspects of the system, explains the system processes and how they communicate, and focuses on the runtime behavior of the system. The process view addresses concurrency, distribution, integrators, performance, and scalability, etc. UML Diagrams to represent process view include the Activity diagram.[2] Physical view : The physical view depicts the system from a system engineer's point of view. It is concerned with the topology of software components on the physical layer, as well as the physical connections between these components. This view is also known as the deployment view. UML Diagrams used to represent physical view include the Deployment diagram.[2] Scenarios : The description of an architecture is illustrated using a small set of use cases, or scenarios which become a fifth view. The scenarios describe sequences of interactions between objects, and between processes. They are used to identify architectural elements and to illustrate and validate the architecture design. They also serve as a starting point for tests of an architecture prototype. This view is also known as use case view

7 Some Diagrams http://www.agilemodeling.com/essays/umlDiagrams.htm

8 Some Diagrams Communication Diagram Sequence Diagram Class Diagram
Component Diagram Component Diagram Activity Diagram

9 Application to 1st Project
Communication Diagram Sequence Diagram Class Diagram Component Diagram Component Diagram Activity Diagram

10 Agile Development and User Stories

11 Documenting API Example
URI HTTP verb PUT Parameters id : Card number of the member. Body name : Name of the member.  : adress of the member. langage : Langage used by member (Fr_CA ou En_US) Sample body { "name":"Mario Cardinal", "language":"fr_CA" } Success Response Status Code: 204 No Content Error Response Status Code: 400 Bad Request, Body: {"Error Code":"..."} Status Code: 401 Unauthenticated, see WWW-Authenticate value in header Status Code: 403 Forbidden Status Code: 404 Not Found Status Code: 429 Too Many Requests, see Retry-After value in header Status Code: 500 Internal Server Error Status Code: 503 Service Unavailable Error Code 10: Inactive member 20: Denied access member 110: Database issues, Retry later

12 Observations Weinberg's Second Law: If builders built buildings the way programmers wrote programs, then the first woodpecker that came along would destroy civilization. Sr. Celestina: “If you cannot write it down, you do not understand it.” “it is a custom More honor'd in the breach than the observance” Hamlet Act 1, scene 4, 7–16 Comments I have gone through a very systematic version of TLDS. This model applies more to infrastructure SW than application SW. All development projects do some flavor of this approach. Just want to give you a feel for the types of things you can include in your TLDS, but you only need a really simple version and I am flexible. Use common sense

13 Application to 1st Project
You do not need to use UML, but should use the concepts. Produce the following diagrams Component diagram Class diagram documenting the logical datamodels for components Some sequence diagrams showing end-to-end flows Document (and implement) three components Student info management microservice, including datamodel changes Course info management microservice, including datamodel changes Request router microservice fronting Student info microservice Document (implement) use cases with sequence diagrams Basic scenarios Referential integrity between StudenInfo.student and CourseInfo.course Data partitioning and scaling, including configuration, for RequestRouter and StudentInfo

14 Composition

15 Introduction

16 Composition Diagrams Control Flow Structure Data Flow
The diagrams are always “nodes” and “arcs.” There are three types of composition Structure: Node A <x> node B, where x is Requires/depends/calls/synchronizes with/… Can be major subsystem composition, or internal module composition Control: Execute A and then execute B, where A and B are tasks. There is a shared set of “logical data objects” the tasks manipulate. Data flow: Do A to the message/document/… and then do B to A’s output

17 Structure

18 Monolithic to Micro StoreInfoService Java SQLite XXX XXX Node.js Redis AccountingService PDP MongoDB XXX XXX MMM NNN Tradition (J2EE) web application connects “services” using Classpath J2EE resource names and JNDI lookup But, this gets really hard with microservices Documenting dependencies? Resolving dependencies? Unanticipated connections/integrations? … … ShippingService Ruby Amazon S3

19 SOA Component Architecture (Example)
Five aspects of a microservice/component Packaging Exported interfaces Required interfaces Configuration interface Implementation artifact

20 SOA Component Architecture  Microservices
In microservices No explicit “wiring” together of components. Dynamically add/modify/move microservices. Individual microservices dynamicall bind to dependencies.

21 reusable SW containers
infrastructure containers Inject application implementation into reusable SW containers Reusable SW containers but with core technology and frameworks

22 Internal Composition

23 Microservice Internal Composition
There are typically two elements A reusable “container” the provides reusable, configurable libraries and functions to general application/solution logic. Examples REST endpoint and call routing. Database connectivity and CRUD. Security and Session Often come as integrated frameworks, e.g. Node Express Pure application libraries added to a container. Development Focuses on application functionality and implementation. Select and add to an appropriate container (or build one). Deploy instance.

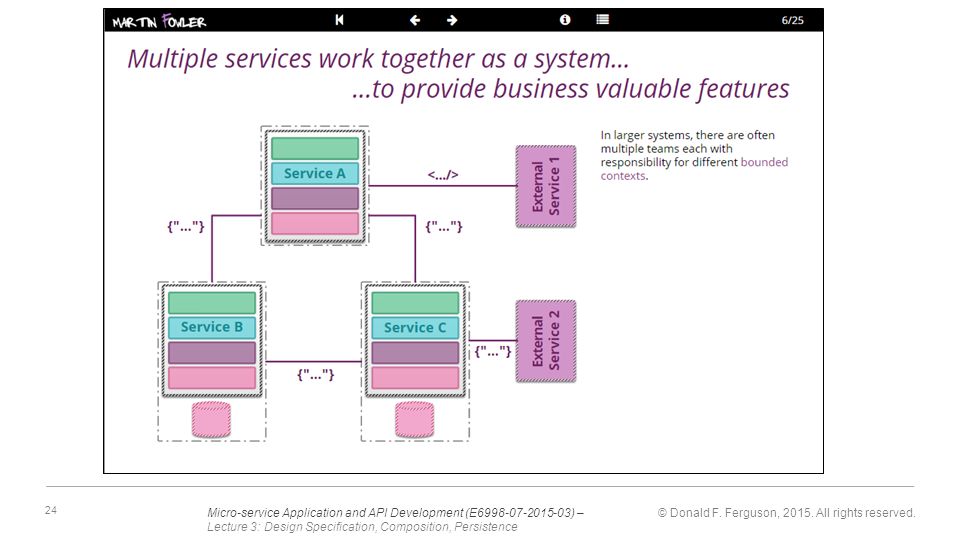

24

25 External Composition How do you Document? Resolve/bind?
Add unanticipated?

26 Answers Fortunately, Unfortunately Some examples
There are many good approaches. Unfortunately There is not standard, agreed, technology independent approach Some examples Readable documentation and config files Conventions on URL namespace Service Registry aware/enabled microservices, e.g. ZooKeeper Consul Eureka Read code or run it and see what calls fail. … …

27 Some Patterns – Client Side
Service A Service A Service B Service B Service C Service C

28 Server Side Pattern Router queries registry and performs mapping.
Service A Service B Service C Router implements all requested interfaces. Services register implemented interfaces Admin task configures mapping.

29 Summary No substitute for good API and dependency documentation
Default “web app” for exploring and testing implemented APIs, perhaps using tools and frameworks (e.g. Swagger). Dependency/called APIs User property files to map symbolic names to actual names. Some form of router pattern Server side Client side API gateway You will eventually wind up using ZooKeeper or something similar Dynamic reconfiguration of environment, e.g. add service, move service. Avoid failed instances of a replicated service. etc.

30 Event Driven

31 Think About 1st Project The microservice developers
Student Course The microservice developers Did not know about the other service in advance. And could not have added dependencies/calls to ensure integrity. There is literally no code to make the calls to dependents. Microservices should be composable. One aspect is enabling unanticipated dependencies/integrations. By emitting events for each CUD on a resource.

32 SOA vs Microservices

33 Event Driven Integration/Composition
Student …/student/… …/feed/student/… …/course/… …/feed/course/… GET POST PUT DELETE If you have a bunch of microservices that do not emit events/feeds. Front with an API GW that Delegates onto actual service Looks at response Writes a feed API GW Student If the microservice emits a feed/log Add a new microservice Reads feeds/logs Calls appropriate REST API Has an API for configuring the feeds/logs to read and mapping to REST APIs …/student/… …/feed/student/…

34 Amazon Web Services

35 Google Cloud Pub/Sub

36 RabbitMQ https://www.rabbitmq.com/getstarted.html

37 RabbitMQ https://www.rabbitmq.com/tutorials/tutorial-five-python.html

38 Topic Trees Subscribe to /sales Will see e1 and e2
If they match the filter e1 e2

39 Backup

40 Microservice Patterns
New Microservice Patterns Classic Patterns, New Realization “Enterprise Integration Patterns,” Fowler et al.

41 ACID Transactions

42 Distributed Transactions

43 ACID Transactions ACID transactions Isolation
Atomic: A set of writes all occur or none occur. Durable: The data “does not disappear,” e.g. write to disk. Consistent: My applications move the database between consistent states, e.g. the transfer function works correctly. Isolation Determines what happens when two or more threads are manipulating the data at the same time. And is defined relative to where cursors are and what they have touched. Because the cursor movement determines what you are reading or have read.

44 CAP Theorem The CAP theorem, also known as Brewer's theorem, states that it is impossible for a distributed computer system to simultaneously provide all three of the following guarantees: Consistency (all nodes see the same data at the same time) Availability (a guarantee that every request receives a response about whether it succeeded or failed) Partition tolerance (the system continues to operate despite arbitrary partitioning due to network failures)
