Preparation of Alkyl Halides from Alcohols and Hydrogen Halides ROH + HX  RX + H 2 O.

Similar presentations


Presentation on theme: "Preparation of Alkyl Halides from Alcohols and Hydrogen Halides ROH + HX  RX + H 2 O."— Presentation transcript:

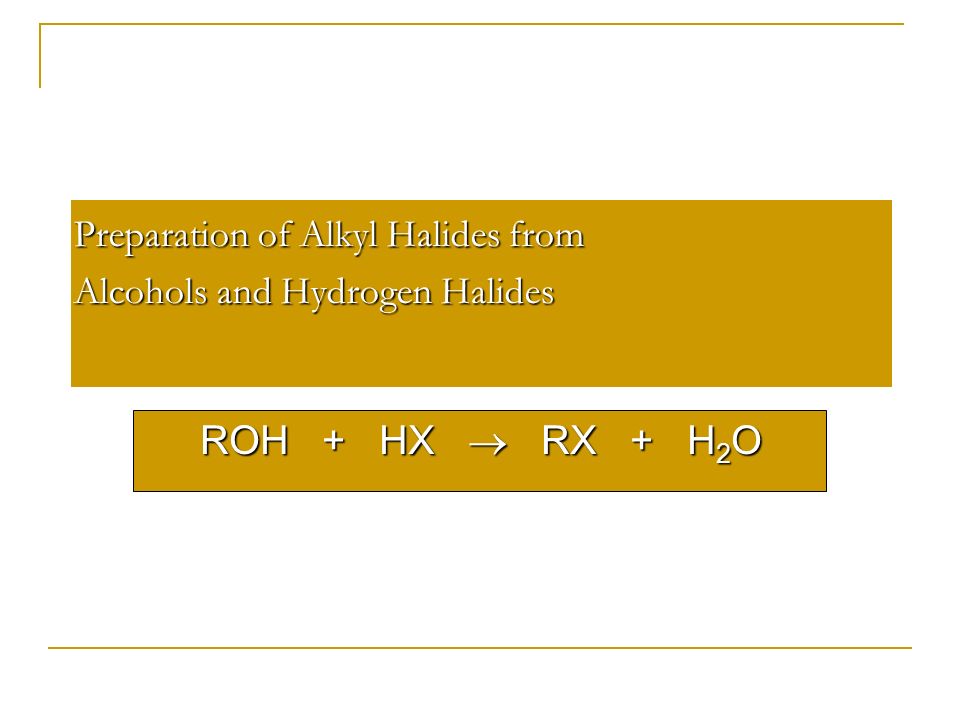

1 Preparation of Alkyl Halides from Alcohols and Hydrogen Halides ROH + HX  RX + H 2 O

2 Reaction of Alcohols with Hydrogen Halides ROH + HX  RX + HOH Hydrogen halide reactivity HI HBr HCl HF most reactiveleast reactive

3 Reaction of Alcohols with Hydrogen Halides ROH + HX  RX + HOH Alcohol reactivity R 3 COH R 2 CHOH RCH 2 OH CH 3 OH TertiarySecondaryPrimaryMethanol most reactiveleast reactive

4 Preparation of Alkyl Halides (CH 3 ) 3 COH + HCl (CH 3 ) 3 CCl + H 2 O 78-88% + H 2 O 73% CH 3 (CH 2 ) 5 CH 2 OH + HBr CH 3 (CH 2 ) 5 CH 2 Br + H 2 O 87-90% 25°C 80-100°C 120°C OH + HBr Br

5 Preparation of Alkyl Halides CH 3 CH 2 CH 2 CH 2 OH CH 3 CH 2 CH 2 CH 2 Br NaBr H 2 SO 4 70-83% heat A mixture of sodium bromide and sulfuric a cid may be used in place of HBr.

6 Mechanism of the Reaction of Alcohols with Hydrogen Halides

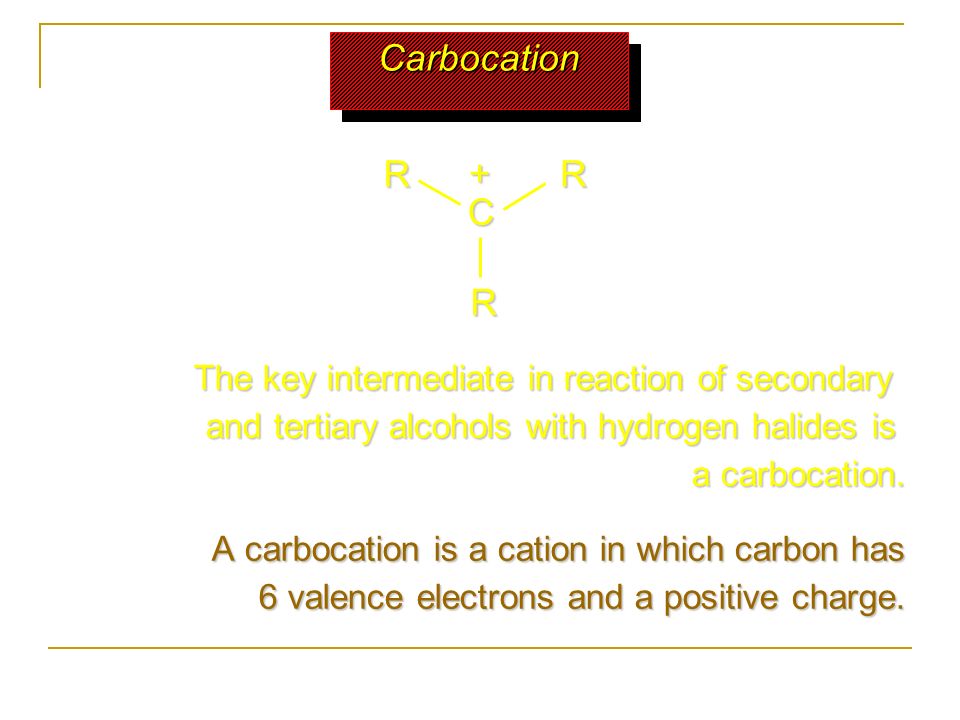

7 CarbocationCarbocation The key intermediate in reaction of secondary and tertiary alcohols with hydrogen halides is a carbocation. A carbocation is a cation in which carbon has 6 valence electrons and a positive charge. C R R R+

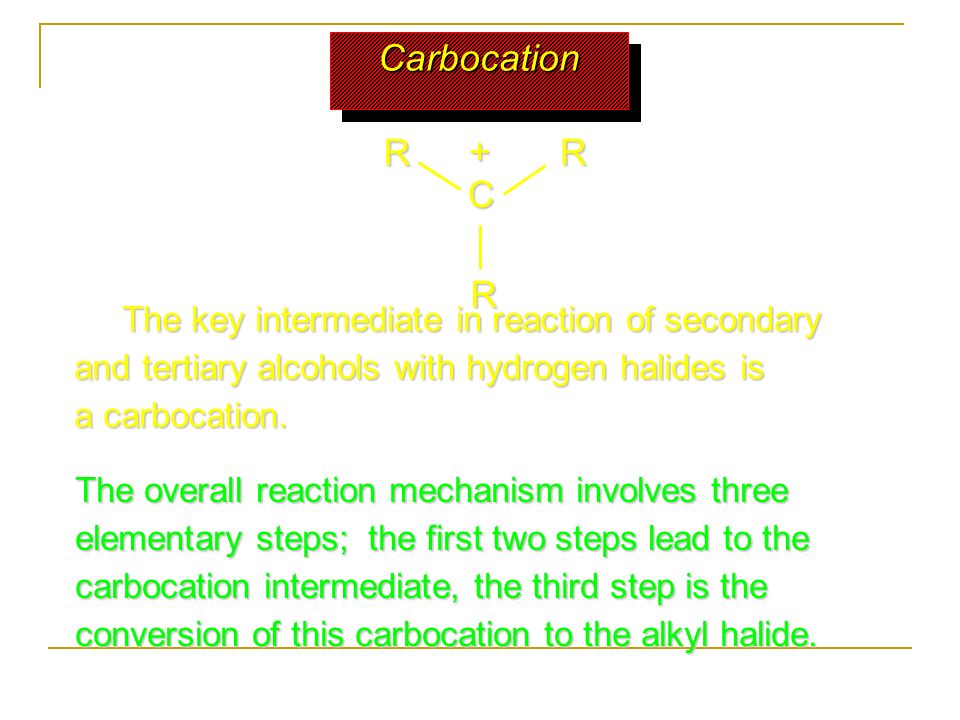

8 CarbocationCarbocation The key intermediate in reaction of secondary and tertiary alcohols with hydrogen halides is a carbocation. The overall reaction mechanism involves three elementary steps; the first two steps lead to the carbocation intermediate, the third step is the conversion of this carbocation to the alkyl halide. C R R R+

9 ExampleExample (CH 3 ) 3 COH + HCl (CH 3 ) 3 CCl + H 2 O 25°C Carbocation intermediate is: C H3CH3CH3CH3C CH 3 + tert-Butyl alcohol tert-Butyl chloride tert-Butyl cation

10 Mechanism Step 1: Proton transfer from HCl to tert-butyl alcohol (CH 3 ) 3 C O H.. : H Cl :.... + H O : + HCl :.... : – + fast, bimolecular tert-Butyloxonium ion

11 Mechanism Step 2: Dissociation of tert-butyloxonium ion + (CH 3 ) 3 C O H :H+ slow, unimolecular (CH 3 ) 3 C O H :H: tert-Butyl cation +

12 Mechanism Step 3: Capture of tert-butyl cation by chloride ion. fast, bimolecular + (CH 3 ) 3 C + tert-Butyl chloride (CH 3 ) 3 C Cl :.... Cl : :....–
