1. DISTRIBUTIONS

2. What is a “distribution”? One distribution for a continuous variable. Each youth homicide is a case. There is one variable: the number of youth homicide victims each month. Two distributions, each for a single continuous variable: violent crimes and commitments to prison. Each violent crime is a case. The variable is their number each year per 100,000 population Each commitment to prison is a case. The variable is the number of commitments each year per 100,000 population One distribution for TWO categorical variables: Youth’s demeanor (two categories) Officer disposition (four categories) Each police encounter with a youth is a case. An arrangement of cases in a sample or population according to their values or scores on one or more variables (A case is a single unit that “contains” all the variables of interest) Distributions can be depicted visually. How that is done depends on how many variables and their type (whether categorical or continuous). Officer’s disposition

3. DEPICTING THE DISTRIBUTION OF CATEGORICAL VARIABLES

4. Depicting distribution of a categorical variable: the bar graph Distributions depict the frequency (number of cases) at each value of a variable. Here there is one variable with two values: gender (M/F). A case is a single unit that “contains” all the variables of interest. Here each student is a case Frequency means the number of cases – students – at a single value of a variable. Frequencies are always on the Y axis Values of the variable are always on the X axis Distributions illustrate how cases cluster or spread out according to the value or score of the variable. Here the proportions of men and women seem about equal. n=15 n=17 Y - axis X - axis Value or score of variable How many at each value/score Bars are “made up of” cases. Here that means students, arranged by the variable gender N = 32

5. Using a table to display the distribution of two categorical variables Value or score of variable Number of cases at each value/score Officer’s disposition “cells” Value or score of variable

6. DEPICTING THE DISTRIBUTION OF CONTINUOUS VARIABLES

7. Depicting the distribution of continuous variables: the histogram X - axis Value or score of variable How many at each value/score Distributions depict the frequency (number of cases) at each value of a variable. Here there is one variable: age, measured on a scale of 20-33. A case is a single unit that “contains” all the variables of interest. Here each student is a case Frequency means the number of cases – students – at a single value of a variable. Frequencies are always on the Y axis Values of the variable are always on the X axis What is the area under the trend line “made up of”? Cases, meaning students (arranged by age) Trend line Y - axis

8. X - axis Value or score of variable How many at each value/score Sometimes, bar graphs are used for continuous variables What are the bars “made of”? Cases, meaning homicides (arranged by the variable homicides per year)

9. Continuous variables: What “makes up” the areas under the trend lines? Each violent crime is one “case” Variable: # crimes per 100,000 population each year Each commitment to prison is one “case” Variable: # commitments to prison, per 100,000 population, each year Value or score of variable How many at each value/score Value or score of variable How many at each value/score Trend line Cases, that’s what! Each murdered youth is one “case” Variable: # youths murdered each month

10. CATEGORICAL VARIABLES Summarizing the distribution of

11. Summarizing the distribution of categorical variables using percentage Instead of using graphs or a lot of words, is there a single statistic that can convey what a distribution “looks like”? Percentage is a “statistic.” It’s a proportion with a denominator of 100. Percentages are used to summarize categorical data – 70 percent of students are employed; 60 percent of parolees recidivate Since per cent means per 100, any decimal can be converted to a percentage by multiplying it by 100 (moving the decimal point two places to the right) –.20 =.20 X 100 = 20 percent (twenty per hundred) –.368 =.368 X 100 = 36.8 percent (thirty-six point eight per hundred) When converting, remember that there can be fractions of one percent –.0020 =.0020 X 100 =.20 percent (two tenths of one percent) To obtain a percentage for a category, divide the number of cases in the category by the total number of cases in the sample 50,000 persons were asked whether crime is a serious problem: 32,700 said “yes.” What percentage said “yes”?

12. Using percentages to compare datasets Percentages are “normalized” numbers (e.g., per 100), so they can be used to compare datasets of different size – Last year, 10,000 people were polled. Eight-thousand said crime is a serious problem – This year 12,000 people were polled. Nine-thousand said crime is a serious problem. Calculate the second percentage and compare it to the first

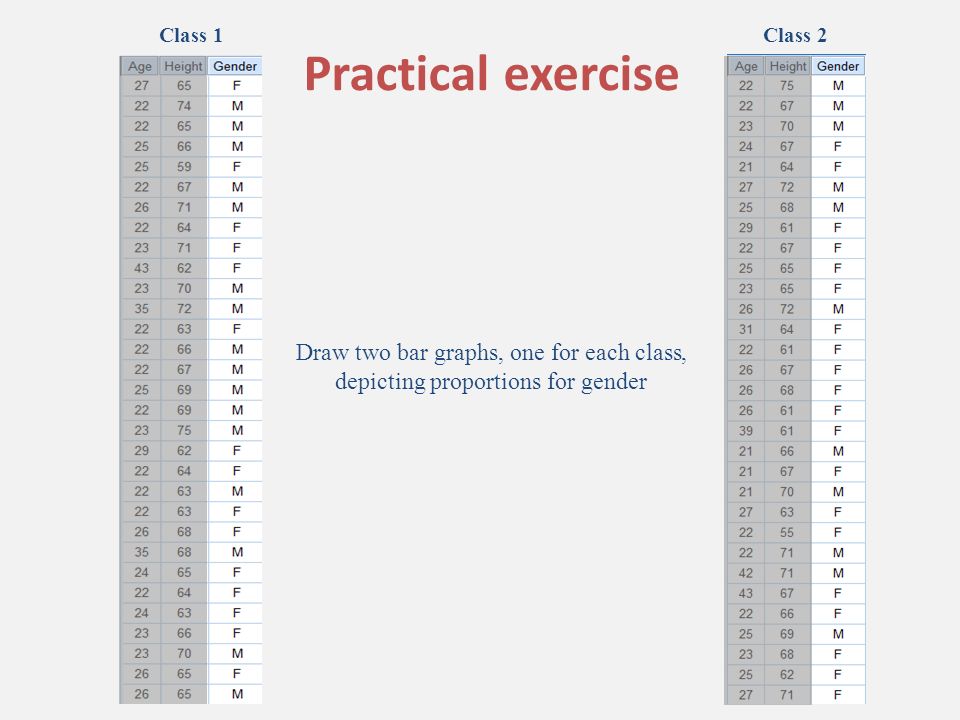

13. Class 1Class 2 Draw two bar graphs, one for each class, depicting proportions for gender Practical exercise

14. Class 1Class 2 15 Females 15/31 =.483 X 100 = 48% 16 Males 16/31 =.516 X 100 = 52% _____ 100% 20 Females 20/31 =.645 X 100 = 65% 11 Males 11/31 =.354 X 100 = 35% _____ 100% ____ 100%

15. Calculating increases in percentage 2 times 3 times larger (2X) larger (3X) 200% 100% Original larger larger Increases in percentage are computed off the base amount Example: Jail with 120 prisoners. How many prisoners will there be... …with a 100 percent increase? – 100 percent of the base amount, 120, is 120 (120 X 100/100) – 120 base + 120 increase = 240 (2 times the base amount) …with a 150 percent increase? – 150 percent of 120 is 180 (120 X 150/100) – 120 base plus 180 increase = 300 (2½ times the base amount) How many will there be with a 200 percent increase?

16. Percentage changes can mislead Answer to preceding slide – prison with 120 prisoners 200 percent increase 200 percent of 120 is 240 (120 X 200/100) 120 base plus 240 = 360 (3 times the base amount) Percentages can make changes seem large when bases are small Example: Increase from 1 to 3 convictions is 200 (two-hundred) percent 3-1 = 2 2/base = 2/1 = 2 2 X 100 = 200% Percentages can make changes seem small when bases are large Example: Increase from 5,000 to 6,000 convictions is 20 (twenty) percent 6,000 - 5,000 = 1,000 1,000/base = 1000/5,000 =.20 = 20%

17. CONTINUOUS VARIABLES Summarizing the distribution of

18. Four summary statistics for continuous variables Continuous variables – review – Can take on an infinite number of values (e.g., age, height, weight, sentence length) – Precise differences between cases – Equivalent differences: Distances between 15-20 years same as 60-70 years Summary statistics for continuous variables – Mean: arithmetic average of scores – Median: midpoint of scores (half higher, half lower) – Mode: most frequent score (or scores, if tied) – Range: Difference between low and high scores 3.5 1.3

19. Summarizing the distribution of continuous variables - the mean Arithmetic average of scores – Add up all the scores – Divide the result by the number of scores Example: Compare numbers of arrests for twenty police precincts during a certain shift Method: Use mean to summarize arrests at each precinct, then compare the means Mean 3.0 Mean 3.5 arrests Variable: number of arrests Unit of analysis: police precincts Case: one precinct Issue: Means are pulled in the direction of extreme scores, possibly misleading the comparison

20. Transforming categorical/ordinal variables into continuous variables, then using the mean Ordinal variables are categorical variables with an inherent order – Small, medium, large – Cooperative, uncooperative Can summarize in the ordinary way: proportions / percentages Can also transform them into continuous variables by assigning categories points on a scale, then calculating a mean Not always recommended because “distances” between points on scale may not be equal, causing misleading results Is the distance between “Admonished” and “Informal” same as between “Informal and Citation”? “Citation” and “Arrest”? Value Severity of Disposition Youths Freq.% 4 Arrested 1624 3 Citation or official reprimand 914 2 Informal reprimand 1624 1 Admonished & released 2538 Total (N) 66100 Severity of disposition mean = 2.24 (25 X 1) + (16 X 2) + (9 X 3) + (16 X 4) / 66

21. 0, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 6 Exercise 1: 2, 3, 5, 5, 8, 12, 17, 19, 21 Exercise 2: 2, 3, 5, 5, 8, 12, 17, 19, 21, 21 Compute... 3 + 3 / 2 = 3 arrests Summarizing the distribution of continuous variables - the median Median can be used with continuous or ordinal variables Median is a useful summary statistic when there are extreme scores, making the mean misleading In this example, which is identical to the preceding page except for one outlier (16), the mean is 3.5 –.5 higher But the medians (3.0) are the same

22. Answers to preceding slide Exercise 1: 2, 3, 5, 5, 8, 12, 17, 19, 21 Answer: 8 Exercise 2: 2, 3, 5, 5, 8, 12, 17, 19, 21, 21 Answer: 10 (8 + 12 / 2) 0, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 16 3 + 3 / 2 = 3 arrests

23. Score that occurs most often (with the greatest frequency) Here the mode is 3 Modes are a useful summary statistic when cases cluster at particular scores – an interesting condition that might otherwise be overlooked Symmetrical distributions, like this one, are called “normal” distributions. In such distributions the mean, mode and median are the same. Near-normal distributions are common. There can be more than one mode (bi-modal, tri-modal, etc.). Identify the modes: Exercise 1: 2, 3, 5, 5, 8, 12, 17, 19, 21 Exercise 2: 2, 3, 5, 5, 8, 12, 17, 19, 21, 21 arrests Summarizing the distribution of continuous variables - the mode

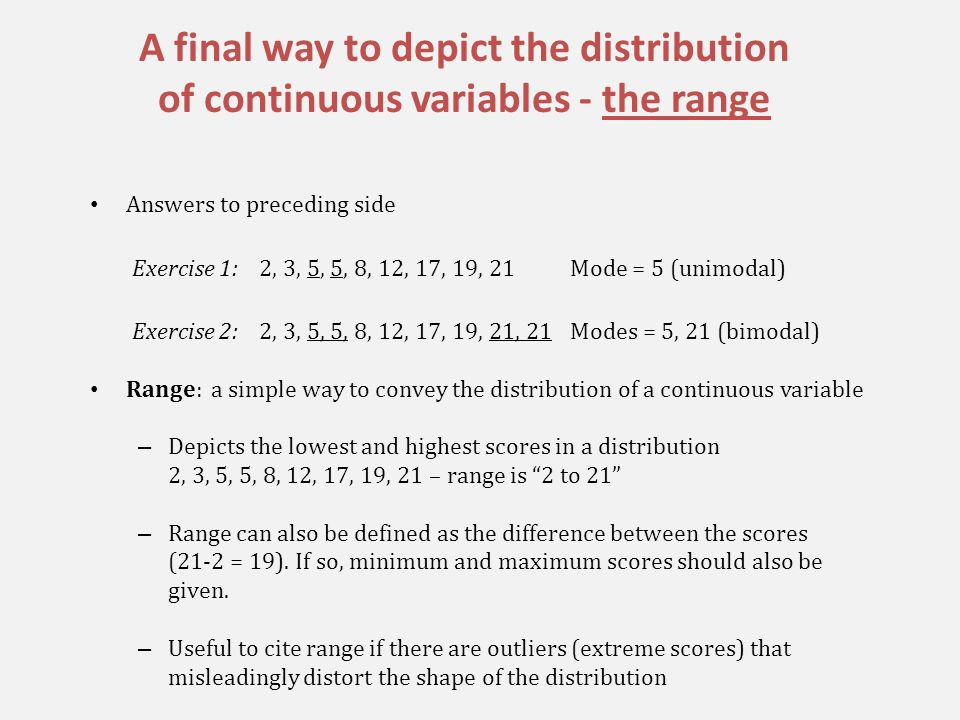

24. Answers to preceding side Exercise 1: 2, 3, 5, 5, 8, 12, 17, 19, 21Mode = 5 (unimodal) Exercise 2: 2, 3, 5, 5, 8, 12, 17, 19, 21, 21Modes = 5, 21 (bimodal) Range: a simple way to convey the distribution of a continuous variable – Depicts the lowest and highest scores in a distribution 2, 3, 5, 5, 8, 12, 17, 19, 21 – range is “2 to 21” – Range can also be defined as the difference between the scores (21-2 = 19). If so, minimum and maximum scores should also be given. – Useful to cite range if there are outliers (extreme scores) that misleadingly distort the shape of the distribution A final way to depict the distribution of continuous variables - the range

25. Practical exercise Calculate your class summary statistics for age and height – mean, median, mode and range Pictorially depict the distributions for age and height, placing the variables and frequencies on the correct axes Case no.

27. Next week – Every week: Without fail – bring an approved calculator – the same one you will use for the exam. It must be a basic calculator with a square root key. NOT a scientific or graphing calculator. NOT a cell phone, etc.

28. Case No. Income No. of arrests Gender 1156004M 2213803F 3172205F 4187652M 5232201F 6445000M 7342550F 8216200F 9148901M 10166502F 11445001F 12167303M 13239803F 14140050F 15215502M 16267804M 17180501F 18345001M 19337853F 20214502F HOMEWORK (link on weekly schedule) 1. Calculate all appropriate summary statistics for each distribution 2. Pictorially depict the distribution of arrests 3. Pictorially depict the distribution of gender
