Counters

2
Counters Counters are sequential circuits which "count” through a specific state sequence. They can count up, count down, or count through other fixed sequences. Two distinct types are in common usage: Ripple counters (Asynchronous counter) Synchronous counter

3
Ripple Counters – Clock is connected to the flip-flop clock input on the LSB bit flip-flop – For all other bits, a flip-flop output is connected to the clock input, thus circuit is not truly synchronous – Output change is delayed more for each bit toward the MSB. – Resurgent because of low power consumption

4
Synchronous Counters – Clock is directly connected to the flip-flop clock inputs – Logic is used to implement the desired state sequencing

5
**Revision of Ripple Counters**

Let’s look at some slides from Digit 1.

6
**A 2-bit asynchronous (ripple) binary counter (Rev)**

Both flip-flops are assumed to be initially RESET (Q low) Q0 is always the LSB unless otherwise specified

7
**The Timing diagram for 2 bit Asynchronous Binary Counter (Rev)**

This is a complete timing diagram & propagation delay time are not indicated. Overall timing diagram they are normally omitted for simplicity but it is very important in design & troubleshooting purposes

8
**The Binary State Sequence for 2 bit Asynchronous Binary Counter (Rev)**

CLOCK PULSE Q1 Q0 Initially 1 2 3 4 (recycles)

9
**3-bit asynchronous binary counter and its timing diagram for one cycle**

3-bit asynchronous binary counter and its timing diagram for one cycle. (Rev)

10
**Propagation delays in a 3-bit asynchronous (ripple-clocked) binary counter (Rev)**

11
**The Binary State Sequence for a 3-bit Binary Counter (Rev)**

CLOCK PULSE Q2 Q1 Q0 Initially 1 2 3 4 5 6 7 8 (recycles)

12
**Four-bit asynchronous binary counter and its timing diagram (Rev)**

13
**The 74LS93A 4-bit asynchronous binary counter logic diagram**

The 74LS93A 4-bit asynchronous binary counter logic diagram. (Pin numbers are in parentheses, and all J and K inputs are internally connected HIGH.)

14
**Ripple Counter How does it works?**

– When there is a positive Clock edge on the clock input of A, A complements – The clock input for flip flop B is the Complemented output of flip-flop A – When flip A changes from 1 to 0, there is a positive edge on the clock input of B causing B to complement

15
Ripple Counter

16
Ripple Counter

17
**Ripple Counter • The arrows show the cause-effect relationship**

• The corresponding sequence of states => (B,A) = (0,0),(0,1), (1,0), (1,1), (0,0), (0,1), … • Each additional bit, C, D, …behaves like bit B, changing half as frequently as the bit before it. • For 3 bits: (C,B,A) = (0,0,0), (0,0,1), (0,1,0), (0,1,1), (1,0,0), (1,0,1), (1,1,0), (1,1,1), (0,0,0), …

18
Ripple Counter

19
Ripple Counter • These circuits are called ripple counters because each edge sensitive transition (positive in the example) causes a change in the next flip-flop’s state. • The changes “ripple” upward through the chain of flip-flops, i. e., each transition occurs after a clock-to-output delay from the stage before. • To see this effect in detail look at the waveforms on the next slide.

20
Ripple Counter

21
Ripple Counter • Starting with C = B = A = 1, equivalent to (C,B,A) = 7 base 10, the next clock increments the count to (C,B,A) = 0 base 10. In fine timing detail: – The clock to output delay tPHL causes an increasing delay from clock edge for A each stage transition. – Thus, the count “ripples” from least to most B significant bit. – For n bits, total worst case C delay is n tPHL.

22
**Revision of synchronous counter**

Slides from Digit 1

23
**SYNCHRONOUS COUNTERS (Rev)**

All the flip-flops in the counter are clocked at the same time by a common clock pulse (external clock) 2 advantages compared to Asynchronous Counter : 1) Very less propagation delay time 2) Able to perform counting in random mode (eg : 0,1,3,5,8, …,0,1,3,5,8,..)

24
**A 2-bit synchronous binary counter (Rev)**

Assumed initial in binary 0 states meaning that both flip--flops are in RESET condition.

25
**Timing diagram for 2-bit synchronous counter (Rev)**

26
**A 3-bit synchronous binary counter (Rev)**

27
**Timing diagram for the counter (Rev)**

28
Synchronous Counter • To eliminate the "ripple" effects, use a common clock for each flip-flop and a combinational circuit to generate the next state. • For an up-counter, use an incrementer

29
Synchronous Counter

30
**Synchronous Counter • Internal Logic • Count Enable • Carry Out**

XOR complements each bit AND chain causes complement of a bit if all bits toward LSB from it equal 1 • Count Enable Forces all outputs of AND chain to 0 to “hold” the state • Carry Out Added as part of incrementer Connect to Count Enable of additional 4-bit counters to form larger counters

31
Synchronous Counter

32
**The 74HC163 4-bit synchronous binary counter**

The 74HC163 4-bit synchronous binary counter. (The qualifying label CTR DIV 16 indicates a counter with sixteen states.)

33
Timing example for a 74HC163.

34
**The 74LS160 synchronous BCD decade counter**

The 74LS160 synchronous BCD decade counter. (The qualifying label CTR DIV 10 indicates a counter with ten states.)

35
Timing example for a 74LS160.

36
**Other Counters – Down Counter - counts downward instead of upward**

– Up-Down Counter - counts up or down depending on value a control input such as Up/Down – Parallel Load Counter - Has parallel load of values available depending on control input such as Load • Divide-by-n (Modulo n) Counter – Count is remainder of division by n which n may not be a power of 2 or – Count is arbitrary sequence of n states specifically designed state-by-state – Includes modulo 10 which is the BCD counter

37
**A basic 3-bit up/down synchronous counter (Rev)**

38
**Up/Down Synchronous Counter (Rev)**

Up Synchronous Counter : UP is set to ‘1’ and AND gate 1 is active causing output OR gate 1 is HIGH. This will cause Q1 output toggling. The AND gate 2 also active causes Q2 toggling Because of JK connection from Q output, the counting sequence is UP. Down Synchronous Counter : DOWN is set to ‘1’ and AND gate 3 is active causing output OR gate 1 is HIGH. This will cause Q1 output toggling. The AND gate 4 also active causes Q2 toggling Because of JK connection from Q output, the counting sequence is UP

39
**Timing Diagram Up/Down Synchronous Counter (Rev)**

40
**The 74HC190 up/down synchronous decade counter.**

41
Timing example for a 74HC190.

42
**Counter with Parallel Load**

Add path for input data enabled for Load = 1 Add logic to : Disable count logic for Load = 1 Disable feedback from outputs for Load = 1 Enable count logic for Load = 0 & Count = 1

43
**Counter with Parallel Load**

The resulting function table : Load Count Action Hold Stored Value 1 Count Up Stored Value X Load D

45
**Converting parallel load counter into sync. BCD counter**

Connect an external AND gate to LOAD Start with all-zero output (0000) COUNT input always HIGH (1) BCD counts from 0000 to 1001 To ensure LOAD = 1, Q0 and Q3 must be HIGH LOAD input (D0 D3) = 0000

46
**Converting parallel load counter into sync. BCD counter**

47
**Synchronous BCD Counter**

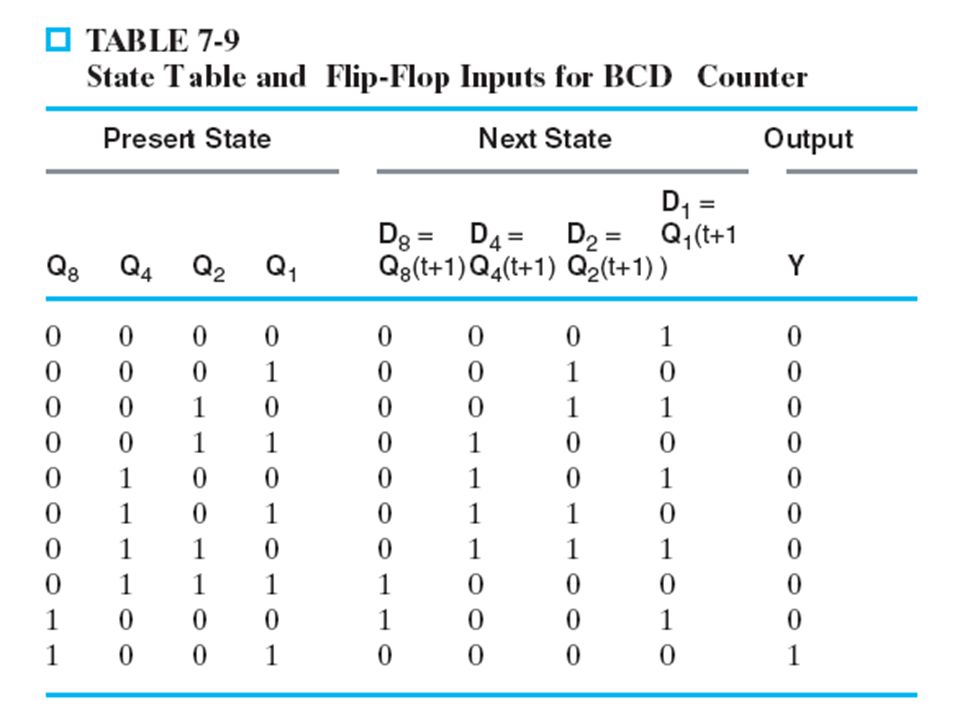

Present State Next State Q8 Q4 Q2 Q1 D8 D4 D2 D1 1 .. Using D – type FF, list the present and next states in this Table.

49
**Synchronous BCD Counter**

Y = 1, when present state = 1001 FF input equations Obtained from next – state values Simplify using K – map 1010 1111 (don’t care) Y = Q1Q8

50
Counting Modulo N A counter that goes through a repeated sequence of N states Maximum decimal number to be counted : If Mod 16, then the max decimal number is 15 If Mod N = 2n then the max decimal counted is N-1 To determine the required number of flip-flops: n flip-flop 2n output = Mod N

51
Counting Modulo 7 Use a synchronous 4 – bit binary counter with a synchronous load and clear LOAD – detect count “6” and load “0” Gives count of ( 0,1,2,3,4,5,6,0,1….) Using don’t care for states above 0110, detect number “6” when LOAD = Q2.Q1

52
Counting Modulo 7

53
**Counting Modulo 6 : special requirement**

Requirement : synchronously preset “9” on RESET and LOAD “9” on terminal count “14” Use a synchronous, 4 – bit counter with a synchronous LOAD Use LOAD signal to : preset count to “9” detect count “14” Give count of (9,10,11,12,13,14,9,10,…)

54
**Counting Modulo 6 : special requirement**

55
**Arbitrary Count Sequence**

Design a counter with six states as in table below

56
**Arbitrary Count Sequence**

2 states are not included : 011 and 111 Simplified equations :

57
**Arbitrary Count Sequence**

Logic diagram of the counter

58
CASCADE COUNTERS Two cascaded counters (all J and K inputs are HIGH).

59
**A modulus-100 counter using two cascaded decade counters.**

60
Three cascaded decade counters forming a divide-by-1000 frequency divider with intermediate divide- by-10 and divide-by-100 outputs.

61
**Example: Determine the overall modulus of the two cascaded counter for (a) and (b)**

For (a) the overall modulus for the 3 counter configuration is 8 x 12 x 16 = 1536 for (b) the overall modulus for the 4 counter configuration is 10 x 4 x 7 x 5 = 1400

62
**A divide-by-100 counter using two 74LS160 decade counters.**

63
**A divide-by-40,000 counter using 74HC161 4-bit binary counters**

A divide-by-40,000 counter using 74HC161 4-bit binary counters. Note that each of the parallel data inputs is shown in binary order (the right-most bit D0 is the LSB in each counter).

64
**Decoding of state 6 (110). COUNTER DECODING**

* To determine when the counter is in a certain states in its sequence by using decoders or logic gates. Decoding of state 6 (110).

65
**A 3-bit counter with active-HIGH decoding of count 2 and count 7.**

66
**A basic decade (BCD) counter and decoder.**

67
**Outputs with glitches from the previous decoder**

Outputs with glitches from the previous decoder. Glitch widths are exaggerated for illustration and are usually only a few nanoseconds wide.

68
**The basic decade counter and decoder with strobing to eliminate glitches.**

69
**Strobed decoder outputs for the circuit**

70
**Simplified logic diagram for a 12-hour digital clock.**

71
Logic diagram of typical divide-by-60 counter using 74LS160A synchronous decade counters. Note that the outputs are in binary order (the right-most bit is the LSB).

72
**Logic diagram for hours counter and decoders**

Logic diagram for hours counter and decoders. Note that on the counter inputs and outputs, the right-most bit is the LSB.

73
**Functional block diagram for parking garage control.**

74
**Logic diagram for modulus-100 up/down counter for automobile parking control.**

75
**Parallel-to-serial data conversion logic.**

76
**Example of parallel-to-serial conversion timing for the previous circuit**

77
