1. Points, Lines, and Planes

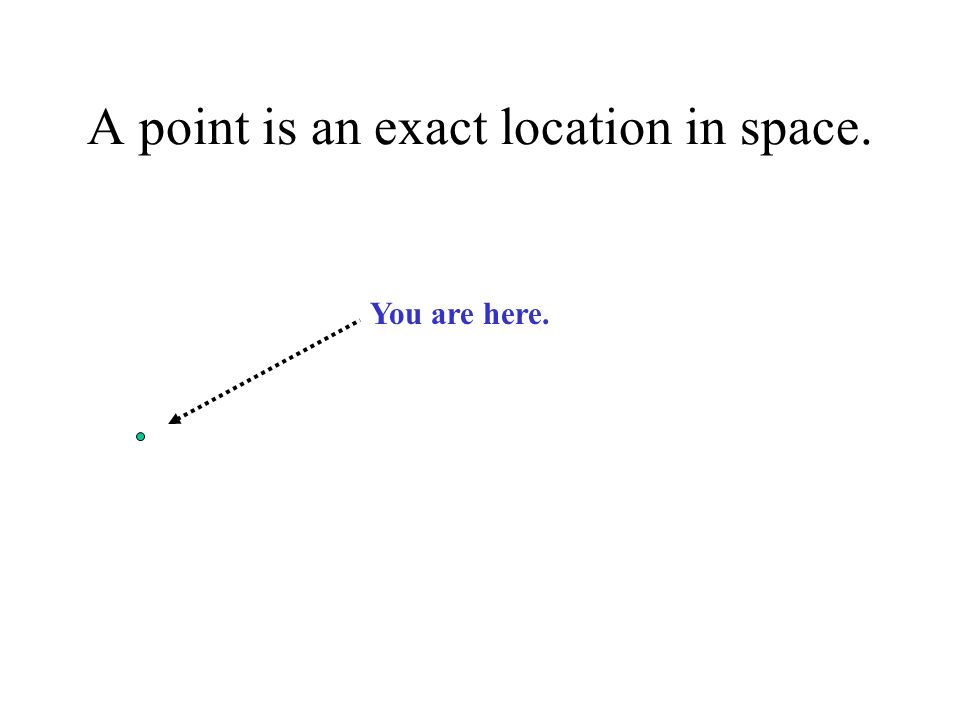

2. A point is an exact location in space. You are here.

3. A true point has no length, no width, and no height. In fact, you cannot see a true point.

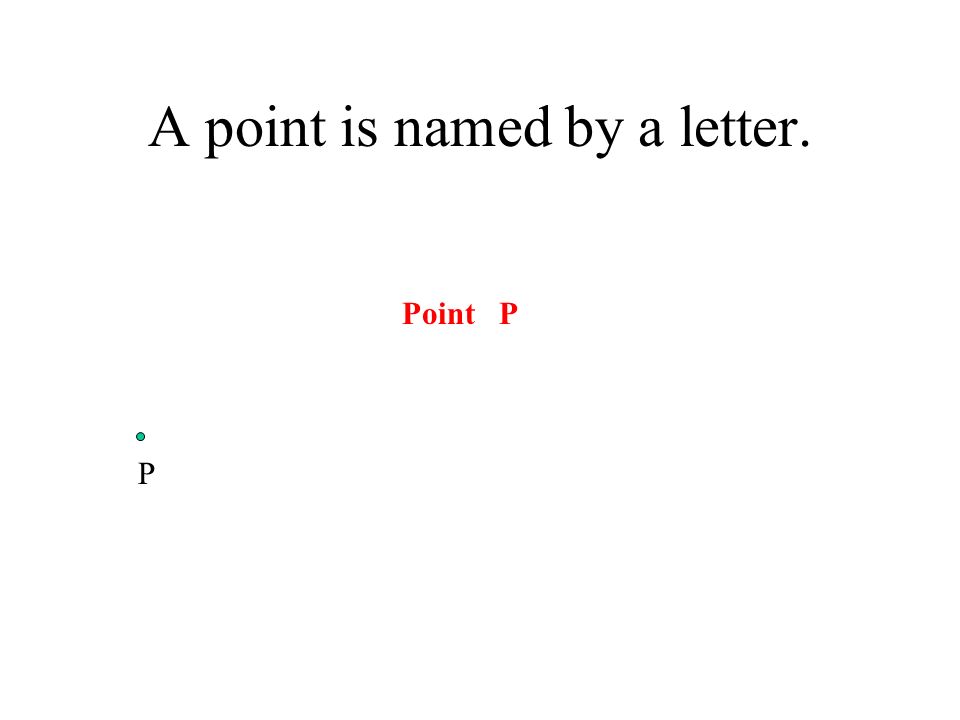

4. A point is named by a letter. P Point P

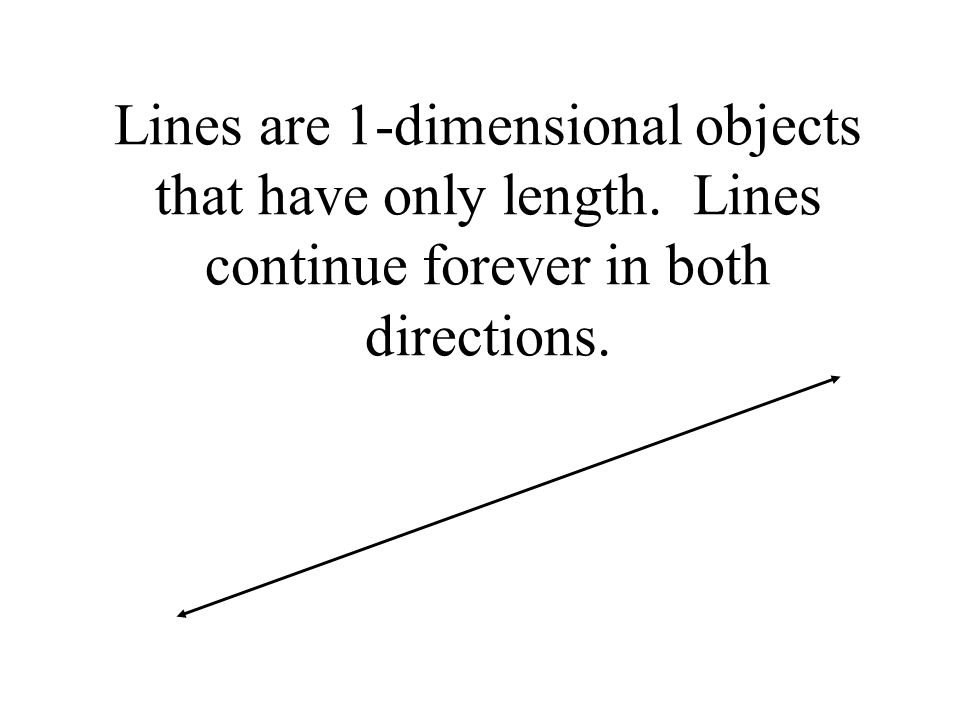

5. Lines are 1-dimensional objects that have only length. Lines continue forever in both directions.

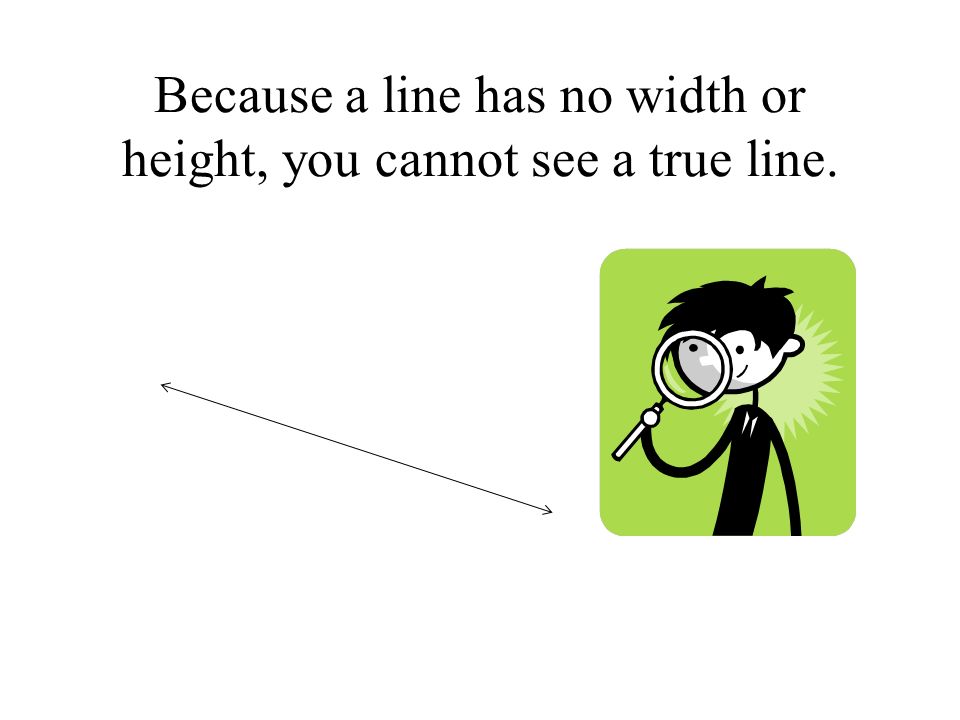

6. Because a line has no width or height, you cannot see a true line.

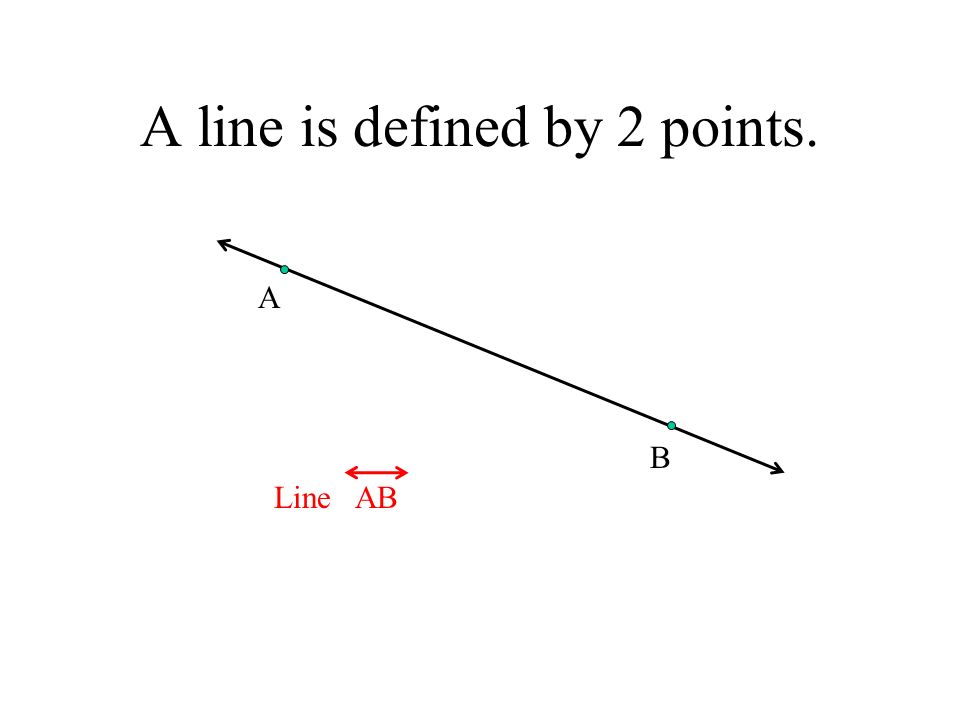

7. A line is defined by 2 points. A B Line AB

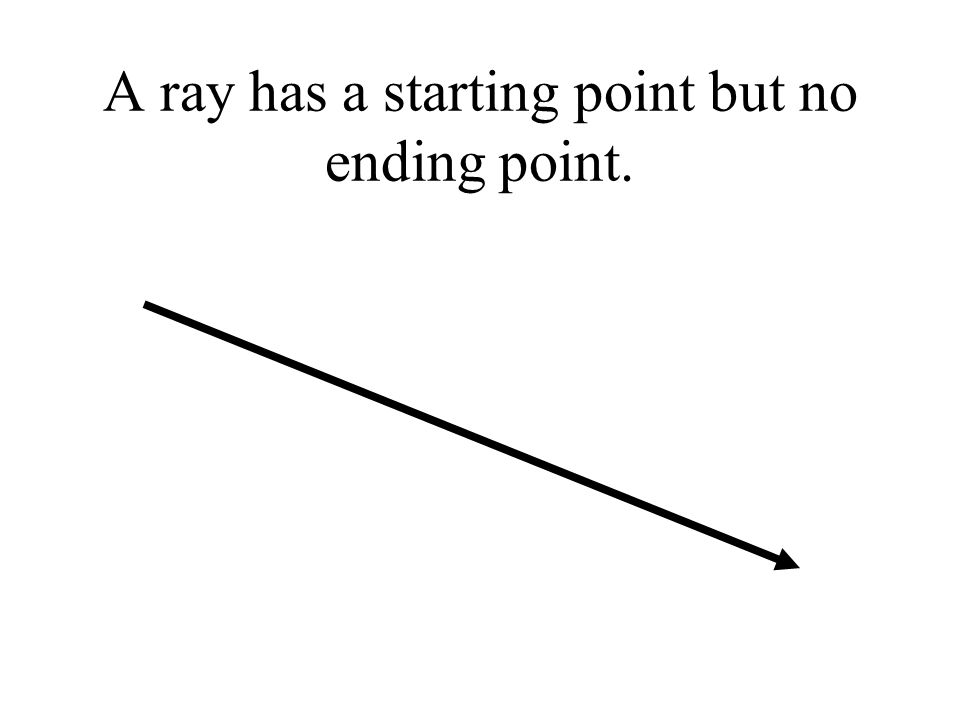

8. A ray has a starting point but no ending point.

9. A ray of light has a starting point (like the sun) and continues forever in the same direction.

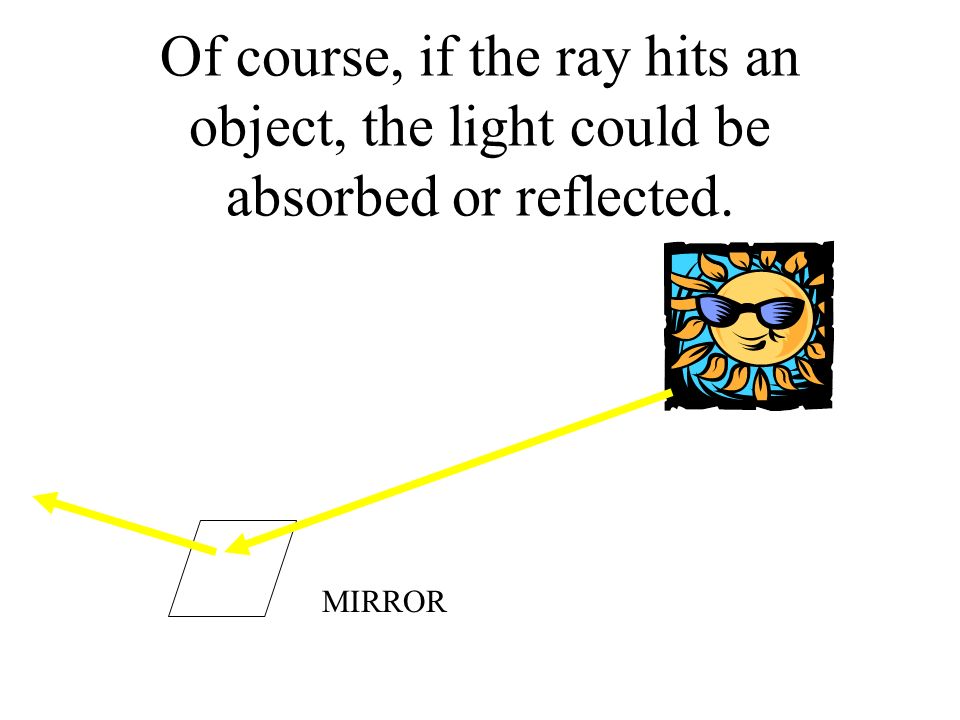

10. Of course, if the ray hits an object, the light could be absorbed or reflected. MIRROR

11. A ray is also defined by 2 points. C D Ray CD

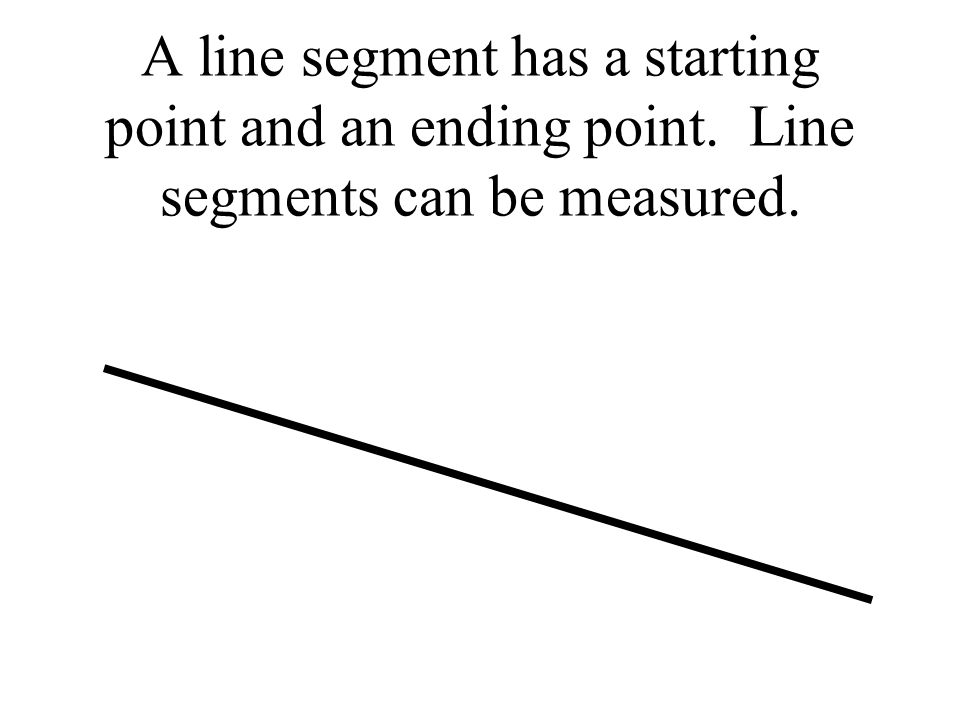

12. A line segment has a starting point and an ending point. Line segments can be measured.

13. A line segment also defined by 2 points. E F Line Segment EF

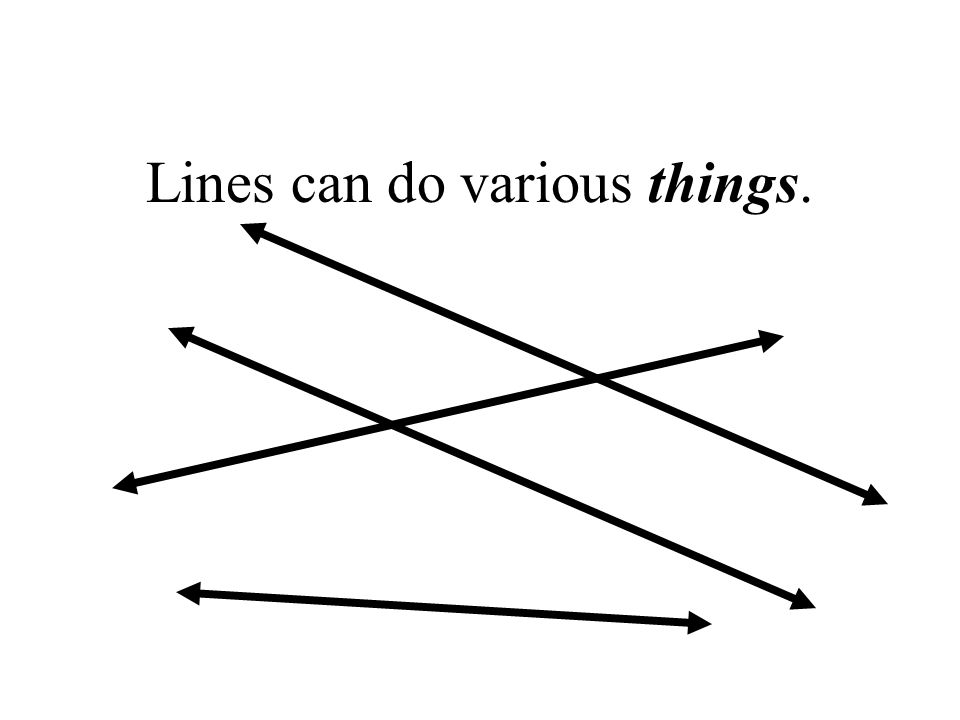

14. Lines can do various things.

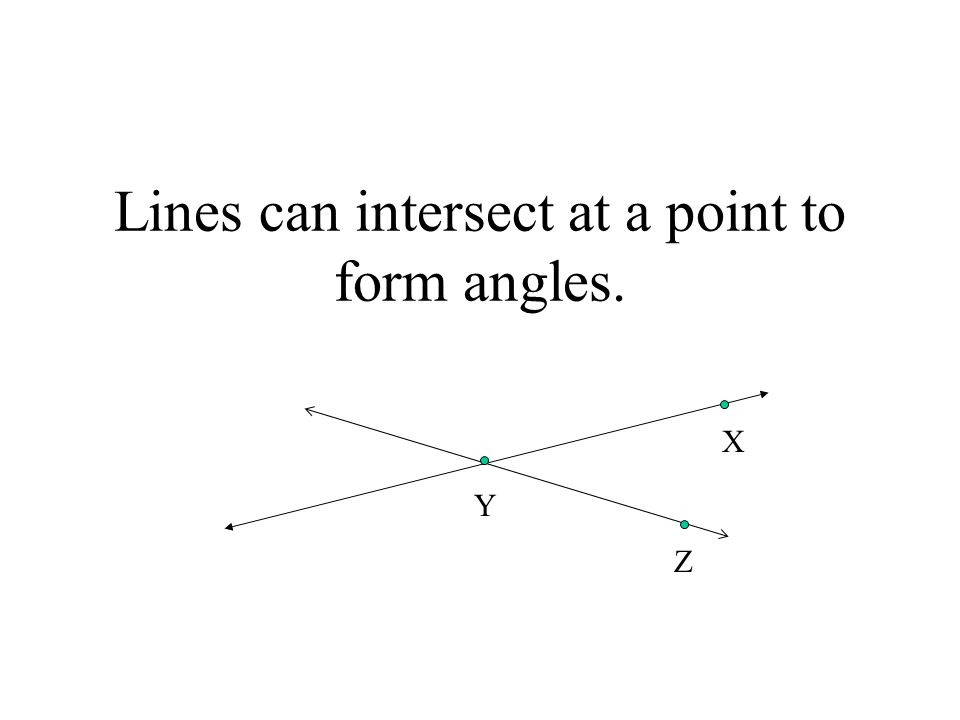

15. Lines can intersect at a point to form angles. X Y Z

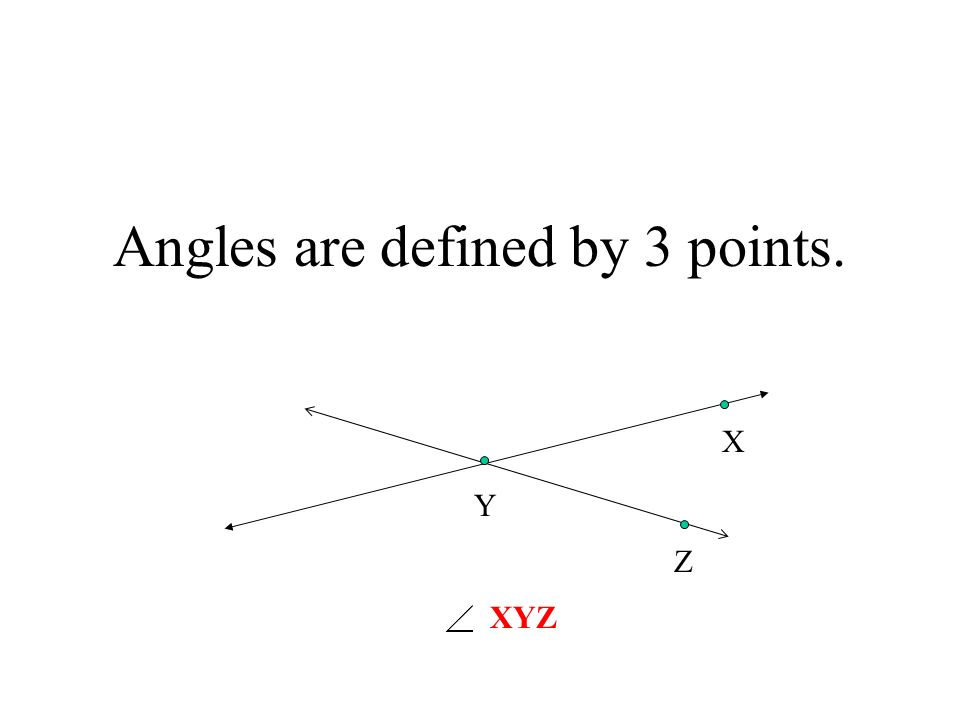

16. Angles are defined by 3 points. X Z Y XYZ

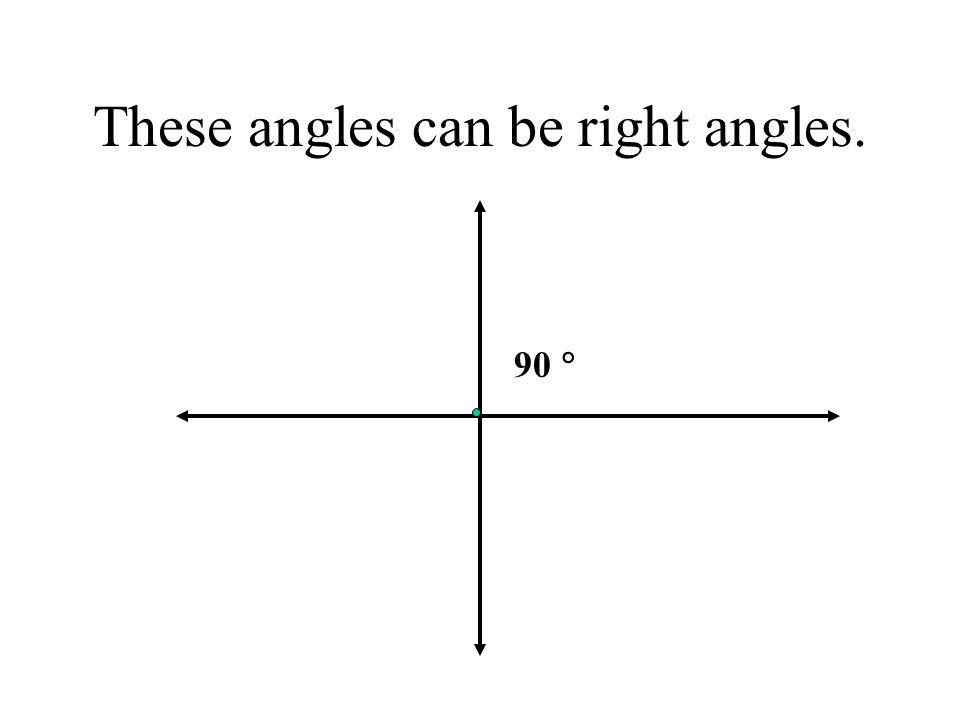

17. These angles can be right angles. 90 

18. These angles can be right angles. c R S T U V RST = 90 ⁰ USR = 90 ⁰ USV = 90 ⁰ TSV = 90 ⁰

19. When lines intersect to form right angles, they are said to be perpendicular. V R T U c S UTRV

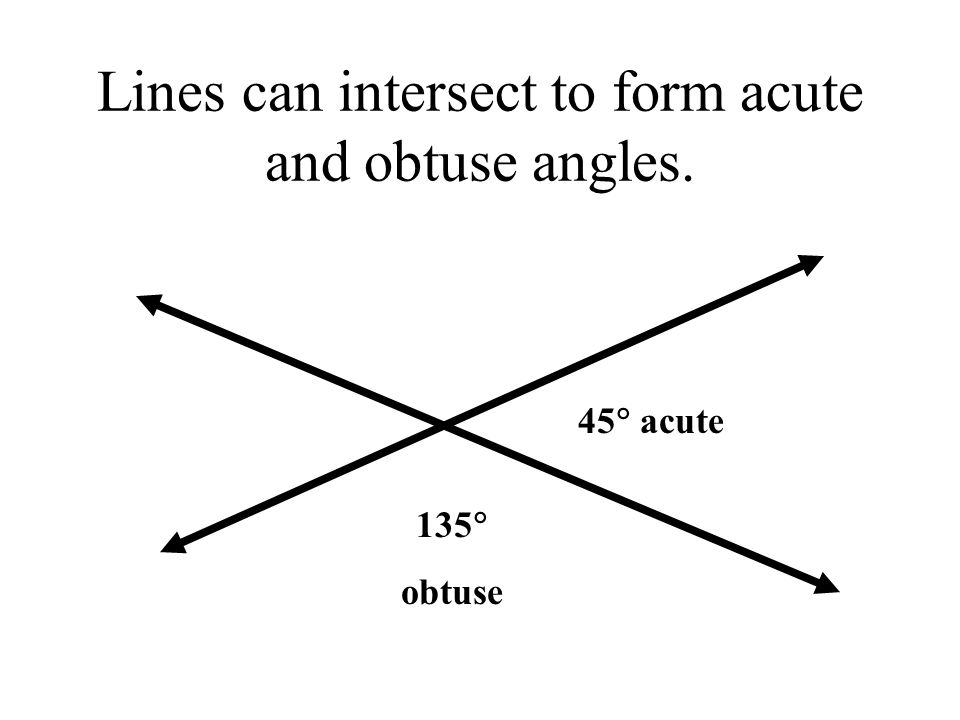

20. Lines can intersect to form acute and obtuse angles. 135  obtuse 45  acute

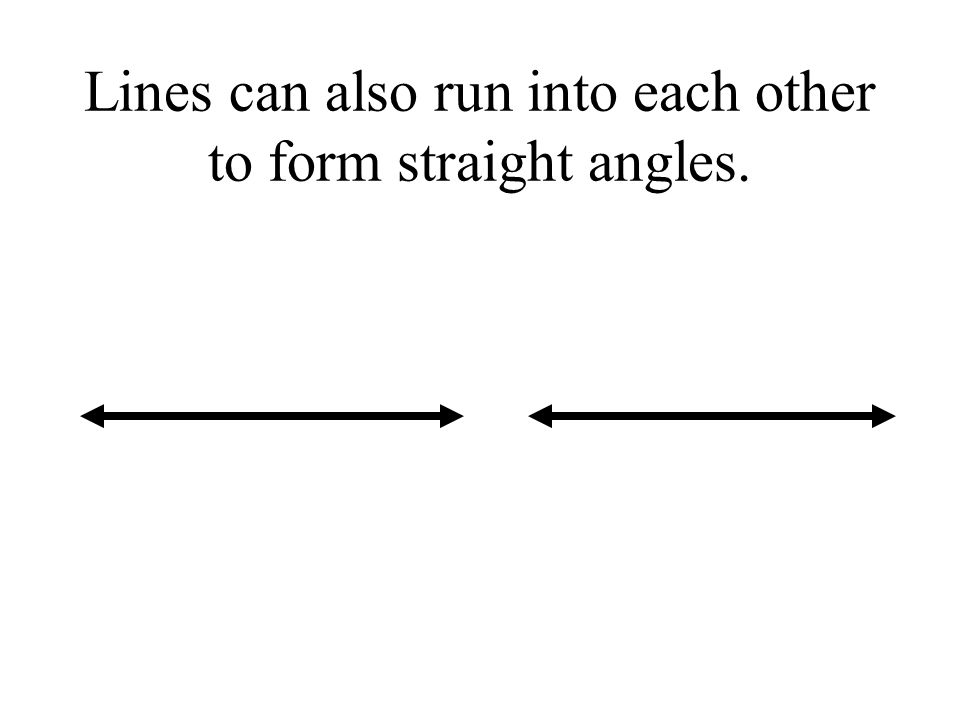

21. Lines can also run into each other to form straight angles.

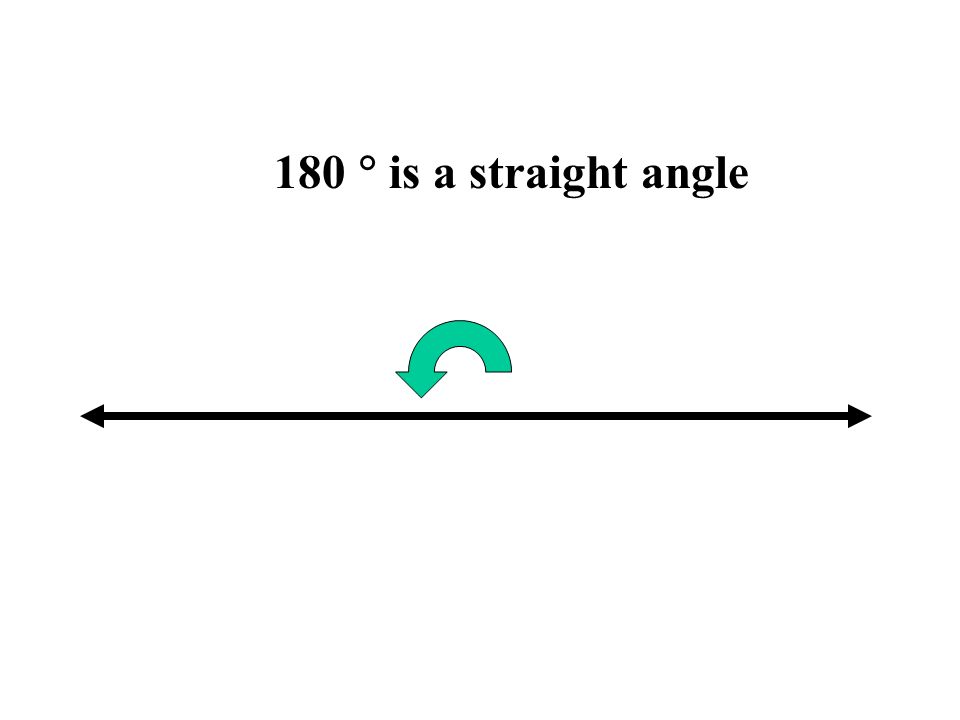

22. 180  is a straight angle

23. Lines do not always intersect.

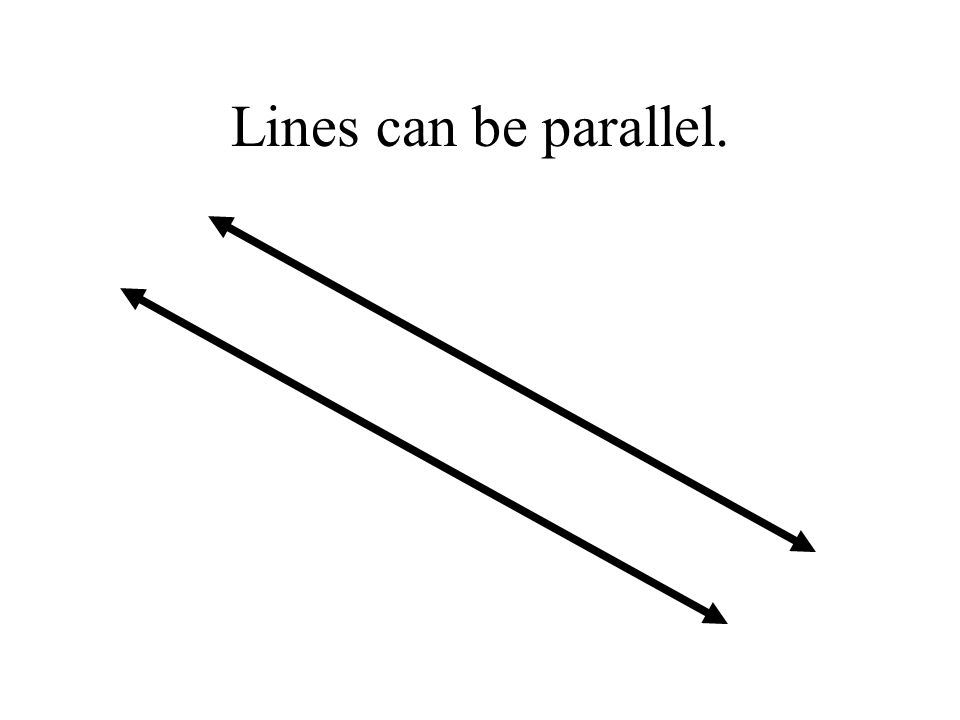

24. Lines can be parallel.

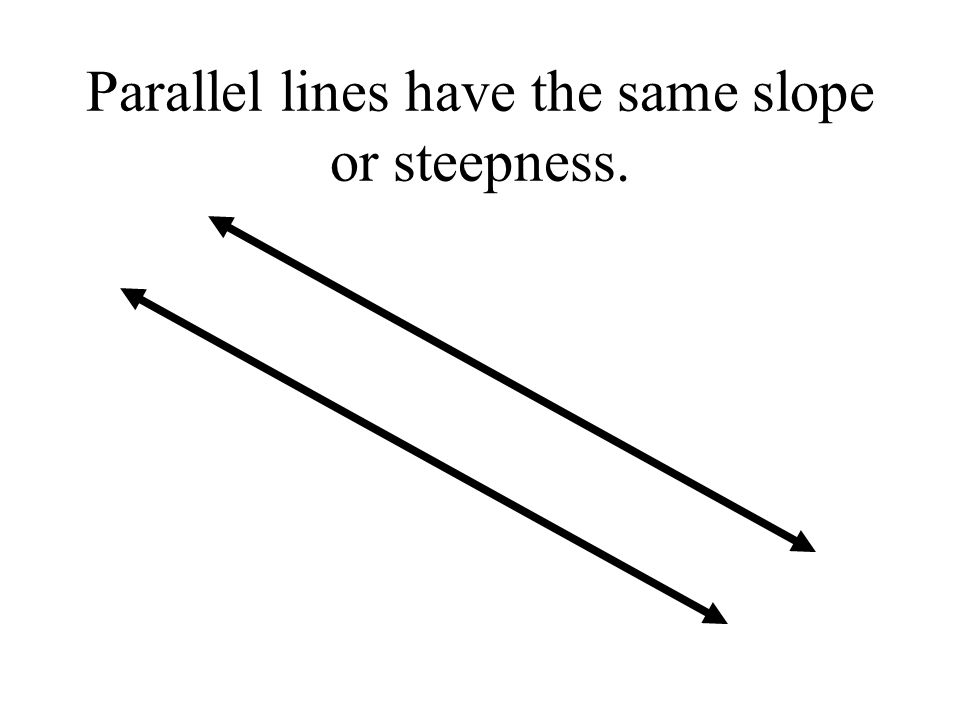

25. Parallel lines have the same slope or steepness.

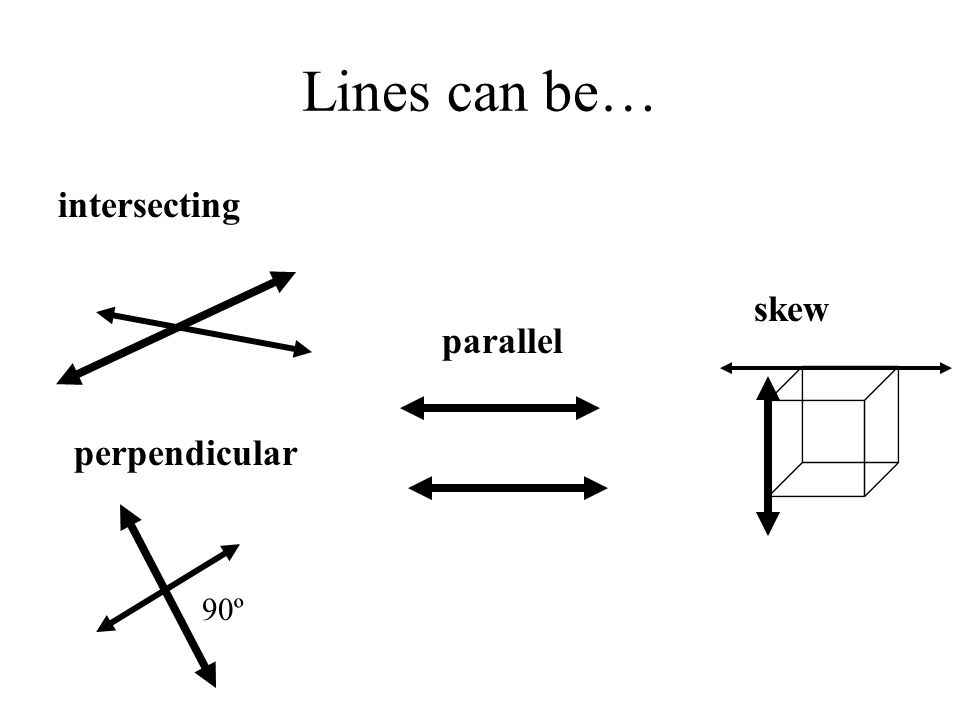

26. Lines can be… intersecting perpendicular 90º parallel skew

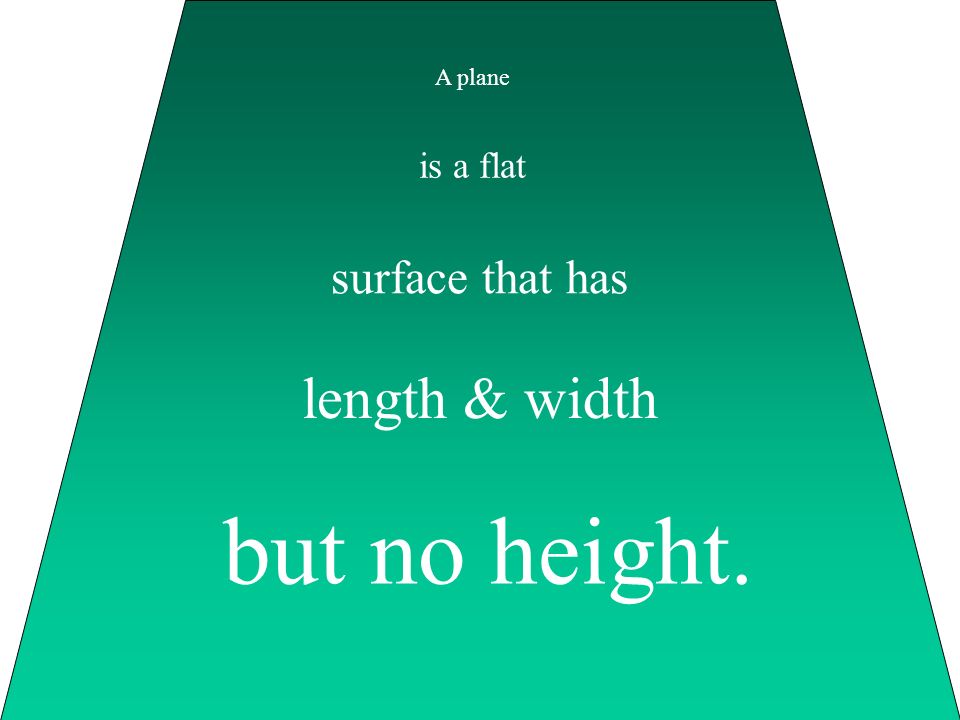

27. A plane is a flat surface that has length & width but no height.

28. You can see a plane only if you view it at a certain angle.

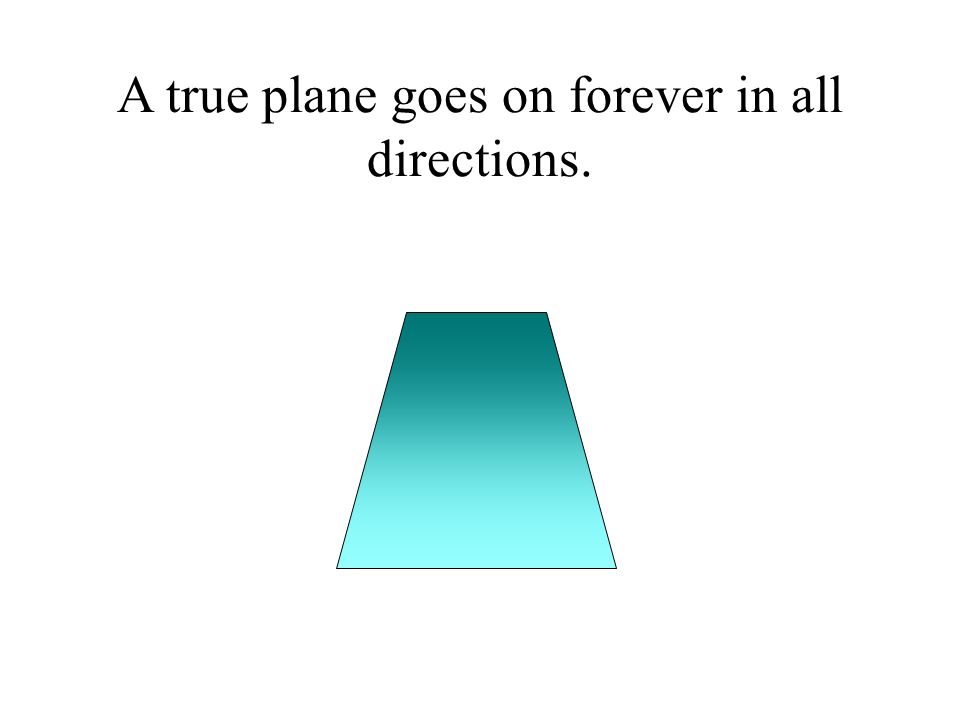

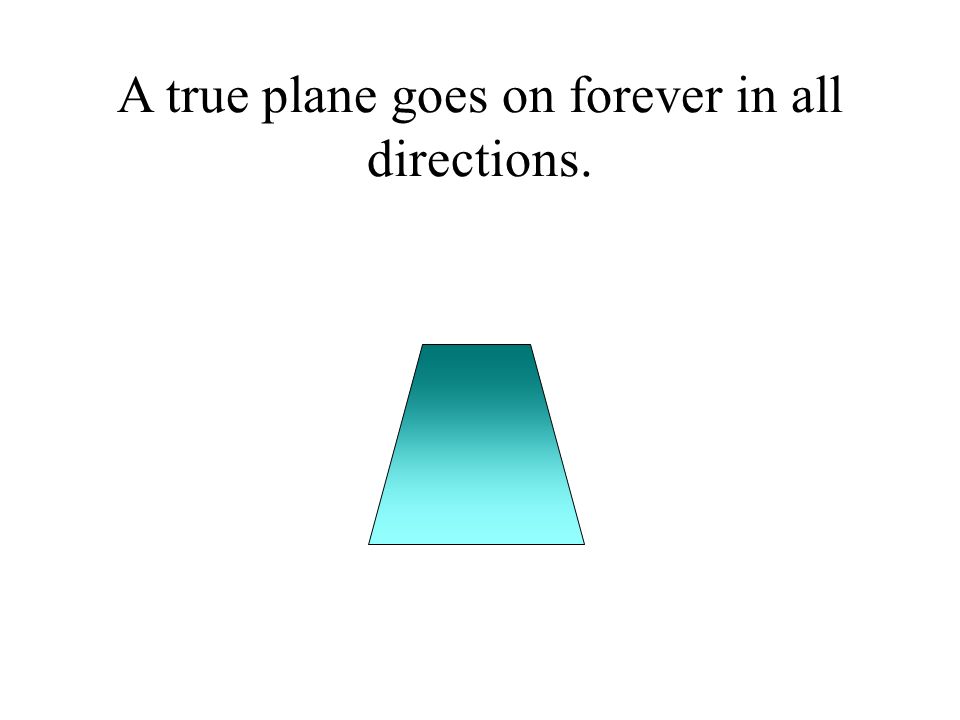

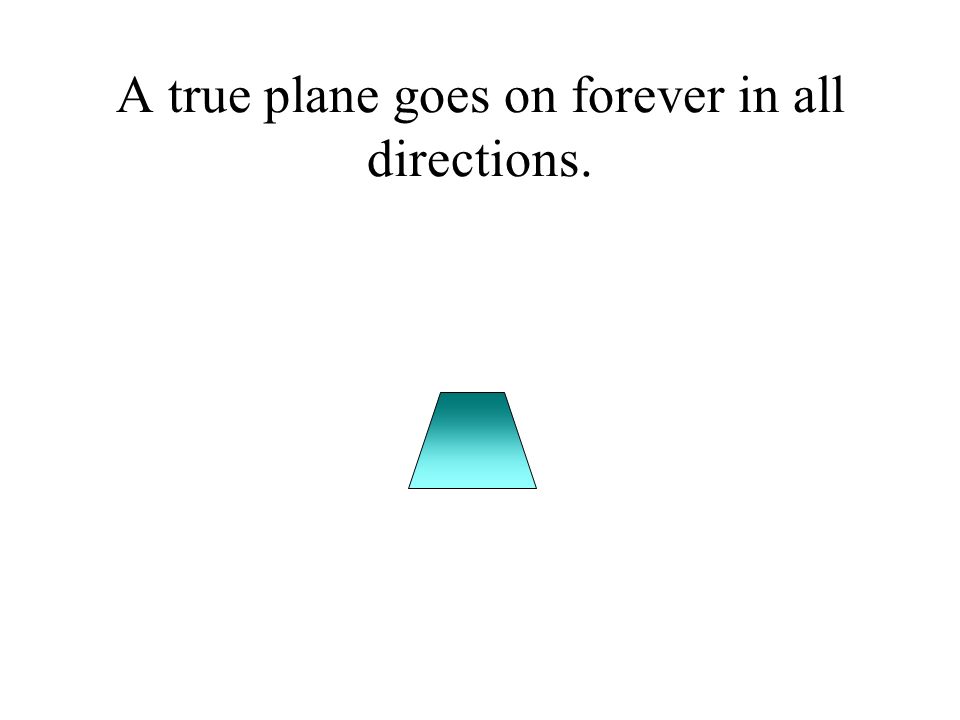

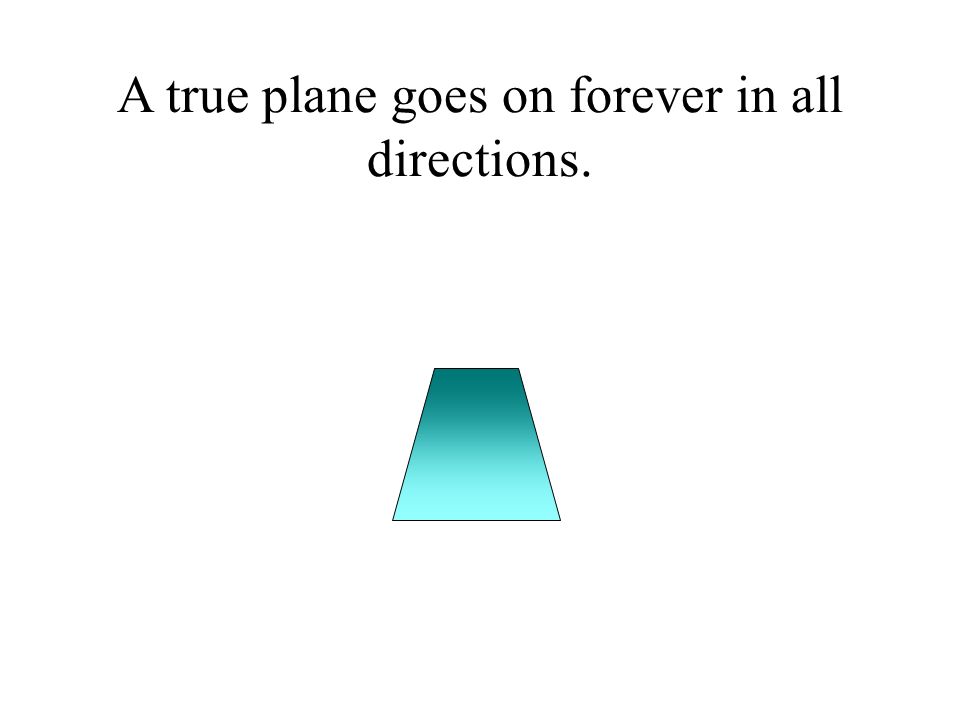

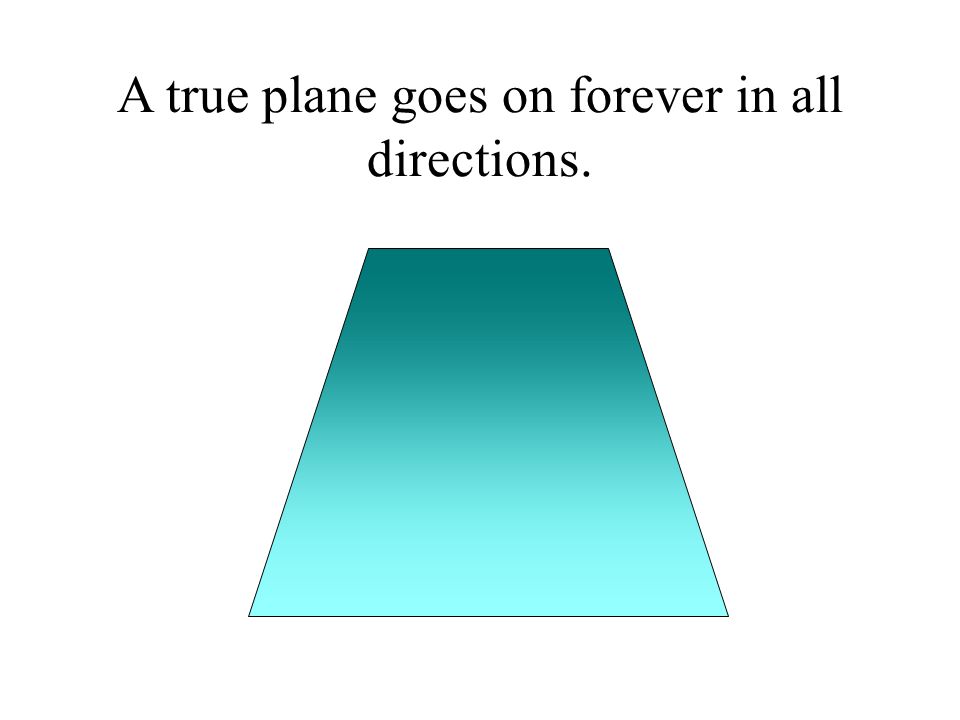

29. A true plane goes on forever in all directions.

34. Planes can…

35. Planes can intersect.

36. An X-Wing fighter from Star Wars has wings that intersect.

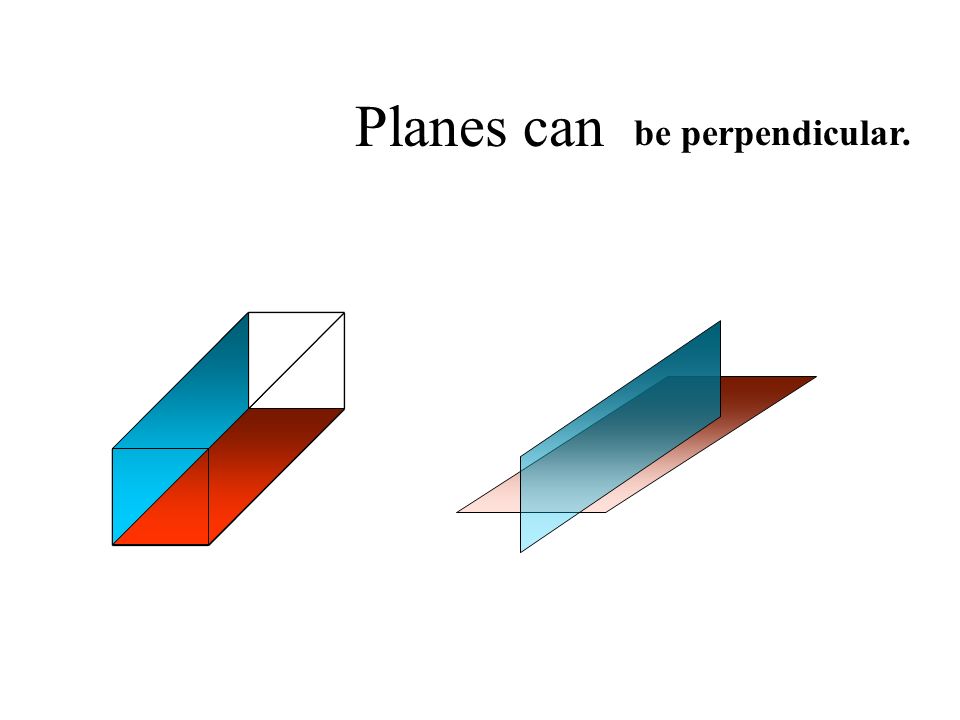

37. Planes can be perpendicular.

38. Planes can be parallel.

39. A Tie Fighter from Star Wars has wings that are parallel.

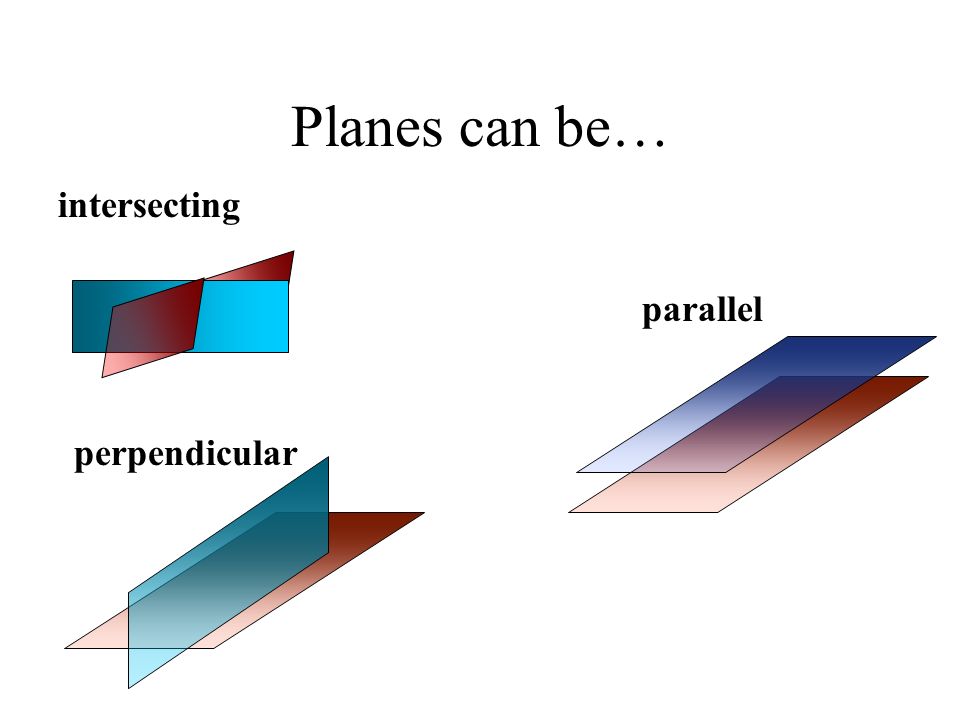

40. Planes can be… intersecting perpendicular parallel

41. The end.
