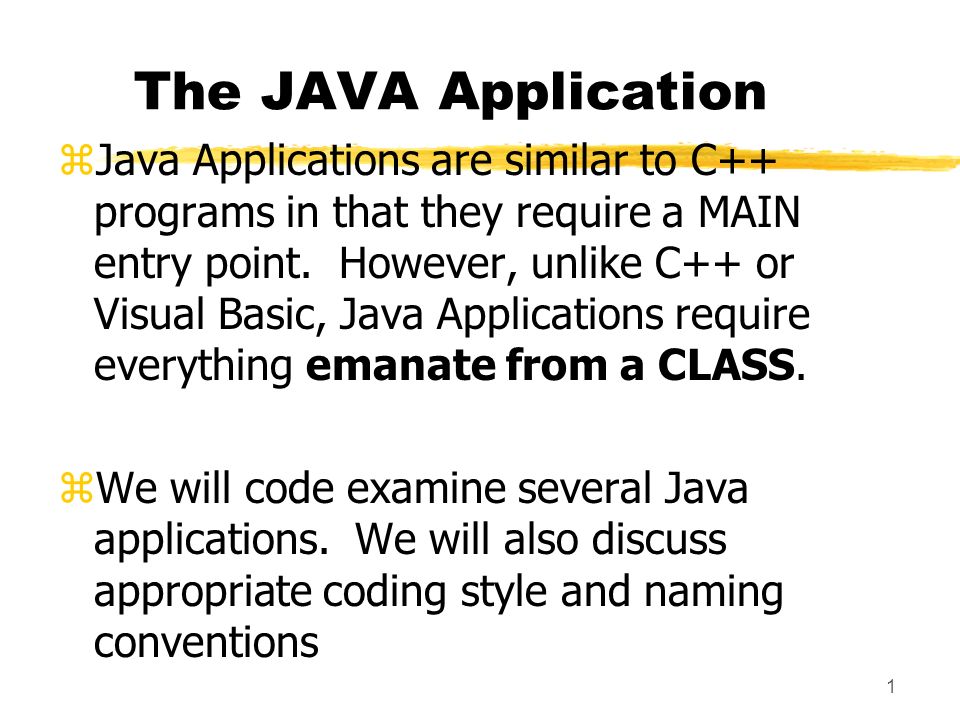

1 1 The JAVA Application zJava Applications are similar to C++ programs in that they require a MAIN entry point. However, unlike C++ or Visual Basic, Java Applications require everything emanate from a CLASS. zWe will code examine several Java applications. We will also discuss appropriate coding style and naming conventions

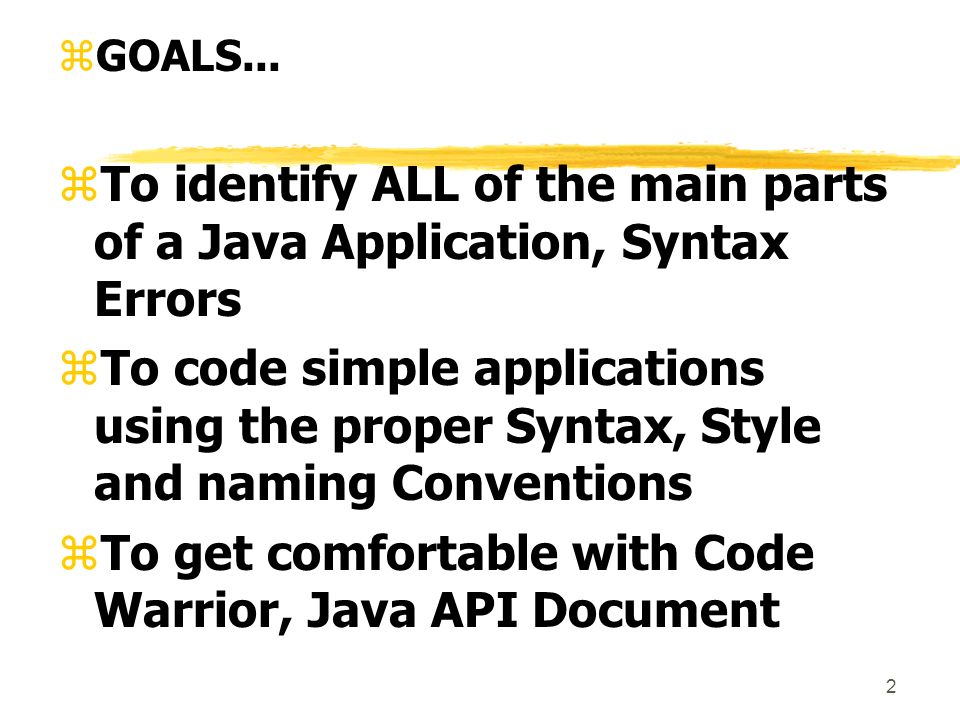

2 2 zGOALS... zTo identify ALL of the main parts of a Java Application, Syntax Errors zTo code simple applications using the proper Syntax, Style and naming Conventions zTo get comfortable with Code Warrior, Java API Document

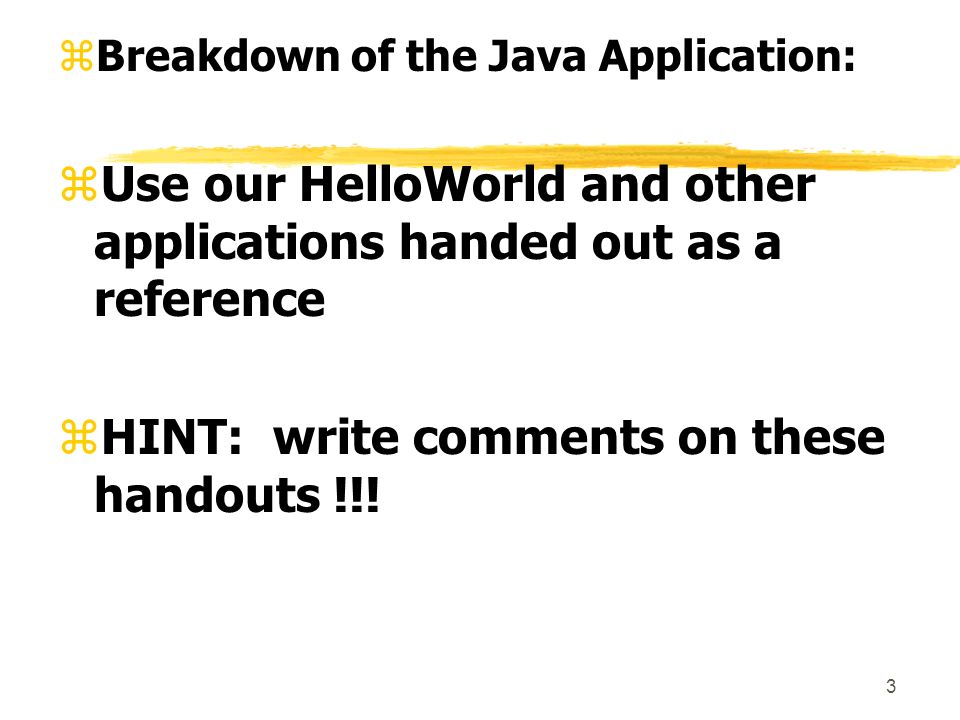

3 3 zBreakdown of the Java Application: zUse our HelloWorld and other applications handed out as a reference zHINT: write comments on these handouts !!!

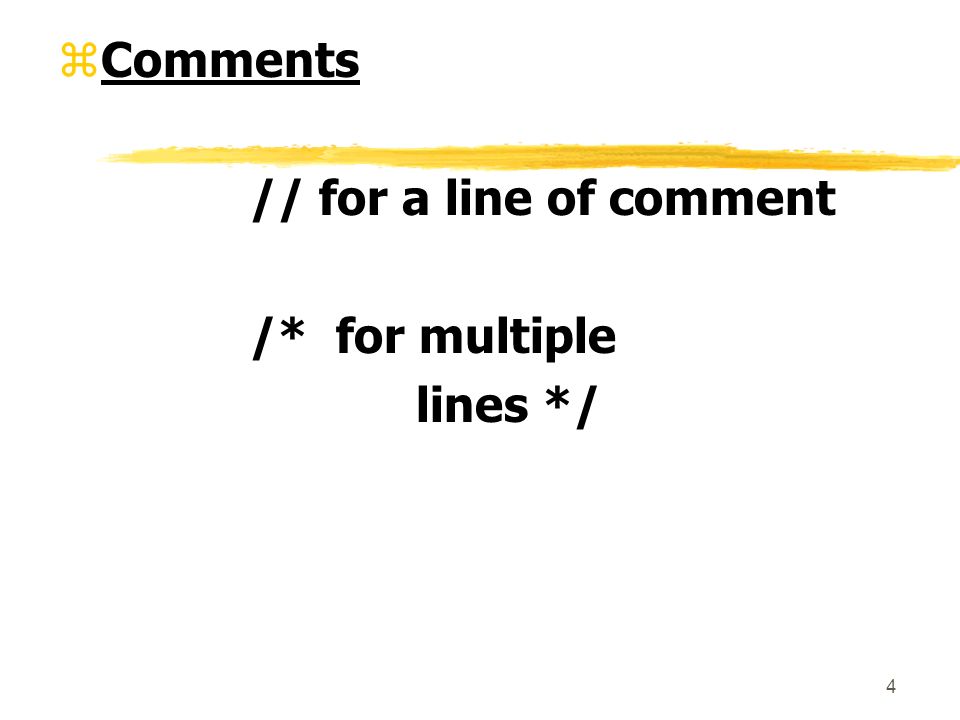

4 4 zComments // for a line of comment /* for multiple lines */

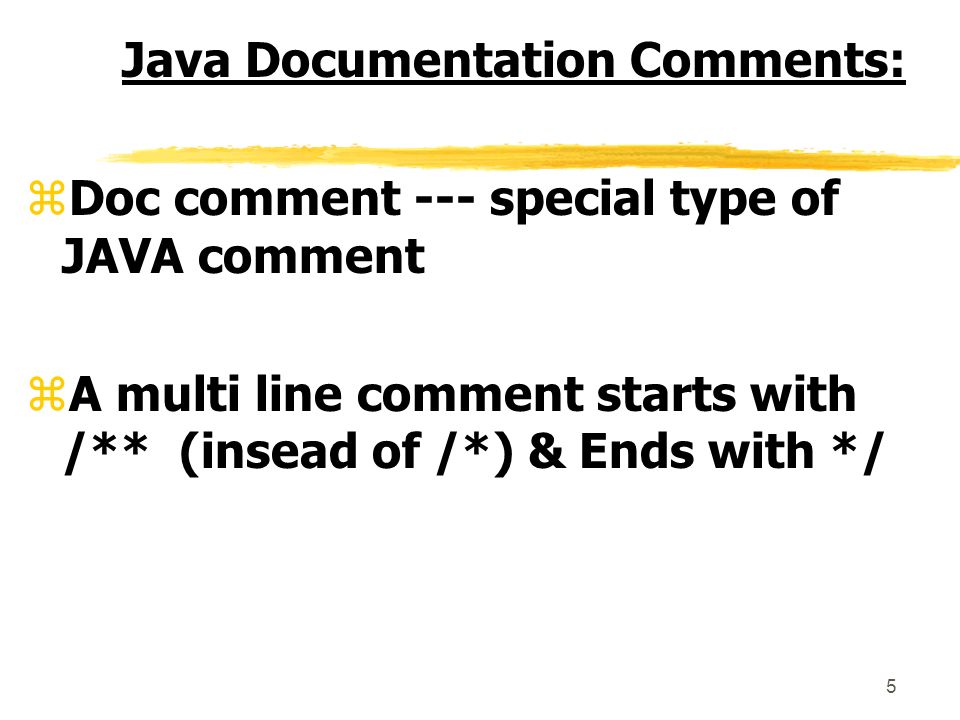

5 5 Java Documentation Comments: zDoc comment --- special type of JAVA comment zA multi line comment starts with /** (insead of /*) & Ends with */

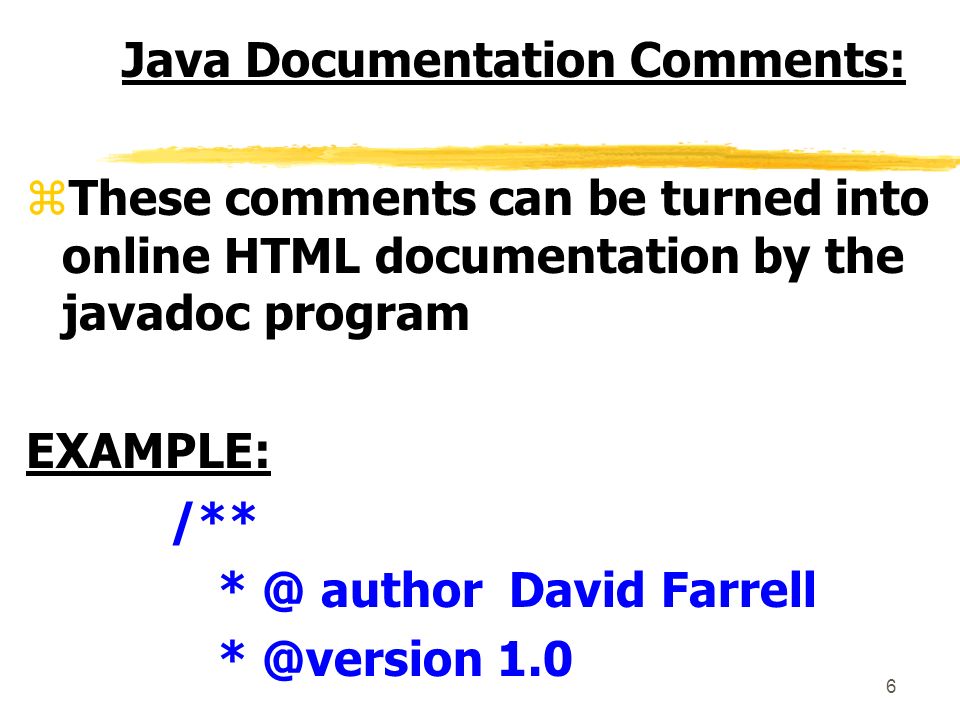

6 6 Java Documentation Comments: zThese comments can be turned into online HTML documentation by the javadoc program EXAMPLE: /** * @ author David Farrell * @version 1.0

7 7 Public Static Void Main: zThe main entry point in a Java Application zThe first code to execute zActually, it is a wrapper for the Java Class that is to execute first zThe classname that has PSVM MUST match the filename

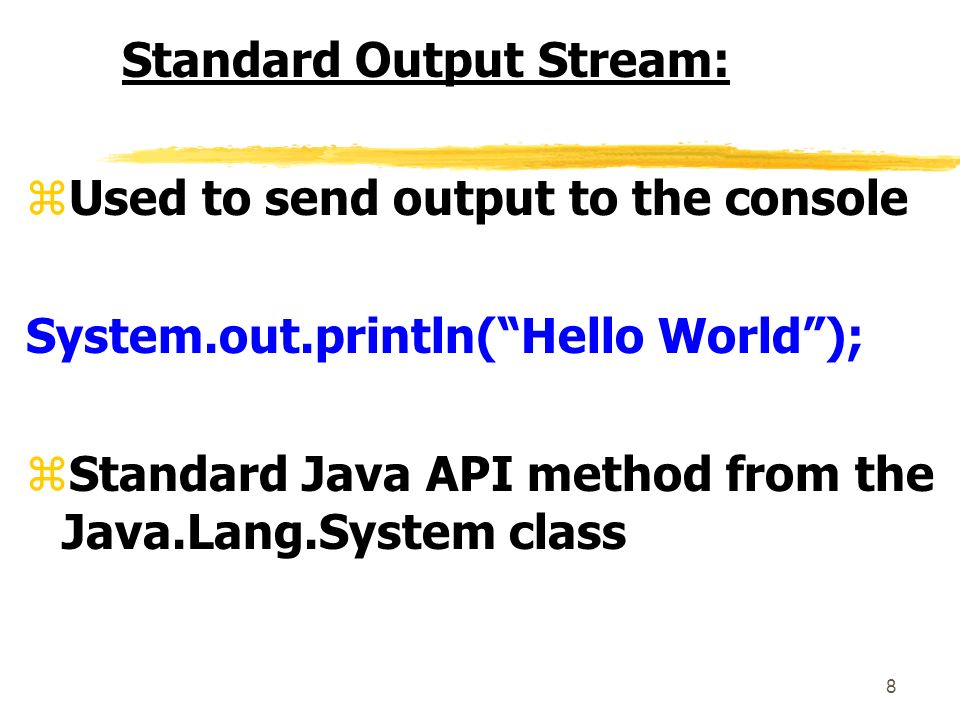

8 8 Standard Output Stream: zUsed to send output to the console System.out.println(“Hello World”); zStandard Java API method from the Java.Lang.System class

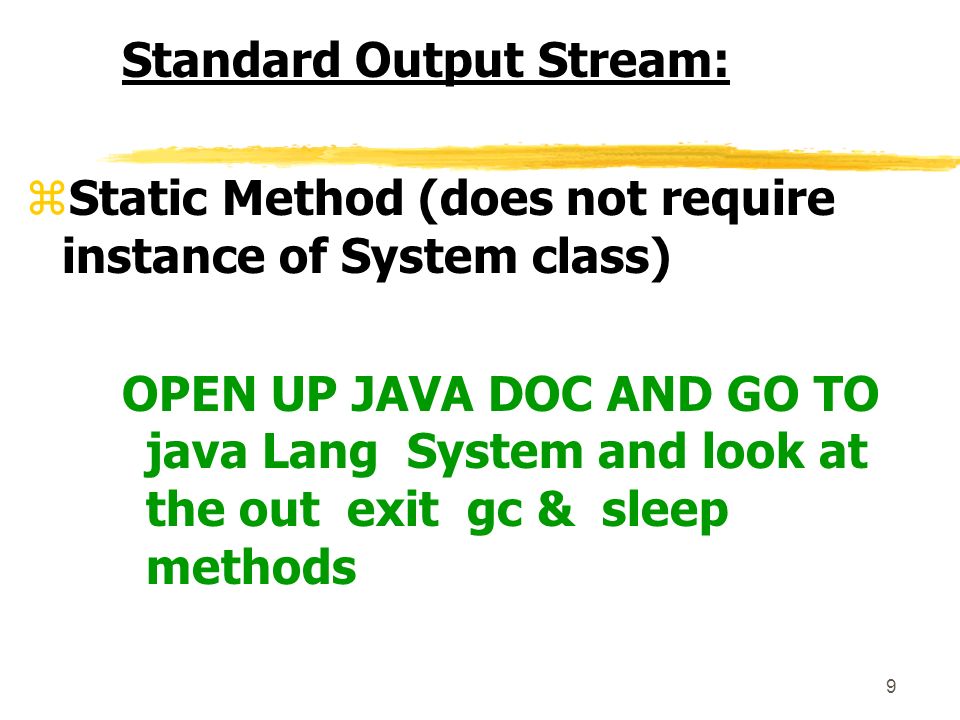

9 9 Standard Output Stream: zStatic Method (does not require instance of System class) OPEN UP JAVA DOC AND GO TO java Lang System and look at the out exit gc & sleep methods

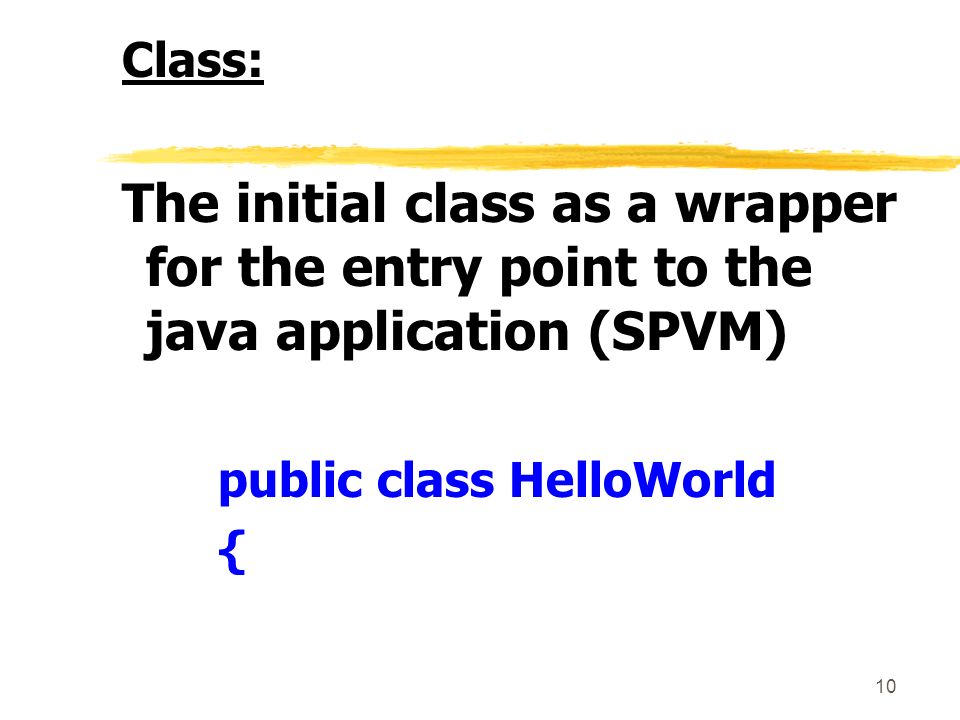

10 10 Class: The initial class as a wrapper for the entry point to the java application (SPVM) public class HelloWorld {

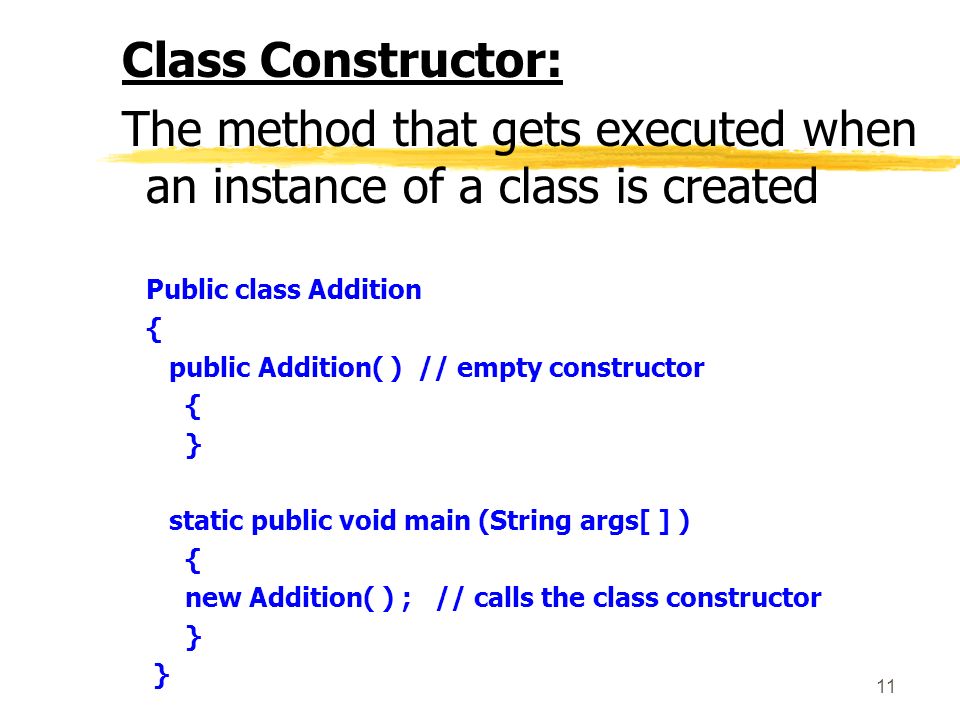

11 11 Class Constructor: The method that gets executed when an instance of a class is created Public class Addition { public Addition( ) // empty constructor { } static public void main (String args[ ] ) { new Addition( ) ; // calls the class constructor }

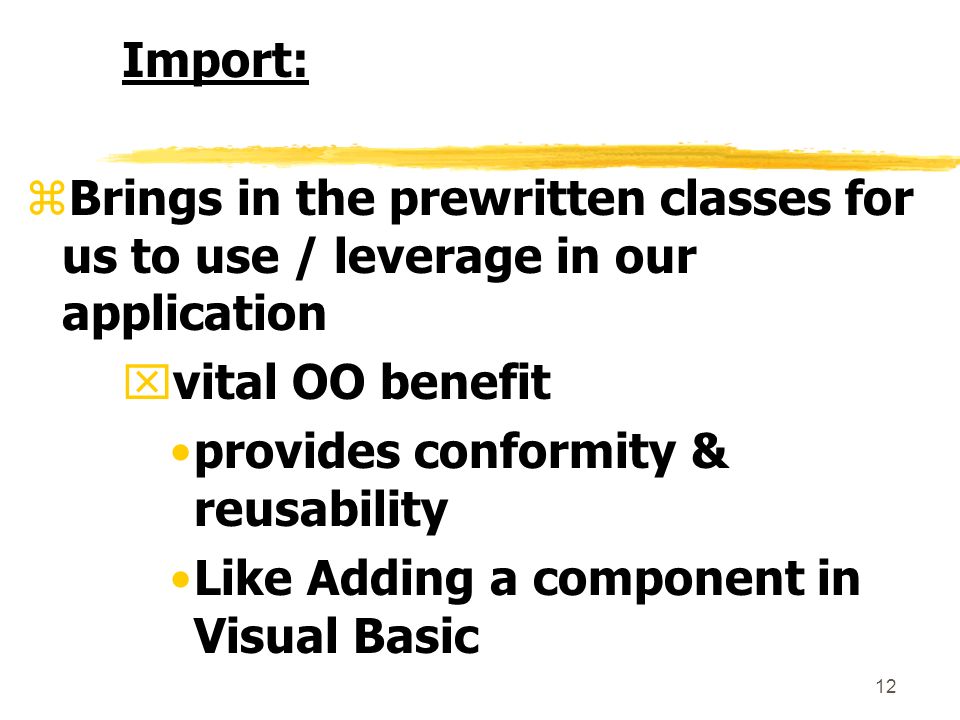

12 12 Import: zBrings in the prewritten classes for us to use / leverage in our application xvital OO benefit provides conformity & reusability Like Adding a component in Visual Basic

13 13 Import: import javax.swing.JOptionPane; zWe now have Access to all the methods of JOptionPane

14 14 Import: zOPEN UP JAVA DOC & GO TO javax swing JOptionPane & look at the showInputDialog method

15 15 Semi-Colon: zEnd of Code segment identified by a semi-colon ;

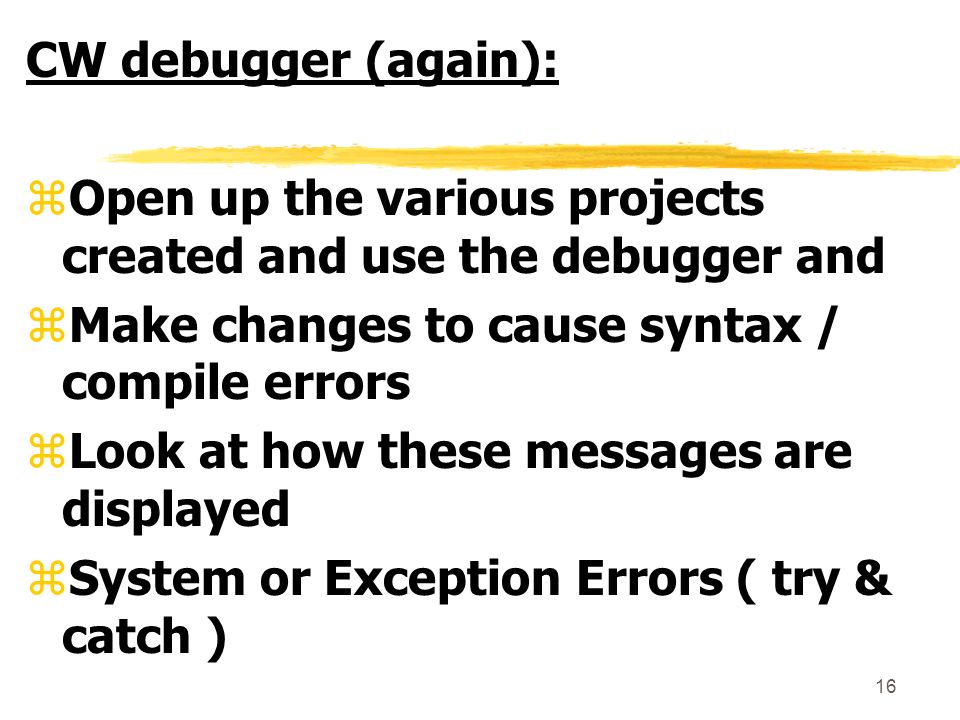

16 16 CW debugger (again): zOpen up the various projects created and use the debugger and zMake changes to cause syntax / compile errors zLook at how these messages are displayed zSystem or Exception Errors ( try & catch )

17 17 Syntax and Style: zJava is case sensitive zRedundant whitespace is ignored zUse blank lines, indenting for better reading of the code

18 18 Syntax and Style: zCompiler catches most syntax errors, but not logic errors “bugs” zJava statements and declarations usually end in a semi-colon

19 19 Syntax and Style: zAll Java reserved words are in Lower Case (see handout) booleancharintnull newtruefalse publicprivateprotected staticclass import iftrycatch zReserved words must be spelled exactly.

20 20 Syntax and Style: zStart ALL class names with a capitol letter (use names that are nouns) String StringBuffer JOptionPane System

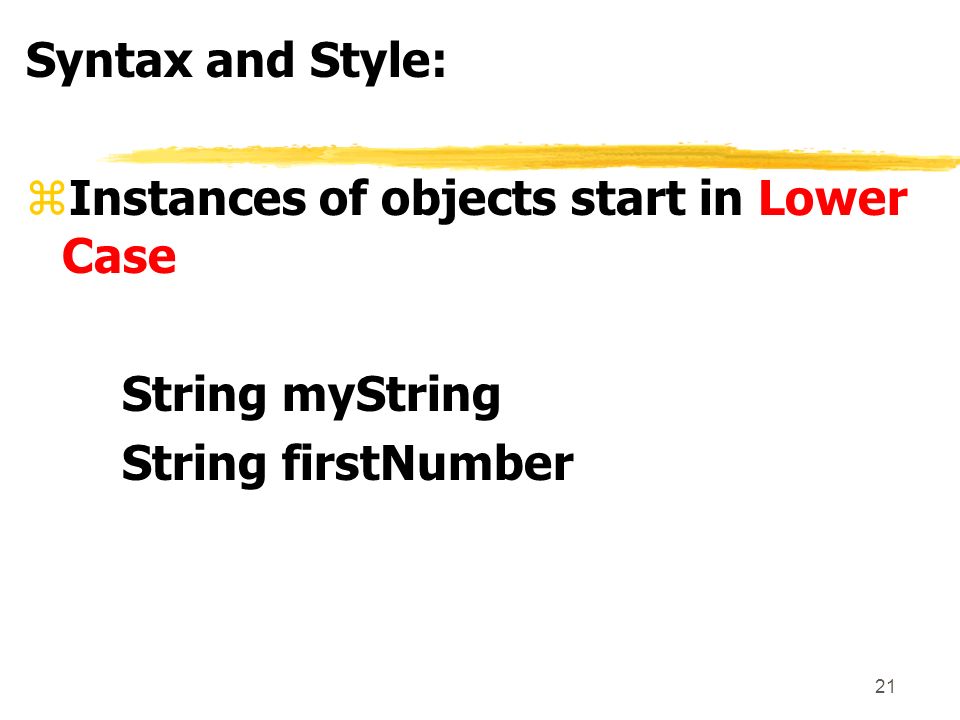

21 21 Syntax and Style: zInstances of objects start in Lower Case String myString String firstNumber

22 22 Syntax and Style: zStart all method names with Lower Case, then Upper Case remaining words (first word as a verb – action) println( ) parseInt( ) insert( ) insertObject( )

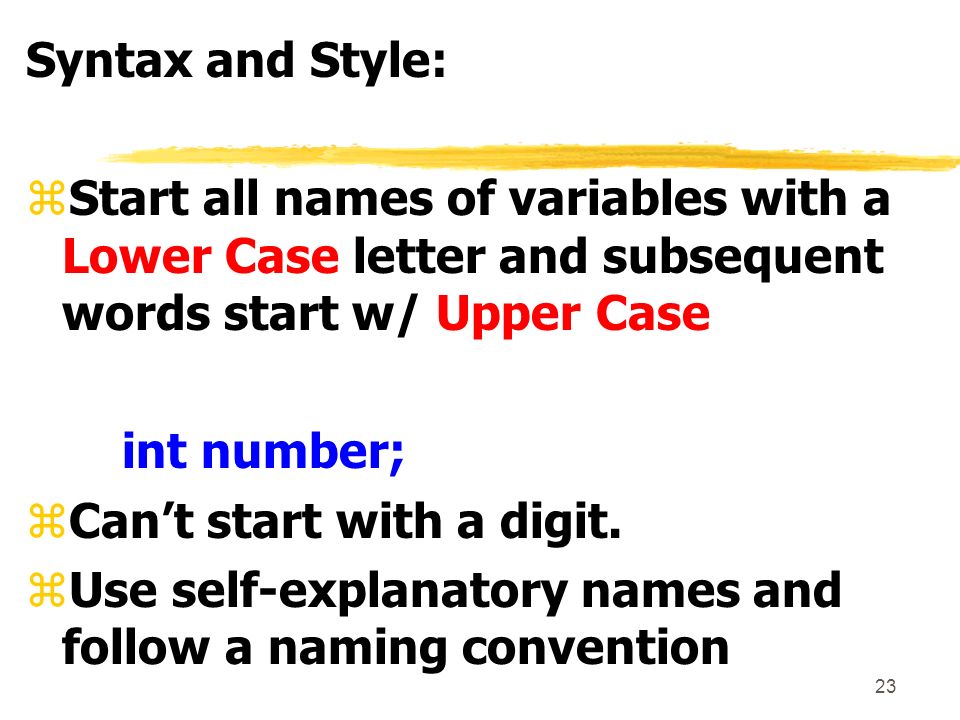

23 23 Syntax and Style: zStart all names of variables with a Lower Case letter and subsequent words start w/ Upper Case int number; zCan’t start with a digit. zUse self-explanatory names and follow a naming convention

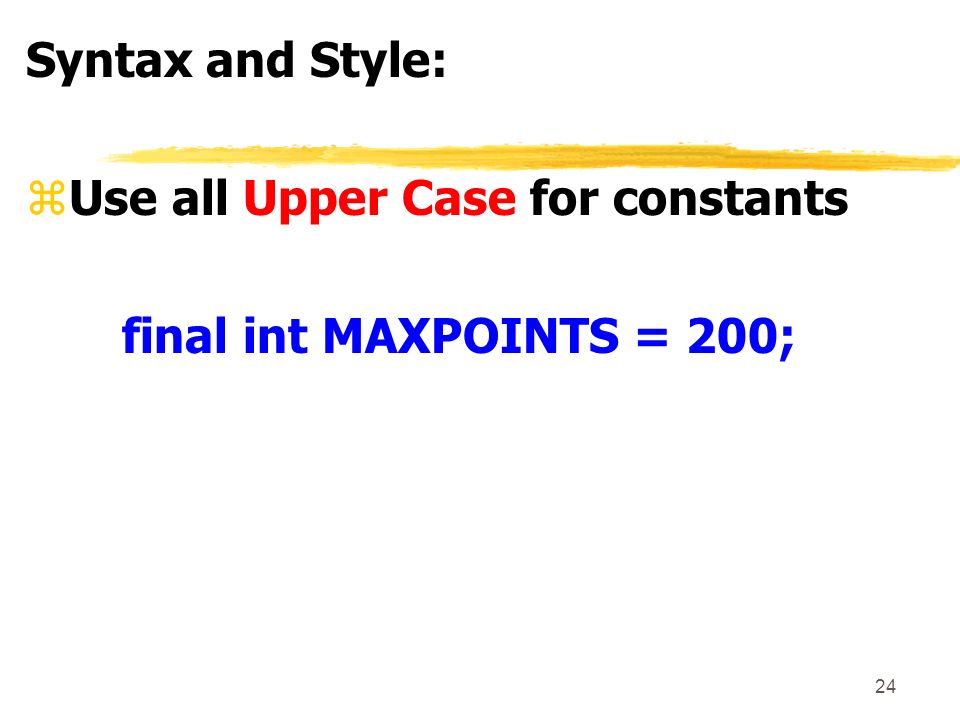

24 24 Syntax and Style: zUse all Upper Case for constants final int MAXPOINTS = 200;

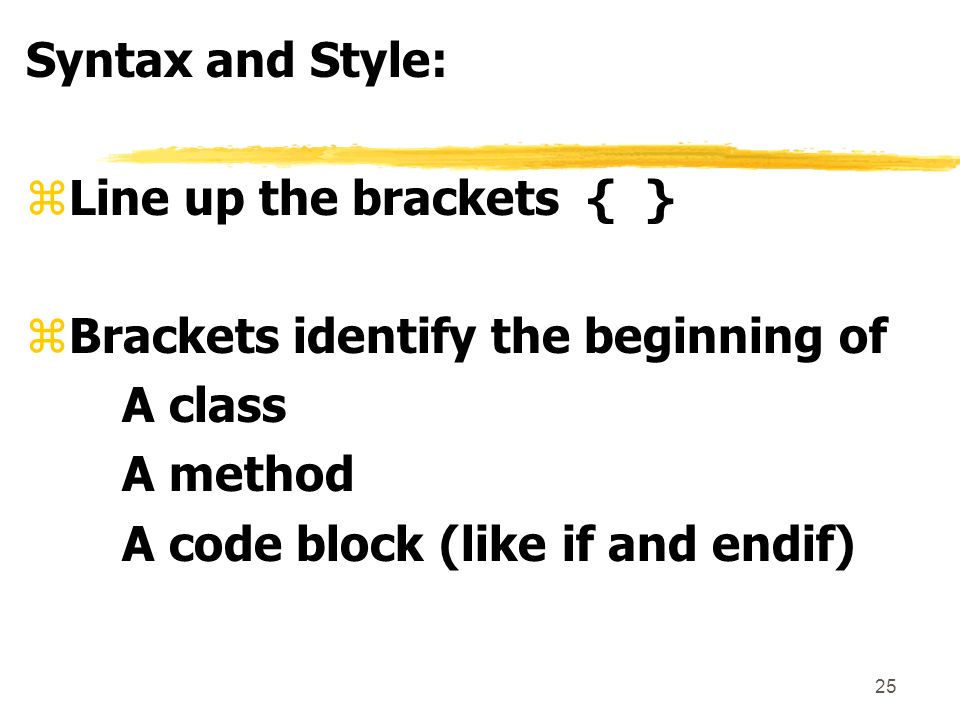

25 25 Syntax and Style: zLine up the brackets { } zBrackets identify the beginning of A class A method A code block (like if and endif)

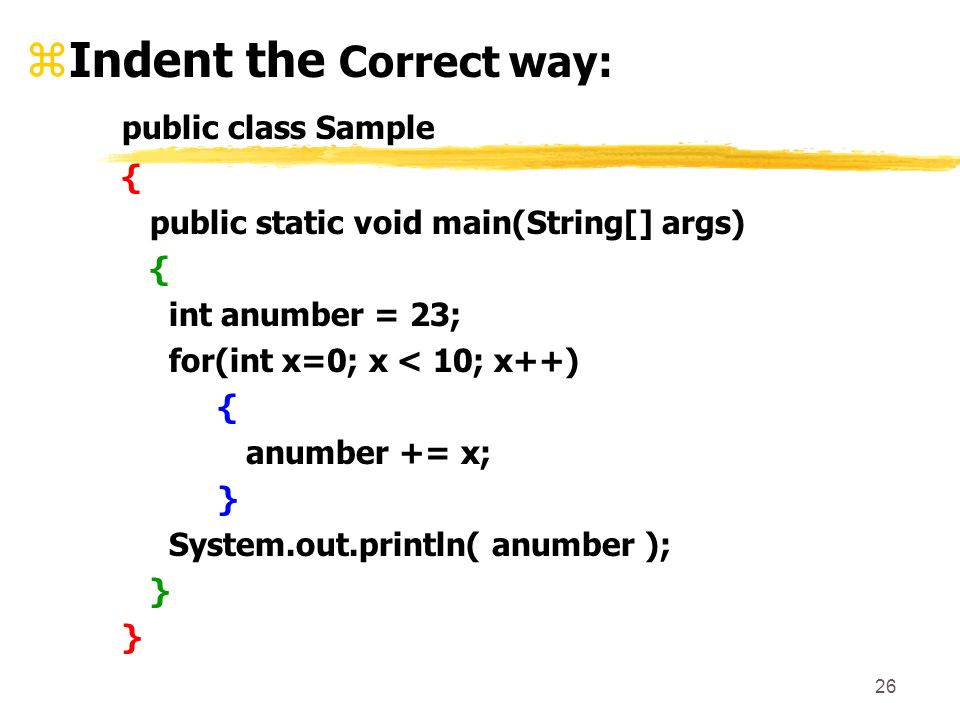

26 26 zIndent the Correct way: public class Sample { public static void main(String[] args) { int anumber = 23; for(int x=0; x < 10; x++) { anumber += x; } System.out.println( anumber ); }

27 27 zIndent the Wrong way: public class Sample { public static void main(String[] args) { int anumber = 23; for(int x=0; x < 10; x++){ anumber += x;} System.out.println( anumber ); } } zWhich one is easier to debug !!!

28 28 zProject: zCode the 4 projects directly from the handouts zBe able to identify all of the parts of the program that we covered

29 29 zProject: zUse the debugger and make coding changes, once the program works as intended, see and fix the compile errors zImplement the System methods exit gc & sleep in one or more of these programs

30 30 zProject: zView the JAVA Doc and look at some of the methods and classes we used

31 31 TEST IS THE DAY AFTER THE PROJECT IS DUE !!!
