1. Basic Logic, SQL Statements AND/OR You A quick tour of basic logic and how to evaluate logical expressions and implement simple SQL queries.

2. Statement of Truth (Not!) The statement is the foundational basis for logic. Is the statement TRUE or FALSE? Cat = Black Bike = Red TRUE FALSE

3. Statement of Truth (Not!) Evaluations can also be based on numerical values: NumCat = 1 NumBike < 1 TRUE FALSE

4. We know its value, now what? Statement can be combined using the following conjunctions: AND OR NOT Others…

5. AND Truth Table XY X AND Y False TrueFalse True FALSE FALSE FALSE TRUE

6. OR Truth Table XY X OR Y False TrueFalse True FALSE TRUE TRUE TRUE

7. NOT Truth Table X NOT X False True TRUE FALSE

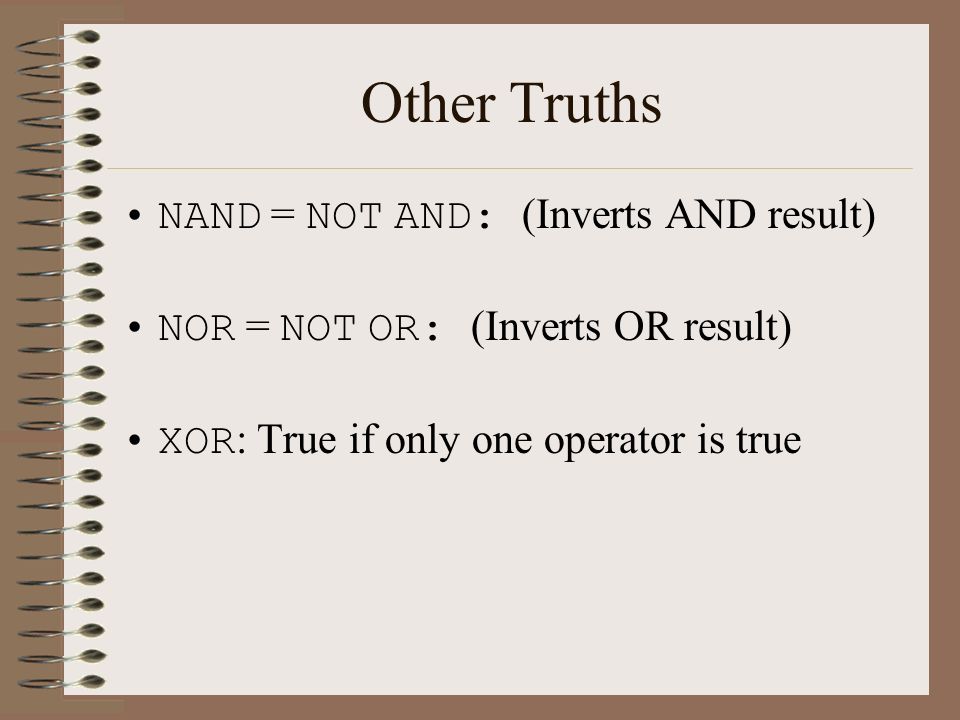

8. Other Truths NAND = NOT AND: (Inverts AND result) NOR = NOT OR: (Inverts OR result) XOR : True if only one operator is true

9. Conditionals How to compare to values.

10. Conditional Statements Equal Not Equal Greater Than Less Than Greater or Equal Than Lesser or Equal Than Like = “≠” > < >= “≥” <= “≤” Like

11. = > < >= <= Like X = 4 X 9 Y > 2 X < 1 Bazillion X >= 4 Y <= 7 Z Like “Do%” Conditional Statements Set Values: X=4 Y=5 Z=“Dog”

12. Examples

13. Example 1: (Cat = Black) AND (Bike = Red) FALSE

14. Example 2: (Cat = Yellow) OR (NumBike > 1) FALSE

15. Example 3: (Cat <> Grey) OR (Bike = Green) TRUE

16. Example 4: (NumCat <= 2) AND (Bike = Blue) TRUE

17. Example 5: NOT (Cat Like “Ca%”) FALSE

18. Example 6: NOT ((Cat < 10) AND (Bike Like “Blu%)) OR ((Cat <= Dog) OR (Bike = Blue)) TRUE

19. Basic SQL Statement

20. Bare Minimums SELECT fieldname 1, fieldname 2,...fieldname n FROM tablename

21. Adding Conditionals SELECT fieldname 1, fieldname 2,...fieldname n FROM tablename WHERE fieldname conditional value (logic_operand fieldname conditional value...)

22. Adding Sort Values SELECT fieldname 1, fieldname 2,...fieldname n FROM tablename WHERE (fieldname conditional value) logic_operand (fieldname conditional value) … ORDER BY fieldname

23. SQL Statement Examples

24. Generic Report 2 SELECT RequestNumber, ResourceName AS Name, Agency, KindCode AS Kind, Trainee as T, UnitID, CheckinDate, CheckinTime FROM vBasicRpts WHERE kindcode like 'hc%' or kindcode = 'cc' ORDER BY RequestNumber

25. Crew Query SELECT RequestNumber, ResourceName AS Crew FROM vBasicRpts WHERE Status <> 'D' AND Agency = 'BIA' and KindCode in ('HC1', 'HC2')

26. Personnel Count by Agency SELECT Agency, COUNT(*) AS [Agency Count], SUM(NumberPersonnel) AS NumberPersonnel FROM vBasicRpts GROUP By Agency

27. DIVS Checkin SELECT ResourceName, CheckinDate FROM vBasicRpts WHERE KindCode = 'DIVS' and CheckinDate between '05/15/07' and '05/20/07' ORDER BY ResourceName
