1. ADVANCED ALGORITHMS
REVIEW OF
ANALYSIS TECHNIQUES
(UNIT-1)

2. 1. ALGORITHM : is a sequence of unambiguous
1. ALGORITHM : is a sequence of unambiguous instructions for solving a problem in a finite amount of time.
Ex-1 : Write an algorithm to find the factorial of a
given number ‘n’.
Ex-2 : Write an algorithm for find the value of ‘m’ power ‘n’.

3. Ex-3 : Write an algorithm for finding the GCD
of (m,n).
Ex-4 : Find the GCD of 60, 24 using the method of common prime factors.
Ex-5 : Find the minimum distance between any two elements in the array of size ‘n’.

4. ASYMPTOTIC NOTATION 1.1. What is the meaning of ‘asymptotic’.
Consider a curve such as y = 1 / x As x increases, y decreases.
The positive x-axis is an asymptote of the curve.
As you continually increase x towards infinity, the value of y gets closer and closer to zero.
Hence the curve gets closer and closer to the
x-axis but never reaches it.
We say the curve is asymptotic

5. 1.2 Asymptotic Complexity :
is a way of expressing the ‘main component’ of the cost of an algorithm, using idealized units of computational work.
Ex-6 : Sorting the deck of cards.
Cost Formula : … + 2
So, CF = N(N+1) /
= ½ (N2) + ½ (N) – 1
Here, the term N2 is dominating the CF.
So, the behavior is said to be O(N2) .

6. f(n) - the cost function of an algorithm.
1.3 Big-O Notation :
f(n) - the cost function of an algorithm.
g(n) - the cost function of another algorithm.
Here, if f(n) <= g(n),
then the algorithm with Cost Function ‘f’
is faster than the other.
Note : The Big-O is the formal method of
expressing the upper bound of an algorithm’s running time.

7. Definition :
For non-negative functions f(n) and g(n),
if there exists an integer n0, and
a constant c > 0 such that
for all integers n >= no
0 <= f(n) <= c g(n),
then f(n) is Big-O of g(n).
This is denoted as : f(n) = O(g(n))
Ex-7 : Let f(n) = 3n + 2, g(n) = n, c = 4
Show that g(n) is Upper Bound of f(n).

8. For non-negative functions f(n) and g(n),
1.4 Big- Notation :
For non-negative functions f(n) and g(n),
if there exists an integer n0, and
a constant c > 0 such that
for all integers n > no
f(n) >= c g(n),
then f(n) is Big-  of g(n).
This is denoted as : f(n) = (g(n))
Ex-8 : Let f(n) = 3n + 2, g(n) = n, c = 3
Show that g(n) is Lower Bound of f(n).

9. 1.5 Theta Notation : Def : For non-negative functions f(n) and g(n),
if there exists an integer n0, and
two constants c1,c2 > 0 such that
for all integers n >= no
c1 g(n) <= f(n) <= c2 g(n),
then f(n) is Theta of g(n).
This is denoted as : f(n) = (g(n))
Ex-9 : Let f(n) = 3n + 2, g(n) = n,
and c1 = 3, c2 = 4
Find the probable value of n0.

10. Note : For non-negative functions, f(n) and g(n),
f(n) is theta of g(n), iff
f(n) = O(g(n)) and f(n) = (g(n))
Ex-10 : Compare the two functions N2 and 2n /4 for various values of ‘n’. Determine when the
second becomes larger that the first.
Ex-11 : Determine the frequency counts for all statements in the following algorithms.
s = 0
for i = 1 to n do
s = s + i;

11. Ex-12 : Determine the frequency counts for all
Ex-12 : Determine the frequency counts for all statements in the following algorithms.
x = 0; n = 5;
for i = 1 to n do
for j = 1 to i do
for k = 1 to j do
x = x + 1;
1.6 Little-o Notation :
Def : For non-negative functions f(n) and g(n),
if there exists an integer n0, and
a constant c > 0 such that
for all integers n >= no
0 <=f(n) < c g(n),
then f(n) is Little-o of g(n).
This is denoted as : f(n) = o(g(n))

12. Note : Let f(n) = 2n2 and g(n) = n2 and c = 2
Here, f(n) = O (g(n)) Big-O
But, f(n)  o(g(n)) - little-o
If f(n) = 2n & g(n) = n2, and c = 3,
then f(n) = o(n2)
Ex-13 : Let f(n) = 3n + 2 , g(n) = n2 and c = 6
Show that 3n+2 = o(n2)
Note : For non-negative functions, f(n) and g(n),
f(n) is little o of g(n), if and only if,
f(n) = O (g(n)) and f(n) ≠  ( g(n) )
[ strict upper bound, no lower bound]

13. 1.7 Little-Omega Notation :
Def : For non-negative functions f(n) and g(n),
if there exists an integer n0, and
a constant c > 0 such that
for all integers n > no
0 <= c g(n) < f(n),
then f(n) is Little- () of g(n).
This is denoted as : f(n) = (g(n))
Note : Consider f(n), g(n) and h(n) are non-negative functions.
here, f(n) = (g(n)) and g(n) = (h(n))
imply f(n) = (h(n))

14. Ex-14 : Let f(n) = 3n + 2, g(n) = n and c = 3
Show that 3n+2 = (n)
Note : For non-negative functions, f(n) and g(n),
f(n) is little  of g(n), if and only if
f(n) =  (g(n)) and f(n) ≠  ( g(n) )
[ strict lower bound, no upper bound]
Ex-15 : Find the (n2) of (1/2) n2 - 3n.
Show that (1/2) n2 - 3n = (n2).
Find C1 and C2.
* * * * *

15. 2. Standard Notations & Common Functions 2.1 Monotonicity :
A function f(n) is monotonically increasing
if m <= n implies f(m) <= f(n).
A function f(n) is monotonically decreasing
if m <= n implies f(m) >= f(n).
A function f(n) is strictly increasing
if m < n implies f(m) < f(n).
A function f(n) is strictly decreasing
if m < n implies f(m) > f(n).

16. 2.2 Floors & Ceilings:
For any real number x, we denote the greatest integer less than or equal to x by ⌊x⌋, (read as ‘the floor of x’) and
the least integer greater than or equal to x by ⌈x⌉, (read as ‘the ceiling of x’).
For all real x, we have
x–1 < ⌊x⌋ ≤ x ≤ ⌈x⌉ < x ….(1)
For any integer ‘n’, we have
⌈n/2⌉ + ⌊n/2⌋ = n ….(2)
Ex-16 : If x = then
Find the floor and Ceiling of x.

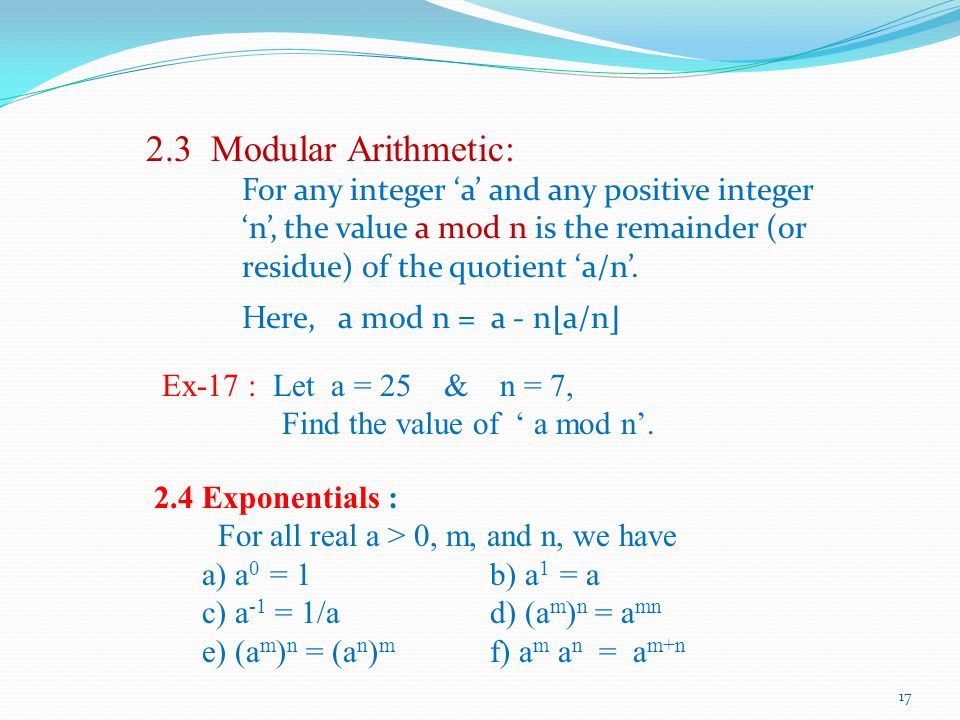

17. 2.3 Modular Arithmetic:
For any integer ‘a’ and any positive integer ‘n’, the value a mod n is the remainder (or residue) of the quotient ‘a/n’.
Here, a mod n = a - n⌊a/n⌋
Ex-17 : Let a = & n = 7,
Find the value of ‘ a mod n’.
2.4 Exponentials :
For all real a > 0, m, and n, we have
a) a0 = 1 b) a1 = a
c) a-1 = 1/a d) (am)n = amn
e) (am)n = (an)m f) am an = am+n

18. 2.5 Polynomials :
Given a nonnegative integer ‘d’, a polynomial
in ‘n’ of degree ‘d’ is a function p(n) of the form : d
p(n) = ⅀ ai ni
i=0
where the constants a0, a1, …., ad are the coefficients of the polynomial and ad ≠ 0.
2.6 Logarithms :
The following are some of the notations :
 a) lg n = log2n b) ln n = logen
c) lgkn = (lg n)k d) lg lg n = lg (lg n)

19. For all real a, b, c > 0, and n, we have
e) a = blogb a f) logc(ab) = logca + logcb
g) logban = n log ba h) logba = logca / logcb
i) logb(1/a) = - logba j) logba = 1 / logab
k) alogbc = clogba
A simple series expansion is :
Ln(1+x) = x – (x2/2) + (x3/3) - (x4/4) + (x5/5) - …
Here |x| < 1.

20. 2.8 Functional Iteration :
2.7 Factorials :
The notation n! is defined for integers n ≥ 0 as
n! = if n = 0
  = n. (n-1)! if n > 0
  Thus, n! = 1.2.3…n
2.8 Functional Iteration :
We use the notation f(i)(n) to denote the function f(n) iteratively applied ‘i’ times to an initial value of ‘n’.
Formally, let f(n) be a function over the reals.

21. For non-negative integers i, we recursively define
f(i)(n) = n if i = 0
= f ( f(i-1)(n) ) if i > 0
Ex-18 : Let f(n) = 2n. g(n) = 2n+3
Then find the values of f(i)(n), g(i)(n) ?
2.9 The Iterated Logarithmic Function :
The notation lg*n (read as ‘log star of n’) to denote The iterated logarithm, defined as :
  “Let lg(i)n be the logarithm function applied ‘i’ times in succession, starting with argument ‘n’.”

22. i.e., log(0)n = n
  log(1)n = log n
log(2)n = log (log n)
log(3)n = log (log (log n))
…………
log(k+1)n = log (log(k)n)
Thus we define the iterated logarithm function as :
Log *n : = 0 , if n <= 1
: = 1 + Log * (log n), if n > 1.
lg*2 = 1, lg*4 = 2
lg*16 = 3, lg* = 4
lg*(265536) = 5

23. Find the next five fibonacci numbers.
The table for x, log star x is as follows :
X : (-,1] (1,2] (2,4] (4,16] (16,65536] (65536, ]
Lg* x :
Fibonacci Numbers :
Def : F0 = 0, F1 = 1,
Fi = Fi-1 + Fi-2 for i ≥ 2
Thus, each fibonacci number is the sum of its previous two numbers.  Ex : 0,1,1,2,3,5,8,13,21,34,…
Find the next five fibonacci numbers.

24. Golden Ratio :
Fibonacci Numbers are related to the
golden Ratio 1 and its conjugate 2, which are the two roots of the equation :
x2 = x + 1
The values of 1 and 2 are :
 1 = (1 + √5) /2 = (Golden Ratio)
 2 = (1 - √5) /2 =
Let x = 2, y = (1 + √5) = ( ) = 3.236
Draw a rectangle for (x,y), (x,y-x),…

25. The relationship between FN and GR :
In the above diagram, we can see that
y/x = x / (y-x) …………..(1)
In Fibonacci Sequence :
For large values of n, we have
Fn / Fn-1 = Fn-1 / Fn …..(2)

26. But, Fn = Fn-1 + Fn-2
 Fn-2 = Fn – Fn-1
So, Fn / Fn-1 = Fn-1 / Fn-2
 Fn / Fn-1 = Fn-1 / (Fn - Fn-1)
If we replace, Fn with y and Fn-1 with x,
we have y / x = x / (y – x)
which is Golden Ratio.
Compute any number in Fibonacci Sequence :
Fn = n / √5
where F0 = 0, F1 = 1, F2 = 1, F3 = 2,…..
* * * * *

27. Solutions of Recurrence Equations :
3. Recurrences &
Solutions of Recurrence Equations :
3.1 Divide-and-Conquer :
Divide : the problem into a number of subproblems
that are smaller instances of the same problem.
Conquer : the subproblems by solving them
recursively
Combine : the solutions to the subproblems into the
solution for the original problem.

28. Ex-19 : The recurrence equation for Fibonacci is : F0 = 0, F1 = 1
3.2 Recurrences :
A recurrence is an equation or inequality that describes a function in terms of its value on smaller inputs.
Ex-19 : The recurrence equation for Fibonacci is :
  F0 = 0, F1 = 1
Fi = Fi-1 + Fi-2 for i ≥ 2
Ex-20 : Find the value of the recurrence equation
g(0) = 0
g(n) = g(n-1) + 2n – 1 using iteration.

29. 3.3 Recurrence Equation :
A homogeneous recurrence equation is written as :
a0tn + a1tn aktn-k = 0.
Ex-21 : tn – 3tn-1 – 4tn-2 = 0, for n >= 2.
{Initial condition: t0=0, t1=1}
Characteristic equation: xn – 3x(n-1) – 4x(n-2) = 0,
or, x(n-2) [x2 –3x –4] = 0,
or, x2 – 3x – 4 = 0,
or, x2 + x – 4x – 4 = 0,
or, x(x+1) –4(x+1) = 0,
or, (x+1)(x-4) = 0,
Therefore, roots are, x = -1, 4.

30. So, the general solution of the given
recurrence equation is:
tn = c1*(-1)n + c2*(4n)
Use t0 = c1 + c2 = 0, and t1 = -c1 + 4c2 = 1.
Solve for c1 and c2, c1 = -(1/5), c2 = (1/5).
So, the particular solution is:
tn = (1/5)[4n – (-1)n] = (4n)
NOTE : The general solution for the original
recurrence equation is:
tn = i=1kcirin

31. Inhomogeneous recurrence equation
 a0tn + a1tn aktn-k = bnp(n),
where b is a constant and p(n) is a polynomial
of order n.
 Note : Homogenize the given equation to an equivalent homogeneous recurrence equation form.
Ex-22 : Solve tn – 2tn-1 = 3n.
The concerned Homogeneous Equation is :
tn+1 – 5tn + 6tn-1 = 0
Characteristic equation: x2 – 5 x + 6 = 0.
General solution of the given RE is:
  tn = c1*(2n) + c2*(3n) = (3n)

32. Ex-23 : Solve tn – 2tn-1 = n. ….(1)
Replace ‘n’ with ‘n+1’
tn+1 – 2tn = n+1 ….(2)
Subtract (1) from (2) :
tn+1 – 3tn + 2tn-1 = ….(3)
Replace ‘n’ with ‘n+1’
tn+2 – 3tn+1 + 2tn = 1 …..(4)
Subtract (3) from (4).
tn+2 – 4tn+1 + 5tn - 2tn-1 = …..(5)
Now it is a homogeneous recurrence equation

33. 3.4 Analysis of Insertion Sort :
Input: A sequence of n numbers _a1, a2, , an_.
Output: A permutation (reordering) a1’, a2’, , an’ of the input sequence such that a1’< a2’ < < an’
Ex-23:  
    
INSERTION-SORT(A) 4) i j - 1
1) for j ← 2 to n 5) While i> 0 and A[i] > key
2) do key ← A[ j ] 6) do A[i+1]  A[i]
3)/* Insert A[ j ] into the sorted ) i  i - 1
sequence A[1 . . j − 1]. */ 8) A[i+1]  key

34. Statement No Cost Times
1 C1 n
2 C2 n-1
n – 1
4 C4 n - 1
C5  tj
j=2 to n
C6  (tj-1)
j = 2 to n
C7  (tj-1)
j = 2 to n
C8 n - 1

35. The running time of the algorithm is
 (cost of statement) · (no. of times statement is
for all statements executed)
Let T (n) = running time of INSERTION-SORT.
T (n) = c1 n + c2 (n − 1) + c4 (n − 1) +
C5  tj C6  (tj - 1 ) + C7  (tj - 1 ) +
j=2 to n j=2 to n j=2 to n
c8 (n − 1).

36. Best case: The array is already sorted.
• Always find that A[i ] ≤ key upon the first time the
while loop test is run (when i = j − 1).
• All t j are 1.
• Running time is T (n) = c1n + c2(n − 1) + c4(n − 1)
+ c5(n − 1) + c8(n − 1)
= (c1 + c2 + c4 + c5 + c8)n − (c2 + c4 + c5 + c8)
• Can express T (n) as an +b for constants a and b
(that depend on the statement costs ci )
⇒ T (n) is a linear function of n.

37. Worst case: The array is in reverse sorted order.
• Always find that A[i ] > key in while loop test.
• Have to compare key with all elements to the left of
the j th position ⇒ compare with j − 1 elements.
• Since the while loop exits because i reaches 0, there
the j − 1 tests ⇒tj = j .
 tj =  j and  (tj -1) =  (j - 1)
j=2 to n j=2 to n j=2 to n j=2 to n
Here  j = [n(n+1)/2] - 1
j=2 to n

38. Letting k = j − 1, we see that
 (j – 1) =  k = n(n-1)/2
j=2 to n k=1 to n-1
So, Running Time is :
T (n) = c1n + c2(n − 1) + c4(n − 1) +
C5 [n(n+1)/2 - 1] + C6 [n(n-1)/2] +
C7 [n(n-1)/2] + c8 (n – 1)
= [c5/2 + c6/2 + c7/2] n2 + [c1 + c2 + c4 + C5/2
– c6/2 – c7/2 + c8] n – [c2+c4+ c5+c8]
Can express T (n) as an2 + bn + c for constants a, b, c (that again depend on statement costs)
⇒ T (n) is a quadratic function of n.

39. 3.5 Recurrence Relations :
A recurrence relation for the sequence {an} is an
equation that expresses an in terms of one or more
of the previous terms of the sequence, namely :
a0, a1, a2, … , an-1, for all integers ‘n’ with
n ≥ n0, where no is a nonnegative integer.
Ex-24 : Is an = 3n, the solution of the
recurrence relation, where
an = 2. an-1 – an-2. for n = 2,3,4…
Ex-25 : Is an = 5, the solution of the
recurrence relation, where
an = 2. an-1 – an-2. for n = 2,3,4…

40. Ex-26 : Some one deposits Rs. 10,000 in a savings
account at a bank yielding 5% per year with
interest compounded annually.
How much money will be in the account after 30 years.
Ex-27 : Let an denote the number of bit strings of length ‘n’ that do not have two consecutive 0’s (“valid strings”).
Find a recurrence relation and give initial
conditions for the sequence {an}.

41. Ex-28 : What is the solution of the recurrence
Ex-28 : What is the solution of the recurrence relation for the following.
an = an-1 + 2an-2 with a0 = 2 and a1 = 7.
Find its Characteristic Equation.
Ex-29 : Prove that the following is explicit formula for Fibonacci Numbers.
fn= (1/√5)[(1+√5)/2]n - (1/√5)[(1-√5)/2]n
Find its Characteristic Equation.

42. an = 6an-1 - 9an-2 with a0 = 1 and a1 = 6.
Ex-30 : Find the solution of recurrence relation
an = 6an-1 - 9an-2 with a0 = 1 and a1 = 6.
The Characteristic Equation is :
r r + 9 = 0
The only root is 3.
Hence the solution to the RR is :
an = c1 3n + c2 n 3n
The Value of C1 = 1 and C2 = 1
Solution : an = 3n + n 3n

43. 3.6 Solving Recurrences :
Ex-31 : Find number of calls for a plain recursive Fibonacci
To compute the Fibonacci numbers fn,
f0 = 0, f1 = 1, and fn = fn−1 + fn−2, for n > 1.
Denote by cn = #calls to compute fn.
c2 = 2, c3 = 4 = 22, c4 = 8 = 23
Following the recursion:
cn = cn−1 + cn−2 + 2 = ・ ・ ・ .
So, the value of cn is O(2n).

44. The substitution method for solving recurrences consists of two steps:
a) The Substitution Method
The substitution method for solving recurrences
consists of two steps:
1 Guess the form of the solution.
2 Use mathematical induction to find constants
in the form and show that the solution works.
We substitute the guessed solution for the function when applying the inductive hypothesis to smaller values. Hence, the name ‘substitution method’.
We can use the ‘substitution method’ to establish
either upper or lower bounds on a recurrence.

45. Ex-32 : Solve T(n) = 2T(n/2) + n
Solution : Guess T(n) ≤ cn log n for some
constant c (that is, T(n) = O(n log n))
Base case: we need to show that our guess holds for some base case (not necessarily n = 1, some small n is ok). Ok, since function constant for small constant ‘n’.
Assume holds for n/2:
T(n/2) ≤ c. (n/2) log(n/2)
Prove that holds for n: T(n) ≤ cn log n , if c >=1.

46. Ex-33 : Solve T(n) = 2 1 <= n < 3
= 3. T( ⌊ n/3 ⌋ ) + n n >= 3
Prove that T(n) = O(n log n) for all n >= m.
Here we have to show that T(n) <= c n log n
Observe T(n) = 3 T ( ⌊ n/3 ⌋ ) + n
<= 3. c ⌊ n/3 ⌋ log ⌊ n/3 ⌋ + n
<= 3. c (n/3) (log n – 1) + n
= c n log n – c n + n
But, T(n) <= c n log n, if (- cn + n) <= 0
implies c >= 1
Let m = 3 implies n = 3.

47. Here T(3) < = 3 c implies c >= T(3) / 3
But, T(3) = 9 implies C >= 3
Case-1 : Since T(3) = 3 . T(⌊ n/3⌋) = 9
cn log n = 3.3 log 3 = proved.
Case -2 : Let n > 3.
T(n) = 3. T(⌊ n/3⌋) + n
<= n/3. log ⌊ n/3⌋ + n
<= 9. n/3. ( log n – 1) + n
= 3 n (log n – 1 ) + n
= 3 n log n – 3 n + n
= 3 n log n – 2 n
<= 3 n log n proved

48. b) The Recurrence-Tree Method
A recursion tree is useful for visualizing what happens when a recurrence is iterated. It diagrams the tree of recursive calls and the amount of work done at each call.
solving recurrences :
expanding the recurrence into a tree
summing the cost at each level
applying the substitution method.
Ex-34 : Solve T(n) = 2T(n/2) + n2.

49. The recursion tree for this recurrence has the
following form, which has the solution O(n2).
T(n) = 2T(n/2) + n2.
n2 n2
(n/2)2 (n/2)2 n2/2
(n/4)2 (n/4)2 ………… n2 /4
(n/8)2 (n/8)2 …………. n2 /8

50. Ex-35 : Draw the Recurrence Tree for the following.
T(n) = 3T(n/4) + cn2.
cn2 cn2
c(n/4)2 c(n/4)2 c(n/4) (3/16)cn2
c(n/16)2 c(n/16)2 c(n/16)2 (3/16) 2cn2
The last term here is : (3/16) i cn2
The above recurrence Tree has the order of O(n2)

51. Ex-36 : Draw the Recurrence Tree for the following.
T(n) = 8T(n/2) + n2. [T(1)=1]
T(n) = n T(n/2)
= n [ (n/2) T(n/22) ]
= n (n2/4) + 82 T(n/22)
= n n T(n/22)
= ……….
= n n n T(n/23)
= ………
= n2 + 2 n n n2 + ….. + 8i T(1)
Here, n/2i = 1 implies i = log n
Therefore, last term = 8log n

52. Here, T(n) =
n2 + 2 n n n2 + ….. + 2log n-1 n2 + 8log n
=  2k n log n
k = 0 to log n – 1
= n2  2k + (23)log n
Here, The first term is of the order Θ (n).
(23)log n = (2log n)3 = n3
Therefore T(n) = n2 Θ (n)
