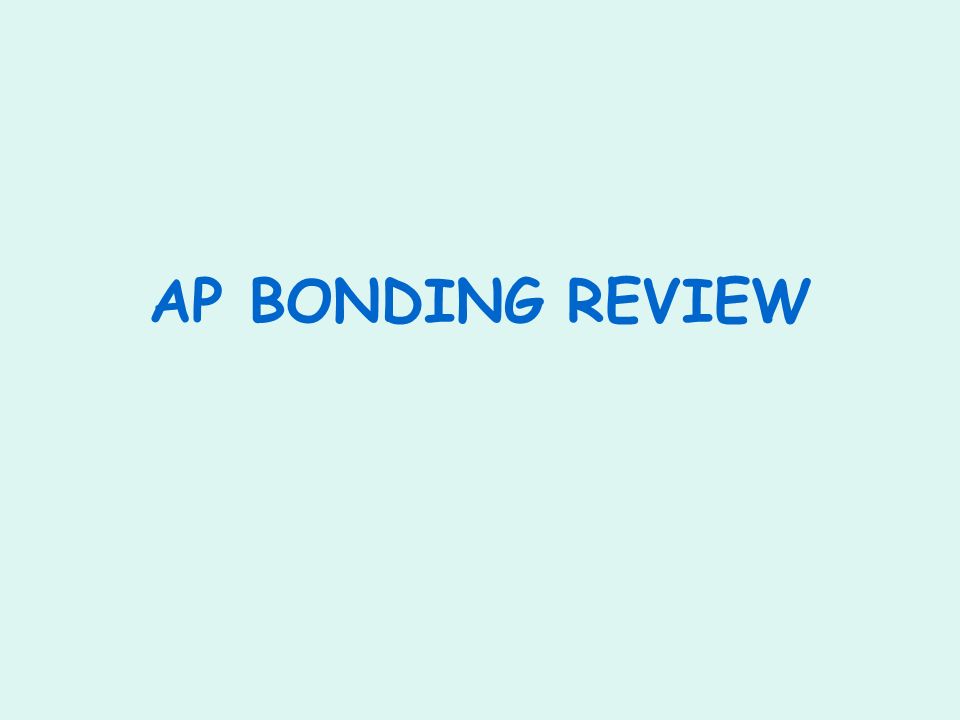

1 AP BONDING REVIEW

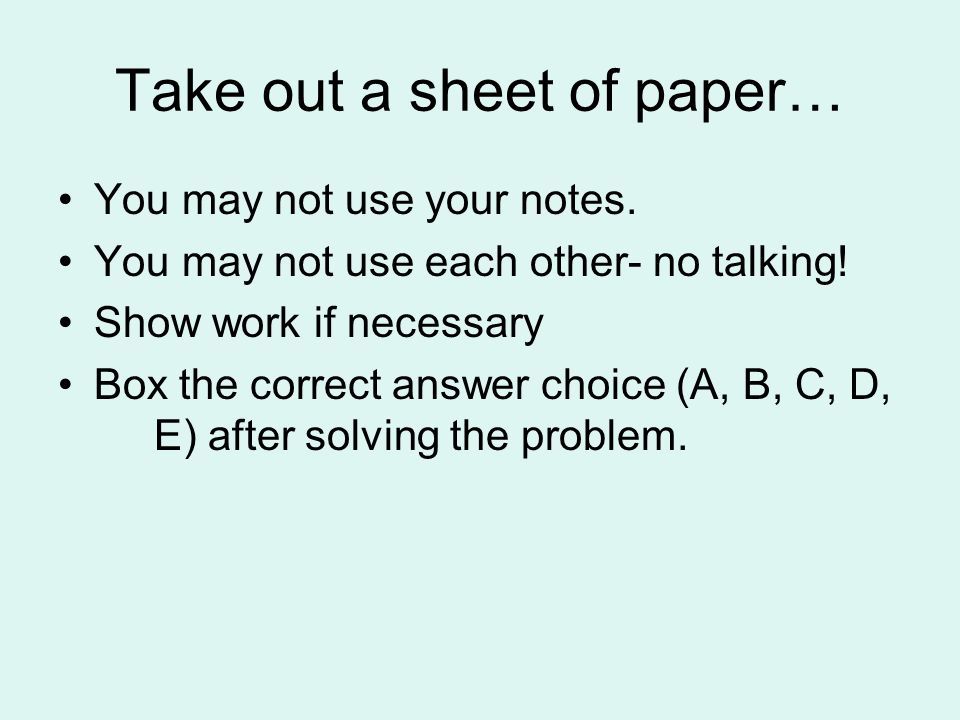

2 Take out a sheet of paper… You may not use your notes. You may not use each other- no talking! Show work if necessary Box the correct answer choice (A, B, C, D, E) after solving the problem.

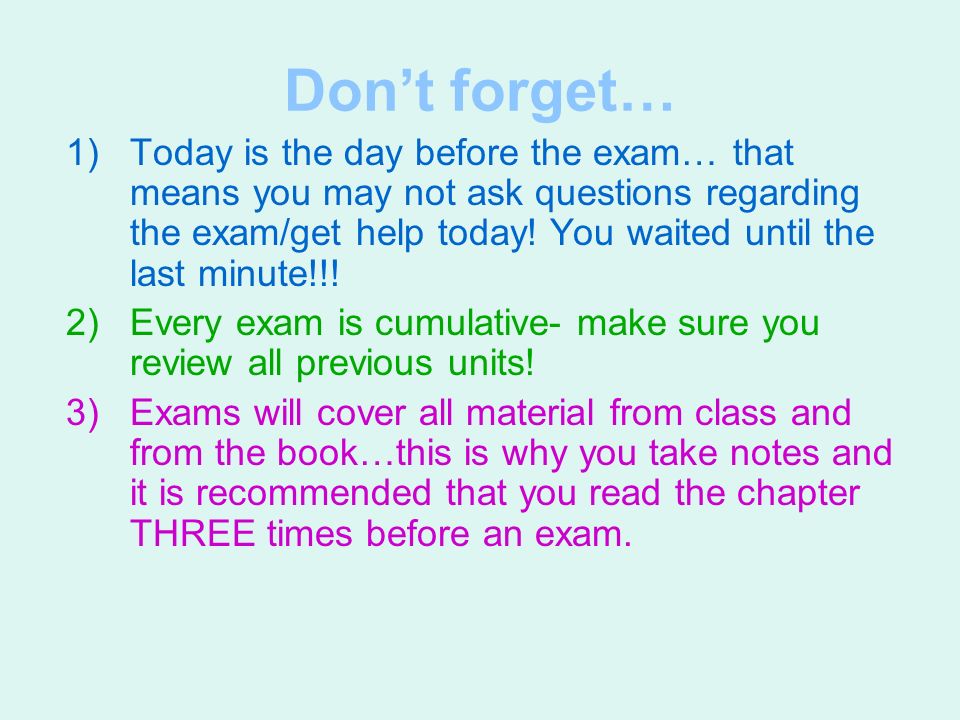

3 Don’t forget… 1)Today is the day before the exam… that means you may not ask questions regarding the exam/get help today! You waited until the last minute!!! 2)Every exam is cumulative- make sure you review all previous units! 3)Exams will cover all material from class and from the book…this is why you take notes and it is recommended that you read the chapter THREE times before an exam.

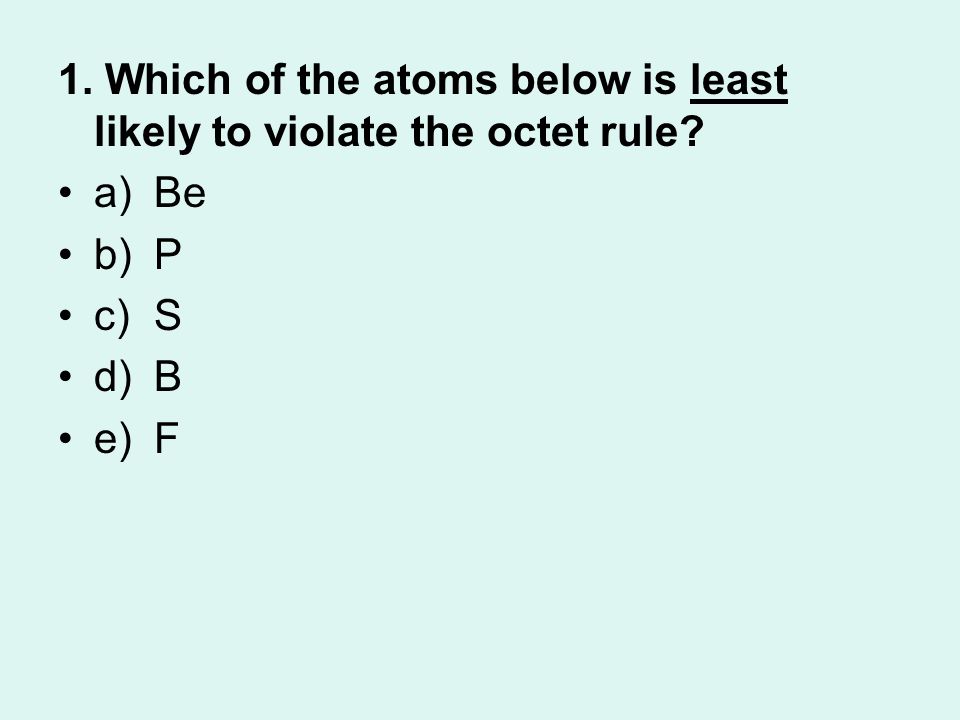

4 1. Which of the atoms below is least likely to violate the octet rule? a)Be b)P c)S d)B e)F

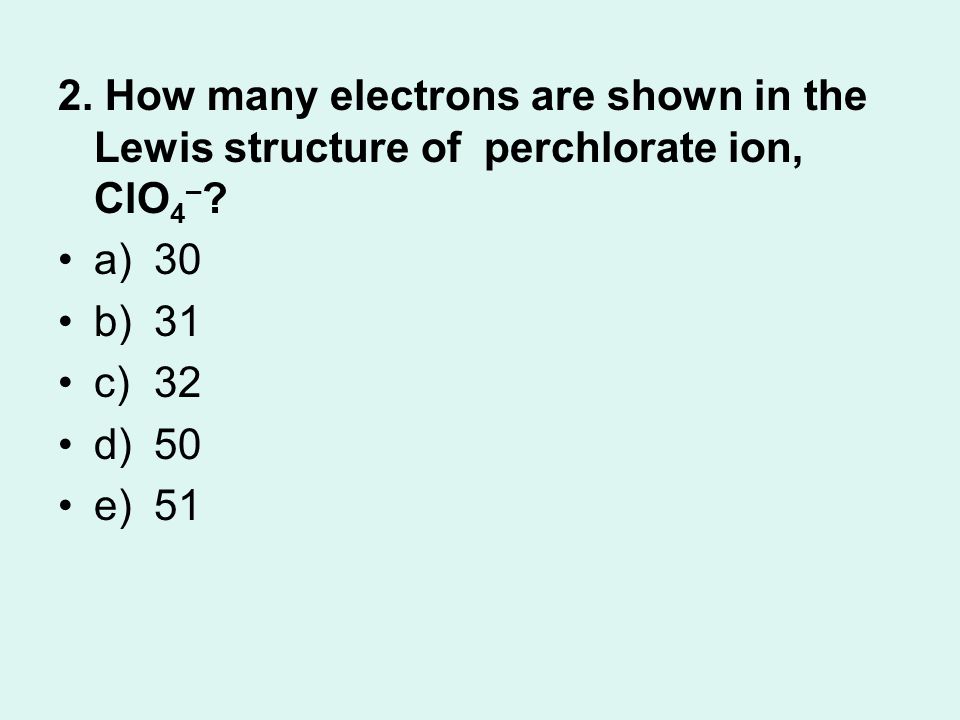

5 2. How many electrons are shown in the Lewis structure of perchlorate ion, ClO 4 – ? a)30 b)31 c)32 d)50 e)51

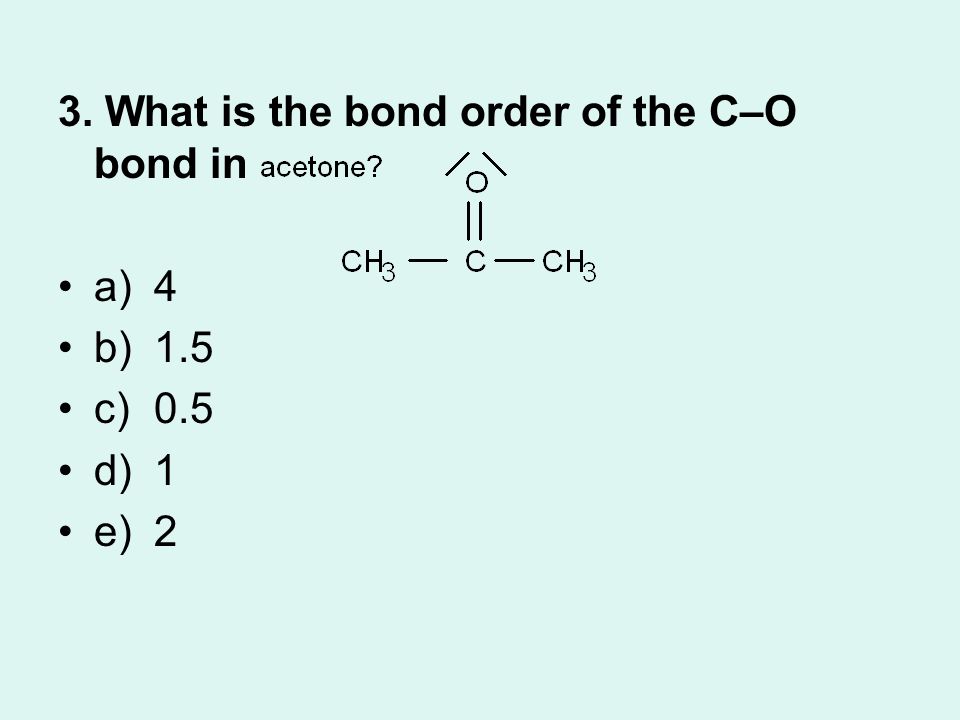

6 3. What is the bond order of the C–O bond in a)4 b)1.5 c)0.5 d)1 e)2

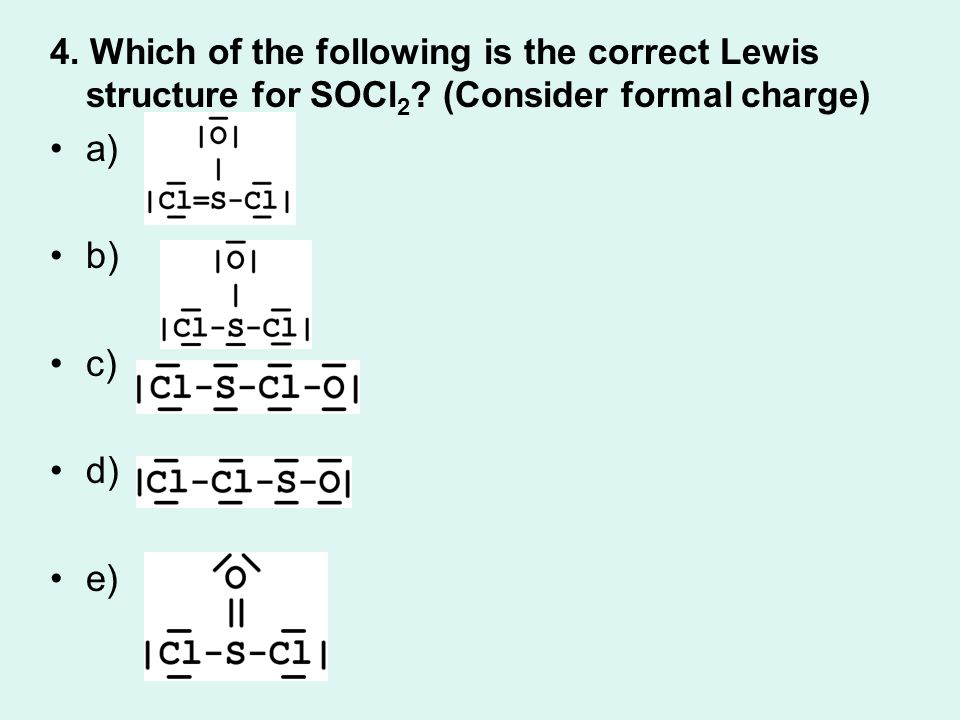

7 4. Which of the following is the correct Lewis structure for SOCl 2 ? (Consider formal charge) a) b) c) d) e)

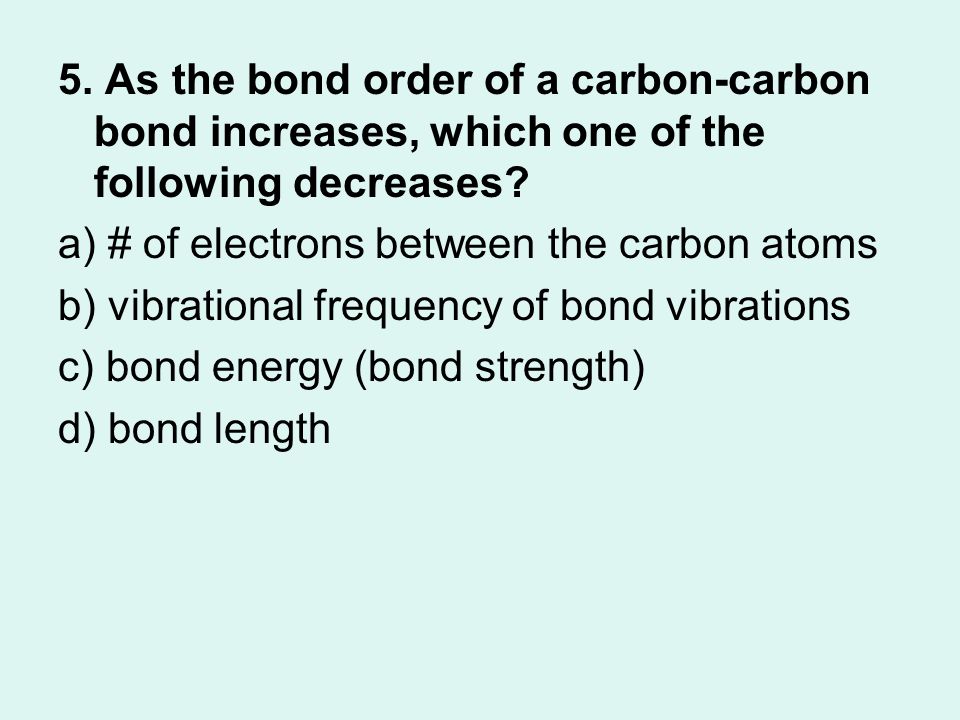

8 5. As the bond order of a carbon-carbon bond increases, which one of the following decreases? a) # of electrons between the carbon atoms b) vibrational frequency of bond vibrations c) bond energy (bond strength) d) bond length

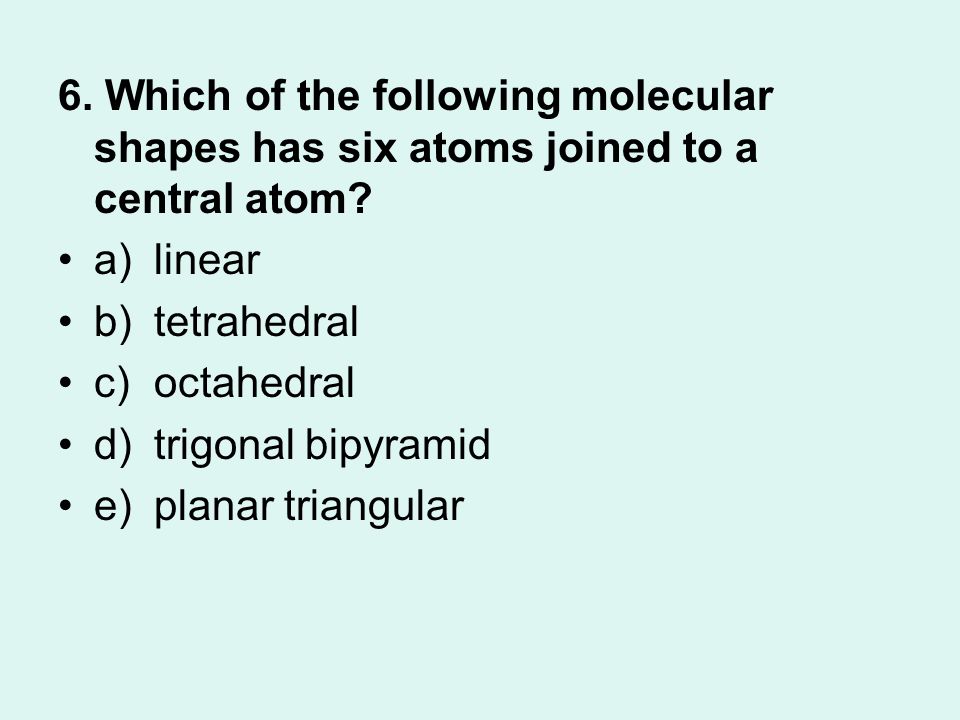

9 6. Which of the following molecular shapes has six atoms joined to a central atom? a)linear b)tetrahedral c)octahedral d)trigonal bipyramid e)planar triangular

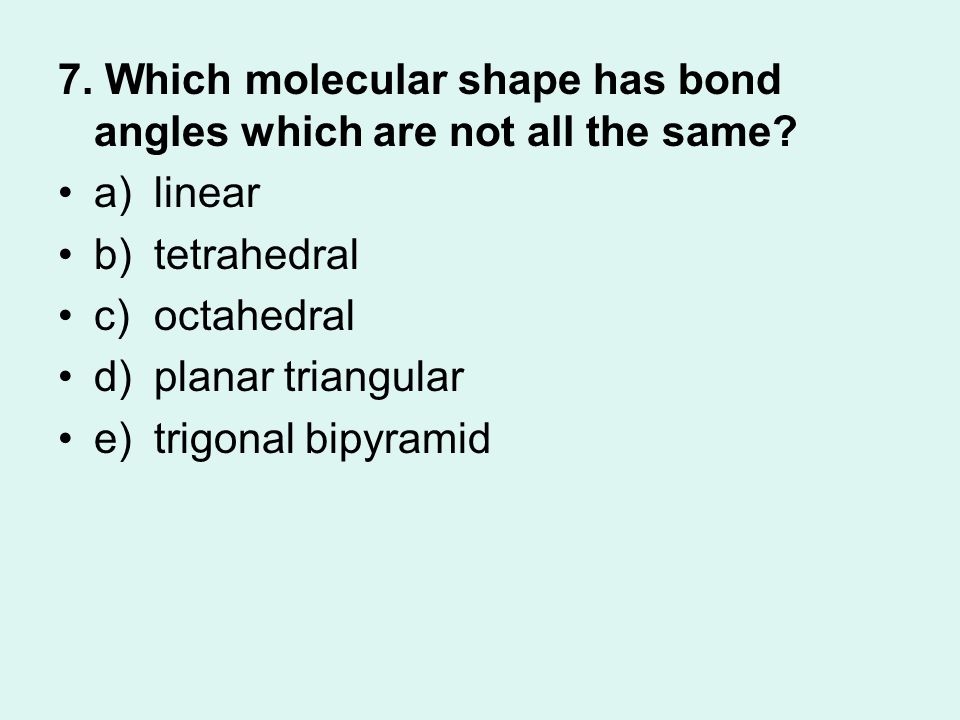

10 7. Which molecular shape has bond angles which are not all the same? a)linear b)tetrahedral c)octahedral d)planar triangular e)trigonal bipyramid

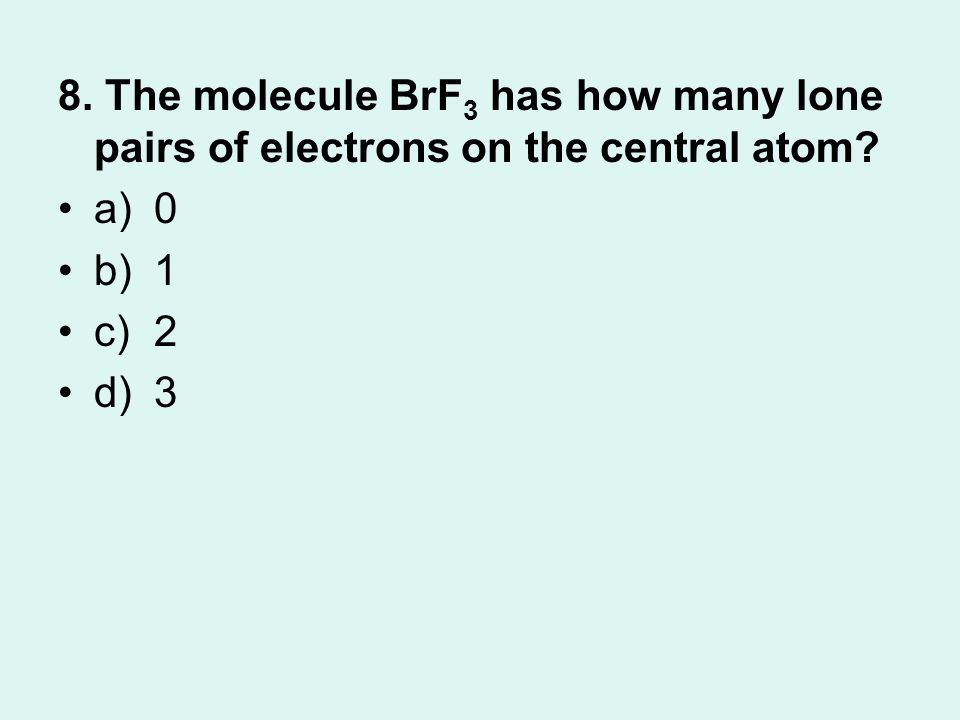

11 8. The molecule BrF 3 has how many lone pairs of electrons on the central atom? a)0 b)1 c)2 d)3

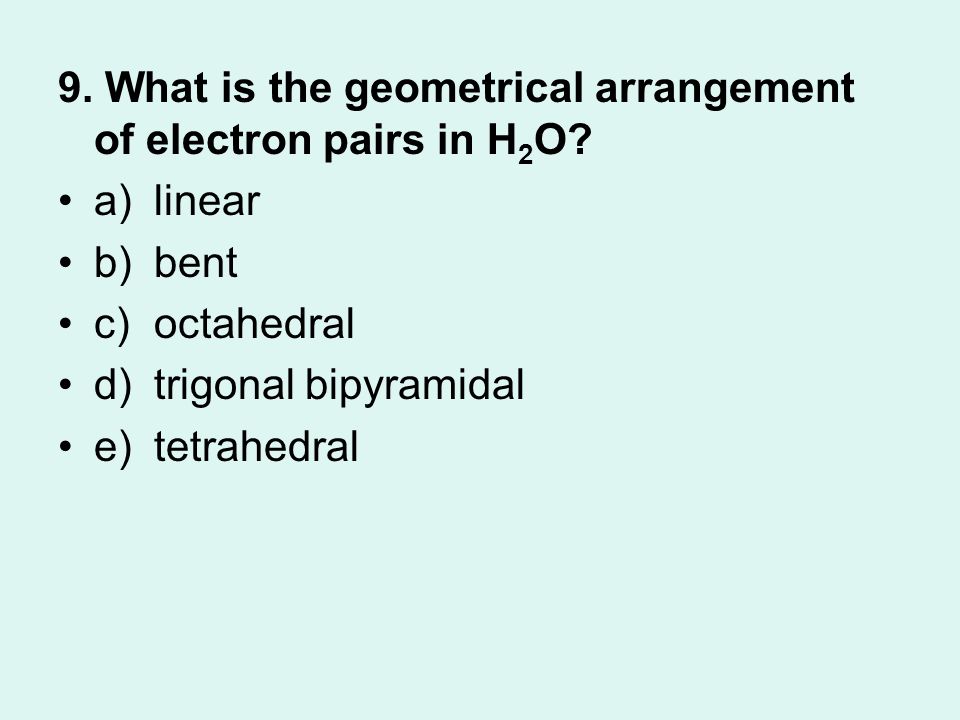

12 9. What is the geometrical arrangement of electron pairs in H 2 O? a)linear b)bent c)octahedral d)trigonal bipyramidal e)tetrahedral

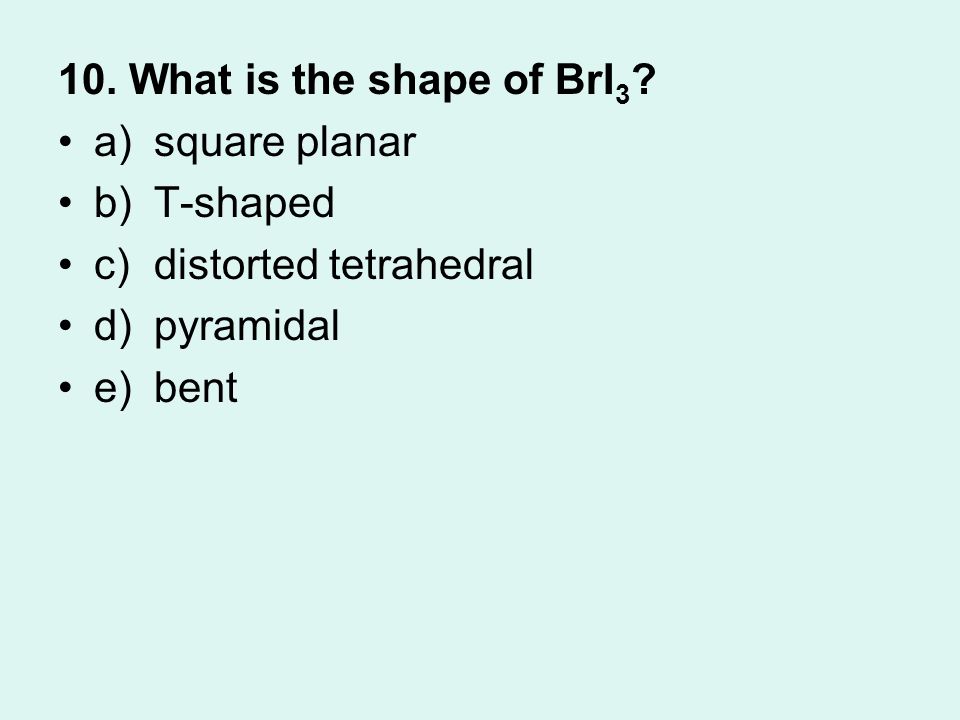

13 10. What is the shape of BrI 3 ? a)square planar b)T-shaped c)distorted tetrahedral d)pyramidal e)bent

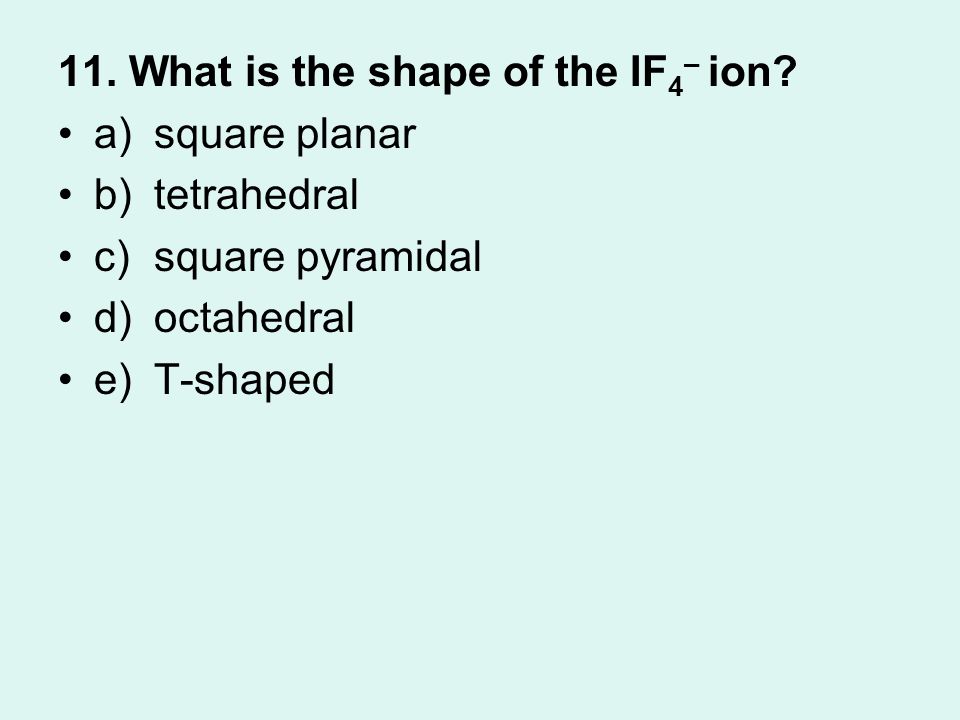

14 11. What is the shape of the IF 4 – ion? a)square planar b)tetrahedral c)square pyramidal d)octahedral e)T-shaped

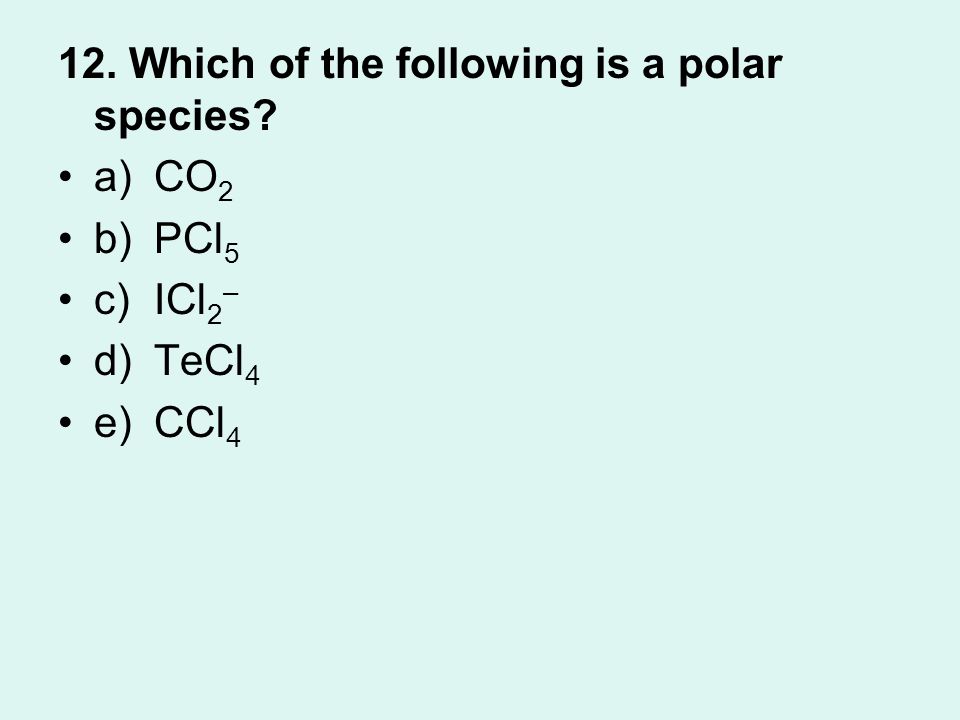

15 12. Which of the following is a polar species? a)CO 2 b)PCl 5 c)ICl 2 – d)TeCl 4 e)CCl 4

16 13. What is the hybridization of Br in BrF 3 ? a)sp b)sp2 c)sp3 d)sp3d e)sp3d2

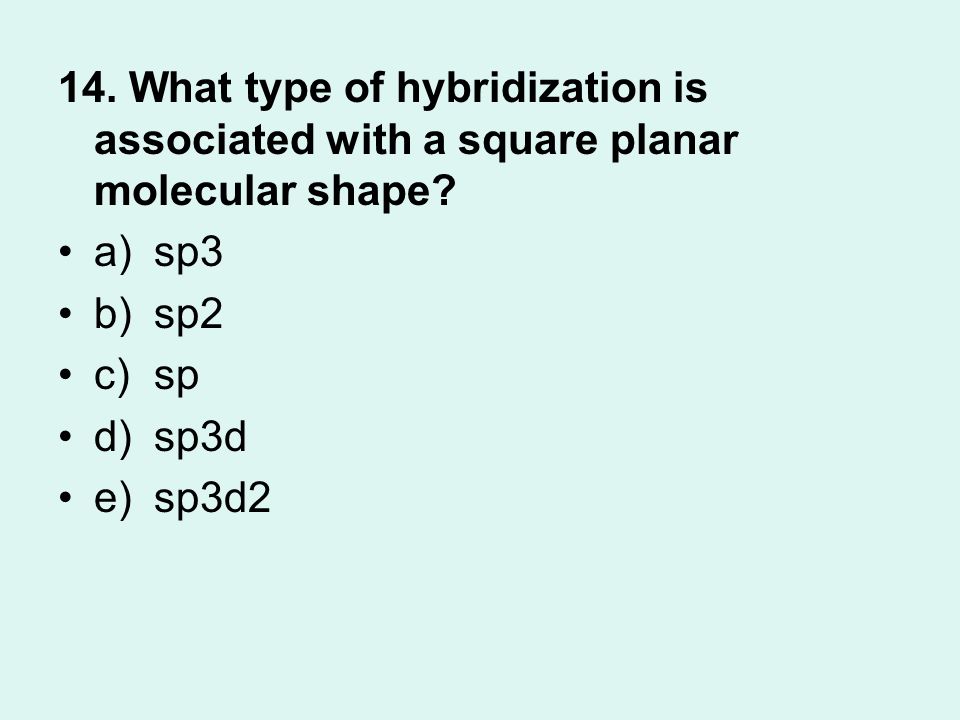

17 14. What type of hybridization is associated with a square planar molecular shape? a)sp3 b)sp2 c)sp d)sp3d e)sp3d2

18 15. What shape for electron pairs is associated with sp3d2 hybridization? a)linear b)square planar c)bent d)tetrahedral e)octahedral

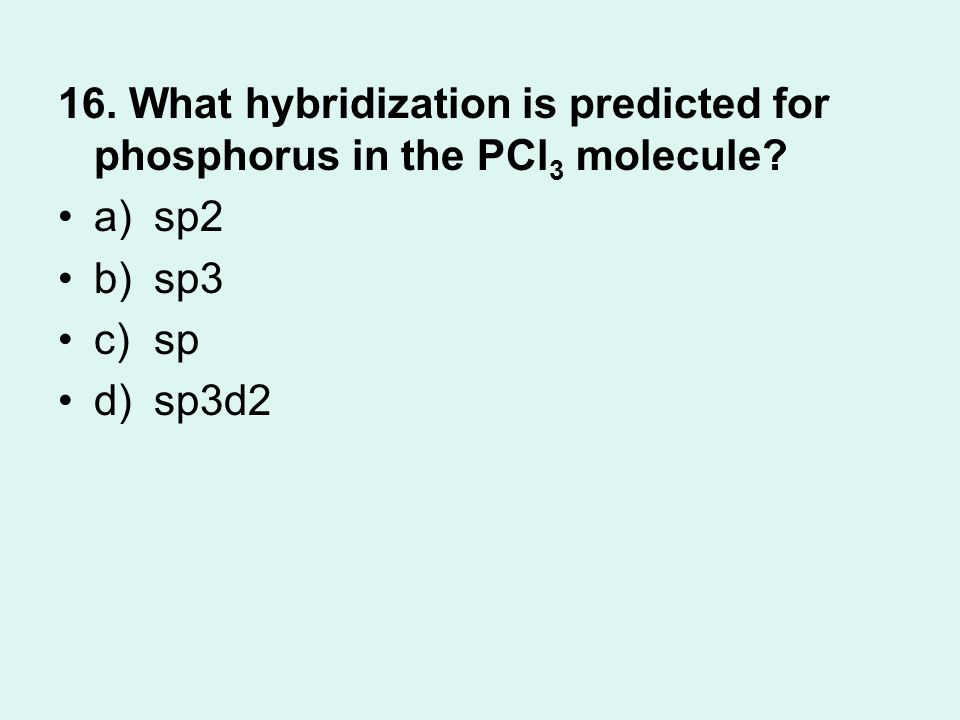

19 16. What hybridization is predicted for phosphorus in the PCl 3 molecule? a)sp2 b)sp3 c)sp d)sp3d2

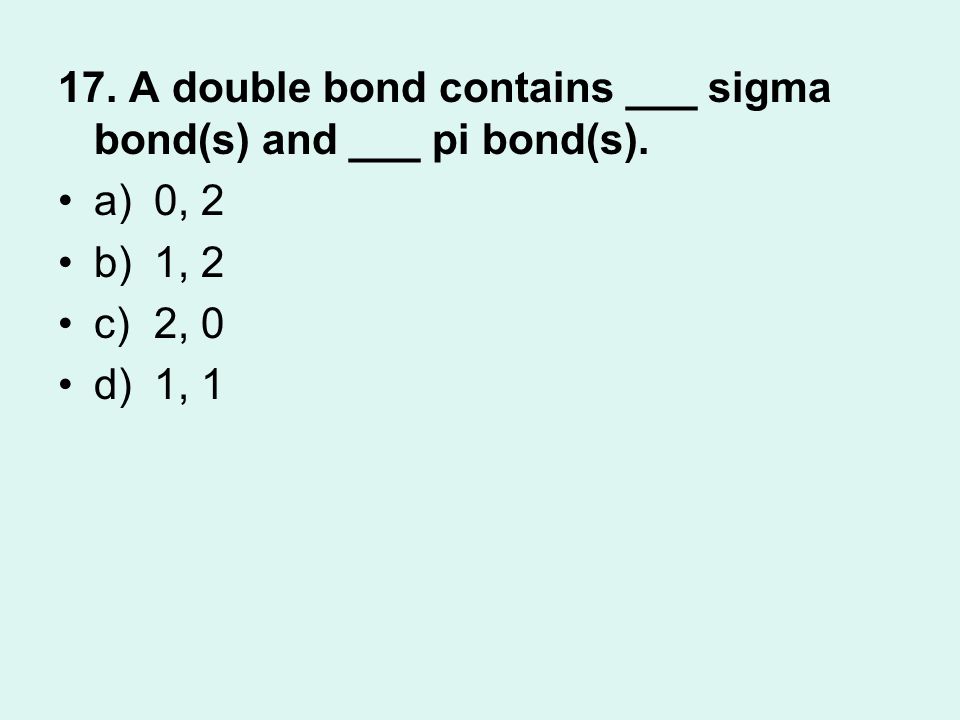

20 17. A double bond contains ___ sigma bond(s) and ___ pi bond(s). a)0, 2 b)1, 2 c)2, 0 d)1, 1

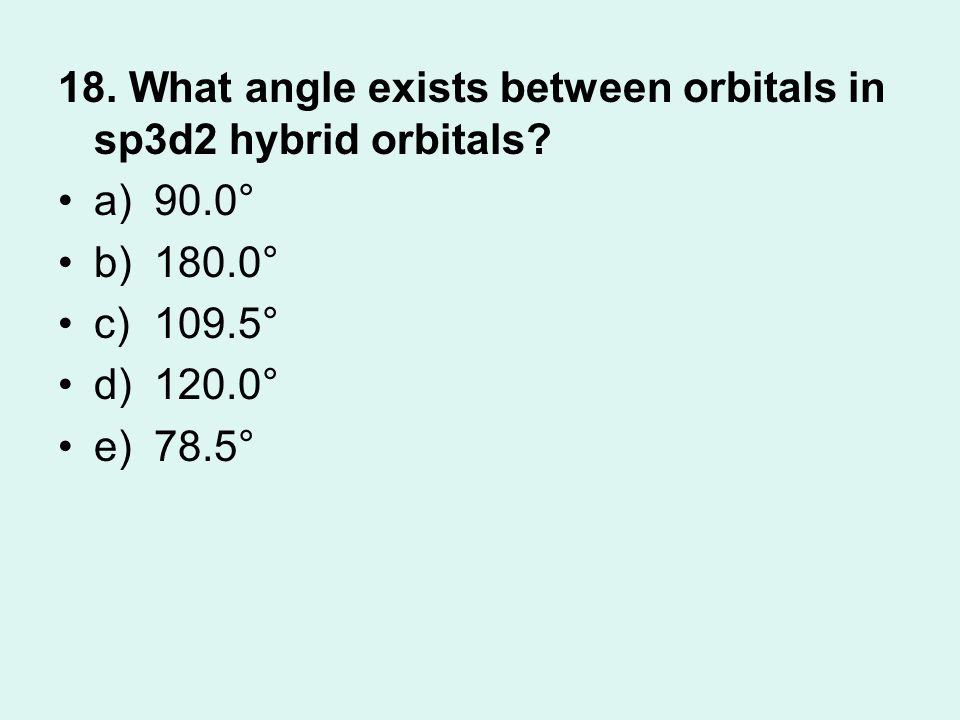

21 18. What angle exists between orbitals in sp3d2 hybrid orbitals? a)90.0° b)180.0° c)109.5° d)120.0° e)78.5°

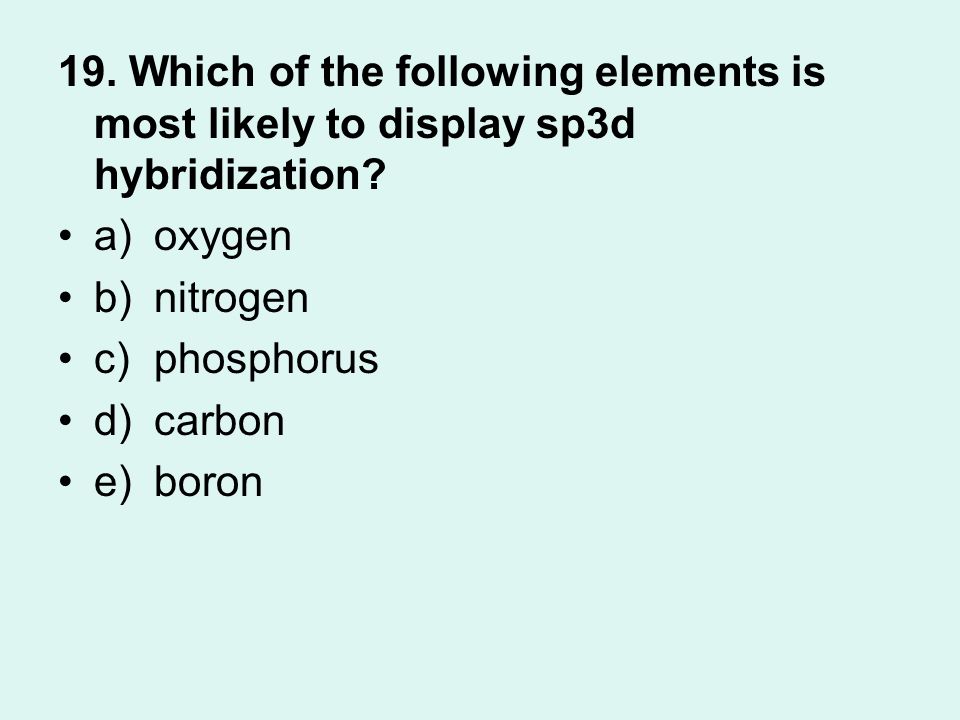

22 19. Which of the following elements is most likely to display sp3d hybridization? a)oxygen b)nitrogen c)phosphorus d)carbon e)boron

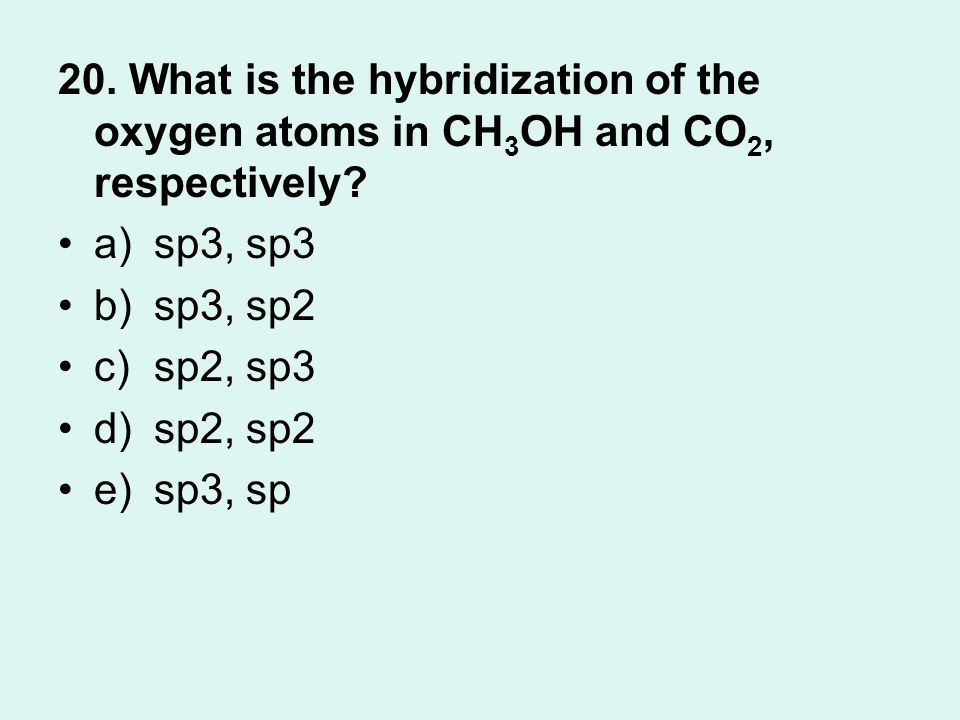

23 20. What is the hybridization of the oxygen atoms in CH 3 OH and CO 2, respectively? a)sp3, sp3 b)sp3, sp2 c)sp2, sp3 d)sp2, sp2 e)sp3, sp

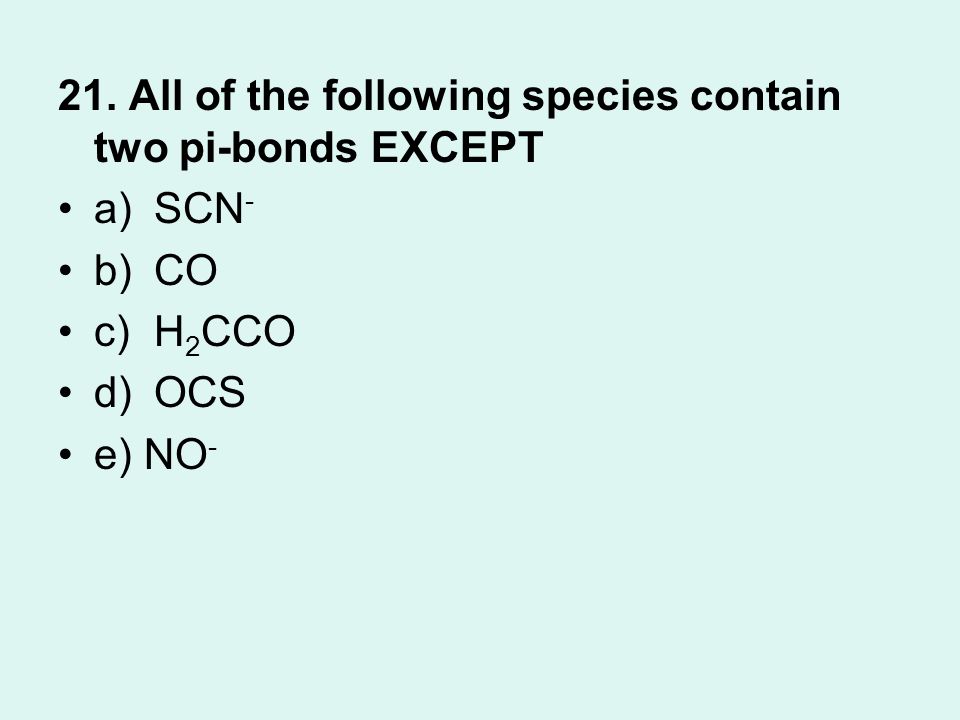

24 21. All of the following species contain two pi-bonds EXCEPT a)SCN - b)CO c)H 2 CCO d)OCS e) NO -

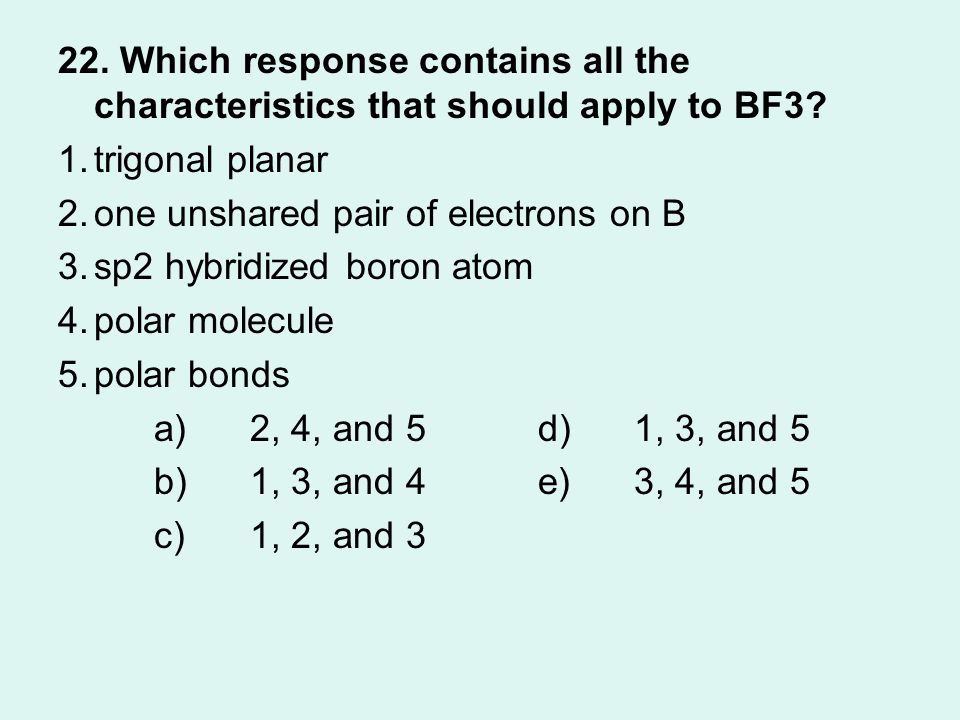

25 22. Which response contains all the characteristics that should apply to BF3? 1.trigonal planar 2.one unshared pair of electrons on B 3.sp2 hybridized boron atom 4.polar molecule 5.polar bonds a)2, 4, and 5 d)1, 3, and 5 b)1, 3, and 4e)3, 4, and 5 c)1, 2, and 3

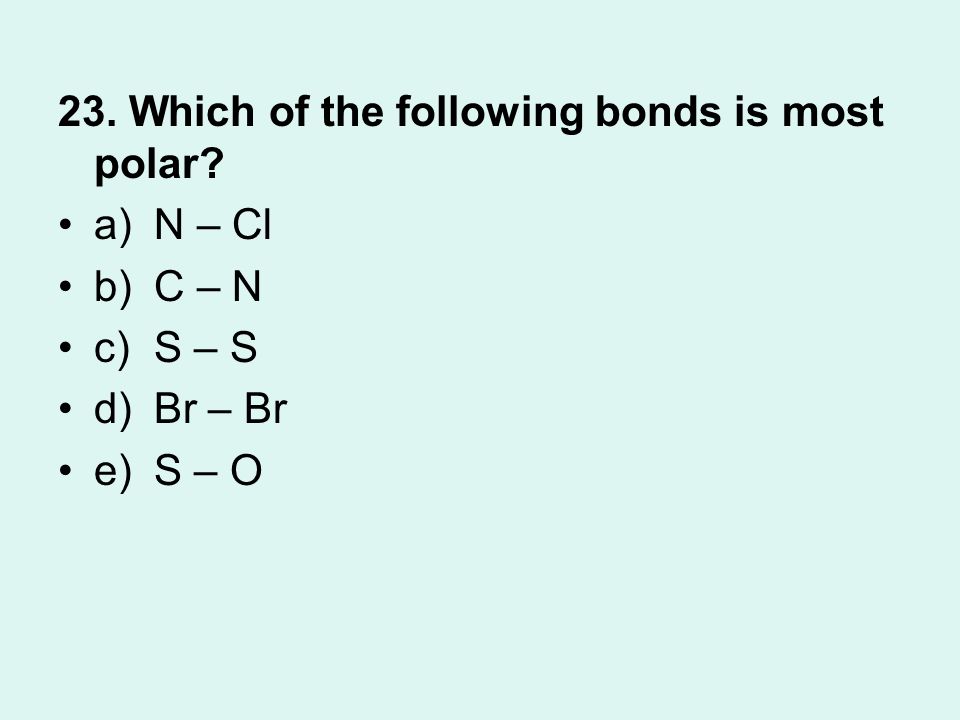

26 23. Which of the following bonds is most polar? a)N – Cl b)C – N c)S – S d)Br – Br e)S – O

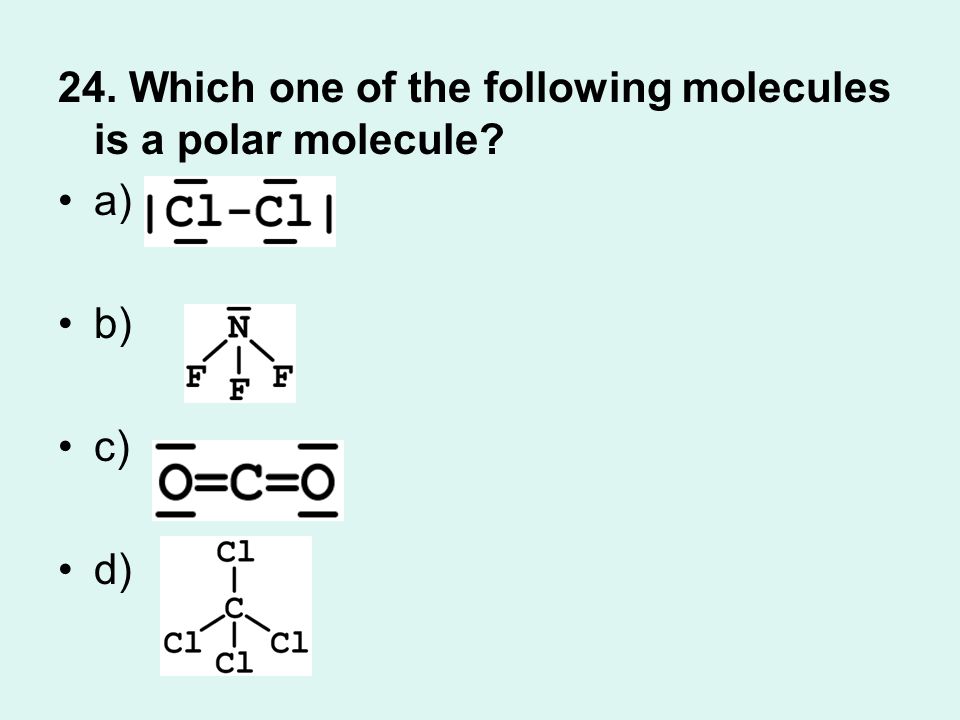

27 24. Which one of the following molecules is a polar molecule? a) b) c) d)

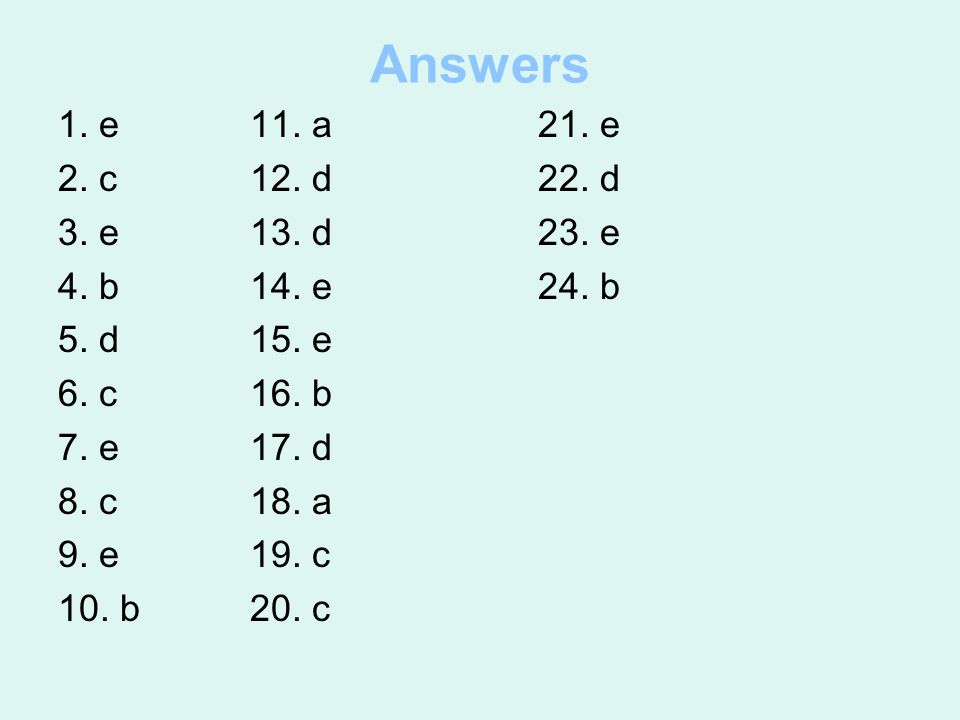

28 Answers 1. e11. a21. e 2. c12. d22. d 3. e13. d23. e 4. b14. e24. b 5. d15. e 6. c16. b 7. e17. d 8. c18. a 9. e19. c 10. b20. c
