1. Warm-Up Exercises ANSWER alternate interior 1. 5, 7 2. 3, 6 3. 1, 8 ANSWER alternate exterior ANSWER corresponding Identify the type of angles.

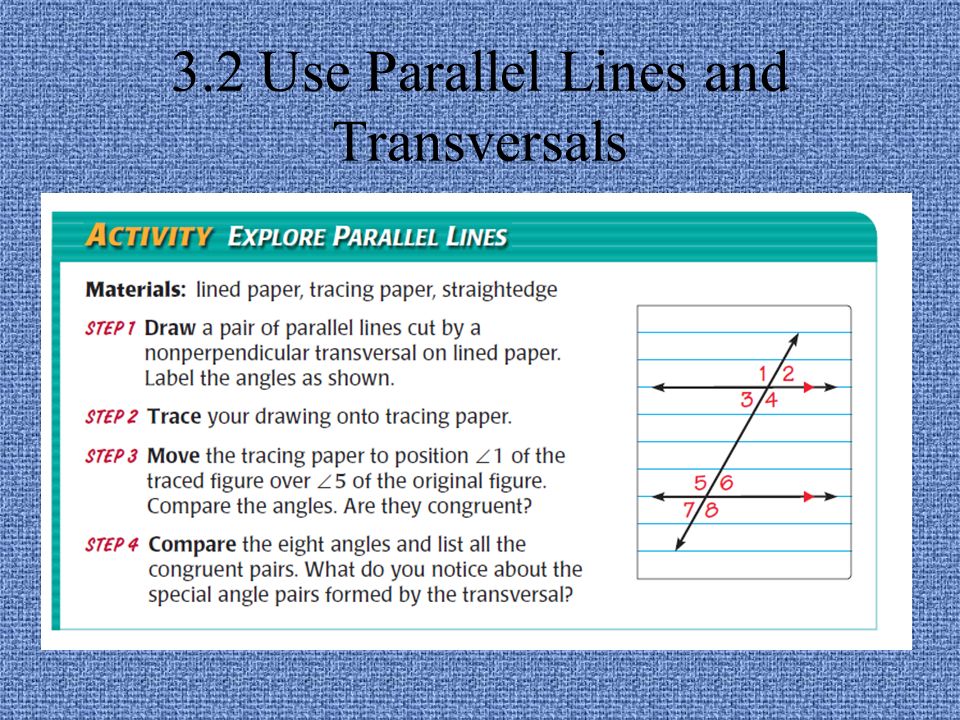

2. 3.2 Use Parallel Lines and Transversals

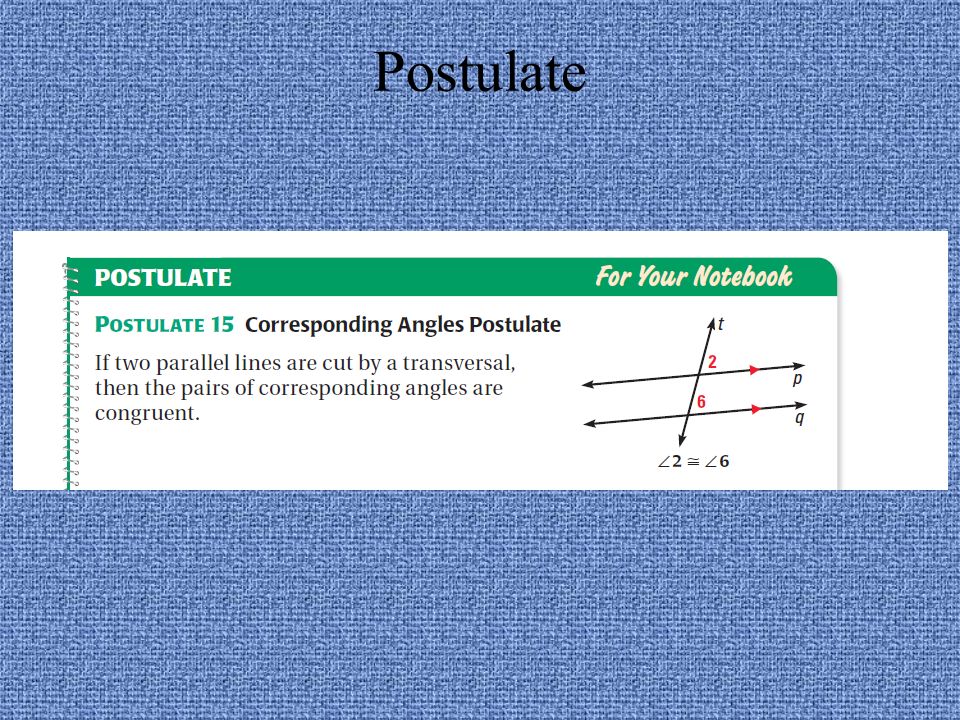

3. Postulate

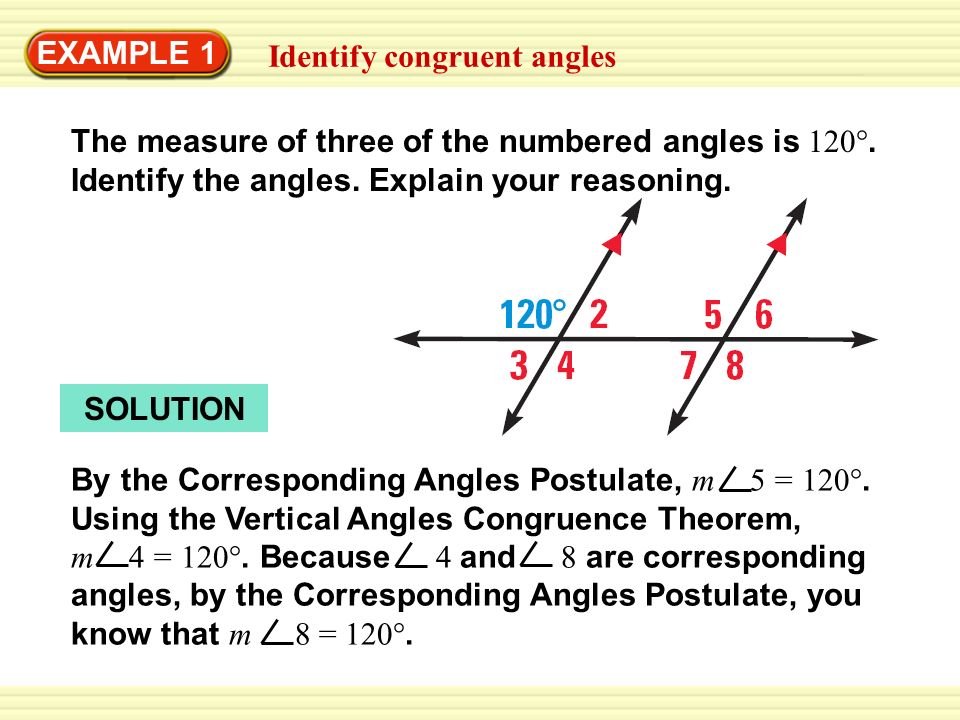

4. Warm-Up Exercises EXAMPLE 1 Identify congruent angles SOLUTION By the Corresponding Angles Postulate, m 5 = 120°. Using the Vertical Angles Congruence Theorem, m 4 = 120°. Because 4 and 8 are corresponding angles, by the Corresponding Angles Postulate, you know that m 8 = 120°. The measure of three of the numbered angles is 120°. Identify the angles. Explain your reasoning.

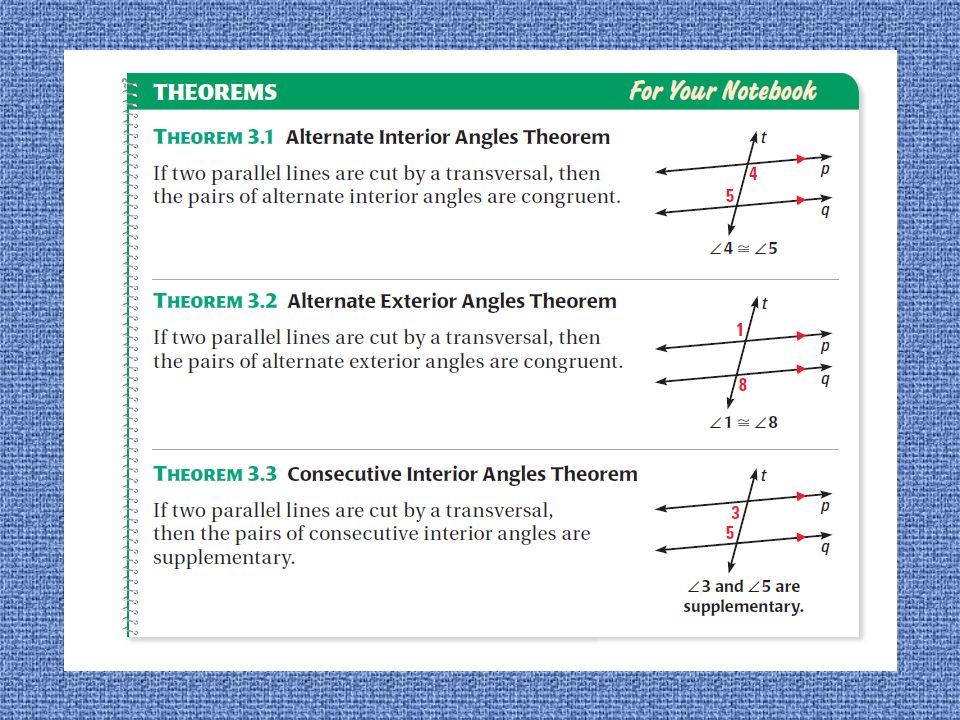

5. Theorems

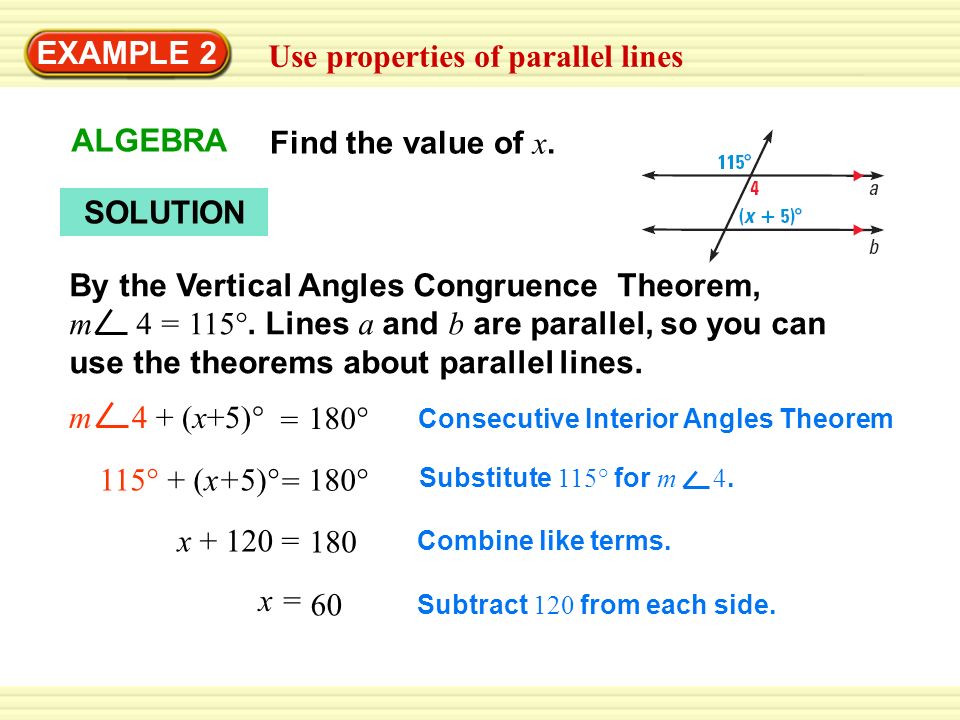

6. Warm-Up Exercises EXAMPLE 2 Use properties of parallel lines ALGEBRA Find the value of x. SOLUTION By the Vertical Angles Congruence Theorem, m 4 = 115°. Lines a and b are parallel, so you can use the theorems about parallel lines. Consecutive Interior Angles Theorem m 4 + (x+5)° = 180° Substitute 115° for m 4. 115° + (x+5)° = 180° Combine like terms. x + 120 = 180 Subtract 120 from each side. x = 60

7. Warm-Up Exercises GUIDED PRACTICE for Examples 1 and 2 Vertical Angles Congruence Theorem. Corresponding Angles Postulate. m 5 =105° Alternate Exterior Angles Theorem m 8 =105° Use the diagram. 1. If m 1 = 105°, find m 4, m 5, and m 8. Tell which postulate or theorem you use in each case. m 4 = 105° ANSWER

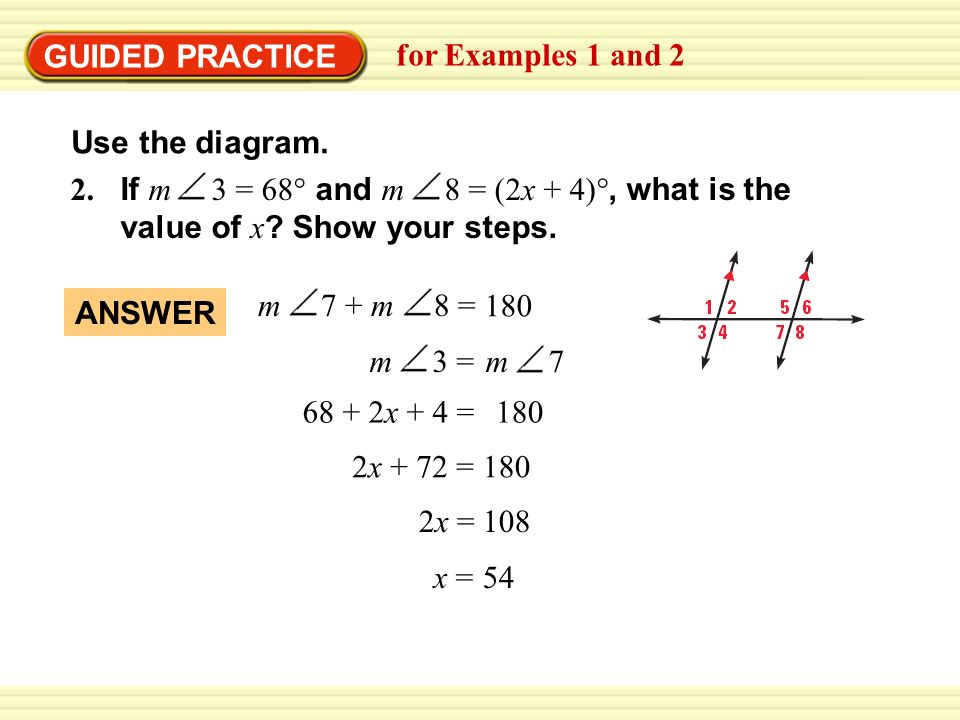

8. Warm-Up Exercises GUIDED PRACTICE for Examples 1 and 2 Use the diagram. 2. If m 3 = 68° and m 8 = (2x + 4)°, what is the value of x ? Show your steps. m 3 =m 7 68 + 2x + 4 =180 2x + 72 =180 2x =108 x =54 m 7 + m 8 = 180 ANSWER

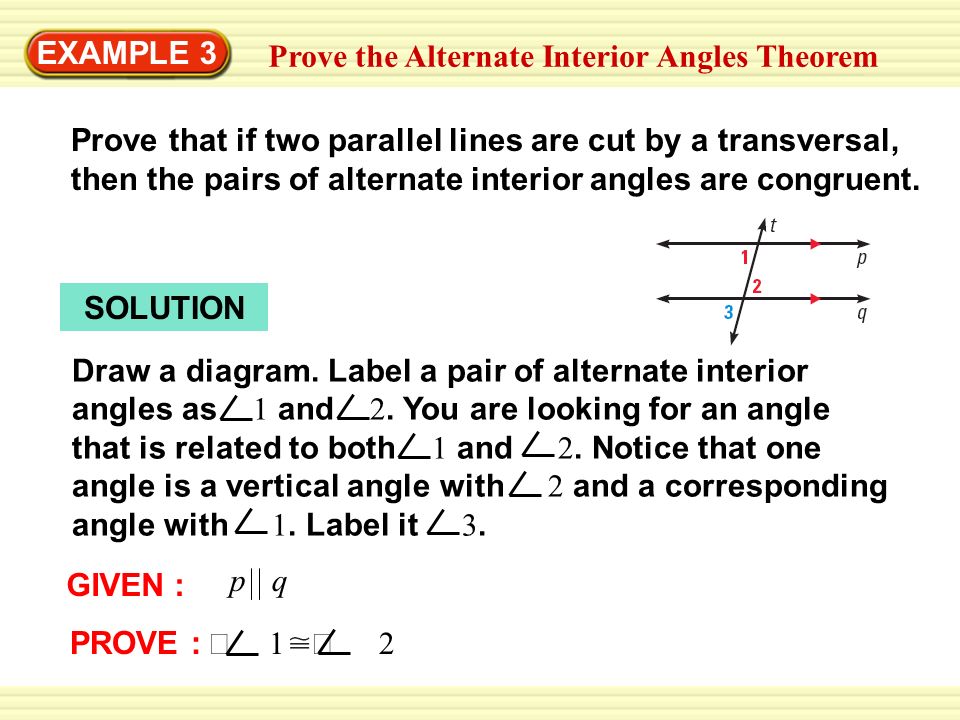

9. Warm-Up Exercises EXAMPLE 3 Prove the Alternate Interior Angles Theorem Prove that if two parallel lines are cut by a transversal, then the pairs of alternate interior angles are congruent. SOLUTION Draw a diagram. Label a pair of alternate interior angles as 1 and 2. You are looking for an angle that is related to both 1 and 2. Notice that one angle is a vertical angle with 2 and a corresponding angle with 1. Label it 3. GIVEN : p q PROVE :  1  2

10. Warm-Up Exercises EXAMPLE 3 Prove the Alternate Interior Angles Theorem STATEMENTS REASONS p q 1. 1.1. Given 2. 1  3 2.2. Corresponding Angles Postulate 3. 3  2 3.3. Vertical Angles Congruence Theorem 4. 1  2 Transitive Property of Congruence 4.4.

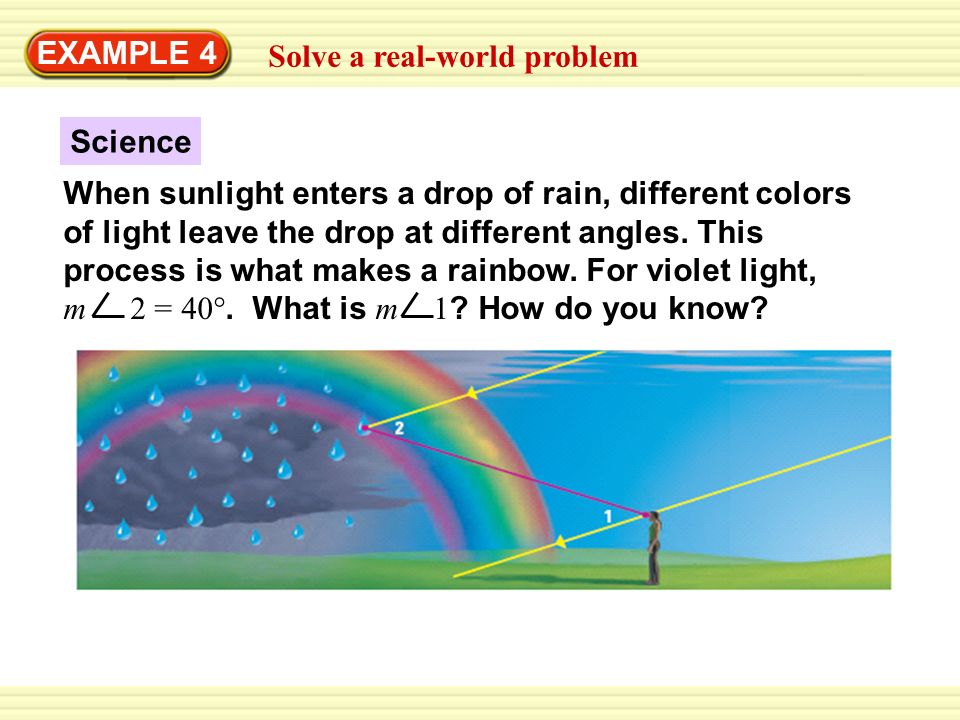

11. Warm-Up Exercises EXAMPLE 4 Solve a real-world problem Science When sunlight enters a drop of rain, different colors of light leave the drop at different angles. This process is what makes a rainbow. For violet light, m 2 = 40°. What is m 1 ? How do you know?

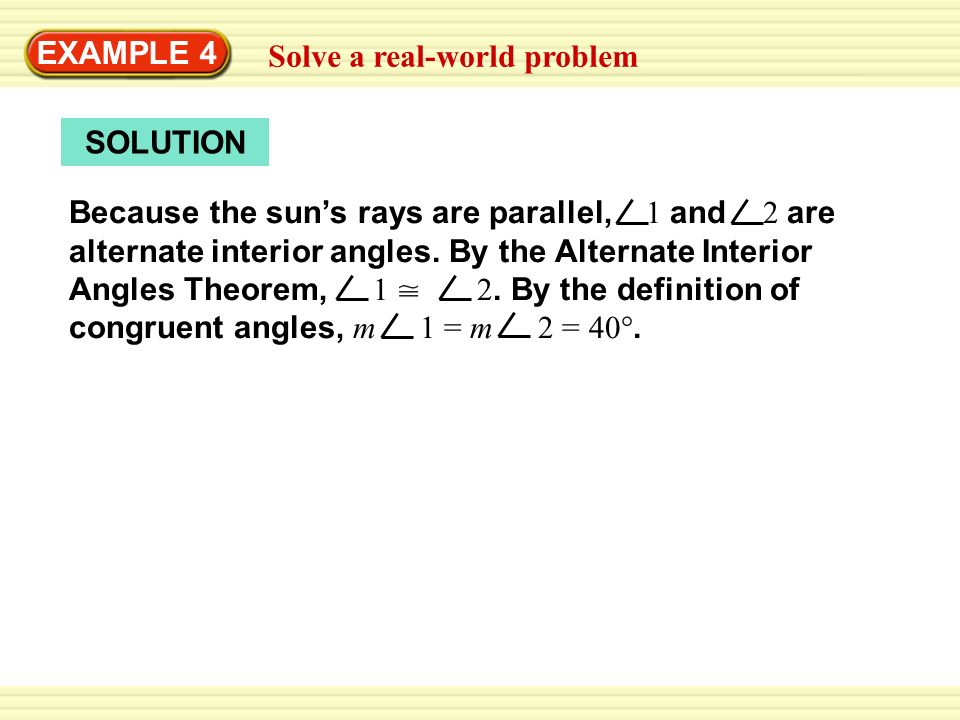

12. Warm-Up Exercises EXAMPLE 4 Solve a real-world problem SOLUTION Because the sun’s rays are parallel, 1 and 2 are alternate interior angles. By the Alternate Interior Angles Theorem, 1 2. By the definition of congruent angles, m 1 = m 2 = 40°.

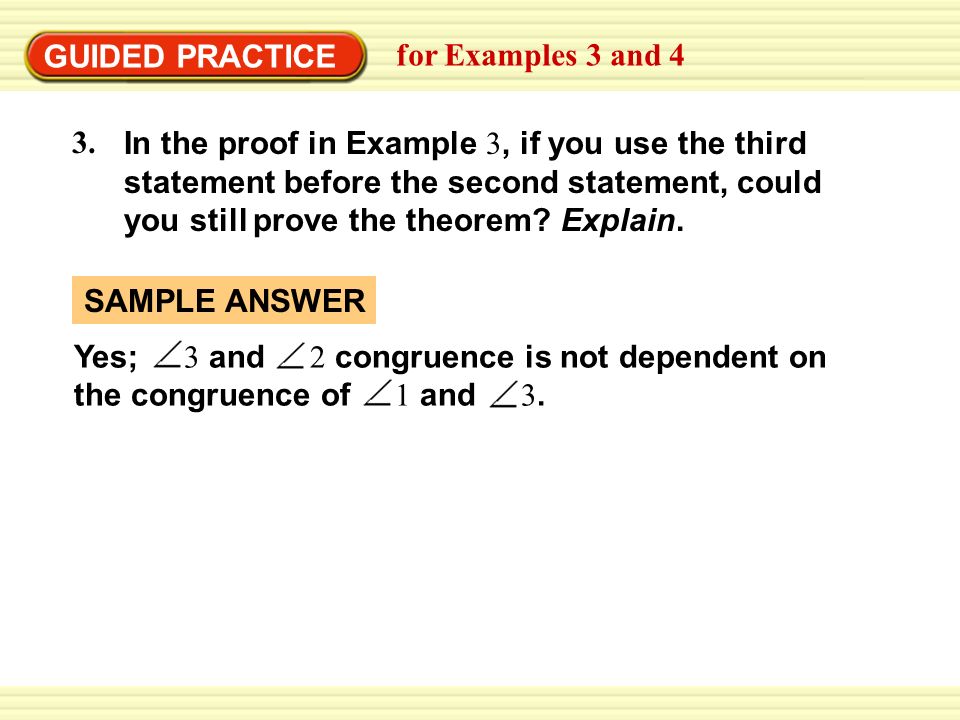

13. Warm-Up Exercises GUIDED PRACTICE for Examples 3 and 4 3. In the proof in Example 3, if you use the third statement before the second statement, could you still prove the theorem? Explain. Yes; 3 and 2 congruence is not dependent on the congruence of 1 and 3. SAMPLE ANSWER

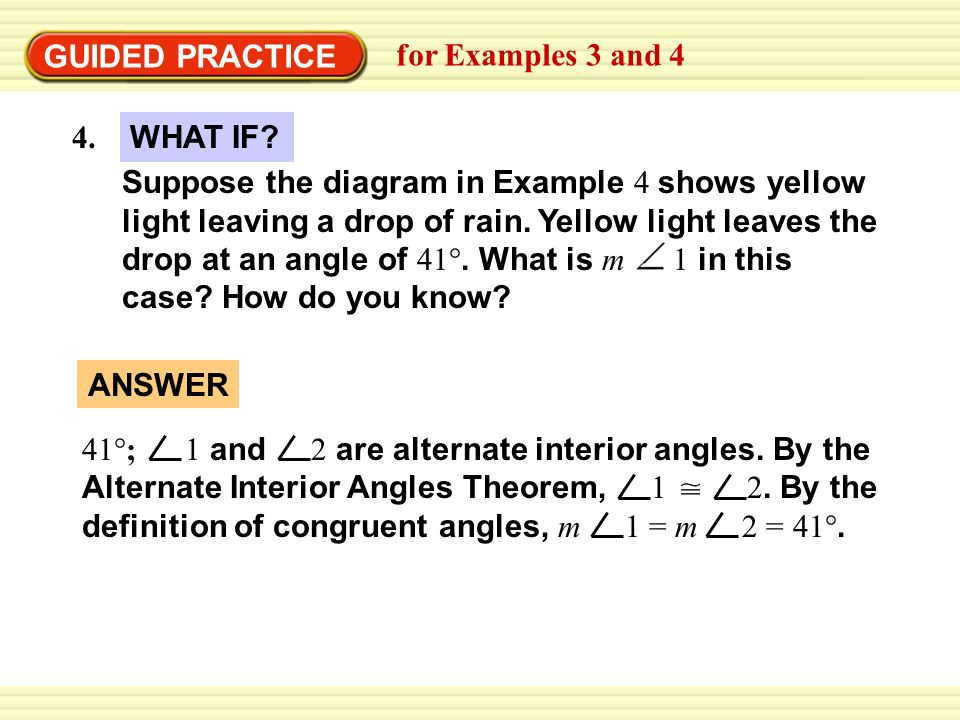

14. Warm-Up Exercises GUIDED PRACTICE for Examples 3 and 4 Suppose the diagram in Example 4 shows yellow light leaving a drop of rain. Yellow light leaves the drop at an angle of 41°. What is m 1 in this case? How do you know? 4. WHAT IF? 41°; 1 and 2 are alternate interior angles. By the Alternate Interior Angles Theorem, 1 2. By the definition of congruent angles, m 1 = m 2 = 41°. ANSWER

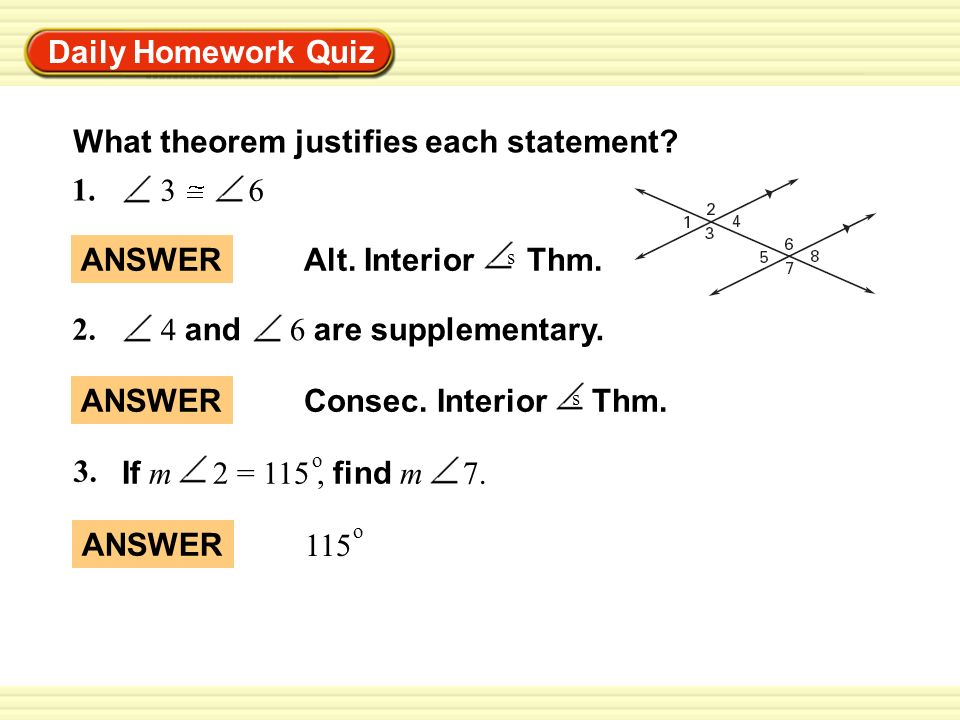

15. Warm-Up Exercises Daily Homework Quiz What theorem justifies each statement? Alt. Interior Thm. s ANSWER 2. 4 and 6 are supplementary. Consec. Interior Thm. s ANSWER 3. If m 2 = 115, find m 7. o 115 ANSWER o 1. 3 6

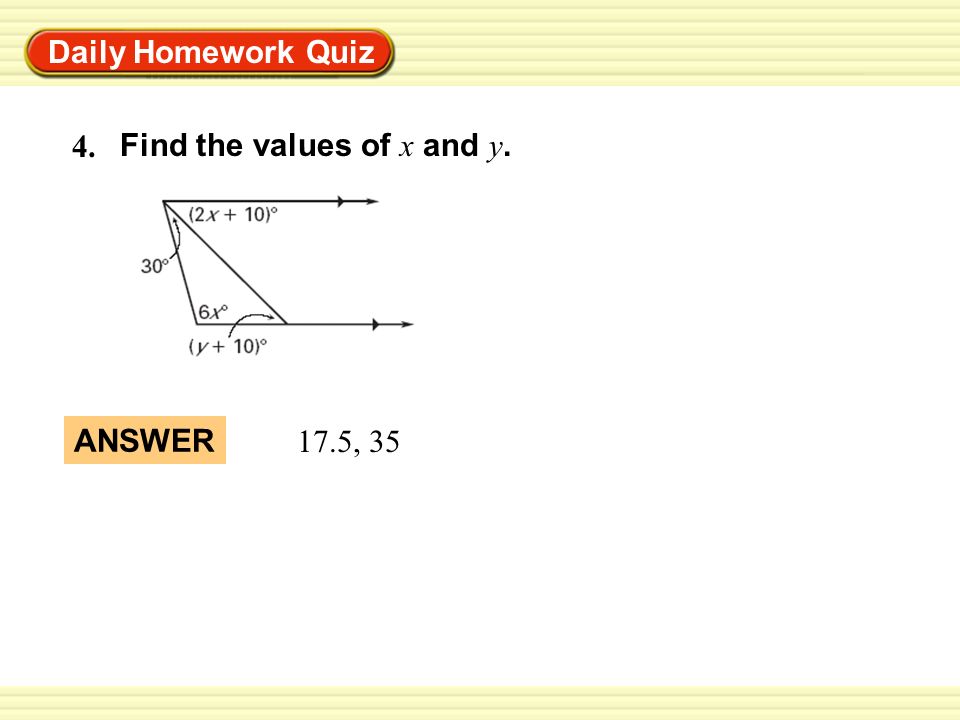

16. Warm-Up Exercises Daily Homework Quiz 4. Find the values of x and y. 17.5, 35 ANSWER

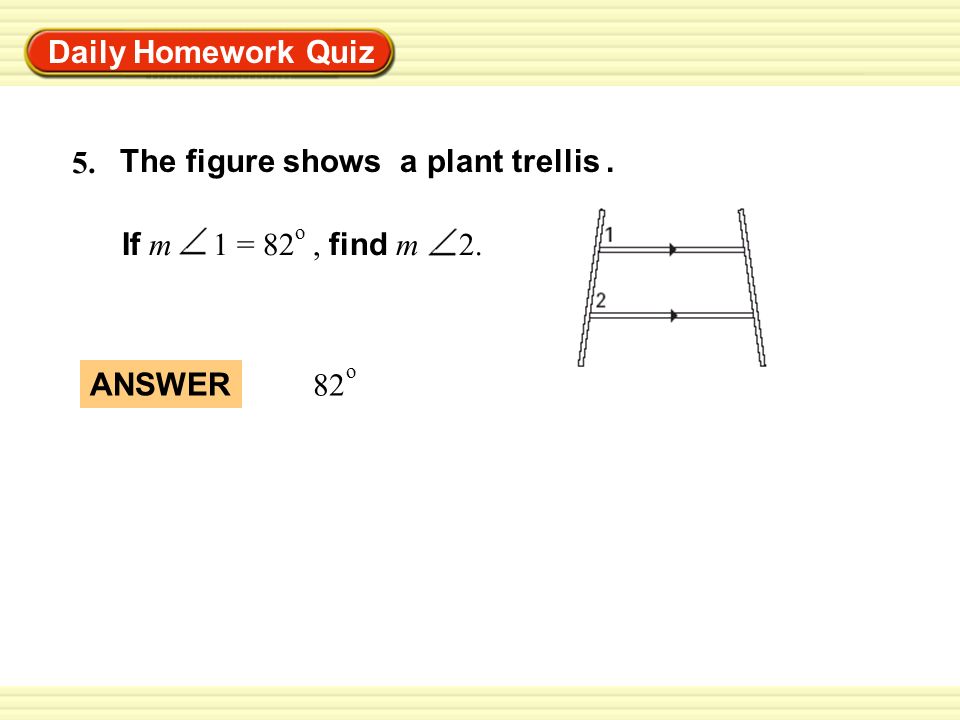

17. Warm-Up Exercises Daily Homework Quiz 82 ANSWER o 5. The figure shows a plant trellis. If m 1 = 82 o, find m 2.
