1. Heat and Energy of Ractions Chapter 10 Energy World of Chemistry Zumdahl Last revision Fall 2009

2. What is energy? The ability to cause a change.  change in position or temperature 1 st law of thermodynamics: Energy is neither created nor destroyed, only transformed

3. Heat is not the same as Temperature! Temperature is…  Measure of the average kinetic energy of the particles in a substance. Something is hot because it transfers heat to your hand, it is cold because it pulls heat out of your hand. Heat is transferred due to a temperature difference.

4. Temperature Scales Three different Scales Celsius Fahrenheit Kelvin Water Freezes 0 0 C Water Boils 100 0 C 32 0 F 212 0 F 0 0 F ? 273 K 373 K 0 K ?

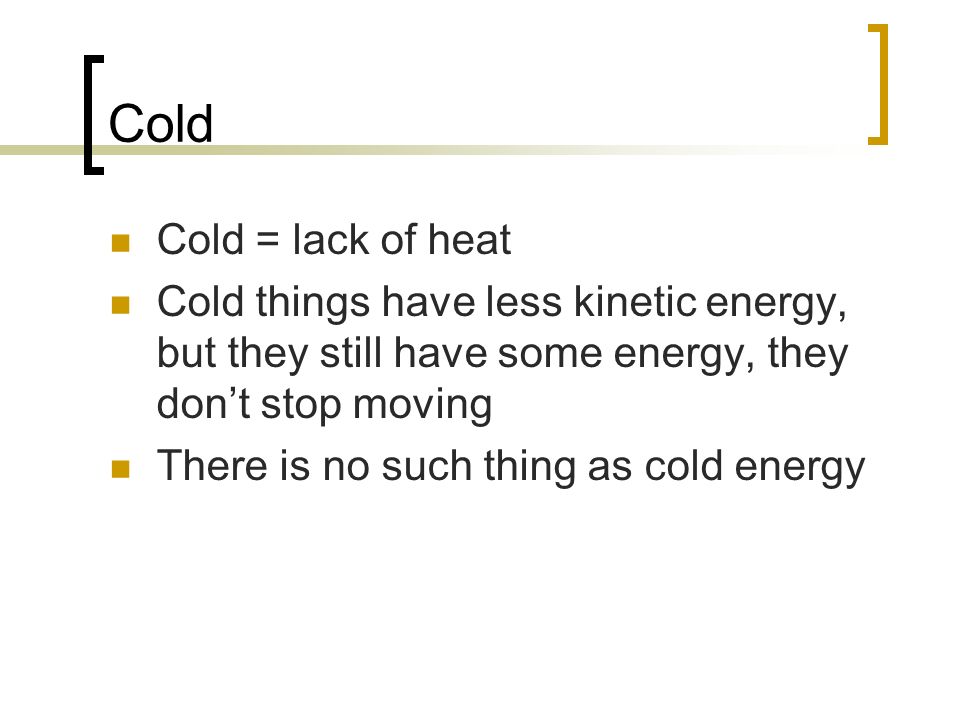

5. Cold Cold = lack of heat Cold things have less kinetic energy, but they still have some energy, they don’t stop moving There is no such thing as cold energy

6. Absolute Zero is the temperature at which all motion of particles stops. Scientists have yet to reach it.

7. 7 Heating Curve A heating curve illustrates the changes of state as a solid is heated. uses sloped lines to show an increase in temperature. uses plateaus (flat lines) to indicate a change of state. Copyright © 2005 by Pearson Education, Inc. Publishing as Benjamin Cummings

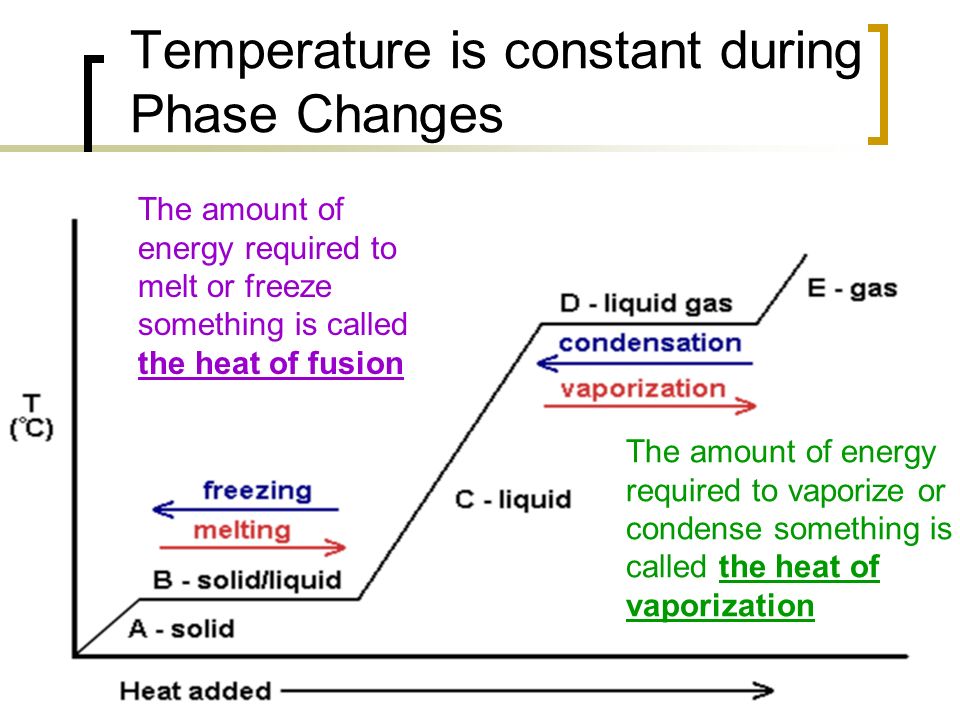

8. Temperature is constant during Phase Changes The amount of energy required to melt or freeze something is called the heat of fusion The amount of energy required to vaporize or condense something is called the heat of vaporization

9. State of Matter- Matter can be solid, liquid, gas or plasma depending on how much kinetic energy (or motion) they have. Solid: Particles vibrate in place. It has a definite volume and a definite shape. Liquid: Particles roll around each other. It has a definite volume but no definite shape. Gas: Particles move around colliding with one another. It has no definite volume or shape. Plasma: Particles are so hot and excited that the electrons leave the nucleus and matter is ionized or charged

11. Energy in Reactions Exothermic Reactions – A reaction in which energy is released. Feels hot. Endothermic Reactions – A reaction which energy must be provided for it to continue. Absorbs energy and feels cold. Dissolution Reactions – When ionic compounds dissolve in water. Will this be endothermic or exothermic? (remember, breaking bonds requires energy) Endothermic

12. Energy, potential energy, and Enthalpy. Energy (q) Energy (q) is the ability to do work or produce heat. Kinetic energy is the motion of the molecules and can be measured by taking it’s temperature. Potential energy Potential energy is the energy stored in a substance because of its composition (like the types of bonds it formed). Enthalpy (  H) is the heat released or absorbed in a chemical reaction. Activation Energy is the amount of energy needed to get a reaction started.

13. Potential energy Heat Exothermic has heat as a product Activation Energy The products have less energy than the reactants. It has to go somewhere Released to the surroundings (-)

14. Potential energy Heat Endothermic has heat as a reactant Heat must be present for the reaction to happen Heat + H 2 O 2 → H 2 O + O 2 H2O2H2O2 H 2 O + O 2 Absorbed from the surroundings (+)

15. Heat Capacity and Specific Heat Heat Capacity (C) Heat Capacity (C) is the amount of heat energy a substance can absorb before one gram of the substance will increase its temperature by one degree Celsius. Specific heat (s) Specific heat (s) of a substance is the amount of heat required to raise the temperature of one gram of that substance by one degree Celsius.

16. Calculating the Energy of a Reaction Any energy lost by the reaction must be gained by the surroundings. Energy must always be conserved. The sign on Q indicates if energy is leaving or entering the system.

17. Try it yourself: What is the specific heat of a pure metal that has a mass of 2.8g and requires 10.1J of energy to raise the temperature from 21 o C to 36 o C.

18. Calculate the heat of a reaction The heat of a reaction (enthalpy ∆H) is measured per mole. You must used the coefficients of the balanced equation to divide the enthalpy of the equation so it is per 1 mole. If a mass amount is given, you must determine the moles and multiply it by the enthalpy.

19. How much heat will be transferred when 5.81g of graphite react with excess hydrogen?
