1. Molecular clouds in the center of M81 Viviana Casasola Observatoire de Paris-LERMA & Università di Padova, Dipartimento di Astronomia Scuola Nazionale di Astrofisica Oggetti compatti e pulsar - Scienza con ALMA Maracalagonis (CA), 20 - 26 maggio 2007 Supervisors: F. Combes (Paris) G. Galletta (Padova)

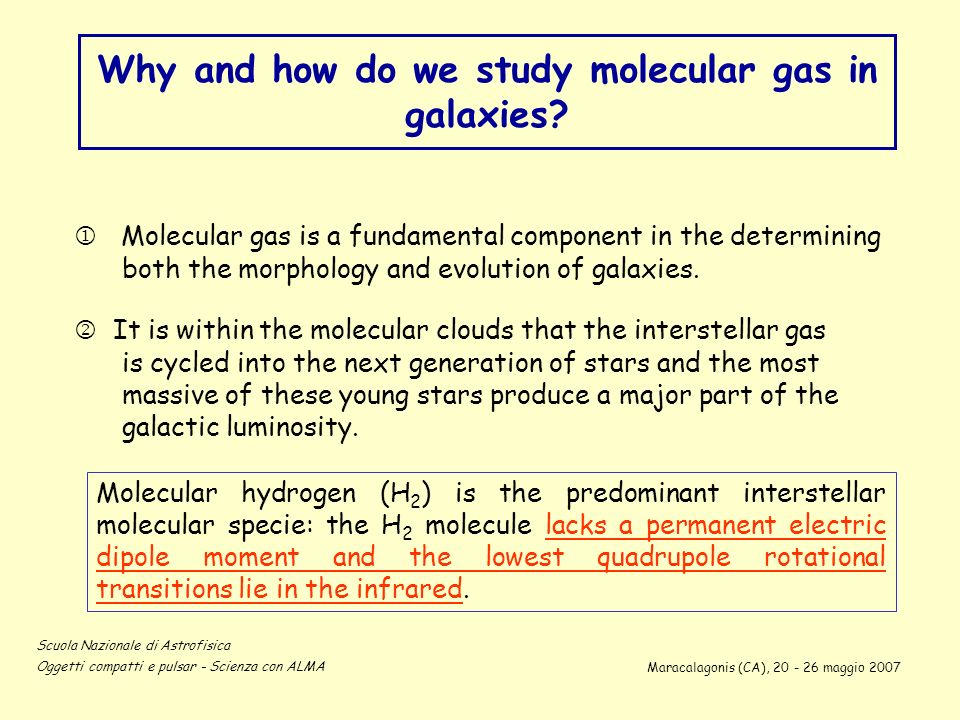

2.  Molecular gas is a fundamental component in the determining both the morphology and evolution of galaxies.  It is within the molecular clouds that the interstellar gas is cycled into the next generation of stars and the most massive of these young stars produce a major part of the galactic luminosity. Why and how do we study molecular gas in galaxies? Scuola Nazionale di Astrofisica Oggetti compatti e pulsar - Scienza con ALMA Maracalagonis (CA), 20 - 26 maggio 2007 Molecular hydrogen (H 2 ) is the predominant interstellar molecular specie: the H 2 molecule lacks a permanent electric dipole moment and the lowest quadrupole rotational transitions lie in the infrared.

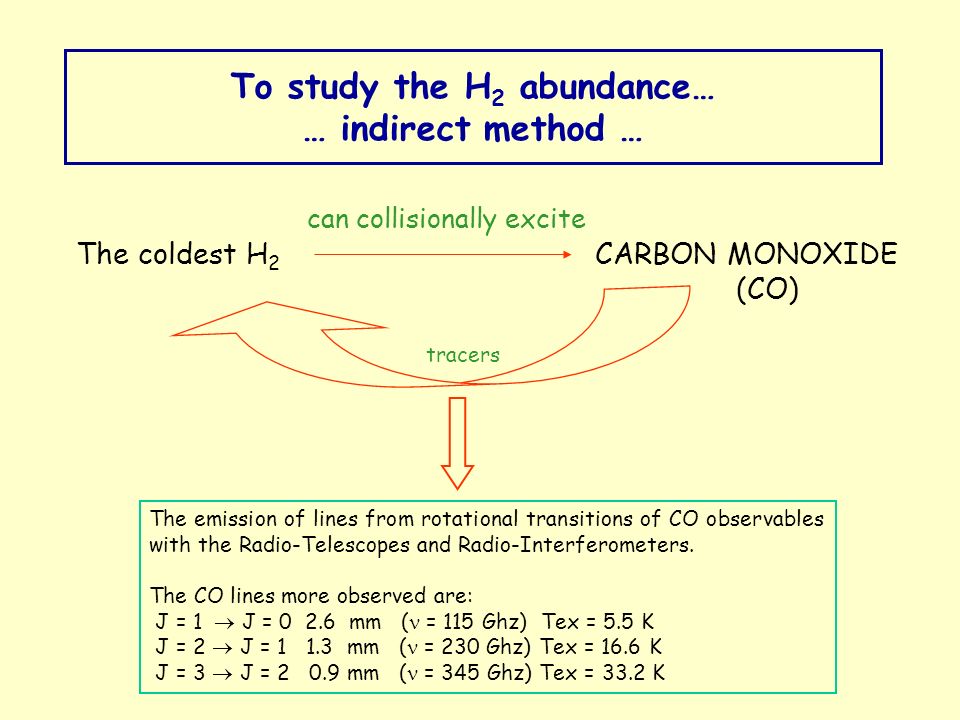

3. The emission of lines from rotational transitions of CO observables with the Radio-Telescopes and Radio-Interferometers. The CO lines more observed are: J = 1  J = 0 2.6 mm ( = 115 Ghz) Tex = 5.5 K J = 2  J = 1 1.3 mm ( = 230 Ghz) Tex = 16.6 K J = 3  J = 2 0.9 mm ( = 345 Ghz) Tex = 33.2 K To study the H 2 abundance… … indirect method … The coldest H 2 CARBON MONOXIDE (CO) tracers can collisionally excite

4. X=NH 2 /ICO, “standard” conversion factor X = 2.3x10^ 20 mol cm -2 (K km/s) -1, for the Milky Way (Strong et al. 1988) To estimate the H 2 abundance… This value, universally adopted for all galaxies and for different regions of a same galaxy, is still a subject of debate. The X conversion factor depends on various factors such as, the metallicity, the temperature, the cosmic ray density, the UV radiation field,…..

5. M81 galaxy, molecular clouds in the center UV Galex M81 is the prototype of giant spiral galaxy very CO-poor, especially in the central region (Combes et al. 77, Brouillet et al. 88, Sakamoto et al. 2001) H 2 /HI~0.1, normally for similar galaxies H 2 /HI~1 (e.g. Young & Scoville 91) In general interacting galaxies, like M81, possess higher CO luminosity by almost an order of magnitude than non-interacting galaxies (e.g. Combes 94, Casasola et al. 04) M81, for this non-“typical” CO emission, is a good candidate to explore the problem of the varying X=NH 2 /ICO

6. Observations We observed, with the 30m-IRAM RadioTelescope, the central region of M81 to investigate the molecular gas content, its excitation physics, and fragmentation properties. CO10 y-axis, T A [-20/70 mK ] CO21 x-axis,V h [-600/600 km/s] 1”  17.4 pc In the central  1.6 kpc the CO emission (both CO(1-0) and CO(2-1)) comes from different regions the nucleus presents some regions devoid of molecular gas other regions in which the CO is detected but at VERY LOW TEMPERATURE T CO(1-0) = 33.44 mK T CO(2-1) = 21.47 mK I 21 /I 10 = 0.68, quite low and non-typical for galactic nuclei Casasola, Combes et al. 07 A&A submitted

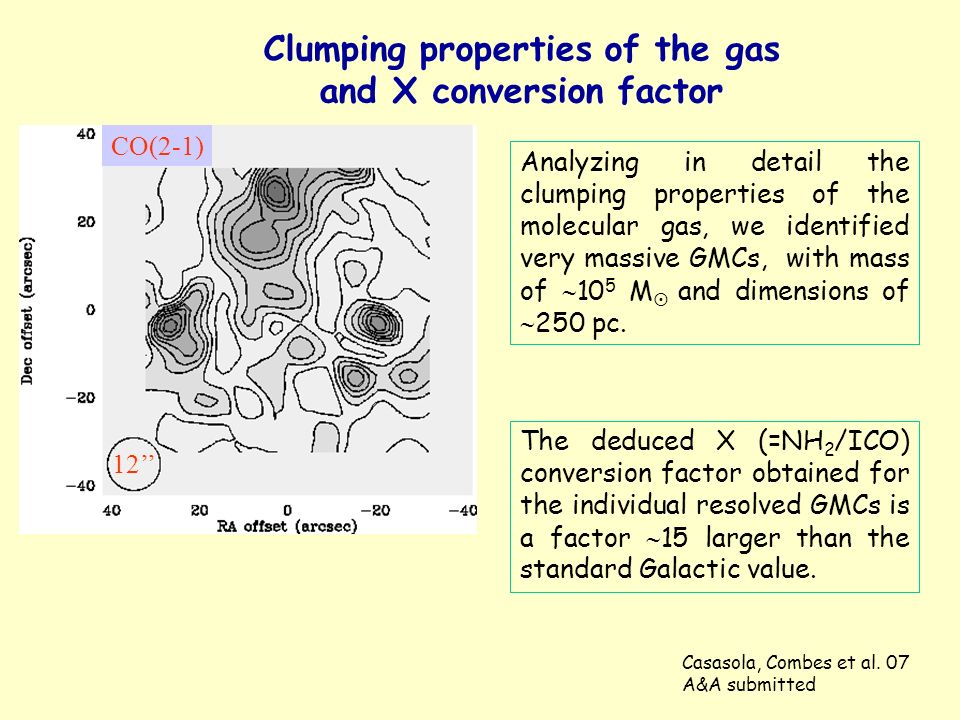

7. 12’’ CO(2-1) Analyzing in detail the clumping properties of the molecular gas, we identified very massive GMCs, with mass of  10 5 M  and dimensions of  250 pc. Casasola, Combes et al. 07 A&A submitted The deduced X (=NH 2 /ICO) conversion factor obtained for the individual resolved GMCs is a factor  15 larger than the standard Galactic value. Clumping properties of the gas and X conversion factor

8. Casasola, Combes et al. 07 A&A submitted Heating of the gas Why the molecular gas is absent or sub-thermally excited in the M81 center? A possible link could exist between low CO emission and lack of UV emission that appears to characterize the M81 central region (see GALEX image). FUV GALEX For Knapen et al 06, observing in CO a region of a spiral arm in M81, the flux of the cosmic rays and the FUV surface brightness would be too low to heat the molecular gas component. Probably also for the nucleus the explanation is the same.

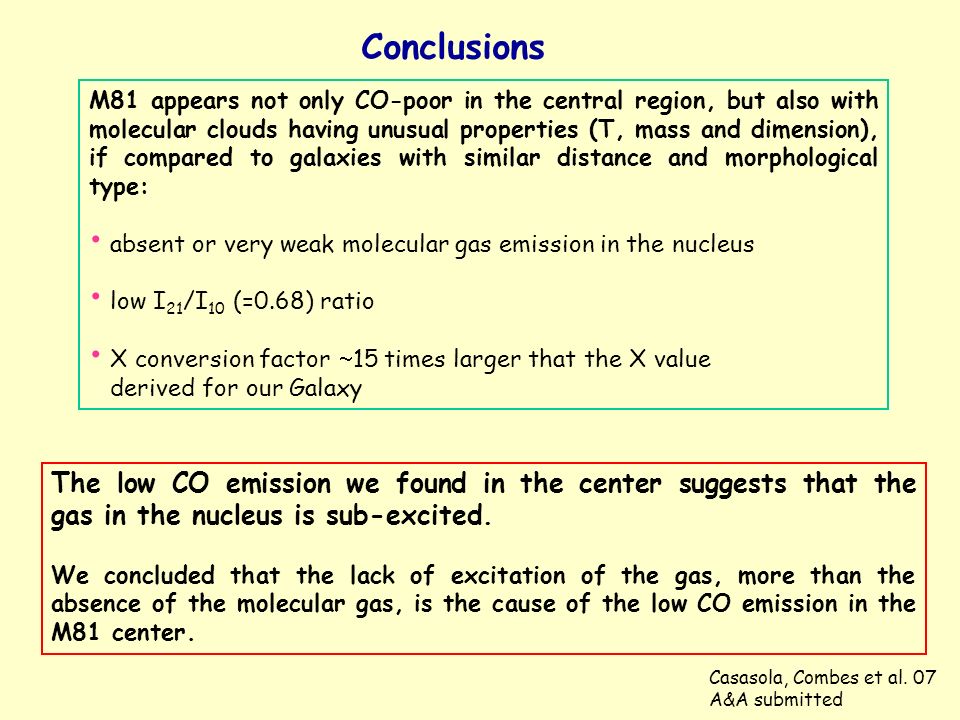

9. Casasola, Combes et al. 07 A&A submitted Conclusions M81 appears not only CO-poor in the central region, but also with molecular clouds having unusual properties (T, mass and dimension), if compared to galaxies with similar distance and morphological type: absent or very weak molecular gas emission in the nucleus low I 21 /I 10 (=0.68) ratio X conversion factor  15 times larger that the X value derived for our Galaxy The low CO emission we found in the center suggests that the gas in the nucleus is sub-excited. We concluded that the lack of excitation of the gas, more than the absence of the molecular gas, is the cause of the low CO emission in the M81 center.
