1. Beam MC progresses for beam MC sub-group

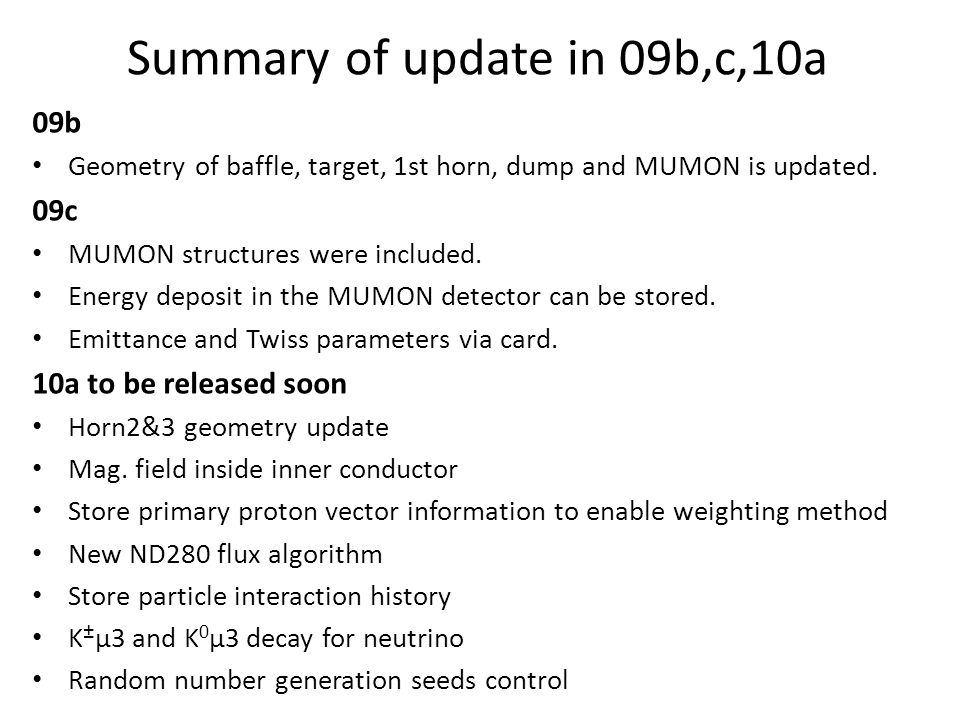

2. Summary of update in 09b,c,10a 09b Geometry of baffle, target, 1st horn, dump and MUMON is updated. 09c MUMON structures were included. Energy deposit in the MUMON detector can be stored. Emittance and Twiss parameters via card. 10a to be released soon Horn2&3 geometry update Mag. field inside inner conductor Store primary proton vector information to enable weighting method New ND280 flux algorithm Store particle interaction history K ± µ3 and K 0 µ3 decay for neutrino Random number generation seeds control

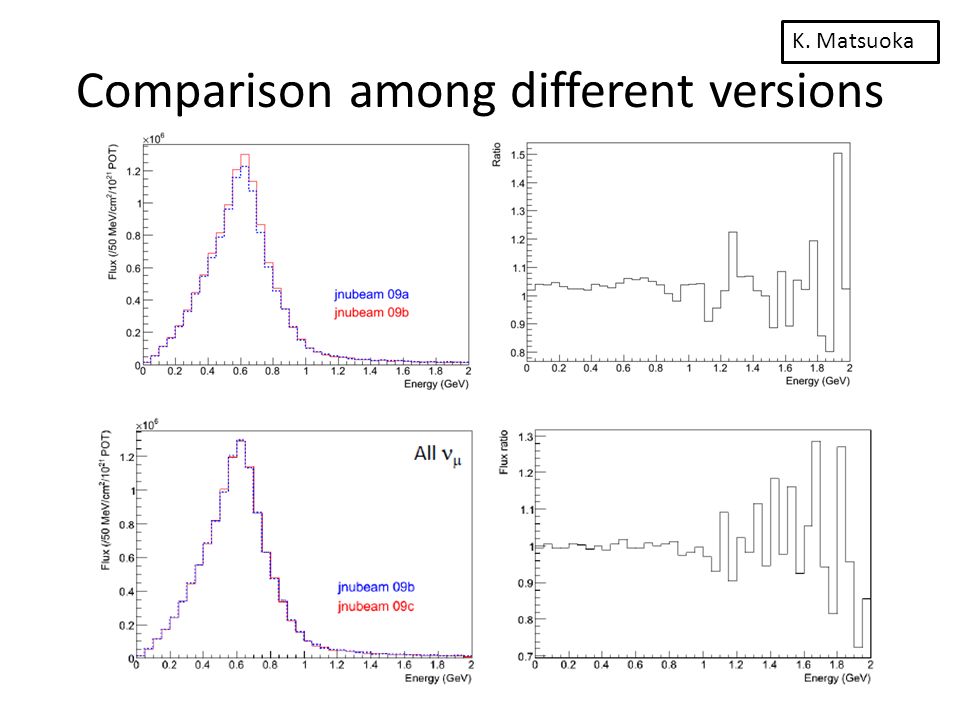

3. Comparison among different versions K. Matsuoka

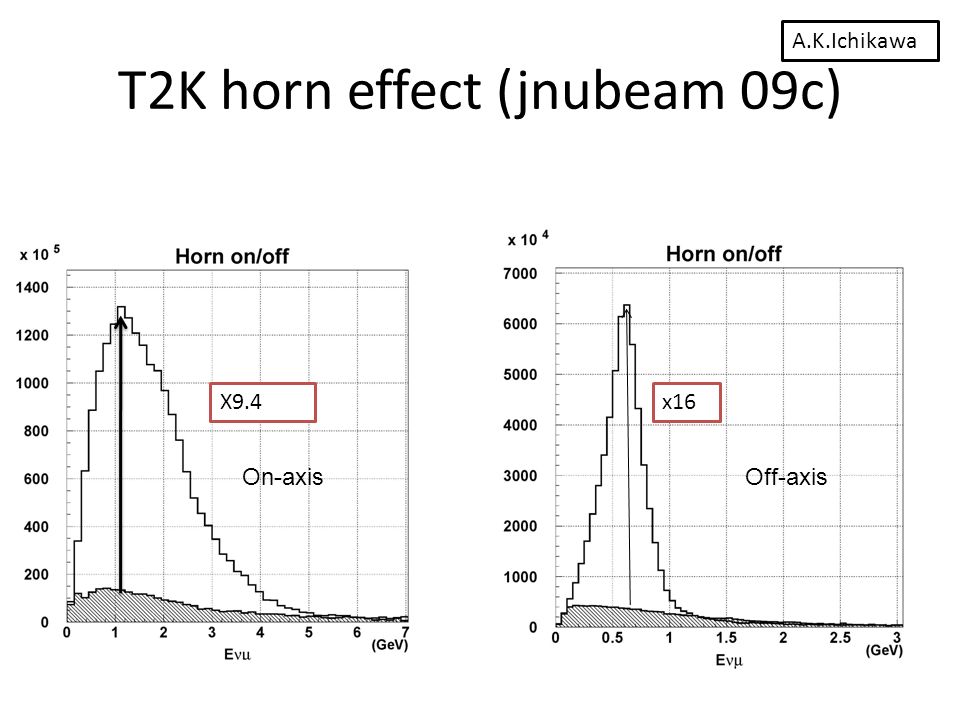

4. T2K horn effect (jnubeam 09c) X9.4x16 On-axisOff-axis A.K.Ichikawa

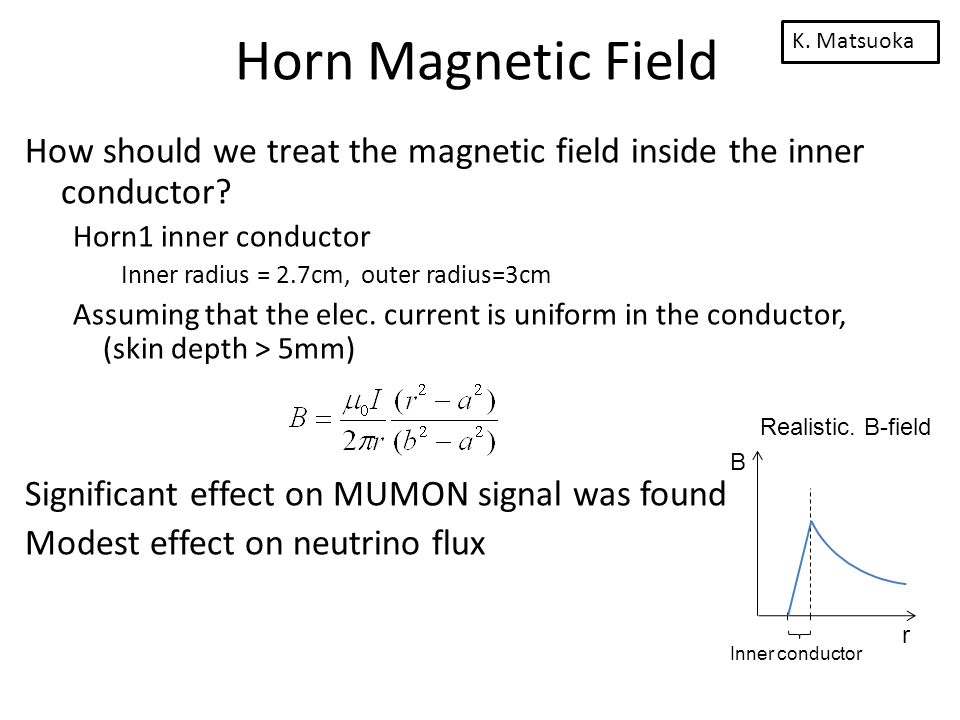

5. Horn Magnetic Field How should we treat the magnetic field inside the inner conductor? Horn1 inner conductor Inner radius = 2.7cm, outer radius=3cm Assuming that the elec. current is uniform in the conductor, (skin depth > 5mm) Significant effect on MUMON signal was found Modest effect on neutrino flux K. Matsuoka r B Inner conductor Realistic. B-field

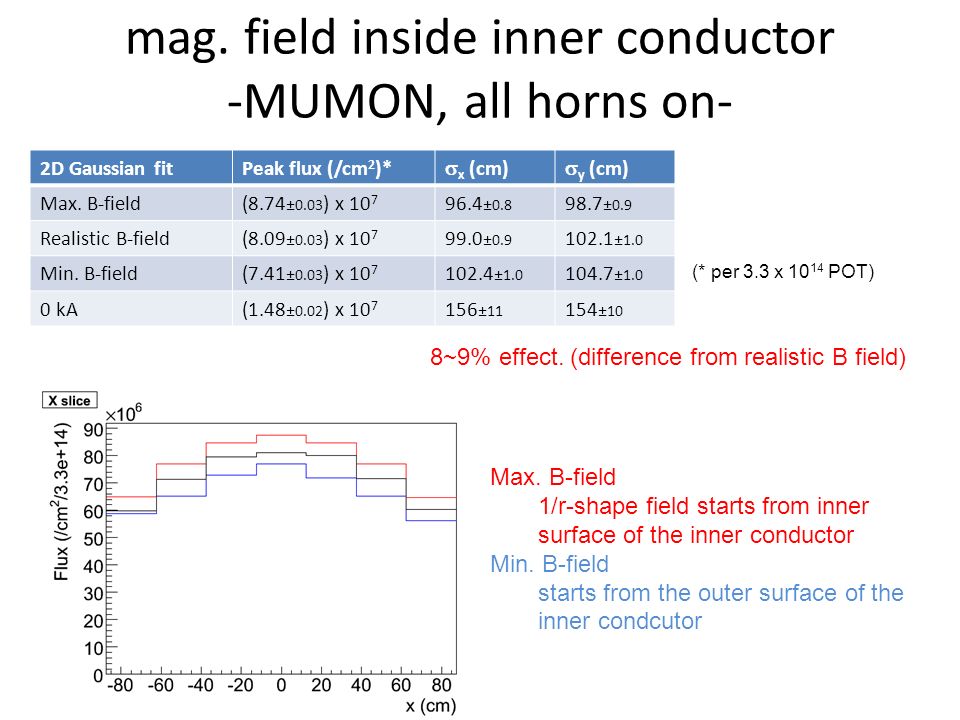

6. 2D Gaussian fitPeak flux (/cm 2 )*  x (cm)  y (cm) Max. B-field(8.74 ±0.03 ) x 10 7 96.4 ±0.8 98.7 ±0.9 Realistic B-field(8.09 ±0.03 ) x 10 7 99.0 ±0.9 102.1 ±1.0 Min. B-field(7.41 ±0.03 ) x 10 7 102.4 ±1.0 104.7 ±1.0 0 kA(1.48 ±0.02 ) x 10 7 156 ±11 154 ±10 (* per 3.3 x 10 14 POT) 8~9% effect. (difference from realistic B field) mag. field inside inner conductor -MUMON, all horns on- Max. B-field 1/r-shape field starts from inner surface of the inner conductor Min. B-field starts from the outer surface of the inner condcutor

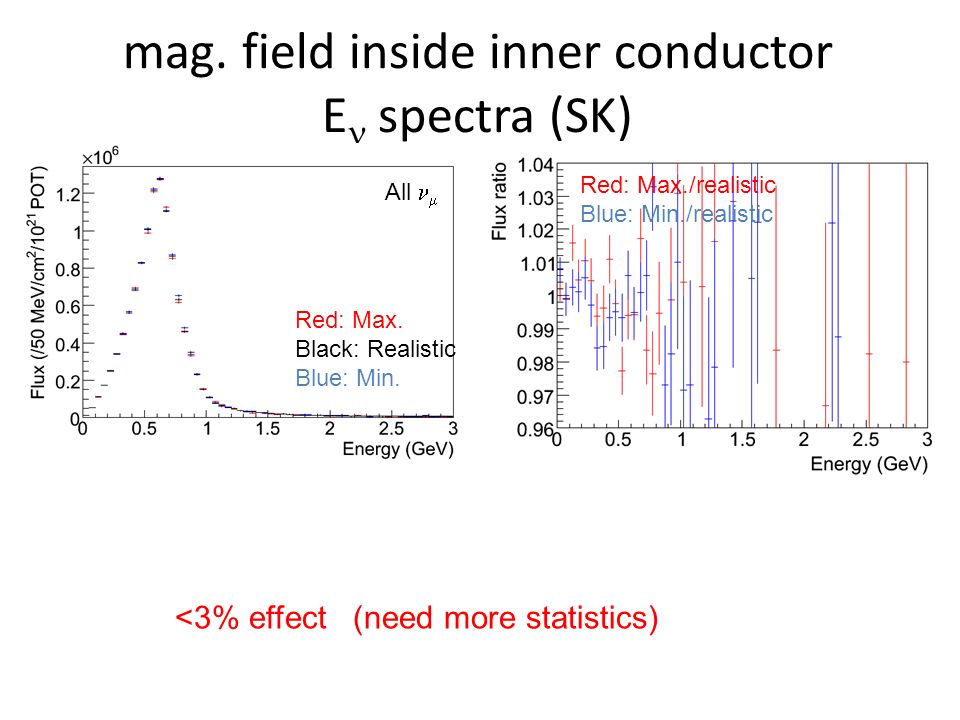

7. mag. field inside inner conductor E spectra (SK) Red: Max. Black: Realistic Blue: Min. Red: Max./realistic Blue: Min./realistic <3% effect (need more statistics) All 

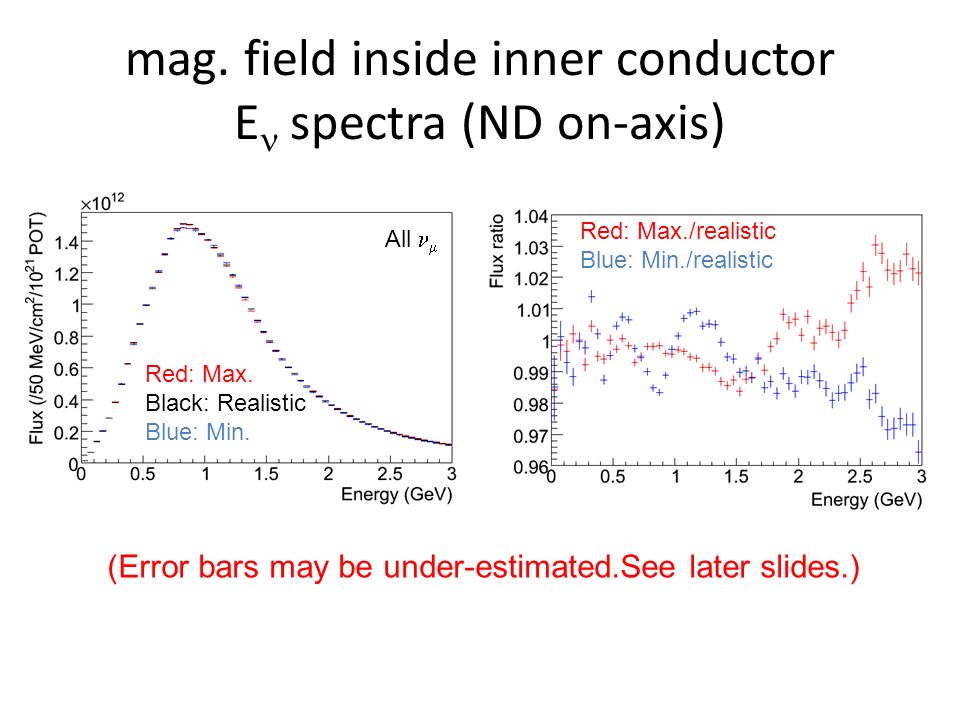

8. mag. field inside inner conductor E spectra (ND on-axis) (Error bars may be under-estimated.See later slides.) All  Red: Max. Black: Realistic Blue: Min. Red: Max./realistic Blue: Min./realistic

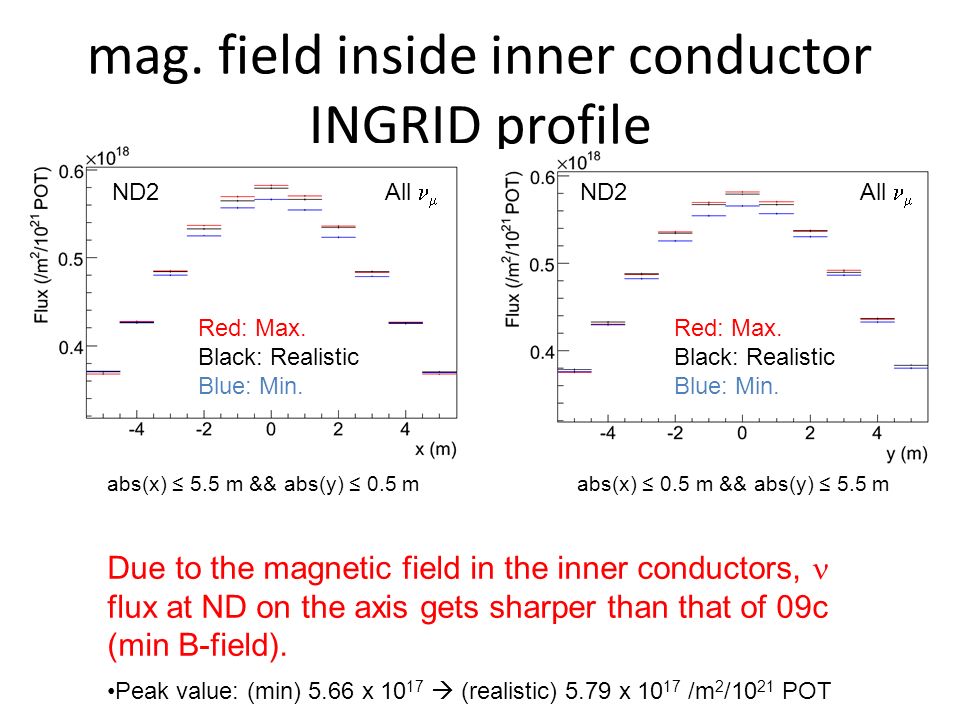

9. mag. field inside inner conductor INGRID profile All  Red: Max. Black: Realistic Blue: Min. All  Red: Max. Black: Realistic Blue: Min. abs(x) ≤ 5.5 m && abs(y) ≤ 0.5 m ND2 abs(x) ≤ 0.5 m && abs(y) ≤ 5.5 m Due to the magnetic field in the inner conductors, flux at ND on the axis gets sharper than that of 09c (min B-field). Peak value: (min) 5.66 x 10 17  (realistic) 5.79 x 10 17 /m 2 /10 21 POT

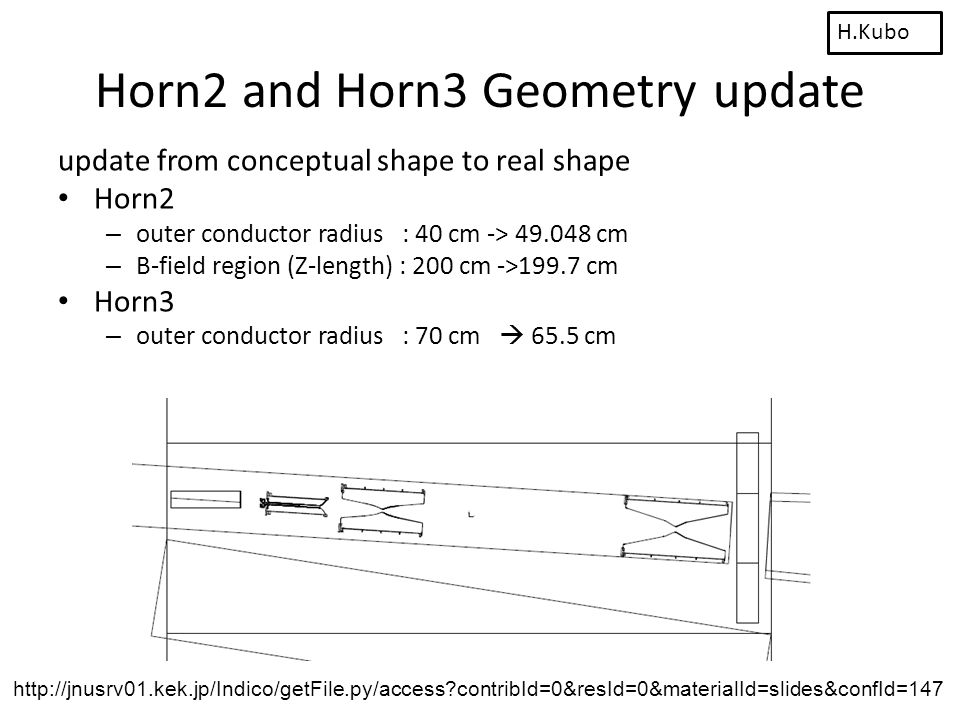

10. Horn2 and Horn3 Geometry update update from conceptual shape to real shape Horn2 – outer conductor radius : 40 cm -> 49.048 cm – B-field region (Z-length) : 200 cm ->199.7 cm Horn3 – outer conductor radius : 70 cm  65.5 cm H.Kubo http://jnusrv01.kek.jp/Indico/getFile.py/access?contribId=0&resId=0&materialId=slides&confId=147

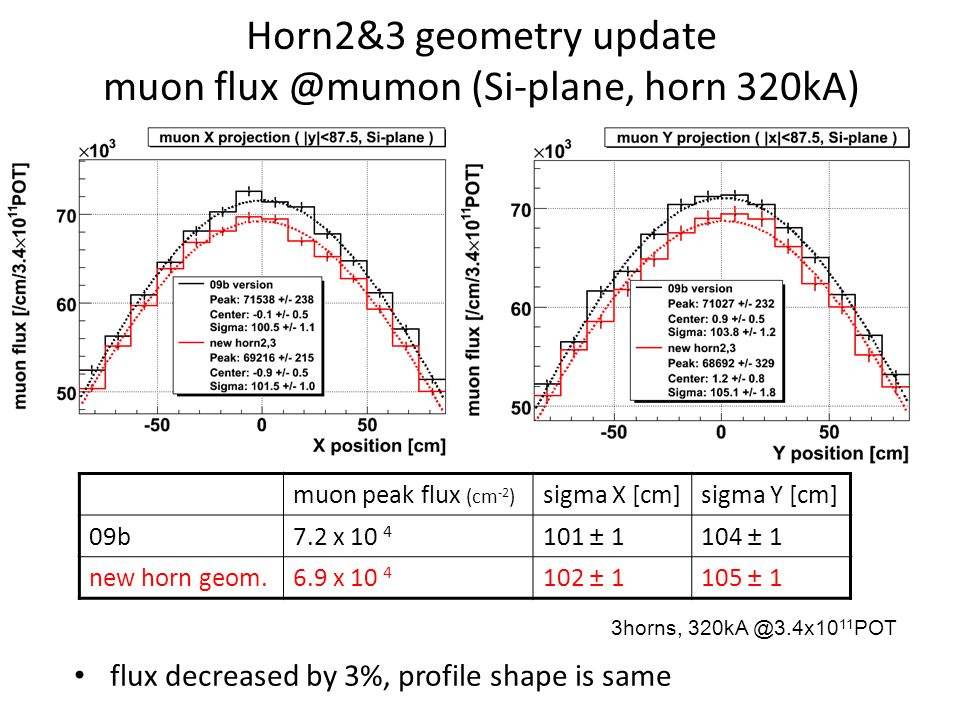

11. Horn2&3 geometry update muon flux @mumon (Si-plane, horn 320kA) flux decreased by 3%, profile shape is same muon peak flux (cm -2 ) sigma X [cm]sigma Y [cm] 09b7.2 x 10 4 101 ± 1104 ± 1 new horn geom.6.9 x 10 4 102 ± 1105 ± 1 3horns, 320kA @3.4x10 11 POT

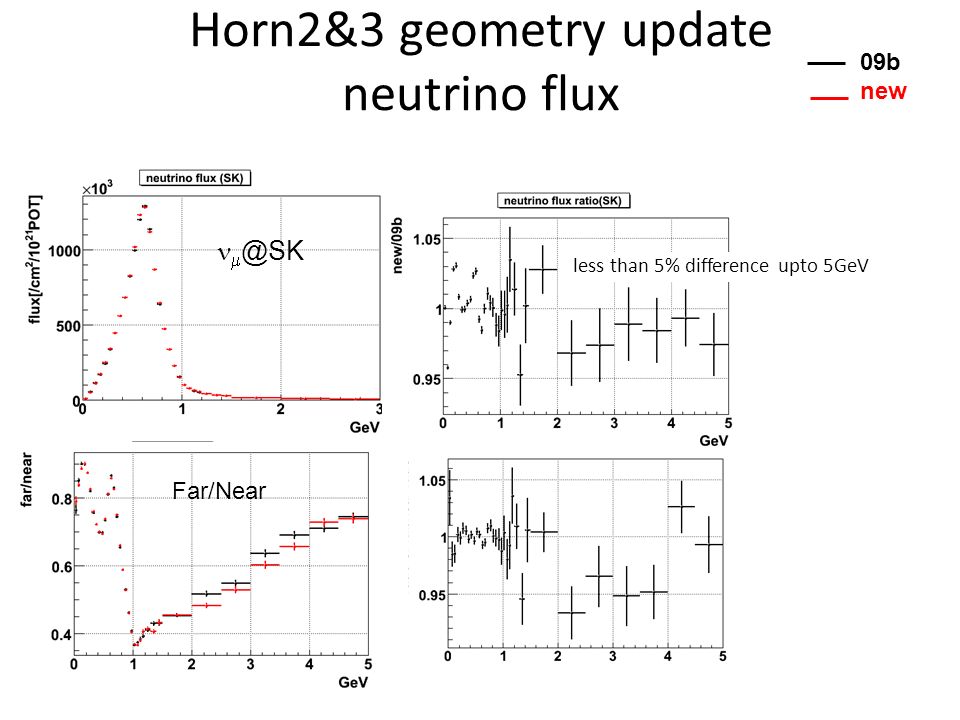

12. Horn2&3 geometry update neutrino flux 09b new  @SK Far/Near less than 5% difference upto 5GeV

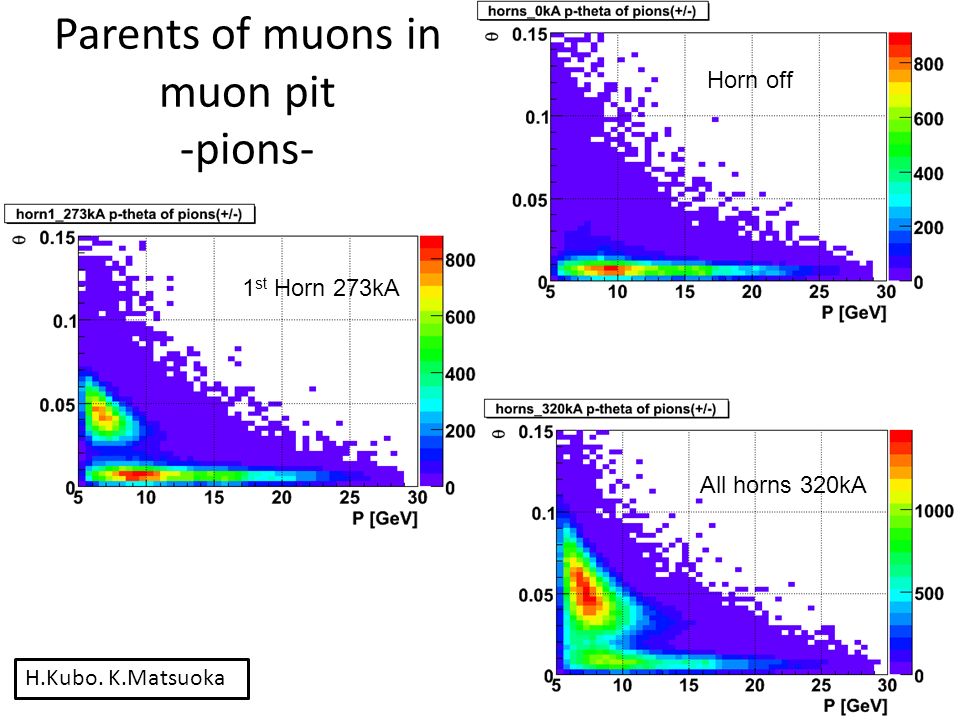

13. Parents of muons in muon pit -pions- H.Kubo. K.Matsuoka Horn off 1 st Horn 273kA All horns 320kA

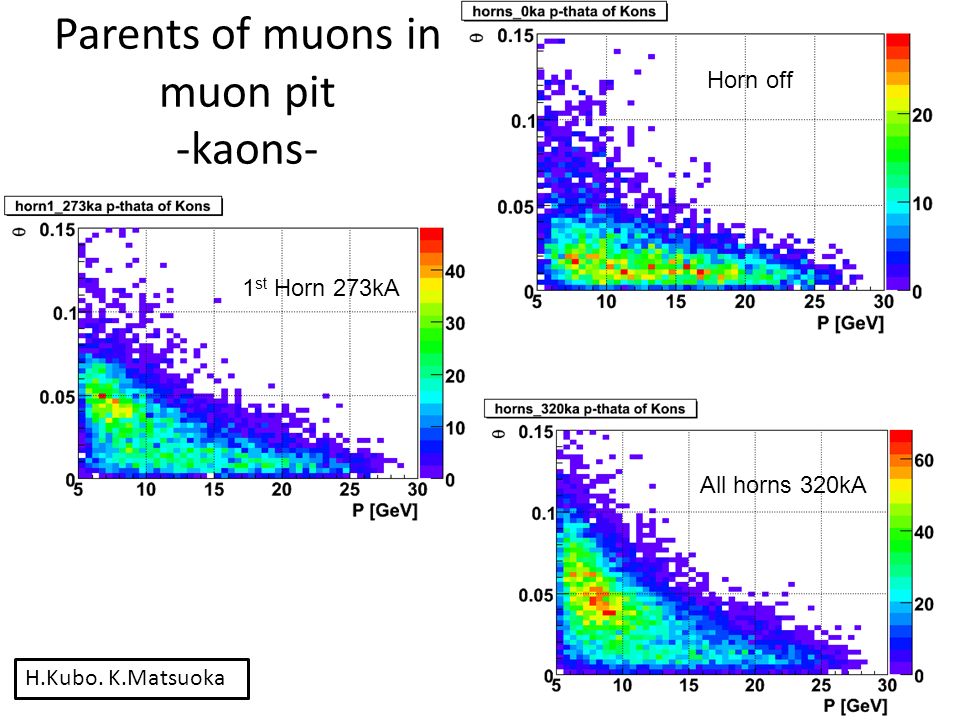

14. Parents of muons in muon pit -kaons- H.Kubo. K.Matsuoka Horn off 1 st Horn 273kA All horns 320kA

15. Parents of muons in muon pit -K/pi ratio- entries (/5x10^7 POT) Ratio (K / Pi) horn current pion (+/-) K(all)K0K+K- K(all)K0K+K- 0kA64981544117245487210.0840.0030.0700.011 273kA, 1st horn only101623832718974666720.0820.0020.0730.007 320kA, 3horns25903015861206151574980.0610.0010.0590.002

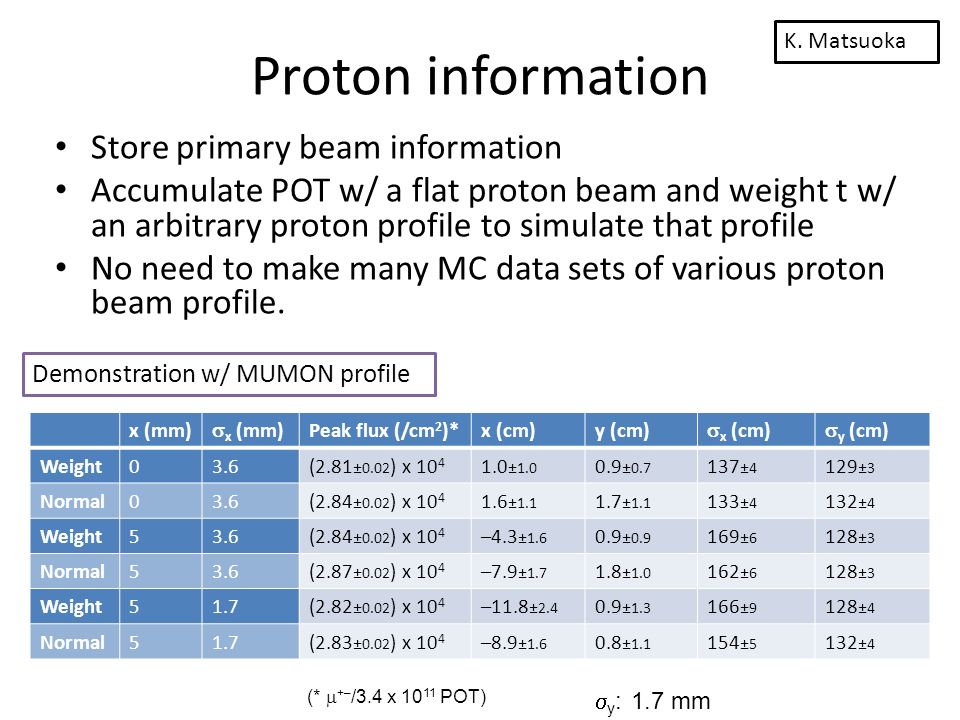

16. Proton information Store primary beam information Accumulate POT w/ a flat proton beam and weight t w/ an arbitrary proton profile to simulate that profile No need to make many MC data sets of various proton beam profile. K. Matsuoka x (mm)  x (mm) Peak flux (/cm 2 )*x (cm)y (cm)  x (cm)  y (cm) Weight03.6(2.81 ±0.02 ) x 10 4 1.0 ±1.0 0.9 ±0.7 137 ±4 129 ±3 Normal03.6(2.84 ±0.02 ) x 10 4 1.6 ±1.1 1.7 ±1.1 133 ±4 132 ±4 Weight53.6(2.84 ±0.02 ) x 10 4 –4.3 ±1.6 0.9 ±0.9 169 ±6 128 ±3 Normal53.6(2.87 ±0.02 ) x 10 4 –7.9 ±1.7 1.8 ±1.0 162 ±6 128 ±3 Weight51.7(2.82 ±0.02 ) x 10 4 –11.8 ±2.4 0.9 ±1.3 166 ±9 128 ±4 Normal51.7(2.83 ±0.02 ) x 10 4 –8.9 ±1.6 0.8 ±1.1 154 ±5 132 ±4 Demonstration w/ MUMON profile  y : 1.7 mm (*  +– /3.4 x 10 11 POT)

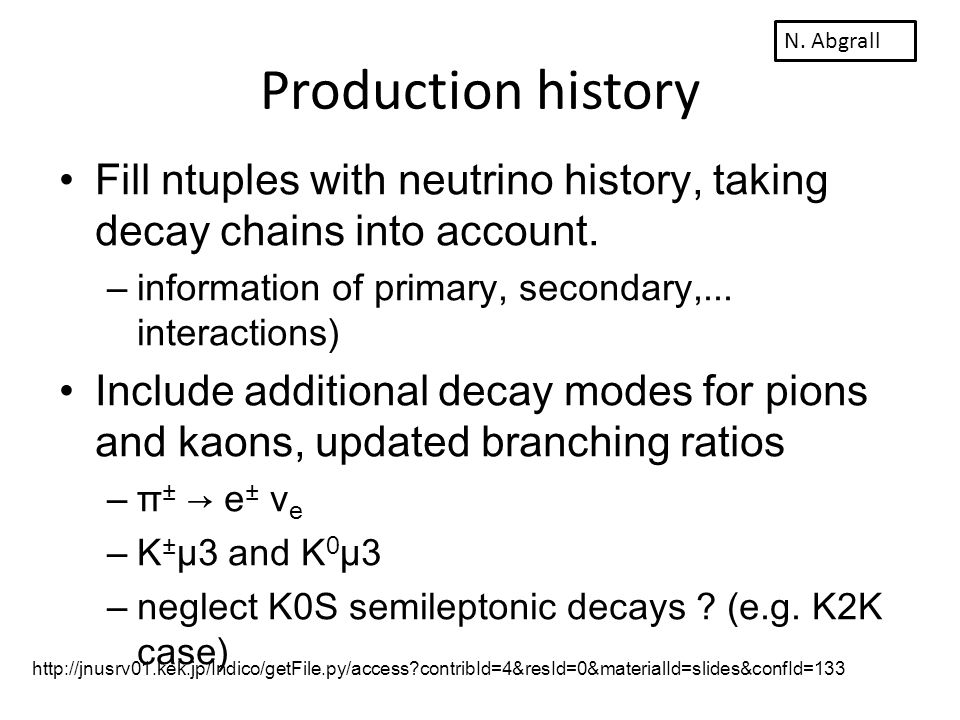

17. Production history Fill ntuples with neutrino history, taking decay chains into account. – information of primary, secondary,... interactions) Include additional decay modes for pions and kaons, updated branching ratios – π ± → e ± ν e – K ± µ3 and K 0 µ3 – neglect K0S semileptonic decays ? (e.g. K2K case) N. Abgrall http://jnusrv01.kek.jp/Indico/getFile.py/access?contribId=4&resId=0&materialId=slides&confId=133

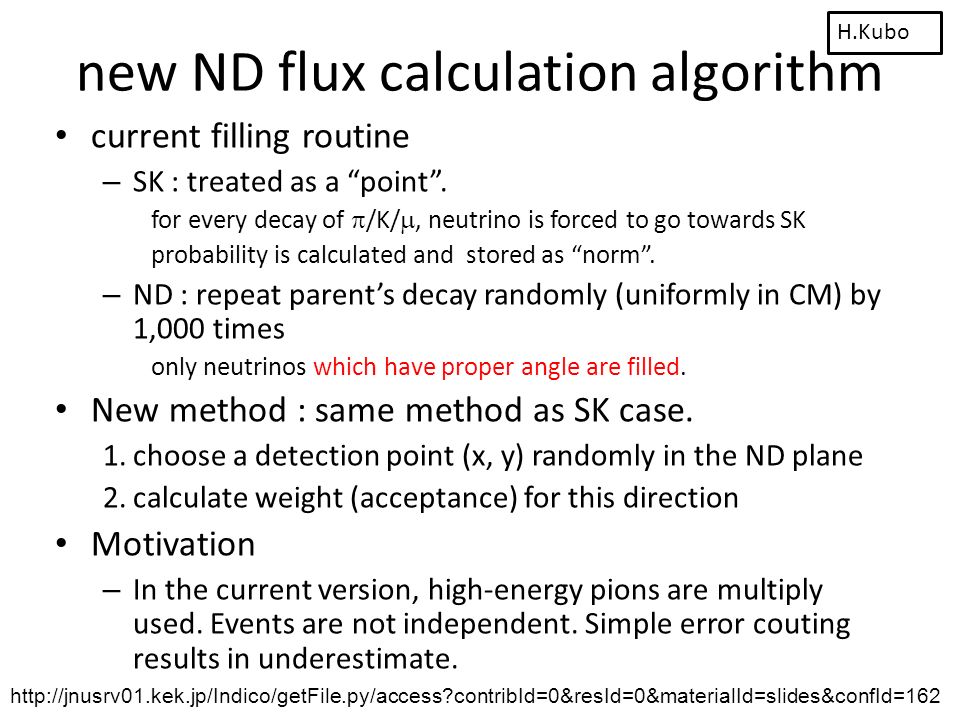

18. new ND flux calculation algorithm current filling routine – SK : treated as a “point”. for every decay of  /K/ , neutrino is forced to go towards SK probability is calculated and stored as “norm”. – ND : repeat parent’s decay randomly (uniformly in CM) by 1,000 times only neutrinos which have proper angle are filled. New method : same method as SK case. 1.choose a detection point (x, y) randomly in the ND plane 2.calculate weight (acceptance) for this direction Motivation – In the current version, high-energy pions are multiply used. Events are not independent. Simple error couting results in underestimate. H.Kubo http://jnusrv01.kek.jp/Indico/getFile.py/access?contribId=0&resId=0&materialId=slides&confId=162

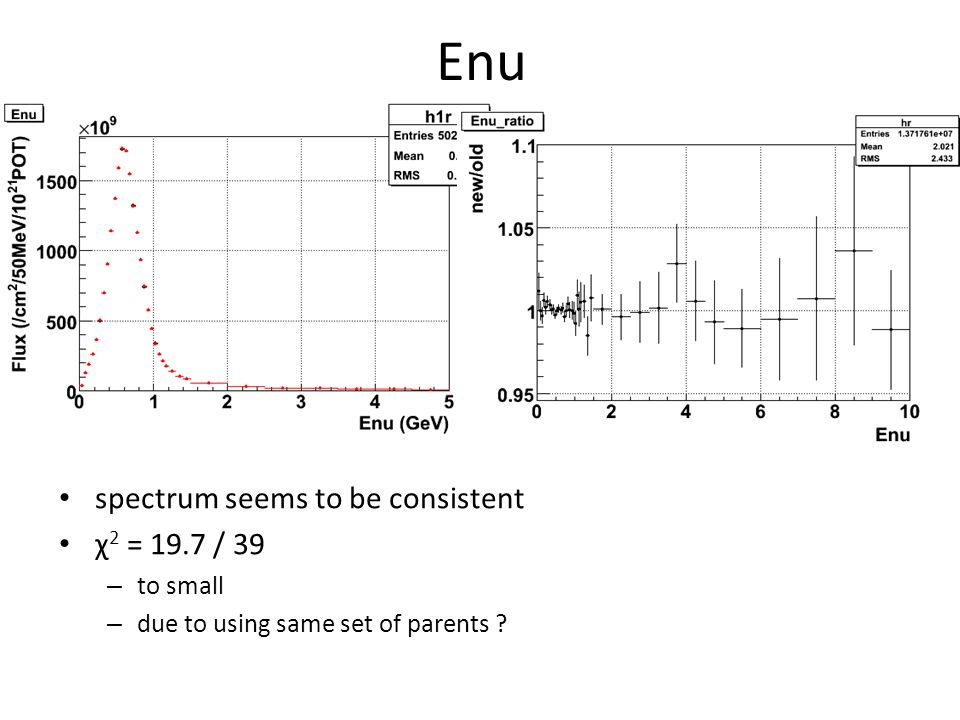

19. Enu spectrum seems to be consistent χ 2 = 19.7 / 39 – to small – due to using same set of parents ?

20. error histogram (Enu) low energy (< 1GeV) : same or smaller error Original method had been giving underestimated error original new

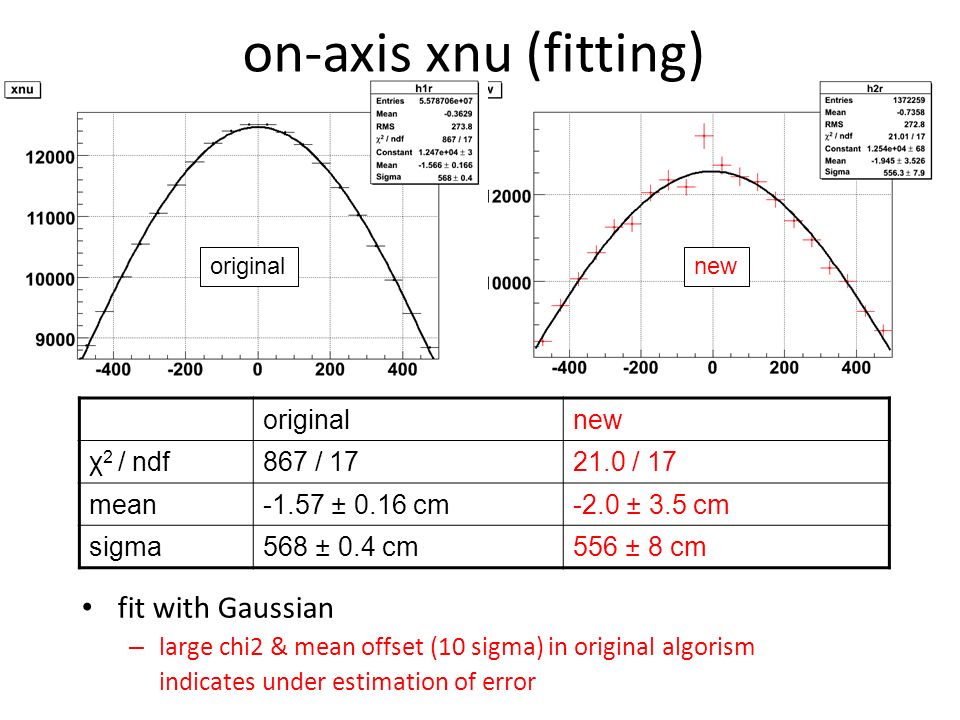

21. on-axis xnu (fitting) fit with Gaussian – large chi2 & mean offset (10 sigma) in original algorism indicates under estimation of error originalnew χ 2 / ndf867 / 1721.0 / 17 mean-1.57 ± 0.16 cm-2.0 ± 3.5 cm sigma568 ± 0.4 cm556 ± 8 cm originalnew

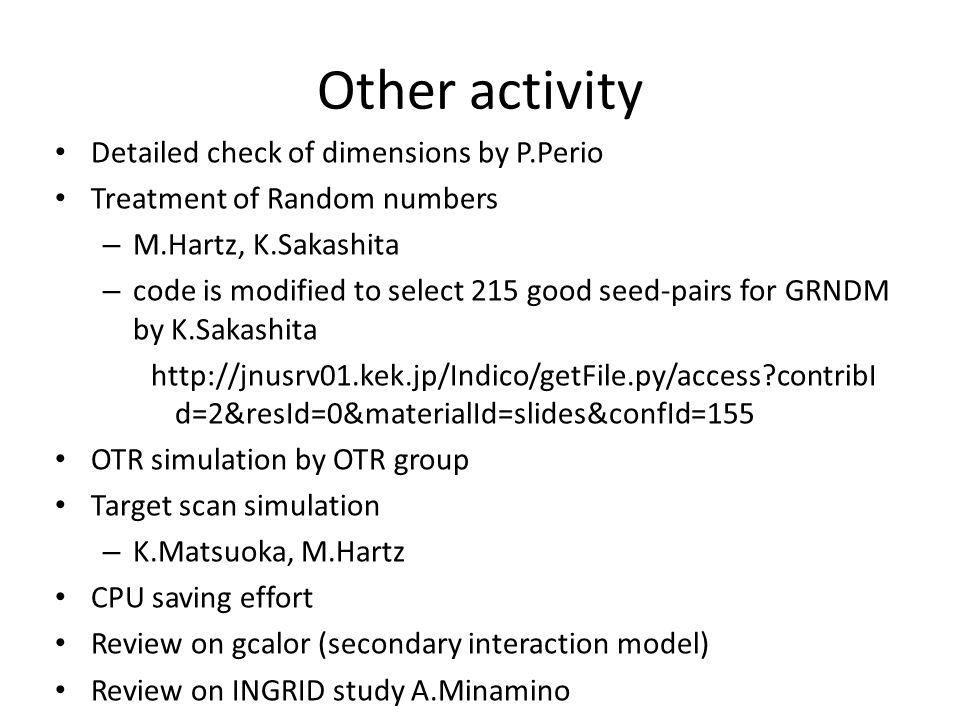

22. Other activity Detailed check of dimensions by P.Perio Treatment of Random numbers – M.Hartz, K.Sakashita – code is modified to select 215 good seed-pairs for GRNDM by K.Sakashita http://jnusrv01.kek.jp/Indico/getFile.py/access?contribI d=2&resId=0&materialId=slides&confId=155 OTR simulation by OTR group Target scan simulation – K.Matsuoka, M.Hartz CPU saving effort Review on gcalor (secondary interaction model) Review on INGRID study A.Minamino

23. Prospect Flux Mass production Received requests from ND280 beam group Need to be done – Implementation of the correct ND280 position – Optimization of proton beam area two flat area? – Release 10a In Next week at 250kA horn current Remaining update Striplines Transfer matrix with new ND280 algorithm Inclusion of NA61 results w/ NA61-T2K group And studies.

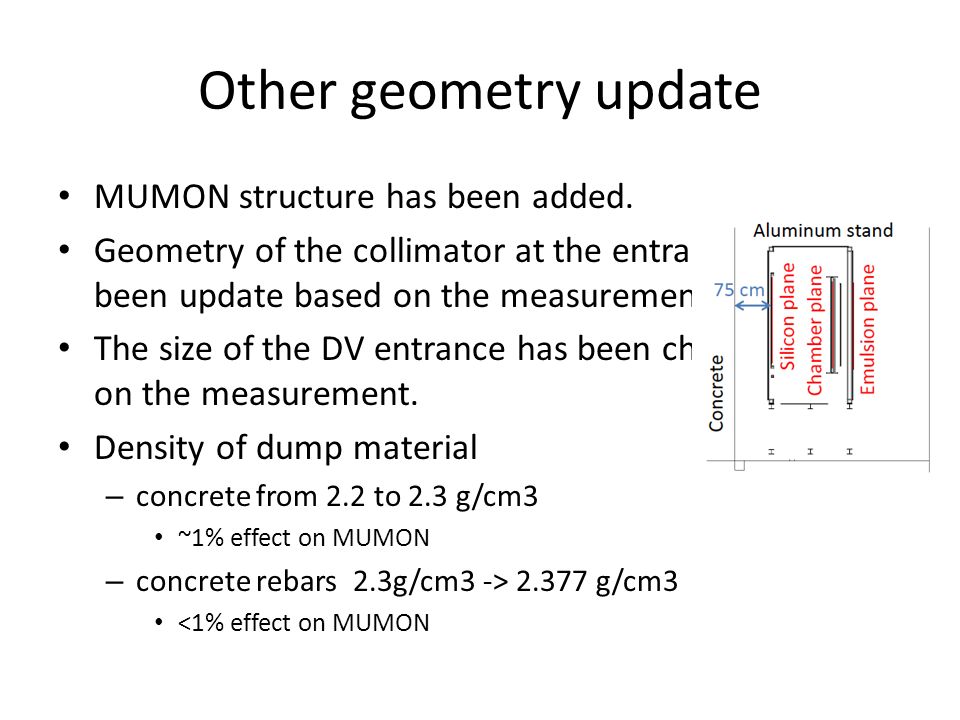

25. Other geometry update MUMON structure has been added. Geometry of the collimator at the entrance of DV has been update based on the measurement. The size of the DV entrance has been changed based on the measurement. Density of dump material – concrete from 2.2 to 2.3 g/cm3 ~1% effect on MUMON – concrete rebars 2.3g/cm3 -> 2.377 g/cm3 <1% effect on MUMON

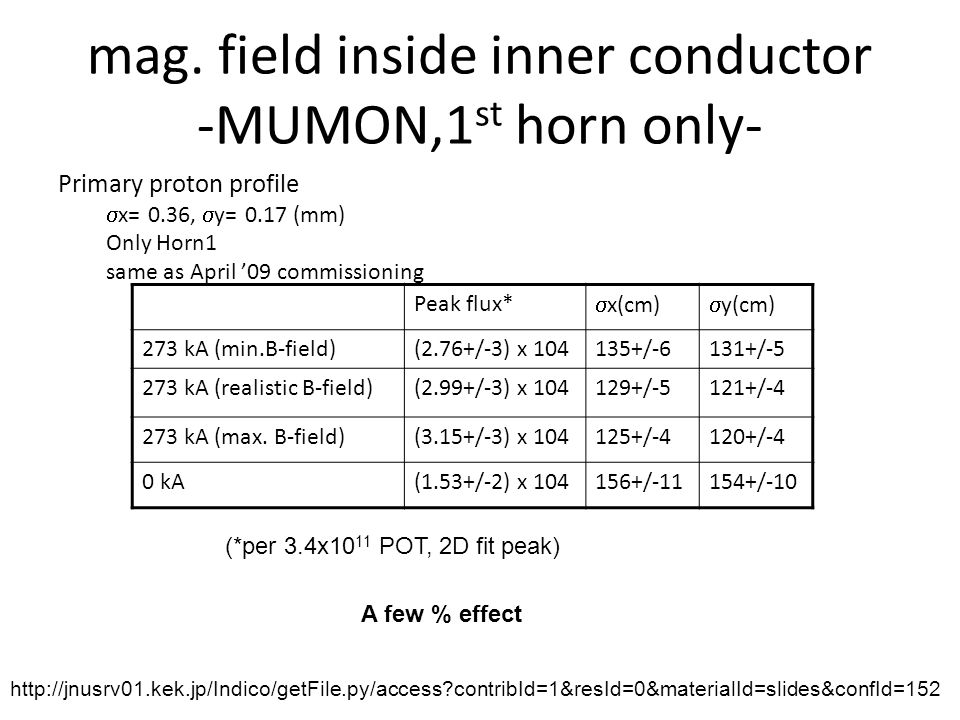

26. mag. field inside inner conductor -MUMON,1 st horn only- Primary proton profile  x= 0.36,  y= 0.17 (mm) Only Horn1 same as April ’09 commissioning Peak flux*  x(cm)  y(cm) 273 kA (min.B-field)(2.76+/-3) x 104135+/-6131+/-5 273 kA (realistic B-field)(2.99+/-3) x 104129+/-5121+/-4 273 kA (max. B-field)(3.15+/-3) x 104125+/-4120+/-4 0 kA(1.53+/-2) x 104156+/-11154+/-10 http://jnusrv01.kek.jp/Indico/getFile.py/access?contribId=1&resId=0&materialId=slides&confId=152 (*per 3.4x10 11 POT, 2D fit peak) A few % effect

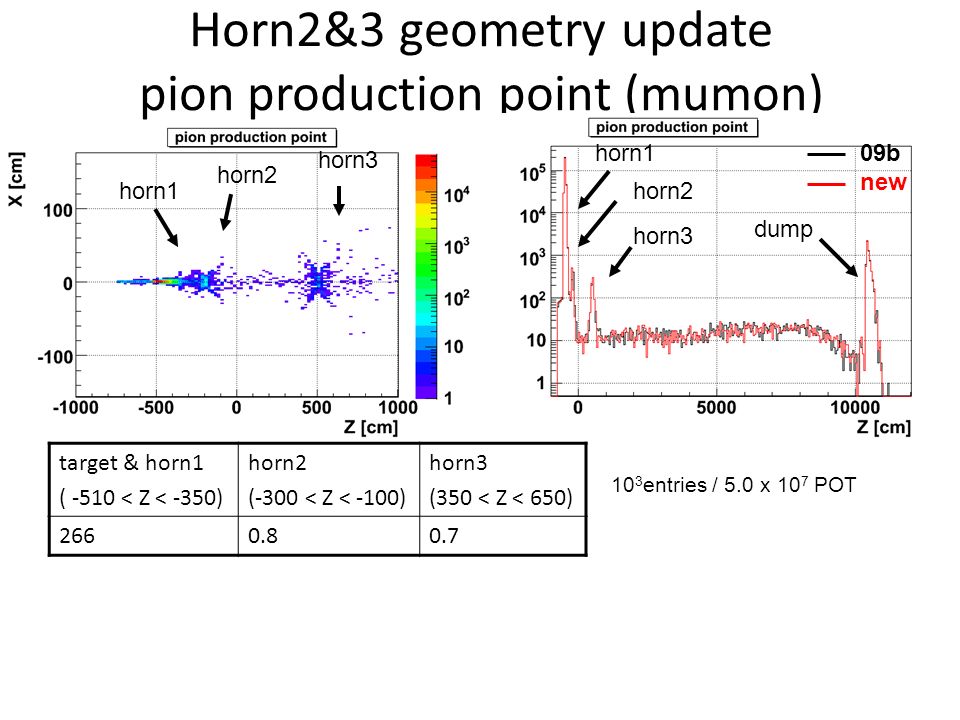

27. Horn2&3 geometry update pion production point (mumon) horn1 horn2 horn3 horn1 horn2 horn3 dump target & horn1 ( -510 < Z < -350) horn2 (-300 < Z < -100) horn3 (350 < Z < 650) 2660.80.7 09b new 10 3 entries / 5.0 x 10 7 POT

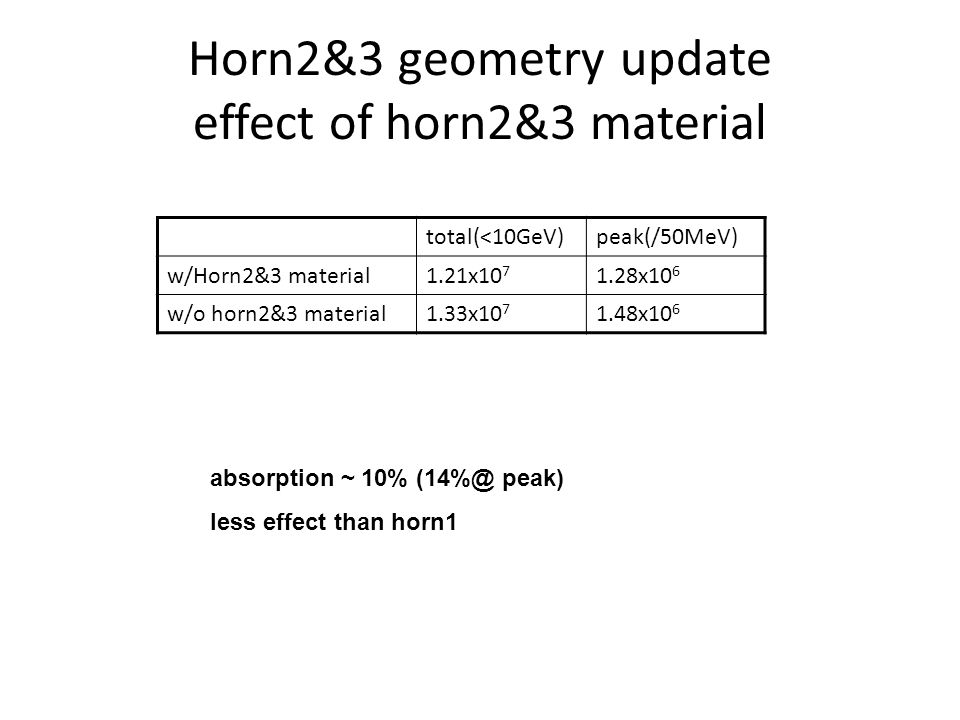

28. Horn2&3 geometry update effect of horn2&3 material total(<10GeV)peak(/50MeV) w/Horn2&3 material1.21x10 7 1.28x10 6 w/o horn2&3 material1.33x10 7 1.48x10 6 absorption ~ 10% (14%@ peak) less effect than horn1

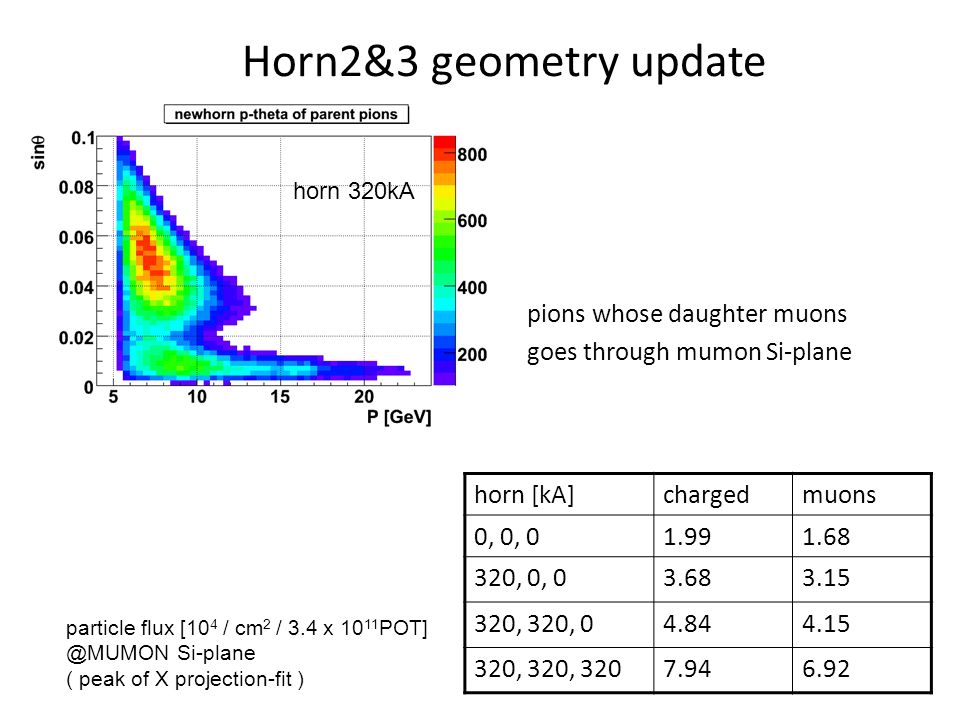

29. Horn2&3 geometry update pions whose daughter muons goes through mumon Si-plane horn 320kA horn [kA]chargedmuons 0, 0, 01.991.68 320, 0, 03.683.15 320, 320, 04.844.15 320, 320, 3207.946.92 particle flux [10 4 / cm 2 / 3.4 x 10 11 POT] @MUMON Si-plane ( peak of X projection-fit )

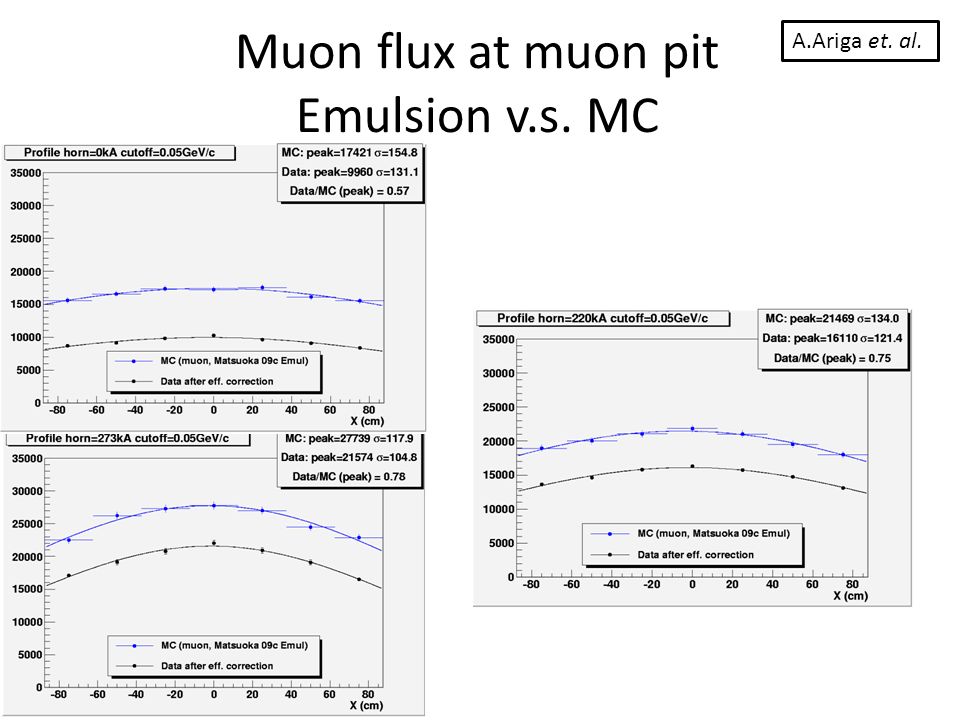

30. Muon flux at muon pit Emulsion v.s. MC A.Ariga et. al.

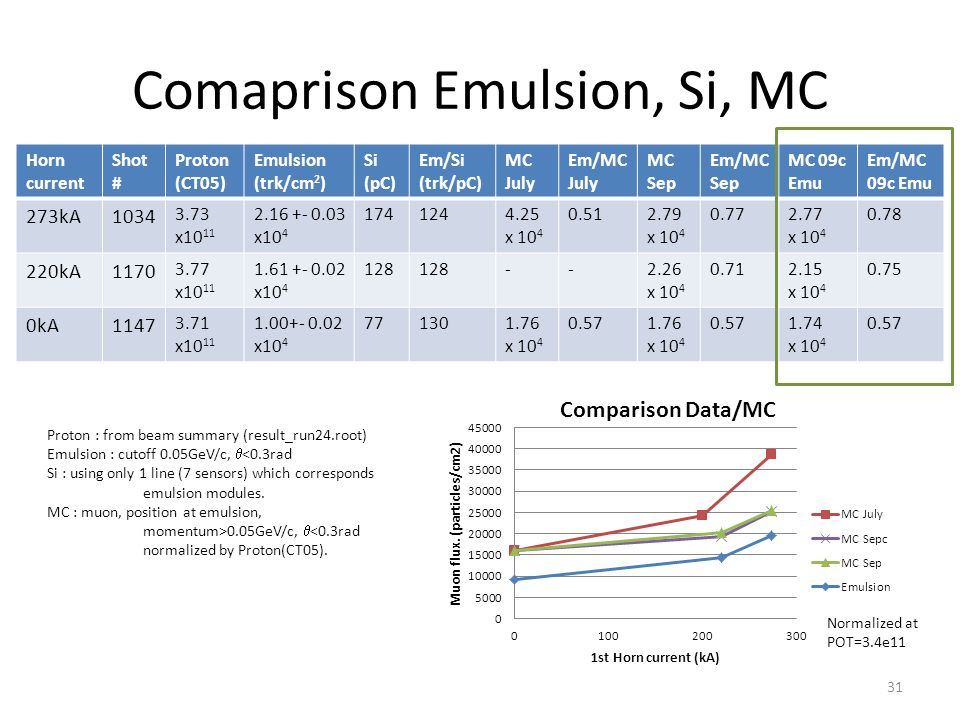

31. Comaprison Emulsion, Si, MC 31 Horn current Shot # Proton (CT05) Emulsion (trk/cm 2 ) Si (pC) Em/Si (trk/pC) MC July Em/MC July MC Sep Em/MC Sep MC 09c Emu Em/MC 09c Emu 273kA1034 3.73 x10 11 2.16 +- 0.03 x10 4 1741244.25 x 10 4 0.512.79 x 10 4 0.772.77 x 10 4 0.78 220kA1170 3.77 x10 11 1.61 +- 0.02 x10 4 128 --2.26 x 10 4 0.712.15 x 10 4 0.75 0kA1147 3.71 x10 11 1.00+- 0.02 x10 4 771301.76 x 10 4 0.571.76 x 10 4 0.571.74 x 10 4 0.57 Proton : from beam summary (result_run24.root) Emulsion : cutoff 0.05GeV/c,  <0.3rad Si : using only 1 line (7 sensors) which corresponds emulsion modules. MC : muon, position at emulsion, momentum>0.05GeV/c,  <0.3rad normalized by Proton(CT05). Normalized at POT=3.4e11

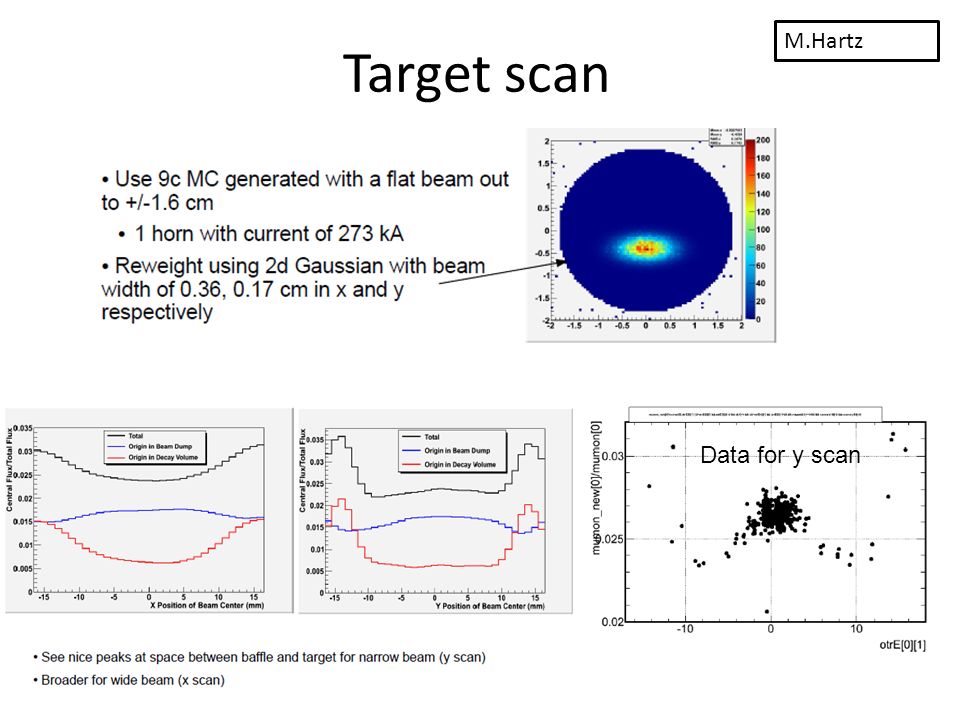

32. Target scan M.Hartz Data for y scan

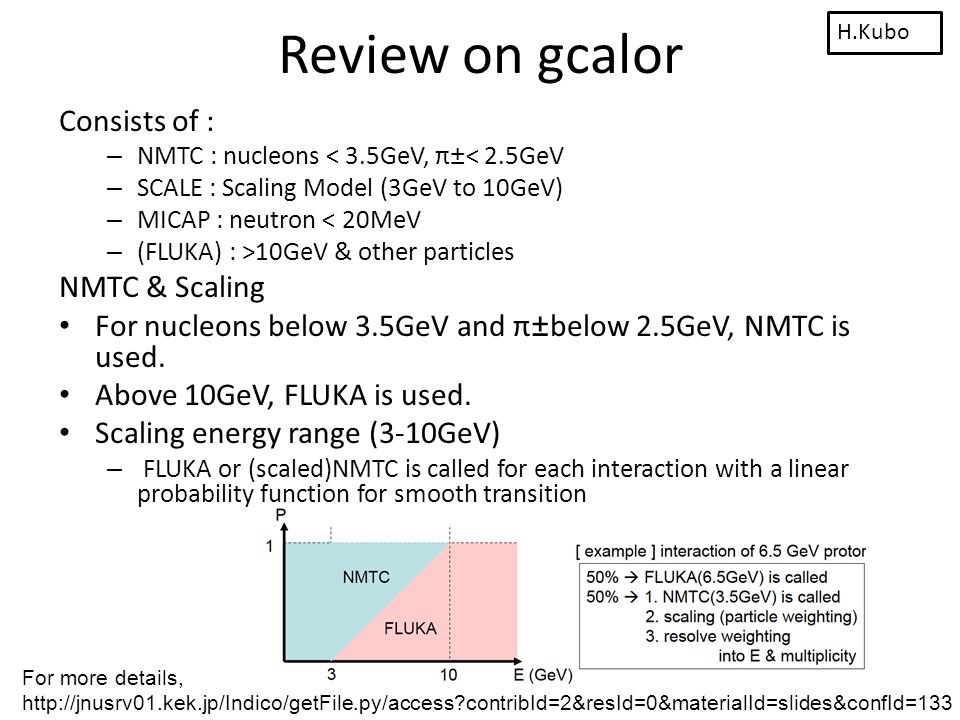

33. Review on gcalor Consists of : – NMTC : nucleons < 3.5GeV, π±< 2.5GeV – SCALE : Scaling Model (3GeV to 10GeV) – MICAP : neutron < 20MeV – (FLUKA) : >10GeV & other particles NMTC & Scaling For nucleons below 3.5GeV and π±below 2.5GeV, NMTC is used. Above 10GeV, FLUKA is used. Scaling energy range (3-10GeV) – FLUKA or (scaled)NMTC is called for each interaction with a linear probability function for smooth transition H.Kubo For more details, http://jnusrv01.kek.jp/Indico/getFile.py/access?contribId=2&resId=0&materialId=slides&confId=133
