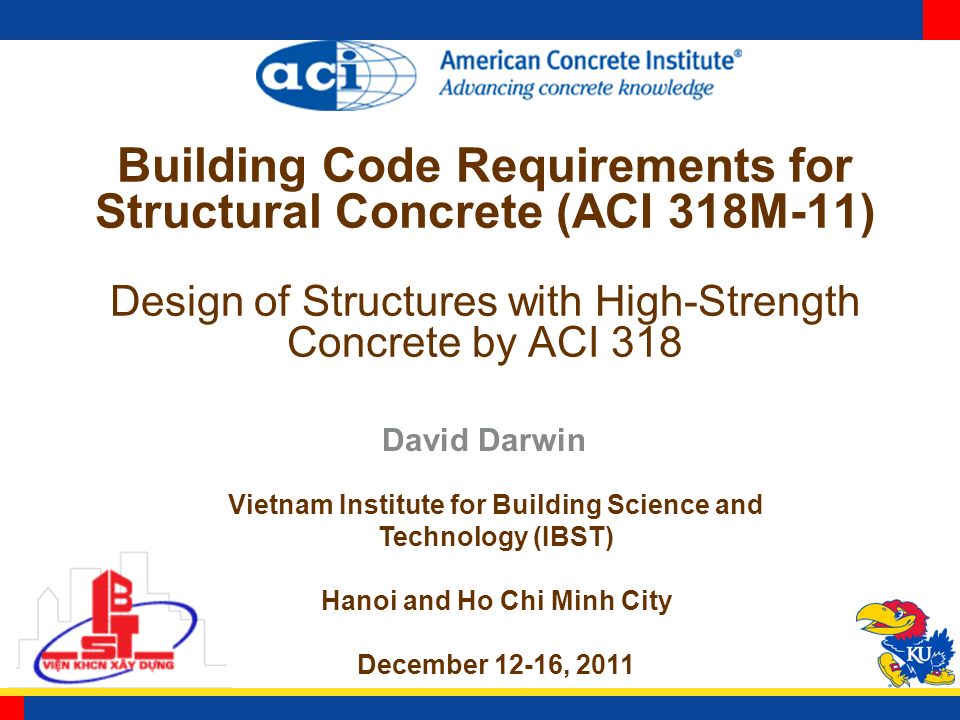

1. Building Code Requirements for Structural Concrete (ACI 318M-11) Design of Structures with High-Strength Concrete by ACI 318 David Darwin Vietnam Institute for Building Science and Technology (IBST) Hanoi and Ho Chi Minh City December 12-16, 2011

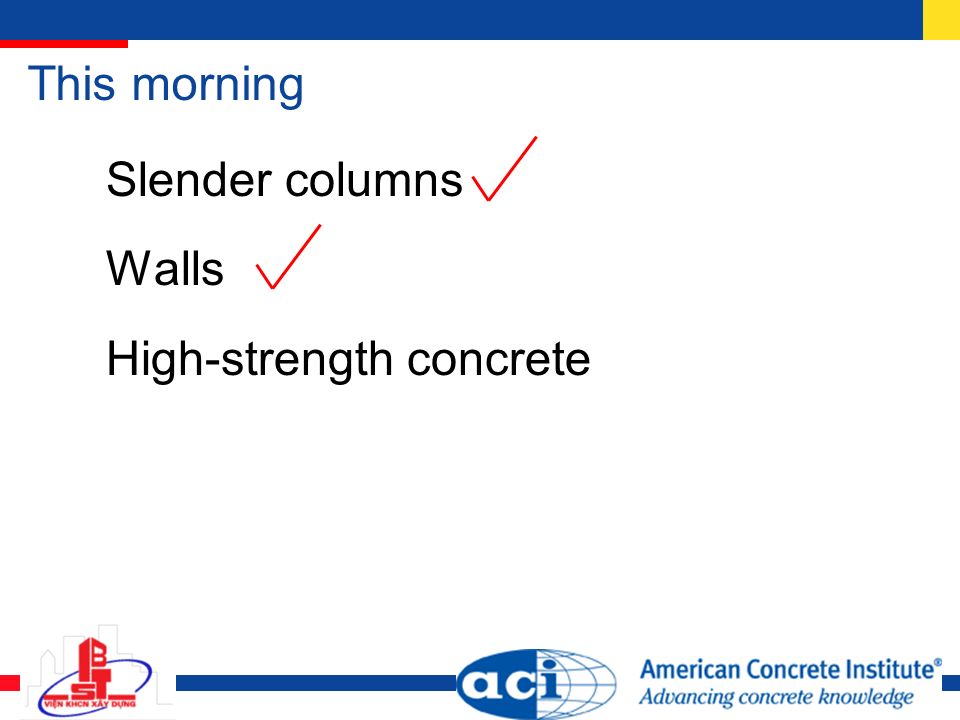

2. This morning Slender columns Walls High-strength concrete

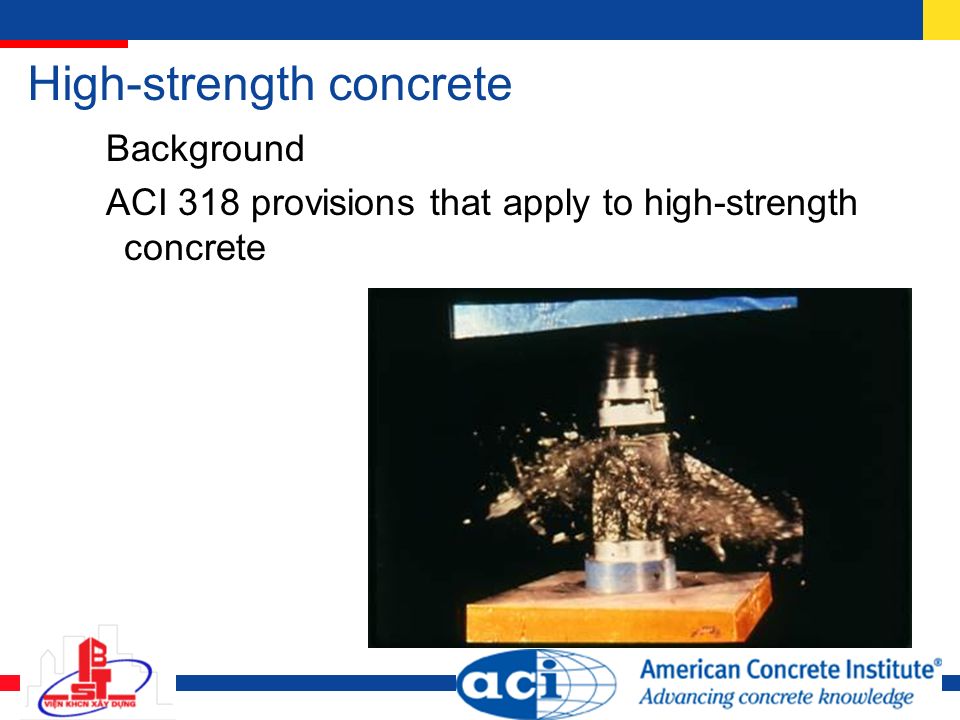

3. Background ACI 318 provisions that apply to high-strength concrete

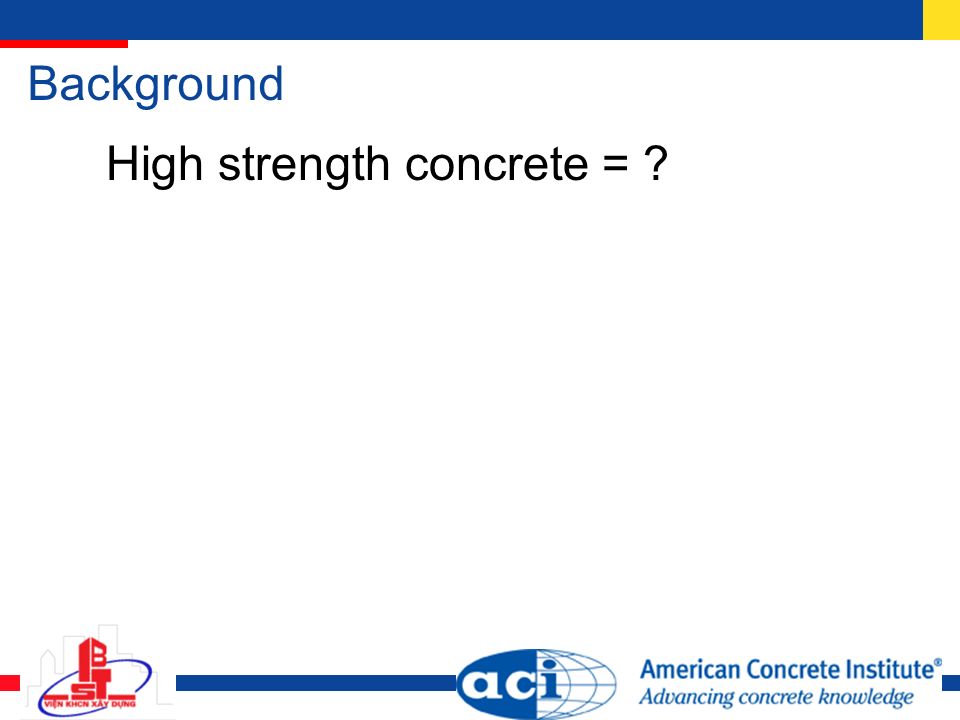

4. Background High strength concrete = ?

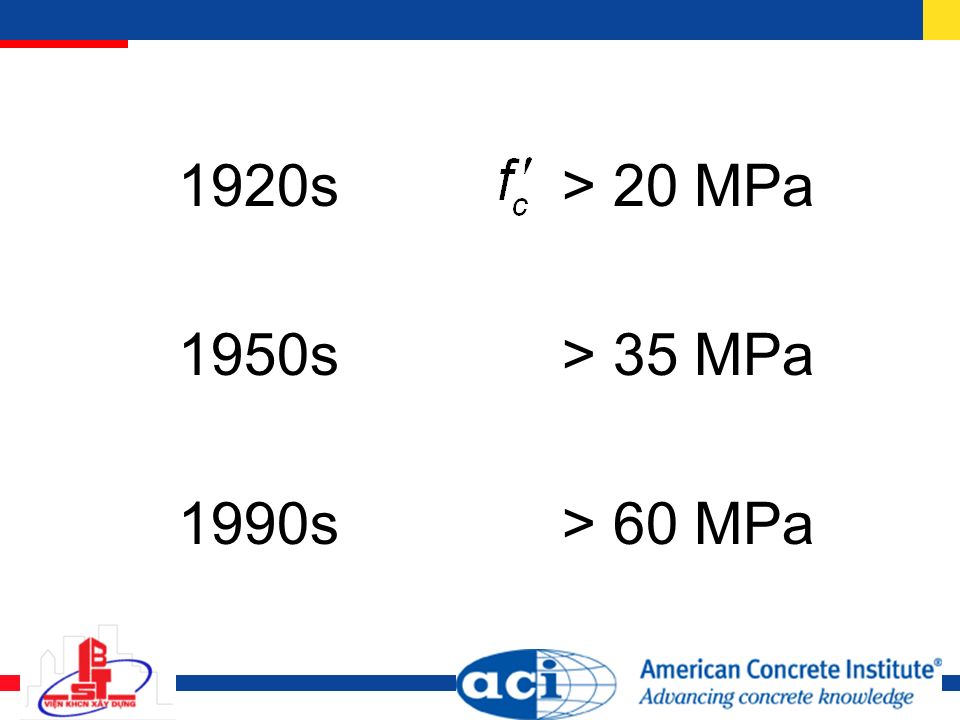

5. 1920s> 20 MPa 1950s> 35 MPa 1990s> 60 MPa

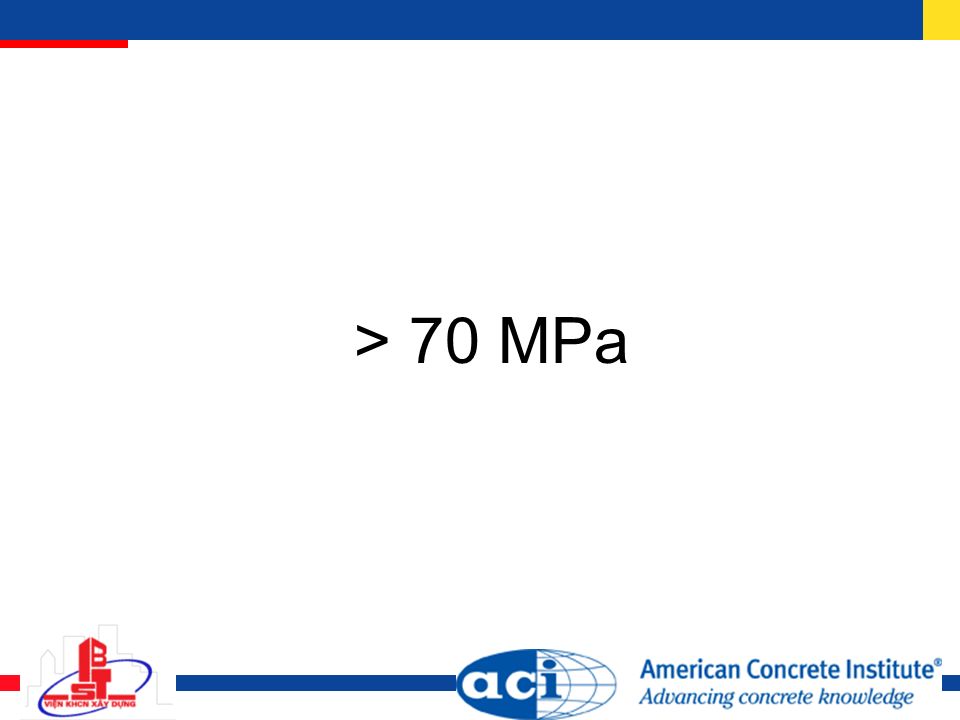

6. > 70 MPa

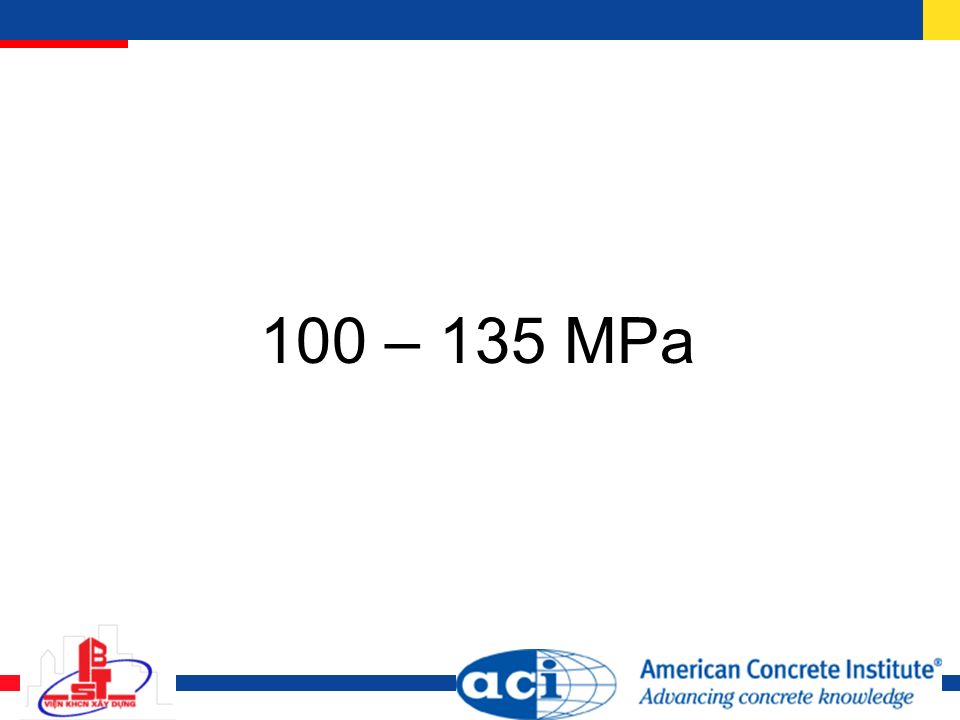

7. 100 – 135 MPa

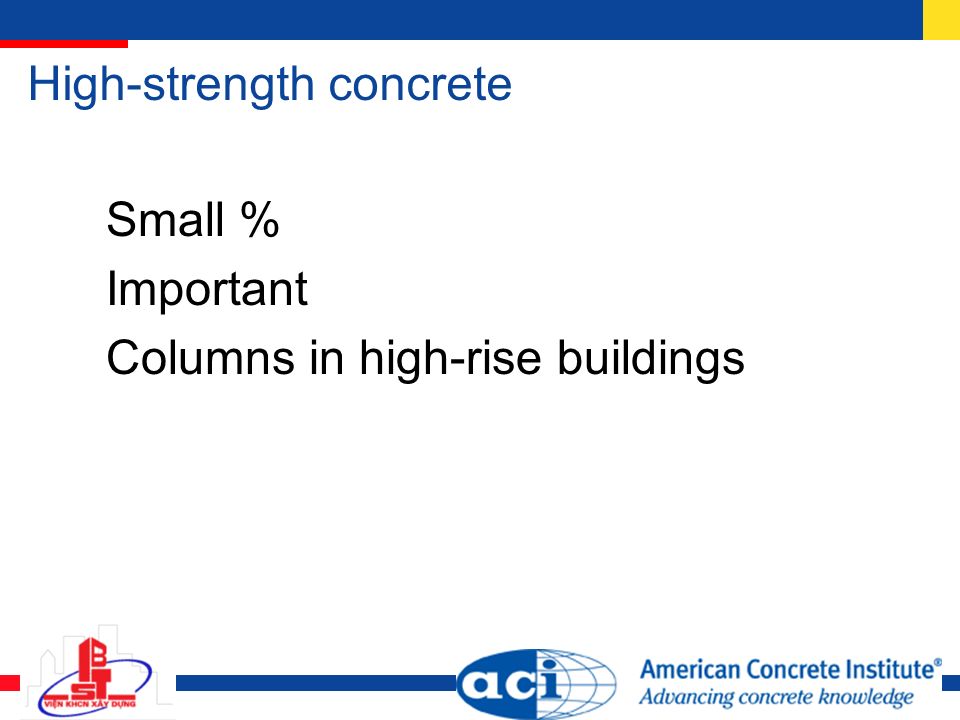

8. High-strength concrete Small % Important Columns in high-rise buildings

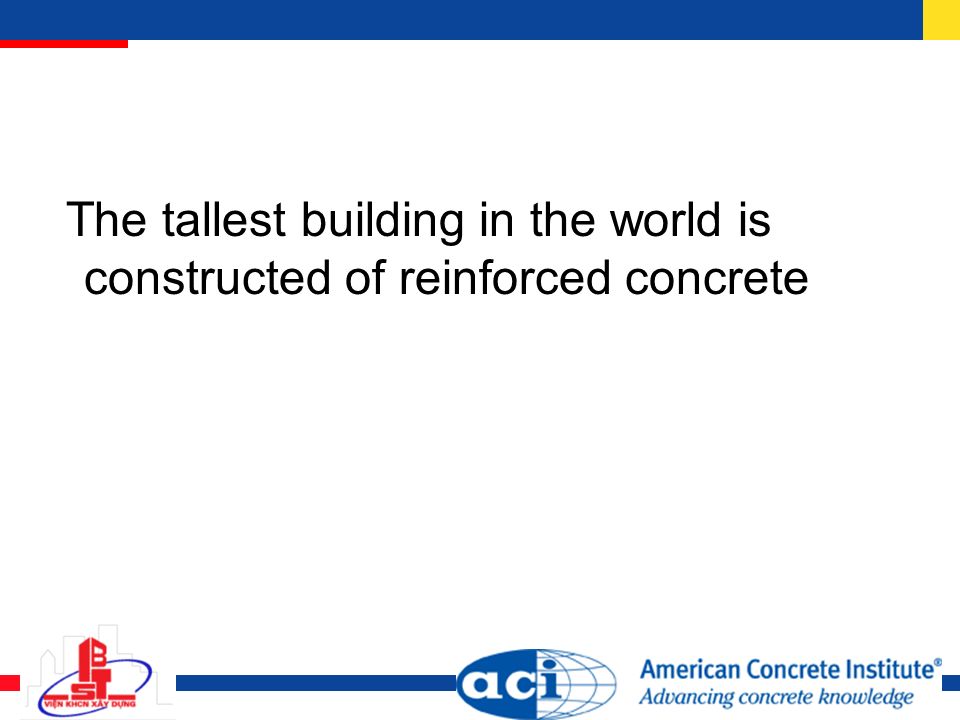

9. The tallest building in the world is constructed of reinforced concrete

10. Compressive behavior

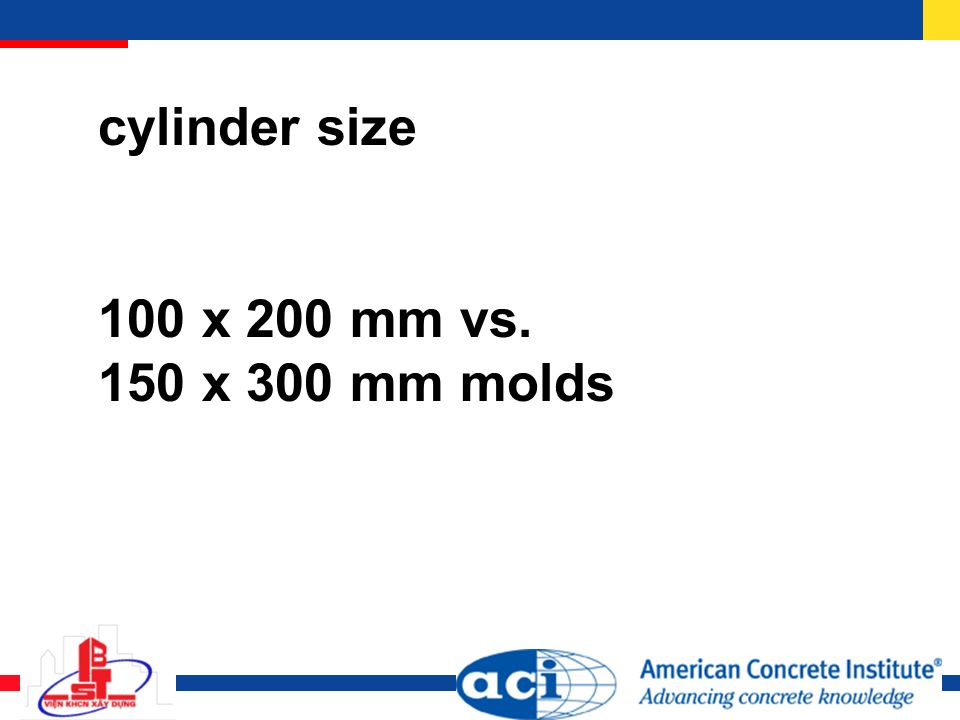

11. cylinder size 100 x 200 mm vs. 150 x 300 mm molds

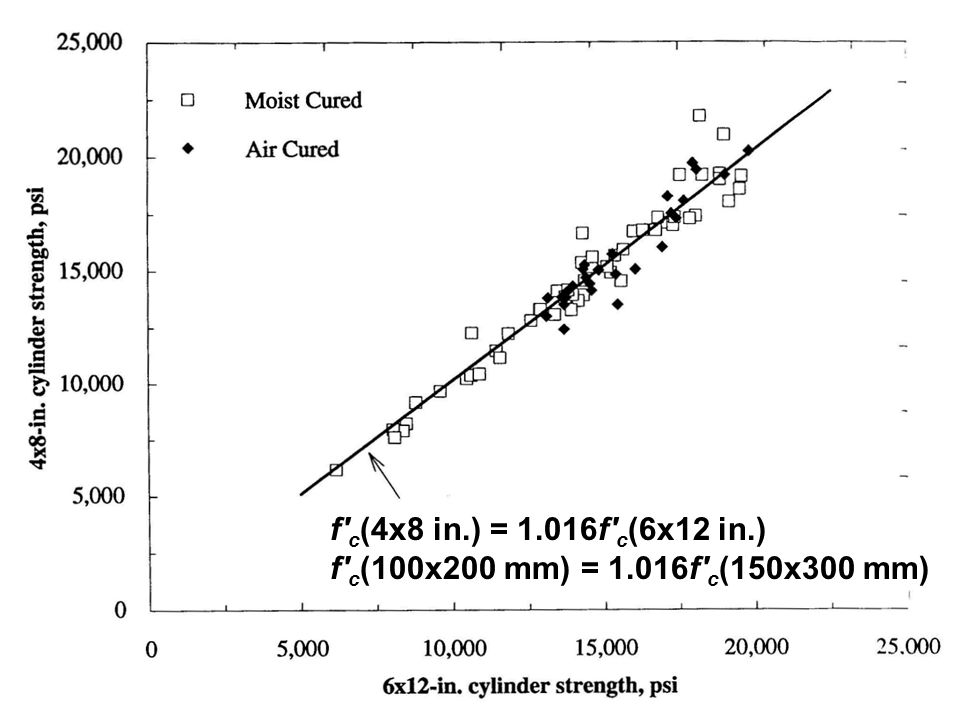

12. f' c (4x8 in.) = 1.016f' c (6x12 in.) f' c (100x200 mm) = 1.016f' c (150x300 mm)

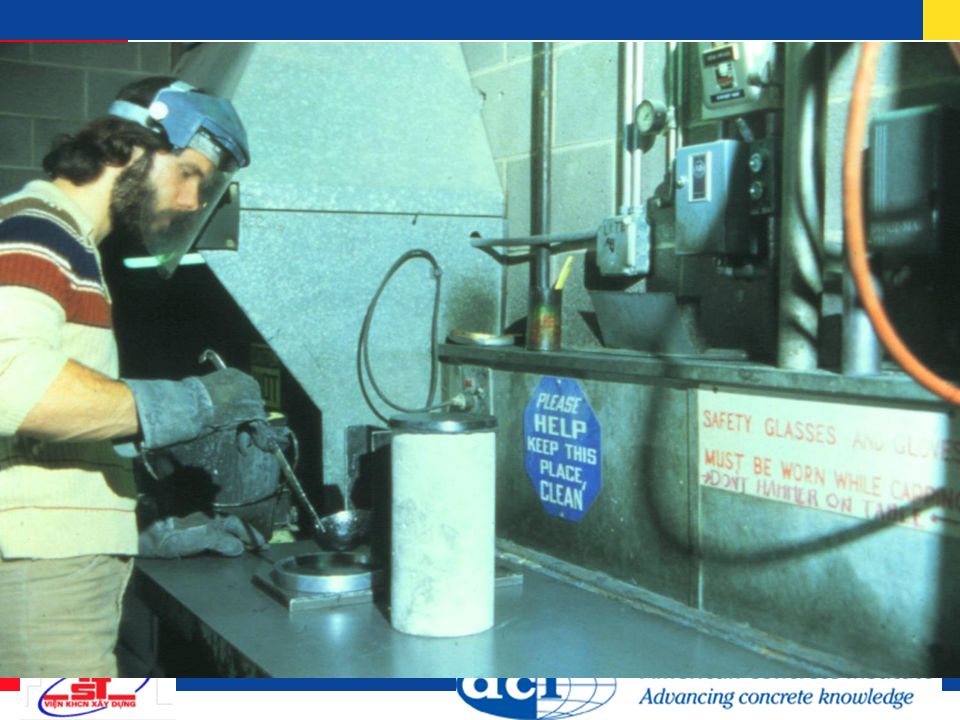

13. End condition

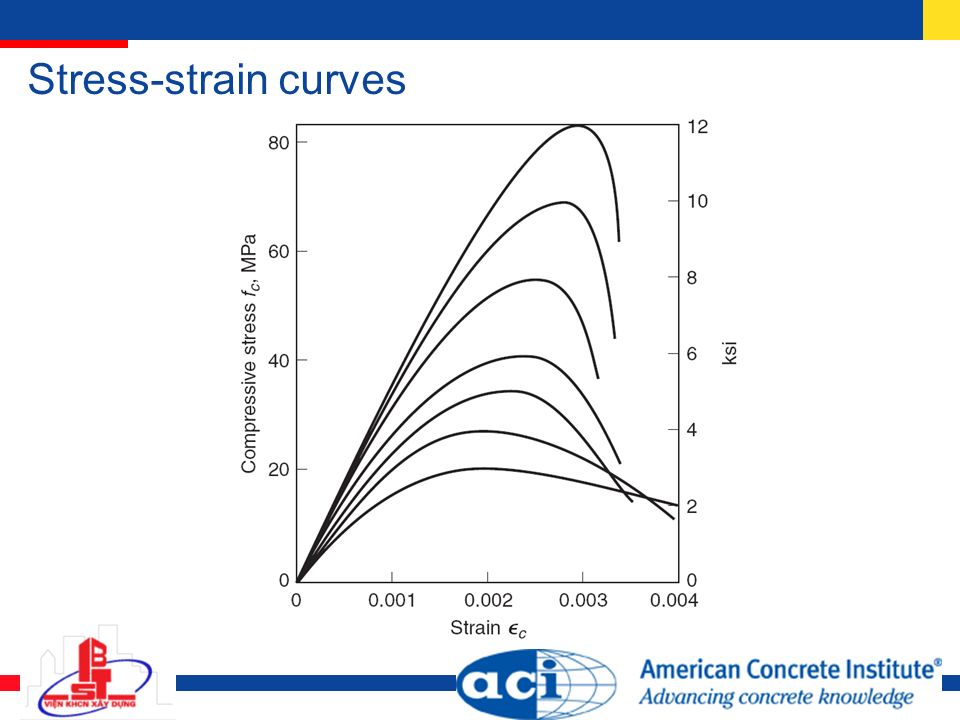

15. Stress-strain curves

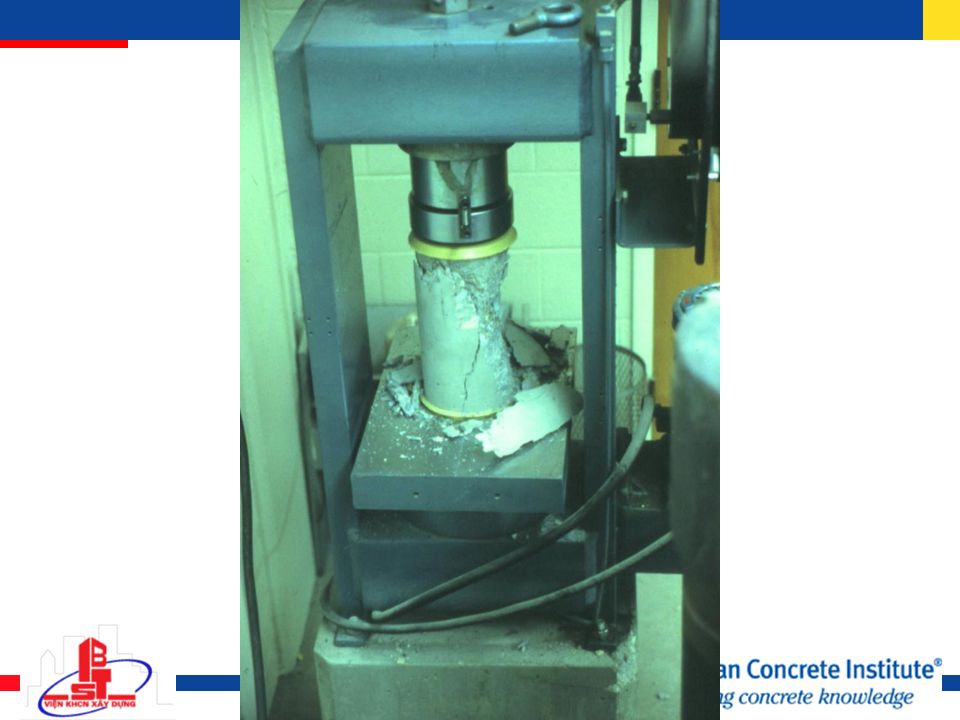

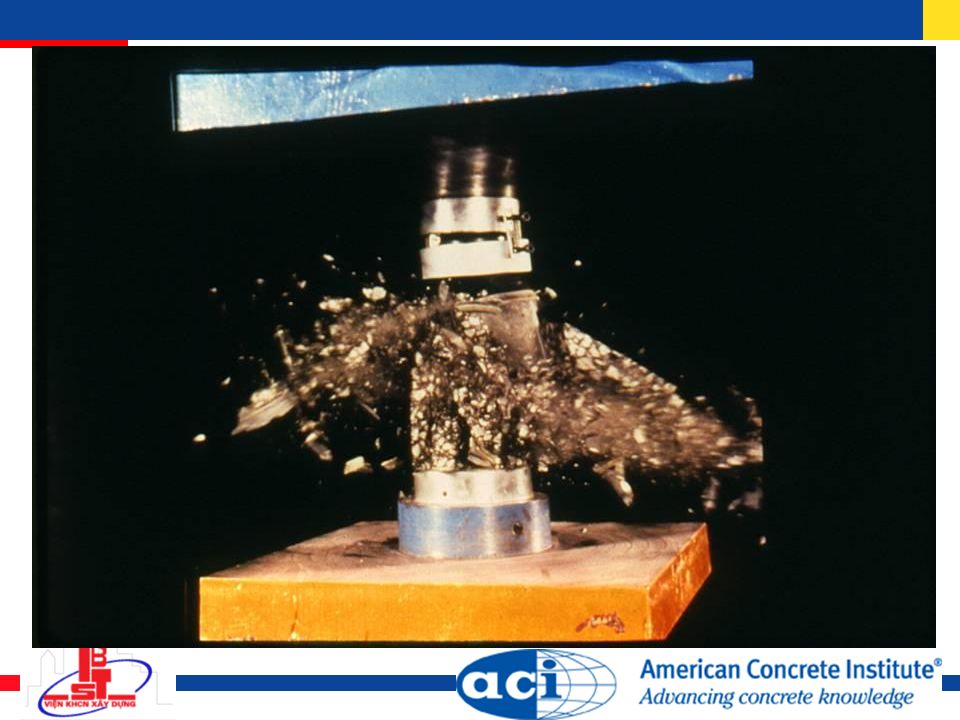

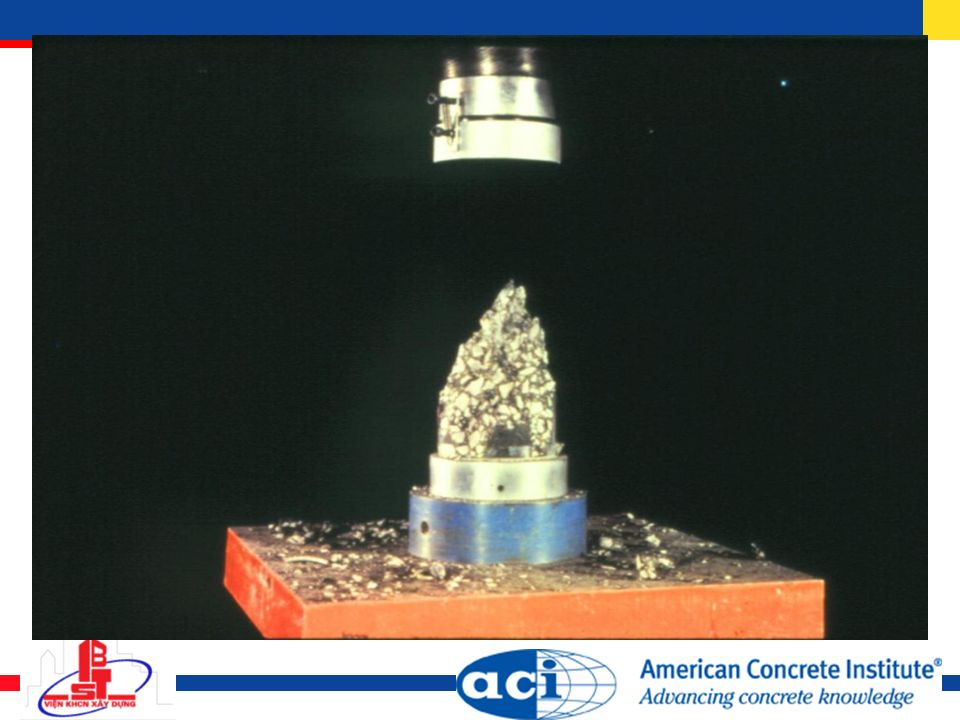

16. Behavior in compression tests

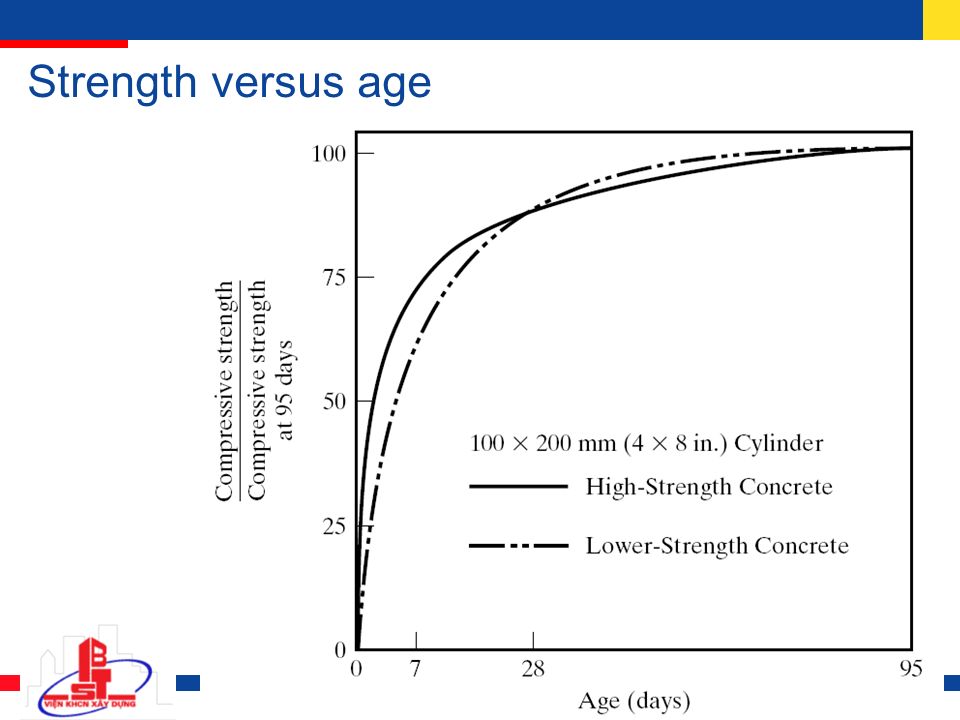

21. Strength versus age

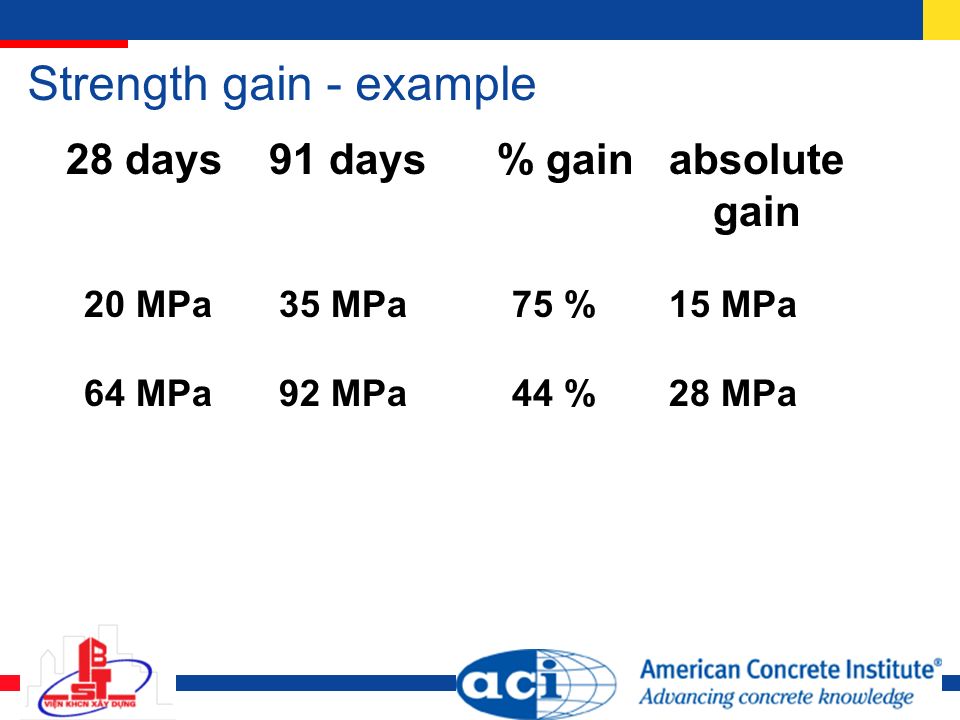

22. Strength gain - example 28 days 91 days % gain absolute gain 20 MPa 35 MPa 75 % 15 MPa 64 MPa 92 MPa 44 % 28 MPa

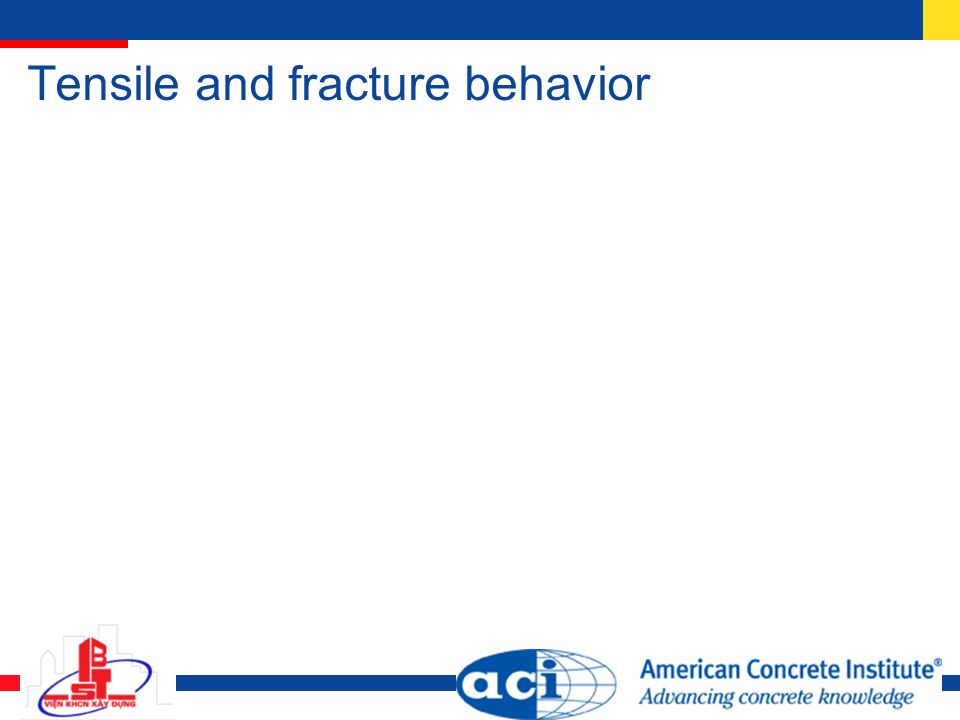

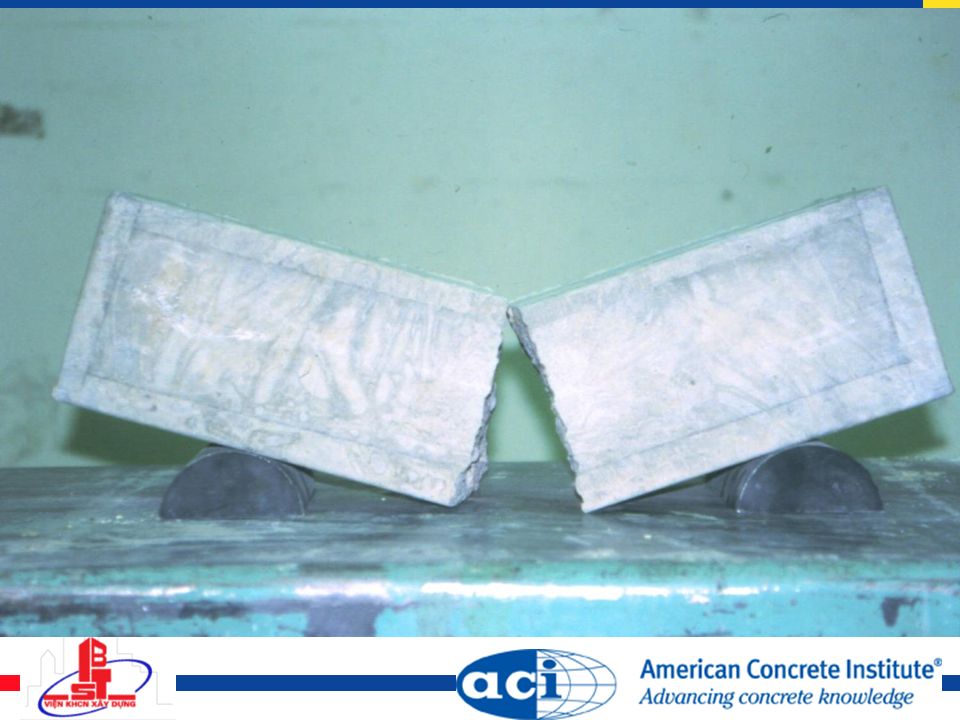

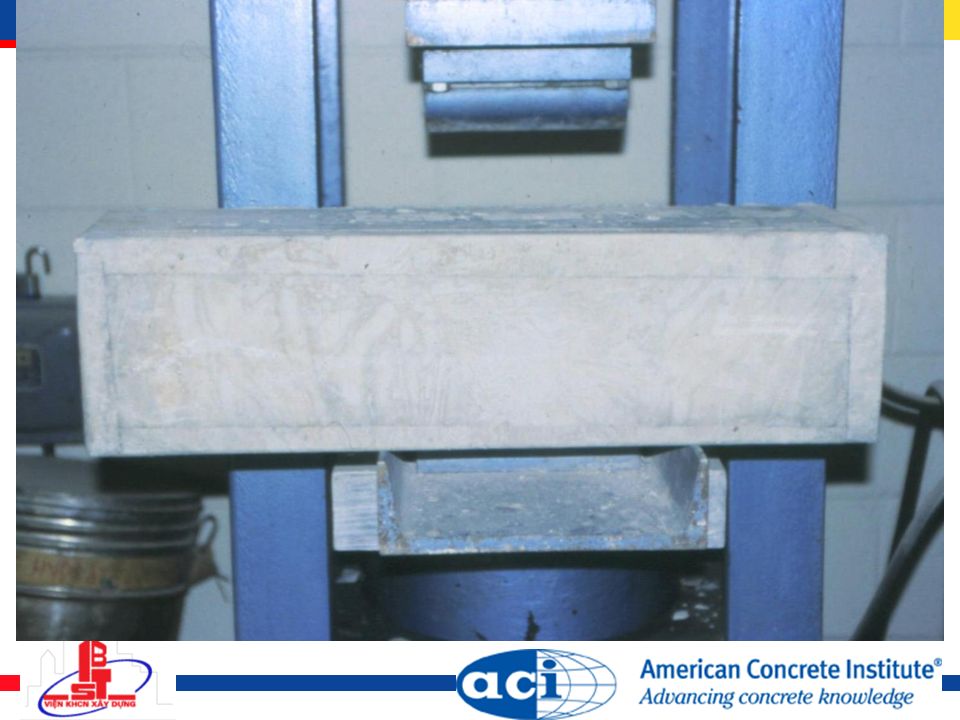

23. Tensile and fracture behavior

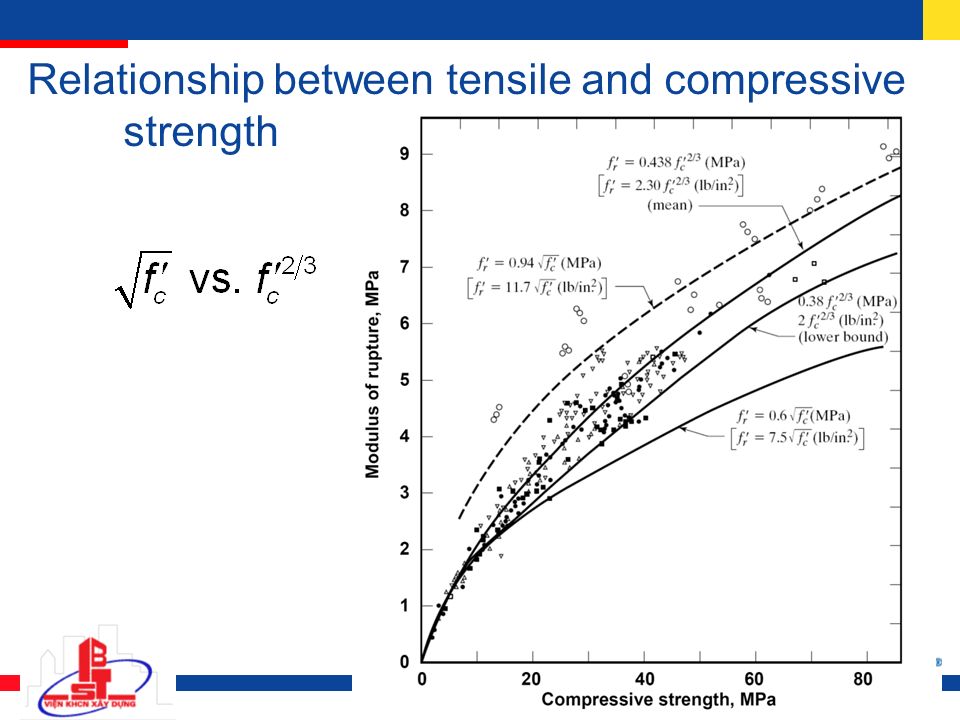

26. Relationship between tensile and compressive strength

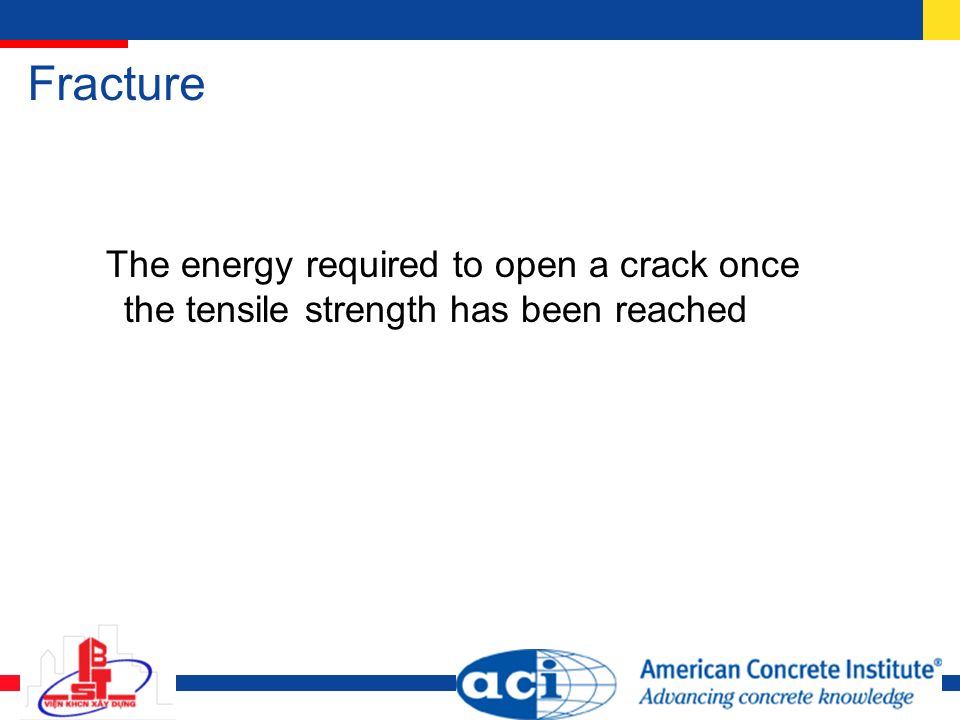

27. Fracture The energy required to open a crack once the tensile strength has been reached

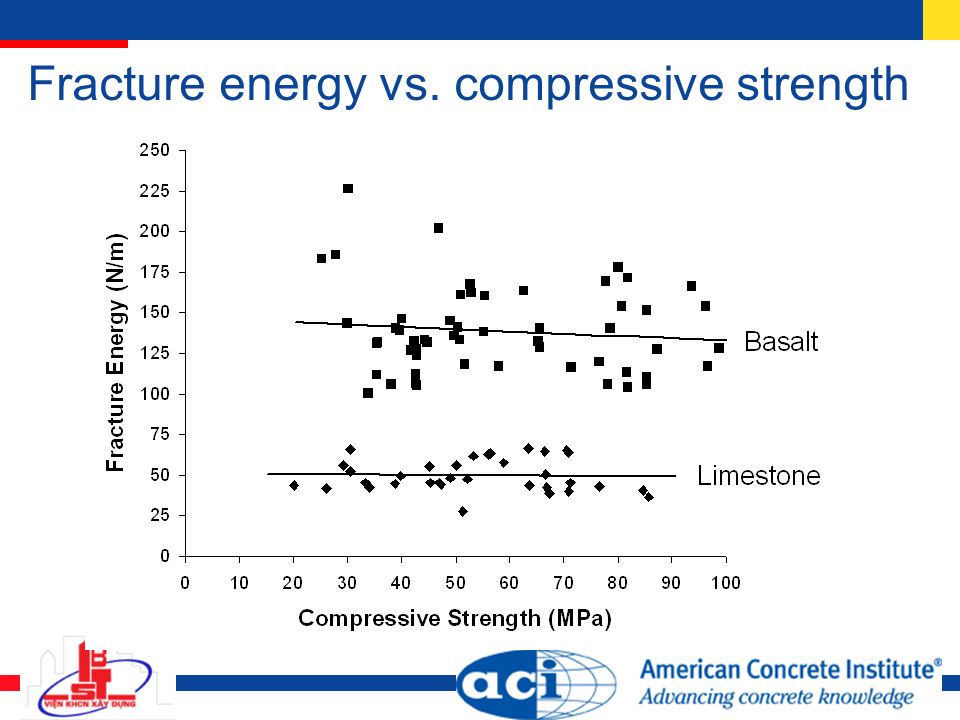

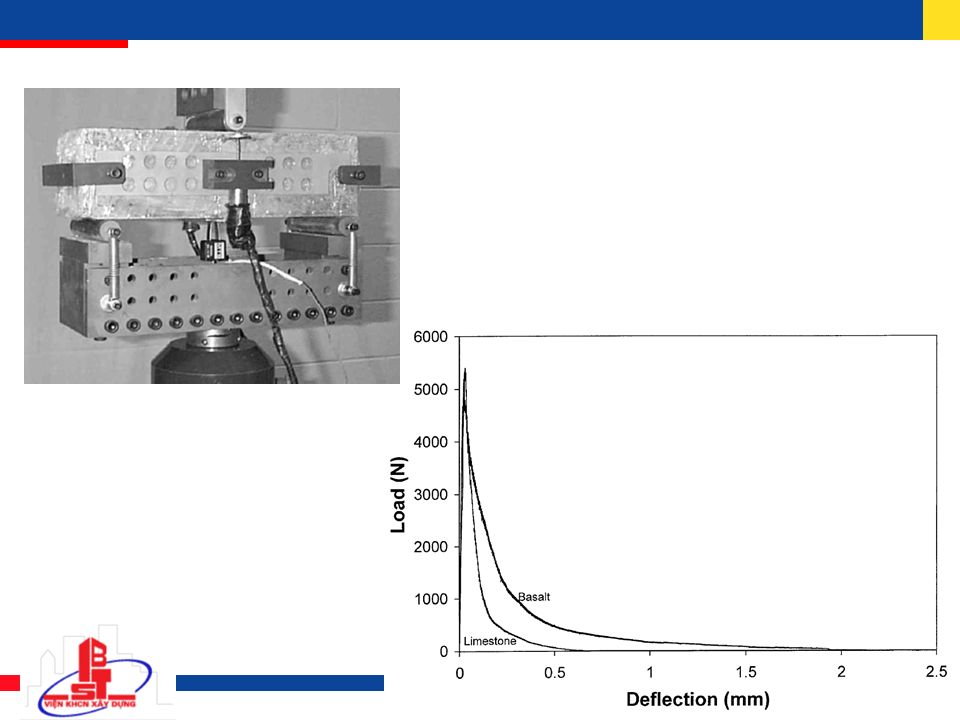

29. Fracture energy vs. compressive strength

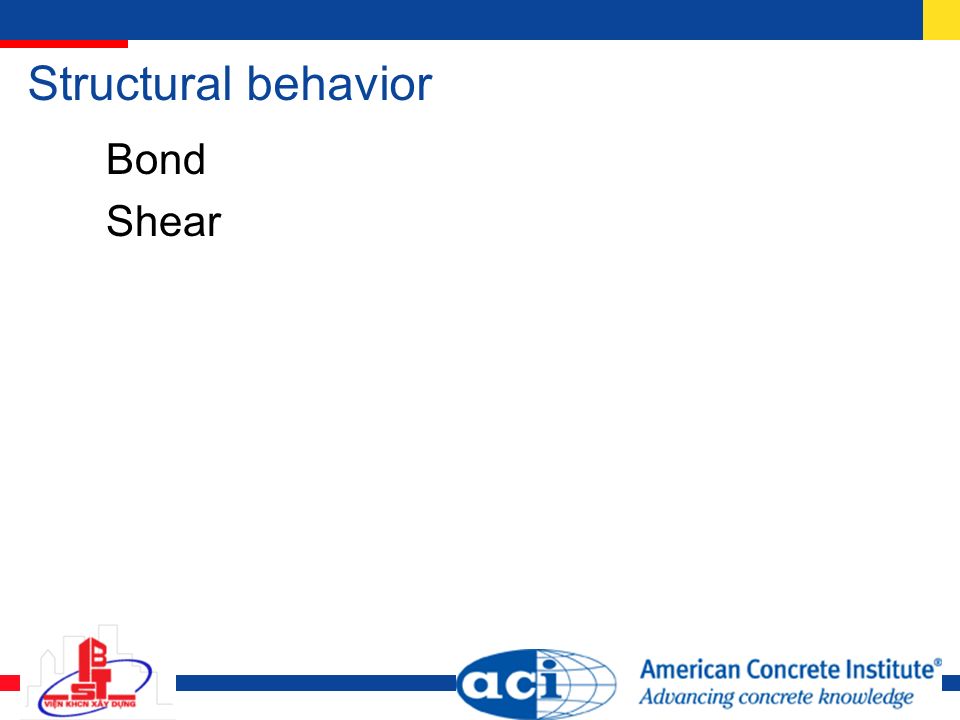

30. Structural behavior Bond Shear

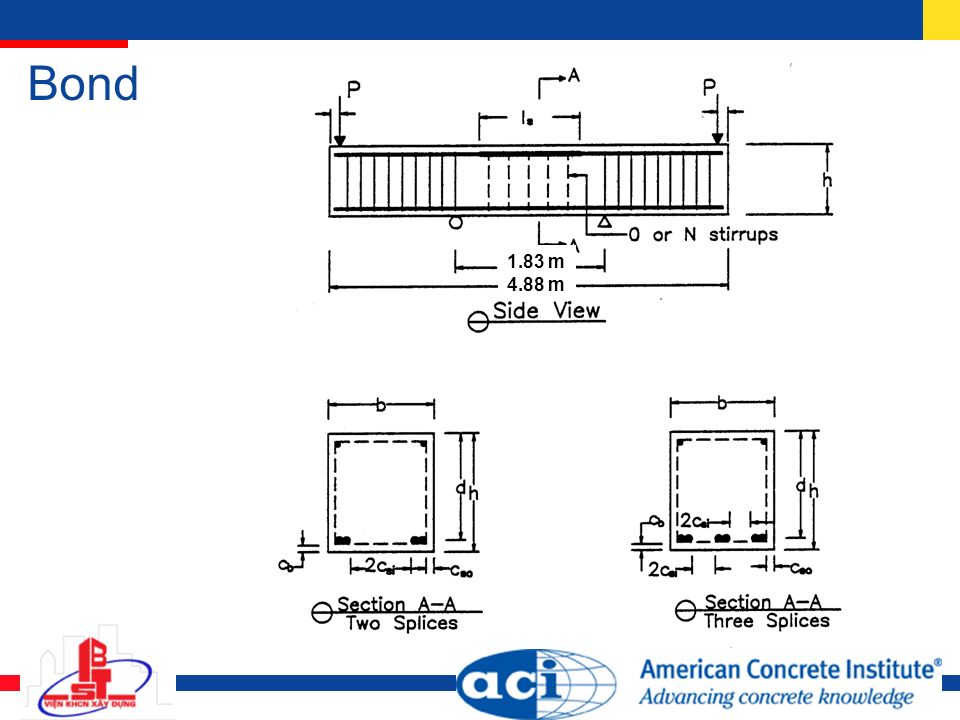

31. Bond 1.83 m 4.88 m

32. Splices w/o confining reinforcement

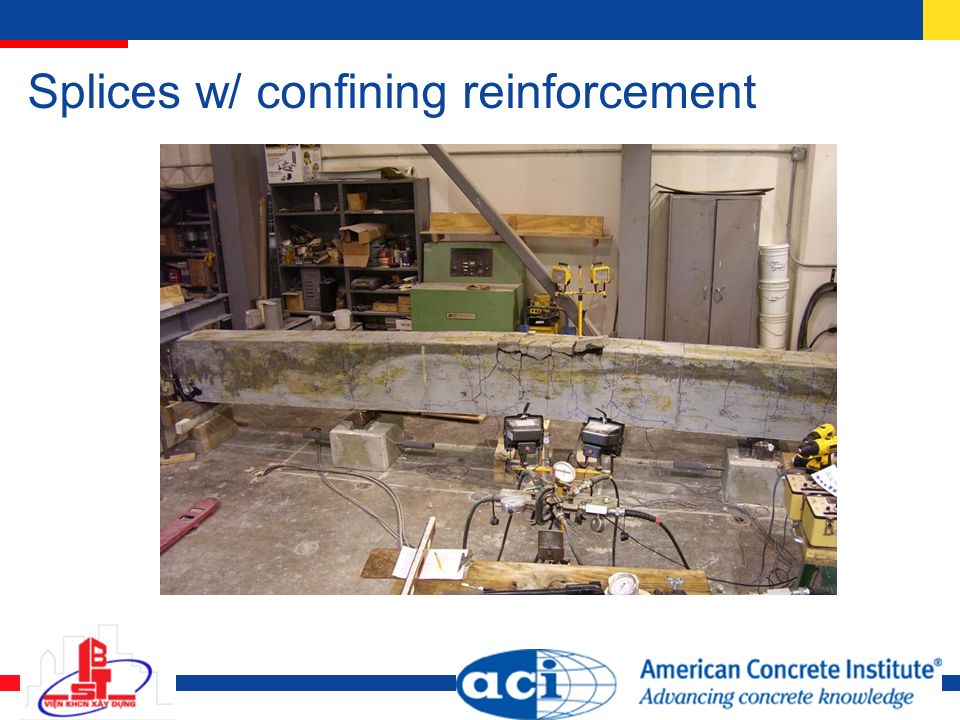

33. Splices w/ confining reinforcement

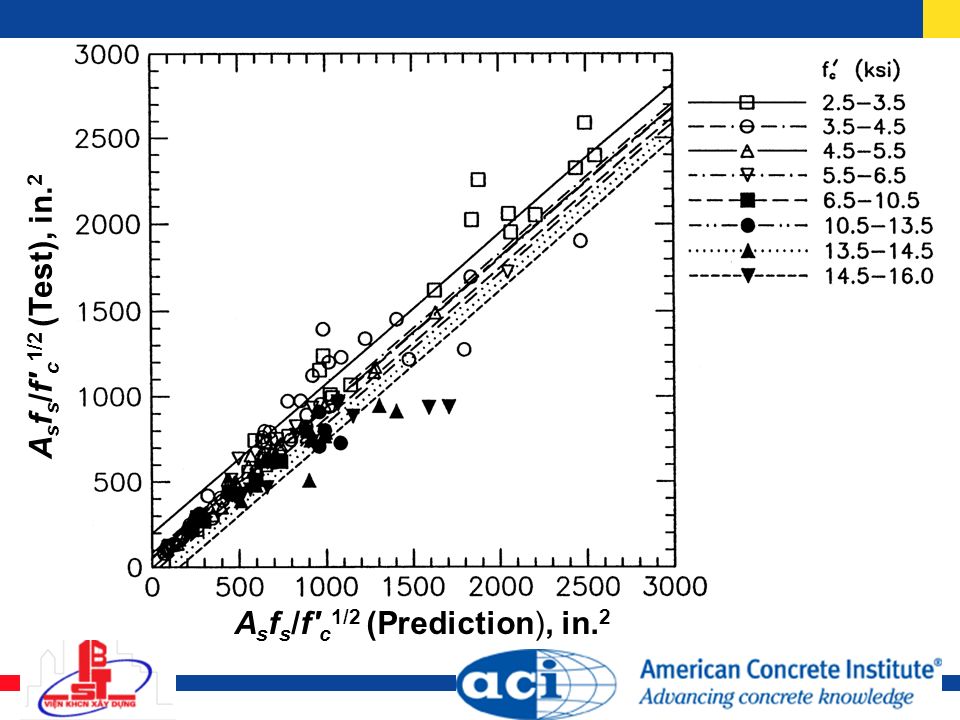

34. A s f s /f′ c 1/2 (Prediction), in. 2 A s f s /f′ c 1/2 (Test), in. 2

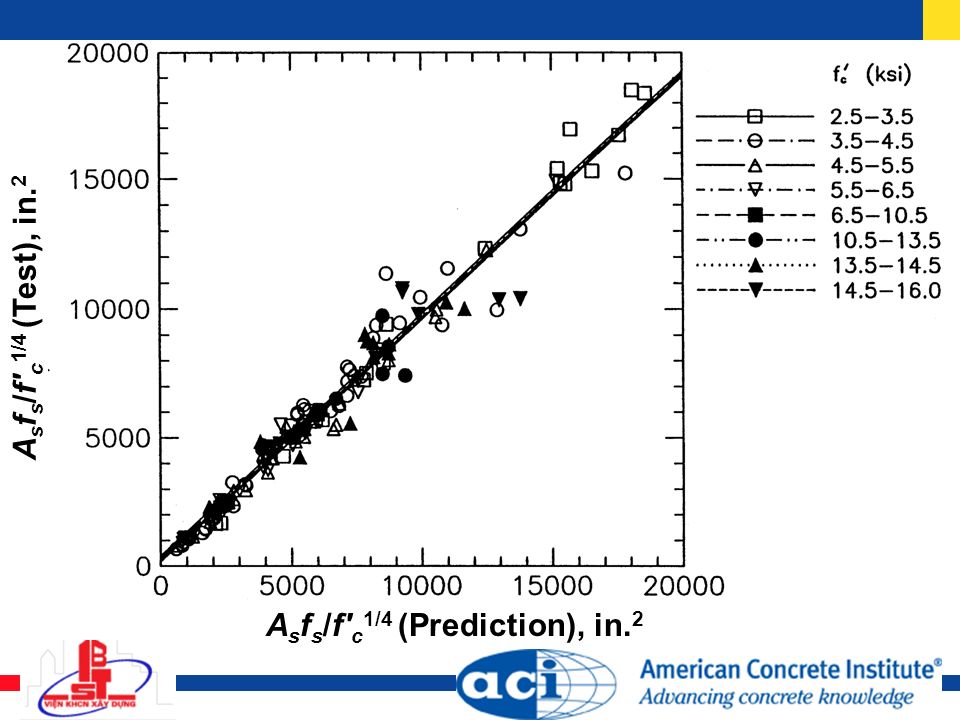

35. A s f s /f′ c 1/4 (Prediction), in. 2 A s f s /f′ c 1/4 (Test), in. 2

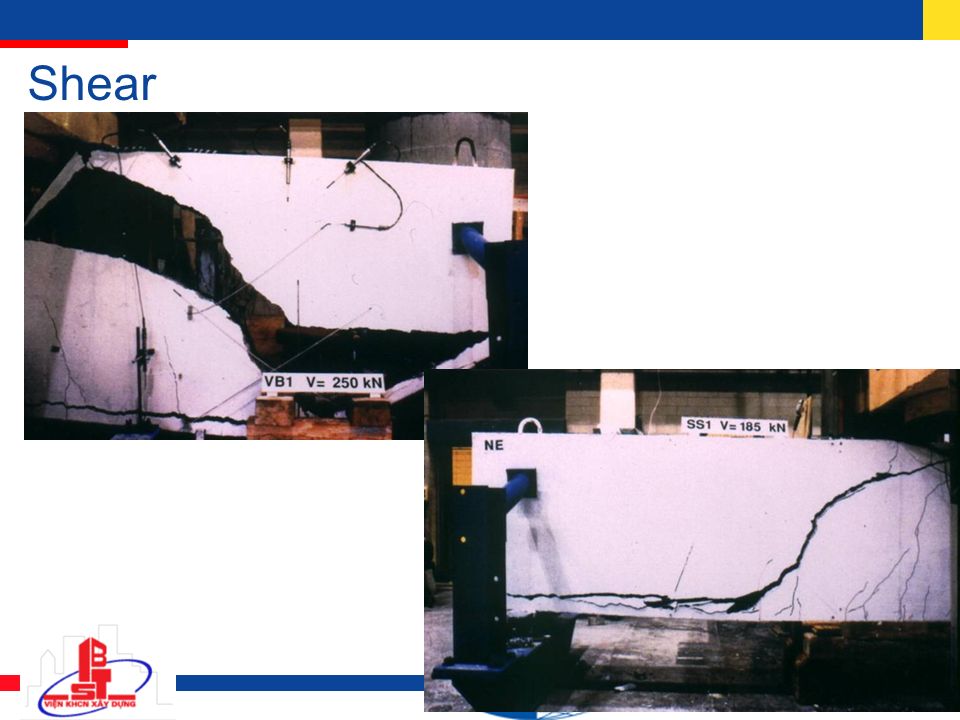

36. Shear

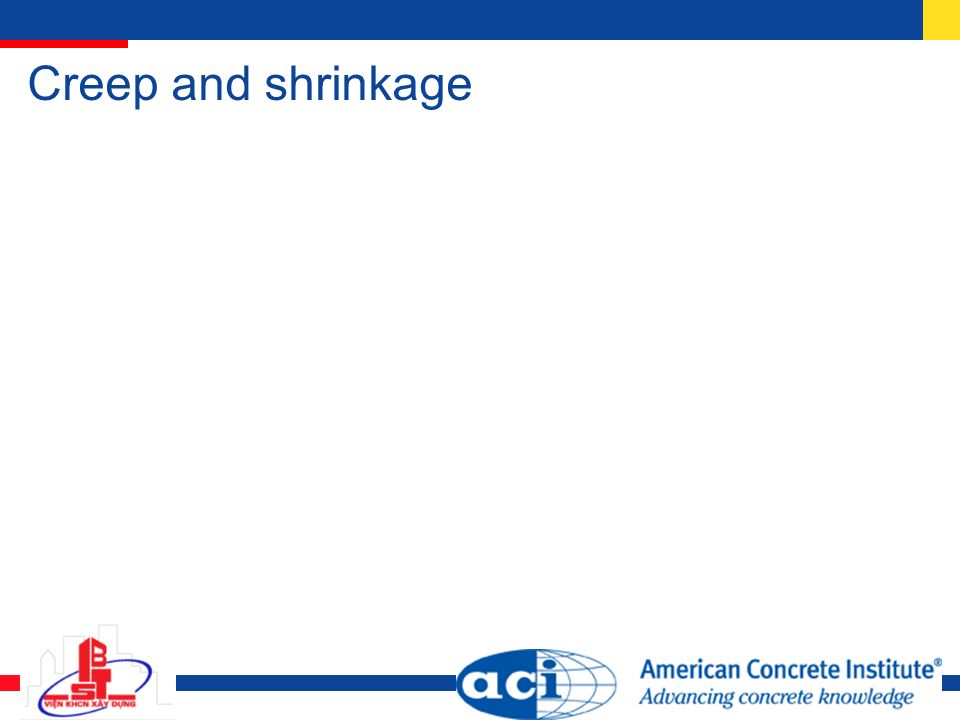

37. Creep and shrinkage

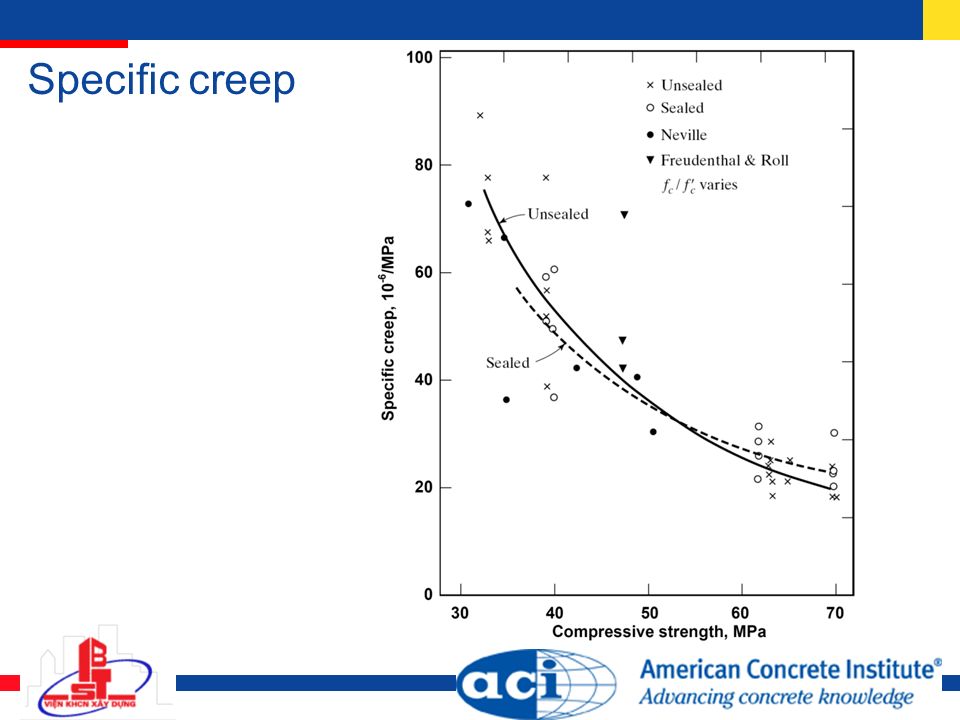

38. Specific creep

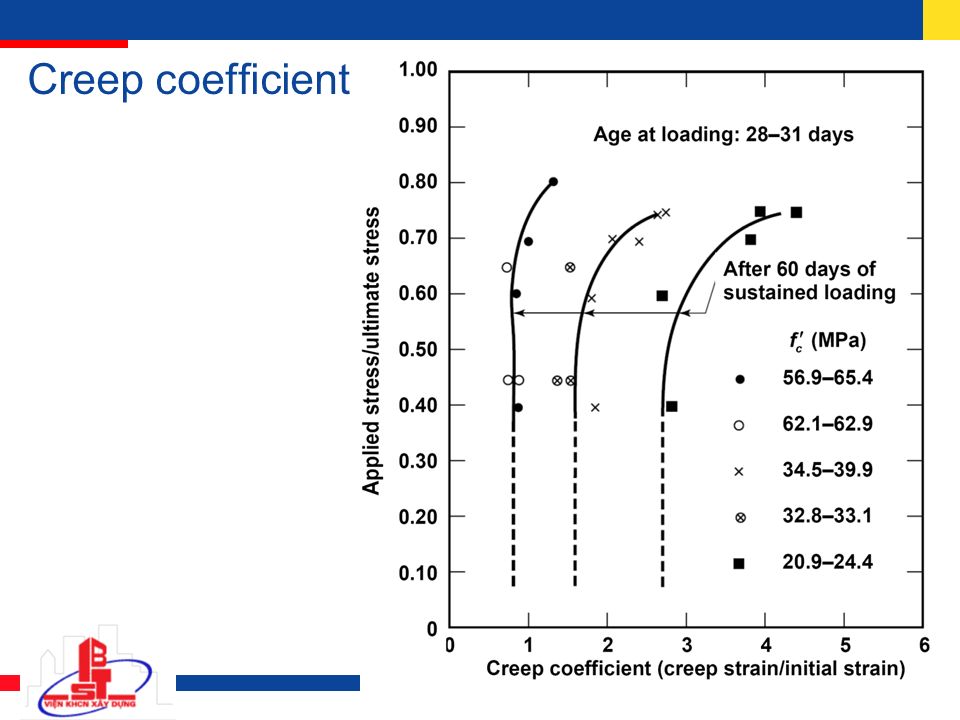

39. Creep coefficient

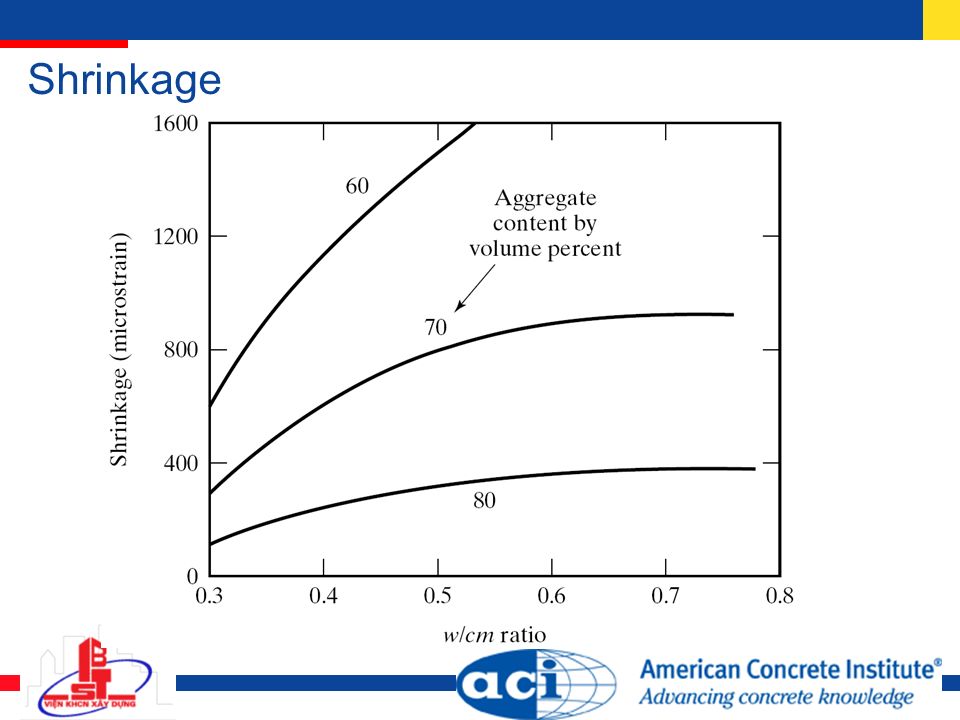

40. Shrinkage

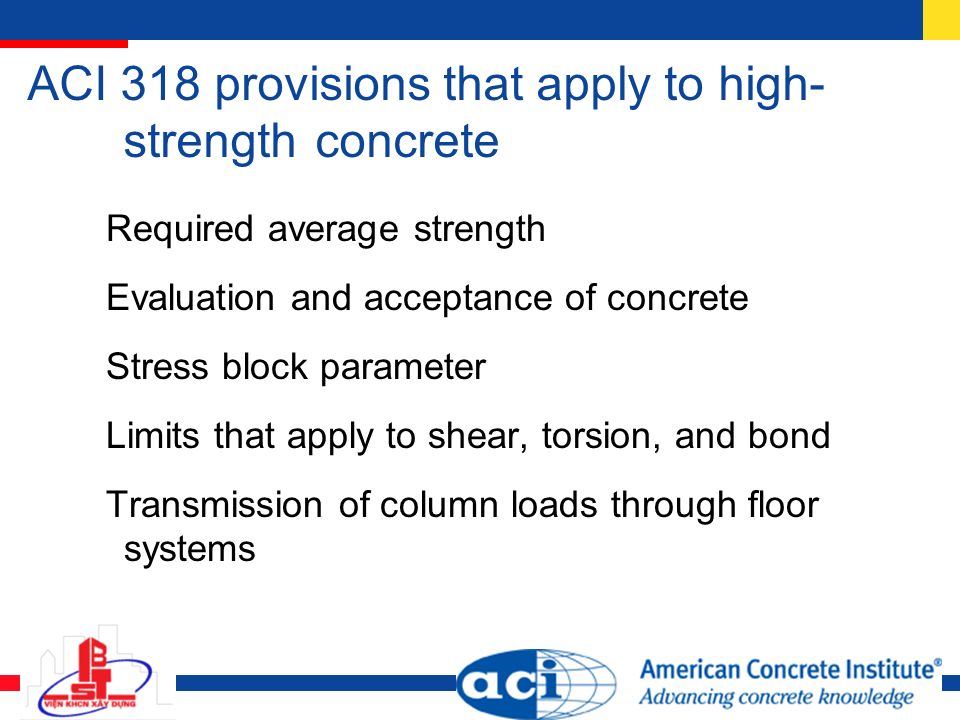

41. ACI 318 provisions that apply to high- strength concrete Required average strength Evaluation and acceptance of concrete Stress block parameter Limits that apply to shear, torsion, and bond Transmission of column loads through floor systems

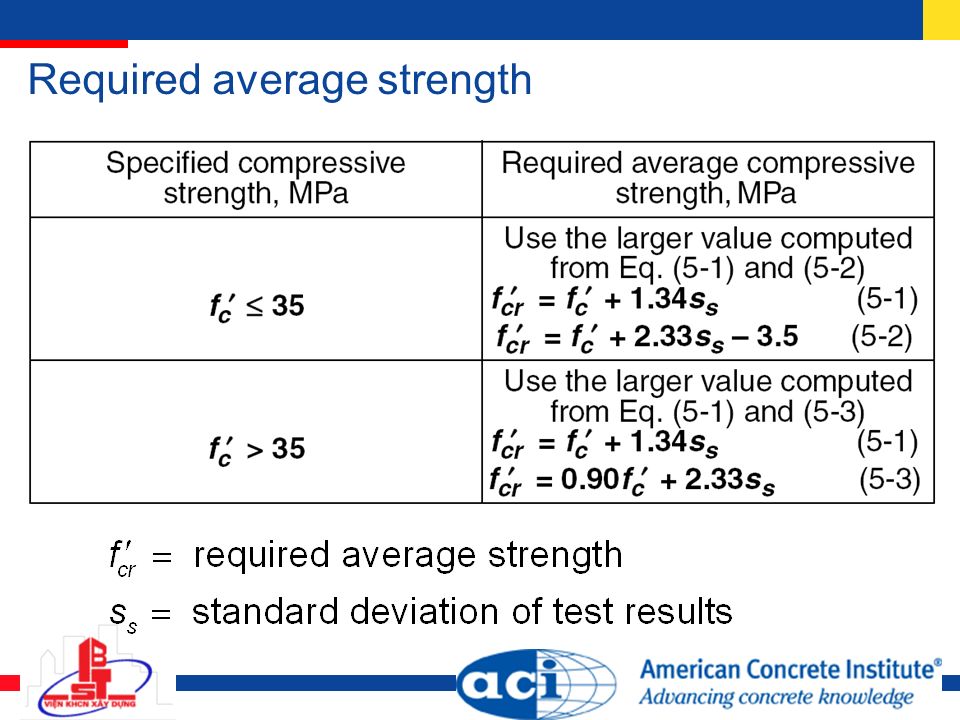

42. Required average strength

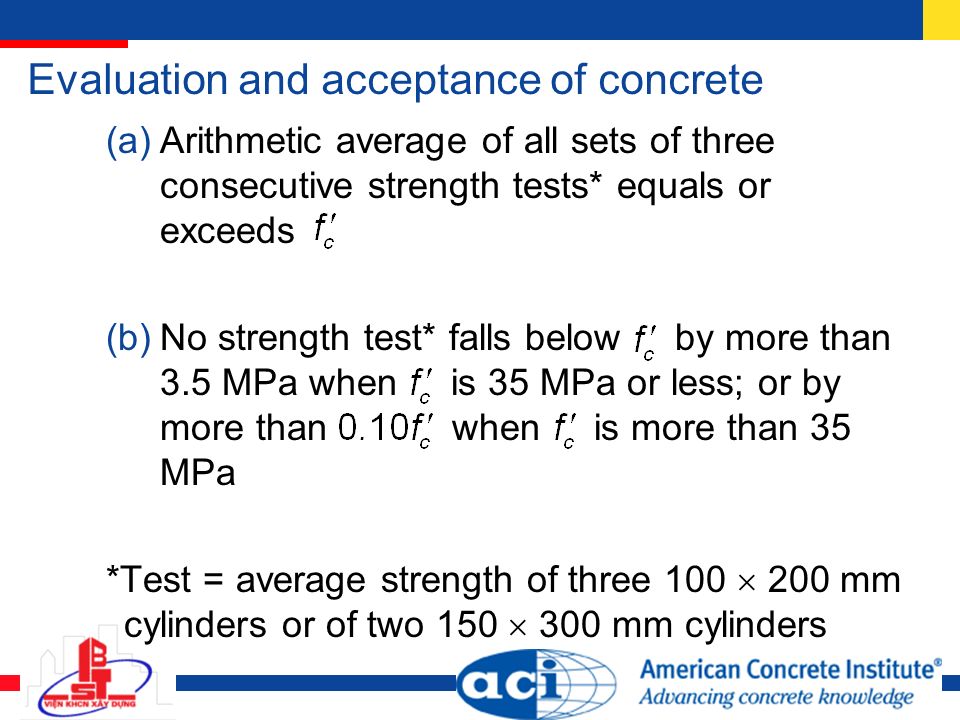

43. Evaluation and acceptance of concrete (a)Arithmetic average of all sets of three consecutive strength tests* equals or exceeds (b)No strength test* falls below by more than 3.5 MPa when is 35 MPa or less; or by more than when is more than 35 MPa *Test = average strength of three 100  200 mm cylinders or of two 150  300 mm cylinders

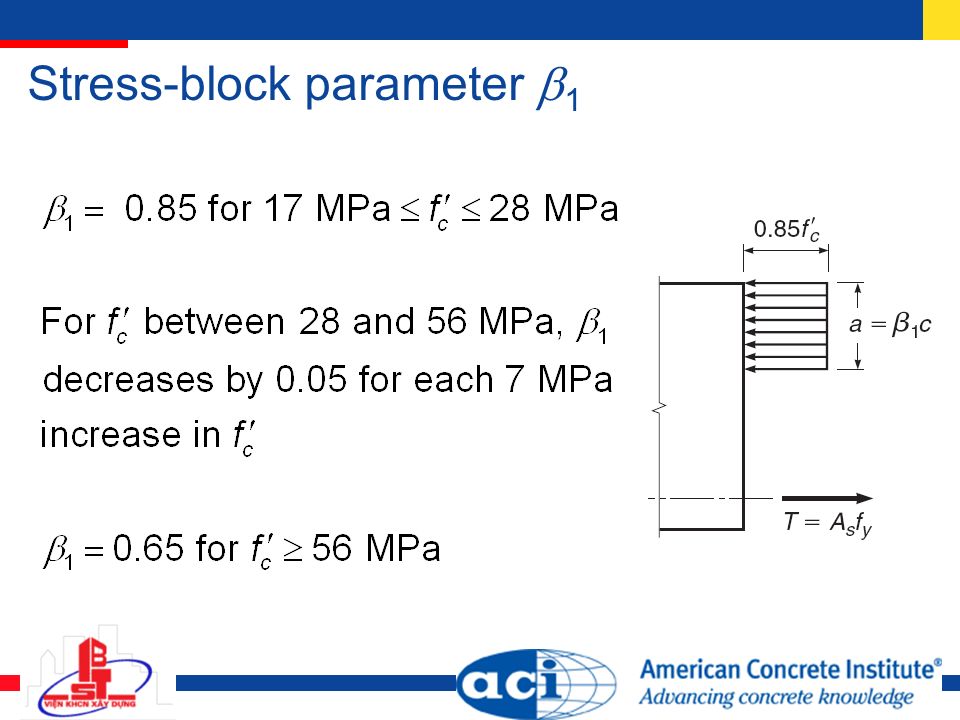

44. Stress-block parameter  1

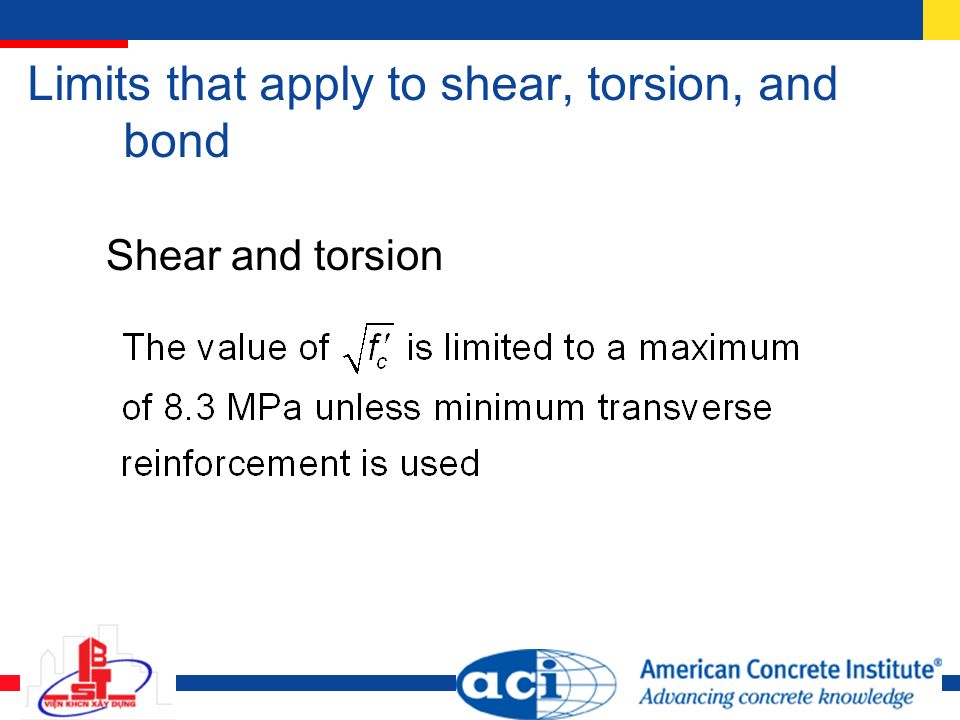

45. Limits that apply to shear, torsion, and bond Shear and torsion

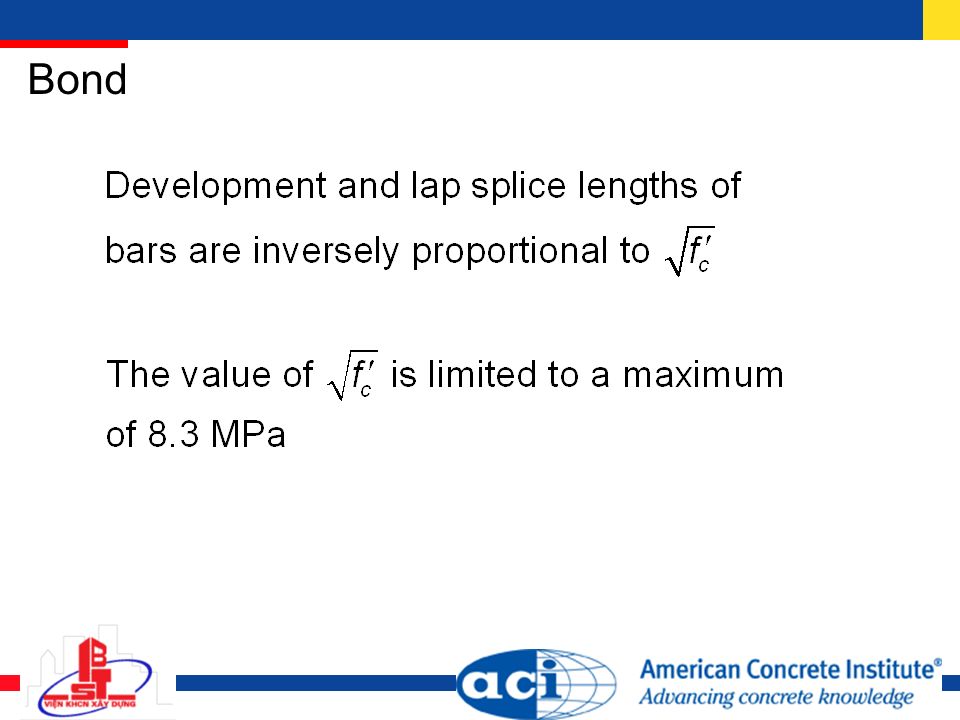

46. Bond

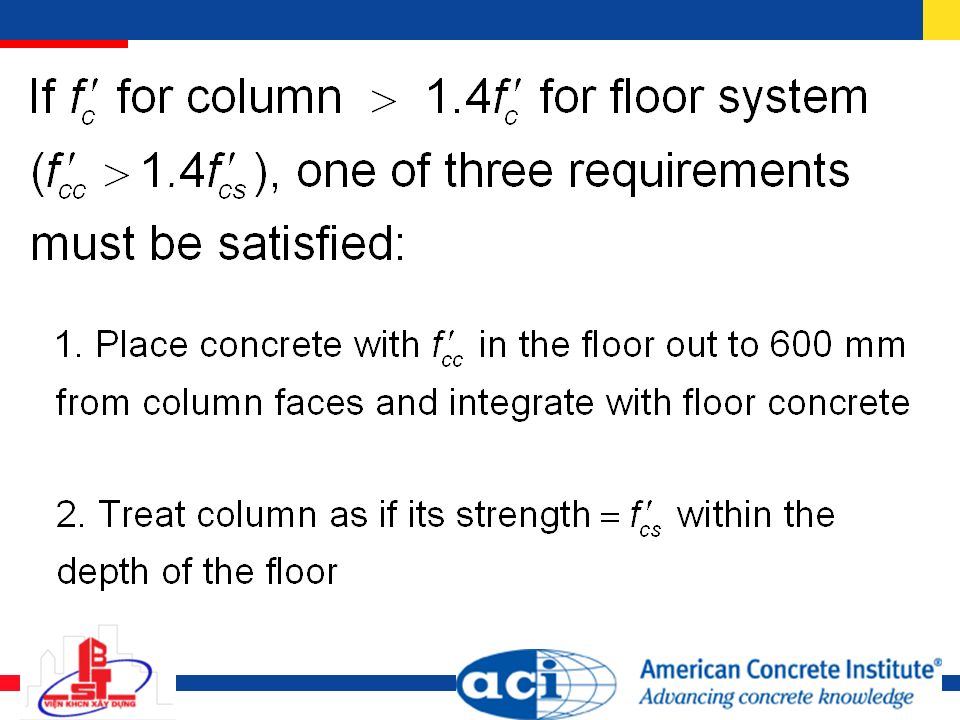

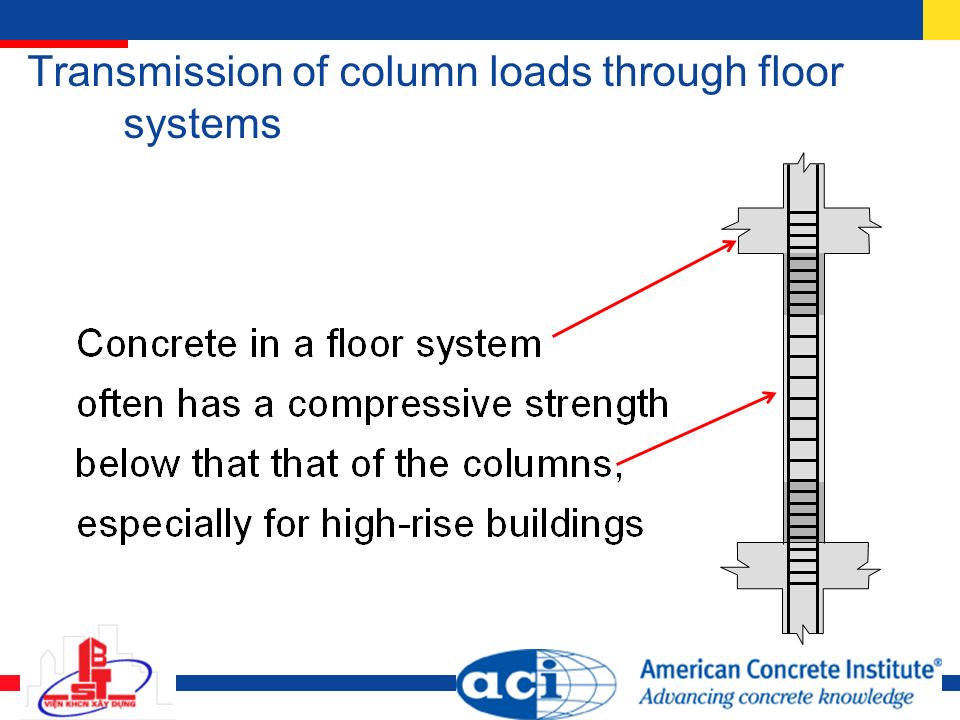

47. Transmission of column loads through floor systems

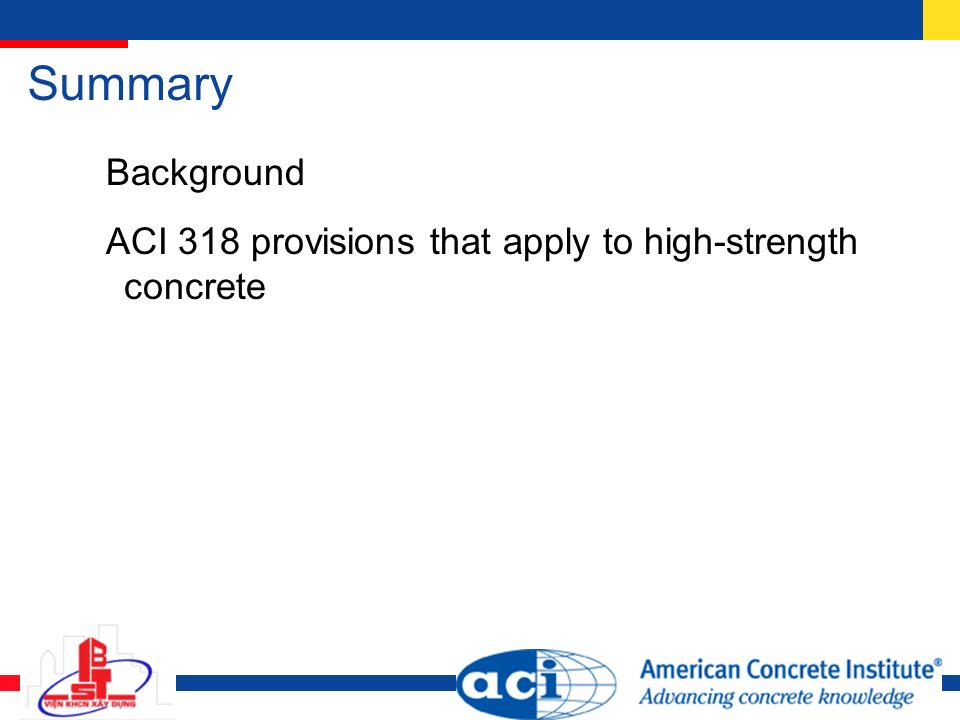

50. Summary Background ACI 318 provisions that apply to high-strength concrete

51. 51
