1. 12.1 Parallel Programming

2. 12.2 Types of Parallel Computers Two principal types: 1.Single computer containing multiple processors - main memory is shared, hence called “Shared memory multiprocessor” 2.Interconnected multiple computer systems

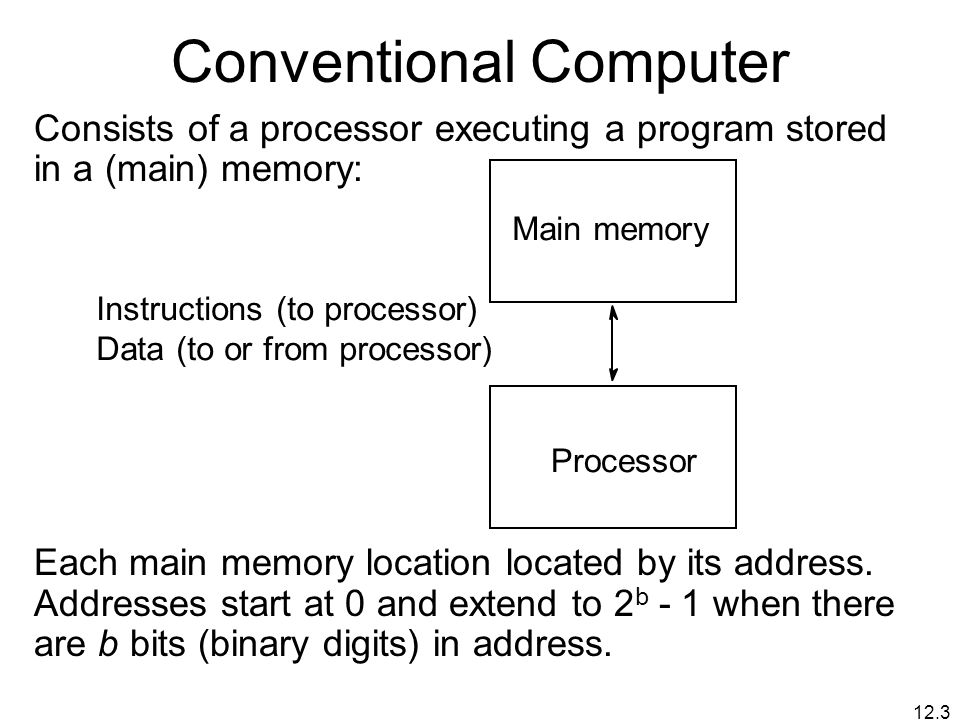

3. 12.3 Conventional Computer Consists of a processor executing a program stored in a (main) memory: Each main memory location located by its address. Addresses start at 0 and extend to 2 b - 1 when there are b bits (binary digits) in address. Main memory Processor Instructions (to processor) Data (to or from processor)

4. 12.4 Shared Memory Multiprocessor Extend single processor model - multiple processors connected to a single shared memory with a single address space: Memory Processors A real system will have cache memory associated with each processor

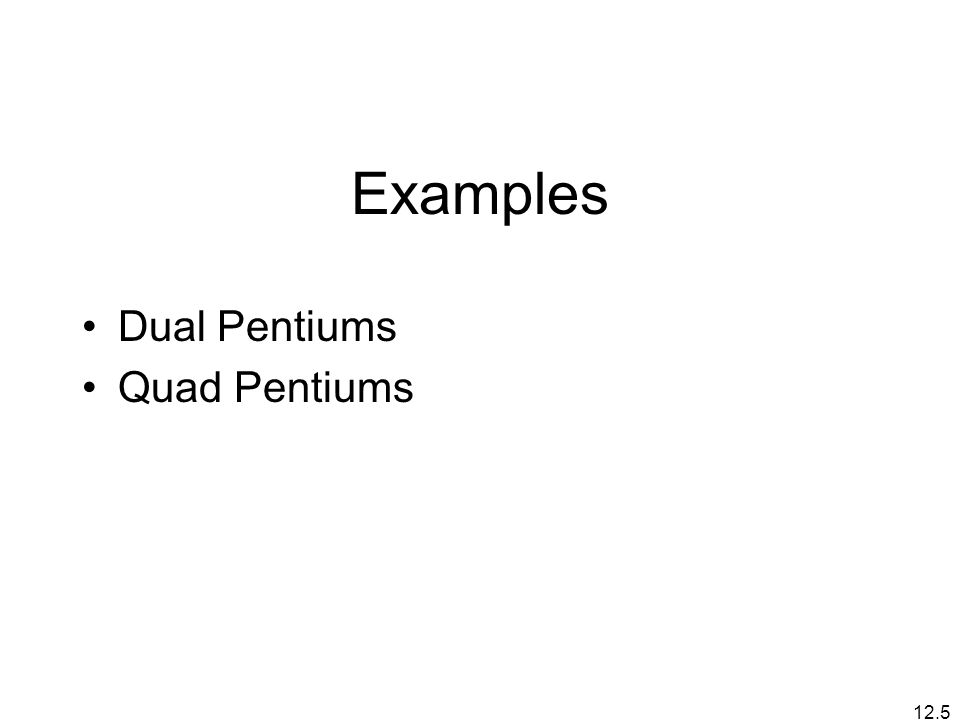

5. 12.5 Examples Dual Pentiums Quad Pentiums

6. 12.6 Quad Pentium Shared Memory Multiprocessor Processor L2 Cache Bus interface L1 cache Processor L2 Cache Bus interface L1 cache Processor L2 Cache Bus interface L1 cache Processor L2 Cache Bus interface L1 cache Memory controller Memory I/O interface I/O bus Processor/ memory bus Shared memory

7. 12.7 Programming Shared Memory Multiprocessors Threads - programmer decomposes program into parallel sequences (threads), each being able to access variables declared outside threads. Example: Pthreads Use sequential programming language with preprocessor compiler directives, constructs, or syntax to declare shared variables and specify parallelism. Examples: OpenMP (an industry standard), UPC (Unified Parallel C) -- needs compilers.

8. 12.8 Parallel programming language with syntax to express parallelism. Compiler creates executable code -- not now common. Use parallelizing compiler to convert regular sequential language programs into parallel executable code - also not now common.

9. 12.9 Message-Passing Multicomputer Complete computers connected through an interconnection network: Processor Interconnection network Local Computers Messages memory

10. 12.10 Dedicated cluster with a master node User External network Master node Compute nodes Switch 2 nd Ethernet interface Ethernet interface Cluster

11. 12.11 Programming Clusters Usually based upon explicit message- passing. Common approach -- a set of user-level libraries for message passing. Example: –Parallel Virtual Machine (PVM) - late 1980’s. Became very popular in mid 1990’s. –Message-Passing Interface (MPI) - standard defined in 1990’s and now dominant.

12. 12.12 MPI (Message Passing Interface) Message passing library standard developed by group of academics and industrial partners to foster more widespread use and portability. Defines routines, not implementation. Several free implementations exist.

13. 12.13 MPI designed: To address some problems with earlier message-passing system such as PVM. To provide powerful message-passing mechanism and routines - over 126 routines (although it is said that one can write reasonable MPI programs with just 6 MPI routines).

14. 12.14 Message-Passing Programming using User-level Message Passing Libraries Two primary mechanisms needed: 1.A method of creating separate processes for execution on different computers 2.A method of sending and receiving messages

15. 12.15 Multiple program, multiple data (MPMD) model Source file Executable Processor 0Processorp - 1 Source file

16. 12.16 Single Program Multiple Data (SPMD) model. Basic MPI way Source file Executables Processor 0Processorp - 1 Different processes merged into one program. Control statements select different parts for each processor to execute.

17. 12.17 Multiple Program Multiple Data (MPMD) Model Process 1 Process 2 spawn(); Time Start execution of process 2 Separate programs for each processor. One processor may execute as master process. Other processes started from within master process - dynamic process creation. Can be done with MPI version 2

18. 12.18 Communicators Defines scope of a communication operation. Processes have ranks associated with communicator. Initially, all processes enrolled in a “universe” called MPI_COMM_WORLD, and each process is given a unique rank, a number from 0 to p - 1, with p processes. Other communicators can be established for groups of processes.

19. 12.19 Using SPMD Computational Model main (int argc, char *argv[]) { MPI_Init(&argc, &argv);. MPI_Comm_rank(MPI_COMM_WORLD,&myrank); /*find rank */ if (myrank == 0) master(); else slave();. MPI_Finalize(); } where master() and slave() are to be executed by master process and slave process, respectively.

20. 12.20 Basic “point-to-point” Send and Receive Routines Process 1Process 2 send(&x, 2); recv(&y, 1); xy Movement of data Generic syntax (actual formats later) Passing a message between processes using send() and recv() library calls:

21. 12.21 Message Tag Used to differentiate between different types of messages being sent. Message tag is carried within message. If special type matching is not required, a wild card message tag is used, so that the recv() will match with any send().

22. 12.22 Message Tag Example Process 1Process 2 send(&x,2,5); recv(&y,1,5); xy Movement of data Waits for a message from process 1 with a tag of 5 To send a message, x, with message tag 5 from a source process, 1, to a destination process, 2, and assign to y:

23. 12.23 Synchronous Message Passing Routines return when message transfer completed. Synchronous send routine Waits until complete message can be accepted by the receiving process before sending the message. Synchronous receive routine Waits until the message it is expecting arrives.

24. 12.24 Synchronous send() and recv() using 3-way protocol Process 1Process 2 send(); recv(); Suspend Time process Acknowledgment Message Both processes continue (a) When send() occurs before recv() Request to send

25. 12.25 Synchronous send() and recv() using 3-way protocol Process 1Process 2 recv(); send(); Suspend Time process Acknowledgment Message Both processes continue (b) When recv() occurs before send() Request to send

26. 12.26 Synchronous routines intrinsically perform two actions: –They transfer data and –They synchronize processes.

27. 12.27 Asynchronous Message Passing Routines that do not wait for actions to complete before returning. Usually require local storage for messages. In general, they do not synchronize processes but allow processes to move forward sooner. Must be used with care.

28. 12.28 MPI Blocking and Non-Blocking Blocking - return after their local actions complete, though the message transfer may not have been completed. –For example, returns before message written to OS buffer. Non-blocking - return immediately. Assumes that data storage used for transfer not modified by subsequent statements prior to being used for transfer, and it is left to the programmer to ensure this.

29. 12.29 How message-passing routines return before message transfer completed Process 1Process 2 send(); recv(); Message buffer Read message buffer Continue process Time Message buffer needed between source and destination to hold message:

30. 12.30 Asynchronous routines changing to synchronous routines Buffers only of finite length and a point could be reached when send routine held up because all available buffer space exhausted. Then, send routine will wait until storage becomes re-available - i.e then routine behaves as a synchronous routine.

31. 12.31 Parameters of MPI blocking send MPI_Send(buf, count, datatype, dest, tag, comm) Address of send buffer Number of items to send Datatype of each item Rank of destination process Message tag Communicator

32. 12.32 Parameters of MPI blocking receive MPI_Recv(buf,count,datatype,dest,tag,comm,status) Address of receive buffer Max. number of items to receive Datatype of each item Rank of source process Message tag Communicator Status after operation

33. 12.33 Example To send an integer x from process 0 to process 1, MPI_Comm_rank(MPI_COMM_WORLD,&myrank); /* find rank */ if (myrank == 0) { int x; MPI_Send(&x,1,MPI_INT,1,msgtag,MPI_COMM_WORLD); } else if (myrank == 1) { int x; MPI_Recv(&x,1,MPI_INT,0,msgtag,MPI_COMM_WORLD,status); }

34. 12.34 MPI Nonblocking Routines Nonblocking send - MPI_Isend() - will return “immediately” even before source location is safe to be altered. Nonblocking receive - MPI_Irecv() - will return even if no message to accept.

35. 12.35 Detecting when message receive if sent with non-blocking send routine Completion detected by MPI_Wait() and MPI_Test(). MPI_Wait() waits until operation completed and returns then. MPI_Test() returns with flag set indicating whether operation completed at that time. Need to know which particular send you are waiting for. Identified with request parameter.

36. 12.36 Example To send an integer x from process 0 to process 1 and allow process 0 to continue, MPI_Comm_rank(MPI_COMM_WORLD, &myrank);/* find rank */ if (myrank == 0) { int x; MPI_Isend(&x,1,MPI_INT,1,msgtag,MPI_COMM_WORLD, req1); compute(); MPI_Wait(req1, status); } else if (myrank == 1) { int x; MPI_Recv(&x,1,MPI_INT,0,msgtag, MPI_COMM_WORLD, status); }

37. 12.37 Collective message passing routines Have routines that send message(s) to a group of processes or receive message(s) from a group of processes Higher efficiency than separate point-to-point routines although not absolutely necessary.

38. 12.38 Broadcast Sending same message to a group of processes. (Sometimes “Multicast” - sending same message to defined group of processes, “Broadcast” - to all processes.) MPI_bcast(); buf MPI_bcast(); data MPI_bcast(); data Process 0Processp - 1Process 1 Action Code MPI form

39. 12.39 MPI Broadcast routine int MPI_Bcast(void *buf, int count, MPI_Datatype datatype, int root, MPI_Comm comm) Actions: Broadcasts message from root process to al l processes in comm and itself. Parameters: *bufmessage buffer countnumber of entries in buffer datatypedata type of buffer rootrank of root

40. 12.40 Scatter MPI_scatter(); buf MPI_scatter(); data MPI_scatter(); data Process 0Processp - 1Process 1 Action Code MPI form Sending each element of an array in root process to a separate process. Contents of ith location of array sent to ith process.

41. 12.41 Gather MPI_gather(); buf MPI_gather(); data MPI_gather(); data Process 0Processp - 1Process 1 Action Code MPI form Having one process collect individual values from set of processes.

42. 12.42 Reduce MPI_reduce(); buf MPI_reduce(); data MPI_reduce(); data Process 0Processp - 1Process 1 + Action Code MPI form Gather operation combined with specified arithmetic/logical operation. Example: Values could be gathered and then added together by root:

43. 12.43 Collective Communication Involves set of processes, defined by an intra-communicator. Message tags not present. Principal collective operations: MPI_Bcast() - Broadcast from root to all other processes MPI_Gather() - Gather values for group of processes MPI_Scatter() - Scatters buffer in parts to group of processes MPI_Alltoall() - Sends data from all processes to all processes MPI_Reduce() - Combine values on all processes to single value MPI_Reduce_scatter() - Combine values and scatter results MPI_Scan() - Compute prefix reductions of data on processes

44. 12.44 Example To gather items from group of processes into process 0, using dynamically allocated memory in root process: int data[10];/*data to be gathered from processes*/ MPI_Comm_rank(MPI_COMM_WORLD, &myrank);/* find rank */ if (myrank == 0) { MPI_Comm_size(MPI_COMM_WORLD,&grp_size);/*find size*/ /*allocate memory*/ buf = (int *)malloc(grp_size*10*sizeof (int)); } MPI_Gather(data,10,MPI_INT,buf,grp_size*10,MPI_INT,0, MPI_COMM_WORLD); MPI_Gather() gathers from all processes, including root.

45. 12.45 Sample MPI program #include “mpi.h” #include #define MAXSIZE 1000 void main(int argc, char *argv) { int myid, numprocs; int data[MAXSIZE], i, x, low, high, myresult, result; char fn[255]; char *fp; MPI_Init(&argc,&argv);//required MPI_Comm_size(MPI_COMM_WORLD,&numprocs); MPI_Comm_rank(MPI_COMM_WORLD,&myid);

46. 12.46 Sample MPI program if (myid == 0) { /* Open input file and initialize data */ strcpy(fn,getenv(“HOME”)); strcat(fn,”/MPI/rand_data.txt”); if ((fp = fopen(fn,”r”)) == NULL) { printf(“Can’t open the input file: %s\n\n”, fn); exit(1); } for(i = 0; i < MAXSIZE; i++) fscanf(fp,”%d”, &data[i]); } //All processes execute the rest of code. MPI_Bcast(data, MAXSIZE, MPI_INT, 0, MPI_COMM_WORLD); /* broadcast data */

47. 12.47 Sample MPI program x = n/nproc; /* Add my portion Of data */ low = myid * x; high = low + x; for(i = low; i < high; i++) myresult += data[i]; printf(“I calculated %d from %d\n”, myresult, myid); /* Compute global sum */ MPI_Reduce(&myresult, &result, 1, MPI_INT, MPI_SUM, 0, MPI_COMM_WORLD); if (myid == 0) printf(“The sum is %d.\n”, result); MPI_Finalize(); }

48. 12.48 Message-Passing on a Grid VERY expensive, sending data across network costs millions of cycles Bandwidth shared with other users Links unreliable

49. 12.49 Computational Strategies As a computing platform, a grid favors situations with absolute minimum communication between computers.

50. 12.50 Strategies With no/minimum communication: “Embarrassingly Parallel” Computations –those computations which obviously can be divided into parallel independent parts. Parts executed on separate computers. Separate instance of the same problem executing on each system, each using different data

51. 12.51 Embarrassingly Parallel Computations A computation that can obviously be divided into a number of completely independent parts, each of which can be executed by a separate process(or). No communication or very little communication between processes. Each process can do its tasks without any interaction with other processes

52. 12.52 Monte Carlo Methods An embarrassingly parallel computation. Monte Carlo methods use of random selections.
