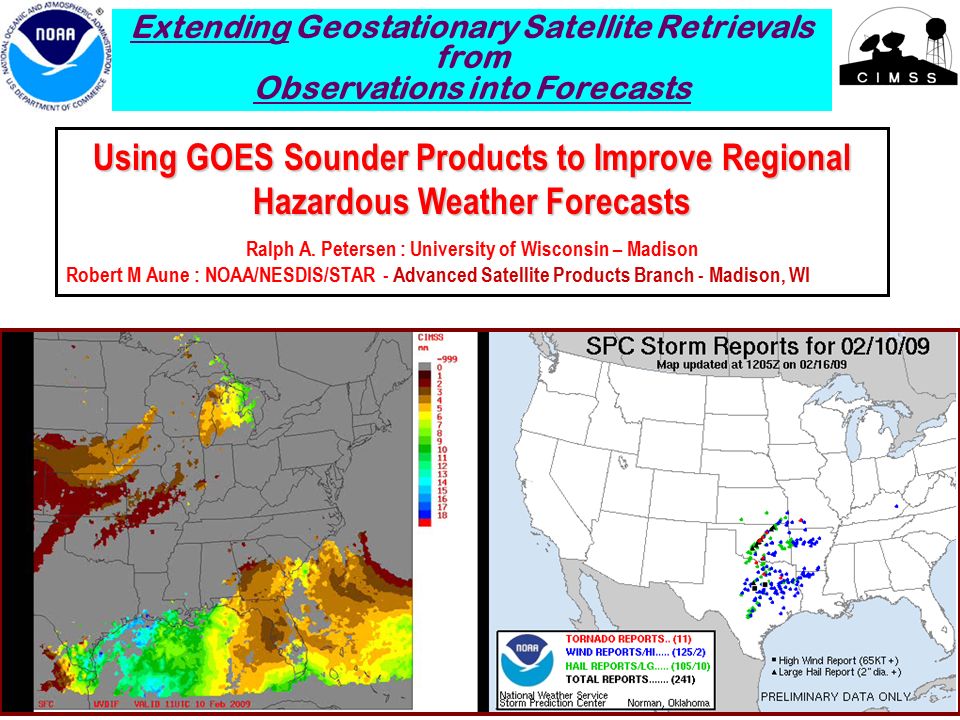

1. Extending Geostationary Satellite Retrievals from Observations into Forecasts Using GOES Sounder Products to Improve Regional Hazardous Weather Forecasts Ralph A. Petersen : University of Wisconsin – Madison Robert M Aune : NOAA/NESDIS/STAR - Advanced Satellite Products Branch - Madison, WI

2. Focus on the next 1-6 hours – Fill the Gap between Nowcasts and NWP Update/enhance NWP guidance: - Be Fast and updated very frequently Use ALL available data - quickly: - “Draw closely” to good data - Avoid analysis smoothing / superobing (Issues of longer-range NWP) Anticipate rapidly developing weather events: - “Perishable” guidance products need rapid delivery - Detect the “pre-storm environment” - Increase lead time Probability of Detection (POD) - Reduce False Alarm Rate (FAR) Run locally if needed: - Few resources needed - Improve Forecaster’s Situational Awareness What is an Objective NearCasting System 0 1 5 6 hours Fill the Gap Between Nowcasting & NWP A NearCasting model should:

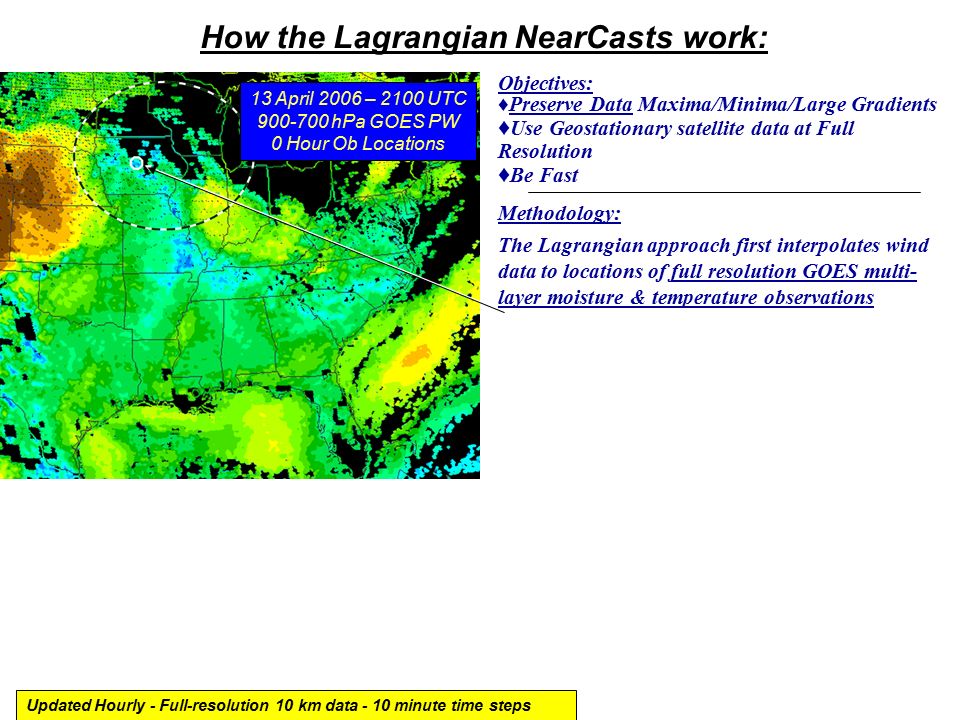

3. 13 April 2006 – 2100 UTC 900-700 hPa GOES PW 0 Hour Ob Locations Updated Hourly - Full-resolution 10 km data - 10 minute time steps Objectives: ♦Preserve Data Maxima/Minima/Large Gradients ♦ Use Geostationary satellite data at Full Resolution ♦ Be Fast Methodology: The Lagrangian approach first interpolates wind data to locations of full resolution GOES multi- layer moisture & temperature observations How the Lagrangian NearCasts work:

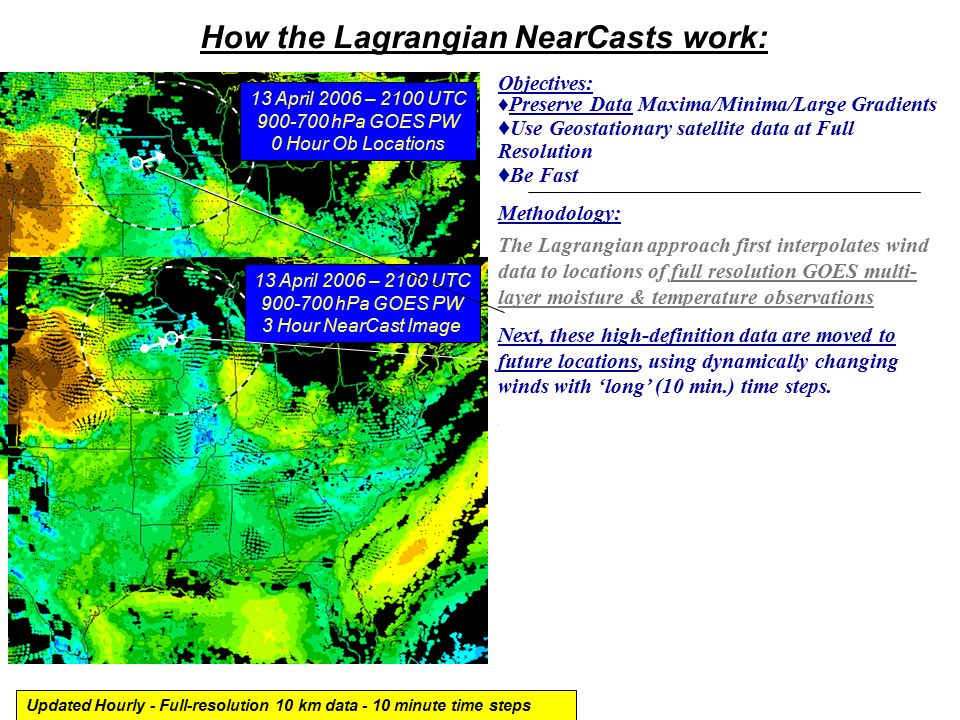

4. 13 April 2006 – 2100 UTC 900-700 hPa GOES PW 0 Hour Ob Locations 13 April 2006 – 2100 UTC 900-700 hPa GOES PW 3 Hour NearCast Image Updated Hourly - Full-resolution 10 km data - 10 minute time steps Objectives: ♦Preserve Data Maxima/Minima/Large Gradients ♦ Use Geostationary satellite data at Full Resolution ♦ Be Fast Methodology: The Lagrangian approach first interpolates wind data to locations of full resolution GOES multi- layer moisture & temperature observations Next, these high-definition data are moved to future locations, using dynamically changing winds with ‘long’ (10 min.) time steps.. How the Lagrangian NearCasts work:

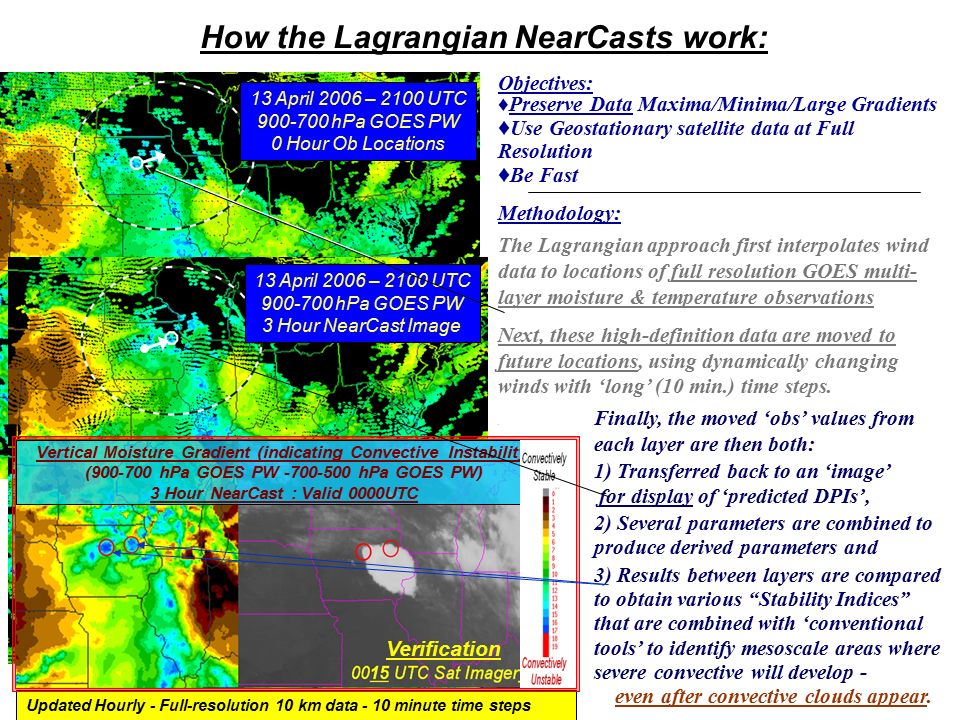

5. 13 April 2006 – 2100 UTC 900-700 hPa GOES PW 0 Hour Ob Locations 13 April 2006 – 2100 UTC 900-700 hPa GOES PW 3 Hour NearCast Image Updated Hourly - Full-resolution 10 km data - 10 minute time steps Vertical Moisture Gradient (indicating Convective Instability) (900-700 hPa GOES PW -700-500 hPa GOES PW) 3 Hour NearCast : Valid 0000UTC Objectives: ♦Preserve Data Maxima/Minima/Large Gradients ♦ Use Geostationary satellite data at Full Resolution ♦ Be Fast Methodology: The Lagrangian approach first interpolates wind data to locations of full resolution GOES multi- layer moisture & temperature observations Next, these high-definition data are moved to future locations, using dynamically changing winds with ‘long’ (10 min.) time steps.. Finally, the moved ‘obs’ values from each layer are then both: 1) Transferred back to an ‘image’ for display of ‘predicted DPIs’, 2) Several parameters are combined to produce derived parameters and 3) Results between layers are compared to obtain various “Stability Indices” that are combined with ‘conventional tools’ to identify mesoscale areas where severe convective will develop - even after convective clouds appear. Verification How the Lagrangian NearCasts work:

6. Recent Progress Example many new cases where NearCasts of GOES vertical moisture gradients (a necessary condition for Convective Instability) helped isolate areas of Hazardous Weather Potential –Useful in many seasons/regions of US Severe Convection Emphasis on rapid development of isolated storm – Heavy Precipitation –Output in GRIB-II and NWS Graphics formats –... Expanded analyses of Convective Environment Diagnose case using SEVIRI data

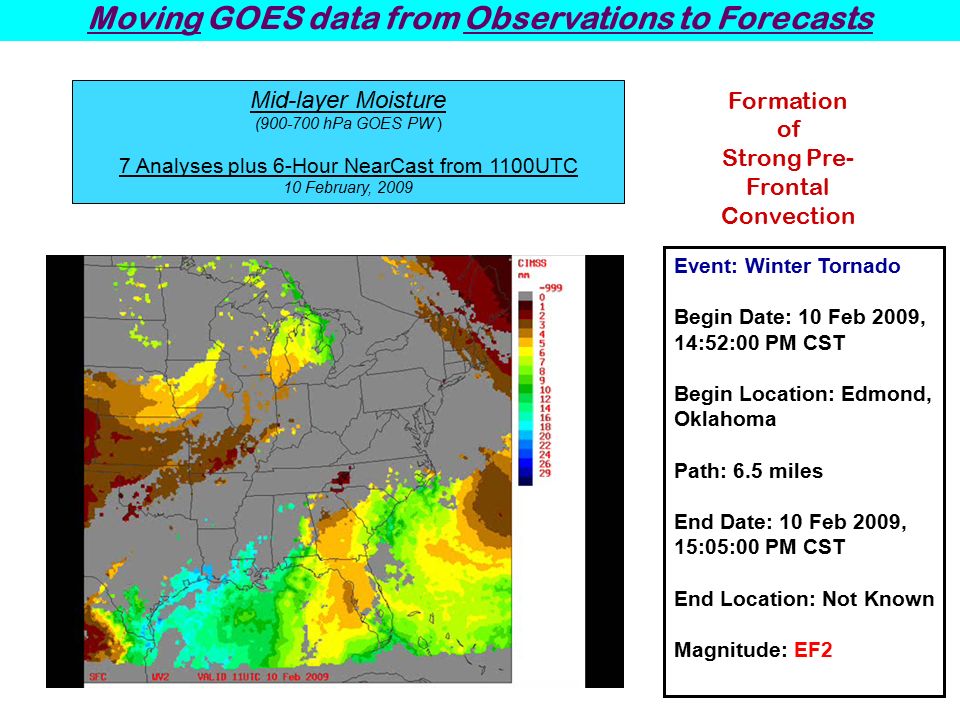

7. Mid-layer Moisture (900-700 hPa GOES PW ) 7 Analyses plus 6-Hour NearCast from 1100UTC 10 February, 2009 Formation of Strong Pre- Frontal Convection Moving GOES data from Observations to Forecasts Event: Winter Tornado Begin Date: 10 Feb 2009, 14:52:00 PM CST Begin Location: Edmond, Oklahoma Path: 6.5 miles End Date: 10 Feb 2009, 15:05:00 PM CST End Location: Not Known Magnitude: EF2

8. Vertical Moisture Gradient (900-700 hPa GOES PW - 700-500 hPa GOES PW) 7 Analyses Plus 6-Hour NearCast from 1100UTC 10 February 2009 Moving GOES data from Observations to Forecasts Formation of Strong Pre- Frontal Convection Verification: Radar/ReportsPsuedo-Convective Stability

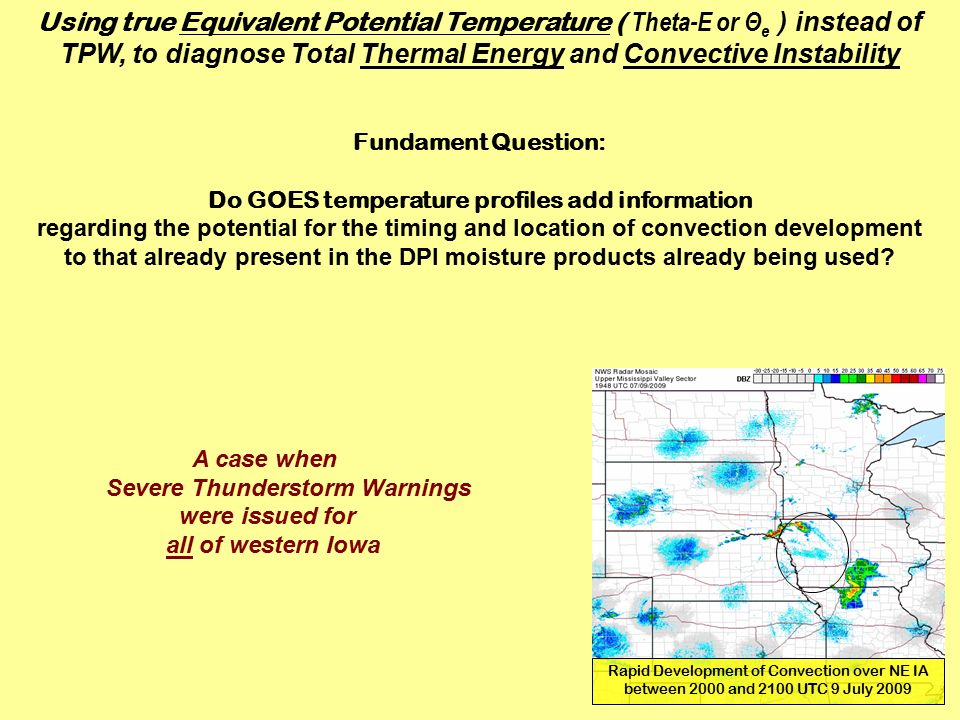

9. Using true Equivalent Potential Temperature ( Theta-E or Θ e ) instead of TPW, to diagnose Total Thermal Energy and Convective Instability Fundament Question: Do GOES temperature profiles add information regarding the potential for the timing and location of convection development to that already present in the DPI moisture products already being used? A case when Severe Thunderstorm Warnings were issued for all of western Iowa Rapid Development of Convection over NE IA between 2000 and 2100 UTC 9 July 2009

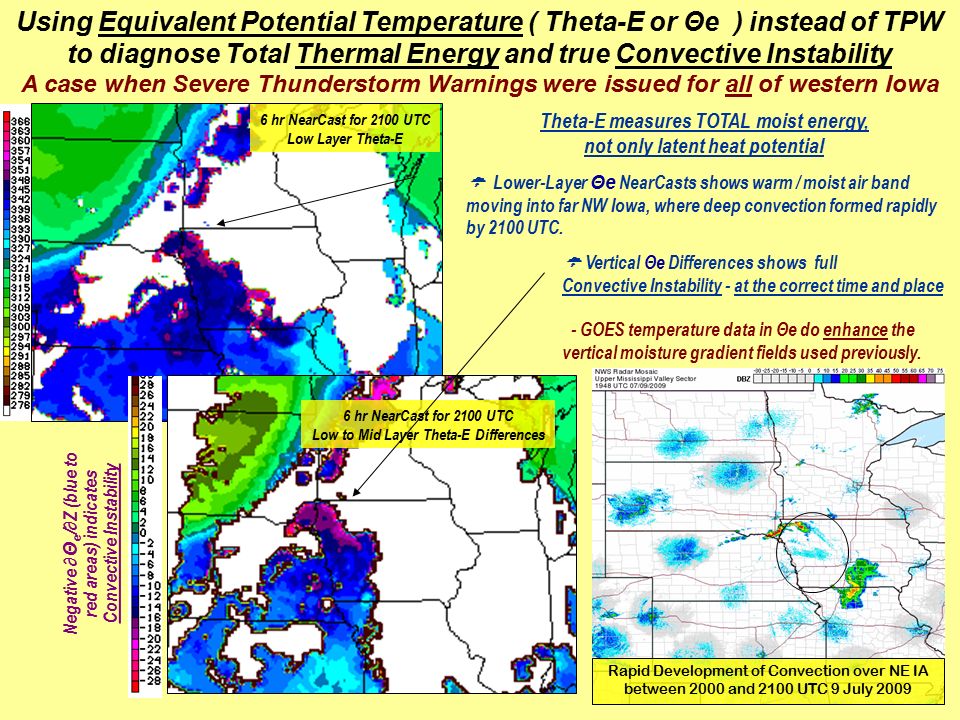

10. Using Equivalent Potential Temperature ( Theta-E or Θe ) instead of TPW to diagnose Total Thermal Energy and true Convective Instability A case when Severe Thunderstorm Warnings were issued for all of western Iowa Theta-E measures TOTAL moist energy, not only latent heat potential  Lower-Layer Θe NearCasts shows warm / moist air band moving into far NW Iowa, where deep convection formed rapidly by 2100 UTC.  Vertical Θe Differences shows full Convective Instability - at the correct time and place - GOES temperature data in Θe do enhance the vertical moisture gradient fields used previously. Negative ∂ Θ e / ∂Z (blue to red areas) indicates Convective Instability Rapid Development of Convection over NE IA between 2000 and 2100 UTC 9 July 2009 6 hr NearCast for 2100 UTC Low to Mid Layer Theta-E Differences 6 hr NearCast for 2100 UTC Low Layer Theta-E

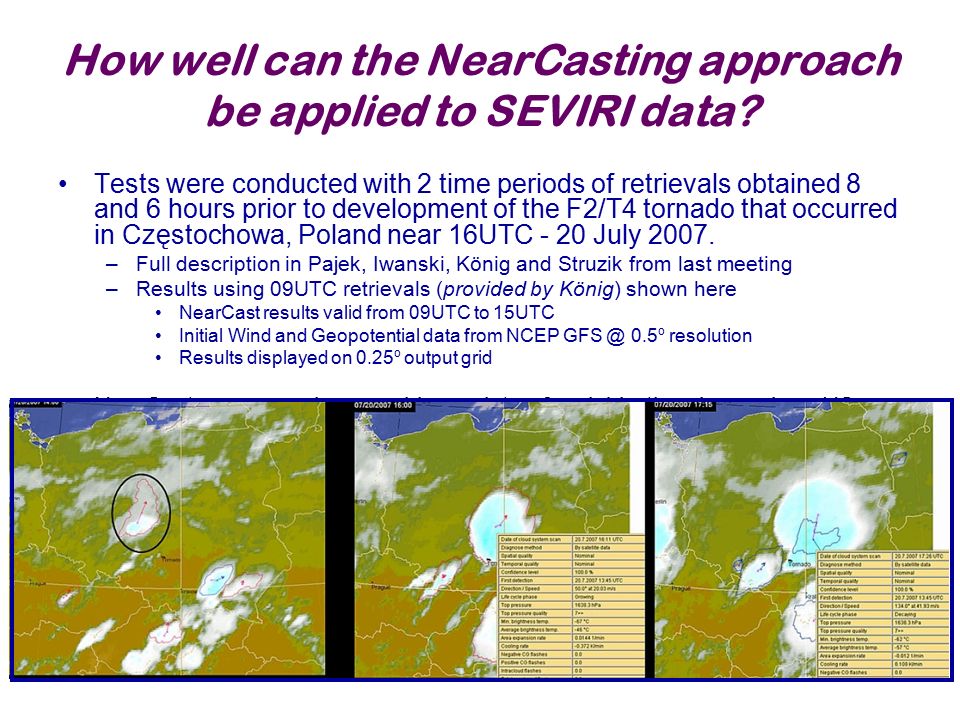

11. How well can the NearCasting approach be applied to SEVIRI data? Tests were conducted with 2 time periods of retrievals obtained 8 and 6 hours prior to development of the F2/T4 tornado that occurred in Częstochowa, Poland near 16UTC - 20 July 2007. –Full description in Pajek, Iwanski, König and Struzik from last meeting –Results using 09UTC retrievals (provided by König) shown here NearCast results valid from 09UTC to 15UTC Initial Wind and Geopotential data from NCEP GFS @ 0.5 o resolution Results displayed on 0.25 o output grid NearCasts were made or a wider variety of variable than in previous US tests –Multi-Layer and Total Precipitable Water –Lower- and Mid-tropospheric parameters: Temperature Mixing Ratio Temperature at LCL Equivalent Potential Temperature Several Stability Indices were derived from NearCasts of these primary variables

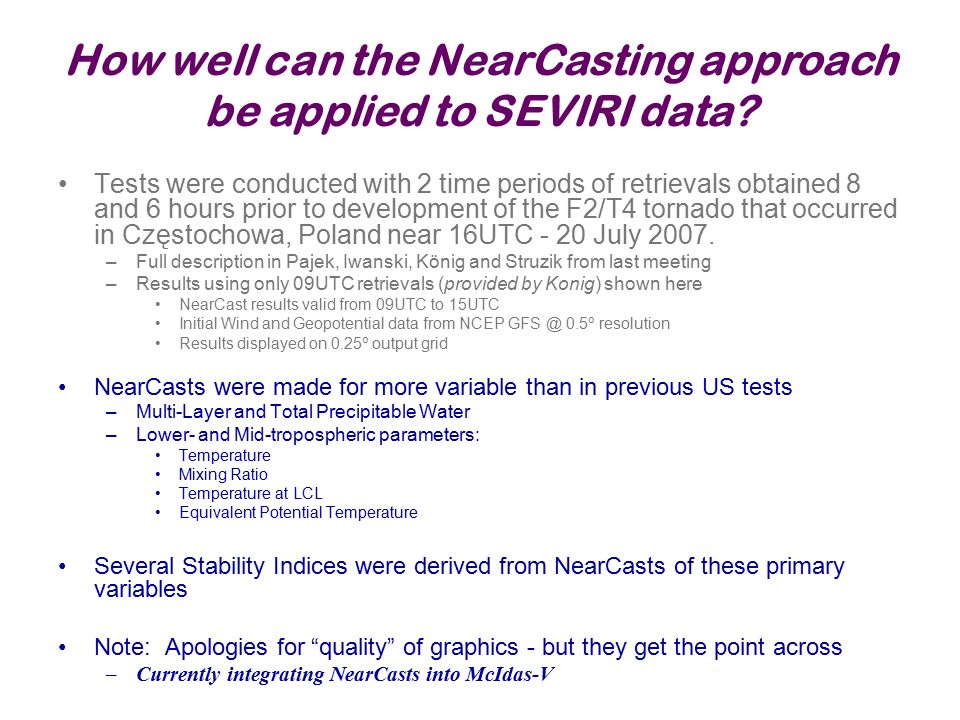

12. Tests were conducted with 2 time periods of retrievals obtained 8 and 6 hours prior to development of the F2/T4 tornado that occurred in Częstochowa, Poland near 16UTC - 20 July 2007. –Full description in Pajek, Iwanski, König and Struzik from last meeting –Results using only 09UTC retrievals (provided by Konig) shown here NearCast results valid from 09UTC to 15UTC Initial Wind and Geopotential data from NCEP GFS @ 0.5 o resolution Results displayed on 0.25 o output grid NearCasts were made for more variable than in previous US tests –Multi-Layer and Total Precipitable Water –Lower- and Mid-tropospheric parameters: Temperature Mixing Ratio Temperature at LCL Equivalent Potential Temperature Several Stability Indices were derived from NearCasts of these primary variables Note: Apologies for “quality” of graphics - but they get the point across –Currently integrating NearCasts into McIdas-V How well can the NearCasting approach be applied to SEVIRI data?

13. 900-700 hPa Precipitable Water – 09Z – F00:Valid 09Z Slide Orientation NearCast Length and Valid Time indicated by F00:Valid 09Z Display area: Centered on Poland 11 o to 27 o E and 47 o to 60 o N Location of F2/T4 Tornado indicated by Cross

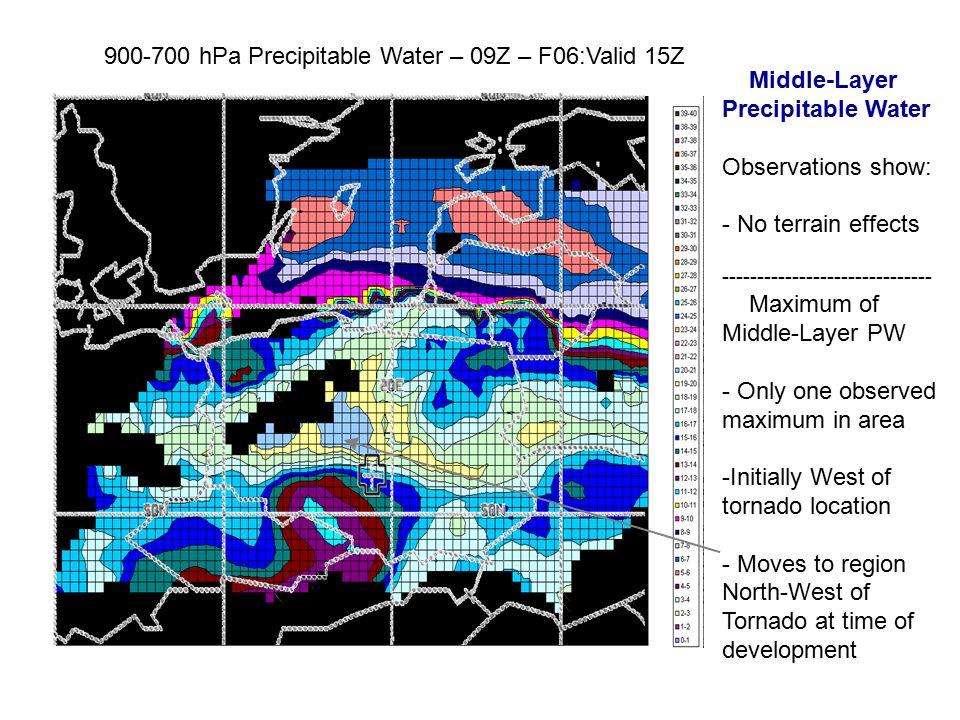

14. 900-700 hPa Precipitable Water – 09Z – F06:Valid 15Z Middle-Layer Precipitable Water Observations show: - No terrain effects ------------------------------ Maximum of Middle-Layer PW - Only one observed maximum in area -Initially West of tornado location - Moves to region North-West of Tornado at time of development

15. Lower-Tropospheric Temperature Observations show: - Temperature front North of area of tornado formation - Highest Temperatures were well south of tornado ----------------------------- Temperature – 840 hPa – 09Z – F00:Valid 09Z

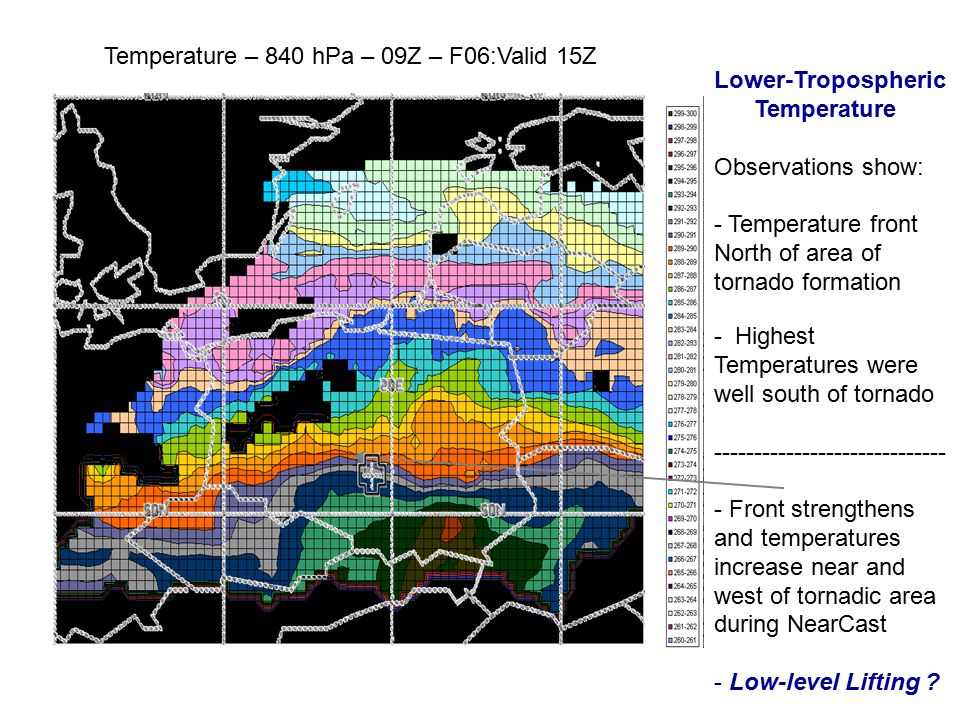

16. Temperature – 840 hPa – 09Z – F06:Valid 15Z Lower-Tropospheric Temperature Observations show: - Temperature front North of area of tornado formation - Highest Temperatures were well south of tornado ----------------------------- - Front strengthens and temperatures increase near and west of tornadic area during NearCast - Low-level Lifting ?

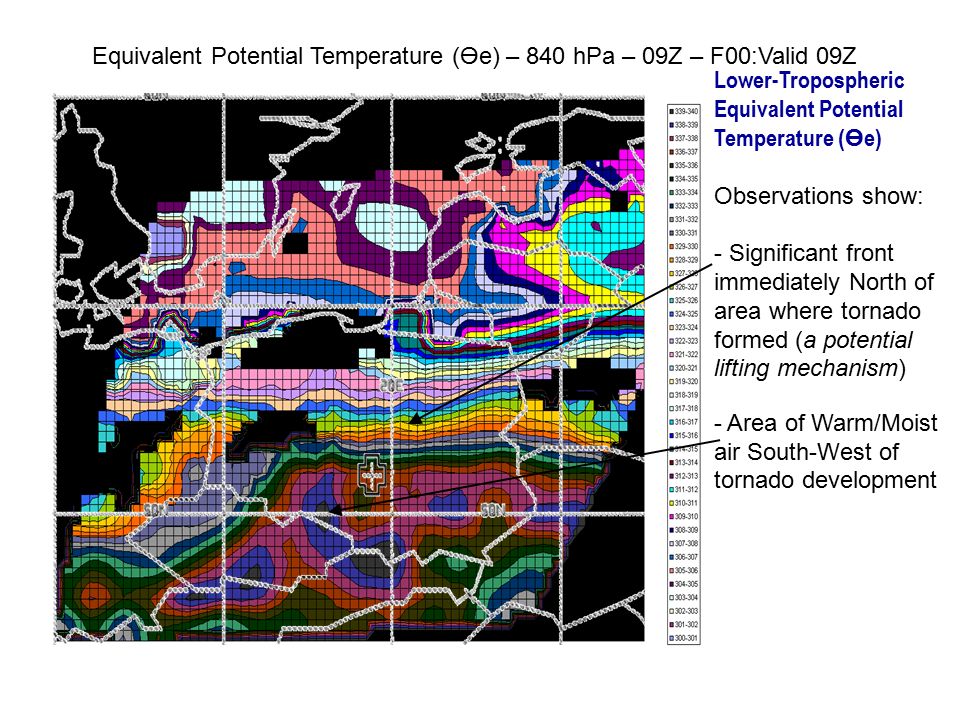

17. Equivalent Potential Temperature (Өe) – 840 hPa – 09Z – F00:Valid 09Z Lower-Tropospheric Equivalent Potential Temperature ( Ө e) Observations show: - Significant front immediately North of area where tornado formed (a potential lifting mechanism) - Area of Warm/Moist air South-West of tornado development

18. Equivalent Potential Temperature (Өe) – 840 hPa – 09Z – F06:Valid 15Z Lower-Tropospheric Equivalent Potential Temperature ( Ө e) Observations show: - Significant front immediately North of area where tornado formed (a potential lifting mechanism) - Area of Warm/Moist air South-West of tornado development -Warm/Moist air moved to area where severe convection was forming rapidly by 15UTC

19. Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change Vertical Equiv. Pot. Temp. Difference (∂ Ө e/∂p) – 840-480 hPa – 09Z – F00:Valid 09Z Convective Instability

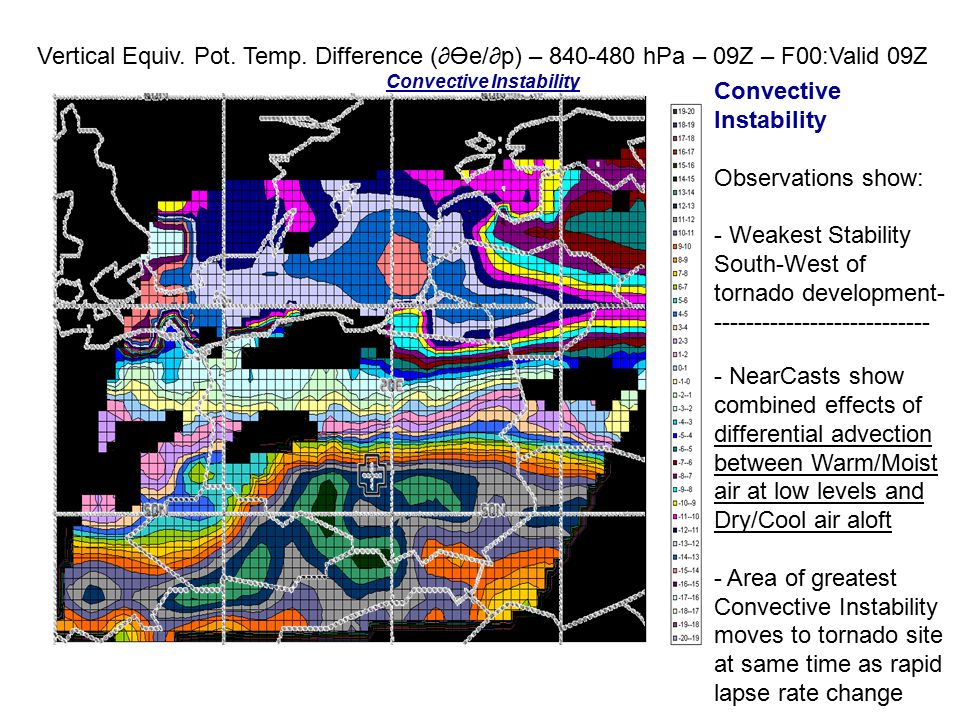

20. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F00:Valid 09Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

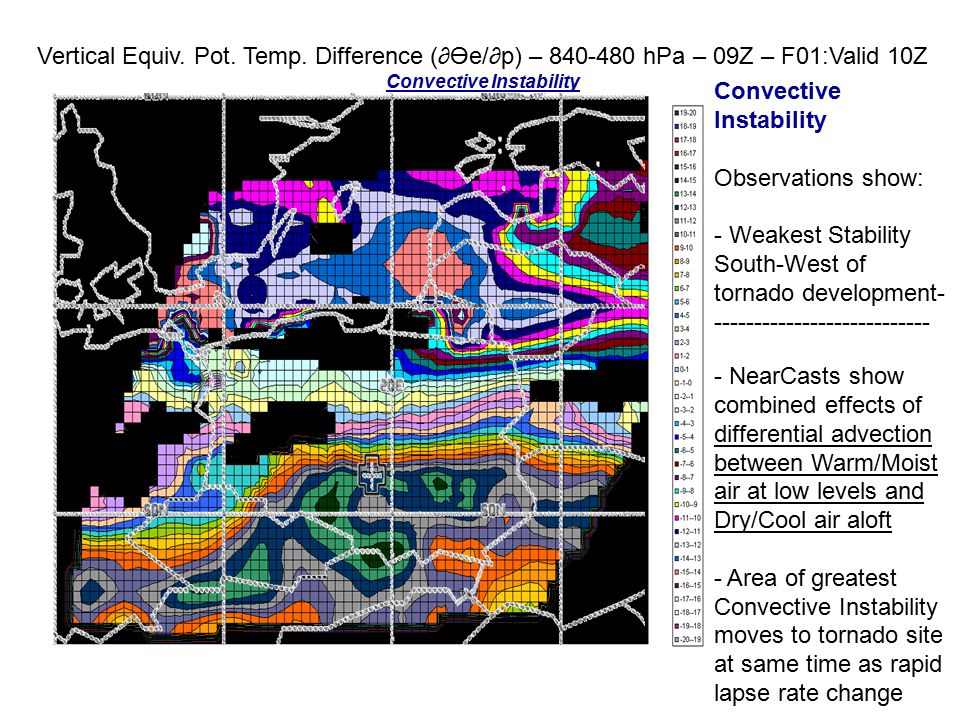

21. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F01:Valid 10Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

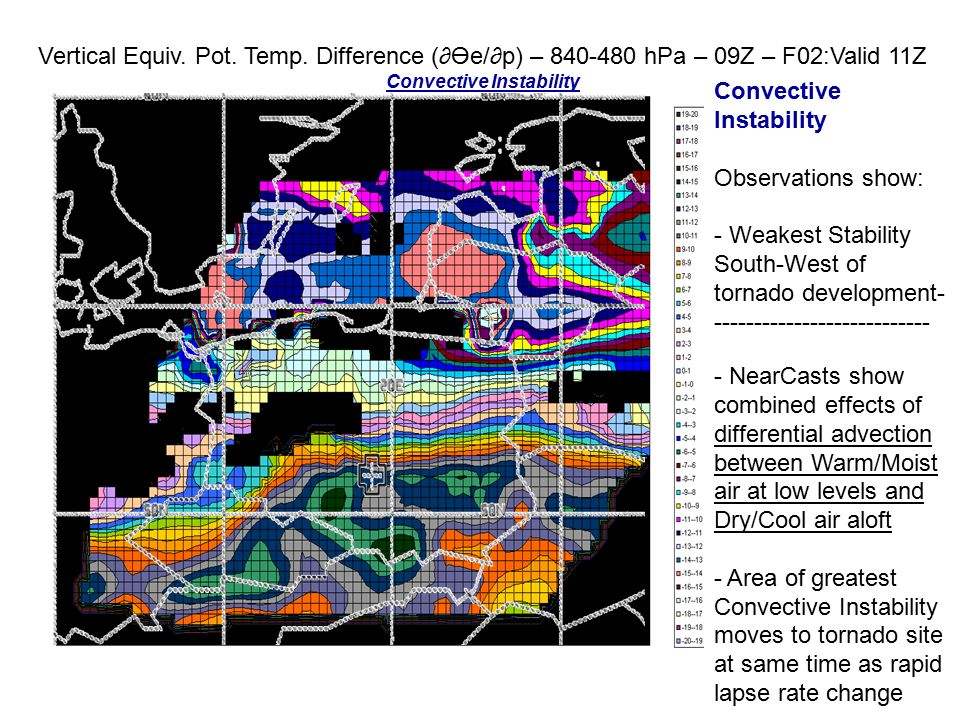

22. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F02:Valid 11Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

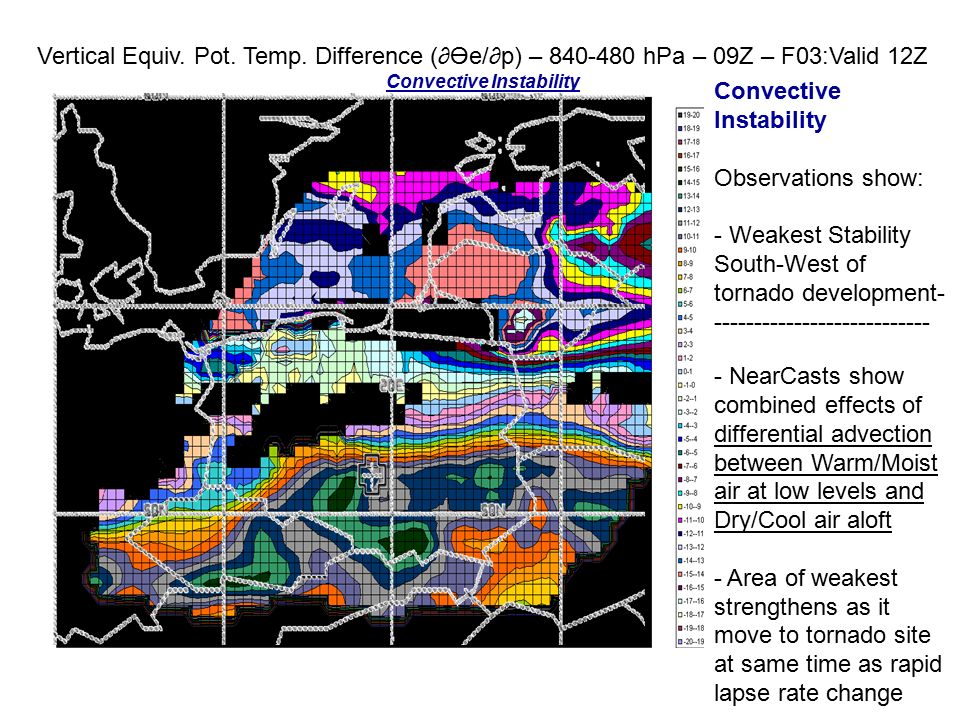

23. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F03:Valid 12Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of weakest strengthens as it move to tornado site at same time as rapid lapse rate change

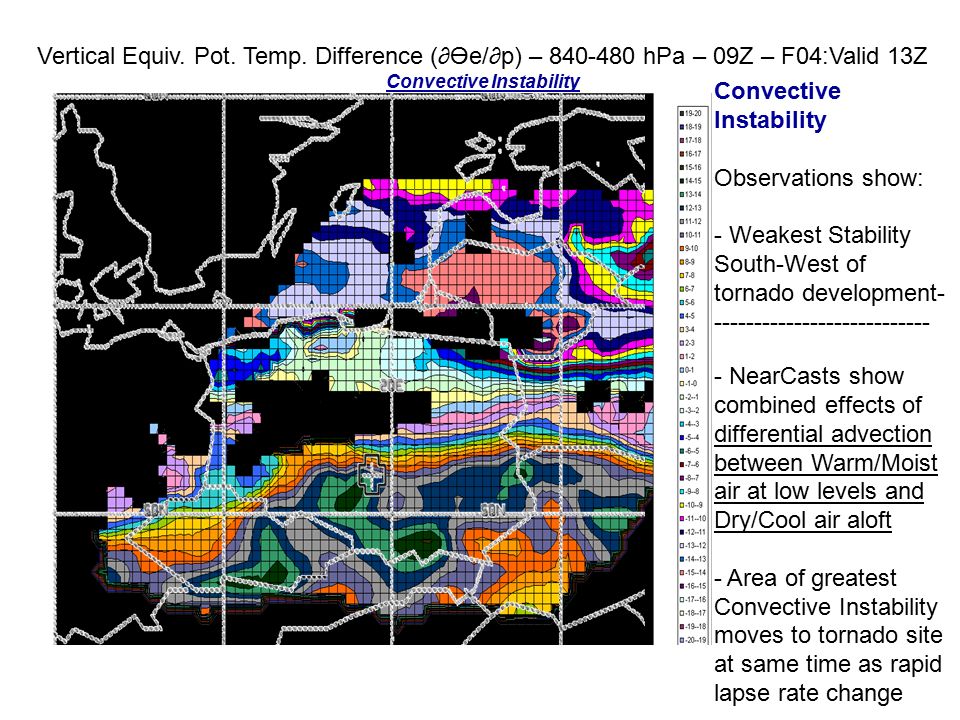

24. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F04:Valid 13Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

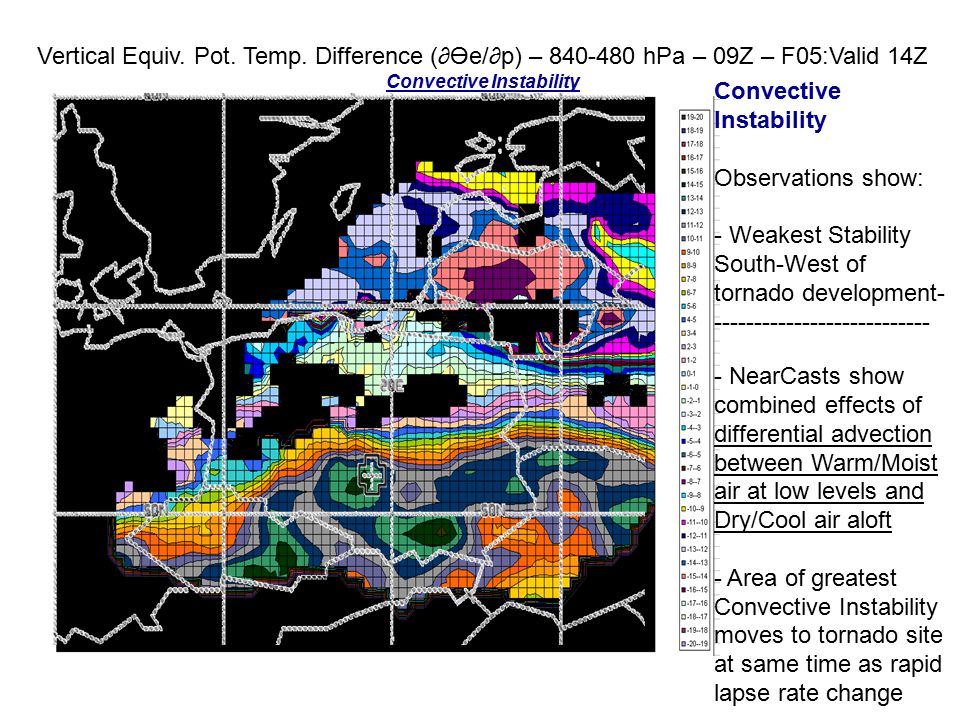

25. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F05:Valid 14Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

26. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F06:Valid 15Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

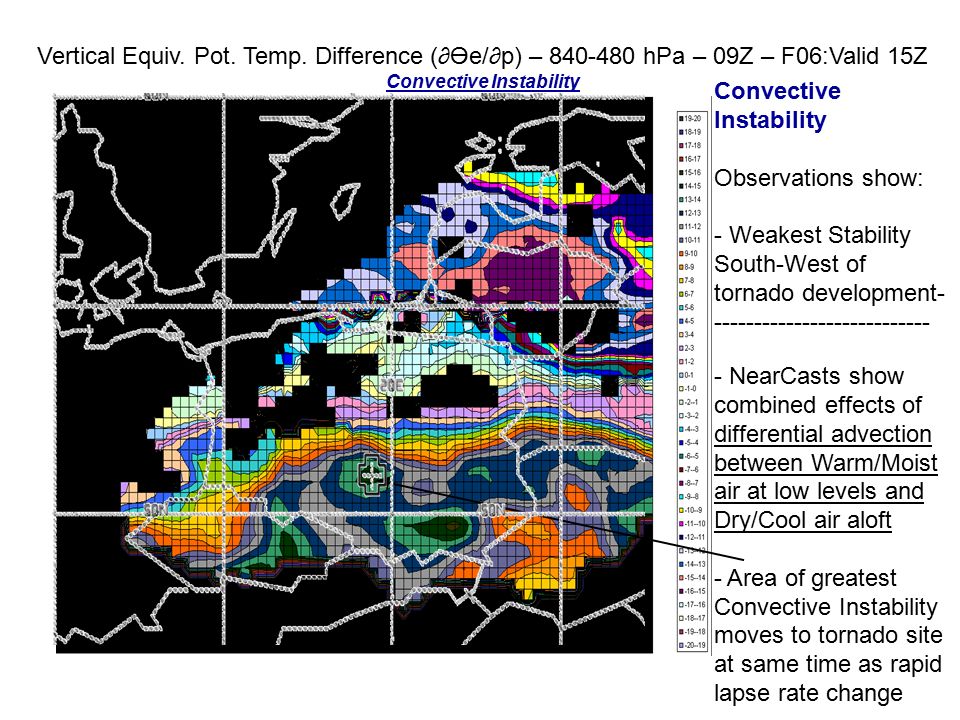

27. Vertical Equiv. Pot. Temp. Difference (∂Өe/∂p) – 840-480 hPa – 09Z – F06:Valid 15Z Convective Instability Observations show: - Weakest Stability South-West of tornado development- --------------------------- - NearCasts show combined effects of differential advection between Warm/Moist air at low levels and Dry/Cool air aloft - Area of greatest Convective Instability moves to tornado site at same time as rapid lapse rate change

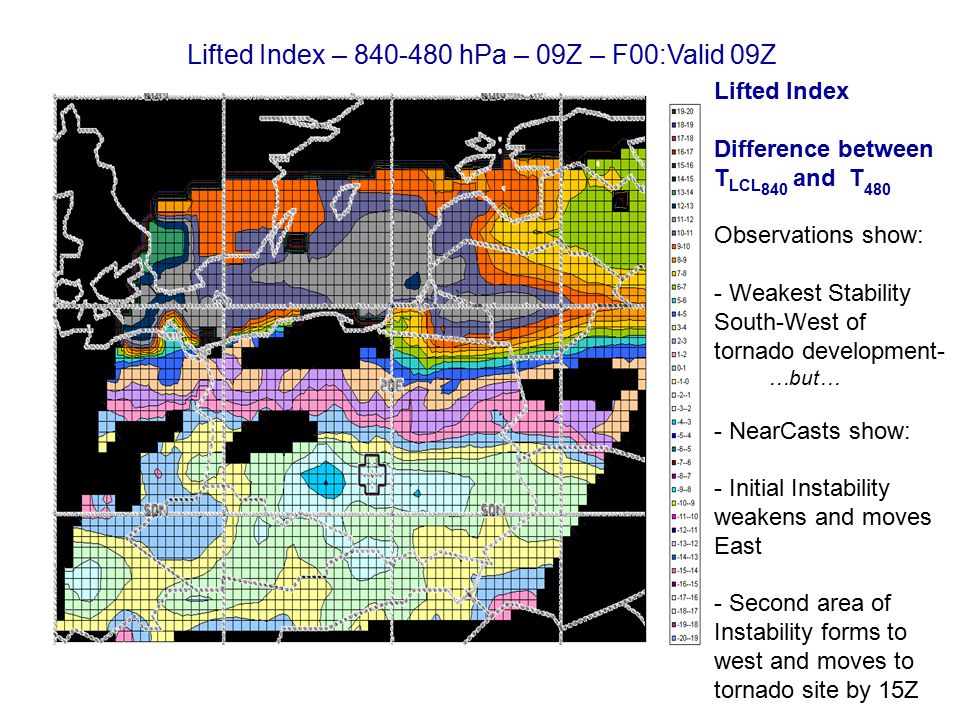

28. Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z Lifted Index – 840-480 hPa – 09Z – F00:Valid 09Z

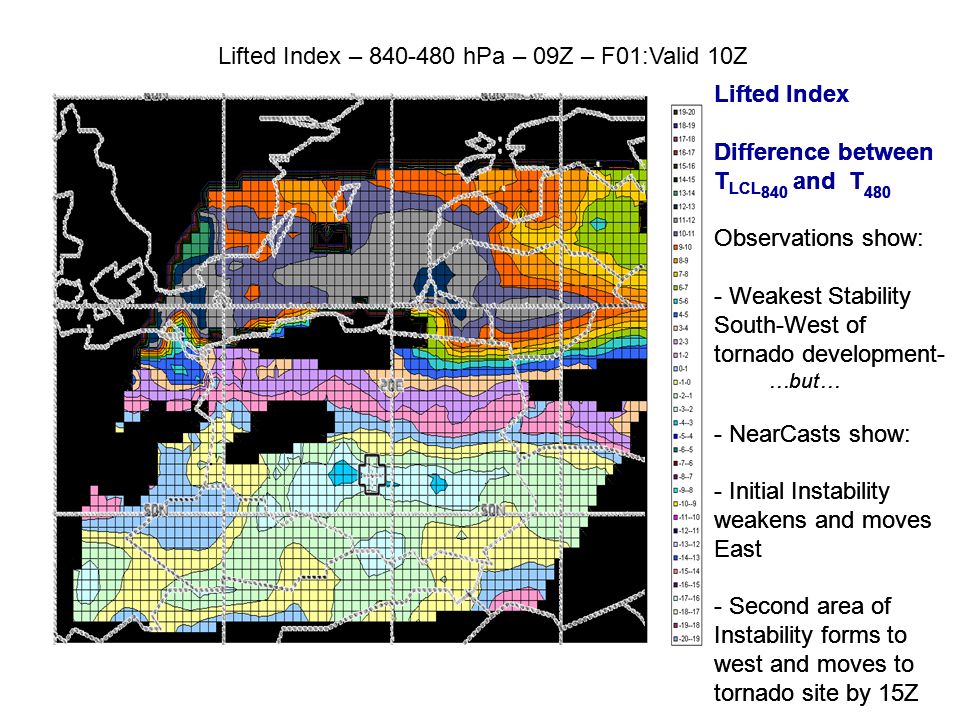

29. Lifted Index – 840-480 hPa – 09Z – F01:Valid 10Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

30. Lifted Index – 840-480 hPa – 09Z – F02:Valid 11Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

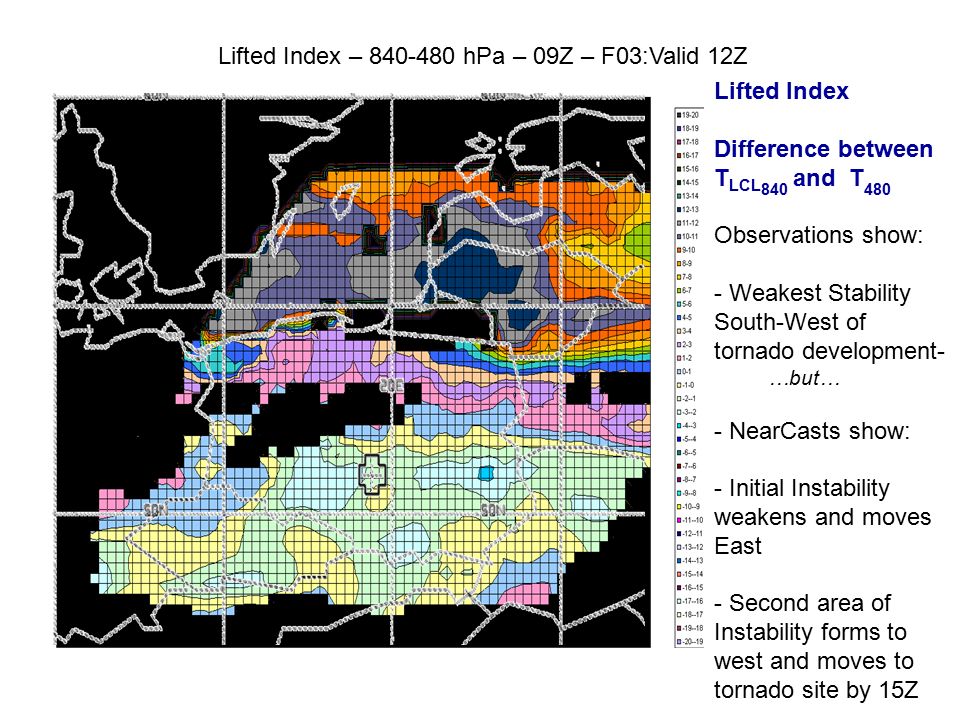

31. Lifted Index – 840-480 hPa – 09Z – F03:Valid 12Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

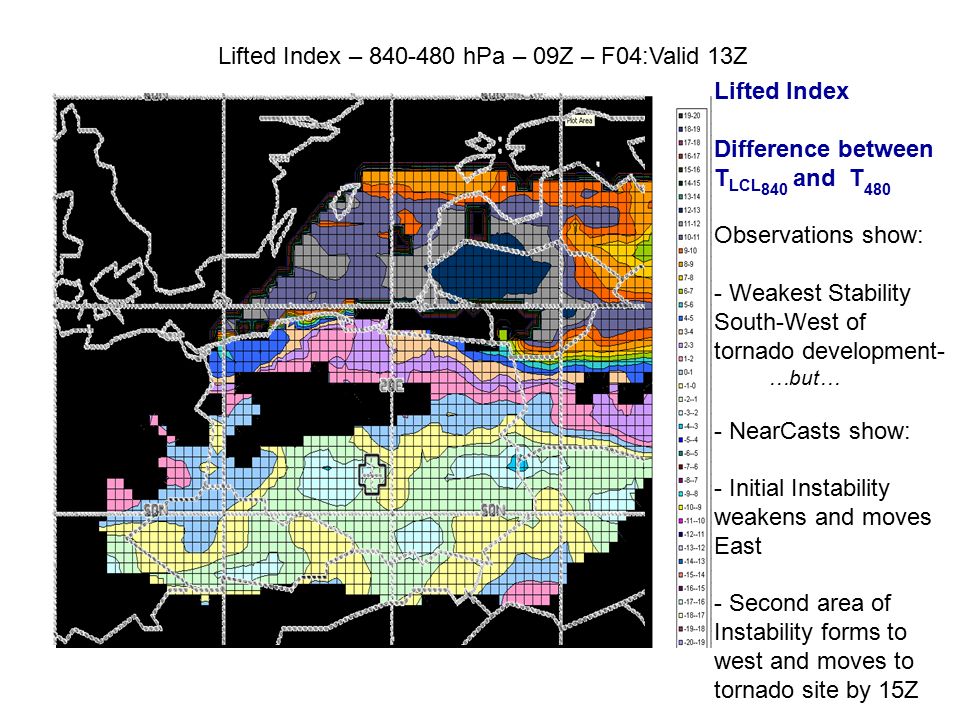

32. Lifted Index – 840-480 hPa – 09Z – F04:Valid 13Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

33. Lifted Index – 840-480 hPa – 09Z – F05:Valid 14Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

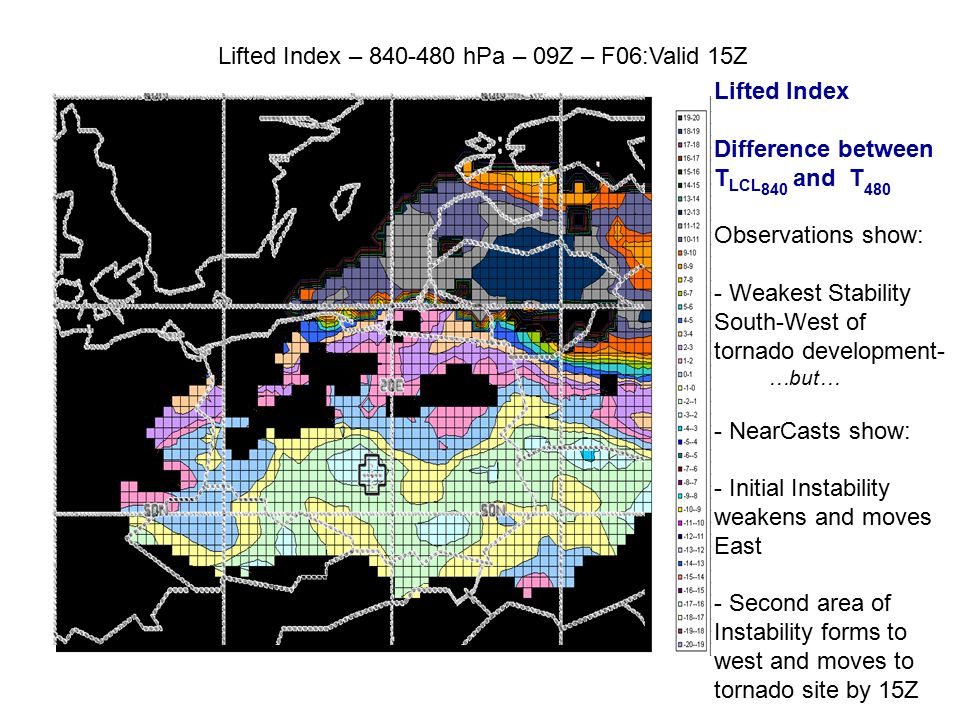

34. Lifted Index – 840-480 hPa – 09Z – F06:Valid 15Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

35. Lifted Index – 840-480 hPa – 09Z – F06:Valid 15Z Lifted Index Difference between T LCL 840 and T 480 Observations show: - Weakest Stability South-West of tornado development- …but… - NearCasts show: - Initial Instability weakens and moves East - Second area of Instability forms to west and moves to tornado site by 15Z

36. Summary Additional tests show utility of GOES DPI NearCasts in detecting the pre-convective environment for hazardous weather in many US cases Effect for detecting isolated convection and reducing warning area sizes Important for predicting various type of Hazardous Convection Useful in adding detail to Heavy Precipitation Forecasts GOES Temperature Soundings provide additional information beyond TPW in defining Convective Potential when using Ө e Tests using SEVIRI retrieval positive Useful in diagnosing the pre-convective environment evolution Applicable to many forecasting Indices FUTURE Beta-test version available for distribution by mid-October Major US testing at SPC/NSSL in 2010 Plans for improved graphics using McIDAS-V Ensembles, Consistency,...
